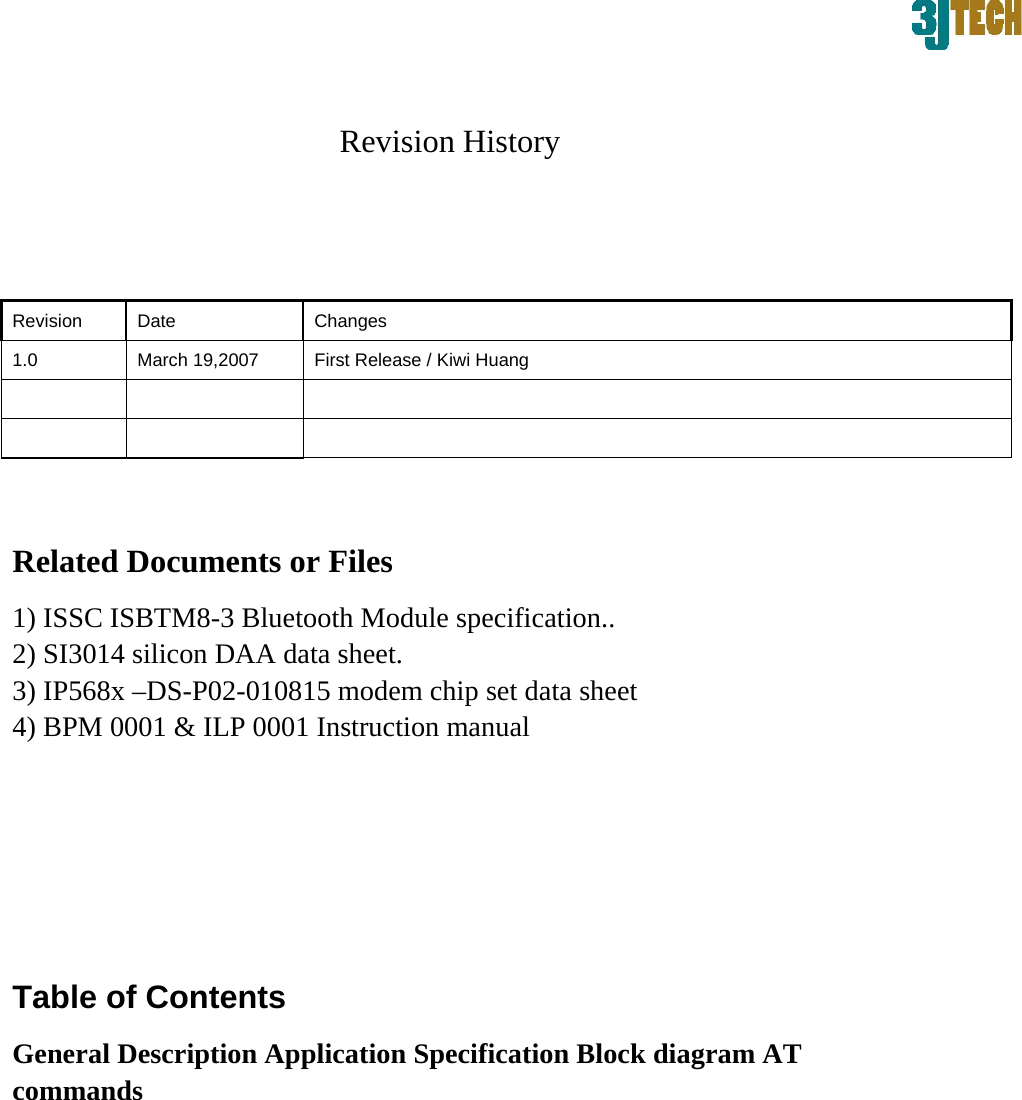

Revision History Revision Date Changes 1.0 March 19,2007 First Release / Kiwi Huang Related Documents or Files 1) ISSC ISBTM8-3 Bluetooth Module specification.. 2) SI3014 silicon DAA data sheet. 3) IP568x –DS-P02-010815 modem chip set data sheet 4) BPM 0001 & ILP 0001 Instruction manual Table of Contents General Description Application Specification Block diagram AT commands

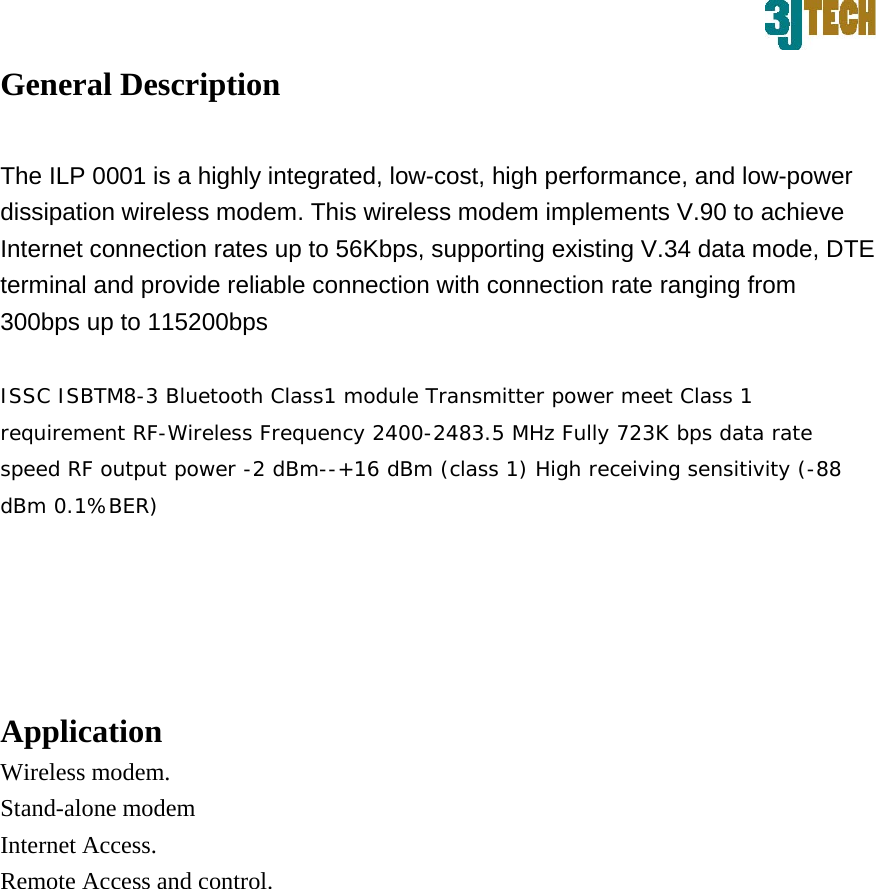

General Description The ILP 0001 is a highly integrated, low-cost, high performance, and low-power dissipation wireless modem. This wireless modem implements V.90 to achieve Internet connection rates up to 56Kbps, supporting existing V.34 data mode, DTE terminal and provide reliable connection with connection rate ranging from 300bps up to 115200bps ISSC ISBTM8-3 Bluetooth Class1 module Transmitter power meet Class 1 requirement RF-Wireless Frequency 2400-2483.5 MHz Fully 723K bps data rate speed RF output power -2 dBm--+16 dBm (class 1) High receiving sensitivity (-88 dBm 0.1%BER) Application Wireless modem. Stand-alone modem Internet Access. Remote Access and control.

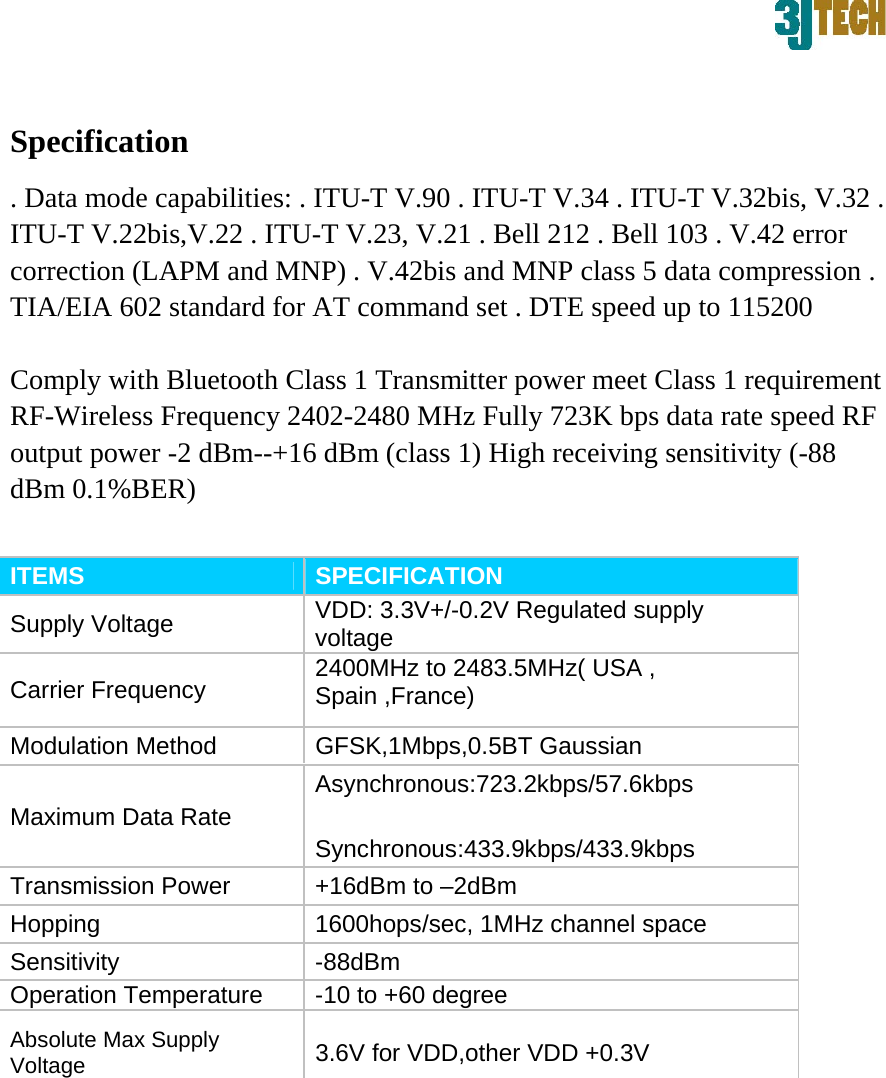

Specification . Data mode capabilities: . ITU-T V.90 . ITU-T V.34 . ITU-T V.32bis, V.32 . ITU-T V.22bis,V.22 . ITU-T V.23, V.21 . Bell 212 . Bell 103 . V.42 error correction (LAPM and MNP) . V.42bis and MNP class 5 data compression . TIA/EIA 602 standard for AT command set . DTE speed up to 115200 Comply with Bluetooth Class 1 Transmitter power meet Class 1 requirement RF-Wireless Frequency 2402-2480 MHz Fully 723K bps data rate speed RF output power -2 dBm--+16 dBm (class 1) High receiving sensitivity (-88 dBm 0.1%BER) ITEMS SPECIFICATION Supply Voltage VDD: 3.3V+/-0.2V Regulated supply voltage Carrier Frequency 2400MHz to 2483.5MHz( USA , Spain ,France) Modulation Method GFSK,1Mbps,0.5BT Gaussian Asynchronous:723.2kbps/57.6kbps Maximum Data Rate Synchronous:433.9kbps/433.9kbps Transmission Power +16dBm to –2dBm Hopping 1600hops/sec, 1MHz channel space Sensitivity -88dBm Operation Temperature -10 to +60 degree Absolute Max Supply Voltage 3.6V for VDD,other VDD +0.3V

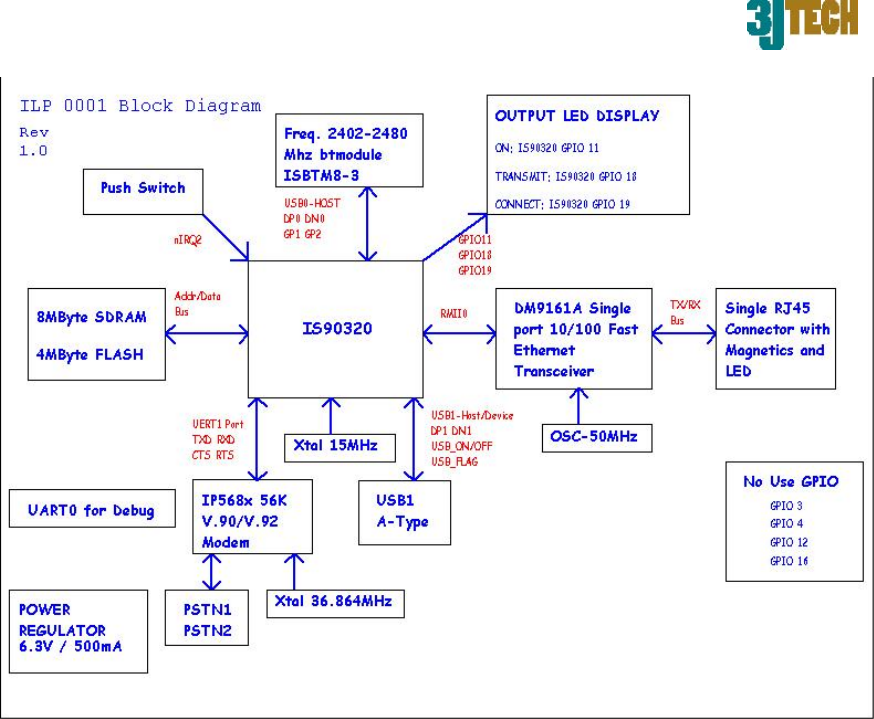

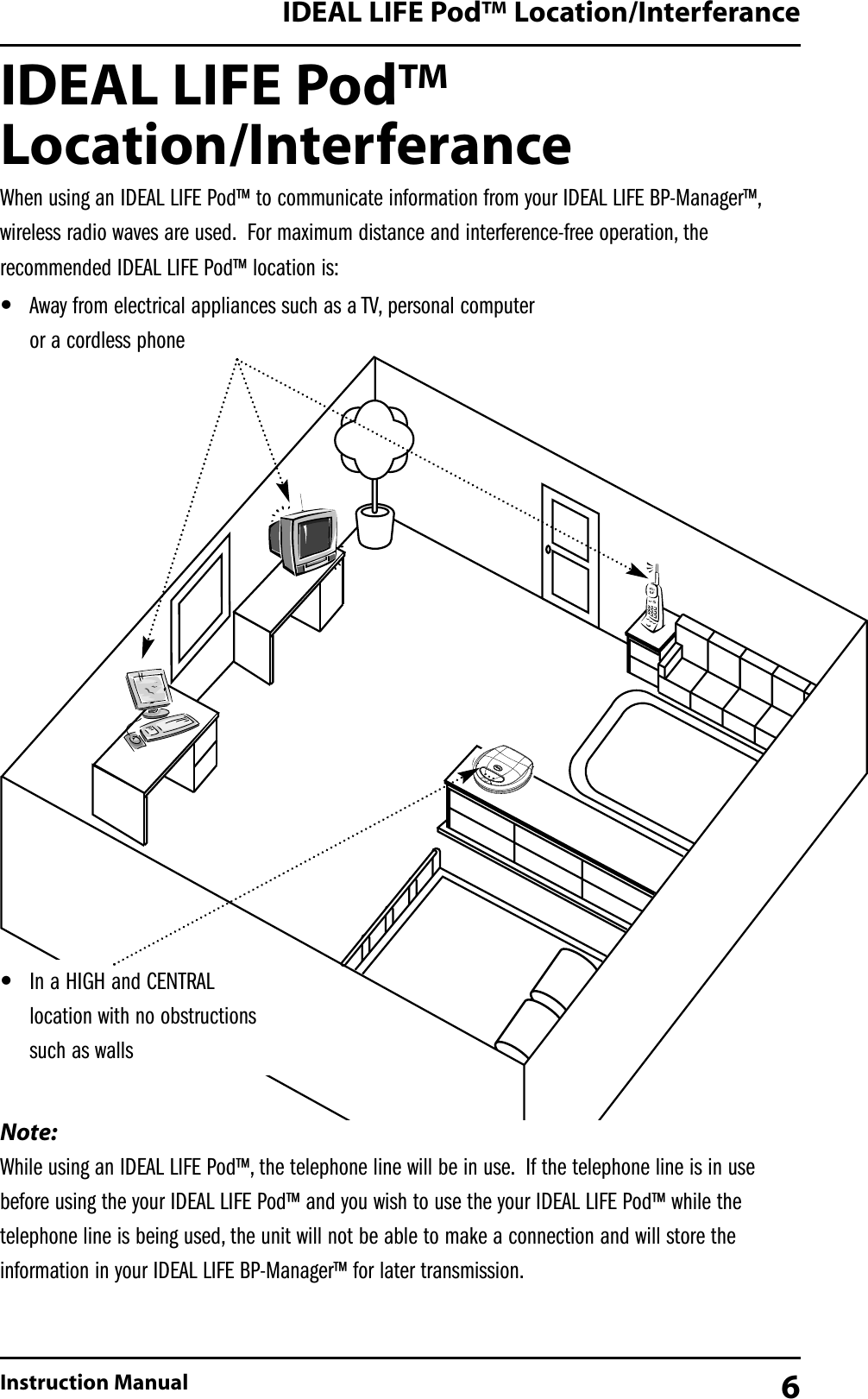

IDEAL LIFE Pod™Location/InterferanceWhen using an IDEAL LIFE Pod™ to communicate information from your IDEAL LIFE BP-Manager™,wireless radio waves are used. For maximum distance and interference-free operation, therecommended IDEAL LIFE Pod™ location is:Note:While using an IDEAL LIFE Pod™, the telephone line will be in use. If the telephone line is in usebefore using the your IDEAL LIFE Pod™ and you wish to use the your IDEAL LIFE Pod™ while thetelephone line is being used, the unit will not be able to make a connection and will store theinformation in your IDEAL LIFE BP-Manager™ for later transmission.IDEAL LIFE Pod™ Location/InterferanceInstruction Manual 6•In a HIGH and CENTRALlocation with no obstructionssuch as walls•Away from electrical appliances such as a TV, personal computeror a cordless phone

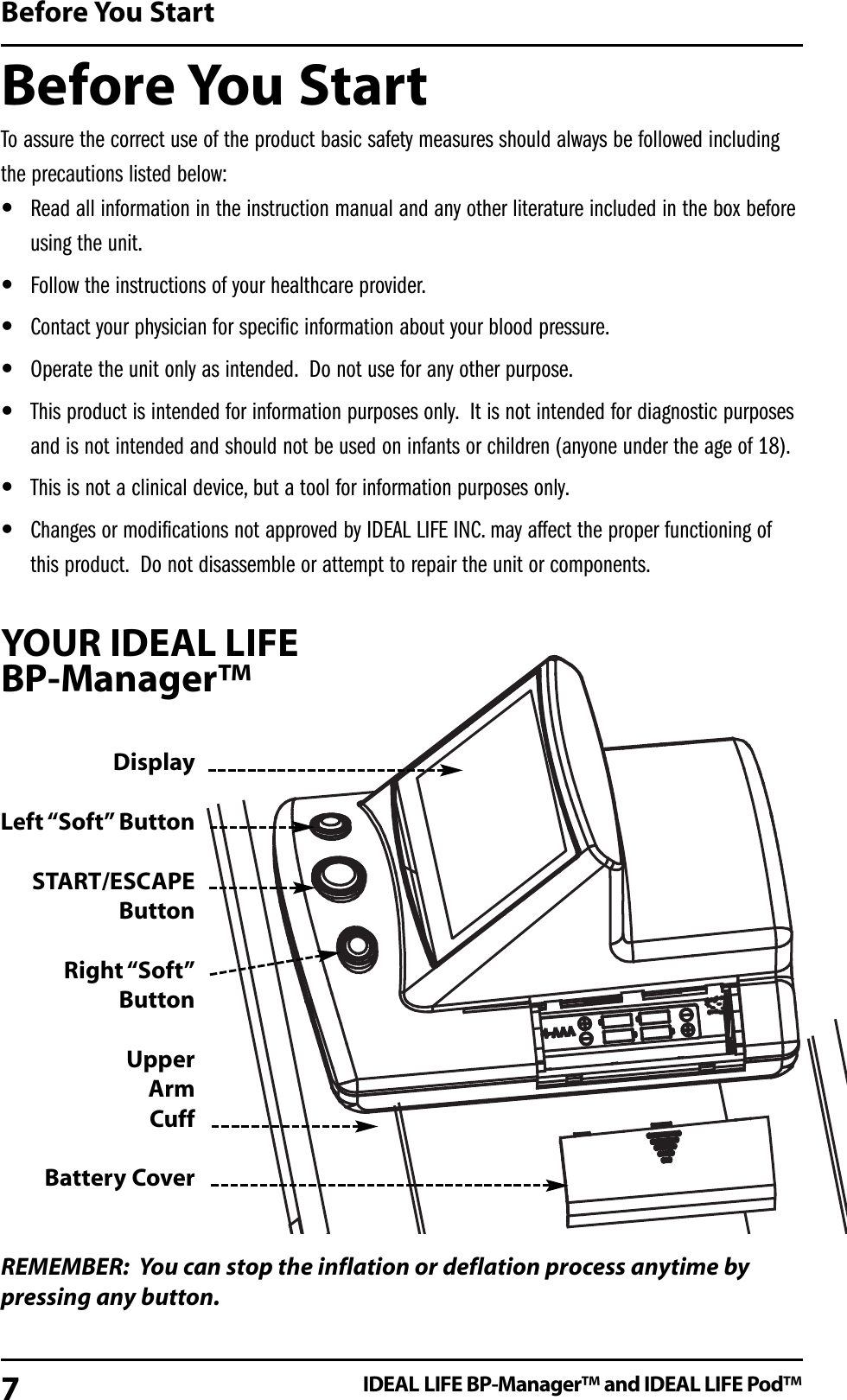

Before You StartTo assure the correct use of the product basic safety measures should always be followed includingthe precautions listed below:•Read all information in the instruction manual and any other literature included in the box beforeusing the unit.•Follow the instructions of your healthcare provider.•Contact your physician for specific information about your blood pressure.•Operate the unit only as intended. Do not use for any other purpose.•This product is intended for information purposes only. It is not intended for diagnostic purposesand is not intended and should not be used on infants or children (anyone under the age of 18).•This is not a clinical device, but a tool for information purposes only.•Changes or modifications not approved by IDEAL LIFE INC. may affect the proper functioning ofthis product. Do not disassemble or attempt to repair the unit or components.YOUR IDEAL LIFE BP-Manager™REMEMBER: You can stop the inflation or deflation process anytime bypressing any button.Before You StartIDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™7DisplayLeft “Soft” ButtonSTART/ESCAPE ButtonRight “Soft”ButtonUpperArm CuffBattery Cover

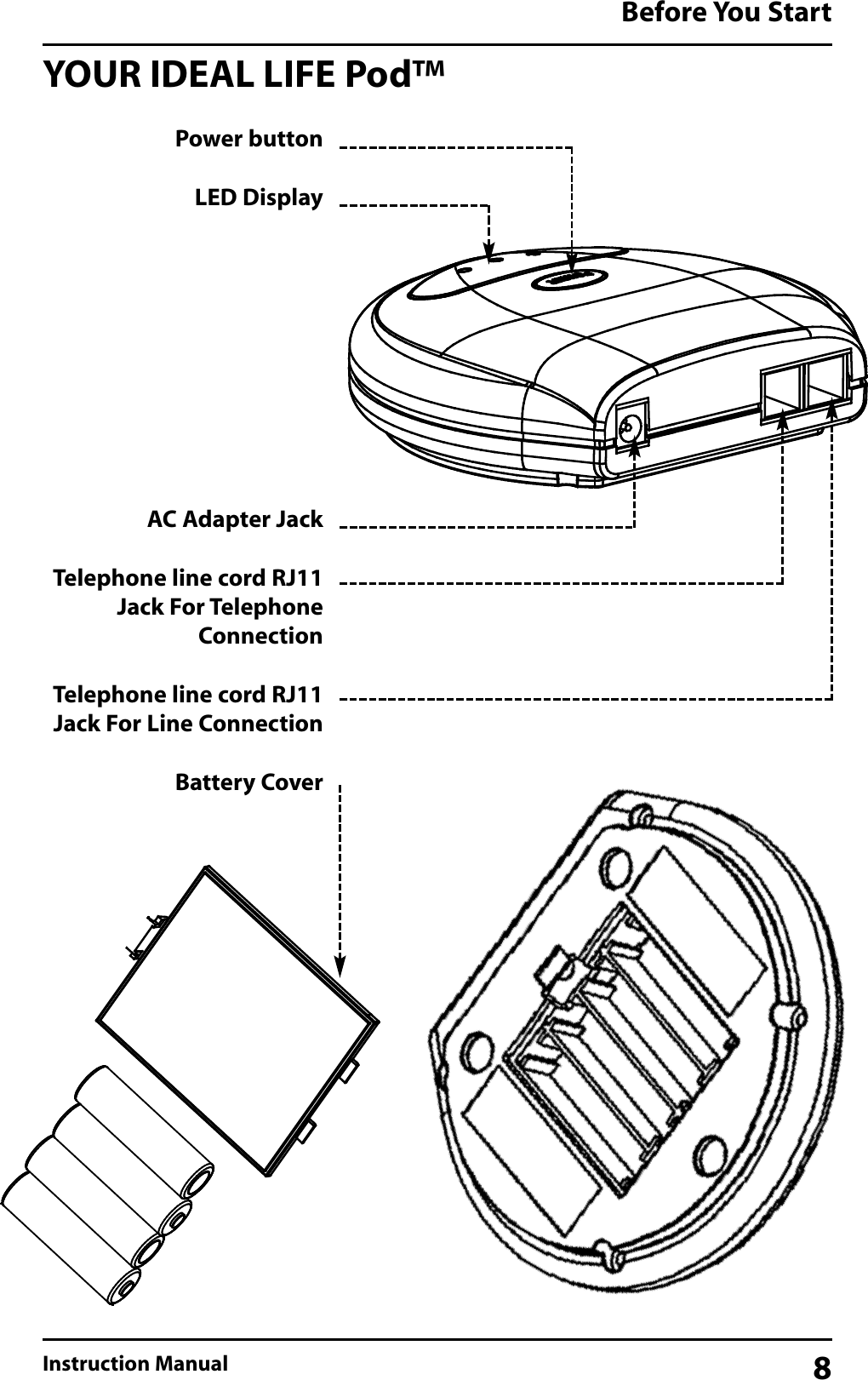

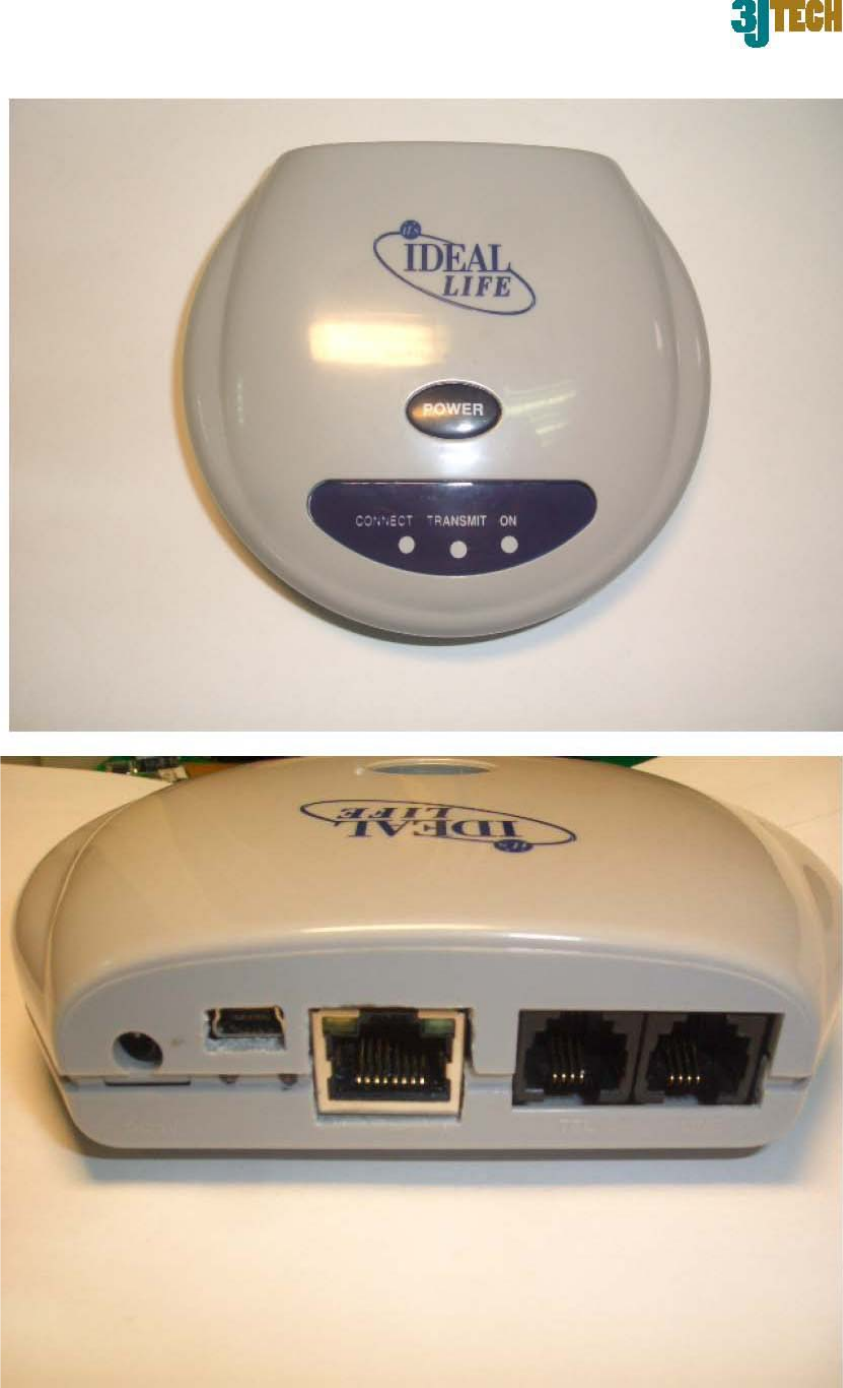

YOUR IDEAL LIFE Pod™Before You StartInstruction Manual 8Power buttonLED DisplayAC Adapter JackTelephone line cord RJ11Jack For TelephoneConnectionTelephone line cord RJ11Jack For Line ConnectionBattery Cover

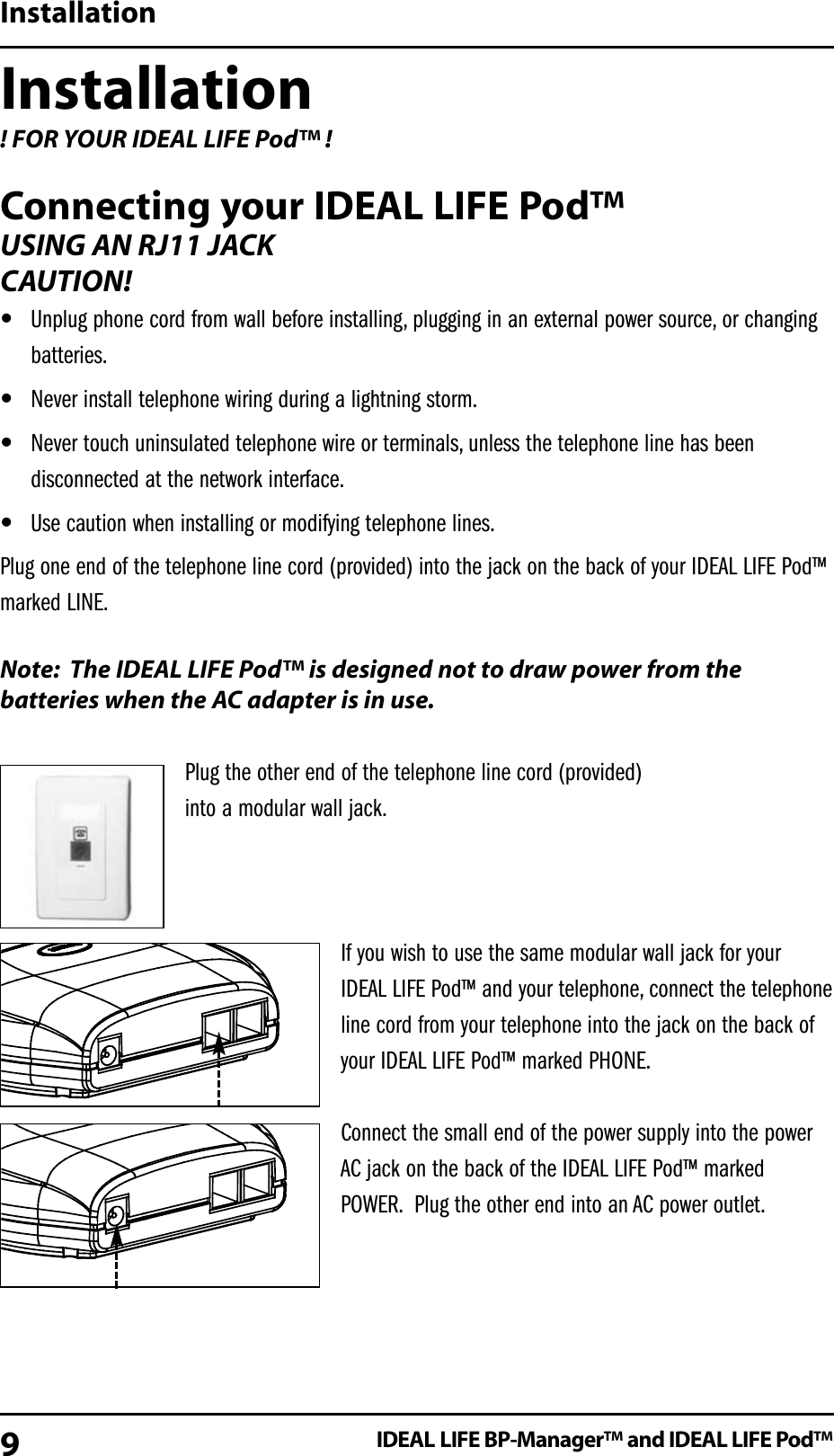

Installation ! FOR YOUR IDEAL LIFE Pod™ ! Connecting your IDEAL LIFE Pod™USING AN RJ11 JACKCAUTION! •Unplug phone cord from wall before installing, plugging in an external power source, or changingbatteries.•Never install telephone wiring during a lightning storm.•Never touch uninsulated telephone wire or terminals, unless the telephone line has beendisconnected at the network interface.•Use caution when installing or modifying telephone lines.Plug one end of the telephone line cord (provided) into the jack on the back of your IDEAL LIFE Pod™marked LINE.Note: The IDEAL LIFE Pod™ is designed not to draw power from thebatteries when the AC adapter is in use.Plug the other end of the telephone line cord (provided) into a modular wall jack.If you wish to use the same modular wall jack for yourIDEAL LIFE Pod™ and your telephone, connect the telephoneline cord from your telephone into the jack on the back ofyour IDEAL LIFE Pod™ marked PHONE.Connect the small end of the power supply into the powerAC jack on the back of the IDEAL LIFE Pod™ markedPOWER. Plug the other end into an AC power outlet.InstallationIDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™9

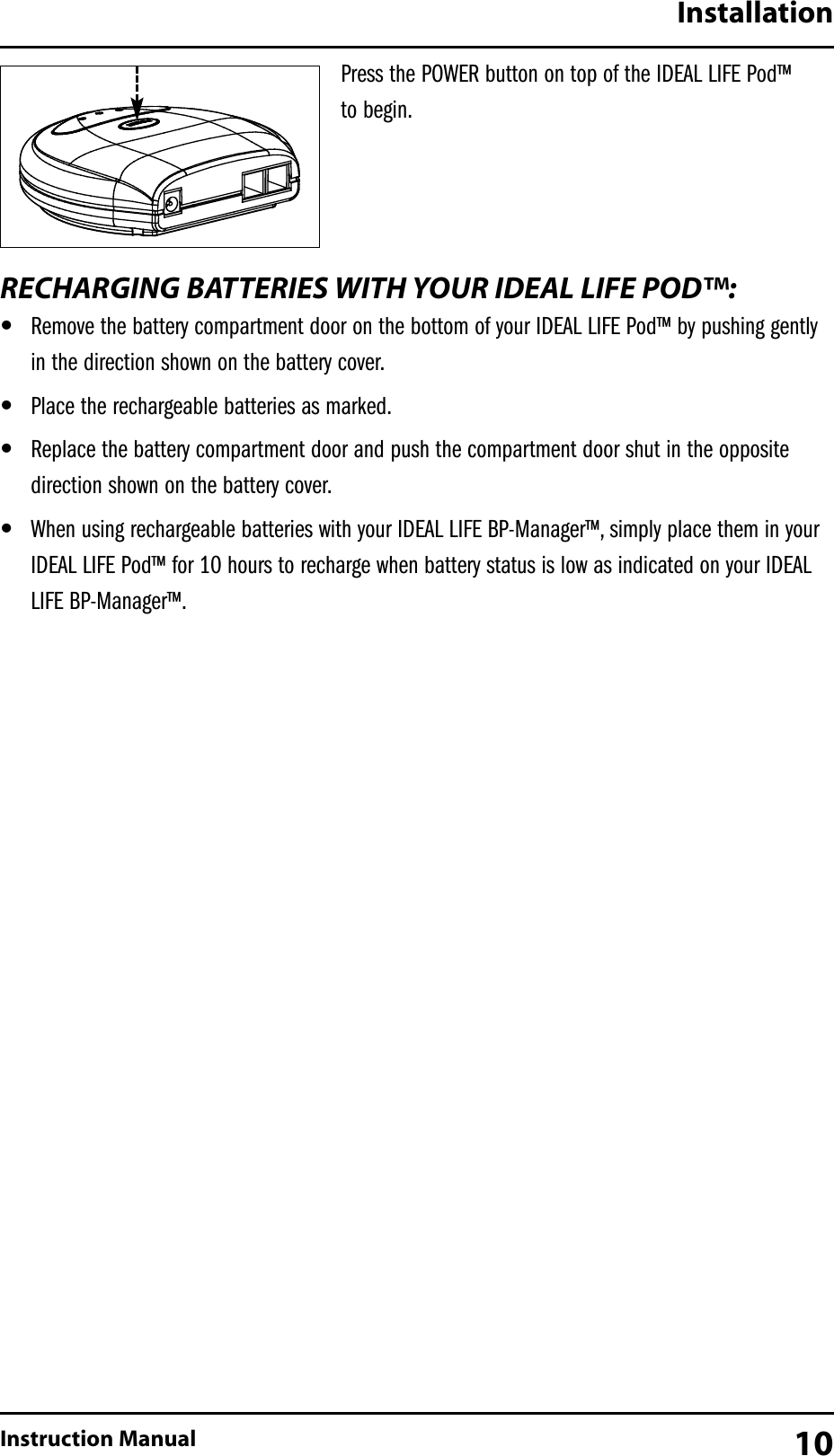

Press the POWER button on top of the IDEAL LIFE Pod™ to begin.RECHARGING BATTERIES WITH YOUR IDEAL LIFE POD™:•Remove the battery compartment door on the bottom of your IDEAL LIFE Pod™ by pushing gentlyin the direction shown on the battery cover.•Place the rechargeable batteries as marked.•Replace the battery compartment door and push the compartment door shut in the oppositedirection shown on the battery cover.•When using rechargeable batteries with your IDEAL LIFE BP-Manager™, simply place them in yourIDEAL LIFE Pod™ for 10 hours to recharge when battery status is low as indicated on your IDEALLIFE BP-Manager™.InstallationInstruction Manual 10

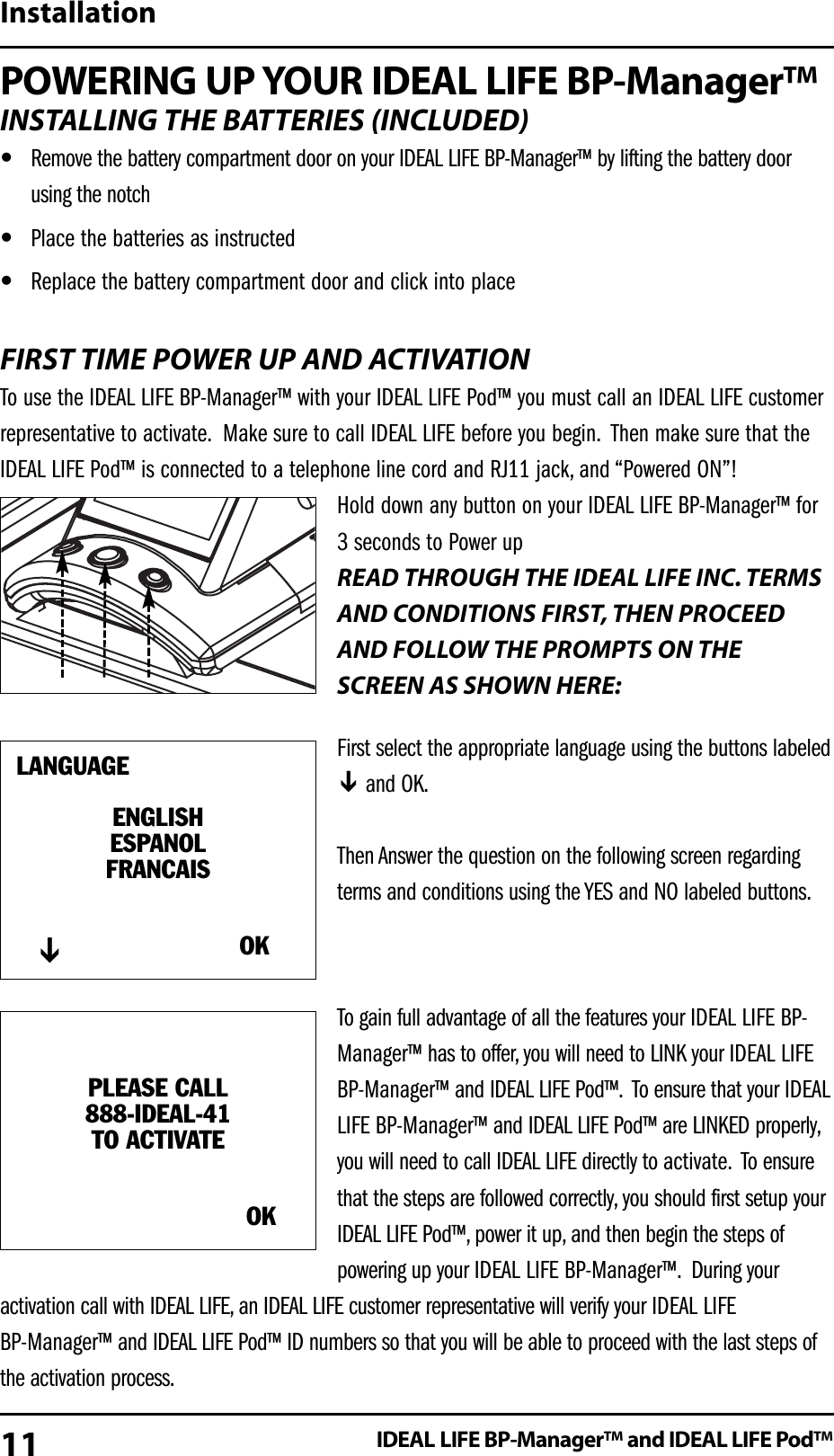

POWERING UP YOUR IDEAL LIFE BP-Manager™INSTALLING THE BATTERIES (INCLUDED)•Remove the battery compartment door on your IDEAL LIFE BP-Manager™ by lifting the battery doorusing the notch •Place the batteries as instructed •Replace the battery compartment door and click into placeFIRST TIME POWER UP AND ACTIVATIONTo use the IDEAL LIFE BP-Manager™ with your IDEAL LIFE Pod™ you must call an IDEAL LIFE customerrepresentative to activate. Make sure to call IDEAL LIFE before you begin. Then make sure that theIDEAL LIFE Pod™ is connected to a telephone line cord and RJ11 jack, and “Powered ON”!Hold down any button on your IDEAL LIFE BP-Manager™ for3 seconds to Power upREAD THROUGH THE IDEAL LIFE INC. TERMSAND CONDITIONS FIRST, THEN PROCEEDAND FOLLOW THE PROMPTS ON THESCREEN AS SHOWN HERE:First select the appropriate language using the buttons labeledand OK.Then Answer the question on the following screen regardingterms and conditions using the YES and NO labeled buttons.To gain full advantage of all the features your IDEAL LIFE BP-Manager™ has to offer, you will need to LINK your IDEAL LIFEBP-Manager™ and IDEAL LIFE Pod™. To ensure that your IDEALLIFE BP-Manager™ and IDEAL LIFE Pod™ are LINKED properly,you will need to call IDEAL LIFE directly to activate. To ensurethat the steps are followed correctly, you should first setup yourIDEAL LIFE Pod™, power it up, and then begin the steps ofpowering up your IDEAL LIFE BP-Manager™. During youractivation call with IDEAL LIFE, an IDEAL LIFE customer representative will verify your IDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™ ID numbers so that you will be able to proceed with the last steps ofthe activation process.InstallationIDEAL LIFE BP-Manager™ and IDEAL LIFE Pod™LANGUAGEENGLISHESPANOLFRANCAISOK PLEASE CALL888-IDEAL-41TO ACTIVATEOK11

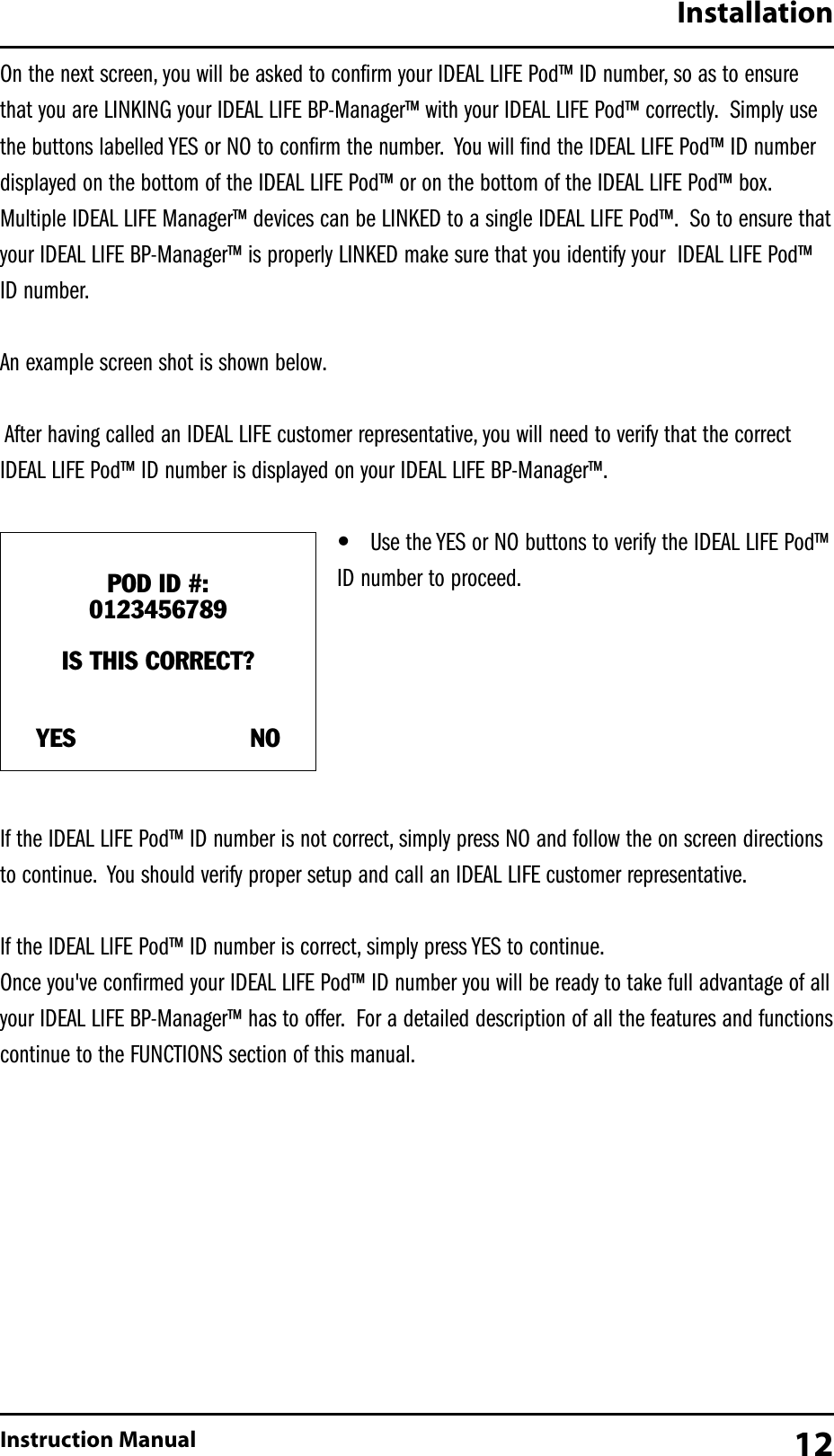

On the next screen, you will be asked to confirm your IDEAL LIFE Pod™ ID number, so as to ensurethat you are LINKING your IDEAL LIFE BP-Manager™ with your IDEAL LIFE Pod™ correctly. Simply usethe buttons labelled YES or NO to confirm the number. You will find the IDEAL LIFE Pod™ ID numberdisplayed on the bottom of the IDEAL LIFE Pod™ or on the bottom of the IDEAL LIFE Pod™ box.Multiple IDEAL LIFE Manager™ devices can be LINKED to a single IDEAL LIFE Pod™. So to ensure thatyour IDEAL LIFE BP-Manager™ is properly LINKED make sure that you identify your IDEAL LIFE Pod™ID number.An example screen shot is shown below.After having called an IDEAL LIFE customer representative, you will need to verify that the correctIDEAL LIFE Pod™ ID number is displayed on your IDEAL LIFE BP-Manager™.•Use the YES or NO buttons to verify the IDEAL LIFE Pod™ID number to proceed.If the IDEAL LIFE Pod™ ID number is not correct, simply press NO and follow the on screen directionsto continue. You should verify proper setup and call an IDEAL LIFE customer representative.If the IDEAL LIFE Pod™ ID number is correct, simply press YES to continue.Once you've confirmed your IDEAL LIFE Pod™ ID number you will be ready to take full advantage of allyour IDEAL LIFE BP-Manager™ has to offer. For a detailed description of all the features and functionscontinue to the FUNCTIONS section of this manual.InstallationInstruction Manual 12POD ID #:0123456789IS THIS CORRECT?YES NO

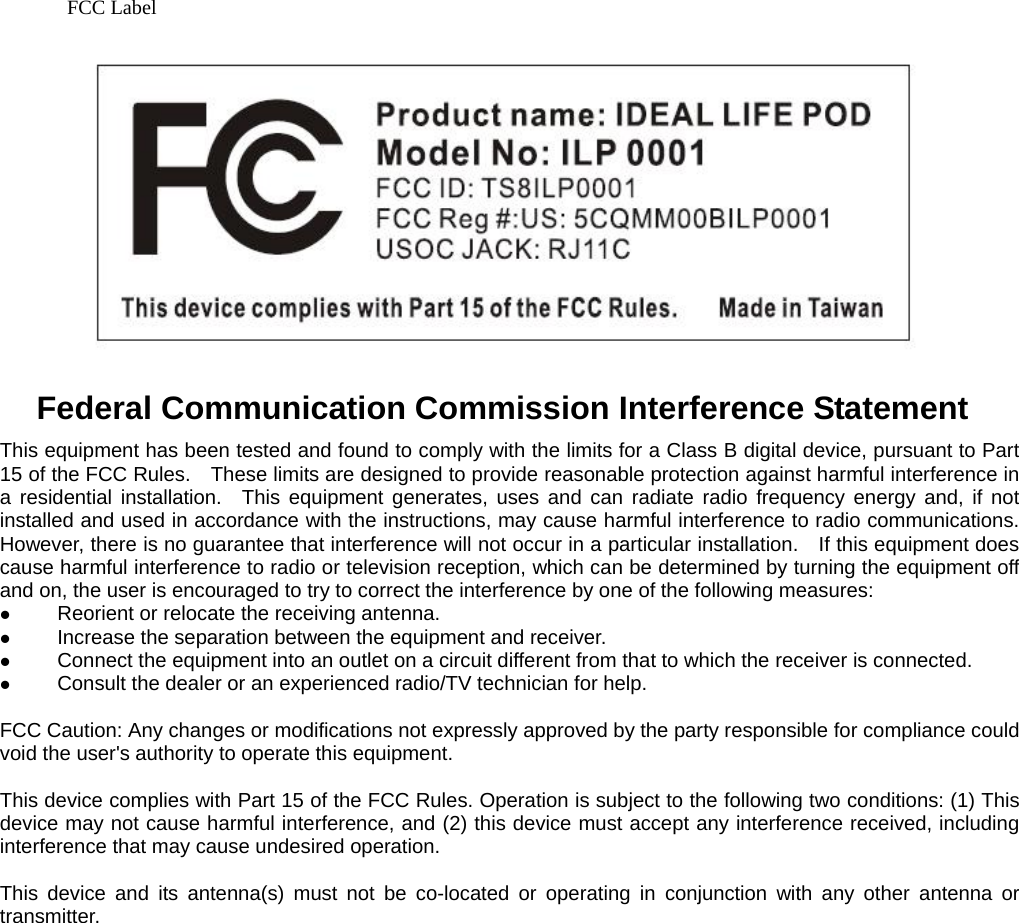

FCC Label Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

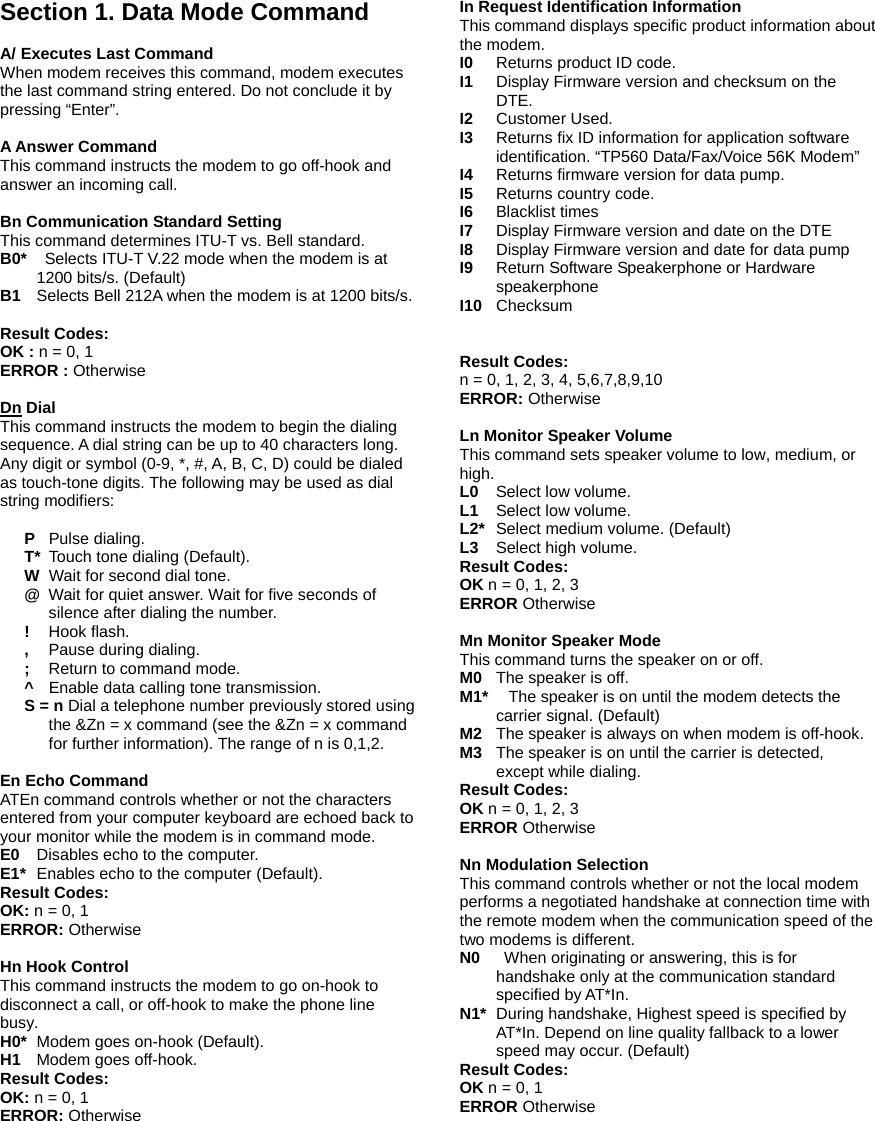

Section 1. Data Mode Command A/ Executes Last Command When modem receives this command, modem executes the last command string entered. Do not conclude it by pressing “Enter”. A Answer Command This command instructs the modem to go off-hook and answer an incoming call. Bn Communication Standard Setting This command determines ITU-T vs. Bell standard. B0* Selects ITU-T V.22 mode when the modem is at 1200 bits/s. (Default) B1 Selects Bell 212A when the modem is at 1200 bits/s. Result Codes: OK : n = 0, 1 ERROR : Otherwise Dn Dial This command instructs the modem to begin the dialing sequence. A dial string can be up to 40 characters long. Any digit or symbol (0-9, *, #, A, B, C, D) could be dialed as touch-tone digits. The following may be used as dial string modifiers: P Pulse dialing. T* Touch tone dialing (Default). W Wait for second dial tone. @ Wait for quiet answer. Wait for five seconds of silence after dialing the number. ! Hook flash. , Pause during dialing. ; Return to command mode. ^ Enable data calling tone transmission. S = n Dial a telephone number previously stored using the &Zn = x command (see the &Zn = x command for further information). The range of n is 0,1,2. En Echo Command ATEn command controls whether or not the characters entered from your computer keyboard are echoed back to your monitor while the modem is in command mode. E0 Disables echo to the computer. E1* Enables echo to the computer (Default). Result Codes: OK: n = 0, 1 ERROR: Otherwise Hn Hook Control This command instructs the modem to go on-hook to disconnect a call, or off-hook to make the phone line busy. H0* Modem goes on-hook (Default). H1 Modem goes off-hook. Result Codes: OK: n = 0, 1 ERROR: Otherwise In Request Identification Information This command displays specific product information about the modem. I0 Returns product ID code. I1 Display Firmware version and checksum on the DTE. I2 Customer Used. I3 Returns fix ID information for application software identification. “TP560 Data/Fax/Voice 56K Modem” I4 Returns firmware version for data pump. I5 Returns country code. I6 Blacklist times I7 Display Firmware version and date on the DTE I8 Display Firmware version and date for data pump I9 Return Software Speakerphone or Hardware speakerphone I10 Checksum Result Codes: n = 0, 1, 2, 3, 4, 5,6,7,8,9,10 ERROR: Otherwise Ln Monitor Speaker Volume This command sets speaker volume to low, medium, or high. L0 Select low volume. L1 Select low volume. L2* Select medium volume. (Default) L3 Select high volume. Result Codes: OK n = 0, 1, 2, 3 ERROR Otherwise Mn Monitor Speaker Mode This command turns the speaker on or off. M0 The speaker is off. M1* The speaker is on until the modem detects the carrier signal. (Default) M2 The speaker is always on when modem is off-hook. M3 The speaker is on until the carrier is detected, except while dialing. Result Codes: OK n = 0, 1, 2, 3 ERROR Otherwise Nn Modulation Selection This command controls whether or not the local modem performs a negotiated handshake at connection time with the remote modem when the communication speed of the two modems is different. N0 When originating or answering, this is for handshake only at the communication standard specified by AT*In. N1* During handshake, Highest speed is specified by AT*In. Depend on line quality fallback to a lower speed may occur. (Default) Result Codes: OK n = 0, 1 ERROR Otherwise

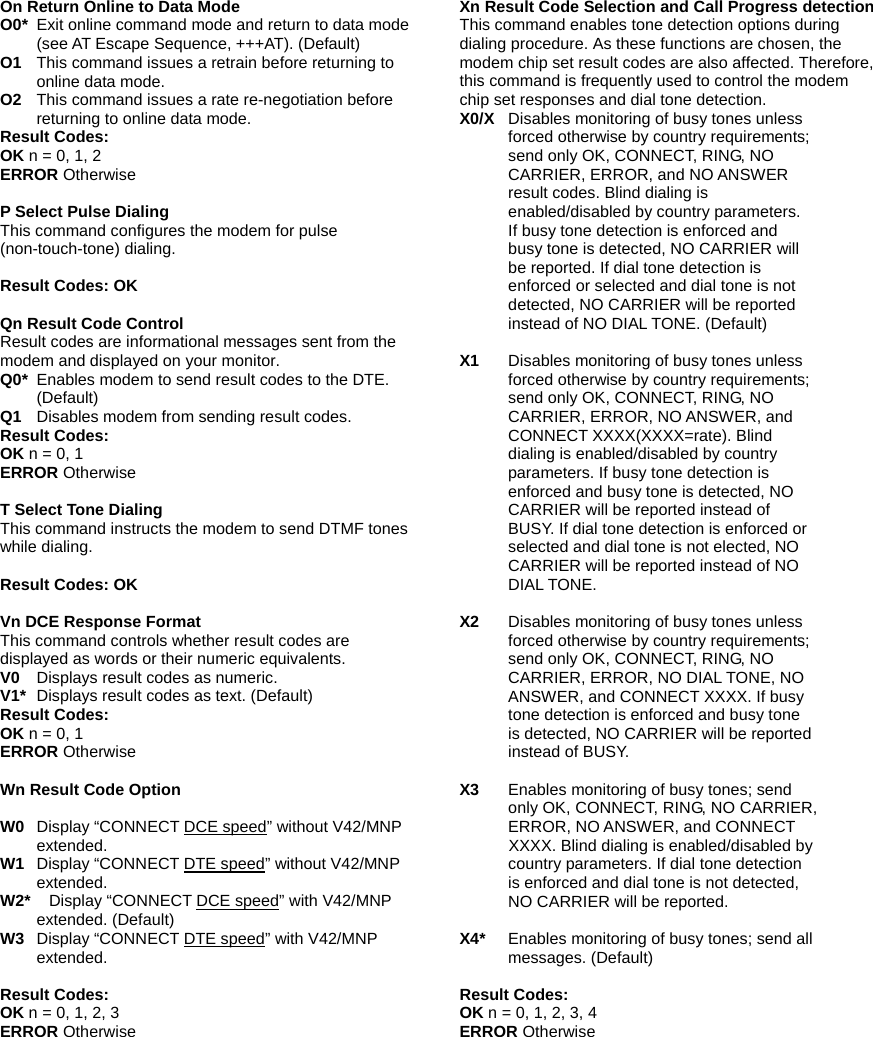

On Return Online to Data Mode O0* Exit online command mode and return to data mode (see AT Escape Sequence, +++AT). (Default) O1 This command issues a retrain before returning to online data mode. O2 This command issues a rate re-negotiation before returning to online data mode. Result Codes: OK n = 0, 1, 2 ERROR Otherwise P Select Pulse Dialing This command configures the modem for pulse (non-touch-tone) dialing. Result Codes: OK Qn Result Code Control Result codes are informational messages sent from the modem and displayed on your monitor. Q0* Enables modem to send result codes to the DTE. (Default) Q1 Disables modem from sending result codes. Result Codes: OK n = 0, 1 ERROR Otherwise T Select Tone Dialing This command instructs the modem to send DTMF tones while dialing. Result Codes: OK Vn DCE Response Format This command controls whether result codes are displayed as words or their numeric equivalents. V0 Displays result codes as numeric. V1* Displays result codes as text. (Default) Result Codes: OK n = 0, 1 ERROR Otherwise Wn Result Code Option W0 Display “CONNECT DCE speed” without V42/MNP extended. W1 Display “CONNECT DTE speed” without V42/MNP extended. W2* Display “CONNECT DCE speed” with V42/MNP extended. (Default) W3 Display “CONNECT DTE speed” with V42/MNP extended. Result Codes: OK n = 0, 1, 2, 3 ERROR Otherwise Xn Result Code Selection and Call Progress detection This command enables tone detection options during dialing procedure. As these functions are chosen, the modem chip set result codes are also affected. Therefore, this command is frequently used to control the modem chip set responses and dial tone detection. X0/X Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK, CONNECT, RING, NO CARRIER, ERROR, and NO ANSWER result codes. Blind dialing is enabled/disabled by country parameters. If busy tone detection is enforced and busy tone is detected, NO CARRIER will be reported. If dial tone detection is enforced or selected and dial tone is not detected, NO CARRIER will be reported instead of NO DIAL TONE. (Default) X1 Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK, CONNECT, RING, NO CARRIER, ERROR, NO ANSWER, and CONNECT XXXX(XXXX=rate). Blind dialing is enabled/disabled by country parameters. If busy tone detection is enforced and busy tone is detected, NO CARRIER will be reported instead of BUSY. If dial tone detection is enforced or selected and dial tone is not elected, NO CARRIER will be reported instead of NO DIAL TONE. X2 Disables monitoring of busy tones unless forced otherwise by country requirements; send only OK, CONNECT, RING, NO CARRIER, ERROR, NO DIAL TONE, NO ANSWER, and CONNECT XXXX. If busy tone detection is enforced and busy tone is detected, NO CARRIER will be reported instead of BUSY. X3 Enables monitoring of busy tones; send only OK, CONNECT, RING, NO CARRIER, ERROR, NO ANSWER, and CONNECT XXXX. Blind dialing is enabled/disabled by country parameters. If dial tone detection is enforced and dial tone is not detected, NO CARRIER will be reported. X4* Enables monitoring of busy tones; send all messages. (Default) Result Codes: OK n = 0, 1, 2, 3, 4 ERROR Otherwise

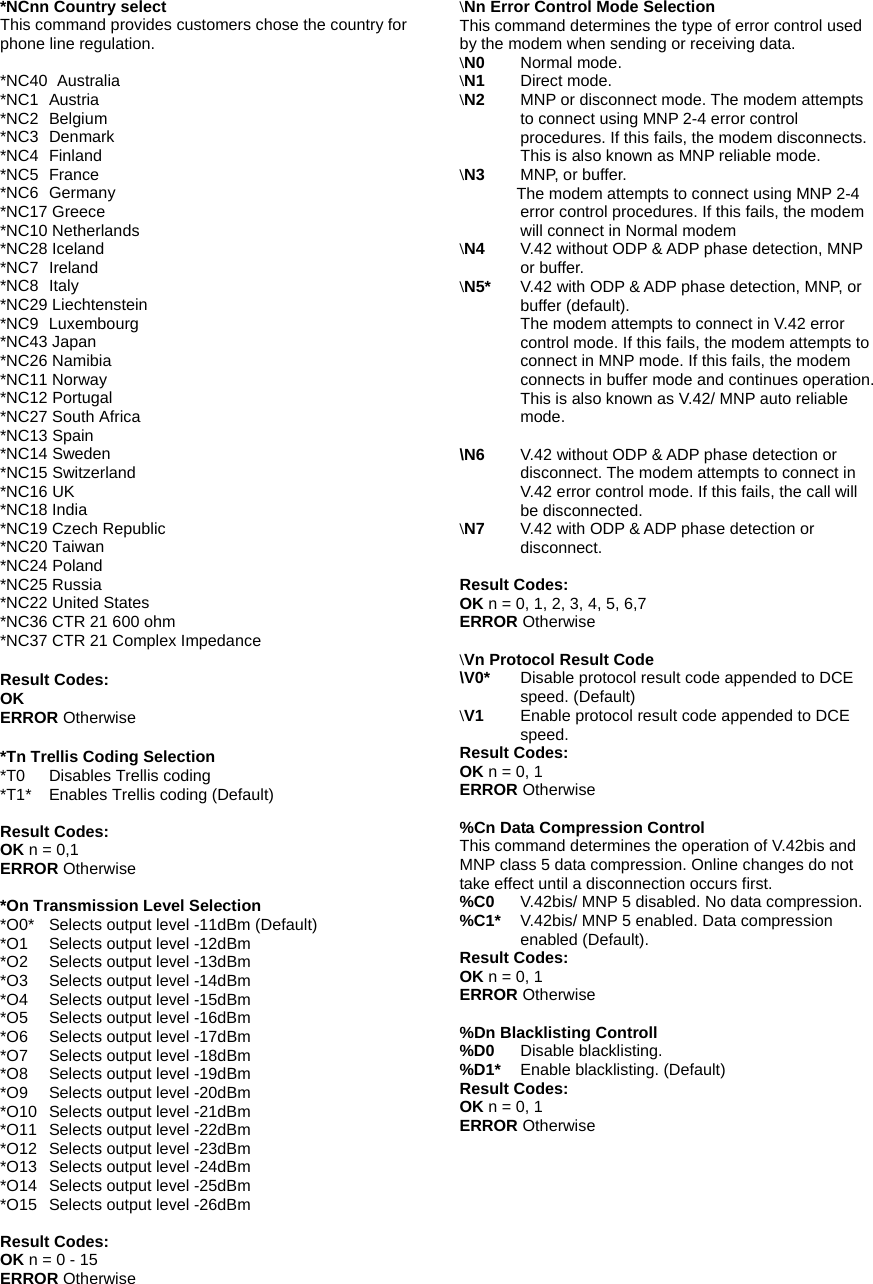

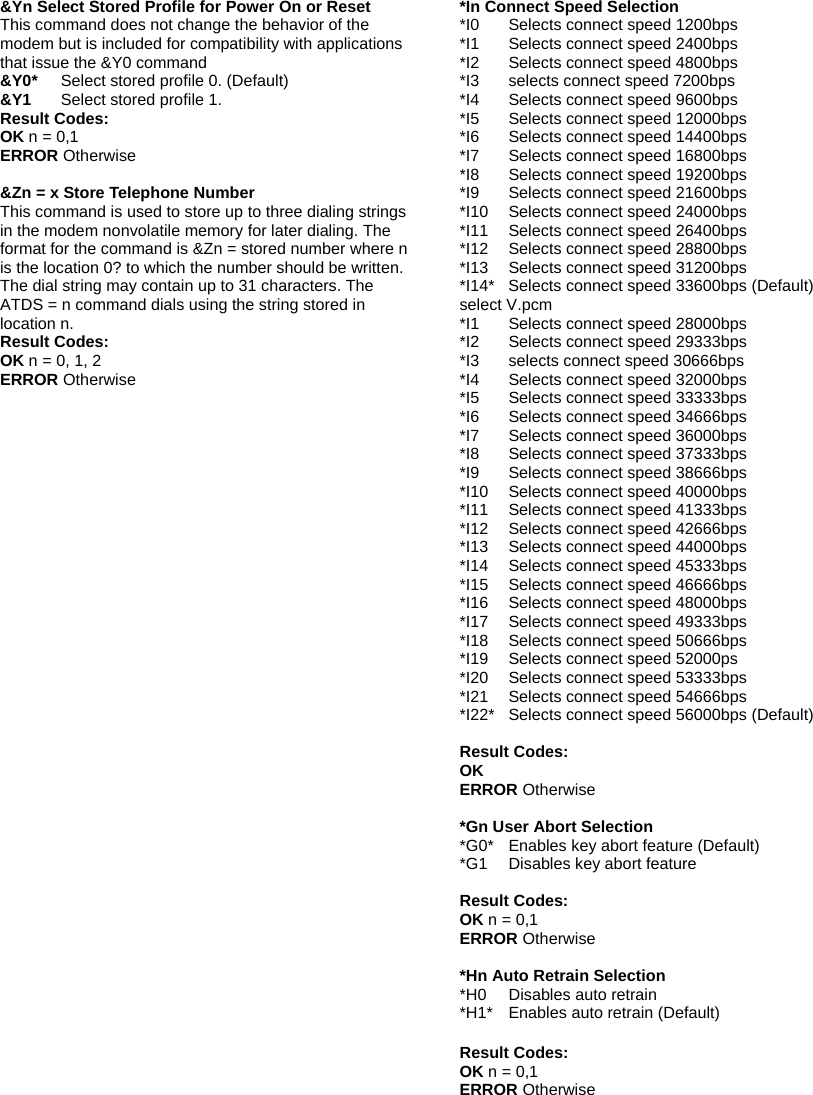

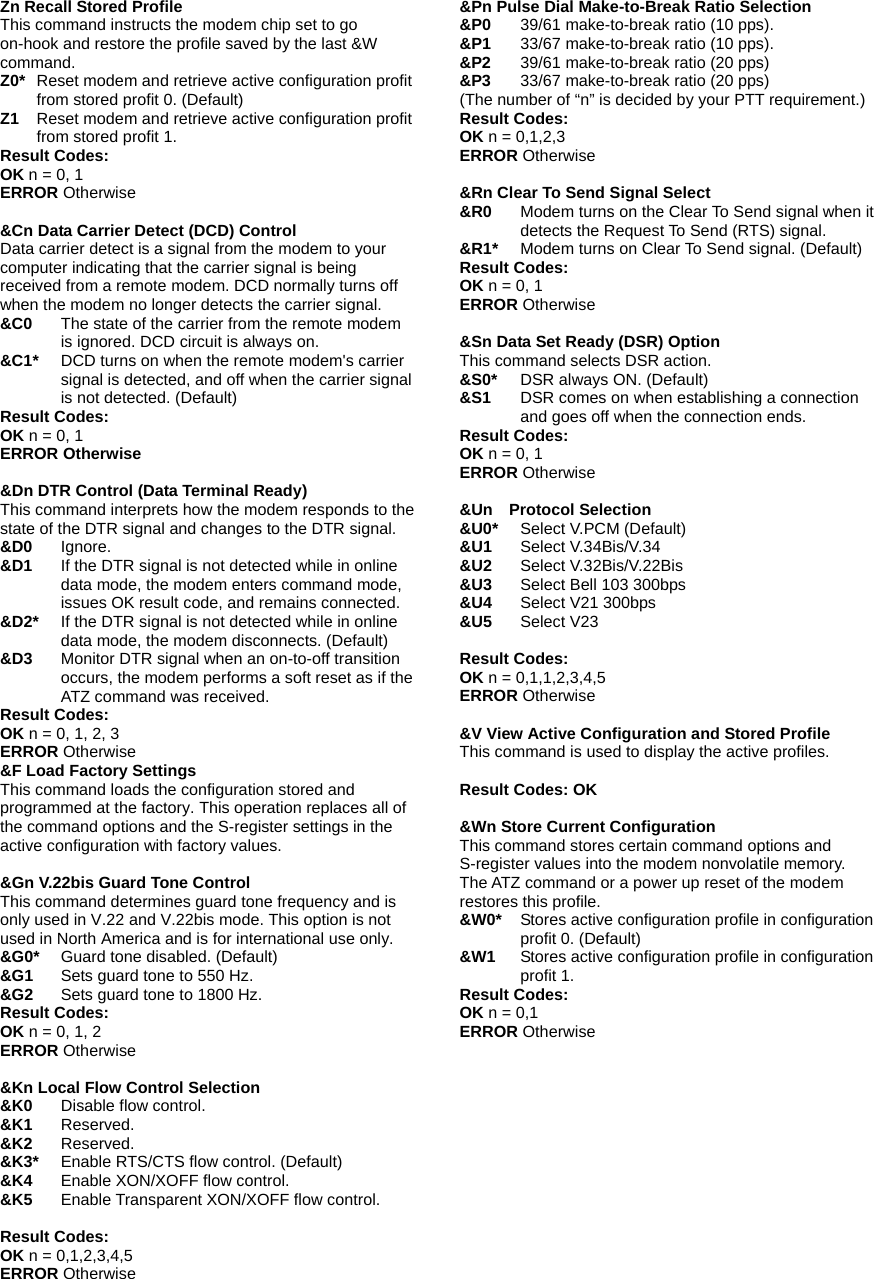

$*NCnn Country select This command provides customers chose the country for phone line regulation. *NC40 Australia *NC1 Austria *NC2 Belgium *NC3 Denmark *NC4 Finland *NC5 France *NC6 Germany *NC17 Greece *NC10 Netherlands *NC28 Iceland *NC7 Ireland *NC8 Italy *NC29 Liechtenstein *NC9 Luxembourg *NC43 Japan *NC26 Namibia *NC11 Norway *NC12 Portugal *NC27 South Africa *NC13 Spain *NC14 Sweden *NC15 Switzerland *NC16 UK *NC18 India *NC19 Czech Republic *NC20 Taiwan *NC24 Poland *NC25 Russia *NC22 United States *NC36 CTR 21 600 ohm *NC37 CTR 21 Complex Impedance Result Codes: OK ERROR Otherwise *Tn Trellis Coding Selection *T0 Disables Trellis coding *T1* Enables Trellis coding (Default) Result Codes: OK n = 0,1 ERROR Otherwise *On Transmission Level Selection *O0* Selects output level -11dBm (Default) *O1 Selects output level -12dBm *O2 Selects output level -13dBm *O3 Selects output level -14dBm *O4 Selects output level -15dBm *O5 Selects output level -16dBm *O6 Selects output level -17dBm *O7 Selects output level -18dBm *O8 Selects output level -19dBm *O9 Selects output level -20dBm *O10 Selects output level -21dBm *O11 Selects output level -22dBm *O12 Selects output level -23dBm *O13 Selects output level -24dBm *O14 Selects output level -25dBm *O15 Selects output level -26dBm Result Codes: OK n = 0 - 15 ERROR Otherwise \Nn Error Control Mode Selection This command determines the type of error control used by the modem when sending or receiving data. \N0 Normal mode. \N1 Direct mode. \N2 MNP or disconnect mode. The modem attempts to connect using MNP 2-4 error control procedures. If this fails, the modem disconnects. This is also known as MNP reliable mode. \N3 MNP, or buffer. The modem attempts to connect using MNP 2-4 error control procedures. If this fails, the modem will connect in Normal modem \N4 V.42 without ODP & ADP phase detection, MNP or buffer. \N5* V.42 with ODP & ADP phase detection, MNP, or buffer (default). The modem attempts to connect in V.42 error control mode. If this fails, the modem attempts to connect in MNP mode. If this fails, the modem connects in buffer mode and continues operation. This is also known as V.42/ MNP auto reliable mode. \N6 V.42 without ODP & ADP phase detection or disconnect. The modem attempts to connect in V.42 error control mode. If this fails, the call will be disconnected. \N7 V.42 with ODP & ADP phase detection or disconnect. Result Codes: OK n = 0, 1, 2, 3, 4, 5, 6,7 ERROR Otherwise \Vn Protocol Result Code \V0* Disable protocol result code appended to DCE speed. (Default) \V1 Enable protocol result code appended to DCE speed. Result Codes: OK n = 0, 1 ERROR Otherwise %Cn Data Compression Control This command determines the operation of V.42bis and MNP class 5 data compression. Online changes do not take effect until a disconnection occurs first. %C0 V.42bis/ MNP 5 disabled. No data compression. %C1* V.42bis/ MNP 5 enabled. Data compression enabled (Default). Result Codes: OK n = 0, 1 ERROR Otherwise %Dn Blacklisting Controll %D0 Disable blacklisting. %D1* Enable blacklisting. (Default) Result Codes: OK n = 0, 1 ERROR Otherwise$

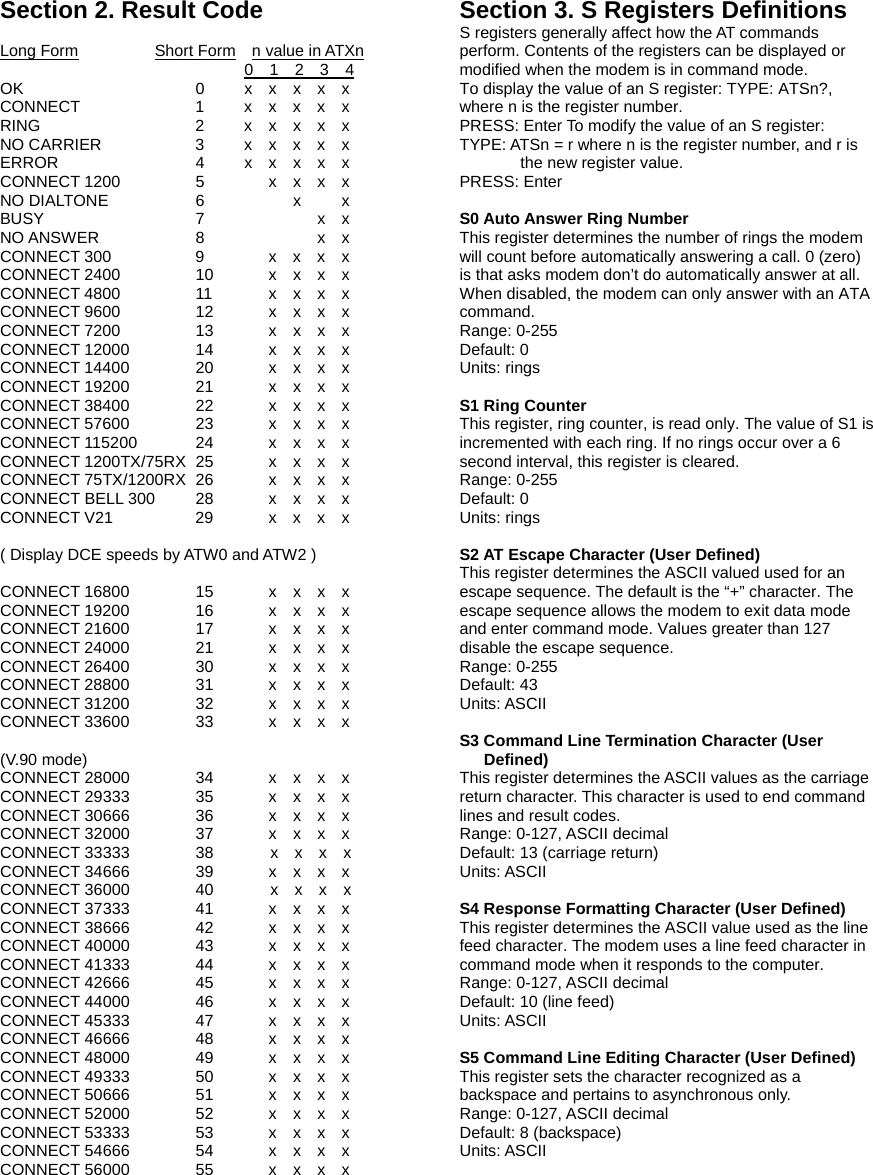

Section 2. Result Code Long Form Short Form n value in ATXn 0 1 2 3 4 OK 0 x x x x x CONNECT 1 x x x x x RING 2 x x x x x NO CARRIER 3 x x x x x ERROR 4 x x x x x CONNECT 1200 5 x x x x NO DIALTONE 6 x x BUSY 7 x x NO ANSWER 8 x x CONNECT 300 9 x x x x CONNECT 2400 10 x x x x CONNECT 4800 11 x x x x CONNECT 9600 12 x x x x CONNECT 7200 13 x x x x CONNECT 12000 14 x x x x CONNECT 14400 20 x x x x CONNECT 19200 21 x x x x CONNECT 38400 22 x x x x CONNECT 57600 23 x x x x CONNECT 115200 24 x x x x CONNECT 1200TX/75RX 25 x x x x CONNECT 75TX/1200RX 26 x x x x CONNECT BELL 300 28 x x x x CONNECT V21 29 x x x x ( Display DCE speeds by ATW0 and ATW2 ) CONNECT 16800 15 x x x x CONNECT 19200 16 x x x x CONNECT 21600 17 x x x x CONNECT 24000 21 x x x x CONNECT 26400 30 x x x x CONNECT 28800 31 x x x x CONNECT 31200 32 x x x x CONNECT 33600 33 x x x x (V.90 mode) CONNECT 28000 34 x x x x CONNECT 29333 35 x x x x CONNECT 30666 36 x x x x CONNECT 32000 37 x x x x CONNECT 33333 38 x x x x CONNECT 34666 39 x x x x CONNECT 36000 40 x x x x CONNECT 37333 41 x x x x CONNECT 38666 42 x x x x CONNECT 40000 43 x x x x CONNECT 41333 44 x x x x CONNECT 42666 45 x x x x CONNECT 44000 46 x x x x CONNECT 45333 47 x x x x CONNECT 46666 48 x x x x CONNECT 48000 49 x x x x CONNECT 49333 50 x x x x CONNECT 50666 51 x x x x CONNECT 52000 52 x x x x CONNECT 53333 53 x x x x CONNECT 54666 54 x x x x CONNECT 56000 55 x x x x Section 3. S Registers Definitions S registers generally affect how the AT commands perform. Contents of the registers can be displayed or modified when the modem is in command mode. To display the value of an S register: TYPE: ATSn?, where n is the register number. PRESS: Enter To modify the value of an S register: TYPE: ATSn = r where n is the register number, and r is the new register value. PRESS: Enter S0 Auto Answer Ring Number This register determines the number of rings the modem will count before automatically answering a call. 0 (zero) is that asks modem don’t do automatically answer at all. When disabled, the modem can only answer with an ATA command. Range: 0-255 Default: 0 Units: rings S1 Ring Counter This register, ring counter, is read only. The value of S1 is incremented with each ring. If no rings occur over a 6 second interval, this register is cleared. Range: 0-255 Default: 0 Units: rings S2 AT Escape Character (User Defined) This register determines the ASCII valued used for an escape sequence. The default is the “+” character. The escape sequence allows the modem to exit data mode and enter command mode. Values greater than 127 disable the escape sequence. Range: 0-255 Default: 43 Units: ASCII S3 Command Line Termination Character (User Defined) This register determines the ASCII values as the carriage return character. This character is used to end command lines and result codes. Range: 0-127, ASCII decimal Default: 13 (carriage return) Units: ASCII S4 Response Formatting Character (User Defined) This register determines the ASCII value used as the line feed character. The modem uses a line feed character in command mode when it responds to the computer. Range: 0-127, ASCII decimal Default: 10 (line feed) Units: ASCII S5 Command Line Editing Character (User Defined) This register sets the character recognized as a backspace and pertains to asynchronous only. Range: 0-127, ASCII decimal Default: 8 (backspace) Units: ASCII

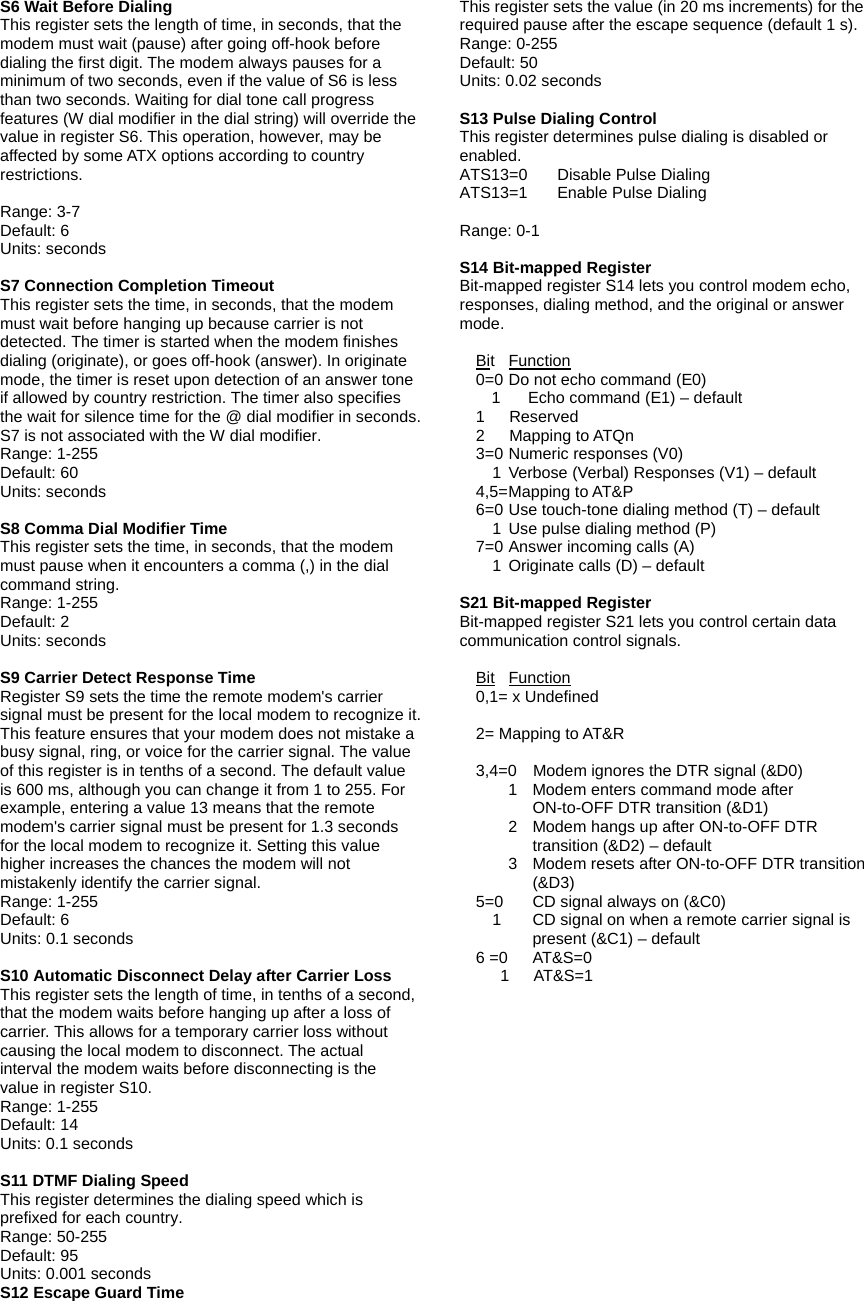

S6 Wait Before Dialing This register sets the length of time, in seconds, that the modem must wait (pause) after going off-hook before dialing the first digit. The modem always pauses for a minimum of two seconds, even if the value of S6 is less than two seconds. Waiting for dial tone call progress features (W dial modifier in the dial string) will override the value in register S6. This operation, however, may be affected by some ATX options according to country restrictions. Range: 3-7 Default: 6 Units: seconds S7 Connection Completion Timeout This register sets the time, in seconds, that the modem must wait before hanging up because carrier is not detected. The timer is started when the modem finishes dialing (originate), or goes off-hook (answer). In originate mode, the timer is reset upon detection of an answer tone if allowed by country restriction. The timer also specifies the wait for silence time for the @ dial modifier in seconds. S7 is not associated with the W dial modifier. Range: 1-255 Default: 60 Units: seconds S8 Comma Dial Modifier Time This register sets the time, in seconds, that the modem must pause when it encounters a comma (,) in the dial command string. Range: 1-255 Default: 2 Units: seconds S9 Carrier Detect Response Time Register S9 sets the time the remote modem's carrier signal must be present for the local modem to recognize it. This feature ensures that your modem does not mistake a busy signal, ring, or voice for the carrier signal. The value of this register is in tenths of a second. The default value is 600 ms, although you can change it from 1 to 255. For example, entering a value 13 means that the remote modem's carrier signal must be present for 1.3 seconds for the local modem to recognize it. Setting this value higher increases the chances the modem will not mistakenly identify the carrier signal. Range: 1-255 Default: 6 Units: 0.1 seconds S10 Automatic Disconnect Delay after Carrier Loss This register sets the length of time, in tenths of a second, that the modem waits before hanging up after a loss of carrier. This allows for a temporary carrier loss without causing the local modem to disconnect. The actual interval the modem waits before disconnecting is the value in register S10. Range: 1-255 Default: 14 Units: 0.1 seconds S11 DTMF Dialing Speed This register determines the dialing speed which is prefixed for each country. Range: 50-255 Default: 95 Units: 0.001 seconds S12 Escape Guard Time This register sets the value (in 20 ms increments) for the required pause after the escape sequence (default 1 s). Range: 0-255 Default: 50 Units: 0.02 seconds S13 Pulse Dialing Control This register determines pulse dialing is disabled or enabled. ATS13=0 Disable Pulse Dialing ATS13=1 Enable Pulse Dialing Range: 0-1 S14 Bit-mapped Register Bit-mapped register S14 lets you control modem echo, responses, dialing method, and the original or answer mode. Bit Function 0=0 Do not echo command (E0) 1 Echo command (E1) – default 1 Reserved 2 Mapping to ATQn 3=0 Numeric responses (V0) 1 Verbose (Verbal) Responses (V1) – default 4,5= Mapping to AT&P 6=0 Use touch-tone dialing method (T) – default 1 Use pulse dialing method (P) 7=0 Answer incoming calls (A) 1 Originate calls (D) – default S21 Bit-mapped Register Bit-mapped register S21 lets you control certain data communication control signals. Bit Function 0,1= x Undefined 2= Mapping to AT&R 3,4=0 Modem ignores the DTR signal (&D0) 1 Modem enters command mode after ON-to-OFF DTR transition (&D1) 2 Modem hangs up after ON-to-OFF DTR transition (&D2) – default 3 Modem resets after ON-to-OFF DTR transition (&D3) 5=0 CD signal always on (&C0) 1 CD signal on when a remote carrier signal is present (&C1) – default 6 =0 AT&S=0 1 AT&S=1

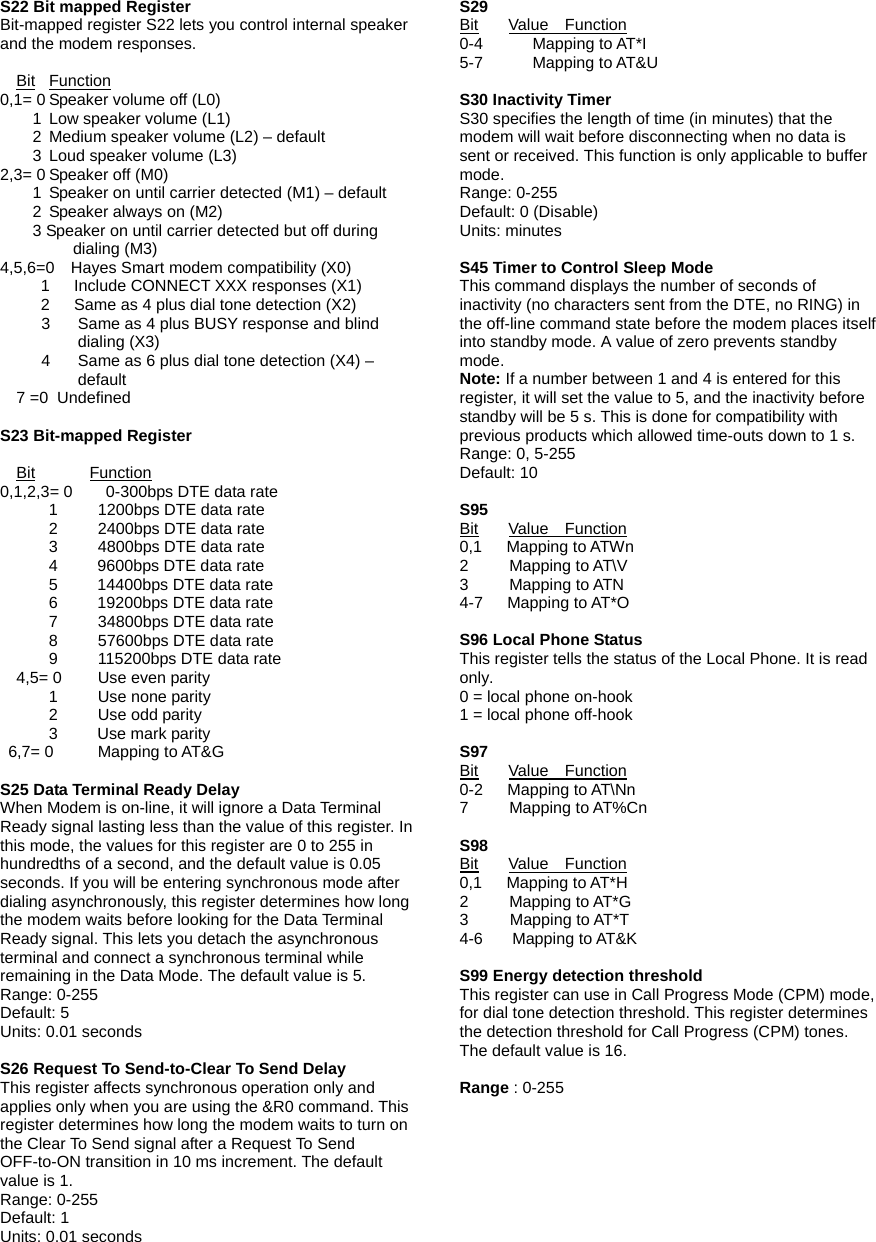

$S22 Bit mapped Register Bit-mapped register S22 lets you control internal speaker and the modem responses. Bit Function 0,1= 0 Speaker volume off (L0) 1 Low speaker volume (L1) 2 Medium speaker volume (L2) – default 3 Loud speaker volume (L3) 2,3= 0 Speaker off (M0) 1 Speaker on until carrier detected (M1) – default 2 Speaker always on (M2) 3 Speaker on until carrier detected but off during dialing (M3) 4,5,6=0 Hayes Smart modem compatibility (X0) 1 Include CONNECT XXX responses (X1) 2 Same as 4 plus dial tone detection (X2) 3 Same as 4 plus BUSY response and blind dialing (X3) 4 Same as 6 plus dial tone detection (X4) – default 7 =0 Undefined S23 Bit-mapped Register Bit Function 0,1,2,3= 0 0-300bps DTE data rate 1 1200bps DTE data rate 2 2400bps DTE data rate 3 4800bps DTE data rate 4 9600bps DTE data rate 5 14400bps DTE data rate 6 19200bps DTE data rate 7 34800bps DTE data rate 8 57600bps DTE data rate 9 115200bps DTE data rate 4,5= 0 Use even parity 1 Use none parity 2 Use odd parity 3 Use mark parity 6,7= 0 Mapping to AT&G S25 Data Terminal Ready Delay When Modem is on-line, it will ignore a Data Terminal Ready signal lasting less than the value of this register. In this mode, the values for this register are 0 to 255 in hundredths of a second, and the default value is 0.05 seconds. If you will be entering synchronous mode after dialing asynchronously, this register determines how long the modem waits before looking for the Data Terminal Ready signal. This lets you detach the asynchronous terminal and connect a synchronous terminal while remaining in the Data Mode. The default value is 5. Range: 0-255 Default: 5 Units: 0.01 seconds S26 Request To Send-to-Clear To Send Delay This register affects synchronous operation only and applies only when you are using the &R0 command. This register determines how long the modem waits to turn on the Clear To Send signal after a Request To Send OFF-to-ON transition in 10 ms increment. The default value is 1. Range: 0-255 Default: 1 Units: 0.01 seconds S29 Bit Value Function 0-4 Mapping to AT*I 5-7 Mapping to AT&U S30 Inactivity Timer S30 specifies the length of time (in minutes) that the modem will wait before disconnecting when no data is sent or received. This function is only applicable to buffer mode. Range: 0-255 Default: 0 (Disable) Units: minutes S45 Timer to Control Sleep Mode This command displays the number of seconds of inactivity (no characters sent from the DTE, no RING) in the off-line command state before the modem places itself into standby mode. A value of zero prevents standby mode. Note: If a number between 1 and 4 is entered for this register, it will set the value to 5, and the inactivity before standby will be 5 s. This is done for compatibility with previous products which allowed time-outs down to 1 s. Range: 0, 5-255 Default: 10 S95 Bit Value Function 0,1 Mapping to ATWn 2 Mapping to AT\V 3 Mapping to ATN 4-7 Mapping to AT*O S96 Local Phone Status This register tells the status of the Local Phone. It is read only. 0 = local phone on-hook 1 = local phone off-hook S97 Bit Value Function 0-2 Mapping to AT\Nn 7 Mapping to AT%Cn S98 Bit Value Function 0,1 Mapping to AT*H 2 Mapping to AT*G 3 Mapping to AT*T 4-6 Mapping to AT&K S99 Energy detection threshold This register can use in Call Progress Mode (CPM) mode, for dial tone detection threshold. This register determines the detection threshold for Call Progress (CPM) tones. The default value is 16. Range : 0-255$
