Super Modem III User’s Manual Version: 1.2 Date: September 03, 2013

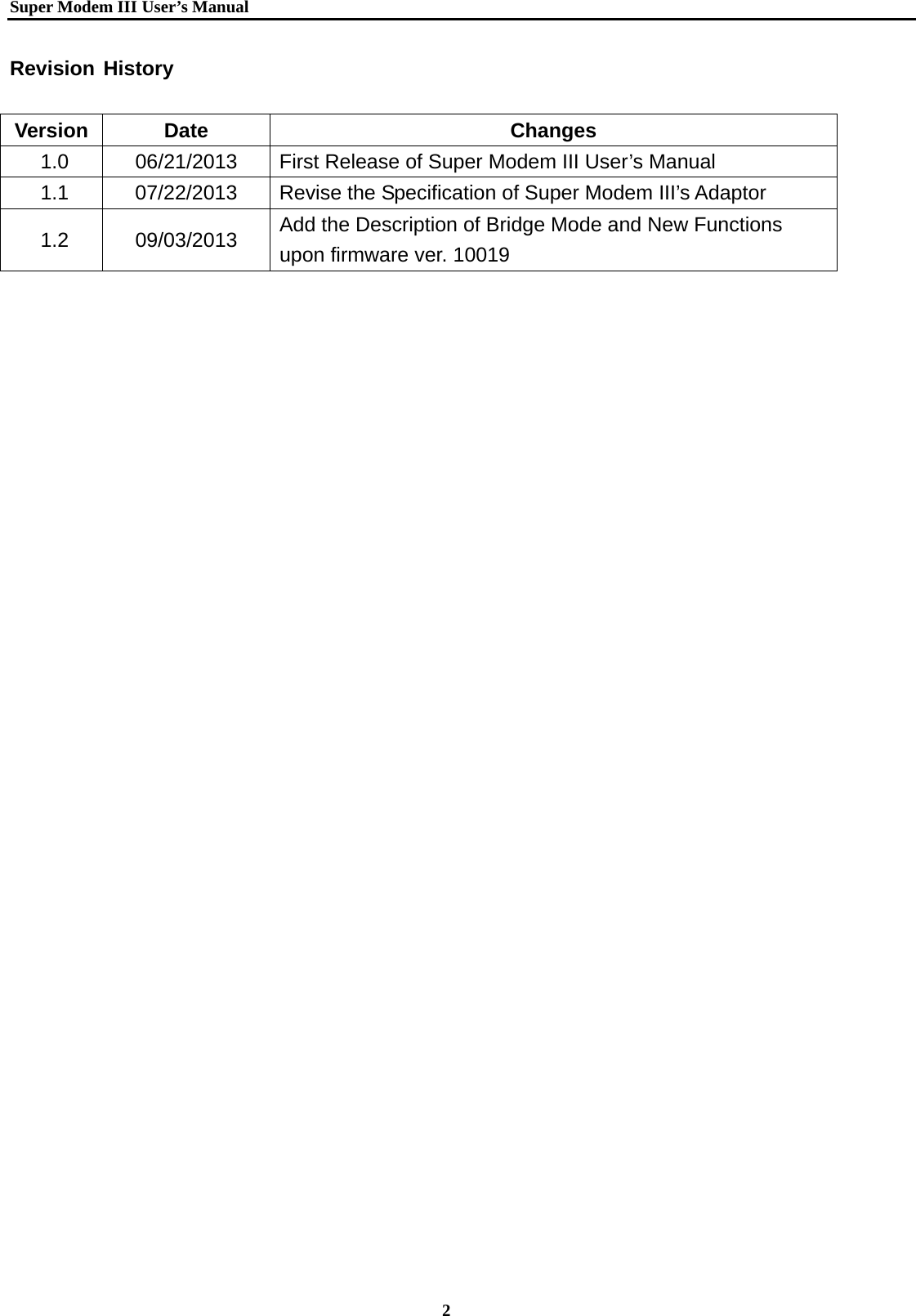

Super Modem IIIUser’s Manual 2 Revision History Version Date Changes 1.0 06/21/2013 First Release of Super Modem III User’s Manual 1.1 07/22/2013 Revise the Specification of Super Modem III’s Adaptor 1.2 09/03/2013 Add the Description of Bridge Mode and New Functions upon firmware ver. 10019

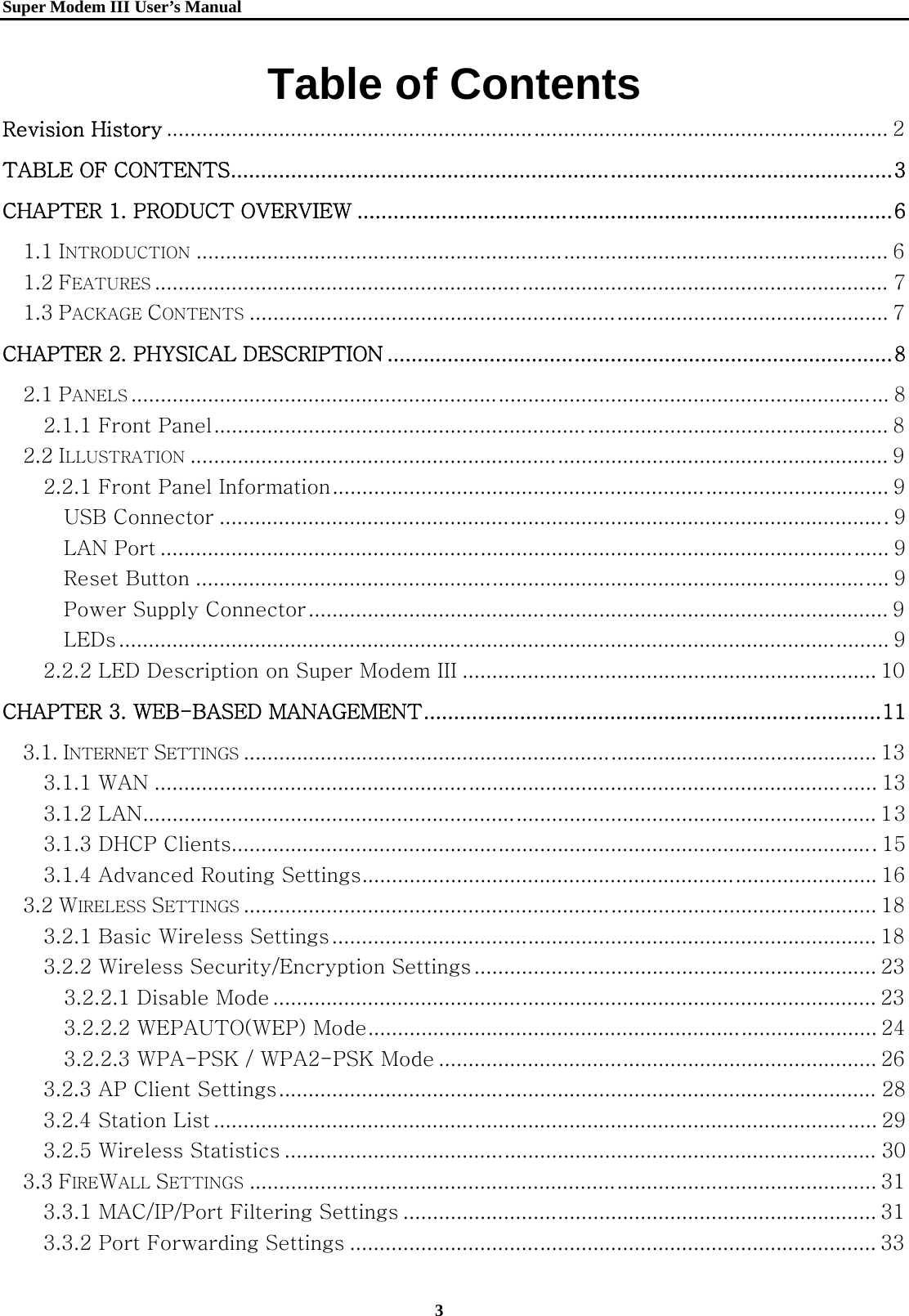

Super Modem IIIUser’s Manual 3 Table of Contents Revision History .......................................................................................................................... 2 TABLE OF CONTENTS .............................................................................................................. 3 CHAPTER 1. PRODUCT OVERVIEW ......................................................................................... 6 1.1 INTRODUCTION ..................................................................................................................... 6 1.2 FEATURES ............................................................................................................................ 7 1.3 PACKAGE CONTENTS ............................................................................................................ 7 CHAPTER 2. PHYSICAL DESCRIPTION .................................................................................... 8 2.1 PANELS ................................................................................................................................ 8 2.1.1 Front Panel .................................................................................................................. 8 2.2 ILLUSTRATION ...................................................................................................................... 9 2.2.1 Front Panel Information .............................................................................................. 9 USB Connector ................................................................................................................. 9 LAN Port ........................................................................................................................... 9 Reset Button ..................................................................................................................... 9 Power Supply Connector .................................................................................................. 9 LEDs .................................................................................................................................. 9 2.2.2 LED Description on Super Modem III ...................................................................... 10 CHAPTER 3. WEB-BASED MANAGEMENT ............................................................................ 11 3.1. INTERNET SETTINGS ........................................................................................................... 13 3.1.1 WAN .......................................................................................................................... 13 3.1.2 LAN ............................................................................................................................ 13 3.1.3 DHCP Clients............................................................................................................. 15 3.1.4 Advanced Routing Settings ....................................................................................... 16 3.2 WIRELESS SETTINGS ........................................................................................................... 18 3.2.1 Basic Wireless Settings ............................................................................................ 18 3.2.2 Wireless Security/Encryption Settings .................................................................... 23 3.2.2.1 Disable Mode ...................................................................................................... 23 3.2.2.2 WEPAUTO(WEP) Mode ...................................................................................... 24 3.2.2.3 WPA-PSK / WPA2-PSK Mode .......................................................................... 26 3.2.3 AP Client Settings ..................................................................................................... 28 3.2.4 Station List ................................................................................................................ 29 3.2.5 Wireless Statistics .................................................................................................... 30 3.3 FIREWALL SETTINGS .......................................................................................................... 31 3.3.1 MAC/IP/Port Filtering Settings ................................................................................ 31 3.3.2 Port Forwarding Settings ......................................................................................... 33
Super Modem IIIUser’s Manual 4 3.3.2.1 Create a Port Forwarding .................................................................................. 33 3.3.3 DMZ Settings ............................................................................................................. 36 3.3.4 System Security Settings ......................................................................................... 37 3.4 MANAGEMENT .................................................................................................................... 39 3.4.1 System Management ................................................................................................. 39 3.4.2 Firmware Upgrade .................................................................................................... 42 3.4.3 Configuration Management ....................................................................................... 43 3.4.4 Status ......................................................................................................................... 44 3.4.5 Statistics .................................................................................................................... 45

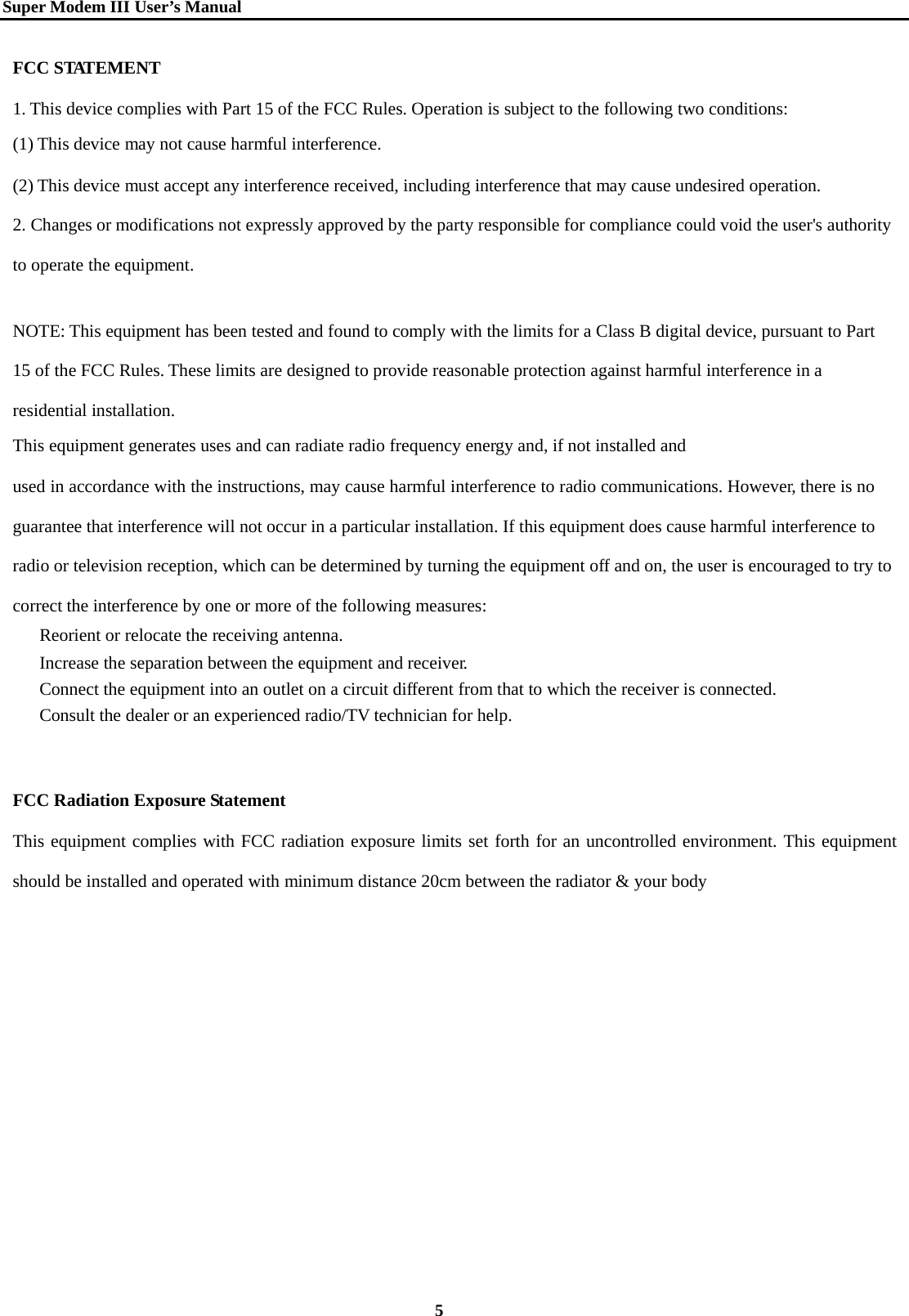

Super Modem IIIUser’s Manual 5 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

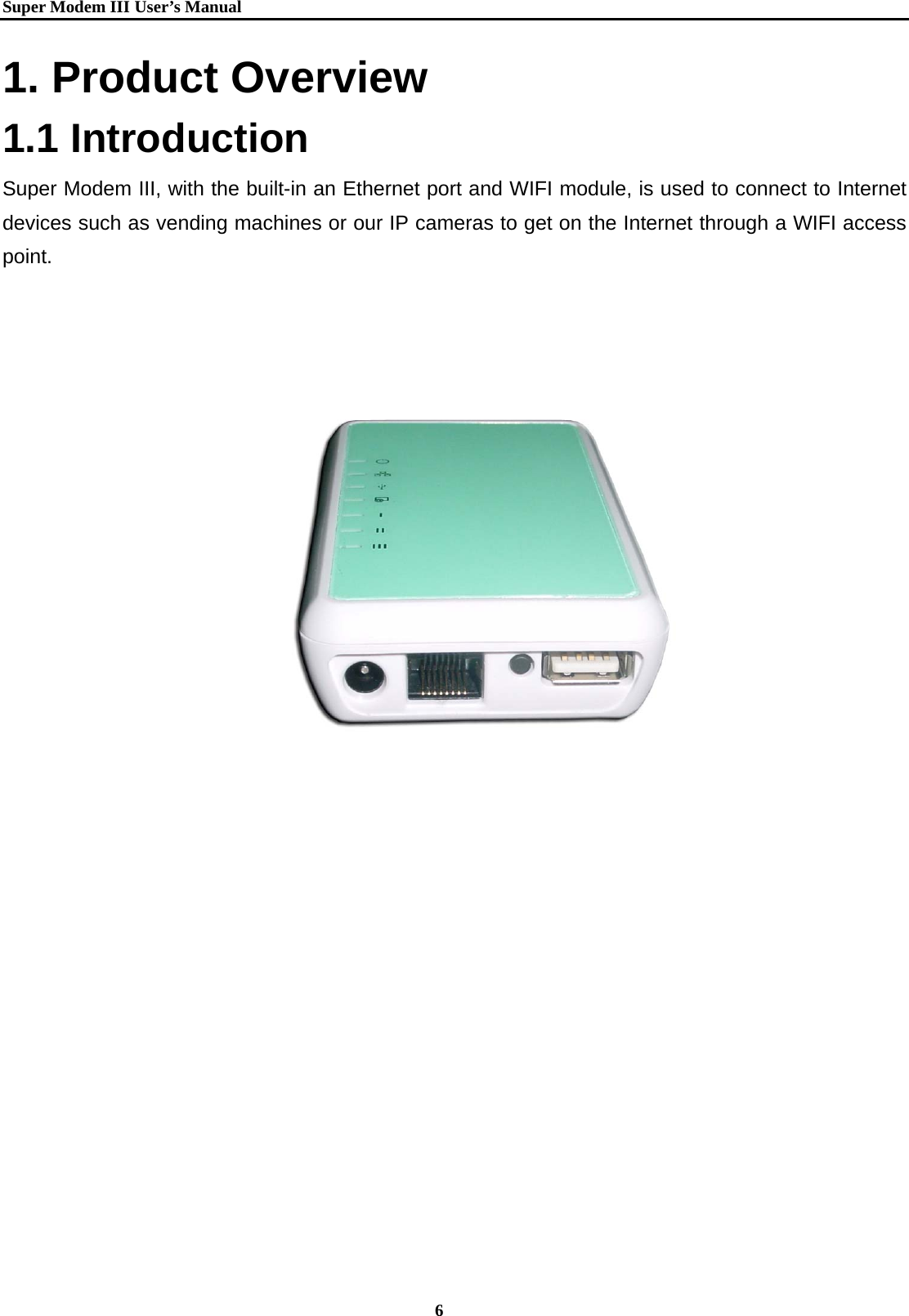

Super Modem IIIUser’s Manual 6 1. Product Overview 1.1 Introduction Super Modem III, with the built-in an Ethernet port and WIFI module, is used to connect to Internet devices such as vending machines or our IP cameras to get on the Internet through a WIFI access point.

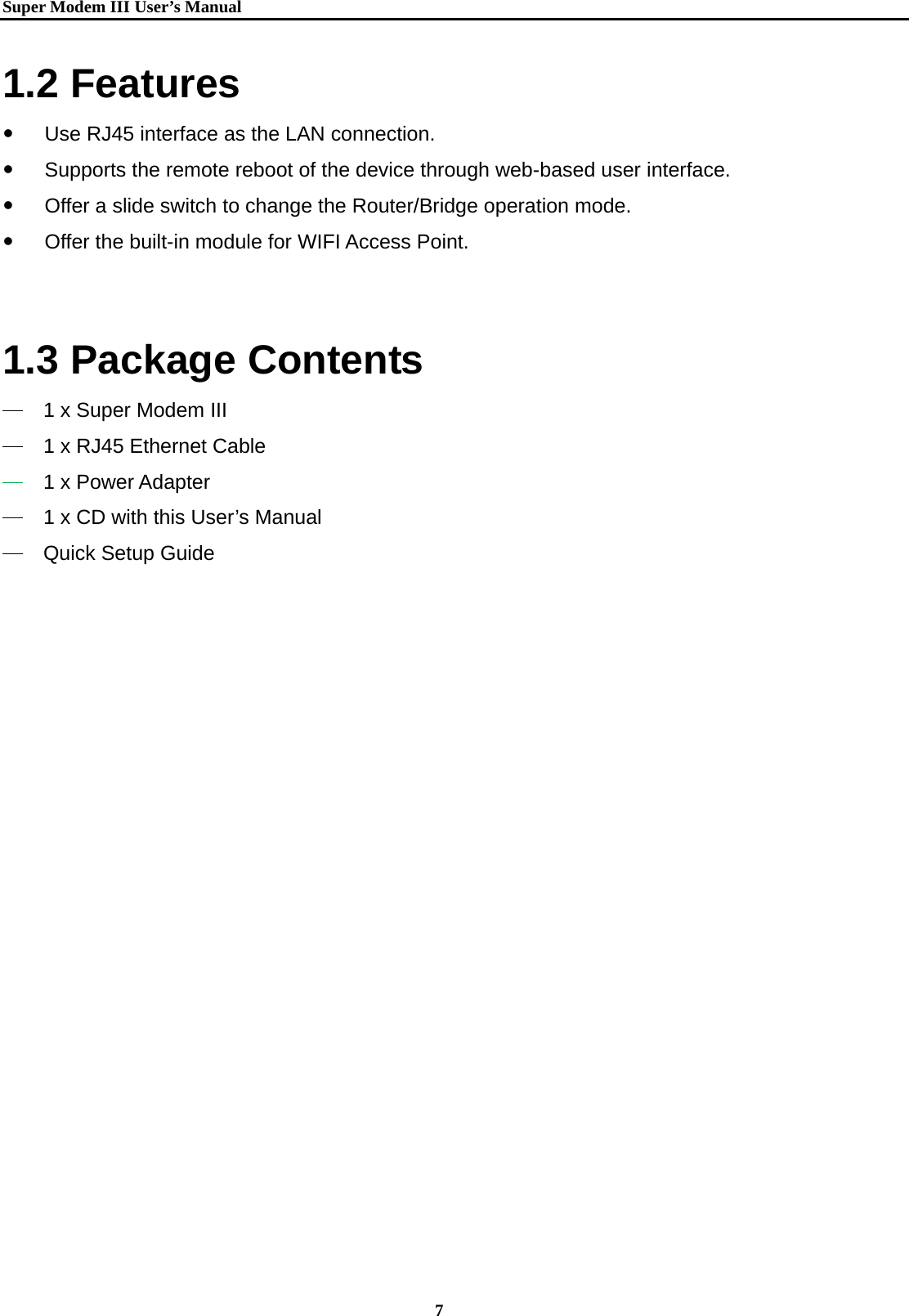

Super Modem IIIUser’s Manual 7 1.2 Features y Use RJ45 interface as the LAN connection. y Supports the remote reboot of the device through web-based user interface. y Offer a slide switch to change the Router/Bridge operation mode. y Offer the built-in module for WIFI Access Point. 1.3 Package Contents ─ 1 x Super Modem III ─ 1 x RJ45 Ethernet Cable ─ 1 x Power Adapter ─ 1 x CD with this User’s Manual ─ Quick Setup Guide

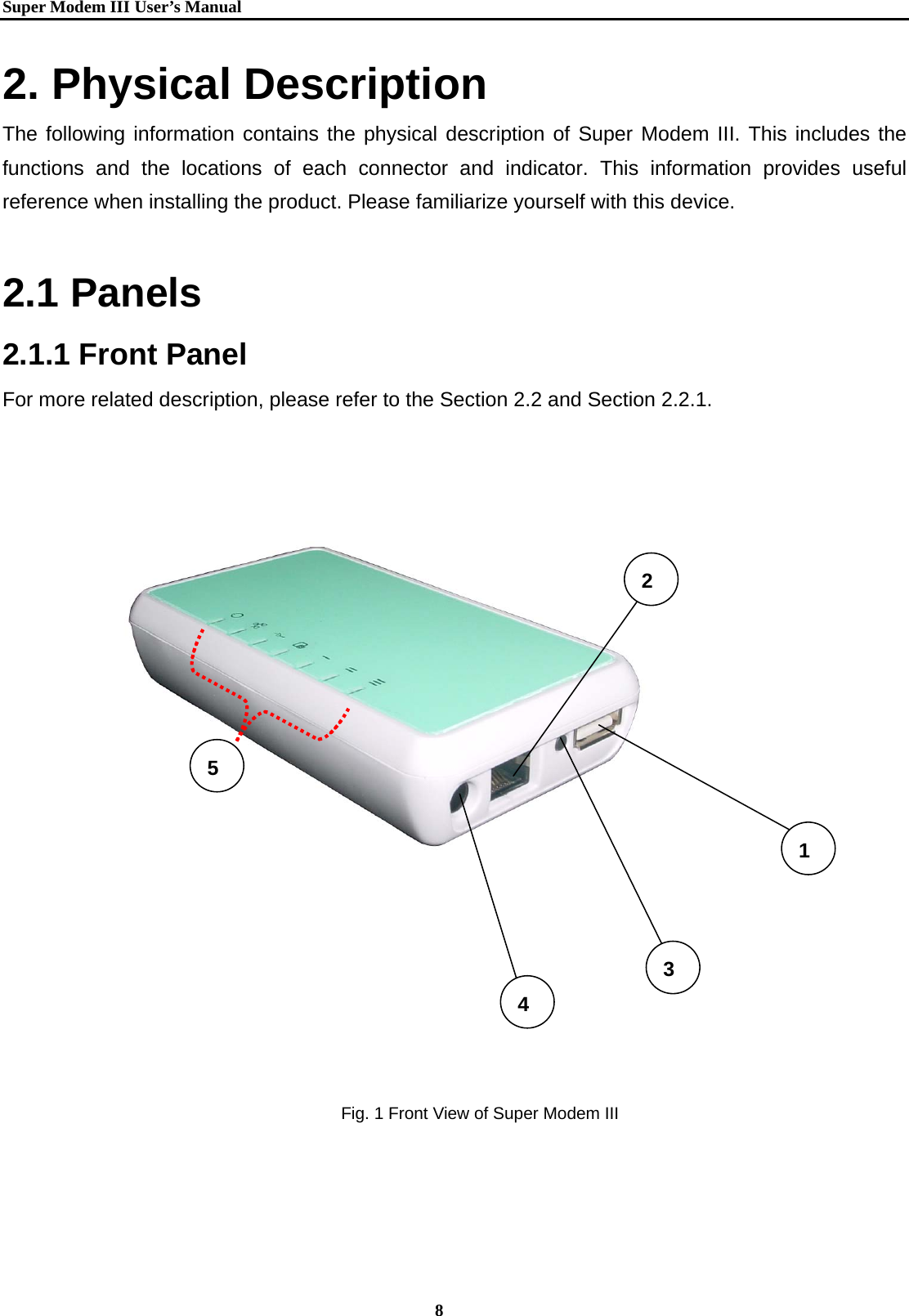

Super Modem IIIUser’s Manual 8 2. Physical Description The following information contains the physical description of Super Modem III. This includes the functions and the locations of each connector and indicator. This information provides useful reference when installing the product. Please familiarize yourself with this device. 2.1 Panels 2.1.1 Front Panel For more related description, please refer to the Section 2.2 and Section 2.2.1. 5 4 23 1Fig. 1 Front View of Super Modem III

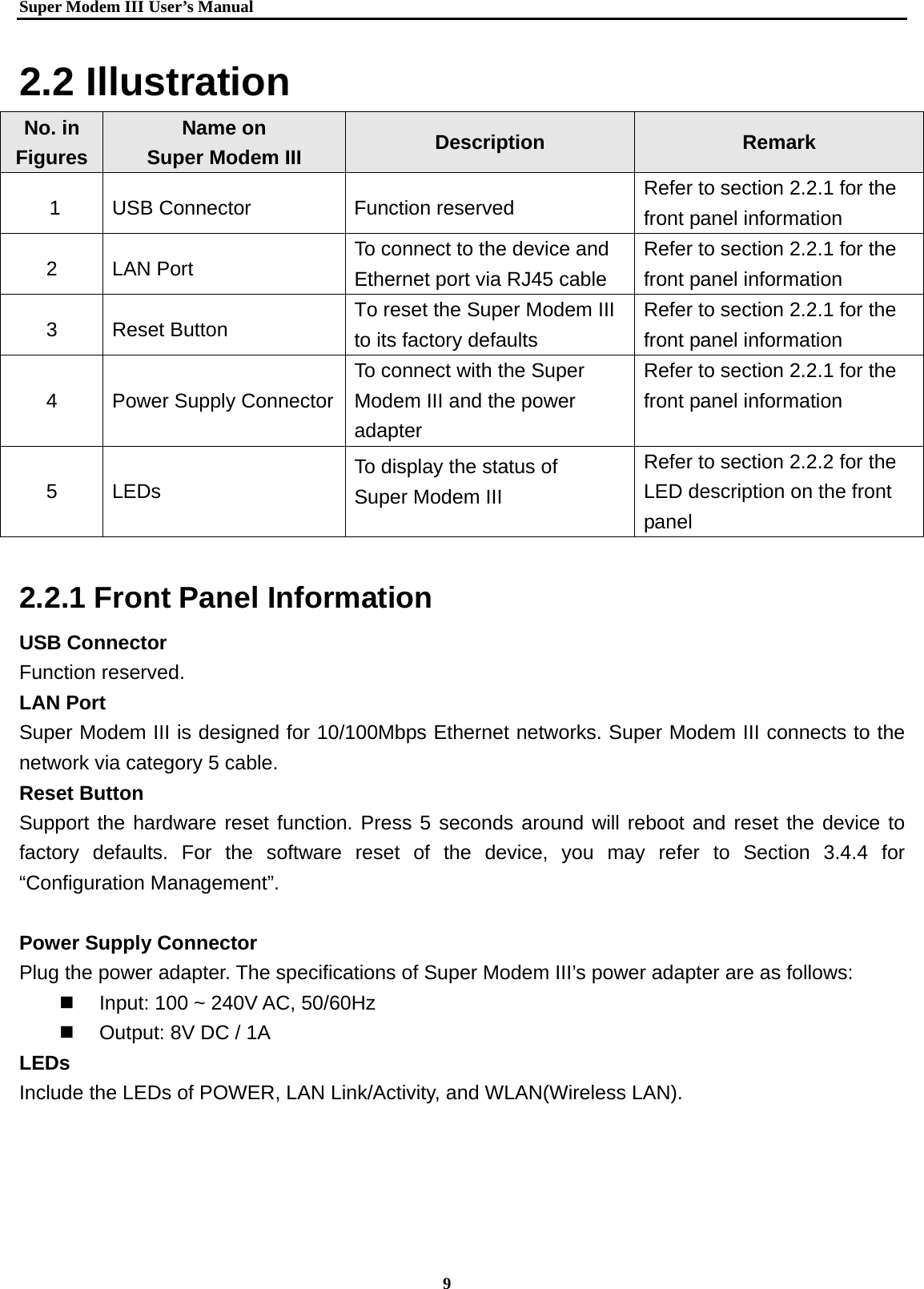

Super Modem IIIUser’s Manual 9 2.2 Illustration No. in Figures Name on Super Modem III Description Remark 1 USB Connector Function reserved Refer to section 2.2.1 for the front panel information 2 LAN Port To connect to the device and Ethernet port via RJ45 cable Refer to section 2.2.1 for the front panel information 3 Reset Button To reset the Super Modem III to its factory defaults Refer to section 2.2.1 for the front panel information 4 Power Supply Connector To connect with the Super Modem III and the power adapter Refer to section 2.2.1 for the front panel information 5 LEDs To display the status of Super Modem III Refer to section 2.2.2 for the LED description on the front panel 2.2.1 Front Panel Information USB Connector Function reserved. LAN Port Super Modem III is designed for 10/100Mbps Ethernet networks. Super Modem III connects to the network via category 5 cable. Reset Button Support the hardware reset function. Press 5 seconds around will reboot and reset the device to factory defaults. For the software reset of the device, you may refer to Section 3.4.4 for “Configuration Management”. Power Supply Connector Plug the power adapter. The specifications of Super Modem III’s power adapter are as follows:  Input: 100 ~ 240V AC, 50/60Hz  Output: 8V DC / 1A LEDs Include the LEDs of POWER, LAN Link/Activity, and WLAN(Wireless LAN).

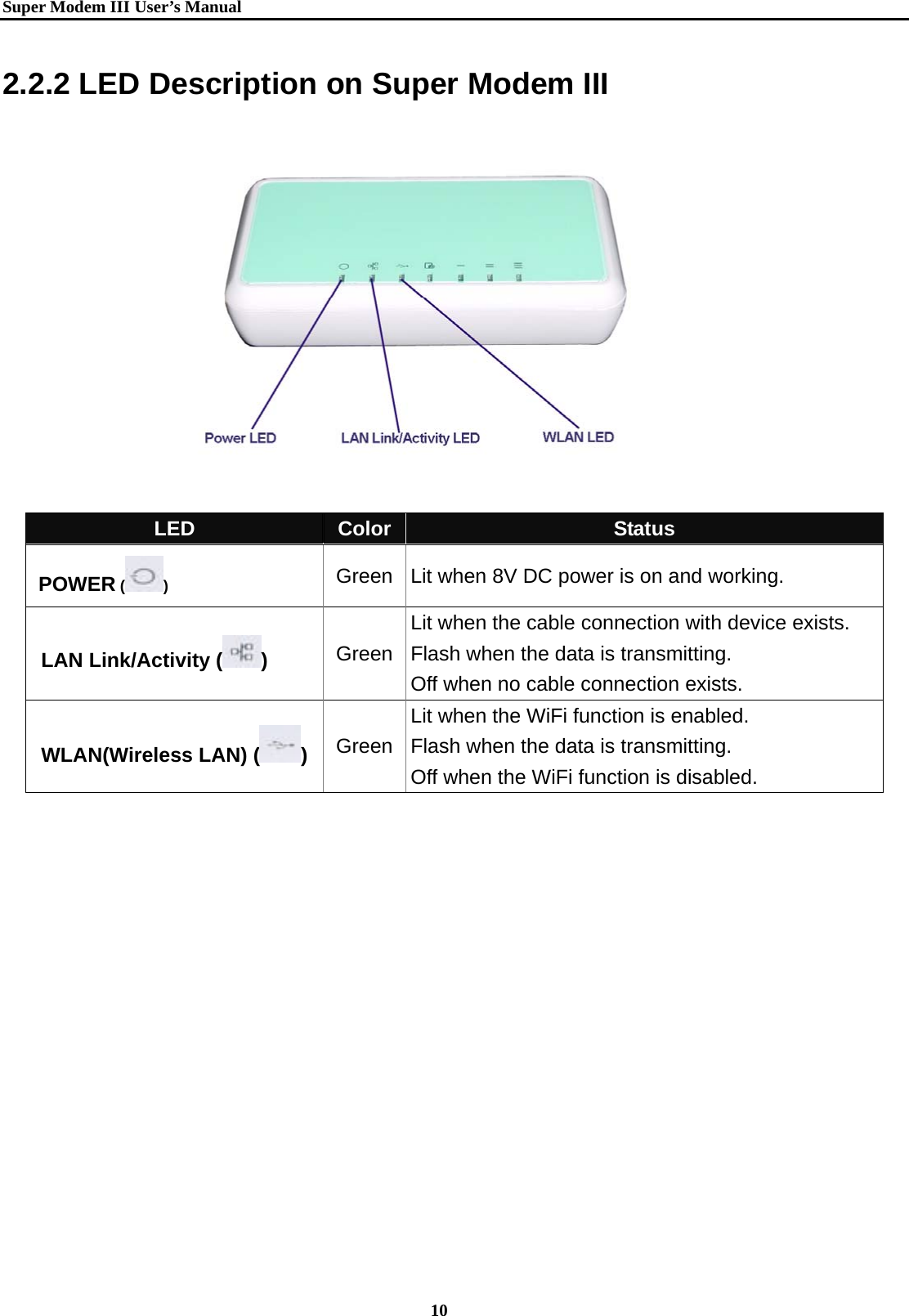

Super Modem IIIUser’s Manual 10 2.2.2 LED Description on Super Modem III LED Color Status POWER ( ) Green Lit when 8V DC power is on and working. LAN Link/Activity ( ) Green Lit when the cable connection with device exists. Flash when the data is transmitting. Off when no cable connection exists. WLAN(Wireless LAN) ( ) Green Lit when the WiFi function is enabled. Flash when the data is transmitting. Off when the WiFi function is disabled.

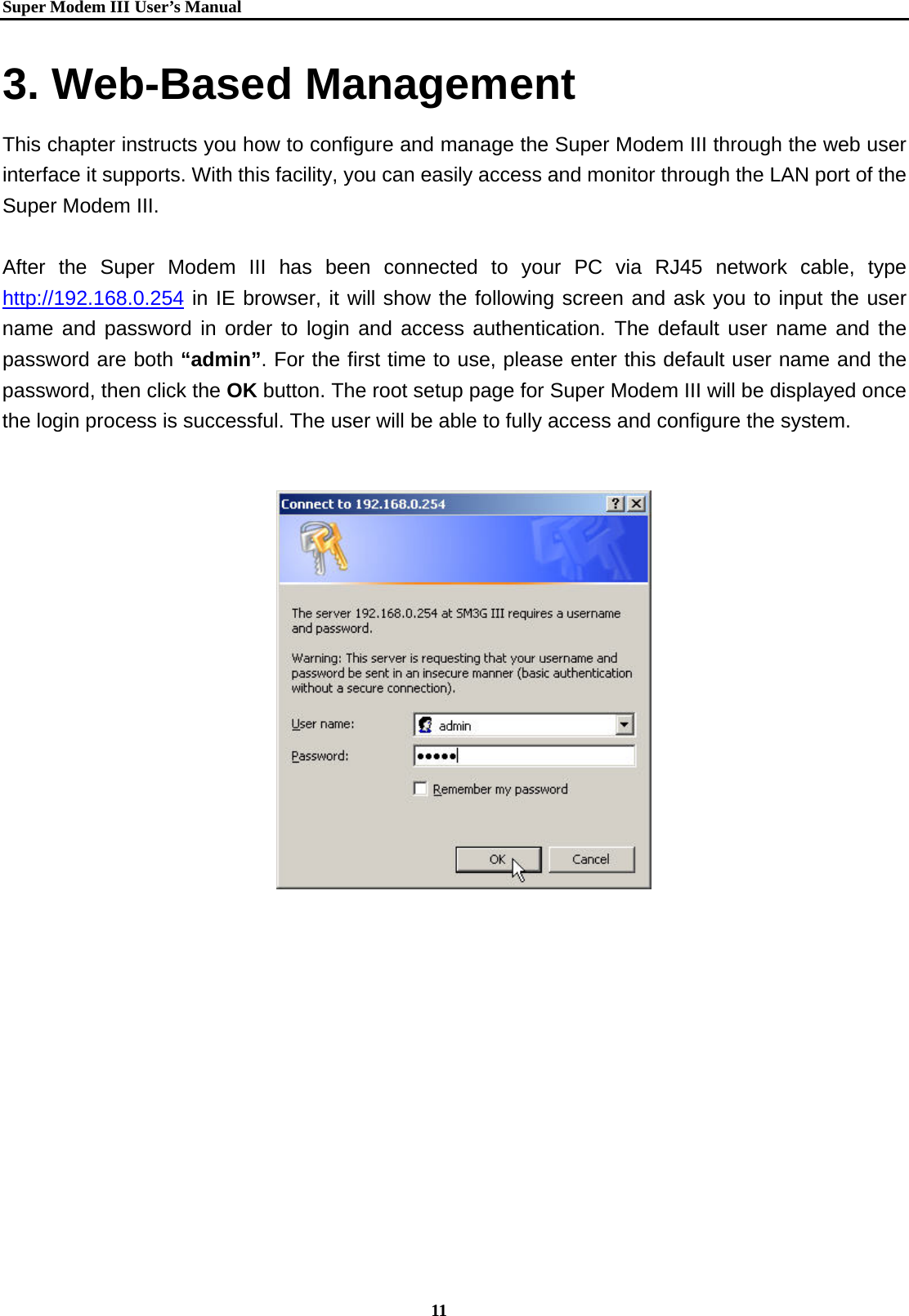

Super Modem IIIUser’s Manual 11 3. Web-Based Management This chapter instructs you how to configure and manage the Super Modem III through the web user interface it supports. With this facility, you can easily access and monitor through the LAN port of the Super Modem III. After the Super Modem III has been connected to your PC via RJ45 network cable, type http://192.168.0.254 in IE browser, it will show the following screen and ask you to input the user name and password in order to login and access authentication. The default user name and the password are both “admin”. For the first time to use, please enter this default user name and the password, then click the OK button. The root setup page for Super Modem III will be displayed once the login process is successful. The user will be able to fully access and configure the system.

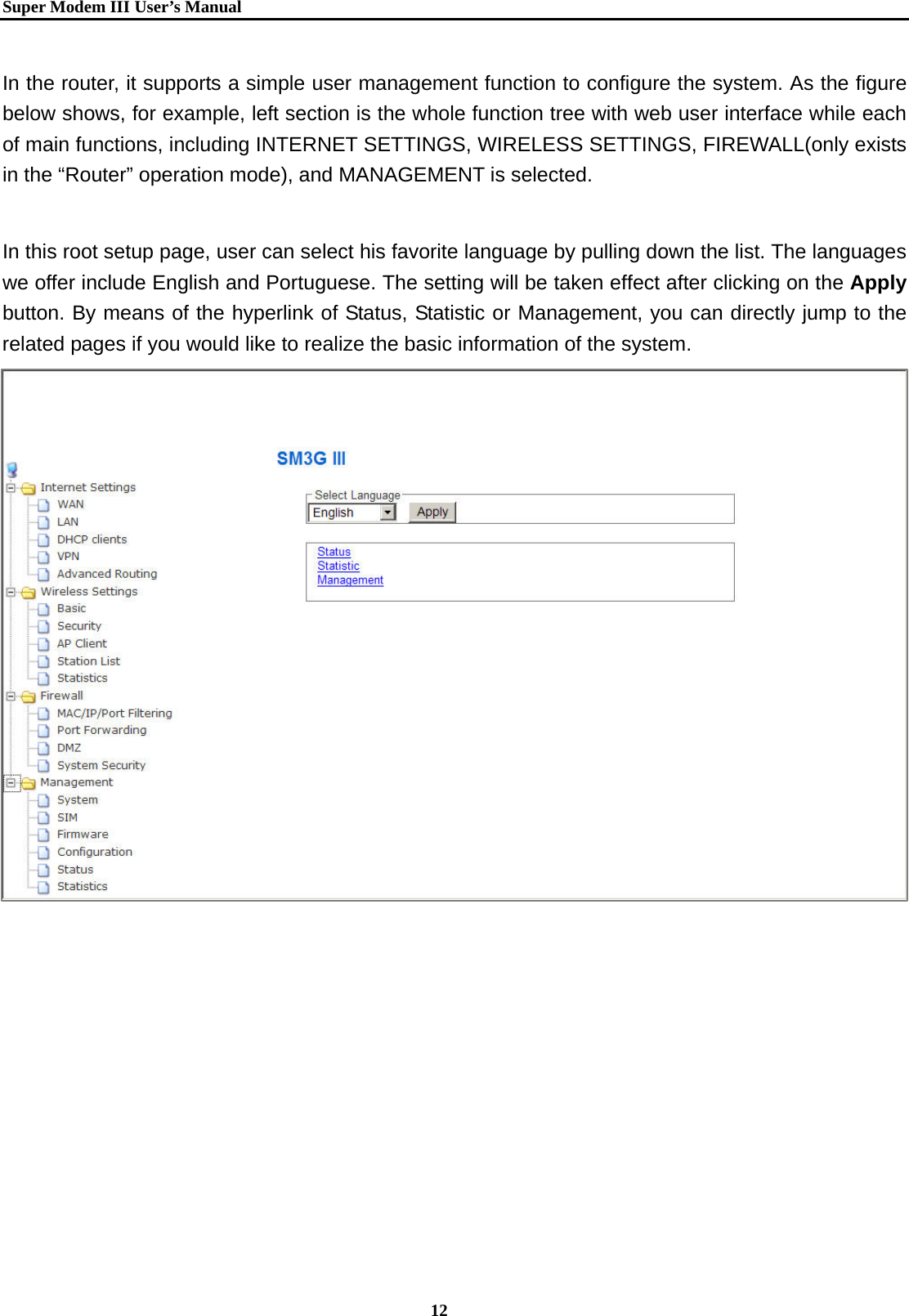

Super Modem IIIUser’s Manual 12 In the router, it supports a simple user management function to configure the system. As the figure below shows, for example, left section is the whole function tree with web user interface while each of main functions, including INTERNET SETTINGS, WIRELESS SETTINGS, FIREWALL(only exists in the “Router” operation mode), and MANAGEMENT is selected. In this root setup page, user can select his favorite language by pulling down the list. The languages we offer include English and Portuguese. The setting will be taken effect after clicking on the Apply button. By means of the hyperlink of Status, Statistic or Management, you can directly jump to the related pages if you would like to realize the basic information of the system.

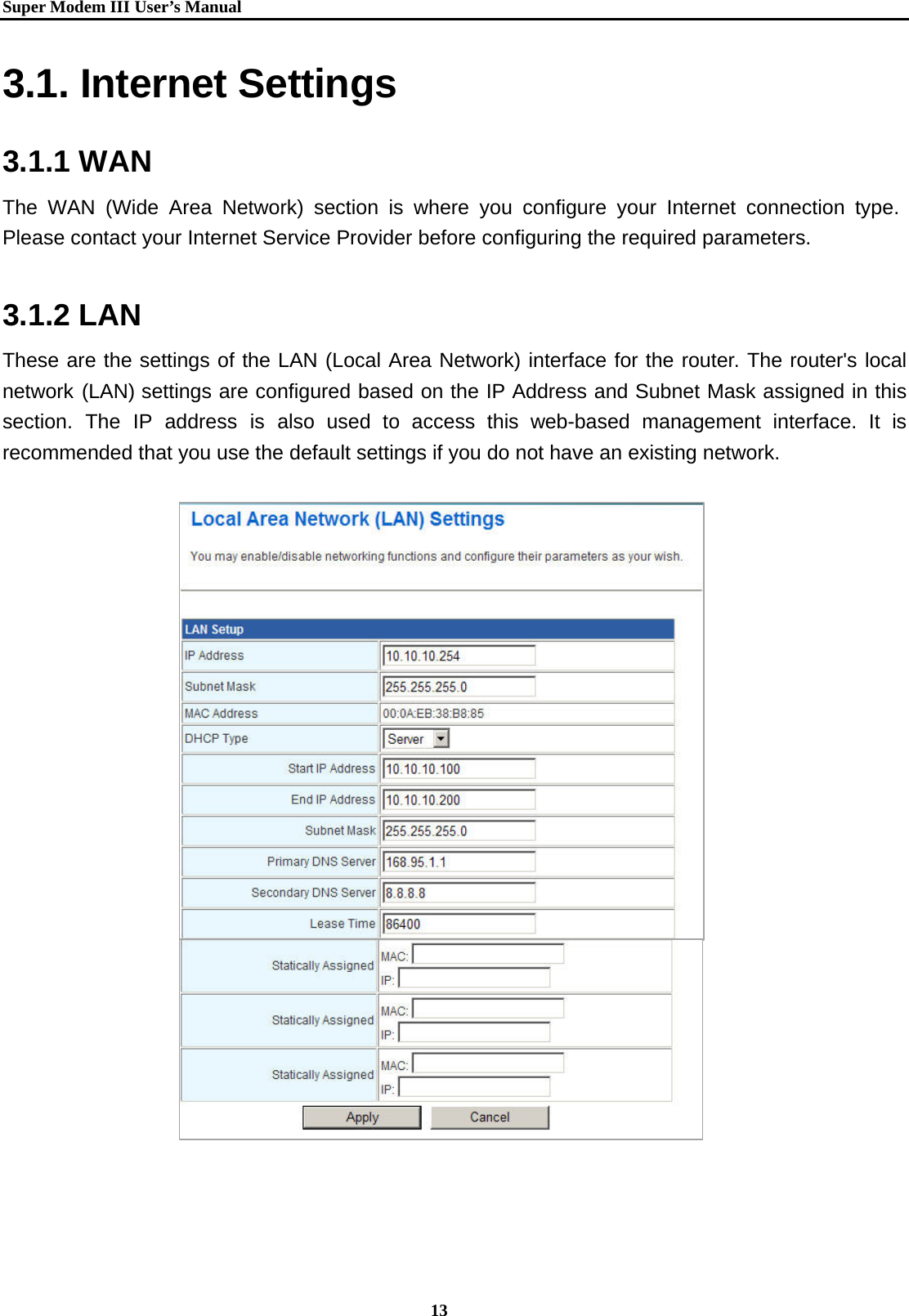

Super Modem IIIUser’s Manual 13 3.1. Internet Settings 3.1.1 WAN The WAN (Wide Area Network) section is where you configure your Internet connection type. Please contact your Internet Service Provider before configuring the required parameters. 3.1.2 LAN These are the settings of the LAN (Local Area Network) interface for the router. The router's local network (LAN) settings are configured based on the IP Address and Subnet Mask assigned in this section. The IP address is also used to access this web-based management interface. It is recommended that you use the default settings if you do not have an existing network.

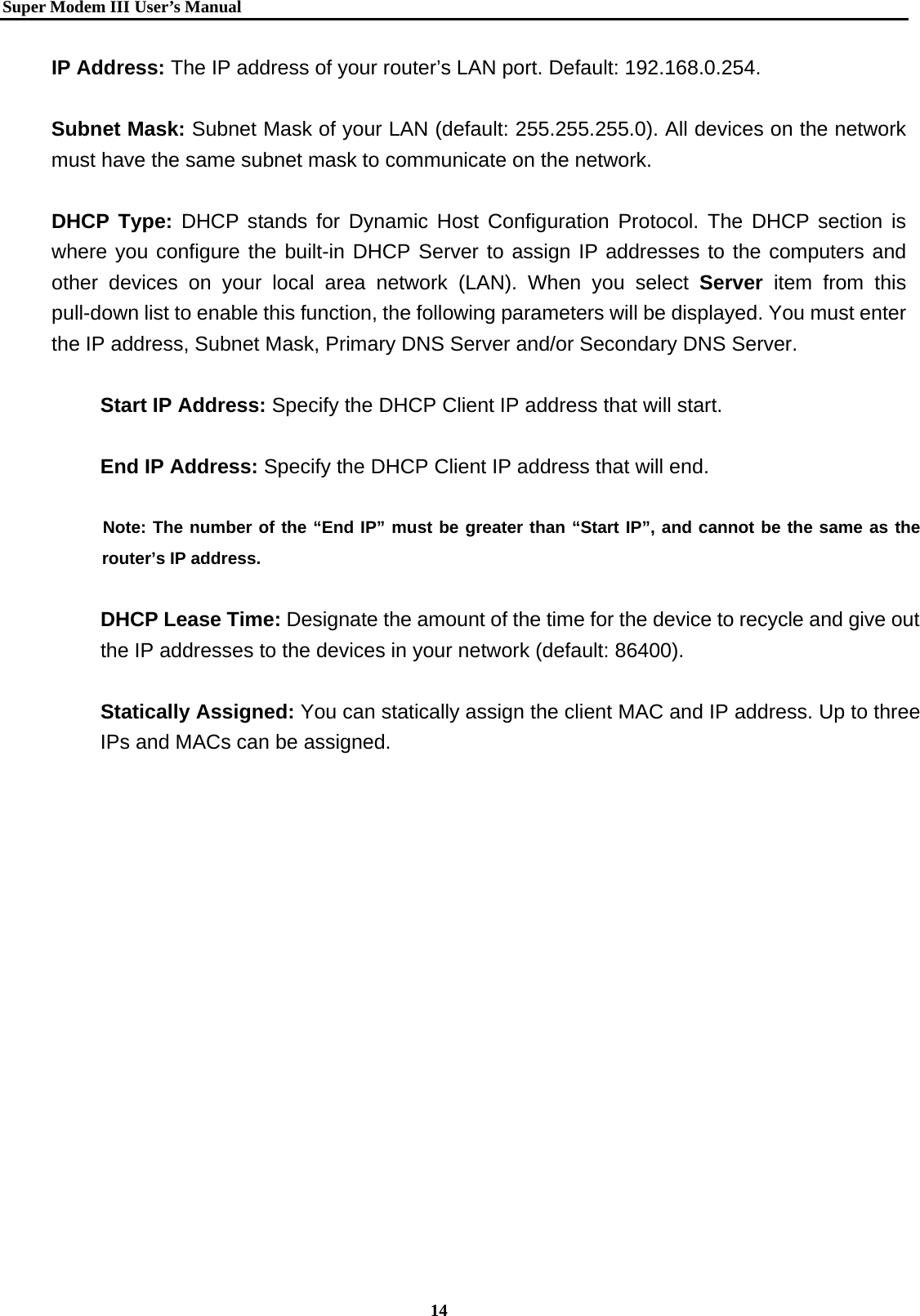

Super Modem IIIUser’s Manual 14 IP Address: The IP address of your router’s LAN port. Default: 192.168.0.254. Subnet Mask: Subnet Mask of your LAN (default: 255.255.255.0). All devices on the network must have the same subnet mask to communicate on the network. DHCP Type: DHCP stands for Dynamic Host Configuration Protocol. The DHCP section is where you configure the built-in DHCP Server to assign IP addresses to the computers and other devices on your local area network (LAN). When you select Server item from this pull-down list to enable this function, the following parameters will be displayed. You must enter the IP address, Subnet Mask, Primary DNS Server and/or Secondary DNS Server. Start IP Address: Specify the DHCP Client IP address that will start. End IP Address: Specify the DHCP Client IP address that will end. Note: The number of the “End IP” must be greater than “Start IP”, and cannot be the same as the router’s IP address. DHCP Lease Time: Designate the amount of the time for the device to recycle and give out the IP addresses to the devices in your network (default: 86400). Statically Assigned: You can statically assign the client MAC and IP address. Up to three IPs and MACs can be assigned.

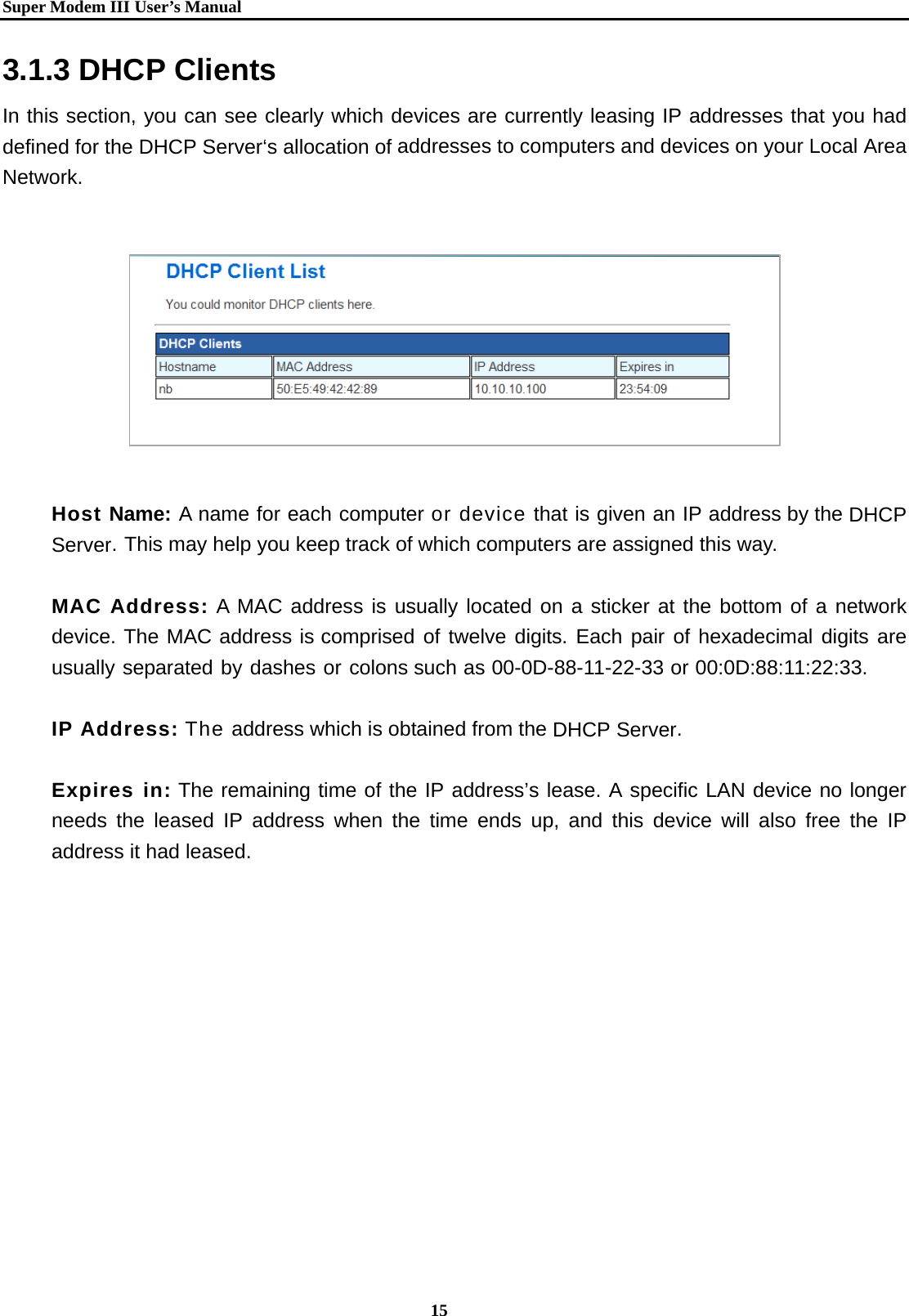

Super Modem IIIUser’s Manual 15 3.1.3 DHCP Clients In this section, you can see clearly which devices are currently leasing IP addresses that you had defined for the DHCP Server‘s allocation of addresses to computers and devices on your Local Area Network. Host Name: A name for each computer or device that is given an IP address by the DHCP Server. This may help you keep track of which computers are assigned this way. MAC Address: A MAC address is usually located on a sticker at the bottom of a network device. The MAC address is comprised of twelve digits. Each pair of hexadecimal digits are usually separated by dashes or colons such as 00-0D-88-11-22-33 or 00:0D:88:11:22:33. IP Address: The address which is obtained from the DHCP Server. Expires in: The remaining time of the IP address’s lease. A specific LAN device no longer needs the leased IP address when the time ends up, and this device will also free the IP address it had leased.

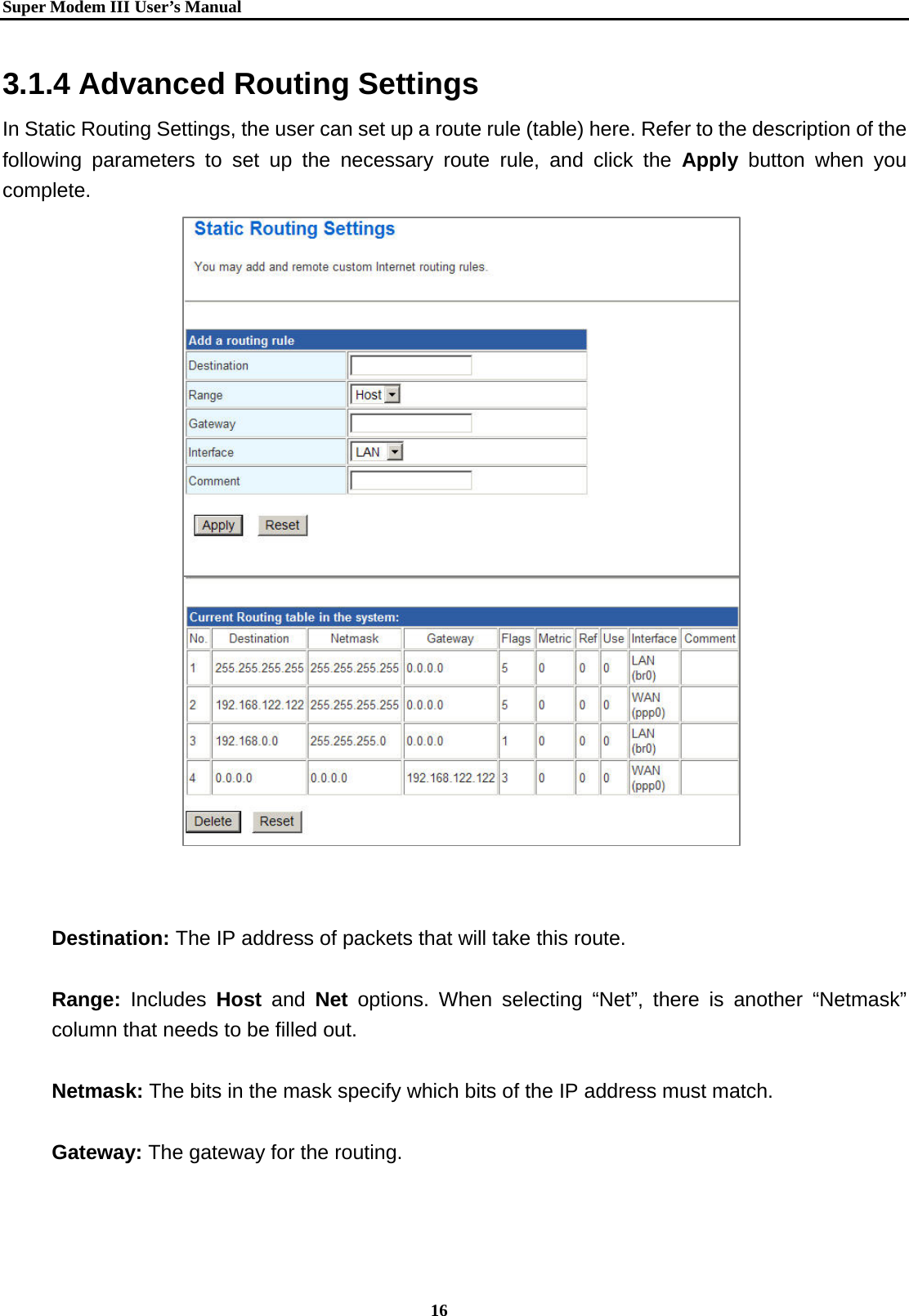

Super Modem IIIUser’s Manual 16 3.1.4 Advanced Routing Settings In Static Routing Settings, the user can set up a route rule (table) here. Refer to the description of the following parameters to set up the necessary route rule, and click the Apply button when you complete. Destination: The IP address of packets that will take this route. Range: Includes Host and Net options. When selecting “Net”, there is another “Netmask” column that needs to be filled out. Netmask: The bits in the mask specify which bits of the IP address must match. Gateway: The gateway for the routing.
Super Modem IIIUser’s Manual 17 Interface: Specifies the interface -- LAN or WAN -- that the IP packet must use to transit out of the router when this route is used. Or you can choose the user-defined way by selecting the Custom option. Comment: Memo for the routing rule. Routing Table: Lists the current route rules you have added before. Click on the Delete button to delete the selected route rule.

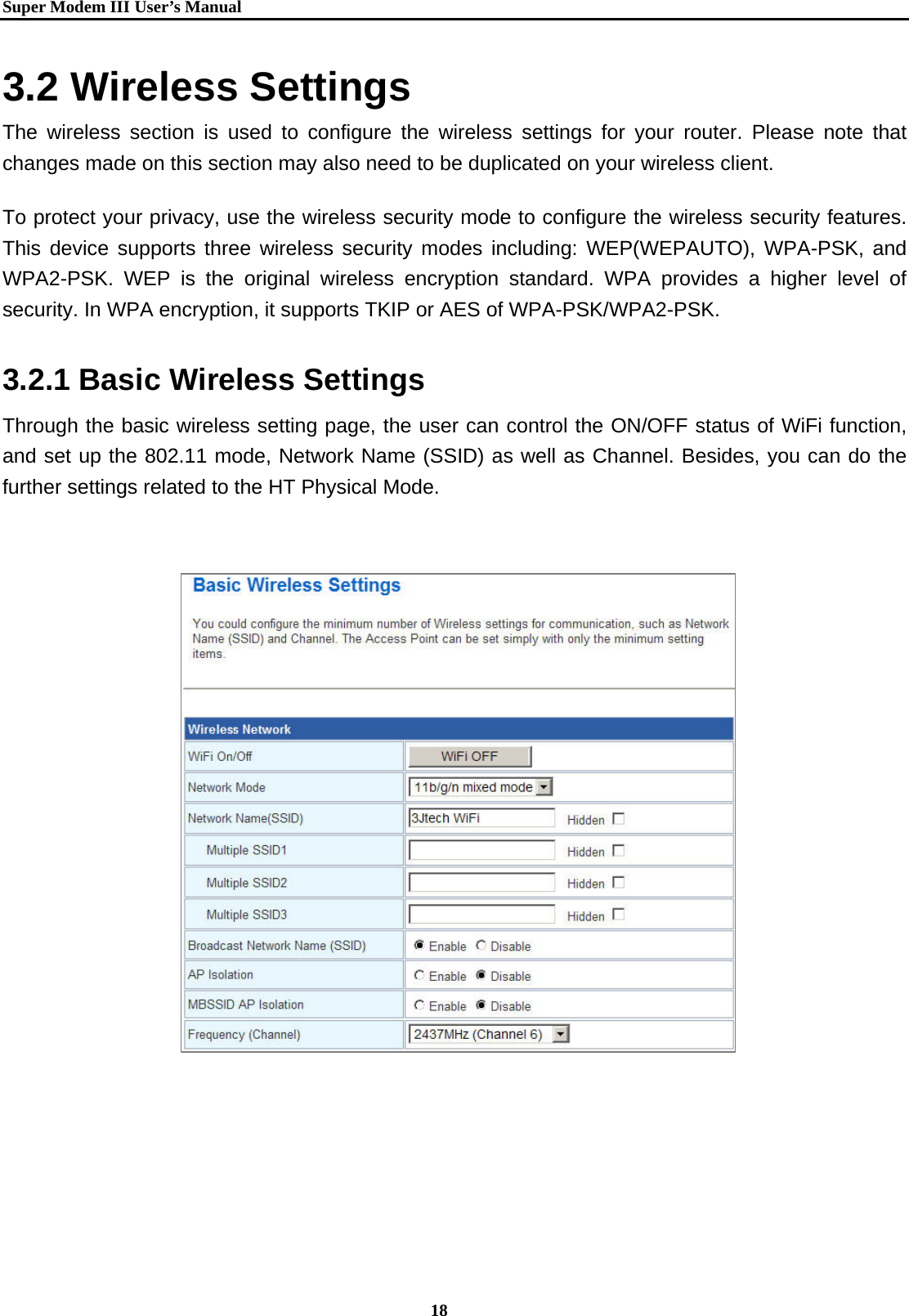

Super Modem IIIUser’s Manual 18 3.2 Wireless Settings The wireless section is used to configure the wireless settings for your router. Please note that changes made on this section may also need to be duplicated on your wireless client. To protect your privacy, use the wireless security mode to configure the wireless security features. This device supports three wireless security modes including: WEP(WEPAUTO), WPA-PSK, and WPA2-PSK. WEP is the original wireless encryption standard. WPA provides a higher level of security. In WPA encryption, it supports TKIP or AES of WPA-PSK/WPA2-PSK. 3.2.1 Basic Wireless Settings Through the basic wireless setting page, the user can control the ON/OFF status of WiFi function, and set up the 802.11 mode, Network Name (SSID) as well as Channel. Besides, you can do the further settings related to the HT Physical Mode.

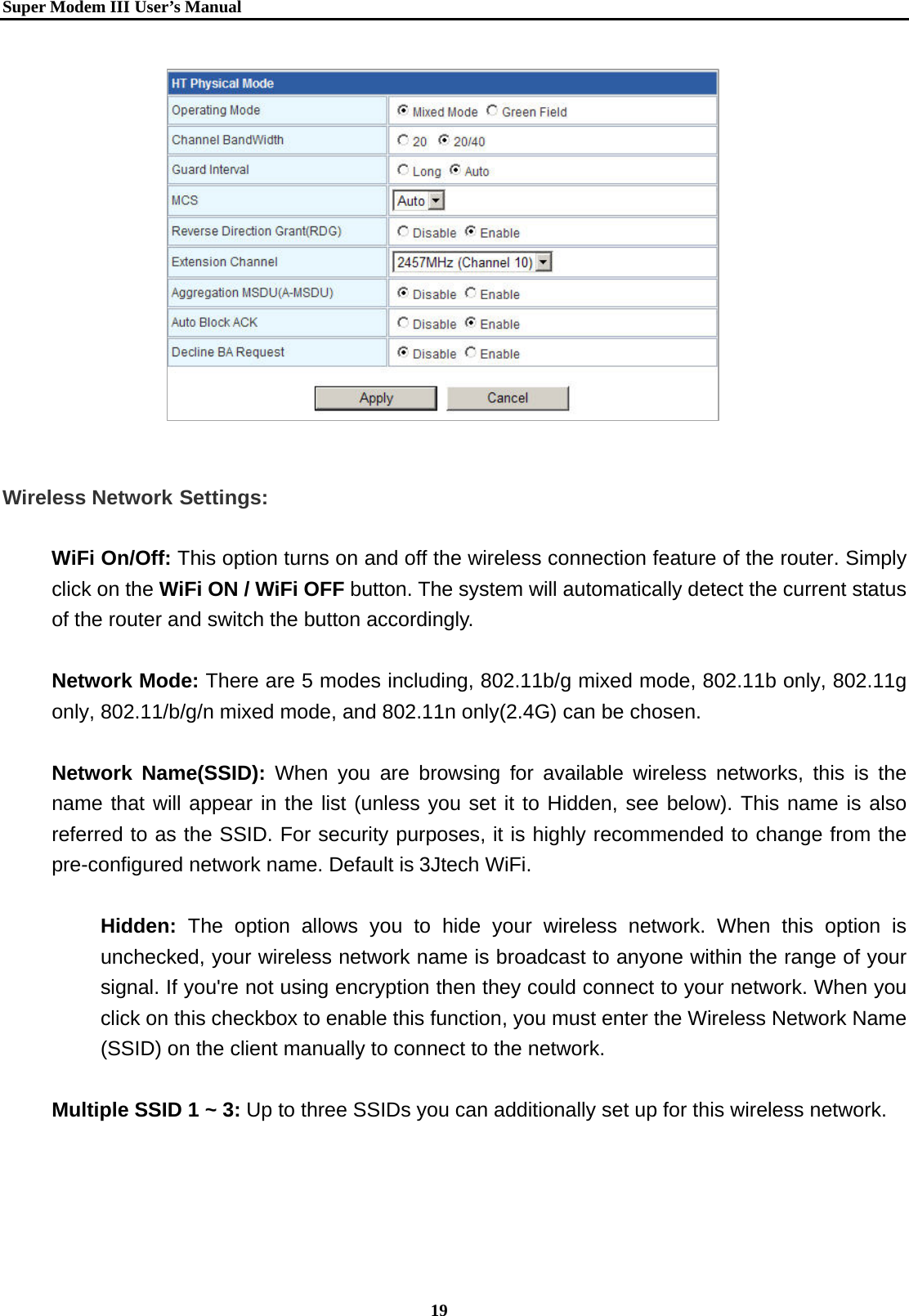

Super Modem IIIUser’s Manual 19 Wireless Network Settings: WiFi On/Off: This option turns on and off the wireless connection feature of the router. Simply click on the WiFi ON / WiFi OFF button. The system will automatically detect the current status of the router and switch the button accordingly. Network Mode: There are 5 modes including, 802.11b/g mixed mode, 802.11b only, 802.11g only, 802.11/b/g/n mixed mode, and 802.11n only(2.4G) can be chosen. Network Name(SSID): When you are browsing for available wireless networks, this is the name that will appear in the list (unless you set it to Hidden, see below). This name is also referred to as the SSID. For security purposes, it is highly recommended to change from the pre-configured network name. Default is 3Jtech WiFi. Hidden: The option allows you to hide your wireless network. When this option is unchecked, your wireless network name is broadcast to anyone within the range of your signal. If you're not using encryption then they could connect to your network. When you click on this checkbox to enable this function, you must enter the Wireless Network Name (SSID) on the client manually to connect to the network. Multiple SSID 1 ~ 3: Up to three SSIDs you can additionally set up for this wireless network.

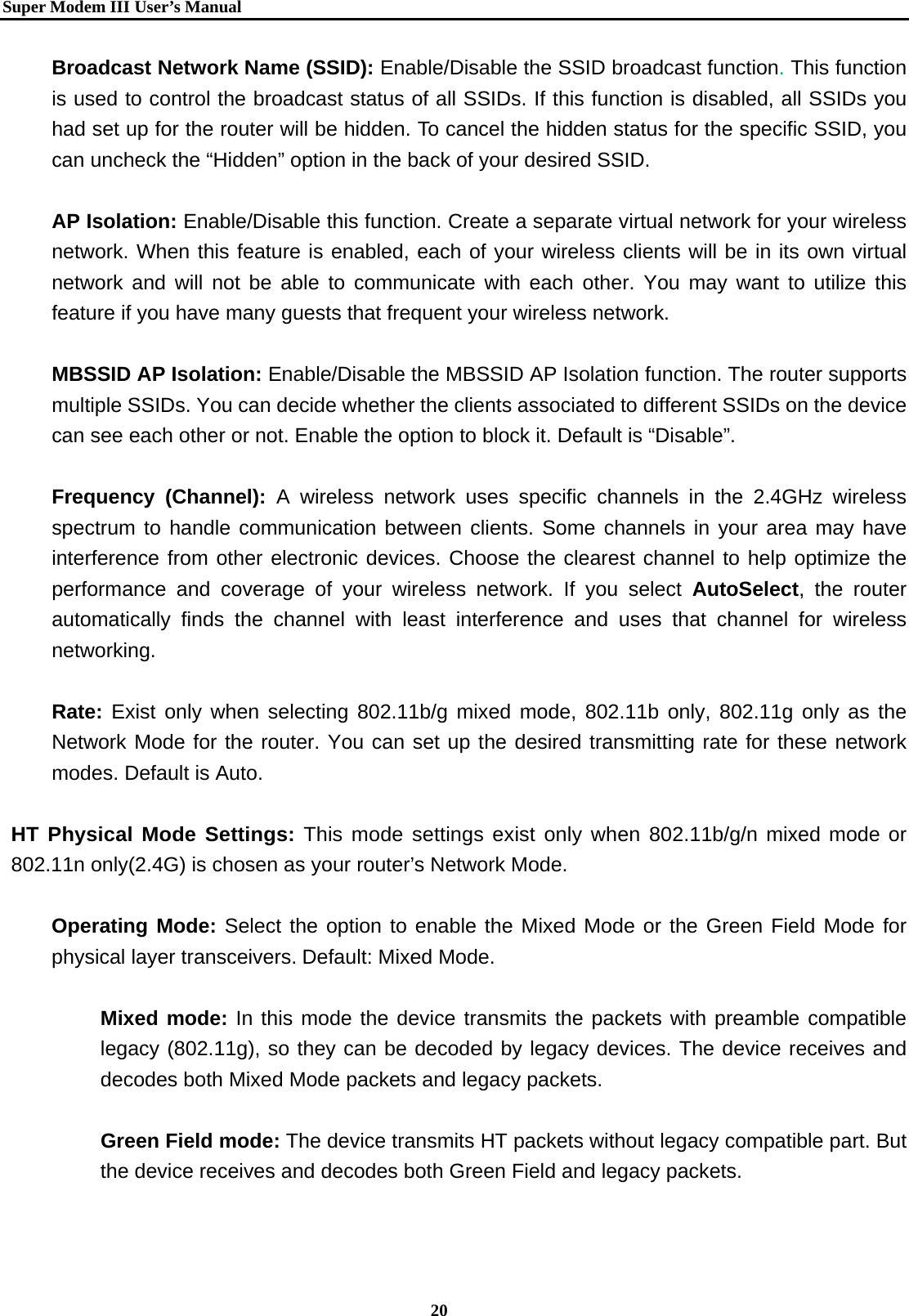

Super Modem IIIUser’s Manual 20 Broadcast Network Name (SSID): Enable/Disable the SSID broadcast function. This function is used to control the broadcast status of all SSIDs. If this function is disabled, all SSIDs you had set up for the router will be hidden. To cancel the hidden status for the specific SSID, you can uncheck the “Hidden” option in the back of your desired SSID. AP Isolation: Enable/Disable this function. Create a separate virtual network for your wireless network. When this feature is enabled, each of your wireless clients will be in its own virtual network and will not be able to communicate with each other. You may want to utilize this feature if you have many guests that frequent your wireless network. MBSSID AP Isolation: Enable/Disable the MBSSID AP Isolation function. The router supports multiple SSIDs. You can decide whether the clients associated to different SSIDs on the device can see each other or not. Enable the option to block it. Default is “Disable”. Frequency (Channel): A wireless network uses specific channels in the 2.4GHz wireless spectrum to handle communication between clients. Some channels in your area may have interference from other electronic devices. Choose the clearest channel to help optimize the performance and coverage of your wireless network. If you select AutoSelect, the router automatically finds the channel with least interference and uses that channel for wireless networking. Rate: Exist only when selecting 802.11b/g mixed mode, 802.11b only, 802.11g only as the Network Mode for the router. You can set up the desired transmitting rate for these network modes. Default is Auto. HT Physical Mode Settings: This mode settings exist only when 802.11b/g/n mixed mode or 802.11n only(2.4G) is chosen as your router’s Network Mode. Operating Mode: Select the option to enable the Mixed Mode or the Green Field Mode for physical layer transceivers. Default: Mixed Mode. Mixed mode: In this mode the device transmits the packets with preamble compatible legacy (802.11g), so they can be decoded by legacy devices. The device receives and decodes both Mixed Mode packets and legacy packets. Green Field mode: The device transmits HT packets without legacy compatible part. But the device receives and decodes both Green Field and legacy packets.

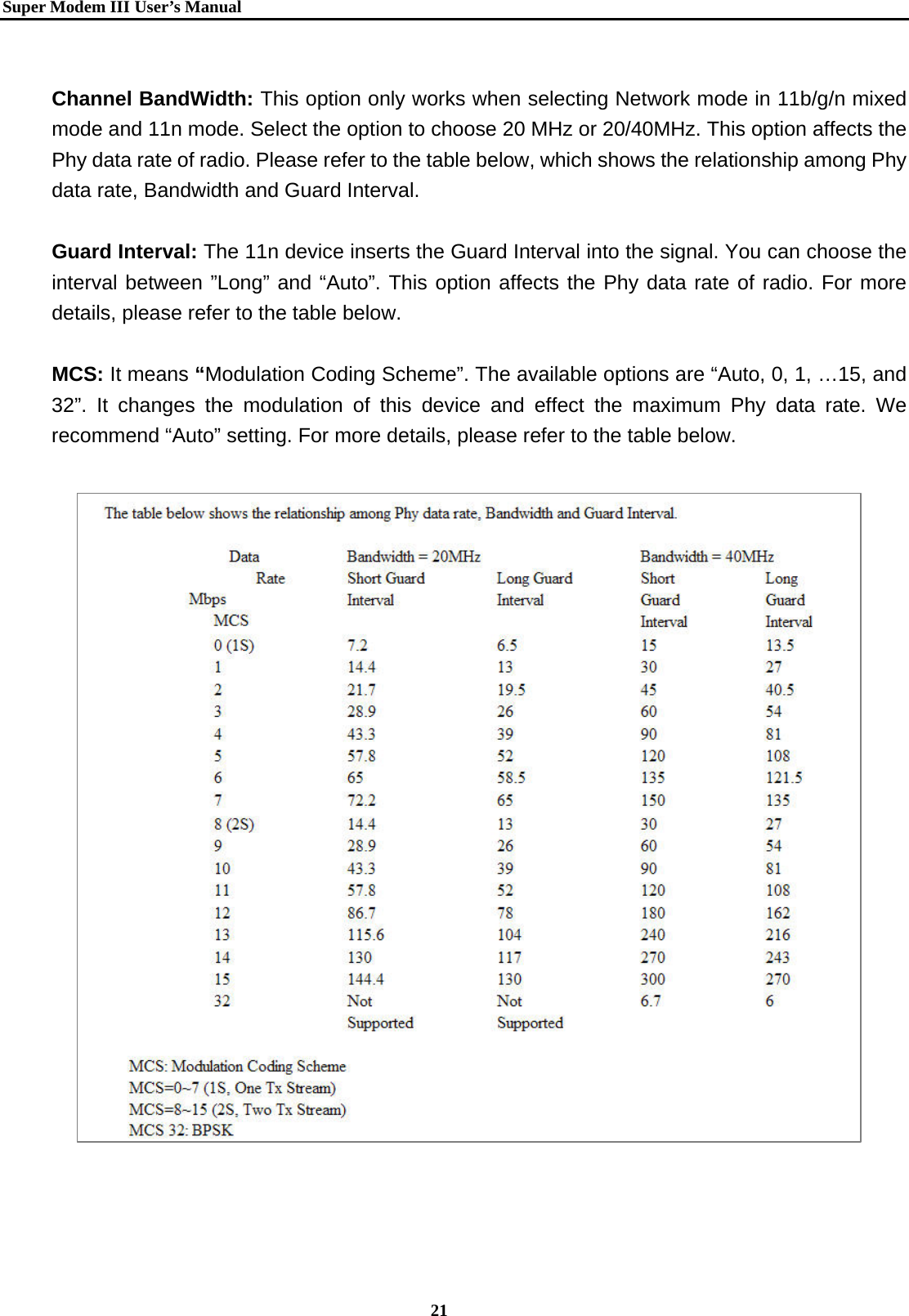

Super Modem IIIUser’s Manual 21 Channel BandWidth: This option only works when selecting Network mode in 11b/g/n mixed mode and 11n mode. Select the option to choose 20 MHz or 20/40MHz. This option affects the Phy data rate of radio. Please refer to the table below, which shows the relationship among Phy data rate, Bandwidth and Guard Interval. Guard Interval: The 11n device inserts the Guard Interval into the signal. You can choose the interval between ”Long” and “Auto”. This option affects the Phy data rate of radio. For more details, please refer to the table below. MCS: It means “Modulation Coding Scheme”. The available options are “Auto, 0, 1, …15, and 32”. It changes the modulation of this device and effect the maximum Phy data rate. We recommend “Auto” setting. For more details, please refer to the table below.

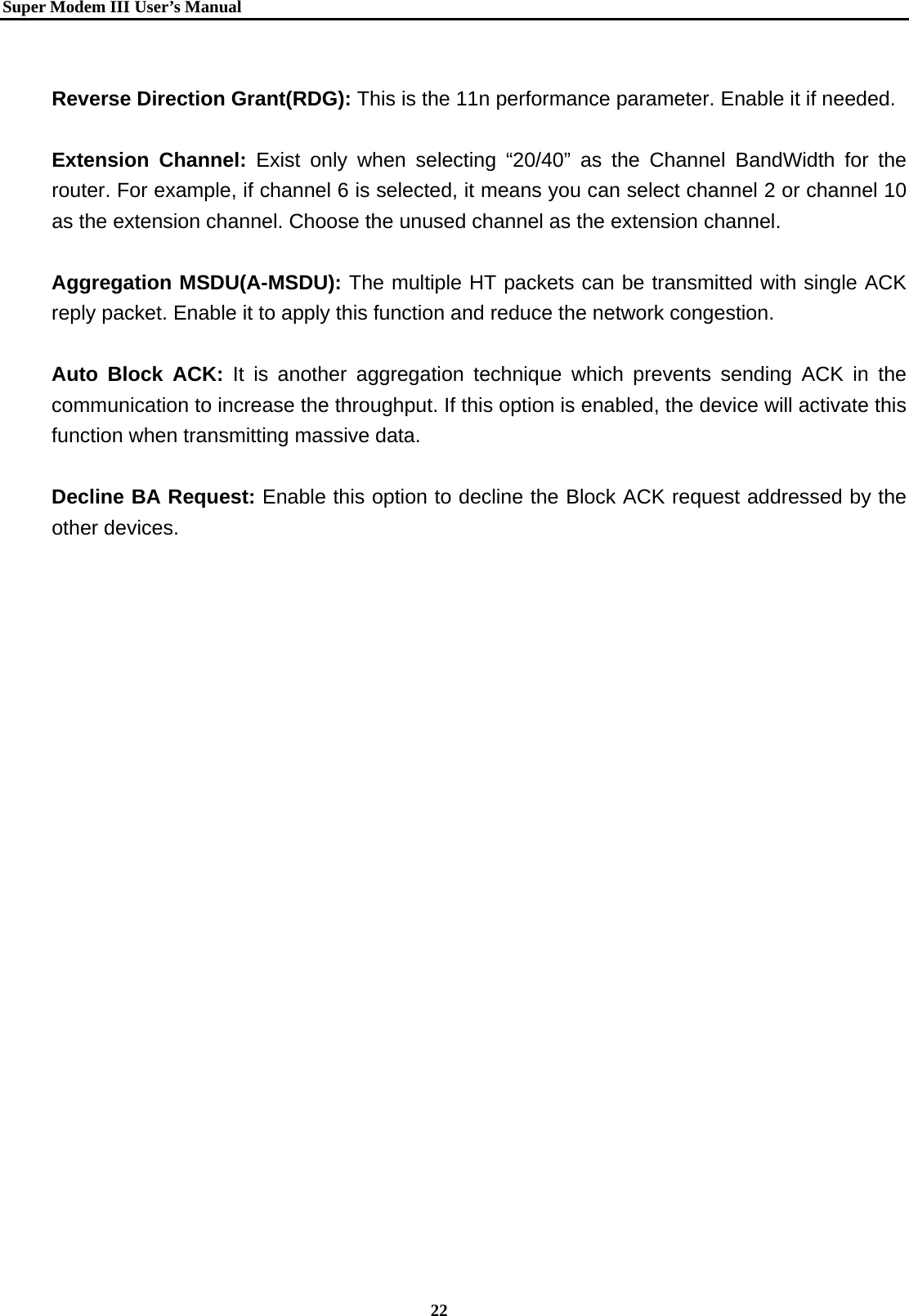

Super Modem IIIUser’s Manual 22 Reverse Direction Grant(RDG): This is the 11n performance parameter. Enable it if needed. Extension Channel: Exist only when selecting “20/40” as the Channel BandWidth for the router. For example, if channel 6 is selected, it means you can select channel 2 or channel 10 as the extension channel. Choose the unused channel as the extension channel. Aggregation MSDU(A-MSDU): The multiple HT packets can be transmitted with single ACK reply packet. Enable it to apply this function and reduce the network congestion. Auto Block ACK: It is another aggregation technique which prevents sending ACK in the communication to increase the throughput. If this option is enabled, the device will activate this function when transmitting massive data. Decline BA Request: Enable this option to decline the Block ACK request addressed by the other devices.

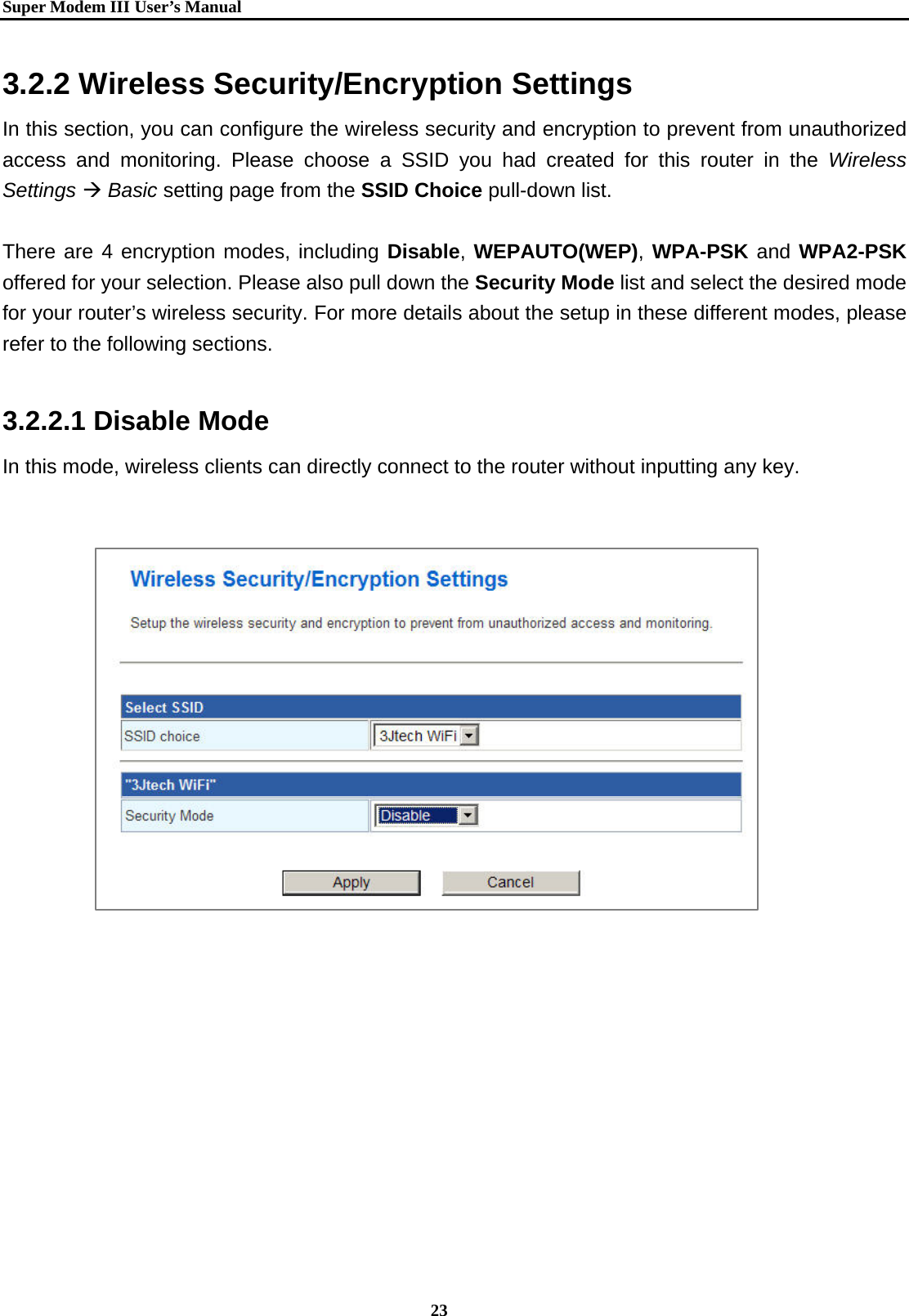

Super Modem IIIUser’s Manual 23 3.2.2 Wireless Security/Encryption Settings In this section, you can configure the wireless security and encryption to prevent from unauthorized access and monitoring. Please choose a SSID you had created for this router in the Wireless Settings Æ Basic setting page from the SSID Choice pull-down list. There are 4 encryption modes, including Disable, WEPAUTO(WEP), WPA-PSK and WPA2-PSK offered for your selection. Please also pull down the Security Mode list and select the desired mode for your router’s wireless security. For more details about the setup in these different modes, please refer to the following sections. 3.2.2.1 Disable Mode In this mode, wireless clients can directly connect to the router without inputting any key.

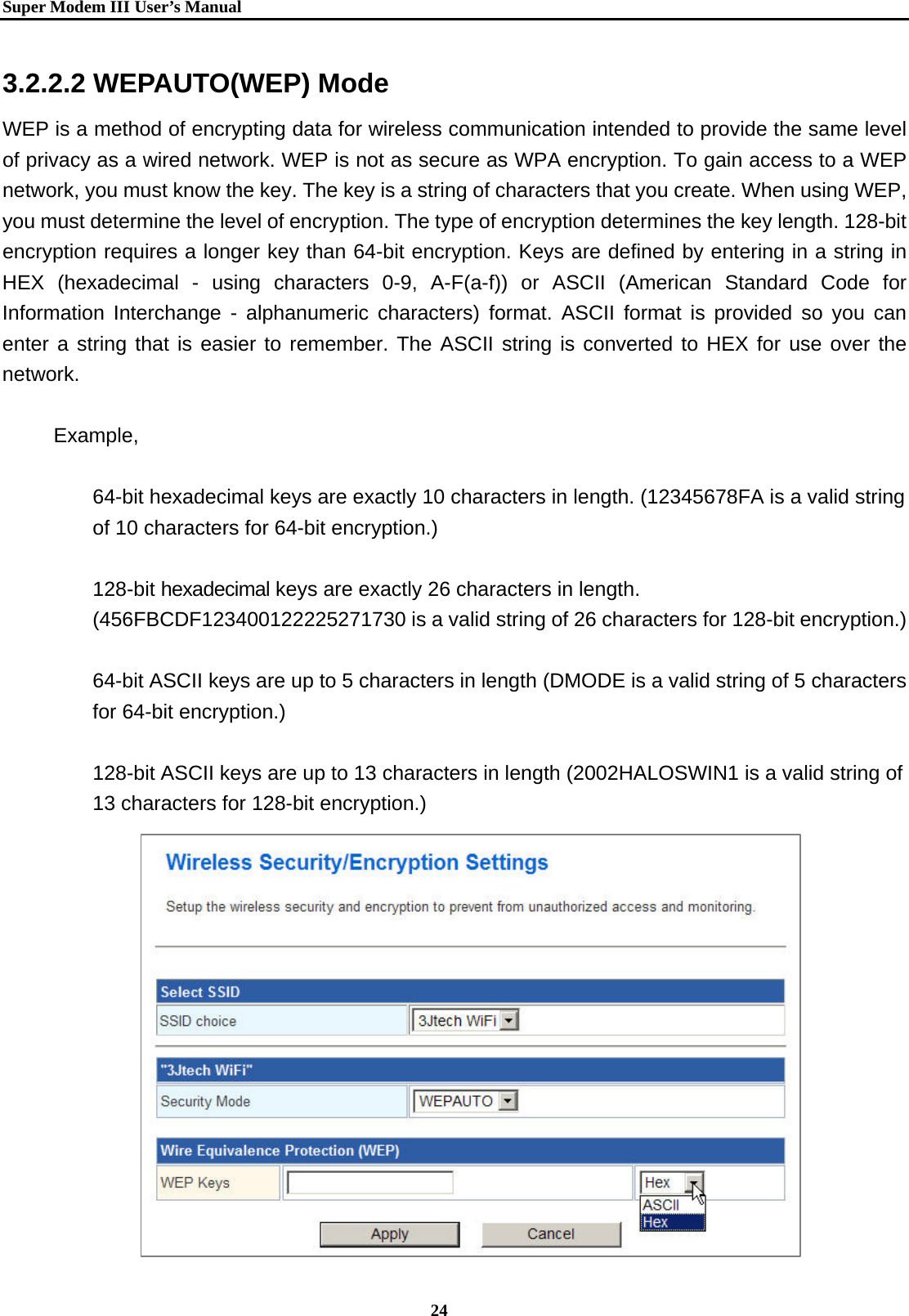

Super Modem IIIUser’s Manual 24 3.2.2.2 WEPAUTO(WEP) Mode WEP is a method of encrypting data for wireless communication intended to provide the same level of privacy as a wired network. WEP is not as secure as WPA encryption. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F(a-f)) or ASCII (American Standard Code for Information Interchange - alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Example, 64-bit hexadecimal keys are exactly 10 characters in length. (12345678FA is a valid string of 10 characters for 64-bit encryption.) 128-bit hexadecimal keys are exactly 26 characters in length. (456FBCDF123400122225271730 is a valid string of 26 characters for 128-bit encryption.) 64-bit ASCII keys are up to 5 characters in length (DMODE is a valid string of 5 characters for 64-bit encryption.) 128-bit ASCII keys are up to 13 characters in length (2002HALOSWIN1 is a valid string of 13 characters for 128-bit encryption.)

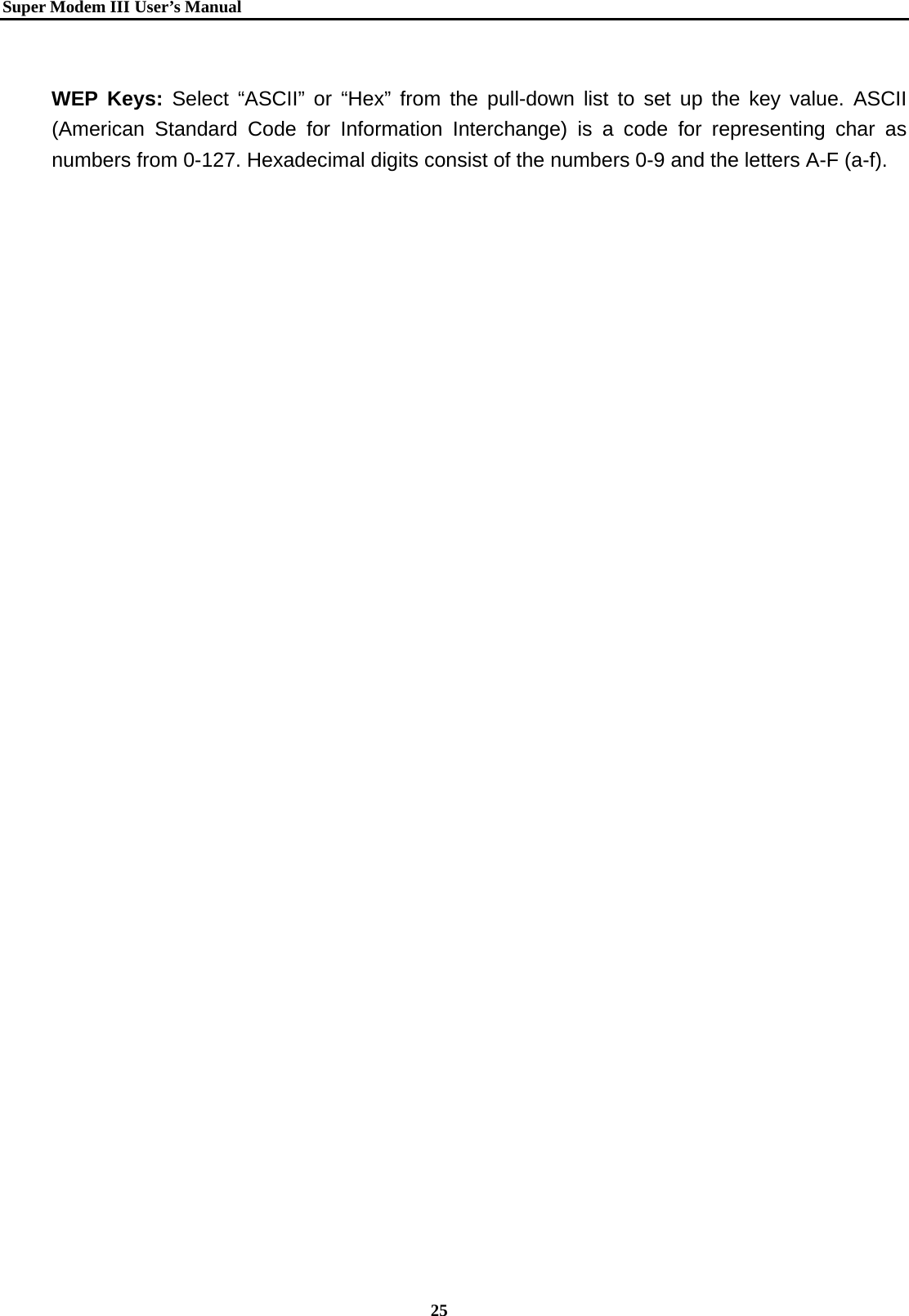

Super Modem IIIUser’s Manual 25 WEP Keys: Select “ASCII” or “Hex” from the pull-down list to set up the key value. ASCII (American Standard Code for Information Interchange) is a code for representing char as numbers from 0-127. Hexadecimal digits consist of the numbers 0-9 and the letters A-F (a-f).

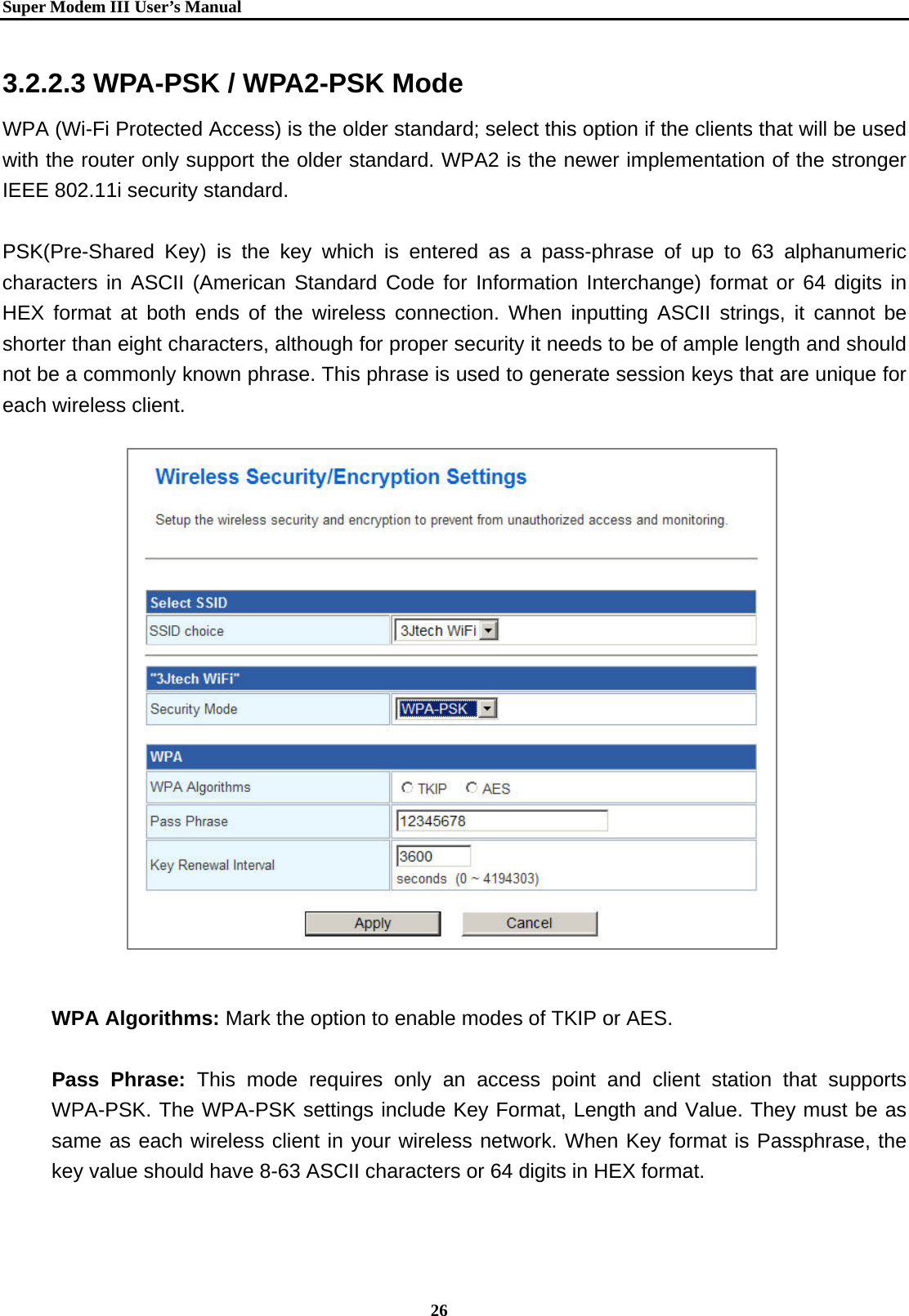

Super Modem IIIUser’s Manual 26 3.2.2.3 WPA-PSK / WPA2-PSK Mode WPA (Wi-Fi Protected Access) is the older standard; select this option if the clients that will be used with the router only support the older standard. WPA2 is the newer implementation of the stronger IEEE 802.11i security standard. PSK(Pre-Shared Key) is the key which is entered as a pass-phrase of up to 63 alphanumeric characters in ASCII (American Standard Code for Information Interchange) format or 64 digits in HEX format at both ends of the wireless connection. When inputting ASCII strings, it cannot be shorter than eight characters, although for proper security it needs to be of ample length and should not be a commonly known phrase. This phrase is used to generate session keys that are unique for each wireless client. WPA Algorithms: Mark the option to enable modes of TKIP or AES. Pass Phrase: This mode requires only an access point and client station that supports WPA-PSK. The WPA-PSK settings include Key Format, Length and Value. They must be as same as each wireless client in your wireless network. When Key format is Passphrase, the key value should have 8-63 ASCII characters or 64 digits in HEX format.

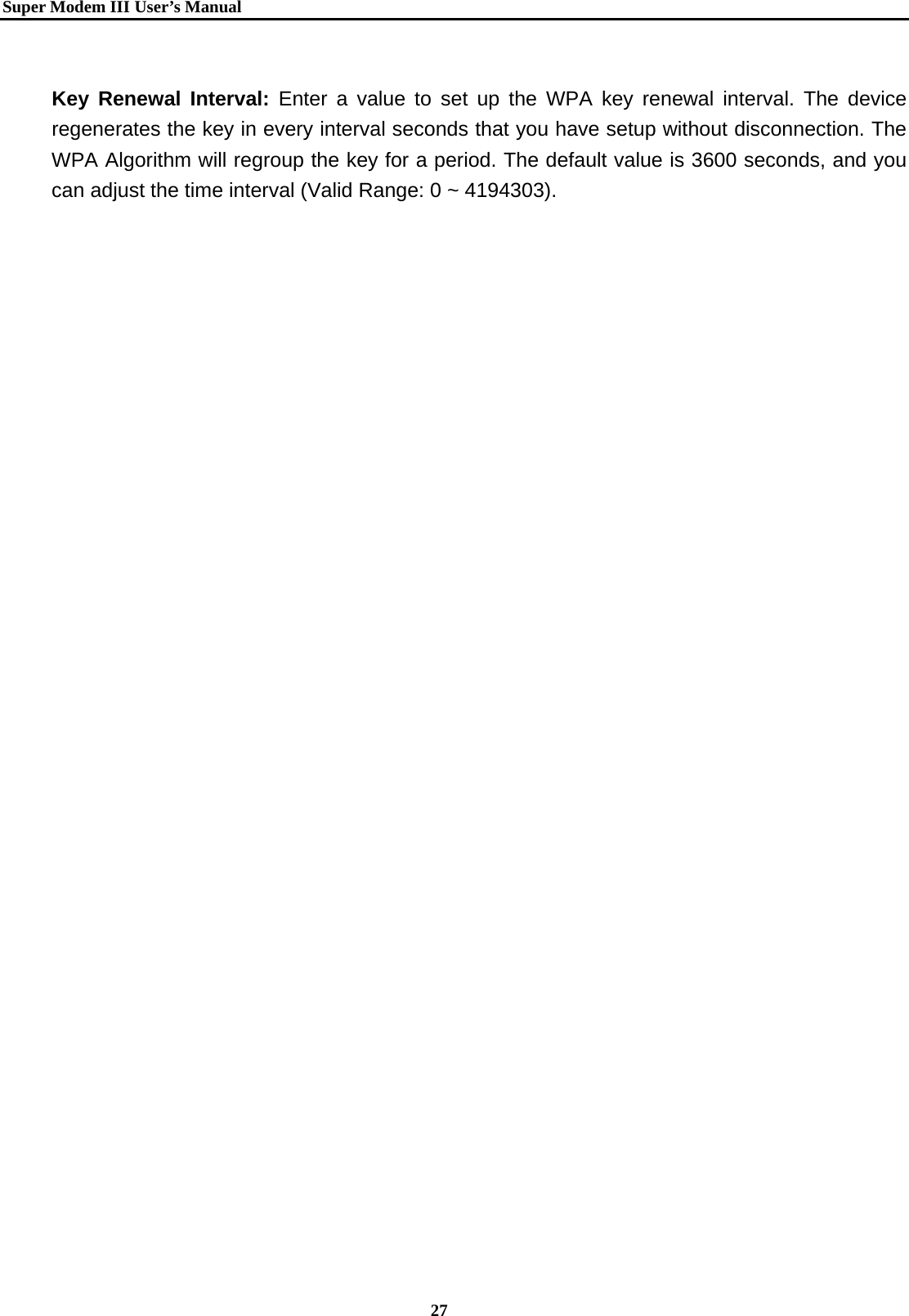

Super Modem IIIUser’s Manual 27 Key Renewal Interval: Enter a value to set up the WPA key renewal interval. The device regenerates the key in every interval seconds that you have setup without disconnection. The WPA Algorithm will regroup the key for a period. The default value is 3600 seconds, and you can adjust the time interval (Valid Range: 0 ~ 4194303).
Super Modem IIIUser’s Manual 28 3.2.3 AP Client Settings With the AP Client function, the Super Modem III could connect to other remote WiFi AP(AP1) as a WiFi station, and it will be bridged with Super Modem III WiFi AP and LAN, which means that PC WiFi clients under AP1 and PCs clients under Super Modem III LAN and WiFi could communicate with each other. Just fill in the network name (SSID) and the pass phrase (security key) of the WiFi AP that Super Modem III would like to connect. Please note that the setup of Network Mode as well as Frequency Channel No. for the Super Modem III in the Wireless Settings Æ Basic setting page must match the values used on this WiFi AP.

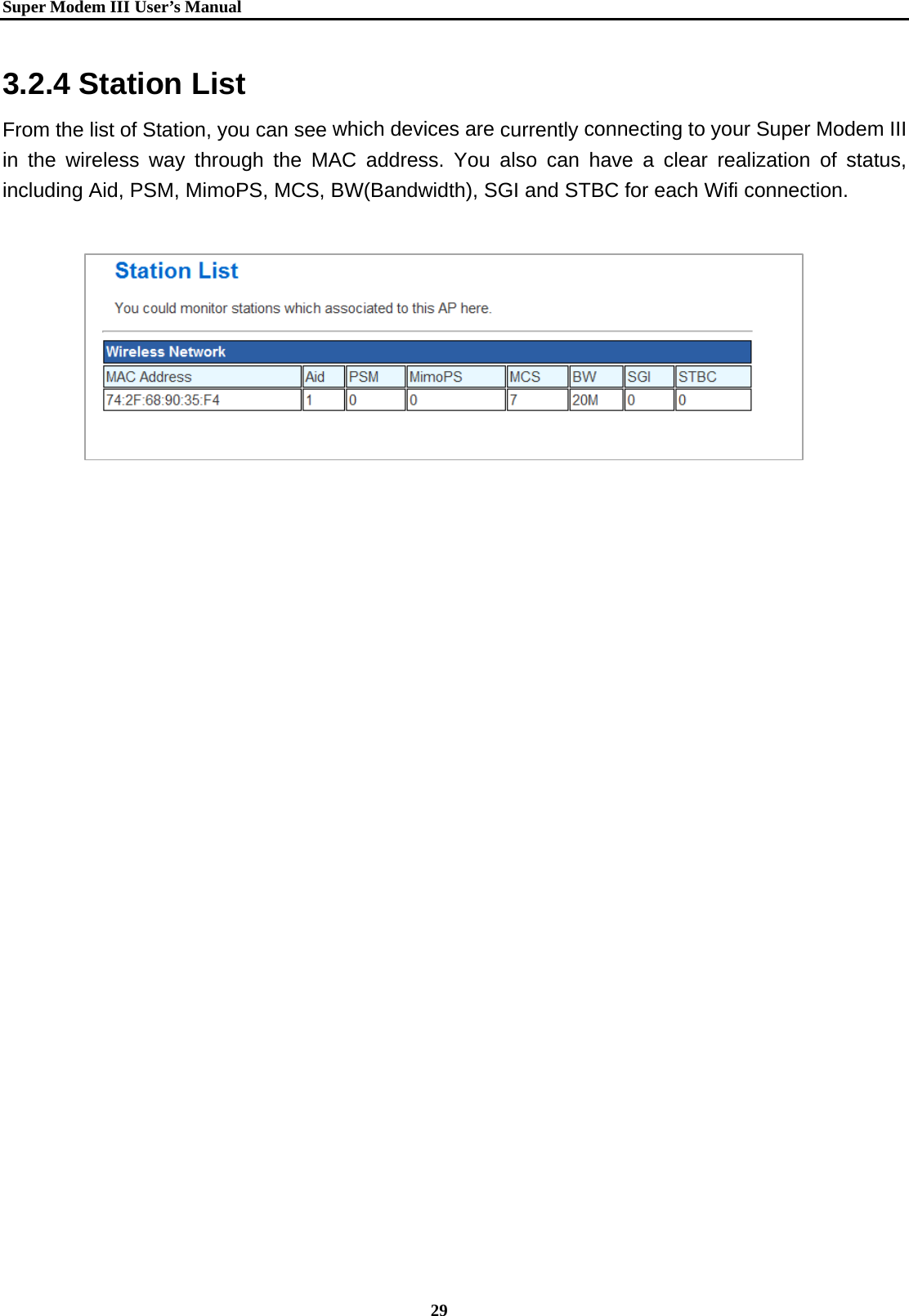

Super Modem IIIUser’s Manual 29 3.2.4 Station List From the list of Station, you can see which devices are currently connecting to your Super Modem III in the wireless way through the MAC address. You also can have a clear realization of status, including Aid, PSM, MimoPS, MCS, BW(Bandwidth), SGI and STBC for each Wifi connection.

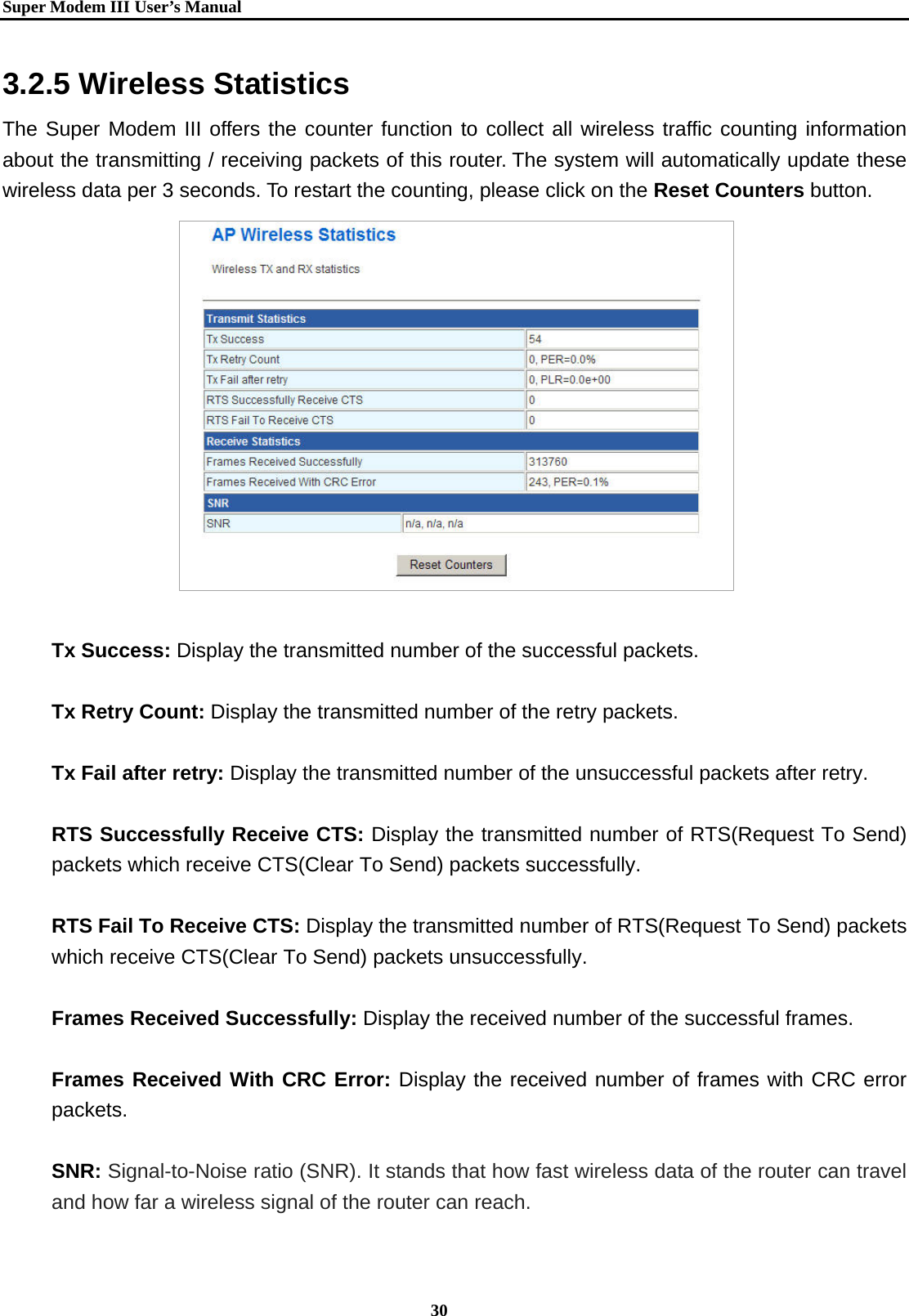

Super Modem IIIUser’s Manual 30 3.2.5 Wireless Statistics The Super Modem III offers the counter function to collect all wireless traffic counting information about the transmitting / receiving packets of this router. The system will automatically update these wireless data per 3 seconds. To restart the counting, please click on the Reset Counters button. Tx Success: Display the transmitted number of the successful packets. Tx Retry Count: Display the transmitted number of the retry packets. Tx Fail after retry: Display the transmitted number of the unsuccessful packets after retry. RTS Successfully Receive CTS: Display the transmitted number of RTS(Request To Send) packets which receive CTS(Clear To Send) packets successfully. RTS Fail To Receive CTS: Display the transmitted number of RTS(Request To Send) packets which receive CTS(Clear To Send) packets unsuccessfully. Frames Received Successfully: Display the received number of the successful frames. Frames Received With CRC Error: Display the received number of frames with CRC error packets. SNR: Signal-to-Noise ratio (SNR). It stands that how fast wireless data of the router can travel and how far a wireless signal of the router can reach.

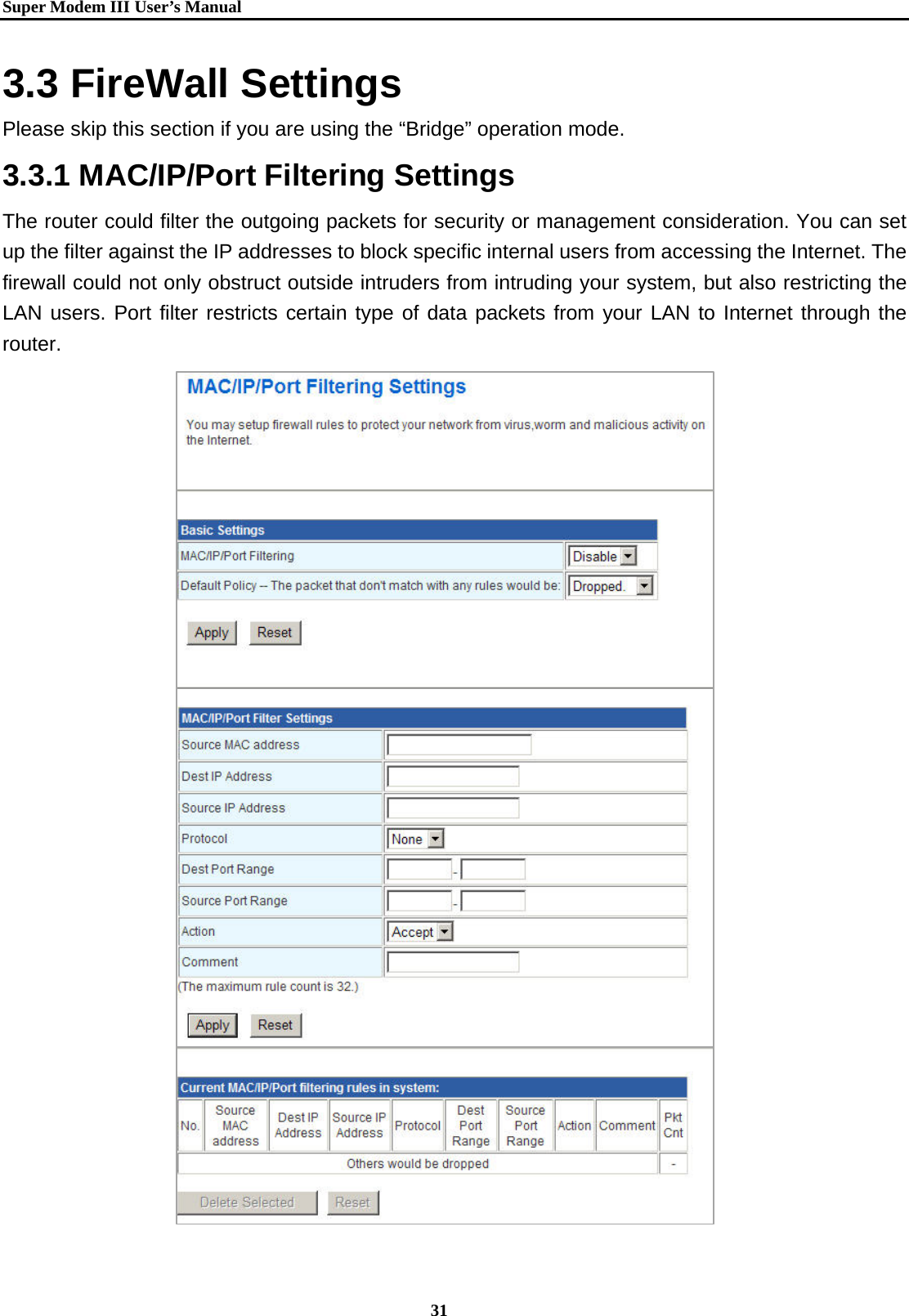

Super Modem IIIUser’s Manual 31 3.3 FireWall Settings Please skip this section if you are using the “Bridge” operation mode. 3.3.1 MAC/IP/Port Filtering Settings The router could filter the outgoing packets for security or management consideration. You can set up the filter against the IP addresses to block specific internal users from accessing the Internet. The firewall could not only obstruct outside intruders from intruding your system, but also restricting the LAN users. Port filter restricts certain type of data packets from your LAN to Internet through the router.

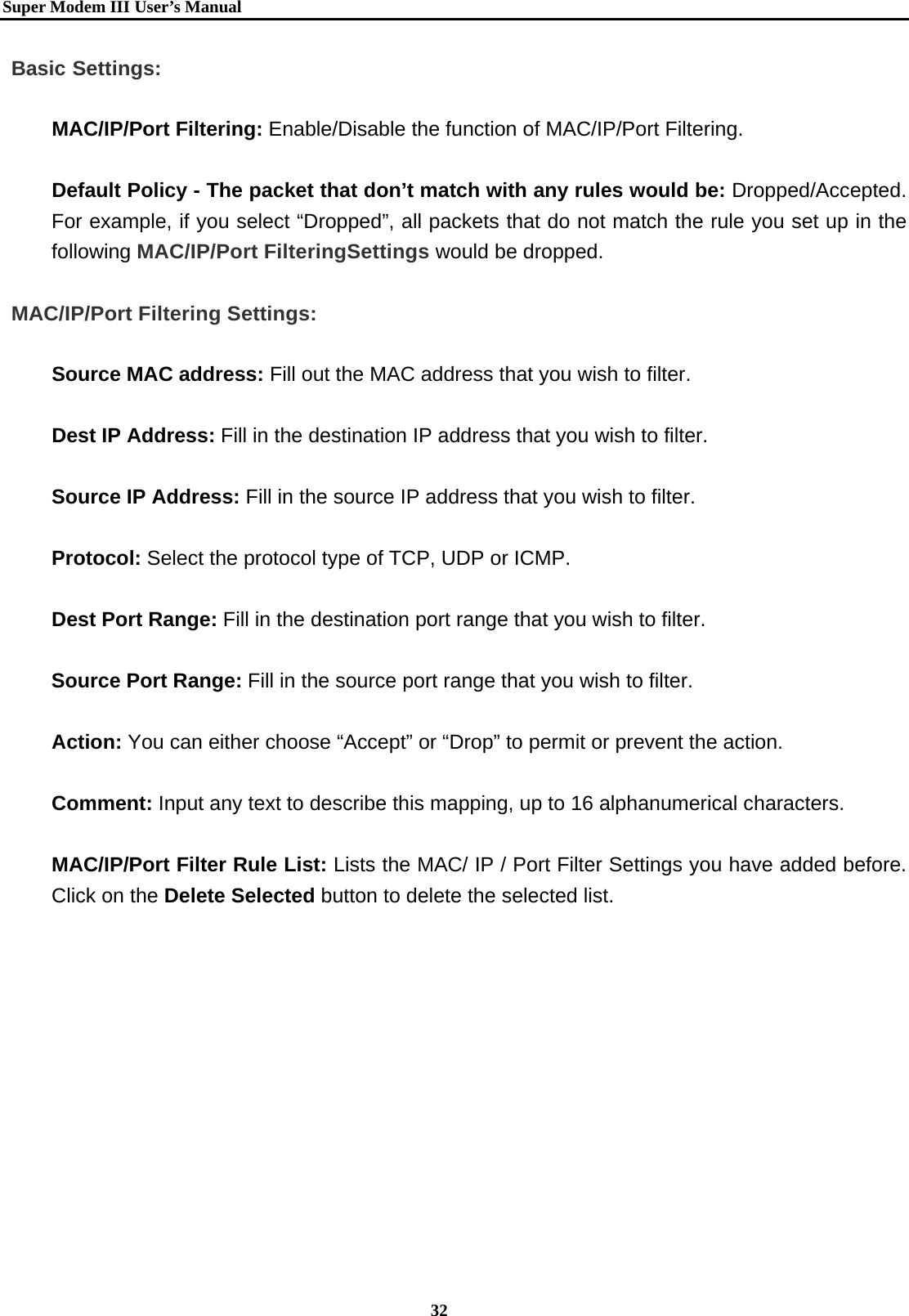

Super Modem IIIUser’s Manual 32 Basic Settings: MAC/IP/Port Filtering: Enable/Disable the function of MAC/IP/Port Filtering. Default Policy - The packet that don’t match with any rules would be: Dropped/Accepted. For example, if you select “Dropped”, all packets that do not match the rule you set up in the following MAC/IP/Port FilteringSettings would be dropped. MAC/IP/Port Filtering Settings: Source MAC address: Fill out the MAC address that you wish to filter. Dest IP Address: Fill in the destination IP address that you wish to filter. Source IP Address: Fill in the source IP address that you wish to filter. Protocol: Select the protocol type of TCP, UDP or ICMP. Dest Port Range: Fill in the destination port range that you wish to filter. Source Port Range: Fill in the source port range that you wish to filter. Action: You can either choose “Accept” or “Drop” to permit or prevent the action. Comment: Input any text to describe this mapping, up to 16 alphanumerical characters. MAC/IP/Port Filter Rule List: Lists the MAC/ IP / Port Filter Settings you have added before. Click on the Delete Selected button to delete the selected list.

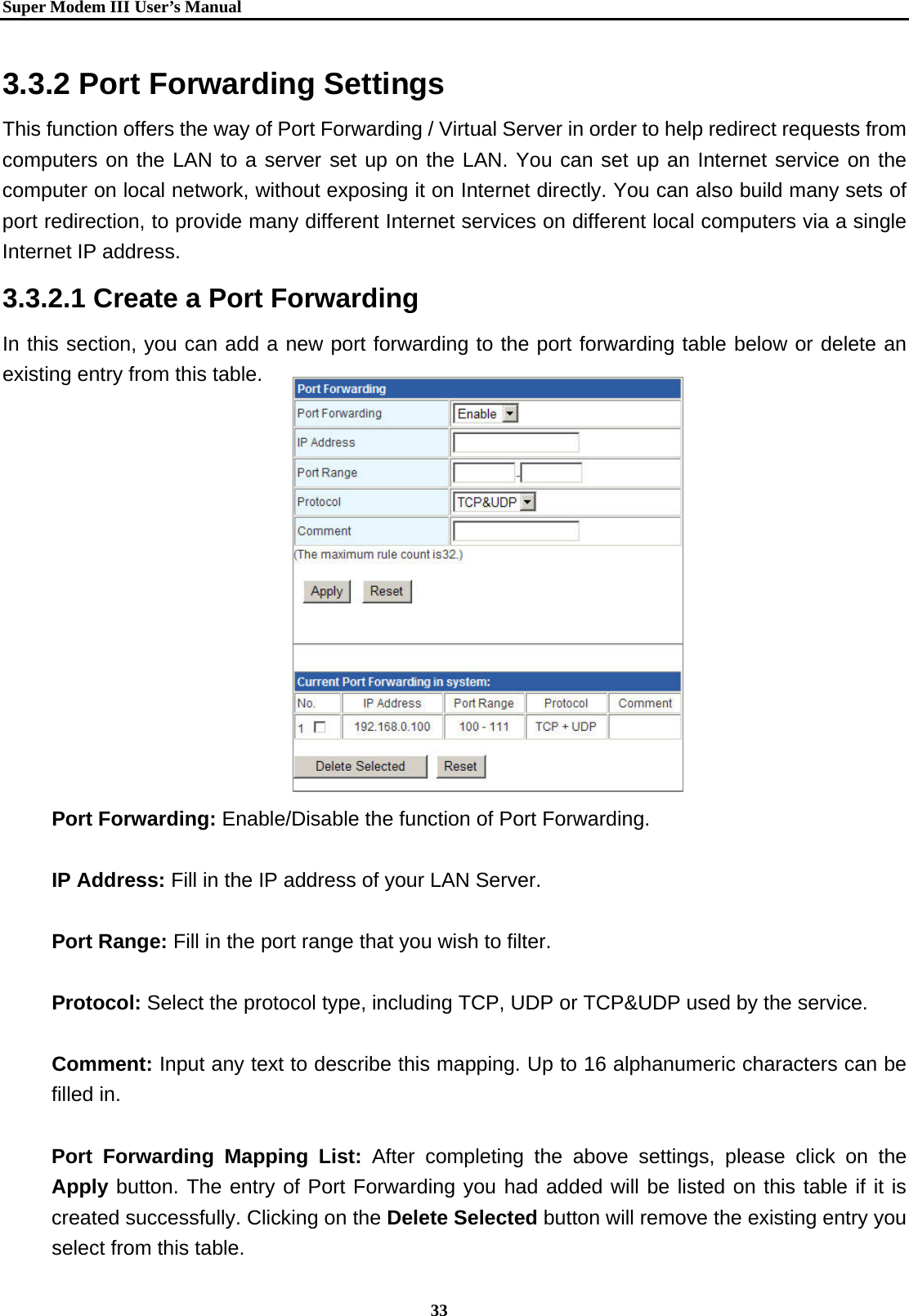

Super Modem IIIUser’s Manual 33 3.3.2 Port Forwarding Settings This function offers the way of Port Forwarding / Virtual Server in order to help redirect requests from computers on the LAN to a server set up on the LAN. You can set up an Internet service on the computer on local network, without exposing it on Internet directly. You can also build many sets of port redirection, to provide many different Internet services on different local computers via a single Internet IP address. 3.3.2.1 Create a Port Forwarding In this section, you can add a new port forwarding to the port forwarding table below or delete an existing entry from this table. Port Forwarding: Enable/Disable the function of Port Forwarding. IP Address: Fill in the IP address of your LAN Server. Port Range: Fill in the port range that you wish to filter. Protocol: Select the protocol type, including TCP, UDP or TCP&UDP used by the service. Comment: Input any text to describe this mapping. Up to 16 alphanumeric characters can be filled in. Port Forwarding Mapping List: After completing the above settings, please click on the Apply button. The entry of Port Forwarding you had added will be listed on this table if it is created successfully. Clicking on the Delete Selected button will remove the existing entry you select from this table.

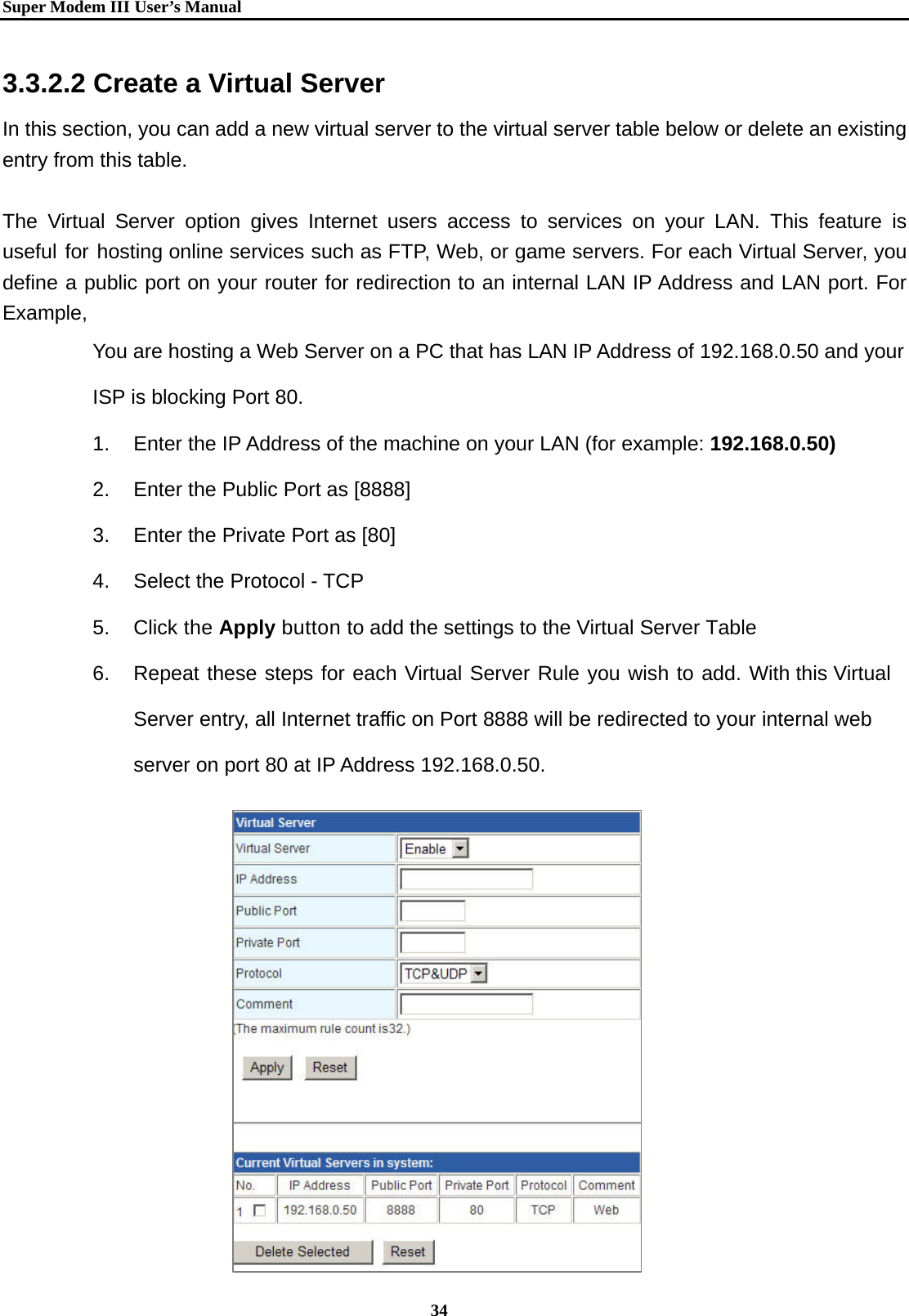

Super Modem IIIUser’s Manual 34 3.3.2.2 Create a Virtual Server In this section, you can add a new virtual server to the virtual server table below or delete an existing entry from this table. The Virtual Server option gives Internet users access to services on your LAN. This feature is useful for hosting online services such as FTP, Web, or game servers. For each Virtual Server, you define a public port on your router for redirection to an internal LAN IP Address and LAN port. For Example, You are hosting a Web Server on a PC that has LAN IP Address of 192.168.0.50 and your ISP is blocking Port 80. 1. Enter the IP Address of the machine on your LAN (for example: 192.168.0.50) 2. Enter the Public Port as [8888] 3. Enter the Private Port as [80] 4. Select the Protocol - TCP 5. Click the Apply button to add the settings to the Virtual Server Table 6. Repeat these steps for each Virtual Server Rule you wish to add. With this Virtual Server entry, all Internet traffic on Port 8888 will be redirected to your internal web server on port 80 at IP Address 192.168.0.50.

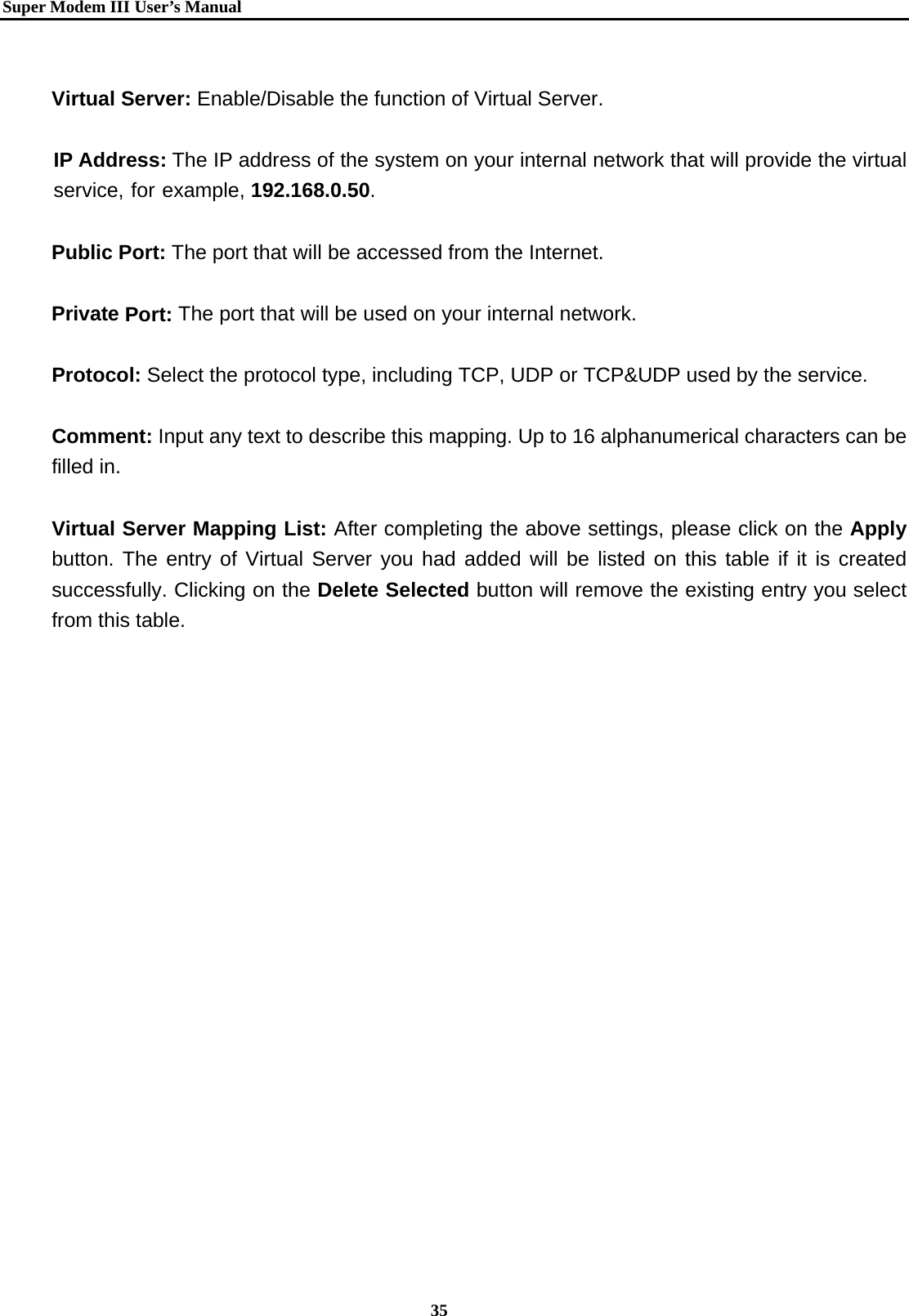

Super Modem IIIUser’s Manual 35 Virtual Server: Enable/Disable the function of Virtual Server. IP Address: The IP address of the system on your internal network that will provide the virtual service, for example, 192.168.0.50. Public Port: The port that will be accessed from the Internet. Private Port: The port that will be used on your internal network. Protocol: Select the protocol type, including TCP, UDP or TCP&UDP used by the service. Comment: Input any text to describe this mapping. Up to 16 alphanumerical characters can be filled in. Virtual Server Mapping List: After completing the above settings, please click on the Apply button. The entry of Virtual Server you had added will be listed on this table if it is created successfully. Clicking on the Delete Selected button will remove the existing entry you select from this table.

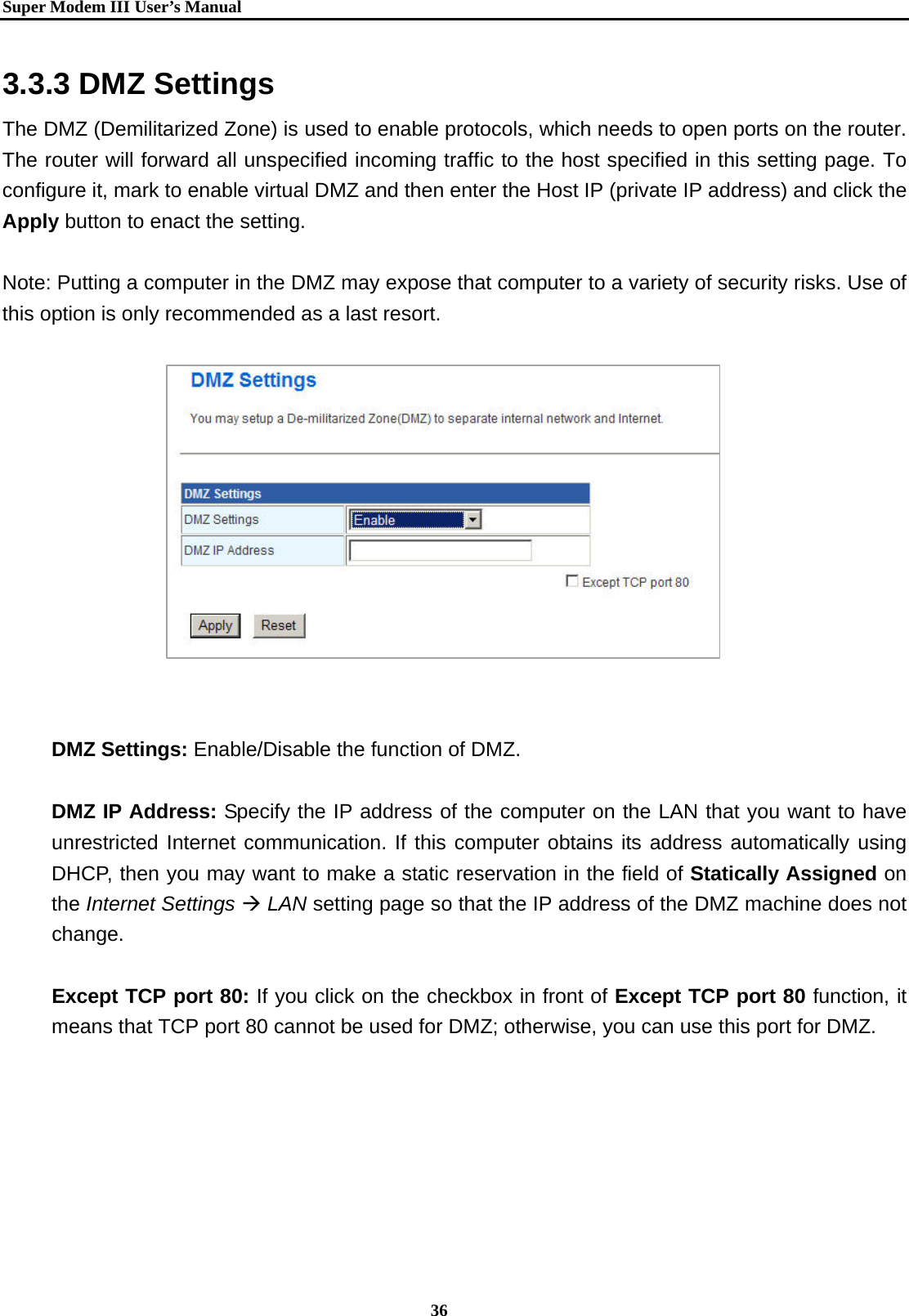

Super Modem IIIUser’s Manual 36 3.3.3 DMZ Settings The DMZ (Demilitarized Zone) is used to enable protocols, which needs to open ports on the router. The router will forward all unspecified incoming traffic to the host specified in this setting page. To configure it, mark to enable virtual DMZ and then enter the Host IP (private IP address) and click the Apply button to enact the setting. Note: Putting a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort. DMZ Settings: Enable/Disable the function of DMZ. DMZ IP Address: Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains its address automatically using DHCP, then you may want to make a static reservation in the field of Statically Assigned on the Internet Settings Æ LAN setting page so that the IP address of the DMZ machine does not change. Except TCP port 80: If you click on the checkbox in front of Except TCP port 80 function, it means that TCP port 80 cannot be used for DMZ; otherwise, you can use this port for DMZ.

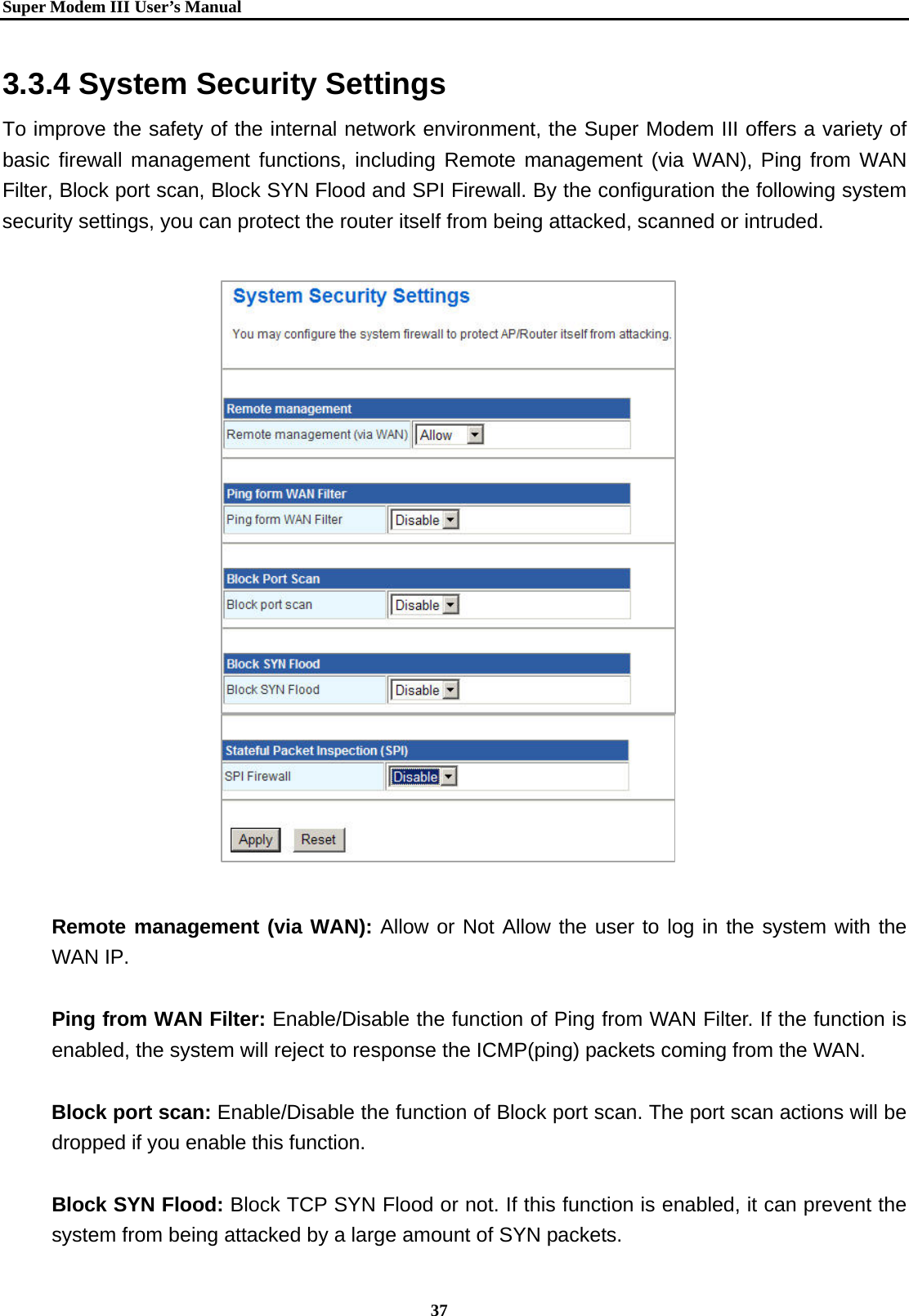

Super Modem IIIUser’s Manual 37 3.3.4 System Security Settings To improve the safety of the internal network environment, the Super Modem III offers a variety of basic firewall management functions, including Remote management (via WAN), Ping from WAN Filter, Block port scan, Block SYN Flood and SPI Firewall. By the configuration the following system security settings, you can protect the router itself from being attacked, scanned or intruded. Remote management (via WAN): Allow or Not Allow the user to log in the system with the WAN IP. Ping from WAN Filter: Enable/Disable the function of Ping from WAN Filter. If the function is enabled, the system will reject to response the ICMP(ping) packets coming from the WAN. Block port scan: Enable/Disable the function of Block port scan. The port scan actions will be dropped if you enable this function. Block SYN Flood: Block TCP SYN Flood or not. If this function is enabled, it can prevent the system from being attacked by a large amount of SYN packets.

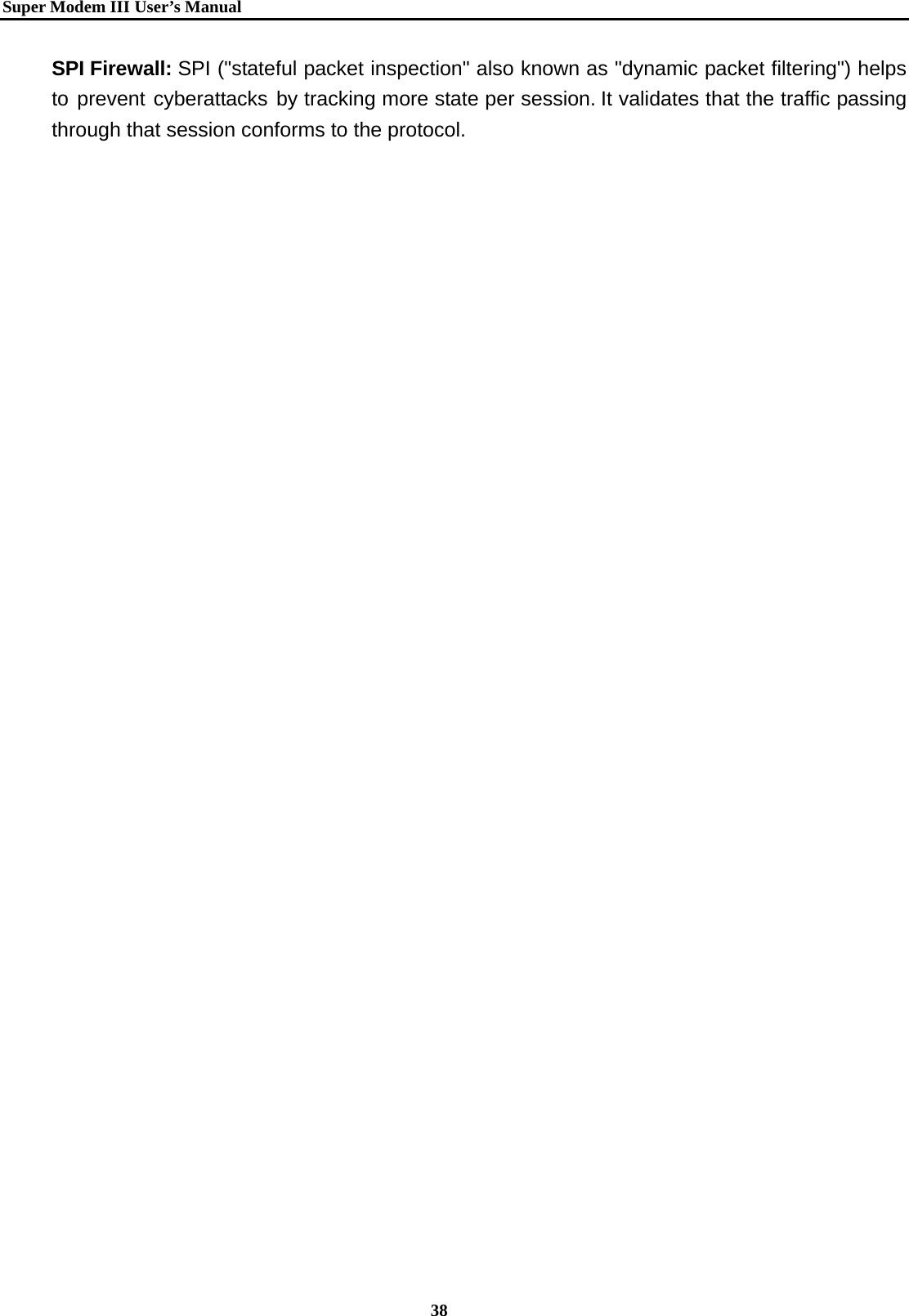

Super Modem IIIUser’s Manual 38 SPI Firewall: SPI ("stateful packet inspection" also known as "dynamic packet filtering") helps to prevent cyberattacks by tracking more state per session. It validates that the traffic passing through that session conforms to the protocol.

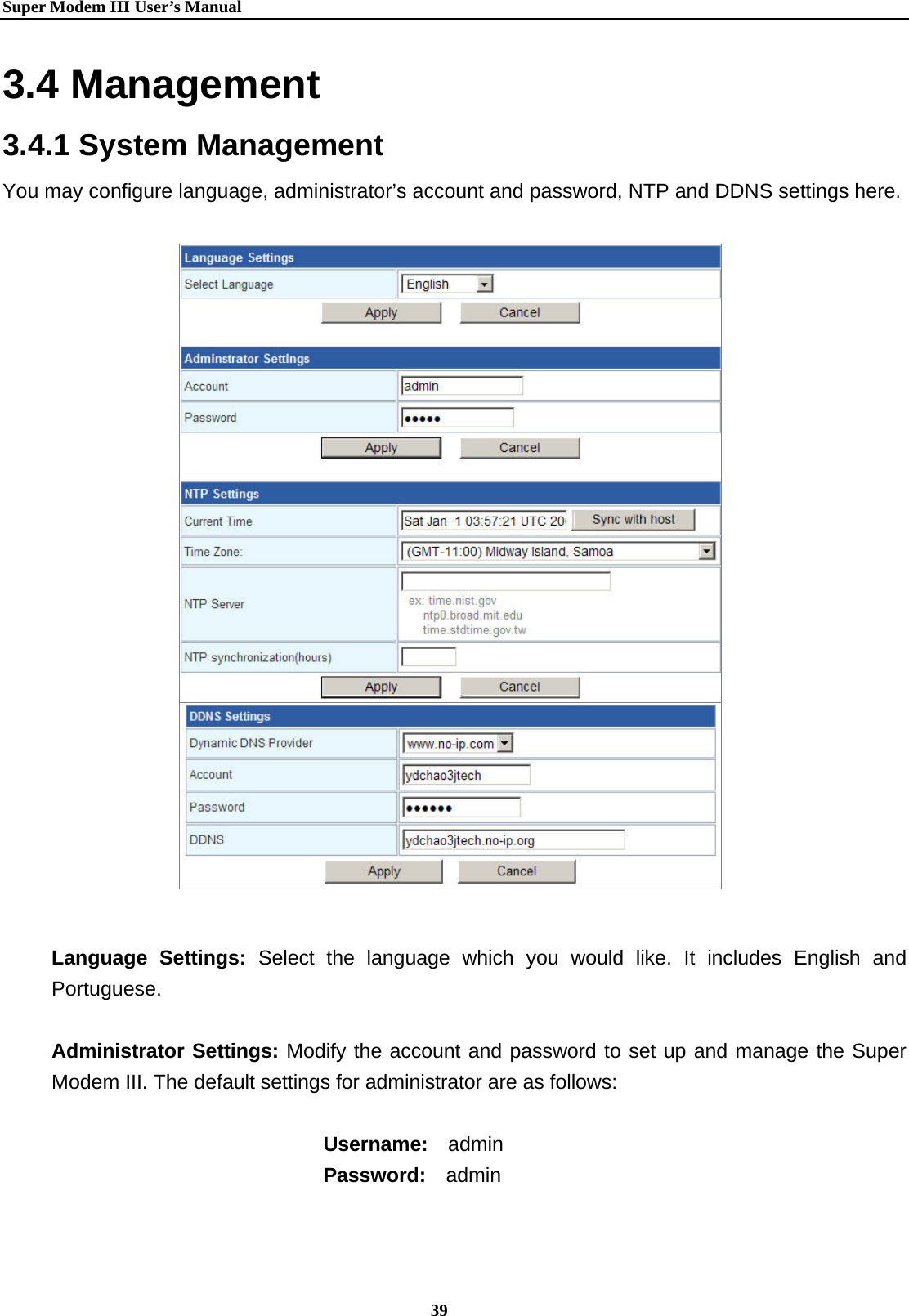

Super Modem IIIUser’s Manual 39 3.4 Management 3.4.1 System Management You may configure language, administrator’s account and password, NTP and DDNS settings here. Language Settings: Select the language which you would like. It includes English and Portuguese. Administrator Settings: Modify the account and password to set up and manage the Super Modem III. The default settings for administrator are as follows: Username: admin Password: admin

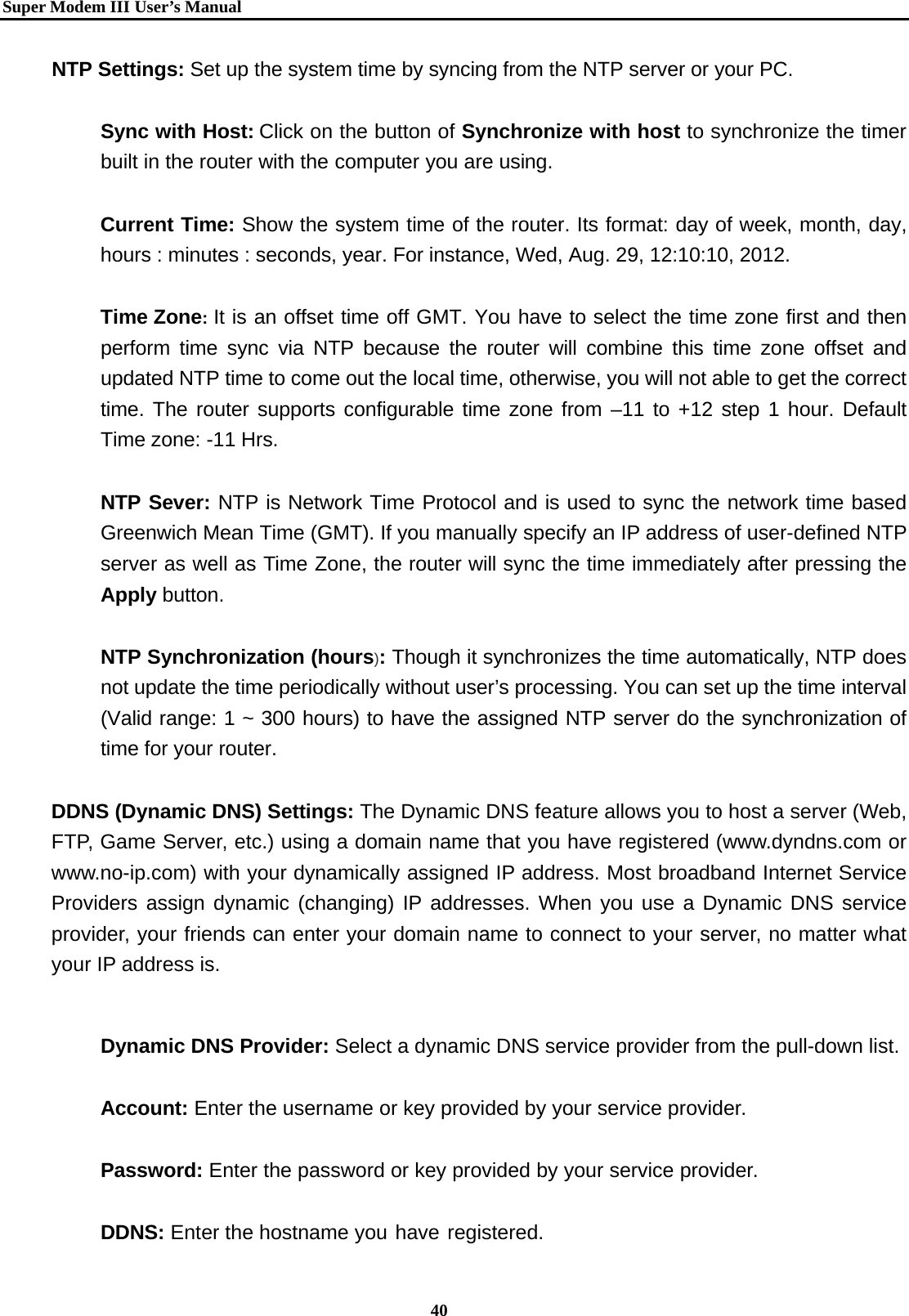

Super Modem IIIUser’s Manual 40 NTP Settings: Set up the system time by syncing from the NTP server or your PC. Sync with Host: Click on the button of Synchronize with host to synchronize the timer built in the router with the computer you are using. Current Time: Show the system time of the router. Its format: day of week, month, day, hours : minutes : seconds, year. For instance, Wed, Aug. 29, 12:10:10, 2012. Time Zone: It is an offset time off GMT. You have to select the time zone first and then perform time sync via NTP because the router will combine this time zone offset and updated NTP time to come out the local time, otherwise, you will not able to get the correct time. The router supports configurable time zone from –11 to +12 step 1 hour. Default Time zone: -11 Hrs. NTP Sever: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If you manually specify an IP address of user-defined NTP server as well as Time Zone, the router will sync the time immediately after pressing the Apply button. NTP Synchronization (hours): Though it synchronizes the time automatically, NTP does not update the time periodically without user’s processing. You can set up the time interval (Valid range: 1 ~ 300 hours) to have the assigned NTP server do the synchronization of time for your router. DDNS (Dynamic DNS) Settings: The Dynamic DNS feature allows you to host a server (Web, FTP, Game Server, etc.) using a domain name that you have registered (www.dyndns.com or www.no-ip.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. When you use a Dynamic DNS service provider, your friends can enter your domain name to connect to your server, no matter what your IP address is. Dynamic DNS Provider: Select a dynamic DNS service provider from the pull-down list. Account: Enter the username or key provided by your service provider. Password: Enter the password or key provided by your service provider. DDNS: Enter the hostname you have registered.

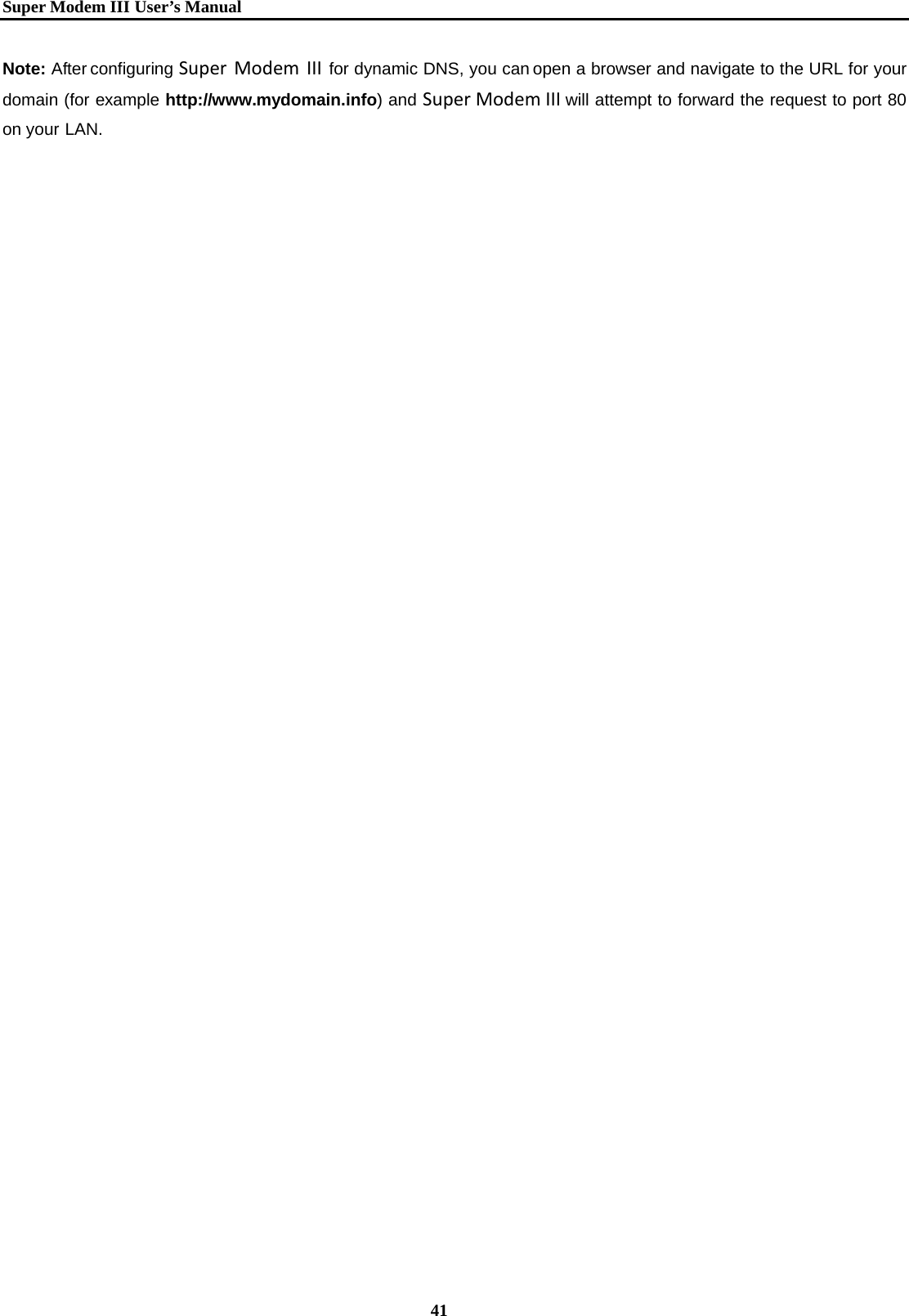

Super Modem IIIUser’s Manual 41 Note: After configuring SuperModemIIIfor dynamic DNS, you can open a browser and navigate to the URL for your domain (for example http://www.mydomain.info) and SuperModemIIIwill attempt to forward the request to port 80 on your LAN.

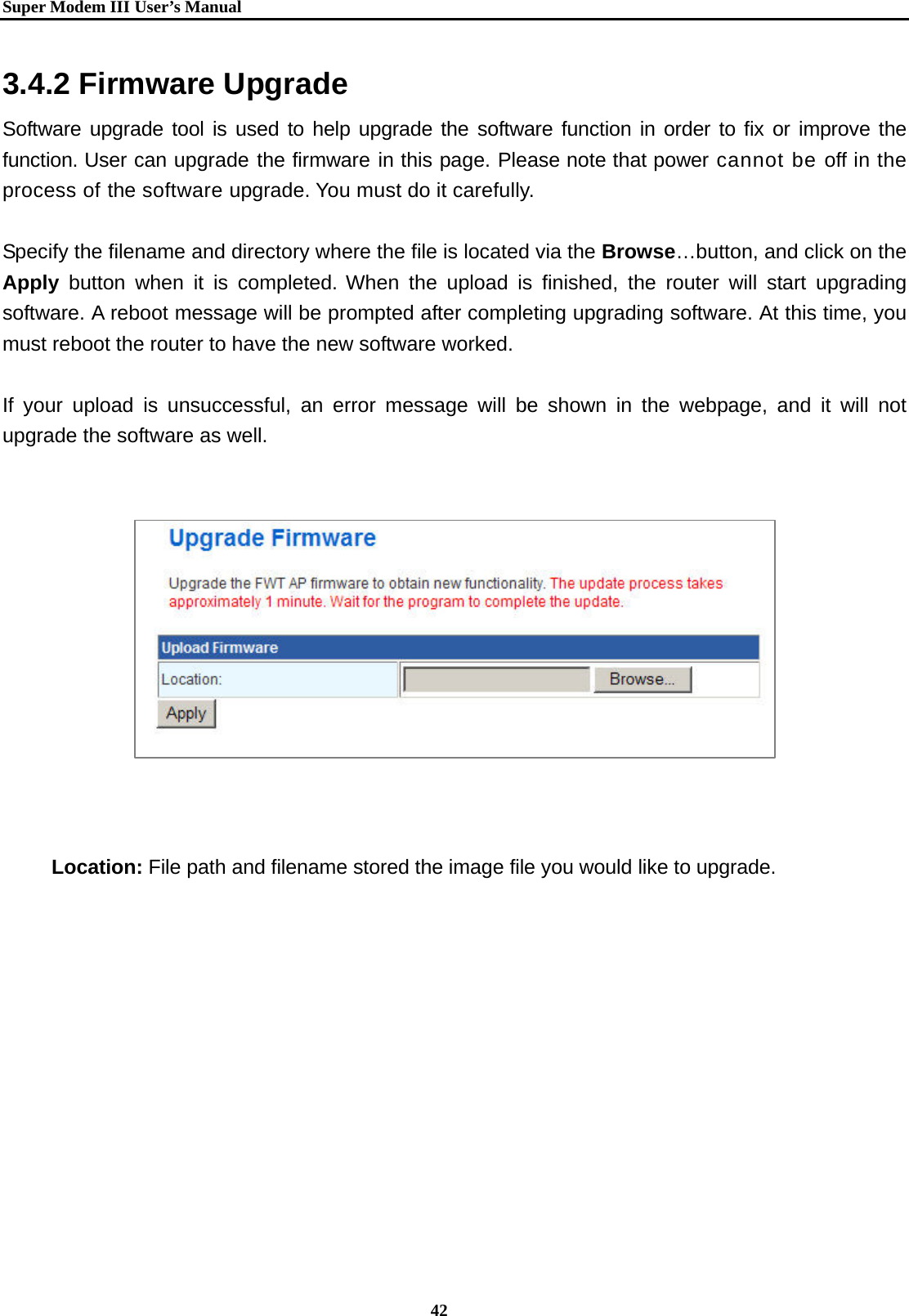

Super Modem IIIUser’s Manual 42 3.4.2 Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. User can upgrade the firmware in this page. Please note that power cannot be off in the process of the software upgrade. You must do it carefully. Specify the filename and directory where the file is located via the Browse…button, and click on the Apply button when it is completed. When the upload is finished, the router will start upgrading software. A reboot message will be prompted after completing upgrading software. At this time, you must reboot the router to have the new software worked. If your upload is unsuccessful, an error message will be shown in the webpage, and it will not upgrade the software as well. Location: File path and filename stored the image file you would like to upgrade.

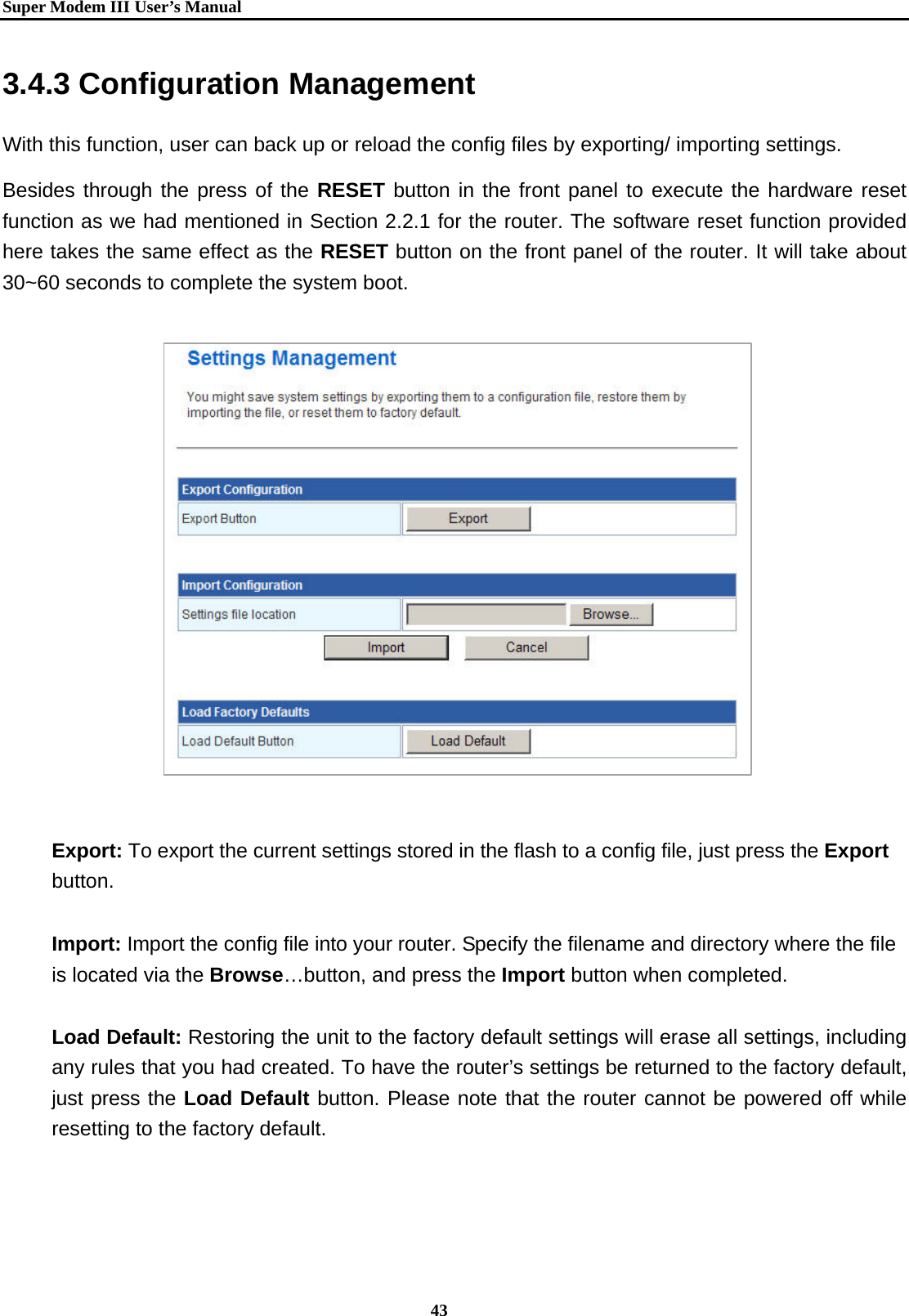

Super Modem IIIUser’s Manual 43 3.4.3 Configuration Management With this function, user can back up or reload the config files by exporting/ importing settings. Besides through the press of the RESET button in the front panel to execute the hardware reset function as we had mentioned in Section 2.2.1 for the router. The software reset function provided here takes the same effect as the RESET button on the front panel of the router. It will take about 30~60 seconds to complete the system boot. Export: To export the current settings stored in the flash to a config file, just press the Export button. Import: Import the config file into your router. Specify the filename and directory where the file is located via the Browse…button, and press the Import button when completed. Load Default: Restoring the unit to the factory default settings will erase all settings, including any rules that you had created. To have the router’s settings be returned to the factory default, just press the Load Default button. Please note that the router cannot be powered off while resetting to the factory default.

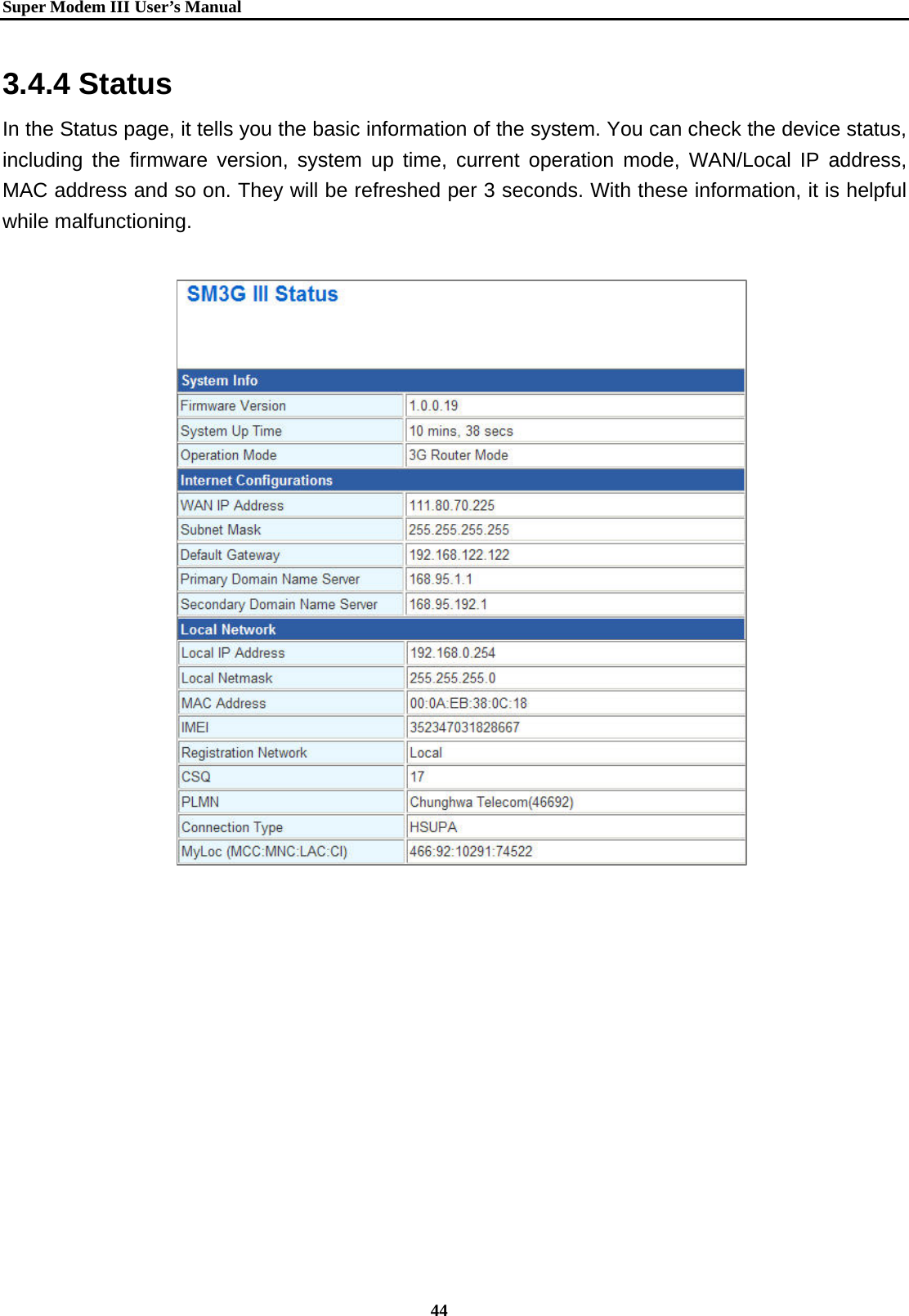

Super Modem IIIUser’s Manual 44 3.4.4 Status In the Status page, it tells you the basic information of the system. You can check the device status, including the firmware version, system up time, current operation mode, WAN/Local IP address, MAC address and so on. They will be refreshed per 3 seconds. With these information, it is helpful while malfunctioning.

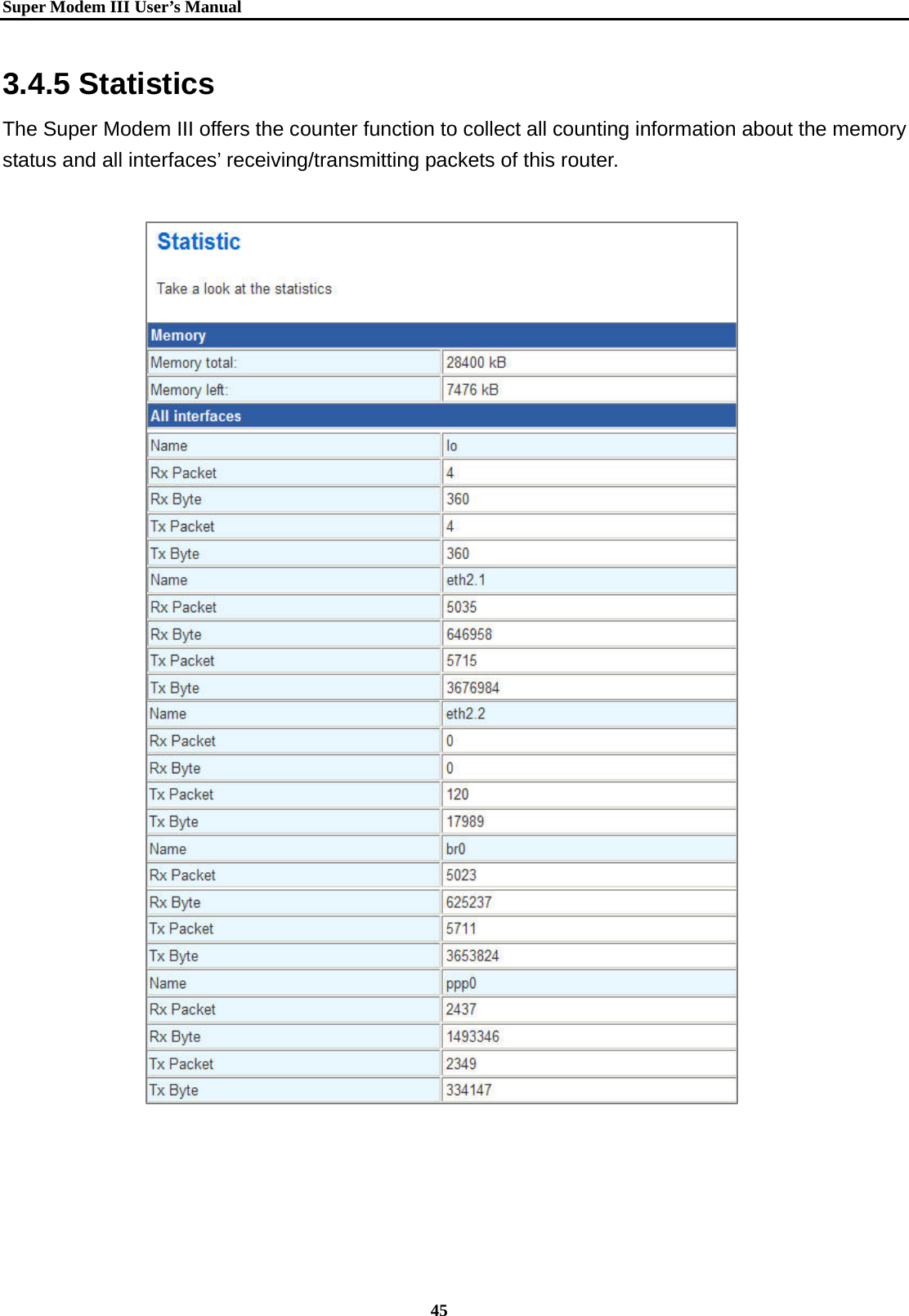

Super Modem IIIUser’s Manual 45 3.4.5 Statistics The Super Modem III offers the counter function to collect all counting information about the memory status and all interfaces’ receiving/transmitting packets of this router.
