Users Manual

COGENTSYSTEMS

InstructionforMobileIdentIIIc(Mi3c)



2009‐6‐29



CogentSystems



TableofContent

1. PowerOnMobileIdentIIIc(Mi3c)…………………………………………………………..3



2.ManualCheck…………………………………………………………………………………………...4

2.1.Memory……………………………………………………………………………………………......4

2.2.Display……………………………………………………………………………………………….......5

2.3.Screen………………………………………………………………………………………………........5

2.4.Key……………………………………………………………………………………………………………6

2.5.Magcard…………………………………………………………………………………………………..6

2.5.1．Swipecard…………………………………………………………………………………….7

2.5.2.ContactlessCard…………………………………………………………………………..7

2.5.3.ICCARD…………………………………………………………………………………………8

2.6.Voice………………………………………………………………………………………………………..8

2.7.VibratMotor……………………………………………………………………………………………..9

2.8.FingerAdjust…………………………………………………………………………………………….9

2.9.FingerCamera…………………………………………………………………………………………..9

2.10.FacialCamera………………………………………………………………………………………..10

2.11.Power…………………………………………………………………………………………………….10

2.12.WIFI……………………………………………………………………………………………………….11

2.13.GPS………………………………………………………………………………………………………..11

2.14.GPRS…………………………………………………………………………………………………………..12

2.15.Bluetooth……………………………………………………………………………………………………12

2.16.Barcode………………………………………………………………………………………………….13



3.Photo…………………………………………………………………………………………………………..15



4.Settings………………………………………………………………………………………………………..15

4.1.Volume……………………………………………………………………………………………………….16

4.2.Date……………………………………………………………………………………………………………16

4.3.ScreenCalibration………………………………………………………………………………………17

4.4.FingerprintCalibration……………………………………………………………………………….17

4.5.LCD…………………………………………………………………………………………………………….18



5.Identify…………………………………………………………………………………………………………..18

5.1.Enroll……………………………………………………………………………………………………………18

5.2.Search………………………………………………………………………………………………………….20



2



CogentSystems



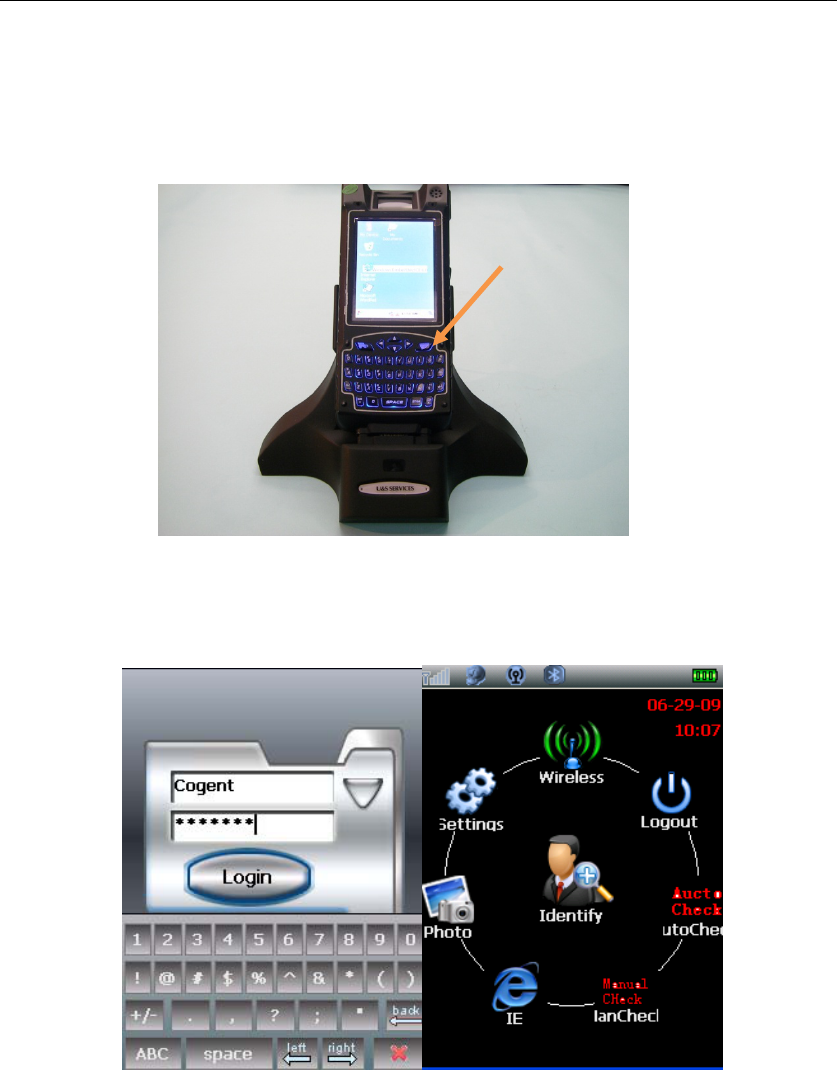

1. PowerOnMobileIdentIIIc(Mi3c)

Presspowerbuttontopoweronthedevice.



password(TestDemo:Username‐Cogent,Password‐3259600),clickLogintogo

intotheFrontPage(Fig.1)



Power

Button

Fig.1



3



CogentSystems



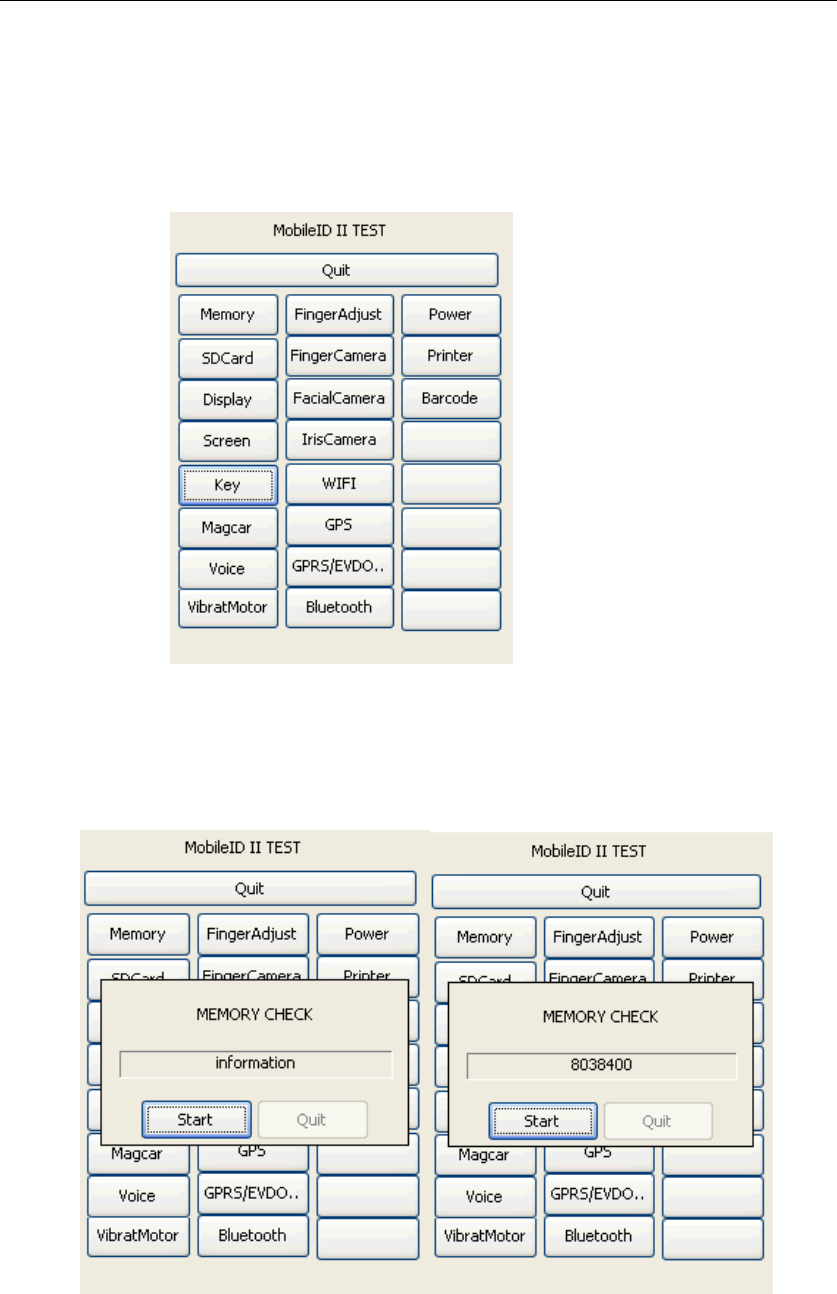

2. ManualCheck

ClickManualCheckinFrontPage,MobileIDIITest pagewillshowup.MobileIDII

TestpageisthemainpageofManualCheck.



2.1. Memory

ClickMemory,MemoryCheckdialoguewillpopup.ClickStart,itwill

calculatethememorydiskautomatically.Afterfinishingmemorycalculation,

clickQuit(Fig.2.1).



Fig.2.1



4



CogentSystems



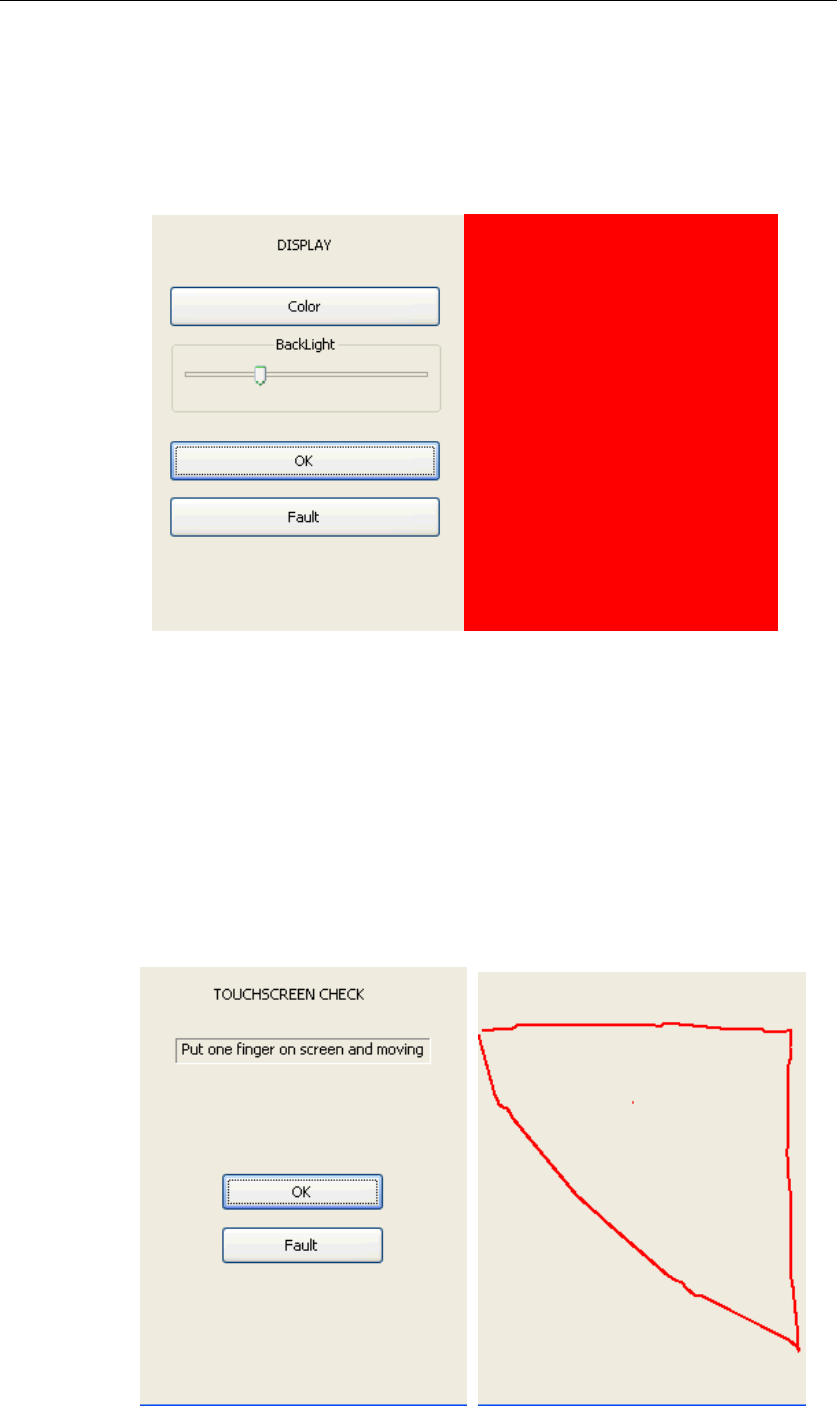

2.2. Display

ClickDisplayandgetintoit.ClickColor,thescreenwillturntored,blue,

whiteandblackautomatically.AfterthatitwillgobacktoDisplaypage.



AdjustbacklightbyusingBackLightAdjustBar.ClickOKtoreturnto

MobileIDIITestpageifthereisnoerror.



2.3. Screen

ClickScreenandgetintoTouchscreenCheckpage.Clickanywhereonthe

screen(excludeOKandFault)andgetintotheblankpage.Writeanything

youwishtowrite,checkthefluencyofthetouchscreen,thenpresscancel

button(powerbutton)backtotheTouchscreenCheckpage,clickOKto

returntothemanualcheckpage.

  

5



CogentSystems



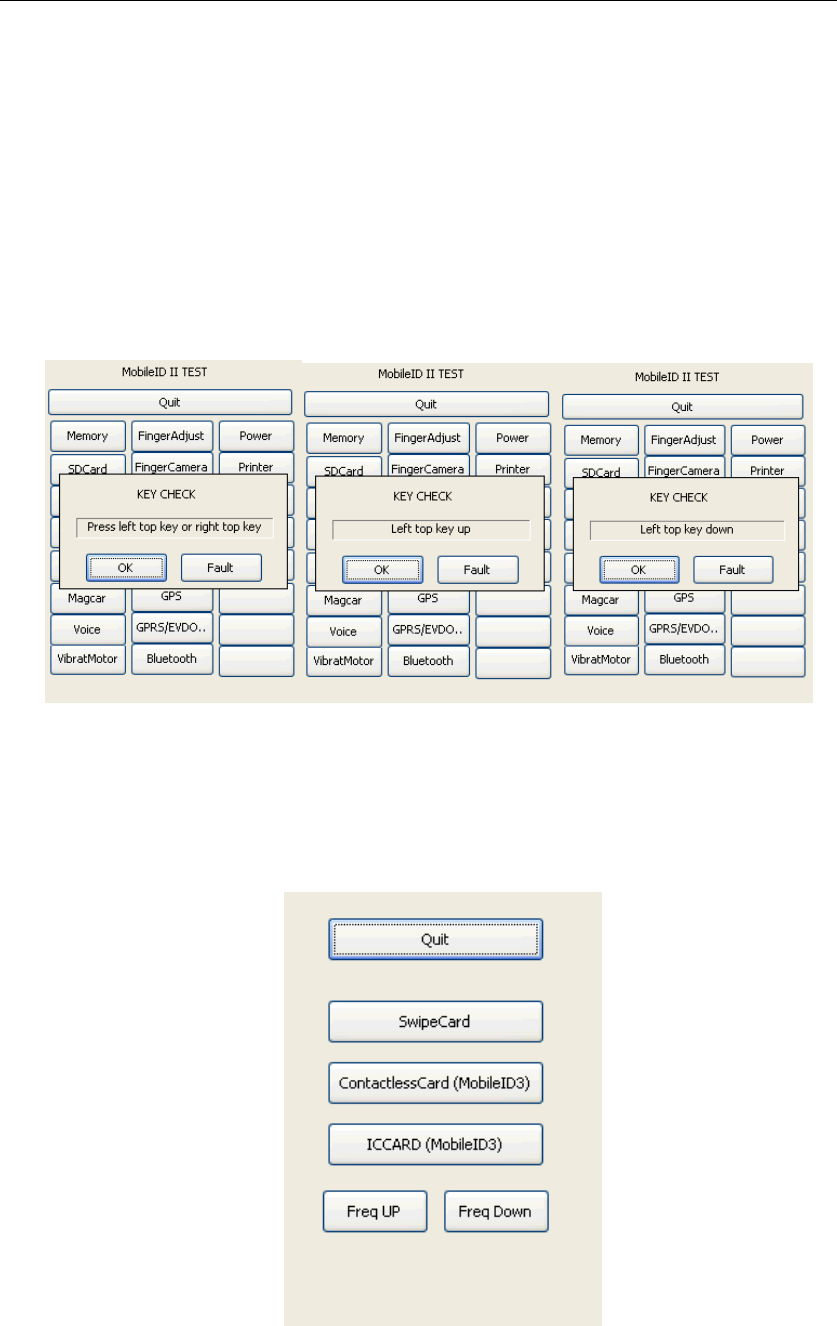

2.4. Key

ClickKey,KeyCheckdialoguewillpopup.Powerbutton(cancelbutton)isthe

righttopkeyandOKbuttonisthelefttopkey.Theinterfacewillshowthe

correspondingactionwhenpresscancelbuttonandOKbutton.PressOK

button,Lefttopkeydownwillpopup,loosenit,Lefttopkeyupwillpopup.

Thenusethesamemethodtocheckcancelbutton.ClickOKifitpassthetest,

clickFaultifitisfailed.



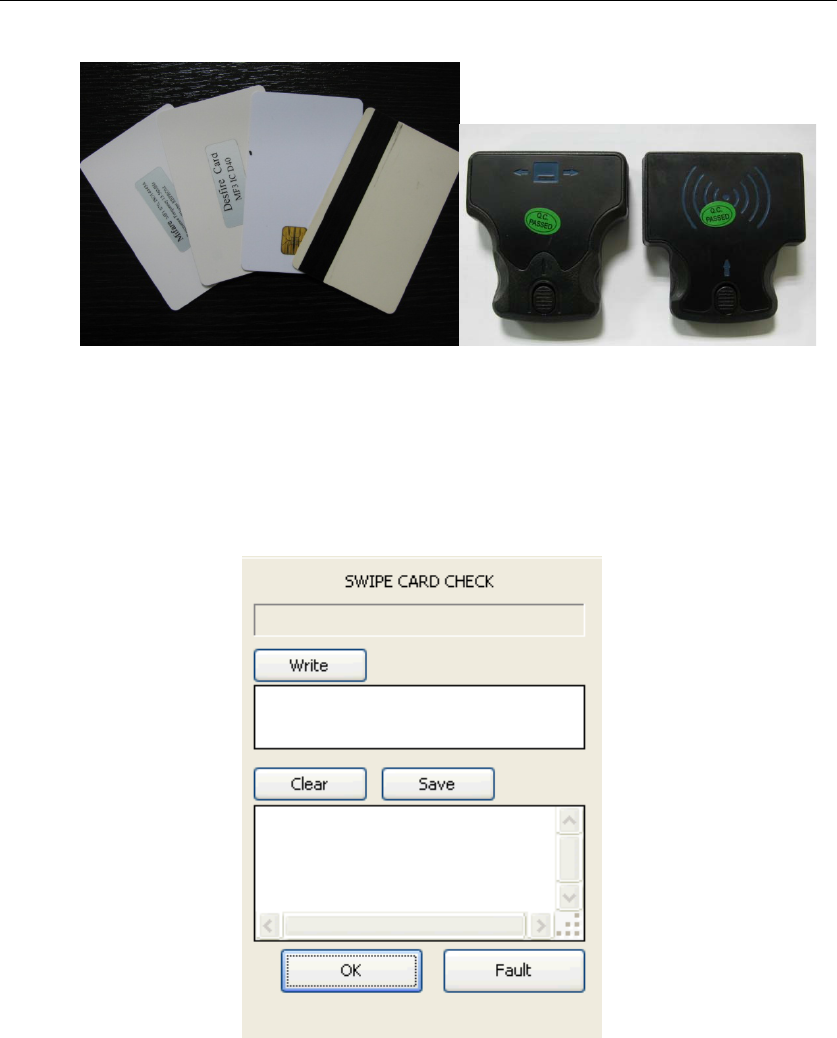

2.5. Magcard

ClickMagcarandgetintoit.Threekindsofcardtestingisincluded:Swipe

Card,ContactlessCardandICCARD(testtoolsincludeoneswipecard,two

kindsofcontactlesscard,oneICcard,oneswipecardreaderandone

contactlesscardandICcardreader).PleaserefertoFig.2.5.



6



CogentSystems



Fig.2.5

2.5.1. SwipeCard

Installtheswipecardreaderonthebackofdevice.ClickSwipeCard

andgotothetestpage.Swipethemagcardontheswipecard

module,thereshouldbethreerowsofinformationofthecard

showingintheblankbox(Fig.2.5.1).



Threerowsofcard’s

informationwillbeshown

here

Fig.2.5.1

2.5.2. ContactlessCard

InstallthecontactlessandICcardreader,puttheMifareandDesfire

cardindividuallyinfrontofthereader,thedistancebetweenthem

andreadershouldbewithin4‐4.5cmand1.5‐2cm.Clickwritingarea,

keypadwillpopup,writeinformationitemsinwritingarea,input

itemquantityinthenumericarea.Forexample,enter‘123’inwriting

area.Information‘123’ismadeof3individualitems,theninnumeric

area,itshouldbe‘3’.Pleasenotethatthequantitynumberin

numericareamustnomorethanthequantityofinformationitems.

PleaserefertoFig.2.5.2.

7



CogentSystems



Writingarea

Numericarea

Fig.2.5.2

2.5.3. ICCARD

InsertICcardintotheICcardreader,clickICCARD,testprocedureis

thesameascontactlesscard.



2.6. Voice

ClickVoiceandgetintoit.Adjustvoicebyadjustingthevoicebar.



8



CogentSystems



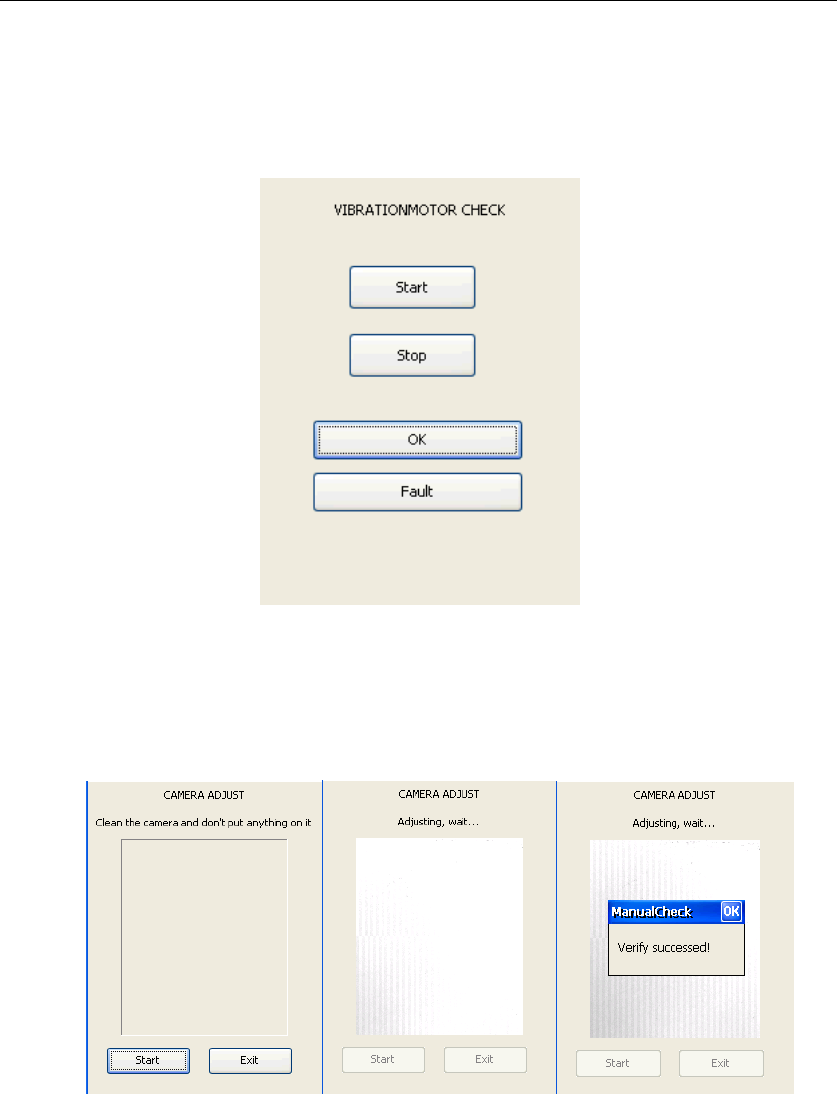

2.7. VibratMotor

ClickVibratMotorandgetintoit.PressStart,thedevicewillbevibrated,

pressStop,itwillstoptovibrate.



2.8. FingerAdjust

ClickFingerAdjustandgetintoCameraAdjustpage.Cleanthefingerprint

sensor,thenclickstarttoadjustthecamera.ClickOKonthepopup

dialogueafteradjustingcarema.



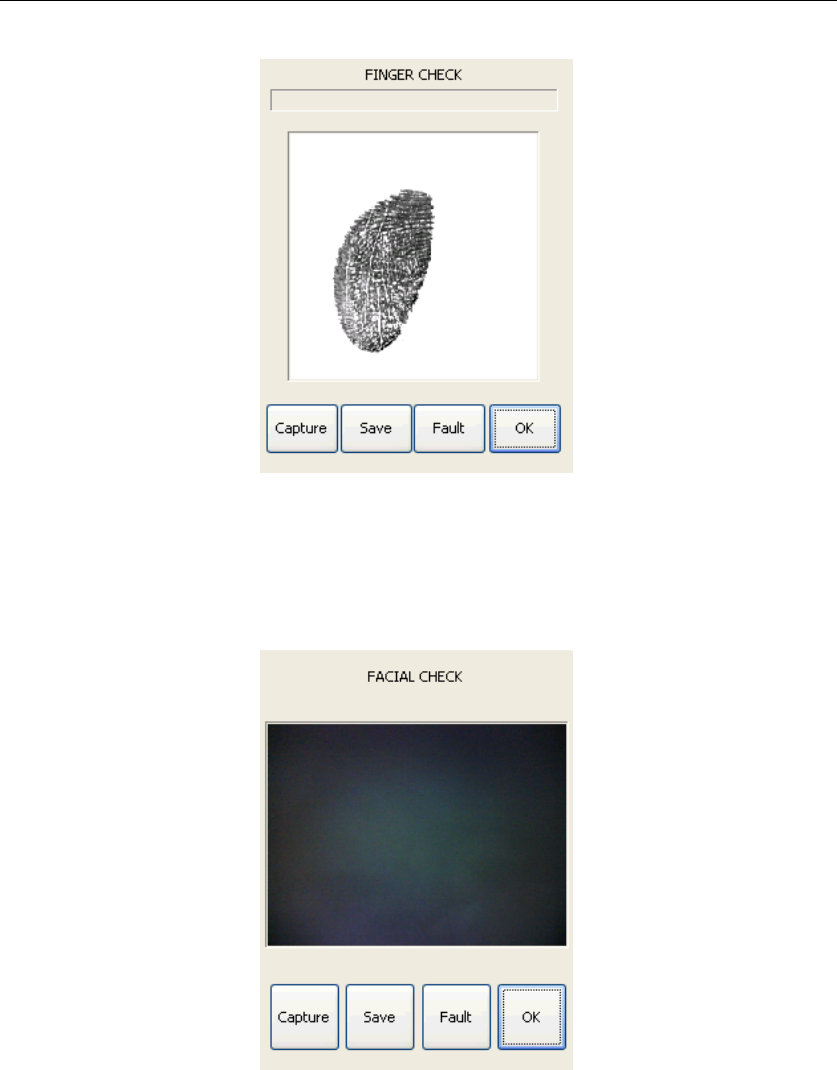

2.9. FingerCamera

ClickFingerCameraandgetintoFingerCheckpage.Putyourfingerinthe

fingerprintsensor,clickCapturetocapturethefingerprint,clickSaveto

saveit.ConnecttheMi3ctoPCtocheckthefingerprintimagequality.

9



CogentSystems



2.10. FacialCamera

ClickFacialCameratogetintoFacialCheckpage.ClickCaptureto

capturetheimage,clickSavetosavetheimage.Connectthedeviceto

PCtochecktheimage.



2.11. Power

ClickPowertogetintoPowerCheckpage.Selectwirelessyouwishto

open.Toopenwireless,youcanalsogointoWirelesspageinFrontpage.

InPowerCheckpage,youcanalsocheckthemainandbackupbattery.

Note:CannotopenGPS,Bluetooth,WifiandGPRStogether.Whenyou

wishtouseoneofthewireless,youhavetopoweroffotherwireless

module.

10



CogentSystems





2.12. WIFI

GointoPowerCheckpageorWirelesspagetopowerontheWifi

module.Makesureotherwirelessmodulesarepoweroff.ThenClick

WIFIinManualCheckandgetintoWifiCheckpage.Changetheserver

IPas172.60.5.142.ClickNetworkstogetintoWifiNetworkspage,

choosethebestsignalnetwork,clickConnect.OnceitshowsConnected,

clickQuitbacktoWifiCheckpage.ClickConnectToServer,adialogue

boxwillpopupindicatingConnected.Someinformationwillshow

underReceive.



2.13. GPS

GointoFrontpage.ClickWireless,poweronGPSmodule.Clickthelittle

earthiconanditwillsearchthelocationautomatically.



11



CogentSystems



2.14. GPRS

InsertSIMcardbeforechecktheGPRS.GointoPowerCheckpageor

WirelesspagetopowerontheGPRSmodule.Makesureotherwireless

modulesarepoweroff.ClickGPRSinManualCheckandgetintoGPRS

Check.ChangeserverIPas116.6.20.59.thenclickDial,waitingforthe

toprightdialogueturntoConnected.ClickConnectServer,adialogue

boxwillpopuptoshowConnected.Therearesomeinformationshows

undertheReceive.



WillshowdatehereifGPRS

connectsuccessfully



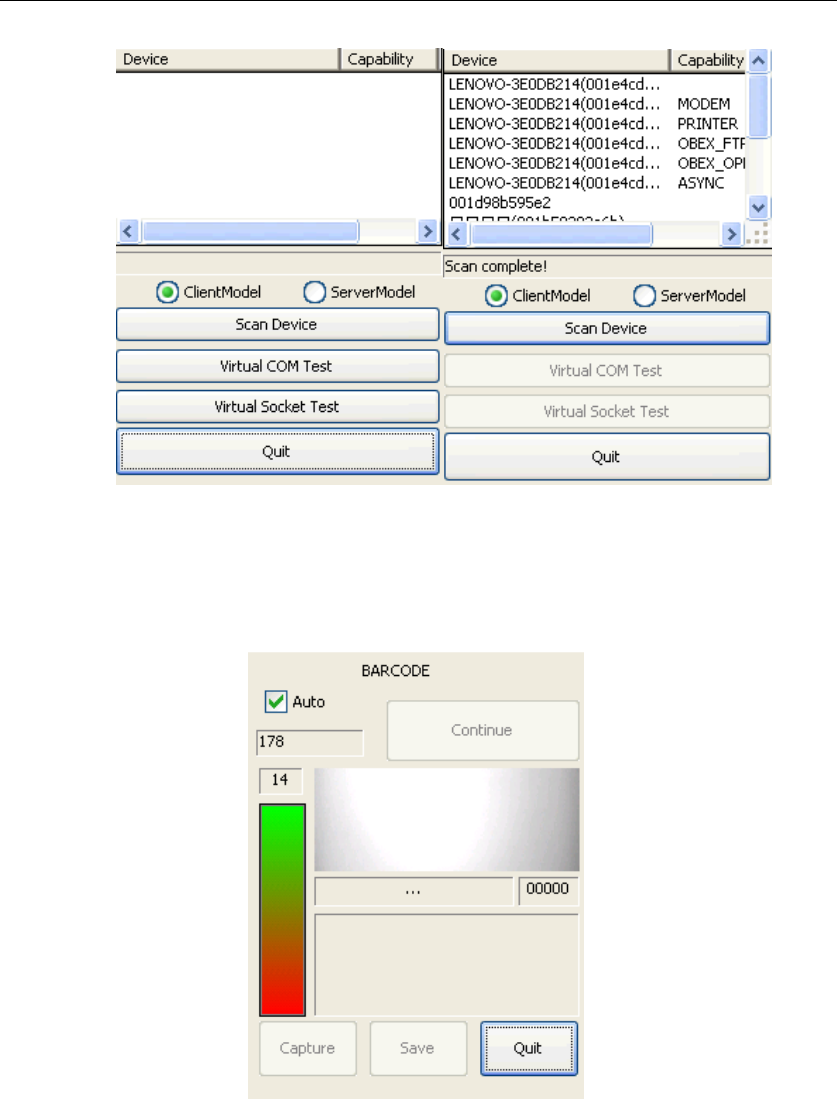

2.15. Bluetooth

GointoPowerCheckpageorWirelesspagetopowerontheBluetooth

module.Makesureotherwirelessmodulesarepoweroff.ClickBluetooth

inManualCheckandgetintoit.ClickScanDevice.Itwillscandevices

automatically.ClickQuitbacktoManualCheck.

12



CogentSystems



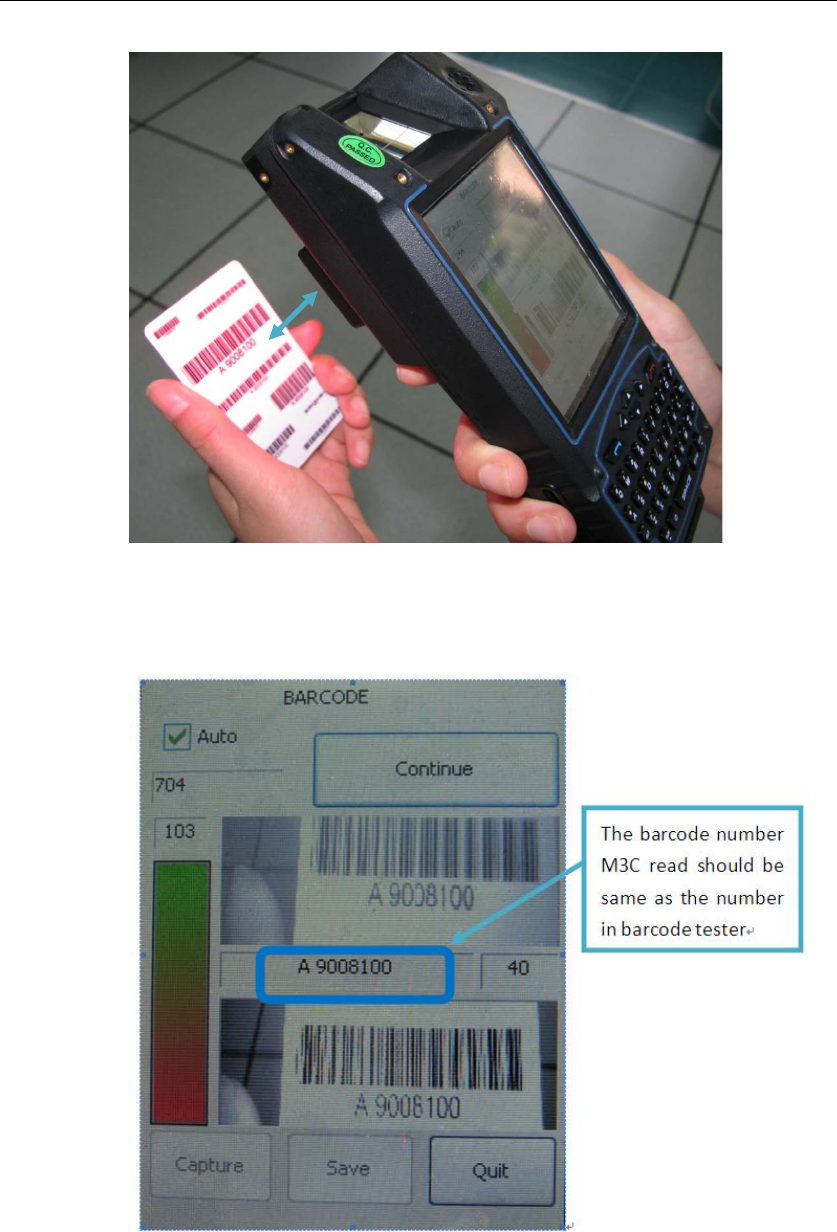

2.16. Barcode

ClickBarcodeinManualCheckandgetintoit.



Barcodecameralight(red)willturnonwhilescanningbarcode.The

distancebetweenbarcodetesterandMi3cshouldbein8‐16cm.

13



CogentSystems

 

8‐16cm



Afterthebeep,Mi3cfinishscanningthebarcode.Nowthebarcode

dataisshowedonthebarcodepage.Pleasenoticethescanned

barcodeundershouldbesameasthenumberonbarcodetester.



ClickContinuetoscananotherbarcode.

Note:makeMi3candbarcodetestersteady,donottrembling.Ensure

indoorlightisbrightenough.OtherwiseMi3cmayfailtoscanthe

barcodebecauseofthelightspotonthebarcodetester.Makesurethe

wholebarcodeisinsidethescanframe.ThedistancebetweenMi3cand

14



CogentSystems

barcodetesterisin8‐16cm(canbeadjustedaccordingthescan

situation).



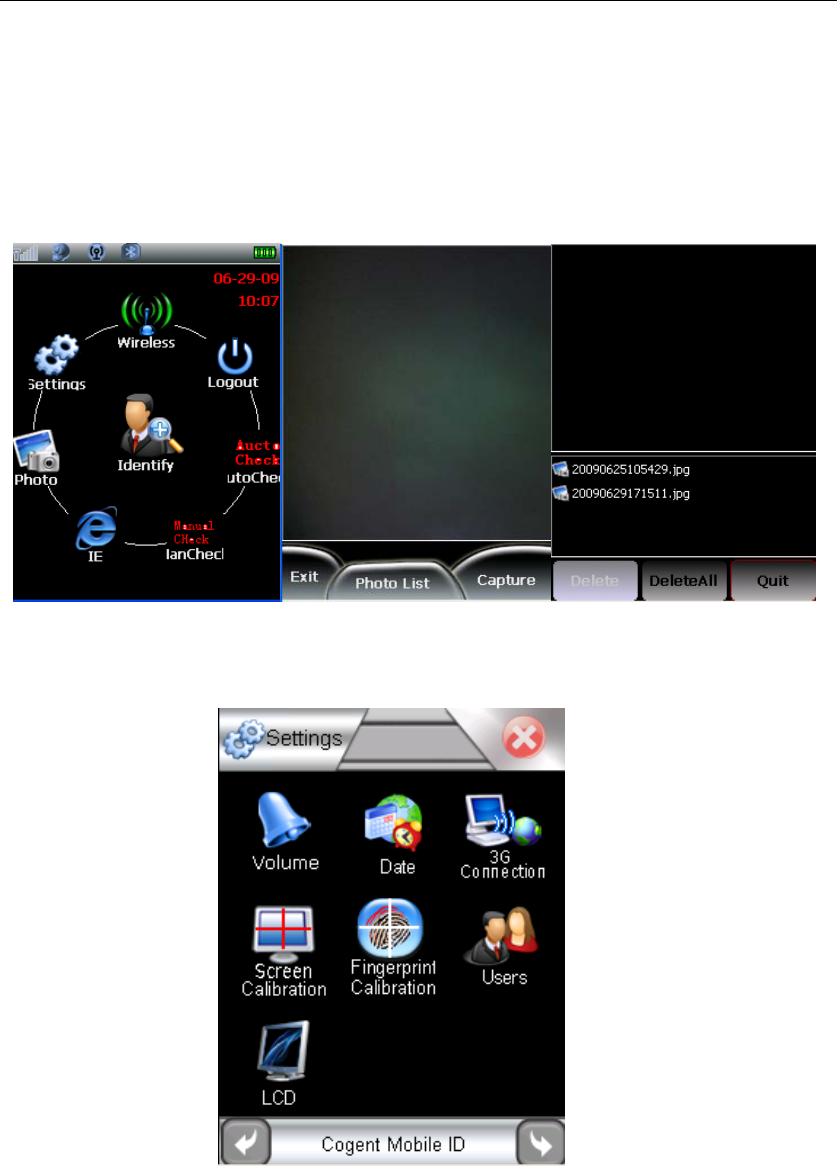

3. Photo

ClickPhotoinFrontpage.ClickCapturetocapturetheimage.ClickPhotoList,it

willshowallphotosyoucaptured.ClickExitbacktoFrontpage.



4. Settings

ClickSettingsinFrontpage.



15



CogentSystems



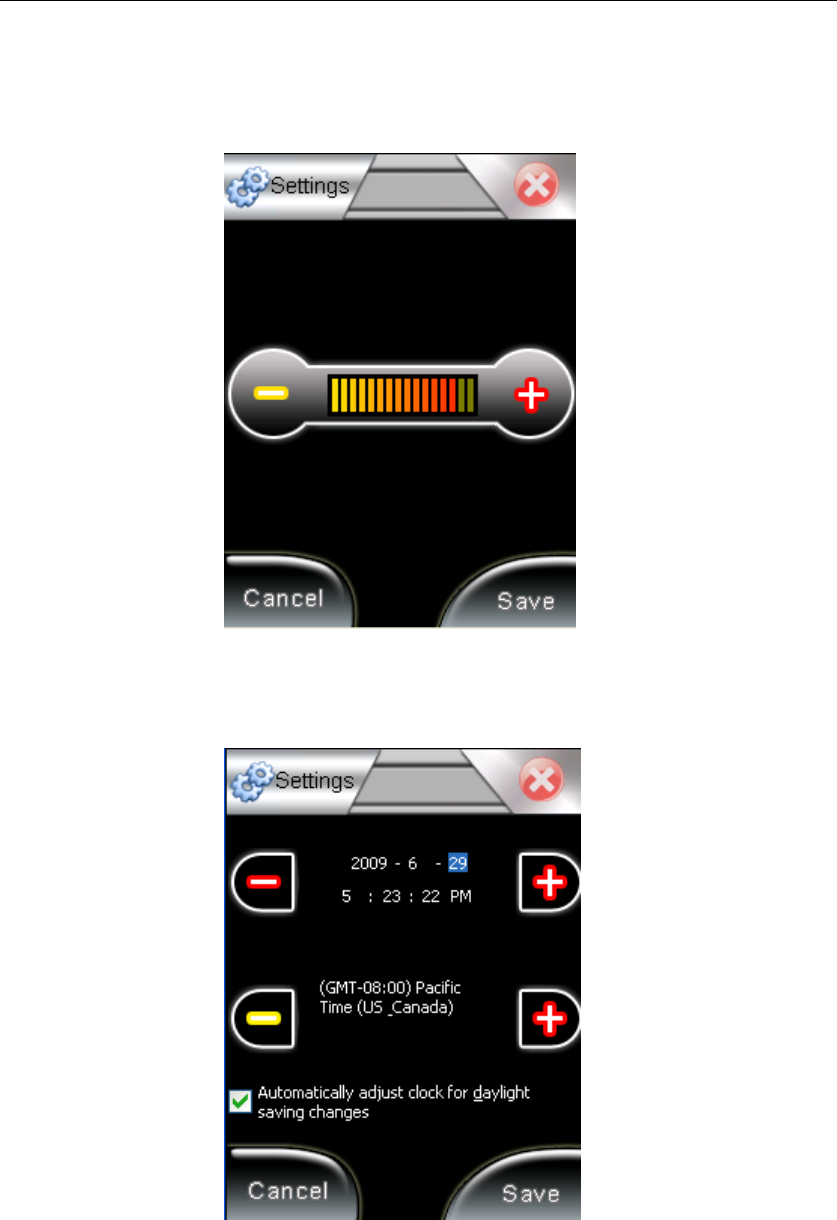

4.1. Volume

ClickVolumeandgetintoit.Adjustthevolumebyadjustingvolumebar.



4.2. Date

ClickDate,adjustthedatebyclicking‘-‘or‘+’.ClickSavetosaveyour

change.

 



16



CogentSystems



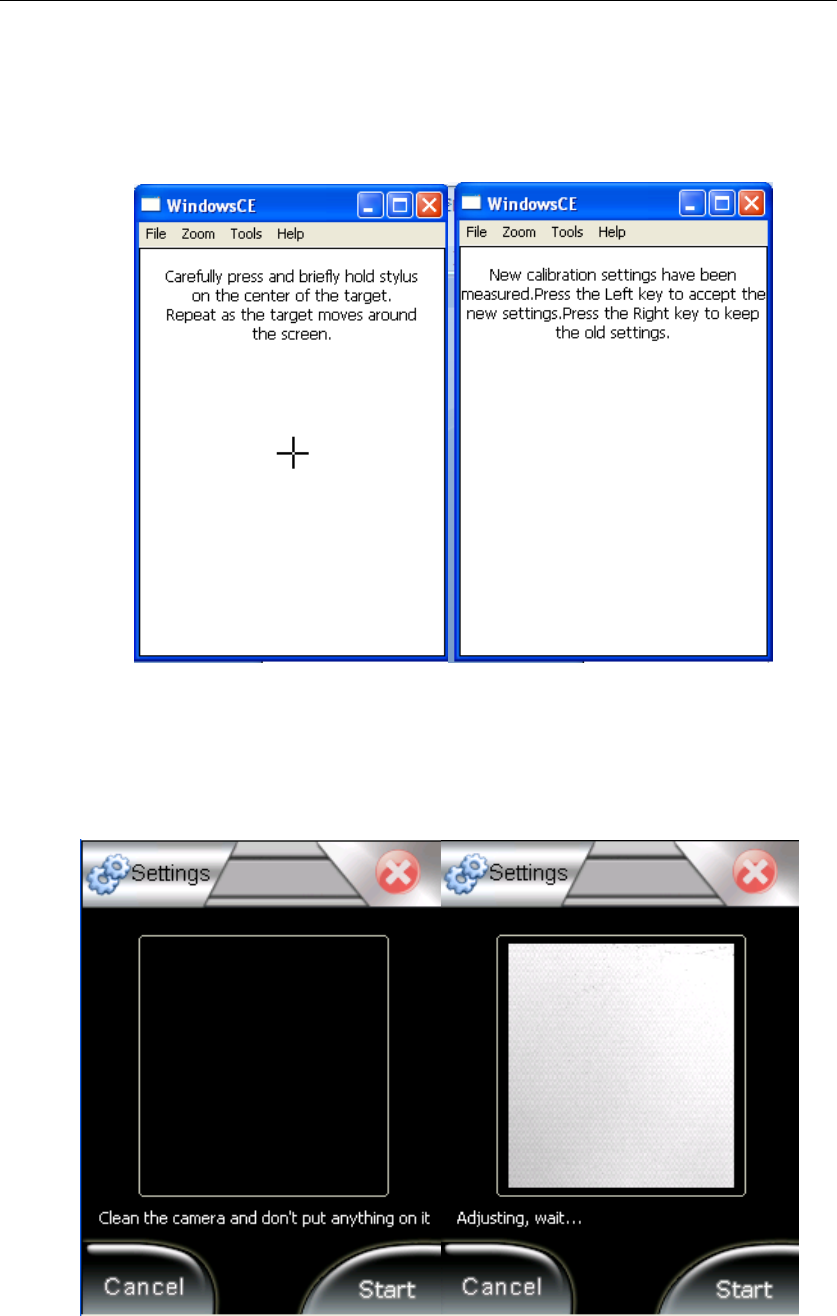

4.3. ScreenCalibration

ClickScreenCalibrationandgetintoit.Clickthecentralofthecrossuntilit

finishedthecalibration.





4.4. FingerprintCalibration

ClickFingerprintCalibrationandgetintoit.Cleanthefingerprintsensor,click

Start.Itwillcalibratethesensorautomatically.Aftercalibrating,itwillreturn

totheSettingspageautomatically.



17



CogentSystems

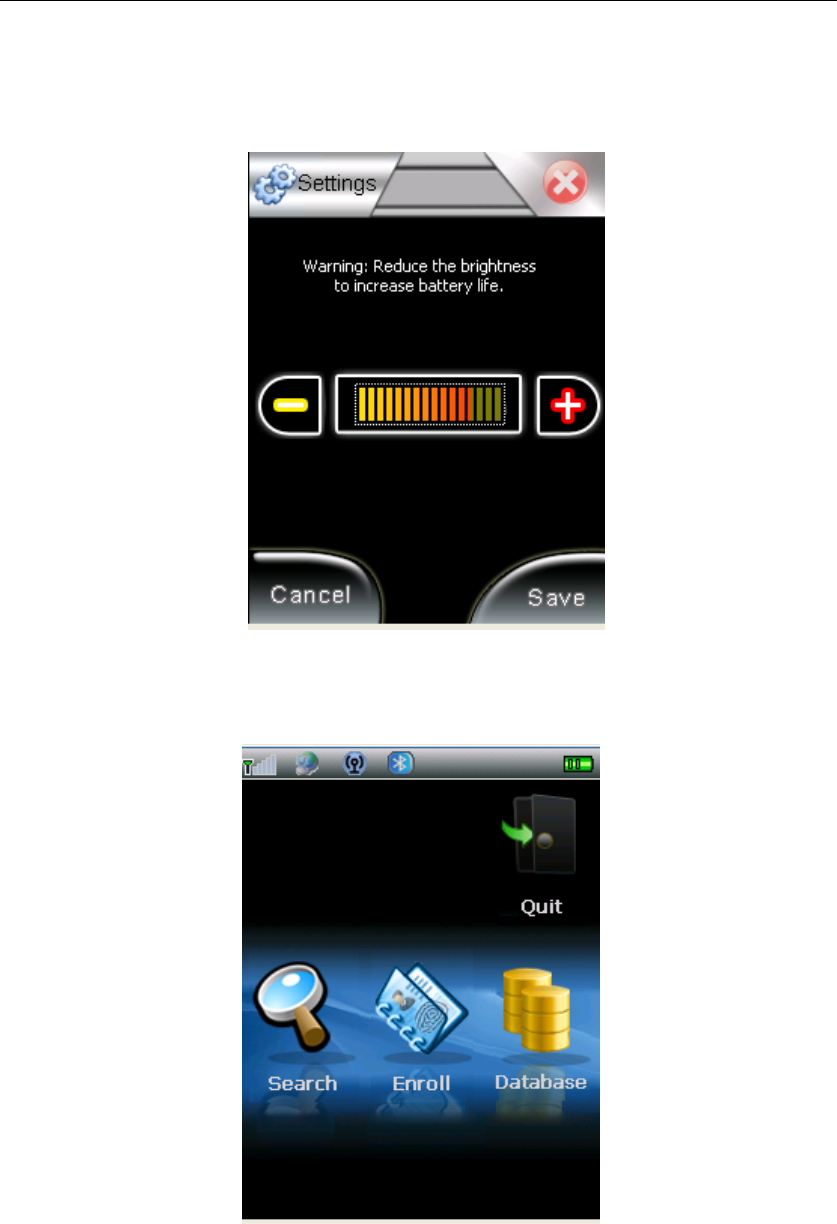

4.5. LCD

ClickLCDandgetintoit.AdjusttheLCDbrightnessbyclicking‘‐‘or‘+’,

clickSavetosavechange.

 



5. Identify

ClickIdentifyinFrontpageandgetintoit.



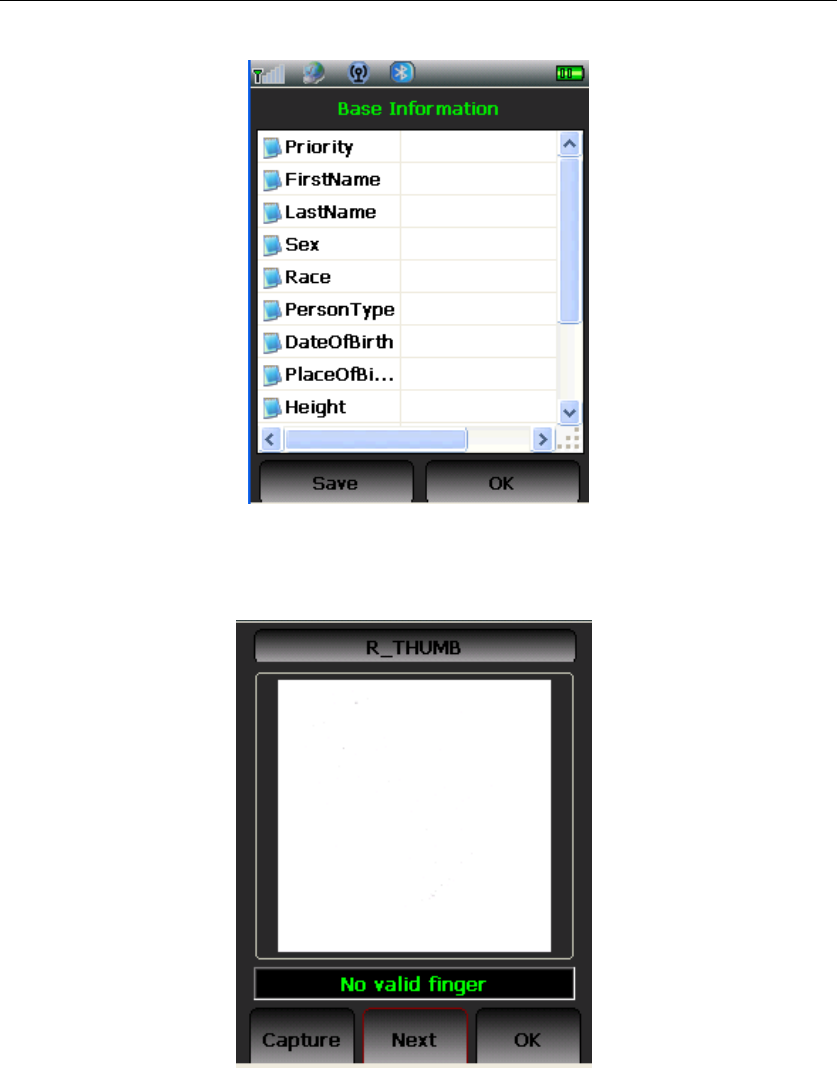

5.1. Enroll

ClickEnrollandgetintoBaseInformation.Afterenterallthebasic

information,clickSavetosaveit.ClickOKtogotothenextstep.

18



CogentSystems



Thenextstepisfingerprintscaptured.Entertenfingerprintsasinstructed,it

willcapturefingerprintsautomatically.Aftercapturingtenfingerprints,click

SavetosavethedatathenclickOK,itwillgointonextstep.



19



CogentSystems

Thenextstepisfaceimagecaptured.5faceimageneedtobecaptured:

Face_0,Face_L45,Face_R45,Face_L90,Face_R90.ClickCapturetocapture

thefaceimage,clickSavetosavethedata,clickOKtoreturnbacktomain

page.



5.2. Search

ClickSearch,adialoguewillpopup.SelectByFinger.Pressfingeronthe

fingerprintsensor.Ifthefingerprintgetthehit,itwillshowonthetop,and

correspondingfacialimagewillshowbelow.



Fingerprint

Facialimage

20



CogentSystems



SelectByFacial.



Capturingface

imageCapturedface

image



Detectedface

image



FCCSTATEMENT

ThisdevicecomplieswithPart15oftheFCCRules.

Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.

FCCCAUTION:

Changesormodificationsnotexpresslyapprovedbythepartyresponsible

forcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.



21



changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

FCC ID: ZYF-BCR

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

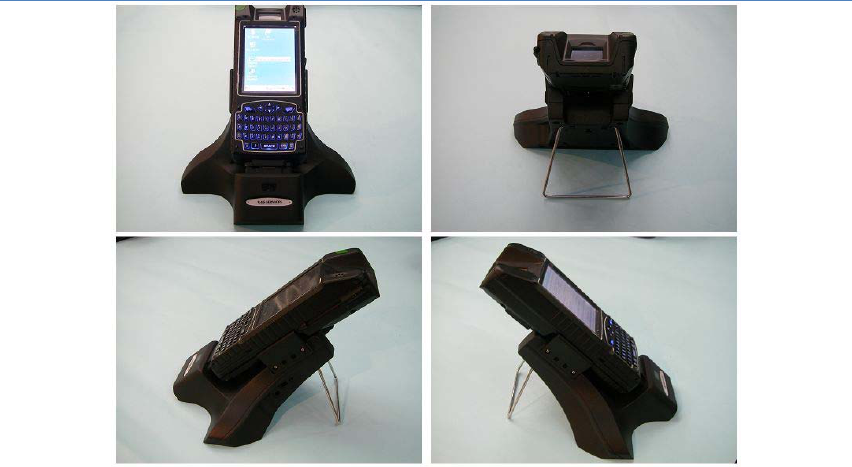

3M Cogent BCR Barcode + Cards 4 to 1 Reader User Manual Instruction for Mobile Ident IIIc Mi3c

3M Cogent, Inc. Barcode + Cards 4 to 1 Reader Instruction for Mobile Ident IIIc Mi3c

Users Manual

Navigation menu

Namespaces

Views

Navigation
