antenna information

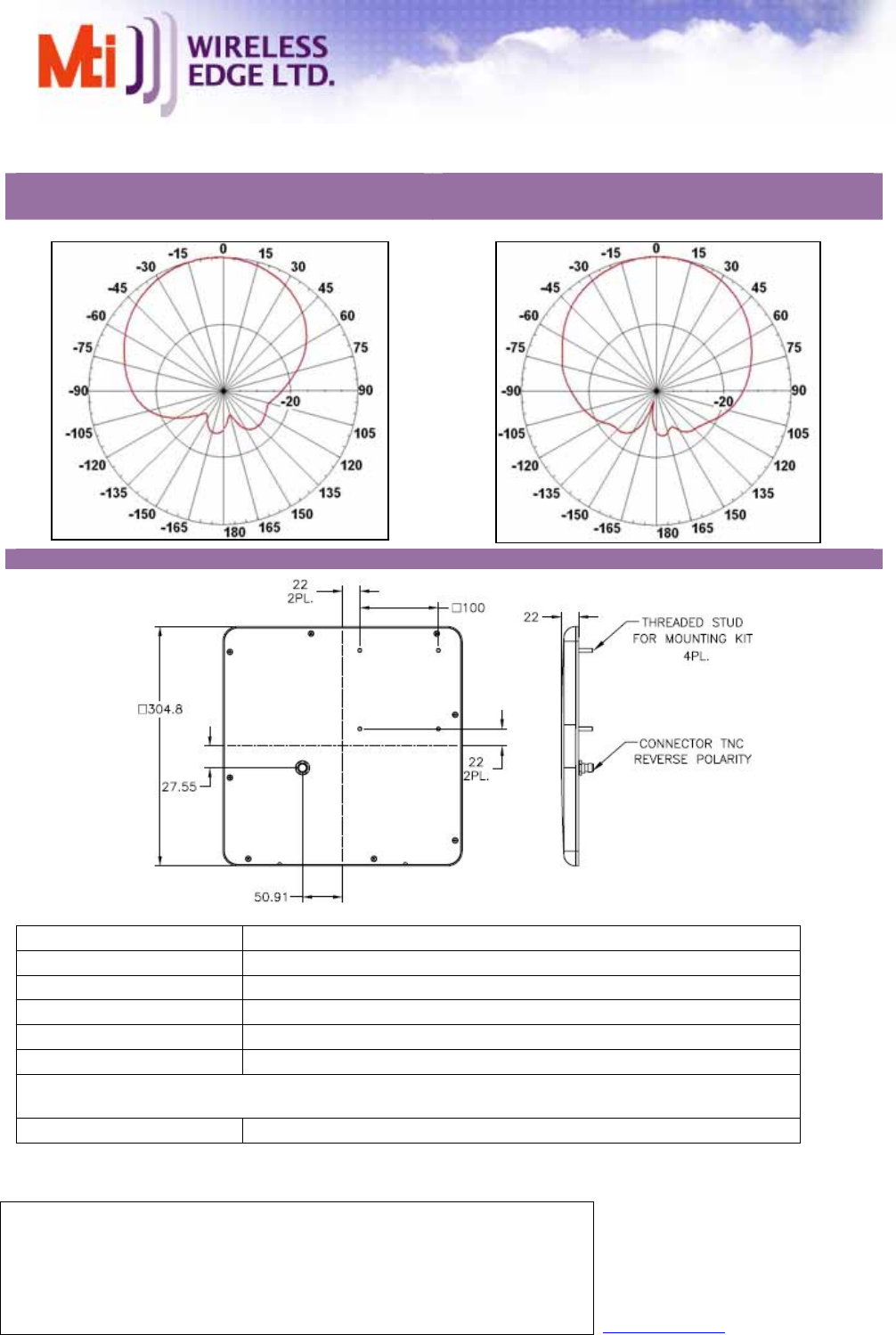

Antenna Data Sheet
MT-262006/TRH/A
Page 1 of 2
MT-262006/TRH/A
902-928 MHz, 9 dBic, Reader Antenna
Specifications
MTI PART NUMBER MT- 262006/TRH/A
ELECTRICAL
FREQUENCY RANGE 902-928 MHz
GAIN 9 dBic (min)
VSWR 1.3:1 (max), 1.4:1 (max) @ 10% of the range
3 dB BEAMWIDTH 63° (typ)
POLARIZATION RHCP ** See Other Antenna Versions below
SIDELOBES LEVEL @ 90° -16 dB (max)
AXIAL RATIO AT BORESIGHT 4 dB (max)
F/B RATIO -18 dB (max) -20 dB (typ)
INPUT IMPEDANCE 50 (Ohm)
INPUT POWER 6 W (max)
LIGHTNING PROTECTION DC Grounded
MECHANICAL
DIMENSIONS (LxWxD) 305x305x25 mm ** See Other Antenna Versions below
ORIENTATION Rectangular
WEIGHT 1.2 kg (max)
CONNECTOR Reverse Polarity TNC ** See Other Antenna Versions below
RADOME Plastic UV Resistant per ETSI 300
BASE PLATE Aluminum with chemical conversion coating
OUTLINE DRAWING See page 2
MOUNTING KIT MT-120018
ENVIRONMENTAL
TEST STANDARD DURATION TEMPERTURE NOTES
TEMPERATURE IEC 68-2-1/2 72 h -55°C to +71°C -
TEMP. CYCLING IEC 68-2-14 1 h -45°C to +70°C 3 Cycles
THERMAL SHOCK NON-OPER. -30°C to +70°C Ramp 30°C/min
HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95%
WATER TIGHTNESS* IEC 529 - - IP54
DUST RESISTANCE* IP54
SOLAR RADIATION ASTM G53 1000 h - -
OZONE RESISTANCE ETSI 300
FLAMMABILITY UL 94 - - Class HB
SALT SPRAY IEC 68-2-11 Ka 500 h - -
ICE AND SNOW - - - 25mm Radial
WIND SPEED SURVIVAL
OPERATION -
- -
- -
- 220 Km/h
160 Km/h
WIND LOAD (SURV.): FRONT
SIDE THRUST -
- -
- -
- 26.8 kg
2.2 kg
QUASI RANDOM VIBRATION 20g rms for 4 hours
VEHICLE VIBRATION
OPERATING 1g rms, 10-500 Hz, in
3 axis 6 hours total, 2 hr in each axis. Accelerated wear – an
additional 50hrs in worst case axis.
MECHANICAL SHOCK
OPERATING 10g, 11 msec,
half sine pulse
Antenna Data Sheet
MT-262006/TRH/A
Page 2 of 2
902-928 MHz, 9 dBic, Reader Antenna
Azimuth Radiation Pattern
Midband Freq. 0.915 GHz Elevation Radiation Pattern
Midband Freq. 0.915 GHz
Dimensions [mm]
Existing Antenna Versions
MT-262006/NLH/A LHCP, connector: Reverse Polarity N - type female
MT-262006/NLH LHCP, connector: N - type female
MT-262006/NRH/A RHCP, connector: Reverse Polarity N - type female
MT-262006/NRH RHCP, connector: N - type female
MT–262006/TLH/A/K LHCP, connector: Reverse Polarity TNC, IP67
MT–262006/TRH/A/K RHCP, connector: Reverse Polarity TNC, IP67
MT-262006/NRH/B, MT-262006/NRH/D, MT-262006/NRH/F, MT-262006/NRH/G, MT-262006/TRH/D, MT-
262006/TRH/G: For more information about these models, please contact us
* IP 67 AVAILABLE UPON REQUEST
MTI Wireless Edge is certified according to ISO 9001 and ISO 14001.
WAIVER!
While the information contained in this document has been carefully compiled to the
best of our present knowledge, it is not intended as presentation or warranty of any kind
on our part regarding the fitness of the products concerned for any particular use or
purpose and neither shall any statement contained herein be construed as a
recommendation to infringe any industrial property rights or as a license to use any such
rights. The fitness of each product for any particular purpose must be checked
beforehand with our specialists.
MTI Wireless Edge Ltd.
11 Hamelacha St.
Afek Industrial Park
Rosh Ha'ayin 48091, Israel
Tel: +972-3-9008900
Fax: +972-3-9008901
www.mtiwe.com
Document No:
Issued:
MT-262006/TRH/A
26/11/2006
