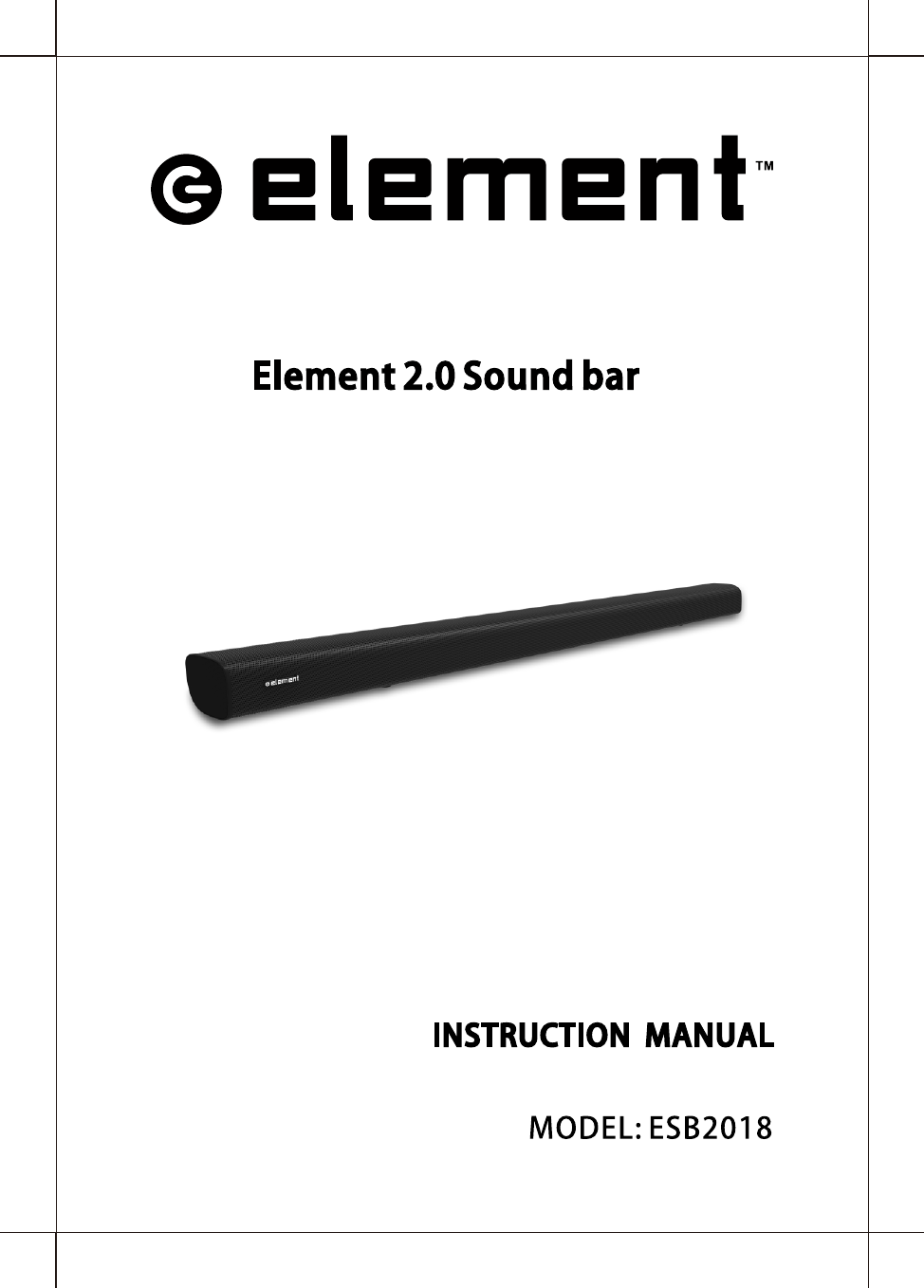

3NOD DIGITAL TECHNOLOGY ESB2018 Element 2.0 Sound bar User Manual

Shenzhen 3nod Digital Technology Co., Ltd. Element 2.0 Sound bar

User Manual

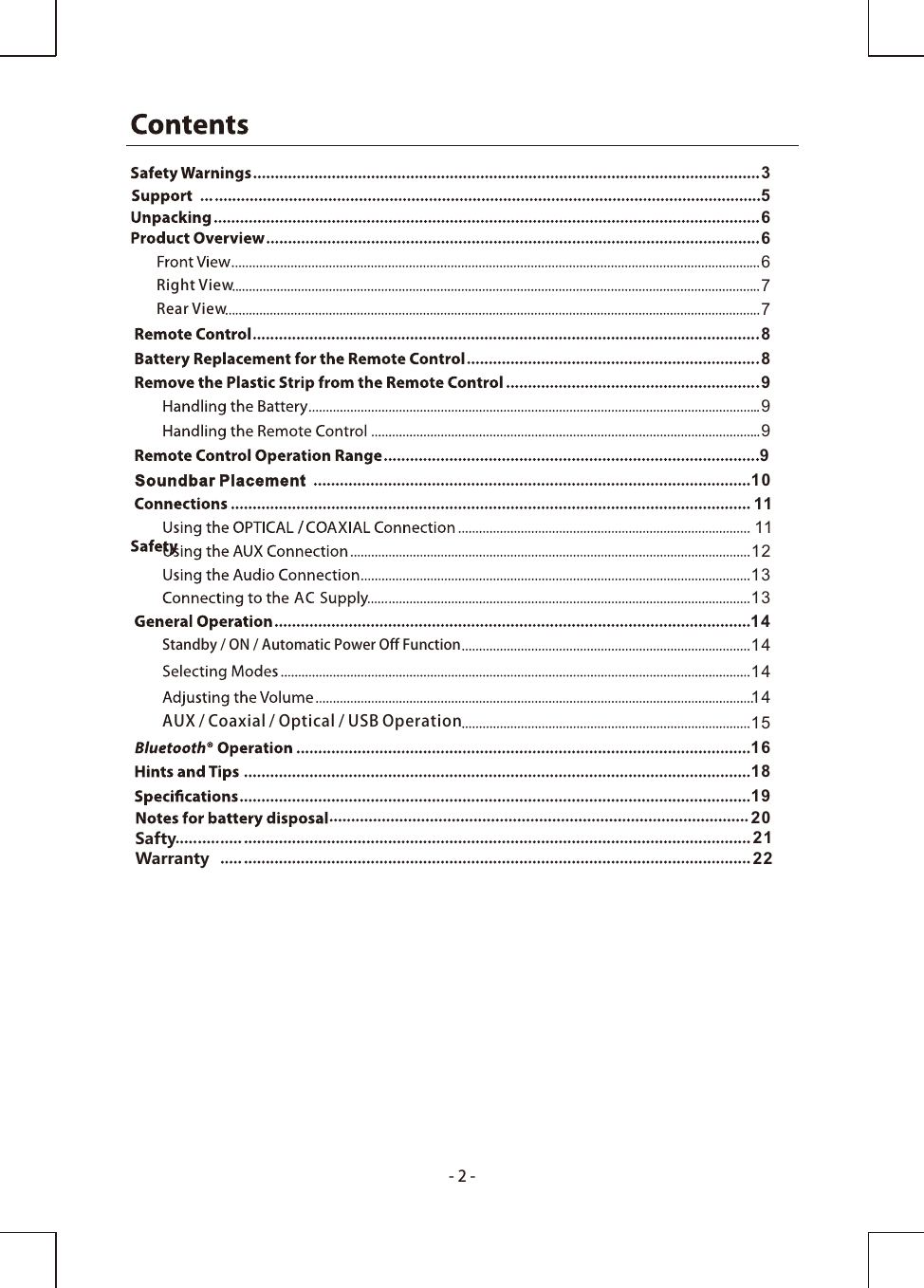

Safty-2-RightViewSoundbar PlacementAUX/Coaxial/Optical/USBOperationStandby/ON/AutomaticPowerOffFunctionRearView356667788999910111112131314141414151618192021Warranty 22

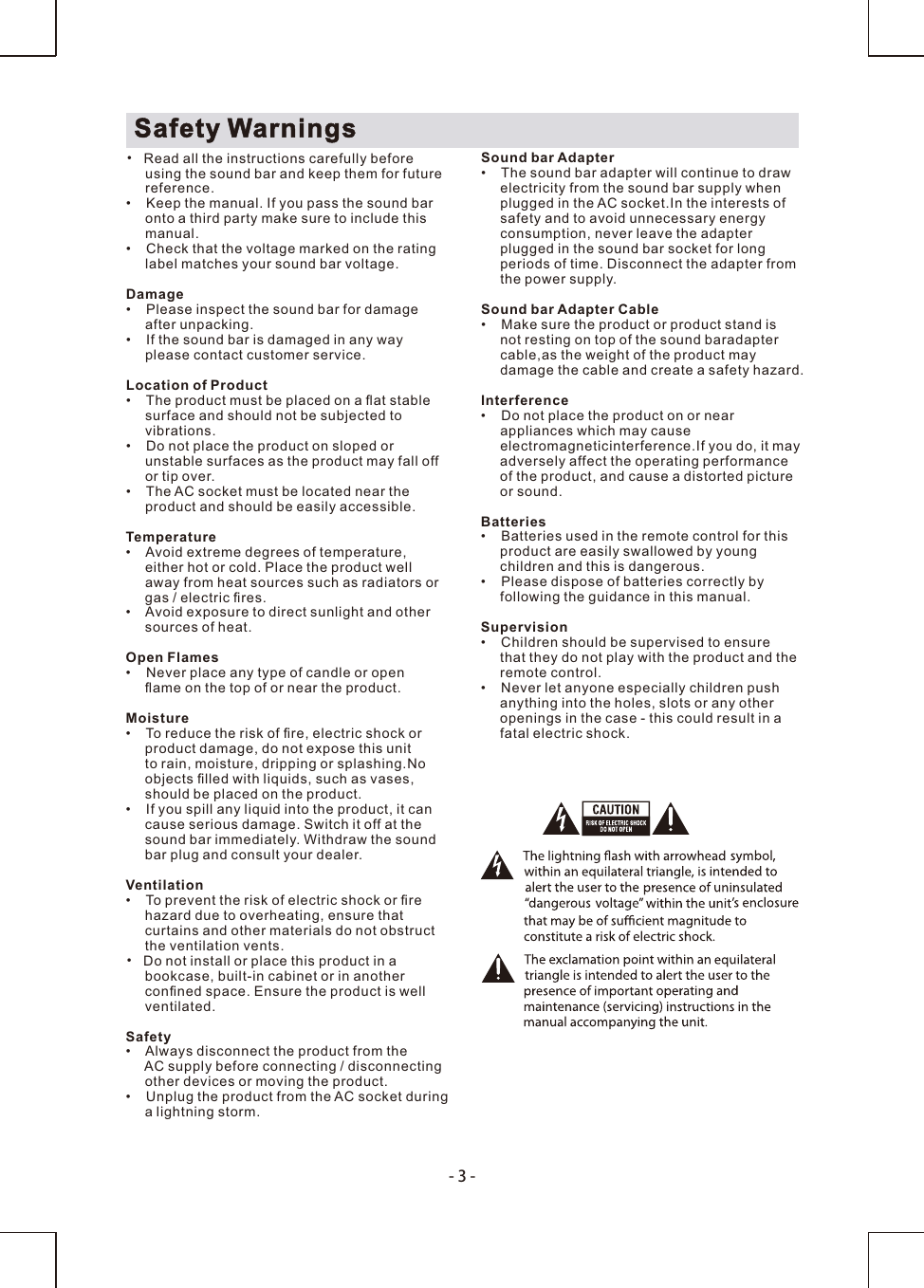

-3-Safety Warnings• Read all the instructions carefully before using the sound bar and keep them for future reference.• Keep the manual. If you pass the sound bar onto a third party make sure to include this manual.• Check that the voltage marked on the rating label matches your voltage.sound barDamage• Please inspect the sound bar for damage after unpacking.• If the sound bar is damaged in any way please contact customer service.Location of Product• The product must be placed on a flat stable surface and should not be subjected to vibrations.• Do not place the product on sloped or unstable surfaces as the product may fall off or tip over.• The socket must be located near theAC product and should be easily accessible.Temperature• Avoid extreme degrees of temperature, either hot or cold. Place the product well away from heat sources such as radiators or gas / electric fires.• Avoid exposure to direct sunlight and other sources of heat.Open Flames• Never place any type of candle or open flame on the top of or near the product.Moisture• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing.No objects filled with liquids, such as vases, should be placed on the product. • If you spill any liquid into the product, it can cause serious damage. Switch it off at the sound bar immediately. Withdraw the sound bar plug and consult your dealer.Ventilation• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.• Do not install or place this product in a bookcase, built-in cabinet or in another confined space. Ensure the product is well ventilated.Safety• Always disconnect the product from the AC supply before connecting / disconnecting other devices or moving the product.• Unplug the product from the AC socket during a lightning storm.Sound bar Adapter• The sound bar adapter will continue to draw electricity from the sound bar supply when plugged in the AC socket.In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the sound bar socket for long periods of time. Disconnect the adapter from the power supply.Sound bar Adapter Cable• Make sure the product or product stand is not resting on top of the sound baradapter cable,as the weight of the product may damage the cable and create a safety hazard.Interference• Do not place the product on or near appliances which may cause electromagneticinterference.If you do, it may adversely affect the operating performance of the product, and cause a distorted picture or sound.Batteries• Batteries used in the remote control for this product are easily swallowed by young children and this is dangerous.• Please dispose of batteries correctly by following the guidance in this manual.Supervision• Children should be supervised to ensure that they do not play with the product and the remote control.• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
-4-Important Safety InstructionsSafety • Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Do not use this product near water.• Clean only with dry cloth.• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.• Do not install near any heat sources such as radiators, heat registers, stoves, or other product (including amplifiers) that produce heat.• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.• Only use attachments/accessories specified by the manufacturer.• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ product combination to avoid injury from tip-over.• Unplug this product during lightning storms or when unused for long periods of time.• Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.CAUTION• Danger of explosion if battery is incorrectly replaced.• Replace only with the same or equivalent type.• Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.• The plug of sound bar adapter is used as the disconnect device, the disconnect device shall remain readily operable.• The product is designed to use in moderate climates.Warning• Changes or modifications not expressly approved by the party responsible for comp liance could void the user's authority to operate the product.• This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
-5-ElementTVCompany,LPCustomerService,E-mail:customerservice@elementelectronics.comThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:( 1 )this device may not cause harmful interference.(2)this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure.-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.FCC Statement:ElementTVCompany,LPCustomerService,ElementTVCompanyLimitedHow to get customer servicePre-authorizationmustbeobtainedbeforereturningtheproduct.Customer Service

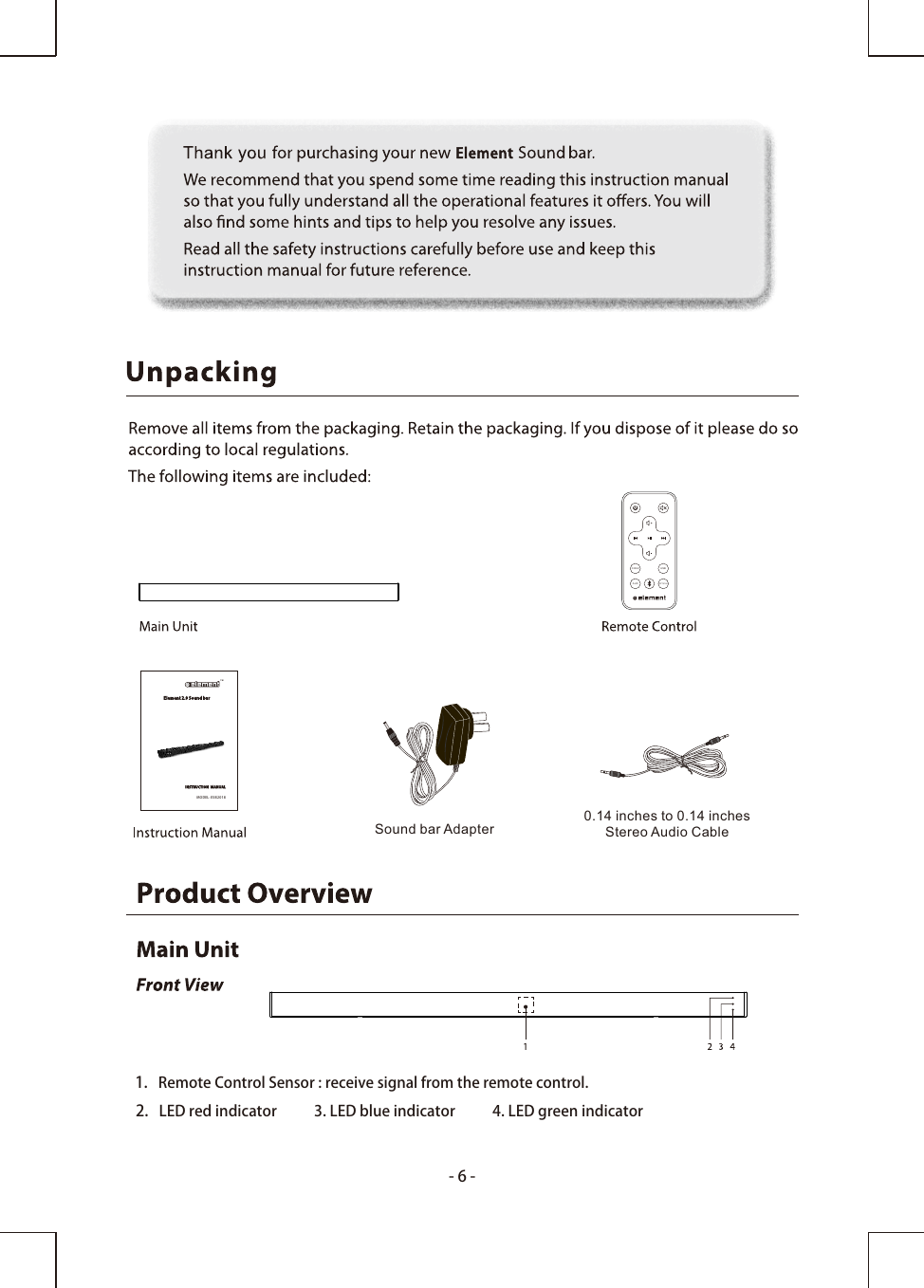

-6-ElementCOAXAUX OPT ICALUSB1.RemoteControlSensor:receivesignalfromtheremotecontrol.2.LEDredindicator3.LEDblueindicator4.LEDgreenindicatorEle ment2 .0So undba rMODE L:ESB 2018TMINST RUCT ION MA NUALSound bar Adapter0.14 inches to 0.14 inchesStereo Audio Cable
Front view of main unit-7-LEDindicatorshowthecurrentstatuslist：Standby：Redindicatorsolid.Bluetooth：Pairingandreconnect,blueindicatorblink,paired,blueindicatorsolid.Coaxialmode:greenindicatorsolid.AUXmode:redandblueindicatorsolid.Opticalmode:blueandgreenindicatorsolid.USBmode:redandgreenindicatorsolid.AUXinputsocketUSBinputsocketCOAXIALinputsocketOPTICALinputsocketPowerinputsocket

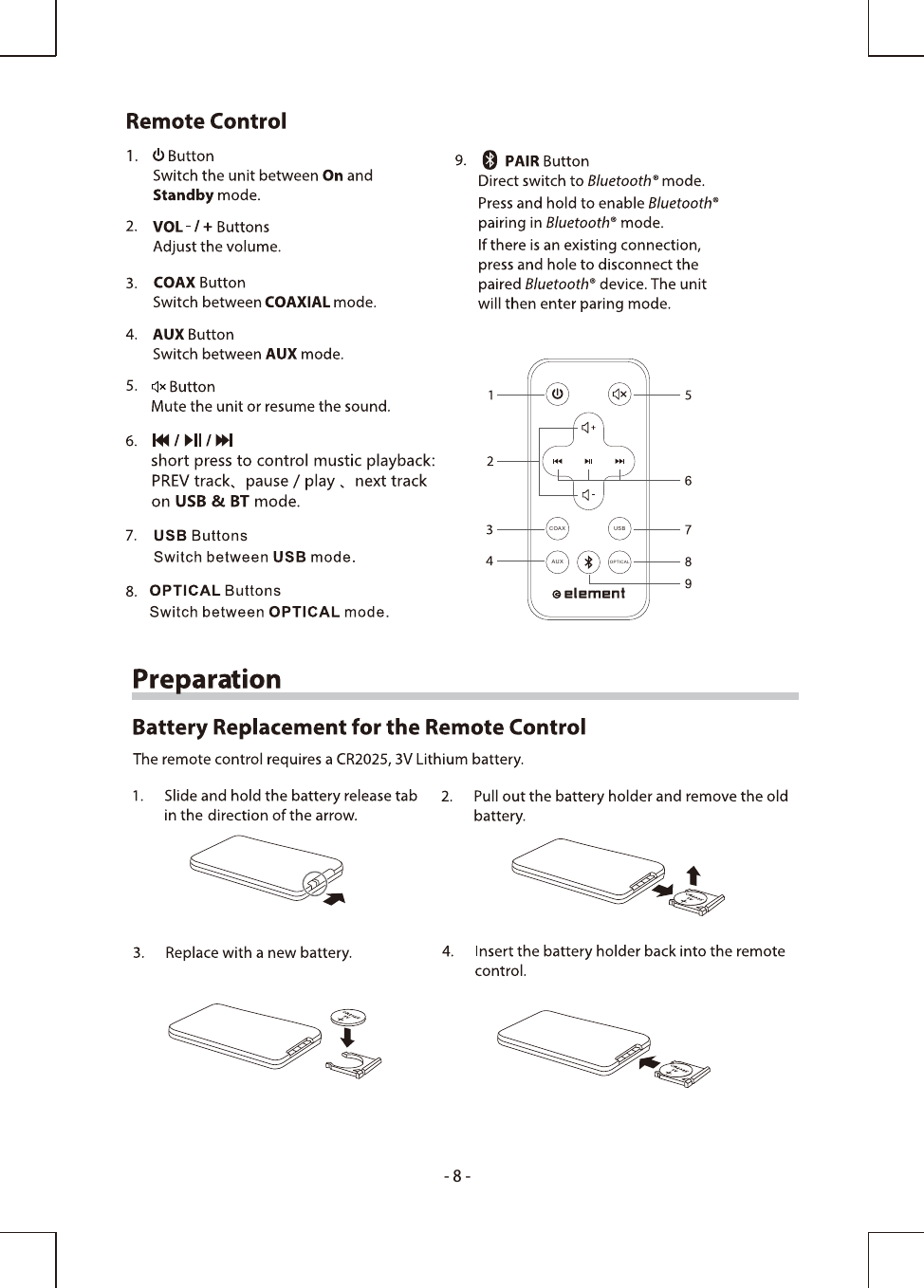

-8-COAXAUX OPT ICA LUSB

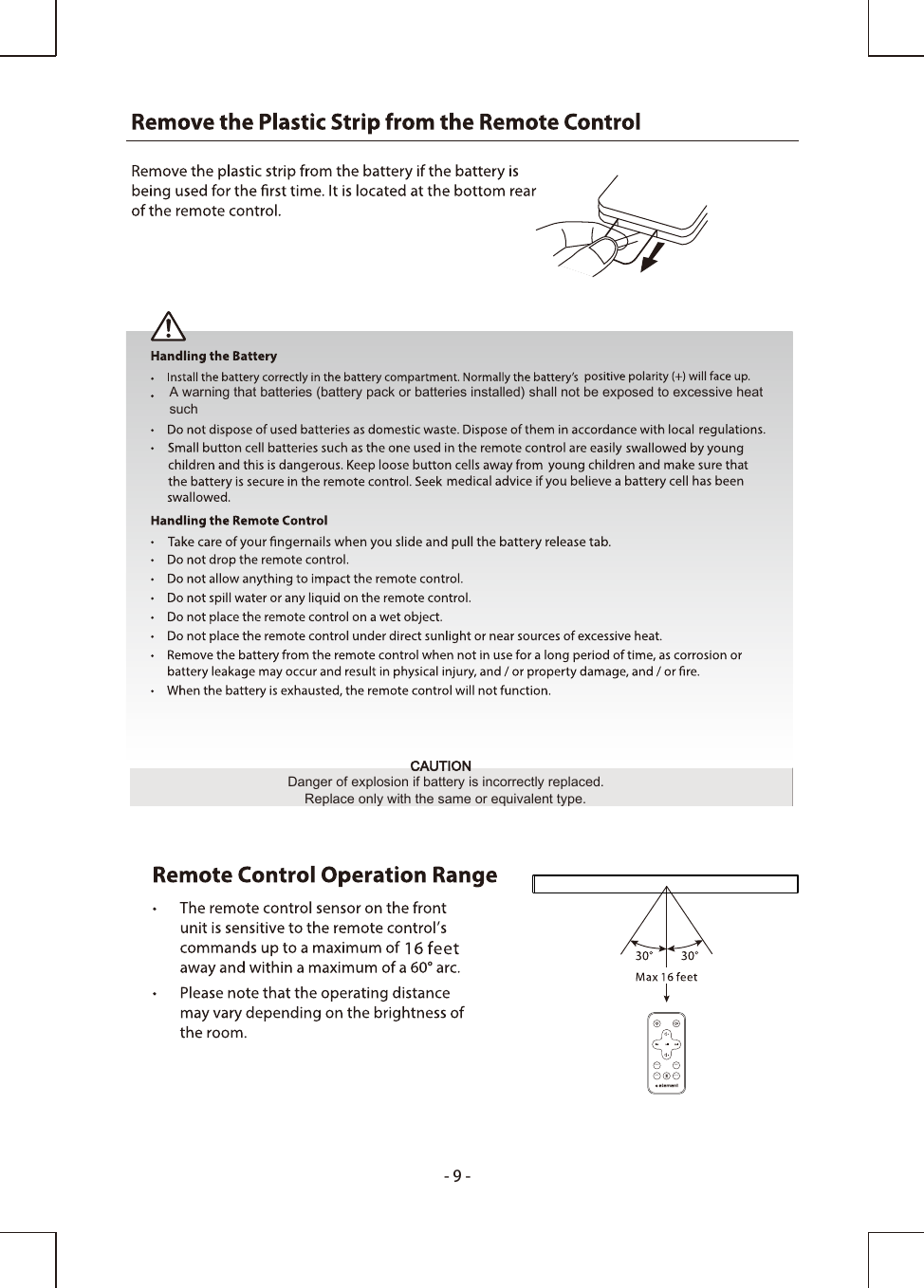

-9-COAXAUX OPTICALUSBA warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heatCAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.such
-10-Wall Mounting• personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer’s responsibility to verify that the wall will safely support the total load of the Soundbar.•Additional tools (not included) are required for the installation.•Do not overtighten screws.•Keep this instruction manual for future reference.• 23.23 inches1. Drill 2 parallel holes (Ø 0.32 inches each according to wall type) in the wall. The distancebetween the holes should be 23.23 inches. Percez 2 trous parallèles (Ø 0,32 pouces chacun selon le type de mur) dans le mur. La distanceentre les trous devrait être de 23,23 pouces.
-11-Solid wall (i.e., Solid brick, Solid concrete, Solid wood, Solid wooden battens)Drywall, Plaster wall, Lath wall, etc. 2. Firmly fix 1 dowel D0.4*L1.2 inches (not included) into each hole in the wall if necessary.3. Insert 1 screw TA0.16*1.58 inches (not included) into each dowel. Be sure to leave a 0.24 inches gap between the wall and the screw’s head. Lift the unit over the heads of the screws and slot into place.0.24 inches1.6-1.8 inchesFixer fermement 1 cheville D0.4 * L1.2 pouces (non incluse) dans chaque trou dans le mur si nécessaire.Insérez une vis TA0.16 * 1.58 pouces (non incluse) dans chaque cheville. Assurez-vous de laisser un 0,24 pouces d'espace entre le mur et la tête de la vis. Soulevez l'unité sur les têtes de les vis et la fente en place.

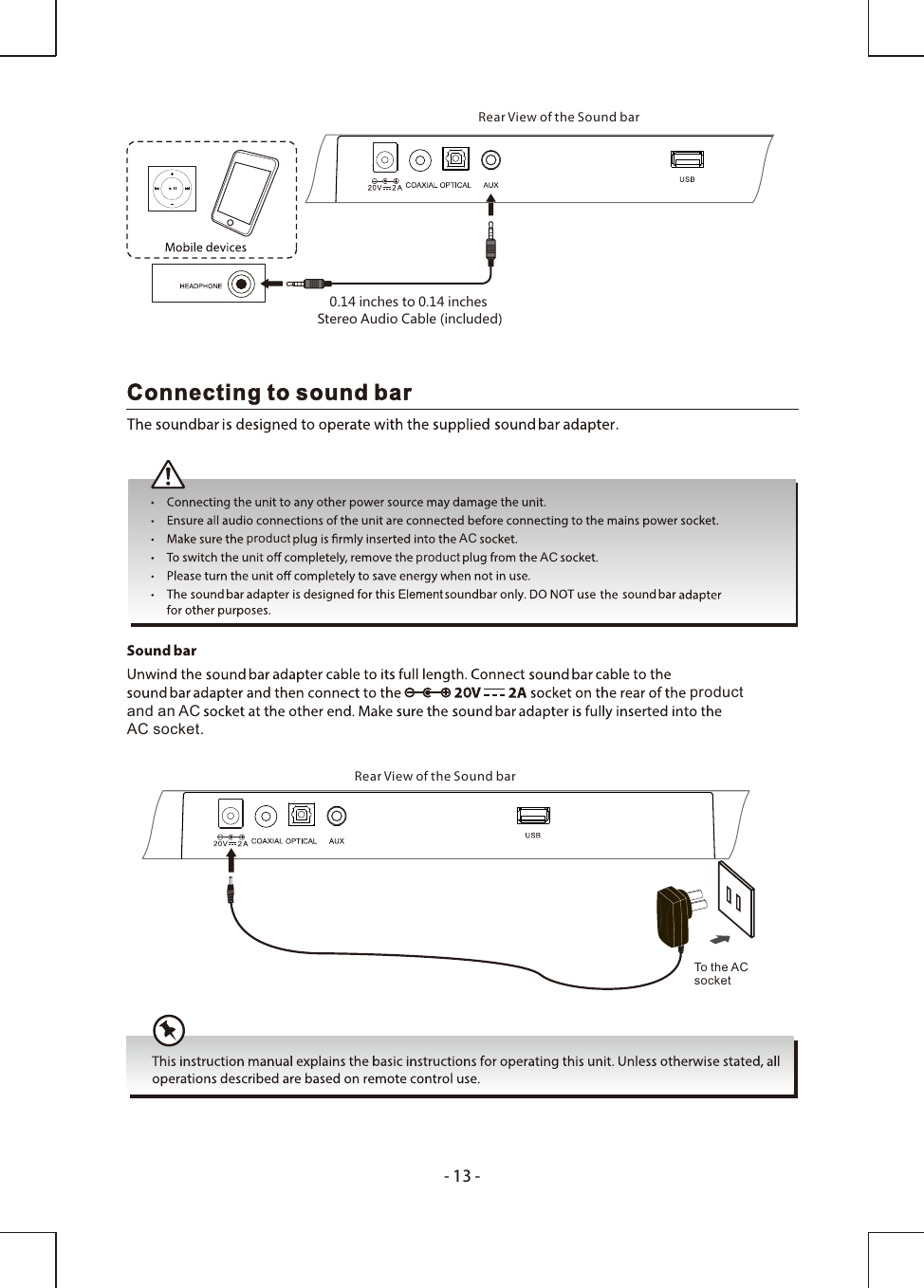

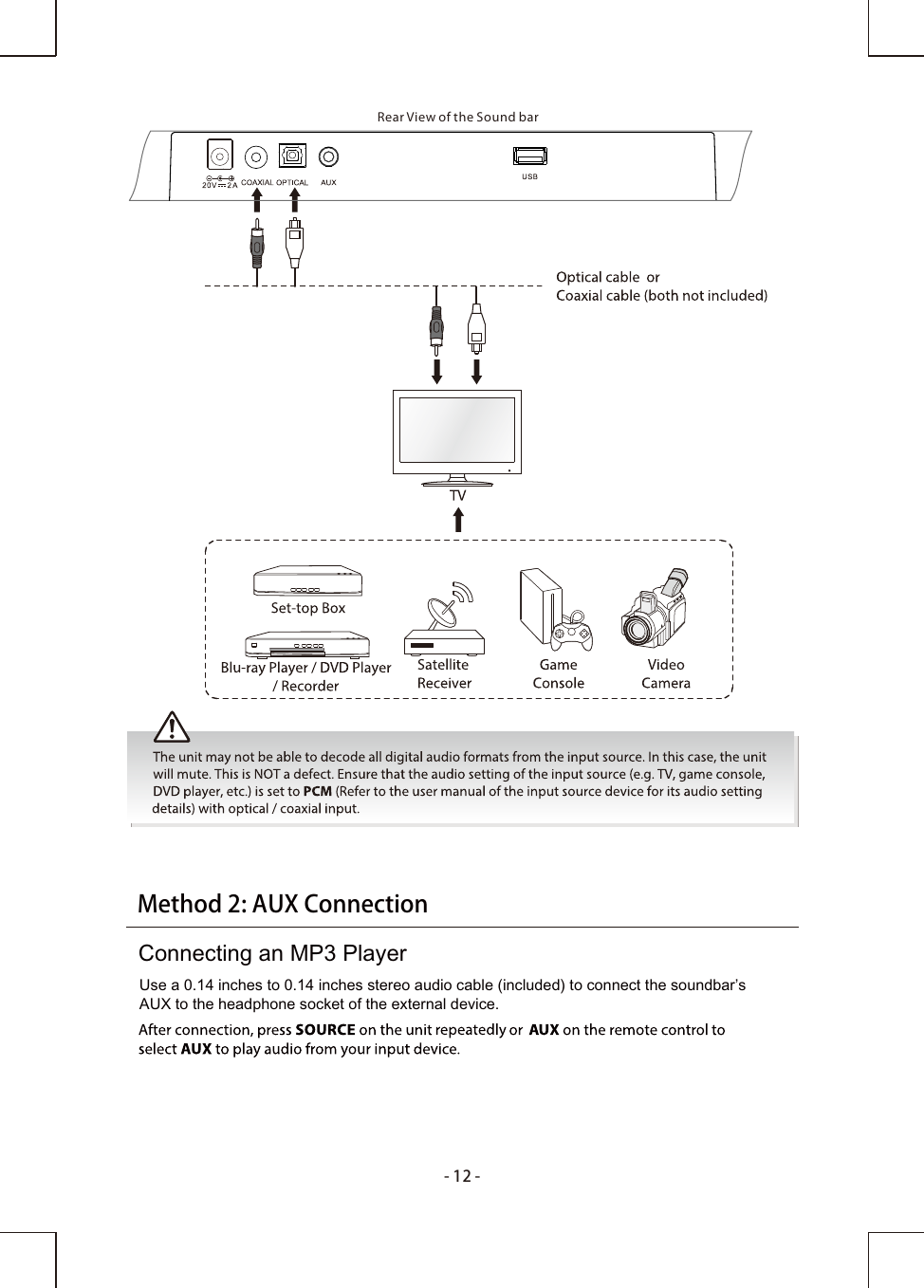

-12-Method2:AUXConnectionConnecting an MP3 PlayerAUX to the headphone socket of the external device.Use a 0.14 inches to 0.14 inches stereo audio cable (included) to connect the soundbar’s Rear View of the Sound bar
-13-Rear View of the Sound barRear View of the Sound bar0.14 inches to 0.14 inches Stereo Audio Cable (included)Connecting to sound bar product ACproduct ACand an ACAC socket.product To the AC socket

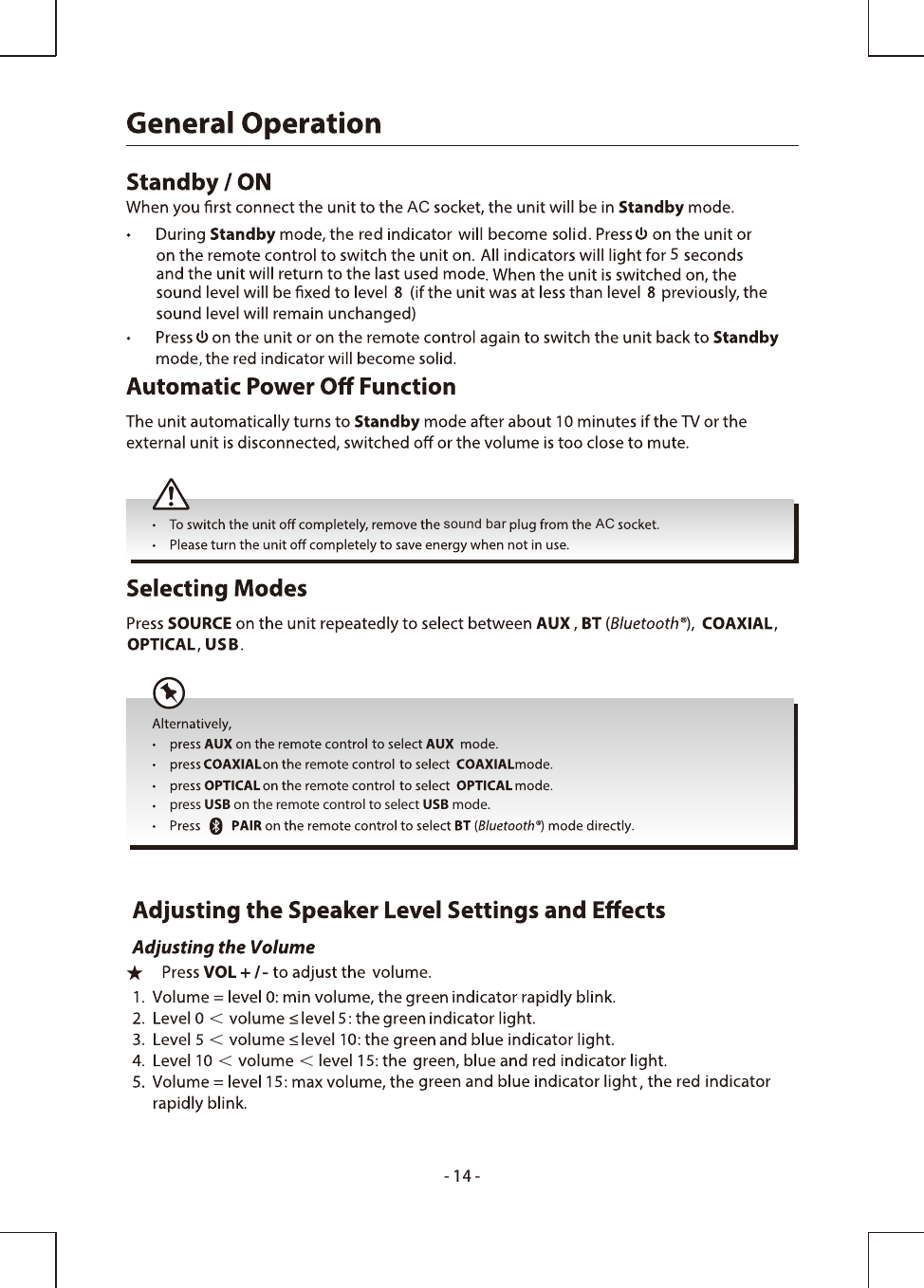

-14-press USB on the remote control to select USB mode.ACsound bar AC
-15-press USB on the remote control to select USB mode.AC

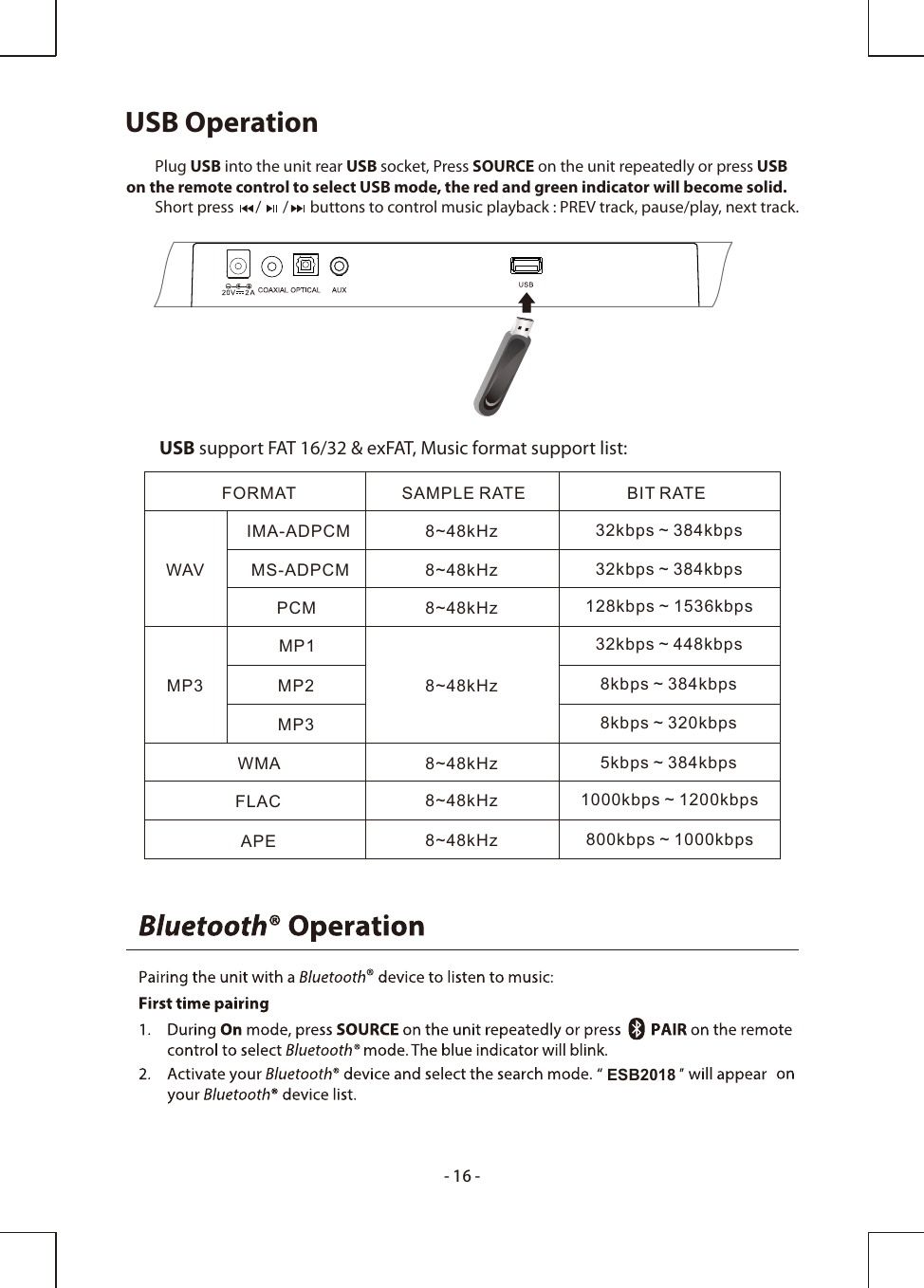

USB Operation Plug USB into the unit rear USB socket, Press SOURCE on the unit repeatedly or press USBon the remote control to select USB mode, the red and green indicator will become solid. Short press / / buttons to control music playback : PREV track, pause/play, next track. USB support FAT 16/32 & exFAT, Music format support list:FORMAT SAMPLE RATE BIT RATEWAVMP3WMAAPEFLAC8~48kHz8~48kHz8~48kHz8~48kHz8~48kHz8~48kHz8~48kHzIMA-ADPCMMS-ADPCMPCMMP1MP2MP332kbps ~ 384kbps32kbps ~ 384kbps128kbps ~ 1536kbps32kbps ~ 448kbps8kbps ~ 384kbps8kbps ~ 320kbps5kbps ~ 384kbps1000kbps ~ 1200kbps800kbps ~ 1000kbps-16-ESB2018

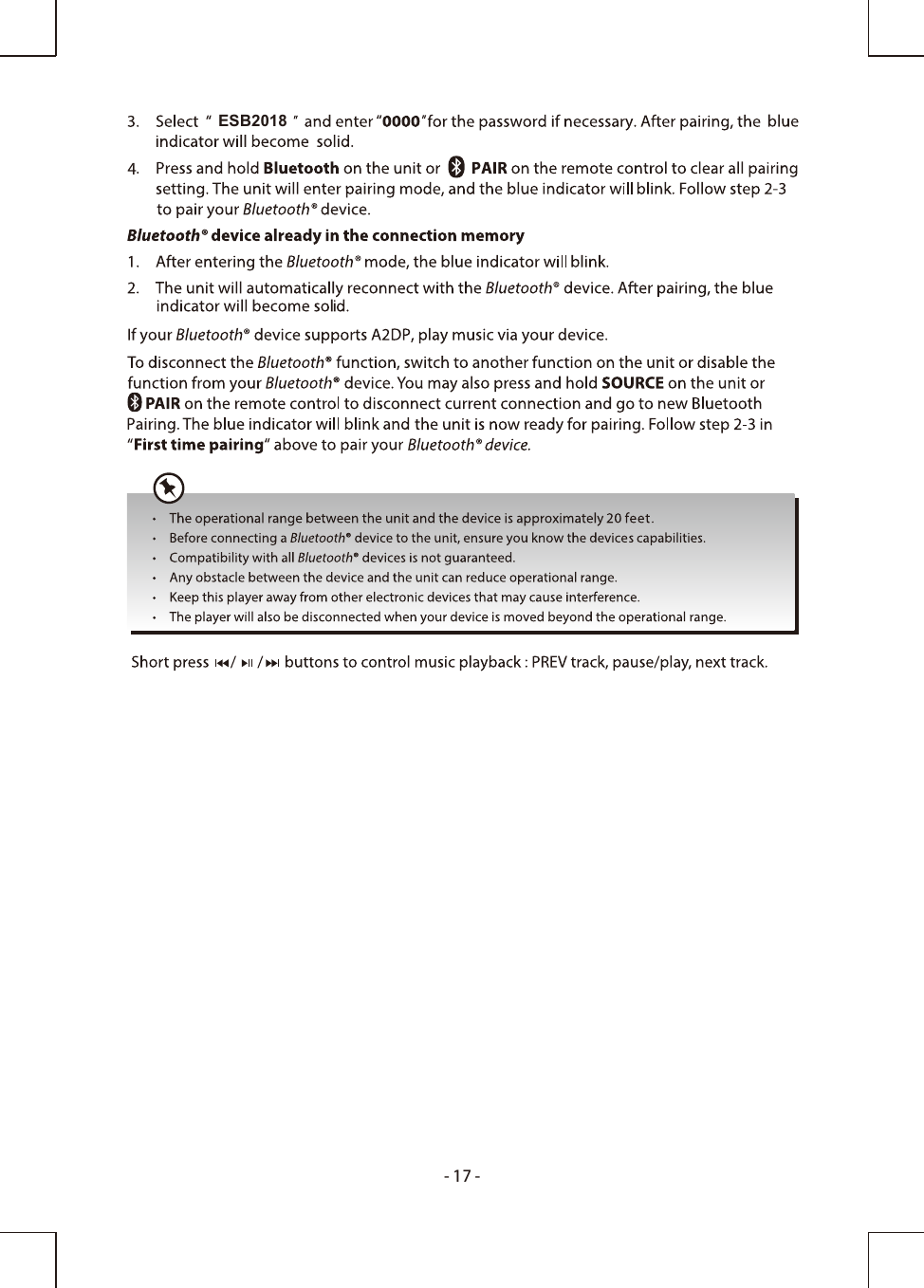

-17-ESB2018

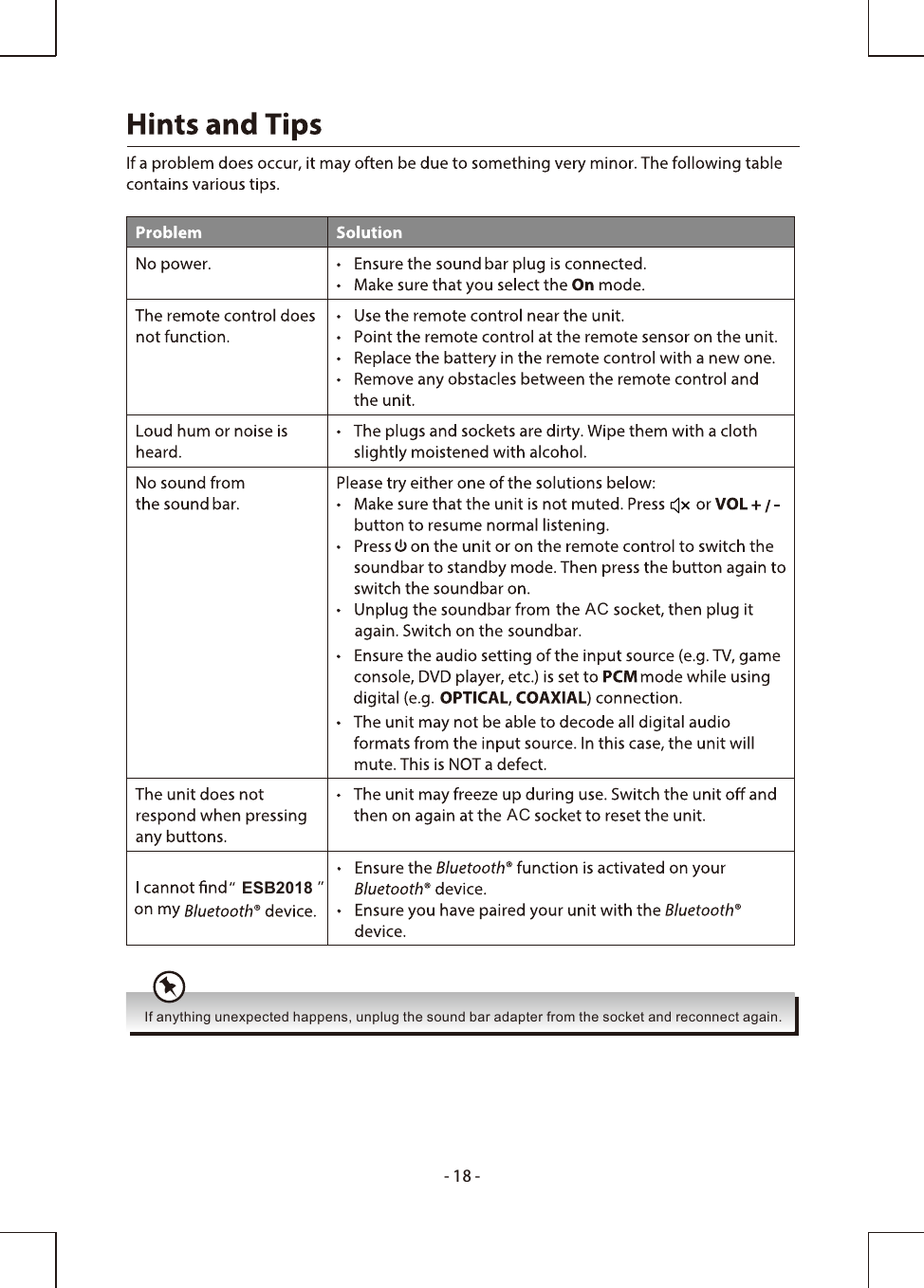

-18-ESB2018ACACIf anything unexpected happens, unplug the sound bar adapter from the socket and reconnect again.

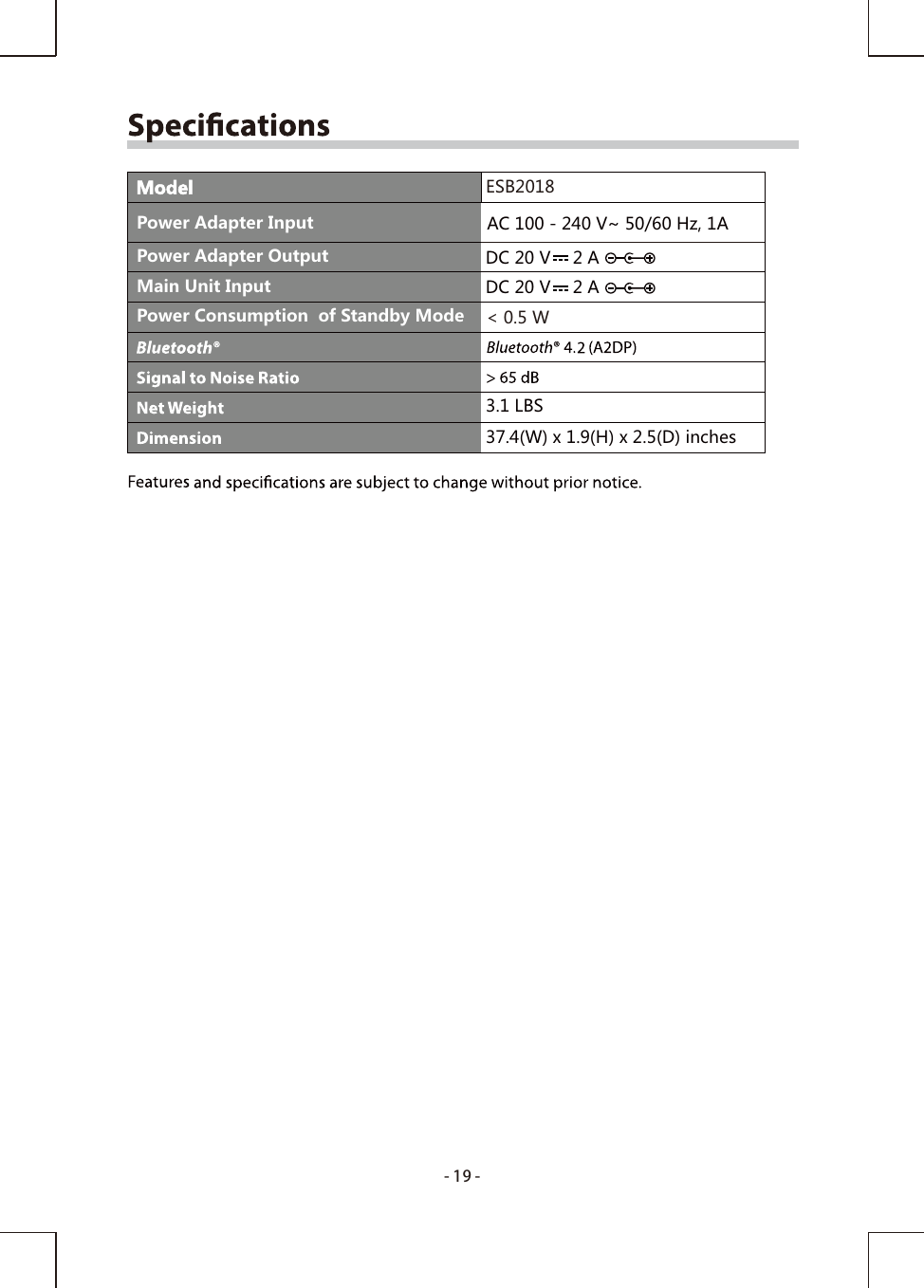

-19-ModelAC 100 - 240 V~ 50/60 Hz, 1ADC 20 V 2 A Power Consumption of Standby Mode < 0.5 WESB2018Power Adapter InputPower Adapter OutputMain Unit Input DC 20 V 2 A 3.1 LBS37.4(W) x 1.9(H) x 2.5(D) inches
-20-AVERTISSEMENTNe pas ingérer la pile, Danger de brûlure chimique(La télécommande fournie avec) Ce produit contient une pile bouton. Si la pile bouton estavalée, elle peut provoquer de graves brûlures internes en 2 heures seulement et peutentraîner la mort.Conserver les piles neuves et usées hors de portée des enfants. Si le compartiment pile ne se ferme pas correctement, cesser d'utiliser le produit et tenir hors de portée des enfants.En cas de doute concernant le fait que les piles pourraient avoir été avalées ou introduitesdans une partie quelconque du corps, consulter immédiatement un médecin.
-21-– minimum distances 10cm around the apparatus for sufficient ventilation;– distance minimale 10cm autour de l'appareil pour une aération suffisante;– the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;– il convient que l'aération ne soit pas gênée par l'obstruction des ouvertures d'aération par des objets tels que journaux, nappes, rideaux, etc.;– no naked flame sources, such as lighted candles, should be placed on the apparatus;– il convient de ne pas placer sur l'appareil de sources de flammes nues, telles que des bougies allumées;– attention should be drawn to the environmental aspects of battery disposal;– il convient d'attirer l'attention sur les problèmes d'environnement dus à la mise au déchet des piles;– the use of apparatus in moderate climates.– si l'appareil est destiné à être utilisé sous un climat tempéré et– the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.– l'appareil ne doit pas être exposé à des égouttements d'eau ou des éclaboussures et de plus qu'aucun objet rempli de liquide tel que des vases ne doit être placé sur l'appareil.– To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.– pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.– batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.– les batteries (bloc de batteries ou batteries installées) ne doivent pas être exposées à une chaleur excessive telle que celle du soleil, d'un feu ou d'origine similaire.– Caution Marking and rating plate was located at rear enclosure of the apparatus.– Les marquages sont inscrits en arrière de l'appareil. Les précautions d'emploi sont inscrites en arrière de l'appareil.– Excessive sound pressure from earphones and headphone can cause hearing loss.– Des pressions acoustiques excessives provenant d'écouteurs ou de casques peuvent provoquer des pertes de l'audition.– where the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.– lorsque la prise du RESEAU D'ALIMENTATION sur l'appareil est utilisée comme appareil de déconnexion, cet appareil doit demeurer aisément accessible.- CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. - ATTENTION Danger d'explosion si la pile n'est pas remplacée correctement. Ne remplacer que par le même type ou un type équivalent.
-22-ELEMENT SOUND BAR LIMITED WARRANTY TO ORIGINAL CONSUMERELEMENT Sound Bar- All Models (the “Product”)This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by Element TV Company, LP ("Element") to the original purchaser against defects in material and workmanship (“Warranty”) as follows:1. WARRANTY SERVICE (Parts, Labor and/or Replacement): For a period of one (1) year from the date of the original customer purchase ("the Warranty Period"), if this Product or any of its parts are determined by Element or an Element authorized customer service provider to be defective in material or workmanship, Element will, at its sole discretion and option, (i) supply, at no charge to the original customer, new or rebuilt replacement parts in exchange for defective parts, (ii) repair the Product and pay the labor charges of such Element authorized service provider for same, at no charge to the original customer, and/or (iii) replace the Product with a new or refurbished product of similar or better quality, at no charge to the original customer. After the Warranty Period, the customer must pay for all parts, labor and replacement costs associated with the Product, regardless of any defects in the Product. A. SHIPPING COSTS: Not withstanding the foregoing, the customer is responsible for any shipping or transportation charges incurred to ship or otherwise deliver the Product or part(s) to Element or an Element authorized service provider for diagnosis, repair or replacement. The customer shall not return the Product to Element without Element’s prior written consent. Element recommends that the customer insure the Product for its full replacement cost when shipping. B. TIMING AND PROCEDURE: Before Warranty Service can commence, the original customer purchaser must contact Element for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the Warranty Period, MUST be presented to an Element authorized customer service provider in order to obtain the requested service. Please call the Toll Free Customer Service Line at 1-888-338-5666 to obtain Warranty Service and Troubleshooting information. Please have your model and serial number available, along with your date of purchase of the Product. You can also visit us online at: www.elementelectronics.com. 2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICEThis Warranty covers manufacturing defects in materials and workmanship encountered in the normal, non-commercial use of the Product, and does not cover (a) damage or failure caused by or attributable to Product abuse or Warranty

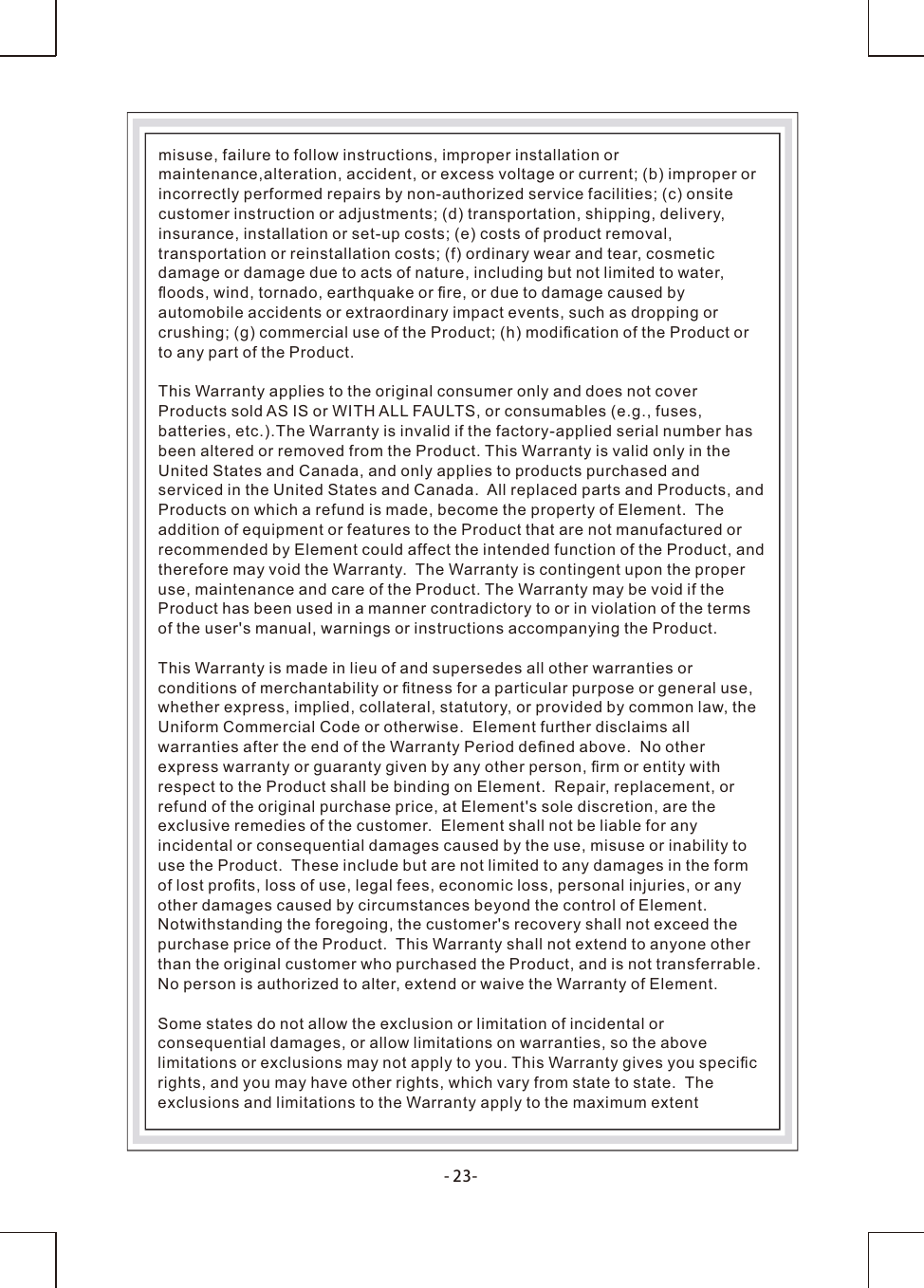

-23-misuse, failure to follow instructions, improper installation or maintenance,alteration, accident, or excess voltage or current; (b) improper or incorrectly performed repairs by non-authorized service facilities; (c) onsite customer instruction or adjustments; (d) transportation, shipping, delivery, insurance, installation or set-up costs; (e) costs of product removal, transportation or reinstallation costs; (f) ordinary wear and tear, cosmetic damage or damage due to acts of nature, including but not limited to water, floods, wind, tornado, earthquake or fire, or due to damage caused by automobile accidents or extraordinary impact events, such as dropping or crushing; (g) commercial use of the Product; (h) modification of the Product or to any part of the Product. This Warranty applies to the original consumer only and does not cover Products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses, batteries, etc.).The Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All replaced parts and Products, and Products on which a refund is made, become the property of Element. The addition of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty. The Warranty is contingent upon the proper use, maintenance and care of the Product. The Warranty may be void if the Product has been used in a manner contradictory to or in violation of the terms of the user's manual, warnings or instructions accompanying the Product.This Warranty is made in lieu of and supersedes all other warranties or conditions of merchantability or fitness for a particular purpose or general use, whether express, implied, collateral, statutory, or provided by common law, the Uniform Commercial Code or otherwise. Element further disclaims all warranties after the end of the Warranty Period defined above. No other express warranty or guaranty given by any other person, firm or entity with respect to the Product shall be binding on Element. Repair, replacement, or refund of the original purchase price, at Element's sole discretion, are the exclusive remedies of the customer. Element shall not be liable for any incidental or consequential damages caused by the use, misuse or inability to use the Product. These include but are not limited to any damages in the form of lost profits, loss of use, legal fees, economic loss, personal injuries, or any other damages caused by circumstances beyond the control of Element. Notwithstanding the foregoing, the customer's recovery shall not exceed the purchase price of the Product. This Warranty shall not extend to anyone other than the original customer who purchased the Product, and is not transferrable. No person is authorized to alter, extend or waive the Warranty of Element. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to state. The exclusions and limitations to the Warranty apply to the maximum extent
-24-permitted by law and unless restricted or prohibited by law. Where any term of this Warranty is prohibited by applicable law, it shall be null and void, but the remainder of this Warranty shall remain in effect.Please DIRECT all correspondence to:Element TV Company, LP Customer Servicecustomerservice@elementelectronics.com1-888-338-5666www.elementelectronics.com PLEASE CONTACT CUSTOMER SERVICE TO CONFIRM ADDRESSES AND PROCEDURES FOR WARRANTY SERVICE.

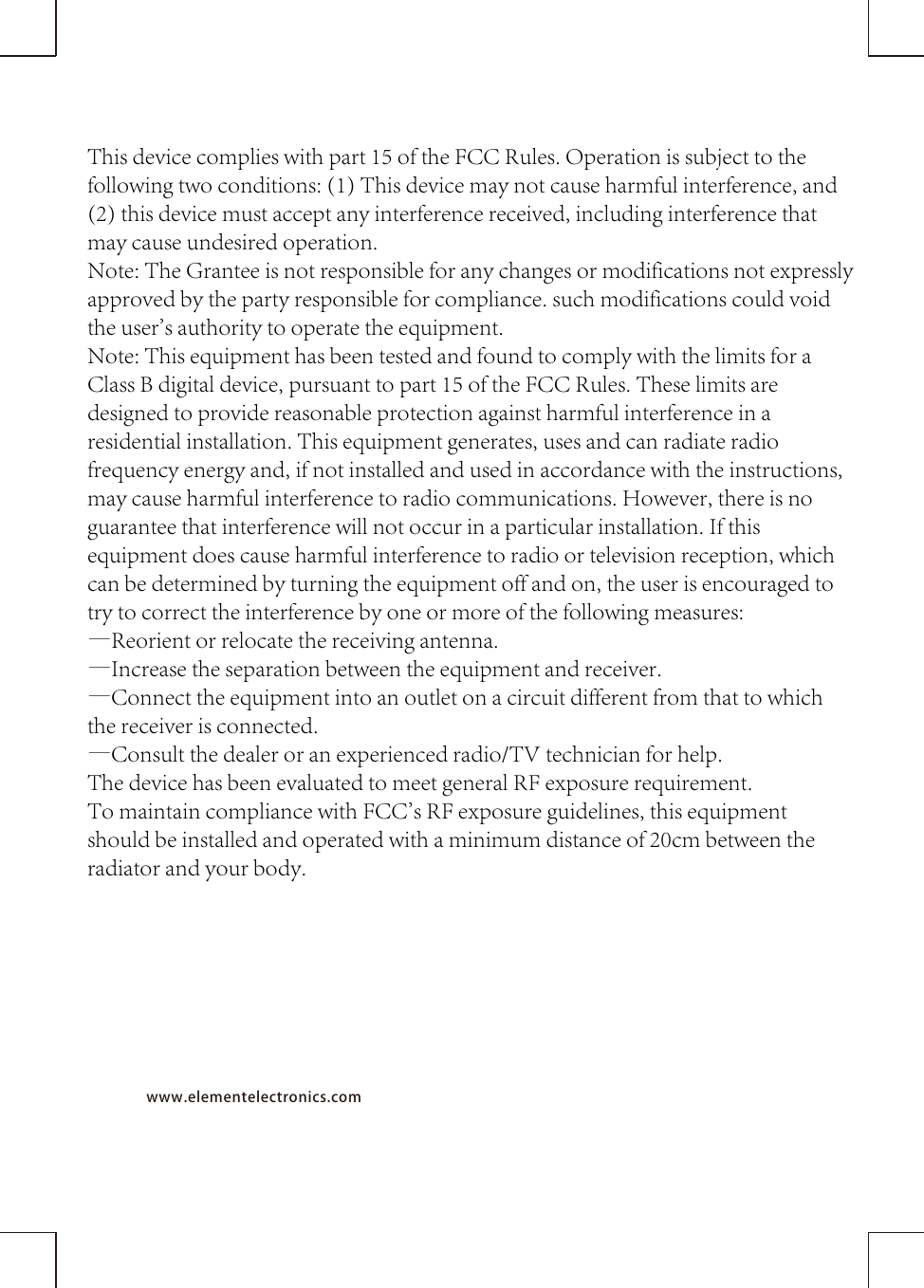

www.elementelectronics.comThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
