3NOD DIGITAL TECHNOLOGY ESB2118 Element 2.1 Sound Bar With Wireless Subwoofer User Manual

Shenzhen 3nod Digital Technology Co., Ltd. Element 2.1 Sound Bar With Wireless Subwoofer

User Manual

Safty
-2-
RightView
RearView
SubwooferView

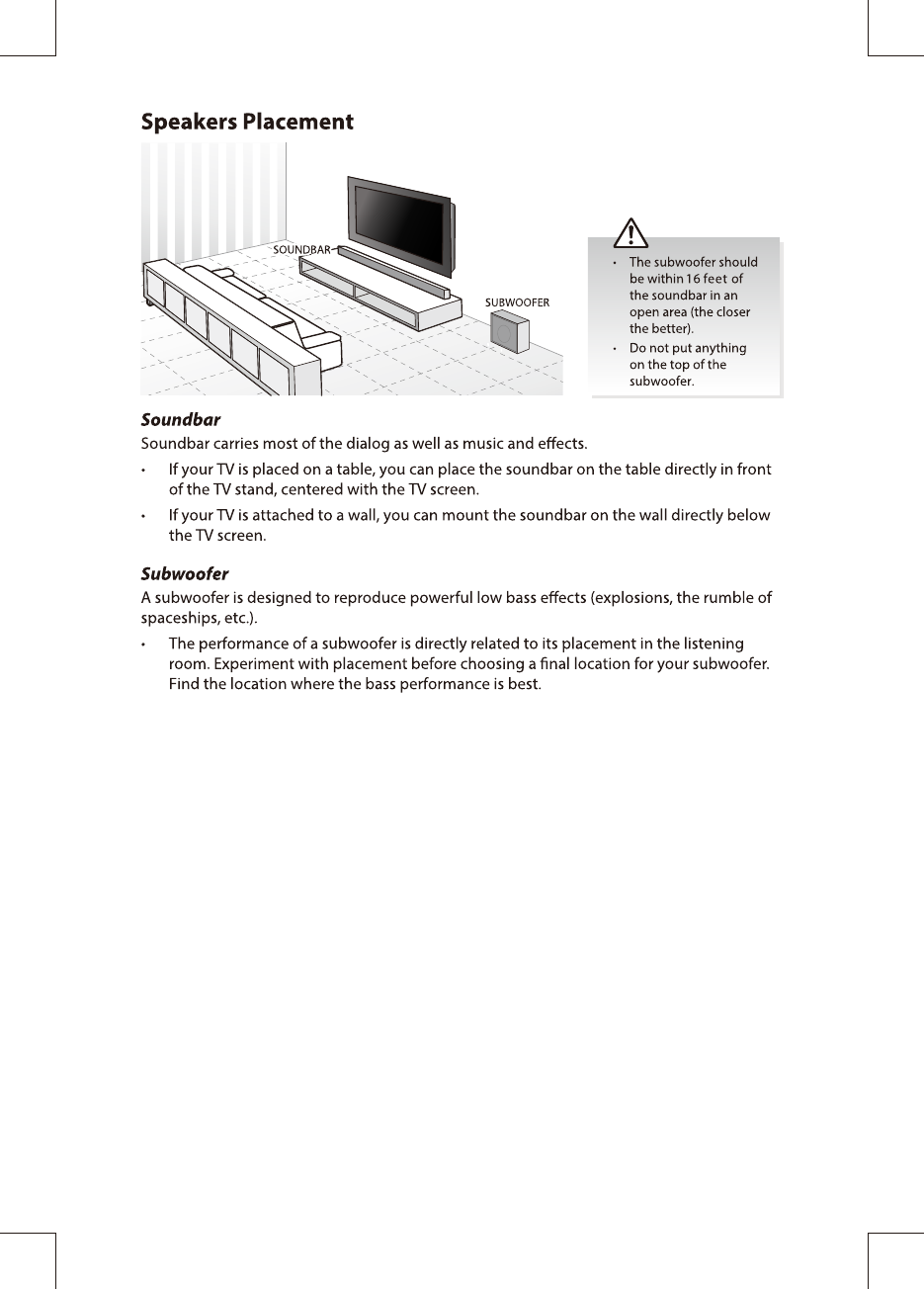

Speakers Placement
Speakers Connection and Pairing

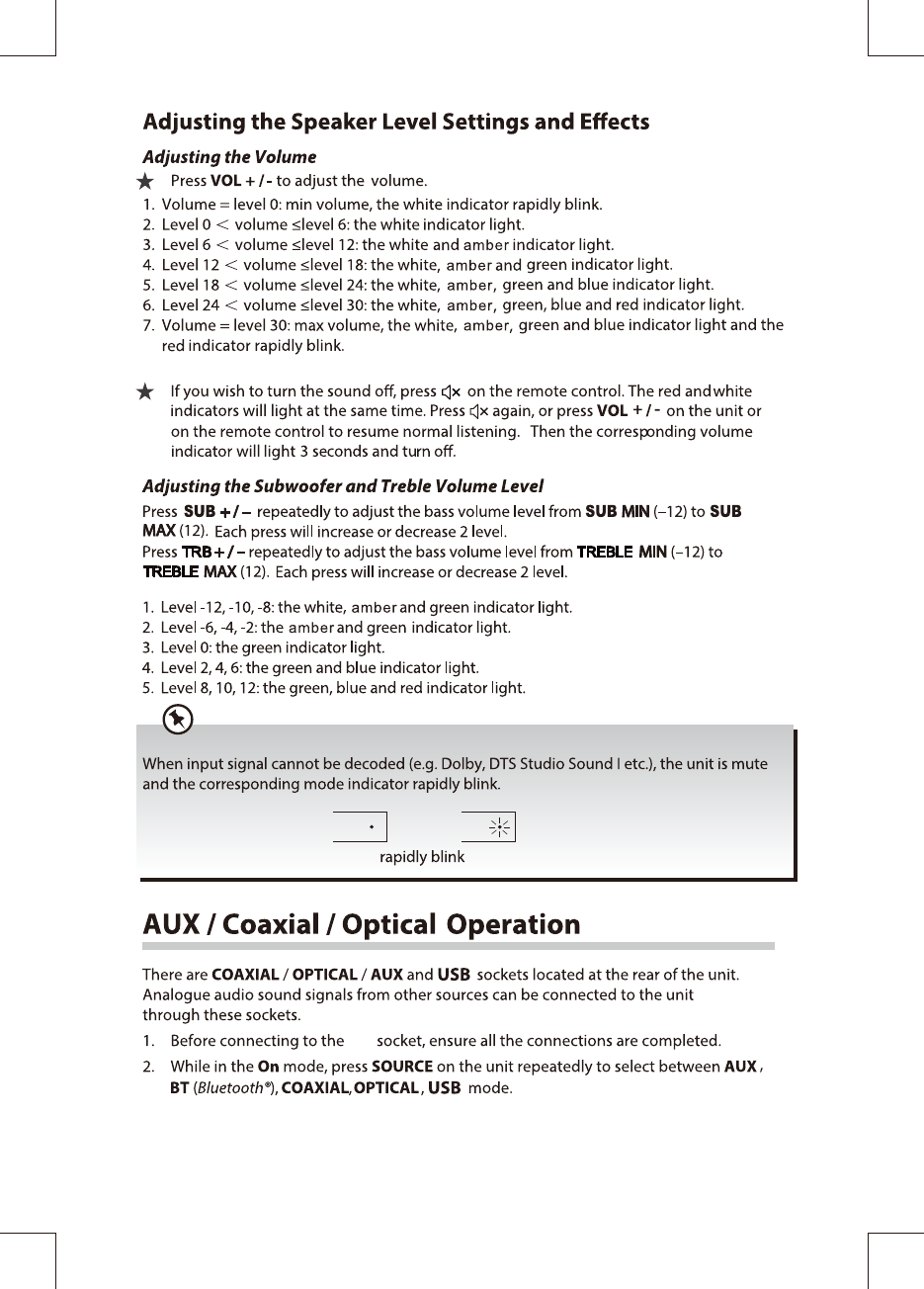

AUX/Coaxial/Optical/USBOperation

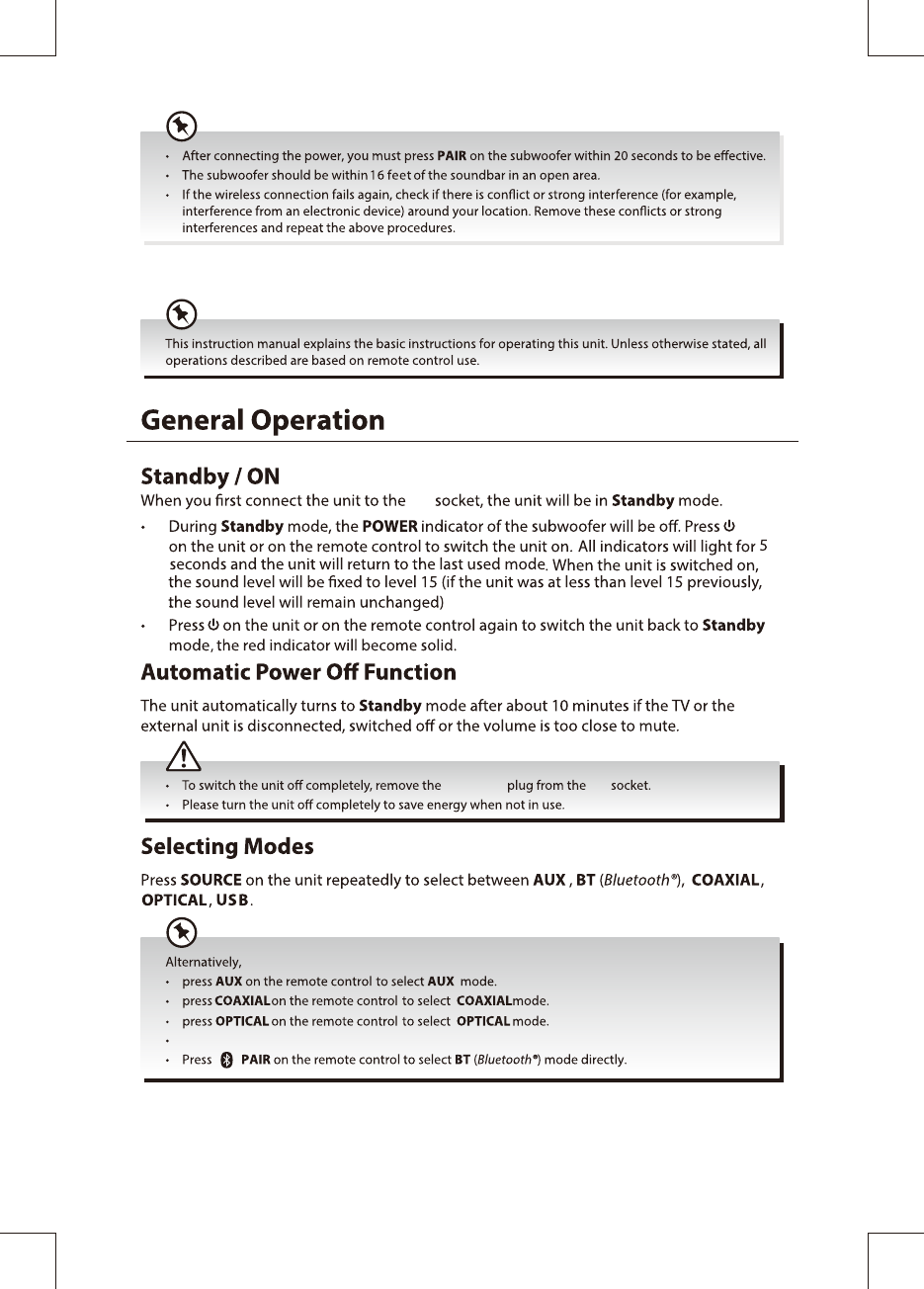

Standby/ON/AutomaticPowerOffFunction
3
5
6
7
7
7
8
8
9
9
10
10
10
10
11
13
13
14
14
14
15
16
16
16
17
17
19
20
21
22
23
Warranty 24
-3-
Safety Warnings
• Read all the instructions carefully before
using the sound bar and keep them for future
reference.
• Keep the manual. If you pass the sound bar
onto a third party make sure to include this
manual.
• Check that the voltage marked on the rating
label matches your sound barvoltage.
Damage
• Please inspect the sound bar for damage
after unpacking.
• If the sound bar is damaged in any way
please contact customer service.
Location of Product
• The product must be placed on a flat stable
surface and should not be subjected to
vibrations.
• Do not place the product on sloped or
unstable surfaces as the product may fall off
or tip over.
• The AC socket must be located near the
product and should be easily accessible.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the product well
away from heat sources such as radiators or
gas / electric fires.
• Avoid exposure to direct sunlight and other
sources of heat.
Open Flames
• Never place any type of candle or open
flame on the top of or near the product.
Moisture
• To reduce the risk of fire, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing.No
objects filled with liquids, such as vases,
should be placed on the product.
• If you spill any liquid into the product, it can
cause serious damage. Switch it off at the
sound bar immediately. Withdraw the sound
bar plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or fire
hazard due to overheating, ensure that
curtains and other materials do not obstruct
the ventilation vents.
• Do not install or place this product in a
bookcase, built-in cabinet or in another
confined space. Ensure the product is well
ventilated.
Safety
• Always disconnect the product from the
AC supply before connecting / disconnecting
other devices or moving the product.
• Unplug the product from the AC socket during
a lightning storm.
Sound bar Adapter
• The sound bar adapter will continue to draw
electricity from the sound bar supply when
plugged in the AC socket.In the interests of
safety and to avoid unnecessary energy
consumption, never leave the adapter
plugged in the sound bar socket for long
periods of time. Disconnect the adapter from
the power supply.
Sound bar Adapter Cable
• Make sure the product or product stand is
not resting on top of the sound baradapter
cable,as the weight of the product may
damage the cable and create a safety hazard.
Interference
• Do not place the product on or near
appliances which may cause
electromagneticinterference.If you do, it may
adversely affect the operating performance
of the product, and cause a distorted picture
or sound.
Batteries
• Batteries used in the remote control for this
product are easily swallowed by young
children and this is dangerous.
• Please dispose of batteries correctly by
following the guidance in this manual.
Supervision
• Children should be supervised to ensure
that they do not play with the product and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS
OUVRIR
-4-
Important Safety Instructions
Safety
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this product near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or
other product (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the product.
•Only use attachments/accessories specified by the manufacturer.
•Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/ product combination to avoid injury from tip-over.
•Unplug this product during lightning storms or when unused for long periods of
time.
•Refer all servicing to qualified service personnel. Servicing is required when the
product has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the product, the
product has been exposed to rain or moisture, does not operate normally, or has
been dropped.
CAUTION
•Danger of explosion if battery is incorrectly replaced.
•Replace only with the same or equivalent type.
•Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
•The plug of sound bar adapter is used as the disconnect device, the disconnect
device shall remain readily operable.
•The product is designed to use in moderate climates.
Warning
•Changes or modifications not expressly approved by the party responsible for
comp liance could void the user's authority to operate the product.
•This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
-5-
ElementTV
Company,LPCustomerService
,E-mail:customerservice@elementelectronics.com
ElementTVCompany,LPCustomerService,
ElementTVCompanyLimited
How to get customer service
Pre-authorizationmustbeobtainedbeforereturningtheproduct.
Customer Service
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:( 1 )this device may not cause harmful interference.(2)this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measure.
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Statement:
Element
SUB TR B
SUB TR B
COAX
AUX OPT ICAL
USB
-6-
MODE L:ESB 2118
Ele ment2 .1Sou ndba r
wit hwire lesss ubw oofe r
TM
INST RUCT ION MAN UAL

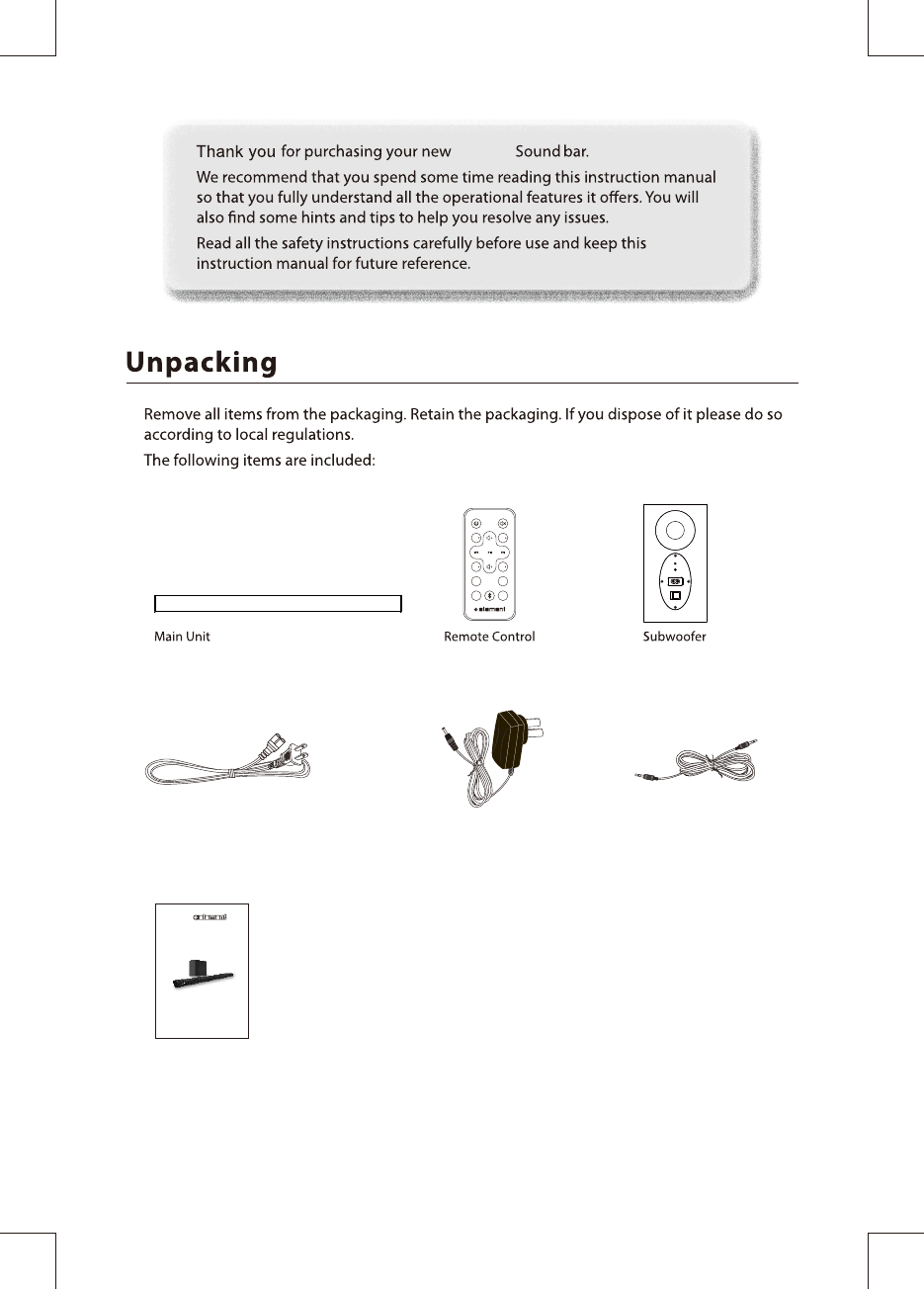

Subwoofer Cable x 1 Sound bar Adapter
0.14 inches to 0.14 inches
Stereo Audio Cable
Instruction Manual

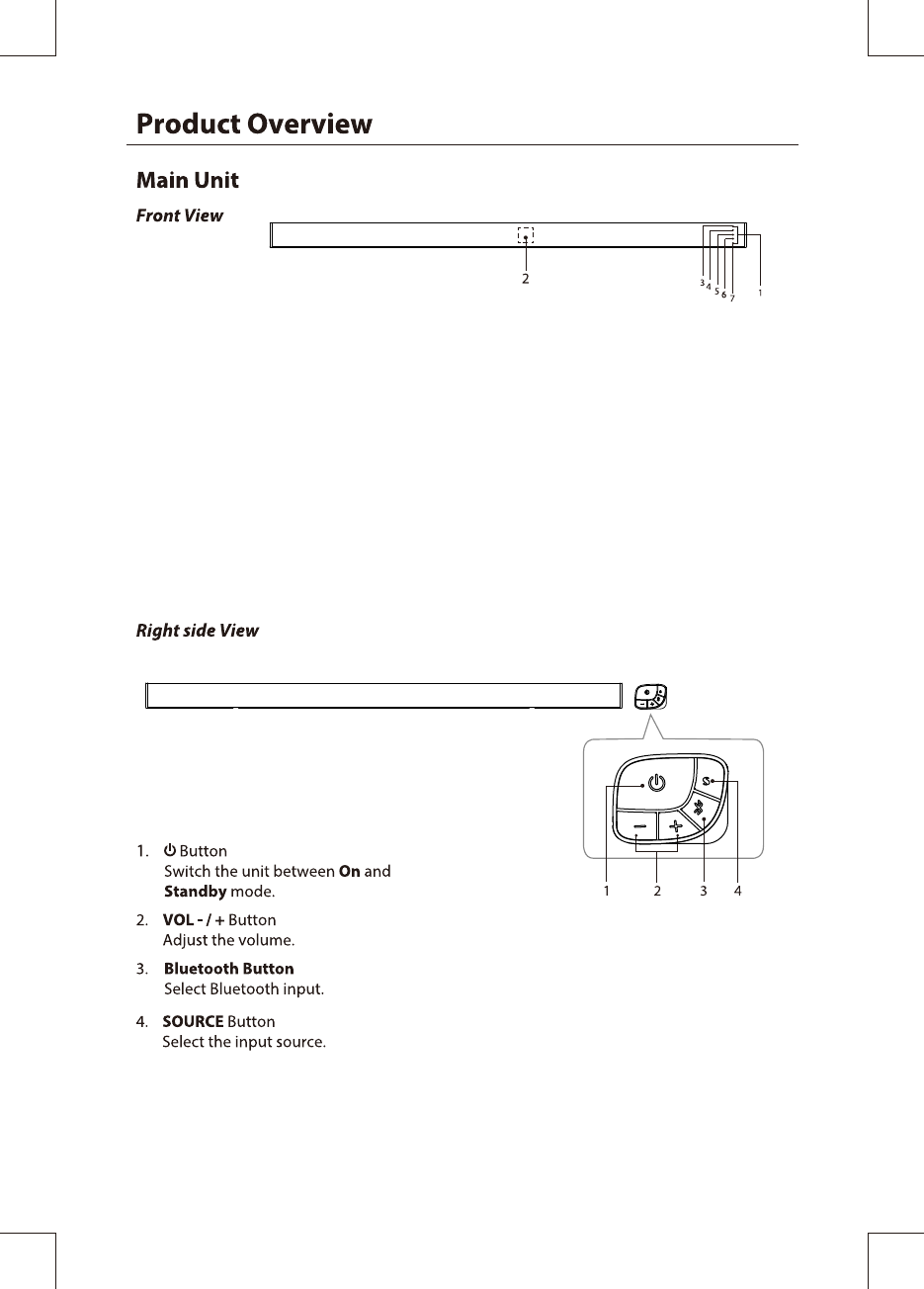

Front view of main unit
1. LED Indicators
Show the current status.
2. Remote Control Sensor
Receive signal from the remote control.
3. Standby / Subwoofer
Red indicator.
(Standby: solid, subwoofer: to pair with
the soundbar)
4. Bluetooth
Blue indicator.
5. COAXIAL
Green indicator.
6. USB
Amber indicator.
7. OPTICAL
White indicator.
-7-
8.AUX
White & Green indicator.

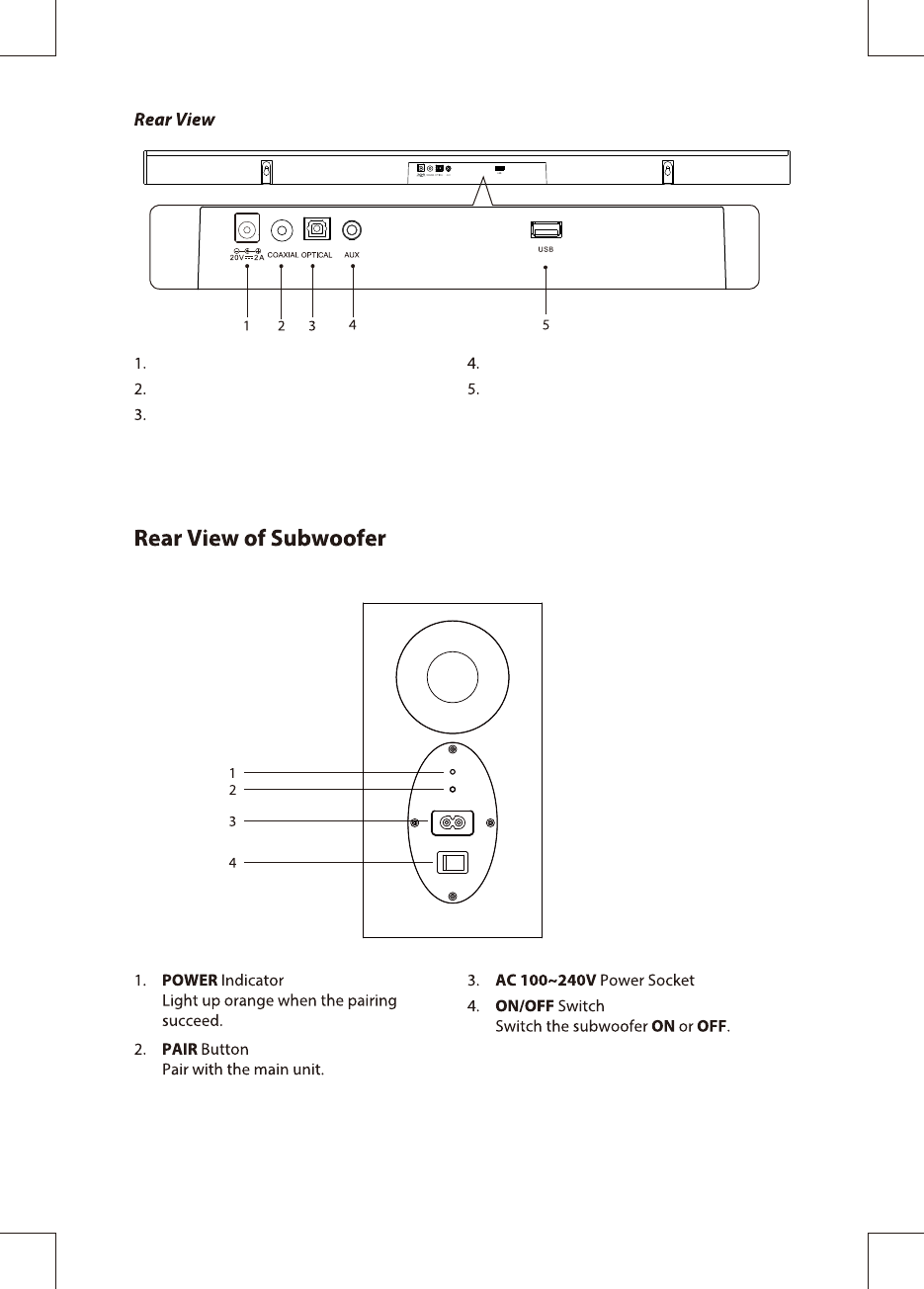

AUXinputsocket
USBinputsocket
COAXIALinputsocket
OPTICALinputsocket
Powerinputsocket
-8-
-9-

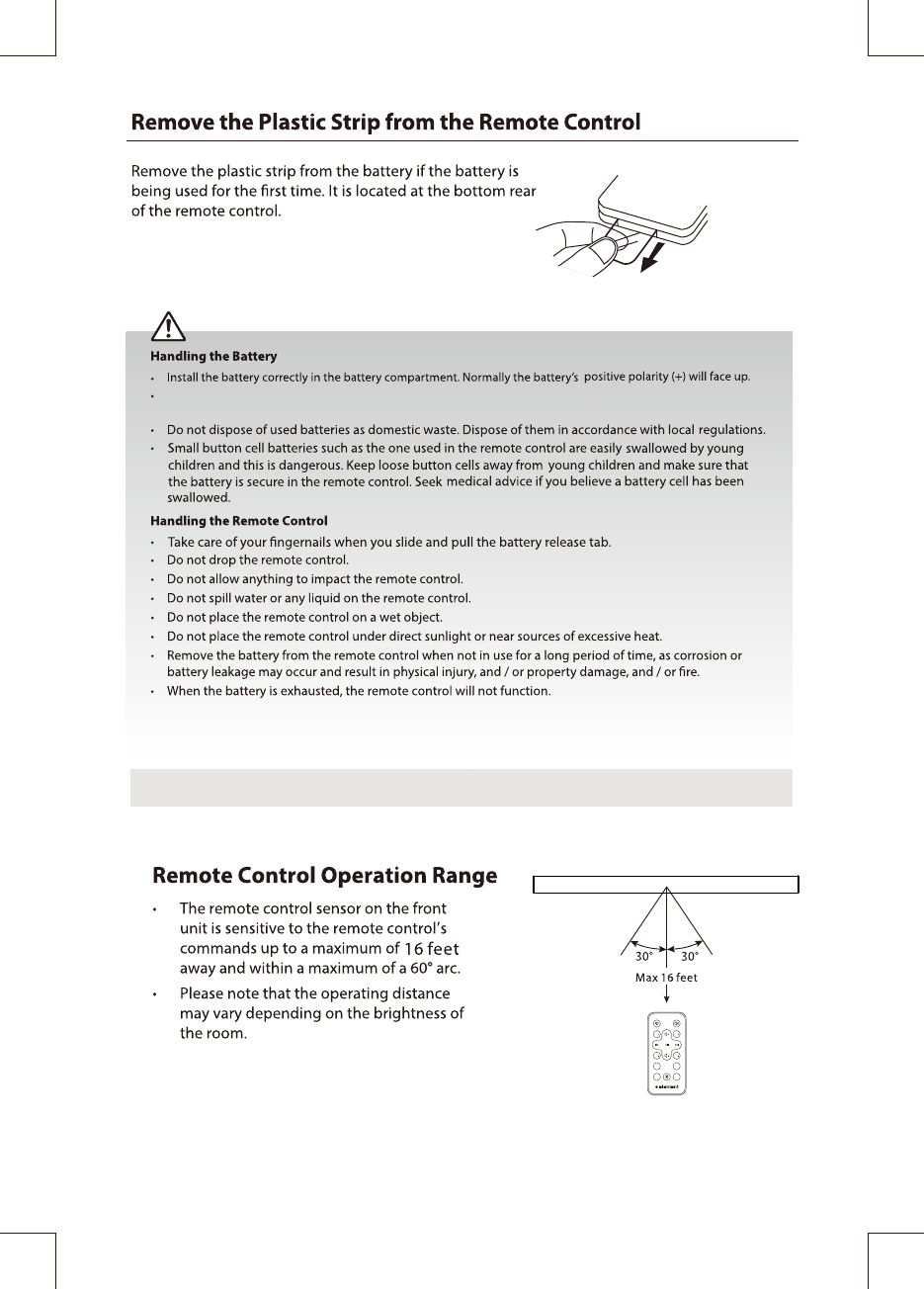

A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
SUB TRB
SUB TRB
COAX
AUX OPTICAL
USB
such
-10-
-11-
-12-

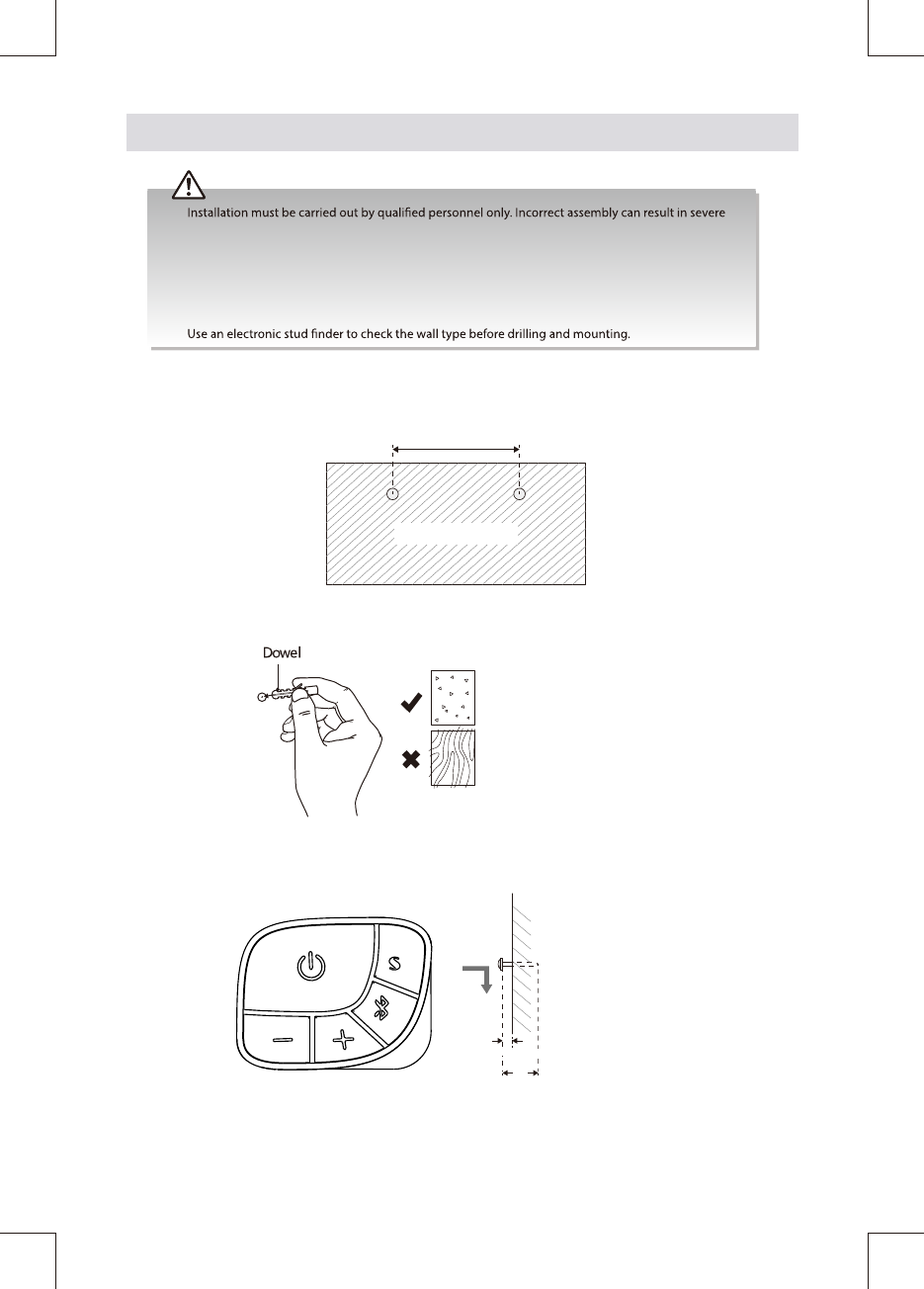

Wall Mounting
•
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer’s responsibility to verify that the wall will safely support the total load of the Soundbar.
•Additional tools (not included) are required for the installation.
•Do not overtighten screws.
•Keep this instruction manual for future reference.
•
1. Drill 2 parallel holes (Ø 0.32 inches each according to wall type) in the wall. The distance
between the holes should be 23.23 inches.
Wall (Front view)
2.
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
3. Insert 1 screw TA0.16*1.58 inches (not included) into each dowel. Be sure to leave a
0.24 inches gap between the wall and the screw’s head. Lift the unit over the heads of
0.24 inches
1.6-1.8 inches
the screws and slot into place.
23.23 inches
Firmly fix 1 dowel D0.4*L1.2 inches (not included) into each hole in the wall if necessary.
Percez 2 trous parallèles (Ø 0,32
pouces chacun selon le type de mur)
dans le mur.
La distanceentre les trous devrait
être de 23,23 pouces.
Fixer fermement 1 cheville D0.4 * L1.2 pouces (non incluse)
dans chaque trou dans le mur si nécessaire.
Insérez une vis TA0.16 * 1.58 pouces
(non incluse) dans chaque cheville.
Assurez-vous de laisser un 0,24 pouces
d'espace entre le mur et la tête de la
vis.
Soulevez l'unité sur les têtes de les vis
et la fente en place.
-13-

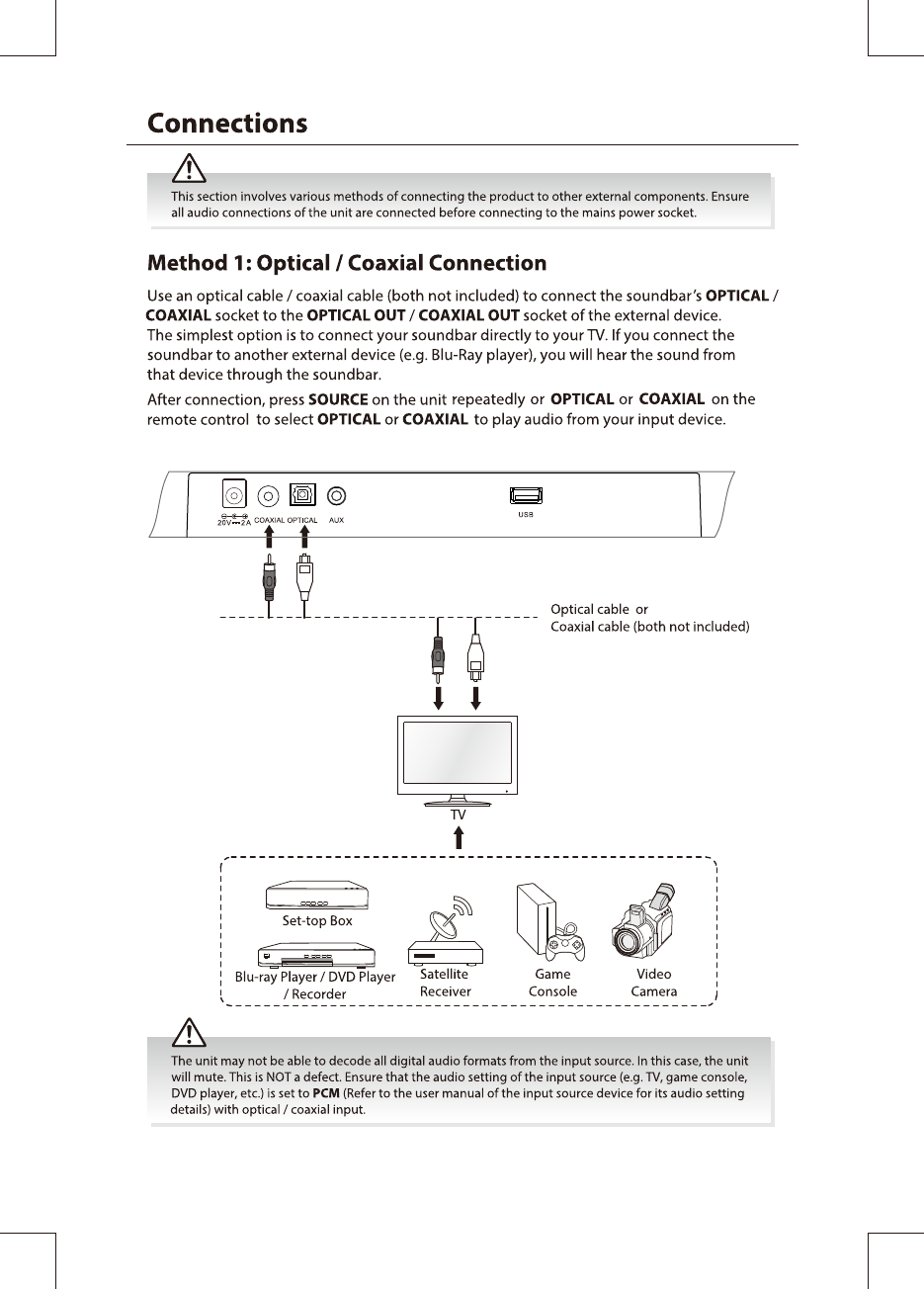

Rear View of the Sound bar

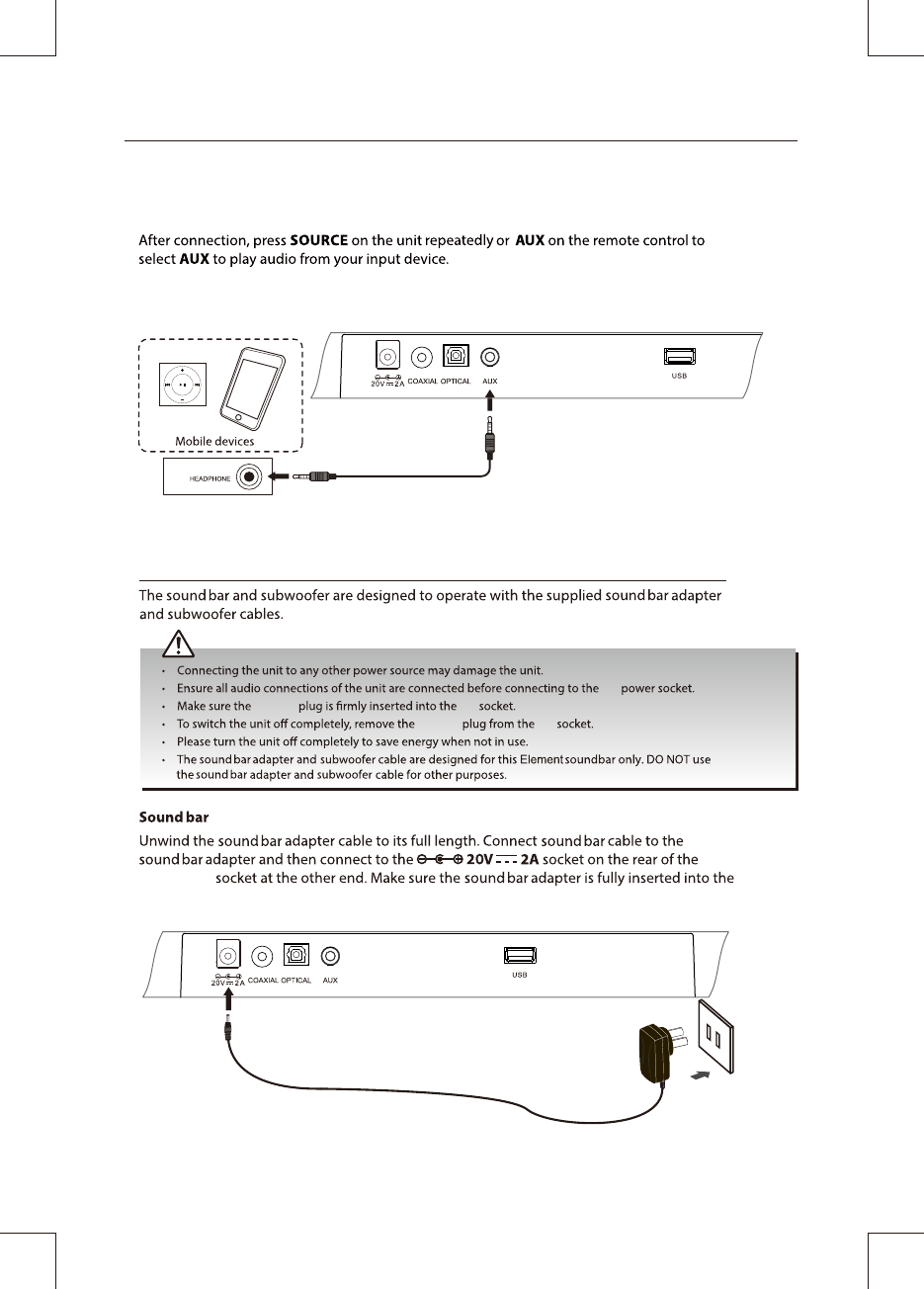

Method 2: AUX Connection
Connecting an MP3 Player
AUX to the headphone socket of the external device.
Use a 0.14 inches to 0.14 inches stereo audio cable (included) to connect the soundbar’s
-14-
Rear View of the Sound bar
0.14 inches to 0.14 inches
Stereo Audio Cable (included)
Rear View of the Sound bar
Connecting to sound bar and subwoofer supply
AC
product
product AC
AC
To the AC
socket
product
and an AC
AC socket.
-15-
To the AC
socket
AC
AC
AC
press USB on the remote control to select USB mode.
-16-
AC
sound bar AC
-17-
AC
press USB on the remote control to select USB mode.

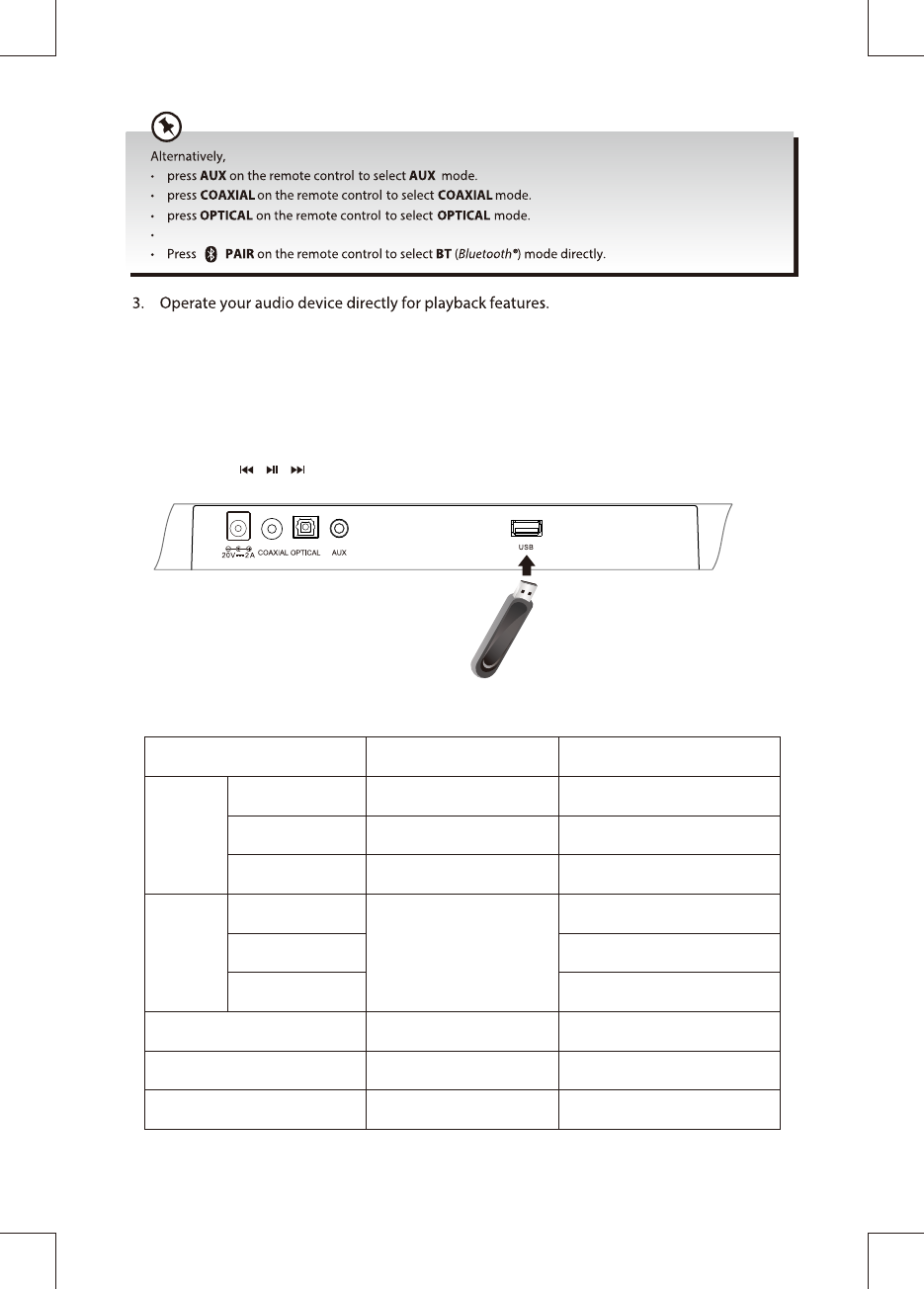

USB Operation
Plug USB into the unit rear USB socket, Press SOURCE on the unit repeatedly or press USB
on the remote control to select USB mode, the amber indicator will become solid.
Short press / / buttons to control music playback : PREV track, pause/play, next track.
USB support FAT 16/32 & exFAT, Music format support list:
FORMAT SAMPLE RATE BIT RATE
WAV
MP3
WMA
APE
FLAC
8~48kHz
8~48kHz
8~48kHz
8~48kHz
8~48kHz
8~48kHz
8~48kHz
IMA-ADPCM
MS-ADPCM
PCM
MP1
MP2
MP3
32kbps ~ 384kbps
32kbps ~ 384kbps
128kbps ~ 1536kbps
32kbps ~ 448kbps
8kbps ~ 384kbps
8kbps ~ 320kbps
5kbps ~ 384kbps
1000kbps ~ 1200kbps
800kbps ~ 1000kbps
-18-

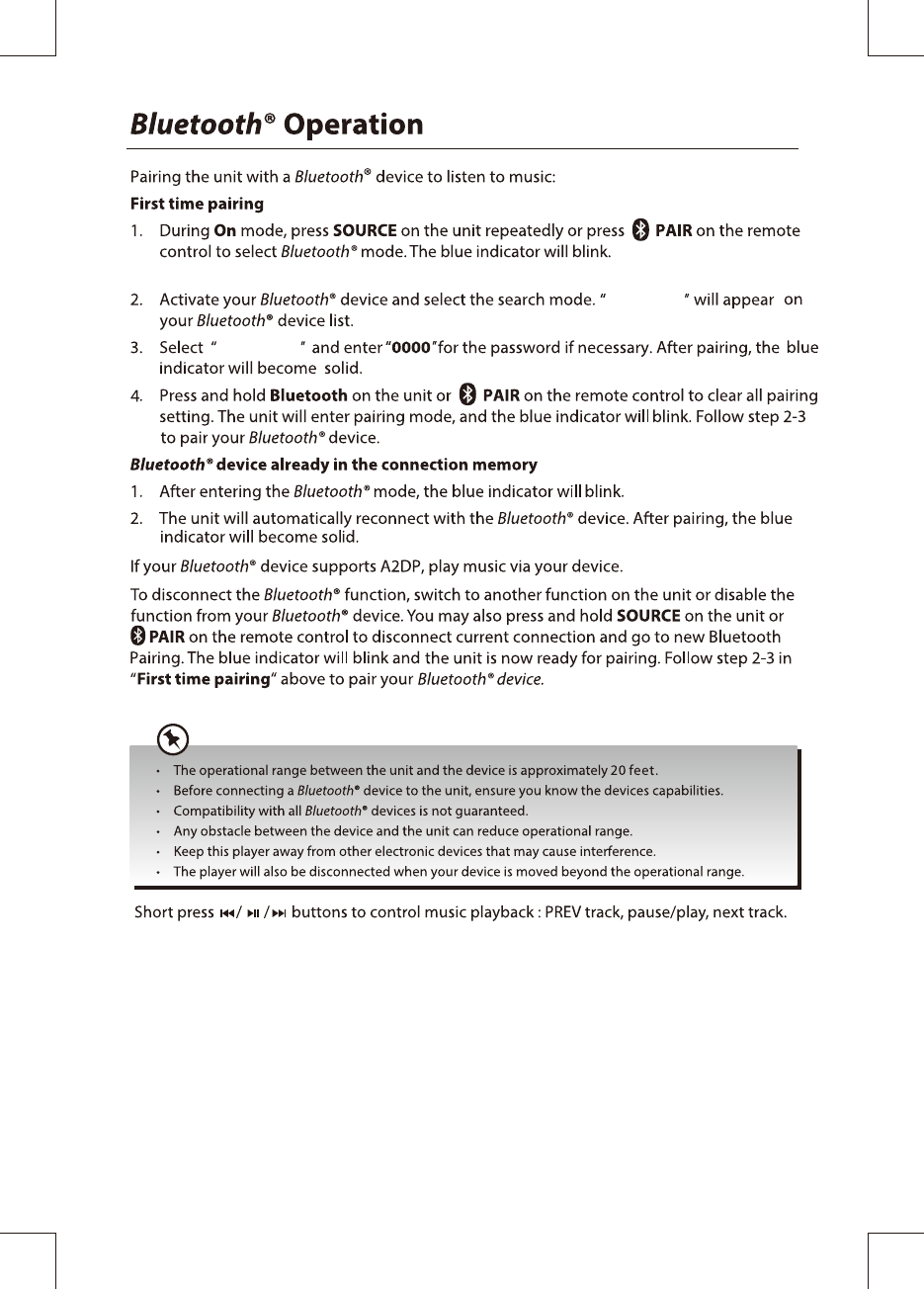

-19-
ESB2118
ESB2118
-20-
sound bar
AC
AC
Model
AC 100 - 240 V~ 50/60 Hz, 1A
DC 20 V 2 A
Power Consumption of Standby Mode < 0.5 W
ESB2118
ESB2118
-21-

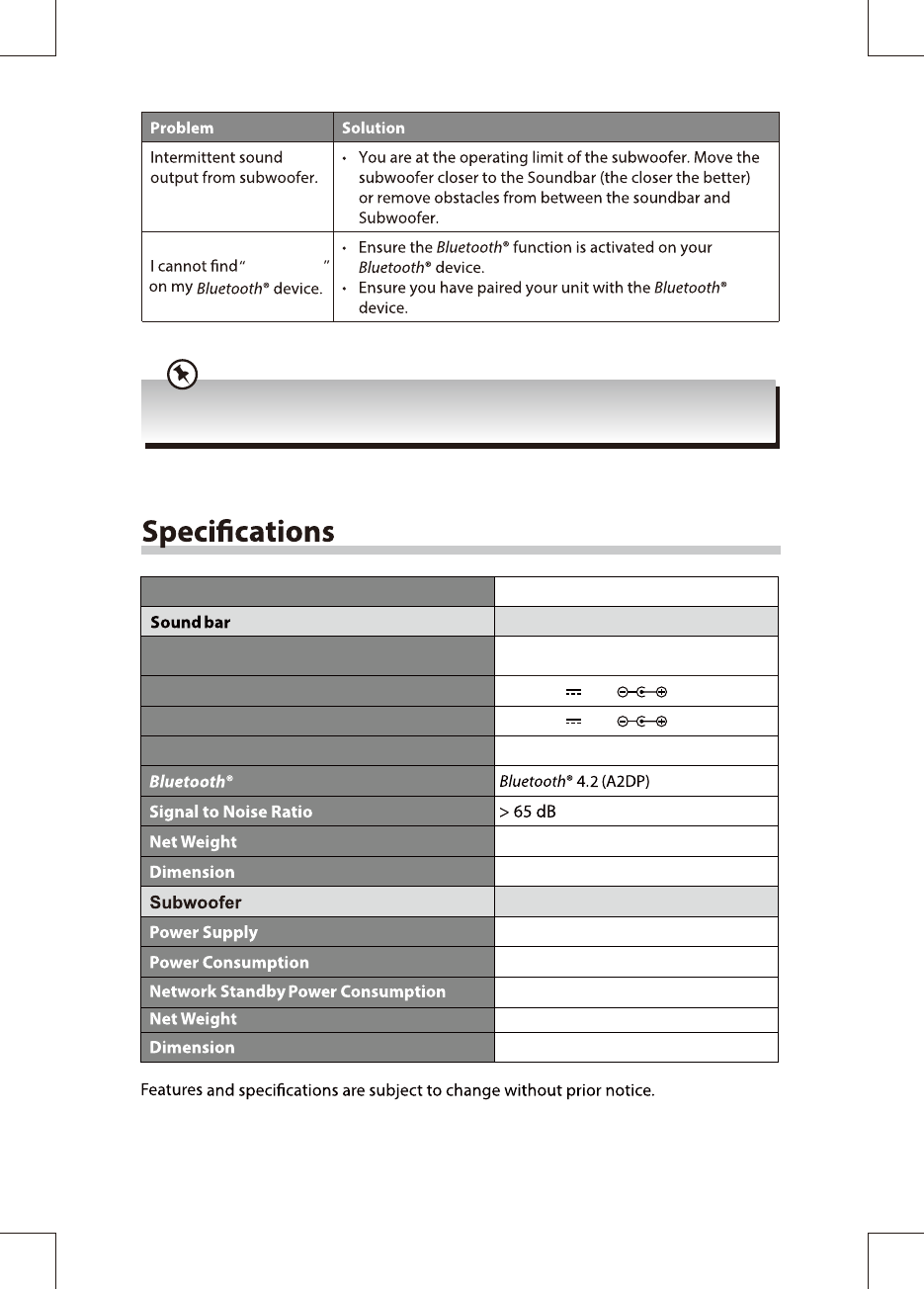

Power Adapter Input
Power Adapter Output
Main Unit Input DC 20 V 2 A
3.1 LBS
37.4(W) x 1.9(H) x 2.5(D) inches
AC100-240 V ~ 50/60 Hz
40 W
2.0 W (max.)
5.8 LBS
4.8(W) x 9.1(H) x 10.5(D) inches

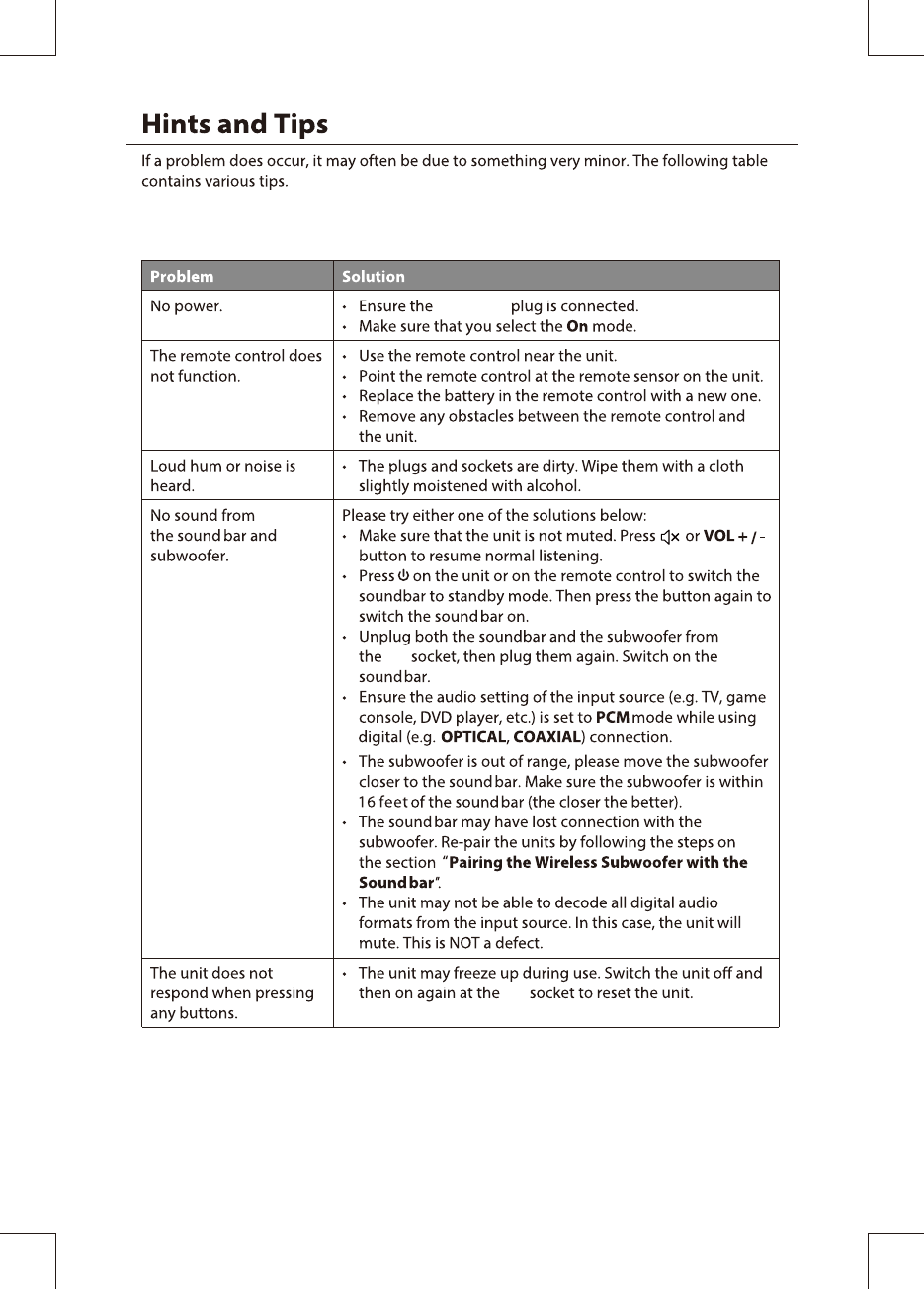

If anything unexpected happens, unplug the sound bar adapter from the socket and reconnect again.
-22-
AVERTISSEMENT
Ne pas ingérer la pile, Danger de brûlure chimique
(La télécommande fournie avec) Ce produit contient une pile bouton. Si la pile bouton est
avalée, elle peut provoquer de graves brûlures internes en 2 heures seulement et peut
entraîner la mort.
Conserver les piles neuves et usées hors de portée des enfants.
Si le compartiment pile ne se ferme pas correctement, cesser d'utiliser le produit et tenir
hors de portée des enfants.
En cas de doute concernant le fait que les piles pourraient avoir été avalées ou introduites
dans une partie quelconque du corps, consulter immédiatement un médecin.
– minimum distances 10cm around the apparatus for sufficient ventilation;
– distance minimale 10cm autour de l'appareil pour une aération suffisante;
– the ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.;
– il convient que l'aération ne soit pas gênée par l'obstruction des ouvertures d'aération
par des objets tels que journaux, nappes, rideaux, etc.;
– no naked flame sources, such as lighted candles, should be placed on the apparatus;
– il convient de ne pas placer sur l'appareil de sources de flammes nues, telles que des
bougies allumées;
– attention should be drawn to the environmental aspects of battery disposal;
– il convient d'attirer l'attention sur les problèmes d'environnement dus à la mise au
déchet des piles;
– the use of apparatus in moderate climates.
– si l'appareil est destiné à être utilisé sous un climat tempéré et
– the apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
– l'appareil ne doit pas être exposé à des égouttements d'eau ou des éclaboussures et
de plus qu'aucun objet rempli de liquide tel que des vases ne doit être placé sur
l'appareil.
– To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture.
– pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil
sous la pluie et l'humidité.
– batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.
– les batteries (bloc de batteries ou batteries installées) ne doivent pas être exposées à
une chaleur excessive telle que celle du soleil, d'un feu ou d'origine similaire.
– Caution Marking and rating plate was located at rear enclosure of the apparatus.
– Les marquages sont inscrits en arrière de l'appareil. Les précautions d'emploi sont
inscrites en arrière de l'appareil.
– Excessive sound pressure from earphones and headphone can cause hearing loss.
– Des pressions acoustiques excessives provenant d'écouteurs ou de casques peuvent
provoquer des pertes de l'audition.
– where the MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
– lorsque la prise du RESEAU D'ALIMENTATION sur l'appareil est utilisée comme
appareil de déconnexion, cet appareil doit demeurer aisément accessible.
-23-
- CAUTION Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
- ATTENTION Danger d'explosion si la pile n'est pas remplacée correctement.
Ne remplacer que par le même type ou un type équivalent.
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
-24-
ELEMENT SOUND BAR LIMITED WARRANTY TO ORIGINAL CONSUMER
ELEMENT Sound Bar- All Models (the “Product”)
This Product (including any accessories included in the original packaging) as
supplied and distributed in new condition, is warranted by Element TV
Company, LP ("Element") to the original purchaser against defects in material
and workmanship (“Warranty”) as follows:
1. WARRANTY SERVICE (Parts, Labor and/or Replacement):
For a period of one (1) year from the date of the original customer purchase
("the Warranty Period"), if this Product or any of its parts are determined by
Element or an Element authorized customer service provider to be defective in
material or workmanship, Element will, at its sole discretion and option, (i)
supply, at no charge to the original customer, new or rebuilt replacement parts
in exchange for defective parts, (ii) repair the Product and pay the labor
charges of such Element authorized service provider for same, at no charge to
the original customer, and/or (iii) replace the Product with a new or refurbished
product of similar or better quality, at no charge to the original customer. After
the Warranty Period, the customer must pay for all parts, labor and replacement
costs associated with the Product, regardless of any defects in the Product.
A. SHIPPING COSTS: Not withstanding the foregoing, the customer is
responsible for any shipping or transportation charges incurred to ship or
otherwise deliver the Product or part(s) to Element or an Element authorized
service provider for diagnosis, repair or replacement. The customer shall not
return the Product to Element without Element’s prior written consent. Element
recommends that the customer insure the Product for its full replacement cost
when shipping.
B. TIMING AND PROCEDURE: Before Warranty Service can
commence, the original customer purchaser must contact Element for problem
determination and service procedures. Proof of purchase in the form of a bill of
sale or receipted invoice, evidencing that the Product is within the Warranty
Period, MUST be presented to an Element authorized customer service
provider in order to obtain the requested service. Please call the Toll Free
Customer Service Line at 1-888-338-5666 to obtain Warranty Service and
Troubleshooting information. Please have your model and serial number
available, along with your date of purchase of the Product. You can also visit us
online at: www.elementelectronics.com.
2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE
This Warranty covers manufacturing defects in materials and workmanship
encountered in the normal, non-commercial use of the Product, and does not
cover (a) damage or failure caused by or attributable to Product abuse or
Warranty
permitted by law and unless restricted or prohibited by law. Where any term of
this Warranty is prohibited by applicable law, it shall be null and void, but the
remainder of this Warranty shall remain in effect.
Please DIRECT all correspondence to:
Element TV Company, LP Customer
Servicecustomerservice@elementelectronics.com
1-888-338-5666
www.elementelectronics.com
PLEASE CONTACT CUSTOMER SERVICE TO CONFIRM ADDRESSES AND
PROCEDURES FOR WARRANTY SERVICE.
-25-
misuse, failure to follow instructions, improper installation or
maintenance,alteration, accident, or excess voltage or current; (b) improper or
incorrectly performed repairs by non-authorized service facilities; (c) onsite
customer instruction or adjustments; (d) transportation, shipping, delivery,
insurance, installation or set-up costs; (e) costs of product removal,
transportation or reinstallation costs; (f) ordinary wear and tear, cosmetic
damage or damage due to acts of nature, including but not limited to water,
floods, wind, tornado, earthquake or fire, or due to damage caused by
automobile accidents or extraordinary impact events, such as dropping or
crushing; (g) commercial use of the Product; (h) modification of the Product or
to any part of the Product.
This Warranty applies to the original consumer only and does not cover
Products sold AS IS or WITH ALL FAULTS, or consumables (e.g., fuses,
batteries, etc.).The Warranty is invalid if the factory-applied serial number has
been altered or removed from the Product. This Warranty is valid only in the
United States and Canada, and only applies to products purchased and
serviced in the United States and Canada. All replaced parts and Products, and
Products on which a refund is made, become the property of Element. The
addition of equipment or features to the Product that are not manufactured or
recommended by Element could affect the intended function of the Product, and
therefore may void the Warranty. The Warranty is contingent upon the proper
use, maintenance and care of the Product. The Warranty may be void if the
Product has been used in a manner contradictory to or in violation of the terms
of the user's manual, warnings or instructions accompanying the Product.
This Warranty is made in lieu of and supersedes all other warranties or
conditions of merchantability or fitness for a particular purpose or general use,
whether express, implied, collateral, statutory, or provided by common law, the
Uniform Commercial Code or otherwise. Element further disclaims all
warranties after the end of the Warranty Period defined above. No other
express warranty or guaranty given by any other person, firm or entity with
respect to the Product shall be binding on Element. Repair, replacement, or
refund of the original purchase price, at Element's sole discretion, are the
exclusive remedies of the customer. Element shall not be liable for any
incidental or consequential damages caused by the use, misuse or inability to
use the Product. These include but are not limited to any damages in the form
of lost profits, loss of use, legal fees, economic loss, personal injuries, or any
other damages caused by circumstances beyond the control of Element.
Notwithstanding the foregoing, the customer's recovery shall not exceed the
purchase price of the Product. This Warranty shall not extend to anyone other
than the original customer who purchased the Product, and is not transferrable.
No person is authorized to alter, extend or waive the Warranty of Element.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or allow limitations on warranties, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific
rights, and you may have other rights, which vary from state to state. The
exclusions and limitations to the Warranty apply to the maximum extent
-26-
www.elementelectronics.com
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: The Grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. such modifications could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, this equipment
should be installed and operated with a minimum distance of 20cm between the
radiator and your body.

Navigation menu
