User Manual

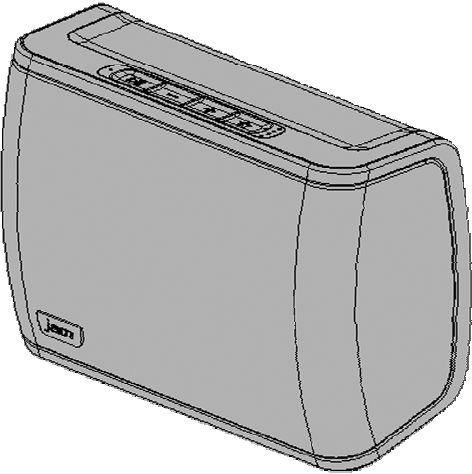

Jam Rhythm Home Audio

HX-W09901

User Manual

Caution: 1) Photos are for reference only, actual product may vary!

2)JAM is committed to improving product quality and performance, but

product technology and design are subject to change without prior

notice

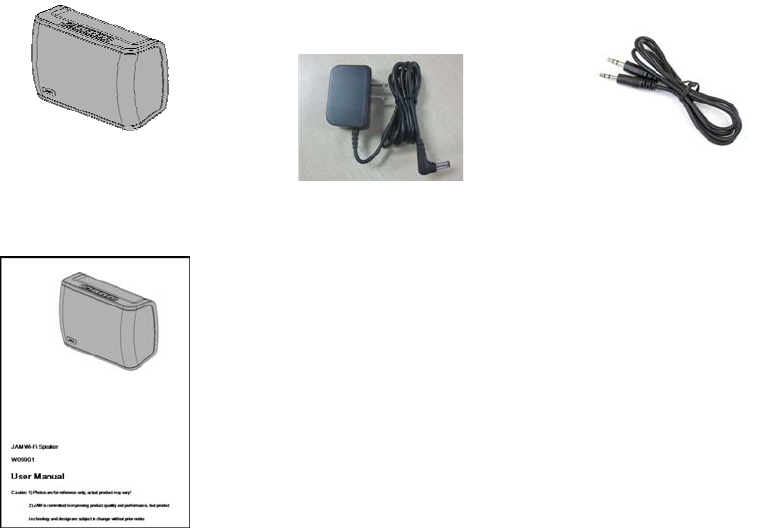

CONTENTS IN THE BOX:

1. W09901 2.Adaptor 3.Line In cable

4. Manual 5. Guarantee card

Important safety instructions:

1. Please carefully read and follow the safety instructions before using the product.

2. Please avoid leaving the product in a damp environment, exposing it to sunlight, or placing it near ﬁre.

3. Please do not use the product near water.

4. Please do not place the product near heat-generating appliances such as a radiator, air conditioner, or stove.

5. Please use the recommended power voltage.

6. Please do not disassemble the product without authorization.

7. Explosion may occur if battery is replaced incorrectly. Please replace battery only with the same or equivalent type.

8. Please avoid leaving the product exposed to sunlight, rain, water droplets, or a hot or moist environment.

9. Please enjoy the music at an appropriate volume to protect your health and sound equipment.

10. Please unplug the charging cable when it is not in use.

PRODUCT DESCRIPTION:

1、Indicate led

2、Play/Pause button

3、Vol+ button

4、Vol- button

5、Preset button

6、reset button

7、WiFi Pair button

8、DC in

9、3.5 mm audio input interface 3.5mm

TECHNICAL DATA:

Output power: 2.5W + 8W

Distortion: ≤3%

Frequency response: 80Hz~20KHz

SNR: >75dB

Speaker unit: 6Ω x 2 + 8Ω

Power input: DC 12V 1.2A

Sensitivity: 450mV

Product size: 212 x 120 x 100mm (WxHxD)

1、Power On/Off :

Plus in DC power the set is power on,

Pull off DC power the set is power off

2、Connect to network：

Apps network settings through the phone to help audio

connection with a wireless route, see software documentation.

3、Volume control：

Short Press Vol+/-, increase/decrease volume

4、Change Next/Prev song：

Long press Vol+/- to change current play list, Vol+ is Next , Vol-

is Prev

5、AUX in:

Plug in AUX cable system will auto change to AUX input

1

2

3

4

59

Caution:

Note:CetappareilestconformeàlaPartie15desrèglementsdelaFCCetauxnormesRSSde

l’IndustrieduCanada.Sonfonctionnementestsoumisauxdeuxconditionssuivantes:(1)cet

appareilnedoitpascauserdesinterférencesnuisibles,et(2)cetappareildoitacceptertoute

interférencereçue,ycomprislesinterférencesquipeuventprovoquerunfonctionnement

indésirable.

Lefabricantn'estpasresponsabledestoutesinterférencesradiooutélévisioncauséespardes

modificationsnonautoriséesapportéesàcetappareil.Detellesmodificationspeuventempêcher

l’utilisateurd’utiliserl'appareil.

ThisdevicecomplieswithPart15oftheFCCrulesandIndustryCanadalicense‐exemptRSS

standard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcause

harmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.

ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized

modificationsorchangetothisequipment.Suchmodificationsorchangecouldvoidtheuser’s

authoritytooperatetheequipment.

Thisradiotransmitter(identifythedevicebycertificationnumberormodelnumberifCategoryII)

hasbeenapprovedbyIndustryCanadatooperatewiththeantennatypeslistedbelowwiththe

maximumpermissiblegainindicated.Antennatypesnotincludedinthislist,havingagaingreater

thanthemaximumgainindicatedforthattype,arestrictlyprohibitedforusewiththisdevice.

Leprésentémetteurradio(identifierledispositifparsonnumérodecertificationousonnuméro

demodèles'ilfaitpartiedumatérieldecatégorieII)aétéapprouvéparIndustrieCanadapour

fonctionneraveclestypesd'antenneénumérésci‑dessousetayantungainadmissiblemaximal.

Lestypesd'antennenoninclusdanscetteliste,etdontlegainestsupérieuraugainmaximal

indiqué,sontstrictementinterditspourl'exploitationdel'émetteur.

AntennaTypeMax.AntennaGain(dBi)

internalantenna2

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

TomaintaincompliancewithFCC’sRFexposureguidelines,thisequipmentshouldbe

installedandoperatedwithaminimumdistanceof20cmbetweentheradiatorandyour

body.
