3NOD DIGITAL TECHNOLOGY S2016 ONN 2.0 MINI SOUNDBAR User Manual page 1
Shenzhen 3nod Digital Technology Co., Ltd. ONN 2.0 MINI SOUNDBAR page 1
User Manual
ONA18SB001
ONN 2.0 MINI SOUNDBAR
TM
VOL V OL
AUX OPTICAL
TM
Warranty
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’
sinstructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.

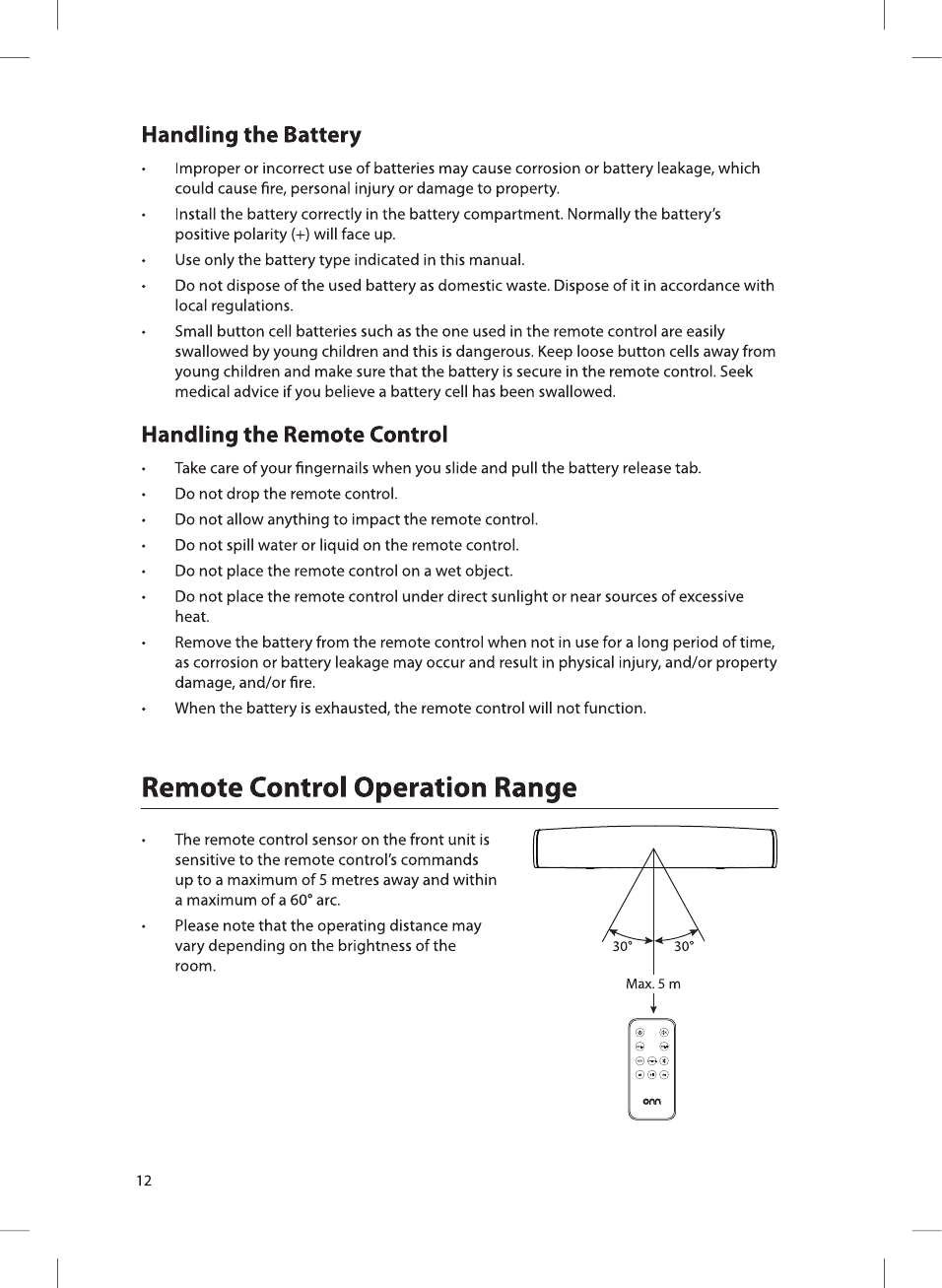

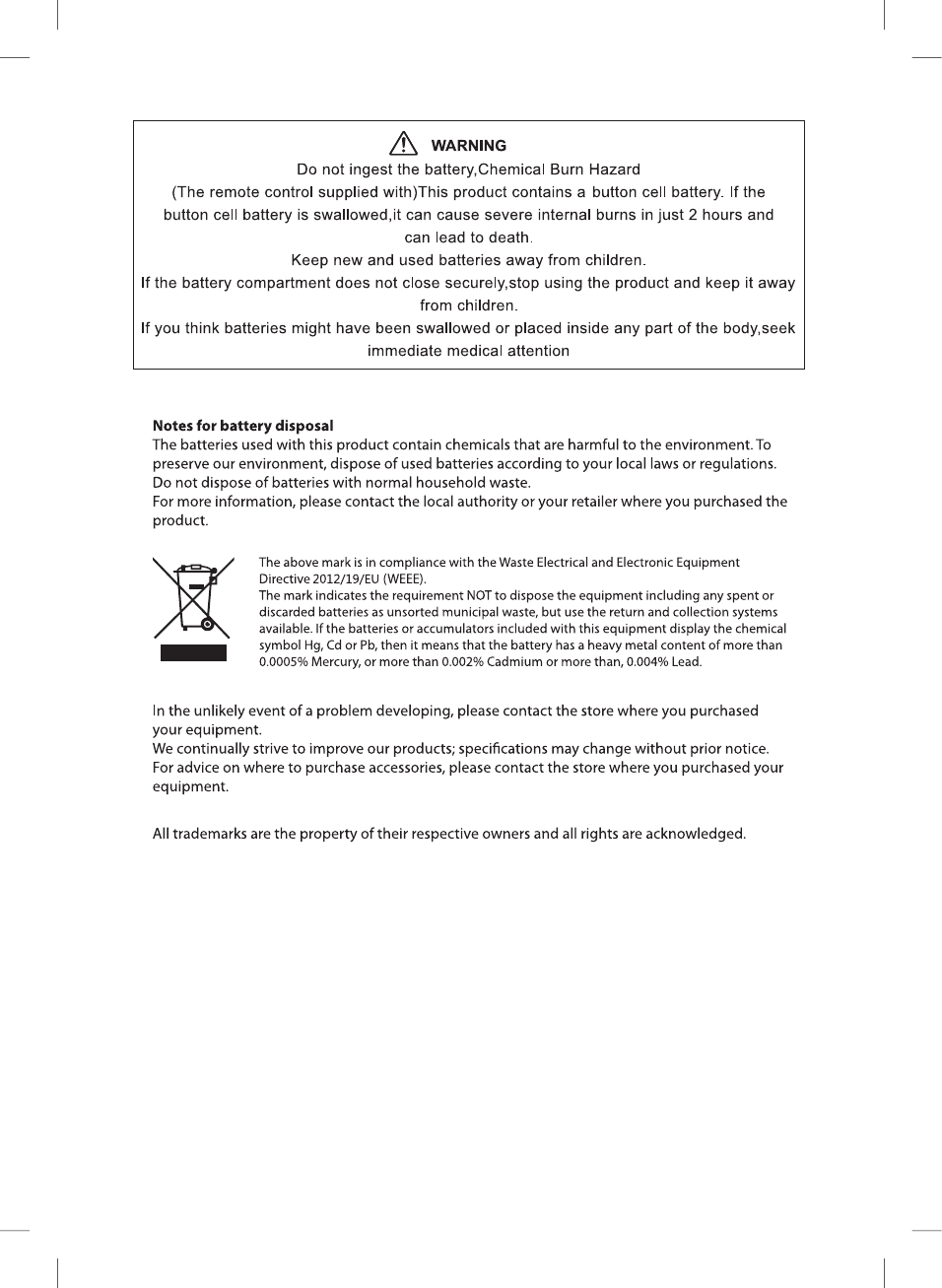

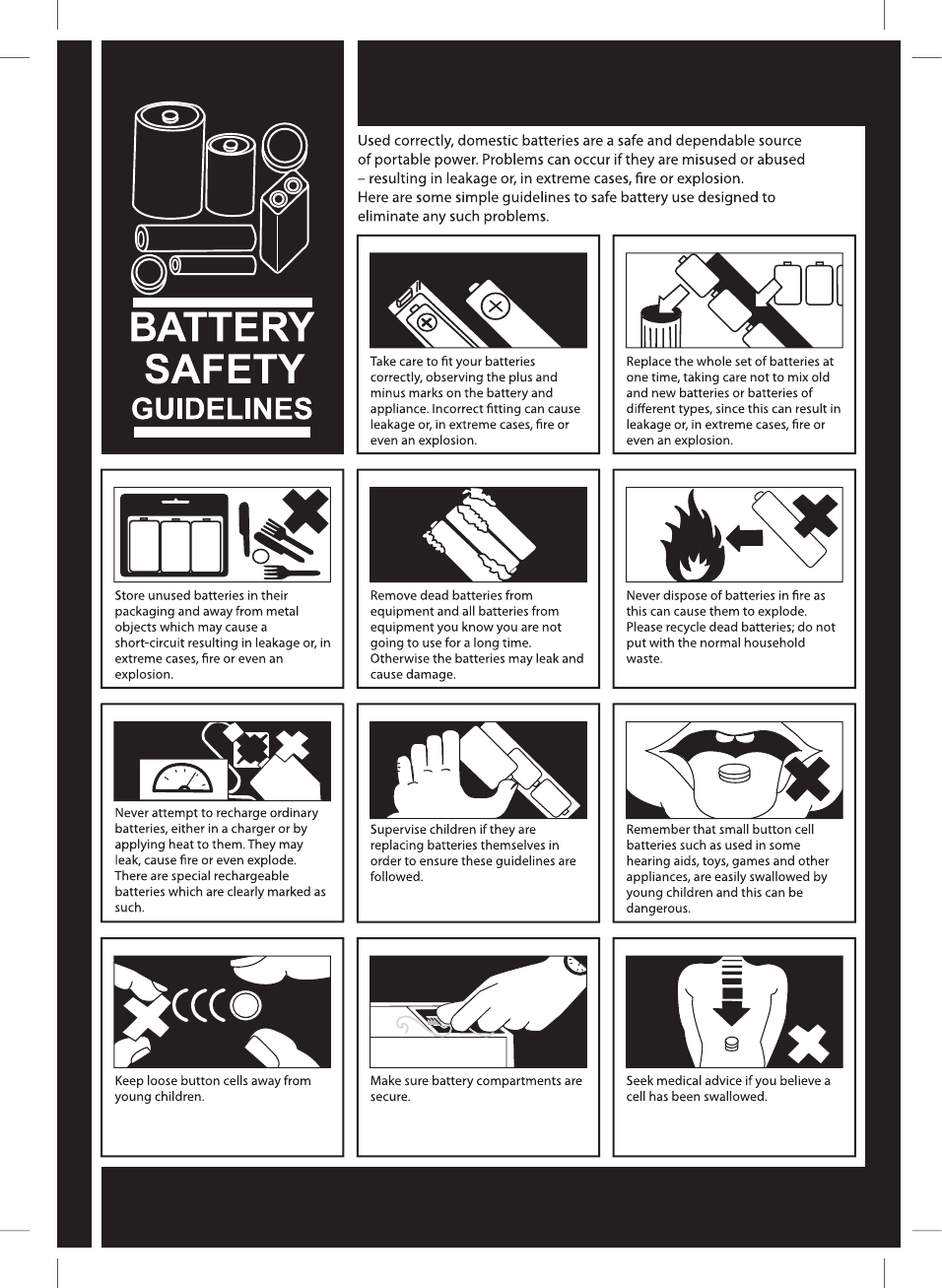

Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
The plug of Mains adapter is used as the disconnect device, the disconnect device shall
remain readily operable.
The product is designed to use in moderate climates.
Important Safety Instructions
CAUTION
Warning
Safety
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
8
Mini bar
Service
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:( 1)this device may not cause harmful interference.(2)this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measure.
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Statement:
Call 1-800-925-6278(1-800-WALMART)

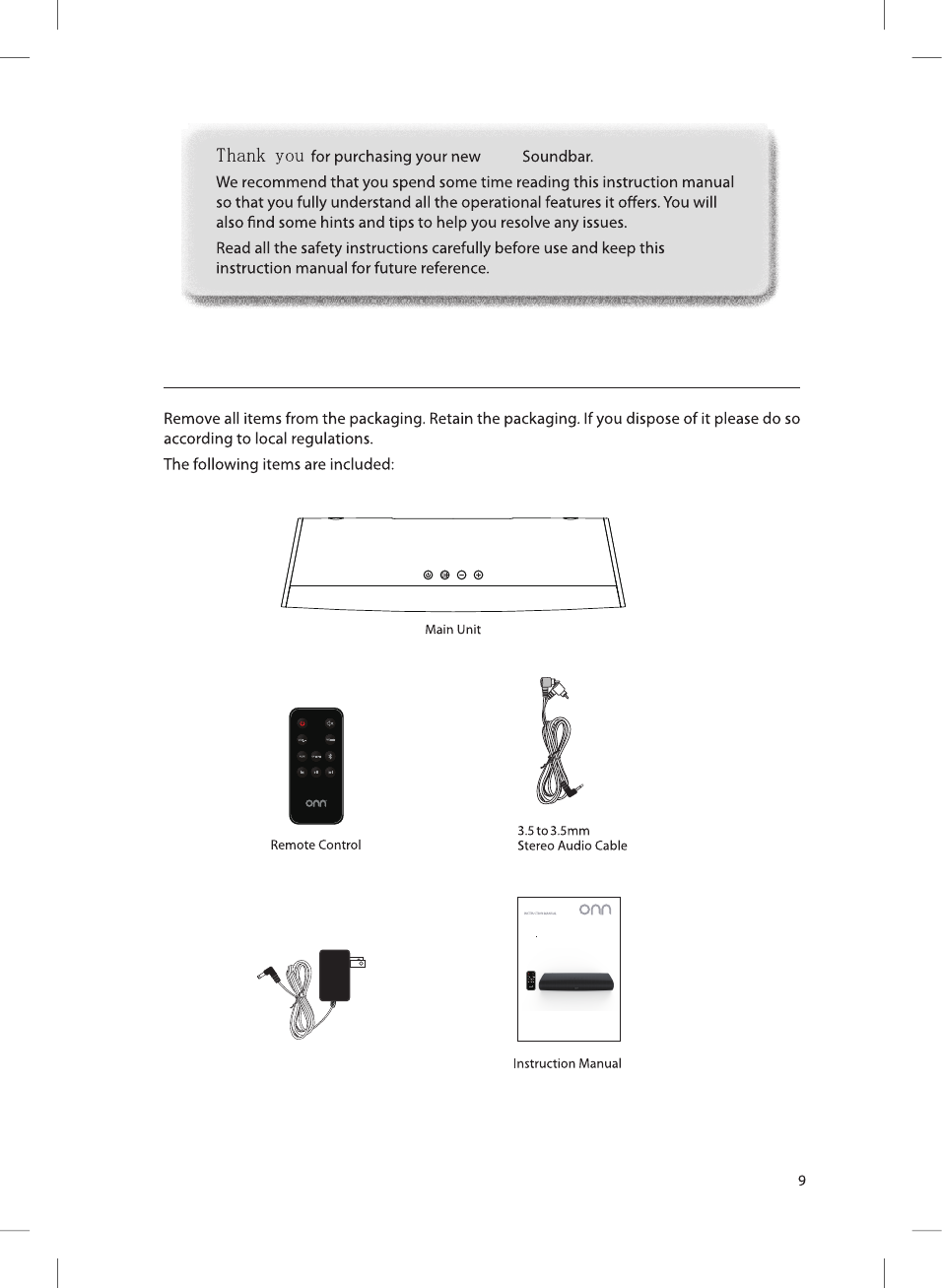

Unpacking
VOL VO L
AUX OPTICAL
TM
ONA18SB001
ONN 2.0 MINI SOUNDBAR
TM
ONN
Power Adapter
VOL VOL
AUX OPTICAL
TM

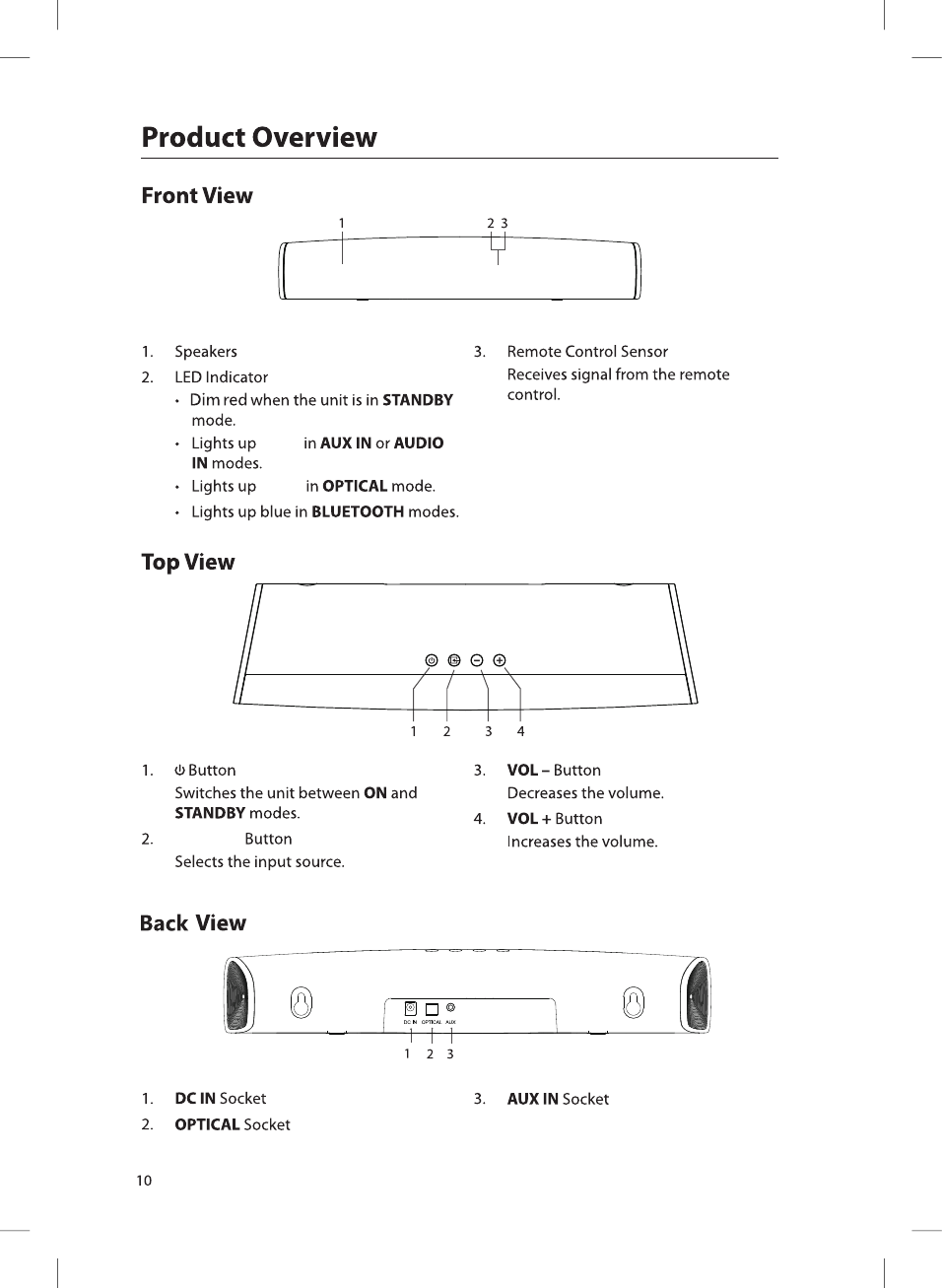

white
SOURCE
green
VOL VO L
AUX OPTICAL
TM
7
8
10
9

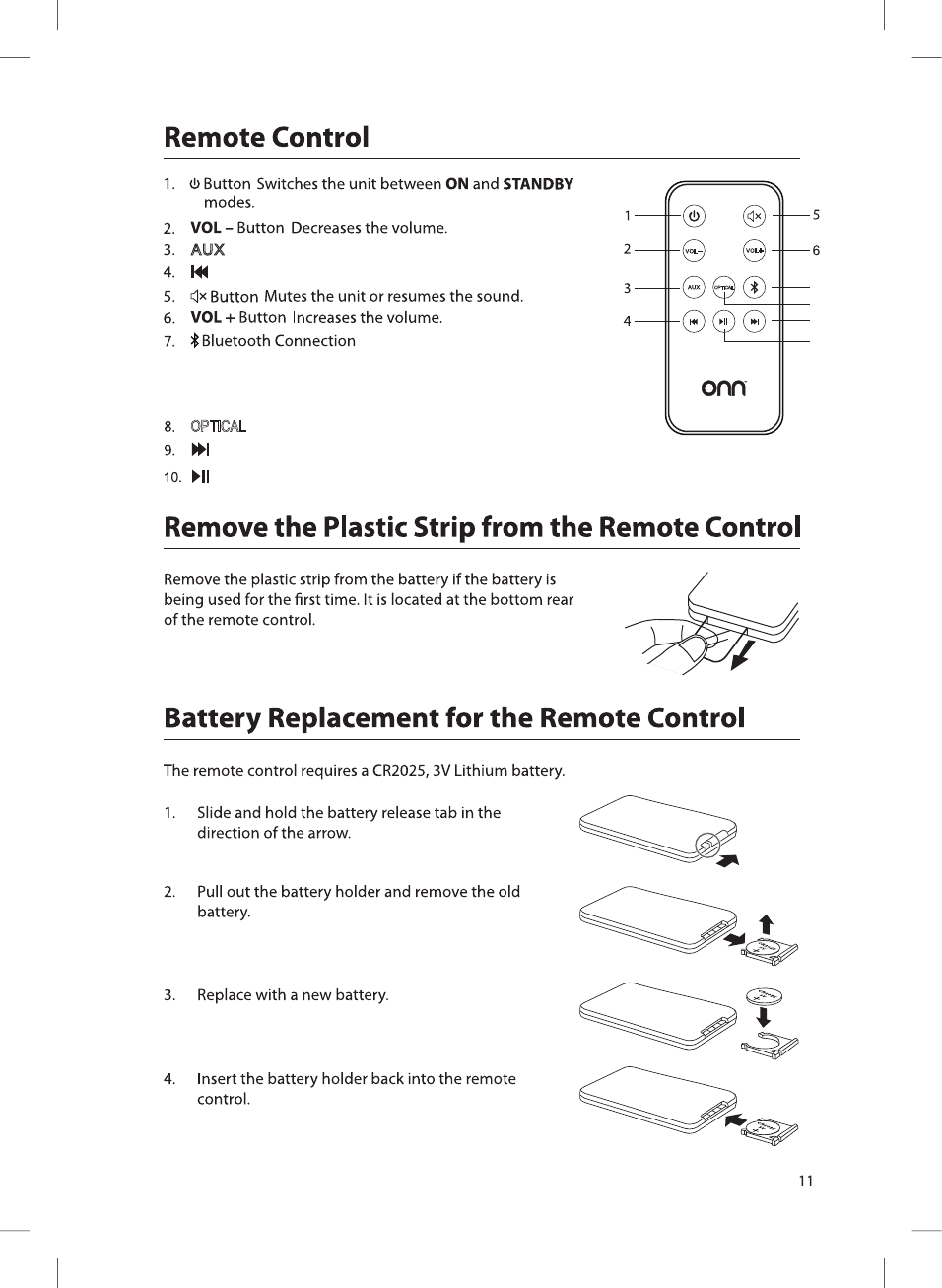

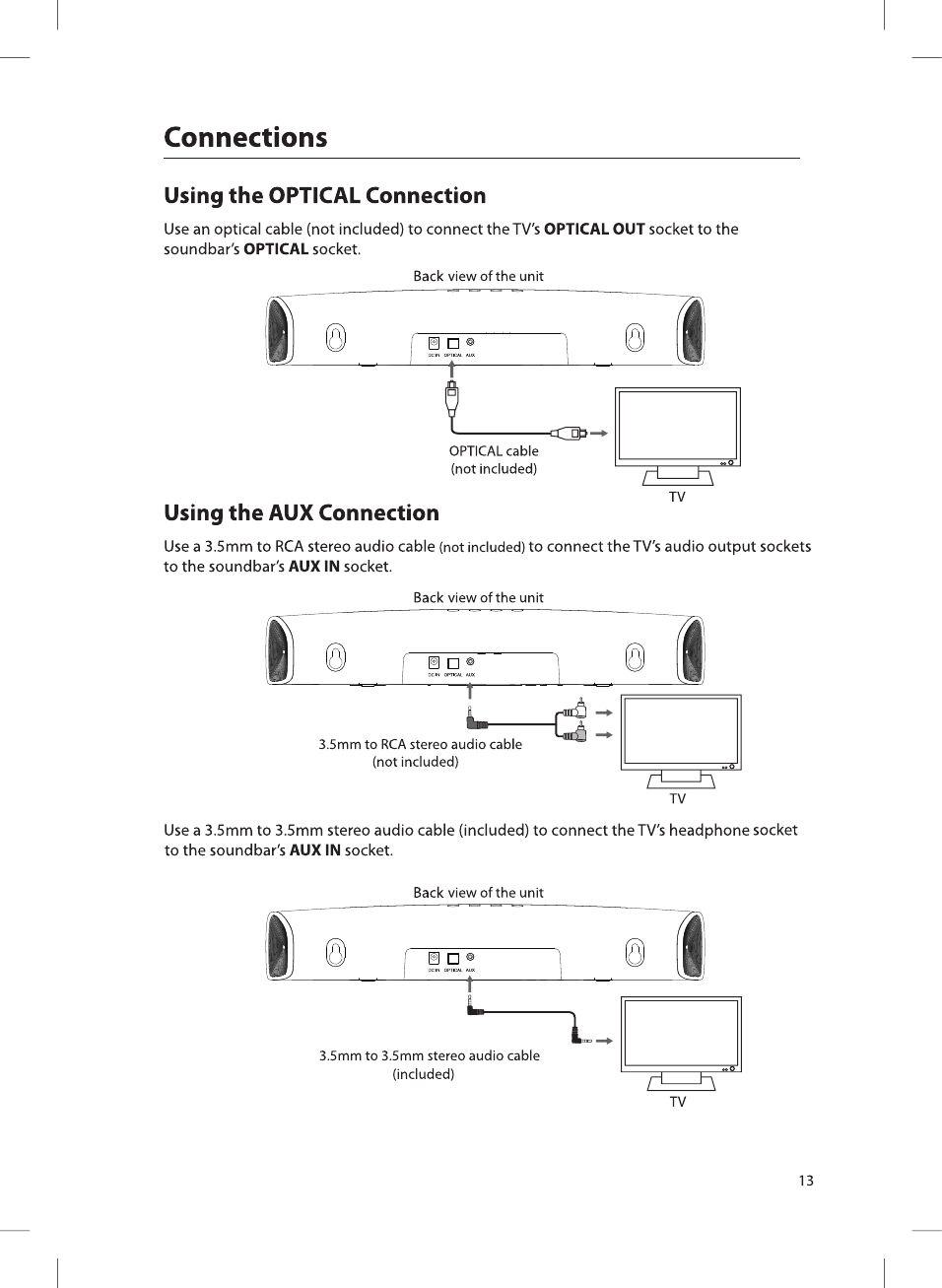

AUX Switch to Aux input.
Skip to previous track in Bluetooth mode.
OPTICAL Skip to next track in bluetooth mode.
Switch to optical mode.
Press to play/pause music.

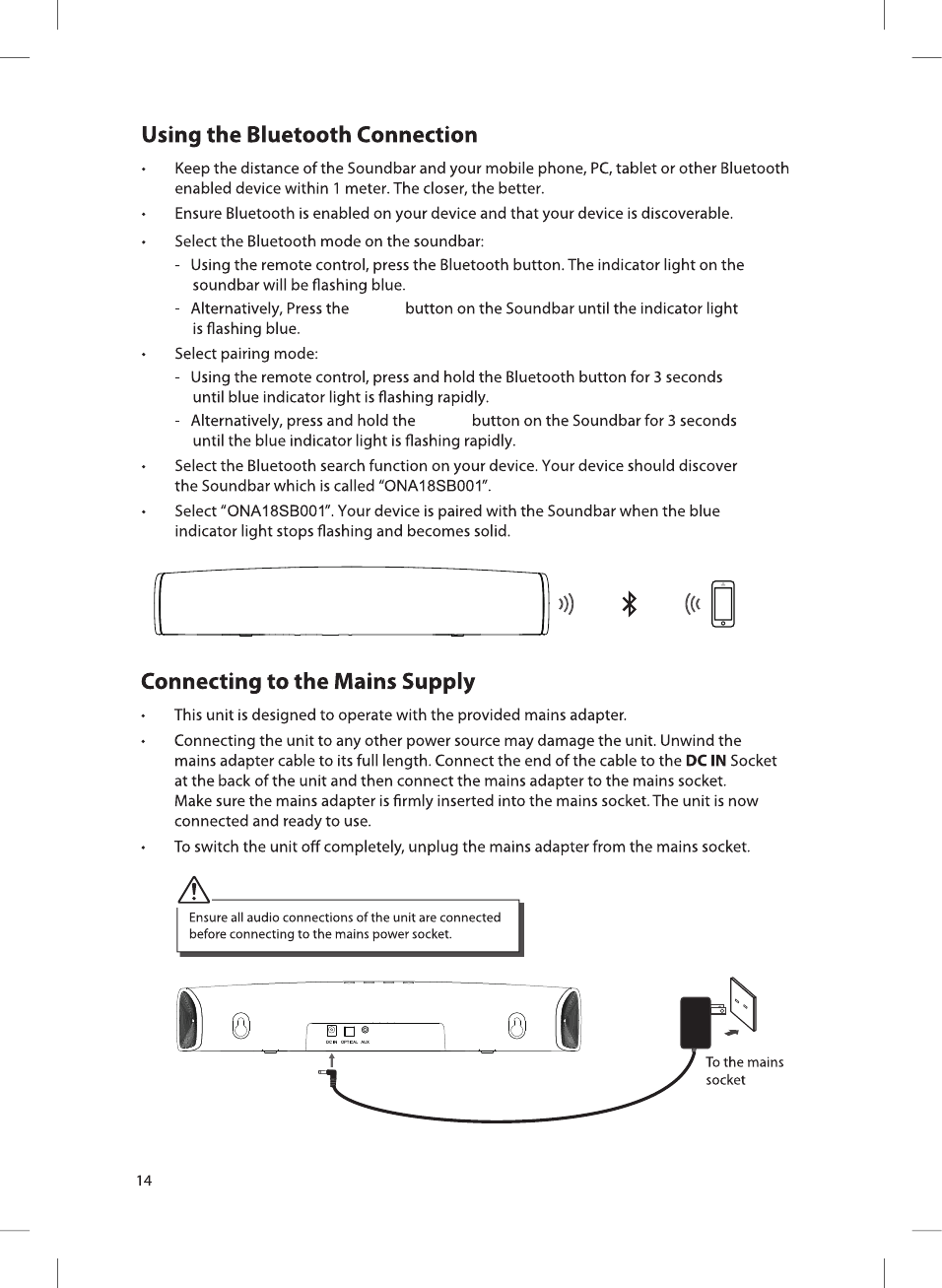

Switch to Bluetooth mode, press
and hold to enable bluetooth pairing if there is an existing
connection then disconnect the devices,unit will enter
pairing mode.
VOL VOL
AUX OPTICAL
TM
source
source
Wall Mounting
•
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer’s responsibility to verify that the wall will safely support the total load of the Soundbar.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
•
1. Drill 2 parallel holes (Ø 8 mm each according to wall type) in the wall. The distance
between the holes should be 280 mm.
280 mm
Wall (Front view)
2.
Dowel
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
3. Insert 1 screw TA 4*40mm(not included)into each dowel. Be sure to leave a 6mm gap
between the wall and the screw’s head. Lift the unit over the heads of the screws
slot i
and
nto place.
6 mm
40-45 mm
dim red.
be dim red.
Optical
SOURCE
green.
blue white
ONA18SB001
411mm(W) x 111mm(D) x 72mm(H)
18
www.walmart.com
