3Plus 3PL-CALLIE Hybrid Watch User Manual

3Plus International Inc. Hybrid Watch

User Manual

OWNER’S MANUAL Product Name: Hybrid WatchModel No.: 3PL-CallieFCC ID:2AJVH-3PL-CALLIE

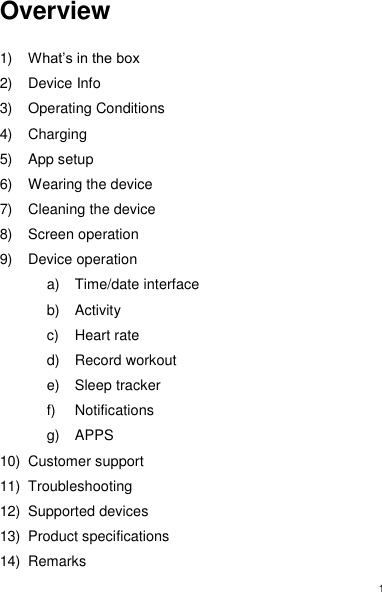

1 Overview 1) What’s in the box 2) Device Info 3) Operating Conditions 4) Charging 5) App setup 6) Wearing the device 7) Cleaning the device 8) Screen operation 9) Device operation a) Time/date interface b) Activity c) Heart rate d) Record workout e) Sleep tracker f) Notifications g) APPS 10) Customer support 11) Troubleshooting 12) Supported devices 13) Product specifications 14) Remarks
2 1. What’s in the box A B D E A：Callie Hybrid Watch B：Quick Start Guide C：Charging Dock D：Micro-USB cable
3 2. Device Info

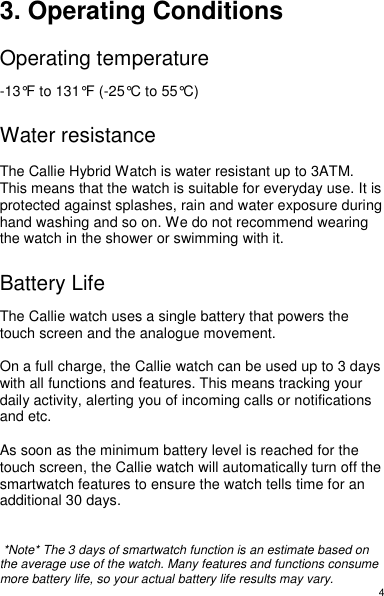

4 3. Operating Conditions Operating temperature -13°F to 131°F (-25°C to 55°C) Water resistance The Callie Hybrid Watch is water resistant up to 3ATM. This means that the watch is suitable for everyday use. It is protected against splashes, rain and water exposure during hand washing and so on. We do not recommend wearing the watch in the shower or swimming with it. Battery Life The Callie watch uses a single battery that powers the touch screen and the analogue movement. On a full charge, the Callie watch can be used up to 3 days with all functions and features. This means tracking your daily activity, alerting you of incoming calls or notifications and etc. As soon as the minimum battery level is reached for the touch screen, the Callie watch will automatically turn off the smartwatch features to ensure the watch tells time for an additional 30 days. *Note* The 3 days of smartwatch function is an estimate based on the average use of the watch. Many features and functions consume more battery life, so your actual battery life results may vary.
5 4. Charging 1. Connect the USB cable to a USB power adaptor. Connect the other end of the USB cable to the charging dock. Plug the USB power adaptor into an electric socket. Place the Callie watch onto the charging dock. 2. Place the Callie watch into the charging dock. You will see the charging screen on the watch when it is placed correctly.

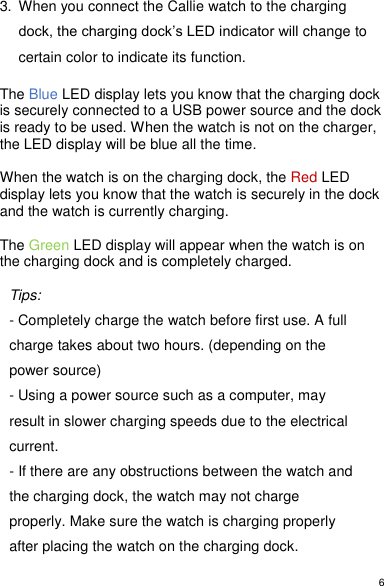

6 3. When you connect the Callie watch to the charging dock, the charging dock’s LED indicator will change to certain color to indicate its function. The Blue LED display lets you know that the charging dock is securely connected to a USB power source and the dock is ready to be used. When the watch is not on the charger, the LED display will be blue all the time. When the watch is on the charging dock, the Red LED display lets you know that the watch is securely in the dock and the watch is currently charging. The Green LED display will appear when the watch is on the charging dock and is completely charged. Tips: - Completely charge the watch before first use. A full charge takes about two hours. (depending on the power source) - Using a power source such as a computer, may result in slower charging speeds due to the electrical current. - If there are any obstructions between the watch and the charging dock, the watch may not charge properly. Make sure the watch is charging properly after placing the watch on the charging dock.

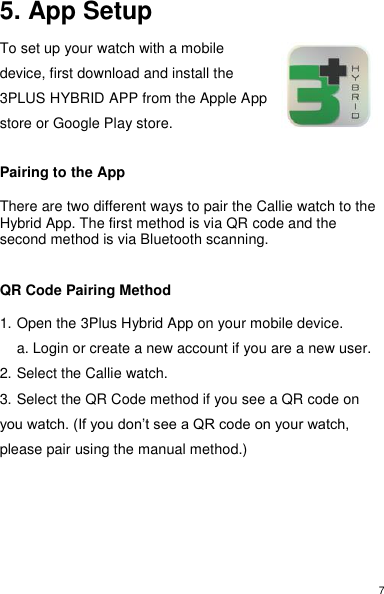

7 5. App Setup To set up your watch with a mobile device, first download and install the 3PLUS HYBRID APP from the Apple App store or Google Play store. Pairing to the App There are two different ways to pair the Callie watch to the Hybrid App. The first method is via QR code and the second method is via Bluetooth scanning. QR Code Pairing Method 1. Open the 3Plus Hybrid App on your mobile device. a. Login or create a new account if you are a new user. 2. Select the Callie watch. 3. Select the QR Code method if you see a QR code on you watch. (If you don’t see a QR code on your watch, please pair using the manual method.)
8 Scan Method 4. Open the 3Plus Hybrid App on your mobile device. a. Login or create a new account if you are a new user. 5. Select the Callie watch. 6. Select the QR Code method if you see a QR code on you watch. (If you don’t see a QR code on your watch, please pair using the manual method.) 7. Align the QR code with the viewfinder in the app.

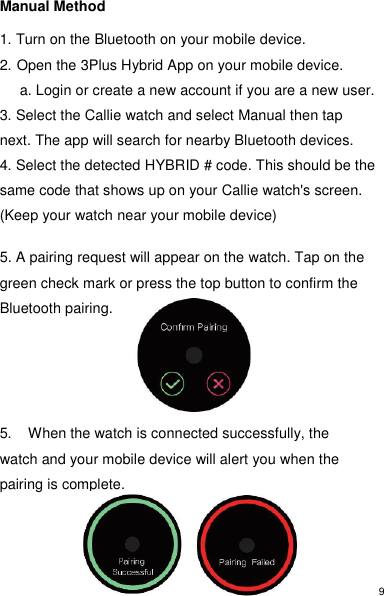

9 Manual Method 1. Turn on the Bluetooth on your mobile device. 2. Open the 3Plus Hybrid App on your mobile device. a. Login or create a new account if you are a new user. 3. Select the Callie watch and select Manual then tap next. The app will search for nearby Bluetooth devices. 4. Select the detected HYBRID # code. This should be the same code that shows up on your Callie watch's screen. (Keep your watch near your mobile device) 5. A pairing request will appear on the watch. Tap on the green check mark or press the top button to confirm the Bluetooth pairing. 5. When the watch is connected successfully, the watch and your mobile device will alert you when the pairing is complete.

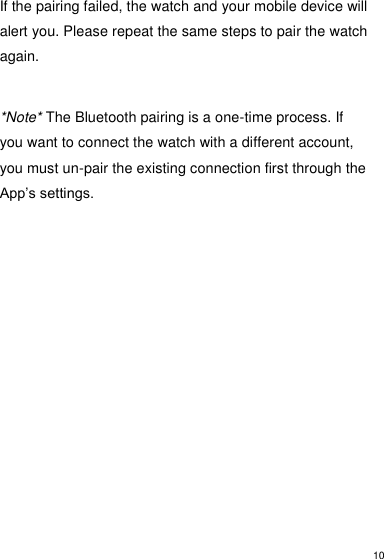

10 If the pairing failed, the watch and your mobile device will alert you. Please repeat the same steps to pair the watch again. *Note* The Bluetooth pairing is a one-time process. If you want to connect the watch with a different account, you must un-pair the existing connection first through the App’s settings.

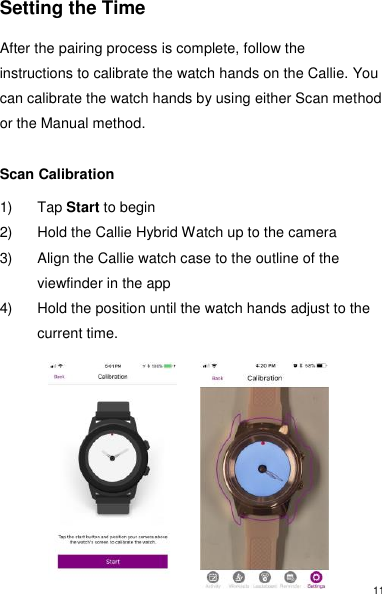

11 Setting the Time After the pairing process is complete, follow the instructions to calibrate the watch hands on the Callie. You can calibrate the watch hands by using either Scan method or the Manual method. Scan Calibration 1) Tap Start to begin 2) Hold the Callie Hybrid Watch up to the camera 3) Align the Callie watch case to the outline of the viewfinder in the app 4) Hold the position until the watch hands adjust to the current time.

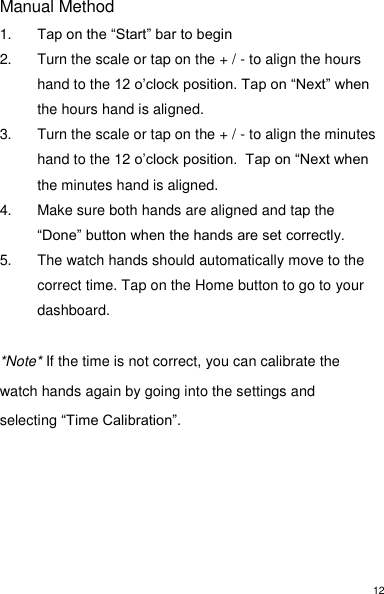

12 Manual Method 1. Tap on the “Start” bar to begin 2. Turn the scale or tap on the + / - to align the hours hand to the 12 o’clock position. Tap on “Next” when the hours hand is aligned. 3. Turn the scale or tap on the + / - to align the minutes hand to the 12 o’clock position. Tap on “Next when the minutes hand is aligned. 4. Make sure both hands are aligned and tap the “Done” button when the hands are set correctly. 5. The watch hands should automatically move to the correct time. Tap on the Home button to go to your dashboard. *Note* If the time is not correct, you can calibrate the watch hands again by going into the settings and selecting “Time Calibration”.

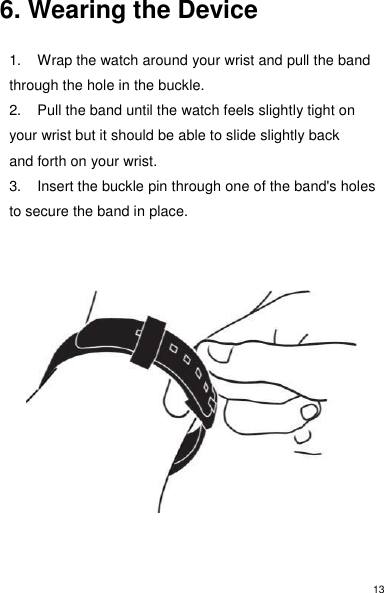

13 6. Wearing the Device 1. Wrap the watch around your wrist and pull the band through the hole in the buckle. 2. Pull the band until the watch feels slightly tight on your wrist but it should be able to slide slightly back and forth on your wrist. 3. Insert the buckle pin through one of the band's holes to secure the band in place.

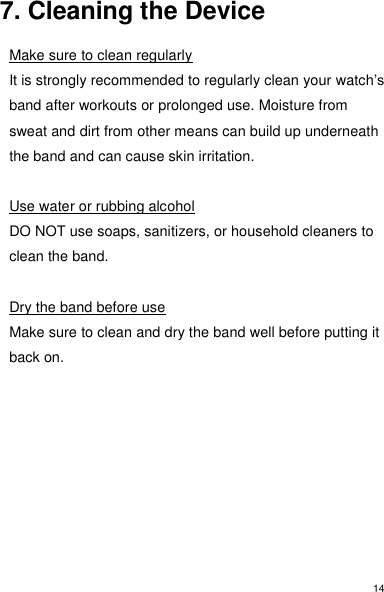

14 7. Cleaning the Device Make sure to clean regularly It is strongly recommended to regularly clean your watch’s band after workouts or prolonged use. Moisture from sweat and dirt from other means can build up underneath the band and can cause skin irritation. Use water or rubbing alcohol DO NOT use soaps, sanitizers, or household cleaners to clean the band. Dry the band before use Make sure to clean and dry the band well before putting it back on.

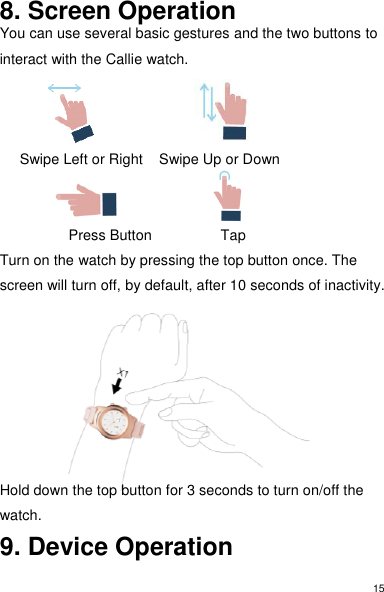

15 8. Screen Operation You can use several basic gestures and the two buttons to interact with the Callie watch. Swipe Left or Right Swipe Up or Down Press Button Tap Turn on the watch by pressing the top button once. The screen will turn off, by default, after 10 seconds of inactivity. Hold down the top button for 3 seconds to turn on/off the watch. 9. Device Operation

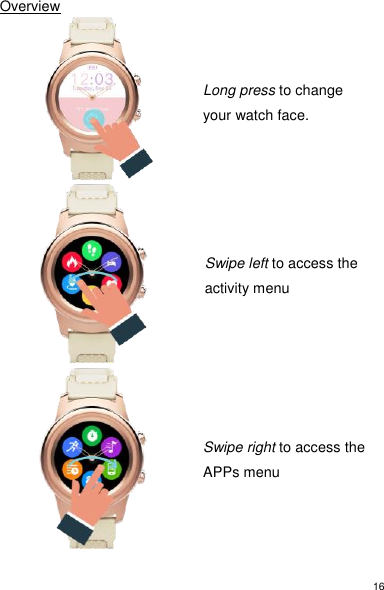

16 Overview Long press to change your watch face. Swipe left to access the activity menu Swipe right to access the APPs menu
17 Swipe up to access the quick settings menu Swipe down to access the notification center

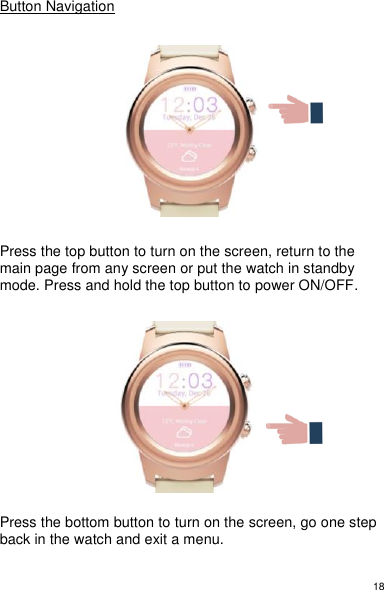

18 Button Navigation Press the top button to turn on the screen, return to the main page from any screen or put the watch in standby mode. Press and hold the top button to power ON/OFF. Press the bottom button to turn on the screen, go one step back in the watch and exit a menu.
19 Quick Settings There are 4 icons on the quick settings menu. The icons are brightness, airplane mode, do not disturb mode and settings. The menu has a day/date display and a battery icon meter. Brightness Adjust the brightness of the watch by tapping the icon and selecting the desired level of screen brightness. Airplane Mode Airplane mode turns off the all Bluetooth connectivity to your mobile device. When the icon is grey, this feature is OFF. When the icon is white, this feature is ON. Do not Disturb Mode (DND) DND mode mutes all notifications and vibrations on your watch. When the icon is grey, this feature is OFF. When the icon is white, this feature is ON.

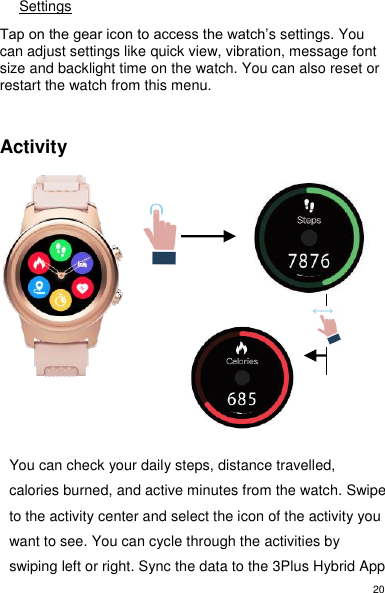

20 Settings Tap on the gear icon to access the watch’s settings. You can adjust settings like quick view, vibration, message font size and backlight time on the watch. You can also reset or restart the watch from this menu. Activity You can check your daily steps, distance travelled, calories burned, and active minutes from the watch. Swipe to the activity center and select the icon of the activity you want to see. You can cycle through the activities by swiping left or right. Sync the data to the 3Plus Hybrid App

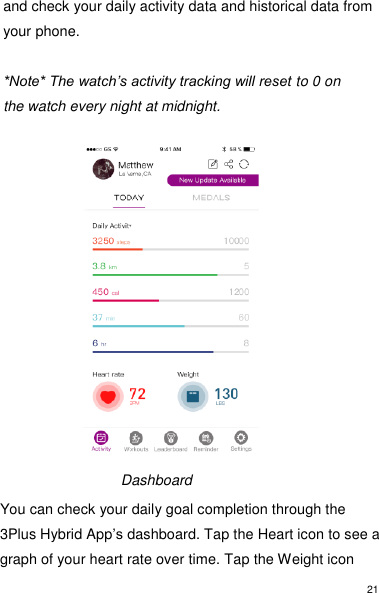

21 and check your daily activity data and historical data from your phone. *Note* The watch’s activity tracking will reset to 0 on the watch every night at midnight. You can check your daily goal completion through the 3Plus Hybrid App’s dashboard. Tap the Heart icon to see a graph of your heart rate over time. Tap the Weight icon Dashboard

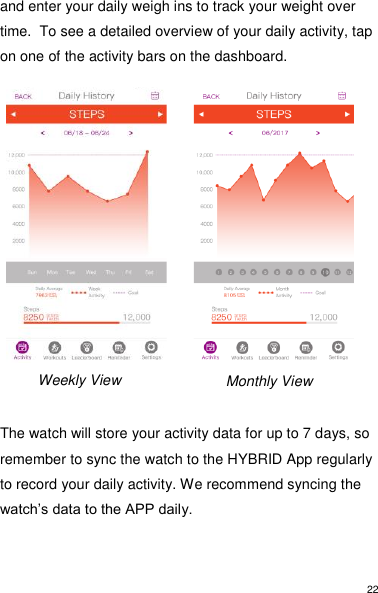

22 and enter your daily weigh ins to track your weight over time. To see a detailed overview of your daily activity, tap on one of the activity bars on the dashboard. The watch will store your activity data for up to 7 days, so remember to sync the watch to the HYBRID App regularly to record your daily activity. We recommend syncing the watch’s data to the APP daily. Weekly View Monthly View

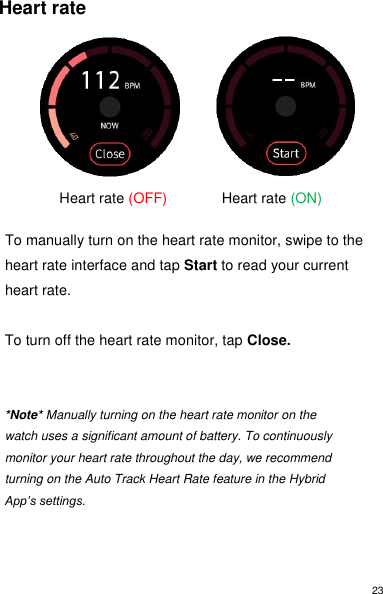

23 Heart rate Heart rate (OFF) Heart rate (ON) To manually turn on the heart rate monitor, swipe to the heart rate interface and tap Start to read your current heart rate. To turn off the heart rate monitor, tap Close. *Note* Manually turning on the heart rate monitor on the watch uses a significant amount of battery. To continuously monitor your heart rate throughout the day, we recommend turning on the Auto Track Heart Rate feature in the Hybrid App’s settings.

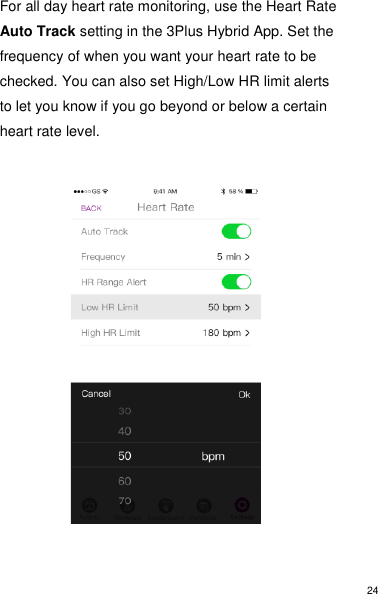

24 For all day heart rate monitoring, use the Heart Rate Auto Track setting in the 3Plus Hybrid App. Set the frequency of when you want your heart rate to be checked. You can also set High/Low HR limit alerts to let you know if you go beyond or below a certain heart rate level.
25 Heart rate Range Alert: You can select your Heart Rate Range Alert in the Settings section of the Hybrid App. This is helpful during exercises and workouts to make sure you stay within your target zone. Heart rate too high Heart rate low

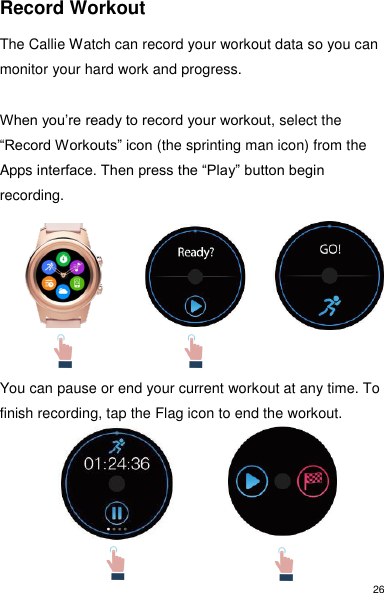

26 Record Workout The Callie Watch can record your workout data so you can monitor your hard work and progress. When you’re ready to record your workout, select the “Record Workouts” icon (the sprinting man icon) from the Apps interface. Then press the “Play” button begin recording. You can pause or end your current workout at any time. To finish recording, tap the Flag icon to end the workout.

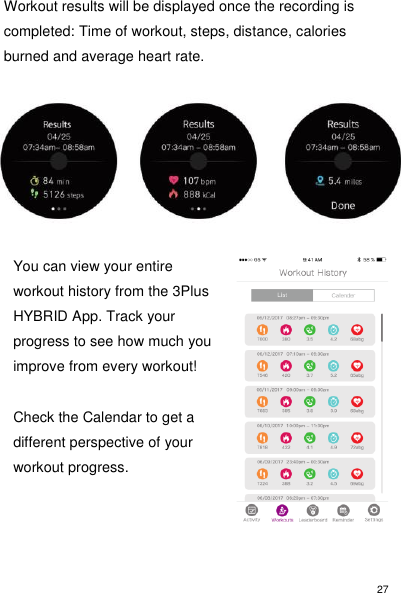

27 Workout results will be displayed once the recording is completed: Time of workout, steps, distance, calories burned and average heart rate. You can view your entire workout history from the 3Plus HYBRID App. Track your progress to see how much you improve from every workout! Check the Calendar to get a different perspective of your workout progress.

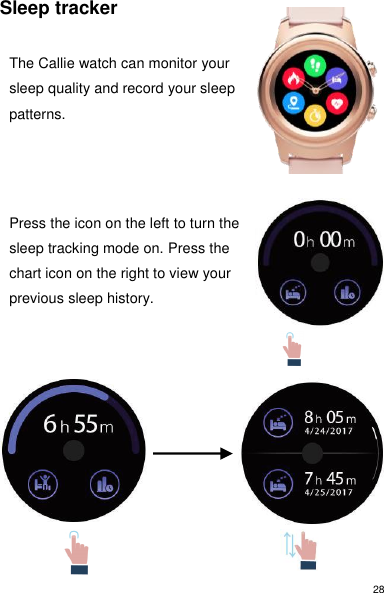

28 Sleep tracker The Callie watch can monitor your sleep quality and record your sleep patterns. Press the icon on the left to turn the sleep tracking mode on. Press the chart icon on the right to view your previous sleep history.

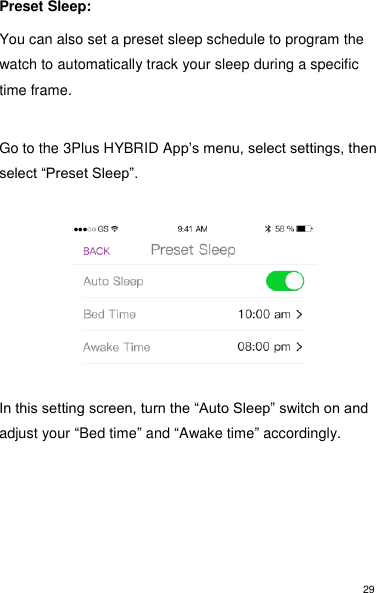

29 Preset Sleep: You can also set a preset sleep schedule to program the watch to automatically track your sleep during a specific time frame. Go to the 3Plus HYBRID App’s menu, select settings, then select “Preset Sleep”. In this setting screen, turn the “Auto Sleep” switch on and adjust your “Bed time” and “Awake time” accordingly.
30 Notifications Read and receive your smartphone notifications directly on your Callie watch. To turn on notifications, open the 3Plus HYBRID App, select settings, and then select notifications. You can select specific notifications you want to receive on your Callie watch or you can select “All Notifications” to receive all the alerts that are listed. Note: Notifications will only work if the Callie watch is paired to your smartphone device via Bluetooth.

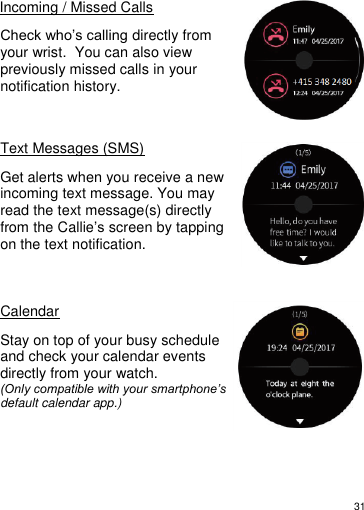

31 Incoming / Missed Calls Check who’s calling directly from your wrist. You can also view previously missed calls in your notification history. Text Messages (SMS) Get alerts when you receive a new incoming text message. You may read the text message(s) directly from the Callie’s screen by tapping on the text notification. Calendar Stay on top of your busy schedule and check your calendar events directly from your watch. (Only compatible with your smartphone’s default calendar app.)

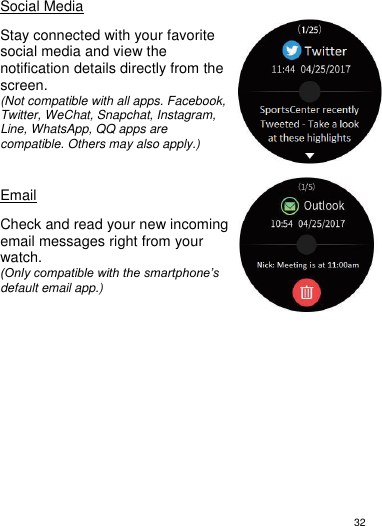

32 Social Media Stay connected with your favorite social media and view the notification details directly from the screen. (Not compatible with all apps. Facebook, Twitter, WeChat, Snapchat, Instagram, Line, WhatsApp, QQ apps are compatible. Others may also apply.) Email Check and read your new incoming email messages right from your watch. (Only compatible with the smartphone’s default email app.)

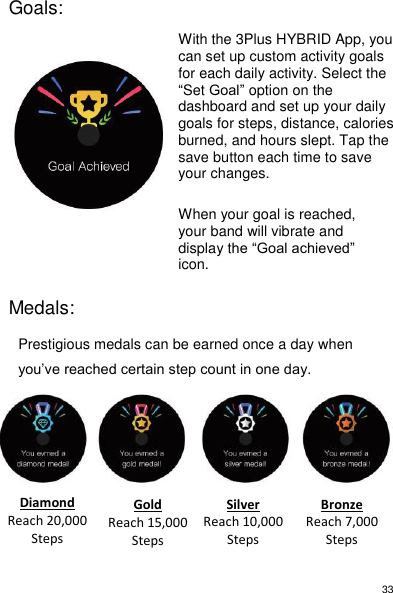

33 Goals: With the 3Plus HYBRID App, you can set up custom activity goals for each daily activity. Select the “Set Goal” option on the dashboard and set up your daily goals for steps, distance, calories burned, and hours slept. Tap the save button each time to save your changes. When your goal is reached, your band will vibrate and display the “Goal achieved” icon. Medals: Prestigious medals can be earned once a day when you’ve reached certain step count in one day. Diamond Reach 20,000 Steps Gold Reach 15,000 Steps Silver Reach 10,000 Steps Bronze Reach 7,000 Steps

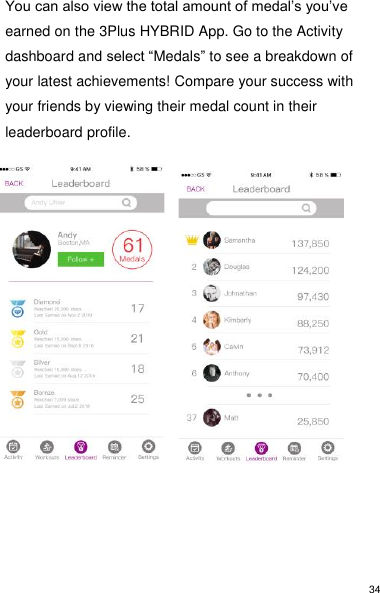

34 You can also view the total amount of medal’s you’ve earned on the 3Plus HYBRID App. Go to the Activity dashboard and select “Medals” to see a breakdown of your latest achievements! Compare your success with your friends by viewing their medal count in their leaderboard profile.

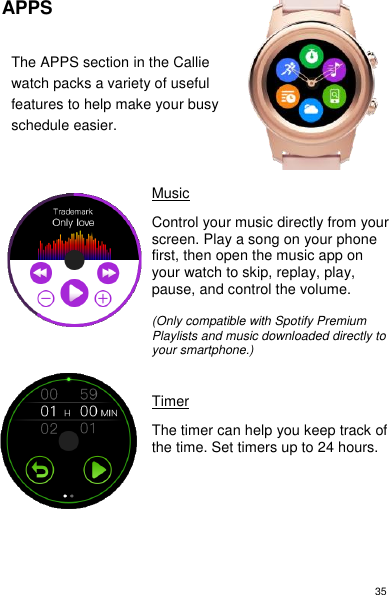

35 APPS The APPS section in the Callie watch packs a variety of useful features to help make your busy schedule easier. Music Control your music directly from your screen. Play a song on your phone first, then open the music app on your watch to skip, replay, play, pause, and control the volume. (Only compatible with Spotify Premium Playlists and music downloaded directly to your smartphone.) Timer The timer can help you keep track of the time. Set timers up to 24 hours.

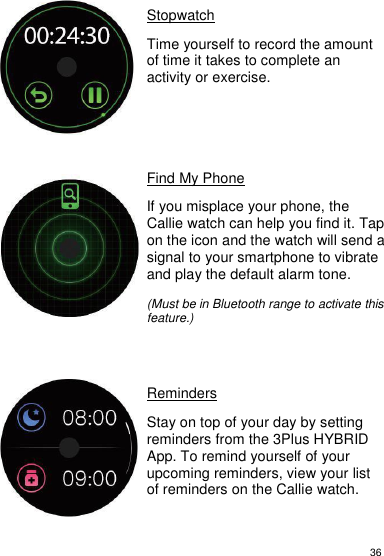

36 Stopwatch Time yourself to record the amount of time it takes to complete an activity or exercise. Find My Phone If you misplace your phone, the Callie watch can help you find it. Tap on the icon and the watch will send a signal to your smartphone to vibrate and play the default alarm tone. (Must be in Bluetooth range to activate this feature.) Reminders Stay on top of your day by setting reminders from the 3Plus HYBRID App. To remind yourself of your upcoming reminders, view your list of reminders on the Callie watch.

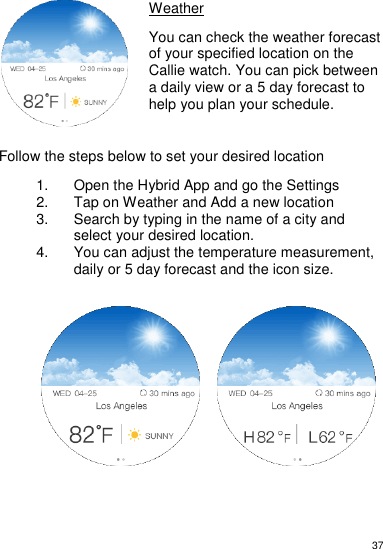

37 Weather You can check the weather forecast of your specified location on the Callie watch. You can pick between a daily view or a 5 day forecast to help you plan your schedule. Follow the steps below to set your desired location 1. Open the Hybrid App and go the Settings 2. Tap on Weather and Add a new location 3. Search by typing in the name of a city and select your desired location. 4. You can adjust the temperature measurement, daily or 5 day forecast and the icon size.

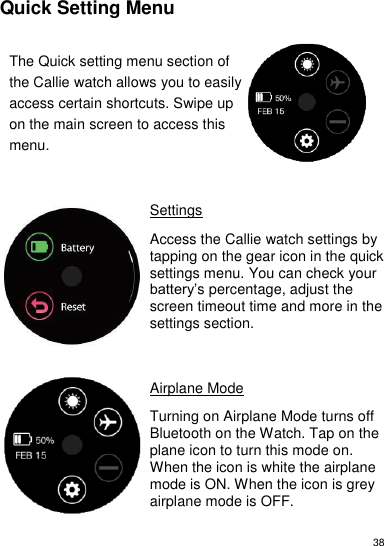

38 Quick Setting Menu The Quick setting menu section of the Callie watch allows you to easily access certain shortcuts. Swipe up on the main screen to access this menu. Settings Access the Callie watch settings by tapping on the gear icon in the quick settings menu. You can check your battery’s percentage, adjust the screen timeout time and more in the settings section. Airplane Mode Turning on Airplane Mode turns off Bluetooth on the Watch. Tap on the plane icon to turn this mode on. When the icon is white the airplane mode is ON. When the icon is grey airplane mode is OFF.

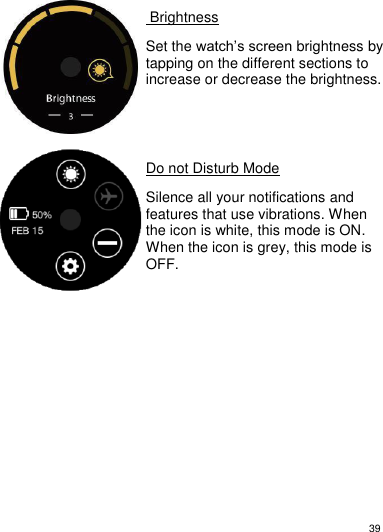

39 Brightness Set the watch’s screen brightness by tapping on the different sections to increase or decrease the brightness. Do not Disturb Mode Silence all your notifications and features that use vibrations. When the icon is white, this mode is ON. When the icon is grey, this mode is OFF.

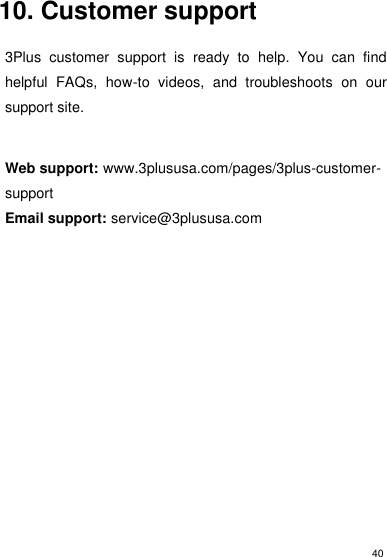

40 10. Customer support 3Plus customer support is ready to help. You can find helpful FAQs, how-to videos, and troubleshoots on our support site. Web support: www.3plususa.com/pages/3plus-customer-support Email support: service@3plususa.com

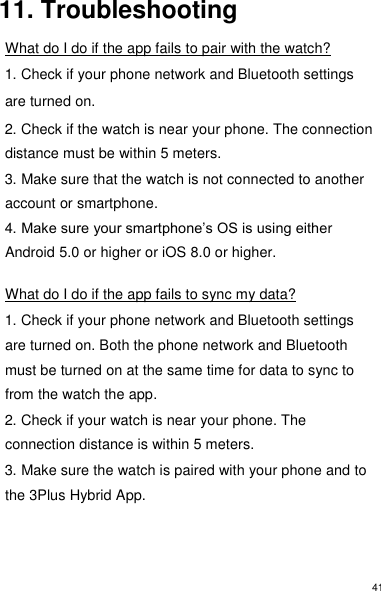

41 11. Troubleshooting What do I do if the app fails to pair with the watch? 1. Check if your phone network and Bluetooth settings are turned on. 2. Check if the watch is near your phone. The connection distance must be within 5 meters. 3. Make sure that the watch is not connected to another account or smartphone. 4. Make sure your smartphone’s OS is using either Android 5.0 or higher or iOS 8.0 or higher. What do I do if the app fails to sync my data? 1. Check if your phone network and Bluetooth settings are turned on. Both the phone network and Bluetooth must be turned on at the same time for data to sync to from the watch the app. 2. Check if your watch is near your phone. The connection distance is within 5 meters. 3. Make sure the watch is paired with your phone and to the 3Plus Hybrid App.

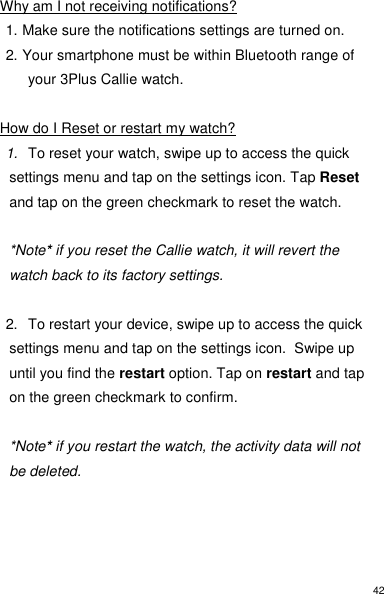

42 Why am I not receiving notifications? 1. Make sure the notifications settings are turned on. 2. Your smartphone must be within Bluetooth range of your 3Plus Callie watch. How do I Reset or restart my watch? 1. To reset your watch, swipe up to access the quick settings menu and tap on the settings icon. Tap Reset and tap on the green checkmark to reset the watch. *Note* if you reset the Callie watch, it will revert the watch back to its factory settings. 2. To restart your device, swipe up to access the quick settings menu and tap on the settings icon. Swipe up until you find the restart option. Tap on restart and tap on the green checkmark to confirm. *Note* if you restart the watch, the activity data will not be deleted.

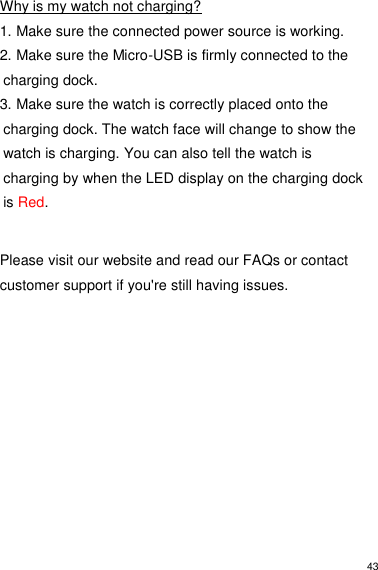

43 Why is my watch not charging? 1. Make sure the connected power source is working. 2. Make sure the Micro-USB is firmly connected to the charging dock. 3. Make sure the watch is correctly placed onto the charging dock. The watch face will change to show the watch is charging. You can also tell the watch is charging by when the LED display on the charging dock is Red. Please visit our website and read our FAQs or contact customer support if you're still having issues.

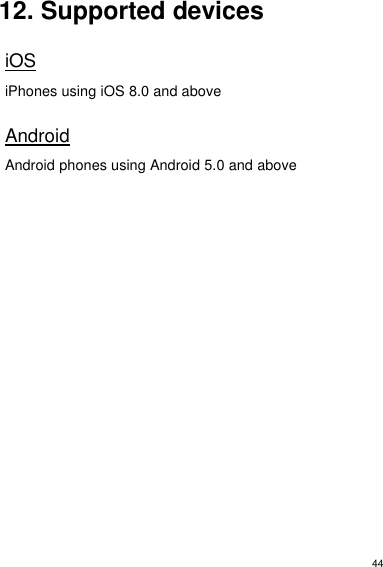

44 12. Supported devices iOS iPhones using iOS 8.0 and above Android Android phones using Android 5.0 and above

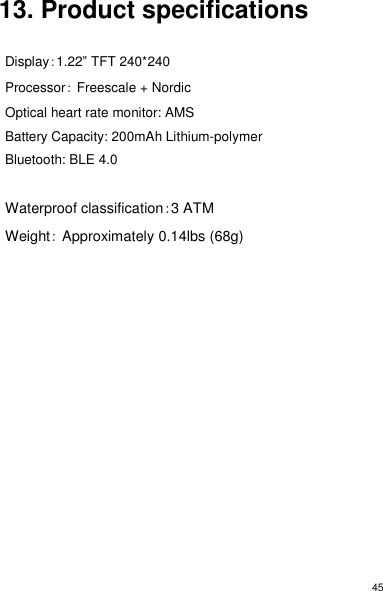

45 13. Product specifications Display：1.22” TFT 240*240 Processor： Freescale + Nordic Optical heart rate monitor: AMS Battery Capacity: 200mAh Lithium-polymer Bluetooth: BLE 4.0 Waterproof classification：3 ATM Weight： Approximately 0.14lbs (68g)
46 14. Remarks FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

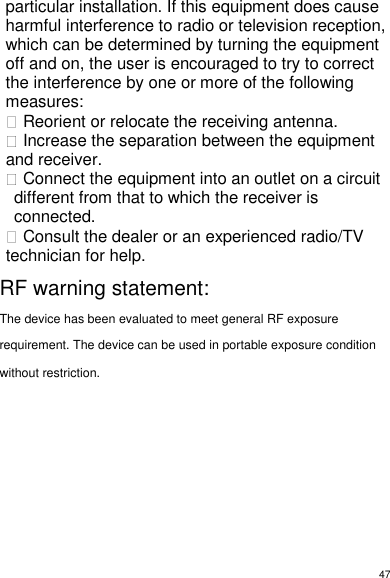

47 particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement:The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure conditionwithout restriction.

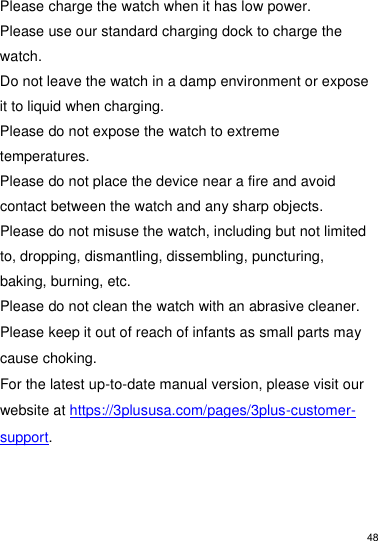

48 Please charge the watch when it has low power. Please use our standard charging dock to charge the watch. Do not leave the watch in a damp environment or expose it to liquid when charging. Please do not expose the watch to extreme temperatures. Please do not place the device near a fire and avoid contact between the watch and any sharp objects. Please do not misuse the watch, including but not limited to, dropping, dismantling, dissembling, puncturing, baking, burning, etc. Please do not clean the watch with an abrasive cleaner. Please keep it out of reach of infants as small parts may cause choking. For the latest up-to-date manual version, please visit our website at https://3plususa.com/pages/3plus-customer-support.
