3Plus 3PLUS-HR Sports Bracelet User Manual

3Plus International Inc. Sports Bracelet

User Manual

1L38I User's Manual1 Packing ListA B C DA：Tracker moduleB：Charger cradleC：User ManualD：USB-cable2 Install APPSetting the wristband, reviewing and saving exercise data in the “3PLUS ELITE”APP.Please log in http://appscomm.cn or scan the following QR codes to download the“3PLUS ELITE”APP.Device compatibility: apple’s device and android device with Bluetooth4.0
2System compatibility： iOS7.0 and above， Android 4.3 and abov.3 ChargingLow powerCharging processCharging processChargingcompletedScreen is always light on during chargingWhen full charged, power icon is full. Screen keeps light on for 1min and then will beoff.Move out the charger, the device will display full charging for 3s, and then in standbyinterface.4 Switch InterfaceYour wristband will show an icon device number 。If there is no operation on the device, screen light offIf pairing is successful, your wristband will show a time icon 。

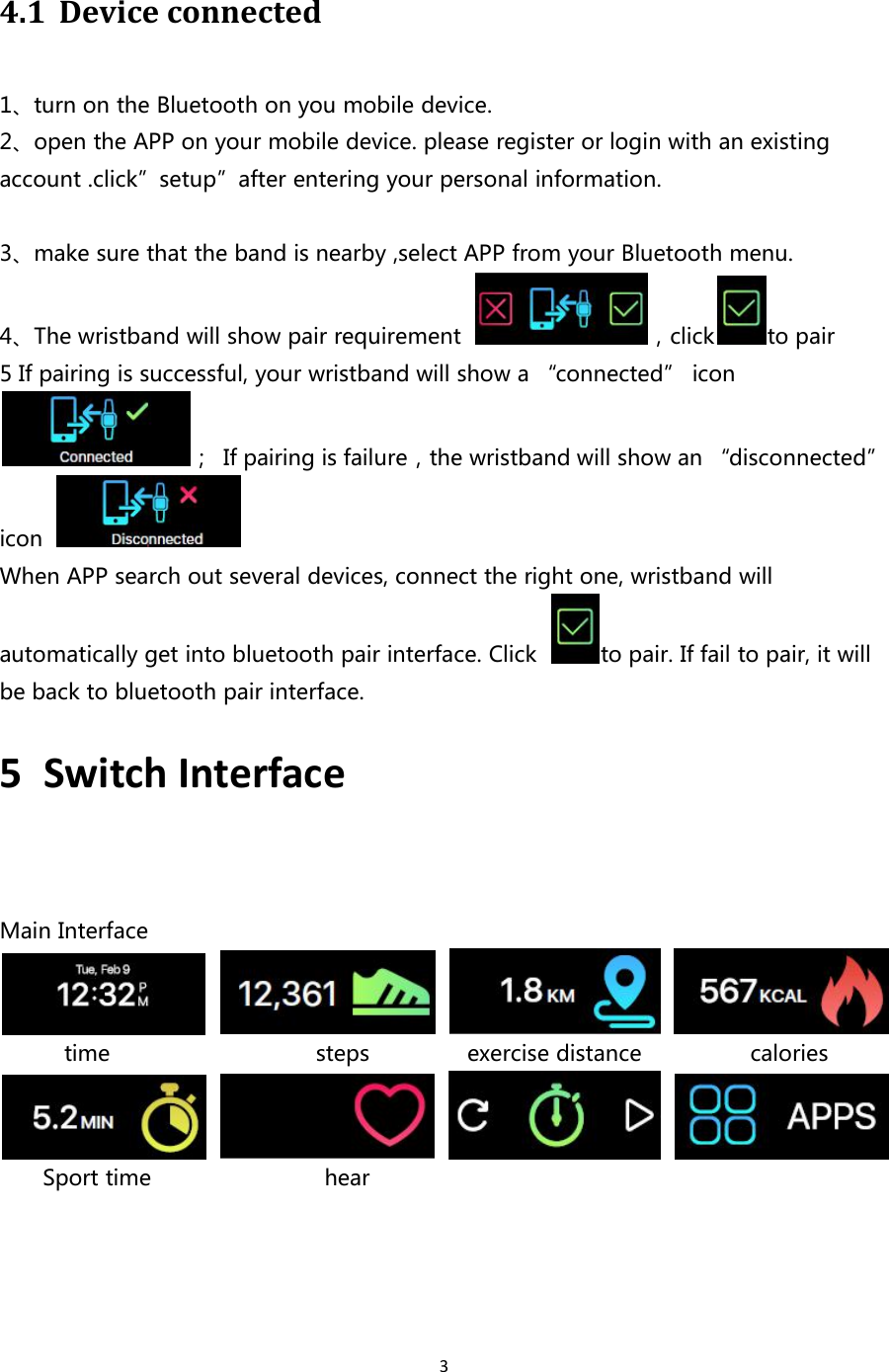

34.1 Device connected1、turn on the Bluetooth on you mobile device.2、open the APP on your mobile device. please register or login with an existingaccount .click”setup”after entering your personal information.3、make sure that the band is nearby ,select APP from your Bluetooth menu.4、The wristband will show pair requirement ，click to pair5 If pairing is successful, your wristband will show a “connected” icon； If pairing is failure，the wristband will show an “disconnected”iconWhen APP search out several devices, connect the right one, wristband willautomatically get into bluetooth pair interface. Click to pair. If fail to pair, it willbe back to bluetooth pair interface.5 Switch InterfaceMain Interfacetime steps exercise distance caloriesSport time hear

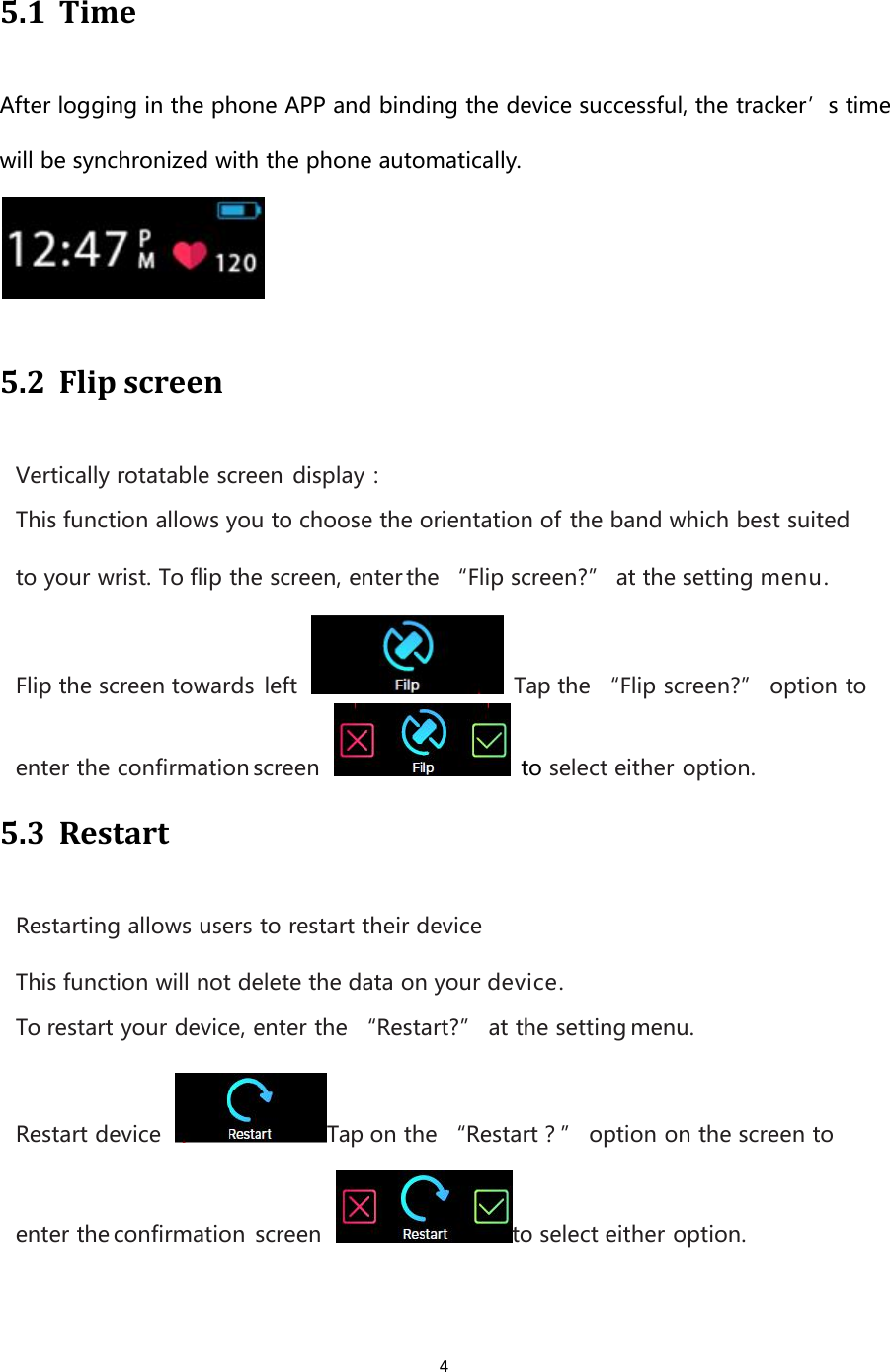

45.1 TimeAfter logging in the phone APP and binding the device successful, the tracker’s timewill be synchronized with the phone automatically.5.2 Flip screenVertically rotatable screen display：This function allows you to choose the orientation of the band which best suitedto your wrist. To flip the screen, enter the “Flip screen?” at the setting menu.Flip the screen towards left Tap the “Flip screen?” option toenter the confirmation screen to select either option.5.3 RestartRestarting allows users to restart their deviceThis function will not delete the data on your device.To restart your device, enter the “Restart?” at the setting menu.Restart device Tap on the “Restart？” option on the screen toenter the confirmation screen to select either option.

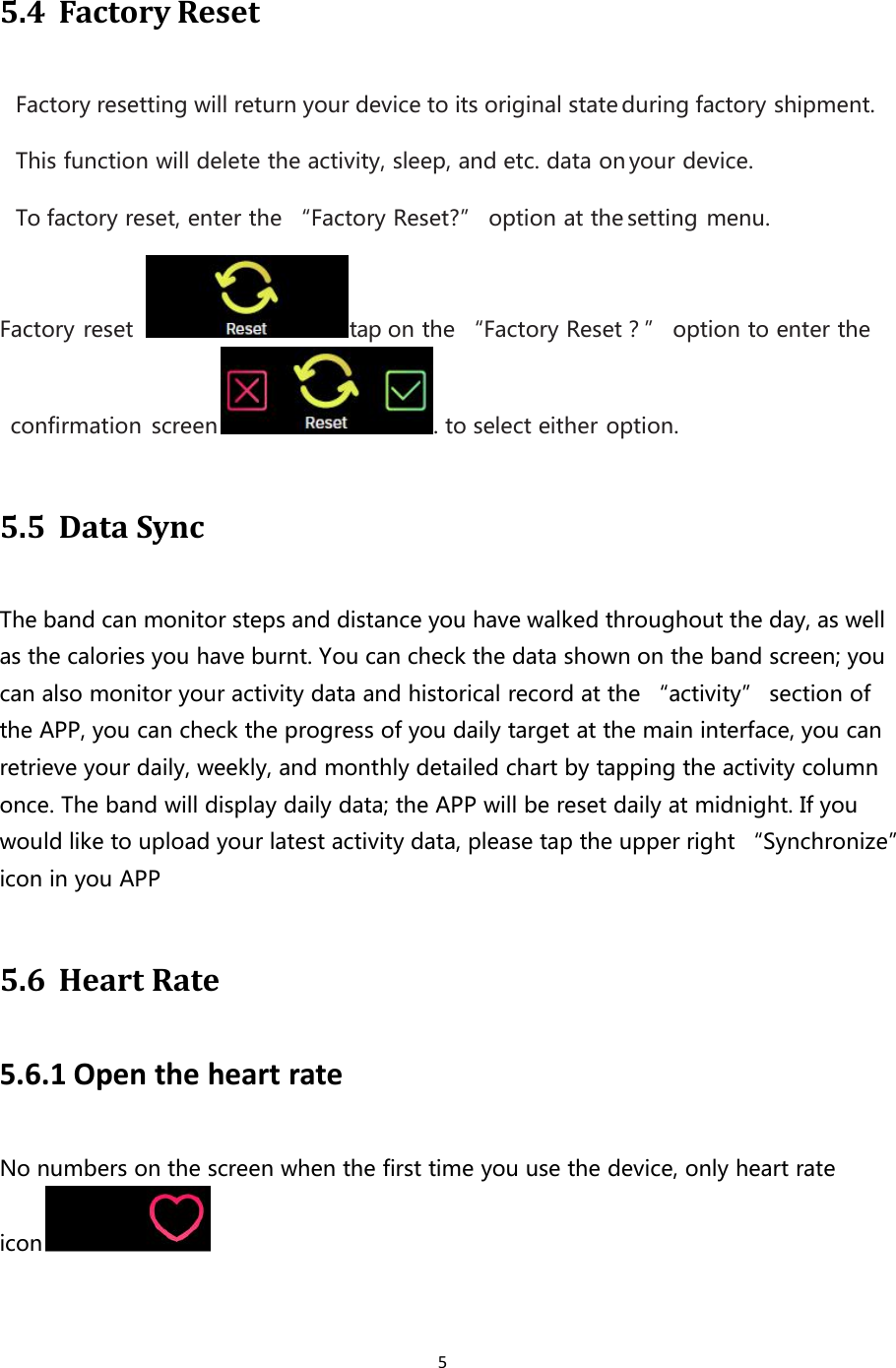

55.4 Factory ResetFactory resetting will return your device to its original state during factory shipment.This function will delete the activity, sleep, and etc. data on your device.To factory reset, enter the “Factory Reset?” option at the setting menu.Factory reset tap on the “Factory Reset？” option to enter theconfirmation screen . to select either option.5.5 Data SyncThe band can monitor steps and distance you have walked throughout the day, as wellas the calories you have burnt. You can check the data shown on the band screen; youcan also monitor your activity data and historical record at the “activity” section ofthe APP, you can check the progress of you daily target at the main interface, you canretrieve your daily, weekly, and monthly detailed chart by tapping the activity columnonce. The band will display daily data; the APP will be reset daily at midnight. If youwould like to upload your latest activity data, please tap the upper right “Synchronize”icon in you APP5.6 Heart Rate5.6.1 Open the heart rateNo numbers on the screen when the first time you use the device, only heart rateicon

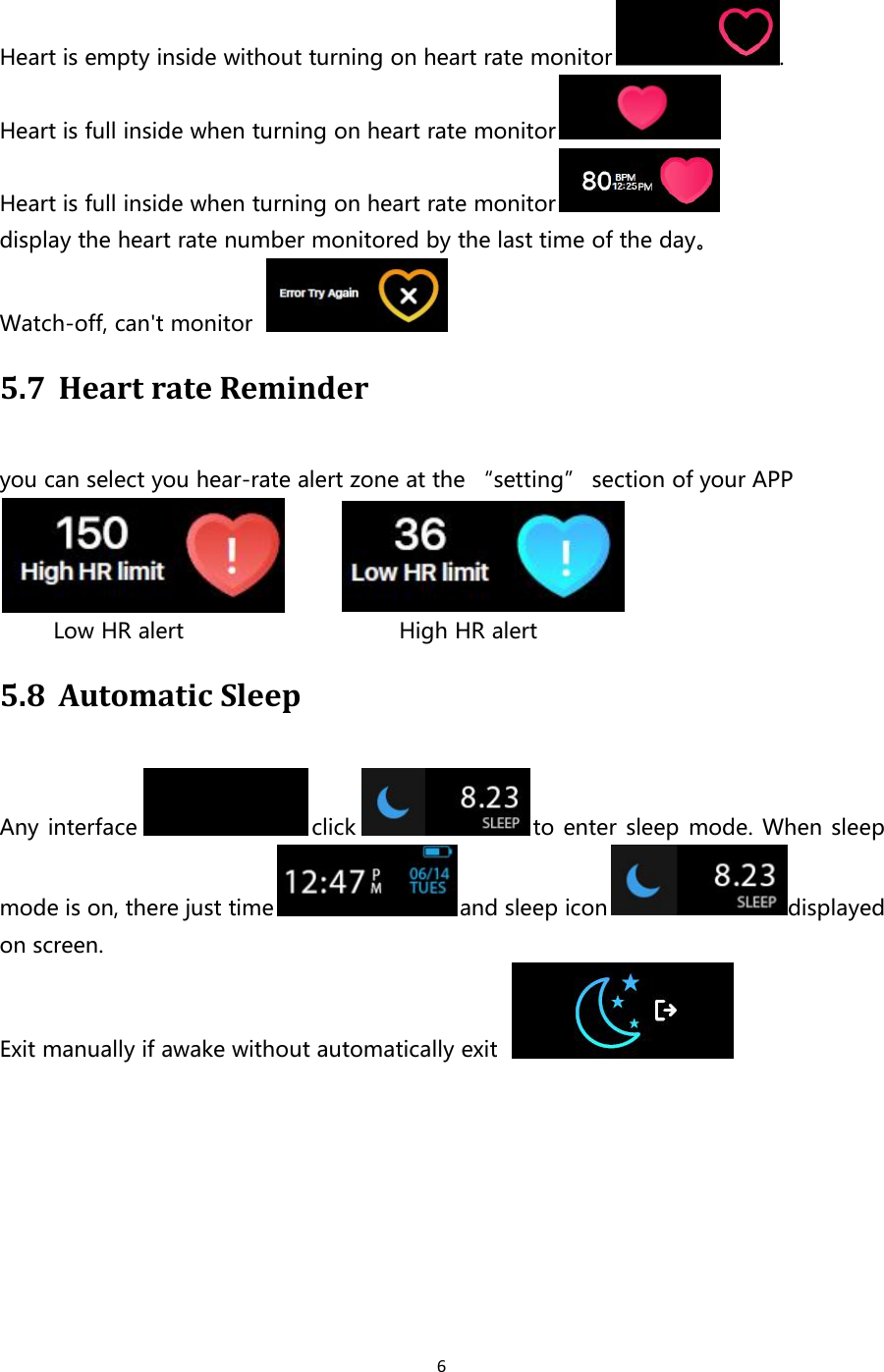

6Heart is empty inside without turning on heart rate monitor .Heart is full inside when turning on heart rate monitorHeart is full inside when turning on heart rate monitordisplay the heart rate number monitored by the last time of the day。Watch-off, can't monitor5.7 Heart rate Reminderyou can select you hear-rate alert zone at the “setting” section of your APPLow HR alert High HR alert5.8 Automatic SleepAny interface click to enter sleep mode. When sleepmode is on, there just time and sleep icon displayedon screen.Exit manually if awake without automatically exit

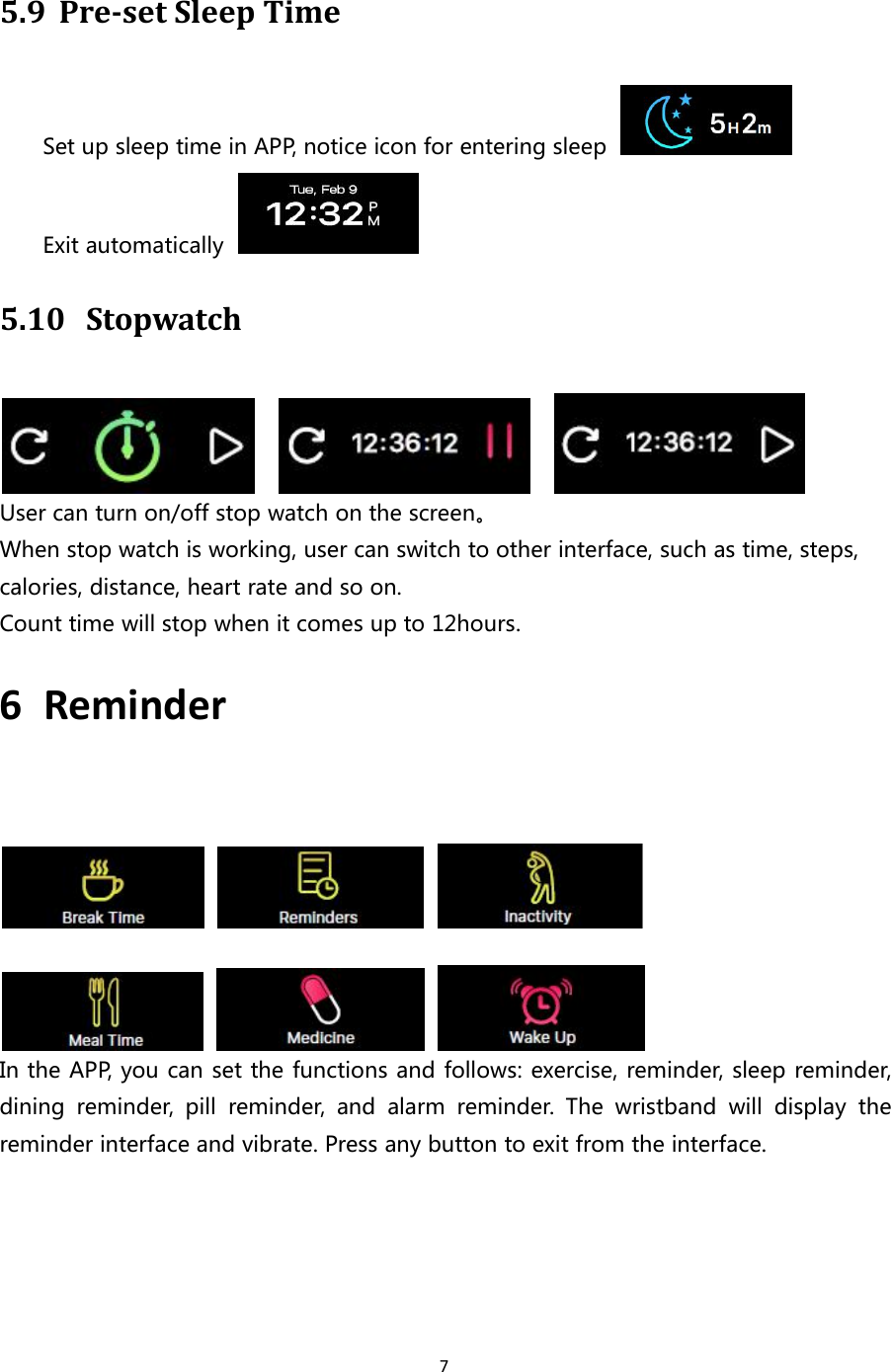

75.9 Pre-set Sleep TimeSet up sleep time in APP, notice icon for entering sleepExit automatically5.10 StopwatchUser can turn on/off stop watch on the screen。When stop watch is working, user can switch to other interface, such as time, steps,calories, distance, heart rate and so on.Count time will stop when it comes up to 12hours.6 ReminderIn the APP, you can set the functions and follows: exercise, reminder, sleep reminder,dining reminder, pill reminder, and alarm reminder. The wristband will display thereminder interface and vibrate. Press any button to exit from the interface.

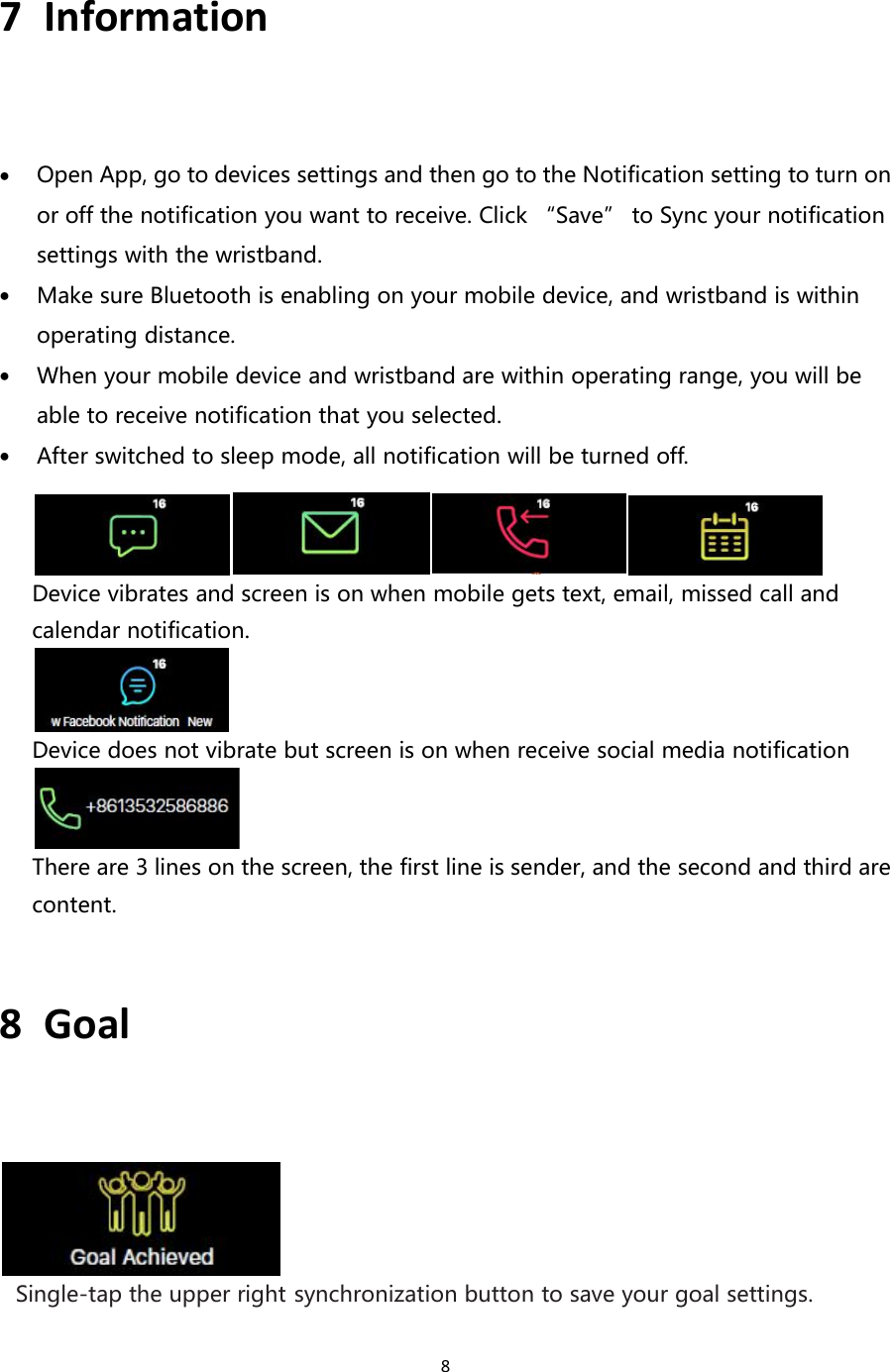

87 InformationOpen App, go to devices settings and then go to the Notification setting to turn onor off the notification you want to receive. Click “Save” to Sync your notificationsettings with the wristband.Make sure Bluetooth is enabling on your mobile device, and wristband is withinoperating distance.When your mobile device and wristband are within operating range, you will beable to receive notification that you selected.After switched to sleep mode, all notification will be turned off.Device vibrates and screen is on when mobile gets text, email, missed call andcalendar notification.Device does not vibrate but screen is on when receive social media notificationThere are 3 lines on the screen, the first line is sender, and the second and third arecontent.8 GoalSingle-tap the upper right synchronization button to save your goal settings.

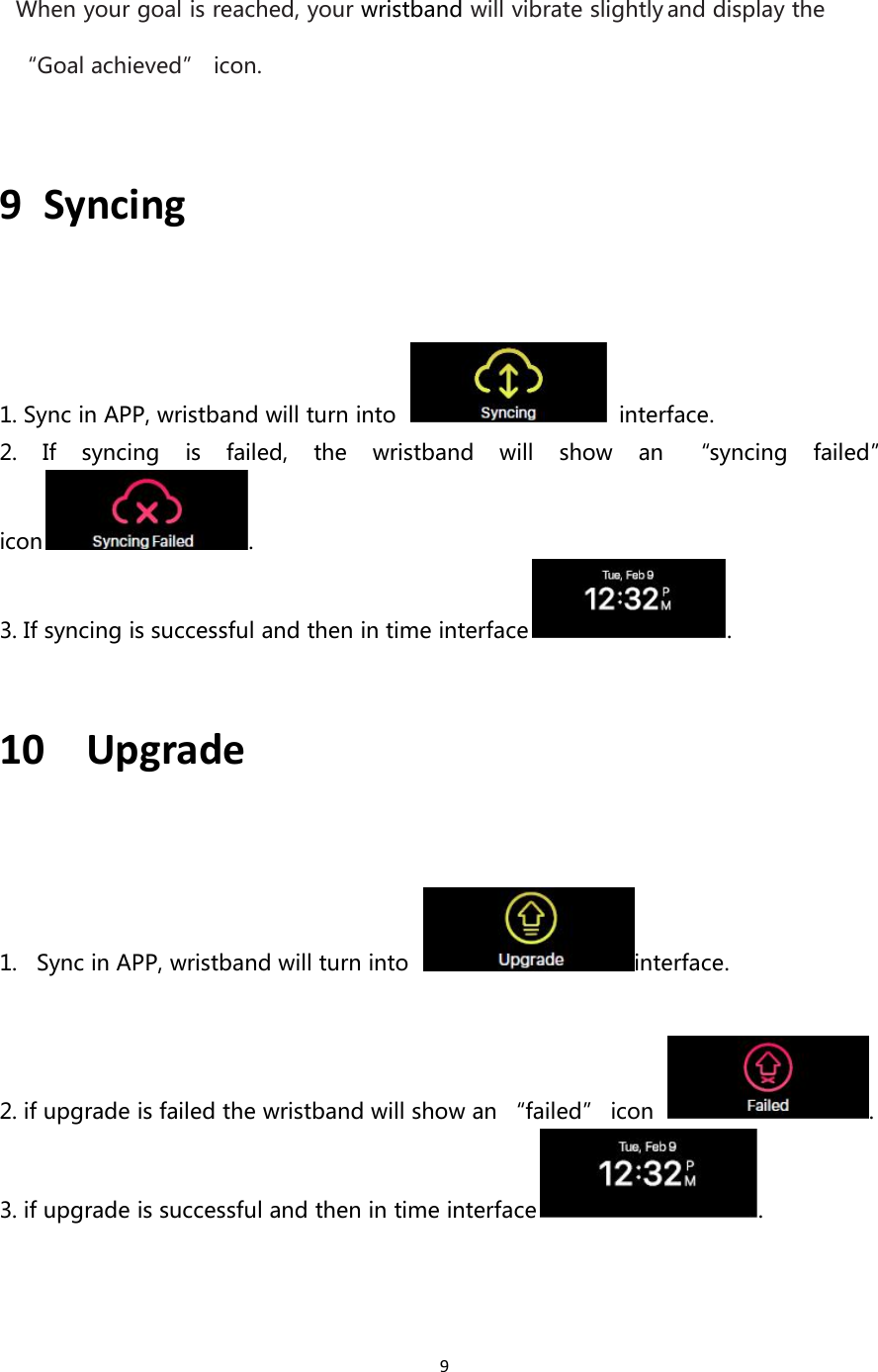

9When your goal is reached, your wristband will vibrate slightly and display the“Goal achieved” icon.9 Syncing1. Sync in APP, wristband will turn into interface.2. If syncing is failed, the wristband will show an “syncing failed”icon .3. If syncing is successful and then in time interface .10 Upgrade1. Sync in APP, wristband will turn into interface.2. if upgrade is failed the wristband will show an “failed” icon .3. if upgrade is successful and then in time interface .

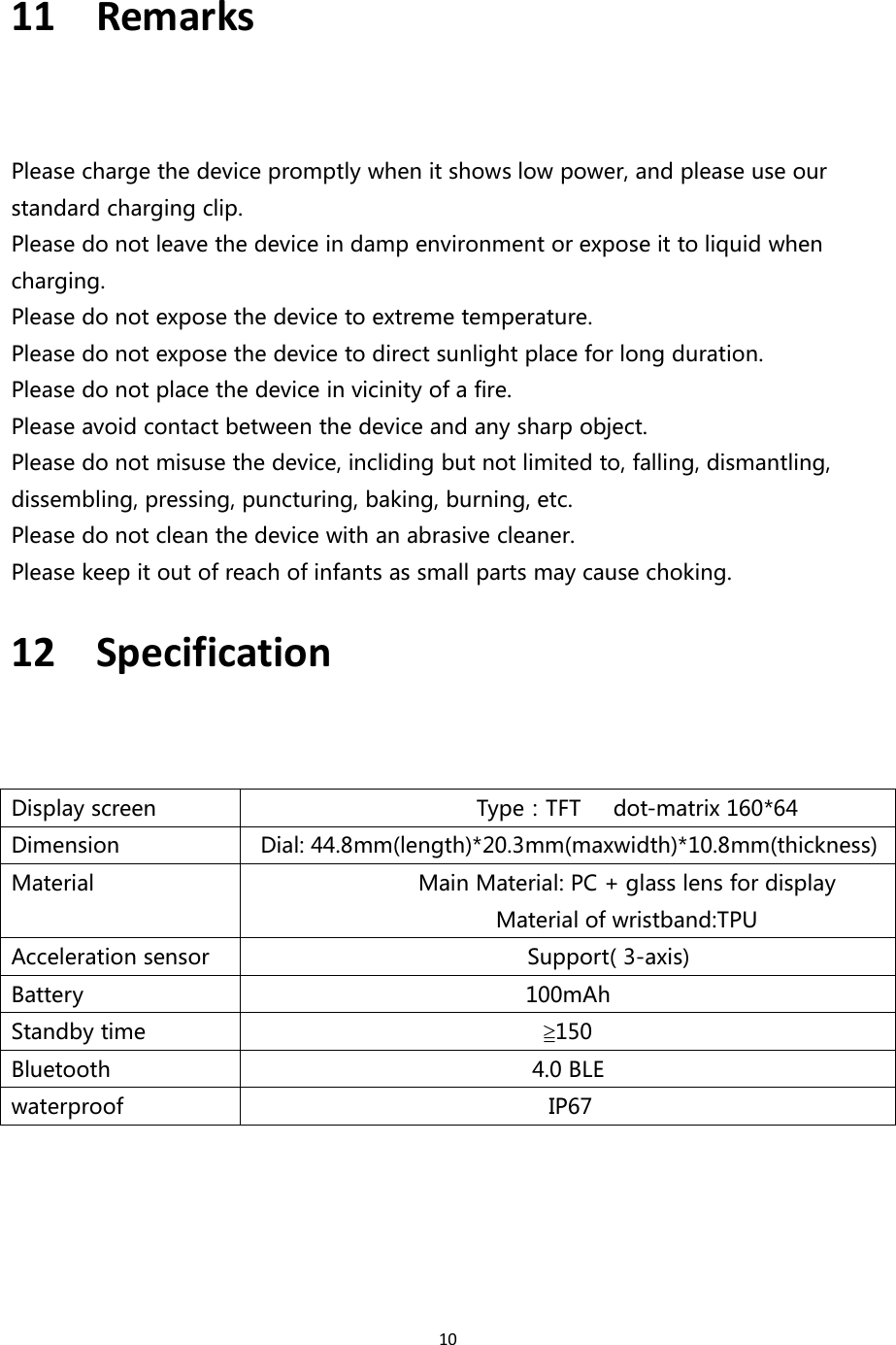

1011 RemarksPlease charge the device promptly when it shows low power, and please use ourstandard charging clip.Please do not leave the device in damp environment or expose it to liquid whencharging.Please do not expose the device to extreme temperature.Please do not expose the device to direct sunlight place for long duration.Please do not place the device in vicinity of a fire.Please avoid contact between the device and any sharp object.Please do not misuse the device, incliding but not limited to, falling, dismantling,dissembling, pressing, puncturing, baking, burning, etc.Please do not clean the device with an abrasive cleaner.Please keep it out of reach of infants as small parts may cause choking.12 SpecificationDisplay screenType：TFT dot-matrix 160*64DimensionDial: 44.8mm(length)*20.3mm(maxwidth)*10.8mm(thickness)MaterialMain Material: PC + glass lens for displayMaterial of wristband:TPUAcceleration sensorSupport( 3-axis)Battery100mAhStandby time≧150Bluetooth4.0 BLEwaterproofIP67

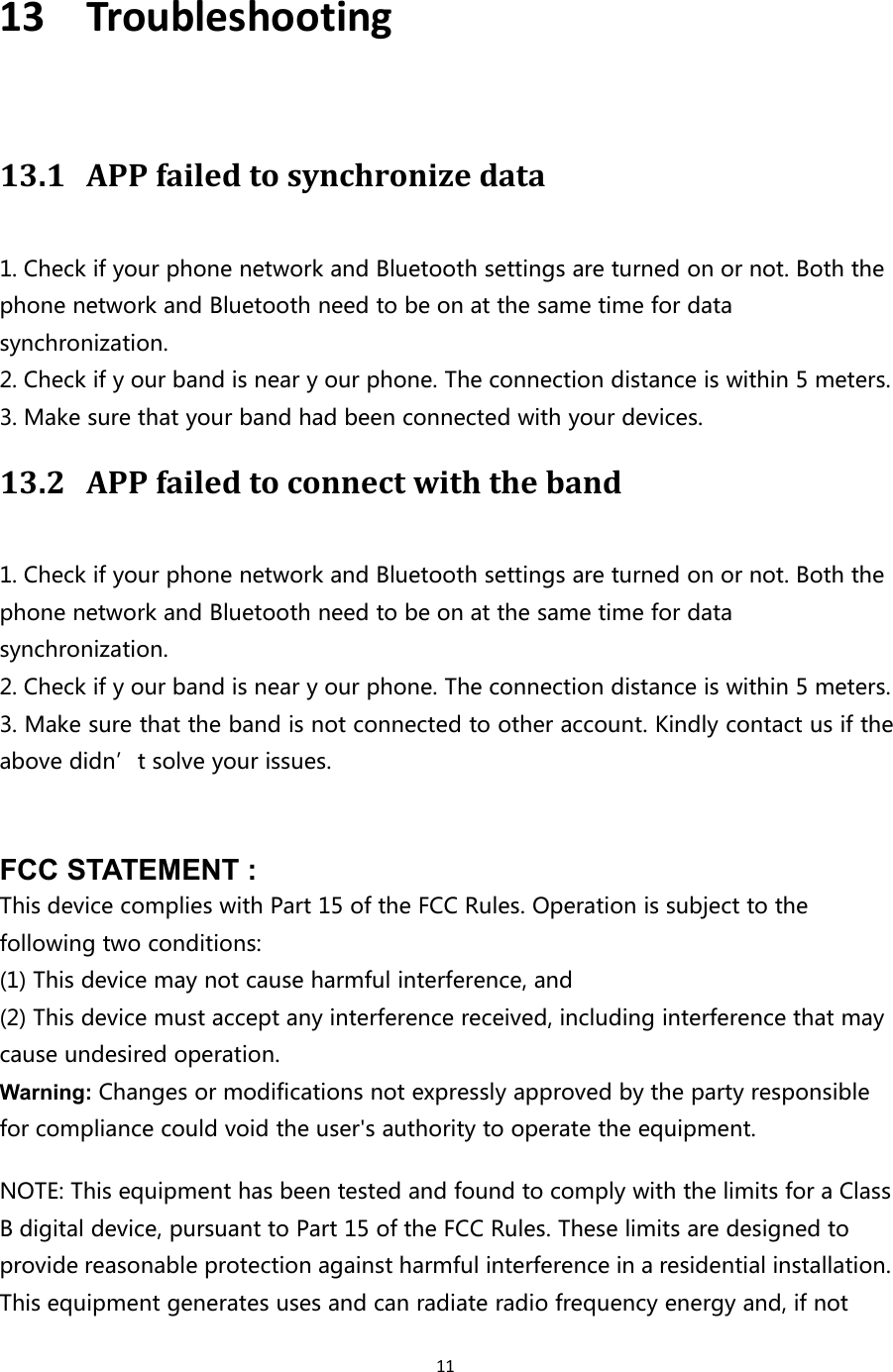

1113 Troubleshooting13.1 APP failed to synchronize data1. Check if your phone network and Bluetooth settings are turned on or not. Both thephone network and Bluetooth need to be on at the same time for datasynchronization.2. Check if y our band is near y our phone. The connection distance is within 5 meters.3. Make sure that your band had been connected with your devices.13.2 APP failed to connect with the band1. Check if your phone network and Bluetooth settings are turned on or not. Both thephone network and Bluetooth need to be on at the same time for datasynchronization.2. Check if y our band is near y our phone. The connection distance is within 5 meters.3. Make sure that the band is not connected to other account. Kindly contact us if theabove didn’t solve your issues.FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that maycause undesired operation.Warning: Changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not

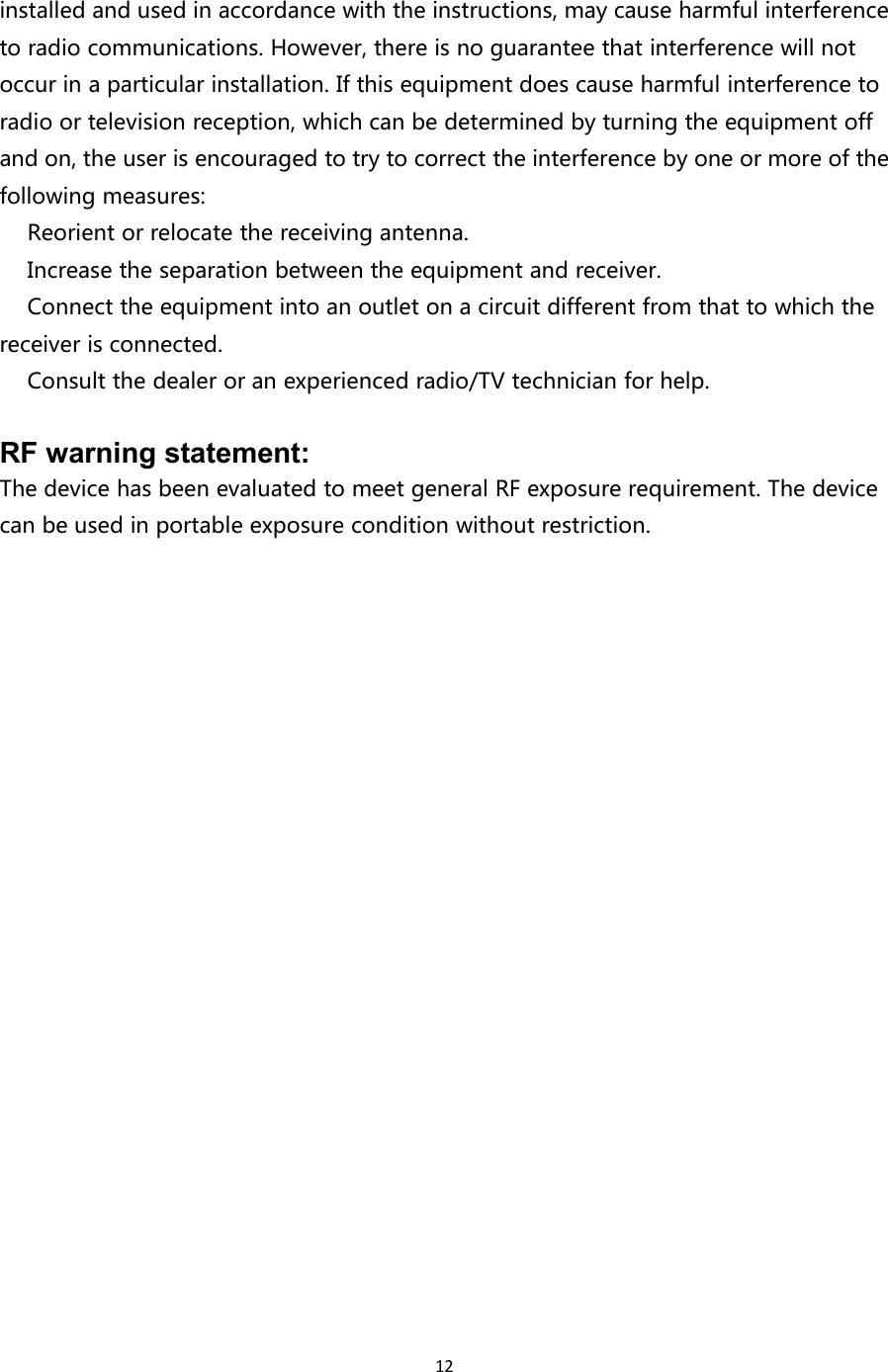

12installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposure requirement. The devicecan be used in portable exposure condition without restriction.
