3e Technologies International, Inc. 802.11b Access Point Users Guide

Contents

Users Guide

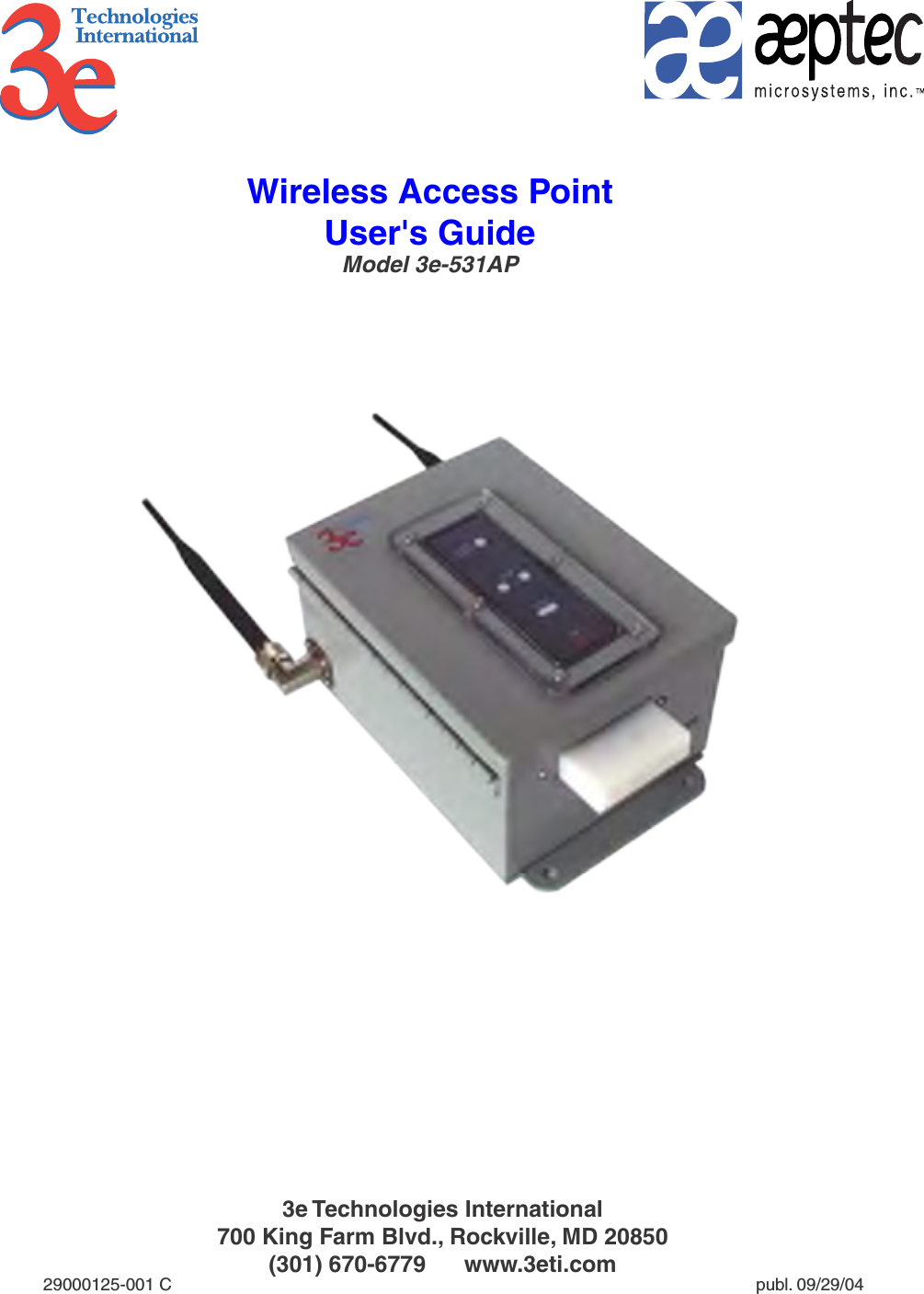

Wireless Access PointUser's GuideModel 3e-531AP 3e Technologies International700 King Farm Blvd., Rockville, MD 20850(301) 670-6779      www.3eti.com29000125-001 C                                                            publ. 09/29/04
This page intentionally left blank.

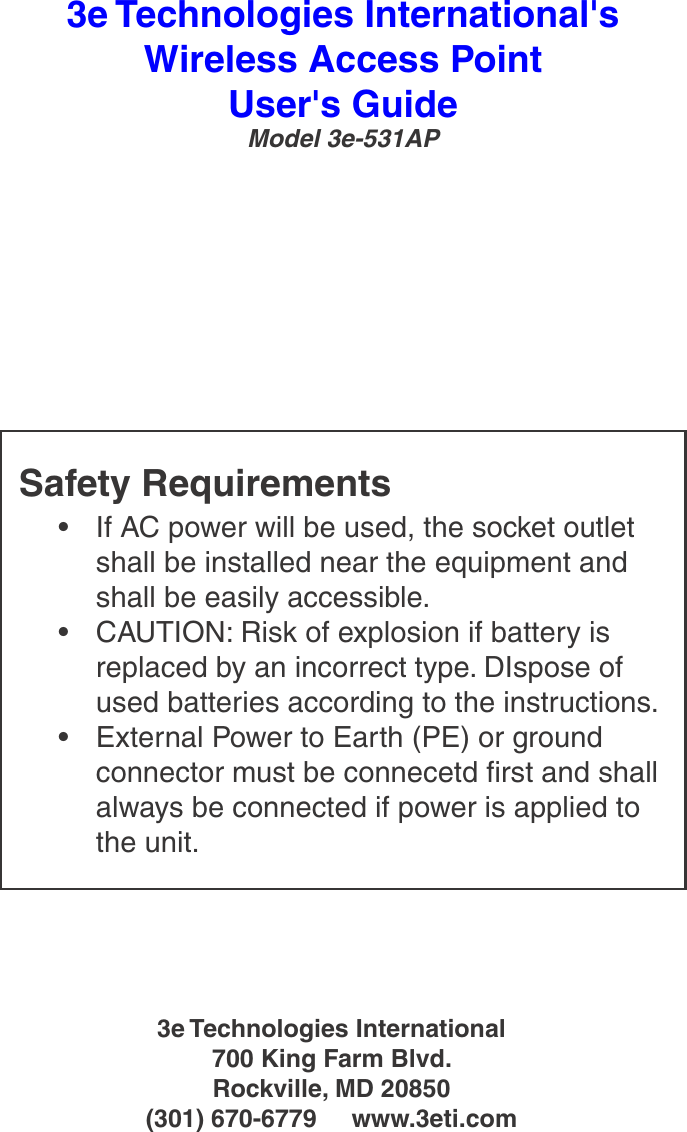

3e Technologies International'sWireless Access PointUser's GuideModel 3e-531AP3e Technologies International700 King Farm Blvd.Rockville, MD 20850  (301) 670-6779     www.3eti.comSafety Requirements•  If AC power will be used, the socket outlet shall be installed near the equipment and shall be easily accessible.•  CAUTION: Risk of explosion if battery is replaced by an incorrect type. DIspose of used batteries according to the instructions.•  External Power to Earth (PE) or ground connector must be connecetd rst and shall always be connected if power is applied to the unit.

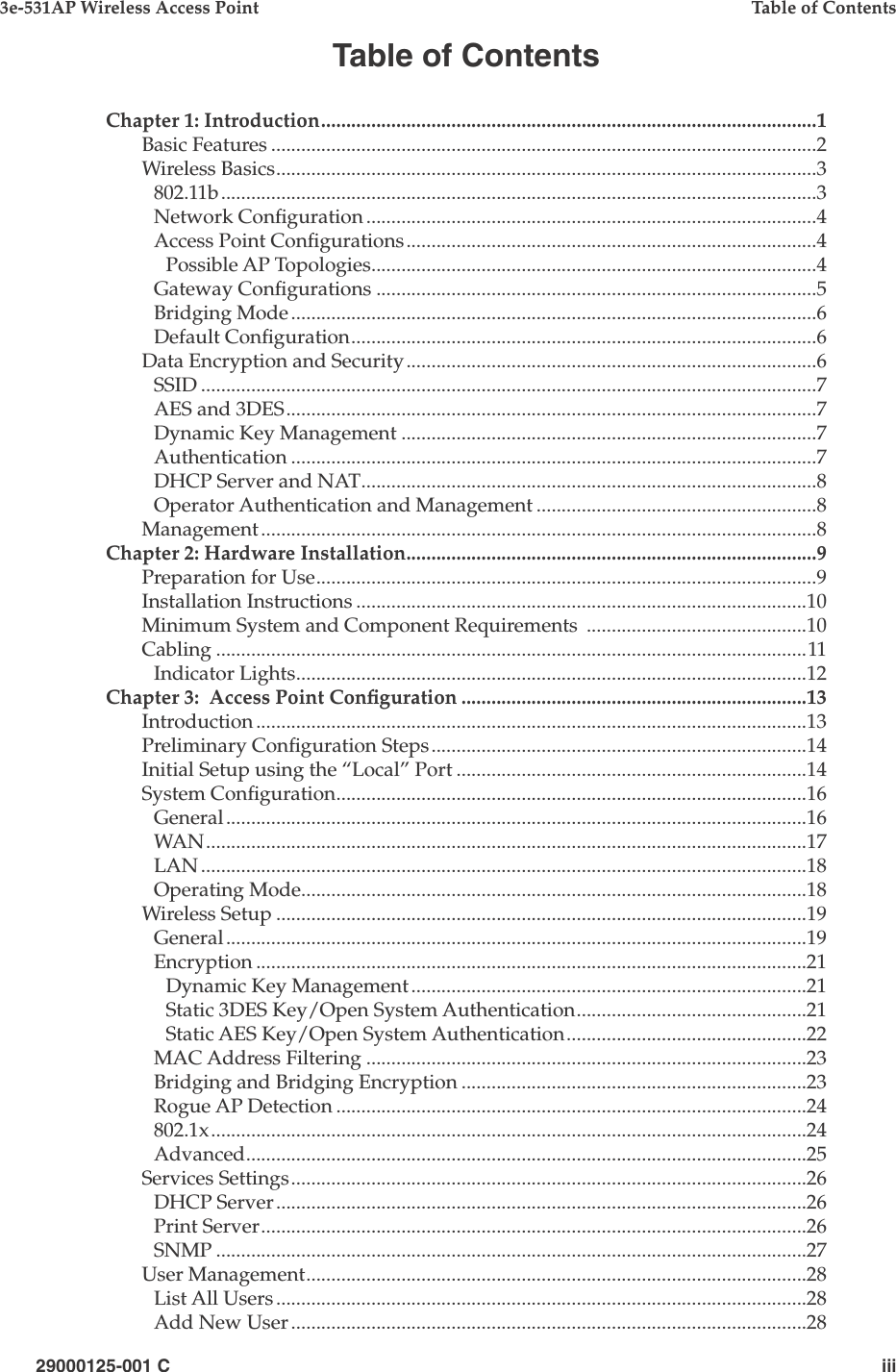

29000125-001 C  iii3e-531AP Wireless Access Point  Table of ContentsCopyright © 2004 3e Technologies International. All rights reserved. No part of this documentation may be reproduced in any form or by any means or to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3e Technologies International.3e Technologies International reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3e Technologies International to provide notication of such revision or change.3e Technologies International provides this documentation without warranty, term or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms, or conditions of merchantability, satisfactory quality, and tness for a particular purpose. 3e Technologies International may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.If there is any software or removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the printed documentation, or on the removable media in a readable le such as license.txt or the like. If you are unable to locate a copy of the license, contact 3e Technologies International and a copy will be provided to you.___________________________________UNITED STATES GOVERNMENT LEGENDIf you are a United States Government agency, then this documentation and the product described herein are provided to you subject to the following:All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as dened in DFARS 252.227-7014 (June 1995) or as a “commercial item” as dened in FAR 2.101(a) and as such is provided with only such rights as are provided in 3e Technologies International’s standard commercial license for the software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.___________________________________3e Technologies International and the 3e Technologies International logo are registered trademarks.Windows is a registered trademark of Microsoft Corporation. Palm and Palm OS are registered trademarks of Palm, Inc. PRISM is a registered trademark of Intersil Corporation. Samsung, CC&C and Senao are registered trademarkes of their companies respectively.Any other company and product name mentioned herein is a trademark of the respective company with which they are associated.EXPORT RESTRICTIONSThis 3e Technologies International product contains encryption and may require U.S. and/or local government authorization prior to export to another country.
29000125-001 C  iii3e-531AP Wireless Access Point  Table of ContentsTable of ContentsChapter 1: Introduction...................................................................................................1Basic Features .............................................................................................................2Wireless Basics............................................................................................................3802.11b.......................................................................................................................3Network Conguration ..........................................................................................4Access Point Congurations..................................................................................4Possible AP Topologies.........................................................................................4Gateway Congurations ........................................................................................5Bridging Mode.........................................................................................................6Default Conguration.............................................................................................6Data Encryption and Security..................................................................................6SSID ...........................................................................................................................7AES and 3DES..........................................................................................................7Dynamic Key Management ...................................................................................7Authentication .........................................................................................................7DHCP Server and NAT...........................................................................................8Operator Authentication and Management ........................................................8Management...............................................................................................................8Chapter 2: Hardware Installation..................................................................................9Preparation for Use....................................................................................................9Installation Instructions ..........................................................................................10Minimum System and Component Requirements  ............................................10Cabling ......................................................................................................................11Indicator Lights......................................................................................................12Chapter 3:  Access Point Conguration .....................................................................13Introduction ..............................................................................................................13Preliminary Conguration Steps...........................................................................14Initial Setup using the “Local” Port ......................................................................14System Conguration..............................................................................................16General....................................................................................................................16WAN........................................................................................................................17LAN .........................................................................................................................18Operating Mode.....................................................................................................18Wireless Setup ..........................................................................................................19General....................................................................................................................19Encryption ..............................................................................................................21Dynamic Key Management...............................................................................21Static 3DES Key/Open System Authentication..............................................21Static AES Key/Open System Authentication................................................22MAC Address Filtering ........................................................................................23Bridging and Bridging Encryption .....................................................................23Rogue AP Detection ..............................................................................................24802.1x.......................................................................................................................24Advanced................................................................................................................25Services Settings.......................................................................................................26DHCP Server..........................................................................................................26Print Server.............................................................................................................26SNMP ......................................................................................................................27User Management....................................................................................................28List All Users ..........................................................................................................28Add New User .......................................................................................................28

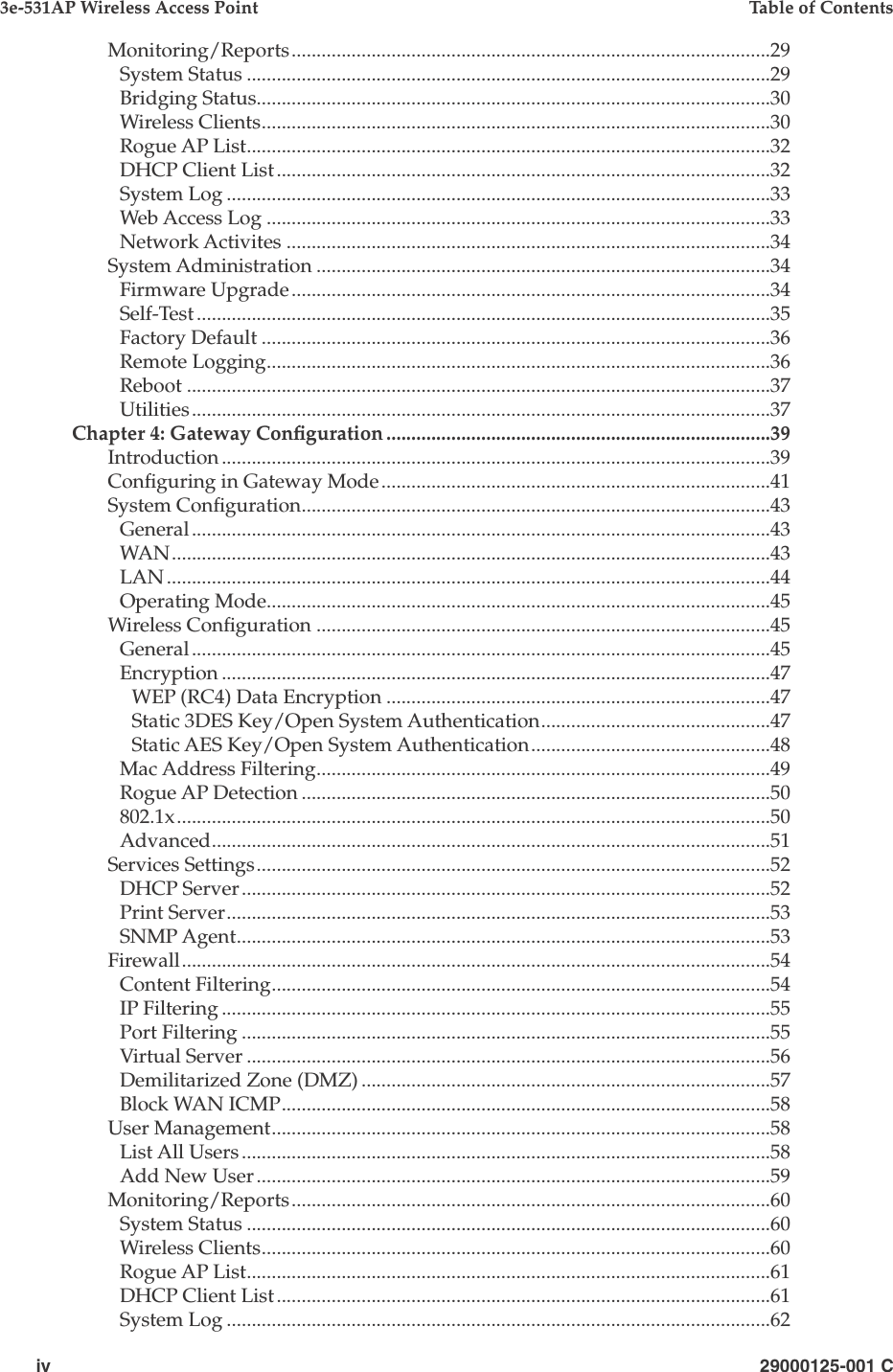

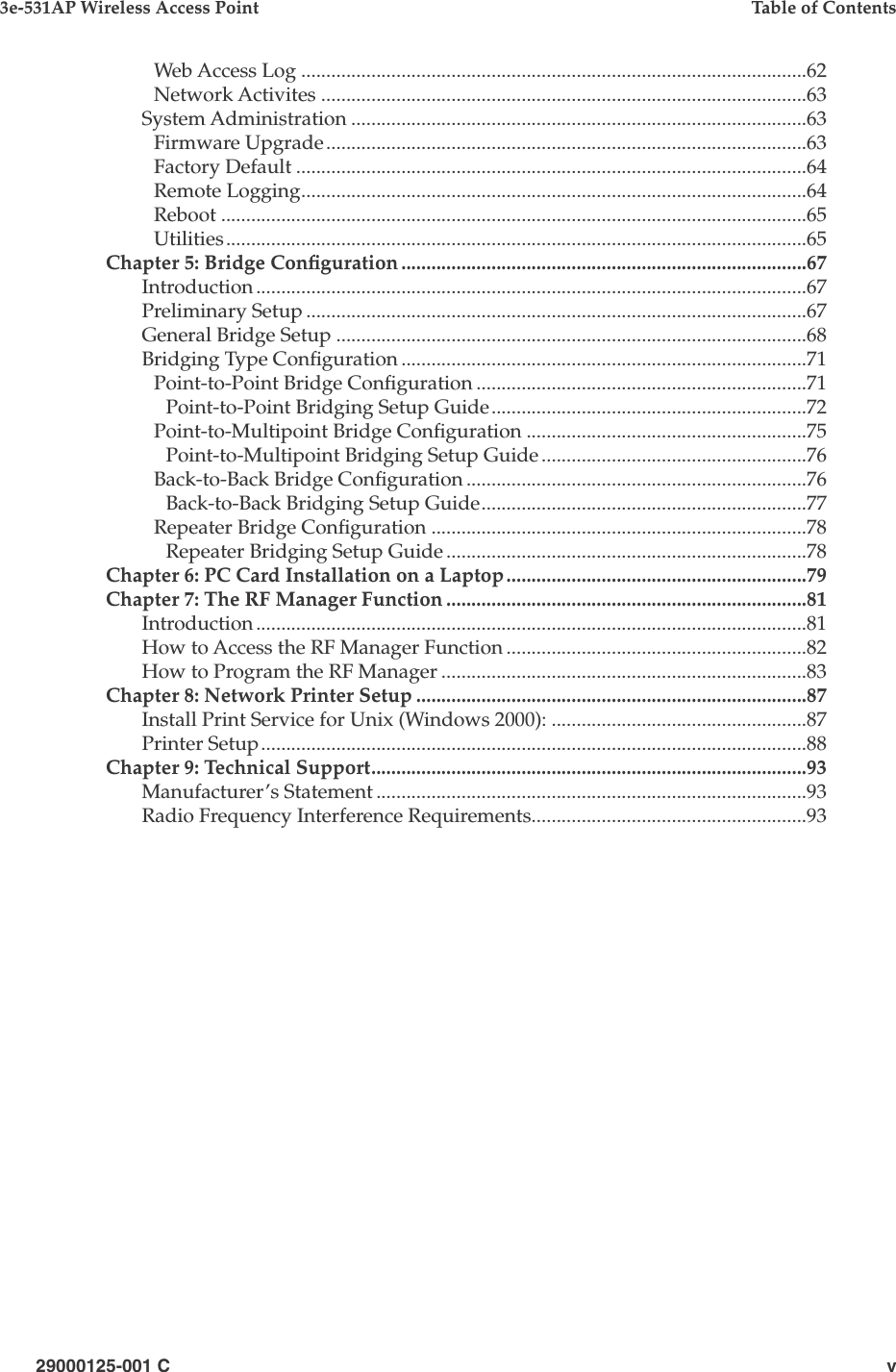

iv  29000125-001 C29000125-001 C  v3e-531AP Wireless Access Point  Table of Contents3e-531AP Wireless Access Point  Table of ContentsMonitoring/Reports................................................................................................29System Status .........................................................................................................29Bridging Status.......................................................................................................30Wireless Clients......................................................................................................30Rogue AP List.........................................................................................................32DHCP Client List...................................................................................................32System Log .............................................................................................................33Web Access Log .....................................................................................................33Network Activites .................................................................................................34System Administration ...........................................................................................34Firmware Upgrade................................................................................................34Self-Test ...................................................................................................................35Factory Default ......................................................................................................36Remote Logging.....................................................................................................36Reboot .....................................................................................................................37Utilities....................................................................................................................37Chapter 4: Gateway Conguration .............................................................................39Introduction ..............................................................................................................39Conguring in Gateway Mode..............................................................................41System Conguration..............................................................................................43General....................................................................................................................43WAN........................................................................................................................43LAN .........................................................................................................................44Operating Mode.....................................................................................................45Wireless Conguration ...........................................................................................45General....................................................................................................................45Encryption ..............................................................................................................47WEP (RC4) Data Encryption .............................................................................47Static 3DES Key/Open System Authentication..............................................47Static AES Key/Open System Authentication................................................48Mac Address Filtering...........................................................................................49Rogue AP Detection ..............................................................................................50802.1x.......................................................................................................................50Advanced................................................................................................................51Services Settings.......................................................................................................52DHCP Server..........................................................................................................52Print Server.............................................................................................................53SNMP Agent...........................................................................................................53Firewall......................................................................................................................54Content Filtering....................................................................................................54IP Filtering ..............................................................................................................55Port Filtering ..........................................................................................................55Virtual Server .........................................................................................................56Demilitarized Zone (DMZ) ..................................................................................57Block WAN ICMP..................................................................................................58User Management....................................................................................................58List All Users ..........................................................................................................58Add New User .......................................................................................................59Monitoring/Reports................................................................................................60System Status .........................................................................................................60Wireless Clients......................................................................................................60Rogue AP List.........................................................................................................61DHCP Client List...................................................................................................61System Log .............................................................................................................62
iv  29000125-001 C29000125-001 C  v3e-531AP Wireless Access Point  Table of Contents3e-531AP Wireless Access Point  Table of ContentsWeb Access Log .....................................................................................................62Network Activites .................................................................................................63System Administration ...........................................................................................63Firmware Upgrade................................................................................................63Factory Default ......................................................................................................64Remote Logging.....................................................................................................64Reboot .....................................................................................................................65Utilities....................................................................................................................65Chapter 5: Bridge Conguration .................................................................................67Introduction ..............................................................................................................67Preliminary Setup ....................................................................................................67General Bridge Setup ..............................................................................................68Bridging Type Conguration .................................................................................71Point-to-Point Bridge Conguration ..................................................................71Point-to-Point Bridging Setup Guide...............................................................72Point-to-Multipoint Bridge Conguration ........................................................75Point-to-Multipoint Bridging Setup Guide .....................................................76Back-to-Back Bridge Conguration ....................................................................76Back-to-Back Bridging Setup Guide.................................................................77Repeater Bridge Conguration ...........................................................................78Repeater Bridging Setup Guide ........................................................................78Chapter 6: PC Card Installation on a Laptop............................................................79Chapter 7: The RF Manager Function ........................................................................81Introduction ..............................................................................................................81How to Access the RF Manager Function ............................................................82How to Program the RF Manager .........................................................................83Chapter 8: Network Printer Setup ..............................................................................87Install Print Service for Unix (Windows 2000): ...................................................87Printer Setup.............................................................................................................88Chapter 9: Technical Support.......................................................................................93Manufacturer’s Statement ......................................................................................93Radio Frequency Interference Requirements.......................................................93
vi  29000125-001 B3e-531AP Wireless Access Point  Navigation Options3e-531AP Navigation OptionsAccess Point GatewayNot FIPS 140-2 FIPS 140-2 Not FIPS 140-2System Conguration System Conguration System CongurationGeneral General GeneralWAN WAN WANLAN LAN LANOperating Mode Operating Mode Operating ModeWireless conguration Wireless conguration Wireless congurationGeneral General GeneralEncryption Encryption EncryptionBridging BridgingMAC Address Filtering MAC Address Filtering MAC Address FilteringRogue AP detection Rogue AP detection Rogue AP detection802.1x 802.1xAdvanced Advanced AdvancedServices Settings Services Settings Services SettingsDHCP Server DHCP Server DHCP ServerPrint Server Print Server Print ServerSNMP agent SNMP agentFirewall Firewall FirewallContent FilteringIP FilteringPort FilteringVirtual ServerDMZBlock WAN IP ICMPUser Management User Management User ManagementList All Users List All Users List All UsersAdd New User Add New User Add New UserMonitoring Reports Monitoring Reports Monitoring ReportsSystem Status System Status System StatusBridging Status Bridging StatusWireless clients Wireless clients Wireless clientsRogue AP List Rogue AP List Rogue AP ListDHCP Client List DHCP Client List DHCP Client ListSystem Log System Log System LogWeb Access Log Web Access Log Web Access LogNetwork Activities Network Activities Network ActivitiesSystem Administration System Administration System AdministrationFirmware Upgrade Firmware Upgrade Firmware UpgradeSelf-TestFactory Default Factory Default Factory DefaultRemote Logging Remote LoggingReboot Reboot RebootUtilities Utilities Utilities

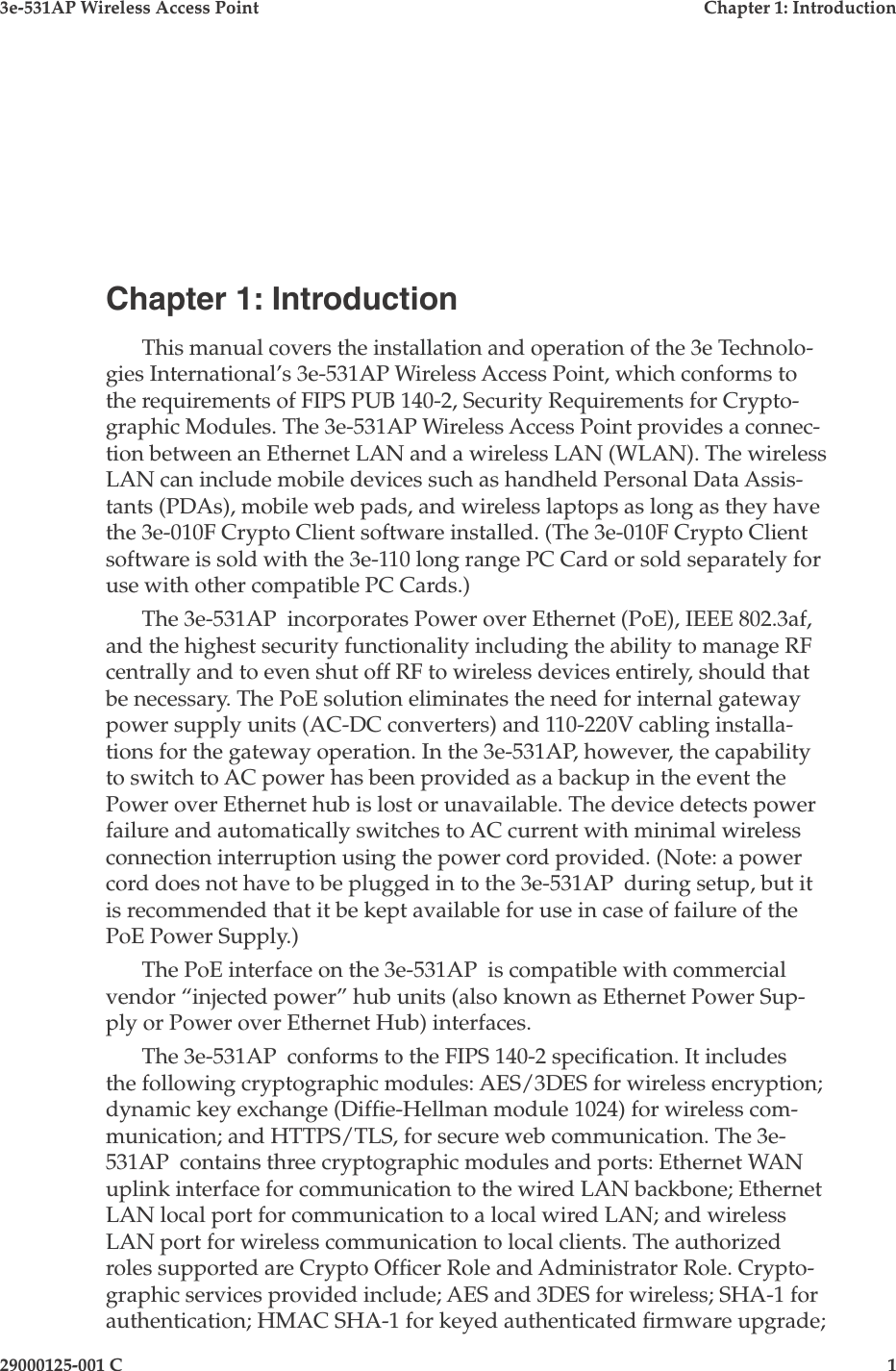

3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  1Chapter 1: IntroductionThis manual covers the installation and operation of the 3e Technolo-gies International’s 3e-531AP Wireless Access Point, which conforms to the requirements of FIPS PUB 140-2, Security Requirements for Crypto-graphic Modules. The 3e-531AP Wireless Access Point provides a connec-tion between an Ethernet LAN and a wireless LAN (WLAN). The wireless LAN can include mobile devices such as handheld Personal Data Assis-tants (PDAs), mobile web pads, and wireless laptops as long as they have the 3e-010F Crypto Client software installed. (The 3e-010F Crypto Client software is sold with the 3e-110 long range PC Card or sold separately for use with other compatible PC Cards.)The 3e-531AP  incorporates Power over Ethernet (PoE), IEEE 802.3af, and the highest security functionality including the ability to manage RF centrally and to even shut off RF to wireless devices entirely, should that be necessary. The PoE solution eliminates the need for internal gateway power supply units (AC-DC converters) and 110-220V cabling installa-tions for the gateway operation. In the 3e-531AP, however, the capability to switch to AC power has been provided as a backup in the event the Power over Ethernet hub is lost or unavailable. The device detects power failure and automatically switches to AC current with minimal wireless connection interruption using the power cord provided. (Note: a power cord does not have to be plugged in to the 3e-531AP  during setup, but it is recommended that it be kept available for use in case of failure of the PoE Power Supply.)The PoE interface on the 3e-531AP  is compatible with commercial vendor “injected power” hub units (also known as Ethernet Power Sup-ply or Power over Ethernet Hub) interfaces. The 3e-531AP  conforms to the FIPS 140-2 specication. It includes the following cryptographic modules: AES/3DES for wireless encryption; dynamic key exchange (Dife-Hellman module 1024) for wireless com-munication; and HTTPS/TLS, for secure web communication. The 3e-531AP  contains three cryptographic modules and ports: Ethernet WAN uplink interface for communication to the wired LAN backbone; Ethernet LAN local port for communication to a local wired LAN; and wireless LAN port for wireless communication to local clients. The authorized roles supported are Crypto Ofcer Role and Administrator Role. Crypto-graphic services provided include; AES and 3DES for wireless; SHA-1 for authentication; HMAC SHA-1 for keyed authenticated rmware upgrade;

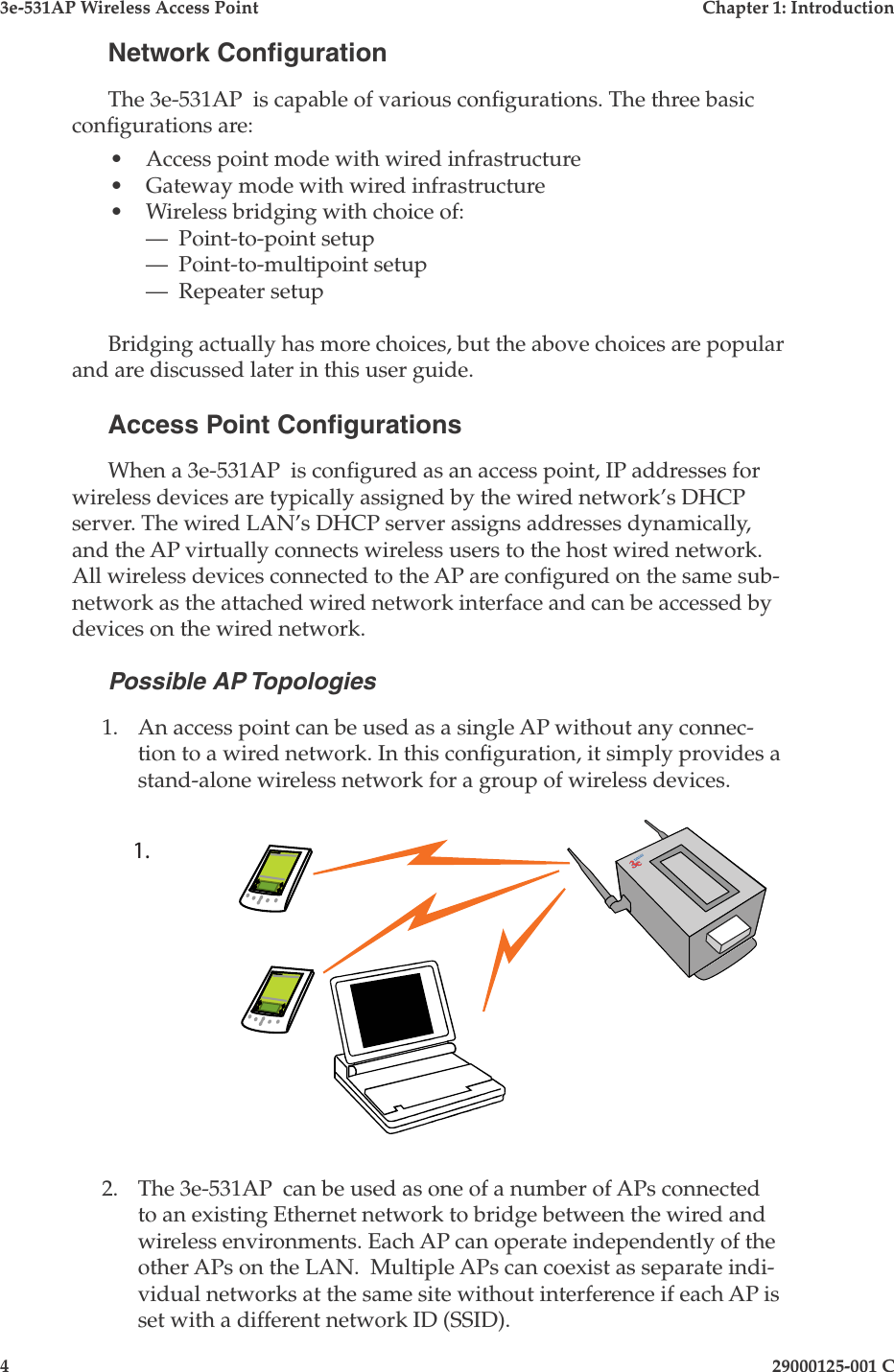

3e-531AP Wireless Access Point  Chapter 1: Introduction2  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  3Dife-Hellman Key Exchange; and HTTPS/TLS for web services via a secure link. Operator Authentication is performed by assigning operator type: Administrator can view congurations and logs, can do non-cryp-tographic functions such as assigning hostname, domain name, system date/time, TX Pwr Mode/Level and the like; the Crypto Ofcer role has total access and control and can perform cryptographic initialization or management functions such as module initialization, input or output of cryptographic keys and CSPs, and audit functions.The 3e-531AP  is wall-mountable and physically sealed with special tape for physical security. Violation of the unit's integrity will cause the unit to fail and display an Error State alarm, requiring reboot.Basic FeaturesThe 3e-531AP  is housed in a sturdy case which is not meant to be opened except by an authorized technician for maintenance or repair. The unit should work without fail. If you wish to reset to factory settings, use the reset function available through the web-screen management module.It has the following features:•  Local Ethernet LAN•  Ethernet uplink WAN•  Wireless (802.11b) interface with operating range of 2000+ feet•  AES/3DES encryption•  HTTPS/TLS secure Web•  802.1x/EAP-TLS•  Sealed cover with tamper-proof tape•  DHCP client/sever•  Firewall•  NAT•  Bridging Mode•  Repeater Mode•  Adjustable Radio Power•  MAC address ltering   The following cryptographic modules have been implemented in the 3e-531AP.•  AES for wireless (802.11b)•  3DES for wireless (802.11b)•  802.1x/EAP-TLS for authentication•  SHA-1•  HMAC SHA-1 for rmware upgrade
3e-531AP Wireless Access Point  Chapter 1: Introduction2  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  3Wireless BasicsWireless networking uses electromagnetic radio frequency waves to transmit and receive data. Communication occurs by establishing radio links between the wireless gateway and devices congured to be part of the WLAN.The 3e-531AP  incorporates the 802.11b (Wi-Fi) standard and the most state of the art encryption for a very powerful and secure wireless envi-ronment. 802.11bThe IEEE 802.11b standard, developed by the Wireless Ethernet Compatibility Alliance (WECA), establishes a stable standard. A user with an 802.11b product can use any brand of gateway/access point with any other brand of client hardware that is built to the 802.11b standard for ba-sic interconnection. 802.11b devices provide 11 Mbps transmission (with a fallback to 5.5, 2 and 1 Mbps depending on signal strength) in the 2.4 GHz band. 802.11b uses DSSS (direct-sequence spread spectrum) for radio com-munication. Direct-sequence systems communicate by continuously transmitting a redundant pattern of bits called a chipping sequence. The chipping sequence is combined with a transmitted data stream to produce the wireless output signal. For wireless devices to communicate with the 3e-531AP, they must meet the following conditions:•  The signal strength must be sufcient;•  The wireless device and wireless gateway must have been cong-ured to recognize each other using the SSID (a unique ID assigned in setup so that the wireless device is seen to be part of the net-work by the 3e-531AP);•  Encryption and authentication capabilities and types enabled must conform;•  The wireless device and wireless gateway must have compatible data rate congurations; and•  If MAC ltering is used, the 3e-531AP  must be congured to allow the wireless device’s MAC address to associate (communi-cate) with the 3e-531AP  wireless interface.
3e-531AP Wireless Access Point  Chapter 1: Introduction4  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  5Network CongurationThe 3e-531AP  is capable of various congurations. The three basic congurations are:•  Access point mode with wired infrastructure •  Gateway mode with wired infrastructure•  Wireless bridging with choice of:  —  Point-to-point setup  —  Point-to-multipoint setup  —  Repeater setupBridging actually has more choices, but the above choices are popular and are discussed later in this user guide.Access Point CongurationsWhen a 3e-531AP  is congured as an access point, IP addresses for wireless devices are typically assigned by the wired network’s DHCP server. The wired LAN’s DHCP server assigns addresses dynamically, and the AP virtually connects wireless users to the host wired network. All wireless devices connected to the AP are congured on the same sub-network as the attached wired network interface and can be accessed by devices on the wired network. Possible AP Topologies1.   An access point can be used as a single AP without any connec-tion to a wired network. In this conguration, it simply provides a stand-alone wireless network for a group of wireless devices. 2.   The 3e-531AP  can be used as one of a number of APs connected to an existing Ethernet network to bridge between the wired and wireless environments. Each AP can operate independently of the other APs on the LAN.  Multiple APs can coexist as separate indi-vidual networks at the same site without interference if each AP is set with a different network ID (SSID).
3e-531AP Wireless Access Point  Chapter 1: Introduction4  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  5    3.   And lastly, multiple APs connected to a wired network and operat-ing off that network’s DHCP server can provide a wider coverage area for wireless devices, enabling the devices to “roam” freely about the entire site. Gateway CongurationsIn gateway mode, wireless users are provided additional rewall protection from the rest of the industrial or shipboard network or Internet using Network Address Translation (NAT) protocol features and rewall options.Wireless users can still communicate with the wired network resourc-es but communication must be initiated by the wireless devices. Using the NAT protocol, the only IP address visible to the wired network is that of the gateway itself, as assigned by the wired Ethernet DHCP server. The gateway provides rewall protection to its wireless users. It can dynami-cally assign private addresses to member devices using its own internal DHCP server. It acts as a router, not a bridge, and controls trafc ow and access control between the wired and wireless networks.
3e-531AP Wireless Access Point  Chapter 1: Introduction6  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  7     Alternately, if you wish, the network administrator can assign static addresses to the member wireless devices. In order to set static addresses, the system administrator will need to manually congure the TCP/IP conguration on each wireless device. Bridging ModeThe wireless bridging function in the 3e-531AP allows setup as a bridge, in a number of alternate congurations, including the following popular congurations:1.   Point-to-point bridging of 2 Ethernet Links;2.   Point-to-multipoint bridging of several Ethernet links;3.   Repeater mode (wireless client to wireless bridge.)Default CongurationBy default, the 3e-531AP  boots up in access point mode. See your network administrator or more advanced technical sections of this User’s Guide for information if the device is to be congured in gateway mode or bridging mode.Data Encryption and SecurityThe 3e-531AP  Wireless Access Point includes advanced wireless security features, including Dynamic Key Management or Static key AES or 3DES encryption. AES or 3DES and MAC Address authentication are available in the 3e-531AP  in all modes, and some level of encryption is recommended. In gateway mode, WEP encryption is an option.The incorporation of AES and 3DES brings system security up to the most stringent standards. The functionality of these two enhancements, along with a more detailed discussion of the 3e-531AP  security features, is further covered in the following paragraphs.
3e-531AP Wireless Access Point  Chapter 1: Introduction6  29000125-001 C3e-531AP Wireless Access Point  Chapter 1: Introduction29000125-001 C  7SSID The Service Set ID (SSID) is a string used to dene a common roam-ing domain among multiple wireless access points.  Different SSIDs on gateways can enable overlapping wireless networks.  The SSID can act as a basic password without which the client cannot connect to the network.  However, this is easily overridden by allowing the wireless AP to broad-cast the SSID, which means any client can associate with the AP. SSID broadcasting can be disabled in the 3e-531AP setup menus.AES and 3DESThe Advanced Encryption Standard (AES) was selected by National Institute of Standards and Technology (NIST) in October 2000 as an up-grade from the previous DES standard.  AES uses a 128-bit block cipher algorithm and encryption technique for protecting computerized infor-mation.  It has the ability to use even larger 192-bit and 256-bit keys, if necessary. AES is incorporated into all current and future models of 3e Technologies International’s series of wireless APs/gateways. 3DES is also incorporated on the 3e-531AP. 3DES is modeled on the older DES standard but encrypts data three times over. Triple-DES uses more CPU resources than AES because of the triple encryption. Dynamic Key ManagementAddition of Security Server software (3e-030, sold separately), which is congured to dynamically assign secure key access, raises the secu-rity capability to its highest level. The Security Server software operates from a remote point on the WLAN and is accessed by pointing to its IP Address in each of the 3e-531APs on the WLAN as part of the wireless encryption conguration process.AuthenticationThe MAC address, short for Media Access Control address, is a hard-ware address that uniquely identies each node of a network. In IEEE 802 networks, the Data Link Control (DLC) layer of the OSI Reference Model is divided into two sub-layers: the Logical Link Control (LLC) layer and the Media Access Control (MAC) layer. The MAC layer interfaces directly with the network media. Consequently, each type of network media requires a unique MAC address. Authentication is the process of proving a client identity. The 3e-531AP  gateways, if set up to use MC address ltering, detect an attempt to connect by a client and compare the client’s MAC address to those on a predened MAC address lter list.  Only client addresses found on the list are allowed to associate. MAC addresses are assigned and registered to each of the wireless cards used by the portable computing devices dur-ing initial setup and after physical installation of the gateways.
3e-531AP Wireless Access Point  Chapter 1: Introduction8  29000125-001 CDHCP Server and NATIn AP mode, the 3e-531AP  has a DHCP (Dynamic Host Conguration Protocol)  server function that is accessible to the LAN port. If the 3e-531AP  is set up in gateway mode, this DHCP function is available, with many rewall functions in addition, to both the LAN and WLAN ports. DHCP is a protocol for assigning dynamic IP addresses. When the 3e-531AP  is in access point mode, the DHCP function is accessible only from the local LAN port. A local LAN can be established from the LAN port and can utilize the DHCP function.If the 3e-531AP  is recongured for gateway mode, and the DHCP function is enabled, the gateway Ethernet uplink interface becomes the only visible IP address to the Ethernet network. It uses Network Address Translation (NAT) to forward packets from wireless devices as if they were coming from the one visible IP address, managing a database of in-formation in order to sort out and forward the replies to the correct client. NAT provides an additional layer of security by protecting information on the wireless LAN from direct access by the Ethernet LAN.Operator Authentication and ManagementAuthentication mechanisms may be required within a cryptographic module to authenticate an operator accessing the module and to verify that the operator is authorized to assume the requested role and perform services within that role.There are two types of operators dened:•   Crypto Ofcer: The Crypto Ofcer user has total control of the gateway. The Crypto Ofcer can congure the encryption keys and upload rmware.•   Administrator: The Administrator can view congurations and logs, can do non-cryptographic functions such as assigning host-name, domain name, system date/time, TX Pwr Mode/Level and the like. This user can reboot the gateway if it is deemed neces-sary.The Crypto Ofcer initially installs and congures the 3e-531AP  after which the password should be changed from the default password. The enclosure itself  must be physically secured.Management After initial setup, maintenance of the system and programming of security functions are performed by personnel trained in the procedure using the embedded web-based management screens. For general mainte-nance, the Administrator logon should be sufcient.The next chapter covers the basic procedure for setting up the hard-ware.
3e-531AP Wireless Access Point  Chapter 2: Hardware Installation29000125-001 C  9Chapter 2: Hardware InstallationPreparation for UseThe 3e Technologies International's 3e-531AP Wireless Access Point requires physical mounting and  installation on the site, following a prescribed placement design to ensure optimum operation and roaming. The 531AP must be professionally installed by an installer certied by the National Association of Radio and Telecommunications Engineers or equivalent institution..If the 3e-531AP's Power over Ethernet (PoE) solution is being activat-ed, it will, in addition, require the installation of a separate PoE-capable hub switch which “injects” DC current into the Cat5 cable. This injector device should have been spec’ed and installed by a wireless LAN installa-tion team. To ensure that there is no possibility of danger from contact with the injected current should anyone open the 3e-531AP enclosure, each 3e-531AP device has been tted with a safety interlock that functions as an internal circuit breaker to interrupt the ow of current when the device is opened.  The 3e-531AP package includes the following items:•  The FIPS-compliant 3e-531AP •  2 attachable 5dBi omni-directional antennas•  Documentation as PDF les (on CD-ROM)•  Installable RF Manager utility (on CD-ROM)•  Registration card•  Warranty cardThe following items are separately purchased in accordance with the exact dimensions of the network to be congured:•  Power cable with water-resistant circular connector•  Ethernet cable with special water-resistant circular con-nector
3e-531AP Wireless Access Point  Chapter 2: Hardware Installation10  29000125-001 C3e-531AP Wireless Access Point  Chapter 2: Hardware Installation29000125-001 C  11IMPORTANT NOTE: To comply with FCC RF expose compli-ance requirements, the antennas used with the 531AP must be installed with a minimum separation distance of 20 cm from all persons, and must not be co-located or operated in conjunc-tion with any other antenna or transmitter. Installation should be accom-plished using the authorized cables and/or connectors provided with the device or available from the manufacturer/distributor for use with this device. Changes or modications not expressly approved by the manufac-turer or party responsible for this FCC compliance could void the user’s authority to operate the equipment.Installation InstructionsThe 3e-531AP is intended to be installed as part of a complete wireless design solution, and, as such, the design and architecture of that solution is unique to each location and is addressed in a separate document. Prop-er installation of the wireless system will ensure that users can “roam” freely throughout the serviced location, passing transparently from node to node with no loss of service but at the same time maintaining top secu-rity on the wireless LAN. This manual deals only and specically with the single 3e-531AP de-vice as a unit. The purpose of this chapter is the description of the device and its identiable parts so that the user is sufciently familiar to interact with the physical unit. Preliminary setup information provided below is intended for information and instruction of the wireless LAN system administration personnel.It is intended, and is the philosophy of 3e Technologies International, that the user not be required to open the individual unit. Any mainte-nance required is limited to the external enclosure surface, cable connec-tions, and to the management software (as described in Chapter three, four and ve) only. A failed unit should be returned to the manufacturer for maintenance. Sites requiring emergency backup will maintain extra units of the device to interchange in case of failure.Minimum System and Component Requirements The 3e-531AP is designed to be attached to the wall or bulkhead at appropriate locations. To complete the conguration, you should have at least the following components:•  PCs with one of the following operating systems installed: Windows Windows NT 4.0, Windows 2000 or Windows XP;  •  A compatible 802.11b PC Card or  802.11b device for each computer that you wish to wirelessly connect to your wire-less network. (For wireless cards, select the 3e-110 PC Card with 3e-010F Crypto Client software (sold separately) or install the 3e-010F software with any compatible PC Card. (For maximum security and compatibility, we recommend the 3e Technologies International 3e-110 PC Card);

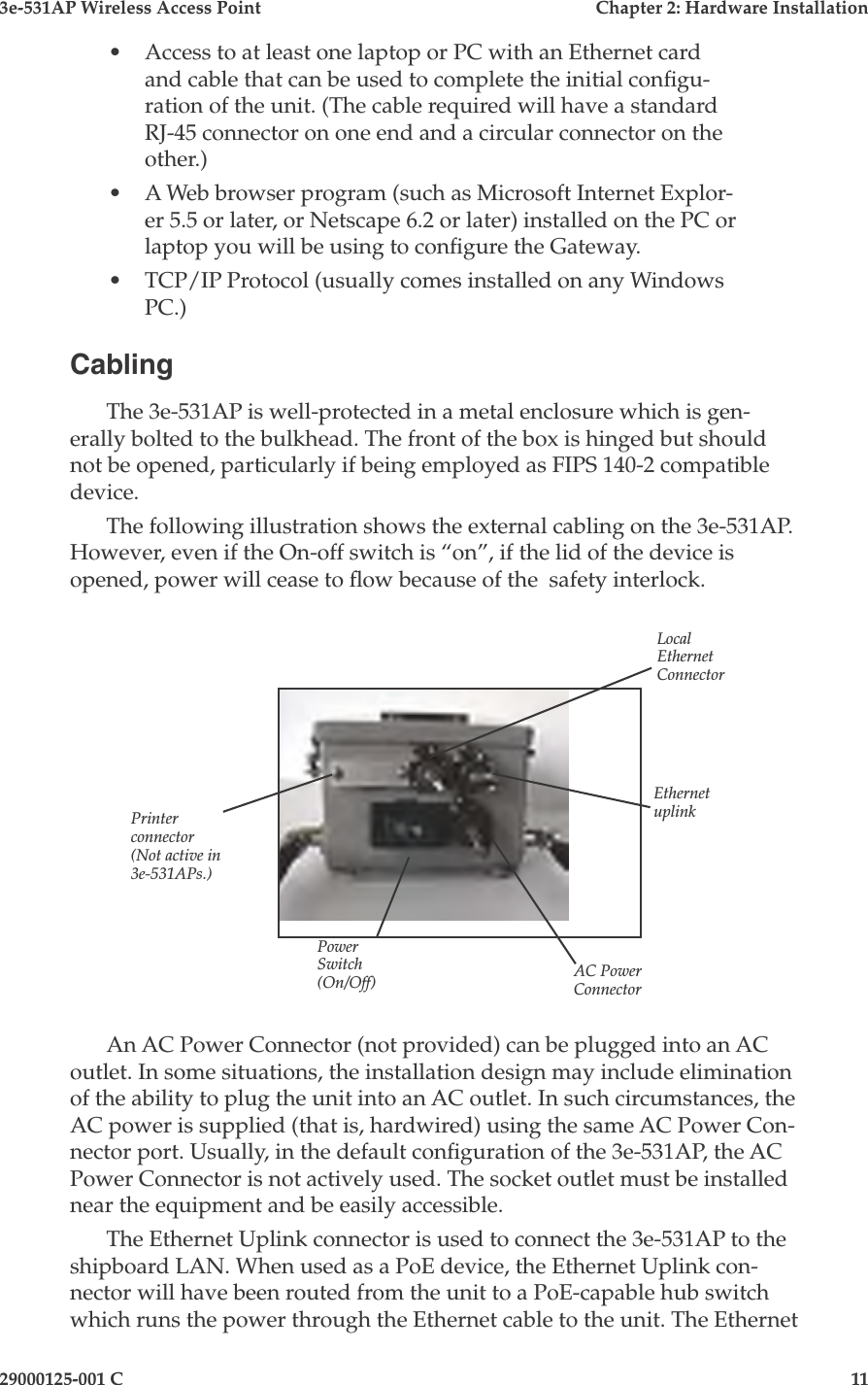

3e-531AP Wireless Access Point  Chapter 2: Hardware Installation10  29000125-001 C3e-531AP Wireless Access Point  Chapter 2: Hardware Installation29000125-001 C  11•  Access to at least one laptop or PC with an Ethernet card and cable that can be used to complete the initial congu-ration of the unit. (The cable required will have a standard RJ-45 connector on one end and a circular connector on the other.) •  A Web browser program (such as Microsoft Internet Explor-er 5.5 or later, or Netscape 6.2 or later) installed on the PC or laptop you will be using to congure the Gateway.•  TCP/IP Protocol (usually comes installed on any Windows PC.)CablingThe 3e-531AP is well-protected in a metal enclosure which is gen-erally bolted to the bulkhead. The front of the box is hinged but should not be opened, particularly if being employed as FIPS 140-2 compatible device.The following illustration shows the external cabling on the 3e-531AP. However, even if the On-off switch is “on”, if the lid of the device is opened, power will cease to ow because of the  safety interlock.Printerconnector(Not active in 3e-531APs.)AC PowerConnectorPowerSwitch(On/Off)Local Ethernet ConnectorEthernet uplinkAn AC Power Connector (not provided) can be plugged into an AC outlet. In some situations, the installation design may include elimination of the ability to plug the unit into an AC outlet. In such circumstances, the AC power is supplied (that is, hardwired) using the same AC Power Con-nector port. Usually, in the default conguration of the 3e-531AP, the AC Power Connector is not actively used. The socket outlet must be installed near the equipment and be easily accessible.The Ethernet Uplink connector is used to connect the 3e-531AP to the shipboard LAN. When used as a PoE device, the Ethernet Uplink con-nector will have been routed from the unit to a PoE-capable hub switch which runs the power through the Ethernet cable to the unit. The Ethernet
3e-531AP Wireless Access Point  Chapter 2: Hardware Installation12  29000125-001 Ccable is thus run from the 3e-531AP to the PoE-capable hub switch which is then connected to the wired LAN and to a power source. The 3e-531AP design includes an external Power Switch for the pur-pose of disabling power to the unit for servicing or removal.Although a safety interlock is provided on the unit to disable power when the enclosure door is opened, AC and PoE power cables must be disconnected prior to servicing or removing the device. This is a precau-tionary measure.An additional Ethernet connector labeled "Local" is designated for use during initial conguration. The installation team uses an  RJ45 cable with Circular connector to connect the 3e-531AP to a laptop.Indicator LightsThe top panel of the 3e-531AP contains a set of indicator lights (Light Emitting Diodes or LEDs) that help describe the state of various network-ing and connection operations.This closeup shows the ground and one of the seals that are standard on the FIPS 140-2 compliant 3e-531AP. Note that the ground will be installed permanently on installation of the unit and should not be disturbed after that.PowerEthernet UplinkWireless LAN ActivityError StateLED indicatorLED DescriptionPower The Power indicator LED informs you when the gateway is on or off.  If this light is on, the gateway is on; if it is not on, the gateway is off.  During rmware upgrades and resets, this light will blinkEthernet Uplink This light indicates the state of your connection to the shipboard network.  When on, the WAN light indicates that the gateway is connected to the network.  When the WAN light is off, the gateway does not have an ac-tive connection to the shipboard network.Wireless LAN Activity This light may be steady or blinking and indicates that information is passing through the connection.Error StateLED indicatorThe Error State LED indicator will light to alert you if the device enters Error State.  If the 3e-531AP enters an Error State, you must power down and up (using the On/Off switch), to allow it to invoke the power-up self tests.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  13Chapter 3:  Access Point CongurationIntroductionThe 3e-531AP Gateway comes with the capability to be congured as either an access point, a gateway, or a bridge. An “access point” is a device congured to allow one LAN to freely exchange data with another LAN without restriction. This is useful if you have  an existing network and you want to extend it with a wireless network. For example, an existing wired LAN is extended by adding the 3e-531AP and thus bridging to the existing wired network resources con-gured to communicate with the wireless LAN.The 3e-531AP default conguration is as an access point, allowing free roaming and data exchange with the existing LAN, bridging the wired and wireless networks.In the event that certain areas of the network need greater security, the Administrator can alternatively, using the management software ac-cessible through the WEB browser at the device’s assigned IP address, recongure it as a gateway.This chapter follows the procedure for conguring the 3e-531AP as an access point. The procedure for conguring as a gateway is covered in Chapter 4. Bridging is addressed in Chapter 5.              
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration14  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  15Preliminary Conguration StepsFor preliminary installation the security ofcer (CryptoOfcer) should have the following information:•  IP address – a list of IP addresses that are assignable to be used for assignment to the APs•  Subnet Mask for the LAN•  Default IP address of the 3e-531AP•  DNS IP address•  SSID – an ID number/letter string that you want to use in the con-guration process to identify all members of the wireless LAN. •  The MAC addresses of all the wireless cards that will be used to access the 3e-531AP network of access points (if MAC address ltering is to be enabled)•  Security Server IP Address, password, and Key type (if Dynamic Key Management will be used)•  The appropriate encryption key for Static 3DES or Static AES if static key management will be used.Initial Setup using the “Local” Port Initial setup of the 3e-531AP devices as a wireless LAN is accom-plished by an installation team. The following information is provided for the CryptoOfcer for use if an additional 3e-531AP needs to be added to the conguration. Plug one end of a separately purchased RJ-45 Crossover Ethernet cable with one circular connector to the LAN port of the 3e-531AP (see page 11) and the other end to an Ethernet port on your laptop. This LAN port in the 3e-531AP connects you to the device’s internal DHCP server which will dynamically assign an IP address to your laptop so you can access the device for reconguration. In order to connect properly to the 3e-531AP on the LAN port, you must be sure that the TCP/IP parameters on your laptop are set to “obtain IP address automatically.”  (If you are unfamiliar with this procedure, use the following instructions for deter-mining or changing your TCP/IP settings.)In Windows 95/98 click Start à Settings à Control Panel. Find and double click the Network icon. In the Network window, high-light the TCP/IP protocol for your LAN and click the Properties button. Make sure that the radio button for Obtain an IP address automatically is checked.In Windows 2000/XP, follow the path Start à Settings à Net-work and Dialup Connections à Local Area Connection and select the Properties button. In the Properties window, highlight the TCP/IP protocol and click properties. Make sure that the radio button for Obtain an IP address automatically is checked.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration14  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  15Once the DHCP server has recognized your laptop and has assigned a dynamic IP address, you will need to nd that IP address. Again, the pro-cedure is similar for Windows 95/98/Me machines and slightly different for Windows 2000/XP machines.In Windows 95/98/Me, click Start, then Run and type winipcfg in the run instruction box. Then click OK. You will see the IP address of your laptop in the resulting window, along with the “default gate-way” IP address. Verify that the IP address shown is 192.168.15.xIn Windows 2000, click Start, then Run and type cmd in the run instruction box. Then click OK. This will bring up a window. In this window, type ipcong /all |more. This will list information assigned to your laptop, including the IP address assigned. Verify that the IP address shown is 192.168.15.xOn your computer, pull up a browser window and put the de-fault URL for the 3e-531AP Local LAN in the address line. (https://192.168.15.1)You will be asked for your User Name and Password. The default for the CryptoOfcer is "CryptoOfcer" with the password "CryptoFIPS" to give full access for setup conguration. (This password is case-sensitive.)
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration16  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  17System CongurationGeneralYou will immediately be directed to the System Conguration—Gen-eral page for the 3e-531AP access point. This screen lists the rmware version number for your 3e-531AP and allows you to set the Host Name and Domain Name as well as establish system date and time. (Host and Domain Names are both set at the fac-tory for “default” but can optionally be assigned a unique name for each.) When you are satised with your changes, click Apply.Go next to the System Conguration—WAN page.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration16  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  17WANNext, click the entry on the left hand navigation panel for System Conguration -WAN. You will be directed to the System Conguration – WAN page.This screen allows you to set Link Speed and Duplex of the WAN port.  If you select a choice other than Auto (the default), the 3e-531AP will use only the selected link speed (10 Mbits/sec or 100 Mbits/sec) and Duplex (Half Duplex transfers or Full Duplex transfers) that you select in the WAN/LAN Link dropdown menu.If not using DHCP to get an IP address, input the information that the access point requires in order to allow the wireless devices it controls ac-cess to the wired LAN.  This will be the IP address, Subnet Mask, Default Gateway, and, where needed, DNS 1 and 2. Click Apply to accept changes.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration18  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  19LANThis sets up the default numbers for the rst, second, or third octet for a possible private LAN function for the access point. The Local LAN port provides DHCP server functionality to automatically assign an IP address to a computer Ethernet port.  It is not advisable to change the private LAN address while doing the initial setup as you are connected to that LAN. Operating ModeYou need to visit this page only if you will be changing mode from Access Point or Bridge to Gateway or vice versa. The default setting is Ac-cess Point. Note that if you change mode, all previously entered informa-tion will be reset to factory settings. If in Access Point/ Bridging Mode, you can also select or deselect the FIPS 140-2 Mode. Selecting FIPS 140-2 Mode makes WEP, SNMP, and 802.1x unavailable as encryption options.

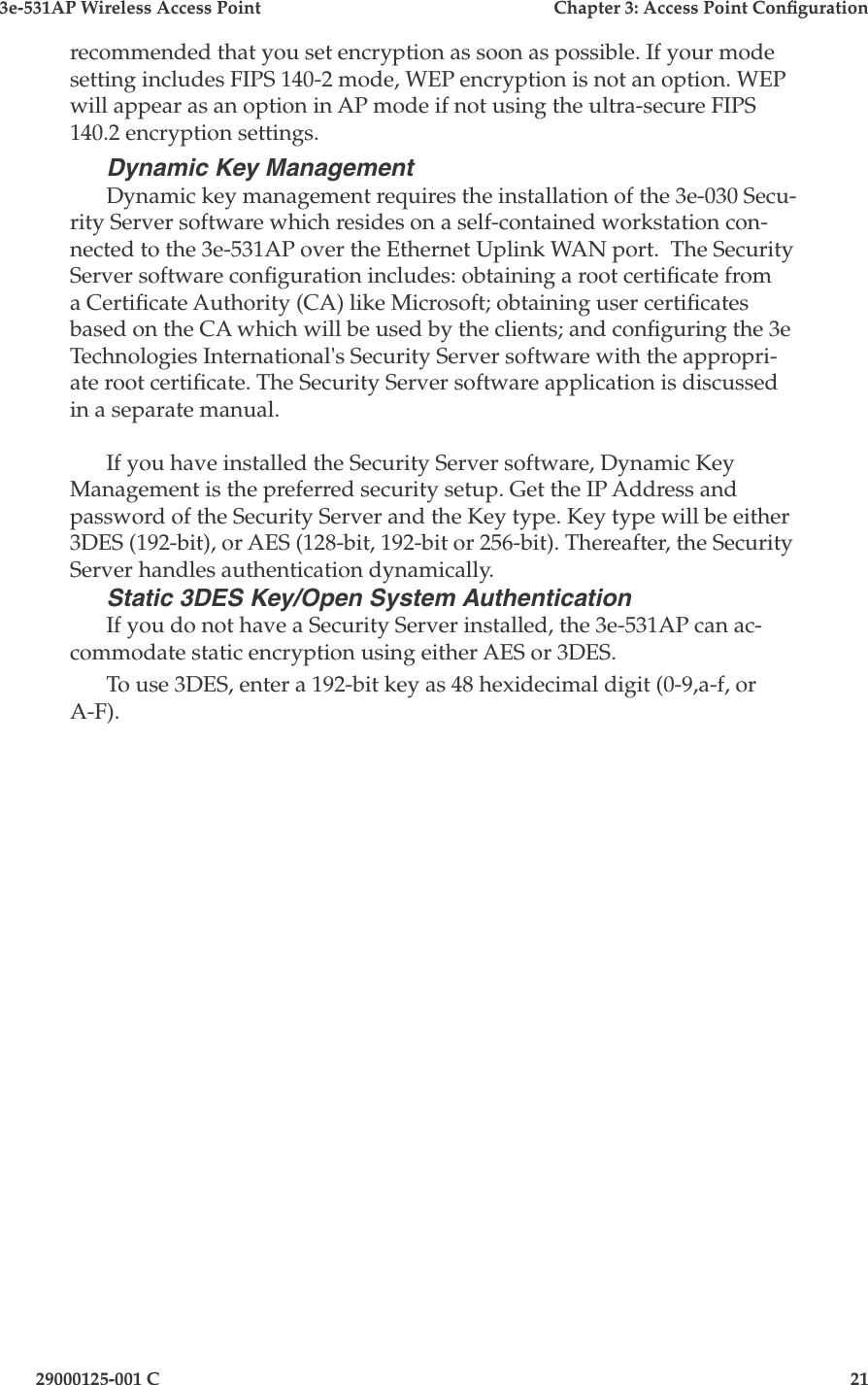

3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration18  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  19Wireless SetupGeneralWireless Setup allows your comupter's PC card to talk to the Access Point.On the Wireless Conguration — General page, you must enter the SSID for the wireless LAN. This is also where you can assign a channel number to the AP (if necessary) and modify the Tx Pwr Mode. The SSID can be any set of letters and numbers assigned by the net-work administrator. This nomenclature has to be set on the access point and each wireless device in order for them to communicate.The Channel Number is a means of assigning frequencies to a series of access points, when many are used in the same WLAN, to minimize interference. You can assign channels manually or automatically, using the Automatically select the optimal channel at bootup function. If as-signing manually, there are 11 channel numbers that may be assigned. If you assign channel number 1 to the rst in a series, then channel 6, then channel 11, and then continue with 1, 6, 11, you will have the optimum frequency spread to decrease “noise.” If you wish to assign automatically, set the auto function to YES.Tx Pwr Mode and Fixed Pwr Level: The Tx Power Mode defaults to Auto, giving the largest range of radio transmission available under nor-mal conditions. As an option, the AP's broadcast range can be limited by setting the Tx Power Mode to Fixed and  choosing from 1-8 for Fixed Pwr Level (1 being the shortest distance.) Finally, if you want to prevent any radio frequency transmission, set Tx Pwr Mode to Off.If you have the 3e AP congured in any mode except FIPS, setting TX
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration20  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  21Pwr Mode to Off will only shut off the power on that one AP.If you have the 3e AP congured in FIPS mode and you have de-ployed the 3e-010F Crypto Client software v 2.6 or higher, however, you can use this management screen to turn off TX power to this particular AP and all client devices associated with it. In FIPS Wireless AP mode, once you have given the command to turn off TX power, The screen called Monitoring/Reports -> Wireless Clients will contain a column called EMCON which shows the results of the command on any wireless device associated with the AP. This is more fully explained in Chapter 7, The RF Manager Function.The 3e Access Point Installation CD contains the RF Manager Installa-tion program. If you install this program, which is explained in Chapter 7, you can control the TX power level and TX power shutoff from a central location. If you turn off TX power, whether from the Wireless Conguration — General page on each AP or using the RF Manager, turning it back on re-establishes it only in the AP or APs contacted. The wireless devices that are associated with those APs will need to re-establish power either by powering down and then powering up or by removing and reinserting the PC Card.Use of the RF Manager allows a Crypto Ofcer or Administrator to manage TX Power level for a group of APs.In the last section of the Wireless Conguration — General page, there are a number of advanced options which are described in the fol-lowing chart:Beacon interval 0-4095 The frequency in milliseconds in which the 802.11 beacon is transmitted by the AP. RTS Threshold 0-3000 The number of bytes used for the RTS/CTS handshake boundary.  When a packet size is greater than the RTS threshold, the RTS/CTS handshaking is performed.DTIM 1-65535 The number of beacon intervals between suc-cessive Delivery TrafcIdentication Maps (DTIMs).  This feature is used for Power Save Mode.Basic Rates - 1 and 2 Mbps- 1, 2, 5.5 and 11 MbpsThe basic rates used and reported by the AP. The highest rate specied is the rate that the AP uses when transmitting broadcast/multicast and management frames. Preamble Short/Long Pre-ambleSpecies whether frames are transmitted with the Short or Long Preamble.Broadcast SSID Enabled/disabled When disabled, the AP hides the SSID in outgoing beacon frames and stations cannot obtain the SSID through passive scanning.Also, when it is disabled, the AP doesn’t send probe responses to probe requests with un-specied SSIDs.EncryptionThe default factory setting for the 3e-531AP is no encryption. It is

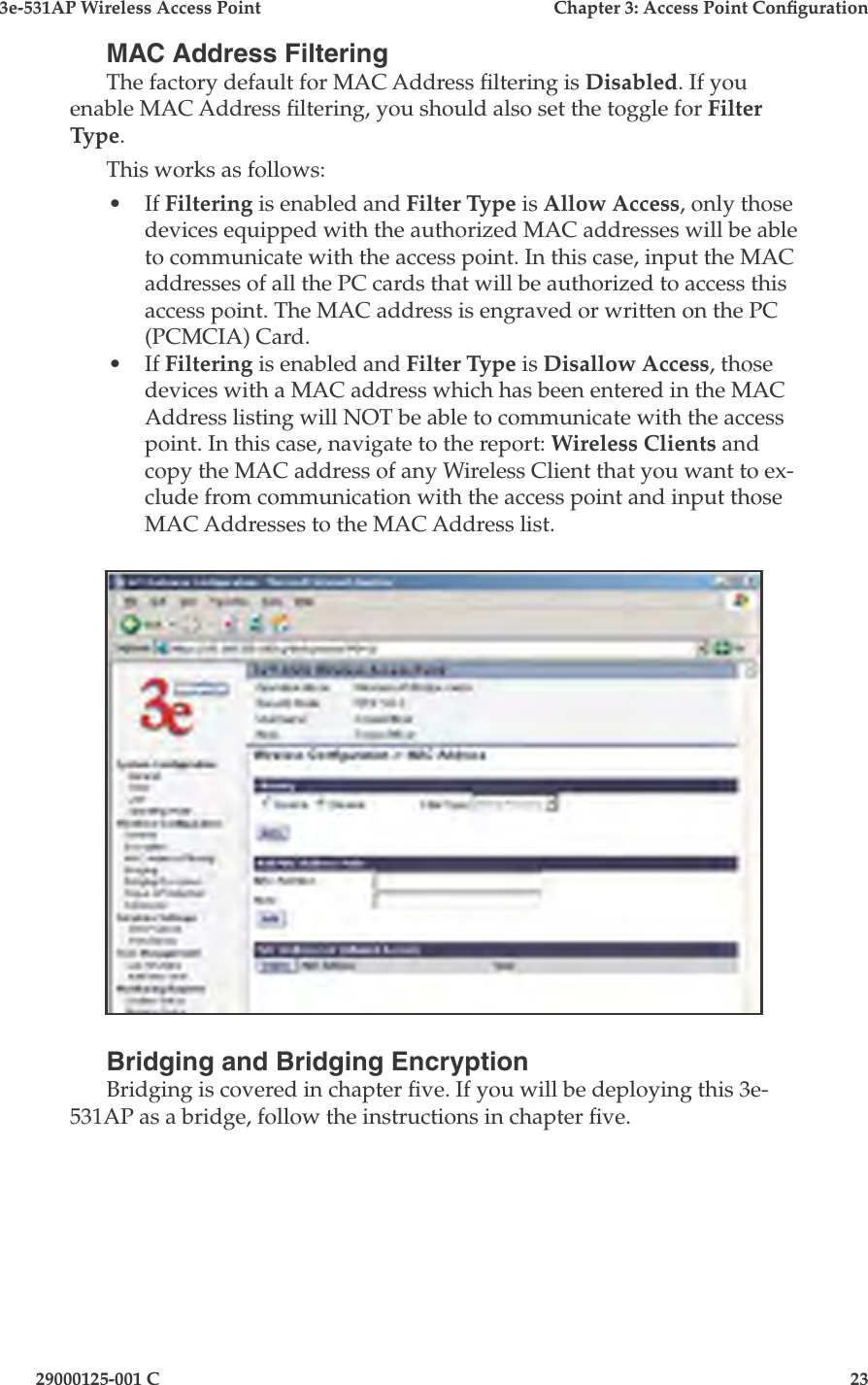

3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration20  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  21recommended that you set encryption as soon as possible. If your mode setting includes FIPS 140-2 mode, WEP encryption is not an option. WEP will appear as an option in AP mode if not using the ultra-secure FIPS 140.2 encryption settings.Dynamic Key ManagementDynamic key management requires the installation of the 3e-030 Secu-rity Server software which resides on a self-contained workstation con-nected to the 3e-531AP over the Ethernet Uplink WAN port.  The Security Server software conguration includes: obtaining a root certicate from a Certicate Authority (CA) like Microsoft; obtaining user certicates based on the CA which will be used by the clients; and conguring the 3e Technologies International's Security Server software with the appropri-ate root certicate. The Security Server software application is discussed in a separate manual.If you have installed the Security Server software, Dynamic Key Management is the preferred security setup. Get the IP Address and password of the Security Server and the Key type. Key type will be either 3DES (192-bit), or AES (128-bit, 192-bit or 256-bit). Thereafter, the Security Server handles authentication dynamically.Static 3DES Key/Open System AuthenticationIf you do not have a Security Server installed, the 3e-531AP can ac-commodate static encryption using either AES or 3DES. To use 3DES, enter a 192-bit key as 48 hexidecimal digit (0-9,a-f, or A-F).
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration22  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  23Static AES Key/Open System AuthenticationThe Advanced Encryption Standard (AES) was selected by National Institute of Standards and Technology (NIST) in October 2000 as an up-grade from the previous DES standard.  AES uses a 128-bit block cipher algorithm and encryption technique for protecting computerized infor-mation.  With the ability to use even larger 192-bit and 256-bit keys, if necessary, it offers higher security against brute-force attack than the old 56-bit DES keys. Once you have selected the options you will use, click Apply.If you will be using MAC Address ltering, navigate next to the MAC Address Filtering page.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration22  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  23MAC Address FilteringThe factory default for MAC Address ltering is Disabled. If you enable MAC Address ltering, you should also set the toggle for Filter Type. This works as follows:•  If Filtering is enabled and Filter Type is Allow Access, only those devices equipped with the authorized MAC addresses will be able to communicate with the access point. In this case, input the MAC addresses of all the PC cards that will be authorized to access this access point. The MAC address is engraved or written on the PC (PCMCIA) Card. •  If Filtering is enabled and Filter Type is Disallow Access, those devices with a MAC address which has been entered in the MAC Address listing will NOT be able to communicate with the access point. In this case, navigate to the report: Wireless Clients and copy the MAC address of any Wireless Client that you want to ex-clude from communication with the access point and input those MAC Addresses to the MAC Address list. Bridging and Bridging EncryptionBridging is covered in chapter ve. If you will be deploying this 3e-531AP as a bridge, follow the instructions in chapter ve.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration24  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  25Rogue AP DetectionThe Rogue AP Detection page allows the network administrator to set up rogue AP detection. If you enable rogue AP detection, also enter the MAC Address of each AP in the network that you want the AP being con-gured to accept as a trusted AP. (You may add up to 20 APs.)  Enter an email address for notication of any rogue or non-trusted APs. (The MAC Address for the 3e-531AP is located on the Setup—General page.The Rogue AP list, under Monitoring Reports on the navigation menu, will detail any marauding APs.802.1x802.1x is not available if you are using the FIPS 140-2 secure setup mode. 802.1x is a means of making a WEP encrypted system more secure.Enabling 802.1x requires that you have at least one remote Radius server (preferably also a backup Radius server) but it will allow the use of the legacy WEP encrypton key system with greater resultant security.IEEE 802.1X offers an effective framework for authenticating and con-trolling user trafc to a protected network, as well as dynamically varying encryption keys. 802.1X ties a protocol called EAP (Extensible Authentica-tion Protocol) to both the wired and wireless LAN media and supports multiple authentication methods, such as token cards, Kerberos, one-time passwords, certicates, and public key authentication.If using 802.1x, you must know and input the IP addess, Port Number and Shared Secret for the primary and backup Radius server and the key type selected on your Wireless Encryption page. Then set the accepted lifetime for the encryption key.AdvancedThe Advanced page allows you to enable or disable load balancing
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration24  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  25and to control bandwidth.Load balancing is enabled by default. Load balancing distributes traf-c efciently among network servers so that no individual server is over-burdened. For example, the load balancing feature balances the wireless clients between APs.  If two APs with similar settings are in a conference room, depending on the location of the APs, all wireless clients could po-tentially associate with the same AP, leaving the other AP unused.  Load balancing attempts to evenly distribute the wireless clients on both APs.If enabled, the Bandwidth Control function works by limiting the maximum bandwidth a single client is allowed to have. For example, if the total BW for the AP/WLAN is 4 Mbps and BW control is set to 500 kbps or 0.5 Mbps, the network can only serve a maximum of 0.5 mbps per client. Even if only 1 client is on the network, a maximum of 0.5 Mbps will be allowed that client. If, on the other hand, the BW Control is set to a higher number (say 3 Mbps), a single client can take up to 3 Mbps of bandwidth when it requires it while the other clients will share the remaining bandwidth. The decision as to who gets the 3 Mbps and who gets the remainder depends on the requirement and when the require-ment is acknowledged. This function can be disabled, on the other hand, and the available bandwidth will be portioned out as required. If total bandwidth required exceeds the available bandwidth, the client last in line will get only the remaining bandwidth available.Once you have made any changes, click Apply to save.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration26  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  27Services SettingsDHCP ServerThis page allows conguration of the DHCP server function accessible from the Local LAN port. The default factory setting for the DHCP server function is enabled. You can disable the DHCP server function, if you wish. You can also set the range of addresses to be assigned.Print ServerThe print server function can be enabled or disabled. It is enabled by default. If you do not plan to set up the print server function, you can click disable and leave the metal plate on the printer port. The metal plate is provided to protect that port from water.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration26  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  27SNMPThe SNMP  (simple network management protocol) Agent is not available if you are using the FIPS 140-2 setup. SNMP is available in ac-cess point mode if FIPS 140-2 is left unchecked.The SNMP Agent setup page allows you to set up an SNMP Agent. The agent is a software module that collects and stores management information for use in a network management system. The 3e-531AP's integrated SNMP agent software module translates the device’s manage-ment information into a common form for interpretation by the SNMP Manager, which usually resides on a network administrator’s computer.  The SNMP Manager function interacts with the SNMP Agent to execute applications to control and manage object variables (interface features and devices) in the gateway. Common forms of managed infor-mation include number of packets received on an interface, port status, dropped packets, and so forth. SNMP is a simple request and response protocol, allowing the manager to interact with the agent to either•  Get - Allows the manager to Read information about an object variable•  Set - Allows the manager to Write values for object variables with-in an agent’s control, or •  Trap - Allows the manager to Capture  information and send an alert about some pre-selected event to a specic destinationThe SNMP conguration consists of several elds, which are ex-plained below:•  Community –The Community eld for Get (Read Only), Set (Read & Write), and Trap is simply the SNMP terminology for “password” for those functions. •  Source –The IP address or name where the information is ob-tained.•  Access Control –Denes the level of management interaction per-mitted.

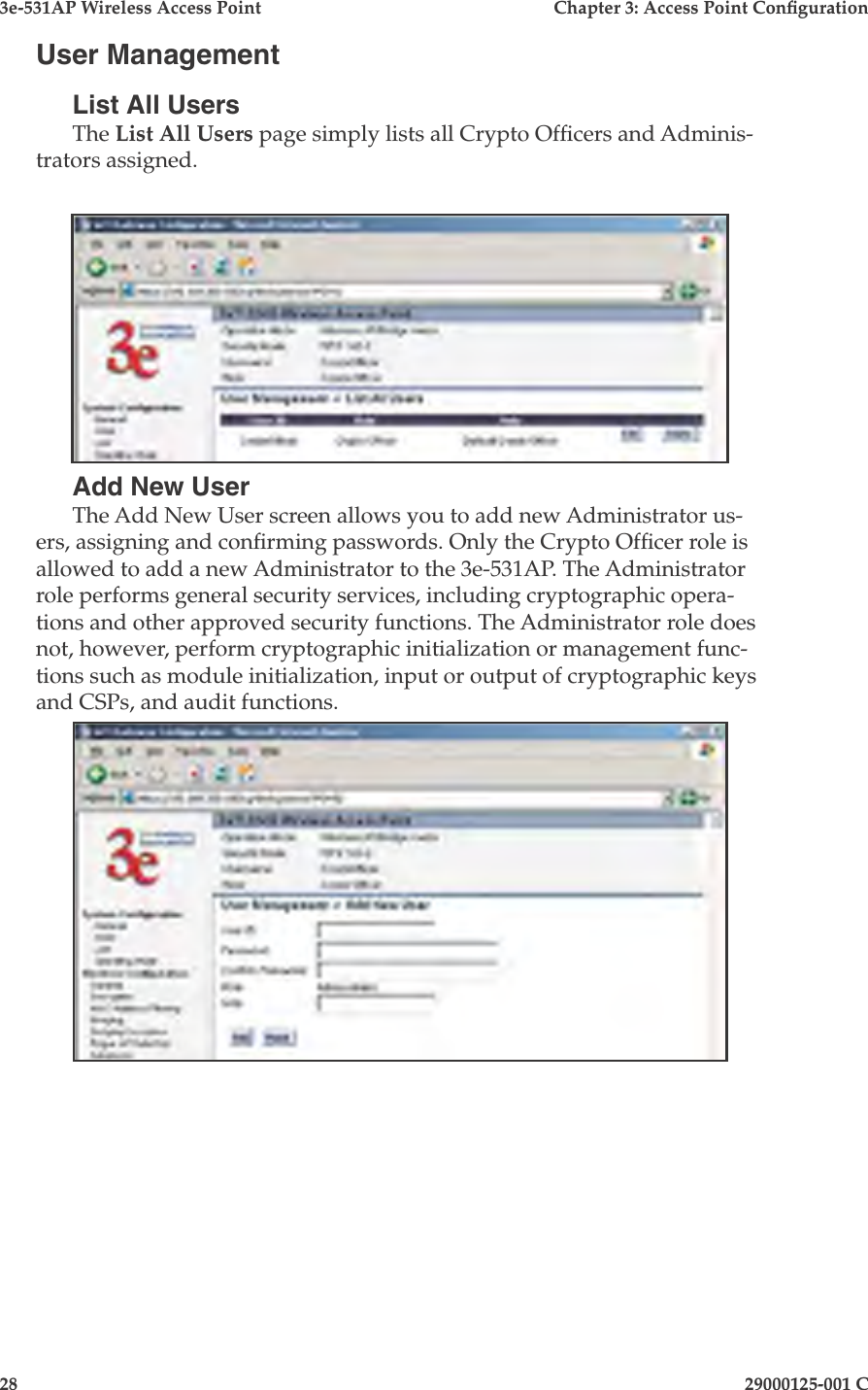

3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration28  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  29User ManagementList All UsersThe List All Users page simply lists all Crypto Ofcers and Adminis-trators assigned.Add New UserThe Add New User screen allows you to add new Administrator us-ers, assigning and conrming passwords. Only the Crypto Ofcer role is allowed to add a new Administrator to the 3e-531AP. The Administrator role performs general security services, including cryptographic opera-tions and other approved security functions. The Administrator role does not, however, perform cryptographic initialization or management func-tions such as module initialization, input or output of cryptographic keys and CSPs, and audit functions.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration28  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  29Monitoring/ReportsThis section gives you a variety of lists and status reports. Most of these are self-explanatory.System StatusThis screen displays the status of the 3e-531AP device and network interface details and the Routing Table.

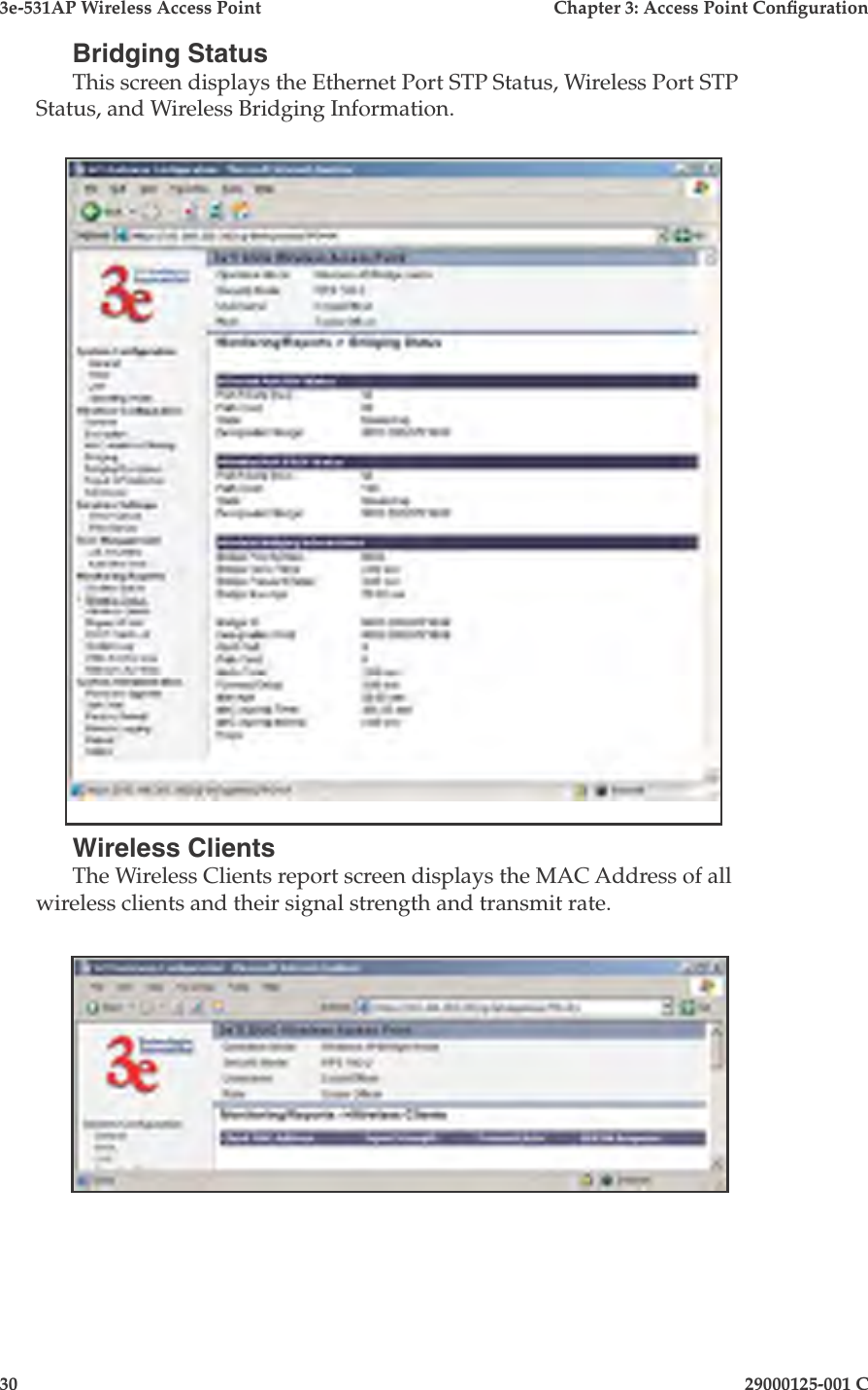

3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration30  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  31Bridging StatusThis screen displays the Ethernet Port STP Status, Wireless Port STP Status, and Wireless Bridging Information.Wireless ClientsThe Wireless Clients report screen displays the MAC Address of all wireless clients and their signal strength and transmit rate.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration30  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  31If Transmit power is disabled, either by setting TX Pwr Mode to Off on the management screen or by using the RF Manager (Chapter 7), the Wireless Clients page will show the results from each associated client in the EMCON Response column. If the client responds to the "disable" command, a Yes is displayed. If the column contains a No, this can mean either:•  the client didn't receive the command, or•  the client is no longer in the areas, or•  the client software doesn't support the RF management feature.This status information remains active for 5 minutes after the clients are disabled.Once the transmit power is re-enabled and clients re-associate to the AP, EMCON information is maintained for them. If a new client that wasn't associated previously associates with the AP after the EMCON mode, its EMCON status appears as "-", which indicates the status record is not applicable.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration32  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  33Rogue AP ListThe rogue AP list shows all the APs on the network which are not seen by the subject AP as trusted clients.DHCP Client ListThe DHCP client list displays all clients currently connected to the 3e-531AP via DHCP server, including their hostnames, IP addresses, and MAC Addresses.The DHCP client list will continue to accumulate listings unless you periodically clear it using the Clear button.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration32  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  33System LogThe system log displays system facility messages with date and time stamp. These are messages documenting functions performed internal to the system, based on the system’s functionality. Generally, the Admin-istrator would only use this information if trained as or working with a eld engineer or as information provided to technical support.The System log will continue to accumulate listings unless you peri-odically clear it using the Clear button.Web Access LogThe Web access log displays system facility messages with date and time stamp for any actions involving web access. For example, this log re-cords when you set encryption mode, change operating mode, etc., using the web browser. It establishes a running record regarding what actions were performed and by whom.The Web access log will continue to accumulate listings unless you periodically clear it using the Clear button.

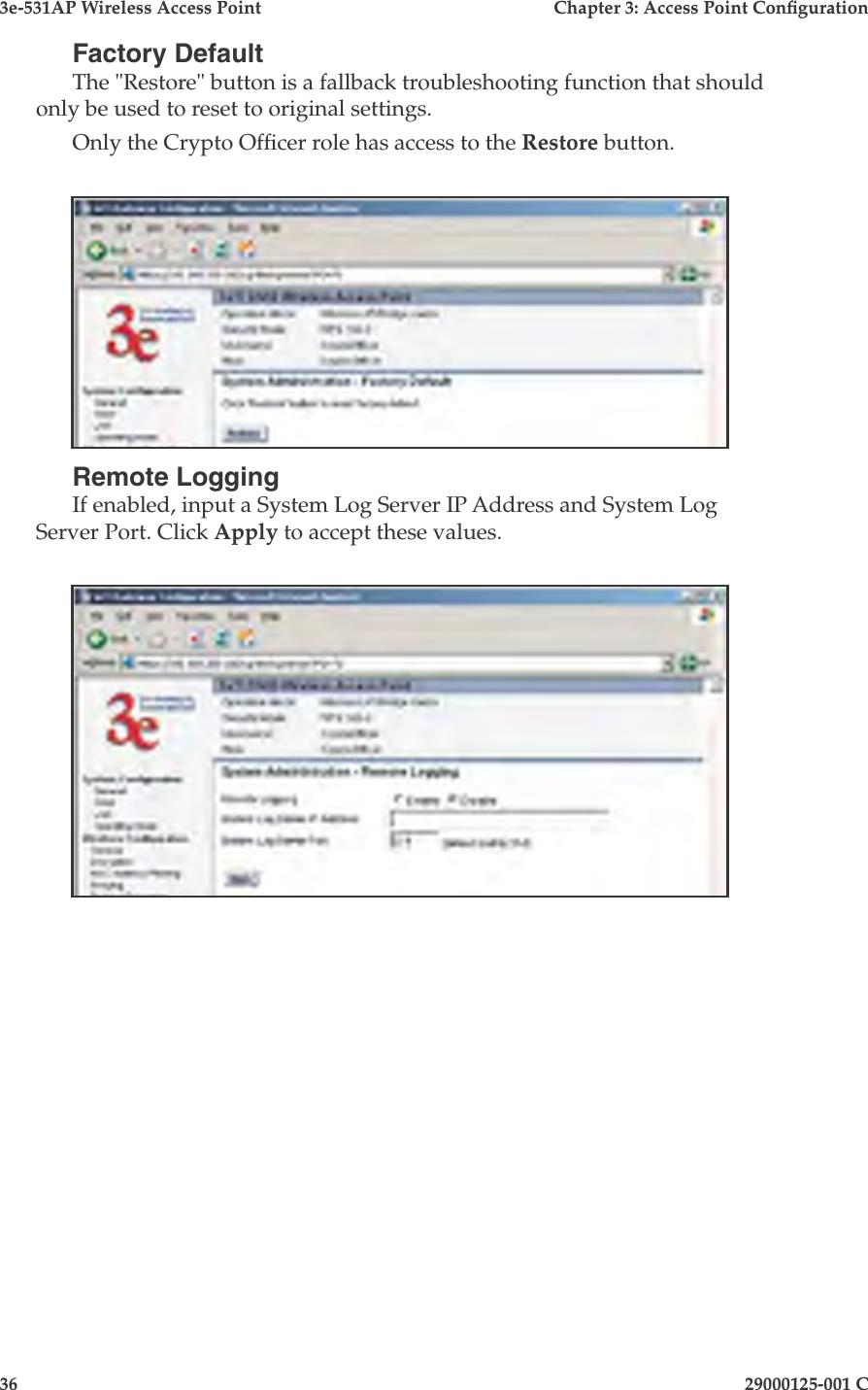

3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration34  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  35Network ActivitesThe Network Activities Log keeps a detailed log of all activities on the network which can be useful to the network administration staff.The  Network Activities Log will continue to accumulate listings un-less you periodically clear it using the Clear button.System AdministrationThe System administration screens contain administrative functions, some of which can only be performed if the user is logged on as a Crypto Ofcer. The screens and functions are detailed in the following section. Firmware UpgradeThe System Upgrade utility is a functionality built into the 3e-531AP for updates to the device’s rmware as they become available. When a new upgrade le becomes available, nd it and upload it to the 3e-531AP from this page. Only the Crypto Ofcer role can access this function.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration34  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  35Self-TestBoth Crypto Ofcer and Administrator functions can access the self-test functions. Self-tests are mandated by FIPS 140-2 and should be employed if you are operating in FIPS 140-2 mode. These include both power-up tests (such as cryptographic algorithm tests, software/rmware integrity tests, and critical function tests) and conditional tests. The 3e-531AP self-test suite includes: AES, 3DES, SHA-1 Algorithms, Random Number Generation, Dife-Hellman for Dynamic Key Exchange, RSA, and HMAC SHA1 Algorithm for rmware verication.If you want to perform a self-test, click on the start test button. A warning message will appear, stating “If self test fails, the system will halt. Proceed?” Click OK. If there are no errors, the browser will display the message: “Self test completed successfully. Hit Back.”If there are errors, the 3e-531AP will cease functioning. The device will emit a low-freqency beep for about 1 second. To exit the Error State, you must power down and power up by disconnecting the power cable (or POE cable).The 3e-531AP will then perform normal power up tests. If the Error State fails to clear, you must replace the device and return it to the manu-facturer for servicing.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration36  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  37Factory DefaultThe "Restore" button is a fallback troubleshooting function that should only be used to reset to original settings. Only the Crypto Ofcer role has access to the Restore button.Remote LoggingIf enabled, input a System Log Server IP Address and System Log Server Port. Click Apply to accept these values.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration36  29000125-001 C3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration  29000125-001 C  37RebootThe Reboot utility allows you to reboot the 3e-531AP without chang-ing any preset functionality. Both Crypto Ofcer and Administrator func-tions have access to this function.UtilitiesThis screen gives you ready access to two useful utilities: Ping and Traceroute. Simply enter the IP Address or hostname you wish to ping or tracerout and click either the Ping or Traceroute button, as appropriate.
3e-531AP Wireless Access Point  Chapter 3: Access Point Conguration38  29000125-001 CThis page intentionally left blank.
  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  39Caution: If you have previously set up your WLAN using the 3e-531AP devices as access points and you decide to change the conguration to gateway mode, you will need to convert the MAC addresses on each wireless device that has been set up so they can be seen by the recongured system. This is ac-complished by the following procedure, done on each device that was congured to use the 3e-531AP when the system was set up as an access point system. Pull up a System Prompt (“c:\” prompt, also called an MSDos prompt) on the wireless device’s desktop. type: arp-d and hit return. This recongures the MAC address in the wireless device’s PC Card so that it is now visible to the gateway.Chapter 4: Gateway CongurationIntroductionChapter 3 covered the default conguration of the 3e-531AP Wireless Access Point as an access point, for use as part of a host wired network. This chapter covers conguration as a gateway.  If additional security for the wireless network is desired (different-iating it from the wired network to which it is connected), set it up in gateway mode. Gateway mode takes advantage of some built-in  “router” functions, such as the gateway’s ability to do Network Address Transla-tion (NAT), providing private IP addresses for the wireless clients.A 3e-531AP set up in gateway mode can initiate wireless communic-ations to the wired network but the wired network can’t initiate commu-nications to the wireless network unless a specic network address has been assigned and the user on the wired network knows that address. The illustration on the following page diagrams the difference.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration40  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  41                                                                      A comparison of gateway and access point setup for the 3e-531AP
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration40  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  41Conguring in Gateway ModeTo congure the 3e-531AP in gateway mode, complete the following steps. Open a web browser on your monitor (using Netscape Navigator 3.0 or better or Internet Explorer 4.0 or better) and type in the default IP address of the gateway on its WAN port (for example, https://192.168.254.254).  If you have changed the LAN address of the 3e-531 AP, then you will need to enter the LAN network address with a station ad-dress of .1.  For example if the LAN address was changed to 10.0.0, then you would enter “https://10.0.0.1”. Then click Go on the Web browser. You will be asked for your User name and password. You will need to have the ID and password for the Crypto Ofcer role to change the mode from access point to gateway. If that has not yet been changed, use the default “CryptoOfcer” with the password “CryptoFIPS” to allow full ac-cess. Click on OK and you will be directed to the  System Conguration – General page.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration42  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  43Using the  navigation bar to the left, navigate to the System Congu-ration — Operating Mode page, select the Gateway Mode radio button, and click Apply. The 3e-531AP will reboot in gateway mode and reset all prior settings to factory default state.You can then proceed to change the management screens as necessary to recongure the device as a gateway.  Conguration in gateway mode allows you to set rewall parameters. This is the main difference between the screens you will see in gateway mode and those covered in access point setup as discussed in Chapter 3.Note that you can't deploy the 3e-531AP as a bridge in Gateway mode, nor is it FIPS 140-2 compliant.The following sections cover the functions and screens in gateway mode. Much of the infomation is similar to the access point mode but is presented here for your convenience.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration42  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  43System CongurationGeneralThe System Conguration—General page for the 3e-531AP gateway lists the rmware Version for your 3e-531AP and allows you to set the Host Name and Domain Name as well as establish system date and time. (Host and Domain Names are both set at the factory for “default” but can optionally be assigned a unique name for each.) When you are satised with your changes, click Apply.Go next to the System Conguration—WAN page.WANThis screen allows you to set Link Speed and Duplex of the WAN port. If you select a choice other than Auto (the default), the 3e-531AP will use only the selected link speed (10 Mbits/sec or 100 Mbits/sec) and Duplex (Half Duplex transfers or Full Duplex transfers) that you select in the WAN/LAN Link dropdown menu.You also set information for how the IP address will be obtained.The WAN IP address is the Public IP address required to link the pri-vate WLAN users to the external enterprise or shipboard network, which is to be outside the “protected” wireless LAN. Normally, you will be provided with the  IP address, Subnet Mask, Default Gateway and DNS to assign by the Network Administrator for the Ethernet Network.There are two ways to congure the WAN IP address:Obtain an IP address Automatically – This conguration allows the Ethernet network to use the DHCP server on the wired network to dy-namically assign the WAN IP address to the DHCP client in the gateway.  Specify an IP address – This conguration allows the user to manu-ally type in a static IP address, default gateway, and Domain Name Server (DNS) if these are provided by the Ethernet network administrator.

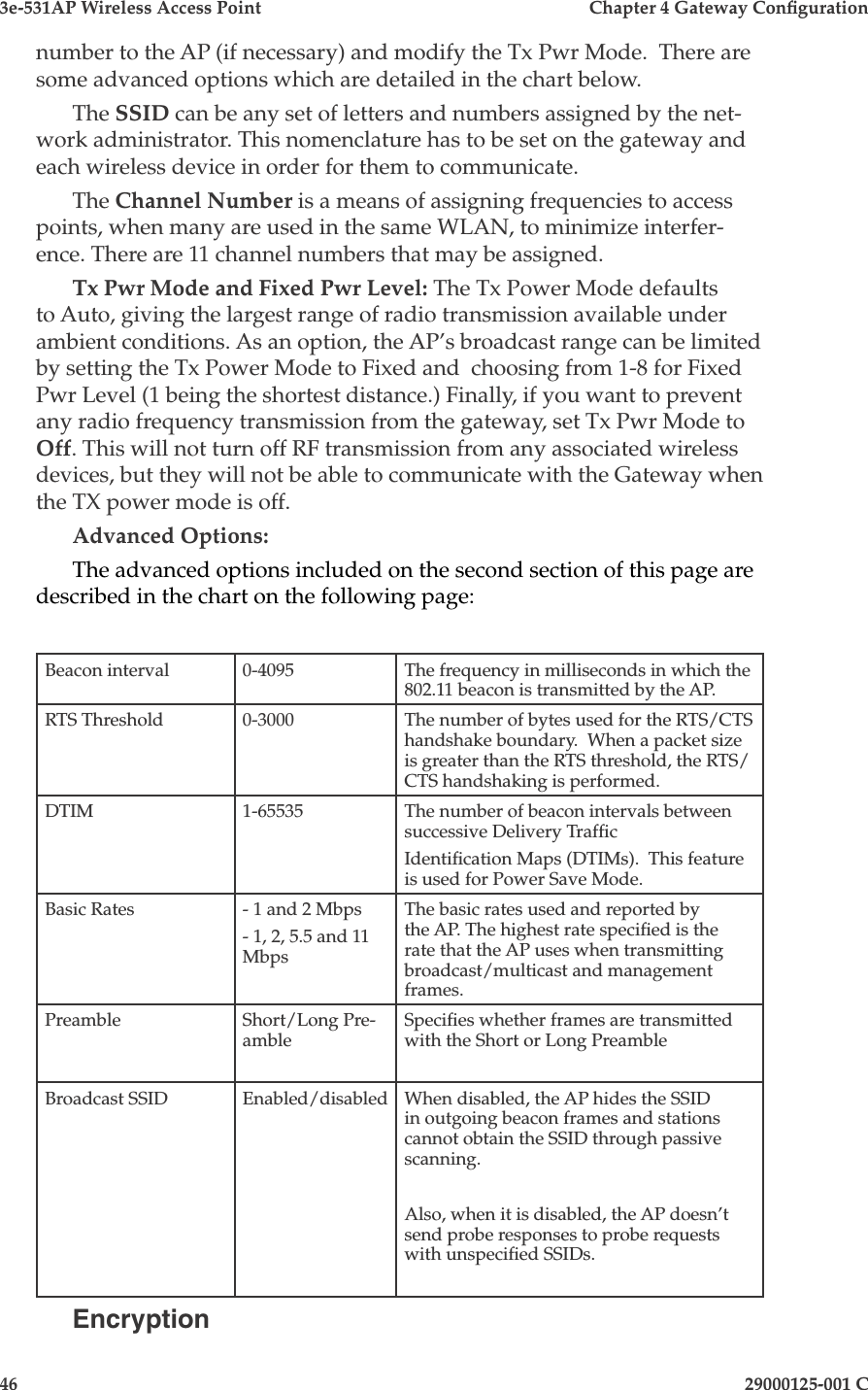

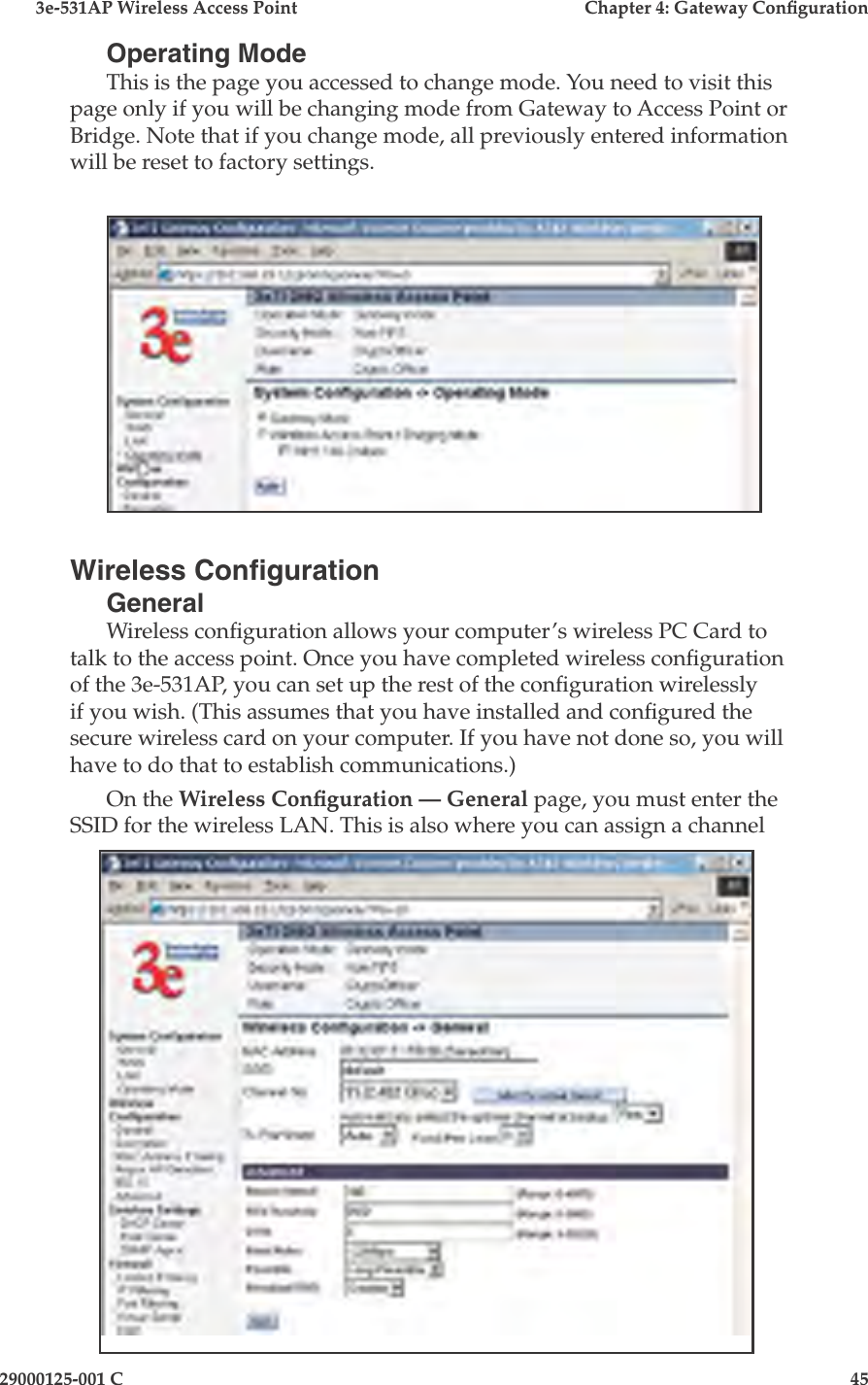

3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration44  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  45LANThis sets up the default numbers for the rst, second or third octet for a possible private LAN function for the access point. The Local LAN port provides DHCP server functionality to automatically assign an IP address to a computer Ethernet port.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration44  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  45Operating ModeThis is the page you accessed to change mode. You need to visit this page only if you will be changing mode from Gateway to Access Point or Bridge. Note that if you change mode, all previously entered information will be reset to factory settings.Wireless CongurationGeneralWireless conguration allows your computer’s wireless PC Card to talk to the access point. Once you have completed wireless conguration of the 3e-531AP, you can set up the rest of the conguration wirelessly if you wish. (This assumes that you have installed and congured the secure wireless card on your computer. If you have not done so, you will have to do that to establish communications.)On the Wireless Conguration — General page, you must enter the SSID for the wireless LAN. This is also where you can assign a channel
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration46  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  47number to the AP (if necessary) and modify the Tx Pwr Mode.  There are some advanced options which are detailed in the chart below.The SSID can be any set of letters and numbers assigned by the net-work administrator. This nomenclature has to be set on the gateway and each wireless device in order for them to communicate.The Channel Number is a means of assigning frequencies to access points, when many are used in the same WLAN, to minimize interfer-ence. There are 11 channel numbers that may be assigned. Tx Pwr Mode and Fixed Pwr Level: The Tx Power Mode defaults to Auto, giving the largest range of radio transmission available under ambient conditions. As an option, the AP’s broadcast range can be limited by setting the Tx Power Mode to Fixed and  choosing from 1-8 for Fixed Pwr Level (1 being the shortest distance.) Finally, if you want to prevent any radio frequency transmission from the gateway, set Tx Pwr Mode to Off. This will not turn off RF transmission from any associated wireless devices, but they will not be able to communicate with the Gateway when the TX power mode is off.Advanced Options:The advanced options included on the second section of this page are described in the chart on the following page:Beacon interval 0-4095 The frequency in milliseconds in which the 802.11 beacon is transmitted by the AP. RTS Threshold 0-3000 The number of bytes used for the RTS/CTS handshake boundary.  When a packet size is greater than the RTS threshold, the RTS/CTS handshaking is performed.DTIM 1-65535 The number of beacon intervals between successive Delivery TrafcIdentication Maps (DTIMs).  This feature is used for Power Save Mode.Basic Rates - 1 and 2 Mbps- 1, 2, 5.5 and 11 MbpsThe basic rates used and reported by the AP. The highest rate specied is the rate that the AP uses when transmitting broadcast/multicast and management frames. Preamble Short/Long Pre-ambleSpecies whether frames are transmitted with the Short or Long PreambleBroadcast SSID Enabled/disabled When disabled, the AP hides the SSID in outgoing beacon frames and stations cannot obtain the SSID through passive scanning.Also, when it is disabled, the AP doesn’t send probe responses to probe requests with unspecied SSIDs.Encryption
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration46  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  47The default factory setting for the 3e-531AP is no encryption. It is rec-ommended that you set encryption as soon as possible.WEP (RC4) Data EncryptionUsing the 3e-531AP in gateway mode allows you to employ s the WEP (RC4) encryption standard if you wish. WEP is not available in AP or Bridge mode for security reasons.If using WEP, authentication type can be set to either Open System or Shared Key. Open System is probably adequate if you are using a remote authentication server (e.g. RADIUS) with 802.1x. WEP is designed to provide the same level of security for wireless LANs as that of a wired LAN. To use WEP encryption, identify the level of encryption (64 or 128). If using 64-bit WEP, you will need to program the Default WEP key on the AP and each wireless device and designate the four alternate 64-bit WEP keys. The four WEP keys thus programmed have to be input to the setup utility on each wireless device that will be part of the WLAN.If using 128-bit WEP, simply designate the 48 hexidecimal digits on the AP and program the same number on each wireless device. Key management becomes increasingly difcult as the number of clients increases, but the use of WEP encryption on small ofce or home wireless networks provides some measure of security. WEP was never intended to be a complete security solution but rather provides protection equivalent to that of wired networks. Static 3DES Key/Open System AuthenticationThe 3e-531AP in gateway mode can accommodate advanced static encryption using either AES or 3DES. 3DES is modeled on the older DES standard but encrypts data three times over.  To use 3DES, enter a 192-bit key as 48 hexidecimal digit (0-9, a-f, or A-F). Enter the key twice for verication.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration48  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  49Static AES Key/Open System AuthenticationThe Advanced Encryption Standard (AES) was selected by National Institute of Standards and Technology (NIST) in October 2000 as an up-grade from the previous DES standard.  AES uses a 128-bit block cipher algorithm and encryption technique for protecting computerized infor-mation.  With the ability to use even larger 192-bit and 256-bit keys, if necessary, it offers higher security against brute-force attack than the old 56-bit DES keys.  For even greater security, you can select a 192-bit or 256-bit key.Once you have selected the options you will use, click Apply.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration48  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  49Mac Address FilteringThe factory default for MAC Address ltering is Disabled. If you en-able MAC Address ltering, only those devices equipped with the autho-rized MAC addresses will be able to communicate with the access point.Input the MAC addresses of all the PC cards that will be authorized to access this device. The MAC address is engraved or written on the PC (PCMCIA) Card. The MAC Addresses you have input and any identify-ing note will appear in the lower window once you click the Add button. You delete MAC Addresses by simply clicking the Delete button next to the MAC Address you no longer want to include in the WLAN.

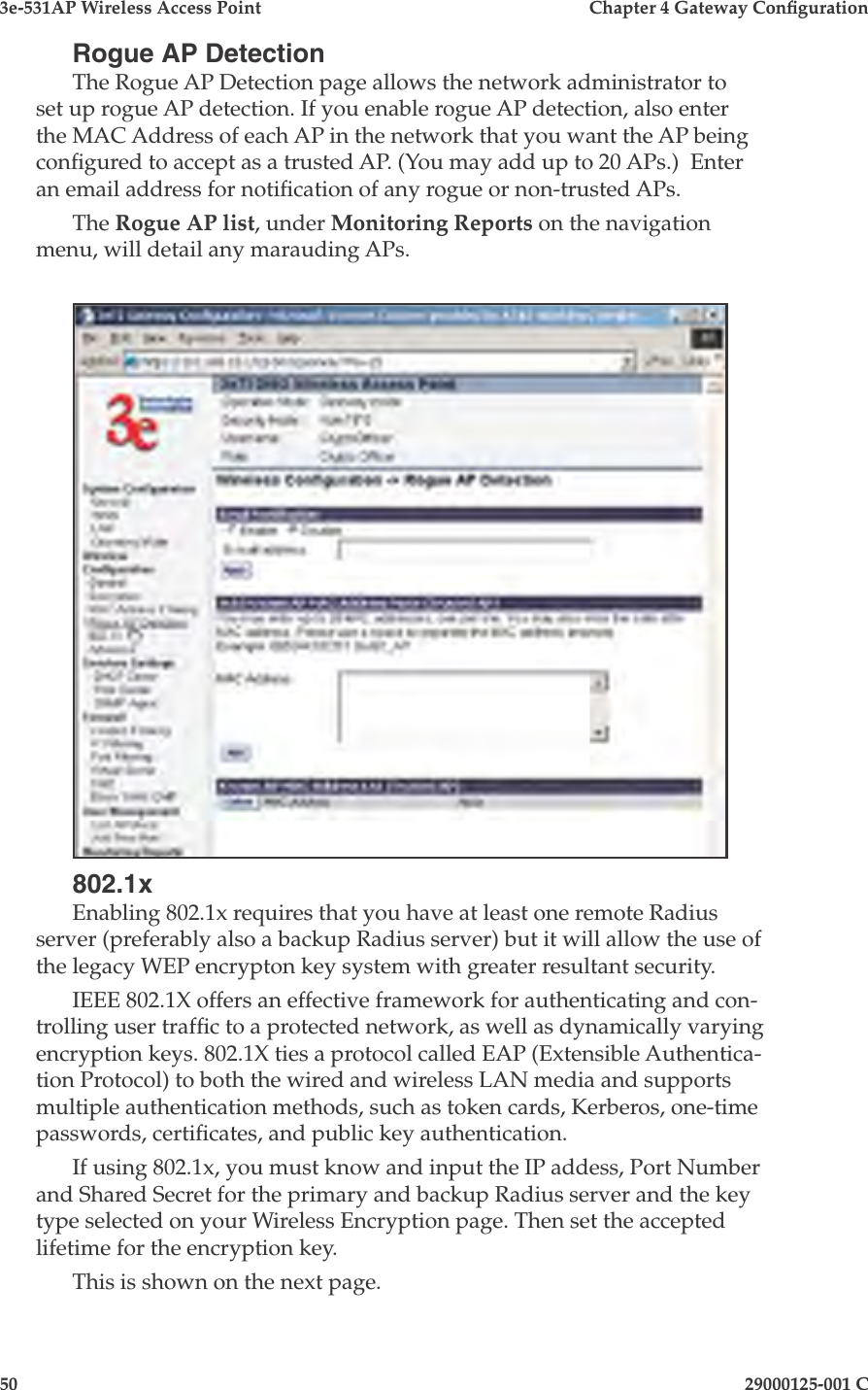

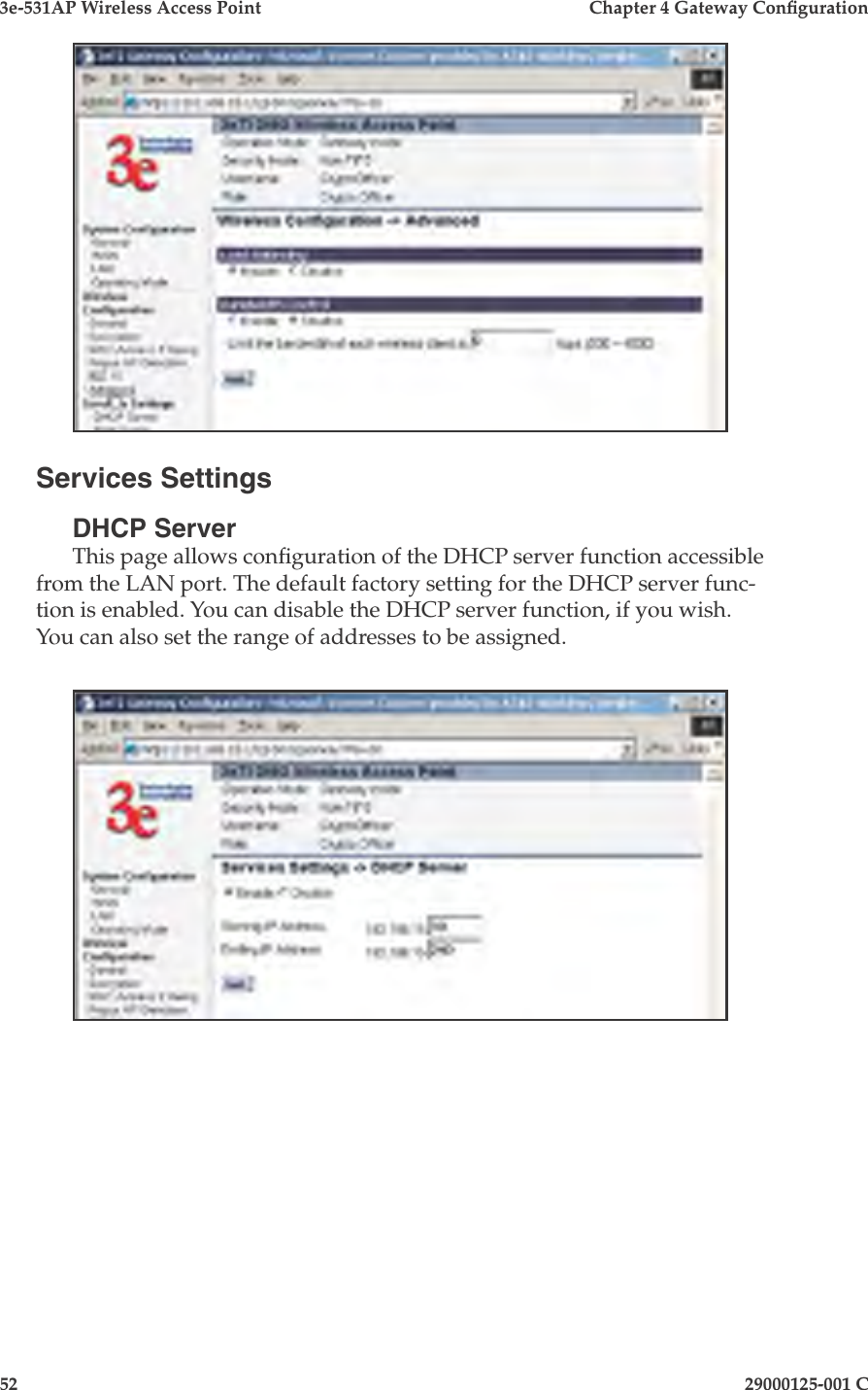

3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration50  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  51Rogue AP DetectionThe Rogue AP Detection page allows the network administrator to set up rogue AP detection. If you enable rogue AP detection, also enter the MAC Address of each AP in the network that you want the AP being congured to accept as a trusted AP. (You may add up to 20 APs.)  Enter an email address for notication of any rogue or non-trusted APs. The Rogue AP list, under Monitoring Reports on the navigation menu, will detail any marauding APs.802.1xEnabling 802.1x requires that you have at least one remote Radius server (preferably also a backup Radius server) but it will allow the use of the legacy WEP encrypton key system with greater resultant security.IEEE 802.1X offers an effective framework for authenticating and con-trolling user trafc to a protected network, as well as dynamically varying encryption keys. 802.1X ties a protocol called EAP (Extensible Authentica-tion Protocol) to both the wired and wireless LAN media and supports multiple authentication methods, such as token cards, Kerberos, one-time passwords, certicates, and public key authentication.If using 802.1x, you must know and input the IP addess, Port Number and Shared Secret for the primary and backup Radius server and the key type selected on your Wireless Encryption page. Then set the accepted lifetime for the encryption key.This is shown on the next page.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration50  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  51AdvancedThe Advanced page allows you to enable or disable load balancing and to control bandwidth.Load balancing is enabled by default. Load balancing distributes traf-c efciently among network servers so that no individual server is over-burdened. For example, the load balancing feature balances the wireless clients between APs.  If two APs with similar settings are in a conference room, depending on the location of the APs, all wireless clients could po-tentially associate with the same AP, leaving the other AP unused.  Load balancing attempts to evenly distribute the wireless clients on both APs.If enabled, the Bandwidth Control function species the maximum bandwidth given to each wireless client.Once you have made any changes, click Apply to save.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration52  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  53Services SettingsDHCP ServerThis page allows conguration of the DHCP server function accessible from the LAN port. The default factory setting for the DHCP server func-tion is enabled. You can disable the DHCP server function, if you wish. You can also set the range of addresses to be assigned.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration52  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  53Print ServerThe print server function can be enabled or disabled. It is enabled by default. If you do not plan to set up the print server function, you can click Disable and leave the metal plate on the printer port. The metal plate is provided to protect that port from water.SNMP AgentThe SNMP (simple network management protocol) Agent setup page allows you to set up an SNMP Agent. The agent is a software module that collects and stores management information for use in a network management system. The 3e-531AP's integrated SNMP agent software module translates the device’s management information into a common form for interpretation by the SNMP Manager, which usually resides on a network administrator’s computer.  The SNMP Manager function interacts with the SNMP Agent to execute applications to control and manage object variables (interface features and devices) in the gateway. Common forms of managed infor-mation include number of packets received on an interface, port status, dropped packets, and so forth. SNMP is a simple request and response protocol, allowing the manager to interact with the agent to either•  Get - Allows the manager to Read information about an object variable•  Set - Allows the manager to Write values for object variables with-in an agent’s control, or •  Trap - Allows the manager to Capture  information and send an alert about some pre-selected event to a specic destinationThe SNMP conguration consists of several elds, which are ex-plained below:•  Community –The Community eld for Get (Read Only), Set (Read & Write), and Trap is simply the SNMP terminology for “password” for those functions. •  Source –The IP address or name where the information is ob-tained.•  Access Control –Denes the level of management interaction per-mitted.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration54  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  55FirewallContent FilteringThe Content Filtering page allows the system administrator to iden-tify particular hosts or IPs that will be blocked from access by the gate-way. Simply input the IP address and click Add. Be aware, however, that the Content Filtering function does not exclude multihomed websites. Multihomed websites are those having two or more associated network addresses.IP FilteringThe IP Filtering page will block certain IPs on the Private LAN from accessing your Internet connection. It restricts clients to those with a spe-
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration54  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  55cic IP Address.Port FilteringPort ltering permits you to congure the Gateway to block outbound trafc on specic ports. It can be used to block the wireless network from using specic protocols on the network. Following is a list of well known TCP and UDP ports.Port Range Protocol20-21 FTP23 Telnet25 SMTP (Simple Mail Transfer for email sending)80 HTTP (World Wide Web)110 POP3 (Post Ofce Protocol for email receiving.)Virtual ServerIn order to protect the Private Network, the built-in NAT rewall lters out trafc to the private network. Since all clients on the Private Network are normally not visible to outside users, the virtual server func-tion allows some clients on the Private Network to be accessed by outside
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration56  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  57users by conguring the application mapping function offered on this page. Certain well known applications use specic TCP ports, such as Telnet (port 23), FTP (port 21), and Web server (port 80). Client computers on the Private LAN can host these applications, and allow users from the Internet to access these applications hosted on the virtual servers. This is done by mapping virtual servers to private IP addresses, according to the specic TCP port application. As the planning table below shows, we have identied a Telnet  (port 23) virtual server for private IP 192.168.15.56, a SMTP Mail (port 25) virtual server for pri-vate IP 192.168.15.33, and a Web (port 80) virtual server for private IP 192.168.15.64.  For example, all Internet requests to the gateway for SMTP Mail services (port 25) to the WAN IP address will redirected to the Pri-vate Network computer specied by the server IP 192.168.15.33.Service Port Server IP23 192.168.15.5625 192.168.15.3380 192.168.15.64We recommend that IP addresses of virtual server computers hosted on the Private Network be manually (statically) assigned to coincide with a static server mapping to that specic IP address. Virtual servers should not rely on the dynamic IP assignment of the DHCP server function which could create unmapped IP address assignments.Protocol – Selection of either UDP, TCP, or Both (TCP and UDP) al-lows these specied network protocols to pass through during the TCP port communication with each virtual server IP address.Demilitarized Zone (DMZ)The Demilitarized Zone (DMZ) host allows one computer on the Private Network to be totally exposed to the wired network or Internet for unrestricted two-way communication. This conguration is typically used when a computer is operating a proprietary client software or 2-way communication such as video-teleconferencing, where multiple TCP port
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration56  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  57assignments are required for communication. To assign a PC the DMZ host status, ll in the Private IP address which is identied as the exposed host and click the Apply button. However, any Internet user who knows the WAN IP address of the gateway can connect to the DMZ host since the rewall feature is disabled for this device, causing a potential security risk to data residing on that host. Again, it is recommended that IP addresses of DMZ host computers on the Private Network be manually (statically) assigned to coincide with a static DMZ host mapping to that specic IP address. DMZ hosts should not rely on the dynamic IP assignment of DHCP server function which could create incorrectly mapped IP address assignments to non-DMZ hosts.

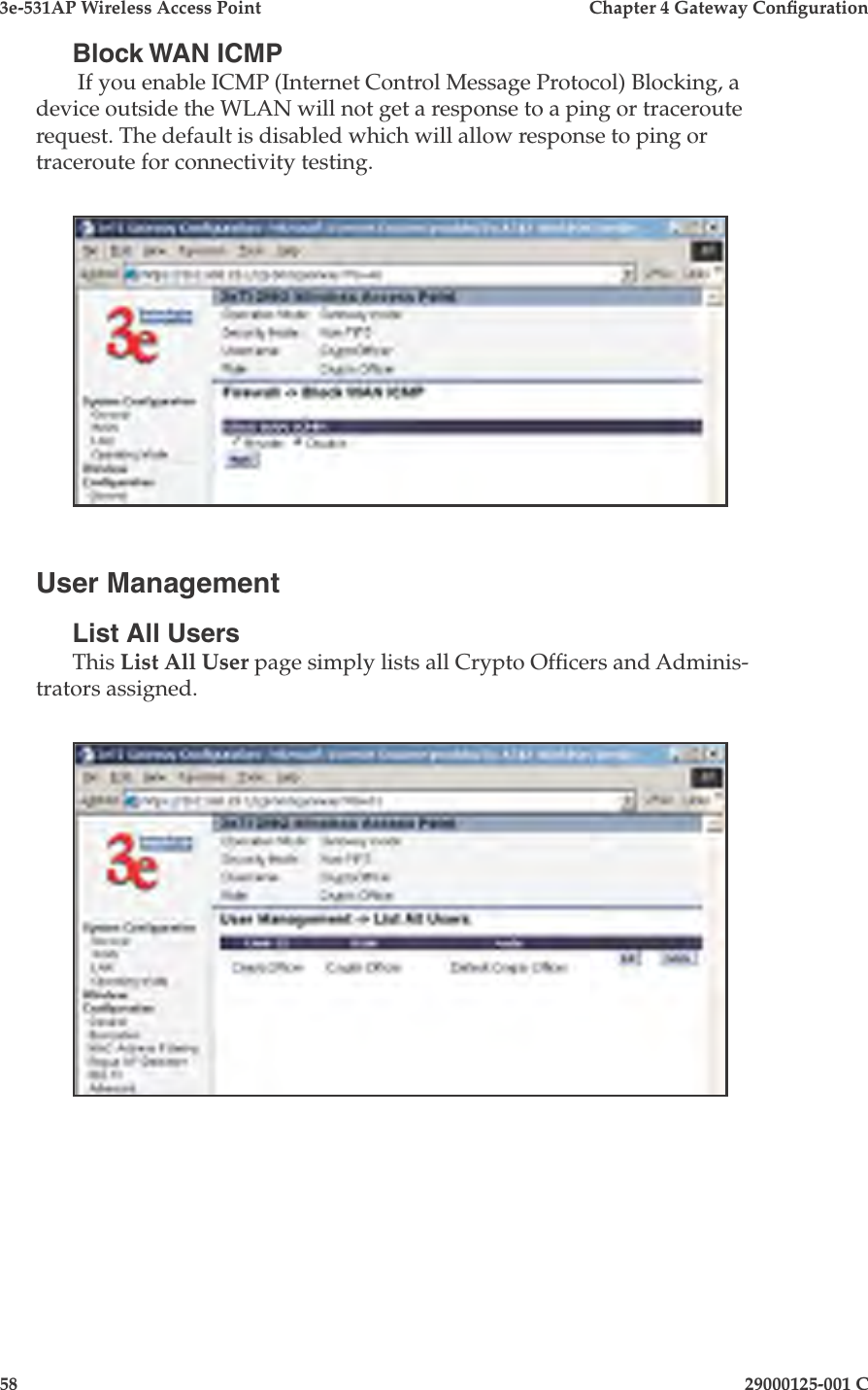

3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration58  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  59Block WAN ICMP If you enable ICMP (Internet Control Message Protocol) Blocking, a device outside the WLAN will not get a response to a ping or traceroute request. The default is disabled which will allow response to ping or traceroute for connectivity testing.User ManagementList All UsersThis List All User page simply lists all Crypto Ofcers and Adminis-trators assigned.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration58  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  59Add New UserThe Add New User screen allows the Crypto Ofcer to add new Administrator users, assigning and conrming passwords. The Admin-istrator role performs general security services, including cryptographic operations and other approved security functions. The Administrator role does not, however, perform cryptographic initialization or management functions such as module initialization, input or output of cryptographic keys and CSPs, and audit functions.

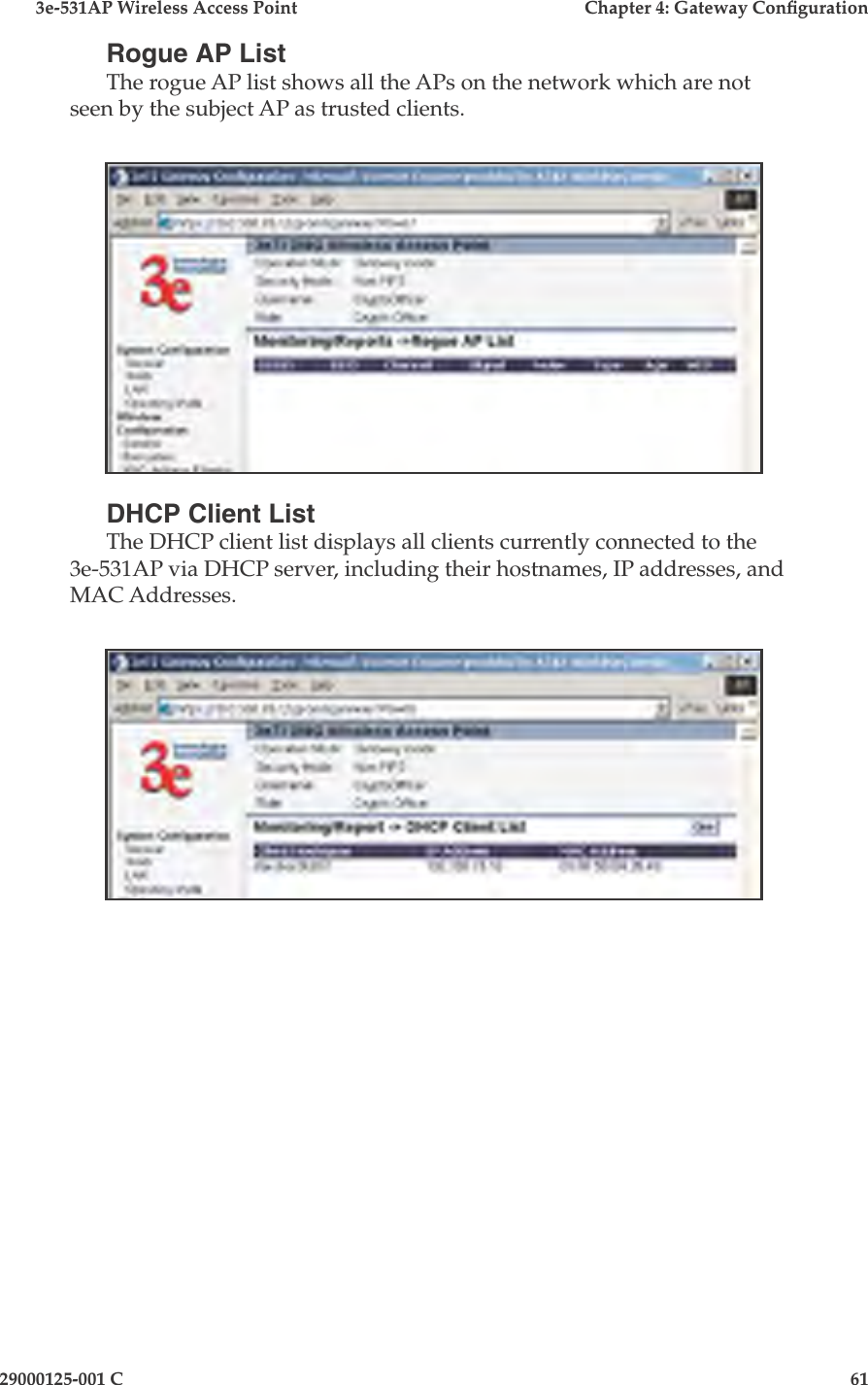

3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration60  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  61Monitoring/ReportsThis section gives you a variety of lists and status reports. Most of these are self-explanatory.System StatusThis screen displays the status of the 3e-531AP device and network interface details.Wireless ClientsThe Wireless Clients report screen displays the MAC Address of all wireless clients and their signal strength and transmit rate.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration60  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  61Rogue AP ListThe rogue AP list shows all the APs on the network which are not seen by the subject AP as trusted clients.DHCP Client ListThe DHCP client list displays all clients currently connected to the 3e-531AP via DHCP server, including their hostnames, IP addresses, and MAC Addresses.

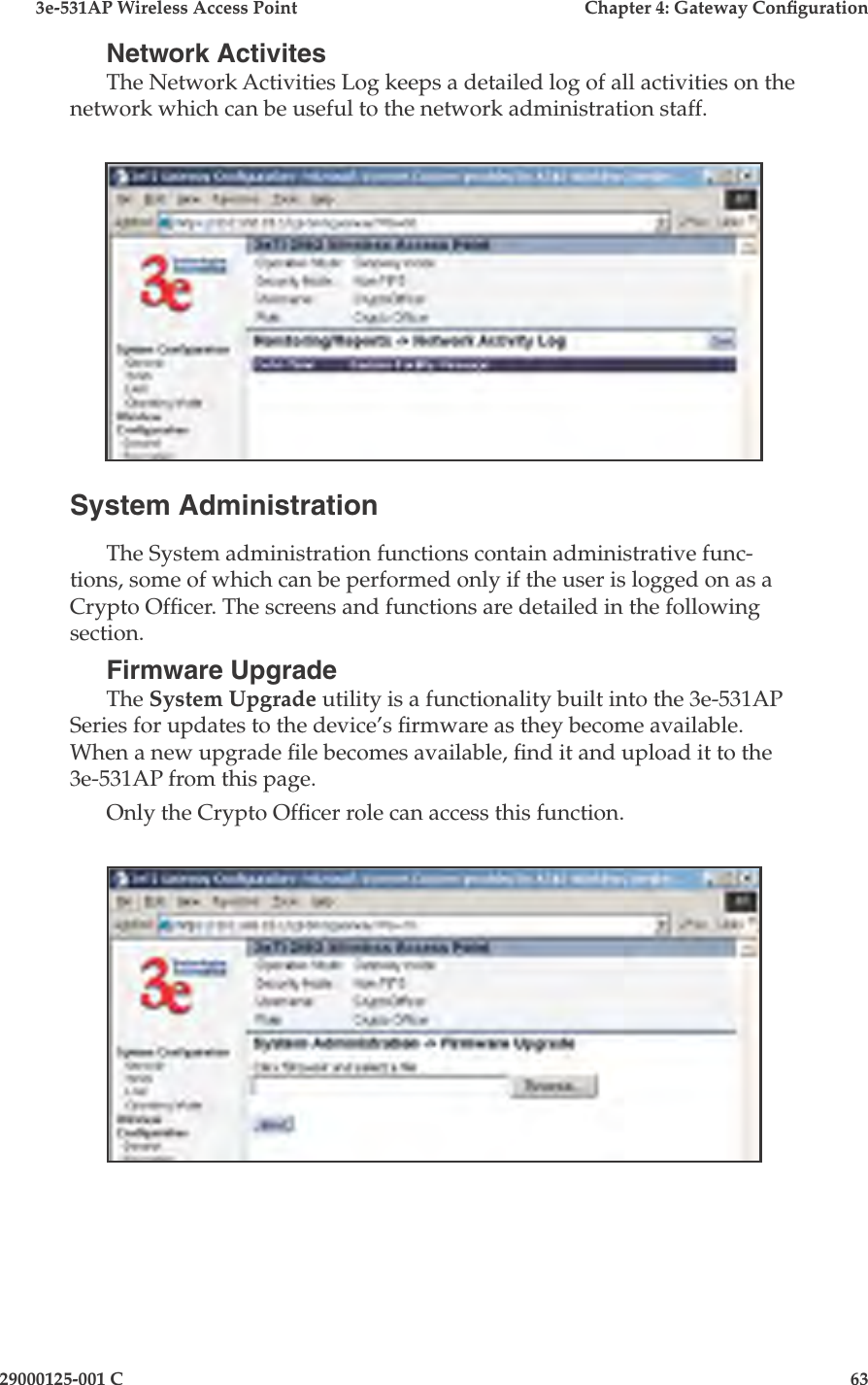

3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration62  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  63System LogThe system log displays system facility messages with date and time stamp. These are messages documenting functions performed internal to the system, based on the system’s functionality. Generally, the Admin-istrator would only use this information if trained as or working with a eld engineer or as information provided to technical support.Web Access LogThe web access log displays system facility messages with date and time stamp for any actions involving web access. For example, this log re-cords when you set encryption mode, change operating mode, etc., using the web browser. It establishes a running record regarding what actions were performed and by whom.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration62  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  63Network ActivitesThe Network Activities Log keeps a detailed log of all activities on the network which can be useful to the network administration staff.System AdministrationThe System administration functions contain administrative func-tions, some of which can be performed only if the user is logged on as a Crypto Ofcer. The screens and functions are detailed in the following section. Firmware UpgradeThe System Upgrade utility is a functionality built into the 3e-531AP Series for updates to the device’s rmware as they become available. When a new upgrade le becomes available, nd it and upload it to the 3e-531AP from this page. Only the Crypto Ofcer role can access this function.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration64  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  65Factory DefaultThe Factory Default or "Restore" button is a fallback troubleshooting function that should only be used to reset to original settings. Only the Crypto Ofcer role has access to the Restore button.Remote LoggingIf enabled, input a System Log Server IP Address and System Log Server Port. Click Apply to accept these values.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration64  29000125-001 C  3e-531AP Wireless Access Point  Chapter 4: Gateway Conguration29000125-001 C  65RebootThe Reboot utility allows you to reboot the Gateway without chang-ing any preset functionality. Both Crypto Ofcer and Administrator func-tions have access to this function.UtilitiesThis screen gives you ready access to two useful utilities: Ping and Traceroute. Simply enter the IP Address or hostname you wish to ping or traceroute and click either the Ping or Traceroute button, as appropriate.
3e-531AP Wireless Access Point  Chapter 4 Gateway Conguration66  29000125-001 CThis page intentionally left blank.

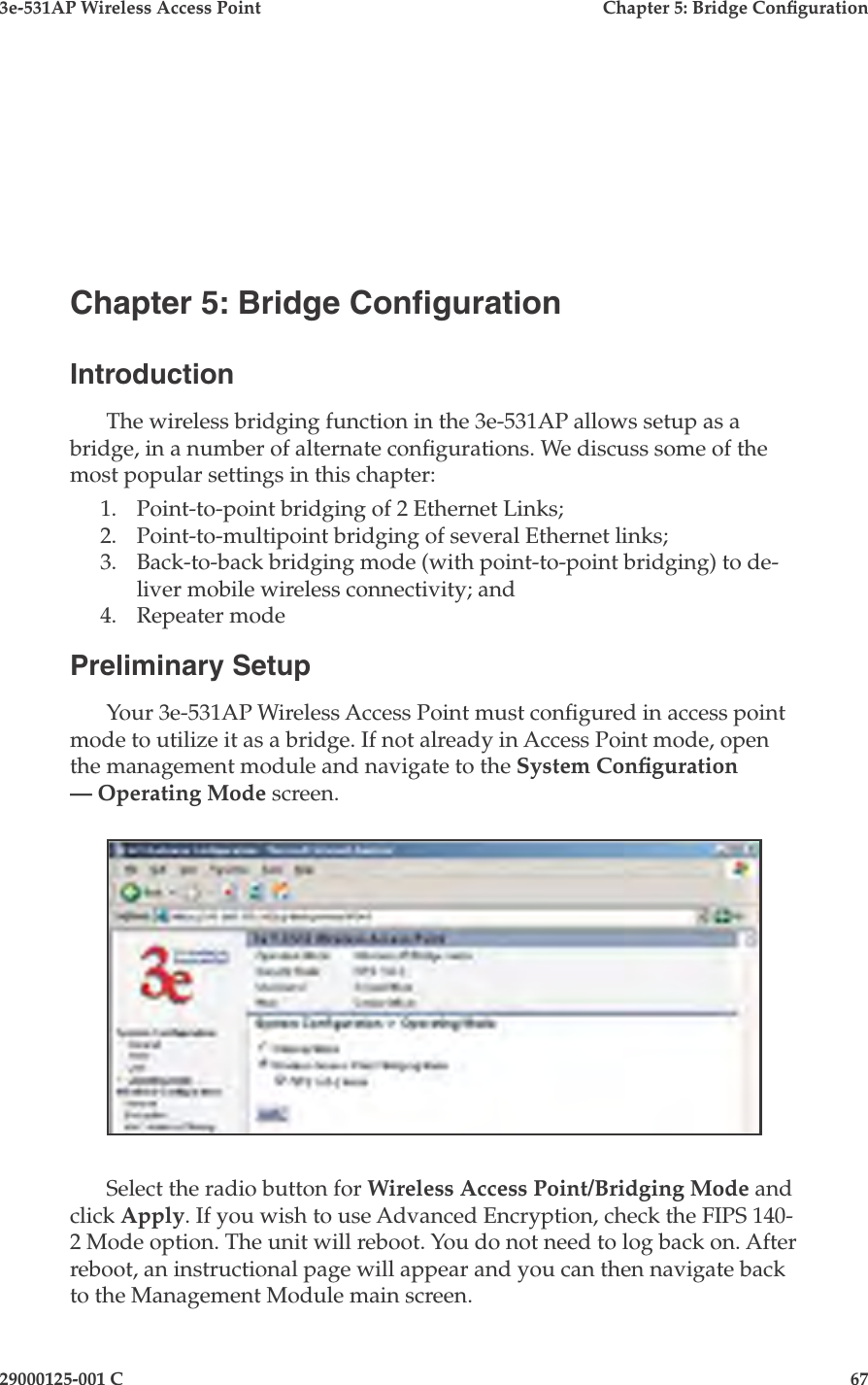

3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  67Chapter 5: Bridge CongurationIntroductionThe wireless bridging function in the 3e-531AP allows setup as a bridge, in a number of alternate congurations. We discuss some of the most popular settings in this chapter:1.   Point-to-point bridging of 2 Ethernet Links;2.   Point-to-multipoint bridging of several Ethernet links;3.   Back-to-back bridging mode (with point-to-point bridging) to de-liver mobile wireless connectivity; and4.   Repeater mode Preliminary SetupYour 3e-531AP Wireless Access Point must congured in access point mode to utilize it as a bridge. If not already in Access Point mode, open the management module and navigate to the System Conguration — Operating Mode screen.    Select the radio button for Wireless Access Point/Bridging Mode and click Apply. If you wish to use Advanced Encryption, check the FIPS 140-2 Mode option. The unit will reboot. You do not need to log back on. After reboot, an instructional page will appear and you can then navigate back to the Management Module main screen.

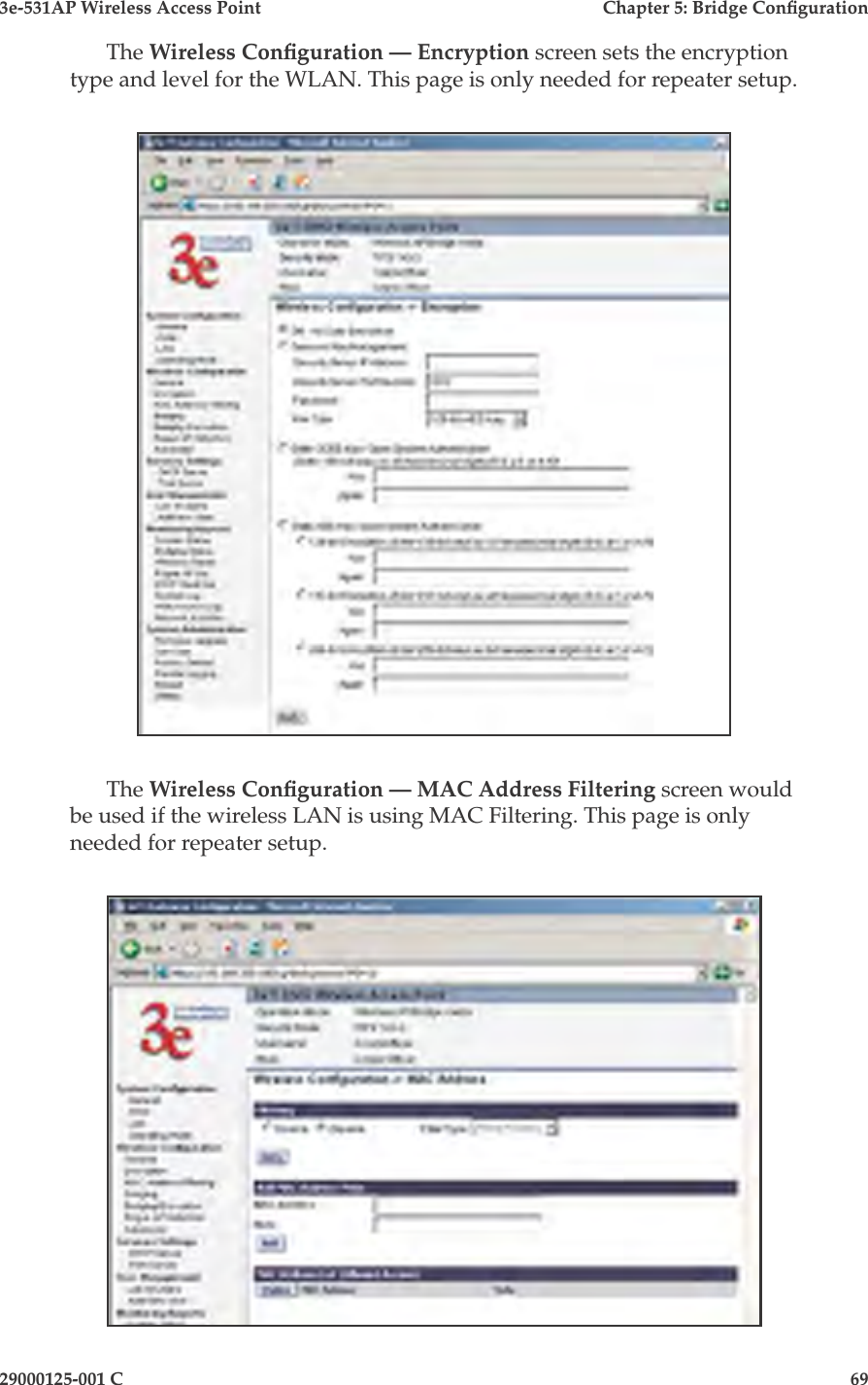

3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration68  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  69General Bridge SetupOnce the unit is in access point mode, the navigation bar on the left side of the management module will include some screens that relate specically to bridging. The screens that you may need to modify, regard-less of what type of bridging mode you choose, will be in the Wireless Conguration section. These include:•  Wireless Conguration — General•  Wireless Conguration — Encryption•  Wireless Conguration — MAC Address Filtering•  Wireless Conguration — Bridging•  Wireless Conguration — Bridging Encryption.The Wireless Conguration — Encryption and the Wireless Congu-ration — MAC Address Filtering are only needed if you are going to set up the bridge as a repeater. However, we have included a picture of them in this section for reference purposes.The Wireless Conguration — General screen is used to set the SSID and Channel Number and is also the location where you can nd the device MAC Address, which you will need. If you are setting up the 3e-531AP as a Bridge, the SSID can remain in its default setting, since the bridge uses the BSSID for purposes of establishing contact. The BSSID is the MAC Address, which is shown on this page. It is a good idea to write down the MAC Address before leaving the page. Channel number is a means of assigning frequencies to access points used in proximity or series to minimize interference or "noise." There are 11 channel numbers that can be assigned. Generally, channels 1, 6, and 11 are the best from which to choose, since these are the channels with optimum frequency spread. TX Pwr Mode can be left in its default of Auto. If you nd later that the broadcast range can be decreased, this is where you will set it.IMPORTANT NOTE: It is vital that you not use the function, Automatically select the optimal channel at bootup, when you are conguring the 3e AP as a Bridge. Set the function to NO. In bridging mode, all APs must be on the same RF Channel.
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration68  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  69The Wireless Conguration — Encryption screen sets the encryption type and level for the WLAN. This page is only needed for repeater setup.The Wireless Conguration — MAC Address Filtering screen would be used if the wireless LAN is using MAC Filtering. This page is only needed for repeater setup.
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration70  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  71The Wireless Conguration — Bridging screen is used to enable/disable Wireless Client Access and Spanning Tree Protocol and to con-gure the BSSID of the peer bridges. This page is important in setting up your bridge conguration. We recommend that you disable Wireless Client Access for all bridge setups except repeater. Spanning Tree Protocol should be enabled if there is any possibility that a bridging loop could oc-cur. If you are certain that there is no possibility that a bridging loop will occur, you should disable Spanning Tree Protocol, because the bridge will be more efcient (faster) without it. However, if not sure, the safest solu-tion is to enable Spanning Tree Protocol.The Wireless Conguration — Bridging Encryption page is used to congure static encryption keys for the wireless bridge. This is an impor-tant page to set up to ensure that your bridge is working correctly. The en-cryption key that you use on this screen must be the same for any bridge connected to your bridging network in order for communication to occur. And on this screen, you can only select either a static 192 bit 3DES key or an AES key of either 128-bit, 192-bit, or 256-bit.NOTE: You can also select to leave encryption OFF, but this is not recommended.
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration70  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  71The following sections describe the setup for four types of bridging conguration: point-to-point, point-to-multipoint, back-to-back or, lastly, repeater.Bridging Type CongurationPoint-to-Point Bridge CongurationA point-to-point link is a direct connection between two, and only two, locations or nodes. Ethernet EthernetBridge 1 Bridge 2
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration72  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  73For the two bridges that are to be linked to communicate properly, they have to be set up with compatible commands in the setup screens.For instance, the bridges must have the same channel number. Both must be set for bridging with Wireless Client Access set to Disable. Span-ning Tree Protocol may be set to Enable, if there is any possibility of a bridging loop, or to Disable (which is more efcient) if there's no possibil-ity of a bridging loop. Each must contain the other's BSSID. (The BSSID of each is equivalent to the MAC address. Enter only hexadecimal numbers, no colons. Data entry is not case sensitive.) Finally, the wireless bridging encryption must be set to the appropriate type and key length and must be identical on each bridge.The following chart shows the preferred settings.Point-to-Point Bridging Setup GuideDirection Bridge 1 Bridge 2Mode Bridging BridgingWireless Conguration – General    SSID default default     Channel      11      11Tx Power Auto AutoWireless Conguration – Encryption N/A N/AWireless Conguration – Bridging Wireless Client Access Disable DisableSpanning Tree Protocol Enable (or Disable if no bridging loop pos-sible)Enable (or Disable if no bridging loop pos-sible)BSSID (the MAC Address, from the Wireless Conguration — General screen.)Add Bridge 2 BSSID Add Bridge 1 BSSIDWireless Conguration – Bridging EncryptionSelect appropriate key type/length and value. Must be the same key as Bridge 2.Select appropriate key type/length and value. Must be the same key as Bridge 1.The following sequence steps you through the setup of bridge 1. Bridge 2 would duplicate this procedure, with the BSSID of bridge 2 be-ing the MAC address of bridge 1 and vice versa.First, ensure that bridge 1 is in Bridging Mode by selecting that option on the System Conguration — Operating Mode screen and clicking Ap-ply to reboot.Navigate to the Wireless Conguration — General screen and set the  Channel number. Leave the TX Pwr Mode in AUTO position at this time.
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration72  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  73Navigate to the Wireless Conguration — Bridging screen. In the rst section: General, set Wireless Client Access to Disable and set Spanning Tree Protocol to Enable. Click Apply to accept your changes but remain on that screen.

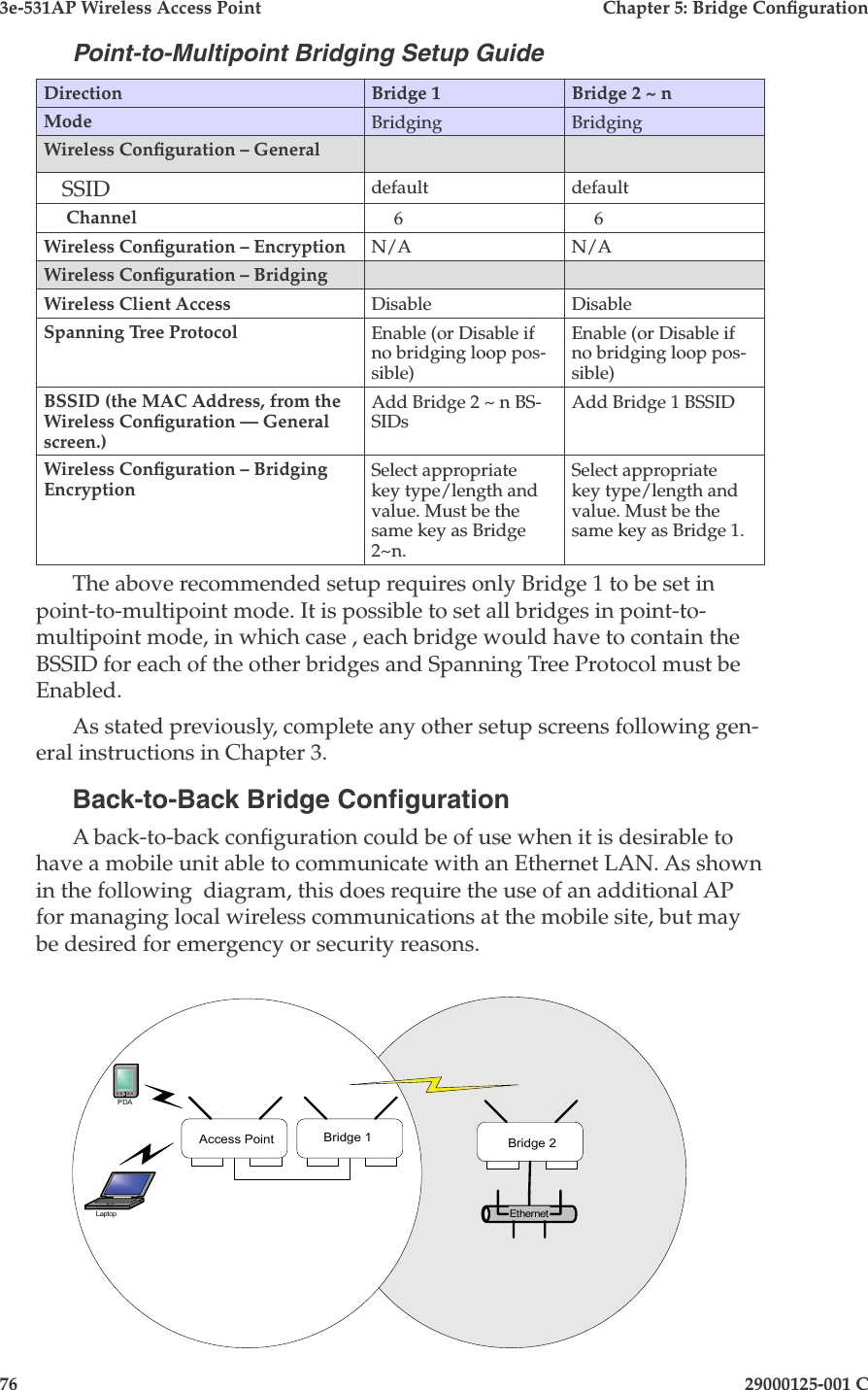

3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration74  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  75In the second section on the Wireless Conguration — Bridging screen, add the BSSID of the remote bridge. The BSSID corresponds to that bridge's MAC address. In entering the BSSID, enter only hexadecimal numbers, no colons. Data entry is not case sensitive. You may also enter a note that denes the location of the remote bridge. Then click Add to accept. The remote bridge's BSSID will now appear in the third section of the page. If, at some time, you wish to delete the entry, simply click the check box next to it and conrm by clicking Delete.Next, navigate to Wireless Conguration — Bridging Encryption. Select the appropriate key type and length and the key value. The encryp-tion key value and type for Bridge 1 must be the same as for Bridge 2. You must complete the conguration of your Bridge 1 by visiting the other screens included in the navigation bar and following the general instructions in Chapter 3 of this guide to establish any other required con-guration options such as General, WAN and LAN settings.Congure the second of your two point-to-point bridges following the instructions given for Bridge 1 above.

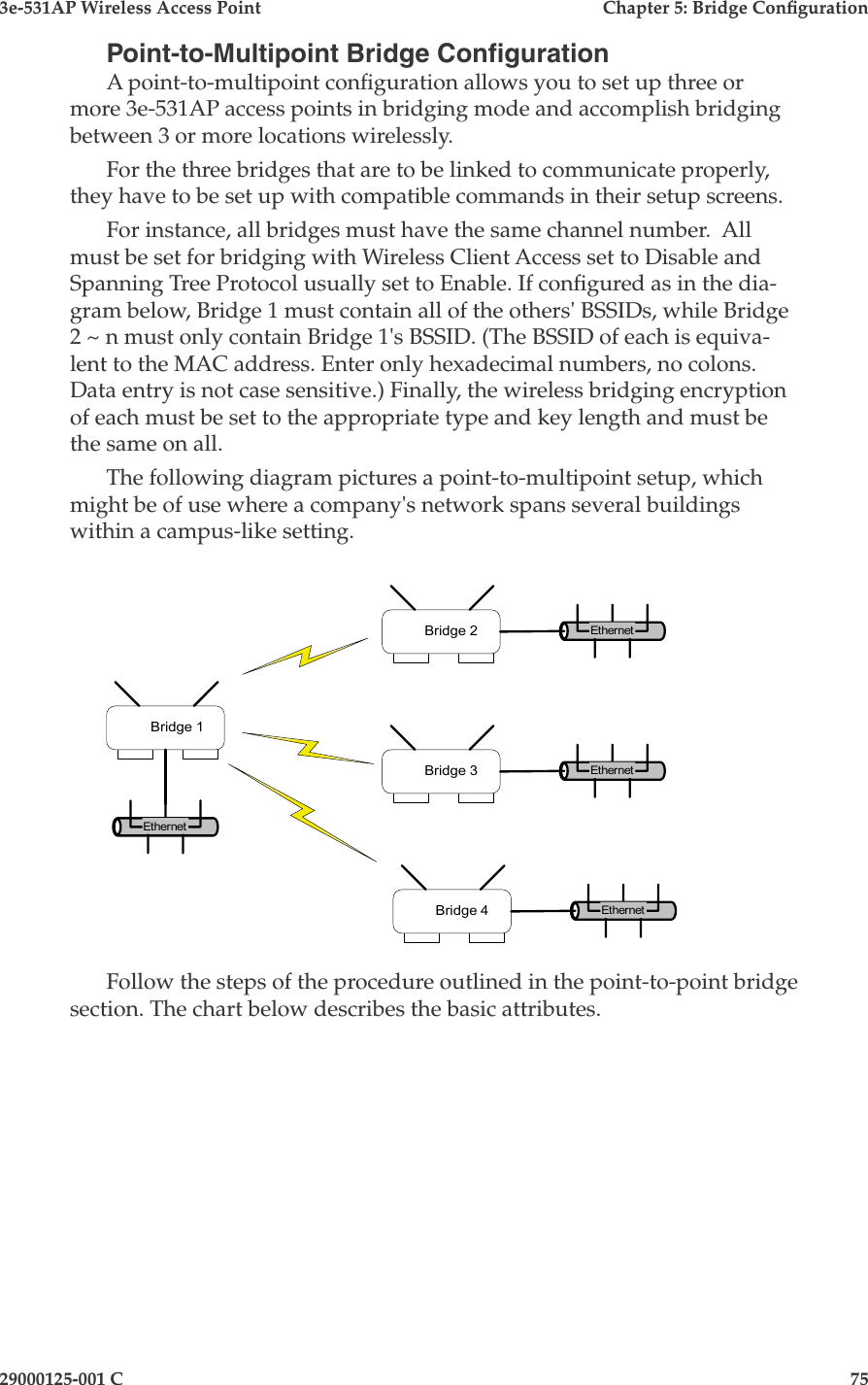

3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration74  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  75Point-to-Multipoint Bridge CongurationA point-to-multipoint conguration allows you to set up three or more 3e-531AP access points in bridging mode and accomplish bridging between 3 or more locations wirelessly. For the three bridges that are to be linked to communicate properly, they have to be set up with compatible commands in their setup screens.For instance, all bridges must have the same channel number.  All must be set for bridging with Wireless Client Access set to Disable and Spanning Tree Protocol usually set to Enable. If congured as in the dia-gram below, Bridge 1 must contain all of the others' BSSIDs, while Bridge 2 ~ n must only contain Bridge 1's BSSID. (The BSSID of each is equiva-lent to the MAC address. Enter only hexadecimal numbers, no colons. Data entry is not case sensitive.) Finally, the wireless bridging encryption of each must be set to the appropriate type and key length and must be the same on all.The following diagram pictures a point-to-multipoint setup, which might be of use where a company's network spans several buildings within a campus-like setting. EthernetEthernetBridge 1Bridge 2EthernetBridge 3EthernetBridge 4Follow the steps of the procedure outlined in the point-to-point bridge section. The chart below describes the basic attributes.

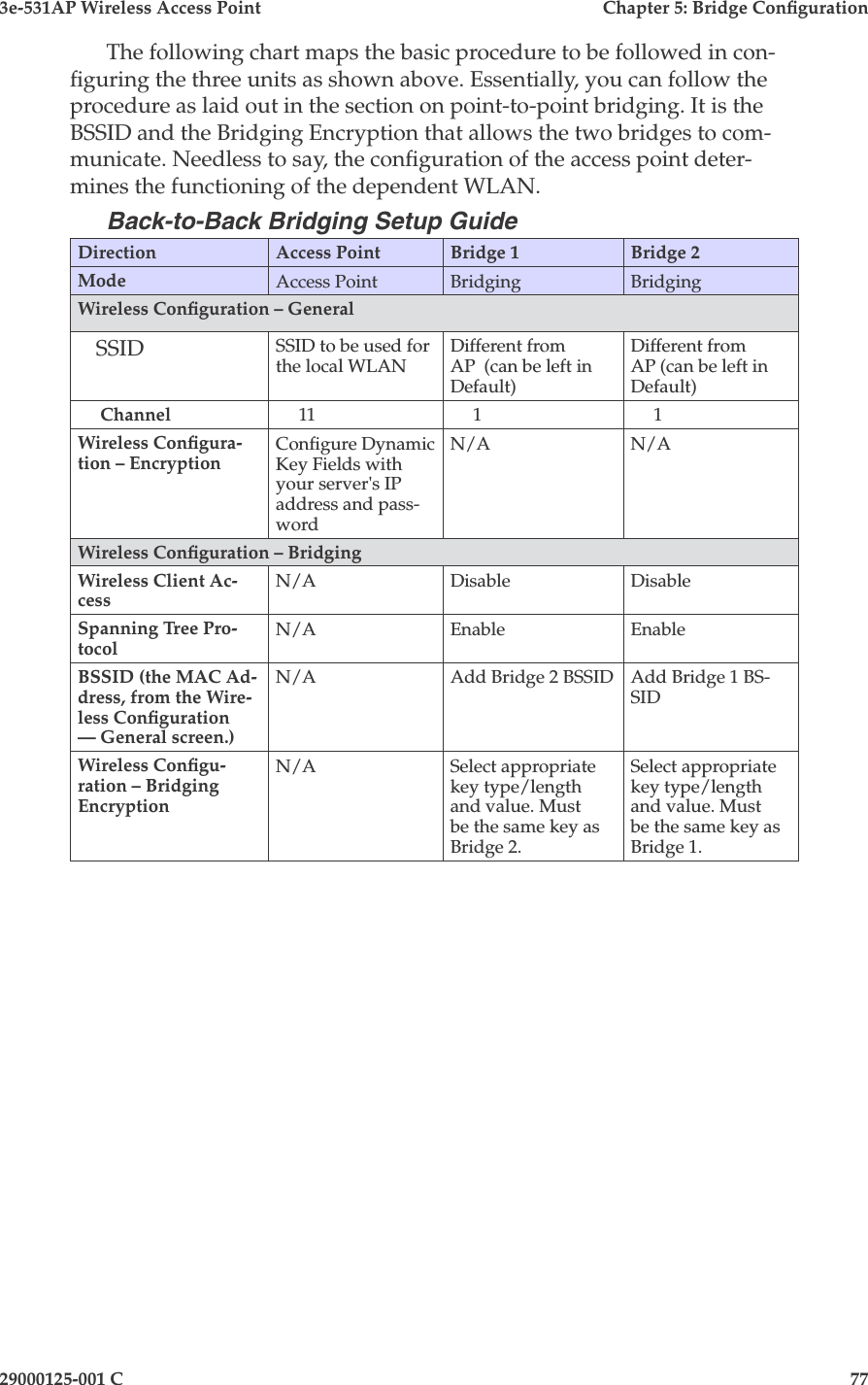

3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration76  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  77Point-to-Multipoint Bridging Setup GuideDirection Bridge 1 Bridge 2 ~ nMode Bridging BridgingWireless Conguration – General    SSID default default     Channel      6      6Wireless Conguration – Encryption N/A N/AWireless Conguration – Bridging Wireless Client Access Disable DisableSpanning Tree Protocol Enable (or Disable if no bridging loop pos-sible)Enable (or Disable if no bridging loop pos-sible)BSSID (the MAC Address, from the Wireless Conguration — General screen.)Add Bridge 2 ~ n BS-SIDsAdd Bridge 1 BSSIDWireless Conguration – Bridging EncryptionSelect appropriate key type/length and value. Must be the same key as Bridge 2~n.Select appropriate key type/length and value. Must be the same key as Bridge 1.The above recommended setup requires only Bridge 1 to be set in point-to-multipoint mode. It is possible to set all bridges in point-to-multipoint mode, in which case , each bridge would have to contain the BSSID for each of the other bridges and Spanning Tree Protocol must be Enabled.As stated previously, complete any other setup screens following gen-eral instructions in Chapter 3.Back-to-Back Bridge CongurationA back-to-back conguration could be of use when it is desirable to have a mobile unit able to communicate with an Ethernet LAN. As shown in the following  diagram, this does require the use of an additional AP for managing local wireless communications at the mobile site, but may be desired for emergency or security reasons. EthernetBridge 1 Bridge 2PDALaptopAccess Point
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration76  29000125-001 C3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration29000125-001 C  77The following chart maps the basic procedure to be followed in con-guring the three units as shown above. Essentially, you can follow the procedure as laid out in the section on point-to-point bridging. It is the BSSID and the Bridging Encryption that allows the two bridges to com-municate. Needless to say, the conguration of the access point deter-mines the functioning of the dependent WLAN.Back-to-Back Bridging Setup GuideDirection Access Point Bridge 1 Bridge 2Mode Access Point Bridging BridgingWireless Conguration – General    SSID SSID to be used for the local WLANDifferent from AP  (can be left in Default)Different from AP (can be left in Default)     Channel      11      1      1Wireless Congura-tion – EncryptionCongure Dynamic Key Fields with your server's IP address and pass-wordN/A N/AWireless Conguration – Bridging Wireless Client Ac-cessN/A Disable DisableSpanning Tree Pro-tocolN/A Enable EnableBSSID (the MAC Ad-dress, from the Wire-less Conguration — General screen.)N/A Add Bridge 2 BSSID Add Bridge 1 BS-SIDWireless Congu-ration – Bridging EncryptionN/A Select appropriate key type/length and value. Must be the same key as Bridge 2.Select appropriate key type/length and value. Must be the same key as Bridge 1.
3e-531AP Wireless Access Point  Chapter 5: Bridge Conguration78  29000125-001 CRepeater Bridge CongurationA repeater setup can be used to extend the wireless signal from one bridge connected to an Ethernet LAN wirelessly so that another bridge can control a wireless LAN at a distance. EthernetBridge 1 Bridge 2PDALaptopPDALaptopRepeater Bridging Setup GuideDirection Bridge 1 Bridge 2System Conguration – Operating ModeBridge BridgeWireless Conguration – General     SSID Same as Bridge 2 Same as Bridge 1     Channel 6 6Wireless Conguration – EncryptionCongure Dynamic Key Management elds with your server's IP address and password. (Alternately, use a static key.)Congure Dynamic Key Management elds with your server's IP address and password.  (Alternate-ly, use a static key.)Wireless Conguration – Bridging     Wireless Client Access Enable Enable     Spanning Tree Protocol Enable  Enable     BSSID (the MAC Ad-dress, from the Wireless Conguration — General screen.)Add Bridge 2's BSSID Add Bridge 1's BSSIDWireless Conguration – Bridging EncryptionSelect appropriate key type/length and enter key value. Must be the same as that on Bridge 2.Select appropriate key type/length and enter key value. Must be the same as that on Bridge 1.With this conguration, each bridge can control a wireless LAN. All wireless clients must have the same SSID as the bridges. All clients can roam between the two bridges.All other setup screens should be completed following the guidelines in Chapter 3.

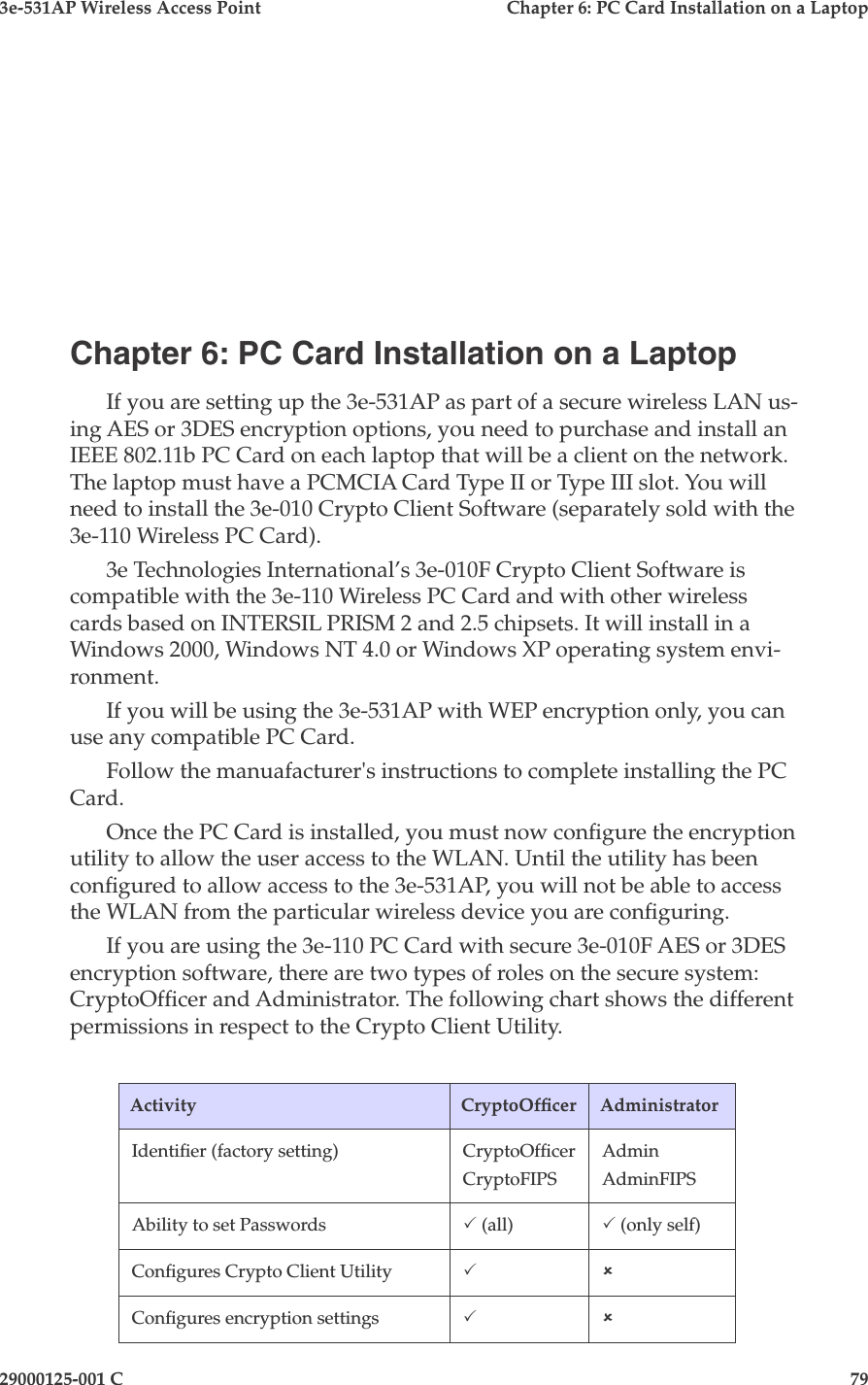

3e-531AP Wireless Access Point  Chapter 6: PC Card Installation on a Laptop29000125-001 C  79Chapter 6: PC Card Installation on a LaptopIf you are setting up the 3e-531AP as part of a secure wireless LAN us-ing AES or 3DES encryption options, you need to purchase and install an IEEE 802.11b PC Card on each laptop that will be a client on the network. The laptop must have a PCMCIA Card Type II or Type III slot. You will need to install the 3e-010 Crypto Client Software (separately sold with the 3e-110 Wireless PC Card).3e Technologies International’s 3e-010F Crypto Client Software is compatible with the 3e-110 Wireless PC Card and with other wireless cards based on INTERSIL PRISM 2 and 2.5 chipsets. It will install in a Windows 2000, Windows NT 4.0 or Windows XP operating system envi-ronment. If you will be using the 3e-531AP with WEP encryption only, you can use any compatible PC Card.Follow the manuafacturer's instructions to complete installing the PC Card.Once the PC Card is installed, you must now congure the encryption utility to allow the user access to the WLAN. Until the utility has been congured to allow access to the 3e-531AP, you will not be able to access the WLAN from the particular wireless device you are conguring.If you are using the 3e-110 PC Card with secure 3e-010F AES or 3DES encryption software, there are two types of roles on the secure system: CryptoOfcer and Administrator. The following chart shows the different permissions in respect to the Crypto Client Utility.Activity CryptoOfcer AdministratorIdentier (factory setting) CryptoOfcerCryptoFIPSAdminAdminFIPSAbility to set Passwords P (all) P (only self)Congures Crypto Client Utility PûCongures encryption settings Pû

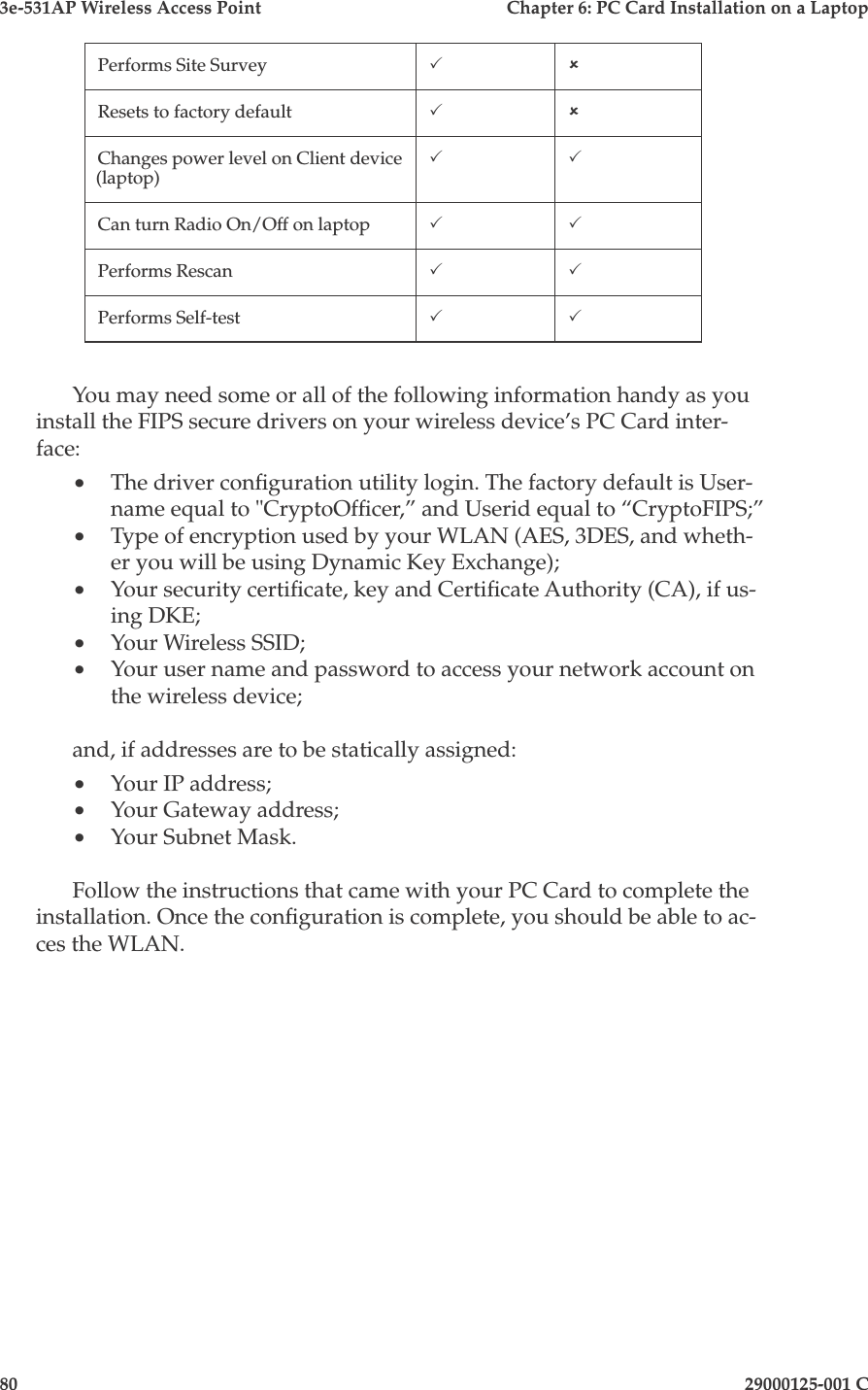

3e-531AP Wireless Access Point  Chapter 6: PC Card Installation on a Laptop80  29000125-001 CPerforms Site Survey PûResets to factory default PûChanges power level on Client device (laptop)P PCan turn Radio On/Off on laptop P PPerforms Rescan P PPerforms Self-test P PYou may need some or all of the following information handy as you install the FIPS secure drivers on your wireless device’s PC Card inter-face:•  The driver conguration utility login. The factory default is User-name equal to "CryptoOfcer,” and Userid equal to “CryptoFIPS;”•  Type of encryption used by your WLAN (AES, 3DES, and wheth-er you will be using Dynamic Key Exchange);•  Your security certicate, key and Certicate Authority (CA), if us-ing DKE;•  Your Wireless SSID;•  Your user name and password to access your network account on the wireless device;and, if addresses are to be statically assigned:•  Your IP address;•  Your Gateway address;•  Your Subnet Mask. Follow the instructions that came with your PC Card to complete the installation. Once the conguration is complete, you should be able to ac-ces the WLAN.

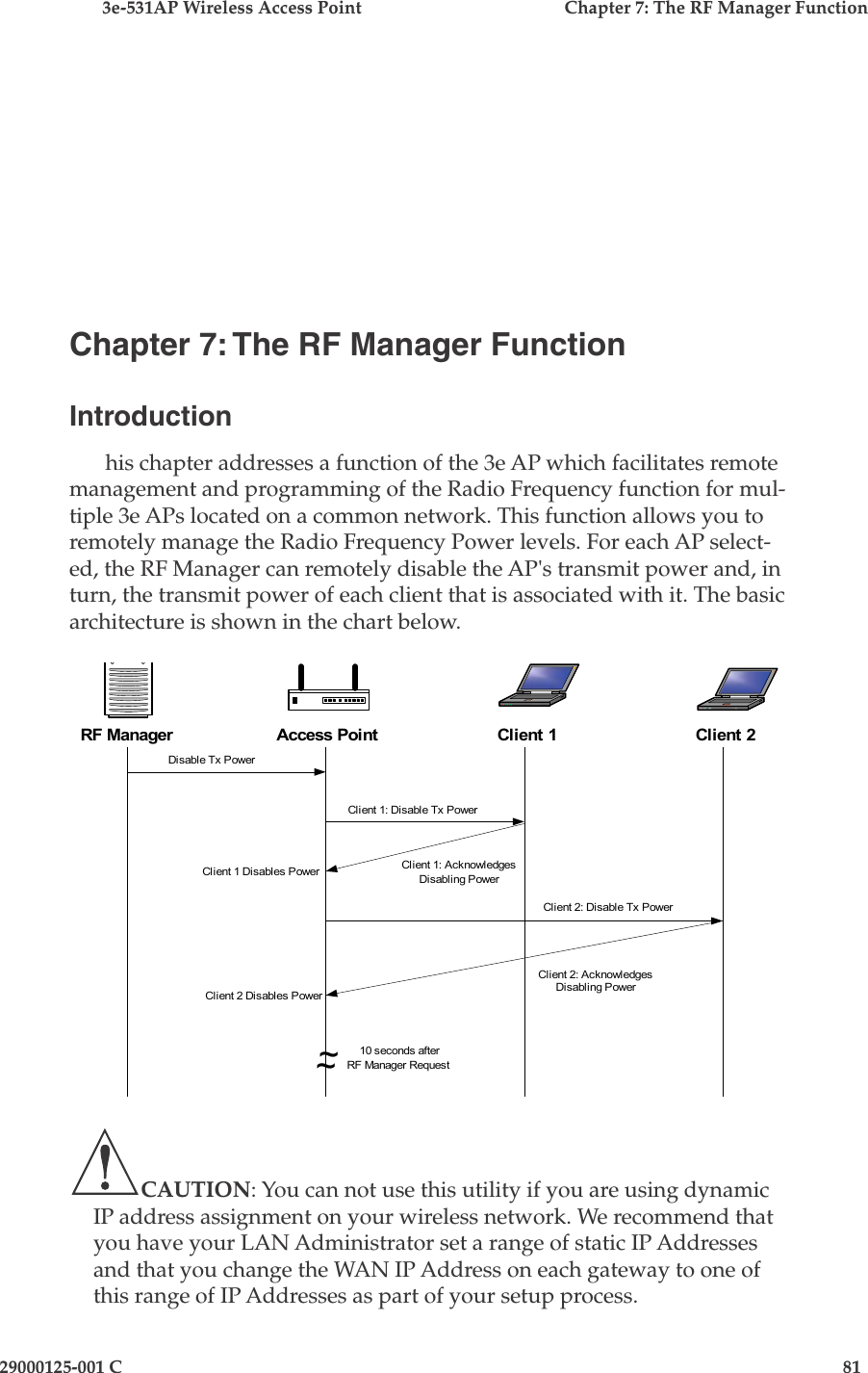

3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function29000125-001 C  81Chapter 7: The RF Manager FunctionIntroductionhis chapter addresses a function of the 3e AP which facilitates remote management and programming of the Radio Frequency function for mul-tiple 3e APs located on a common network. This function allows you to remotely manage the Radio Frequency Power levels. For each AP select-ed, the RF Manager can remotely disable the AP's transmit power and, in turn, the transmit power of each client that is associated with it. The basic architecture is shown in the chart below.CAUTION: You can not use this utility if you are using dynamic IP address assignment on your wireless network. We recommend that you have your LAN Administrator set a range of static IP Addresses and that you change the WAN IP Address on each gateway to one of this range of IP Addresses as part of your setup process.RF ManagerDisable Tx PowerClient 1: Disable Tx PowerClient 2: Disable Tx PowerClient 2: AcknowledgesDisabling PowerClient 1: AcknowledgesDisabling Power~~10 seconds afterRF Manager RequestClient 1 Disables PowerClient 2 Disables PowerAP Disables PowerAccess Point Client 1 Client 2

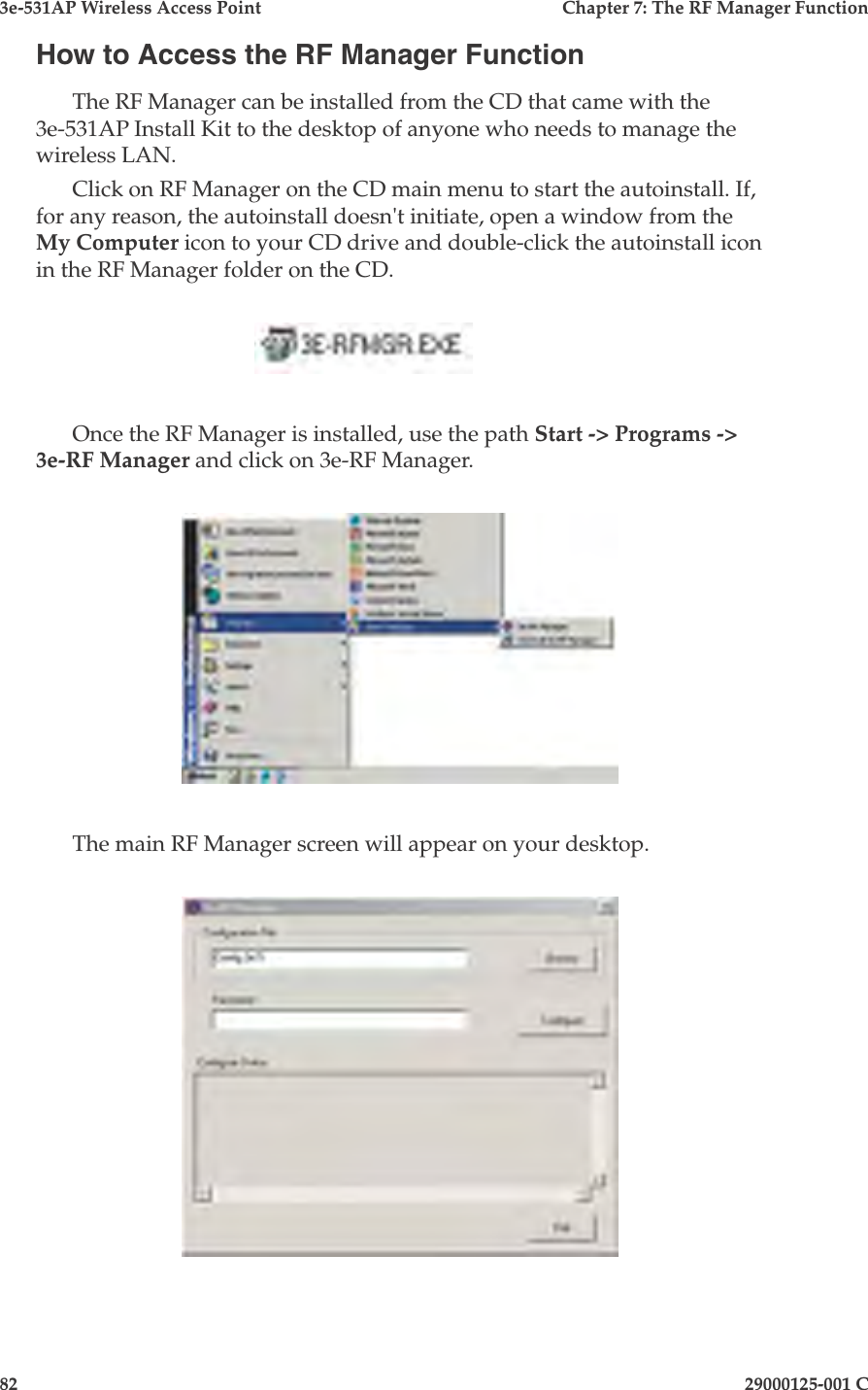

3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function82  29000125-001 C3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function29000125-001 C  83How to Access the RF Manager FunctionThe RF Manager can be installed from the CD that came with the 3e-531AP Install Kit to the desktop of anyone who needs to manage the wireless LAN.Click on RF Manager on the CD main menu to start the autoinstall. If, for any reason, the autoinstall doesn't initiate, open a window from the My Computer icon to your CD drive and double-click the autoinstall icon in the RF Manager folder on the CD.     Once the RF Manager is installed, use the path Start -> Programs -> 3e-RF Manager and click on 3e-RF Manager.The main RF Manager screen will appear on your desktop.
3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function82  29000125-001 C3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function29000125-001 C  83How to Program the RF ManagerBefore you are able to remotely manage access points, you need to program the RF Manager by putting the static IP Address of APs you want to manage in a conguration le.Click on the Browse button. This will open a window with some sample les that you can edit. You should edit the contents of SampleRadioOn.3eti and SampleRadioOff.3eti.To see the contents of one of these les, simply right click the le name and select Open from the dropdown menu. Because the le has an extension (3eti) which Windows is not yet familiar with, the very rst time you attempt to open it, Windows will ask you what program you want to open it with, as shown in the following screen. Choose a text editor that you are comfortable with, such as Word-pad. In future, Windows will open all les with the extension of 3eti with the text editor you have chosen. You will be able to edit the le and save it without changing the le properties.
3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function84  29000125-001 C3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function29000125-001 C  85 You can now edit the le by adding the IP addresses of the 3e-531APs that you want to manage, each in a pair of brackets [ ].The two les SampleRadioOn.3eti and SampleRadioOff.3eti must be edited as a minimum. This will permit you to turn all the APs on or off at will. You can save them to another le name if you wish (maintaining the same le extension.) You can customize les to control only certain APs or groups of APs. Each AP that you group into a conguration le must have the same Ad-min Password.The following gives you a sample of the code that you can use from the SampleRadioOn.3eti le.Sample of coding in SampleRadioOn.3eti le# This Sample Conguration le shows how to turn the radio# to a xed level on all units[all]Wireless Tx Pwr Mode:=Fixed#For FIPS units use the following#Gateway Access Mode:=HTTPS#Gateway Username:=CryptoOfcer#Each unit that you want to turn on should be listed here#First unit[192.168.15.1]Wireless Fixed Pwr Level:=2#Next unit[192.168.15.2]Wireless Fixed Pwr Level:=2Important: you must remove the pound sign (#) from in front of any line that you want to be "read" by the program.
3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function84  29000125-001 C3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function29000125-001 C  85Once you have edited the le, save it. You can now update the APs you have included in your conguration les from an Ethernet connec-tion on your network.To test out the les you have edited, on the main RF Manager screen, browse to and select the le that you want to use to manage your APs. That le name should now appear in the Conguration File window.Now enter the  Password for that group of APs.Finally, hit the Congure button. The Congure Status window will keep you informed of the progress of the update.If your update has been successful, you should see a message that indicates you have successfully set all conguration items.
3e-531AP Wireless Access Point  Chapter 7: The RF Manager Function86  29000125-001 CIf any part of your update has failed, the Congure Status window will show you that it has failed in part or in whole and direct you to the area of the conguration le that you need to x.

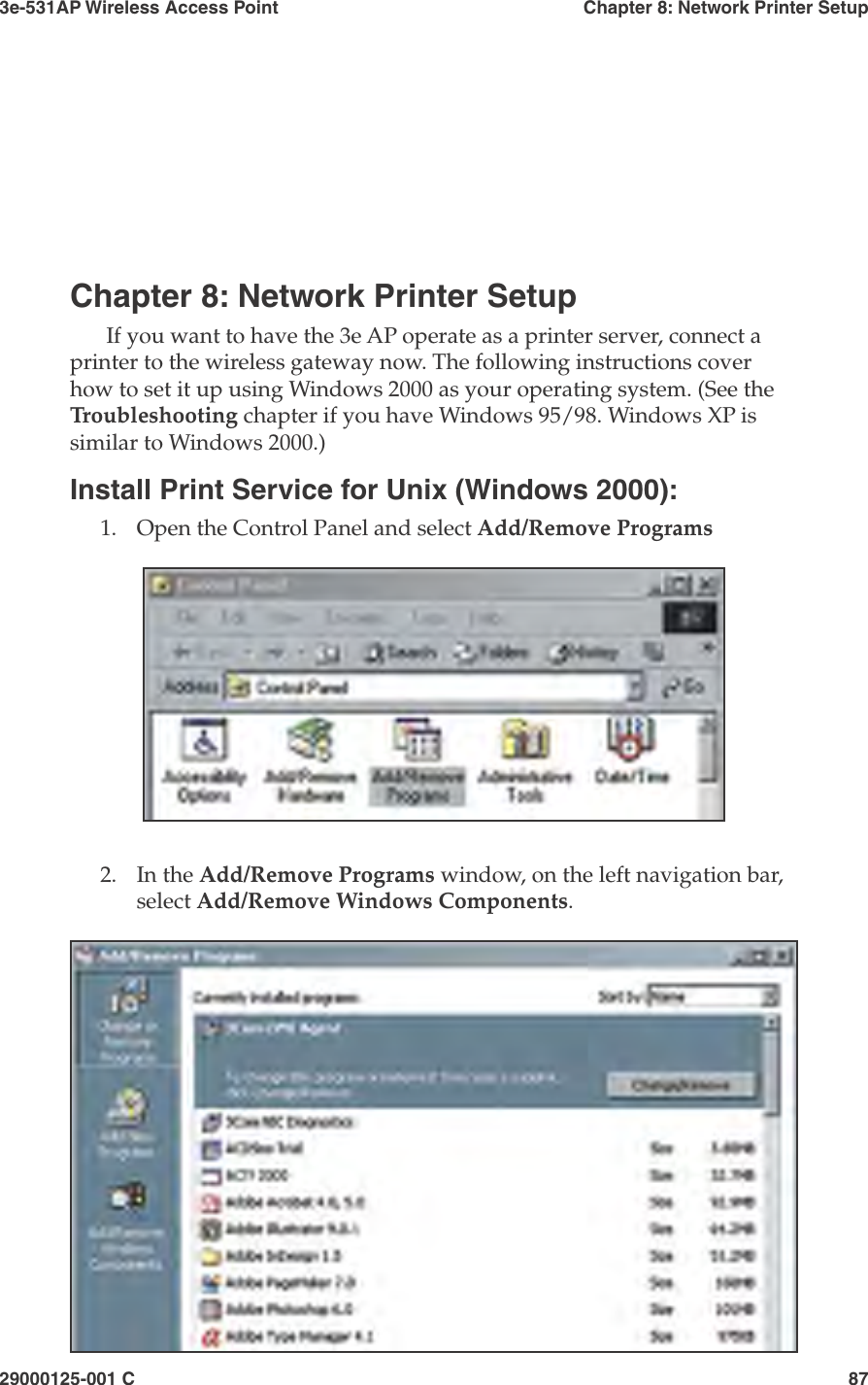

3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup29000125-001 C  87Chapter 8: Network Printer SetupIf you want to have the 3e AP operate as a printer server, connect a printer to the wireless gateway now. The following instructions cover how to set it up using Windows 2000 as your operating system. (See the Troubleshooting chapter if you have Windows 95/98. Windows XP is similar to Windows 2000.)Install Print Service for Unix (Windows 2000):1.  Open the Control Panel and select Add/Remove Programs2.  In the Add/Remove Programs window, on the left navigation bar, select Add/Remove Windows Components.
3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup88  29000125-001 C3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup29000125-001 C  893.  In the Add/Remove Windows Components wizard, select Other Network File and Print Services.4.  Click Next and the wizard will install this component. You may need your windows install CD.5.  Windows informs you that the action is complete. Click Finish and close the prior screen.Printer SetupNow you are prepared to set up your new printer resource. Follow this procedure:1.  Access the Control Panel and select the Printers icon as shown on the following picture.

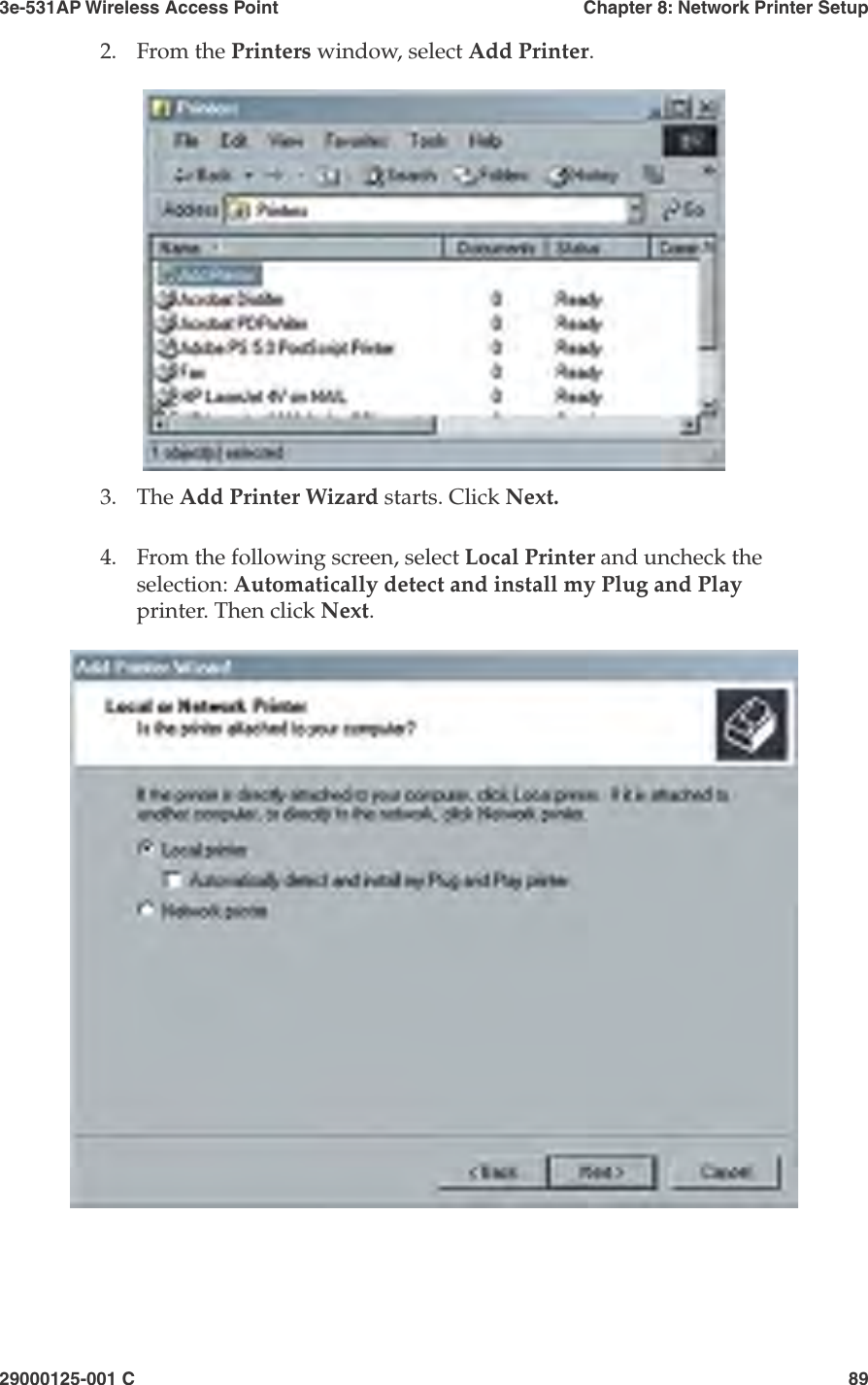

3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup88  29000125-001 C3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup29000125-001 C  892.  From the Printers window, select Add Printer.3.  The Add Printer Wizard starts. Click Next.4.  From the following screen, select Local Printer and uncheck the selection: Automatically detect and install my Plug and Play printer. Then click Next.
3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup90  29000125-001 C3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup29000125-001 C  915.  Select Create a new port and use the arrow to nd and highlight LPR Port. Then click Next.6.  Next, in the eld for Name or address of the server providing lpd: type the IP address assigned to the 3e-520 Gateway LAN. In the eld for Name of printer or print queue on the server: type lp. Then click OK.

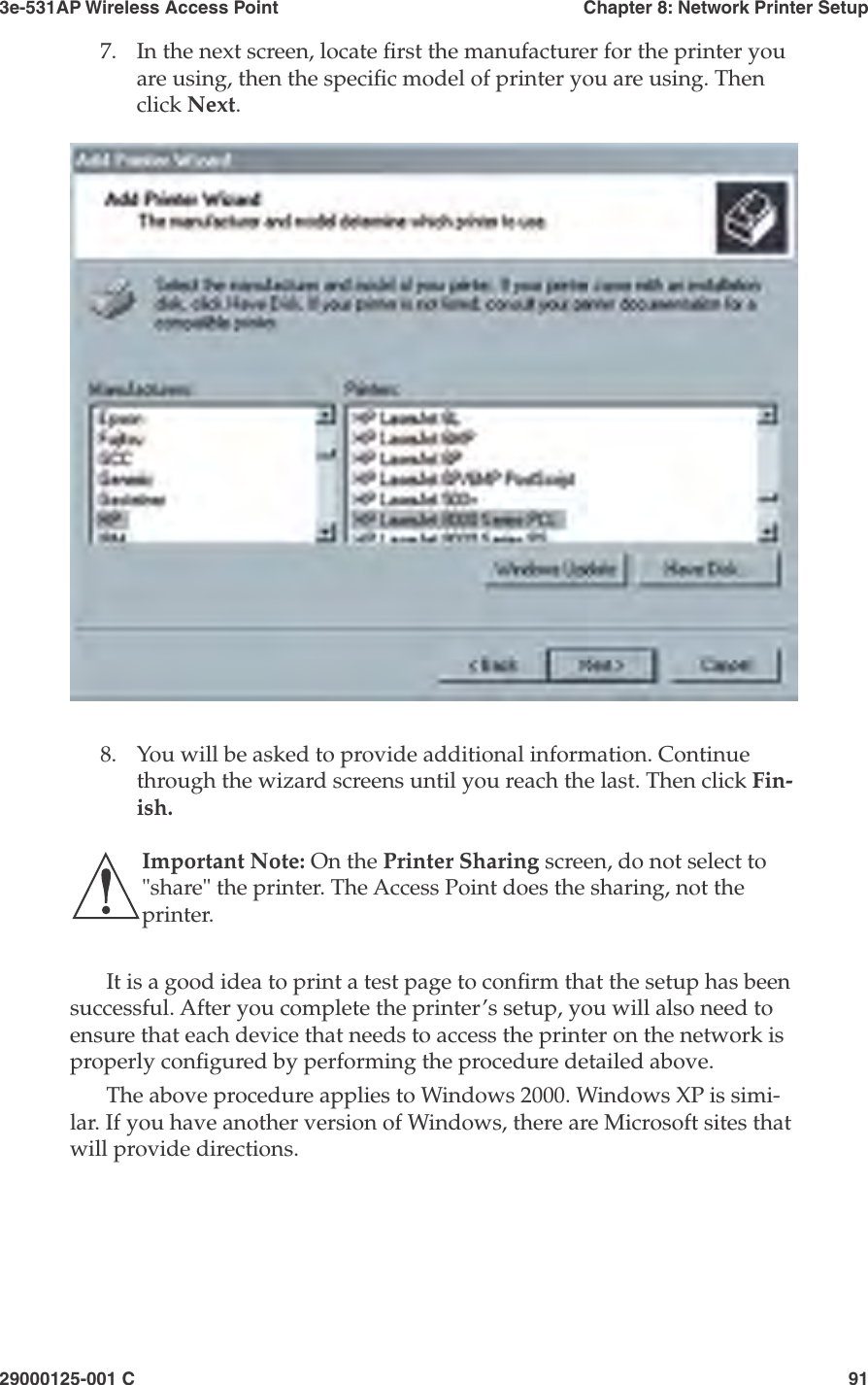

3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup90  29000125-001 C3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup29000125-001 C  917.  In the next screen, locate rst the manufacturer for the printer you are using, then the specic model of printer you are using. Then click Next.8.  You will be asked to provide additional information. Continue through the wizard screens until you reach the last. Then click Fin-ish. Important Note: On the Printer Sharing screen, do not select to "share" the printer. The Access Point does the sharing, not the printer.It is a good idea to print a test page to conrm that the setup has been successful. After you complete the printer’s setup, you will also need to ensure that each device that needs to access the printer on the network is properly congured by performing the procedure detailed above. The above procedure applies to Windows 2000. Windows XP is simi-lar. If you have another version of Windows, there are Microsoft sites that will provide directions.
3e-531AP Wireless Access Point  Chapter 8: Network Printer Setup92  29000125-001 CThis page intentionally left blank.

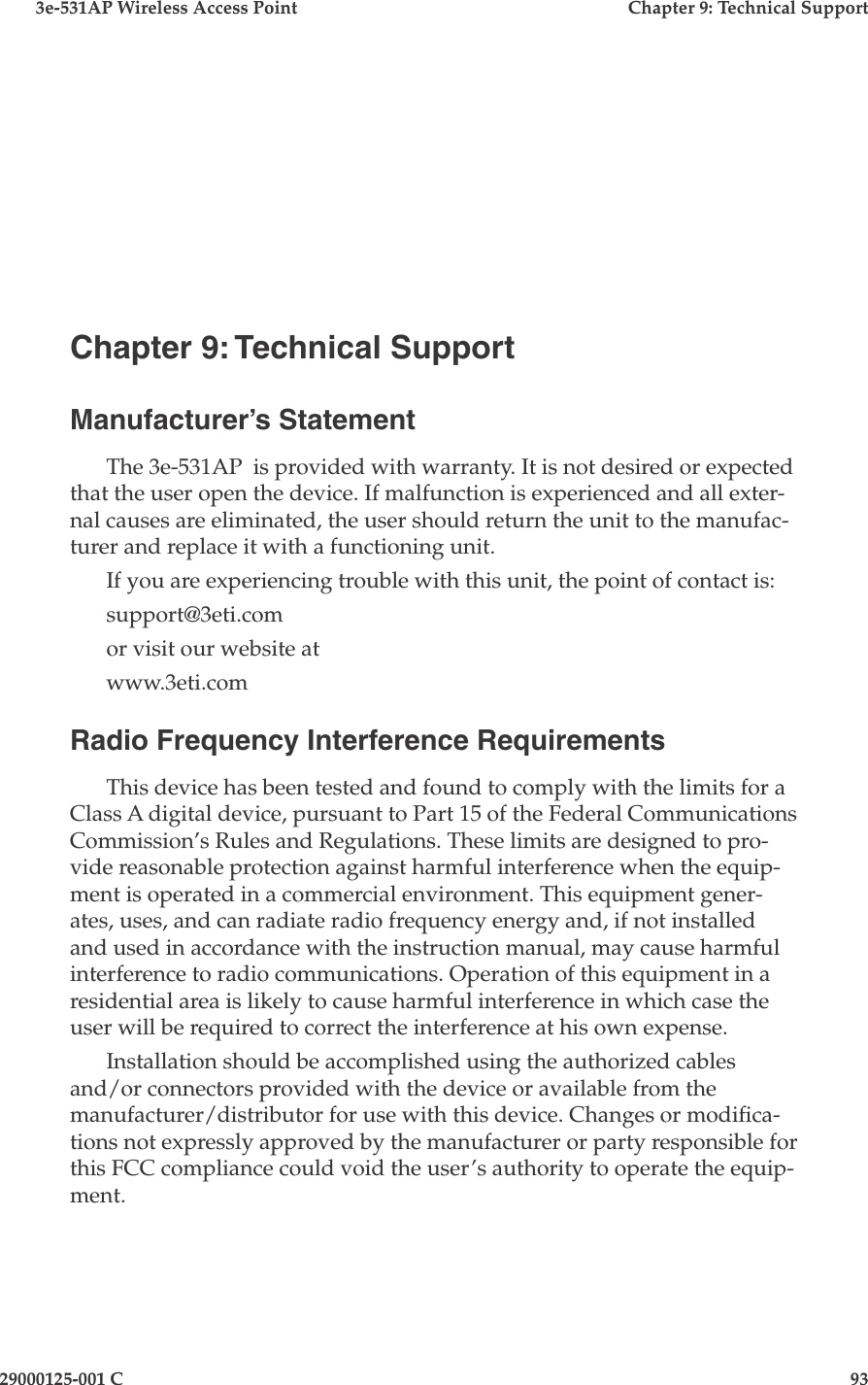

  3e-531AP Wireless Access Point  Chapter 9: Technical Support29000125-001 C  93Chapter 9: Technical SupportManufacturer’s StatementThe 3e-531AP  is provided with warranty. It is not desired or expected that the user open the device. If malfunction is experienced and all exter-nal causes are eliminated, the user should return the unit to the manufac-turer and replace it with a functioning unit. If you are experiencing trouble with this unit, the point of contact is:support@3eti.comor visit our website atwww.3eti.comRadio Frequency Interference RequirementsThis device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission’s Rules and Regulations. These limits are designed to pro-vide reasonable protection against harmful interference when the equip-ment is operated in a commercial environment. This equipment gener-ates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.Installation should be accomplished using the authorized cables and/or connectors provided with the device or available from the manufacturer/distributor for use with this device. Changes or modica-tions not expressly approved by the manufacturer or party responsible for this FCC compliance could void the user’s authority to operate the equip-ment.
3e-531AP  Wireless Access Point  Chapter 9: Technical Support94  29000125-001 CThis page intentionally left blank.

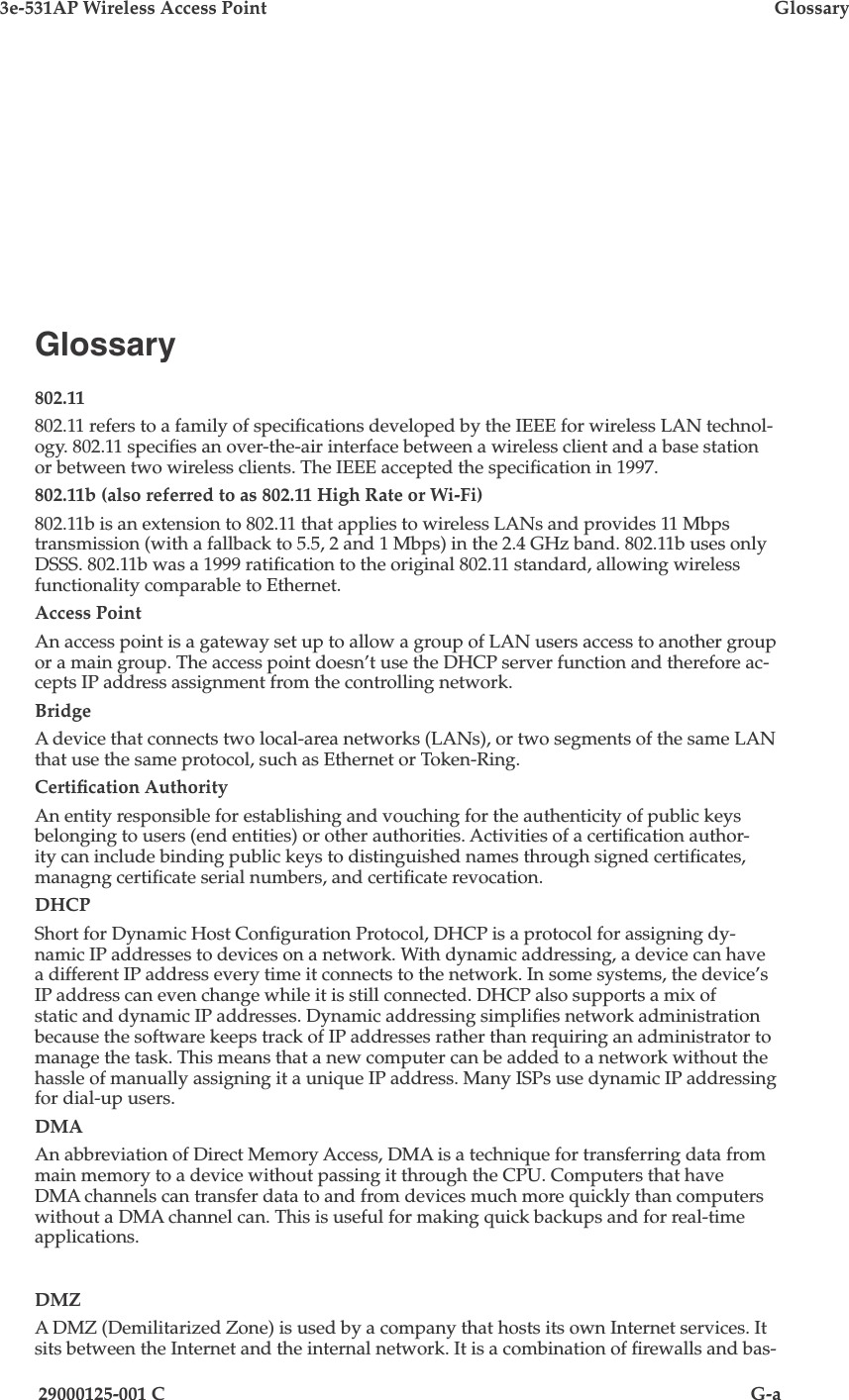

  3e-531AP Wireless Access Point  Glossary29000125-001 C  G-aGlossary802.11802.11 refers to a family of specications developed by the IEEE for wireless LAN technol-ogy. 802.11 species an over-the-air interface between a wireless client and a base station or between two wireless clients. The IEEE accepted the specication in 1997. 802.11b (also referred to as 802.11 High Rate or Wi-Fi)802.11b is an extension to 802.11 that applies to wireless LANs and provides 11 Mbps transmission (with a fallback to 5.5, 2 and 1 Mbps) in the 2.4 GHz band. 802.11b uses only DSSS. 802.11b was a 1999 ratication to the original 802.11 standard, allowing wireless functionality comparable to Ethernet. Access PointAn access point is a gateway set up to allow a group of LAN users access to another group or a main group. The access point doesn’t use the DHCP server function and therefore ac-cepts IP address assignment from the controlling network. BridgeA device that connects two local-area networks (LANs), or two segments of the same LAN that use the same protocol, such as Ethernet or Token-Ring.Certication AuthorityAn entity responsible for establishing and vouching for the authenticity of public keys belonging to users (end entities) or other authorities. Activities of a certication author-ity can include binding public keys to distinguished names through signed certicates, managng certicate serial numbers, and certicate revocation.DHCPShort for Dynamic Host Conguration Protocol, DHCP is a protocol for assigning dy-namic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device’s IP address can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses. Dynamic addressing simplies network administration because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means that a new computer can be added to a network without the hassle of manually assigning it a unique IP address. Many ISPs use dynamic IP addressing for dial-up users. DMAAn abbreviation of Direct Memory Access, DMA is a technique for transferring data from main memory to a device without passing it through the CPU. Computers that have DMA channels can transfer data to and from devices much more quickly than computers without a DMA channel can. This is useful for making quick backups and for real-time applications. DMZA DMZ (Demilitarized Zone) is used by a company that hosts its own Internet services. It sits between the Internet and the internal network. It is a combination of rewalls and bas-
3e-531AP Wireless Access Point  GlossaryG-b  29000125-001 Ction hosts. Typically, the DMZ contains web servers, FTP servers, SMTP (email) servers, and DNS servers.NAT (Network Address Translation)an Internet standard that enables a local-area network (LAN) to use one set of IP addresses for internal trafc and a second set of addresses for external trafc.NMS (Network Management Station)Includes such management software as HP Openview and IBM Netview.PCMCIAShort for Personal Computer Memory Card International Association, and pronounced as separate letters, PCMCIA is an organization consisting of some 500 companies that has developed a standard for small, credit card-sized devices, called PC Cards. Originally designed for adding memory to portable computers, the PCMCIA standard has been expanded several times and is now suitable for many types of devices. PC CardA computer device packaged in a small card about the size of a credit card and con-forming to the PCMCIA standard.PDA (Personal Digital Assistant)A handheld device.SNMPSimple Network Management ProtocolSSIDA Network ID unique to a network. Only clients and access points that share the same SSID are able to communicate with each other. This string is case-sensitive. Wireless LANs offer several security options, but increasing the security also means increasing the time spent managing the system. Encryption is the key. The biggest threat is from intruders coming into the LAN. You set a seven-digit alphanumeric security code, called an SSID, in each wireless device and they thereafter operate as a group.VPN (Virtual Private Network)A VPN uses encryption and other security mechanisms to ensure that only authorized us-ers can access the network and that the data cannot be intercepted. WLAN (Wireless Local Area Network)A  type of local-area network that uses high-frequency radio waves rather than wires to communicate between nodes.
