4 Sizzle >
User Manual
TW7W_ VER1.0
OPERATING INSTRUCTIONS
PLEASE READ THE USER MANUAL COMPLETELY BEFORE
OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE
BT / USB / SD / AUX

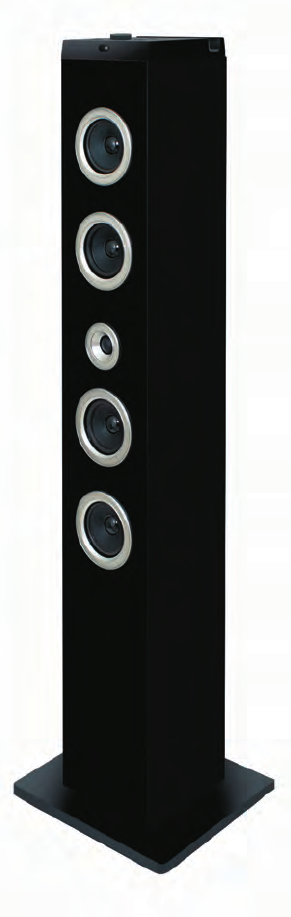

MULTIMEDIA TOWER
TW7W
1
Precautions for use
• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the main voltage and before all other
connections have been made.
• Do not cover any vents and make sure that there is a space of several centimeters around the unit for
ventilation.
Safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this aparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. This product is equipped with a 3 wire grounding type plug having a third(grounding) pin.
10. Do not defeat the safety purpose of the polarized or grounding-type plug.
11. A polarized plug has two blades with one wider than the other.
12. A grounding type plug has two blades and third grounding prong.
13. The wide blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
14. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
15. Only use attachments/accessories specified by the manufacturer.
16. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
17. Unplug this apparatus during lightning storms or when unused for long periods of time.
18. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
19. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases,shall be placed on the apparatus.
20. Minimum distances(e.q. 10cm) around the apparatus for sufficient ventillation.
21. WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or
moisture.
22. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
23. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious
damage to the product.
24. Slots and openings in the cabinet and the back are provided for ventilation: to ensure reliable
operation of the product, these openings must not be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a heat register. This
product should not be placed in a built-in installation unless proper ventilation is provided.
25. This product should be operated from the type of power source indicated on the marking label. If you
are not sure of the type of power available, consult your dealer or local power company.
This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
26. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk
on the cord.
27. If an extension cord is used with this product, make sure that the total of the ampere ratings on the
products plugged into the extension cord do not exceed the extension cord ampere rating. Also,
make sure that the total of all products plugged into the wall outlet does not exceed 10 amperes.
28. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock.
29. Never spill any kind of liquid on the product.
30. Do not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks. Refer all servicing to service personnel.
1
2
31. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
● When the power cord or plug is damaged or frayed.
● If liquid has been spilled into the product.
● If the product has been exposed to rain or water.
● If the Product does not operate normally when the operating instructions are followed.
(Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore normal operation.)
● If the product has been dropped or the cabinet has been damaged.
● If the product exhibits a distinct change in performance, indicating a need for service.

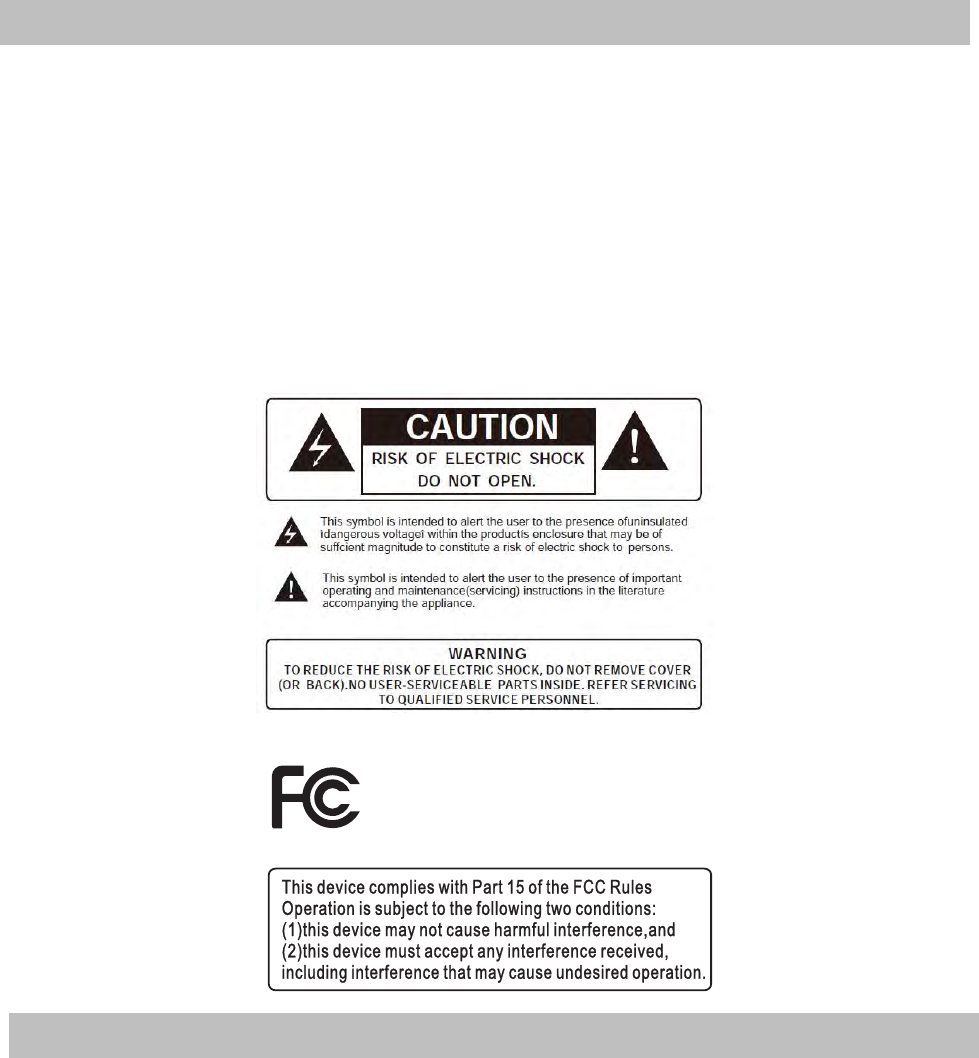

Caution
NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used
in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.
KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
AVOID HEAT Avoid placing the unit in direct sunshine or near a heating appliance.
Pack ing C
ontents
When you unpack your new unit, make sure that you have removed all the accessories and information papers:
-Speaker tower
-User manual
-Remote Control
-3.5 stereo plug audio cable
-2 x Assembly screws .
-2 x Assembly washers
Howtouse

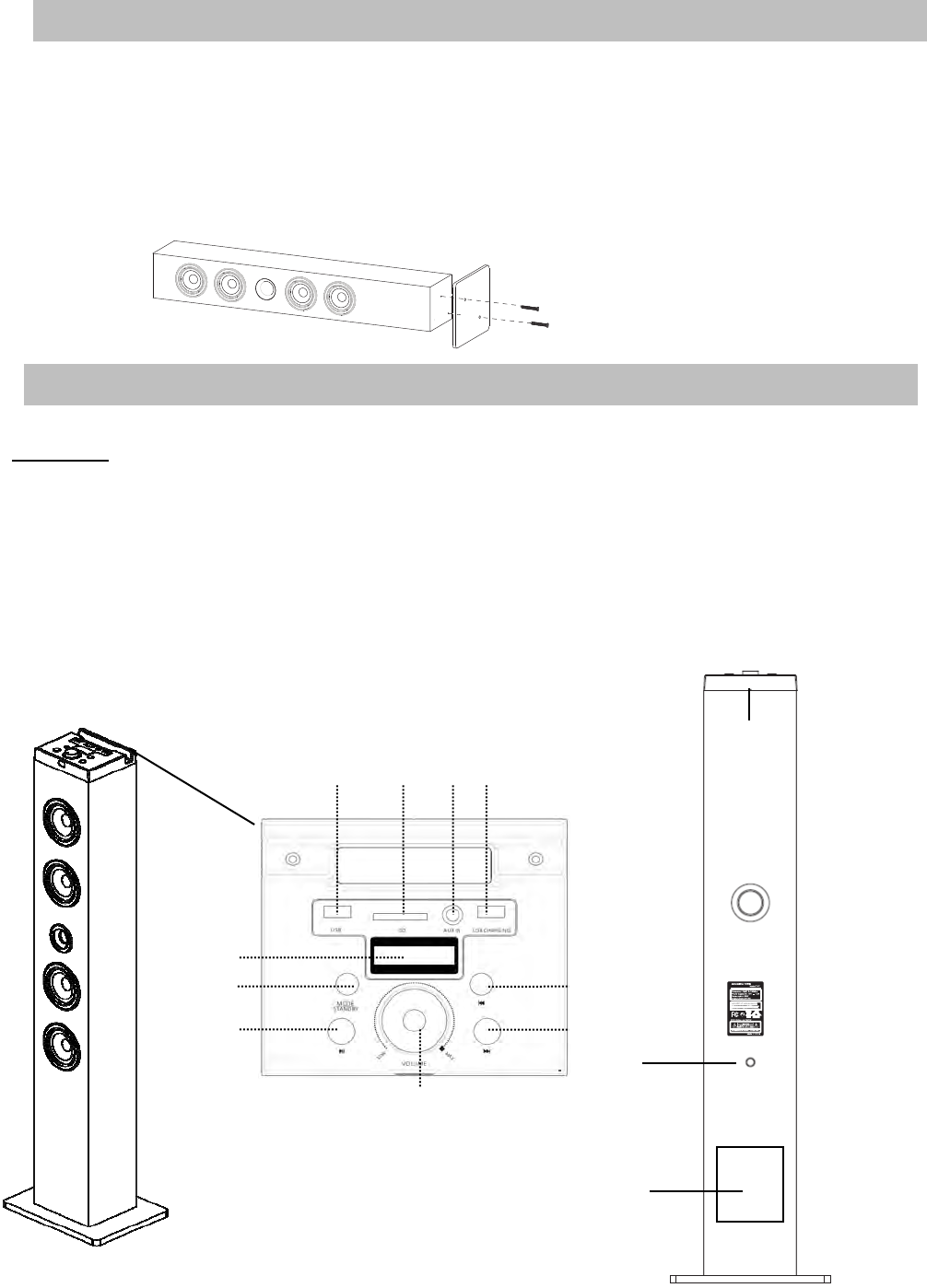

Setup
Carefully take the tower body and base out of the packaging.
take the screws and washers out
Attach the base to the body aligning the three holes in the base with the three holes in the tower
Screw the base into the body
Stand the tower upright on the floor. The appliance is now ready for use
Italiano
1 2 3 4
5
7
68
9
10
MAIN UNIT
11
1. USB port
2. SD Card slot
3. AUX in jack
4. USB charging port
5. LED Display screen
6. Mode button / Standby
7. Play / Pause button
8. Tune+ button
9. Tune- button
10. VOL(Volume)+/- knobs
11. DC jack
3
LOCATION AND DESCRIPTION OF CONTROLS
12
12. Subwoofer

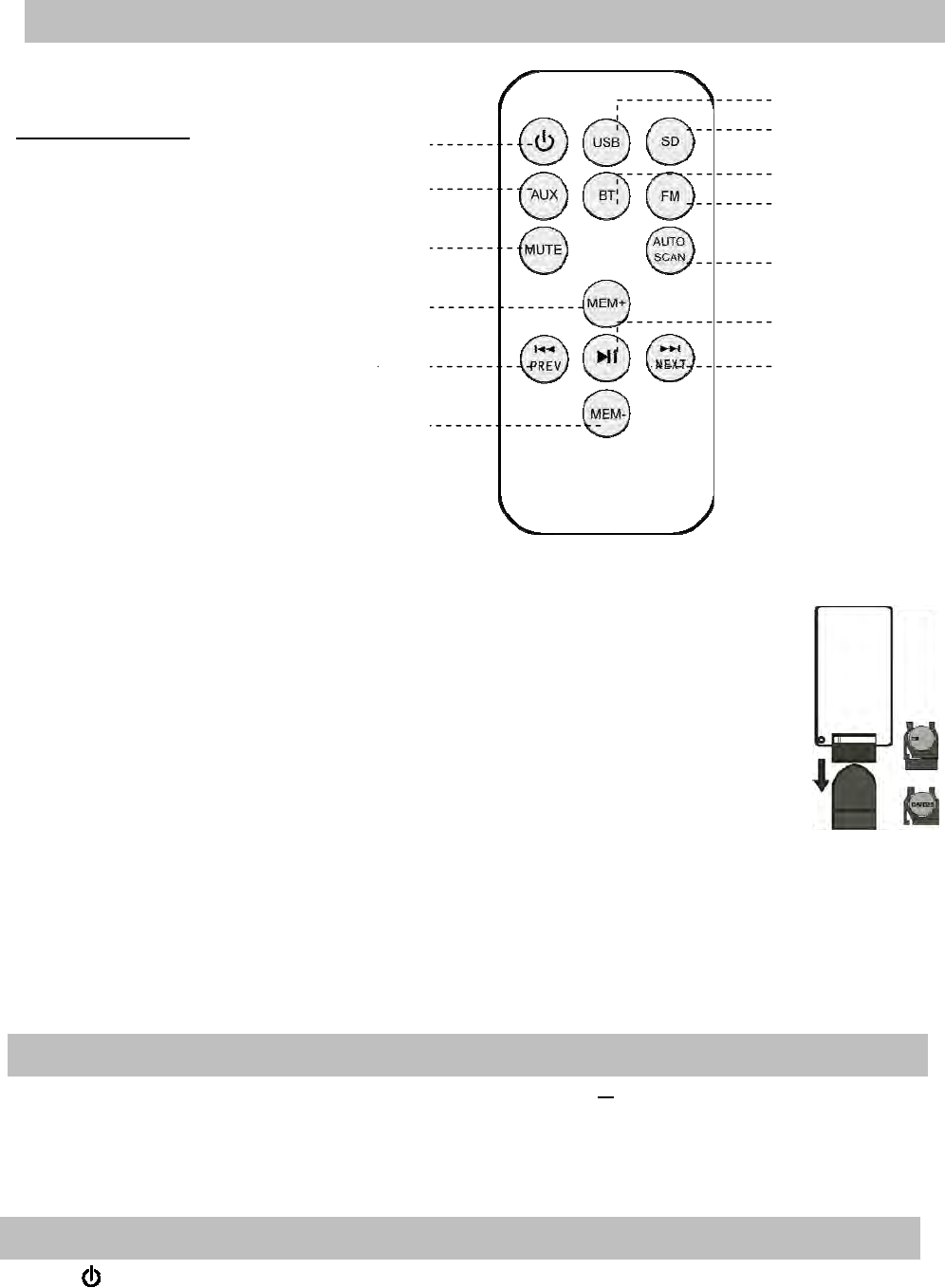

REMOTE CONTROL
Replacing battery for the remote control
Notes on batteries
CAUTION:
1
2
3
4
5
6
7
8
10
9
11
12
13
1. STANDBY Button
2. Aux Mode
3. Mute
4. FM station memory +
5. Previous
6. FM station memory -
7. USB Mode
8. SD Mode
9. BT Mode
10. FM Mode
11. FM auto scan
12. Play / Pause
13. Next
The remote control operates on l pc "CR2025" lithium battery (included). To power up the remote control,
remove the insulation tab from the back of unit.
1. Push and slide out the battery door, as shown below
2. Replace the battery with a new CR2025 button cell with the polarity “+"facing up .
3. Slide the cover back
. Never recharge the batteries, apply heat to them or take them apart.
. Do not throw the batteries in fire!
. Attention should be drawn to the environmental aspects of battery disposal.
. If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
. Please respect the environment. Before throwing any batteries away, consult your distributor who may be
able to take them back for specific recycling.
Do not mix old and new batteries, or different types of batteries
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Inert the DC plug into a conveniently located DC outlet having DC 15V ...1.6A
WARNING: This unit has a long DC cord that can easily be tripped on or pulled on, causing injury.
Please make sure it is arranged so it will not drape over a tabletop, etc. where it can be pulled on by children or
tripped over accidentally.
MODE
MUTE
1. Press button to turn on or turn off the unit.
2. Press the button repeatedly to select the playback source. The LED displayed the current mode
3. Press the VOL(Volume)+/-Knobs to adjust volume level.
4. Press the Button on the remote control to turn off the sound. Press it again to restore the previous
sound level.
5. lf the unit is not used for a long period of time, pull out the plug to turn off the unit completely.
4
LOCATION AND DESCRIPTION OF CONTROLS
POWER SOURCE
GENERAL OPERATION
MEM+ MEM-
MODE
AUTO SCAN
3. Press and hold button on remote, The unit will automatically start and search the frequencies
for the previous or next strong station and stop on that station.
4. Once you find a station you want to save, press the button or until the desired memory
position number appears on the display. Press the MEM again to confirm and save the current station.
FM: Fully unwind the antenna wire and extend it
requires a 3.5mm audio cable (included)
1. Connect your auxiliary device (e.g. smart phone/ MP3 player) to the AUX jack
2. Press button to turn on the unit. Press the button repeatedly.
3. Press ' Play/Pause 'on your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX jack.
MODE
There is a USB charger on the top of the unit to charge small devices such as smartphones that can be
charged via USB
Output power: 5V ... 1A
You can connect a USB flash device (not included) to the USB port or a SD card (not included) to the memory
expansion card slot on the unit to play MP3 files.
1. Press button to turn on the unit.
2. Press into the USB or SD mode. the unit can automatically play
3. Press PREVIOUS/NEXT to select track.
Note:
Supported format: MP3 (32kbps-320kbps)
The total number of MP3 files on the Memory Device should not exceed 999.
If you can’t easily insert the memory card, you may have inserted it incorrectly. Try to turn over the card and
then insert again.
For playing files on USB flash drive or SD card, you should plug in the USB flash drive or SD card when the unit is in standby mode.
Turn ON the unit and use MODE button to select USB or SD card mode.
There are many USB /SD cards on the market. we can’t guarrantee to support all different models. Please try
another USB /SD card if your device is not supported.
Some SD cards may be incompatible.
MODE
TW7 0000
1. Turn off the BT functionality of other devices that are already paired with your unit.
2. Press button to turn on the unit.
3. Press button to select BT mode. The LED will displayed BT.
Turn on BT connectivity and make your device 'discoverable".
4. Turn on BT functionality on your BT device. Typically, BT controls are found on the device's
tools or settings menu (see your user manual).
5. Clean out the paring list on your BT device.
6. Choose 'add a new BT device' or 'setup BT device' on your device. It will start to search. Once "
" shows on your device, select it. If your device prompts you for a pass code, please enter
. If the pairing attempt fails or times out, please start pairing procedure again (see steps 2-6).
7. After your device and the "TW7" have connected each other, a sound can be heard.
Play MUSIC from BT devices.
Make sure the BT connection between the unit and the device is active.
1. Press button to pause playback, press button again to resume playback.
2. Press button to skip forward to next track and to skip backward to previous track.
MODE
1. Press button to turn on or turn off the unit.
The LED display FM
2. Press the button on the unit or the remote control to select FM mode. The unit will be in FM
radio mode.
PLAY RADIO
USING THE AUX INPUT
USB CHARGES FOR SMARTPHONES
LISTENING TO AUDIO DEVICE
BT PAIRING & LINKING OPERATION
Technical specifications
Electric and electronic equipment and included batteries contains materials, componentsans substances that
can be hazardous to your health and the enviroment, if the waste material (discarded electric and electronic
equipment and batteries) is not handled correctly.
Electric and electronic equipment and batteries is marked with the crossed ou trash can symbol,
seen here. This symbol signifies that electric and electronic equipment and batteries should not be disposed
of with other household waste, but should be disposed of separately.
As the end user it is important that you submit your used batteries to the appropriate and designated facility.
In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm
the enviroment.
All cities have established collection points, where electric and electronic equipment and batteries can either
be submitted free of charge at recycling stations and other collection sites, or be collected from the
households. Additional information is available at the technical department of your city.
This device complies wiht Part 15 of FCC Rules operation is subject to the following two conditions
(1) This device mau not cause armful interference, and
(2) This device must accept any interference received,including interference that may cause
undesired operation
6
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated
with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
FCC ID: 2ALLS-TW7W
TW7_ VER1.0
