User Manual
EAP110 V1.10
Enterprise Access Point
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. i
Copyright Notice
This document is protected by USA copyright laws and other laws. Besides, the
document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,
publish, display, perform, or modify any part of this publication in any form or by any
means without prior written permission from 4IPNET, INC. You may not alter or remove any
copyright or other notice from copies of the content. All other brand and product names
are claimed or registered marks of their respective companies or organizations.
All rights reserved.
To download up-to-date version, please visit www.4ipnet.com.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. ii
FCC CAUTION
This equipment has been tested and proven to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
The device contains a low power transmitter which will send out Radio Frequency (RF) signal when
transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
You are cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. iii
CE CAUTION
Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Model: EAP110
For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and
hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.
• Radio: EN 300.328:
• EMF: EN 50385:2002
• EMC: EN 301.489-1, EN 301.489-17
• Safety: EN 60950-1 + A11,
Caution:
This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided
and supported by 4IPNET, Inc. The use of software or firmware not provided and supported by 4IPNET, Inc.
may result in the equipment no longer being compliant with the regulatory requirements.
European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range
2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be
restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory
authority for compliance.
Taiwan NCC Statement
根據 NCC 低功率電波輻射性電機管理辦法 規定:
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用，並改善至
無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 1
Preface Package Contents
4ipnet EAP110 is a high-end 802.11n/b/g 2.4GHz
MIMO Access Point (AP) with the best price/
performance for wireless connectivity in enterprise
and industrial applications and is compliant with the
latest industrial wireless security standards.
EAP110 makes the wireless communication fast,
secure and easy. It supports business grade
security such as IEEE802.1X, and Wi-Fi Protected
Access (WPA and WPA2).
EAP110 also features multiple ESSIDs with VLAN
tags and multiple Virtual APs; great for enterprise
applications, such as separating the traffics of
different departments using different ESSIDs. The
PoE LAN port can receive power from Power over
Ethernet (PoE) sourcing device. Its metal case is
IP50 anti-dust compliant, which means that EAP110
is well suited to WLAN deployment in industrial
environments.
This Quick Installation Guide provides instructions
and reference materials for getting started with
4ipnet EAP110.
1. 4ipnet EAP110 x 1
2. Quick Installation Guide (QIG) x 1
3. CD-ROM
(with User’s Manual and QIG) x 1
4. Power Adapter (DC 5V) x 1
5. Antenna x 2
It is recommended to keep the original
packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.

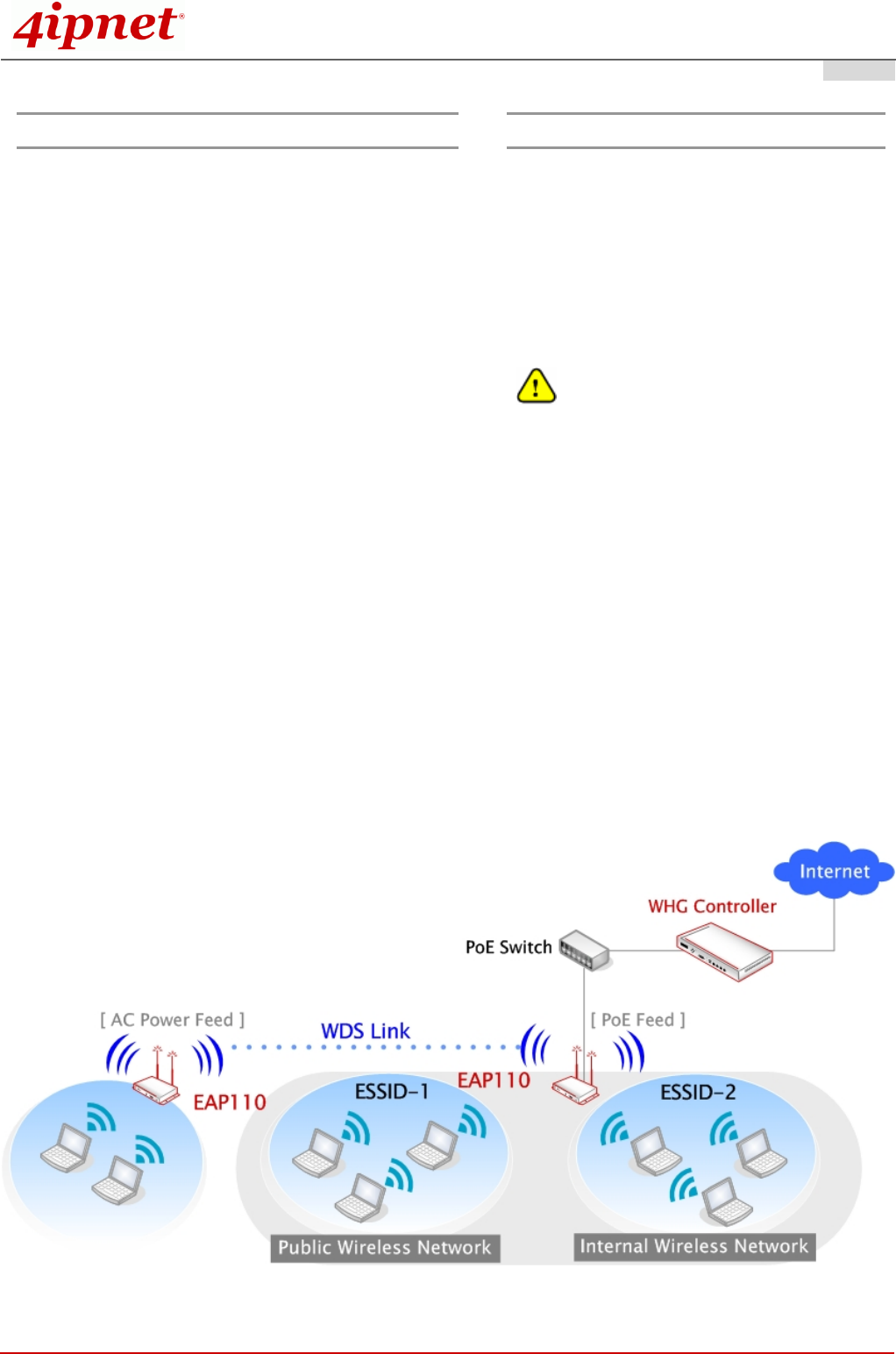

Network Layout with EAP110s
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 2
System Overview
Connector Panel

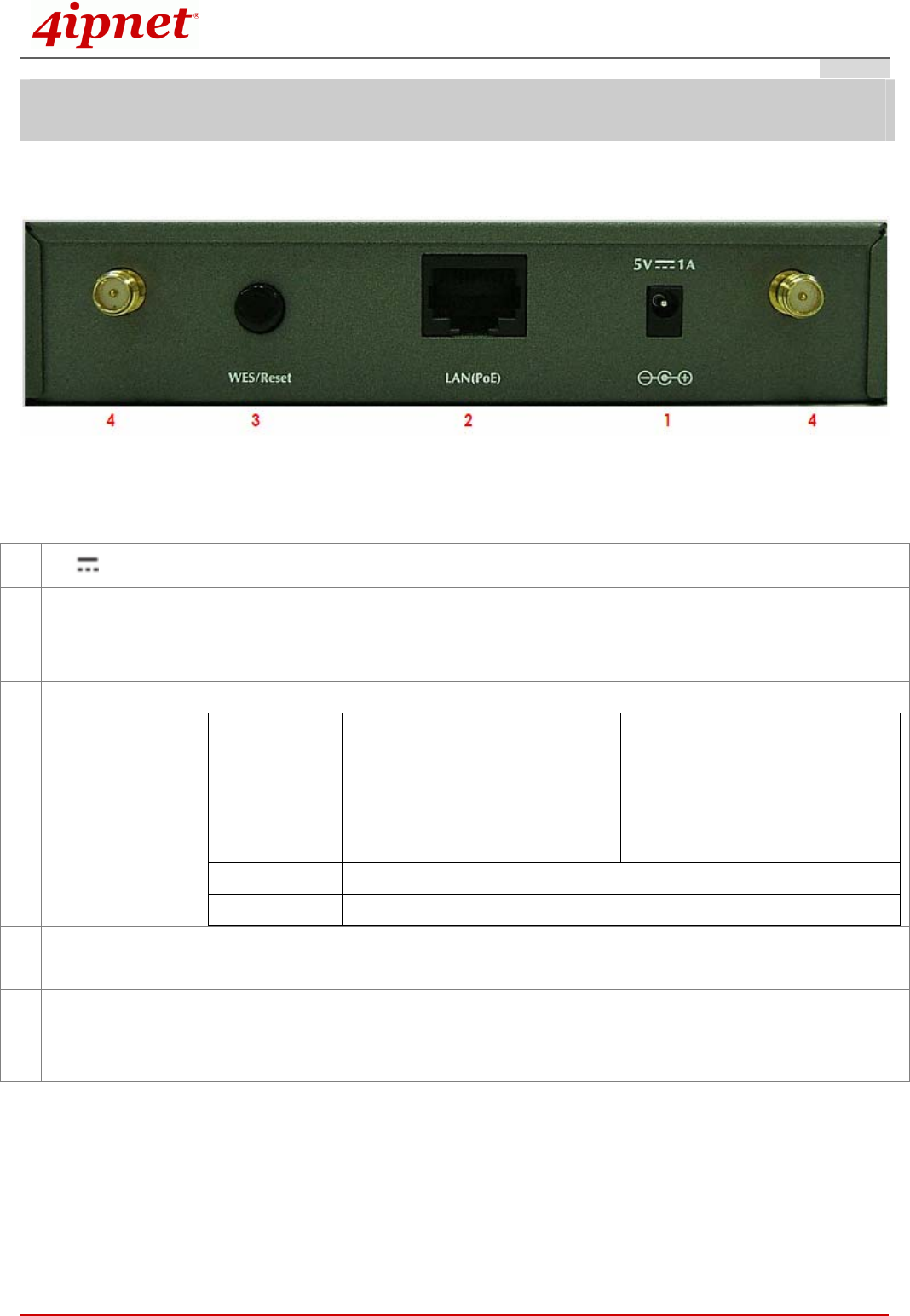

EAP110 Connector Panel
1 5V 1A Attach the power adapter here.
2 LAN(PoE)
Attach the Ethernet cable here for connecting to wired local network. This port supports
PoE as well which can be connected to a PSE (power sourcing equipment) as an
alternative power sourcing.
3 WES
Press to start running WES process.
WES Role
Master (Press for more than 3
seconds until the WLAN LED
blinks twice and then release)
Slave (Press once until the WLAN
LED starts blinking and then
release right away)
WES Start WLAN LED BLINKING SLOWLY WLAN LED BLINKING QUICKLY
WES Success WLAN LED ON constantly for 5 seconds
WES Fail WLAN LED OFF for 5 seconds
3 Reset Press and hold the button for more than 10 seconds until WLAN LED OFF. WLAN ON
while reset is successful.
4 Antenna
Connector Attach two dipole antennas here.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 3
LED Panel

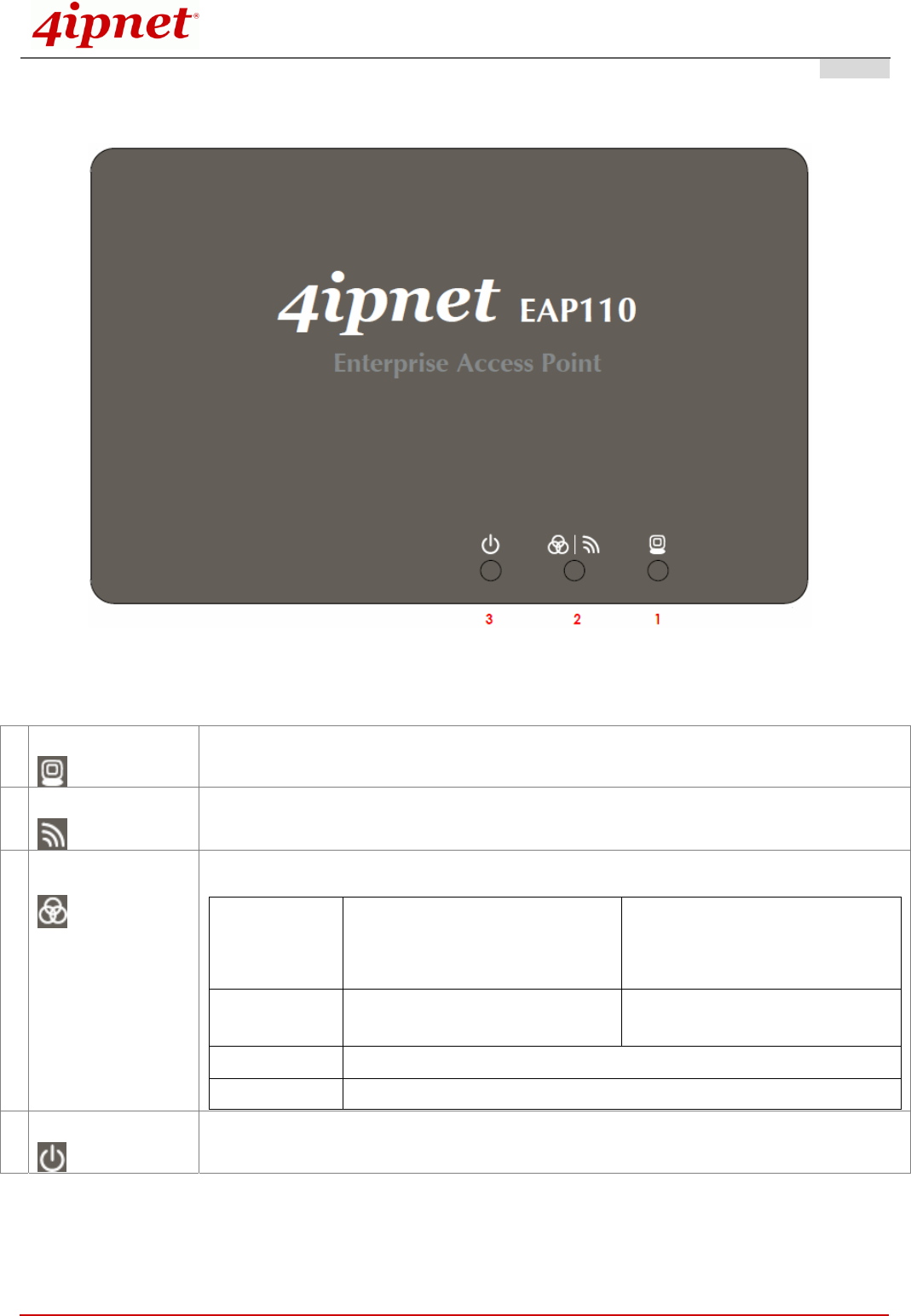

EAP110 LED Panel
1 LAN LED
LED ON indicates LAN cable is connected; OFF indicates no connection; BLINKING
indicates transmitting data.
2 WLAN LED
LED ON indicates wireless is ready.
2 WES LED
To indicate WES status.
WES Role
Master (Press for more than 3
seconds until the WLAN LED
blinks twice and then release)
Slave (Press once until the WLAN
LED starts blinking and then
release right away)
WES Start WLAN LED BLINKING SLOWLY WLAN LED BLINKING QUICKLY
WES Success WLAN LED ON constantly for 5 seconds
WES Fail WLAN LED OFF for 5 seconds
3 Power LED
LED ON indicates power on; OFF indicates power off.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 4
Hardware Installation
Please follow the steps mentioned below to install the hardware of EAP110:
1. Place the EAP110 at a best location.
The best location for EAP110 is usually at the center of your wireless network.
2. Connect EAP110 to your network device.
Connect one end of the Ethernet cable to the LAN port of EAP110 and the other end of the cable to a
switch, a router or a hub. EAP110 is then connected to your existing wired LAN network.
3. There are two ways to supply power over to EAP110.
(a) Connect the DC power adapter to the EAP110 power socket.
Please only use the power adapter supplied with the EAP110 package. Using a different power
adapter may damage this system.
(b) EAP110 is a powered device (PD) that can be powered up by PoE. Connect an IEEE
802.3af-compliant PSE device, e.g. a PoE-switch, to the LAN port of EAP110 by the Ethernet cable.
Now, the Hardware Installation is completed.
To double verify the wired connection between EAP110 and your switch/router/hub, please
check the LED status indication of these network devices.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 5
Getting Started
4ipnet EAP110 supports web-based configuration. Upon the completion of hardware installation, EAP110 can
be configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet Explorer version
6.0 and above.
The default values of LAN IP address and subnet mask of EAP110 are:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Steps:
1. To access the web management interface, connect the administrator PC to the LAN port of EAP110 via
an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP110 in TCP/IP of your
PC, such as the following example:
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
2. Launch the web browser on your PC by entering the IP address of EAP110 (https://192.168.1.1) at the
address field (“https” is used for a secured connection), and then press Enter.

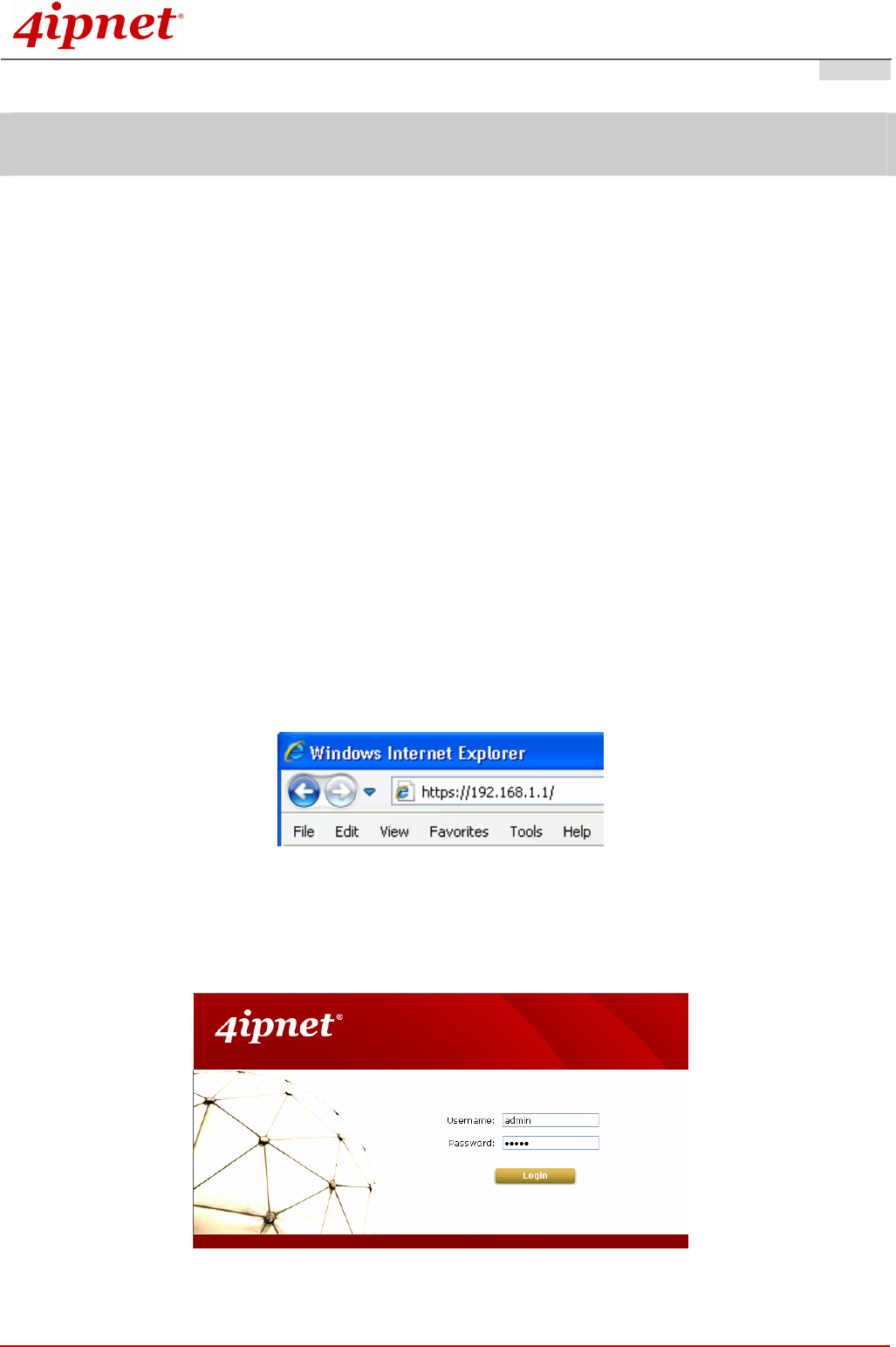

Example of entering EAP110'sdefault IP Address via a web browser
3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,
and then click Login.
Administrator Login Page
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 6
4. After a successful login into EAP110, a System Overview page of web management interface will
appear, as depicted below.

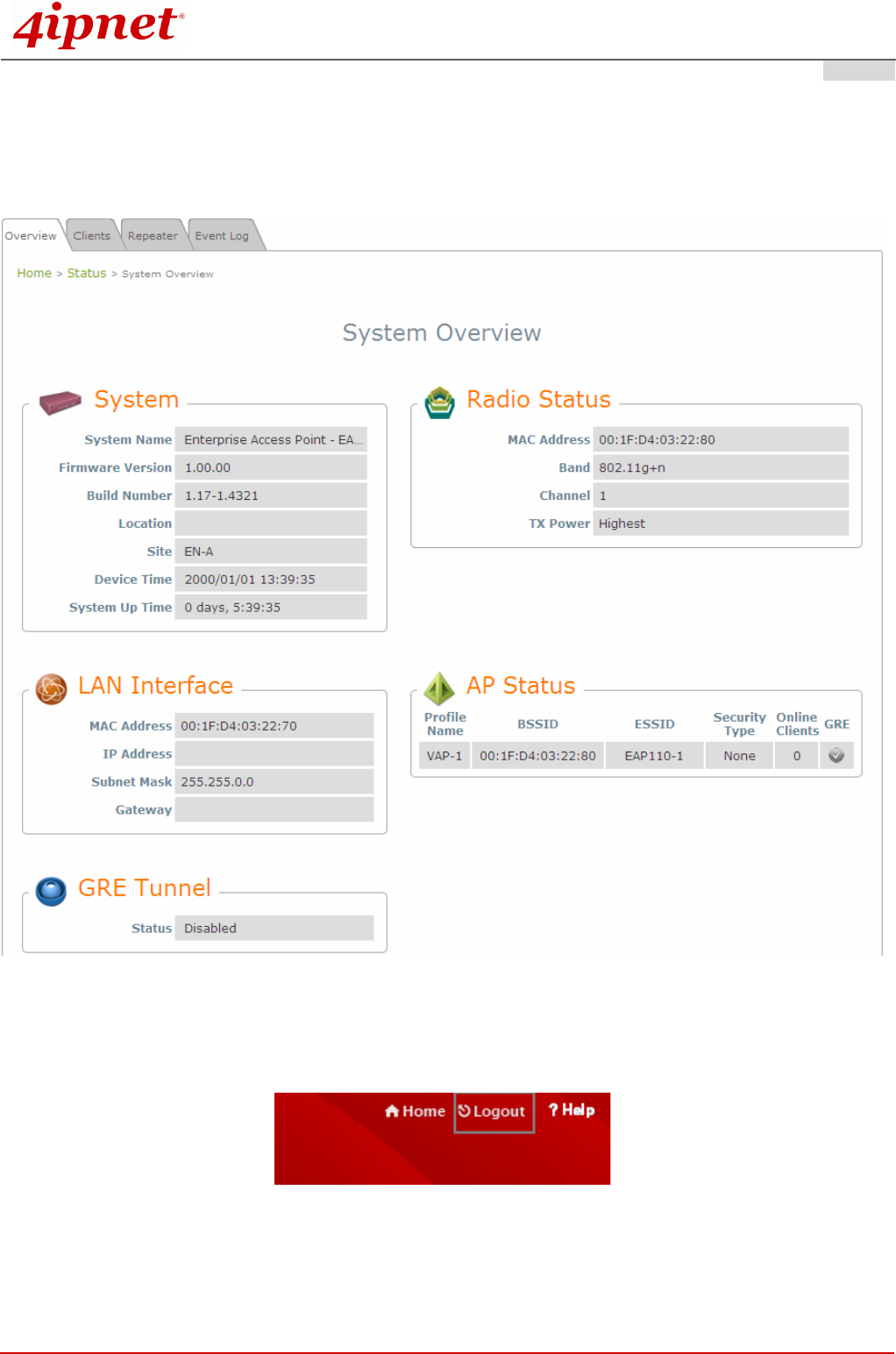

The Web Management Interface - System Overview Page
5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the
Administrator Login Page. Click OK to logout.
Logout
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 7
Common Settings
Step 1. Change Administrator’s Password

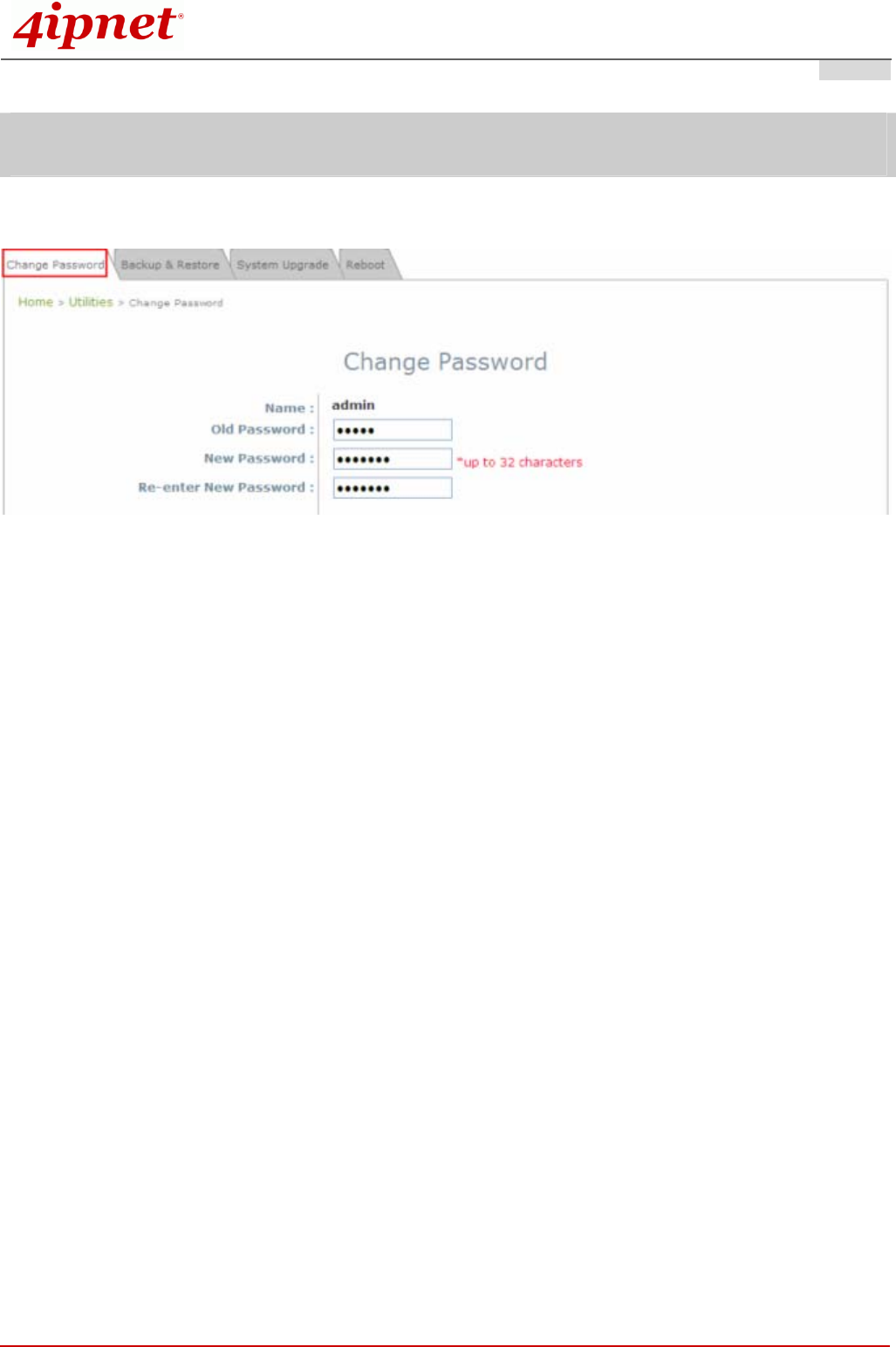

Change Password Page
¾ Click on the Utilities main menu button, and then select the Change Password tab.
¾ Enter the old password and then a new password with a length of up to 32 characters, and retype it in
the Re-enter New Password field.
¾ Click SAVE to save the changes.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 8
Step 2. Configure General AP (Access Point) Settings

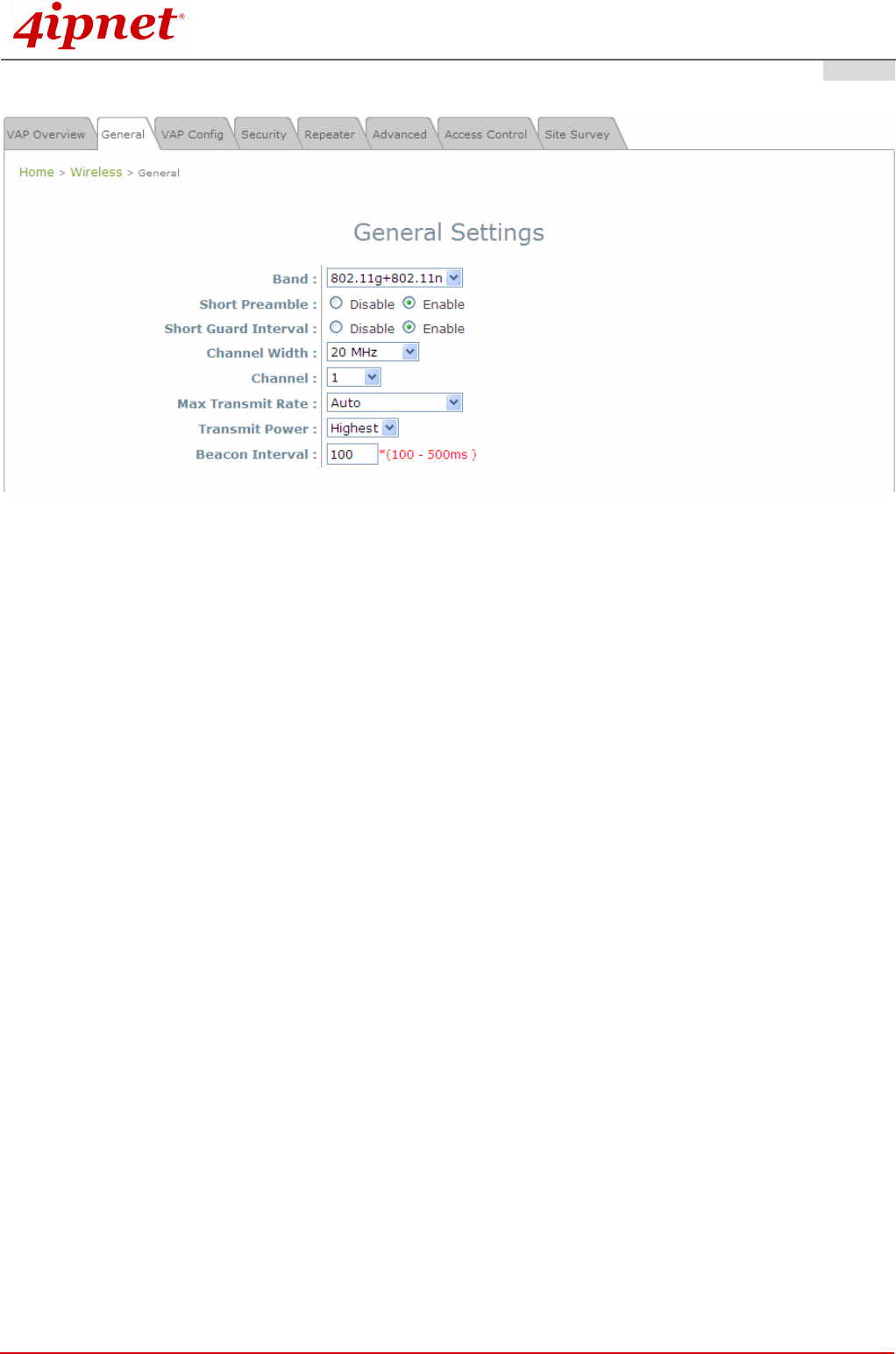

Wireless General Settings Page
¾ Click on the Wireless main menu button, and then select the General tab.
¾ Determine the Band and Channel settings:
Select your preferred Band and Channel for you wireless connection. For example, select
802.11g+802.11n for the band and 1 for the channel.
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 9
Step 3. Configure VAP (Virtual Access Point) Profile Settings

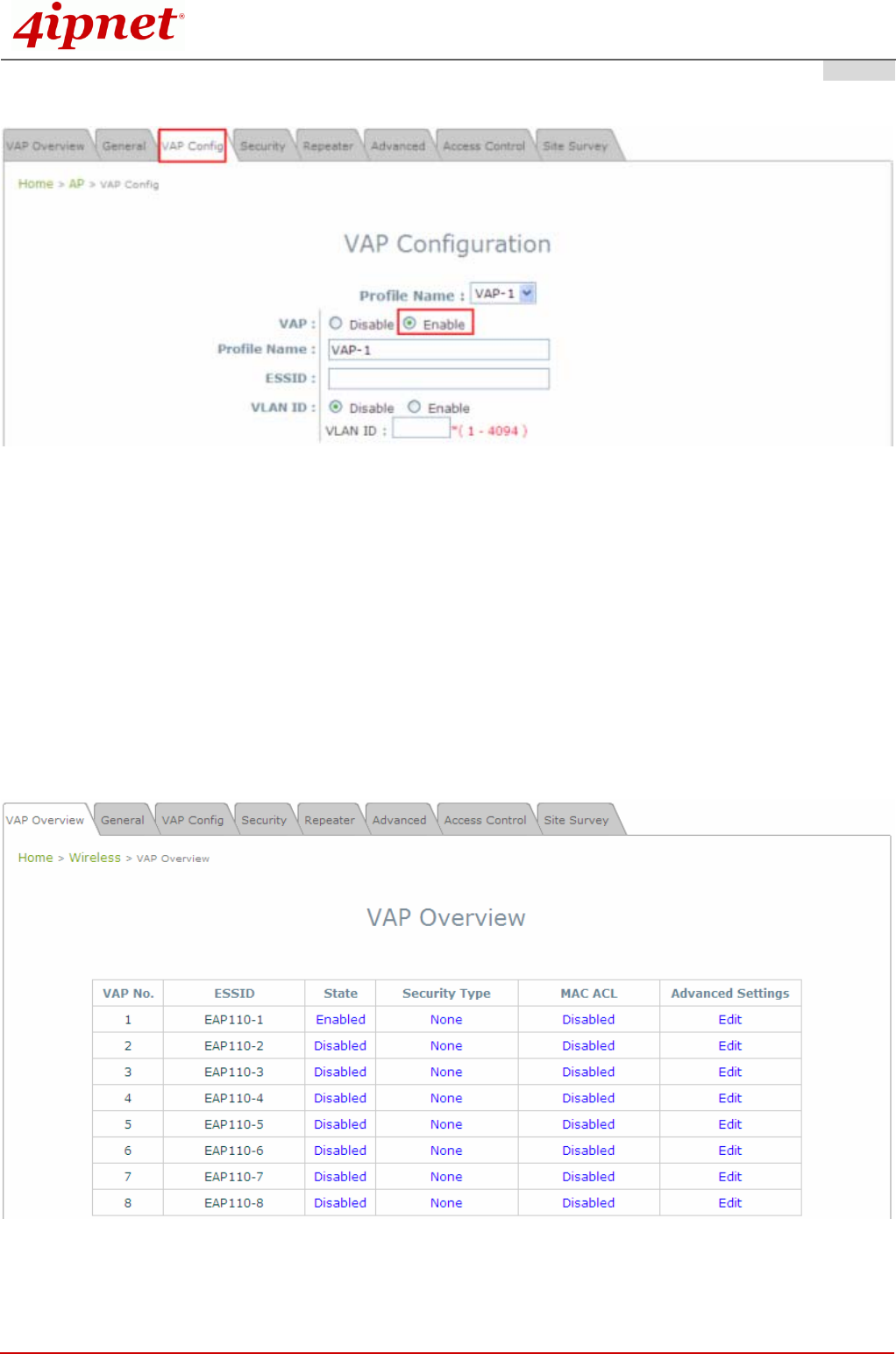

VAP Configuration Page (VAP-1 shown)
¾ EAP110 supports up to 8 virtual APs (VAPs).
¾ Configure VAP profile settings：
(a) Select the VAP Configuration tab to configure the settings of the desired VAP.
(b) Enable a specific VAP from the drop-down menu of Profile Name and configure related settings
below.
¾ Check VAP status：
After finishing VAP configuration, the status of enabled Virtual APs shall be reflected on the VAP
Overview page.
Virtual AP Overview Page
Quick Installation Guide
EAP110 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved. 10

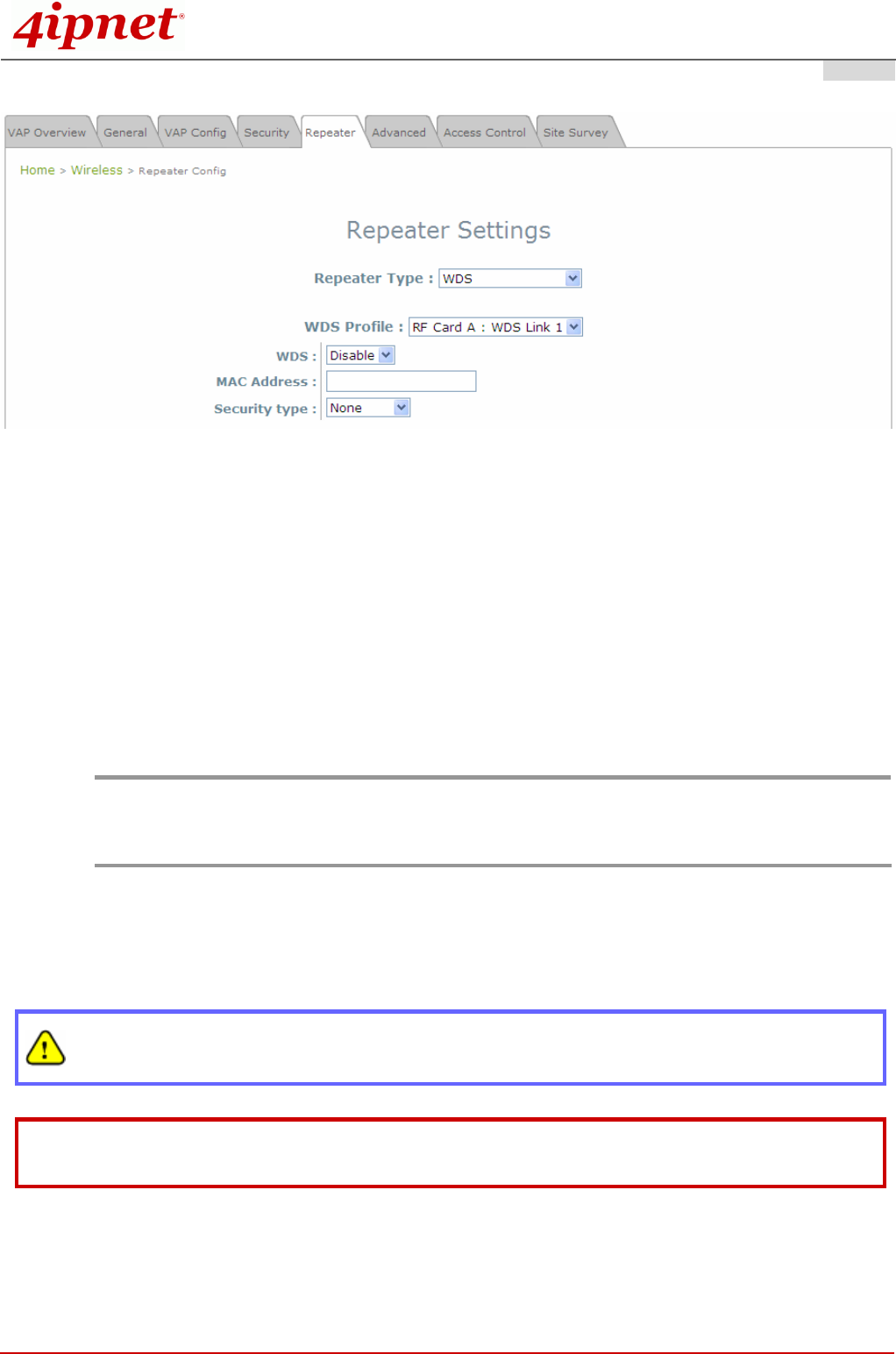

Step 4. Configure WDS (Wireless Distribution System) Settings (Optional)
To extend the wireless coverage, EAP110 supports up to 4 WDS links for connecting wirelessly to other
WDS-capable APs (peer APs). By default, all WDS profiles are disabled.
¾ Click on the Wireless main menu button.
¾ Select the Repeater Settings tab.
¾ Choose WDS as the Repeater Type.
¾ Choose the desired WDS profile:
(a) Enable the WDS.
Enter the MAC Address (peer AP) and then Click SAVE.
If you use another EAP110 as the peer AP, simply repeat the above-mentioned steps to configure another
peer AP(s).
Note:
On each and every configuration page, you may
Click SAVE to save the changes, but you must reboot the system upon the completion of all
configuration settings for the changes to take effect. When clicking SAVE, the following message will
appear: “Some modifications have been saved and will take effect after Reboot.”
Congratulations!
Now, 4ipnet EAP110 is installed and configured successfully.
After EAP110's network configuration is completed, please remember to change the IP Address of
your PC Connection Properties back to its original settings in order to ensure that your PC functions
properly in its real network environments.
z It is strongly recommended to make a backup copy of the configuration settings.
z For further configuration and backup information, please refer to the User’s Manual.
P/N: 11020110620
