Preface
Package Contents
4ipnet EAP737 is a high-end, dual radio 802.11
b/g/n + ac (Wave 2) MIMO Access Point (AP) with
the best performance for business and industrial
applications and is compliant with the latest
industrial wireless security standards that are
required in the tightly secured enterprise network
environments.
EAP737 makes the wireless communication fast,
secure and easy. It supports business grade
security such as 802.1X, and Wi-Fi Protected
Access (WPA and WPA2). The EAP737 supports
multiple point-to-point wireless links to form wider
wireless network coverage.
EAP737 also features multiple ESSIDs with VLAN
tags and multiple Virtual APs; great for enterprise
applications, such as separating traffic from different
departments using different ESSIDs. The PoE
Uplink port is able to receive power from Power over
Ethernet (PoE) sourcing devices.
This Quick Installation Guide provides instructions
and reference materials to get you started with
4ipnet EAP737.
1. 4ipnet EAP737 x 1
2. Quick Installation Guide (QIG) x 1
3. Mounting Kit x 1
4. Power Adaptor (12V) x 1 (Optional)
It is recommended to keep the original
packing material for possible future shipment
when repair or maintenance is required. Any
returned product should be packed in its
original packaging to prevent damage during
delivery.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
2
System Overview

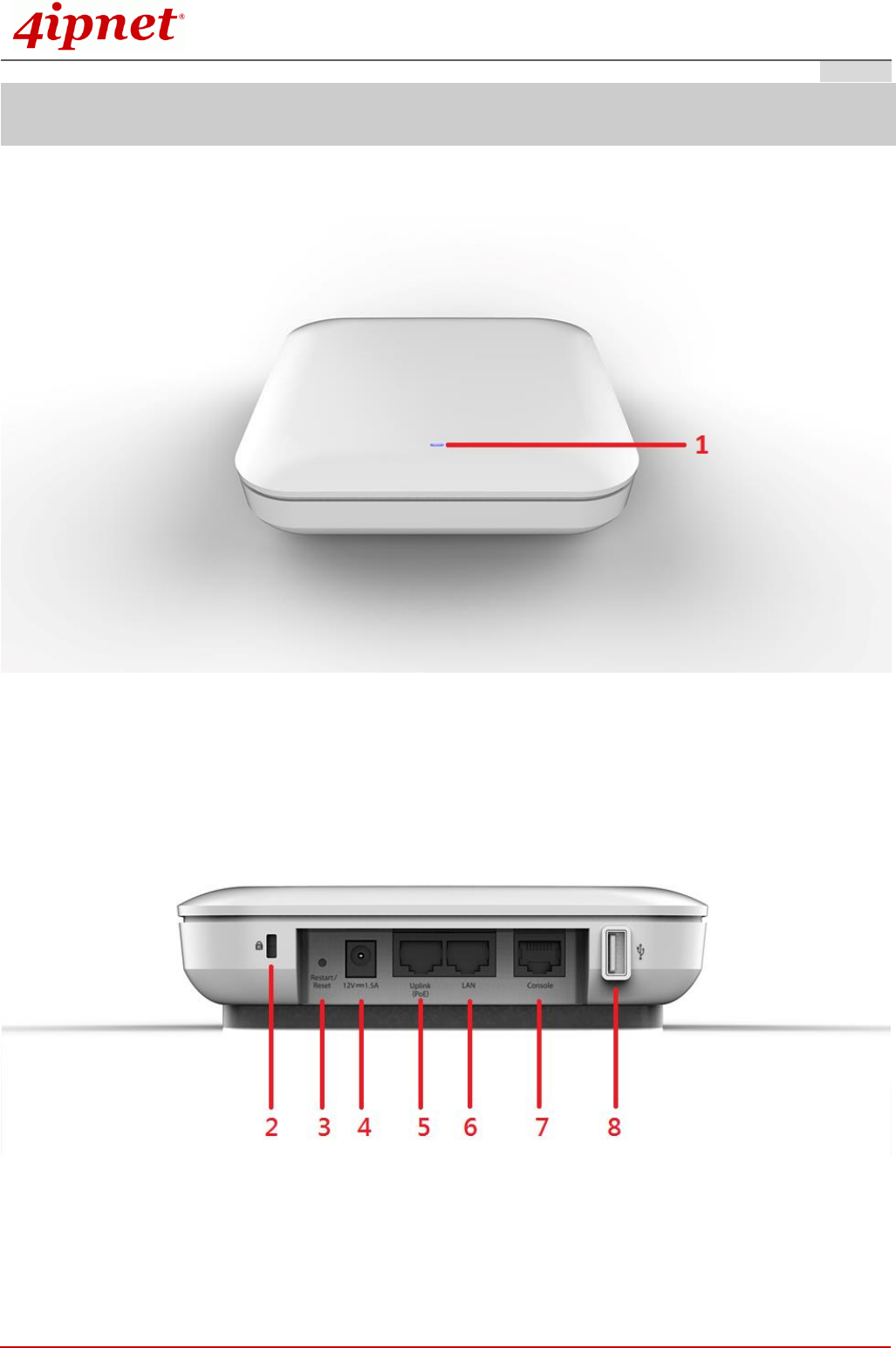

EAP737 Front View
EAP737 Side View
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
3
1
LED Indicators
An LED indicator is available to show the status.
2
K-Slot
Use Kensington lock for anti-theft purpose.
3
Restart / Reset
Press once to restart the system; to reset the system to factory default settings,
hold for more than 5 seconds.
4
12V 1.5 A
Attach power adaptor here.
5
Uplink (PoE) Port
Offers uplink connection. This port can be used to connect to a controller,
gateway, or directly to the Internet. 802.3af PoE is also supported.
6
LAN Port
The ports for connections with LAN side devices.
7
Console Port
To access EAP737 via the console interface.
8
USB Port
USB interface reserved for future use.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
4
Hardware Installation
Please follow the steps mentioned below to install the hardware of EAP737:
1. Place the EAP737 at the best location.
a) The best location for EAP737 is usually at the center of your intended wireless network.

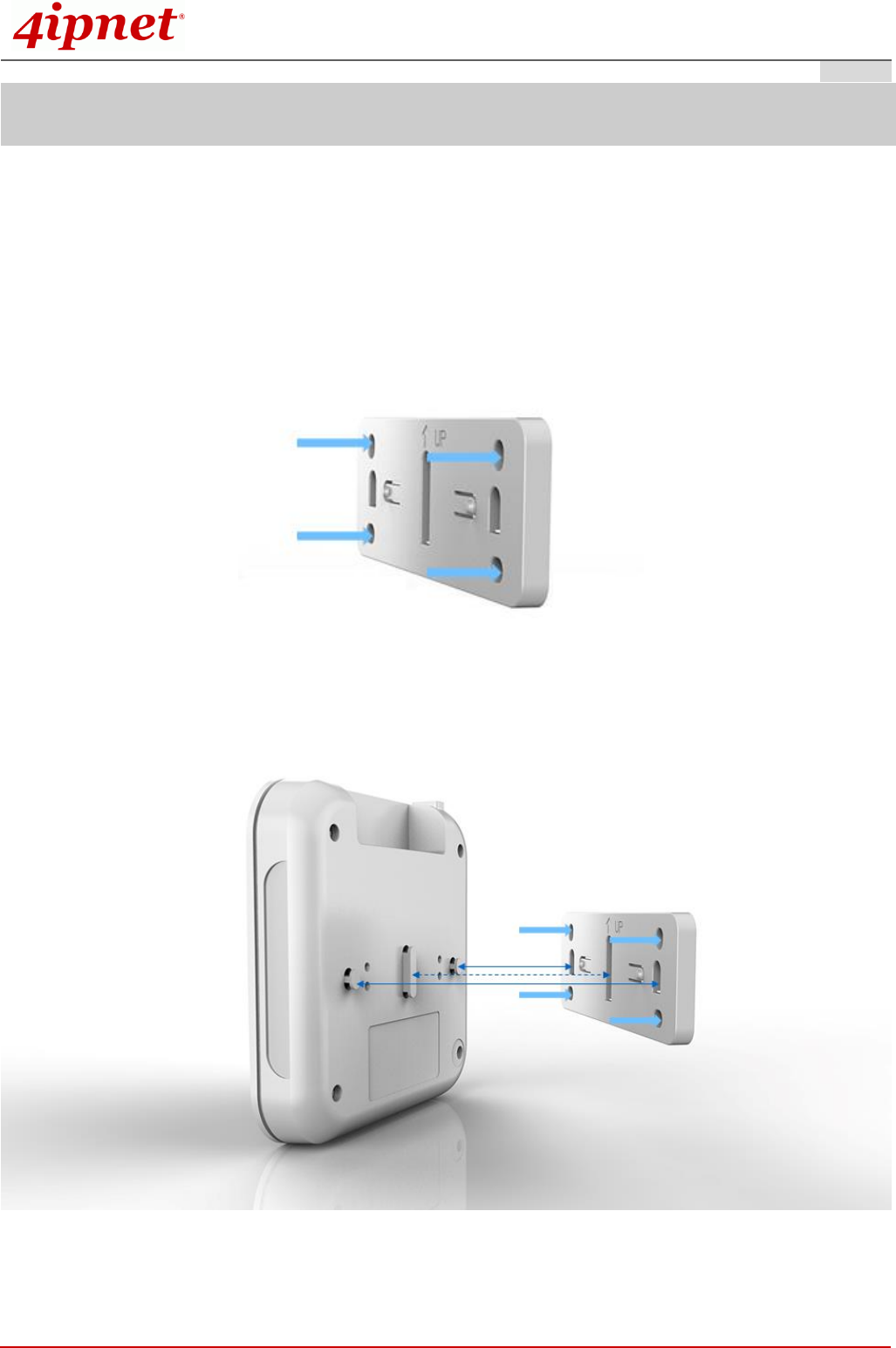

- Secure mounting bracket on the wall with screws.
- Attach the Access Point to the dedicated slots on the mounting bracket.
- After attach the Access Point to the mounting bracket, slide down the Access Point to fasten it.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
5
2. Connect the EAP737 to your network device.
Connect one end of the Ethernet cable to the Uplink port of EAP737 and the other end of the cable to a switch,
a router, or a hub. EAP737 is then connected to your existing wired LAN network.
3. Power on the EAP737.
There are two ways to supply power over to EAP737.
- EAP737 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3af-compliant PSE
device (e.g. a PoE-switch) to the Uplink port of EAP737 with the Ethernet cable.
- Connect a 12V/1.5A adaptor (optional) to the DC power jack. If needed.
Now, the Hardware Installation is complete.
Using a different power adapter may damage this system.
To verify the wired connection between EAP737 and you switch / router / hub, please also
check the LED status indicator of the respective network devices.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
6
Getting Started
4ipnet EAP737 supports web-based configuration. When hardware installation is complete, EAP737 can be
configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0
and above.
The default values of LAN IP address and subnet mask of EAP737 are:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Steps:
1. To access the Web Management Interface, connect the administrator PC to the Uplink port of EAP737 via
an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP737 in TCP/IP of your
PC, such as the following example:
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
2. Launch the web browser on your PC by entering the IP address of EAP737 (http://192.168.1.1) in the
address field, and then press Enter.

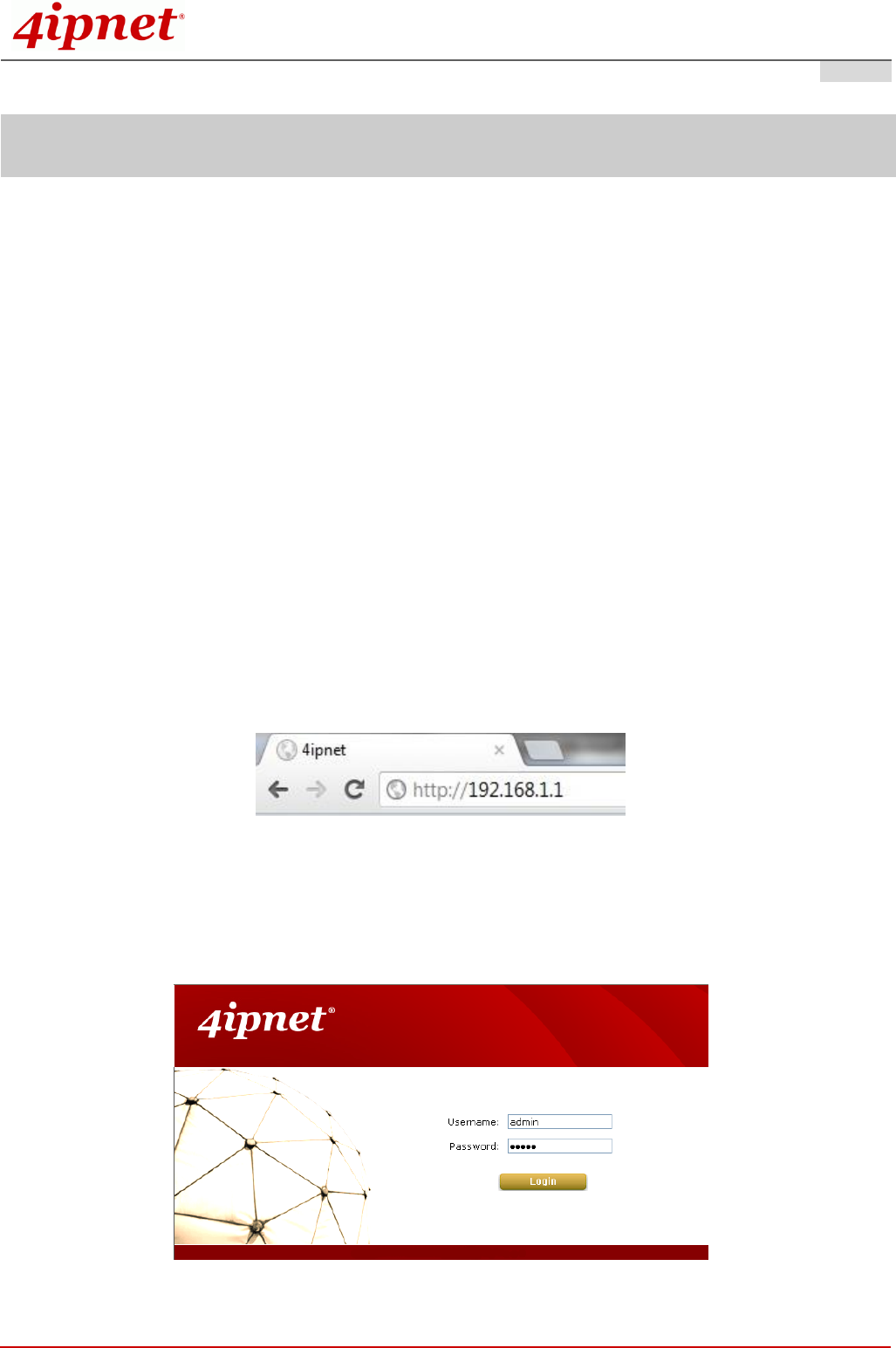

Example of entering EAP737's default IP Address via a web browser
3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,
and then click Login.
Administrator Login Page
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
7
4. After a successful login to EAP737, a System Overview page of the Web Management Interface will
appear, as depicted below.
The Web Management Interface - System Overview Page
5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the
Administrator Login Page. Click OK to logout.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
8
Common Settings
Step 1. Change Administrator’s Password

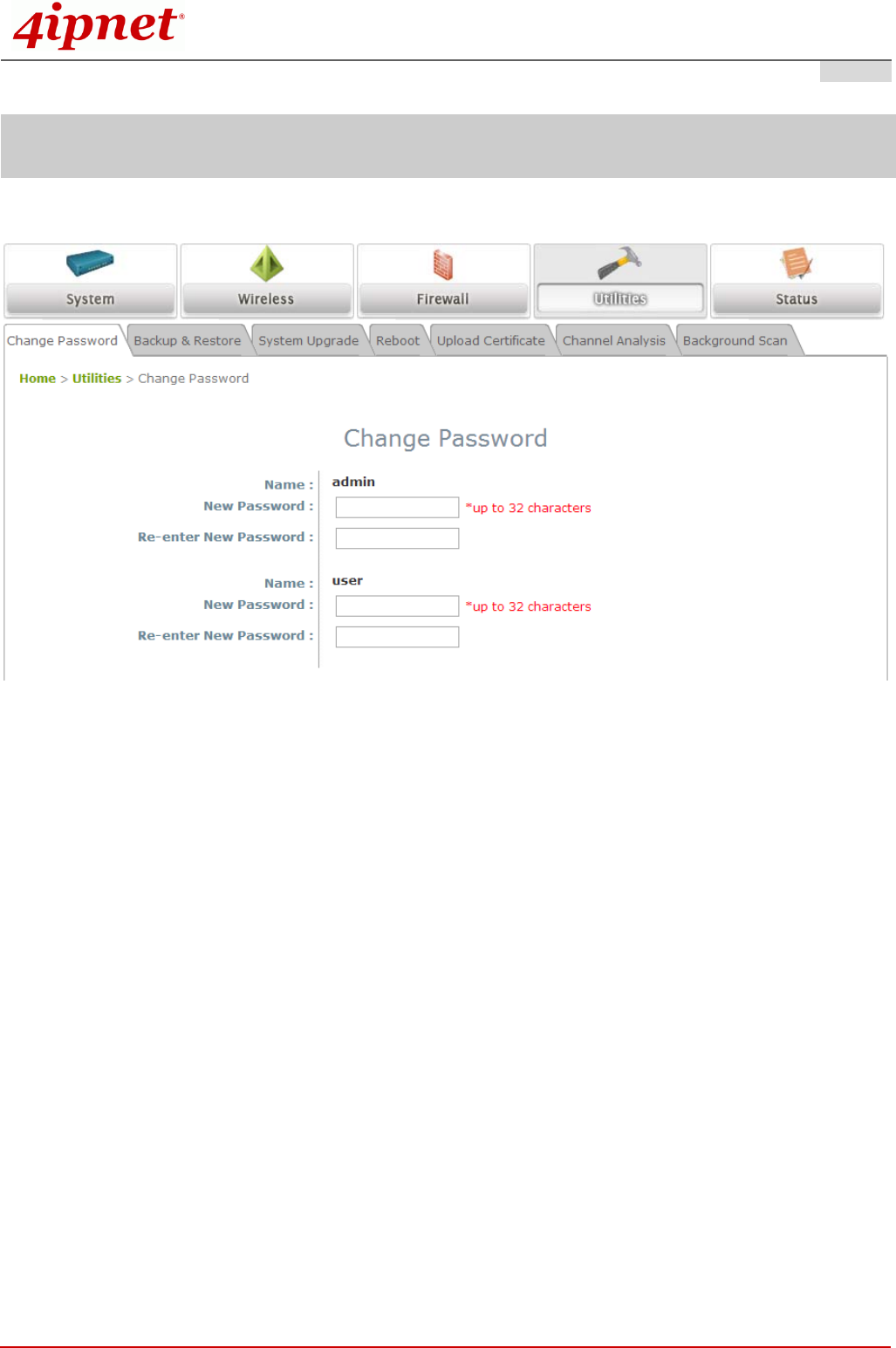

Change Password Page
Click on the Utilities icon on the main menu, and select the Change Password tab.
Enter a new password with a length of up to 32 characters, and retype it in the Re-enter New
Password field.
Click SAVE to save the changes.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
9
Step 2. Configure General AP (Access Point) Settings
Wireless General Settings Page
Click on the Wireless icon on the main menu, and then select the General tab.
Determine the Band, Protocol and Channel settings:
Select your preferred Band, Protocol and Channel for you wireless connection. For example, select
2.4GHz for the band, 802.11g+802.11n for the protocol and 6 for the channel.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
10

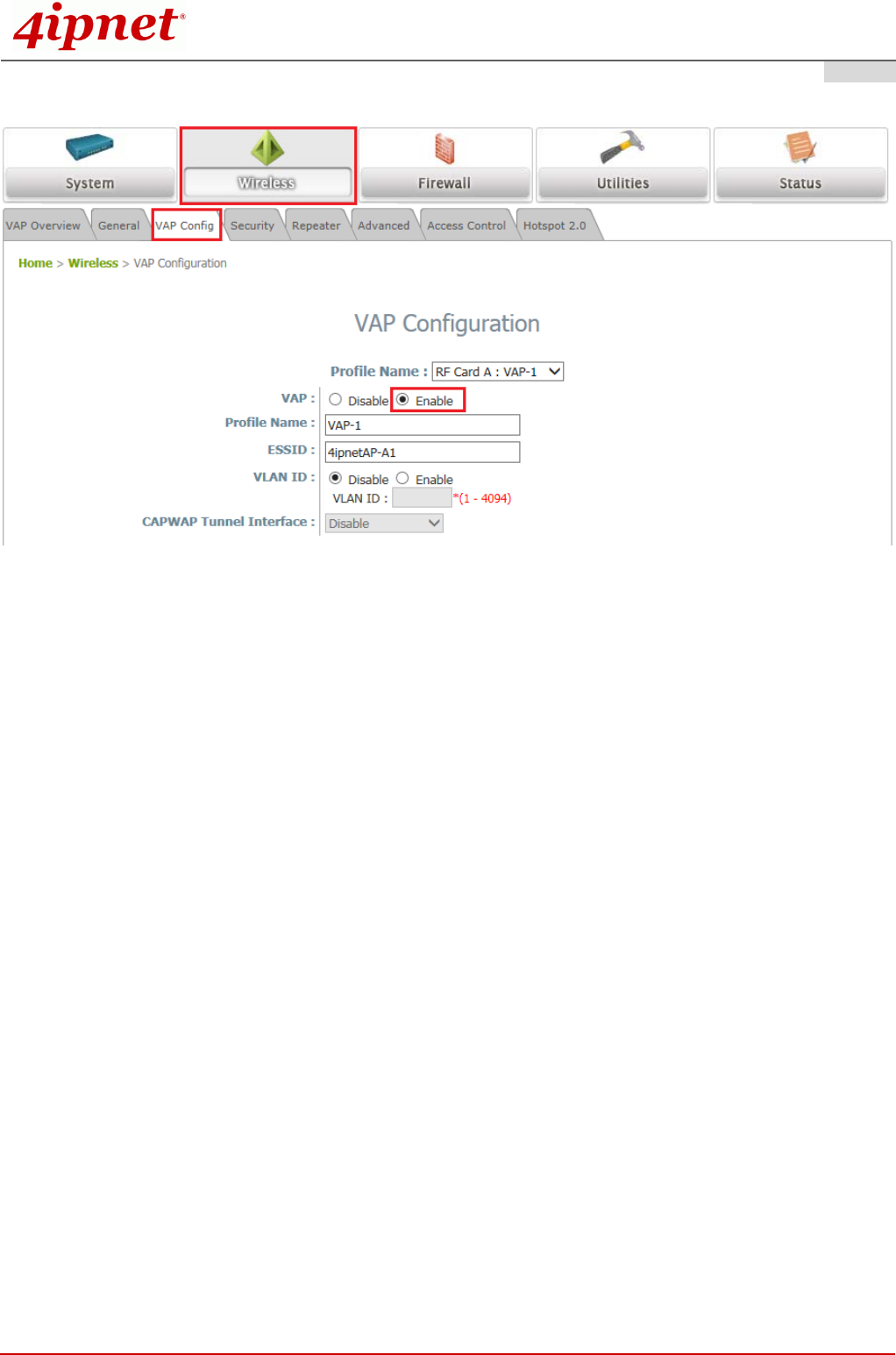

Step 3. Configure VAP (Virtual Access Point) Profile Settings
VAP Configuration Page (VAP-1 shown)
Configure VAP profile settings：
(a) Select the VAP Configuration tab to configure the settings of the desired VAP.
(b) Enable a specific VAP from the drop-down menu of Profile Name and configure related settings
below.
Check VAP status：
After finishing VAP configuration, the status of enabled Virtual APs shall be reflected on the VAP
Overview page.
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
11

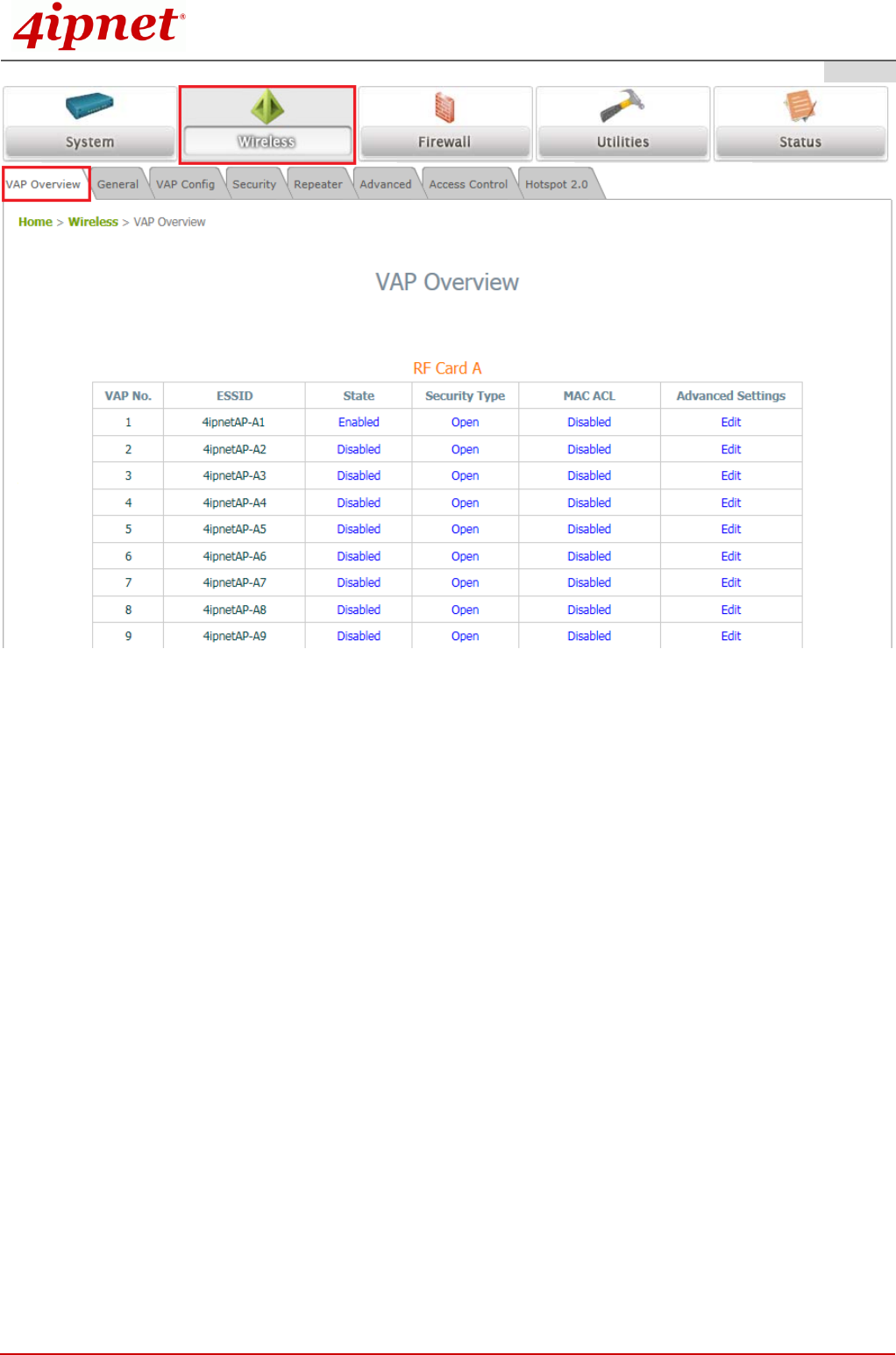

Virtual AP Overview Page
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
12
Step 4. Configure WDS (Wireless Distribution System) Settings (Optional)
To extend the wireless coverage, EAP737 supports WDS links on each RF card for connecting wirelessly to
other WDS-capable APs (peer APs). By default, all WDS profiles are disabled.
Click on the Wireless button on the main menu.

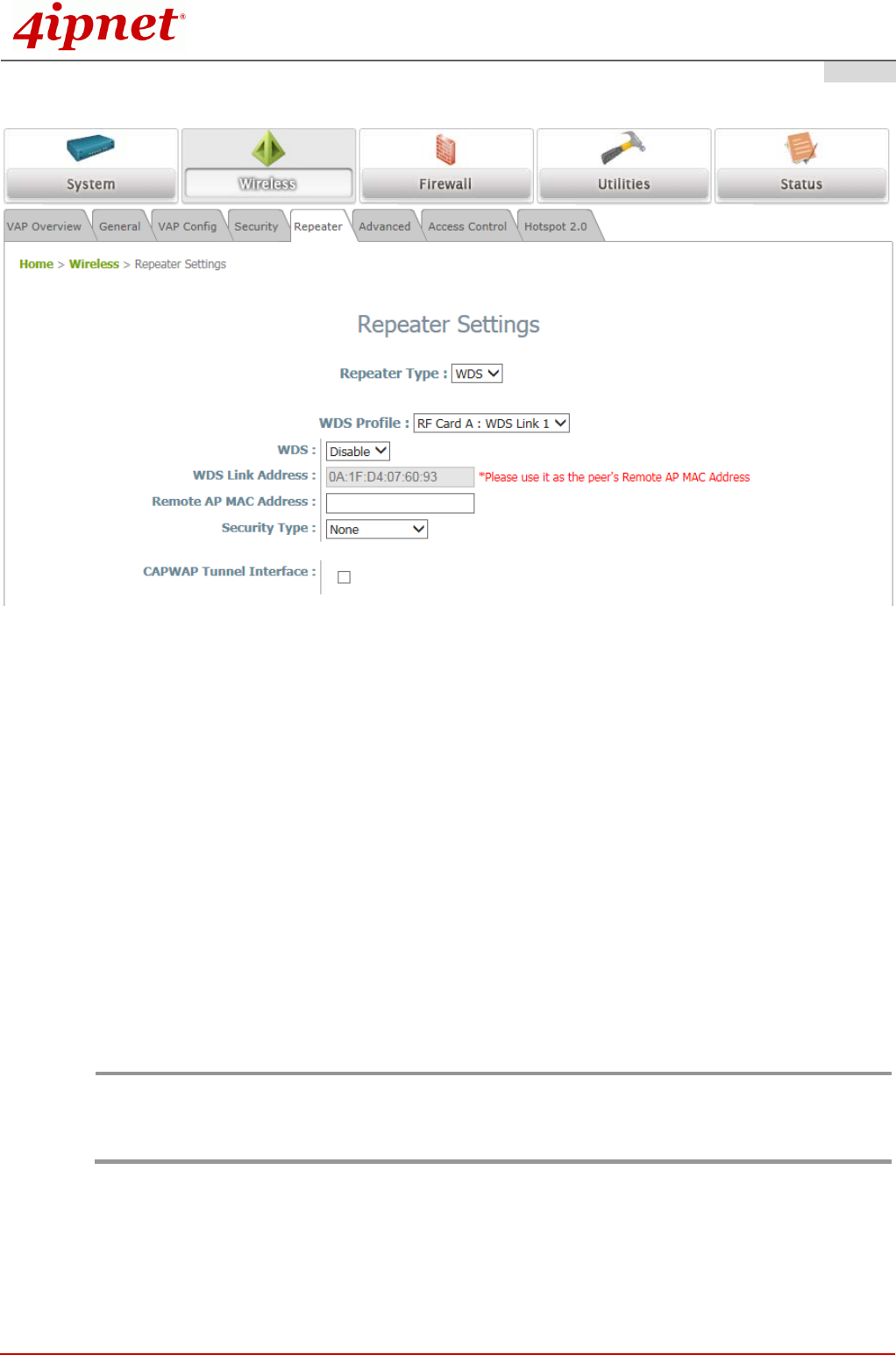

Select the Repeater Settings tab.
Choose WDS as the Repeater Type.
Choose the desired WDS profile:
(a) Enable WDS.
(b) Enter the Remote AP MAC Address (peer AP) and then Click SAVE.
If you are using another EAP737 as the peer AP, simply repeat the above-mentioned steps to configure
another peer AP(s).
Note:
On each and every configuration page, you may click SAVE to save the changes of your configured
settings, but you must reboot the system for the changes to take effect. After clicking SAVE, the
following message will appear: “Some modifications have been saved and will take effect after
APPLY.”
Quick Installation Guide
EAP737 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
13
Congratulations!
Now, 4ipnet EAP737 is installed and configured successfully.
After EAP737's network configuration is completed, please remember to change the IP Address of
your PC Connection Properties back to its original settings in order to ensure that your PC functions
properly in its real network environments.
It is strongly recommended to make a backup copy of your configuration settings.
For further configuration and backup information, please refer to the User’s Manual.
P/N: V10020160811
