7signal SE2100WL 802.11ac Dual Band Module User Manual ah

7signal 802.11ac Dual Band Module ah

Contents

users manual

Technical Specifications
QCA9890
USERS MANUAL
3X3 2.4/5GHz 11ac miniPCIe Radio
Revision:1.03 IL
Date: 2014,11,10
Model: WLE900VX-7S 7signal Revision: V2.1
Date: 2015,08,28
Features
• Qualcomm-Atheros
QCA9880
,
Reference Design
• 2.4GHz max 19dBm & 5GHz max19dBm output power (per chain)
• IEEE 802.11ac complaint & backward compatible with 802.11a/b/g/n
• 3X3 MIMO Technology & up to 1.3Gbps
• MiniPCI Express 1.1 interface
• Supports Spatial Multiplexing, low-density parity check (LDPC),
Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
• Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards
• Supported by either CompexWRT with Atheros Reference Wireless Driver, or
OpenWRT with ath10k Wireless Driver on WPJ344
• Cards are individually calibrated for Quality Assurance

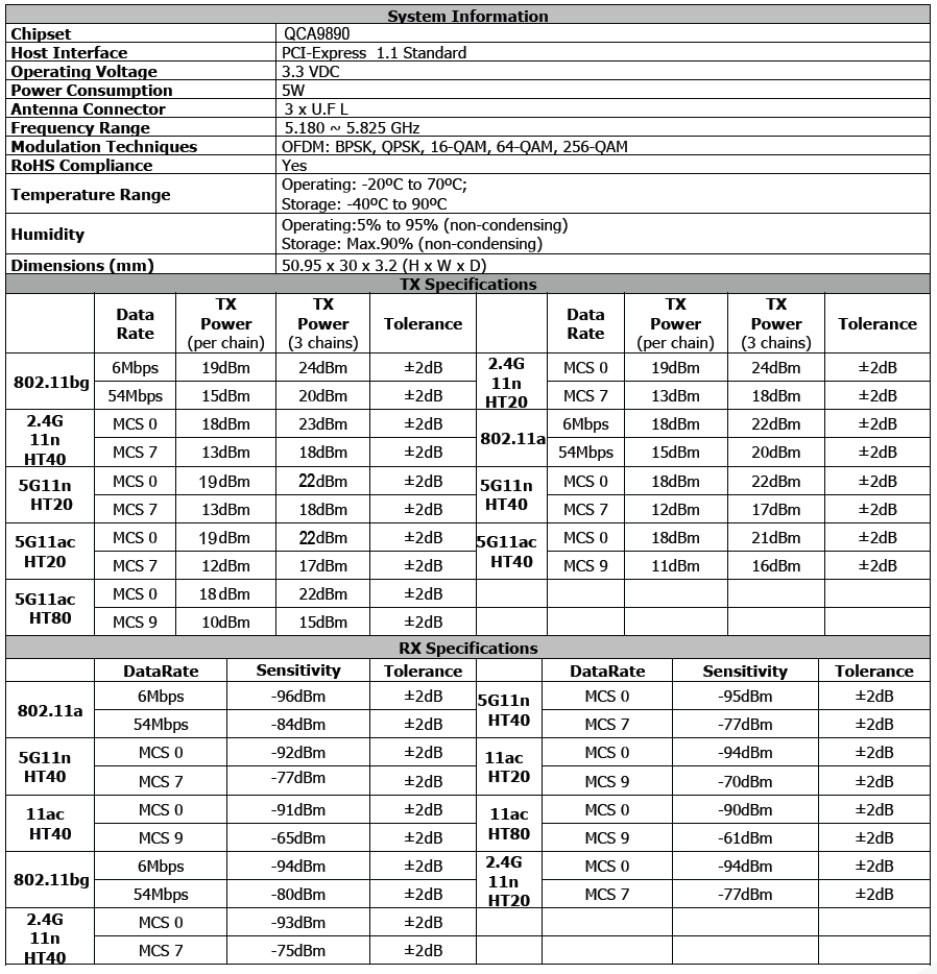

Technical Specifications
Notes:
1. Only the 20MHz and 40MHz bandwidth channels are available in the UNII-2C band. The 80MHz channels
number 106, 122, 138 cannot be programmed to operate.
2. The newer 20MHz channel number 144 is not available and cannot be programmed to operate.

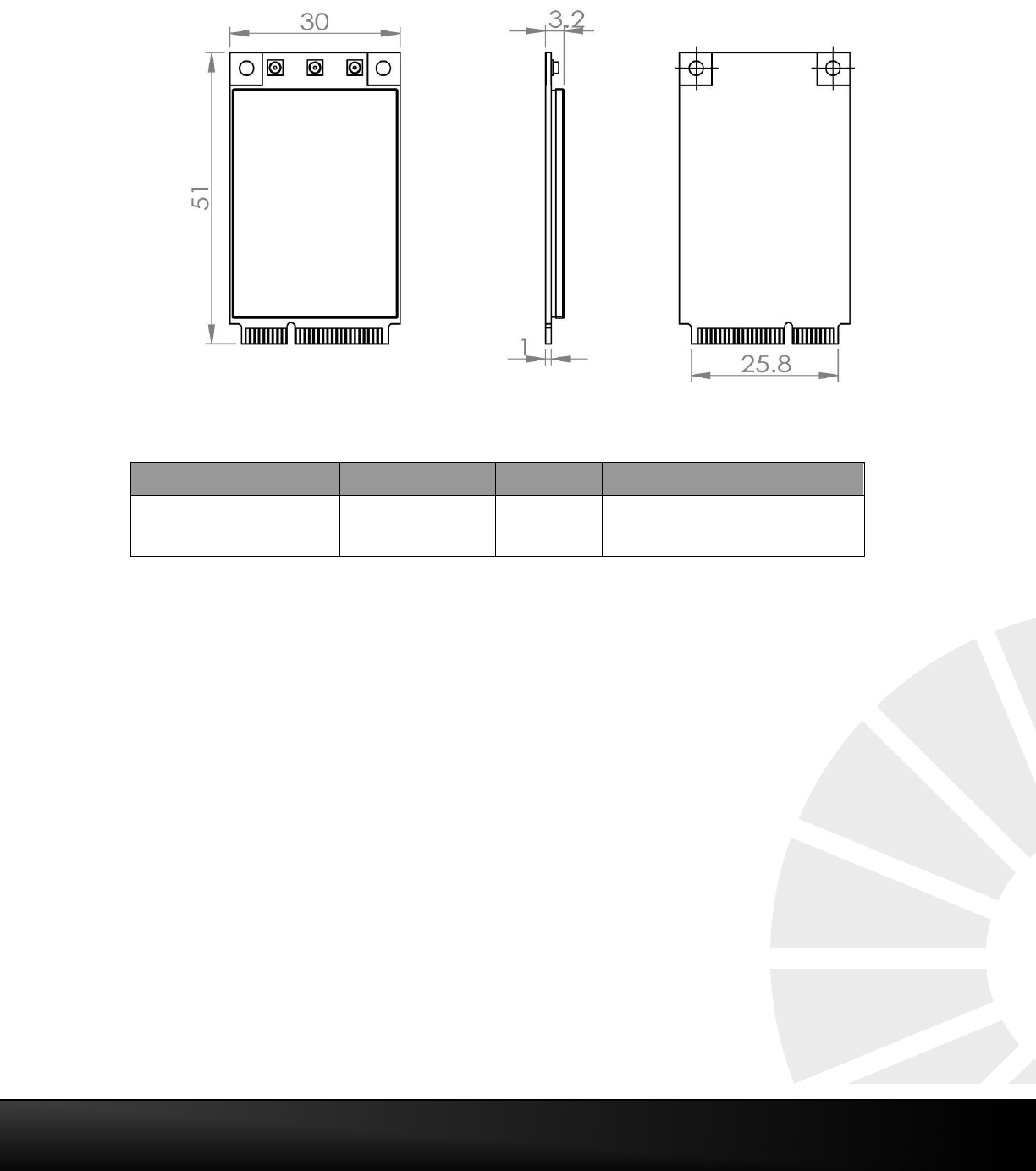

Dimension Drawing
Ordering Information
Item Code
Chipset
Form factor
Card Information
WLE900VX-7S
Atheros 9890
Full size
3x3 802.11ac 2.4G/5G PCIe mini card
Compex Systems Pte Ltd
135 Joo Se ng Road #08-01
Singapore 368363
Tel: +65 6286 2086
Fax: +65 6280 9947
Email: sales@compex.com.sg
Compex (Suzhou) Co Ltd
No.12 ChuangTou Industrial Squa re
LouFeng North, Suzhou Industrial Park
Suzhou, Jiangsu Province China 215122
Tel: +86 512 62950050
Fax: +86 512 62950026
www.compex.com.sg
www.facebook.com/compexsystems
Copyright 2013 Compe x Systems. All rights reserved. COMPEX and the COMPEX logo are registered trademarks
of COMPEX Inc. While every effort is made to ensure the information is accurate, Compex doe s not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device must accept any interference received, including interference that may cause undesired operation. Product that is a
radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate
the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user
authority to operate the equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The
equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on
the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including
the transmitter) and obtaining a separate FCC authorization.
The antenna gain which being use as below:
Antenna Type
Manufacturer
Tx Paths
Max
Directional Gain (dBi)
Panel Antenna 1#
Compex Systems Pte Ltd
3
2.4GHz: 11.0
Panel Antenna 2#
Kenbotong Communication LTD
3
2.4GHz: 10.0, 5GHz: 10.0
Panel Antenna 3#
Smart Ant Inc
3
2.4GHz: 7.0, 5GHz: 7.0
Panel Antenna 4#
TAOGLAS Inc
3
2.4GHz: 4.5, 5GHz: 6.7
Panel Antenna 5#
Compex Systems Pte Ltd
3
2.4GHz: 5.0, 5GHz: 5.0
Panel Antenna 6#
Compex Systems Pte Ltd
3
2.4GHz: 5.0, 5GHz: 5.0
Dipole Antenna 1#
Kunshan Wavelink Electronic Co., Ltd.
3
2.4GHz: 2.0, 5GHz: 2.0
Vivaldi PCB + Metal
Slot Antennas
7signal Solutions Inc custom PCB and
sheet metal slot design
3 simultaneous
2.4GHz: 6.0, 5GHz: 6.0
Note: 5.725~5.850GHz supports a max antenna gain of 10dBi, 5.15~5.35, 5.47~5.725GHz supports a max
antenna gain of 7dBi. This device is only a client module, the device does not perform radar detection and does
not support ad-hoc operation in the DFS band.
OEM integration instructions：
This device is intended only for OEM integrators under the following conditions：
The module is limited to only installations in mobile applications. The antenna must be installed such that 20 cm is
maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter
antenna. The module shall be only used with the integral antenna(s) that have been originally tested and certified with
this module.
As long as 3 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirement with
this module installed (for example, digital device emission, PC peripheral requirements, etc.)
OEM integration instructions：
In the event that these conditions cannot be met (for example certain laptop configuration or co-location with another
transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid
and the FCC ID of the module cannot be used on the final product. In these circumstances the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End product labeling：
This transmitter module is authorization only for use in devices where the antenna may be installed such that
20 cm will be
maintained between the antenna and user. The final end product must be labeled in a visible area with the following：
“Contains Transmitter Module FCC ID: YLFSE2100WL” or “Contains FCC ID: YLFSE2100WL”
Information that must be placed in the end user manual：
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user’s manual of the end product which integrates this module. The end user manual shall include all required
regulatory information/warning as shown in this manual.
