Users Manual

1Quick Start GuideGetting Ready1. Turn off the power of your computer.2. Remove the existing keyboard (and mouse for the Wireless Desktop).3. Install the AA alkaline batteries in the Wireless keyboard. Remove the battery compartment cover on the bottom ofthe keyboard by squeezing the cover in from the tab to release it.4. Install the AAA alkaline batteries in the Wireless mouse (for the Wireless Desktop).(a) Remove the battery compartment cover on the bottom of the mouse by pressing down on the tab. Insert the batteries as shown in side the battery compartment.Replace the cover.
2Setting Up the Keyboard or Wireless Desktop1. Make sure that your computer is turned off.2. Connecting the Receiver’s Keyboard Cable:(a) When connecting to an IBM AT keyboard port, use the 5-pin DIN connector already attached to thekeyboard cable.(b) When connecting to a PS/2-style, 6-pin DIN keyboard port, remove the AT adapter.(c) Connect the receiver’s purple keyboard cable to the computer’s keyboard port.3. Connecting the Receiver’s Mouse Cable (Wireless Desktop): Connect the receiver’s green mouse cable to the computer’s PS/2 mouse port4. Place the receiver eight inches (20 centimeters) from anyelectromechanical device.Installing the Mouse Software-iWheelWorks andKeyboard software-iKeyWorksOfficeBefore you can take advantage of the many features your mouse and keyboardoffers, you must install the driver. The driver is in the installation diskette thatcame packaged with your mouse and keyboardWindows 95/98/Me/2000/NT4.0 installationInsert the installation diskette into your floppy disk drive.Click the Start button and then click Run.In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.Click OK and follow the instructions on your screen to complete the installation.Selecting the Frequency ChannelThe Wireless keyboard and Mouse operates on two frequency channels. To prevent interference when using twoRF Mice in close proximity a different frequency channel should be used for each mouse. Refer to thefollowing to change the frequency channel for your keyboard and mouse: Set the frequency channel on the receiver to 1 or 2. Set the frequency channel on thekeyboard and mouse to 1 or 2.The Wireless keyboard and mouse ID codeEach keyboard and mouse is assigned a unique ID code at manufacture, so the receiver only picks up the signalfrom your mouse and prevents other Wireless keyboard or mouse radio signals from operating on yourcomputer. This feature can also be disabled, allowing other Wireless pointing devices to operate your computer.Connecting the Wireless Mouse ID CodeWhen the driver installation is finished your computer reboots and the Wireless Mouse window (shown on the right)appears.CONNECT ID: Move the Wireless Mouse for a few seconds to establish a connection, then click Connect ID. Theunique ID code of your mouse is recognized and another RF pointing device will not function on your computer.Exit: Click Exit if no other RF pointing devices are within 3 meters range or if you want other RF pointing devices to beable to access your computer.
3Changing the Wireless Mouse ID CodeYou can use a new Wireless Mouse on your computer without changing the Radio receiver; you just need to change the ID code. Refer to the following:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the Wireless Mouse ID Code window.2. Move the Wireless Mouse for a few seconds to establish a connection, then click Connect ID.3. The new ID code is connected and the Wireless Mouse window closes.4. Click Exit to close the Wireless Mouse ID code window.Connecting the Wireless Keyboard ID CodeManually establish communication between the receiver and keyboard.(a) Press any key from the keyboard(b) Press the ID Connect button on the receiver the green LED light will show you the keyboard ID beconnect. If the green LED light is off then keyboard ID is disconnect.
4Using the iKeyWorksOffice(Keyboard) SoftwareTo launch the iKeyWorksOfficeTM software, double-click the iKeyWorksOffice icon on the Windows Taskbar.This iKeyWorksOffice software, brings you closer and keeps you in better touch with your desktop world. Set up and organize your keyboard in your way. Using theHotkeys and the iKeyWorksOffice software, customize your keyboard so you can be at your Internet home page, or favorite chat room, and run your e-mailapplication with the push of a button. The Hot Keys are divided into two groups, as defined by their functions.Access customize functionHotkeys Setting OptionsSetting On-ScreenHot Keys to default functionShow the On-Screen displayCustomize hotkeySystem default functionMS Office hotkey group
5Using the Hot KeysThere are programmable Hot keys, which you must setup the iKeyWorksOffice software before using.Hot Keys Default Functions Mail E-mail key: Launches an e-mail application. Media Open Microsoft Media player Previous Previous Track Key: Plays the previous track. Next Next Track key: Plays the next track. Play Play/Pause key: Plays or pauses the CD/DVD. Stop Stop key: Stops play. Volume - Volume Down key: Decreases the sound volume. Volume + Volume Up key: Increase the sound volume. Mute Mute key: Stop/Start the sound volume. Sleep Suspend key: Access the Windows Shut Down dialog box, where you can put your system onstand-by or shut down Windows.

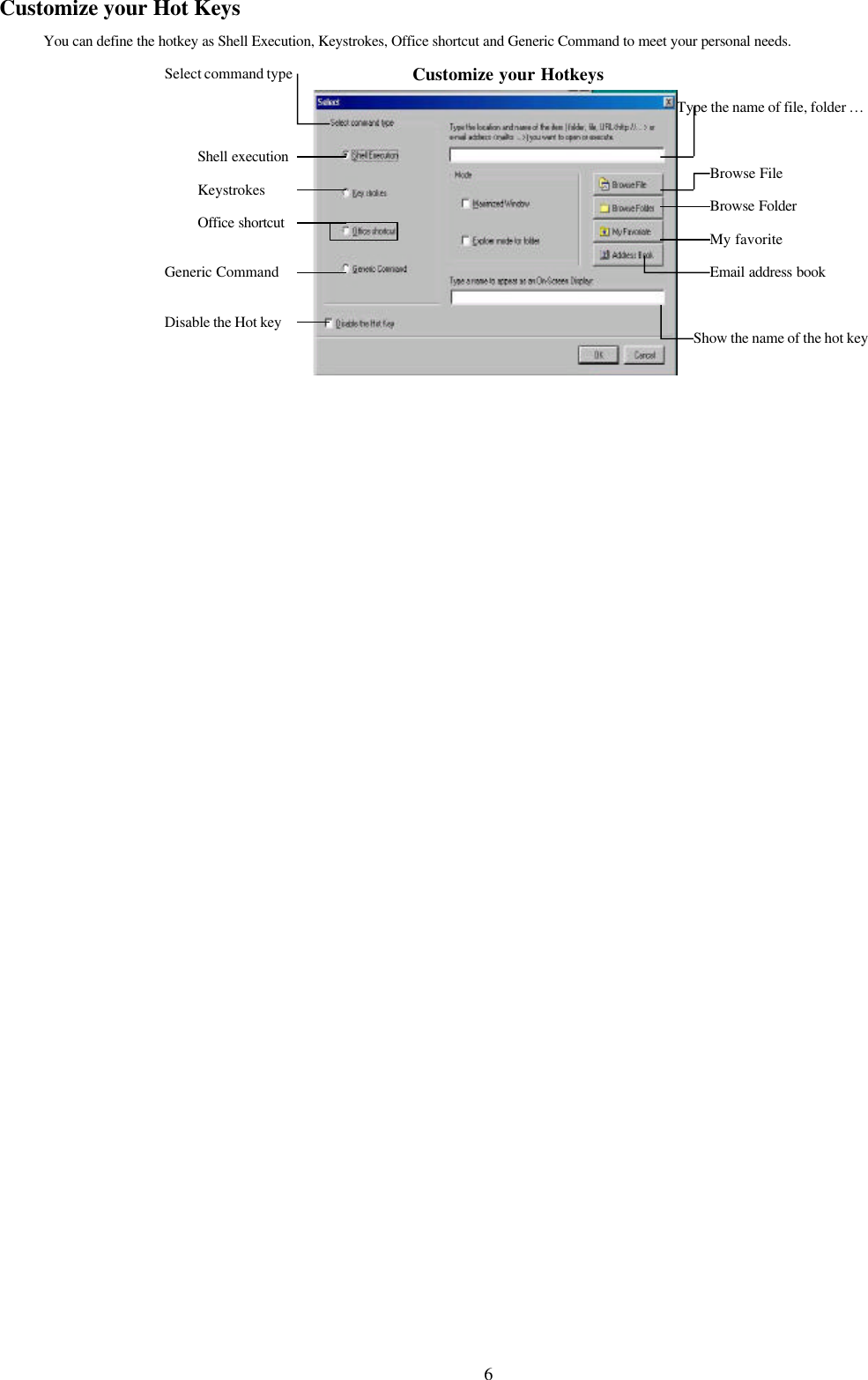

6Customize your Hot KeysYou can define the hotkey as Shell Execution, Keystrokes, Office shortcut and Generic Command to meet your personal needs.Customize your HotkeysKeystrokesGeneric CommandDisable the Hot key Show the name of the hot keyEmail address bookType the name of file, folder …Browse FileBrowse FolderMy favoriteSelect command typeShell executionOffice shortcut
7Using the MouseWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, and but you can also scroll in Windows 95/98/Me/2000/NT.Your mouse has a wheel; the wheel functions as both a wheel and a button. Simply click the wheel as you would a programmable standard Third button.Scrolling and Zooming with the MouseTask What is it? How to do it?Wheel Scroll Use wheel Scroll for precise up and down movement. To scroll up, move the wheel forward; to scroll down, move the wheel back.Zoom Use Zoom to either magnify or demagnify the view of adocument in an application that supports it. Place the cursor in an application that is Microsoft Office 97/2000compatible. Press and hold the Ctrl key on the keyboard, then to zoom in,move the wheel forward; to zoom out, move the wheel backwards.AutoScroll Use AutoScroll in Windows 95/98/Me/2000/NT andMicrosoft Office97/2000 compatible applications toscroll through large documents.AutoScroll allows you scroll a document automaticallywithout having to move the mouse continuously.Assign AutoScroll to a button on the mouse if it is not already assigned.Place the cursor in an application, Press the mouse button assigned toAutoScroll. The AutoScroll icon appears.Move the mouse once in the direction you want to scroll. The farther youmove the pointer from the starting point, the faster the scrolling.To stop AutoScroll, press any mouse button.Mouse Properties SettingsFrom the Mouse Properties window you can customize many settings for your mouse including buttonassignments, scroll wheels and cursor movement. To open the Mouse Properties window double-clickon the mouse icon in the system tray. The Mouse Properties window has six tabs that are described below.Buttons TabButton Assignments: Click the down arrow to select the preferred function for each button.Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-hand use. The default setting for buttons 1 and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click the down arrow under Scheme and choose the setting you want. The available pointersfor each scheme are shown in the pane below. You can browse to additional pointers, then create your own scheme using the Save As button.Motion TabPointer Speed: Lets you adjust how fast the cursor moves on the screen.Snap to Button: Check this box to automatically have the cursor move to the default button in each new dialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl] key will highlight the cursor.Trails: Check this box when you want your cursor to display pointer trails. This option is useful when using an LCD display that can make the cursordifficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus) that you can assign to either the NetJump or LuckyJump grids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. To change a command, select a new one from the CommandList and click on the icon in the grid that you want to change.LuckyJump (bottom grid): The LuckyJump grid groups all-purpose commands. To change a command, select a new one from the Command List andclick on the icon in the grid that you want to change.Wheel: Check the Reverse scrolling direction box to change the scrolling direction when you turn the scroll wheel. Select the Scroll or Scroll one “page” perscroll unit radio button to set the scrolling speed to suit your work habits.Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and puts them right under the cursor. To use NetJump, open the MouseProperties window and select the Buttons tab. Assign NetJump in the drop-down menu of the button you want. Click OK to close the Mouse Propertieswindow. Now click the assigned button to open the NetJump grid and execute your command. (See the Settings Tab section above for instructions on customizingNetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient grid and puts them right under the cursor. To use LuckyJump, open theMouse Properties window and select the Buttons tab. Assign LuckyJump in the drop-down menu of the button you want. Click OK to close the MouseProperties window. Now click the assigned button to open the LuckyJump grid and execute your command.
