A Four Tech Co BT630 Bluetooth Mouse User Manual Bluetooth User Guide

A Four Tech Co Ltd Bluetooth Mouse Bluetooth User Guide

user manual

Bluetooth Mouse User Guide Model: BT-630 www.a4tech.com

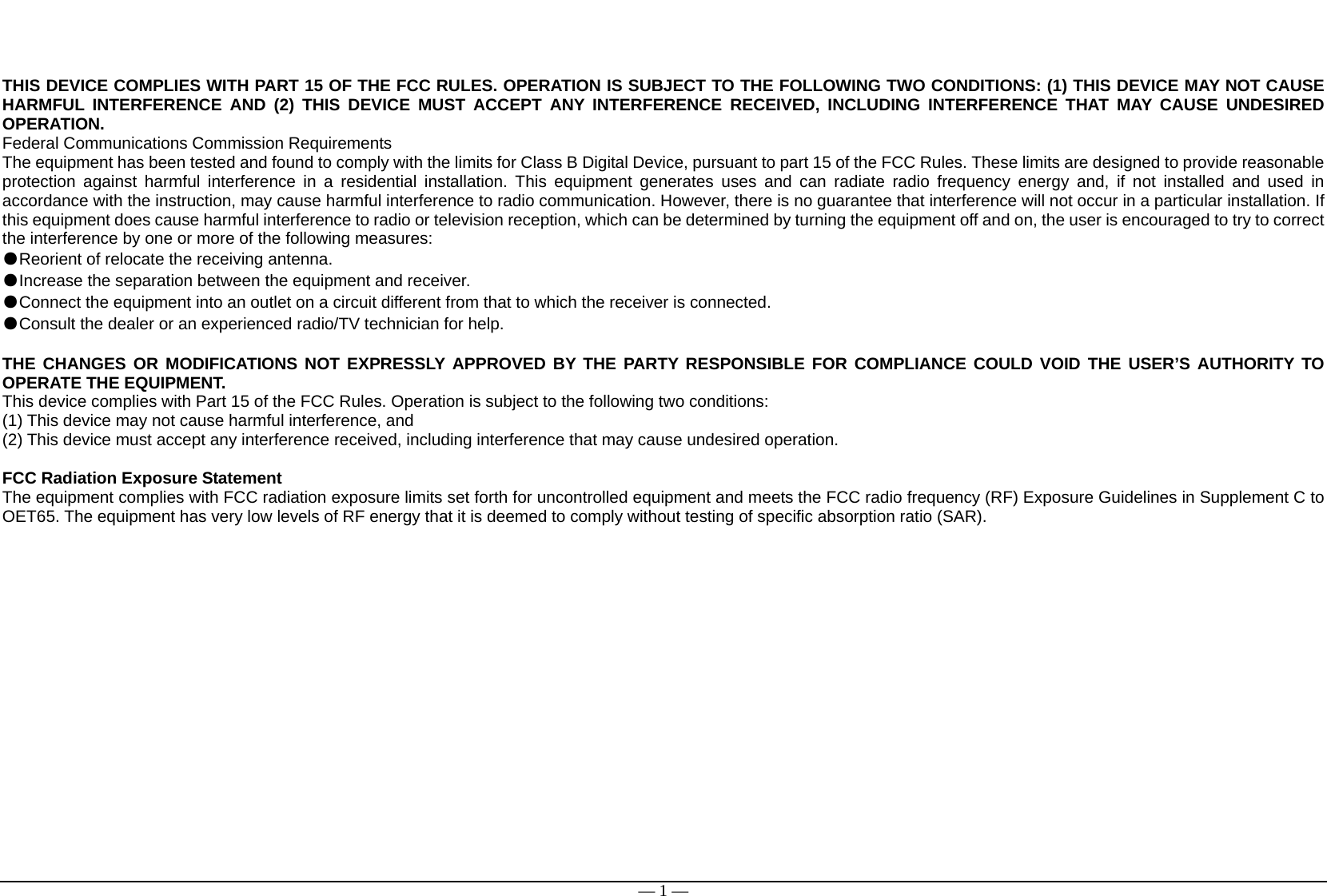

— 1 — THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Federal Communications Commission Requirements The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient of relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement The equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
— 2 —Package Contents 1. Bluetooth Mouse 2. 1*AA Battery 3. Quick Set Up Guide 4. CD (CD User Manual) Features 1. Bluetooth V2.0, 10 meter range 2. 1000DPI 3. Four stages power saving mode, low battery warning 4. 8 in Right software, innovative 4D wheel System Requirement: Windows XP/Vista /Windows7 Know your product Back View Front View Dual-color LED Indicator Bluetooth Mouse LED Status Power On Green LED: Turn off after 1 Second Low Battery Warning Red LED: Blinking Connection Start Alternate Blink Between Red and Green Connection Complete Stop Blinking

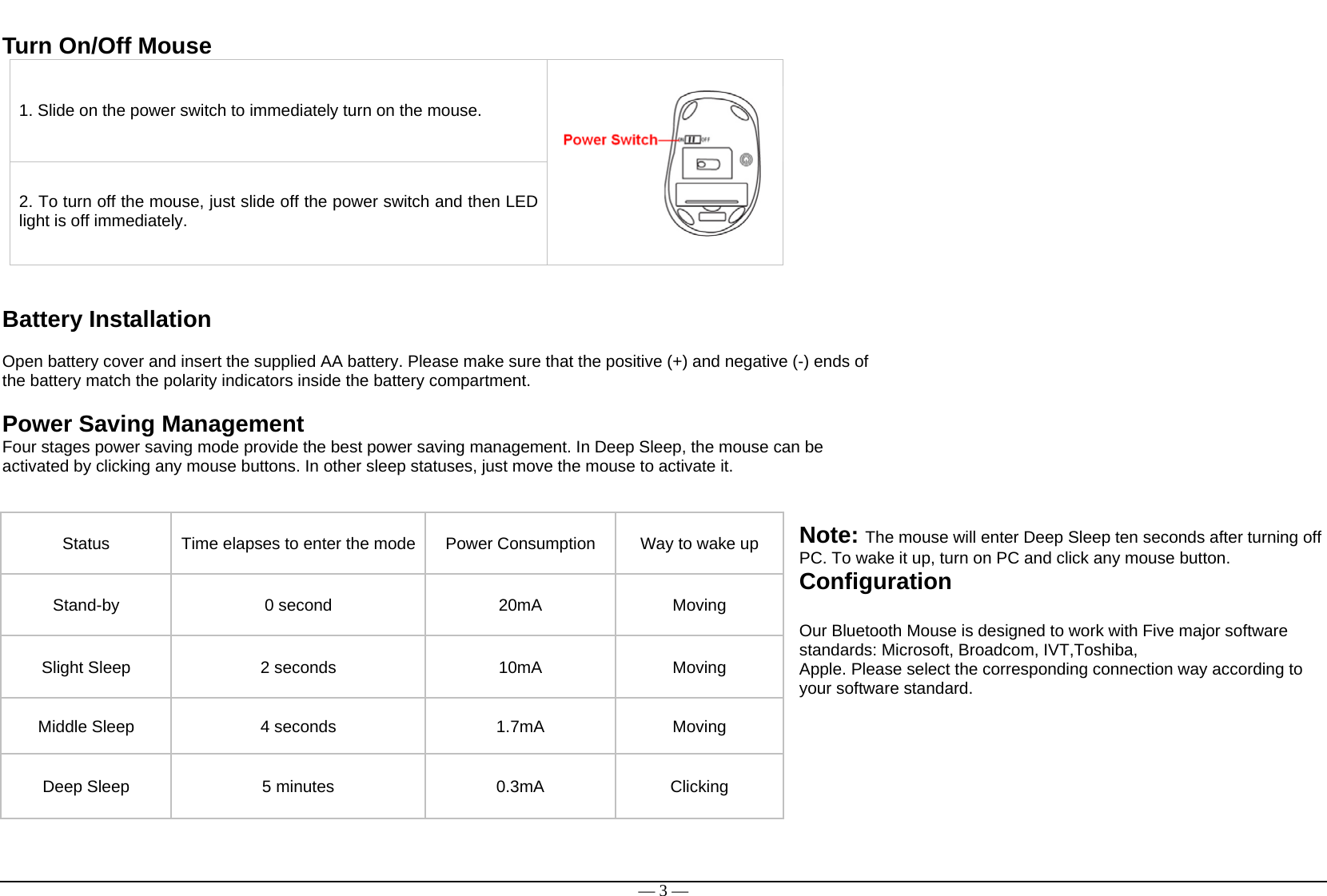

— 3 — Turn On/Off Mouse 1. Slide on the power switch to immediately turn on the mouse. 2. To turn off the mouse, just slide off the power switch and then LED light is off immediately. Battery Installation Open battery cover and insert the supplied AA battery. Please make sure that the positive (+) and negative (-) ends of the battery match the polarity indicators inside the battery compartment. Power Saving Management Four stages power saving mode provide the best power saving management. In Deep Sleep, the mouse can be activated by clicking any mouse buttons. In other sleep statuses, just move the mouse to activate it. Note: The mouse will enter Deep Sleep ten seconds after turning off PC. To wake it up, turn on PC and click any mouse button. Configuration Our Bluetooth Mouse is designed to work with Five major software standards: Microsoft, Broadcom, IVT,Toshiba, Apple. Please select the corresponding connection way according to your software standard. Status Time elapses to enter the mode Power Consumption Way to wake up Stand-by 0 second 20mA Moving Slight Sleep 2 seconds 10mA Moving Middle Sleep 4 seconds 1.7mA Moving Deep Sleep 5 minutes 0.3mA Clicking
— 4 —Bluetooth Software Vendor Bluetooth Software Name Bluetooth Device Not Inserted Bluetooth Device Already Inserted Bluetooth Device In Working Support Version Microsoft Windows Bluetooth Windows XP(SP2) Above Broadcom Widcomm V4.0 Above IVT BlueSoleil V5.0 Above Toshiba Bluetooth Stack V3.0 Above Apple Mac OS X Bluetooth Mac OS X 10.4~10.5 Above Note：Before start Bluetooth Mouse connectivity, please check whether your system has already installed Bluetooth software and whether it works. Bluetooth Software: MICROSOFT Step 1：Click Start, click Control Panel (make sure you're in Classic View), and then double-clickBluetooth Devices. Step 2：In popped Bluetooth Devices window,Click Add.

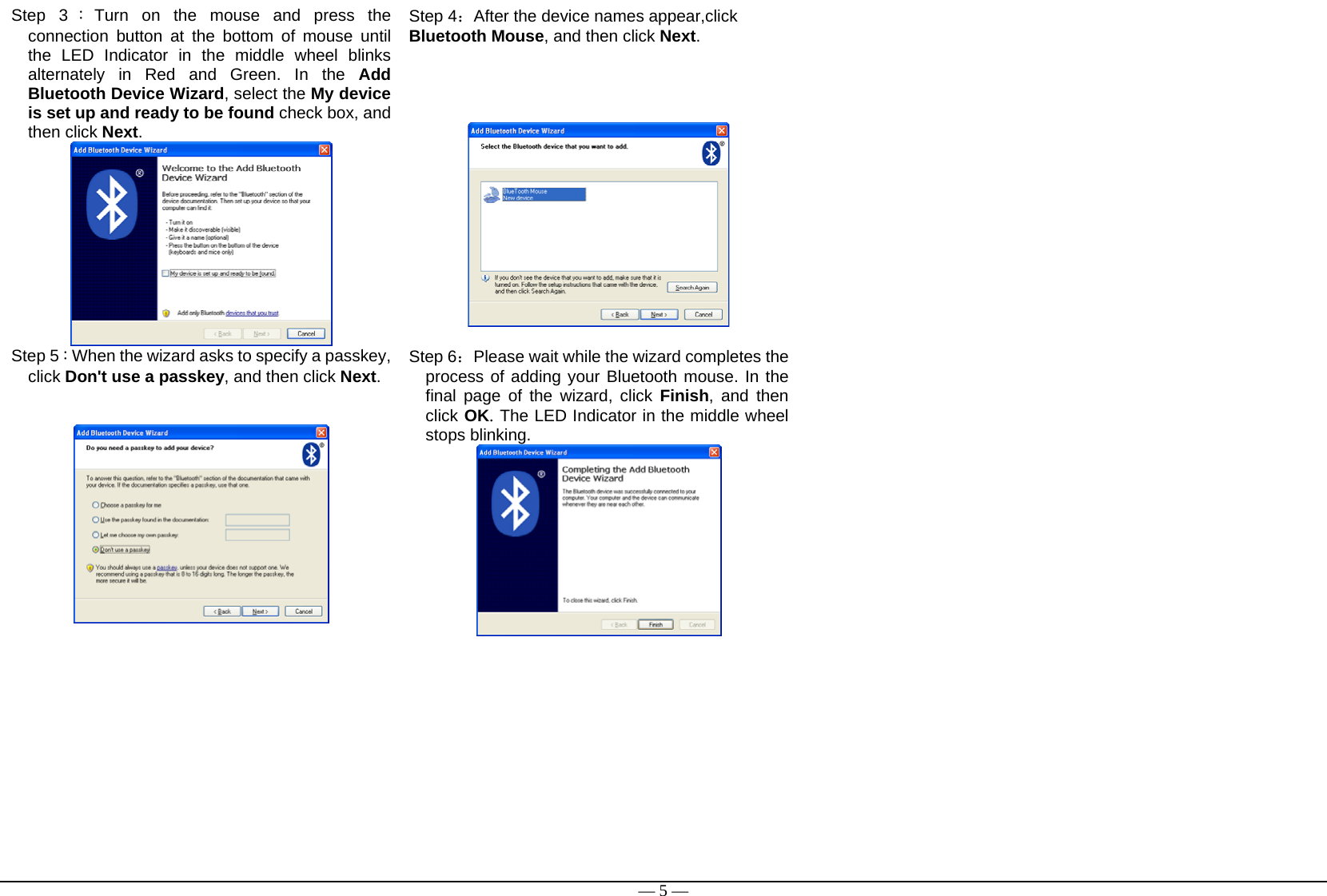

— 5 —Step 3 ：Turn on the mouse and press the connection button at the bottom of mouse until the LED Indicator in the middle wheel blinks alternately in Red and Green. In the Add Bluetooth Device Wizard, select the My device is set up and ready to be found check box, and then click Next. Step 4：After the device names appear,click Bluetooth Mouse, and then click Next. Step 5：When the wizard asks to specify a passkey, click Don't use a passkey, and then click Next. Step 6：Please wait while the wizard completes the process of adding your Bluetooth mouse. In the final page of the wizard, click Finish, and then click OK. The LED Indicator in the middle wheel stops blinking.

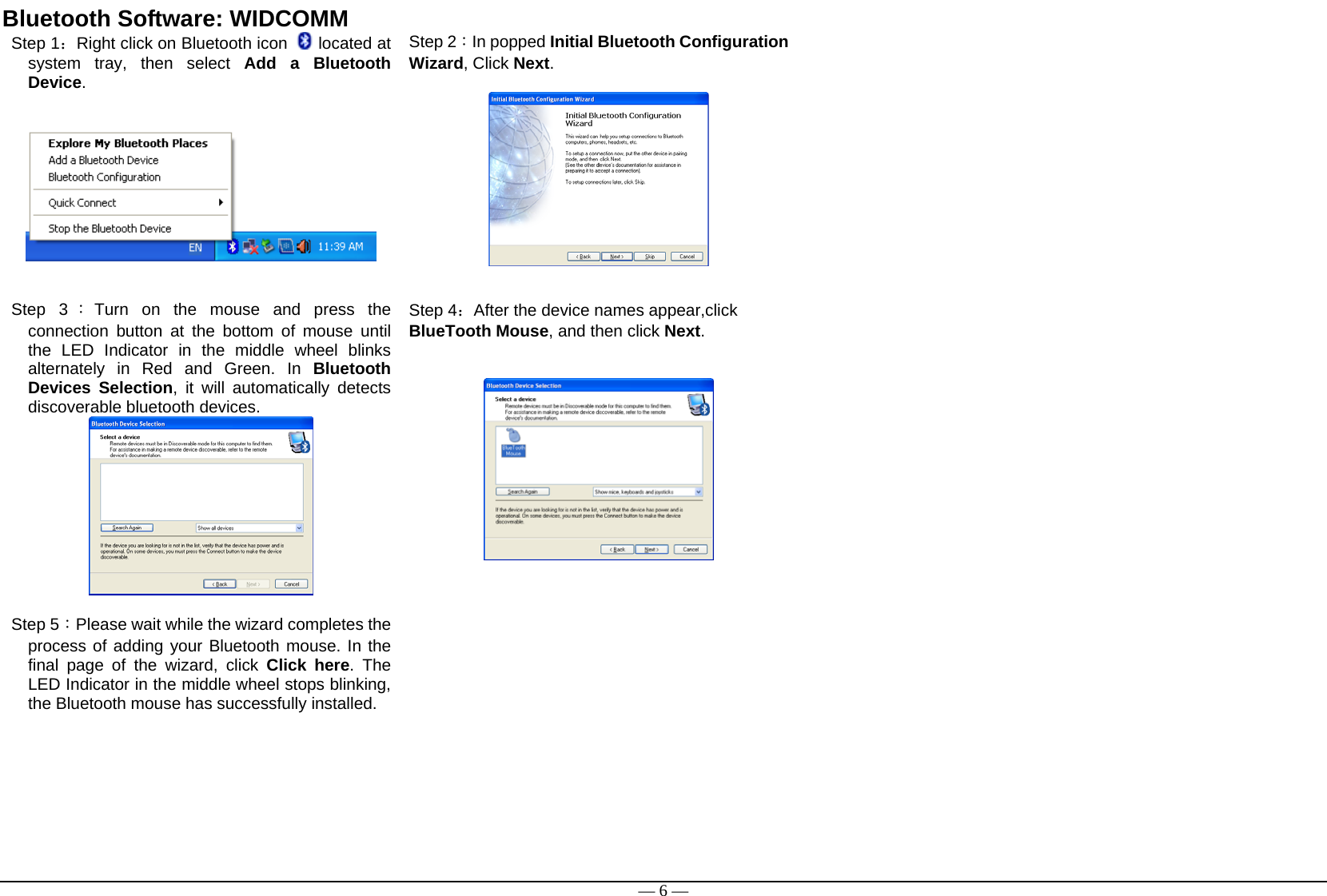

— 6 —Bluetooth Software: WIDCOMM Step 1：Right click on Bluetooth icon located at system tray, then select Add a Bluetooth Device. Step 2：In popped Initial Bluetooth Configuration Wizard, Click Next. Step 3 ：Turn on the mouse and press the connection button at the bottom of mouse until the LED Indicator in the middle wheel blinks alternately in Red and Green. In Bluetooth Devices Selection, it will automatically detects discoverable bluetooth devices. Step 4：After the device names appear,click BlueTooth Mouse, and then click Next. Step 5：Please wait while the wizard completes the process of adding your Bluetooth mouse. In the final page of the wizard, click Click here. The LED Indicator in the middle wheel stops blinking, the Bluetooth mouse has successfully installed.

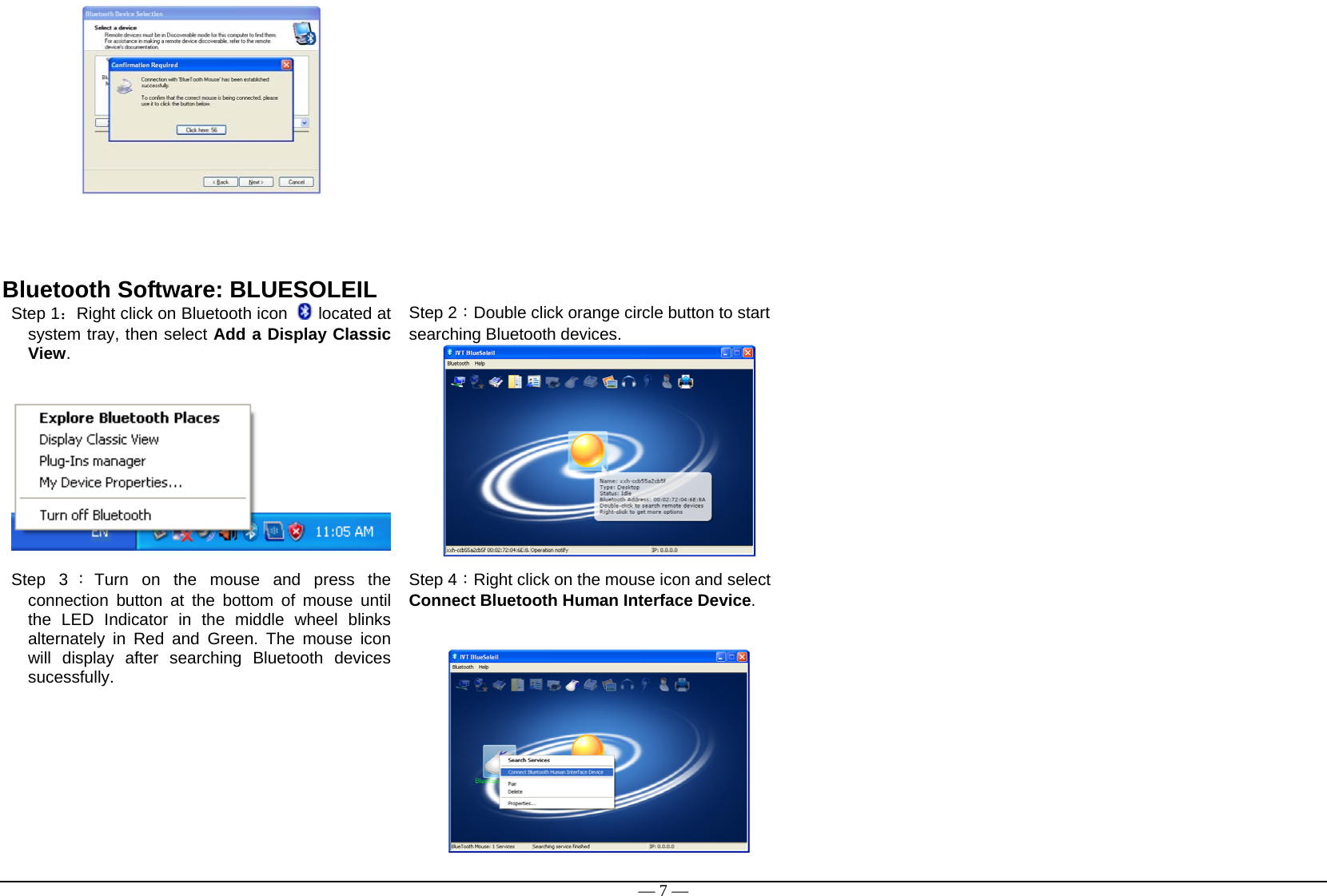

— 7 — Bluetooth Software: BLUESOLEIL Step 1：Right click on Bluetooth icon located at system tray, then select Add a Display Classic View. Step 2：Double click orange circle button to start searching Bluetooth devices. Step 3 ：Turn on the mouse and press the connection button at the bottom of mouse until the LED Indicator in the middle wheel blinks alternately in Red and Green. The mouse icon will display after searching Bluetooth devices sucessfully. Step 4：Right click on the mouse icon and select Connect Bluetooth Human Interface Device.

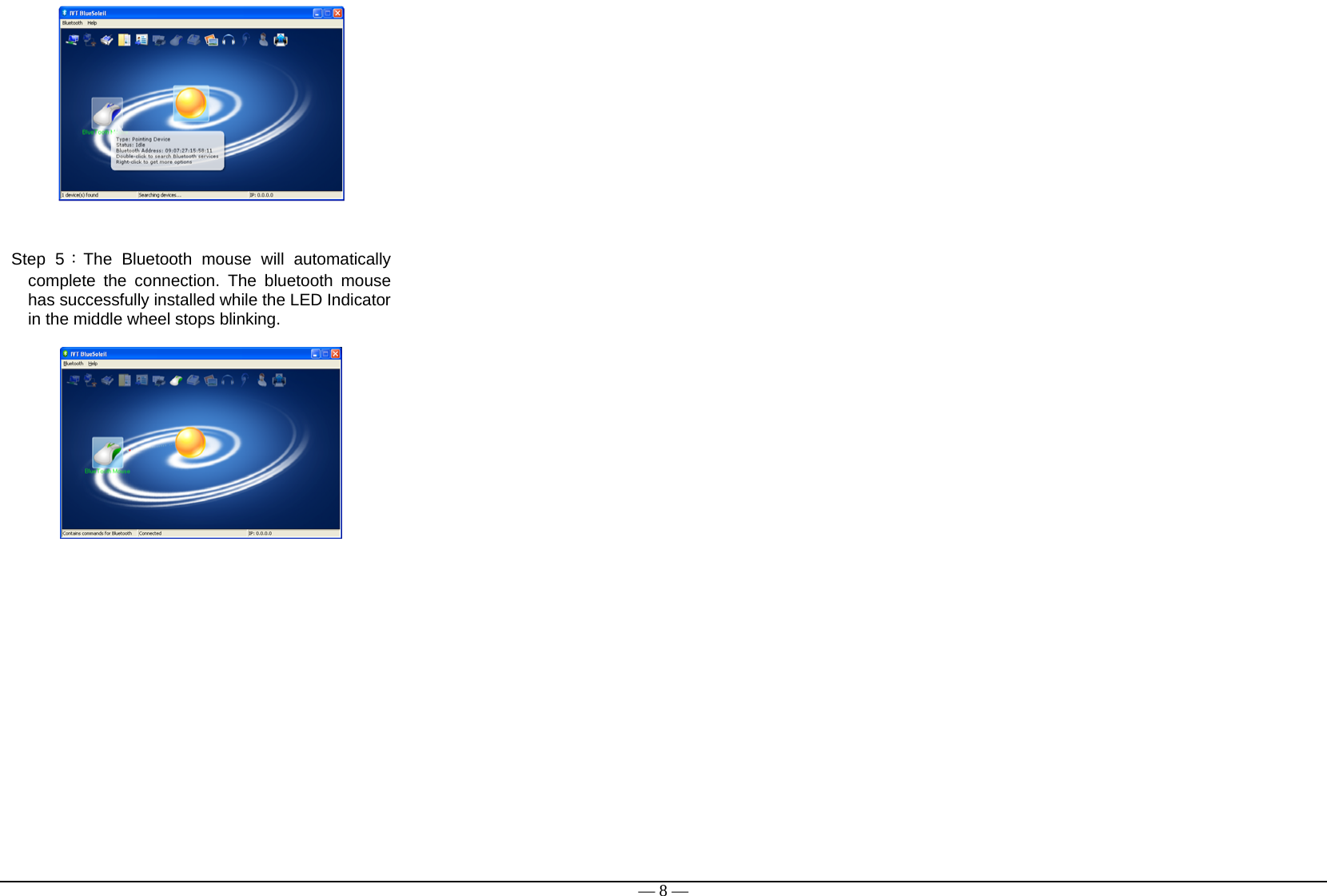

— 8 — Step 5：The Bluetooth mouse will automatically complete the connection. The bluetooth mouse has successfully installed while the LED Indicator in the middle wheel stops blinking.

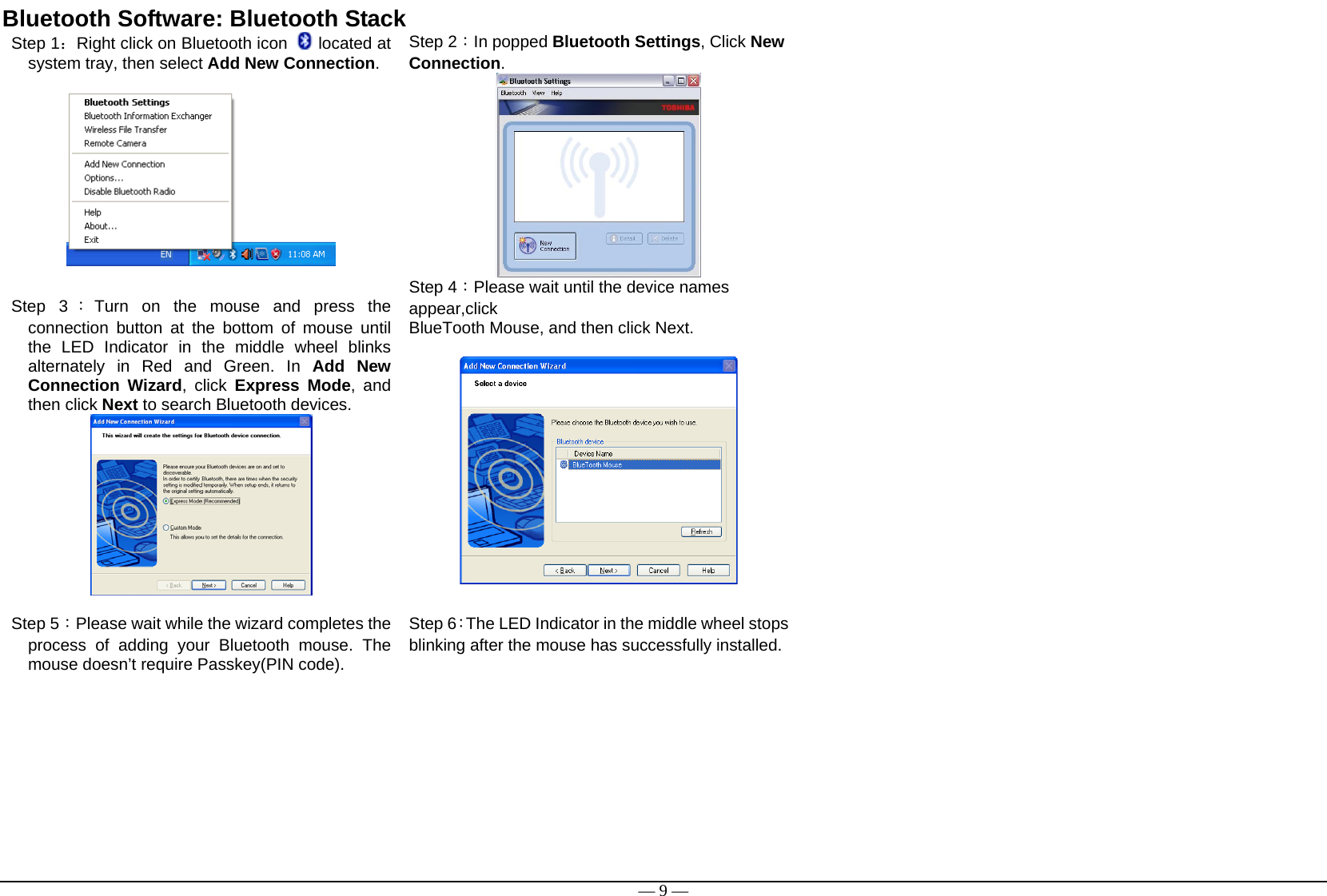

— 9 —Bluetooth Software: Bluetooth Stack Step 1：Right click on Bluetooth icon located at system tray, then select Add New Connection. Step 2：In popped Bluetooth Settings, Click New Connection. Step 3 ：Turn on the mouse and press the connection button at the bottom of mouse until the LED Indicator in the middle wheel blinks alternately in Red and Green. In Add New Connection Wizard, click Express Mode, and then click Next to search Bluetooth devices. Step 4：Please wait until the device names appear,click BlueTooth Mouse, and then click Next. Step 5：Please wait while the wizard completes the process of adding your Bluetooth mouse. The mouse doesn’t require Passkey(PIN code). Step 6：The LED Indicator in the middle wheel stops blinking after the mouse has successfully installed.
— 10 — Bluetooth Software: Mac OS X Bluetooth Step 1：Right click on Bluetooth icon located at system tray, then select Set up Bluetooth Device. Step 2：Follow on-screen instructions to continue setup. Select Mouse when below window appears. Step 3 ：Turn on the mouse and press the connection button at the bottom of mouse until the LED Indicator in the middle wheel blinks alternately in Red and Green. After device names appear, click BlueTooth Mouse, and then click Next. Step 4：The bluetooth mouse has successfully installed while the LED Indicator in the middle wheel stops blinking. You can choose to set up another device or click Quit to exit.
— 11 — Software Installation 1. Before installing the mouse software, please uninstall any previously installed mouse software. 2. Insert enclosed CD to start installation. 3. Follow on-screen instructions to complete the installation. 4. The icon will appear on your desktop, then you have successfully installed the software. 5. To launch the software, double click the icon on your desktop or go to Start—Programs—A4tech 8 in Right, then the icon will appear in the taskbar at the right corner of your screen. .For more completed instructions on how to set up this software, please refer to software manual in CD. **Features and specifications of all A4 TECH products are subject to change without notification.
