Radio Wireless Optical Wheel MouseUser’s GuideModel: RFSOP-27ATrademark RecognitionWindows, Office 97/2000/XP and MS-IntelliMouse are registered trademarks of Microsoft Corp.

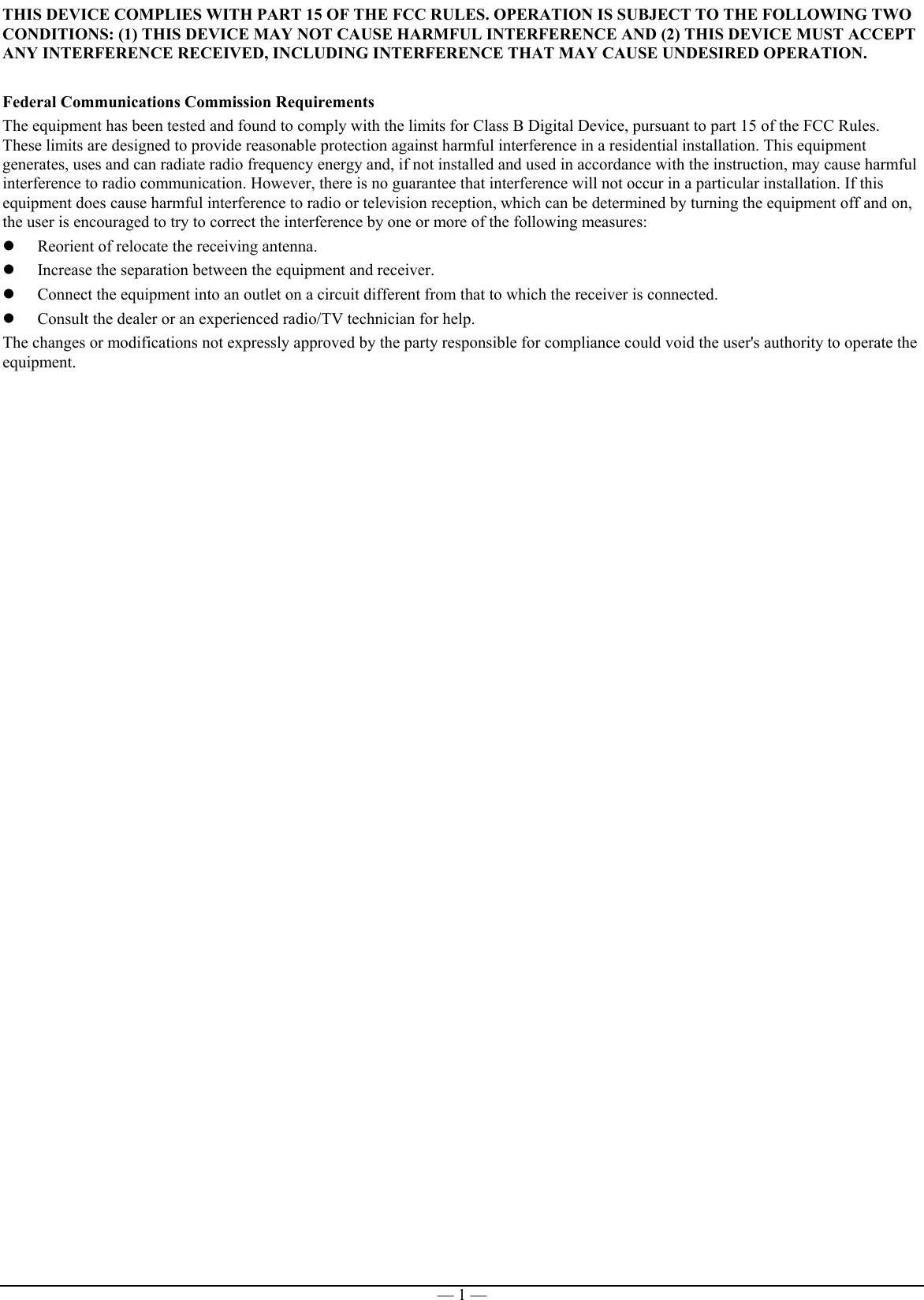

— 1 —THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWOCONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.Federal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmfulinterference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:z Reorient of relocate the receiving antenna.z Increase the separation between the equipment and receiver.z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.z Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment.

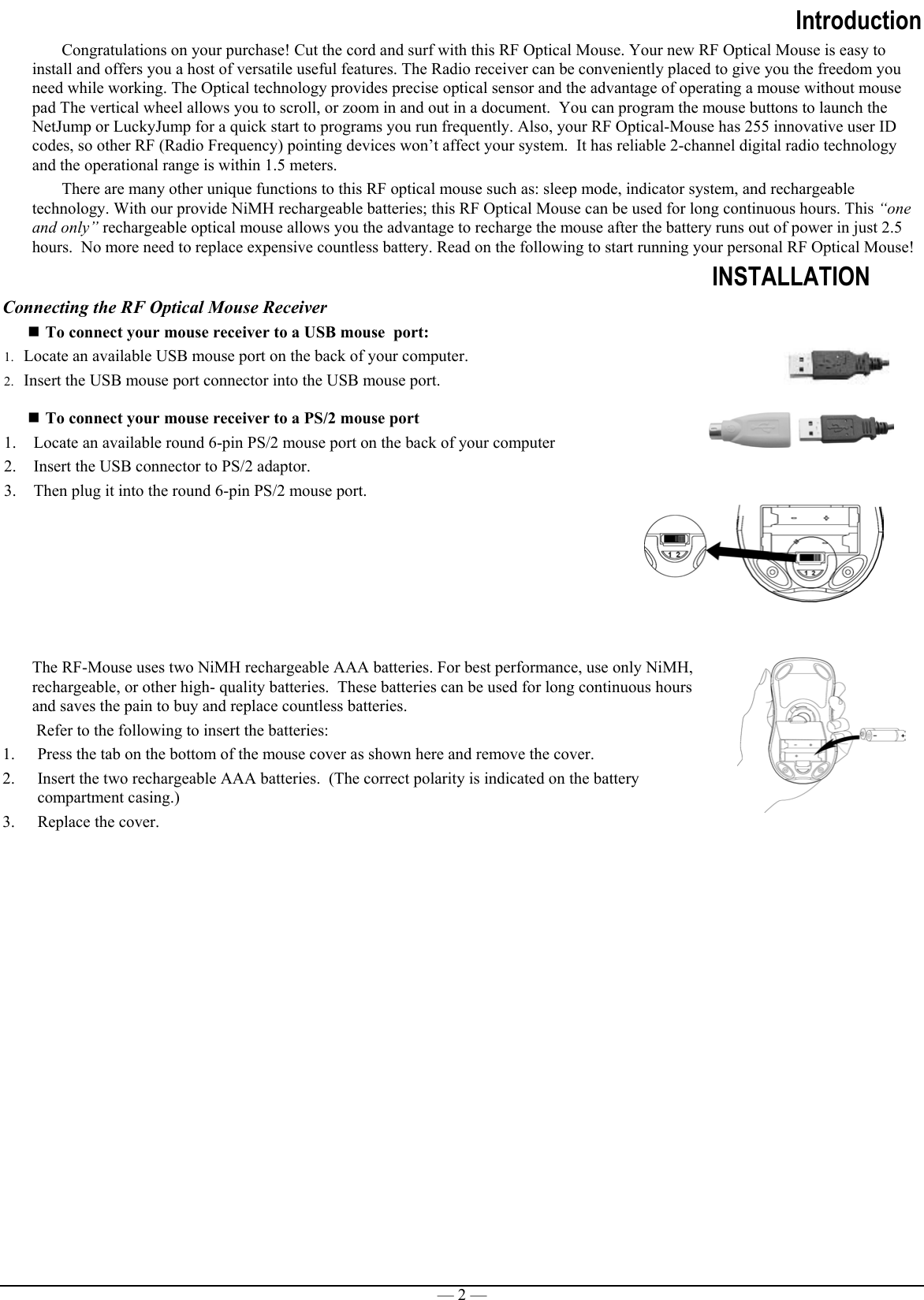

— 2 —IntroductionCongratulations on your purchase! Cut the cord and surf with this RF Optical Mouse. Your new RF Optical Mouse is easy toinstall and offers you a host of versatile useful features. The Radio receiver can be conveniently placed to give you the freedom youneed while working. The Optical technology provides precise optical sensor and the advantage of operating a mouse without mousepad The vertical wheel allows you to scroll, or zoom in and out in a document. You can program the mouse buttons to launch theNetJump or LuckyJump for a quick start to programs you run frequently. Also, your RF Optical-Mouse has 255 innovative user IDcodes, so other RF (Radio Frequency) pointing devices won’t affect your system. It has reliable 2-channel digital radio technologyand the operational range is within 1.5 meters.There are many other unique functions to this RF optical mouse such as: sleep mode, indicator system, and rechargeabletechnology. With our provide NiMH rechargeable batteries; this RF Optical Mouse can be used for long continuous hours. This “oneand only” rechargeable optical mouse allows you the advantage to recharge the mouse after the battery runs out of power in just 2.5hours. No more need to replace expensive countless battery. Read on the following to start running your personal RF Optical Mouse!INSTALLATIONConnecting the RF Optical Mouse Receiver To connect your mouse receiver to a USB mouse port:1. Locate an available USB mouse port on the back of your computer.2. Insert the USB mouse port connector into the USB mouse port. To connect your mouse receiver to a PS/2 mouse port1. Locate an available round 6-pin PS/2 mouse port on the back of your computer2. Insert the USB connector to PS/2 adaptor.3. Then plug it into the round 6-pin PS/2 mouse port.The RF-Mouse uses two NiMH rechargeable AAA batteries. For best performance, use only NiMH,rechargeable, or other high- quality batteries. These batteries can be used for long continuous hoursand saves the pain to buy and replace countless batteries. Refer to the following to insert the batteries:1. Press the tab on the bottom of the mouse cover as shown here and remove the cover.2. Insert the two rechargeable AAA batteries. (The correct polarity is indicated on the batterycompartment casing.)3. Replace the cover.

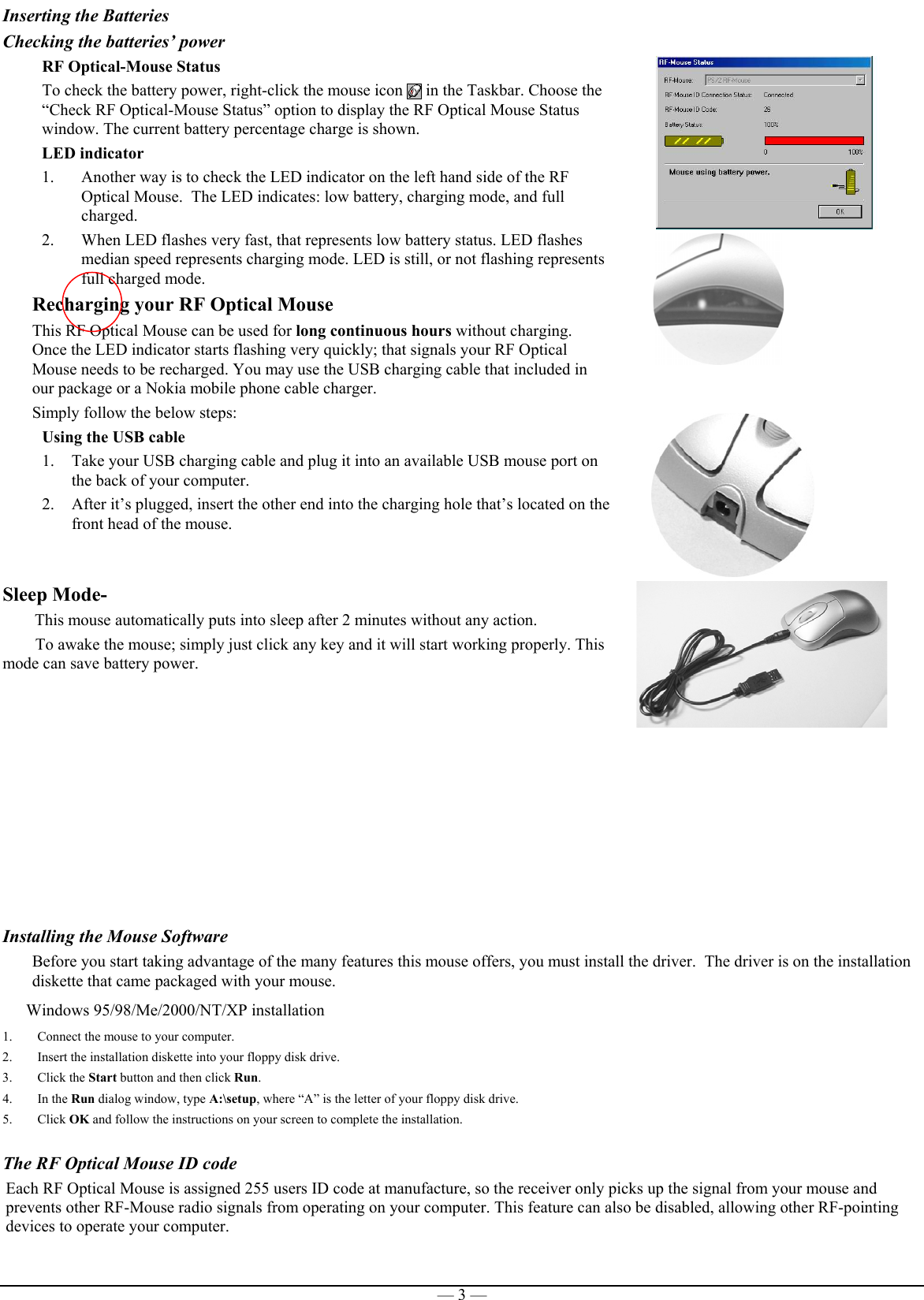

— 3 —Inserting the BatteriesChecking the batteries’ power RF Optical-Mouse StatusTo check the battery power, right-click the mouse icon in the Taskbar. Choose the“Check RF Optical-Mouse Status” option to display the RF Optical Mouse Statuswindow. The current battery percentage charge is shown.LED indicator1. Another way is to check the LED indicator on the left hand side of the RFOptical Mouse. The LED indicates: low battery, charging mode, and fullcharged.2. When LED flashes very fast, that represents low battery status. LED flashesmedian speed represents charging mode. LED is still, or not flashing representsfull charged mode.Recharging your RF Optical MouseThis RF Optical Mouse can be used for long continuous hours without charging.Once the LED indicator starts flashing very quickly; that signals your RF OpticalMouse needs to be recharged. You may use the USB charging cable that included inour package or a Nokia mobile phone cable charger.Simply follow the below steps:Using the USB cable1. Take your USB charging cable and plug it into an available USB mouse port onthe back of your computer.2. After it’s plugged, insert the other end into the charging hole that’s located on thefront head of the mouse. Sleep Mode- This mouse automatically puts into sleep after 2 minutes without any action.To awake the mouse; simply just click any key and it will start working properly. Thismode can save battery power.Installing the Mouse SoftwareBefore you start taking advantage of the many features this mouse offers, you must install the driver. The driver is on the installationdiskette that came packaged with your mouse.Windows 95/98/Me/2000/NT/XP installation1. Connect the mouse to your computer.2. Insert the installation diskette into your floppy disk drive.3. Click the Start button and then click Run.4. In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.5. Click OK and follow the instructions on your screen to complete the installation.The RF Optical Mouse ID codeEach RF Optical Mouse is assigned 255 users ID code at manufacture, so the receiver only picks up the signal from your mouse andprevents other RF-Mouse radio signals from operating on your computer. This feature can also be disabled, allowing other RF-pointingdevices to operate your computer.

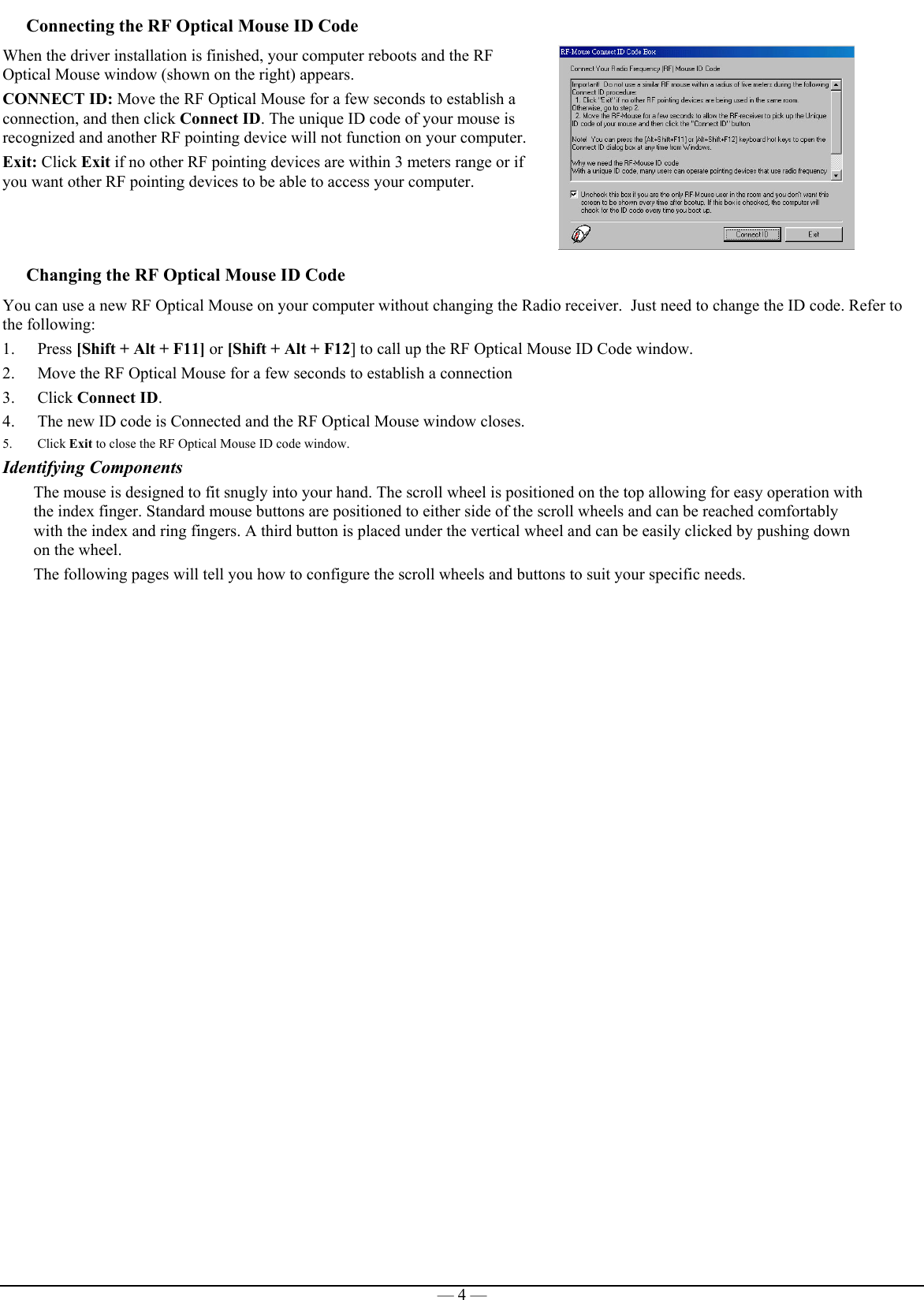

— 4 —Connecting the RF Optical Mouse ID CodeWhen the driver installation is finished, your computer reboots and the RFOptical Mouse window (shown on the right) appears.CONNECT ID: Move the RF Optical Mouse for a few seconds to establish aconnection, and then click Connect ID. The unique ID code of your mouse isrecognized and another RF pointing device will not function on your computer.Exit: Click Exit if no other RF pointing devices are within 3 meters range or ifyou want other RF pointing devices to be able to access your computer.Changing the RF Optical Mouse ID CodeYou can use a new RF Optical Mouse on your computer without changing the Radio receiver. Just need to change the ID code. Refer tothe following:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the RF Optical Mouse ID Code window.2. Move the RF Optical Mouse for a few seconds to establish a connection3. Click Connect ID.4. The new ID code is Connected and the RF Optical Mouse window closes.5. Click Exit to close the RF Optical Mouse ID code window.Identifying ComponentsThe mouse is designed to fit snugly into your hand. The scroll wheel is positioned on the top allowing for easy operation withthe index finger. Standard mouse buttons are positioned to either side of the scroll wheels and can be reached comfortablywith the index and ring fingers. A third button is placed under the vertical wheel and can be easily clicked by pushing downon the wheel.The following pages will tell you how to configure the scroll wheels and buttons to suit your specific needs.

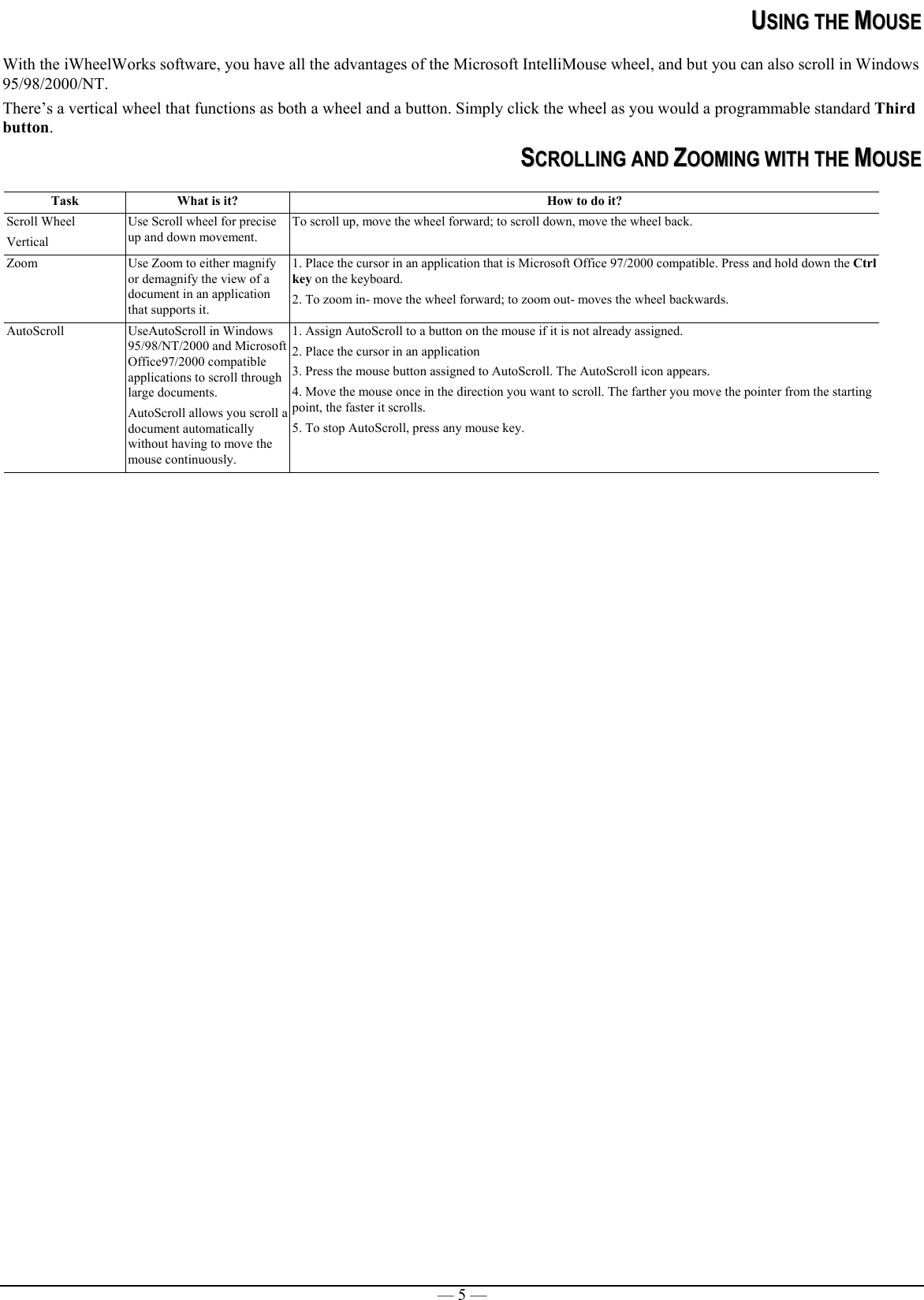

— 5 — UUSSIINNGG TTHHEE MMOOUUSSEEWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, and but you can also scroll in Windows95/98/2000/NT.There’s a vertical wheel that functions as both a wheel and a button. Simply click the wheel as you would a programmable standard Thirdbutton.SSCCRROOLLLLIINNGG AANNDD ZZOOOOMMIINNGG WWIITTHH TTHHEE MMOOUUSSEETask What is it? How to do it?Scroll WheelVerticalUse Scroll wheel for preciseup and down movement.To scroll up, move the wheel forward; to scroll down, move the wheel back.Zoom Use Zoom to either magnifyor demagnify the view of adocument in an applicationthat supports it.1. Place the cursor in an application that is Microsoft Office 97/2000 compatible. Press and hold down the Ctrlkey on the keyboard.2. To zoom in- move the wheel forward; to zoom out- moves the wheel backwards.AutoScroll UseAutoScroll in Windows95/98/NT/2000 and MicrosoftOffice97/2000 compatibleapplications to scroll throughlarge documents.AutoScroll allows you scroll adocument automaticallywithout having to move themouse continuously.1. Assign AutoScroll to a button on the mouse if it is not already assigned.2. Place the cursor in an application3. Press the mouse button assigned to AutoScroll. The AutoScroll icon appears.4. Move the mouse once in the direction you want to scroll. The farther you move the pointer from the startingpoint, the faster it scrolls.5. To stop AutoScroll, press any mouse key.

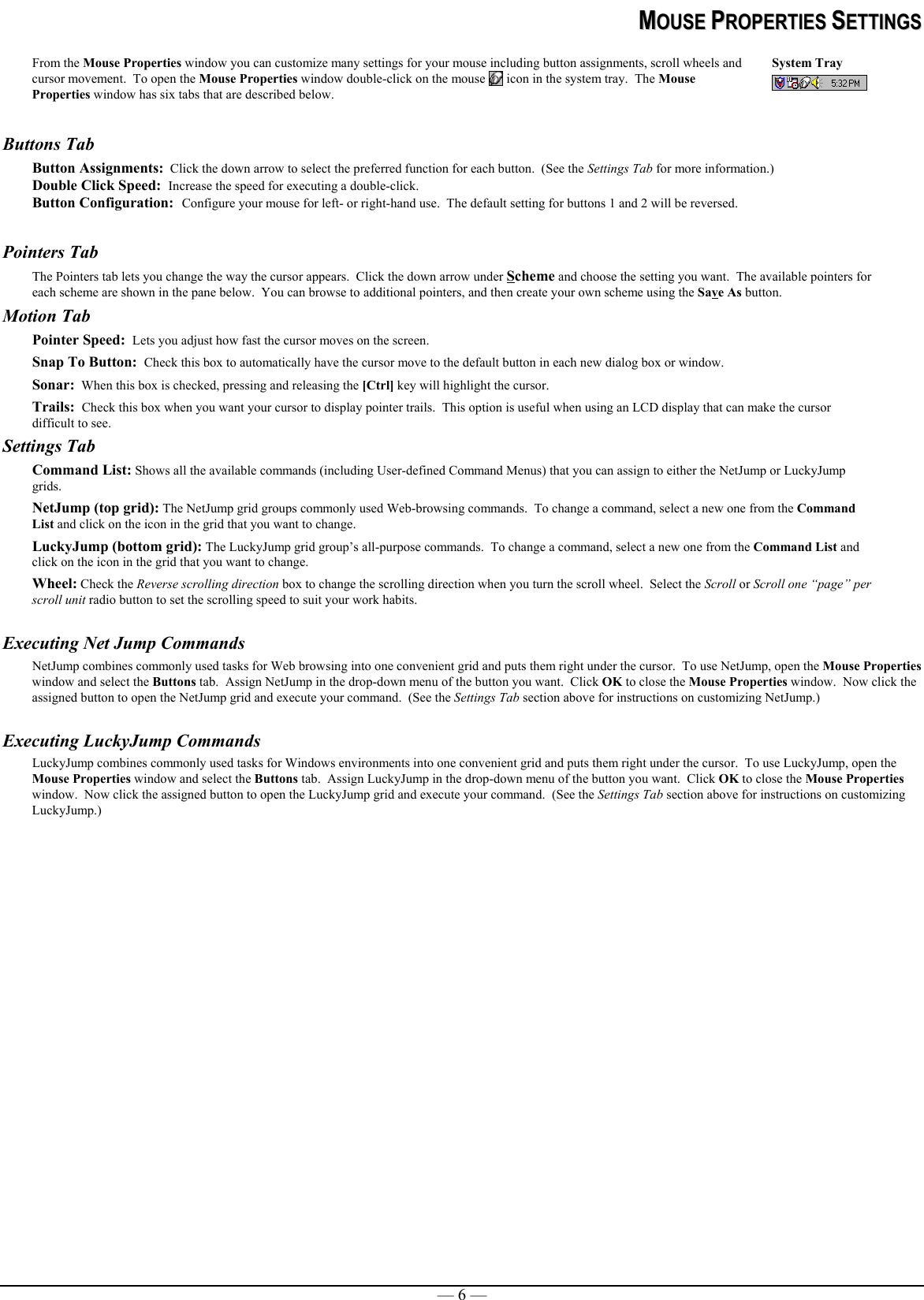

— 6 —MMOOUUSSEE PPRROOPPEERRTTIIEESS SSEETTTTIINNGGSSFrom the Mouse Properties window you can customize many settings for your mouse including button assignments, scroll wheels andcursor movement. To open the Mouse Properties window double-click on the mouse icon in the system tray. The MouseProperties window has six tabs that are described below.System TrayButtons TabButton Assignments: Click the down arrow to select the preferred function for each button. (See the Settings Tab for more information.)Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-hand use. The default setting for buttons 1 and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click the down arrow under Scheme and choose the setting you want. The available pointers foreach scheme are shown in the pane below. You can browse to additional pointers, and then create your own scheme using the Save As button.Motion TabPointer Speed: Lets you adjust how fast the cursor moves on the screen.Snap To Button: Check this box to automatically have the cursor move to the default button in each new dialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl] key will highlight the cursor.Trails: Check this box when you want your cursor to display pointer trails. This option is useful when using an LCD display that can make the cursordifficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus) that you can assign to either the NetJump or LuckyJumpgrids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. To change a command, select a new one from the CommandList and click on the icon in the grid that you want to change.LuckyJump (bottom grid): The LuckyJump grid group’s all-purpose commands. To change a command, select a new one from the Command List andclick on the icon in the grid that you want to change.Wheel: Check the Reverse scrolling direction box to change the scrolling direction when you turn the scroll wheel. Select the Scroll or Scroll one “page” perscroll unit radio button to set the scrolling speed to suit your work habits.Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and puts them right under the cursor. To use NetJump, open the Mouse Propertieswindow and select the Buttons tab. Assign NetJump in the drop-down menu of the button you want. Click OK to close the Mouse Properties window. Now click theassigned button to open the NetJump grid and execute your command. (See the Settings Tab section above for instructions on customizing NetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient grid and puts them right under the cursor. To use LuckyJump, open theMouse Properties window and select the Buttons tab. Assign LuckyJump in the drop-down menu of the button you want. Click OK to close the Mouse Propertieswindow. Now click the assigned button to open the LuckyJump grid and execute your command. (See the Settings Tab section above for instructions on customizingLuckyJump.)
