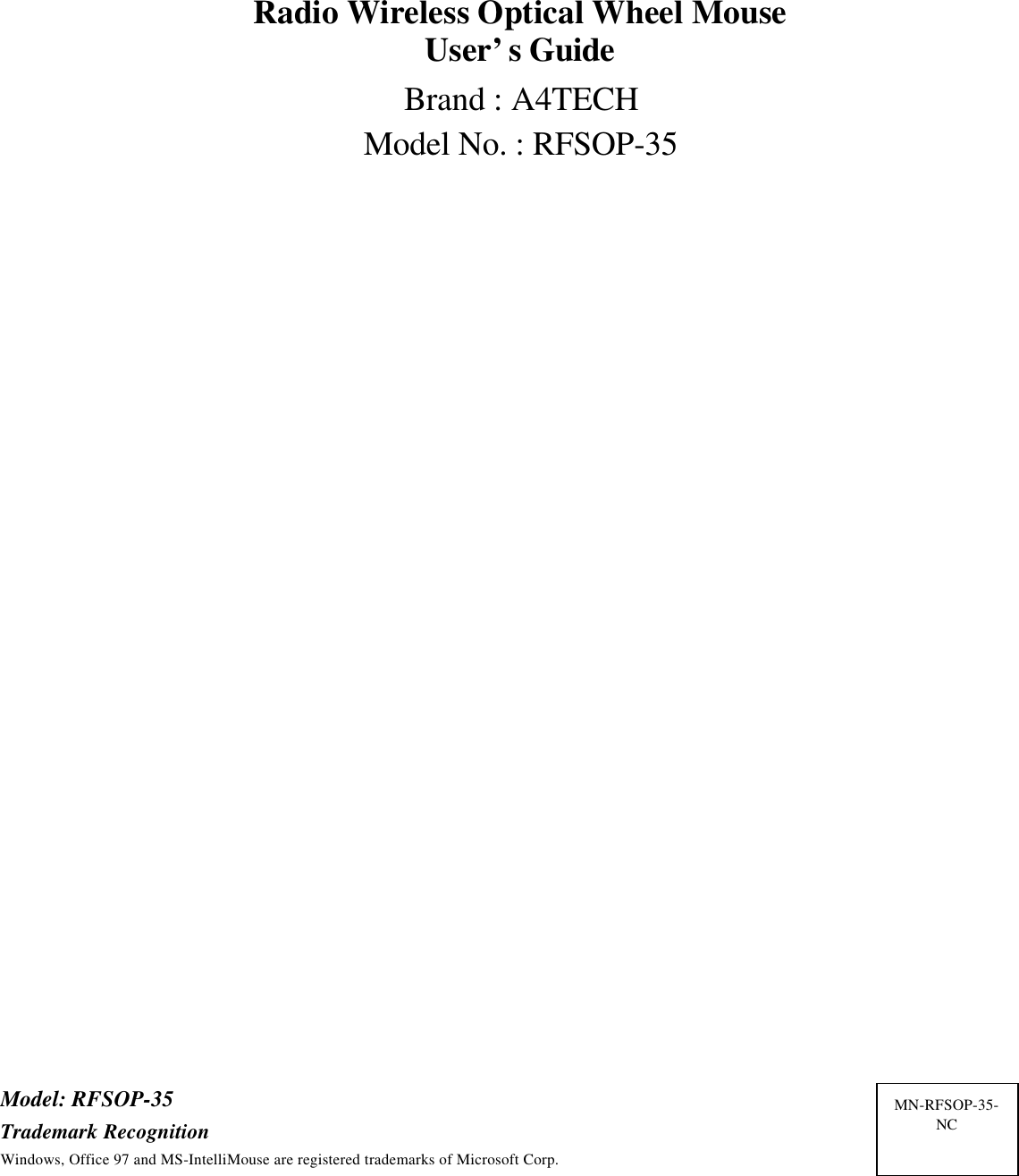

Radio Wireless Optical Wheel MouseUser’s GuideBrand : A4TECHModel No. : RFSOP-35Model: RFSOP-35Trademark RecognitionWindows, Office 97 and MS-IntelliMouse are registered trademarks of Microsoft Corp.MN-RFSOP-35-NC

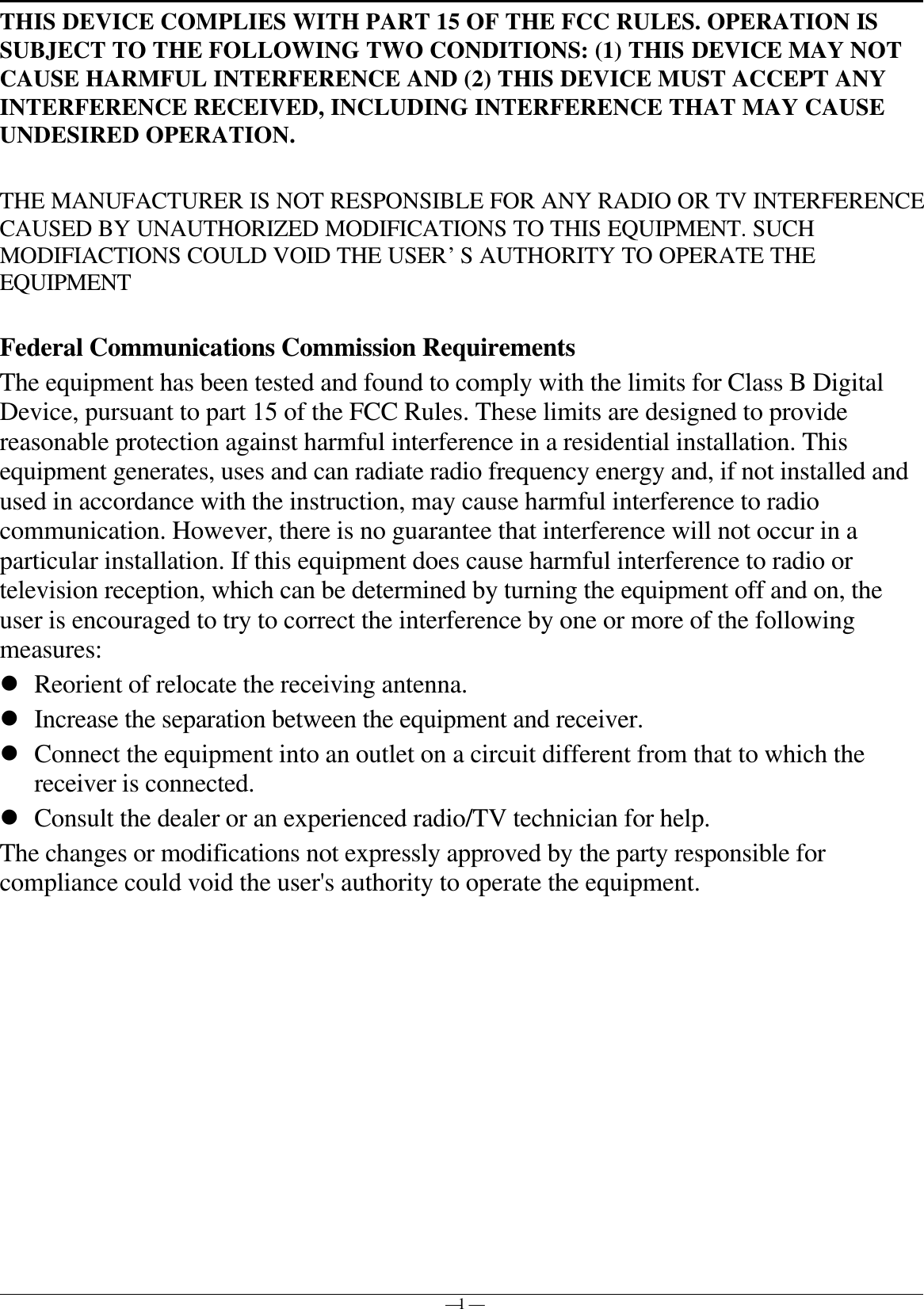

— 1 —THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOTCAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION.THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCECAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCHMODIFIACTIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THEEQUIPMENTFederal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B DigitalDevice, pursuant to part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instruction, may cause harmful interference to radiocommunication. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:l Reorient of relocate the receiving antenna.l Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.l Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.

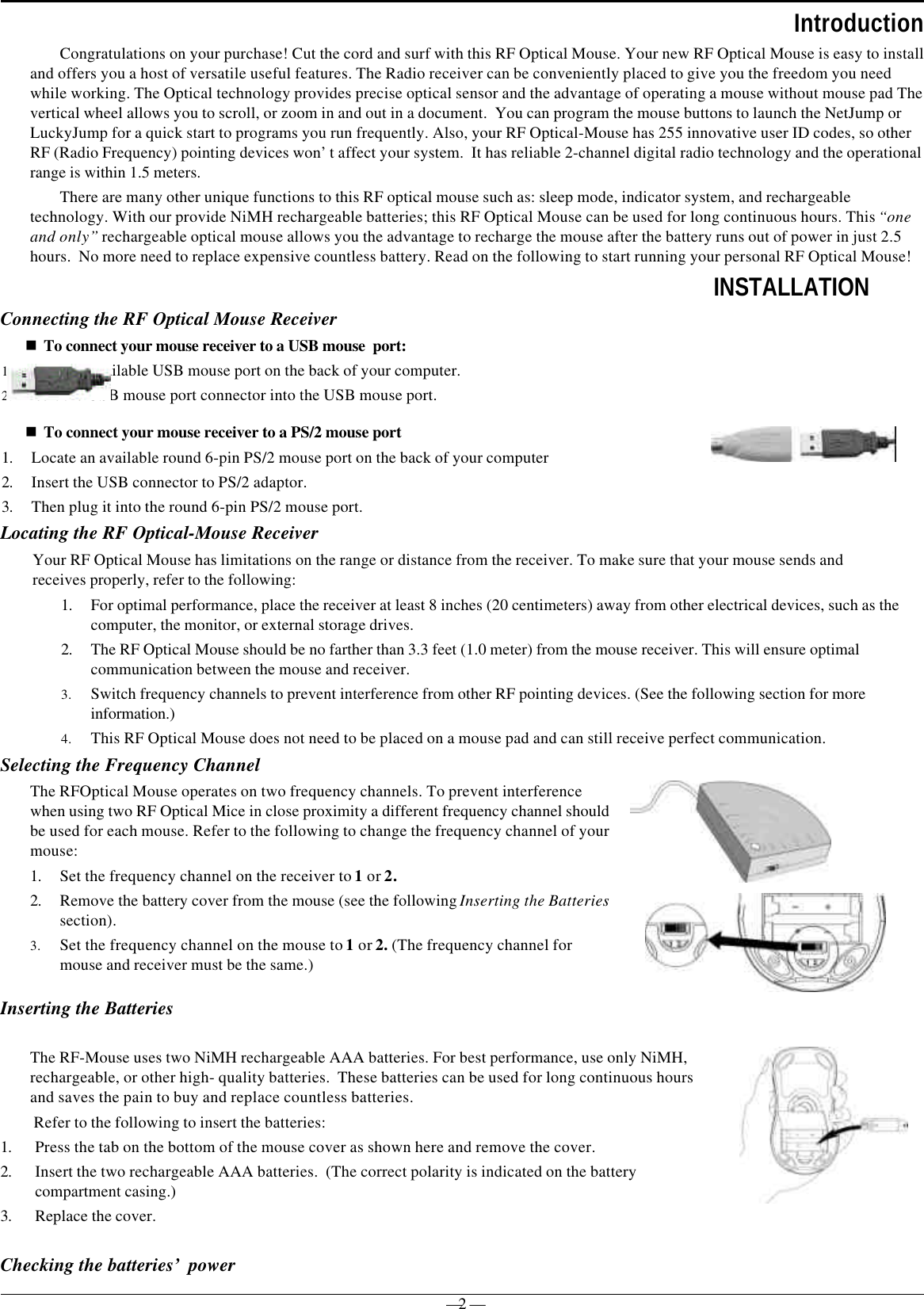

— 2 —IntroductionCongratulations on your purchase! Cut the cord and surf with this RF Optical Mouse. Your new RF Optical Mouse is easy to installand offers you a host of versatile useful features. The Radio receiver can be conveniently placed to give you the freedom you needwhile working. The Optical technology provides precise optical sensor and the advantage of operating a mouse without mouse pad Thevertical wheel allows you to scroll, or zoom in and out in a document. You can program the mouse buttons to launch the NetJump orLuckyJump for a quick start to programs you run frequently. Also, your RF Optical-Mouse has 255 innovative user ID codes, so otherRF (Radio Frequency) pointing devices won’t affect your system. It has reliable 2-channel digital radio technology and the operationalrange is within 1.5 meters.There are many other unique functions to this RF optical mouse such as: sleep mode, indicator system, and rechargeabletechnology. With our provide NiMH rechargeable batteries; this RF Optical Mouse can be used for long continuous hours. This “oneand only” rechargeable optical mouse allows you the advantage to recharge the mouse after the battery runs out of power in just 2.5hours. No more need to replace expensive countless battery. Read on the following to start running your personal RF Optical Mouse!INSTALLATIONConnecting the RF Optical Mouse Receivern To connect your mouse receiver to a USB mouse port:1. Locate an available USB mouse port on the back of your computer.2. Insert the USB mouse port connector into the USB mouse port.n To connect your mouse receiver to a PS/2 mouse port1. Locate an available round 6-pin PS/2 mouse port on the back of your computer2. Insert the USB connector to PS/2 adaptor.3. Then plug it into the round 6-pin PS/2 mouse port.Locating the RF Optical-Mouse ReceiverYour RF Optical Mouse has limitations on the range or distance from the receiver. To make sure that your mouse sends andreceives properly, refer to the following:1. For optimal performance, place the receiver at least 8 inches (20 centimeters) away from other electrical devices, such as thecomputer, the monitor, or external storage drives.2. The RF Optical Mouse should be no farther than 3.3 feet (1.0 meter) from the mouse receiver. This will ensure optimalcommunication between the mouse and receiver.3. Switch frequency channels to prevent interference from other RF pointing devices. (See the following section for moreinformation.)4. This RF Optical Mouse does not need to be placed on a mouse pad and can still receive perfect communication.Selecting the Frequency ChannelThe RFOptical Mouse operates on two frequency channels. To prevent interferencewhen using two RF Optical Mice in close proximity a different frequency channel shouldbe used for each mouse. Refer to the following to change the frequency channel of yourmouse:1. Set the frequency channel on the receiver to 1 or 2.2. Remove the battery cover from the mouse (see the following Inserting the Batteriessection).3. Set the frequency channel on the mouse to 1 or 2. (The frequency channel formouse and receiver must be the same.)Inserting the BatteriesChecking the batteries’ powerThe RF-Mouse uses two NiMH rechargeable AAA batteries. For best performance, use only NiMH,rechargeable, or other high- quality batteries. These batteries can be used for long continuous hoursand saves the pain to buy and replace countless batteries. Refer to the following to insert the batteries:1. Press the tab on the bottom of the mouse cover as shown here and remove the cover.2. Insert the two rechargeable AAA batteries. (The correct polarity is indicated on the batterycompartment casing.)3. Replace the cover.

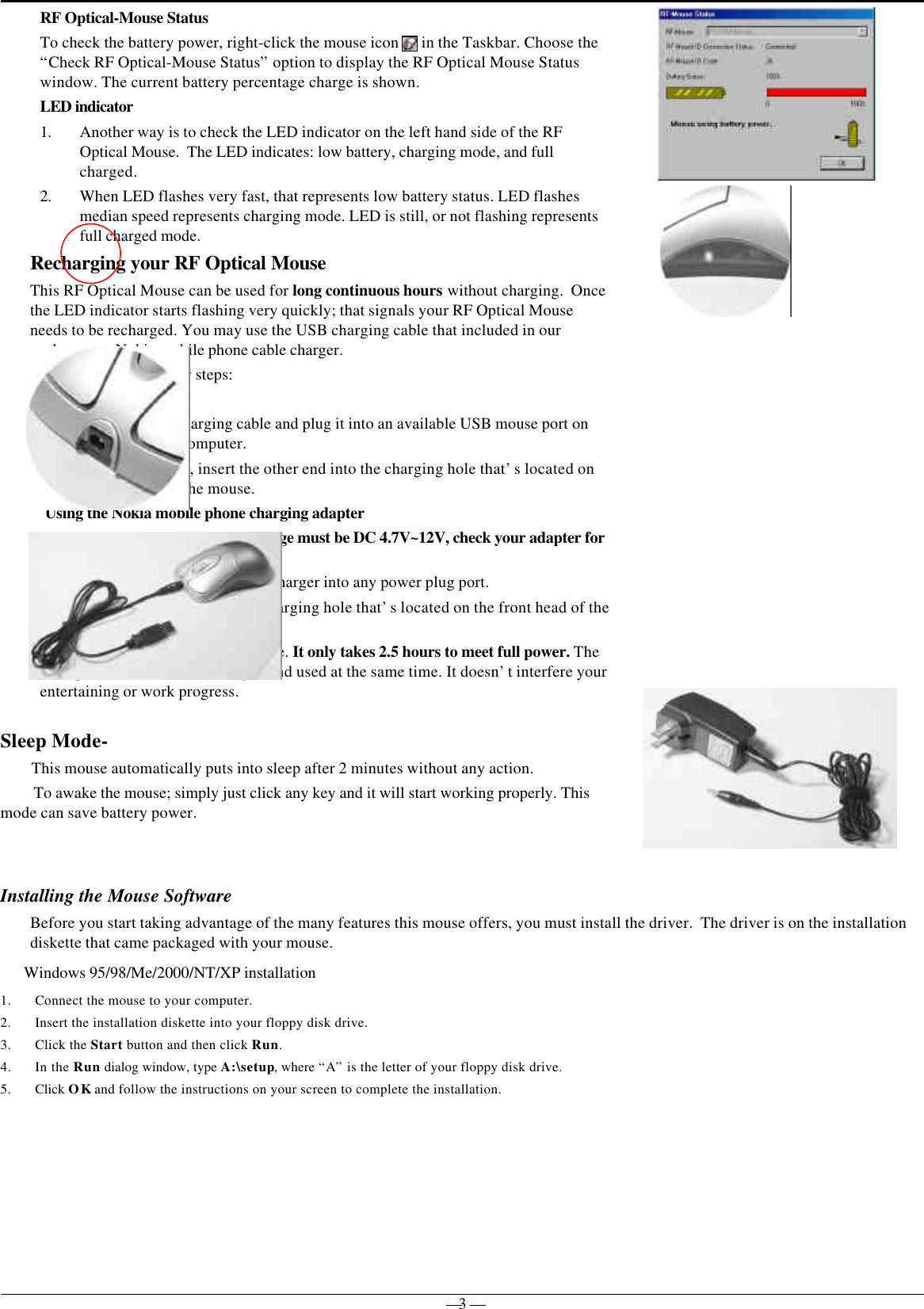

— 3 — RF Optical-Mouse StatusTo check the battery power, right-click the mouse icon in the Taskbar. Choose the“Check RF Optical-Mouse Status” option to display the RF Optical Mouse Statuswindow. The current battery percentage charge is shown.LED indicator1. Another way is to check the LED indicator on the left hand side of the RFOptical Mouse. The LED indicates: low battery, charging mode, and fullcharged.2. When LED flashes very fast, that represents low battery status. LED flashesmedian speed represents charging mode. LED is still, or not flashing representsfull charged mode.Recharging your RF Optical MouseThis RF Optical Mouse can be used for long continuous hours without charging. Oncethe LED indicator starts flashing very quickly; that signals your RF Optical Mouseneeds to be recharged. You may use the USB charging cable that included in ourpackage or a Nokia mobile phone cable charger.Simply follow the below steps:Using the USB cable1. Take your USB charging cable and plug it into an available USB mouse port onthe back of your computer.2. After it’s plugged, insert the other end into the charging hole that’s located onthe front head of the mouse.Using the Nokia mobile phone charging adapter(Warn: Adapter output voltage range must be DC 4.7V~12V, check your adapter forindication output voltage)1. Plug the Nokia mobile phone charger into any power plug port.2. Insert the other end into the charging hole that’s located on the front head of themouse.Just simply plug it in and let it charge. It only takes 2.5 hours to meet full power. TheRF Optical Mouse can be charged and used at the same time. It doesn’t interfere yourentertaining or work progress.Sleep Mode- This mouse automatically puts into sleep after 2 minutes without any action.To awake the mouse; simply just click any key and it will start working properly. Thismode can save battery power.Installing the Mouse SoftwareBefore you start taking advantage of the many features this mouse offers, you must install the driver. The driver is on the installationdiskette that came packaged with your mouse.Windows 95/98/Me/2000/NT/XP installation1. Connect the mouse to your computer.2. Insert the installation diskette into your floppy disk drive.3. Click the Start button and then click Run.4. In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.5. Click OK and follow the instructions on your screen to complete the installation.

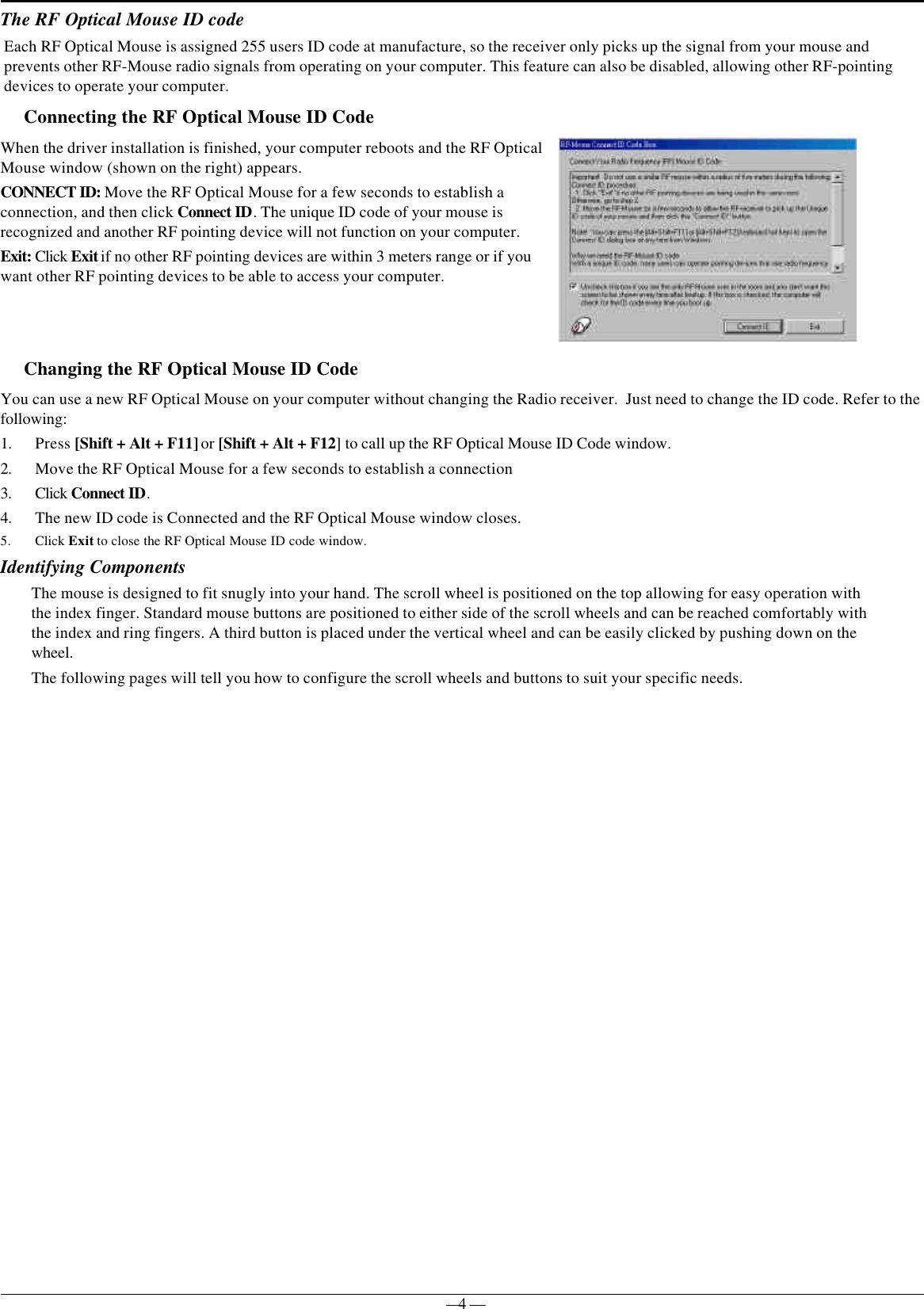

— 4 —The RF Optical Mouse ID codeEach RF Optical Mouse is assigned 255 users ID code at manufacture, so the receiver only picks up the signal from your mouse andprevents other RF-Mouse radio signals from operating on your computer. This feature can also be disabled, allowing other RF-pointingdevices to operate your computer.Connecting the RF Optical Mouse ID CodeWhen the driver installation is finished, your computer reboots and the RF OpticalMouse window (shown on the right) appears.CONNECT ID: Move the RF Optical Mouse for a few seconds to establish aconnection, and then click Connect ID. The unique ID code of your mouse isrecognized and another RF pointing device will not function on your computer.Exit: Click Exit if no other RF pointing devices are within 3 meters range or if youwant other RF pointing devices to be able to access your computer.Changing the RF Optical Mouse ID CodeYou can use a new RF Optical Mouse on your computer without changing the Radio receiver. Just need to change the ID code. Refer to thefollowing:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the RF Optical Mouse ID Code window.2. Move the RF Optical Mouse for a few seconds to establish a connection3. Click Connect ID.4. The new ID code is Connected and the RF Optical Mouse window closes.5. Click Exit to close the RF Optical Mouse ID code window.Identifying ComponentsThe mouse is designed to fit snugly into your hand. The scroll wheel is positioned on the top allowing for easy operation withthe index finger. Standard mouse buttons are positioned to either side of the scroll wheels and can be reached comfortably withthe index and ring fingers. A third button is placed under the vertical wheel and can be easily clicked by pushing down on thewheel.The following pages will tell you how to configure the scroll wheels and buttons to suit your specific needs.

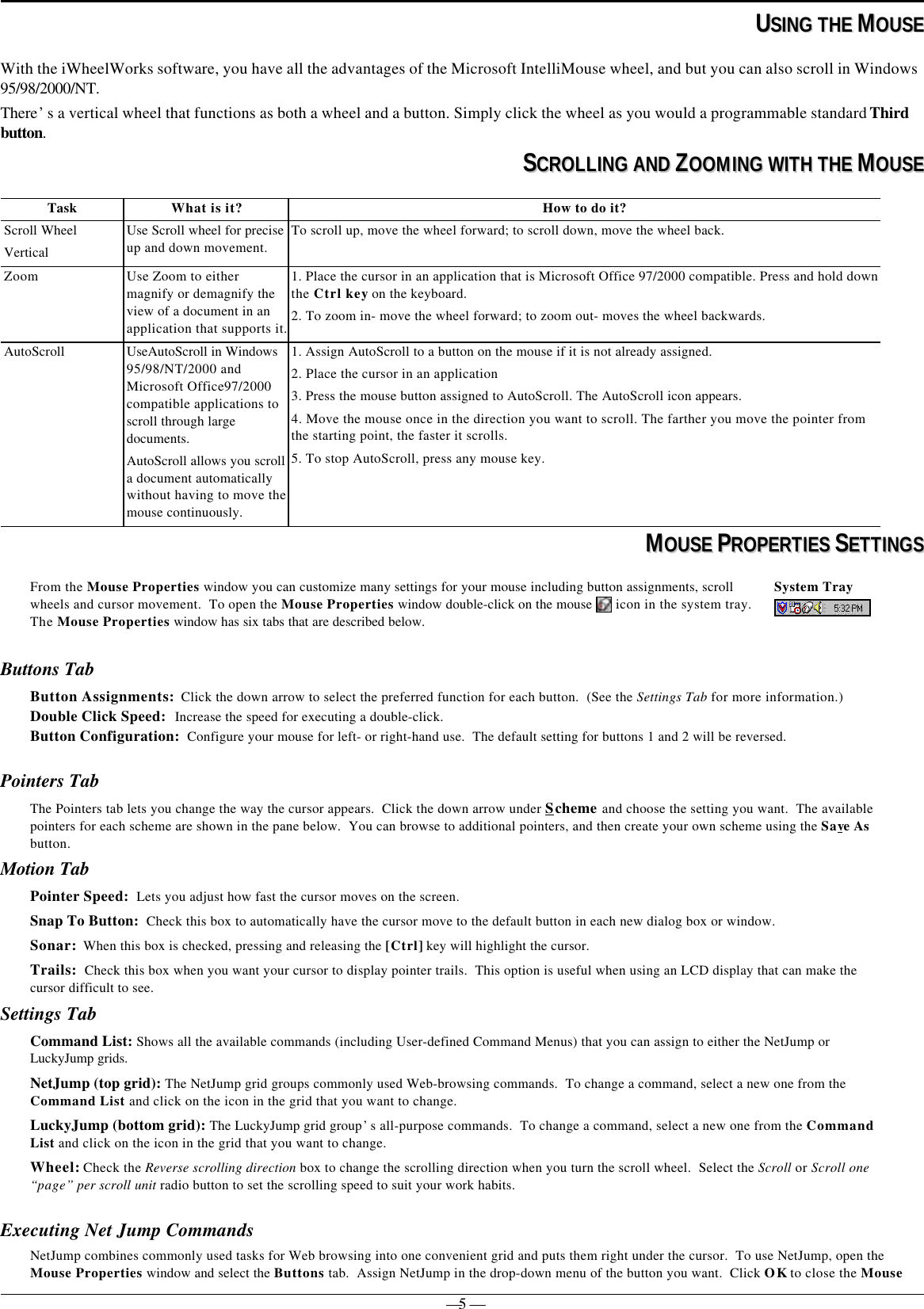

— 5 — UUSSIINNGG TTHHEE MMOOUUSSEEWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, and but you can also scroll in Windows95/98/2000/NT.There’s a vertical wheel that functions as both a wheel and a button. Simply click the wheel as you would a programmable standard Thirdbutton.SSCCRROOLLLLIINNGG AANNDD ZZOOOOMMIINNGG WWIITTHH TTHHEE MMOOUUSSEETask What is it? How to do it?Scroll WheelVerticalUse Scroll wheel for preciseup and down movement.To scroll up, move the wheel forward; to scroll down, move the wheel back.Zoom Use Zoom to eithermagnify or demagnify theview of a document in anapplication that supports it.1. Place the cursor in an application that is Microsoft Office 97/2000 compatible. Press and hold downthe Ctrl key on the keyboard.2. To zoom in- move the wheel forward; to zoom out- moves the wheel backwards.AutoScroll UseAutoScroll in Windows95/98/NT/2000 andMicrosoft Office97/2000compatible applications toscroll through largedocuments.AutoScroll allows you scrolla document automaticallywithout having to move themouse continuously.1. Assign AutoScroll to a button on the mouse if it is not already assigned.2. Place the cursor in an application3. Press the mouse button assigned to AutoScroll. The AutoScroll icon appears.4. Move the mouse once in the direction you want to scroll. The farther you move the pointer fromthe starting point, the faster it scrolls.5. To stop AutoScroll, press any mouse key.MMOOUUSSEE PPRROOPPEERRTTIIEESS SSEETTTTIINNGGSSFrom the Mouse Properties window you can customize many settings for your mouse including button assignments, scrollwheels and cursor movement. To open the Mouse Properties window double-click on the mouse icon in the system tray.The Mouse Properties window has six tabs that are described below.System TrayButtons TabButton Assignments: Click the down arrow to select the preferred function for each button. (See the Settings Tab for more information.)Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-hand use. The default setting for buttons 1 and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click the down arrow under Scheme and choose the setting you want. The availablepointers for each scheme are shown in the pane below. You can browse to additional pointers, and then create your own scheme using the Save Asbutton.Motion TabPointer Speed: Lets you adjust how fast the cursor moves on the screen.Snap To Button: Check this box to automatically have the cursor move to the default button in each new dialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl] key will highlight the cursor.Trails: Check this box when you want your cursor to display pointer trails. This option is useful when using an LCD display that can make thecursor difficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus) that you can assign to either the NetJump orLuckyJump grids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. To change a command, select a new one from theCommand List and click on the icon in the grid that you want to change.LuckyJump (bottom grid): The LuckyJump grid group’s all-purpose commands. To change a command, select a new one from the CommandList and click on the icon in the grid that you want to change.Wheel: Check the Reverse scrolling direction box to change the scrolling direction when you turn the scroll wheel. Select the Scroll or Scroll one“page” per scroll unit radio button to set the scrolling speed to suit your work habits.Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and puts them right under the cursor. To use NetJump, open theMouse Properties window and select the Buttons tab. Assign NetJump in the drop-down menu of the button you want. Click OK to close the Mouse

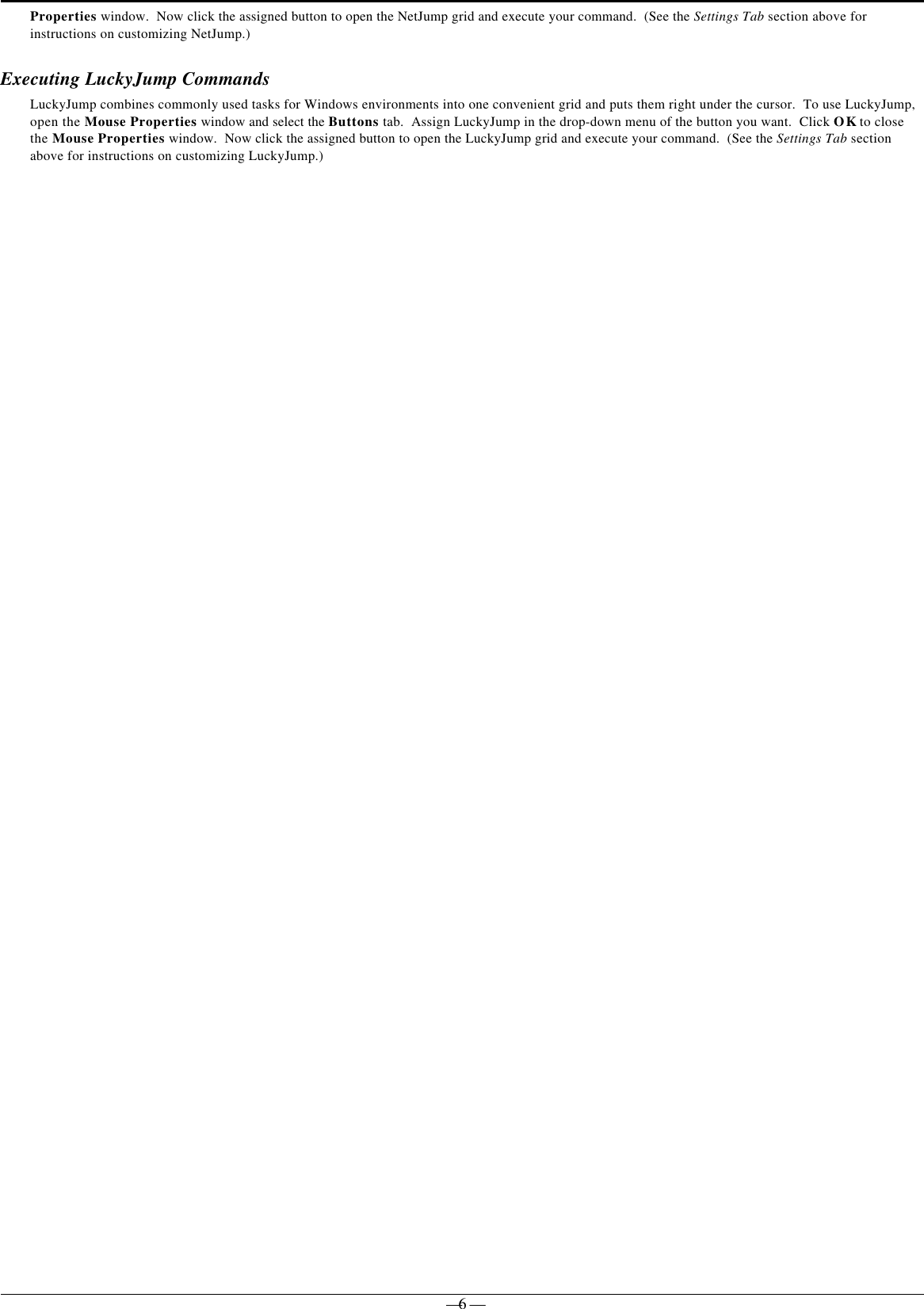

— 6 —Properties window. Now click the assigned button to open the NetJump grid and execute your command. (See the Settings Tab section above forinstructions on customizing NetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient grid and puts them right under the cursor. To use LuckyJump,open the Mouse Properties window and select the Buttons tab. Assign LuckyJump in the drop-down menu of the button you want. Click OK to closethe Mouse Properties window. Now click the assigned button to open the LuckyJump grid and execute your command. (See the Settings Tab sectionabove for instructions on customizing LuckyJump.)
