Radio Wireless Wheel MouseUser’s GuideMODEL: RFW-33Trademark RecognitionWindows, Office 97 and MS-IntelliMouse are registered trademarks of Microsoft Corp.MN-RFW-33-NC

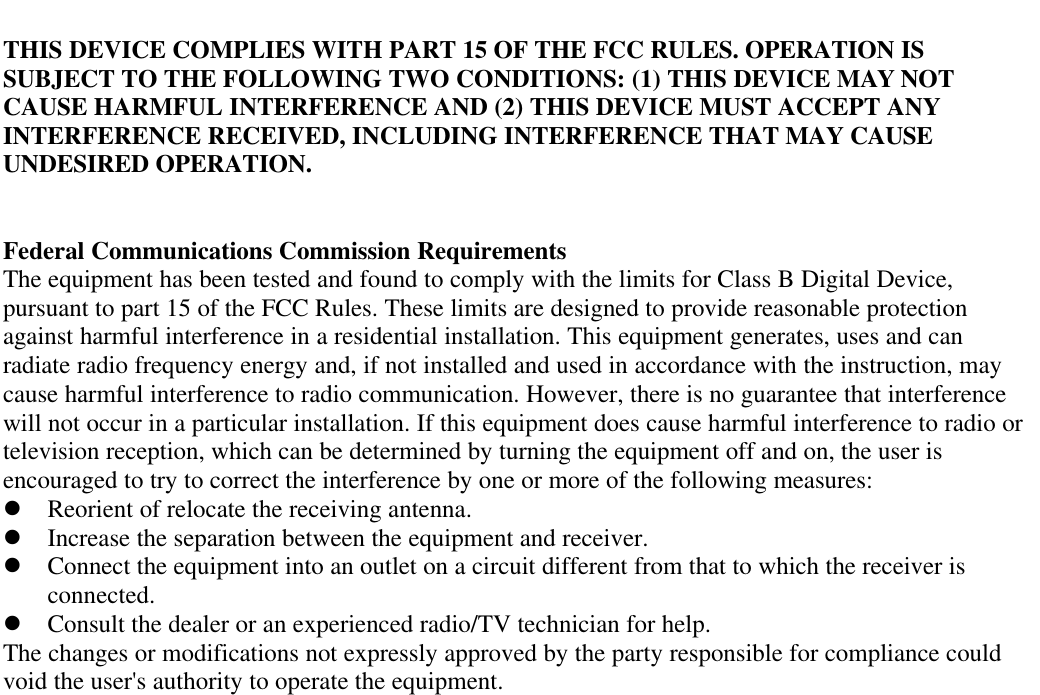

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOTCAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION.Federal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B Digital Device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instruction, maycause harmful interference to radio communication. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:l Reorient of relocate the receiving antenna.l Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.l Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.

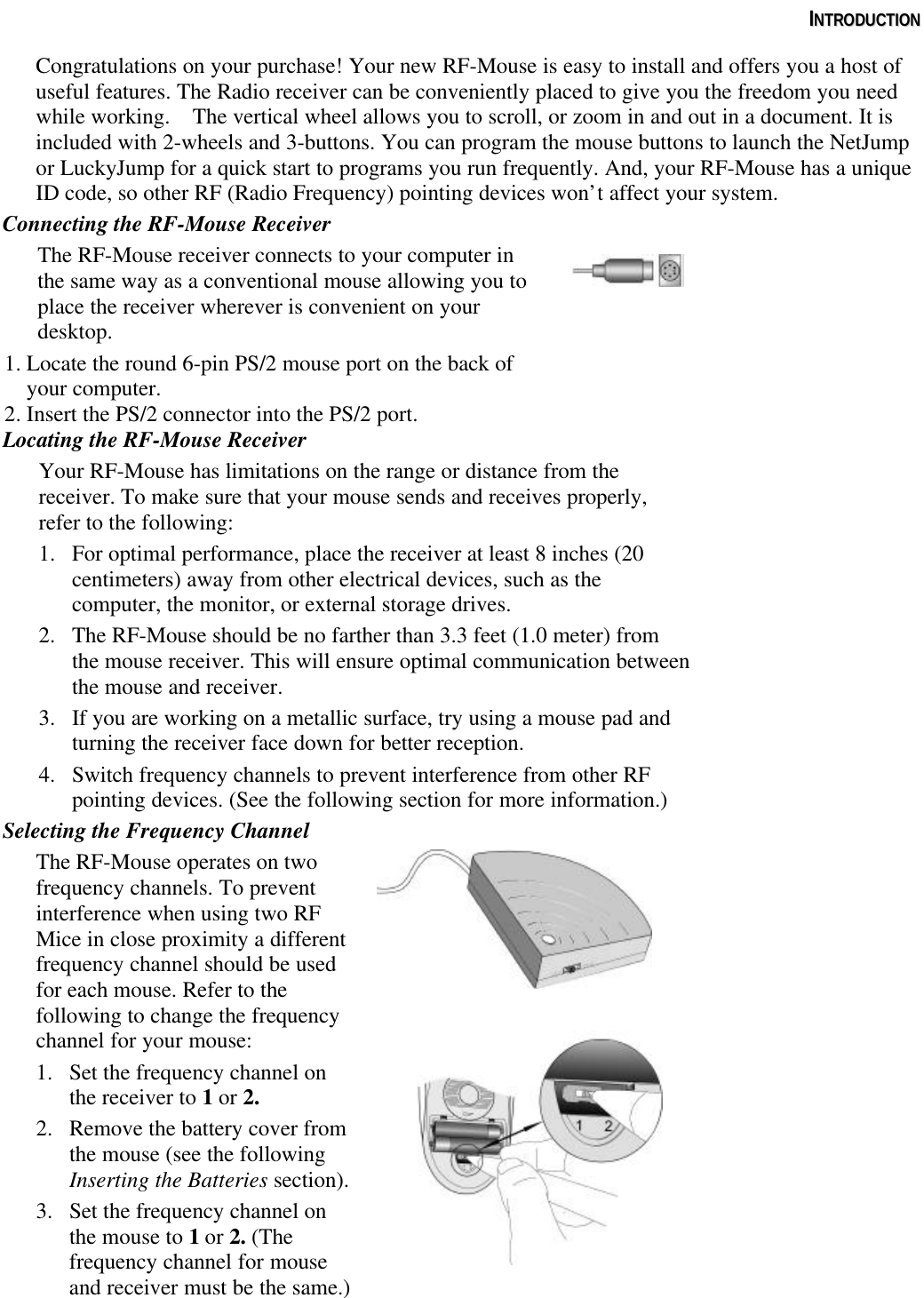

IINNTTRROODDUUCCTTIIOONNCongratulations on your purchase! Your new RF-Mouse is easy to install and offers you a host ofuseful features. The Radio receiver can be conveniently placed to give you the freedom you needwhile working. The vertical wheel allows you to scroll, or zoom in and out in a document. It isincluded with 2-wheels and 3-buttons. You can program the mouse buttons to launch the NetJumpor LuckyJump for a quick start to programs you run frequently. And, your RF-Mouse has a uniqueID code, so other RF (Radio Frequency) pointing devices won’t affect your system.Connecting the RF-Mouse ReceiverThe RF-Mouse receiver connects to your computer inthe same way as a conventional mouse allowing you toplace the receiver wherever is convenient on yourdesktop.1. Locate the round 6-pin PS/2 mouse port on the back ofyour computer.2. Insert the PS/2 connector into the PS/2 port.Locating the RF-Mouse ReceiverYour RF-Mouse has limitations on the range or distance from thereceiver. To make sure that your mouse sends and receives properly,refer to the following:1. For optimal performance, place the receiver at least 8 inches (20centimeters) away from other electrical devices, such as thecomputer, the monitor, or external storage drives.2. The RF-Mouse should be no farther than 3.3 feet (1.0 meter) fromthe mouse receiver. This will ensure optimal communication betweenthe mouse and receiver.3. If you are working on a metallic surface, try using a mouse pad andturning the receiver face down for better reception.4. Switch frequency channels to prevent interference from other RFpointing devices. (See the following section for more information.)Selecting the Frequency ChannelThe RF-Mouse operates on twofrequency channels. To preventinterference when using two RFMice in close proximity a differentfrequency channel should be usedfor each mouse. Refer to thefollowing to change the frequencychannel for your mouse:1. Set the frequency channel onthe receiver to 1 or 2.2. Remove the battery cover fromthe mouse (see the followingInserting the Batteries section).3. Set the frequency channel onthe mouse to 1 or 2. (Thefrequency channel for mouseand receiver must be the same.)
Inserting the BatteriesThe RF-Mouse uses two AAA batteries. For bestperformance, use only alkaline batteries. Refer tothe following to insert the batteries:1. Press the tab on the bottom of the mouse cover asshown here and remove the cover.2. Insert the two AAA batteries. (The correctpolarity is indicated on the battery compartmentcasing.)3. Replace the cover.Checking the Batteries powerTo check the battery power, right-click the mouseicon in the Taskbar. Choose the “Check RF-Mouse Status” option to display the RF-MouseStatus window. The current battery percentagecharge is shown.Installing the Mouse SoftwareBefore you can take advantage of the many features your mouse offers, you must install the driver.The driver is on the installation diskette that came packaged with your mouse.Windows 95/98/2000/NT4.0 installation1. Connect the mouse to your computer.2. Insert the installation diskette into your floppy disk drive.3. Click the Start button and then click Run.4. In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.5. Click OK and follow the instructions on your screen to complete the installation.The RF-Mouse ID codeEach RF-Mouse is assigned a unique ID code at manufacture, so the receiver only picks up the signalfrom your mouse and prevents other RF-Mouse radio signals from operating on your computer. Thisfeature can also be disabled, allowing other RF-pointing devices to operate your computer.Connecting the RF-Mouse ID CodeWhen the driver installation is finished yourcomputer reboots and the RF-Mouse window(shown on the right) appears.CONNECT ID: Move the RF-Mouse for a fewseconds to establish a connection, then clickConnect ID. The unique ID code of your mouse isrecognized and another RF pointing device willnot function on your computer.Exit: Click Exit if no other RF pointing devicesare within 3 meters range or if you want other RFpointing devices to be able to access yourcomputer.

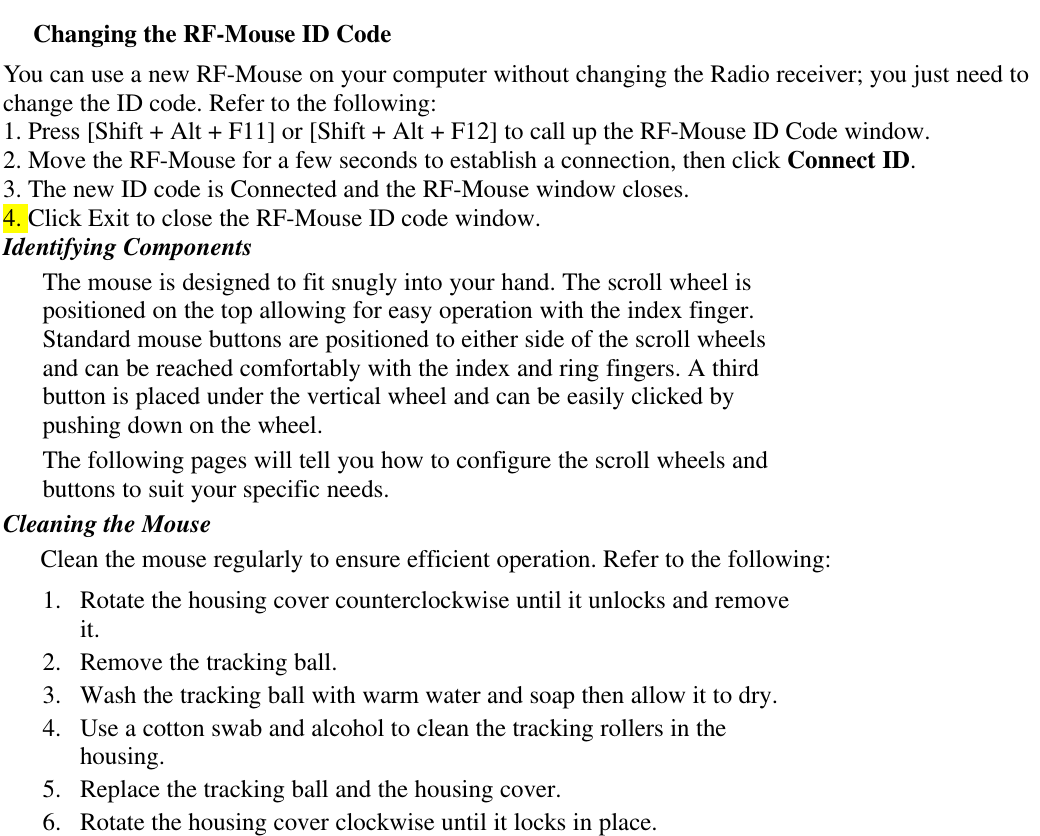

Changing the RF-Mouse ID CodeYou can use a new RF-Mouse on your computer without changing the Radio receiver; you just need tochange the ID code. Refer to the following:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the RF-Mouse ID Code window.2. Move the RF-Mouse for a few seconds to establish a connection, then click Connect ID.3. The new ID code is Connected and the RF-Mouse window closes.4. Click Exit to close the RF-Mouse ID code window.Identifying ComponentsThe mouse is designed to fit snugly into your hand. The scroll wheel ispositioned on the top allowing for easy operation with the index finger.Standard mouse buttons are positioned to either side of the scroll wheelsand can be reached comfortably with the index and ring fingers. A thirdbutton is placed under the vertical wheel and can be easily clicked bypushing down on the wheel.The following pages will tell you how to configure the scroll wheels andbuttons to suit your specific needs.Cleaning the MouseClean the mouse regularly to ensure efficient operation. Refer to the following:1. Rotate the housing cover counterclockwise until it unlocks and removeit.2. Remove the tracking ball.3. Wash the tracking ball with warm water and soap then allow it to dry.4. Use a cotton swab and alcohol to clean the tracking rollers in thehousing.5. Replace the tracking ball and the housing cover.6. Rotate the housing cover clockwise until it locks in place.

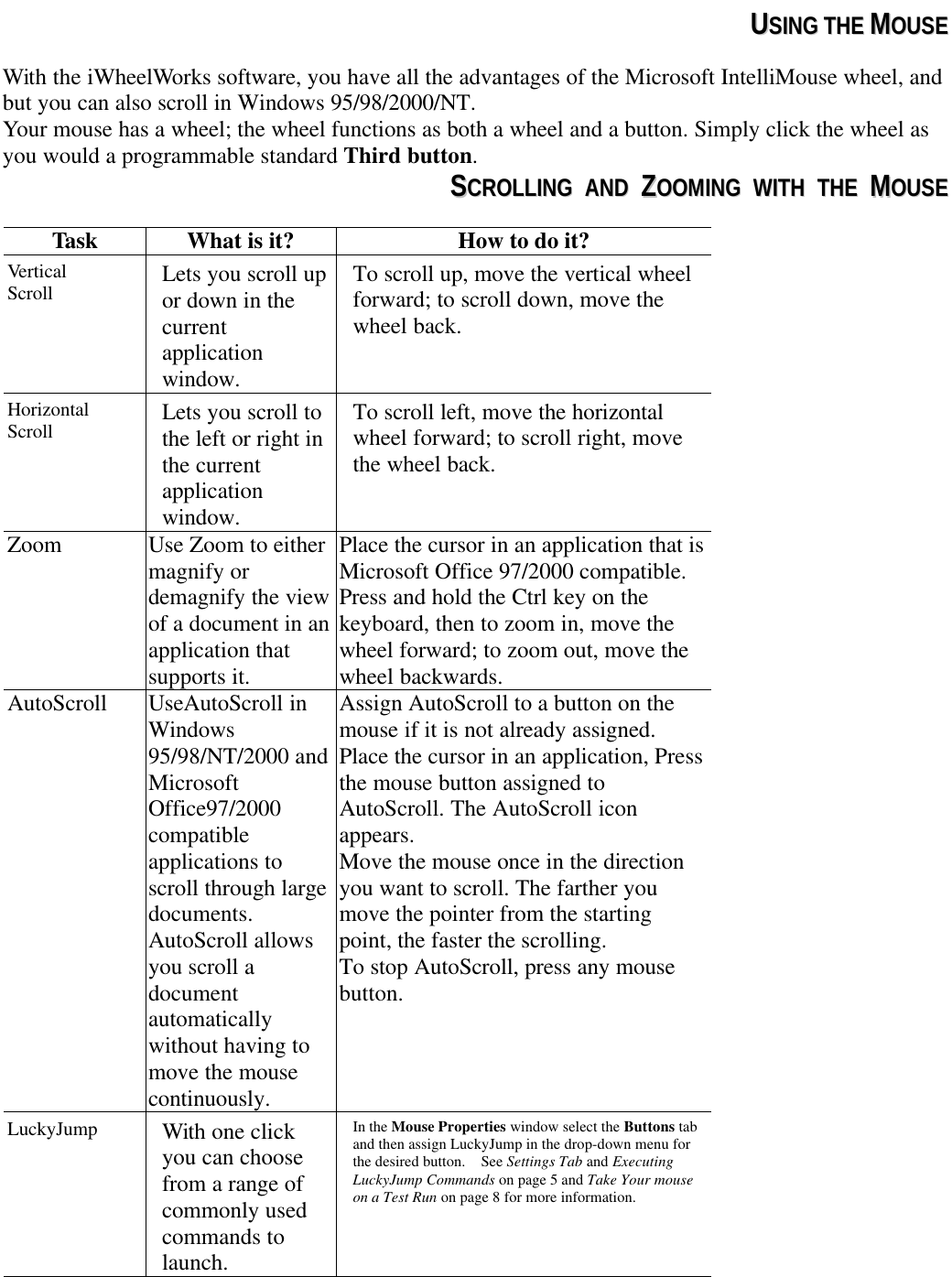

UUSSIINNGG TTHHEE MMOOUUSSEEWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, andbut you can also scroll in Windows 95/98/2000/NT.Your mouse has a wheel; the wheel functions as both a wheel and a button. Simply click the wheel asyou would a programmable standard Third button.SSCCRROOLLLLIINNGG AANNDD ZZOOOOMMIINNGG WWIITTHH TTHHEE MMOOUUSSEETask What is it? How to do it?VerticalScroll Lets you scroll upor down in thecurrentapplicationwindow.To scroll up, move the vertical wheelforward; to scroll down, move thewheel back.HorizontalScroll Lets you scroll tothe left or right inthe currentapplicationwindow.To scroll left, move the horizontalwheel forward; to scroll right, movethe wheel back.Zoom Use Zoom to eithermagnify ordemagnify the viewof a document in anapplication thatsupports it.Place the cursor in an application that isMicrosoft Office 97/2000 compatible.Press and hold the Ctrl key on thekeyboard, then to zoom in, move thewheel forward; to zoom out, move thewheel backwards.AutoScroll UseAutoScroll inWindows95/98/NT/2000 andMicrosoftOffice97/2000compatibleapplications toscroll through largedocuments.AutoScroll allowsyou scroll adocumentautomaticallywithout having tomove the mousecontinuously.Assign AutoScroll to a button on themouse if it is not already assigned.Place the cursor in an application, Pressthe mouse button assigned toAutoScroll. The AutoScroll iconappears.Move the mouse once in the directionyou want to scroll. The farther youmove the pointer from the startingpoint, the faster the scrolling.To stop AutoScroll, press any mousebutton.LuckyJump With one clickyou can choosefrom a range ofcommonly usedcommands tolaunch.In the Mouse Properties window select the Buttons taband then assign LuckyJump in the drop-down menu forthe desired button. See Settings Tab and ExecutingLuckyJump Commands on page 5 and Take Your mouseon a Test Run on page 8 for more information.

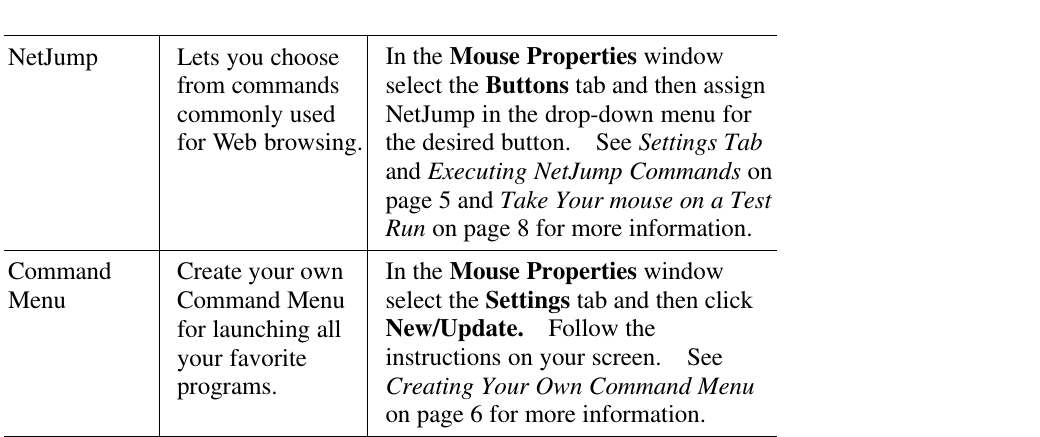

NetJump Lets you choosefrom commandscommonly usedfor Web browsing.In the Mouse Properties windowselect the Buttons tab and then assignNetJump in the drop-down menu forthe desired button. See Settings Taband Executing NetJump Commands onpage 5 and Take Your mouse on a TestRun on page 8 for more information.CommandMenu Create your ownCommand Menufor launching allyour favoriteprograms.In the Mouse Properties windowselect the Settings tab and then clickNew/Update. Follow theinstructions on your screen. SeeCreating Your Own Command Menuon page 6 for more information.

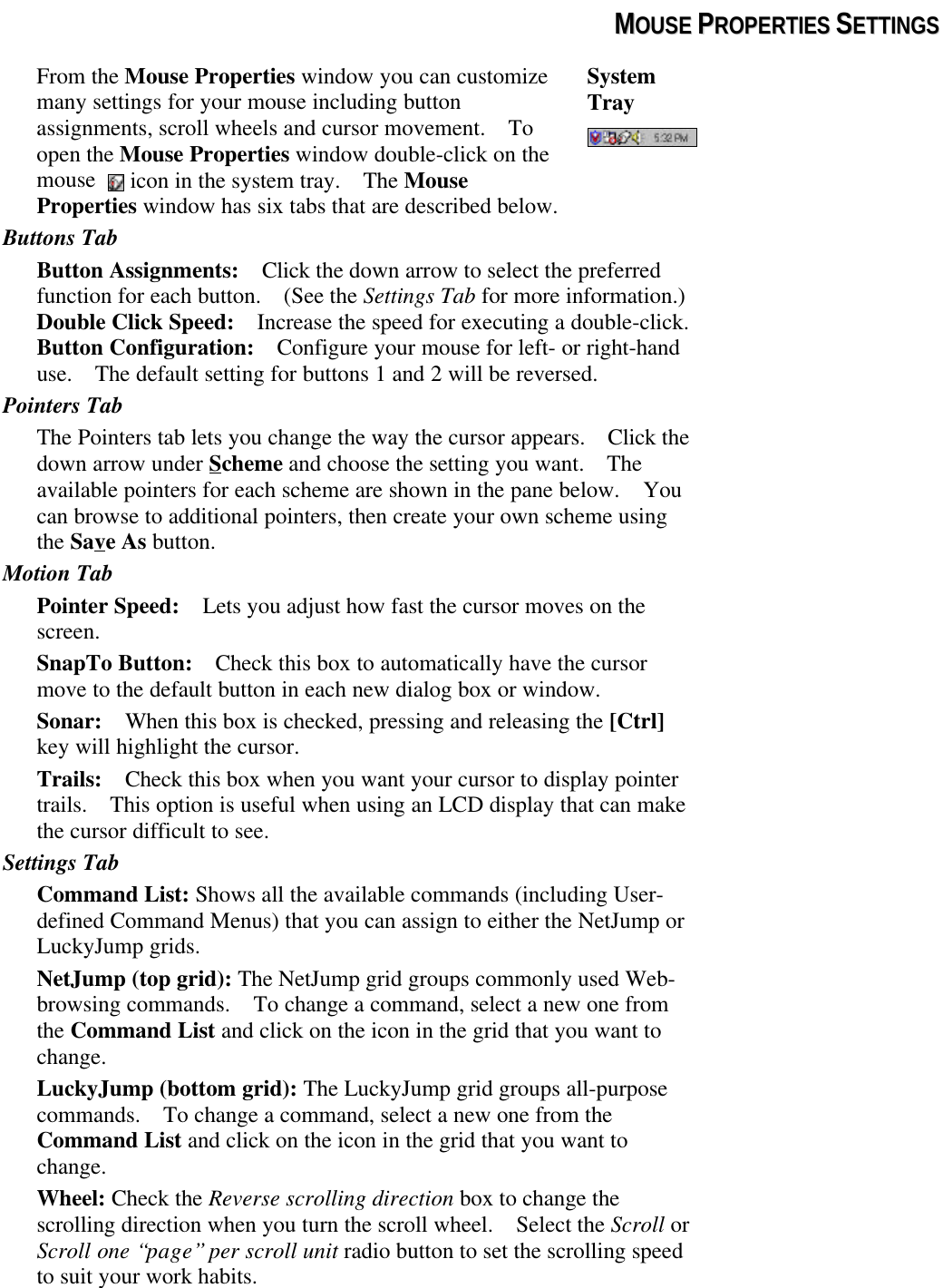

MMOOUUSSEE PPRROOPPEERRTTIIEESS SSEETTTTIINNGGSSFrom the Mouse Properties window you can customizemany settings for your mouse including buttonassignments, scroll wheels and cursor movement. Toopen the Mouse Properties window double-click on themouse icon in the system tray. The MouseProperties window has six tabs that are described below.SystemTrayButtons TabButton Assignments: Click the down arrow to select the preferredfunction for each button. (See the Settings Tab for more information.)Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-handuse. The default setting for buttons 1 and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click thedown arrow under Scheme and choose the setting you want. Theavailable pointers for each scheme are shown in the pane below. Youcan browse to additional pointers, then create your own scheme usingthe Save As button.Motion TabPointer Speed: Lets you adjust how fast the cursor moves on thescreen.SnapTo Button: Check this box to automatically have the cursormove to the default button in each new dialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl]key will highlight the cursor.Trails: Check this box when you want your cursor to display pointertrails. This option is useful when using an LCD display that can makethe cursor difficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus) that you can assign to either the NetJump orLuckyJump grids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. To change a command, select a new one fromthe Command List and click on the icon in the grid that you want tochange.LuckyJump (bottom grid): The LuckyJump grid groups all-purposecommands. To change a command, select a new one from theCommand List and click on the icon in the grid that you want tochange.Wheel: Check the Reverse scrolling direction box to change thescrolling direction when you turn the scroll wheel. Select the Scroll orScroll one “page” per scroll unit radio button to set the scrolling speedto suit your work habits.
Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and putsthem right under the cursor. To use NetJump, open the Mouse Properties window and select theButtons tab. Assign NetJump in the drop-down menu of the button you want. Click OK toclose the Mouse Properties window. Now click the assigned button to open the NetJump gridand execute your command. (See the Settings Tab section above for instructions on customizingNetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient gridand puts them right under the cursor. To use LuckyJump, open the Mouse Properties windowand select the Buttons tab. Assign LuckyJump in the drop-down menu of the button you want.Click OK to close the Mouse Properties window. Now click the assigned button to open theLuckyJump grid and execute your command. (See the Settings Tab section above for instructionson customizing LuckyJump.)
