About This Manual
This manual provides the Instructions for Use for the Handheld Monitor used by patients who have
received the AbioCor® Implantable Replacement Heart System.
These Instructions for Use are intended to be used by clinicians, caregivers, and AbioCor patients.
For more information about the AbioCor System, refer to the AbioCor Implantable Replacement
Heart System - Operator’s Manual; the AbioCor Console Alarms - User’s Guide; and the Patient-
Carried Electronics [PCE] - Instructions for Use.
1
Cautions
NOTE: A caution indicates a situation in which equipment may malfunction, be damaged, or cease
to operate.
• Do not use the Handheld Monitor close to an operating AbioCor® Console. The RF signals from
the AbioCor Console and the Handheld Monitor will interfere with each other and not allow
adjustments to be made to the Implanted System. If RF interference occurs, turn off the
Handheld Monitor.
• The Handheld Monitor does not use an indicator to display the status of its battery. However, the
alarm message “Handheld Battery” is displayed when the battery is low. You should charge the
Handheld Monitor battery every night, whether it is used or not.
Overview
2
Overview
The Handheld Monitor is a Personal Digital Assistant (PDA) that communicates with the AbioCor®
Implanted Controller. This allows you to quickly access important information about the AbioCor
without using the Console. You can use the Handheld Monitor to:
• Respond to a Heart Alarm on the PCE Module.
• Check AbioCor® status.
• Check AbioCor® settings and alarm history.
You cannot make changes to Beat Rate, Motor Speed, or Balance settings using the Handheld
Monitor. These changes must be made using the Console.
Before using the Handheld Monitor, you must be trained in the operation of the PCE and the Console.
3

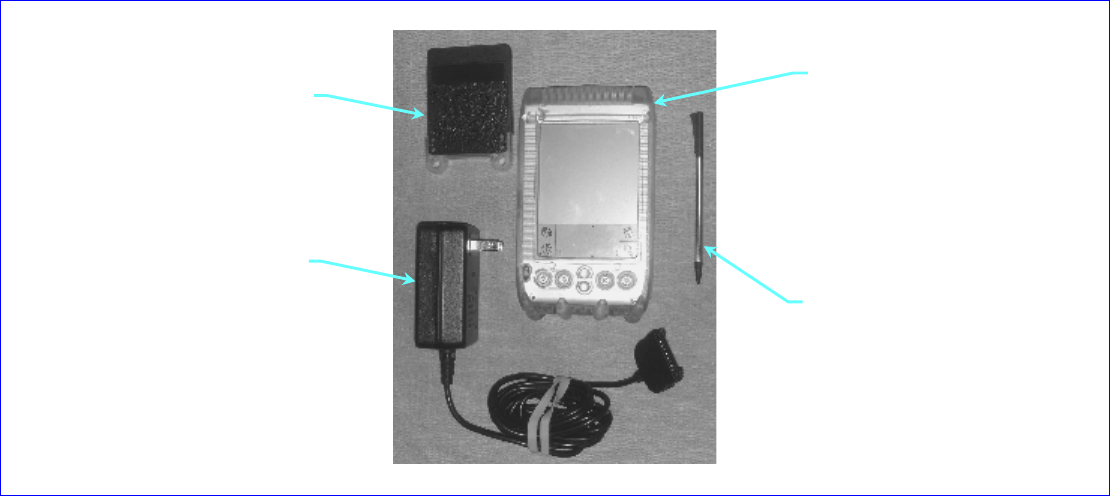

Components of the Handheld Monitor
• RF Expansion Module – allows the Handheld Monitor to communicate with the
Implanted Controller; draws power from the Handheld Monitor’s battery (even when
the unit is off).
• Handspring™ Personal Digital Assistant (PDA) – standard PDA used as the
interface component of the Handheld Monitor.
• Stylus – used to select items on the screen (fingers can also be used).
• Charger – plugs into an AC outlet to charge the Handheld Monitor’s battery.
Components of the Handheld
Monitor
4
RF Expansion
Module
Charger
Handspring
™
PDA
Stylus
5
Controls and Features
• Life-Threatening Alarm Light – flashes when a life-threatening alarm condition
exists; it also flashes briefly when the RF Expansion Module is inserted.
• Application Button – used to access the AbioCor® Settings Screens and Alarm
History Screen.
• Power Button – turns the Handheld Monitor on and off; the screen automatically
turns off (to save power) if the unit has not been used for 2 minutes.
• Touch-Sensitive Screen – displays information; responds to the stylus.
• Scroll Buttons, Up/Down Arrows, and Scroll Bar – used to move through
information on the screen.
Controls and
Features
6
Life-
Threatening
Alarm Light
Application
Button
Up/Down
Arrows
Scroll
Buttons
Scroll Bar
Touch-
Sensitive
Screen
(Not used)
Power
Button
7
Resolving Alarms
1The Handheld Monitor’s AbioCor® Alarms screen allows you to view two types of
alarms: active and inactive.
• Active alarm – an existing alarm that has not been acknowledged (“silenced”);
indicated by a flashing alarm message.
• Inactive alarm – an existing alarm that has been acknowledged; becomes active
again if it is not resolved within 2 minutes; indicated by a solid (not flashing)
alarm message.
NOTE:
Alarms that have been resolved without action or acknowledgement may be displayed as
solid alarm messages.
Resolving
Alarms
8
2Alarms are divided into three levels: Life Threatening, Serious, and Advisory. The
following message display methods are used to distinguish each level:
• Life Threatening – Active: flashes between black text
on light background and light text on black background.
Inactive: solid light text with black background.
• Serious – Active: flashes between black text and textured text.
Inactive: solid black text.
• Advisory – Active: flashes “INFO” between black text and textured text.
Inactive: solid black text.
Life-Threatening
Alarm Light
NOTE: The Life-Threatening Alarm Light also flashes red for Active and Inactive.
9
Resolving Alarms (continued)

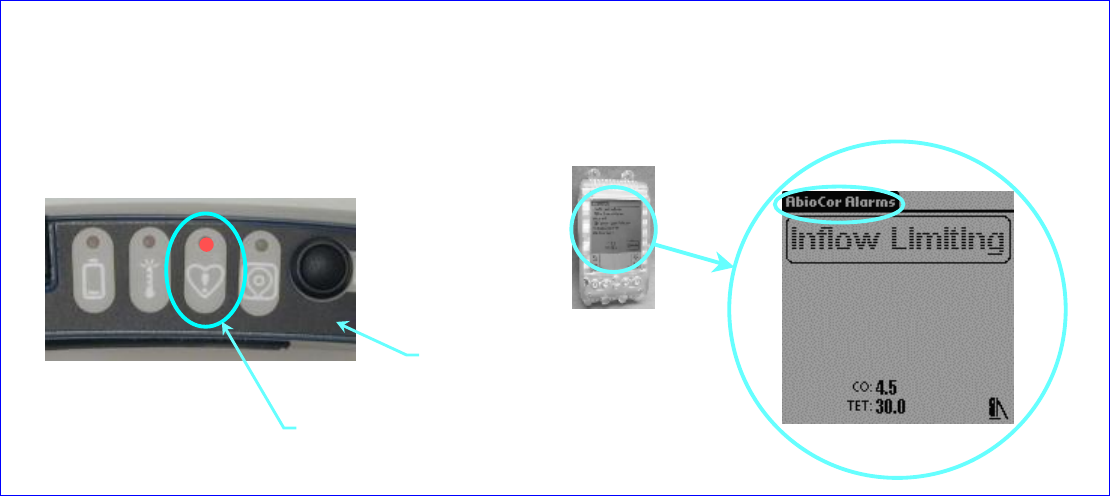

3When the Heart Alarm (visible and audible) on the PCE Module is activated, move
the Handheld Monitor close to the Implanted Controller (stomach area) and turn it
on. The AbioCor® Alarms screen appears.
Heart
Alarm
PCE
Module
Resolving
Alarms
10

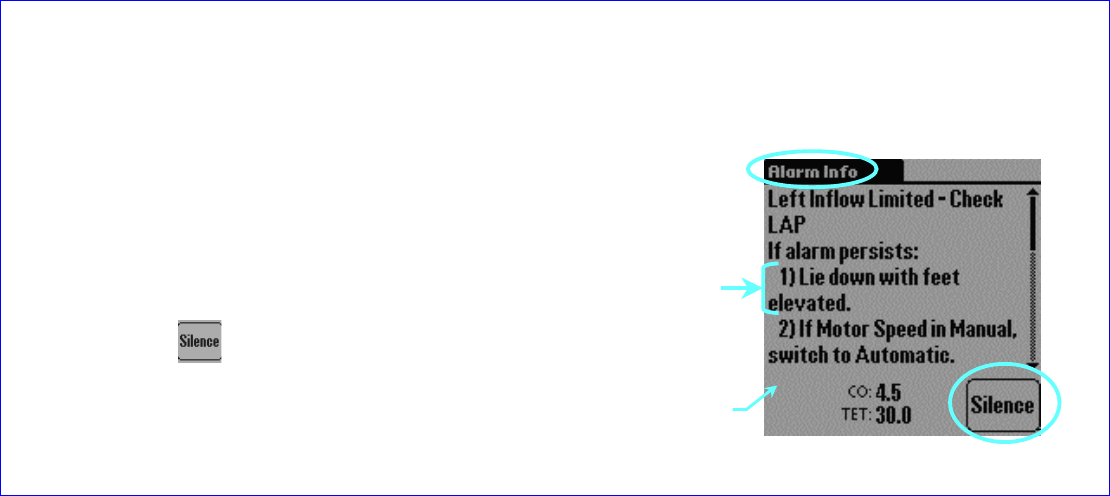

4Alarms are listed in order of importance. The most important alarm is at the top of
the list.

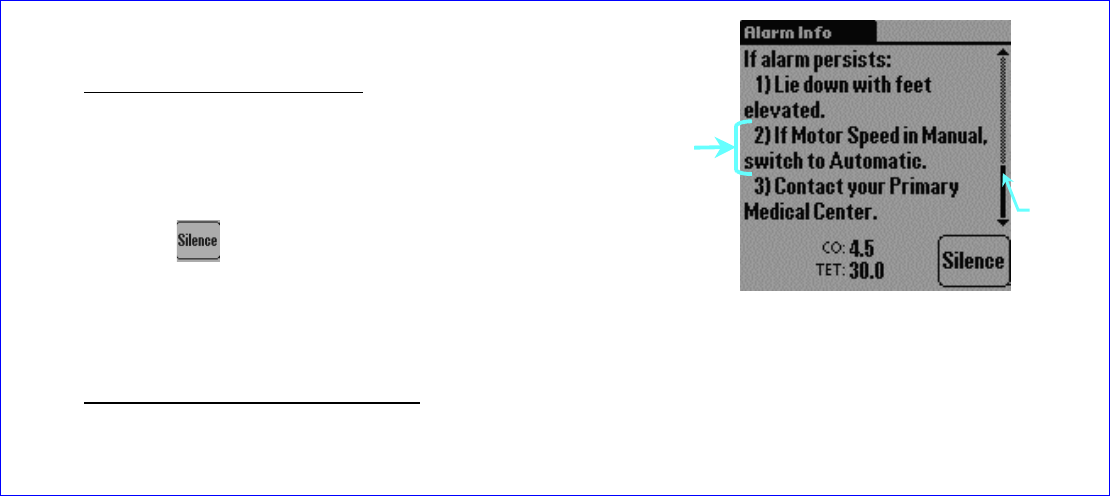

a. Using the stylus (or your finger), tap the alarm
at the top of the list. The Alarm Info screen
appears.
b. Follow the instructions in the first step only.
c. Tap to acknowledge the alarm. This
returns you to the AbioCor® Alarms screen.
Check whether the alarm is still listed.
Alarm
Info
Screen
11
Resolving Alarms (continued)
5If the alarm is still listed:
a. Tap the alarm. The Alarm Info screen appears.
b. Follow the instructions in the next step only.
c. Tap to return to the AbioCor® Alarms screen.
d. Continue in this manner, performing one step at
a time, until the alarm has cleared.
If the alarm is no longer listed, tap the alarm that is now at the top of the list. Begin
again with the procedure described on the previous page.
NOTE:
Be sure to use the scroll bar to
view additional instructions that do not fit
on a single screen.
Scroll
Bar
Resolving
Alarms
12

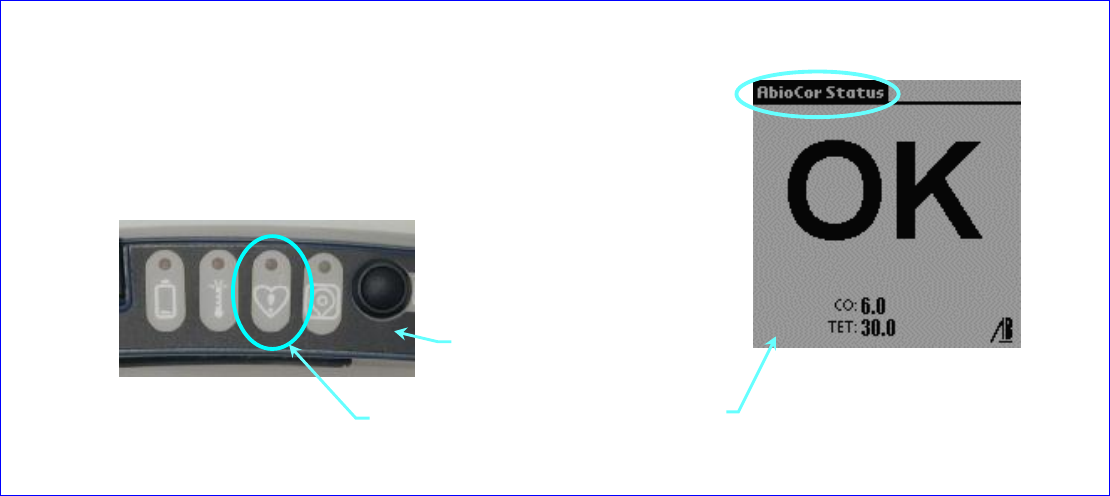

6When all alarms are resolved, the AbioCor® Status
screen appears, and the Heart Alarm indicator on
the PCE Module turns off.
AbioCor
Status
Screen
Heart
Alarm
PCE
Module
13
Checking AbioCor® Status
1Turn on the Handheld Monitor. Either the AbioCor Status screen or the AbioCor
Alarms screen appears:
• If the AbioCor Status screen appears, proceed to the following page.
• If the AbioCor Alarms screen appears (displaying a “Check RF” alarm), move
the Handheld Monitor closer to the Implanted Controller (stomach area). The
“Check RF” alarm should clear.
CAUTION: Do not use the Handheld Monitor close to an operating AbioCor® Console.
The RF signals from the Console and the Handheld Monitor will interfere with each
other and not allow adjustments to be made to the Implanted System. If RF interference
appears, turn off the Handheld Monitor.
Checking
AbioCor
®
Status
14

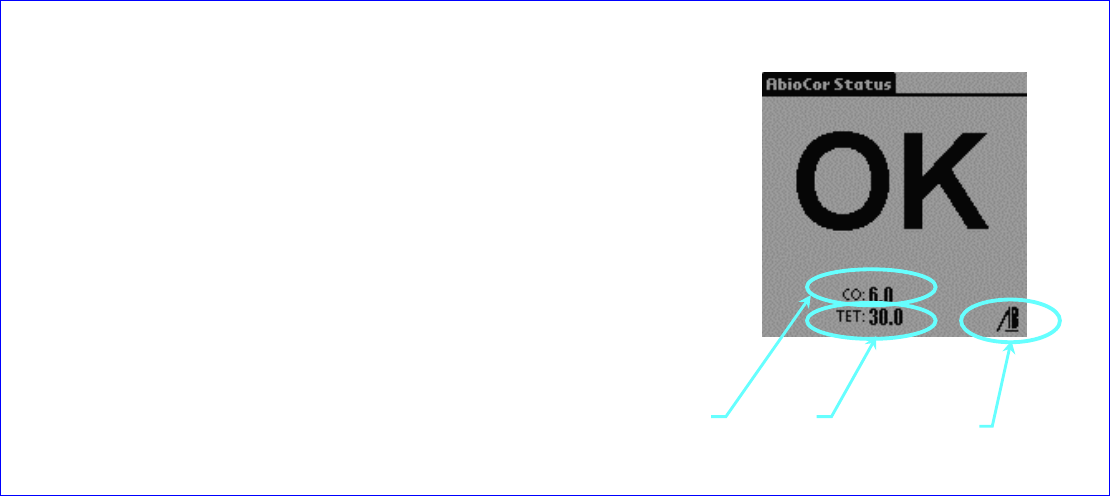

2The AbioCor® Status screen provides the following
information:
• CO – indicates AbioCor blood flow in liters per
minute (L/min).
• TET – indicates system voltage in VDC.
• ABIOMED® logo – appears to rotate when the
program is operating.
TET ABIOMED
logo
CO
15
Checking AbioCor® Settings and Alarm History

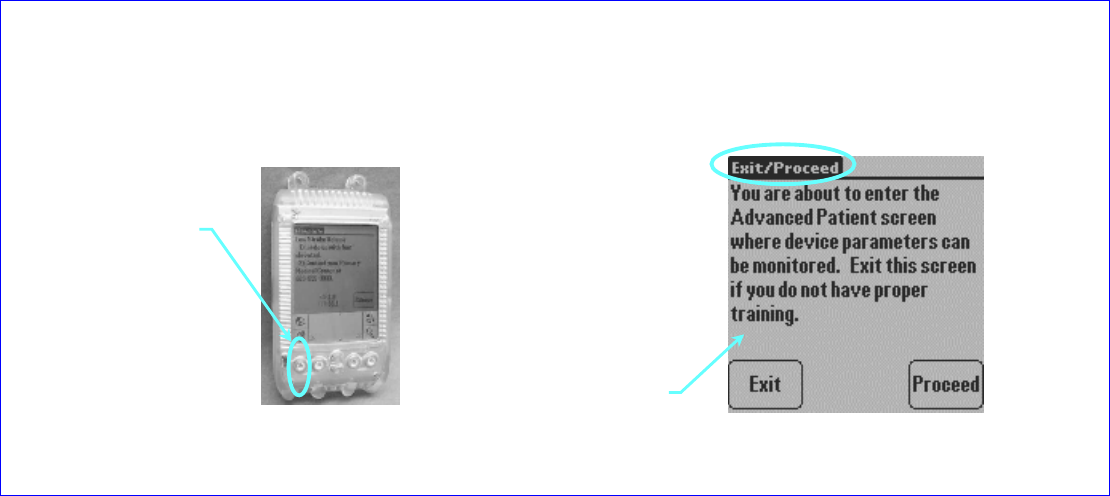

1Press the application button twice. The Exit/Proceed screen appears.
Application
Button
Exit/Proceed
Screen
Checking
AbioCor
®
Settings and Alarm
History
16

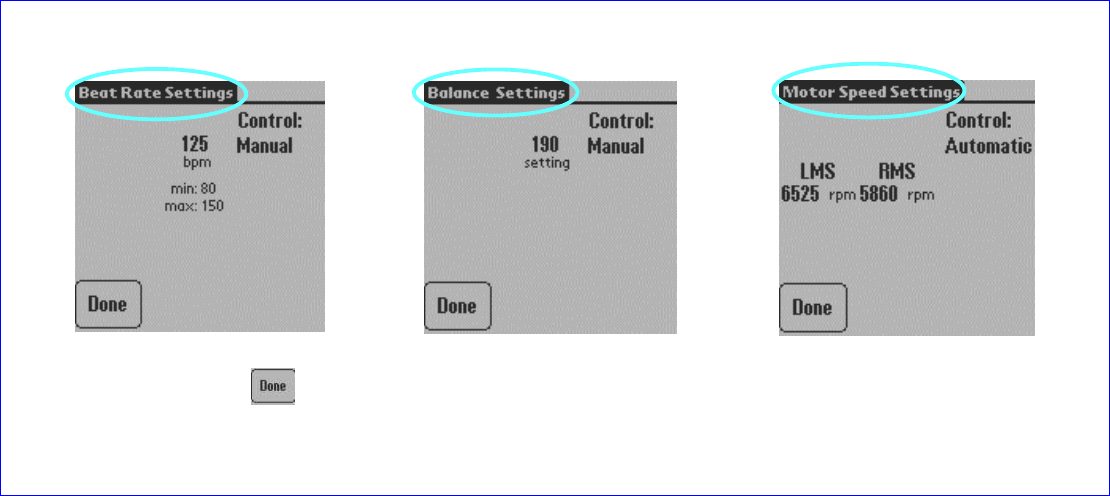

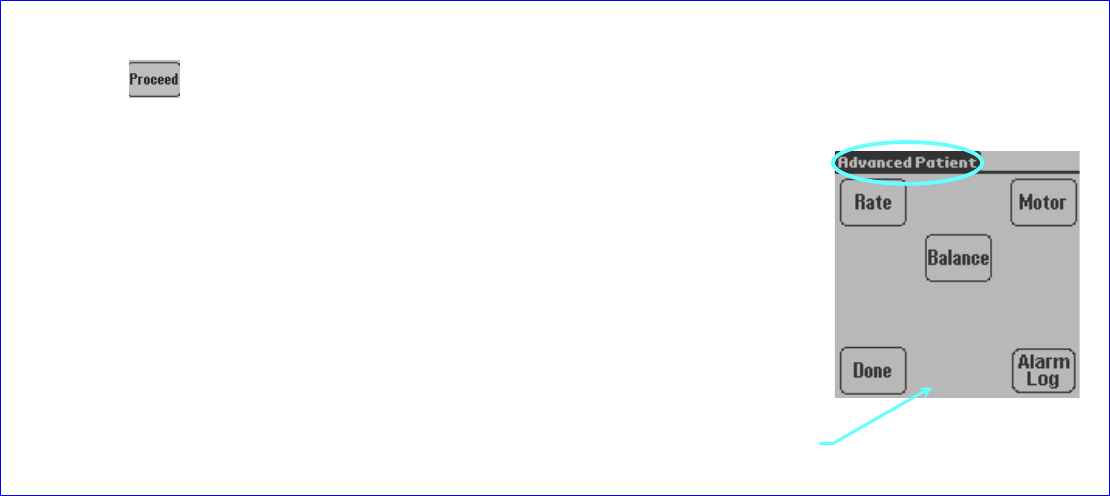

2Tap on the Exit/Proceed screen. The Advanced Patient screen appears. This
screen allows you to access the following information (see sample screens on the
following pages):
• Beat Rate – current, minimum, and maximum
settings; control status (manual).
• Balance – current setting; control status
(manual or automatic).
• Motor Speed – current settings; control status
(manual or automatic).
• Alarm History (Log) – most recent 10 alarms.
Advanced
Patient
Screen
17
Checking AbioCor® Settings and Alarm History (continued)
3
NOTE:
Tapping returns you to the
AbioCor Status screen (or, if an alarm exists that has
not been acknowledged, to the AbioCor Alarms screen).
Checking
AbioCor
®
Settings and Alarm
History
18
4
This information concerns
the most recent alarm.
Scroll to view the details of
the 10 most recent alarms.
AbioCor
Alarm History
Screen
19
Charging the Battery
1
CAUTION: The Handheld Monitor does not use an indicator to display the
status of its battery. However, the alarm message “Handheld Battery” is
displayed when the battery is low.
Charge the Handheld Monitor’s battery every night, whether it is used or not. When
possible, you should keep the backup Handheld Monitor available while the other
unit is charging. It takes about 90 minutes to charge the battery.
NOTE:
The screen remains on during charging, even if the Handheld Monitor was turned off prior to
charging.
Charging th
e
Battery
20

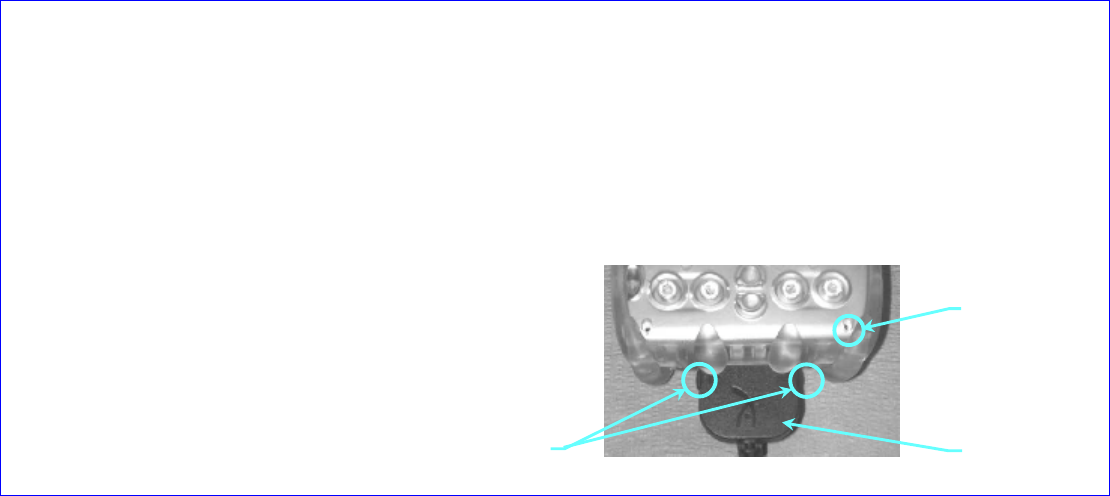

2To charge the battery:
a. Plug the charger connector into the Handheld Monitor.
b. Plug the charger into an AC outlet. The charging light blinks while the battery is
charging. When the light stays on, the battery is charged.
c. Unplug the charger from the outlet.
d. Squeeze the release buttons
(between thumb and forefinger) and
unplug the charger connector.
Release
Buttons
Charging
Light
Charger
Connector
21
Troubleshooting
Symptom Solution
The screen is frozen,
OR
The Handheld Monitor
chirps repeatedly.
• Remove the RF Expansion Module and then
reinsert it.
• If the screen is still frozen, reset the Handheld
Monitor by unscrewing the stylus tip and
inserting the smaller end into the RESET hole
on the back of the unit.
• If the problem still exists,
change to the backup Handheld
Monitor or AbioCor® Console.
Troubleshooting
22
Symptom Solution
The Handheld Monitor
does not turn on. • Follow the procedure described in Charging the
Battery. Turn on the Handheld Monitor.
• If the problem still exists, change to the backup
Handheld Monitor or AbioCor® Console.
23
Care and Cleaning
• Be careful not to scratch the screen. Only use the stylus or fingers when touching the
screen. Do not use pens, pencils, or other sharp objects on the screen.
• The Handheld Monitor is not waterproof and should not be exposed to rain, moisture,
or extremely dusty conditions.
• To prevent damage to the screen, be careful not to drop the Handheld Monitor or
subject it to strong impact.
• Protect the Handheld Monitor from extreme temperature environments (such as the
dashboard of a closed car during hot weather), heaters, and other heat sources.
• To clean the Handheld Monitor, use a soft, damp cloth. To clean the screen, use a soft
cloth moistened with diluted window-cleaning solution.
A.1
AbioCor Components Notice
AbioCor® Console This device complies with Part 18 of the FCC Rules.
PCE Control Module This device complies with Part 18 of the FCC Rules.
RF Communication
Module This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by
ABIOMED Inc. could void the user’s authority to operate the device.
Handheld Monitor This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by
ABIOMED Inc. could void the user’s authority to operate the device.
Implantable Controller This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by
ABIOMED Inc. could void the user’s authority to operate the device.
Appendix: Federal Communications Commission (FCC) Notice
ABIOMED, Inc.
22 Cherry Hill Drive
Danvers, MA 01923 USA
N. America: 800-422-8666 (24-Hour Emergency Hotline)
or
978-777-5410
®

Navigation menu
