ACA Digital S10A Rugged Tablet PC User Manual S10A UM EN

ACA Digital Corporation Rugged Tablet PC S10A UM EN

Users Manual

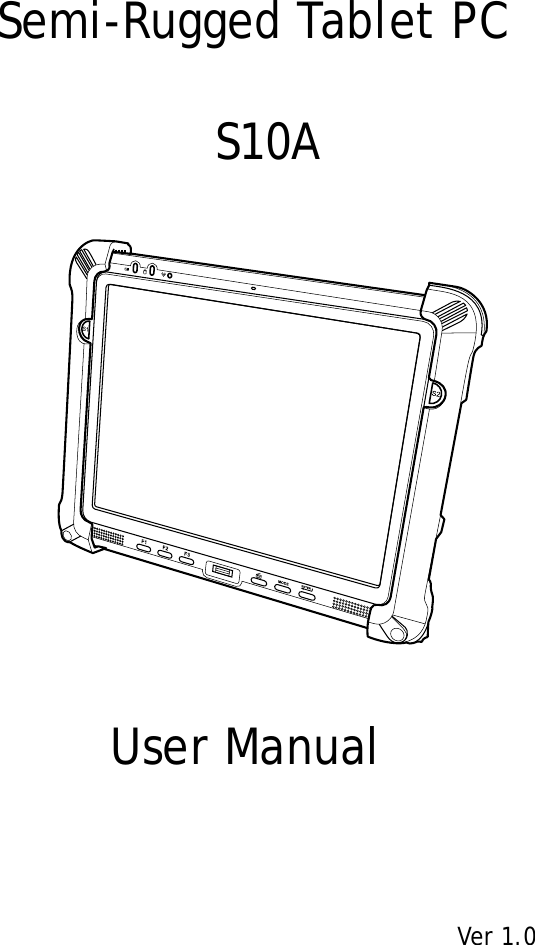

Semi-Rugged Tablet PC S10AUser ManualVer 1.0

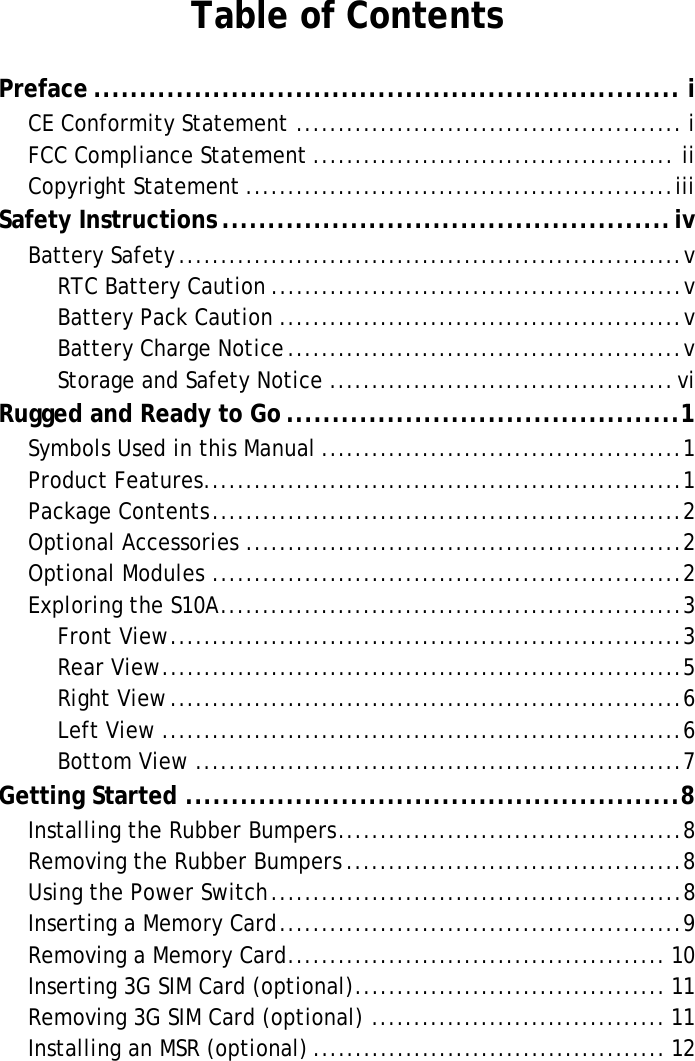

S10A User ManualTable of ContentsPreface ................................................................ iCE Conformity Statement .............................................. iFCC Compliance Statement ........................................... iiCopyright Statement ...................................................iiiSafety Instructions .................................................ivBattery Safety............................................................vRTC Battery Caution .................................................vBattery Pack Caution ................................................vBattery Charge Notice...............................................vStorage and Safety Notice .........................................viRugged and Ready to Go ...........................................1Symbols Used in this Manual ...........................................1Product Features.........................................................1Package Contents........................................................2Optional Accessories ....................................................2Optional Modules ........................................................2Exploring the S10A.......................................................3Front View.............................................................3Rear View..............................................................5Right View.............................................................6Left View ..............................................................6Bottom View ..........................................................7Getting Started ......................................................8Installing the Rubber Bumpers.........................................8Removing the Rubber Bumpers ........................................8Using the Power Switch.................................................8Inserting a Memory Card................................................9Removing a Memory Card............................................. 10Inserting 3G SIM Card (optional)..................................... 11Removing 3G SIM Card (optional) ................................... 11Installing an MSR (optional) .......................................... 12

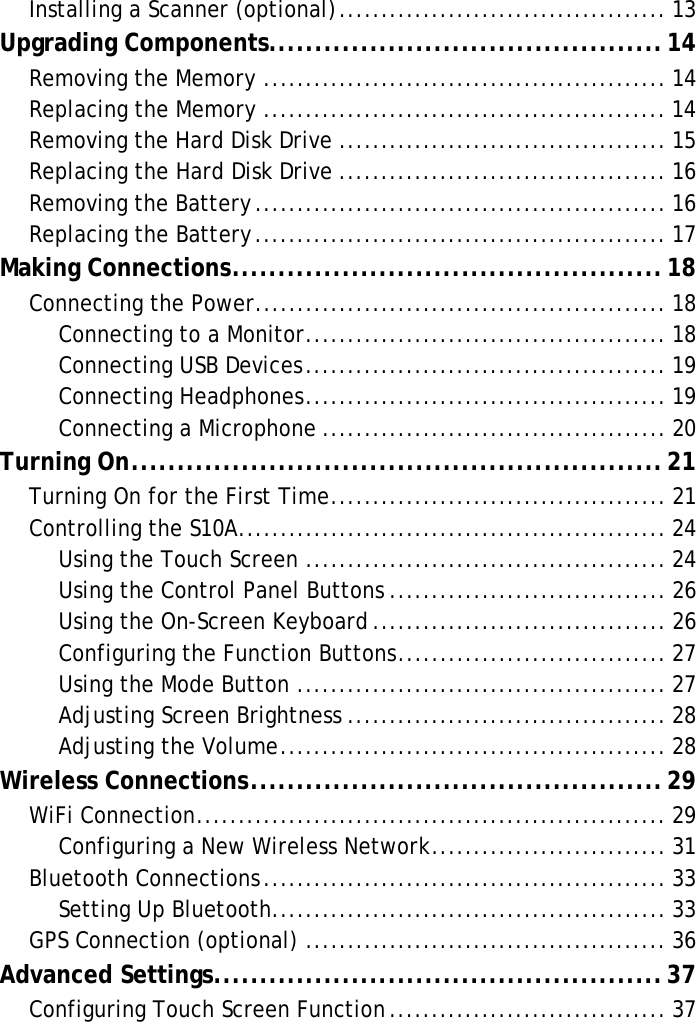

S10A User ManualInstalling a Scanner (optional)....................................... 13Upgrading Components...........................................14Removing the Memory ................................................ 14Replacing the Memory ................................................ 14Removing the Hard Disk Drive ....................................... 15Replacing the Hard Disk Drive ....................................... 16Removing the Battery................................................. 16Replacing the Battery................................................. 17Making Connections...............................................18Connecting the Power................................................. 18Connecting to a Monitor........................................... 18Connecting USB Devices........................................... 19Connecting Headphones........................................... 19Connecting a Microphone ......................................... 20Turning On..........................................................21Turning On for the First Time........................................ 21Controlling the S10A................................................... 24Using the Touch Screen ........................................... 24Using the Control Panel Buttons ................................. 26Using the On-Screen Keyboard ................................... 26Configuring the Function Buttons................................ 27Using the Mode Button ............................................ 27Adjusting Screen Brightness ...................................... 28Adjusting the Volume.............................................. 28Wireless Connections.............................................29WiFi Connection........................................................ 29Configuring a New Wireless Network............................ 31Bluetooth Connections................................................ 33Setting Up Bluetooth............................................... 33GPS Connection (optional) ........................................... 36Advanced Settings.................................................37Configuring Touch Screen Function................................. 37

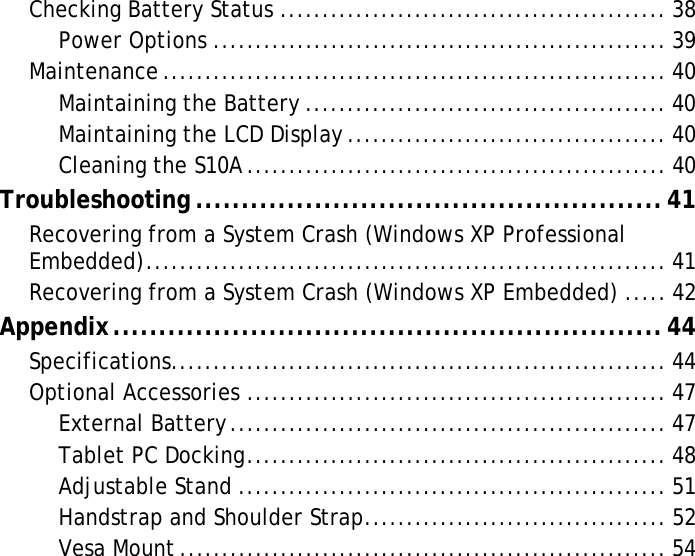

S10A User ManualChecking Battery Status .............................................. 38Power Options ...................................................... 39Maintenance ............................................................ 40Maintaining the Battery ........................................... 40Maintaining the LCD Display ...................................... 40Cleaning the S10A.................................................. 40Troubleshooting ...................................................41Recovering from a System Crash (Windows XP Professional Embedded).............................................................. 41Recovering from a System Crash (Windows XP Embedded) ..... 42Appendix............................................................44Specifications........................................................... 44Optional Accessories .................................................. 47External Battery.................................................... 47Tablet PC Docking.................................................. 48Adjustable Stand ................................................... 51Handstrap and Shoulder Strap.................................... 52Vesa Mount .......................................................... 54

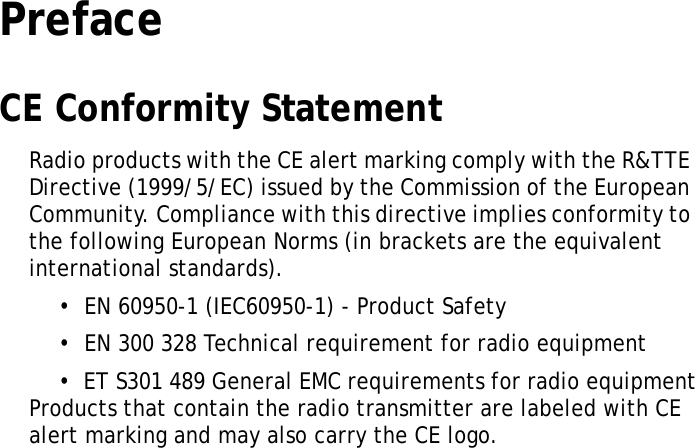

S10A User ManualiPrefaceCE Conformity StatementRadio products with the CE alert marking comply with the R&TTE Directive (1999/5/EC) issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards).• EN 60950-1 (IEC60950-1) - Product Safety• EN 300 328 Technical requirement for radio equipment• ET S301 489 General EMC requirements for radio equipmentProducts that contain the radio transmitter are labeled with CE alert marking and may also carry the CE logo.

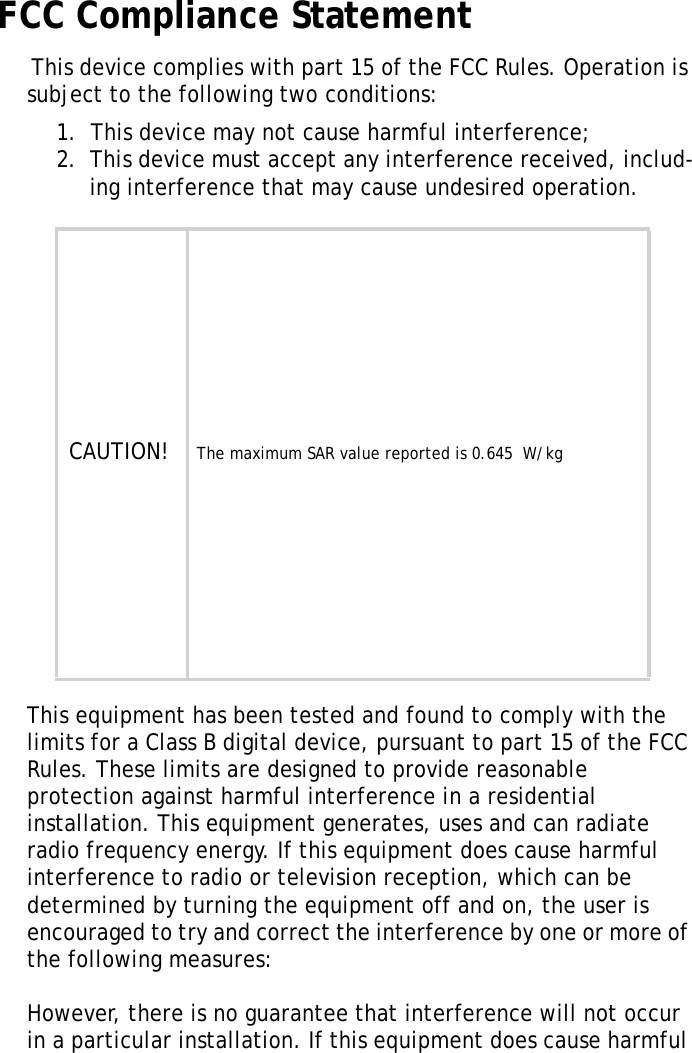

S10A User ManualiiFCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference;2. This device must accept any interference received, includ-ing interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful CAUTION! The maximum SAR value reported is 0.645 W/kg W/kg.

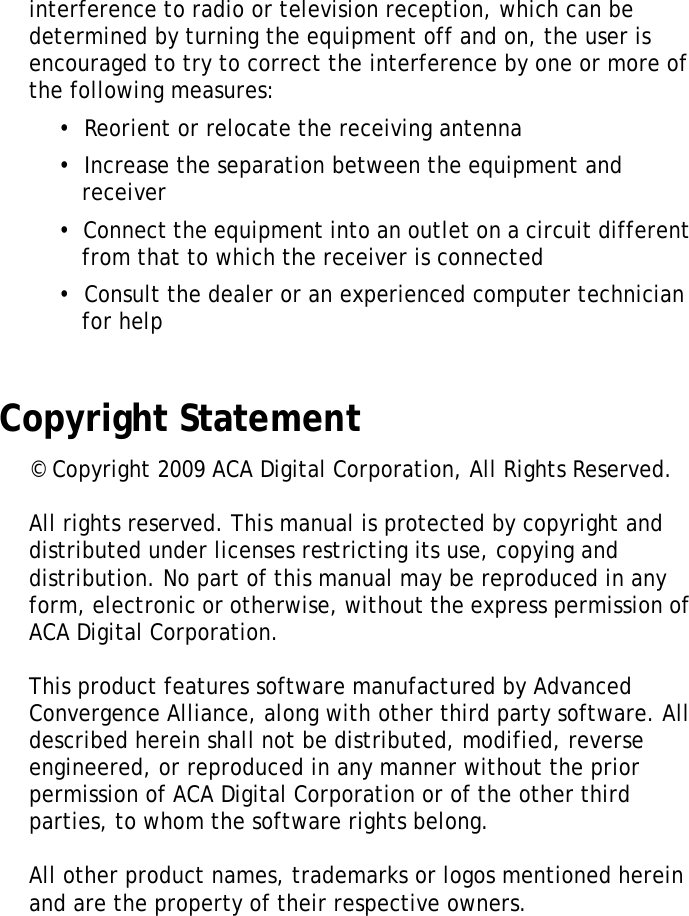

S10A User Manualiiiinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and receiver• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected• Consult the dealer or an experienced computer technician for helpCopyright Statement© Copyright 2009 ACA Digital Corporation, All Rights Reserved.All rights reserved. This manual is protected by copyright anddistributed under licenses restricting its use, copying and distribution. No part of this manual may be reproduced in any form, electronic or otherwise, without the express permission of ACA Digital Corporation. This product features software manufactured by Advanced Convergence Alliance, along with other third party software. All described herein shall not be distributed, modified, reverse engineered, or reproduced in any manner without the prior permission of ACA Digital Corporation or of the other third parties, to whom the software rights belong.All other product names, trademarks or logos mentioned herein and are the property of their respective owners.

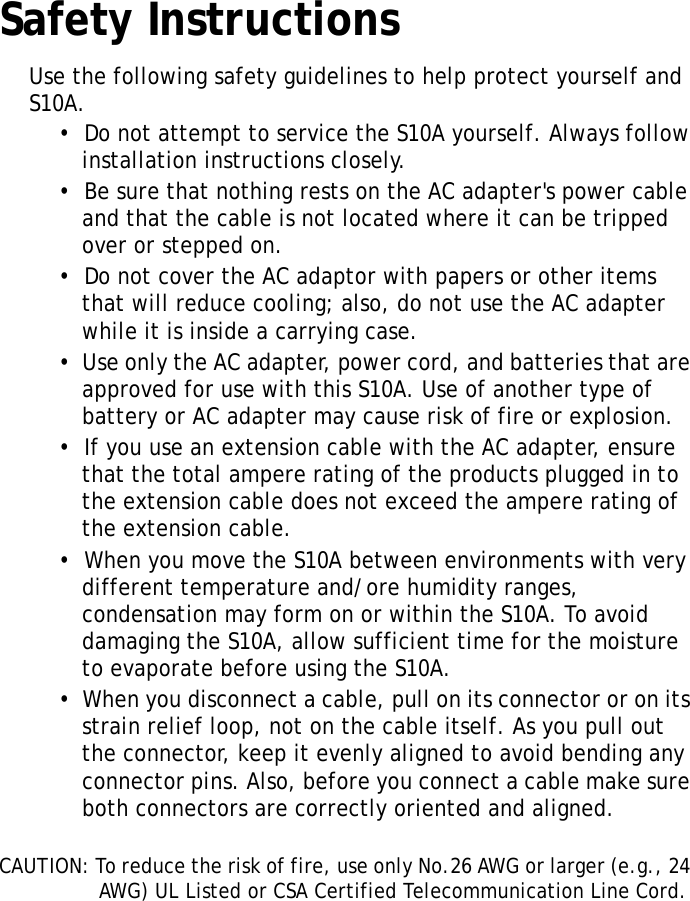

S10A User ManualivSafety InstructionsUse the following safety guidelines to help protect yourself and S10A.• Do not attempt to service the S10A yourself. Always follow installation instructions closely.• Be sure that nothing rests on the AC adapter's power cable and that the cable is not located where it can be tripped over or stepped on.• Do not cover the AC adaptor with papers or other items that will reduce cooling; also, do not use the AC adapter while it is inside a carrying case.• Use only the AC adapter, power cord, and batteries that are approved for use with this S10A. Use of another type of battery or AC adapter may cause risk of fire or explosion.• If you use an extension cable with the AC adapter, ensure that the total ampere rating of the products plugged in to the extension cable does not exceed the ampere rating of the extension cable.• When you move the S10A between environments with very different temperature and/ore humidity ranges, condensation may form on or within the S10A. To avoid damaging the S10A, allow sufficient time for the moisture to evaporate before using the S10A.• When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins. Also, before you connect a cable make sure both connectors are correctly oriented and aligned.CAUTION: To reduce the risk of fire, use only No.26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord.

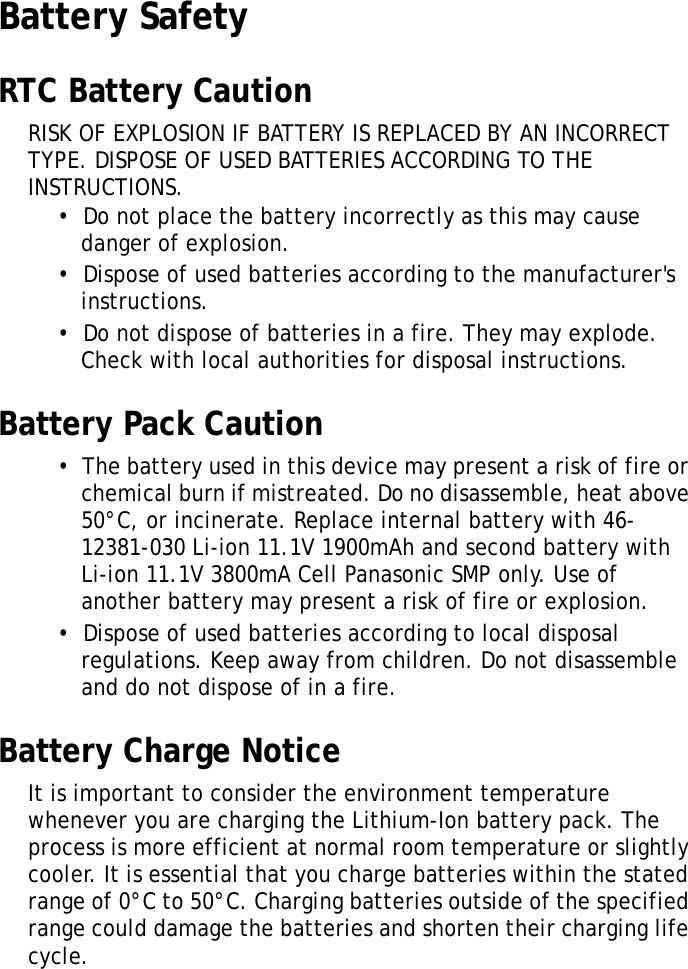

S10A User ManualvBattery SafetyRTC Battery CautionRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.• Do not place the battery incorrectly as this may cause danger of explosion.• Dispose of used batteries according to the manufacturer's instructions.• Do not dispose of batteries in a fire. They may explode. Check with local authorities for disposal instructions.Battery Pack Caution• The battery used in this device may present a risk of fire or chemical burn if mistreated. Do no disassemble, heat above 50°C, or incinerate. Replace internal battery with 46-12381-030 Li-ion 11.1V 1900mAh and second battery with Li-ion 11.1V 3800mA Cell Panasonic SMP only. Use of another battery may present a risk of fire or explosion.• Dispose of used batteries according to local disposal regulations. Keep away from children. Do not disassemble and do not dispose of in a fire.Battery Charge NoticeIt is important to consider the environment temperature whenever you are charging the Lithium-Ion battery pack. The process is more efficient at normal room temperature or slightly cooler. It is essential that you charge batteries within the stated range of 0°C to 50°C. Charging batteries outside of the specified range could damage the batteries and shorten their charging life cycle.

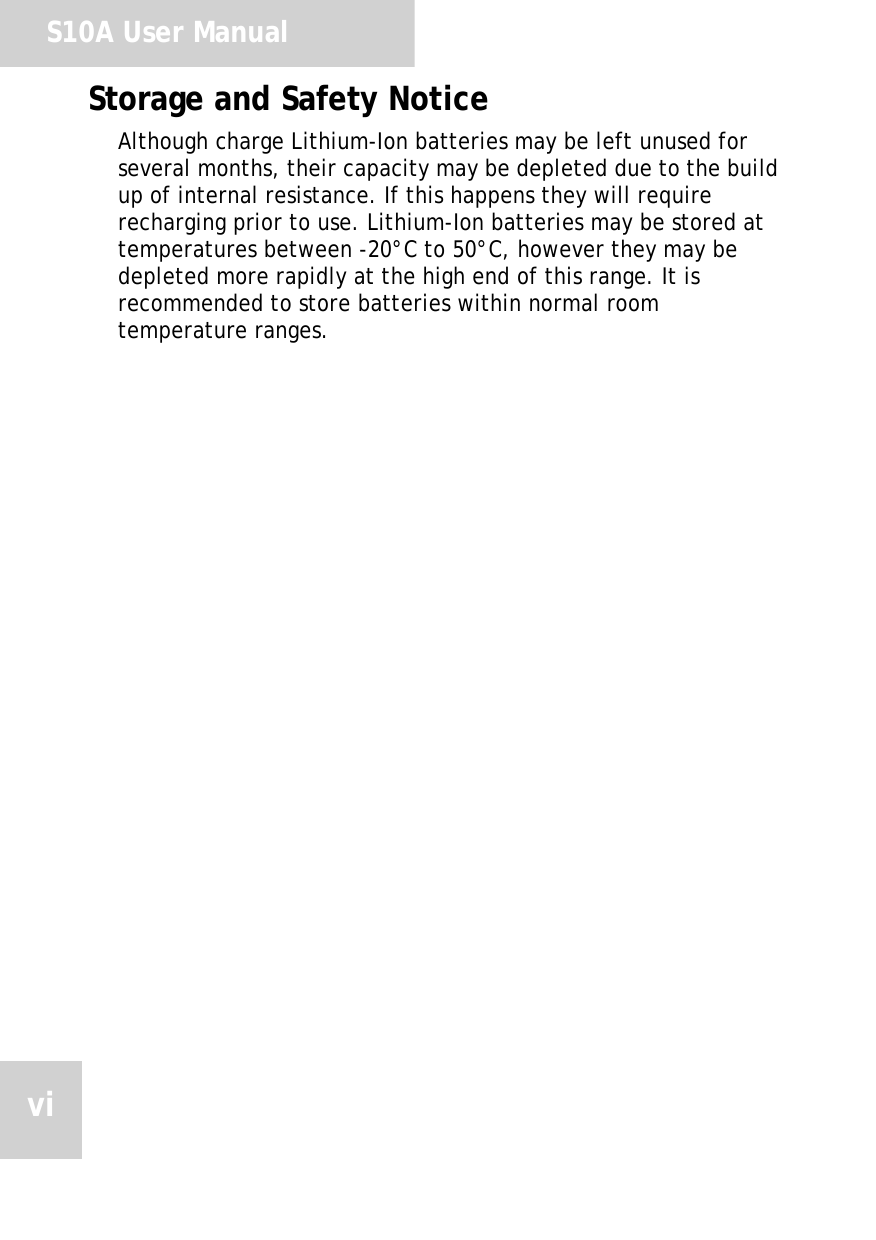

S10A User ManualviStorage and Safety NoticeAlthough charge Lithium-Ion batteries may be left unused for several months, their capacity may be depleted due to the build up of internal resistance. If this happens they will require recharging prior to use. Lithium-Ion batteries may be stored at temperatures between -20°C to 50°C, however they may be depleted more rapidly at the high end of this range. It is recommended to store batteries within normal room temperature ranges.

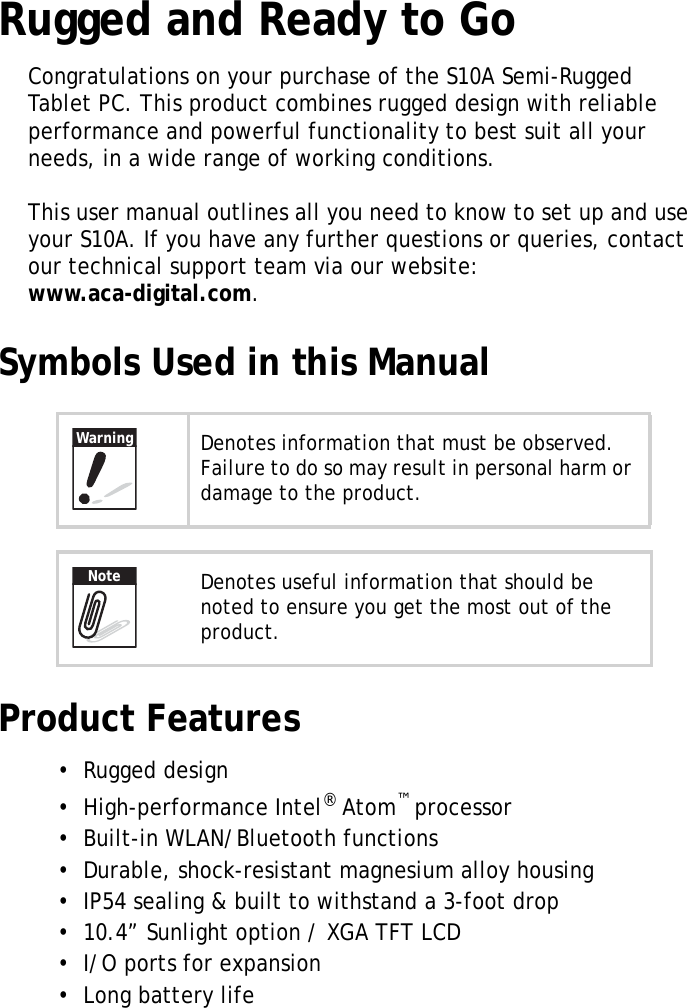

S10A User Manual1Rugged and Ready to GoCongratulations on your purchase of the S10A Semi-Rugged Tablet PC. This product combines rugged design with reliable performance and powerful functionality to best suit all your needs, in a wide range of working conditions.This user manual outlines all you need to know to set up and use your S10A. If you have any further questions or queries, contact our technical support team via our website: www.aca-digital.com.Symbols Used in this ManualProduct Features• Rugged design• High-performance Intel® Atom™ processor• Built-in WLAN/Bluetooth functions • Durable, shock-resistant magnesium alloy housing• IP54 sealing & built to withstand a 3-foot drop• 10.4” Sunlight option / XGA TFT LCD• I/O ports for expansion• Long battery lifeDenotes information that must be observed. Failure to do so may result in personal harm or damage to the product.Denotes useful information that should be noted to ensure you get the most out of the product.WarningNote

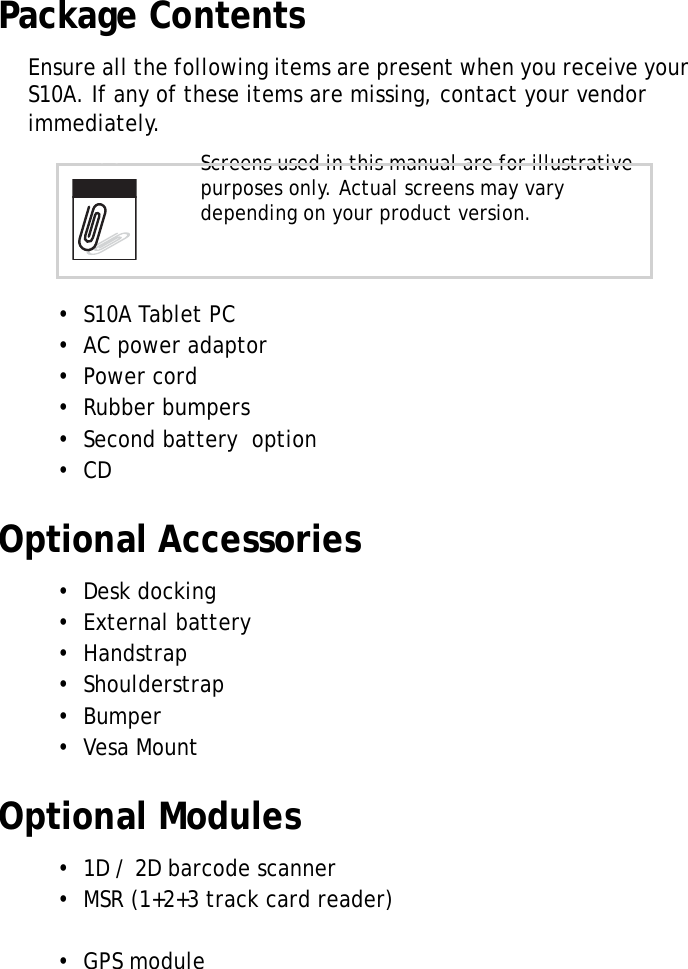

S10A User Manual2Package ContentsEnsure all the following items are present when you receive your S10A. If any of these items are missing, contact your vendor immediately.• S10A Tablet PC• AC power adaptor• Power cord• Rubber bumpers• Second battery option• CDOptional Accessories• Desk docking• External battery• Handstrap• Shoulderstrap• Bumper• Vesa MountOptional Modules• 1D / 2D barcode scanner• MSR (1+2+3 track card reader) • GPS moduleScreens used in this manual are for illustrative purposes only. Actual screens may vary depending on your product version.Note

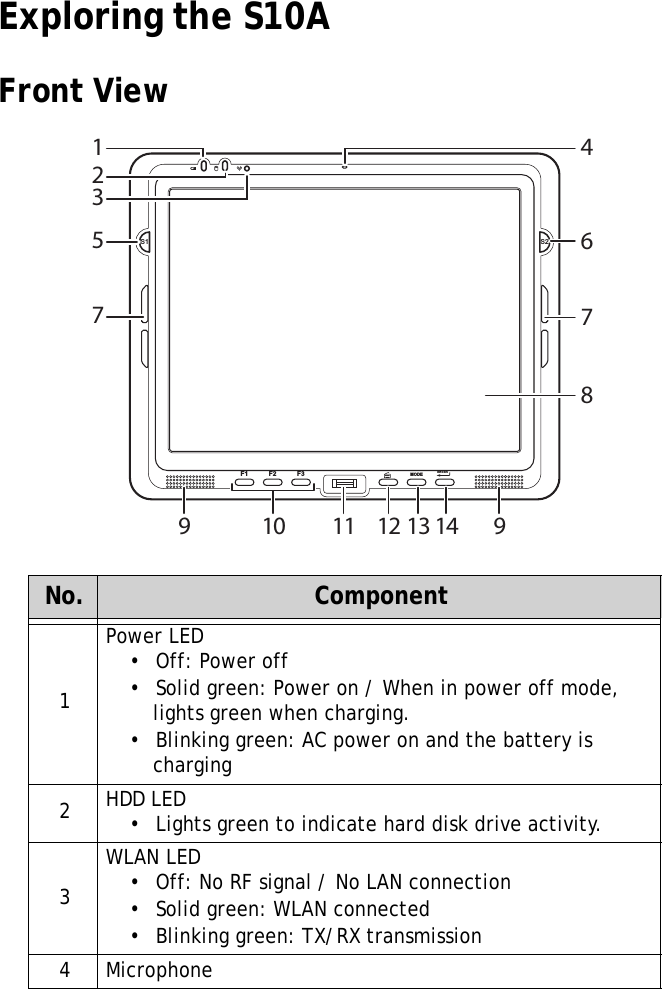

S10A User Manual3Exploring the S10AFront ViewNo. Component1Power LED• Off: Power off• Solid green: Power on / When in power off mode, lights green when charging.• Blinking green: AC power on and the battery is charging2HDD LED• Lights green to indicate hard disk drive activity.3WLAN LED• Off: No RF signal / No LAN connection• Solid green: WLAN connected• Blinking green: TX/RX transmission4MicrophoneS1 S2F1 F2 F3 MODE ENTER4786123579910 11 12 13 14

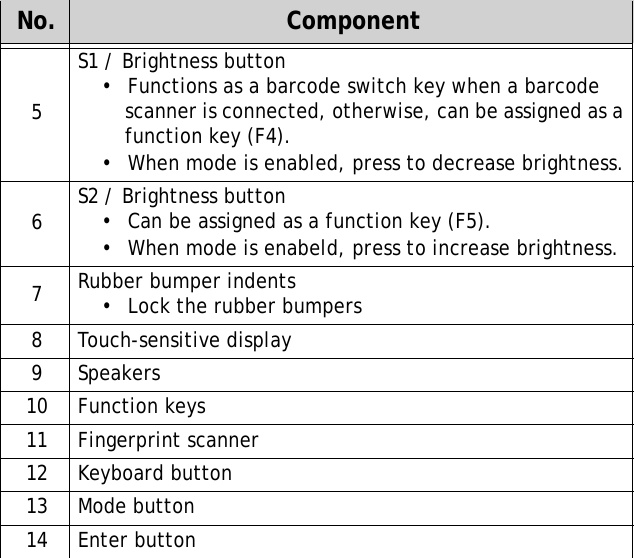

S10A User Manual45S1 / Brightness button• Functions as a barcode switch key when a barcode scanner is connected, otherwise, can be assigned as a function key (F4).• When mode is enabled, press to decrease brightness.6S2 / Brightness button• Can be assigned as a function key (F5).• When mode is enabeld, press to increase brightness.7Rubber bumper indents• Lock the rubber bumpers8 Touch-sensitive display9Speakers10 Function keys11 Fingerprint scanner12 Keyboard button13 Mode button14 Enter buttonNo. Component

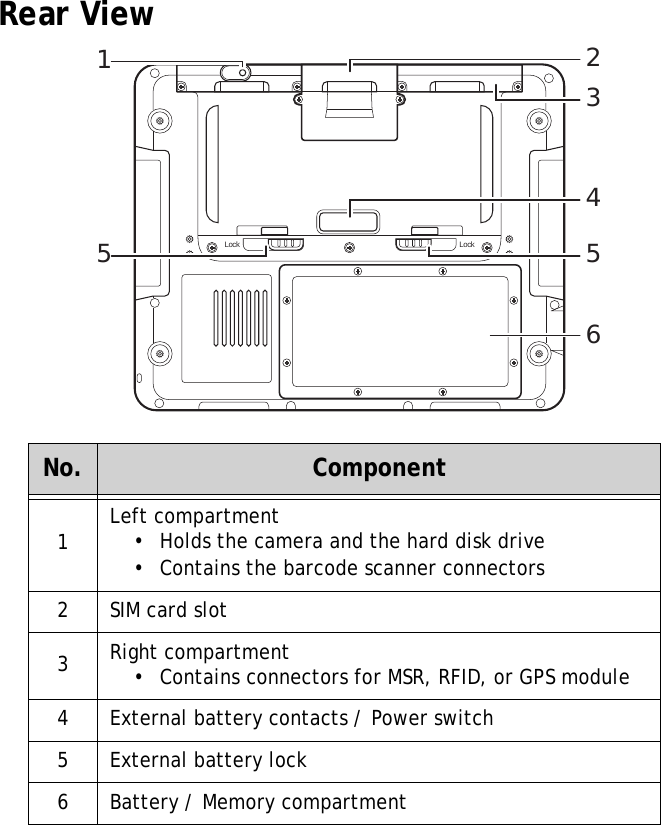

S10A User Manual5Rear ViewNo. Component1Left compartment• Holds the camera and the hard disk drive• Contains the barcode scanner connectors2 SIM card slot 3Right compartment• Contains connectors for MSR, RFID, or GPS module4 External battery contacts / Power switch5 External battery lock6 Battery / Memory compartmentLock Lock2435615

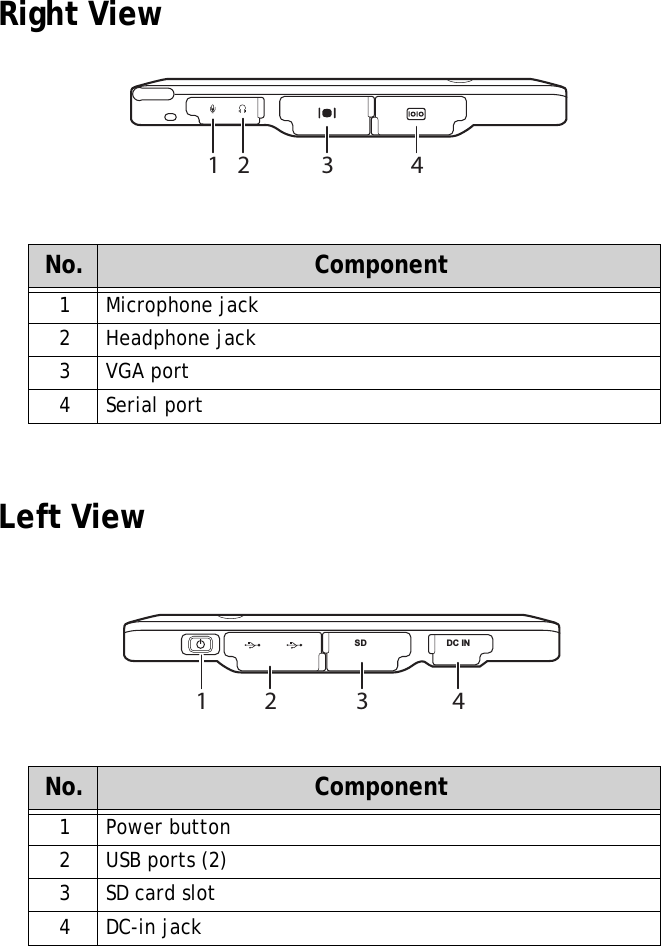

Right ViewLeft ViewNo. Component1Microphone jack2 Headphone jack3VGA port4Serial portNo. Component1 Power button2USB ports (2)3SD card slot4DC-in jack1 2 3 4SD DC IN1 2 3 4

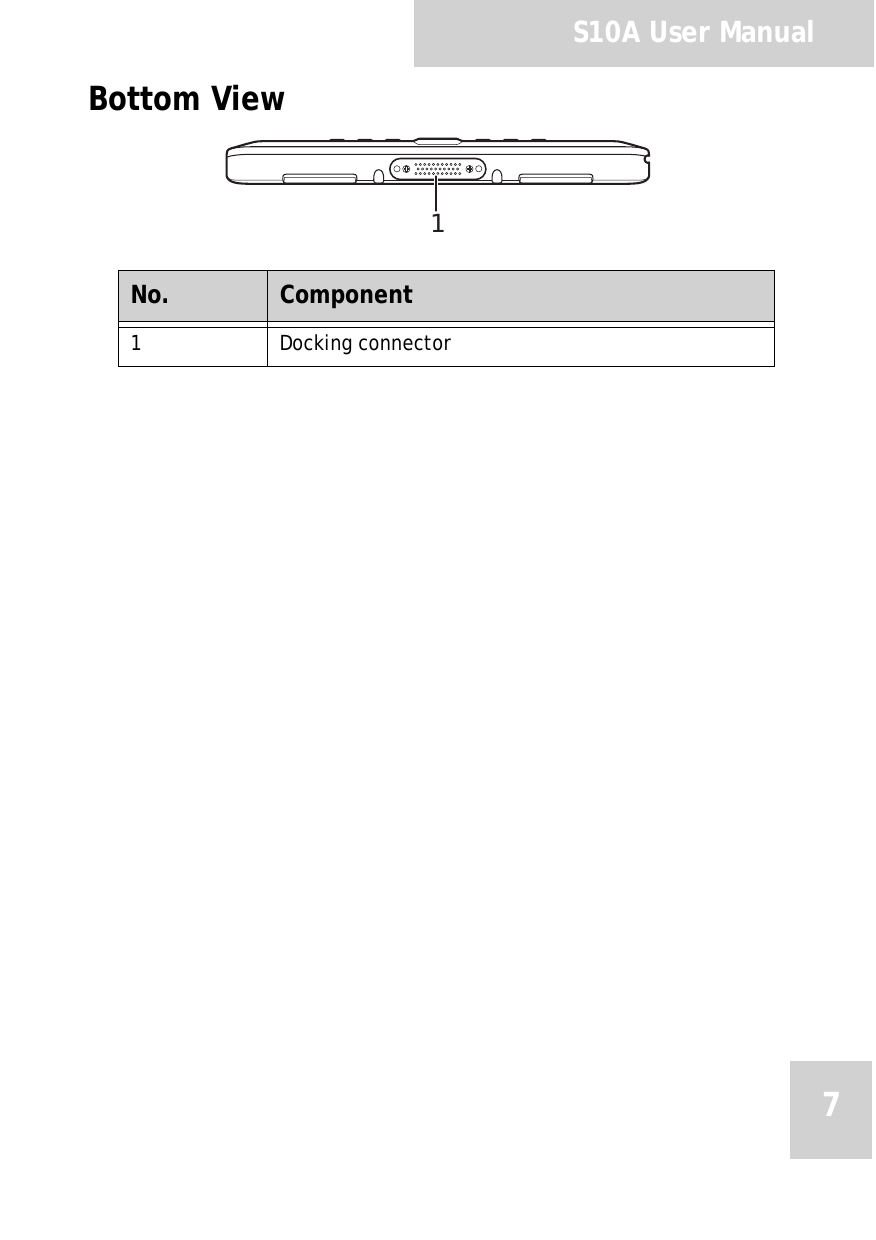

S10A User Manual7Bottom ViewNo. Component1 Docking connector1

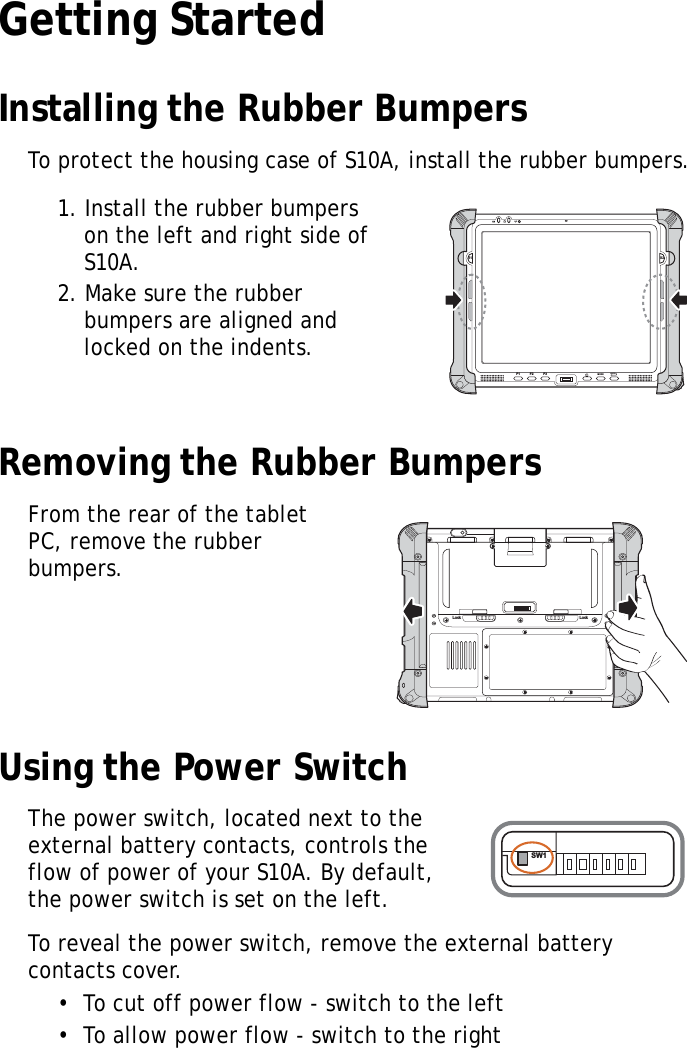

S10A User Manual8Getting StartedInstalling the Rubber BumpersTo protect the housing case of S10A, install the rubber bumpers.1. Install the rubber bumpers on the left and right side of S10A.2. Make sure the rubber bumpers are aligned and locked on the indents.Removing the Rubber BumpersFrom the rear of the tablet PC, remove the rubber bumpers.Using the Power SwitchThe power switch, located next to the external battery contacts, controls the flow of power of your S10A. By default, the power switch is set on the left.To reveal the power switch, remove the external battery contacts cover.• To cut off power flow - switch to the left• To allow power flow - switch to the rightS1 S2F1 F2 F3MODEENTERLock LockSW1

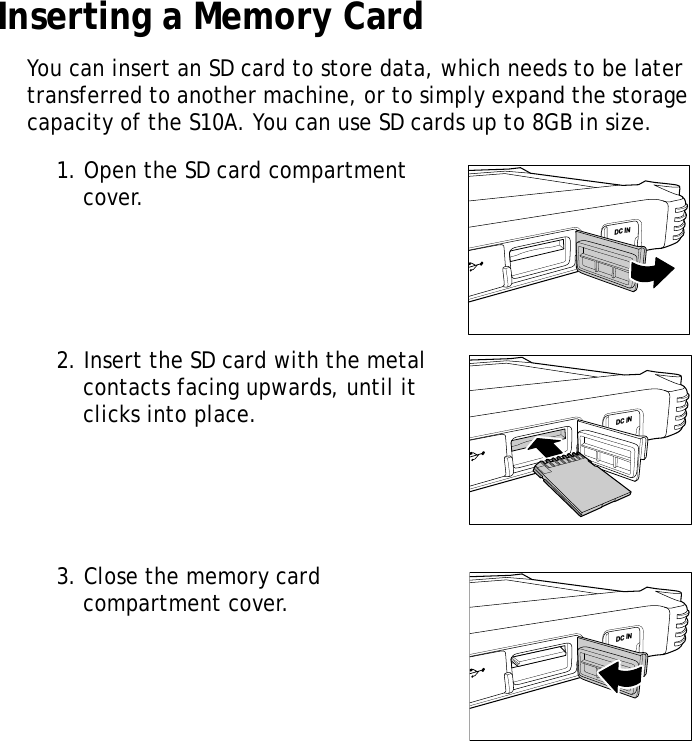

S10A User Manual9Inserting a Memory CardYou can insert an SD card to store data, which needs to be later transferred to another machine, or to simply expand the storage capacity of the S10A. You can use SD cards up to 8GB in size.1. Open the SD card compartment cover.2. Insert the SD card with the metal contacts facing upwards, until it clicks into place.3. Close the memory card compartment cover.DC INDC INDC IN

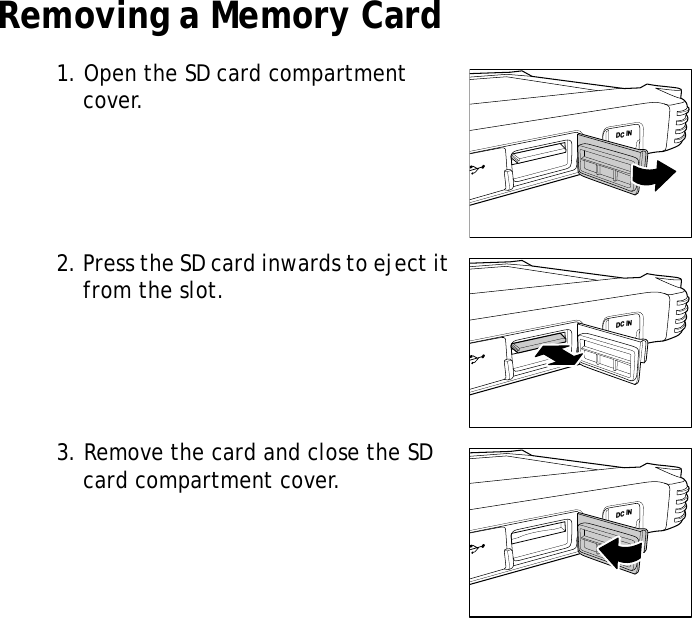

S10A User Manual10Removing a Memory Card1. Open the SD card compartment cover.2. Press the SD card inwards to eject it from the slot.3. Remove the card and close the SD card compartment cover.DC INDC INDC IN

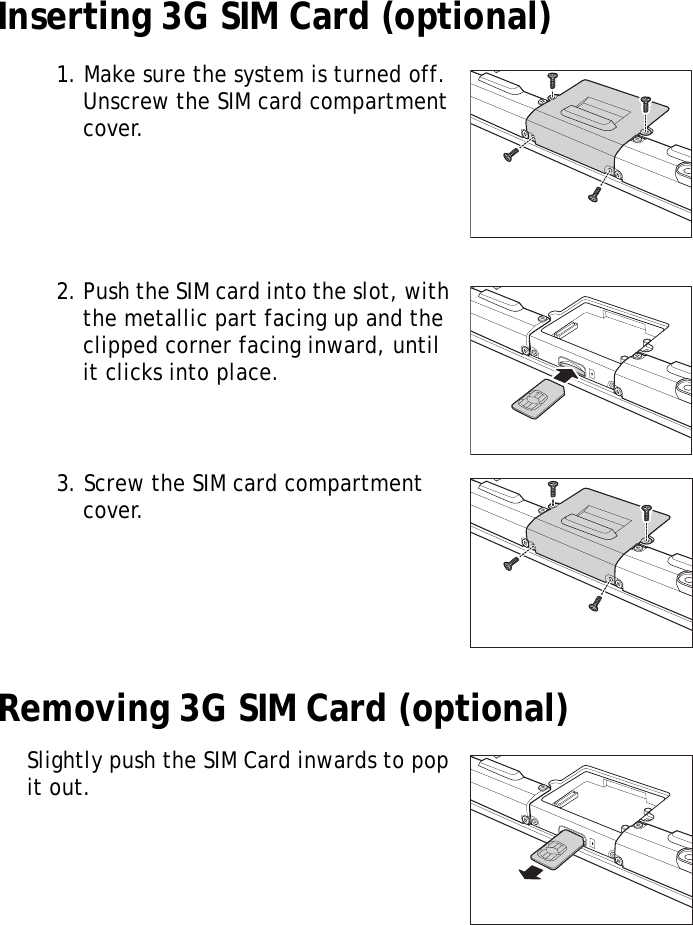

S10A User Manual11Inserting 3G SIM Card (optional)1. Make sure the system is turned off. Unscrew the SIM card compartment cover.2. Push the SIM card into the slot, with the metallic part facing up and the clipped corner facing inward, until it clicks into place.3. Screw the SIM card compartment cover.Removing 3G SIM Card (optional)Slightly push the SIM Card inwards to pop it out.

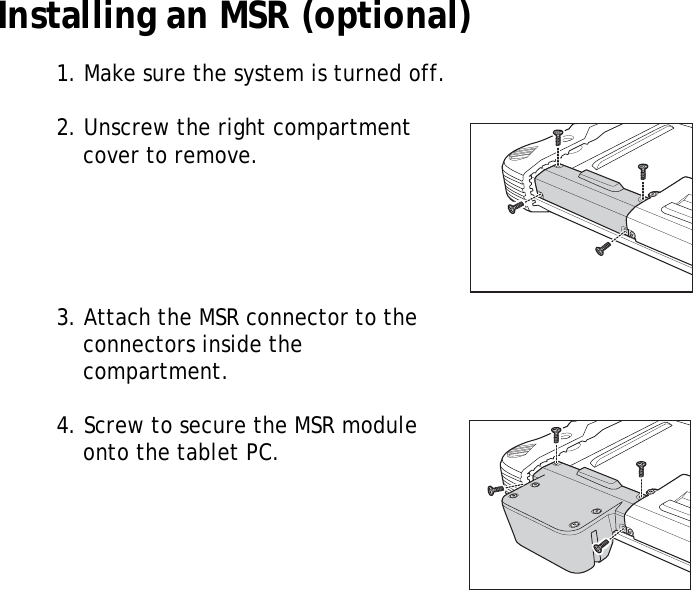

S10A User Manual12Installing an MSR (optional)1. Make sure the system is turned off.2. Unscrew the right compartment cover to remove.3. Attach the MSR connector to the connectors inside the compartment.4. Screw to secure the MSR module onto the tablet PC.

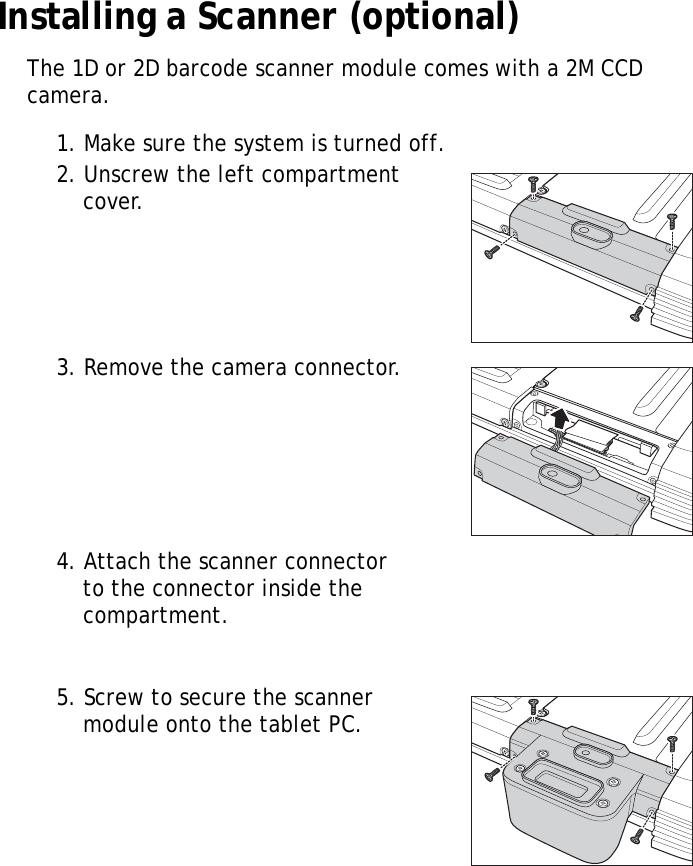

S10A User Manual13Installing a Scanner (optional)The 1D or 2D barcode scanner module comes with a 2M CCD camera.1. Make sure the system is turned off.2. Unscrew the left compartment cover.3. Remove the camera connector.4. Attach the scanner connector to the connector inside the compartment.5. Screw to secure the scanner module onto the tablet PC.

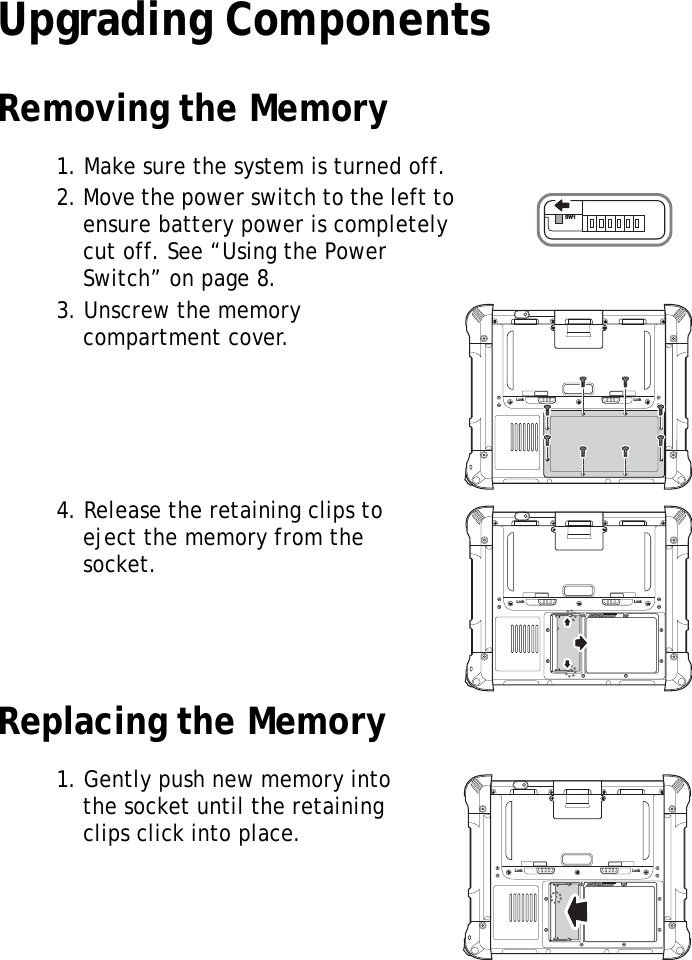

S10A User Manual14Upgrading ComponentsRemoving the Memory1. Make sure the system is turned off.2. Move the power switch to the left to ensure battery power is completely cut off. See “Using the Power Switch” on page 8.3. Unscrew the memory compartment cover.4. Release the retaining clips to eject the memory from the socket.Replacing the Memory1. Gently push new memory into the socket until the retaining clips click into place.SW1Lock LockLock LockLock Lock

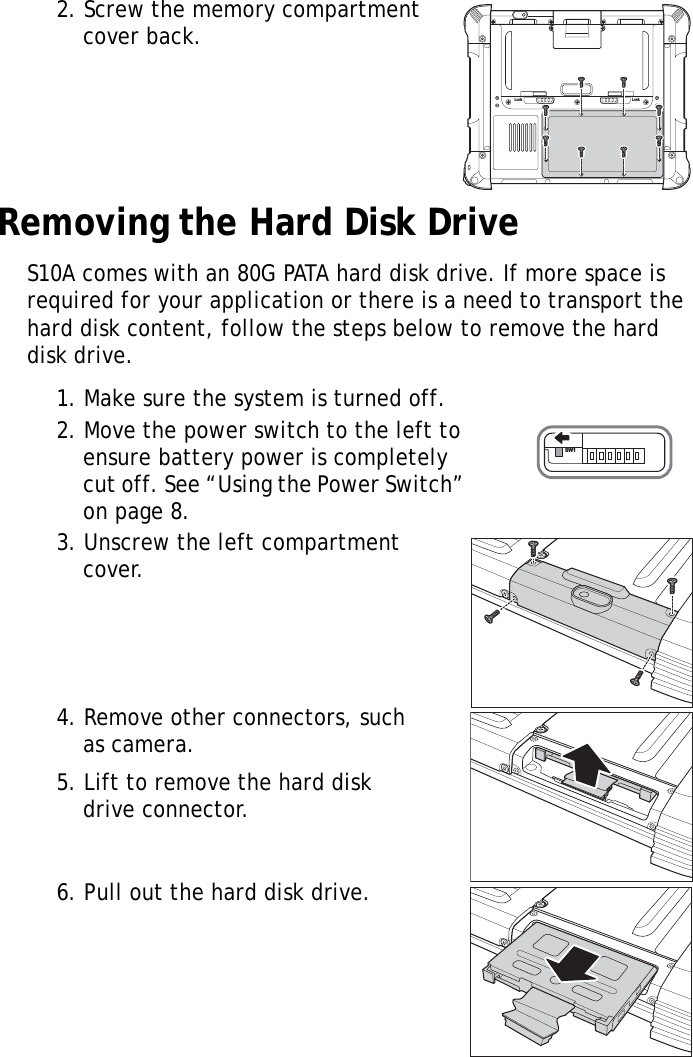

S10A User Manual152. Screw the memory compartment cover back.Removing the Hard Disk DriveS10A comes with an 80G PATA hard disk drive. If more space is required for your application or there is a need to transport the hard disk content, follow the steps below to remove the hard disk drive.1. Make sure the system is turned off.2. Move the power switch to the left to ensure battery power is completely cut off. See “Using the Power Switch” on page 8.3. Unscrew the left compartment cover.4. Remove other connectors, such as camera.5. Lift to remove the hard disk drive connector.6. Pull out the hard disk drive.Lock LockSW1

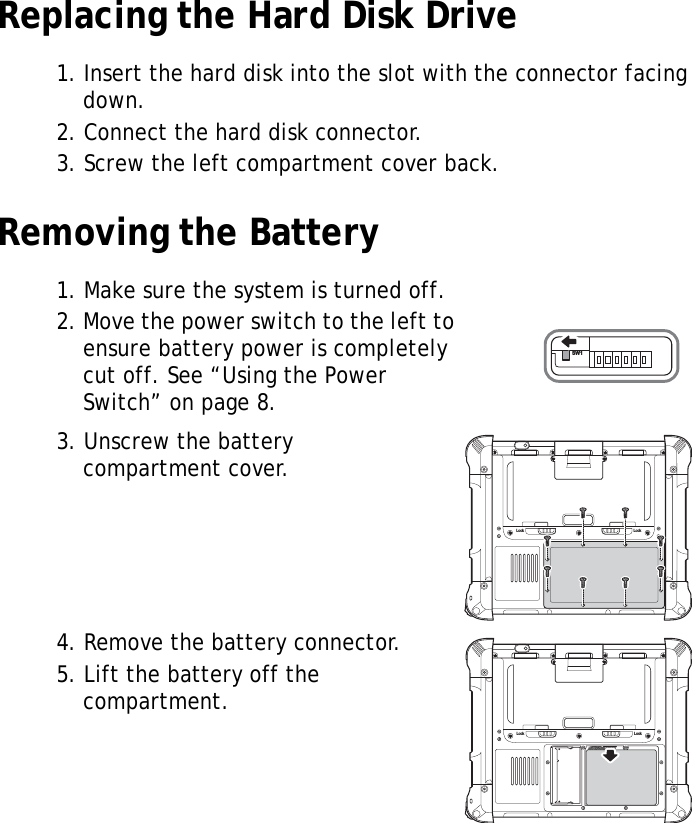

S10A User Manual16Replacing the Hard Disk Drive1. Insert the hard disk into the slot with the connector facing down.2. Connect the hard disk connector.3. Screw the left compartment cover back.Removing the Battery1. Make sure the system is turned off.2. Move the power switch to the left to ensure battery power is completely cut off. See “Using the Power Switch” on page 8.3. Unscrew the battery compartment cover.4. Remove the battery connector.5. Lift the battery off the compartment.SW1Lock LockLock Lock

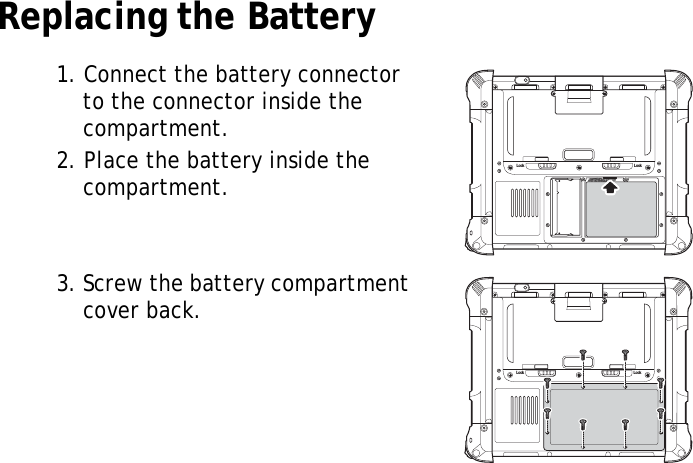

S10A User Manual17Replacing the Battery1. Connect the battery connector to the connector inside the compartment.2. Place the battery inside the compartment.3. Screw the battery compartment cover back.Lock LockLock Lock

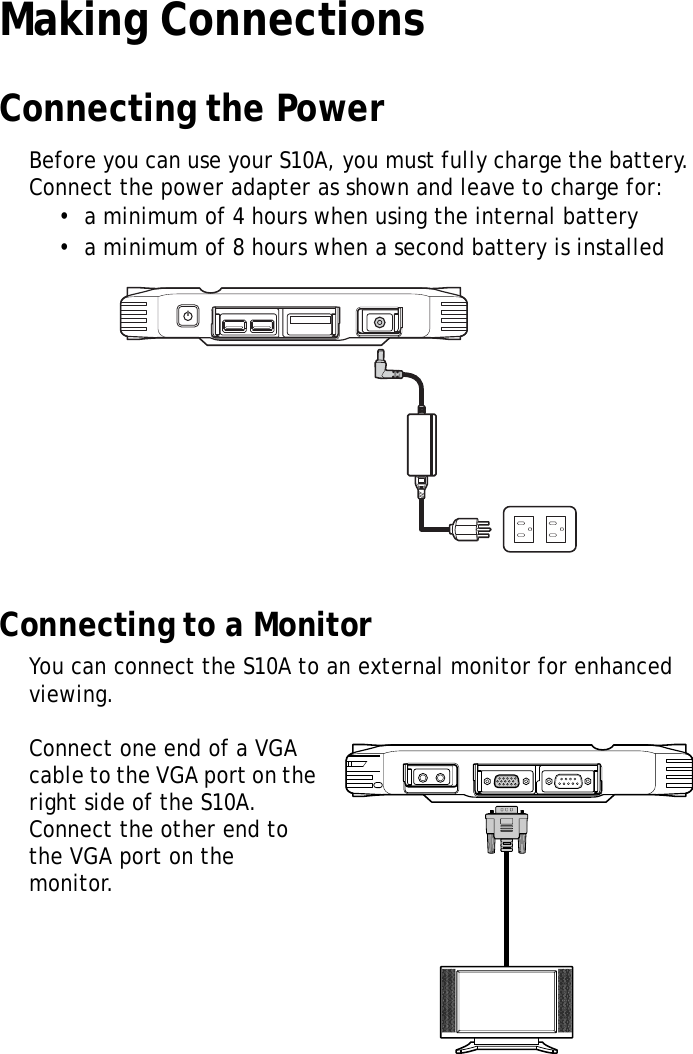

S10A User Manual18Making ConnectionsConnecting the PowerBefore you can use your S10A, you must fully charge the battery. Connect the power adapter as shown and leave to charge for:• a minimum of 4 hours when using the internal battery• a minimum of 8 hours when a second battery is installedConnecting to a MonitorYou can connect the S10A to an external monitor for enhanced viewing.Connect one end of a VGA cable to the VGA port on the right side of the S10A. Connect the other end to the VGA port on the monitor.

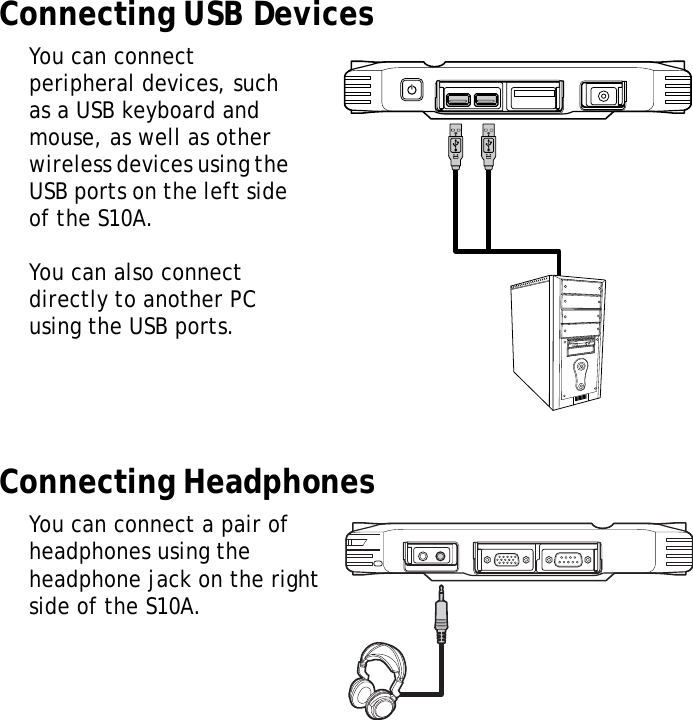

S10A User Manual19Connecting USB DevicesYou can connect peripheral devices, such as a USB keyboard and mouse, as well as other wireless devices using the USB ports on the left side of the S10A. You can also connect directly to another PC using the USB ports.Connecting HeadphonesYou can connect a pair of headphones using the headphone jack on the right side of the S10A.MOLEX MOLEX

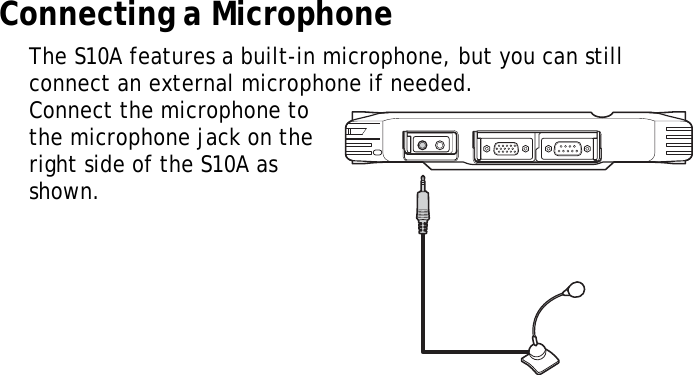

S10A User Manual20Connecting a MicrophoneThe S10A features a built-in microphone, but you can still connect an external microphone if needed.Connect the microphone to the microphone jack on the right side of the S10A as shown.

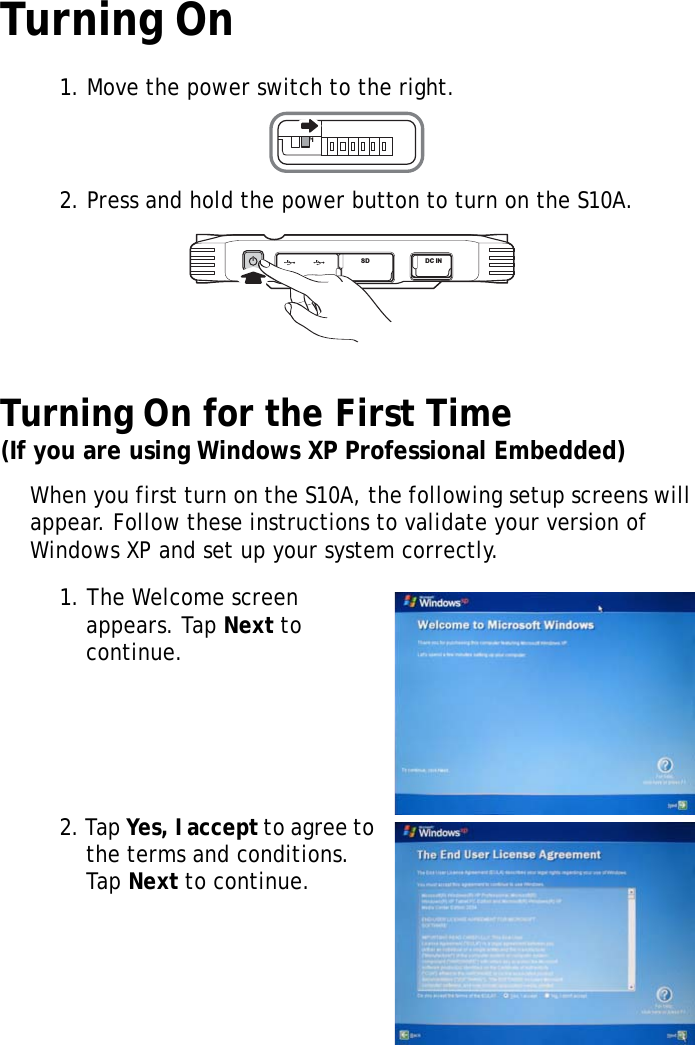

S10A User Manual21Turning On1. Move the power switch to the right.2. Press and hold the power button to turn on the S10A.Turning On for the First Time(If you are using Windows XP Professional Embedded)When you first turn on the S10A, the following setup screens will appear. Follow these instructions to validate your version of Windows XP and set up your system correctly.1. The Welcome screen appears. Tap Next to continue.2. Tap Yes, I accept to agree to the terms and conditions. Tap Next to continue.SW1SD DC IN

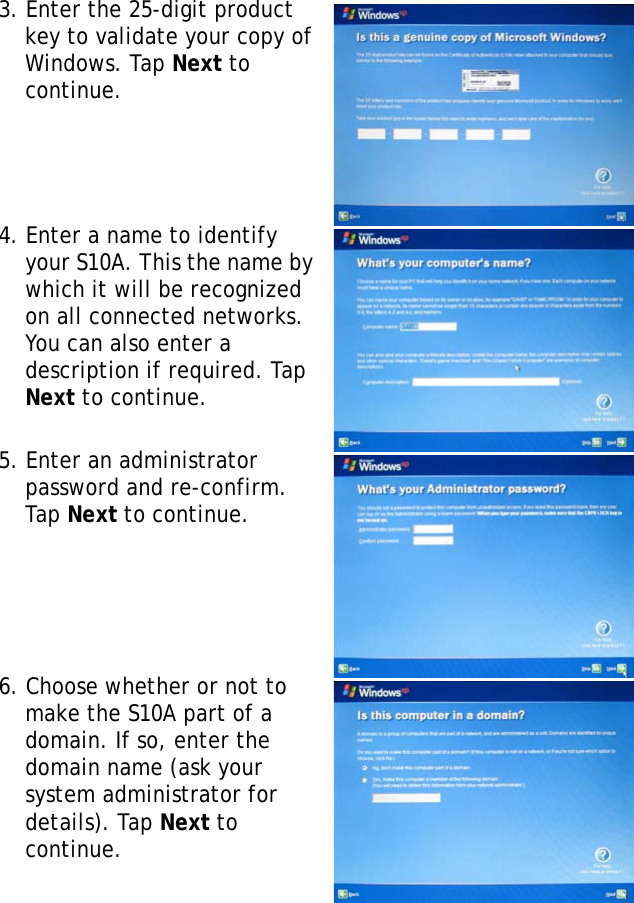

S10A User Manual223. Enter the 25-digit product key to validate your copy of Windows. Tap Next to continue. 4. Enter a name to identify your S10A. This the name by which it will be recognized on all connected networks. You can also enter a description if required. Tap Next to continue.5. Enter an administrator password and re-confirm. Tap Next to continue.6. Choose whether or not to make the S10A part of a domain. If so, enter the domain name (ask your system administrator for details). Tap Next to continue.

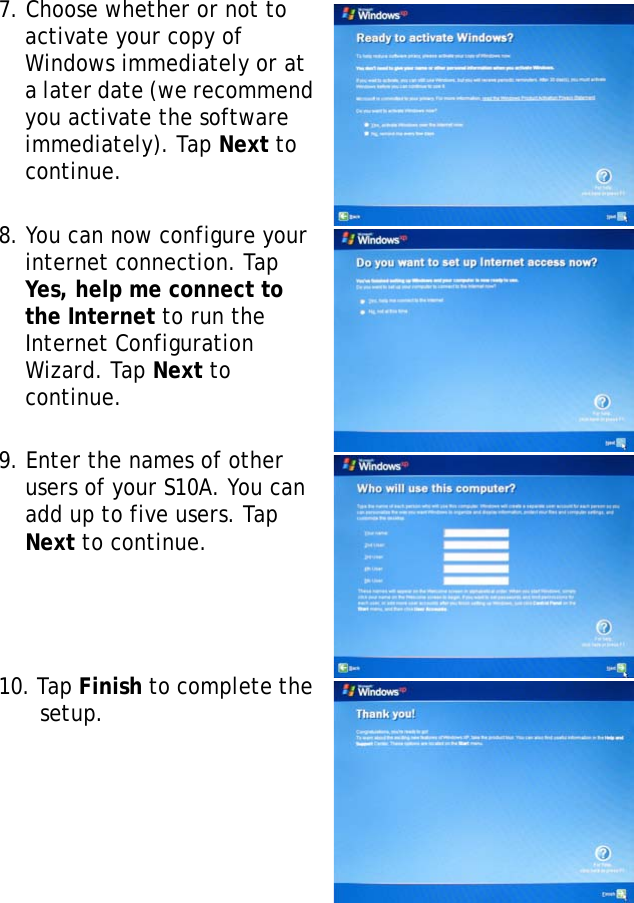

S10A User Manual237. Choose whether or not to activate your copy of Windows immediately or at a later date (we recommend you activate the software immediately). Tap Next to continue.8. You can now configure your internet connection. Tap Yes, help me connect to the Internet to run the Internet Configuration Wizard. Tap Next to continue.9. Enter the names of other users of your S10A. You can add up to five users. Tap Next to continue.10. Tap Finish to complete the setup.

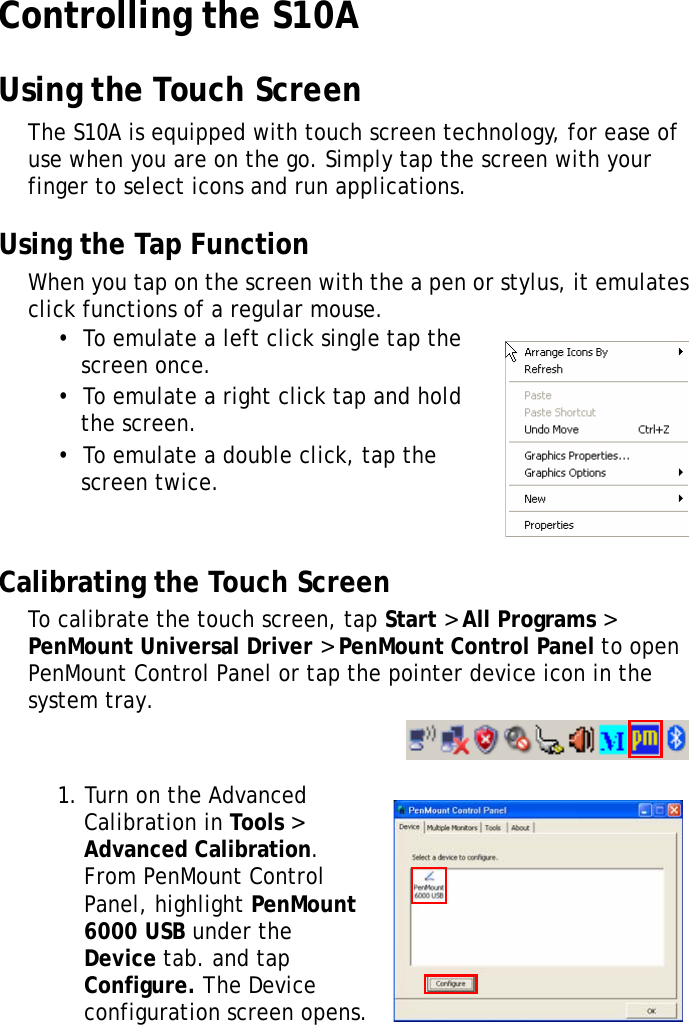

S10A User Manual24Controlling the S10AUsing the Touch ScreenThe S10A is equipped with touch screen technology, for ease of use when you are on the go. Simply tap the screen with your finger to select icons and run applications.Using the Tap FunctionWhen you tap on the screen with the a pen or stylus, it emulates click functions of a regular mouse. • To emulate a left click single tap the screen once.• To emulate a right click tap and hold the screen.• To emulate a double click, tap the screen twice.Calibrating the Touch ScreenTo calibrate the touch screen, tap Start > All Programs > PenMount Universal Driver > PenMount Control Panel to open PenMount Control Panel or tap the pointer device icon in the system tray.1. Turn on the Advanced Calibration in Tools > Advanced Calibration. From PenMount Control Panel, highlight PenMount 6000 USB under the Device tab. and tap Configure. The Device configuration screen opens.

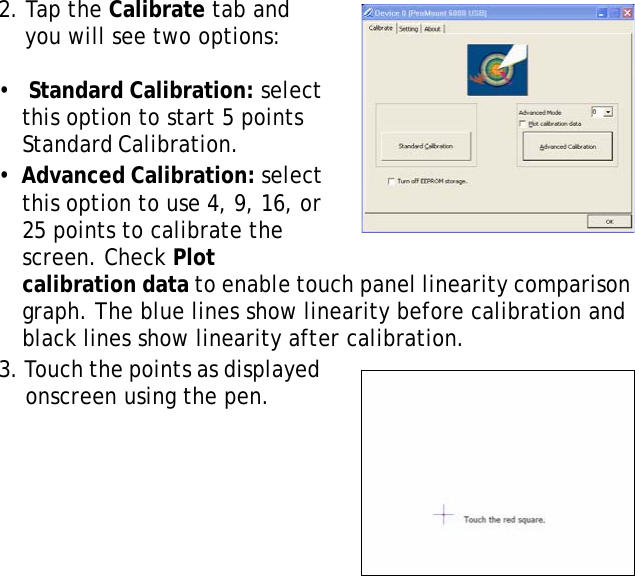

S10A User Manual252. Tap the Calibrate tab and you will see two options: • Standard Calibration: select this option to start 5 points Standard Calibration. • Advanced Calibration: select this option to use 4, 9, 16, or 25 points to calibrate the screen. Check Plot calibration data to enable touch panel linearity comparison graph. The blue lines show linearity before calibration and black lines show linearity after calibration.3. Touch the points as displayed onscreen using the pen.

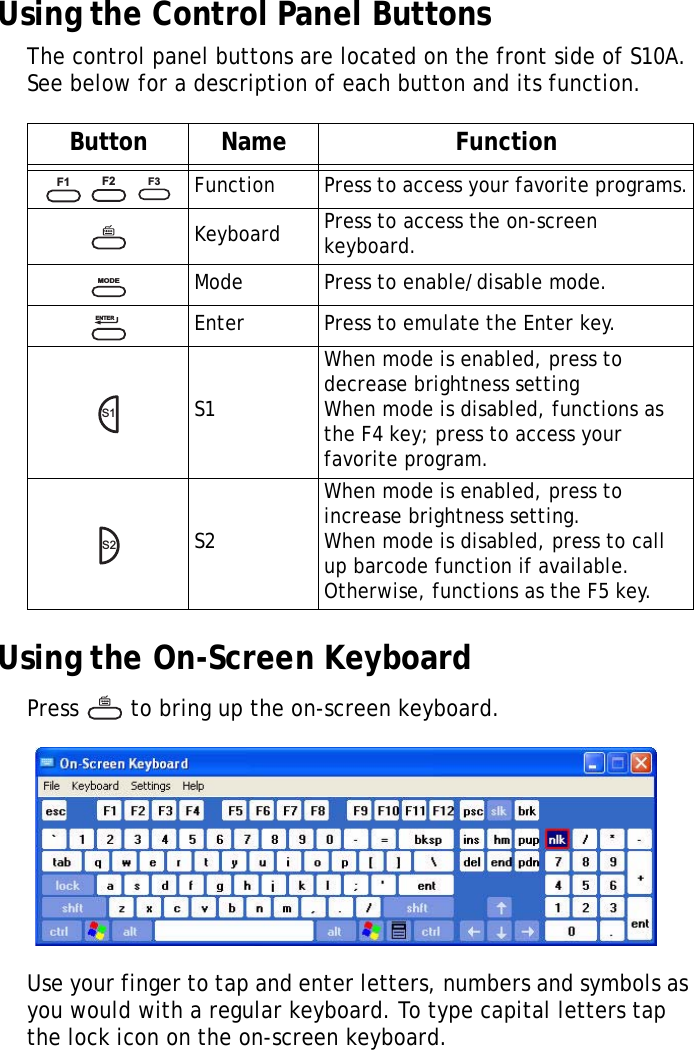

S10A User Manual26Using the Control Panel ButtonsThe control panel buttons are located on the front side of S10A. See below for a description of each button and its function.Using the On-Screen KeyboardPress to bring up the on-screen keyboard.Use your finger to tap and enter letters, numbers and symbols as you would with a regular keyboard. To type capital letters tap the lock icon on the on-screen keyboard.Button Name Function Function Press to access your favorite programs.Keyboard Press to access the on-screen keyboard.Mode Press to enable/disable mode.Enter Press to emulate the Enter key.S1When mode is enabled, press to decrease brightness settingWhen mode is disabled, functions as the F4 key; press to access your favorite program.S2When mode is enabled, press to increase brightness setting.When mode is disabled, press to call up barcode function if available. Otherwise, functions as the F5 key.F1F2F3MODEENTERS1S2

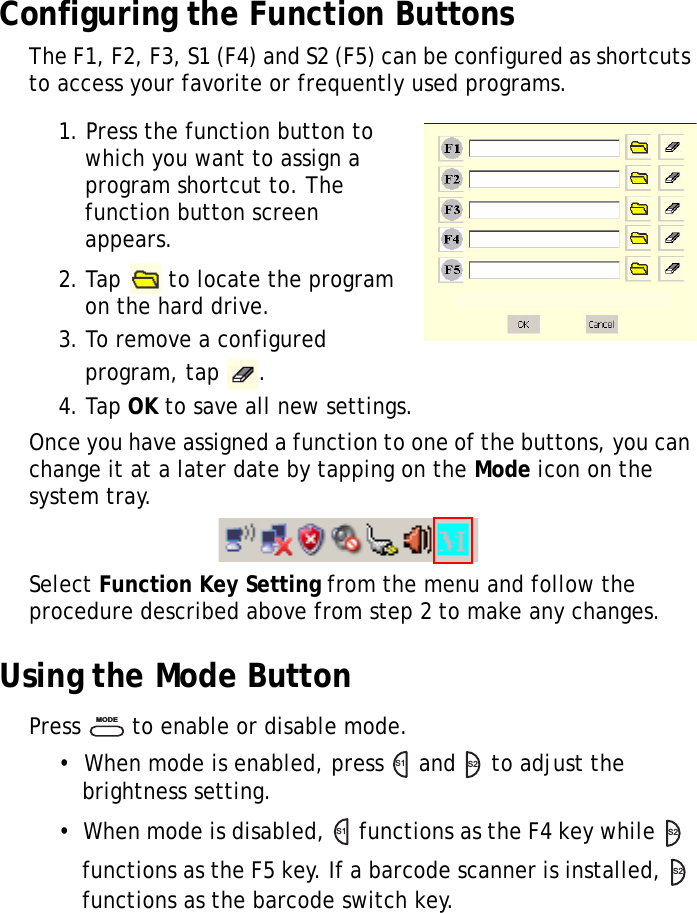

S10A User Manual27Configuring the Function ButtonsThe F1, F2, F3, S1 (F4) and S2 (F5) can be configured as shortcuts to access your favorite or frequently used programs.1. Press the function button to which you want to assign a program shortcut to. The function button screen appears.2. Tap to locate the program on the hard drive.3. To remove a configured program, tap .4. Tap OK to save all new settings.Once you have assigned a function to one of the buttons, you can change it at a later date by tapping on the Mode icon on the system tray.Select Function Key Setting from the menu and follow the procedure described above from step 2 to make any changes.Using the Mode ButtonPress to enable or disable mode.• When mode is enabled, press and to adjust the brightness setting.• When mode is disabled, functions as the F4 key while functions as the F5 key. If a barcode scanner is installed, functions as the barcode switch key.MODES1S2S1S2S2

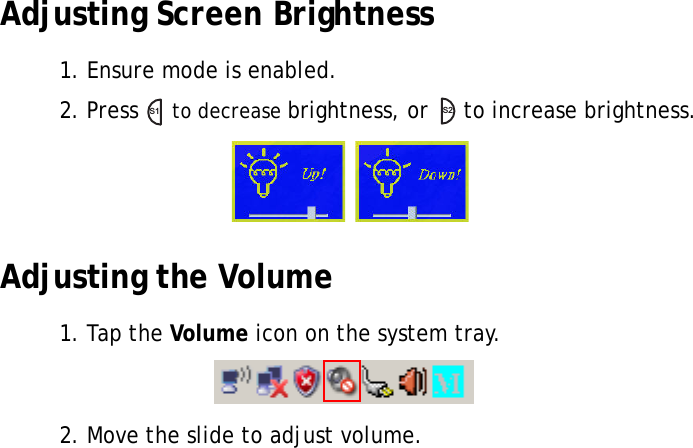

S10A User Manual28Adjusting Screen Brightness1. Ensure mode is enabled.2. Press to decrease brightness, or to increase brightness.Adjusting the Volume1. Tap the Volume icon on the system tray.2. Move the slide to adjust volume.S1S2

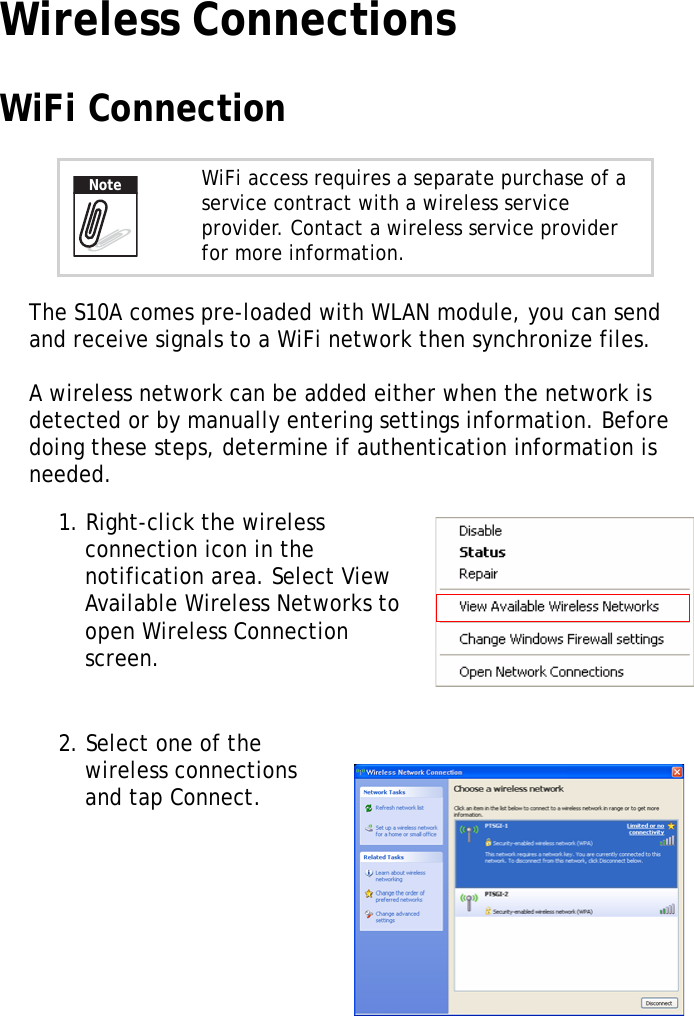

S10A User Manual29Wireless ConnectionsWiFi ConnectionThe S10A comes pre-loaded with WLAN module, you can send and receive signals to a WiFi network then synchronize files.A wireless network can be added either when the network is detected or by manually entering settings information. Before doing these steps, determine if authentication information is needed.1. Right-click the wireless connection icon in the notification area. Select View Available Wireless Networks to open Wireless Connection screen. 2. Select one of the wireless connections and tap Connect.WiFi access requires a separate purchase of a service contract with a wireless service provider. Contact a wireless service provider for more information.Note

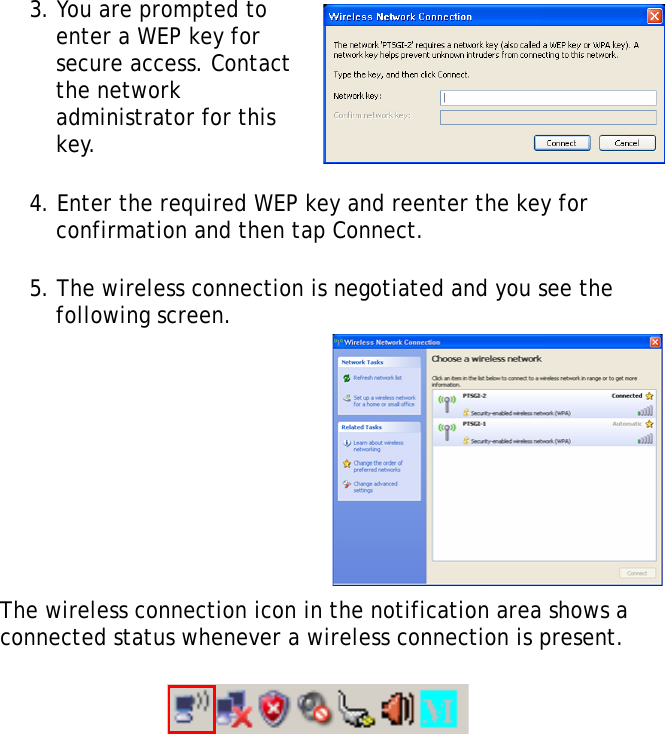

S10A User Manual303. You are prompted to enter a WEP key for secure access. Contact the network administrator for this key.4. Enter the required WEP key and reenter the key for confirmation and then tap Connect.5. The wireless connection is negotiated and you see the following screen. The wireless connection icon in the notification area shows a connected status whenever a wireless connection is present.

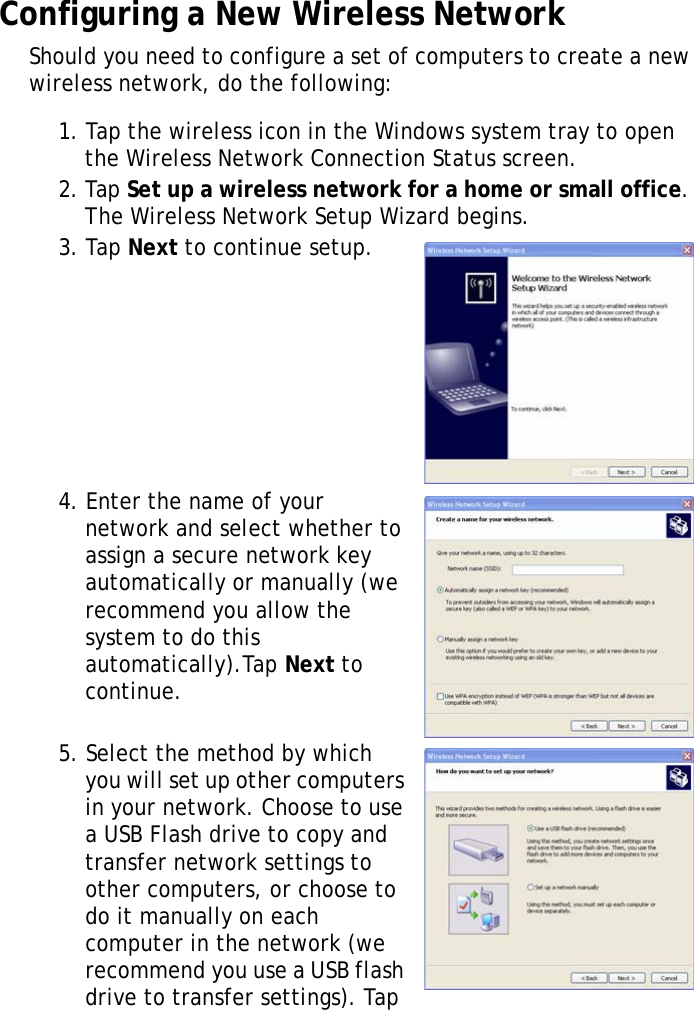

S10A User Manual31Configuring a New Wireless NetworkShould you need to configure a set of computers to create a new wireless network, do the following:1. Tap the wireless icon in the Windows system tray to open the Wireless Network Connection Status screen.2. Tap Set up a wireless network for a home or small office. The Wireless Network Setup Wizard begins.3. Tap Next to continue setup.4. Enter the name of your network and select whether to assign a secure network key automatically or manually (we recommend you allow the system to do this automatically).Tap Next to continue.5. Select the method by which you will set up other computers in your network. Choose to use a USB Flash drive to copy and transfer network settings to other computers, or choose to do it manually on each computer in the network (we recommend you use a USB flash drive to transfer settings). Tap

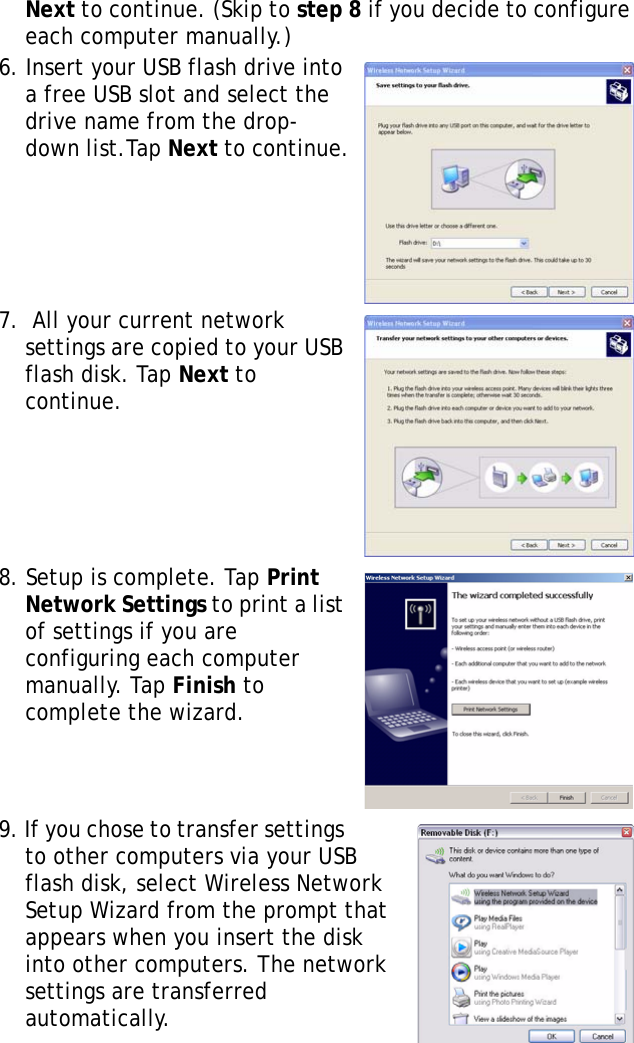

S10A User Manual32Next to continue. (Skip to step 8 if you decide to configure each computer manually.)6. Insert your USB flash drive into a free USB slot and select the drive name from the drop-down list.Tap Next to continue.7. All your current network settings are copied to your USB flash disk. Tap Next to continue.8. Setup is complete. Tap Print Network Settings to print a list of settings if you are configuring each computer manually. Tap Finish to complete the wizard.9. If you chose to transfer settings to other computers via your USB flash disk, select Wireless Network Setup Wizard from the prompt that appears when you insert the disk into other computers. The network settings are transferred automatically.

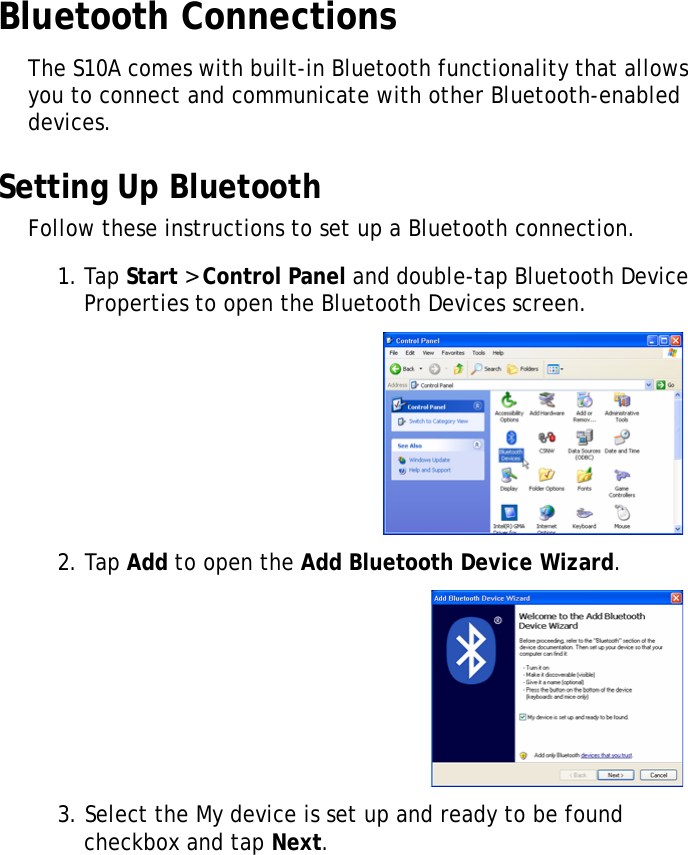

S10A User Manual33Bluetooth ConnectionsThe S10A comes with built-in Bluetooth functionality that allows you to connect and communicate with other Bluetooth-enabled devices.Setting Up BluetoothFollow these instructions to set up a Bluetooth connection.1. Tap Start > Control Panel and double-tap Bluetooth Device Properties to open the Bluetooth Devices screen.2. Tap Add to open the Add Bluetooth Device Wizard.3. Select the My device is set up and ready to be found checkbox and tap Next.

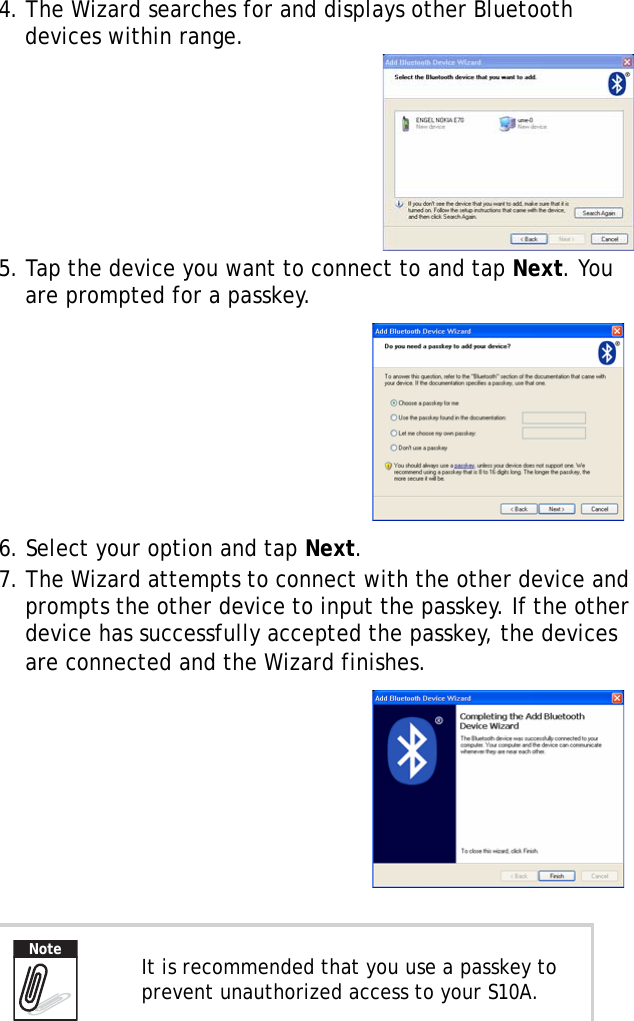

S10A User Manual344. The Wizard searches for and displays other Bluetooth devices within range.5. Tap the device you want to connect to and tap Next. You are prompted for a passkey.6. Select your option and tap Next.7. The Wizard attempts to connect with the other device and prompts the other device to input the passkey. If the other device has successfully accepted the passkey, the devices are connected and the Wizard finishes. It is recommended that you use a passkey to prevent unauthorized access to your S10A.Note

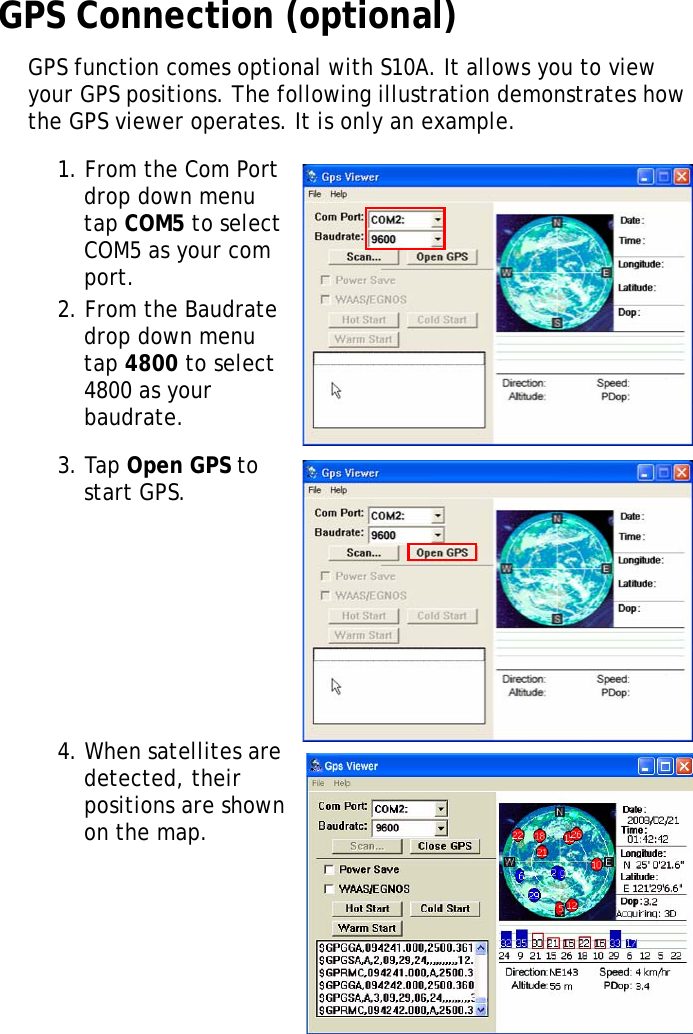

S10A User Manual36GPS Connection (optional)GPS function comes optional with S10A. It allows you to view your GPS positions. The following illustration demonstrates how the GPS viewer operates. It is only an example.1. From the Com Port drop down menu tap COM5 to select COM5 as your com port.2. From the Baudrate drop down menu tap 4800 to select 4800 as your baudrate.3. Tap Open GPS to start GPS.4. When satellites are detected, their positions are shown on the map.

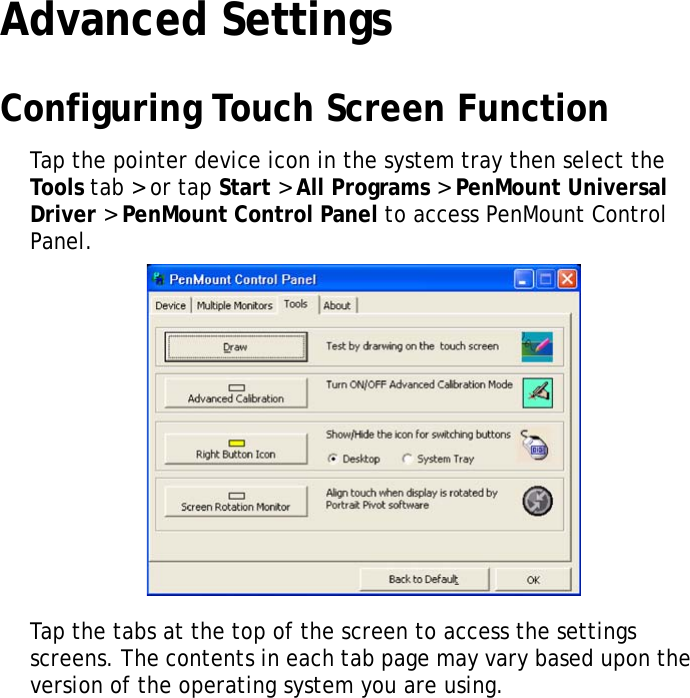

S10A User Manual37Advanced SettingsConfiguring Touch Screen FunctionTap the pointer device icon in the system tray then select the Tools tab > or tap Start > All Programs > PenMount Universal Driver > PenMount Control Panel to access PenMount Control Panel.Tap the tabs at the top of the screen to access the settings screens. The contents in each tab page may vary based upon the version of the operating system you are using.

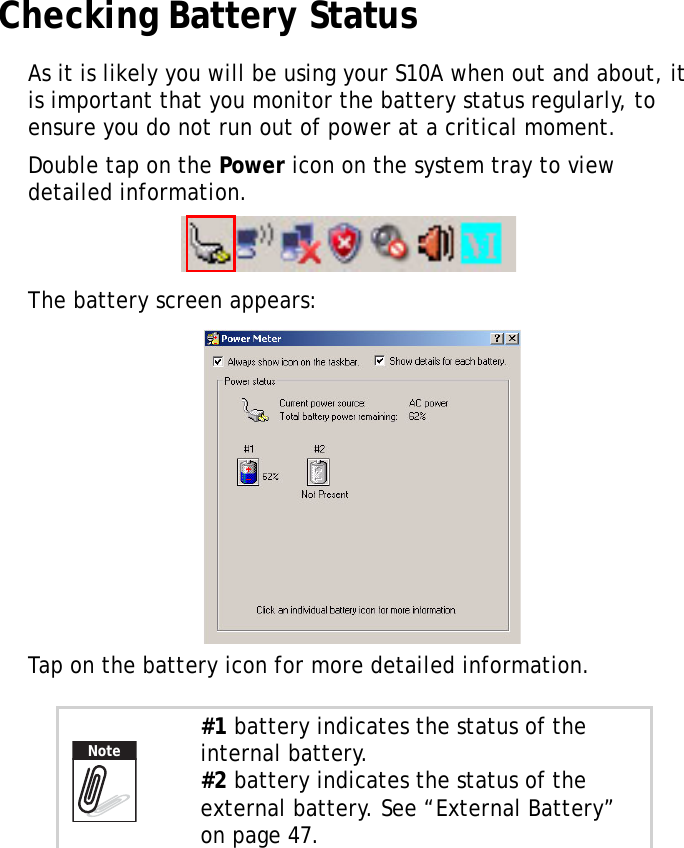

S10A User Manual38Checking Battery StatusAs it is likely you will be using your S10A when out and about, it is important that you monitor the battery status regularly, to ensure you do not run out of power at a critical moment.Double tap on the Power icon on the system tray to view detailed information.The battery screen appears:Tap on the battery icon for more detailed information.#1 battery indicates the status of the internal battery.#2 battery indicates the status of the external battery. See “External Battery” on page 47.Note

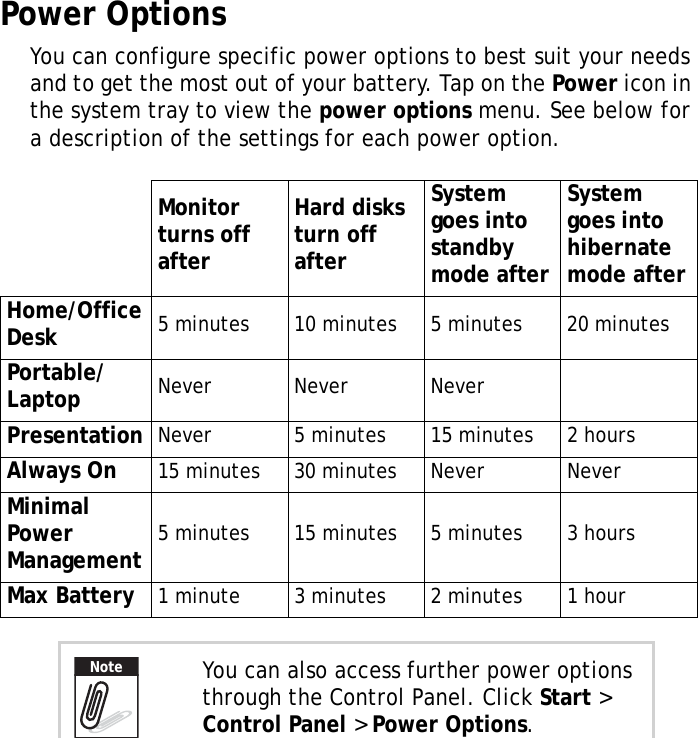

S10A User Manual39Power OptionsYou can configure specific power options to best suit your needs and to get the most out of your battery. Tap on the Power icon in the system tray to view the power options menu. See below for a description of the settings for each power option. Monitor turns off afterHard disks turn off afterSystem goes into standby mode afterSystem goes into hibernate mode afterHome/Office Desk 5 minutes 10 minutes 5 minutes 20 minutesPortable/Laptop Never Never NeverPresentation Never 5 minutes 15 minutes 2 hoursAlways On 15 minutes 30 minutes Never NeverMinimal Power Management 5 minutes 15 minutes 5 minutes 3 hoursMax Battery 1 minute 3 minutes 2 minutes 1 hourYou can also access further power options through the Control Panel. Click Start > Control Panel > Power Options.Note

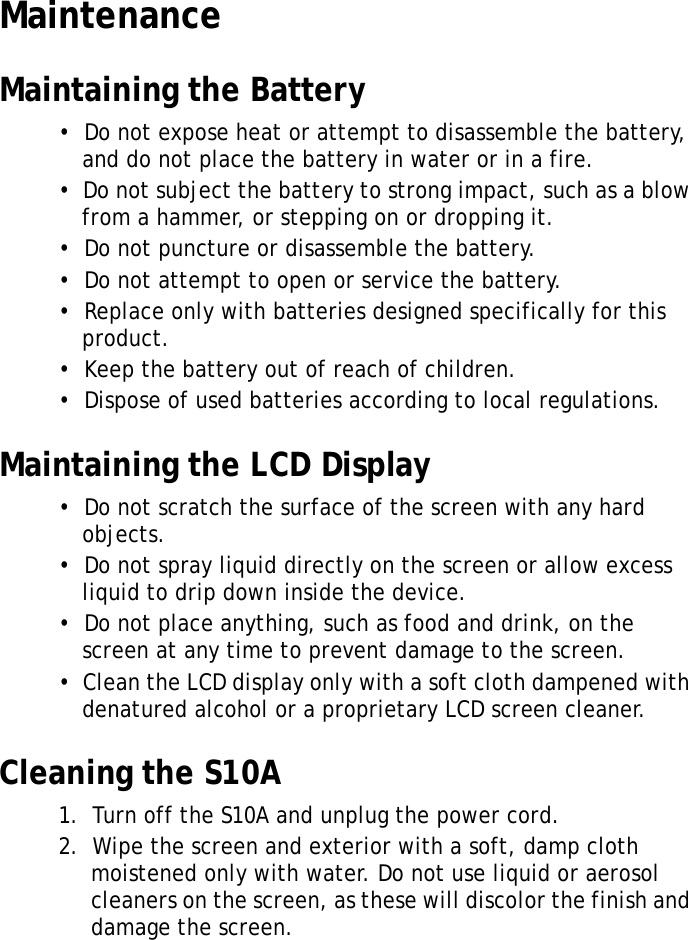

S10A User Manual40MaintenanceMaintaining the Battery• Do not expose heat or attempt to disassemble the battery, and do not place the battery in water or in a fire.• Do not subject the battery to strong impact, such as a blow from a hammer, or stepping on or dropping it.• Do not puncture or disassemble the battery.• Do not attempt to open or service the battery.• Replace only with batteries designed specifically for this product.• Keep the battery out of reach of children.• Dispose of used batteries according to local regulations.Maintaining the LCD Display• Do not scratch the surface of the screen with any hard objects.• Do not spray liquid directly on the screen or allow excess liquid to drip down inside the device.• Do not place anything, such as food and drink, on the screen at any time to prevent damage to the screen.• Clean the LCD display only with a soft cloth dampened with denatured alcohol or a proprietary LCD screen cleaner.Cleaning the S10A1. Turn off the S10A and unplug the power cord.2. Wipe the screen and exterior with a soft, damp cloth moistened only with water. Do not use liquid or aerosol cleaners on the screen, as these will discolor the finish and damage the screen.

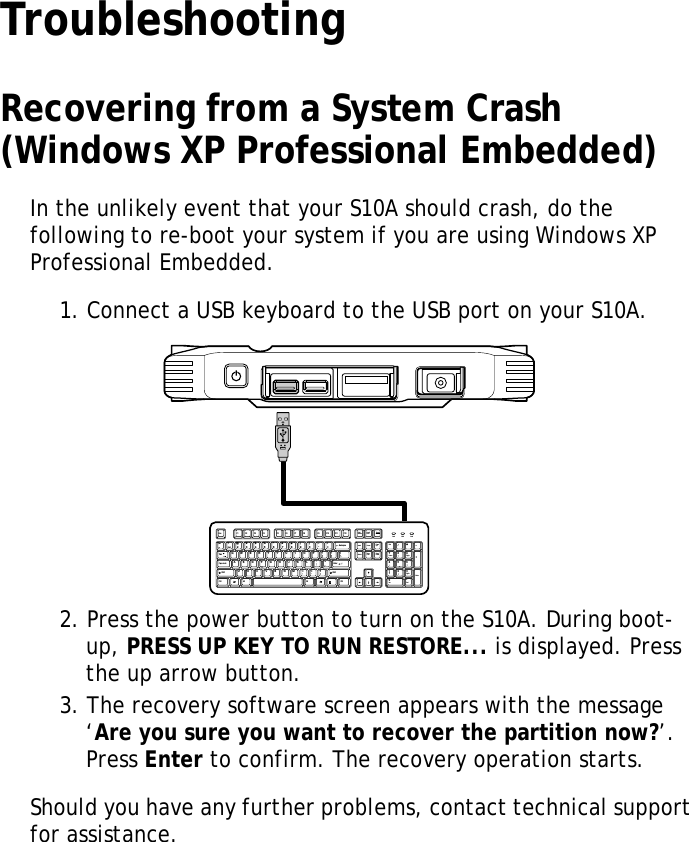

S10A User Manual41TroubleshootingRecovering from a System Crash (Windows XP Professional Embedded)In the unlikely event that your S10A should crash, do the following to re-boot your system if you are using Windows XP Professional Embedded.1. Connect a USB keyboard to the USB port on your S10A.2. Press the power button to turn on the S10A. During boot-up, PRESS UP KEY TO RUN RESTORE... is displayed. Press the up arrow button.3. The recovery software screen appears with the message ‘Are you sure you want to recover the partition now?’. Press Enter to confirm. The recovery operation starts.Should you have any further problems, contact technical support for assistance.MOLEXEsc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12PrintScreenInsertBackspaceEnterEnterAltCtrlCaps LockTabAlt CtrlPageUpPageDown+=_-)(**& ^%$#@1~`_/+DeleteScrollLockNumLockHomeHome798!1End023456789Q P {[{[-\/WER T Y U I OA:;"'SDFGHJK LZXCVBNM<,.>? Ins0Del.4PgUp3PgDnEnd652ShiftShiftPauseBreak Num Lock CapsLock ScrollLock

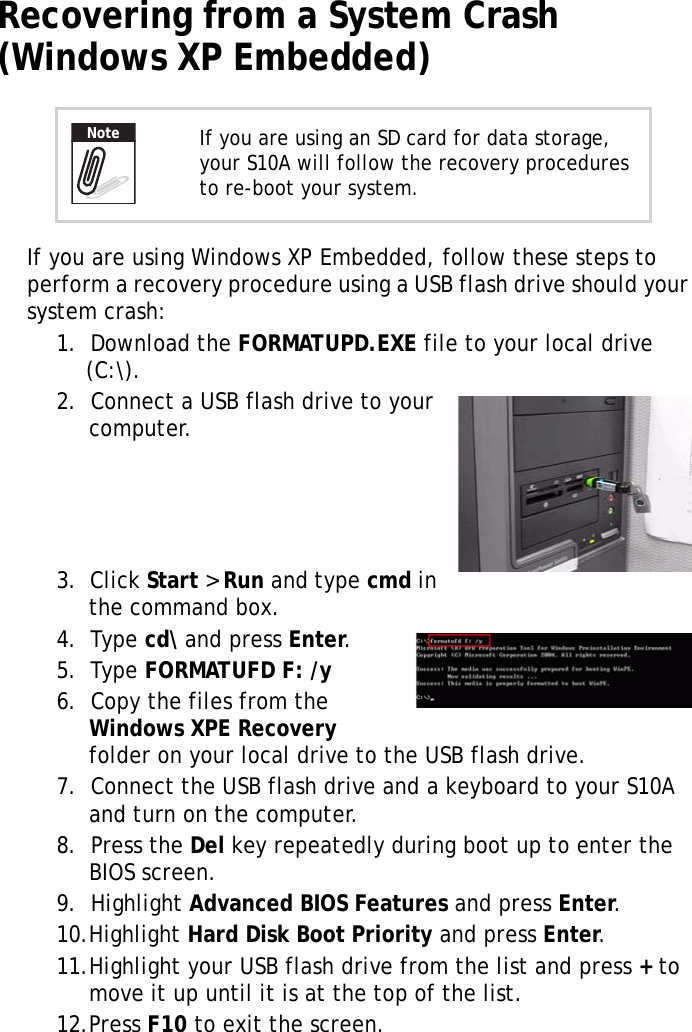

S10A User Manual42Recovering from a System Crash (Windows XP Embedded)If you are using Windows XP Embedded, follow these steps to perform a recovery procedure using a USB flash drive should your system crash:1. Download the FORMATUPD.EXE file to your local drive (C:\).2. Connect a USB flash drive to your computer.3. Click Start > Run and type cmd in the command box.4. Type cd\ and press Enter.5. Type FORMATUFD F: /y6. Copy the files from the Windows XPE Recovery folder on your local drive to the USB flash drive.7. Connect the USB flash drive and a keyboard to your S10A and turn on the computer.8. Press the Del key repeatedly during boot up to enter the BIOS screen.9. Highlight Advanced BIOS Features and press Enter.10.Highlight Hard Disk Boot Priority and press Enter.11.Highlight your USB flash drive from the list and press + to move it up until it is at the top of the list.12.Press F10 to exit the screen.If you are using an SD card for data storage, your S10A will follow the recovery procedures to re-boot your system.Note

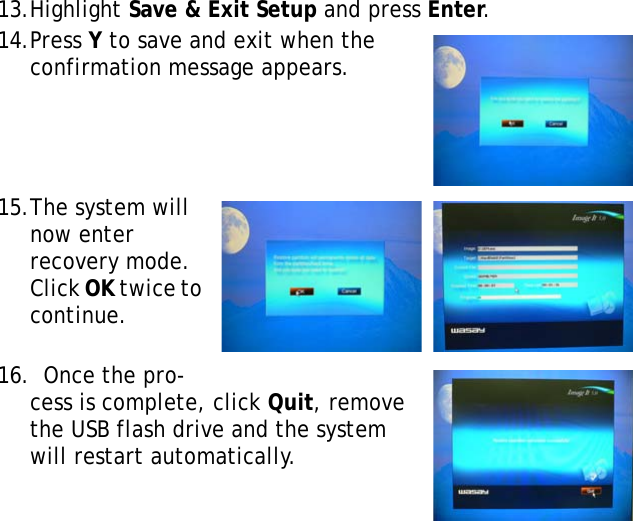

S10A User Manual4313.Highlight Save & Exit Setup and press Enter.14.Press Y to save and exit when the confirmation message appears.15.The system will now enter recovery mode. Click OK twice to continue.16. Once the pro-cess is complete, click Quit, remove the USB flash drive and the system will restart automatically.
S10A User Manual44AppendixSpecificationsFeature DescriptionOperating System Windows XP Embedded/Windows XP Professional EmbeddedWindows Vista BasicProcessor Intel ATOM Z530 1.6G / Z510 1.1GChipset US15WMemory One SO-DIMM DDRI 533 support up to 2GBStorage Compact Flash (CF) Memory Card (4G/8G)Display 10.4” XGA TFT LCDTouch Panel 4-wire resistive touch panelApplication ButtonOne Power buttonOne software keyboard buttonOne Mode buttonOne Enter buttonFive Function programmable buttons for quick selection of applicationsCommunication802.11b/g WLAN (miniPCI-E) moduleBluetooth class 2, v2.0+EDRModem or Internal GPS module (optional)Audio System Realtek ALC662Main Battery Rechargeable Li-ion smart battery, 1880mA, 3S1PPower Adapter Universal AC 100V~240V, 50~60Hz input; 19V, 3.16A output, 60W

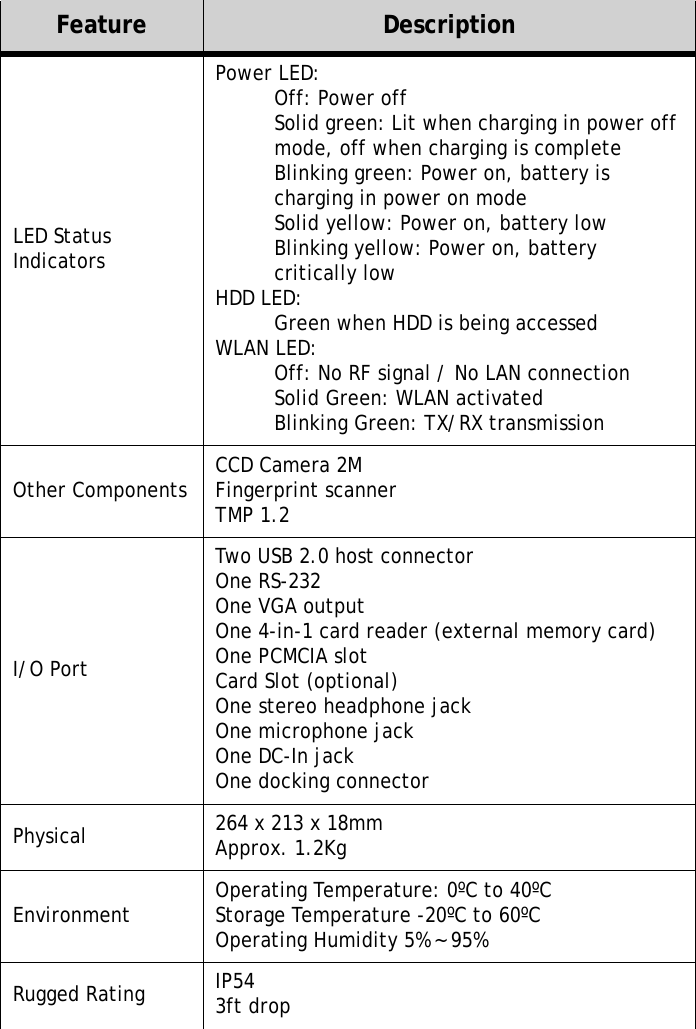

S10A User Manual45LED Status IndicatorsPower LED:Off: Power offSolid green: Lit when charging in power off mode, off when charging is completeBlinking green: Power on, battery is charging in power on modeSolid yellow: Power on, battery lowBlinking yellow: Power on, battery critically lowHDD LED:Green when HDD is being accessedWLAN LED:Off: No RF signal / No LAN connectionSolid Green: WLAN activatedBlinking Green: TX/RX transmissionOther Components CCD Camera 2MFingerprint scannerTMP 1.2I/O PortTwo USB 2.0 host connectorOne RS-232One VGA outputOne 4-in-1 card reader (external memory card)One PCMCIA slotCard Slot (optional)One stereo headphone jackOne microphone jackOne DC-In jackOne docking connectorPhysical 264 x 213 x 18mmApprox. 1.2KgEnvironment Operating Temperature: 0ºC to 40ºCStorage Temperature -20ºC to 60ºCOperating Humidity 5% ~ 95%Rugged Rating IP543ft dropFeature Description

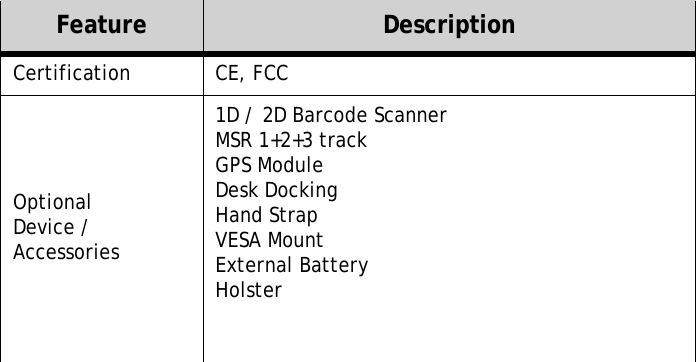

S10A User Manual46Certification CE, FCCOptionalDevice / Accessories1D / 2D Barcode ScannerMSR 1+2+3 trackGPS ModuleDesk DockingHand StrapVESA MountExternal BatteryHolsterFeature Description

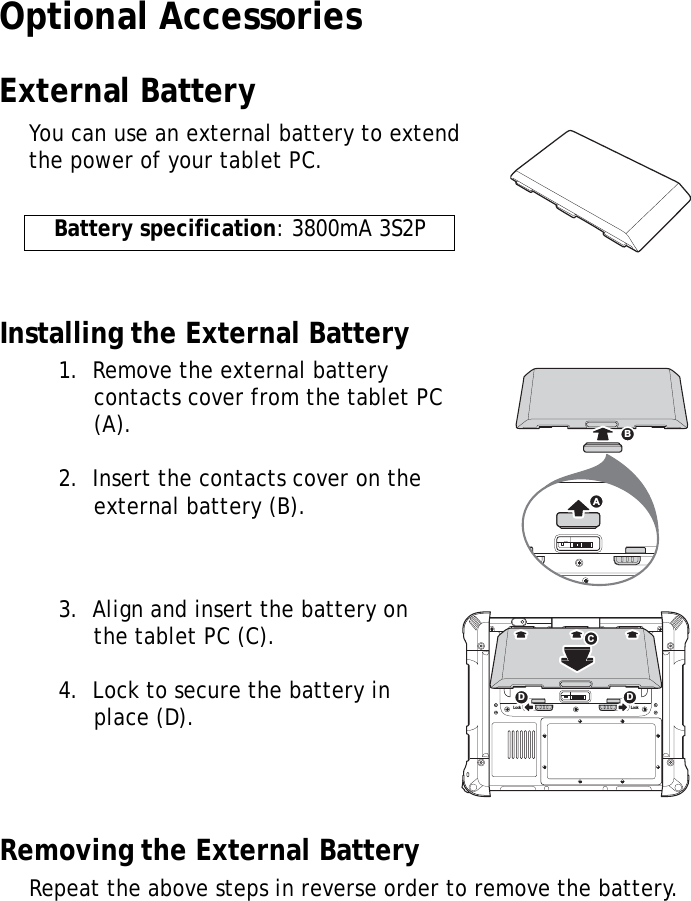

S10A User Manual47Optional AccessoriesExternal BatteryYou can use an external battery to extend the power of your tablet PC.Installing the External Battery1. Remove the external battery contacts cover from the tablet PC (A).2. Insert the contacts cover on the external battery (B).3. Align and insert the battery on the tablet PC (C).4. Lock to secure the battery in place (D).Removing the External BatteryRepeat the above steps in reverse order to remove the battery.Battery specification: 3800mA 3S2PSW1ABLock LockSW1CDD

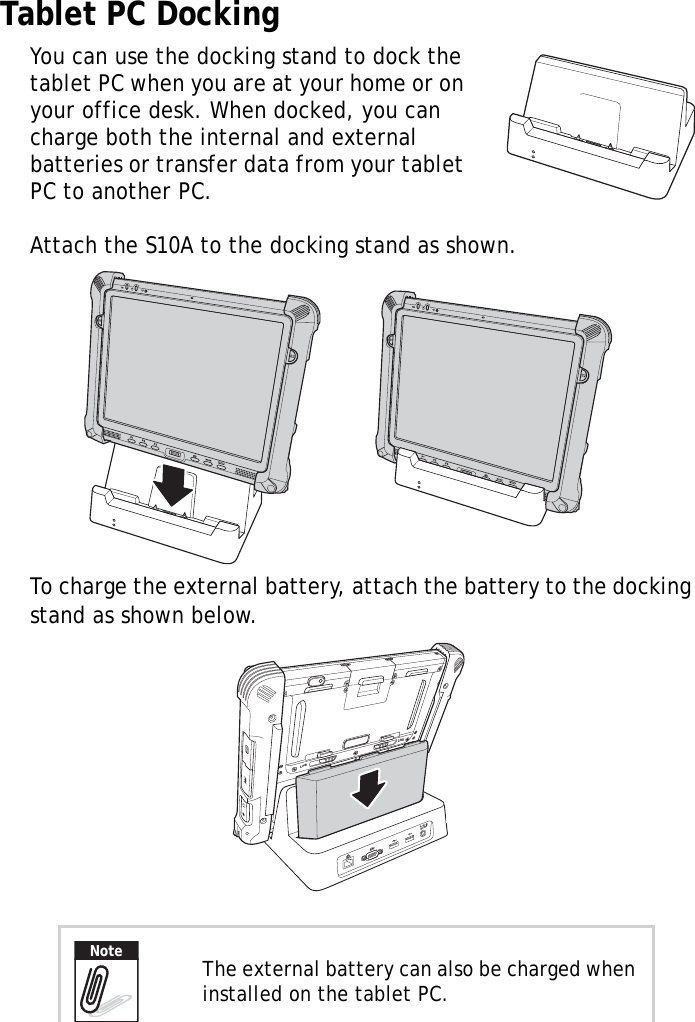

S10A User Manual48Tablet PC DockingYou can use the docking stand to dock the tablet PC when you are at your home or on your office desk. When docked, you can charge both the internal and external batteries or transfer data from your tablet PC to another PC.Attach the S10A to the docking stand as shown.To charge the external battery, attach the battery to the docking stand as shown below. The external battery can also be charged when installed on the tablet PC.LockLockDC19VNote

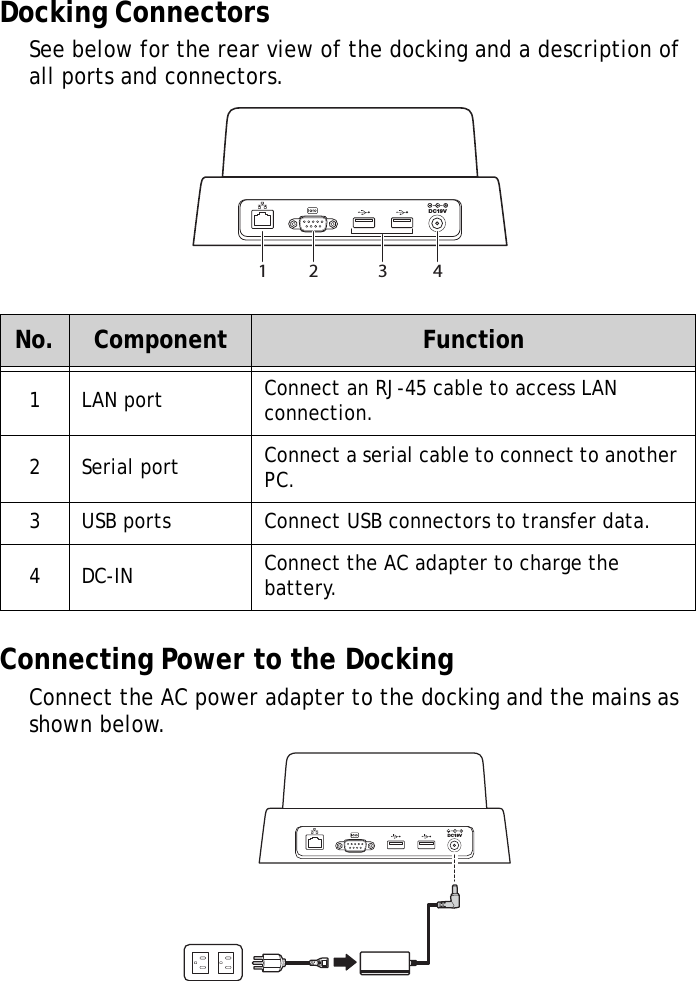

S10A User Manual49Docking ConnectorsSee below for the rear view of the docking and a description of all ports and connectors. Connecting Power to the DockingConnect the AC power adapter to the docking and the mains as shown below.No. Component Function1LAN port Connect an RJ-45 cable to access LAN connection.2Serial port Connect a serial cable to connect to another PC.3 USB ports Connect USB connectors to transfer data.4DC-IN Connect the AC adapter to charge the battery.DC19V21 43DC19V

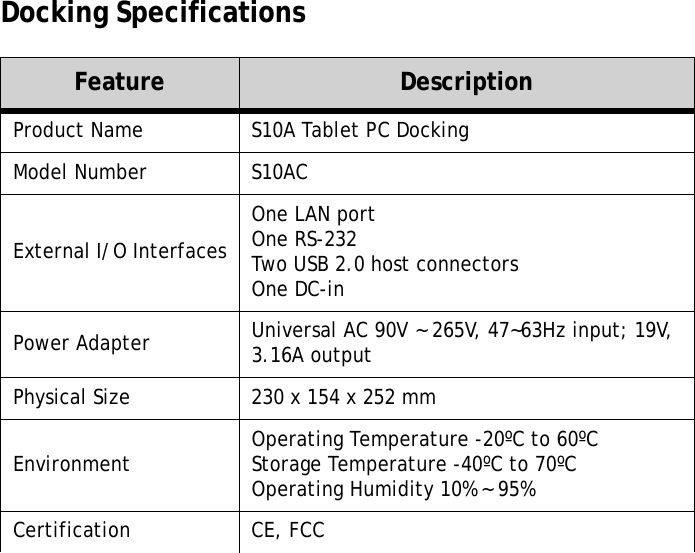

S10A User Manual50Docking SpecificationsFeature DescriptionProduct Name S10A Tablet PC DockingModel Number S10ACExternal I/O InterfacesOne LAN portOne RS-232Two USB 2.0 host connectorsOne DC-inPower Adapter Universal AC 90V ~ 265V, 47~63Hz input; 19V, 3.16A output Physical Size 230 x 154 x 252 mmEnvironment Operating Temperature -20ºC to 60ºC Storage Temperature -40ºC to 70ºC Operating Humidity 10% ~ 95%Certification CE, FCC

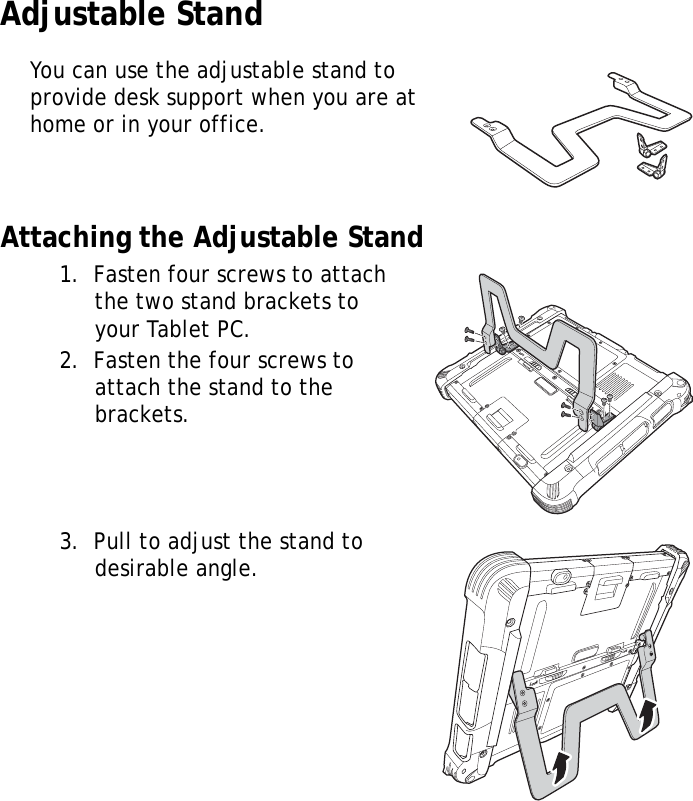

S10A User Manual51Adjustable StandYou can use the adjustable stand to provide desk support when you are at home or in your office.Attaching the Adjustable Stand1. Fasten four screws to attach the two stand brackets to your Tablet PC.2. Fasten the four screws to attach the stand to the brackets.3. Pull to adjust the stand to desirable angle.LockLockLockLock

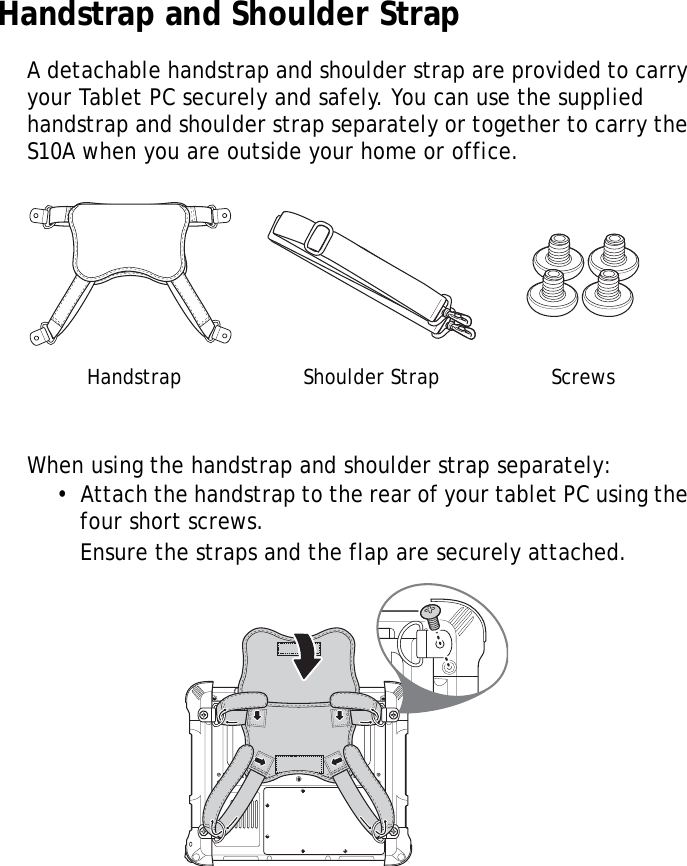

S10A User Manual52Handstrap and Shoulder StrapA detachable handstrap and shoulder strap are provided to carry your Tablet PC securely and safely. You can use the supplied handstrap and shoulder strap separately or together to carry the S10A when you are outside your home or office.When using the handstrap and shoulder strap separately:• Attach the handstrap to the rear of your tablet PC using the four short screws.Ensure the straps and the flap are securely attached.Handstrap Shoulder Strap ScrewsLock Lock

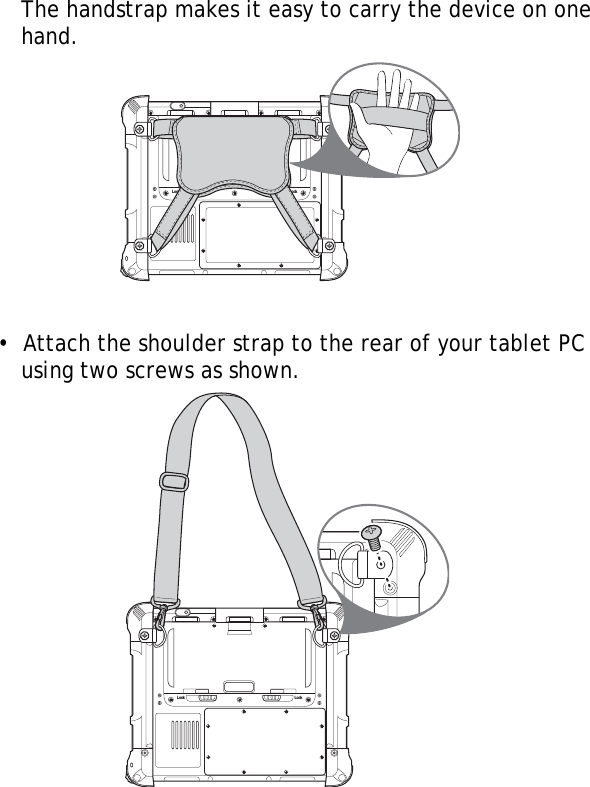

S10A User Manual53The handstrap makes it easy to carry the device on one hand.• Attach the shoulder strap to the rear of your tablet PC using two screws as shown.Lock LockLock Lock

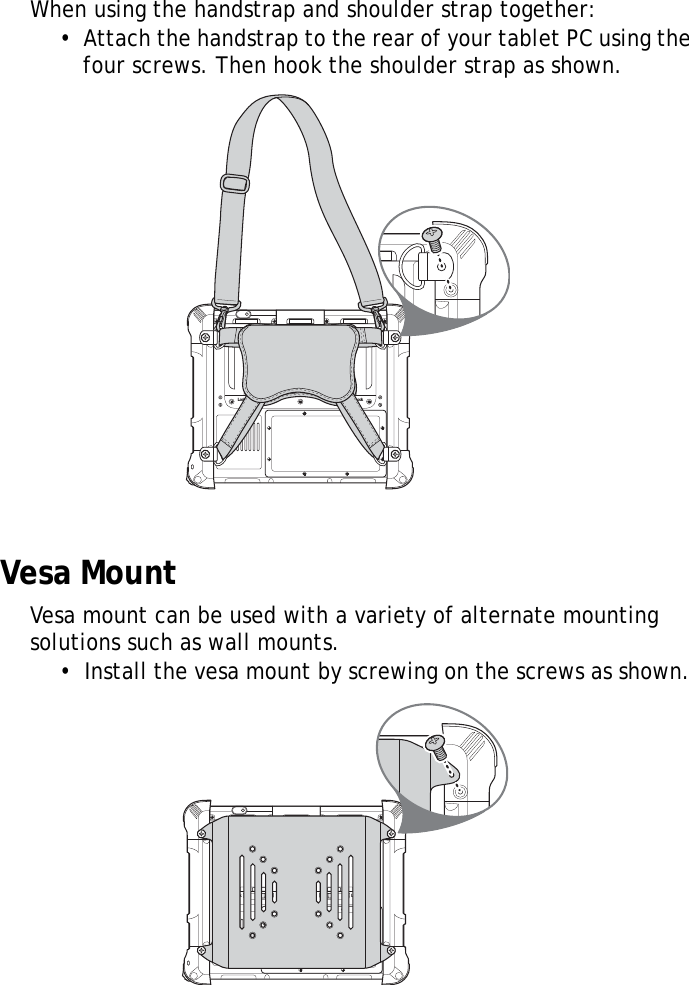

S10A User Manual54When using the handstrap and shoulder strap together:• Attach the handstrap to the rear of your tablet PC using the four screws. Then hook the shoulder strap as shown.Vesa MountVesa mount can be used with a variety of alternate mounting solutions such as wall mounts.• Install the vesa mount by screwing on the screws as shown. Lock LockLock Lock
