ACCO USA 00035002 ANDROID CORE CONTROLLER User Manual 121207 000000 01 MOGA Pro manual ph2C

Bensussen Deutsch & Associates, Inc. ANDROID CORE CONTROLLER 121207 000000 01 MOGA Pro manual ph2C

User Manual

User Manual
Manuel de l’utilisateur
Manual de usuario
For/Pour/Para Android
™
Game On. Anywhere.
Then it’s game on. Anywhere you’d like.
Have fun, and let us know what you think!
facebook.com/PowerAMobility twitter.com/Power_A_
Welcome to the MOGA experience.
The MOGA Pivot App must be downloaded to find and play
MOGA Enhanced Games on your Bluetooth enabled Android 2.3+ device.
Scan to download the MOGA Pivot App
or follow the directions on the following pages.
PowerA.com/MOGAPivotApp or search MOGA Pivot App on Google Play
X
Y
B
A
Start
button
Right Trigger
button
Shoulder
buttons
USB
charging port
Left Trigger
button
Power LED
Indicator
Power LED
button
Select
button
D-Pad
button
PowerA
button
Left
Analog
stick MOGA Arm™
A/OFF/B
power switch
Figure 1 Figure 2
Figure 4Figure 3
Right
Analog
stick
Action
buttons
Setup
Fully Charge Battery and Turn on MOGA Controller
1. The MOGA Pro Controller features a built-in rechargeable battery.
To charge your MOGA Pro, use the included USB Charging Cable.
2. Connect one end of the cable to your MOGA Pro, and connect
the other end to any powered USB input. A flashing Yellow LED
indicates that charging is in process. When the MOGA Pro is fully
charged the LED will turn off.
Install MOGA Pivot App
3. MOGA Pivot App must be downloaded prior to gameplay.
Download the MOGA Pivot App from Google Play by visiting
PowerA.com/MOGAPivotApp or by scanning the QR Code
provided in this manual or located on the sticker attached to the
adjustable MOGA Arm™ of your MOGA Controller.
NOTE: You may need to have a QR Code scanner app installed on your
mobile device.
Pair MOGA with Mobile Device

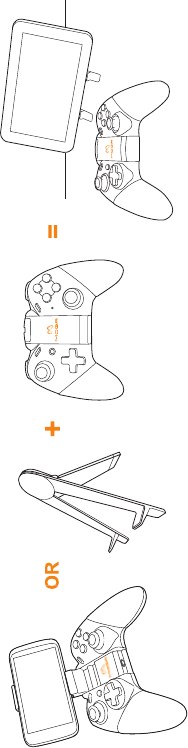

4. Attach and turn on your smartphone or setup your tablet with the
included stand. The MOGA Arm™ extends to hold smartphones up to
3.2 in./82mm firmly during gameplay.
5. Pairing is a one-time process enabling your device to identify and
sync with the MOGA controller during each gameplay session.
To begin the pairing process, launch the MOGA Pivot App on
your device. The MOGA Pivot App will then provide step by step
instructions for the pairing process.
NOTE: If your mobile device’s Bluetooth is turned off the MOGA app
will request to turn your device’s Bluetooth on. Pairing mode is
indicated by a flashing blue LED and lasts for up to 180 seconds, after
which MOGA enters a “sleep mode” to save energy. To re-enter
pairing mode hold the PowerA button for 3 seconds, or slide the Power
Switch to “OFF” and then back to “A”.
6. Locate the Power Switch and slide the switch to “A”, the Power
indicator will illuminate green indicating your MOGA is on.
The 3-Way Sliding Power Switch allows you to turn your MOGA
off and switch between gameplay modes. This ensures that you
receive the best experience possible for different types of software.
Play MOGA Enhanced Games
7. Now that your controller is paired, you are now ready to play MOGA
Enhanced Games and discover them with the MOGA Pivot App!
Select the Controller Icon ((insert icon)) to see your available library
of MOGA Enhanced Games. This list will be populated with existing
games from your device that are MOGA Enhanced, as well as new
games that you download or purchase.
8. Scroll through the available library of games and select the one you
want to play. Once selected, the game will launch.
X
Y
B
A
Shop MOGA Enhanced Games
9. The MOGA Pivot App also lets you browse through all the MOGA
Enhanced Games available on app stores like Google Play. Select
the Shopping Bag Icon ((Icon Image)) to begin browsing through
the list of available games.
10. There are multiple search filters to help you navigate the ever-
growing list of MOGA Enhanced Games.
Featured: Browse the latest and greatest MOGA Enhanced Games.
A to Z: Displays, alphabetically, the complete list of available MOGA
Enhanced Games.
Categories: Browse MOGA Enhanced Games by selecting your
favorite genre.
11. When you find a game that you want to download, select it, and follow
the download instructions. Once downloaded and installed, the game
will show up in your game library within the MOGA Pivot App.
Power Off
12. When finished playing, simply slide the MOGA Power Switch to the
“OFF” position to disconnect from your mobile device.
Sleep Mode
After 8-10 minutes of non-use MOGA enters a “sleep mode” to save
energy. To awaken the MOGA controller hold the PowerA button for 3
seconds, or slide the main power switch to “OFF” and then back to “A”.
LED Indicators
Small LED
Power Switch at “OFF” Position
1. When charging, power LED flashes Yellow at 1 second interval
2. After fully charged, Yellow LED powers “OFF”
Power Switch in “A” Mode
1. When charging, power LED flashes zGreen at 1 second interval
2. After fully charged, power LED remains Green
Power Switch in “B” Mode
1. When charging, power LED flashes Orange at 1 second interval
2. After fully charged, power LED remains Orange
PowerA (Pairing LED) Button
Flashing Blue LED: Indicates Syncing Mode, the LED turns off after
60 seconds or when paired.
Solid Green LED: Indicates that devices are synced, Green LED will
flash once then turn off after the unit pairs.
Flashing RED LED: Indicates the batteries are getting low and should
be replaced.
Quick Single RED Flash: Indicates unit is entering “sleep mode”.
Questions? PowerA.com/MOGA
Support
For support with your authentic PowerA product, please visit
PowerA.com/Support, email CustomerService@PowerA.com or
call (888) 664-4327 Mon – Fri: 5:00am – 5:00pm PST.
2-Year Limited Warranty – Visit PowerA.com for details
and to register your product.
PowerA, the PowerA logo, Amplify Your Experience, MOGA and the
MOGA logo are trademarks of Bensussen Deutsch and Associates, Inc. ™
and © Bensussen Deutsch and Associates, Inc.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by PowerA is under license.
All other trademarks are the property of their respective owners.
Troubleshooting
Q: When trying to pair my MOGA Controller to my
device, the device is unable to locate MOGA.
NOTE: In order for MOGA to connect to the device, Bluetooth must
be turned on. If not already done, please go into your device’s settings
and turn on Bluetooth or turn on Bluetooth when the MOGA Pivot
App prompts you to do so.
1. Please make sure the MOGA Controller is powered on.
2. Move away from - or temporarily power off - all other Bluetooth
devices. Other Bluetooth devices may be interfering with the device
locating the MOGA.
3. If the device is still not showing “MOGA” or “BD&A” when pairing,
you will need to try to manually locate MOGA on the device.
a. Exit the Pivot App and go to the device’s settings menu.
b. Locate and select “Bluetooth Settings” (commonly found under
“Wireless and Networks” menu).
c. Select “Scan for devices” (This is not obvious on some devices.
Some devices have a menu in Bluetooth settings that looks like 3 dots.
Tap on the 3 dots to see if this option is there.)
d. When your device finishes scanning, select either “MOGA” or
“BD&A” from the list of found devices.
e. Once paired, return to the MOGA Pivot App and follow the on
screen instructions.
Q: My MOGA doesn’t seem to be working -OR- I
would like to connect a new MOGA Controller to a
device that was previously paired with a different
MOGA Controller, how can I do this?
NOTE: You will need to be in the MOGA Pivot App to do this. Launch
the Pivot App and go to the main screen. You may need to select
“SKIP” from the initial screens and then pick “Continue to Pivot” when
prompted.
1. Once at the main Pivot screen, select the gear icon ((Icon Image)) from
the top right corner and then select “Synced MOGA Controller” from
the MOGA Settings Menu. This will show the currently synced MOGA.
2. Select “UnSync” to begin the process of removing the current
MOGA from your device.
3. When you see, “Are you sure you want to unsync this MOGA
Controller?” Select “UnSync” from the options provided.
4. After the MOGA Controller has been unsynced, you will then see
the “Sync New MOGA Controller” option. Select this option to begin
syncing a new MOGA with your device.
5. You will then see a pop-up box asking “Are you sure you want to
sync new MOGA Controller?” To accept, select “Sync”. You will then
be walked through all necessary steps to sync MOGA with your device.
Q: I can’t find my previously purchased and
downloaded games in the MOGA Pivot App. How do
I get these games to work with my MOGA?
1. Confirm that your previously purchased and downloaded games are MOGA
Enhanced (compatible with MOGA). You can do this by visiting PowerA.com/
MOGA and reviewing the current list of all MOGA Enhanced Games.
2. If your game does not appear in the list of MOGA Enhanced Games, your
game is not currently compatible with MOGA.
3. If your game does appear in the list of MOGA Enhanced Games, but does
not appear in the MOGA Pivot App, the game may require an update. You do
not need to repurchase the app.
a. To update your game, please visit the Google Play Store or the developer’s
online storefront (such as GameLoft.com), download and install any
available updates.
b. If there are no updates available, or if the update did not resolve the issue,
please contact PowerA Customer Service at customerservice@powera.com
and reference the game title that is causing the inconvenience.
Q: When trying to re-sync my MOGA flashes blue for
a long time
A: Bluetooth can take up to 30 seconds to re-sync depending on
environmental factors such as radio interference or the presence and
proximity to other Bluetooth enabled devices.
Q: Why does my MOGA flash green after blue
flashing stops?
A: The green flash that follows the blue flashing indicates that your
MOGA controller is now paired (initial) or re-synced to your Android
smartphone or tablet.
Q: My MOGA controller is flashing red, why?
A: A red flashing light indicates that your batteries are low. Replace
your two AAA batteries with two new AAA batteries.
Operational Temperatures Warning
Do not expose MOGA to temperature extremes. MOGA is meant to be
stored and used in average temperatures and should never be exposed
to direct sunlight or freezing temperatures for any length of time.
Normal operating
and storage temperature range is 40F to 110F. Do not store MOGA in
direct sunlight or expose to water or other liquids.
Motion Warning
Playing video games can make your muscles, joints, skin or eyes hurt.
Follow these instructions to avoid problems such as tendinitis, carpal
tunnel syndrome, skin irritation
or eyestrain:
Avoid excessive play. Take a 10 to 15 minute break every hour, even if
you don’t think you need it. Parents should monitor their children for
appropriate play.
If your hands, wrists, arms or eyes become tired or sore while playing,
or if you feel symptoms such as tingling, numbness, burning or
stiffness, stop and rest for several hours before playing again.
If you continue to have any of the above symptoms or other discomfort
during or after play, stop playing and see a doctor.
Battery Leakage Warning
Leakage of battery fluid can cause personal injury as well as damage to
your remote. If battery leakage occurs, thoroughly wash the affected
skin and clothes. Keep battery fluid away from your eyes and mouth.
Leaking batteries may make popping sounds.
To avoid battery leakage:
5`_`e^ZifdVUR_U_VhSReeVcZVdcVa]RTVR]]SReeVcZVd
at the same time).
5`_`e^ZiUZWWVcV_eScR_Ud`WSReeVcZVd
A`hVc2cVT`^^V_UdR]\R]Z_VSReeVcZVd5`_`efdV=ZeYZf^Z`_
nickel cadmium (nicad), or carbon zinc batteries.
5`_`e]VRgVSReeVcZVdZ_eYVcV^`eVW`c]`_XaVcZ`Ud
of non-use.
5`_`ecVTYRcXVR]\R]Z_V`c_`_cVTYRcXVRS]VSReeVcZVd
5`_`eafeeYVSReeVcZVdZ_SRT\hRcUd>R\VdfcVeYReeYVa`dZeZgV
and negative (-) ends are facing in the correct directions. Insert the
negative end first.
HYV_cV^`gZ_XSReeVcZVdcV^`gVeYVa`dZeZgVV_UWZcde
5`_`efdVUR^RXVUUVW`c^VU`c]VR\Z_XSReeVcZVd
CV^`gVViYRfdeVUSReeVcZVdWc`^eYVcV^`eV
CVTYRcXVRS]VSReeVcZVd^fdeSVcV^`gVUWc`^eYVcV^`eVSVW`cV
being charged
CVTYRcXVRS]VSReeVcZVddY`f]USVTYRcXVUf_UVcRUf]edfaVcgZdZ`_
5`_`edY`ceTZcTfZeeYVdfaa]jeVc^Z_R]d
5`_`e^ZiR]\R]Z_VdeR_URcUTRcS`_kZ_T
or rechargeable (nickel-cadmium) batteries.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.

Navigation menu
