PARTS LIST RX
2012-12-27
: ACE&EASTMAN Rx Parts RX PARTS PARTS BOOK KANSAI
Open the PDF directly: View PDF
.
Page Count: 45
- RX

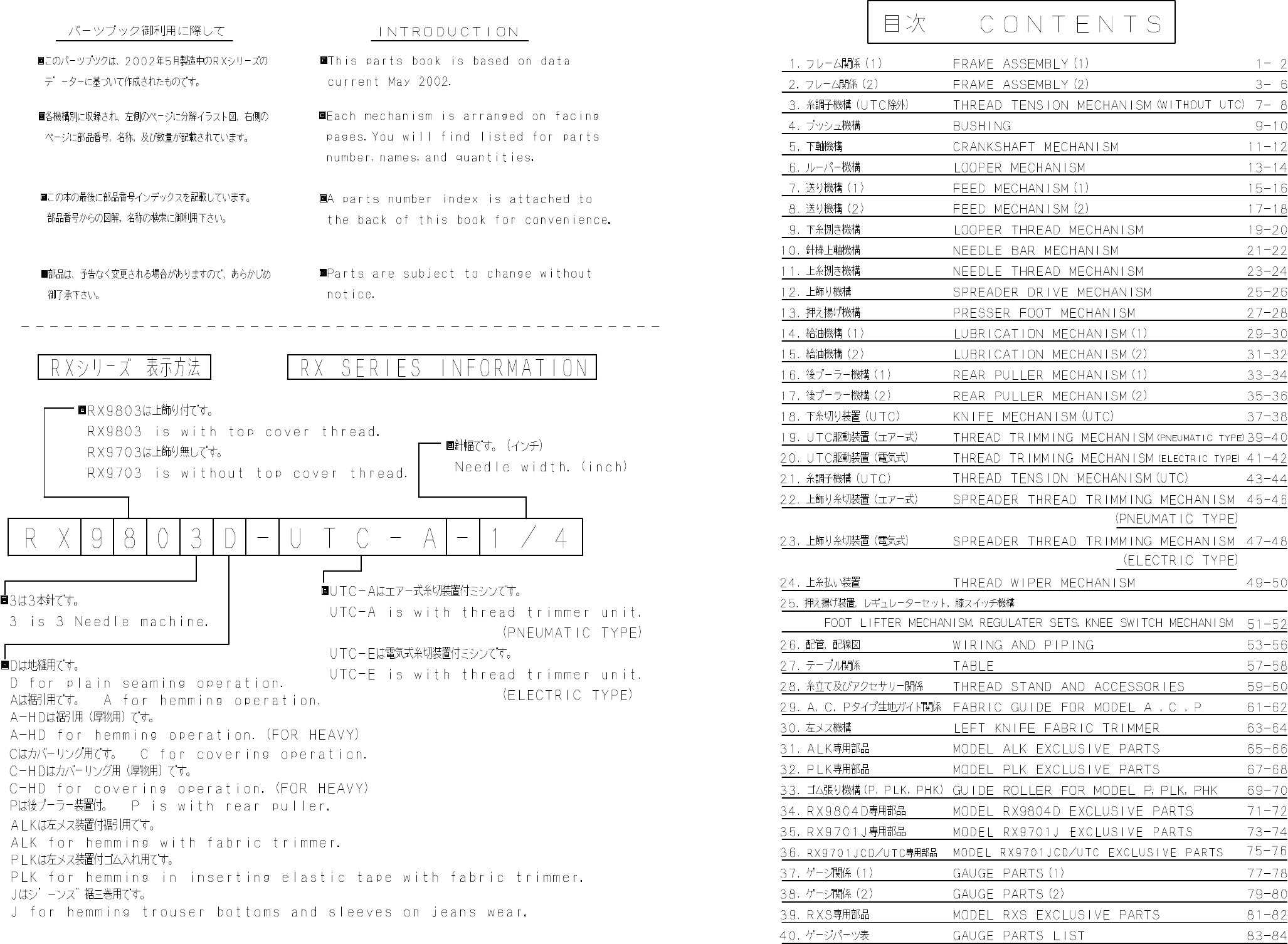

- INTRODUCTION
- CONTENTS
- 1.FRAME ASSEMBLY(1)

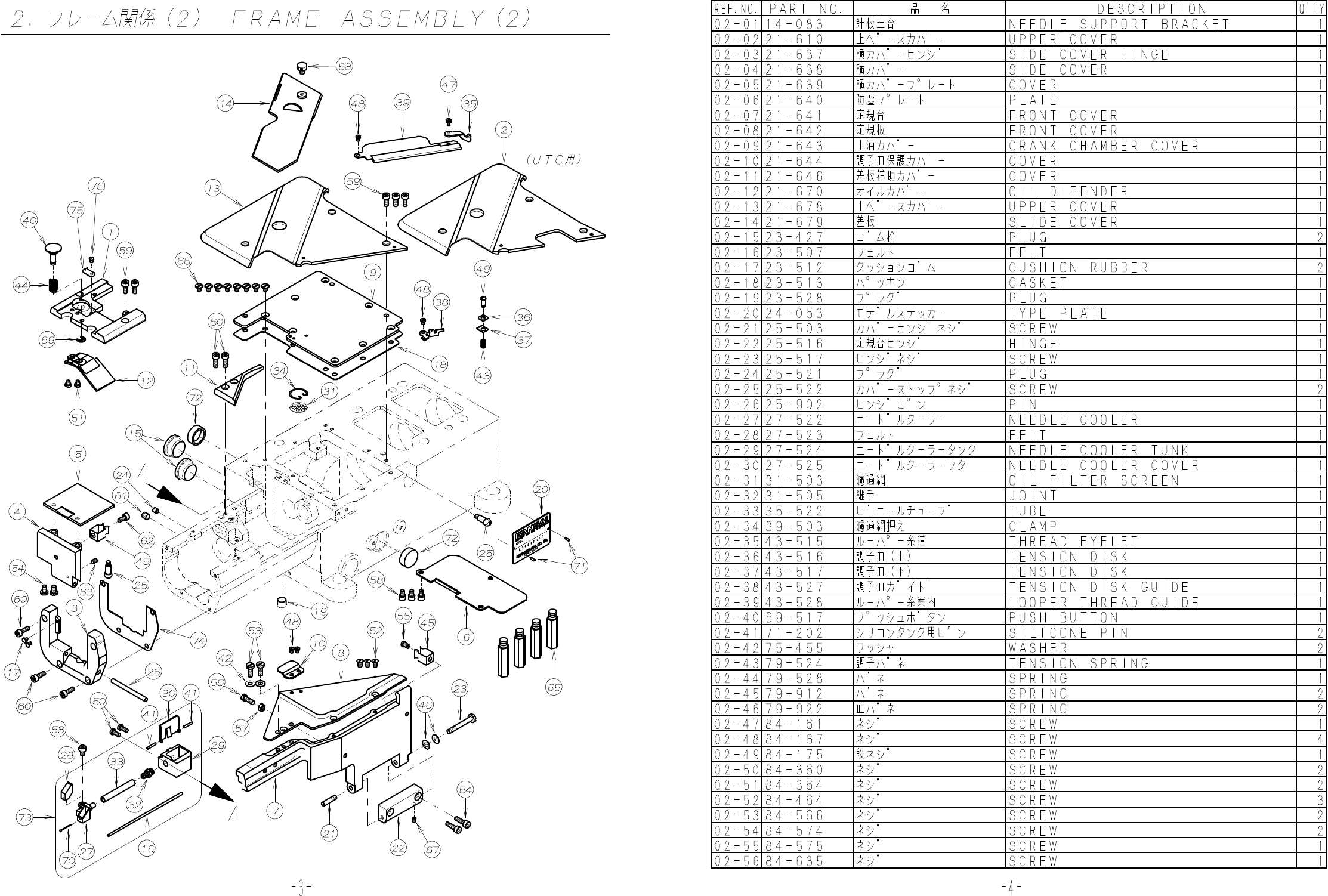

- 2.FRAME ASSEMBLY(2)

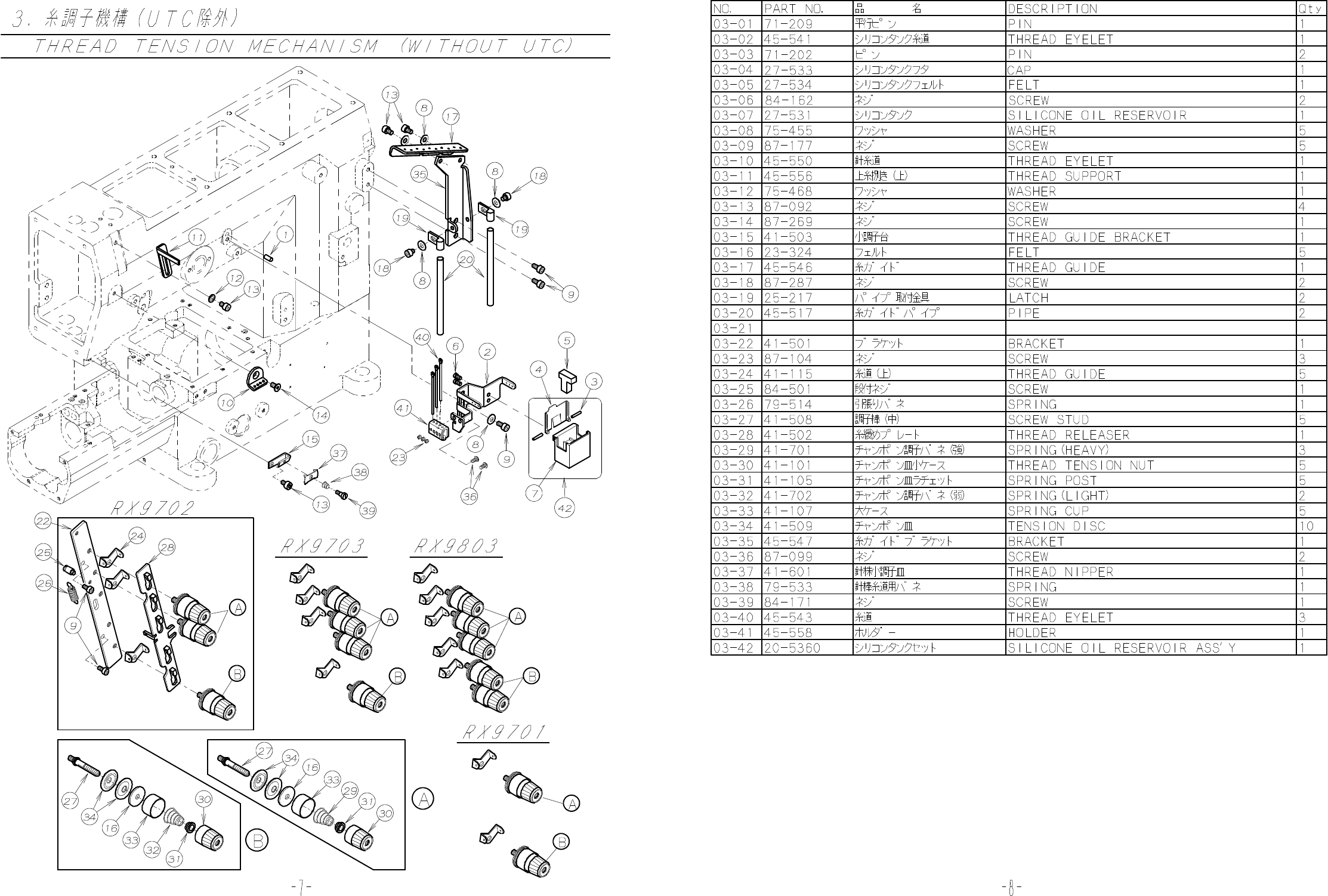

- 3.THREAD TENSION MECHANISM(WITHOUT UTC)

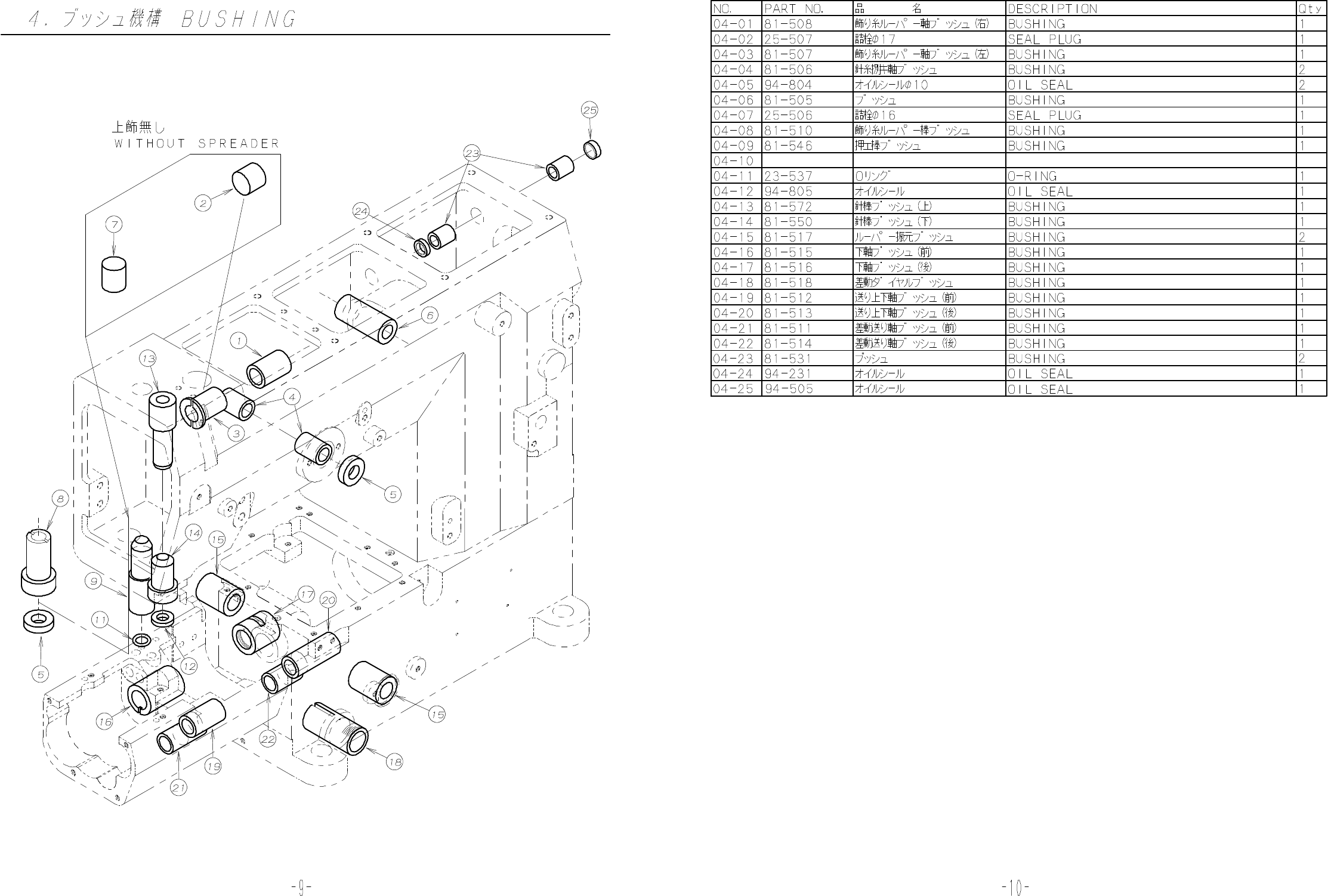

- 4.BUSHING

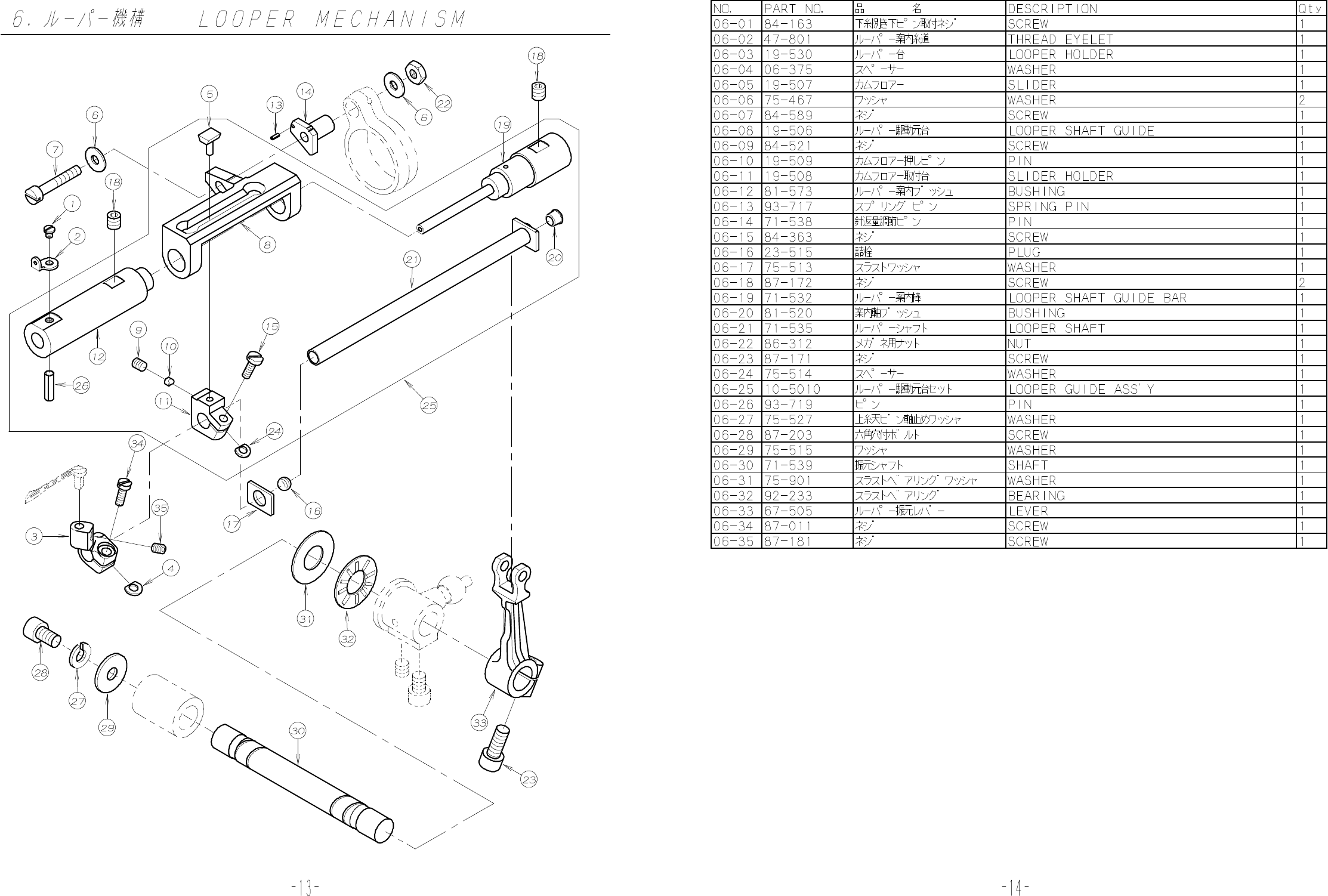

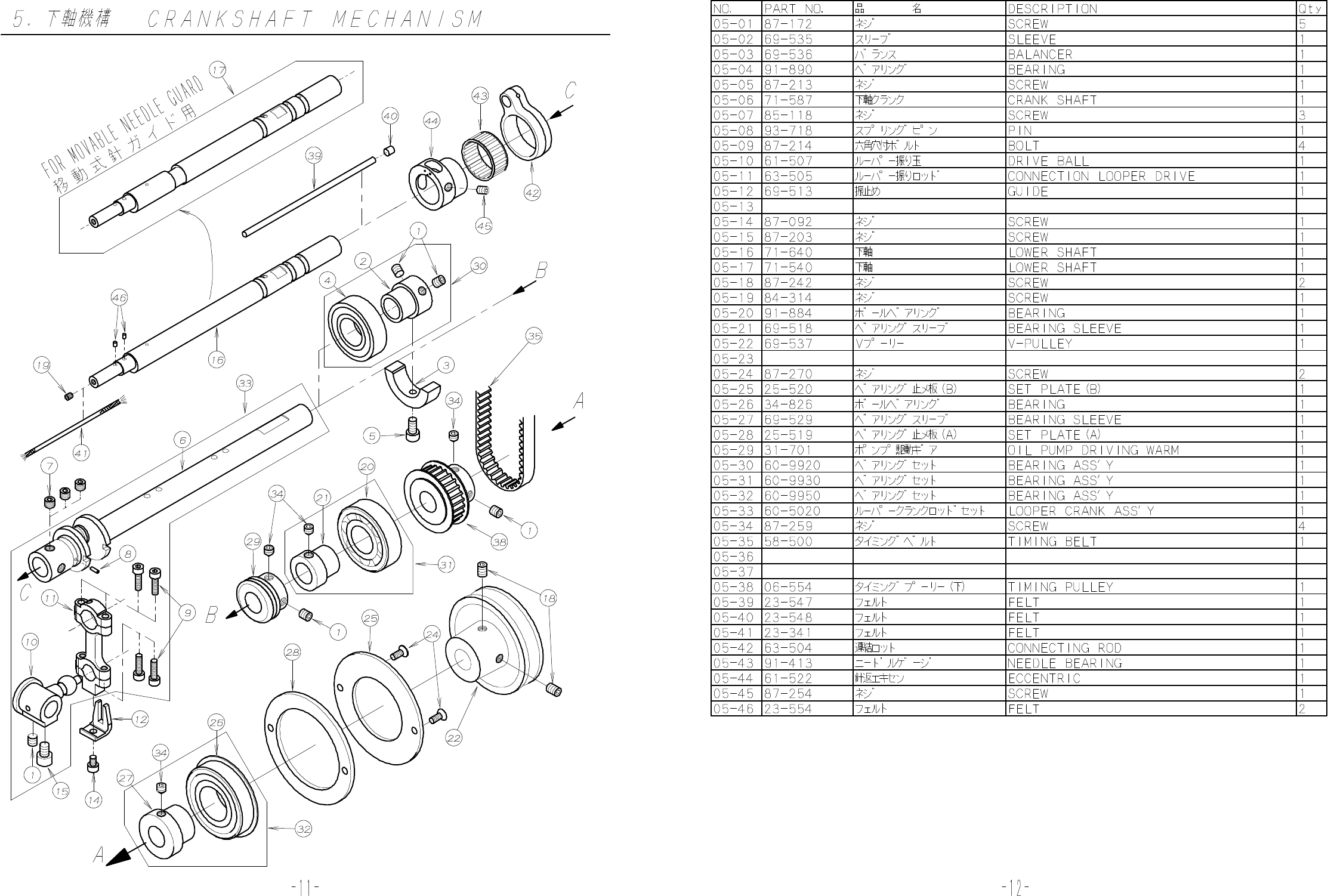

- 5.CRANKSHAFT MECHANISM
- 6.LOOPER MECHANISM

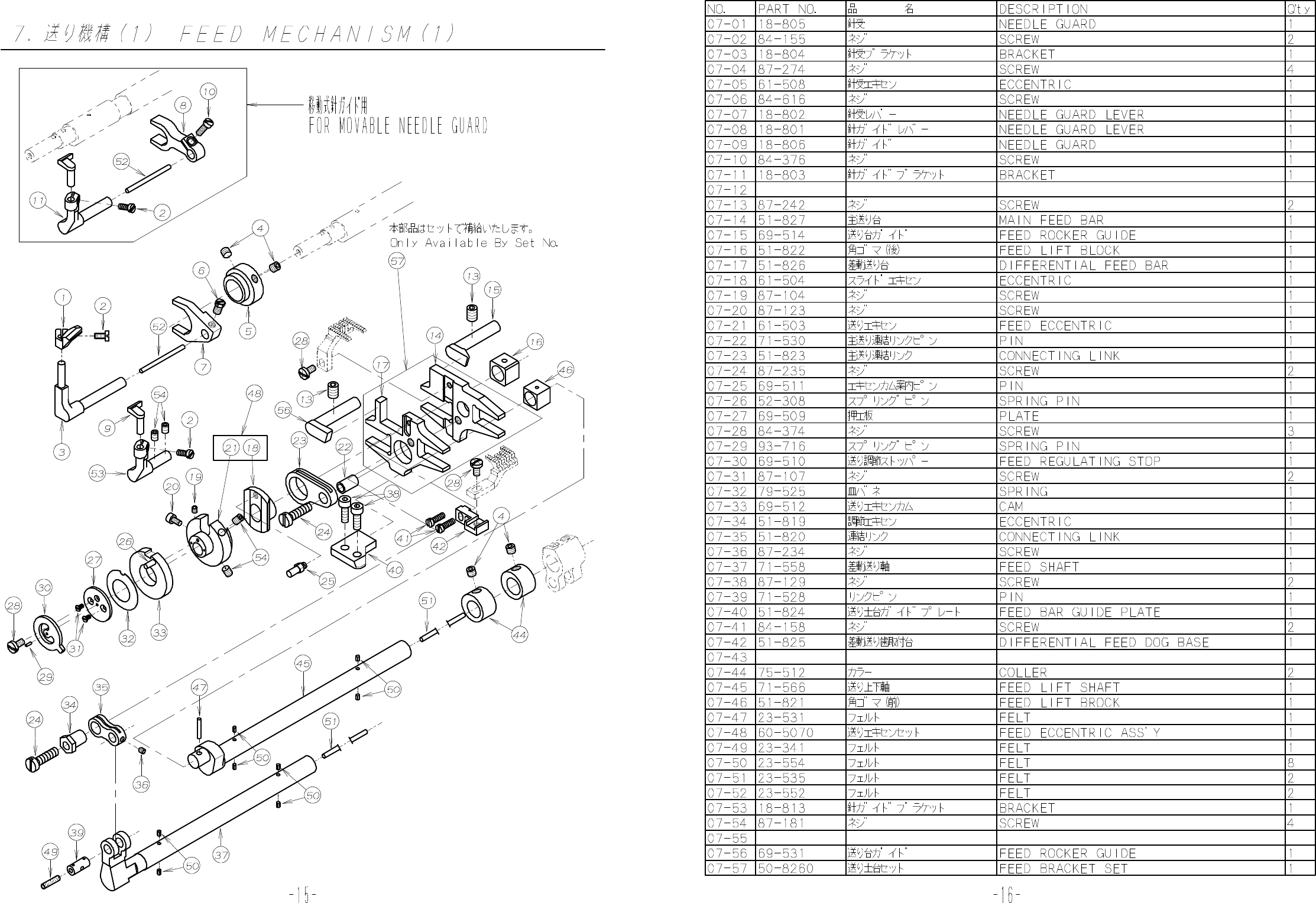

- 7.FEED MECHANISM(1)

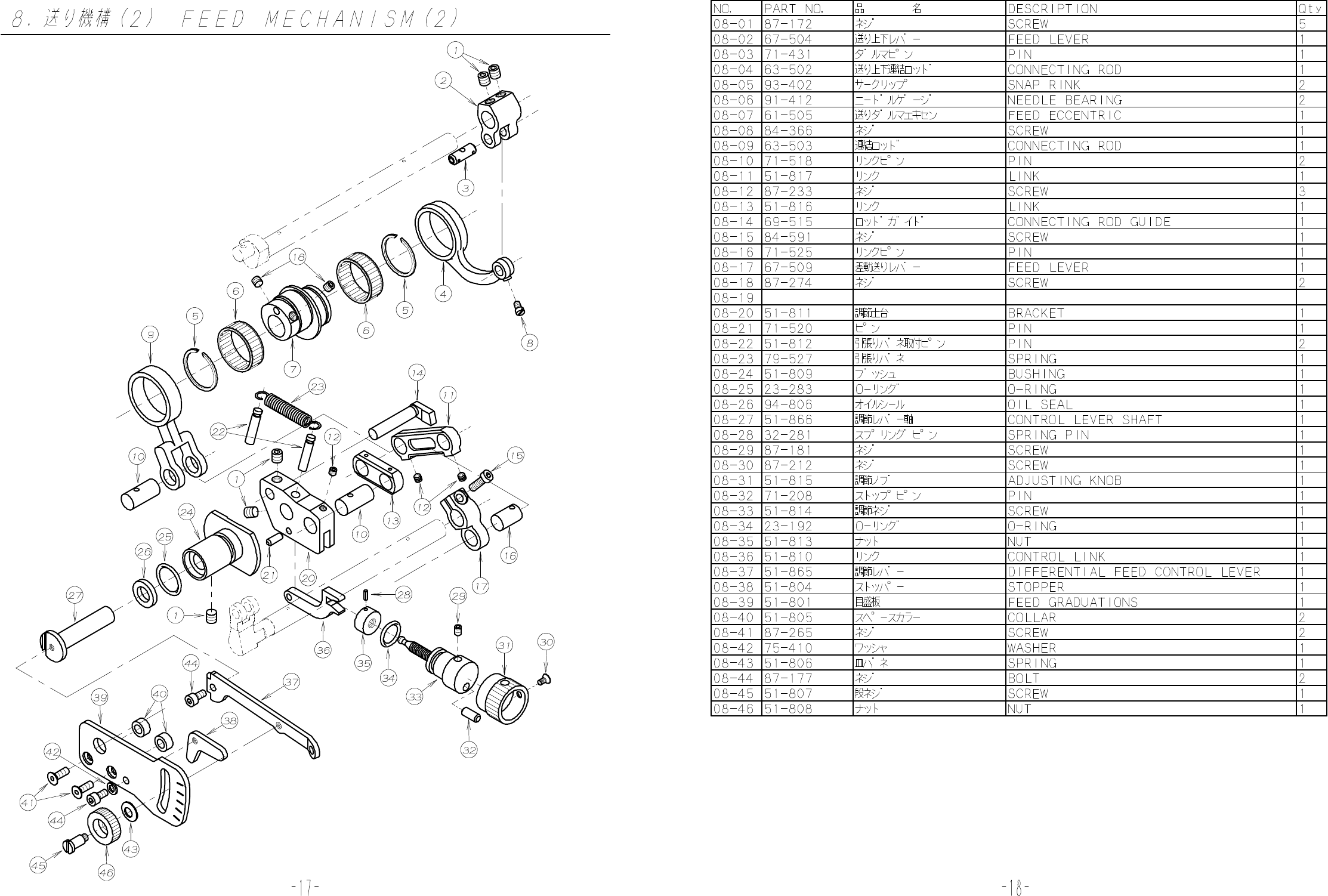

- 8.FEED MECHANISM(2)

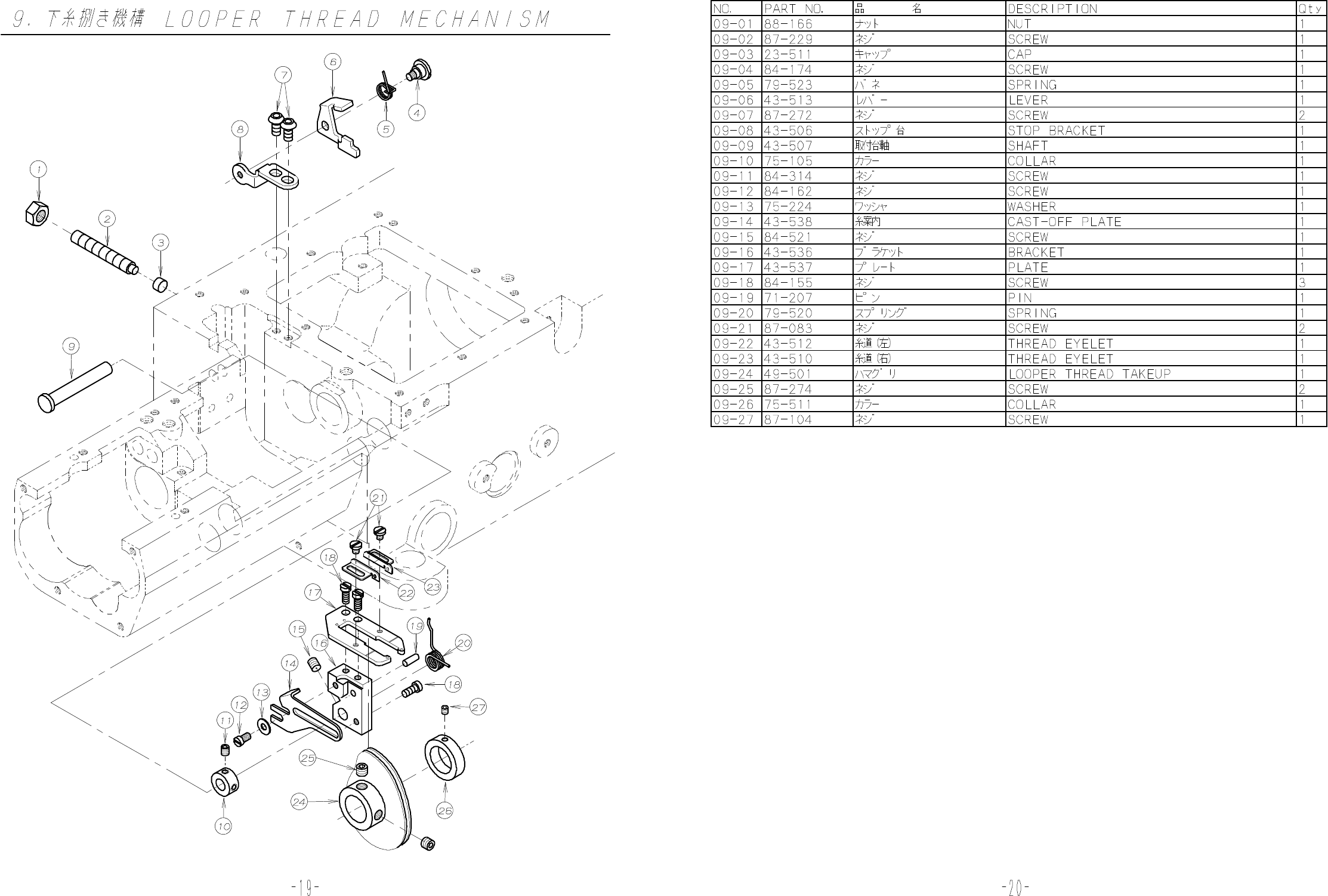

- 9.LOOPER THREAD MECHANISM

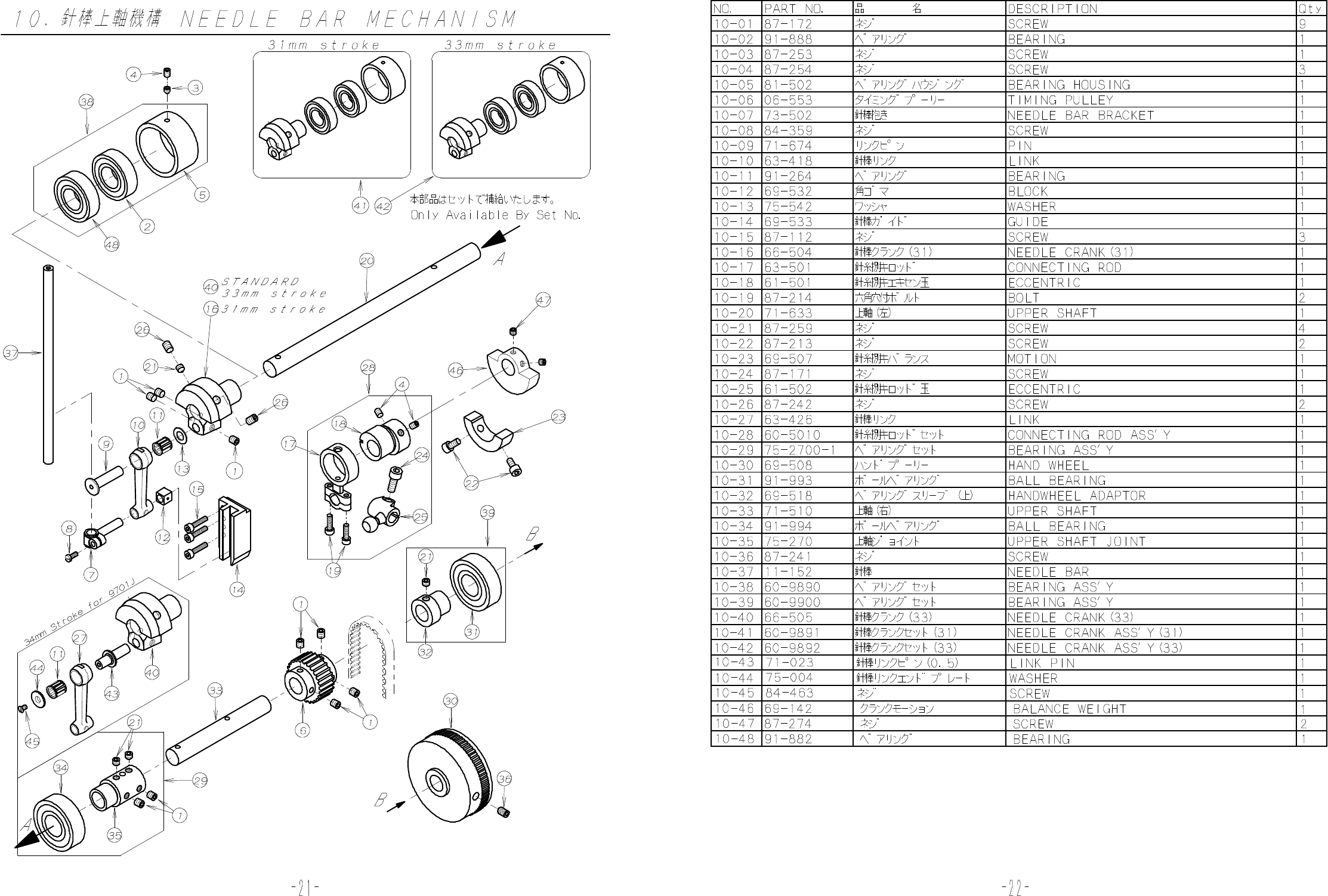

- 10.NEEDLE BAR MECHANISM

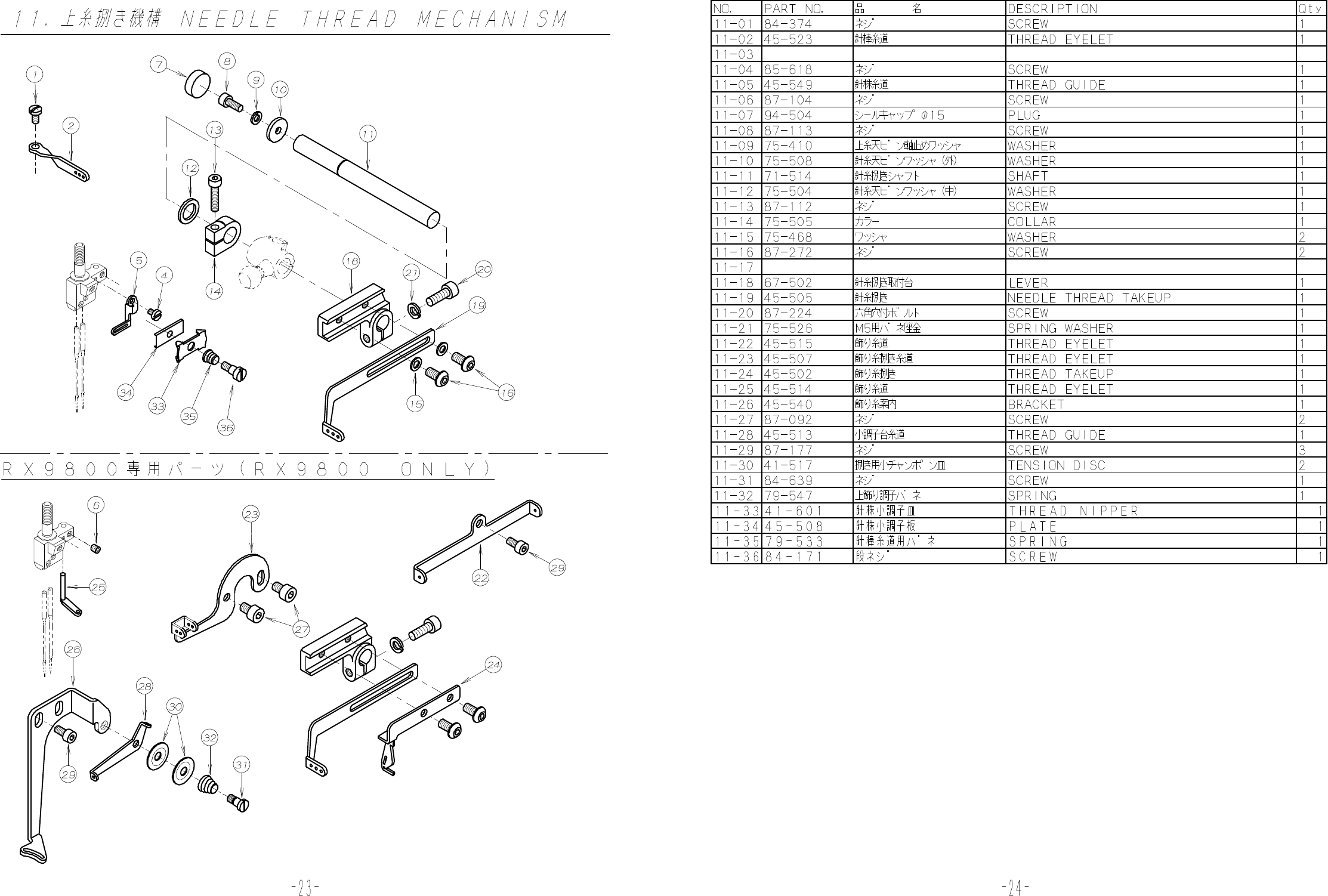

- 11.NEEDLE THREAD MECHANISM

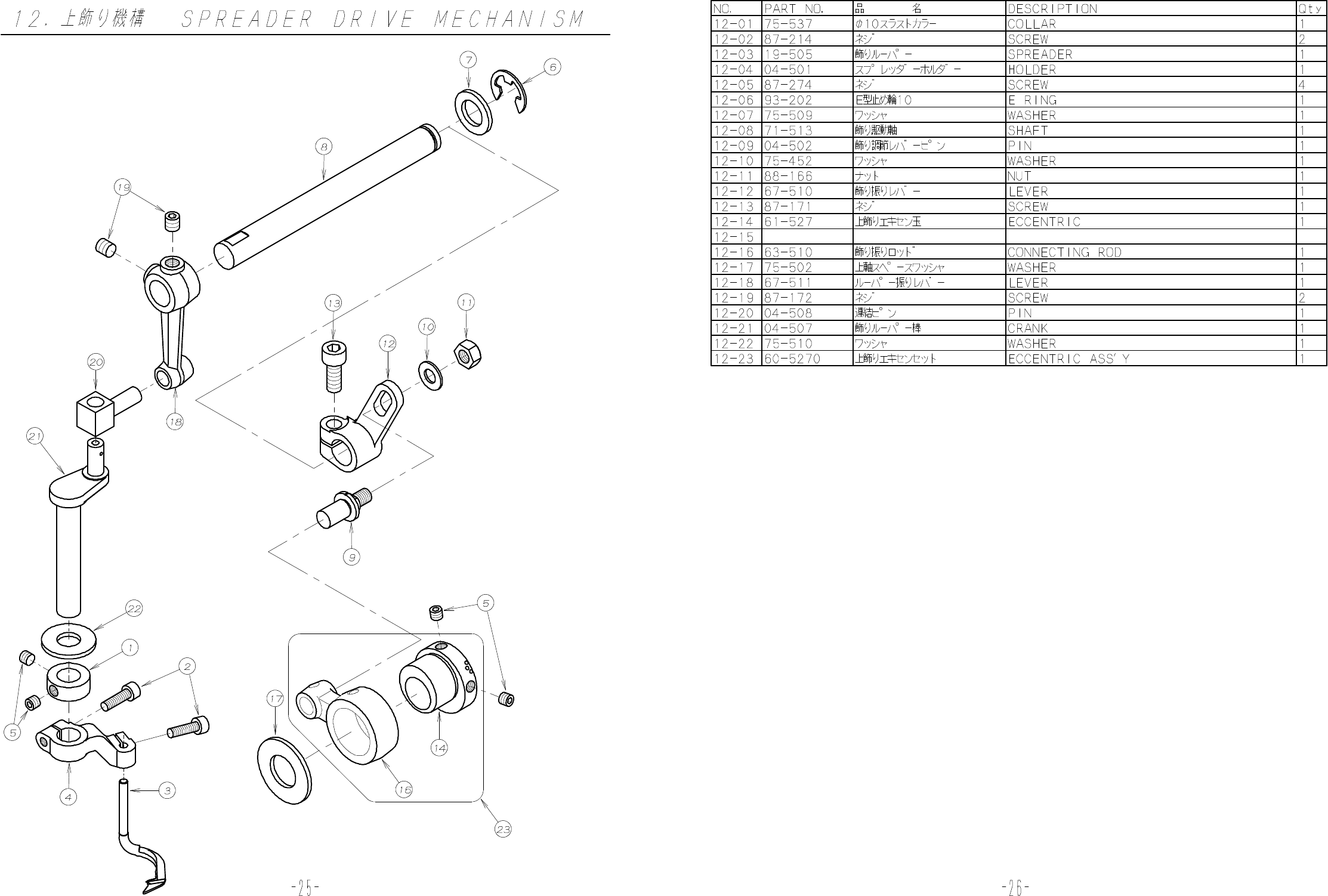

- 12.SPREADER DRIVE MECHANISM

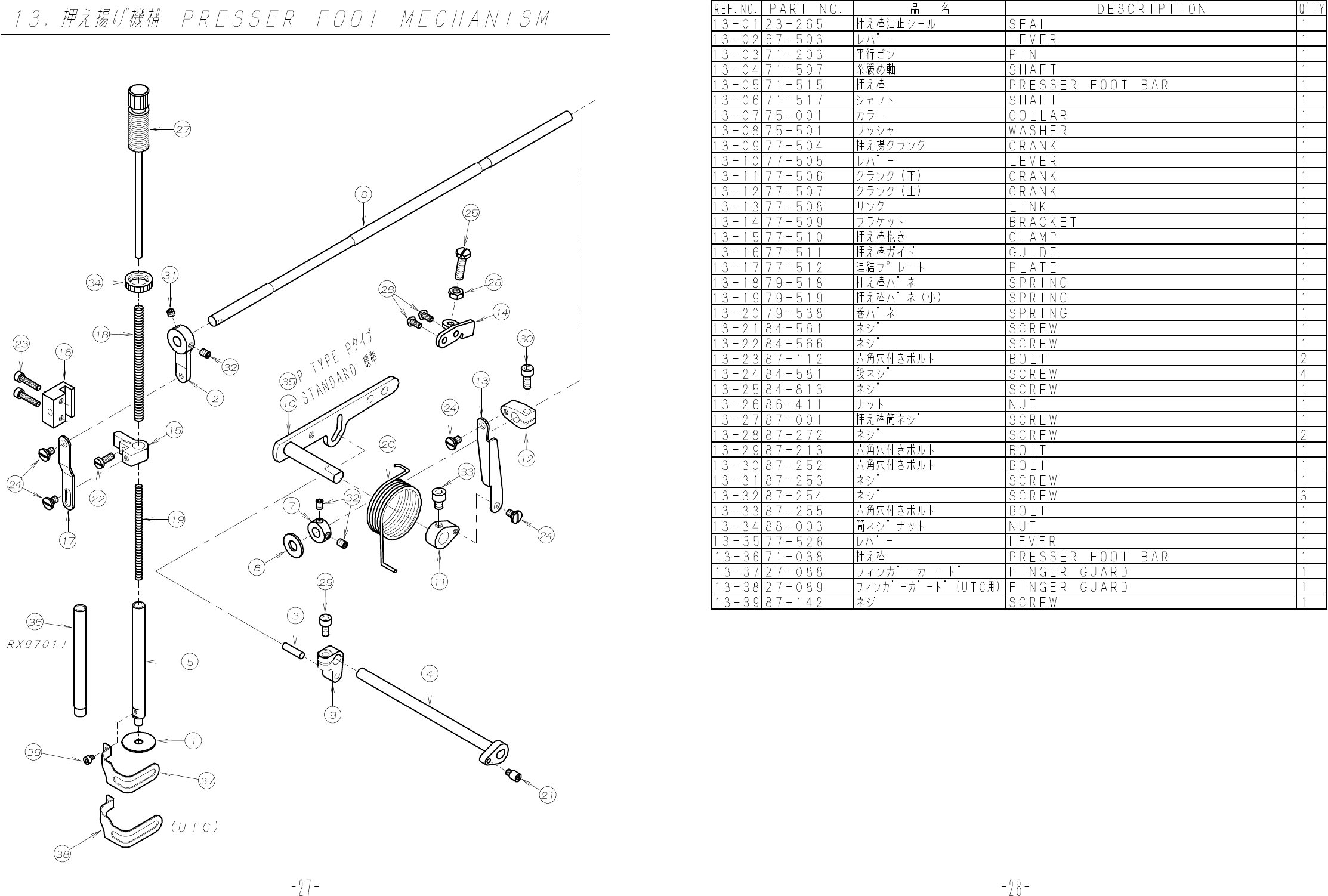

- 13.PRESSER FOOT MECHANISM

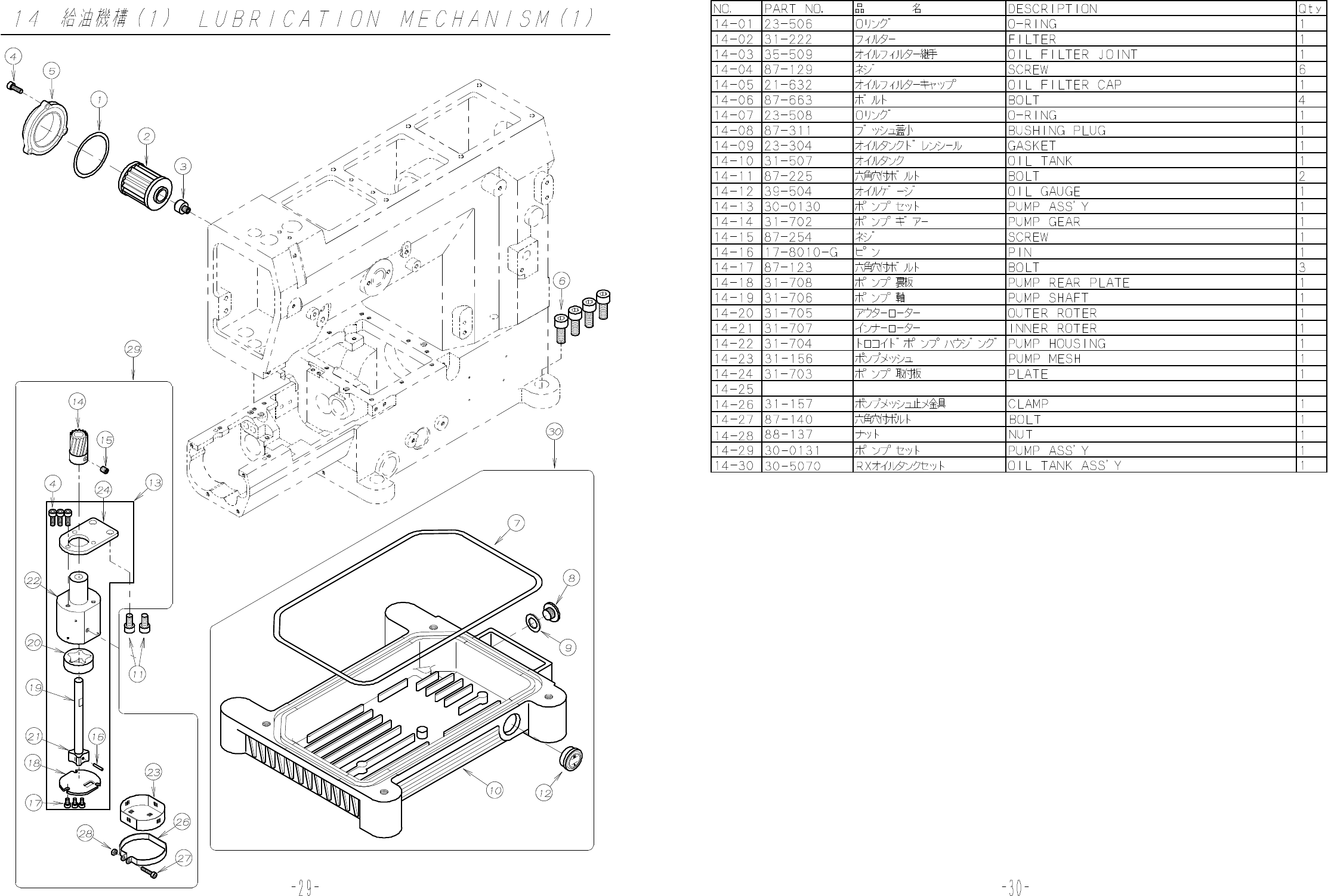

- 14.LUBRICATION MECHANISM(1)

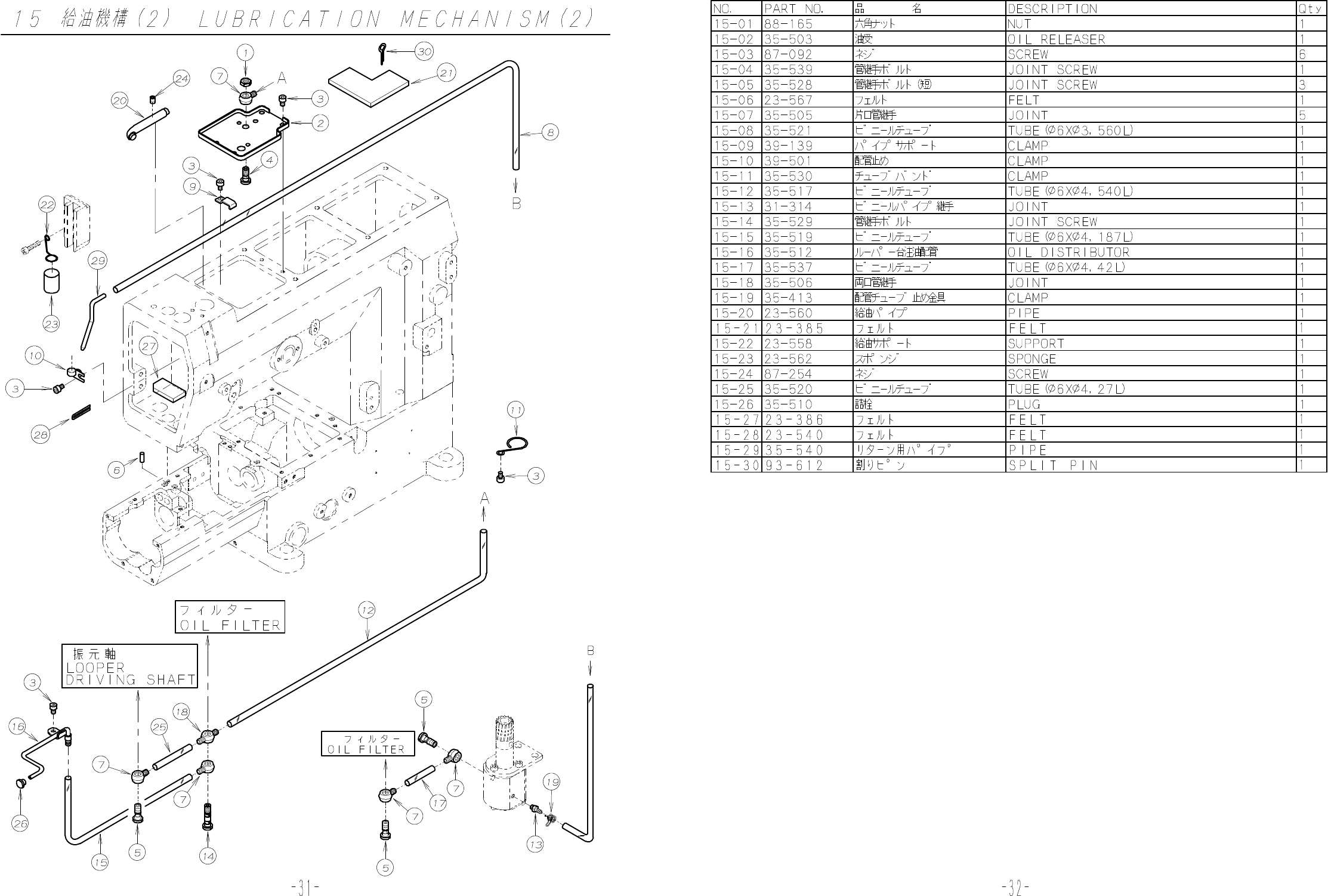

- 15.LUBRICATION MECHANISM(2)

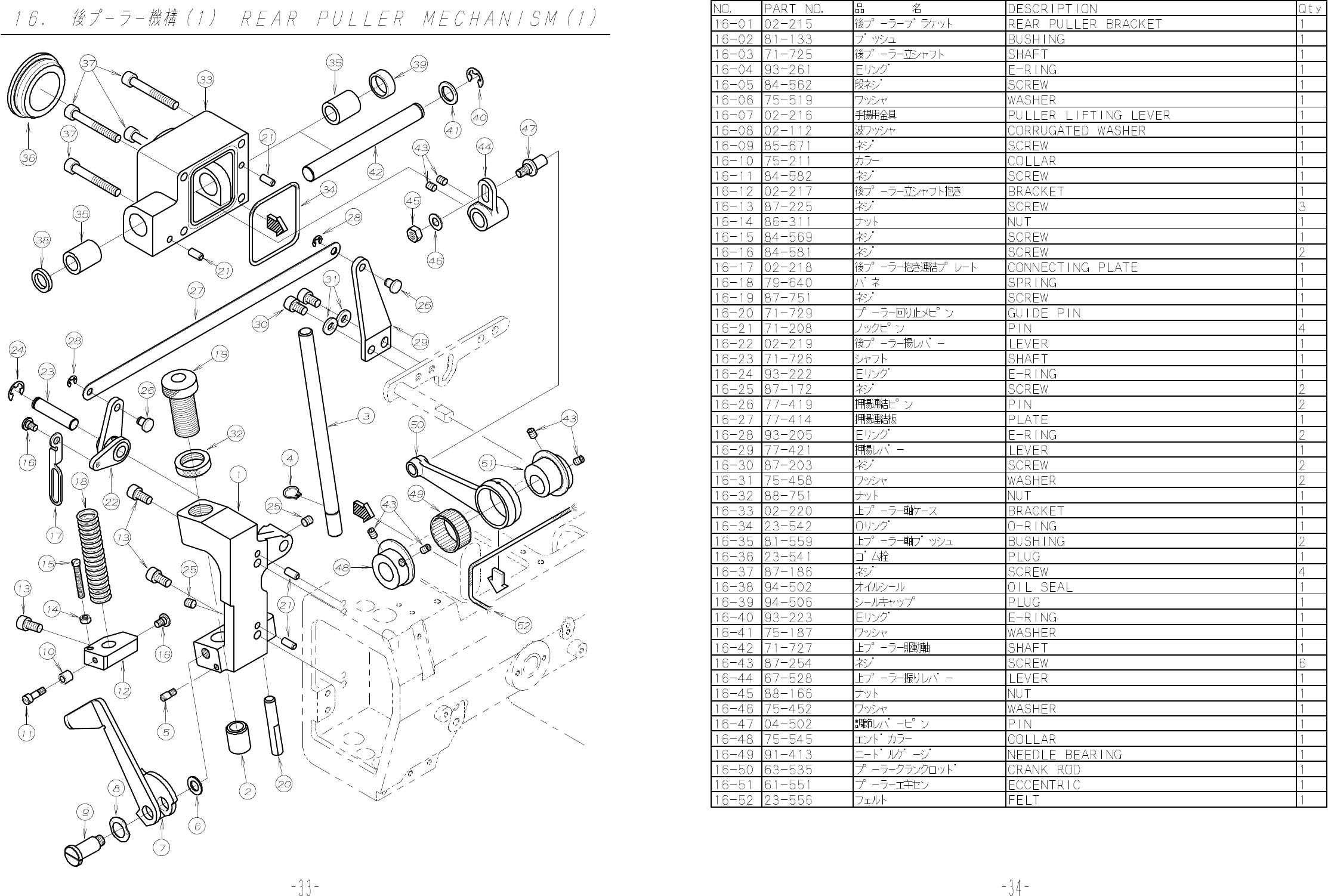

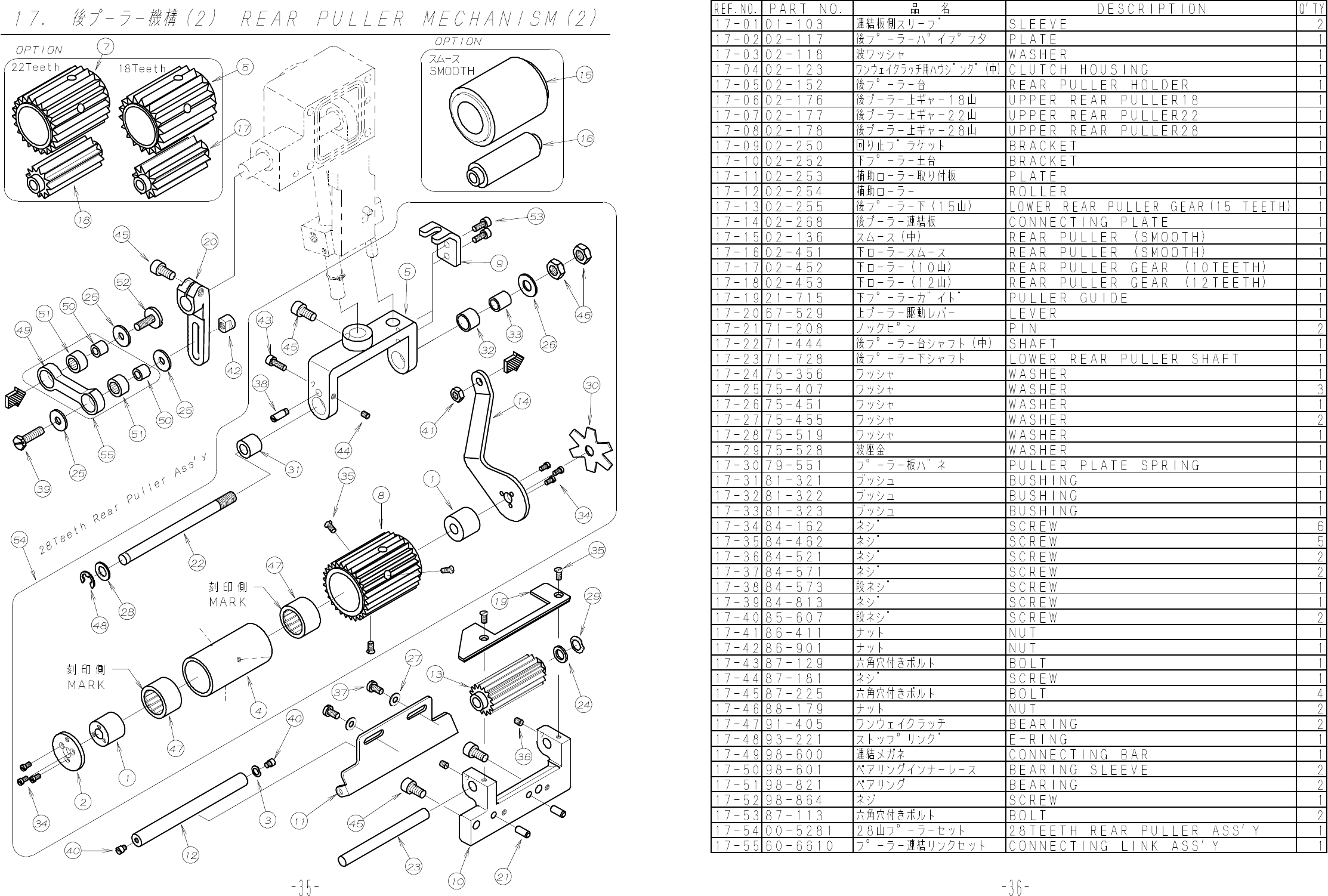

- 16.REAR PULLER MECHANISM(1)
- 17.REAR PULLER MECHANISM(2)

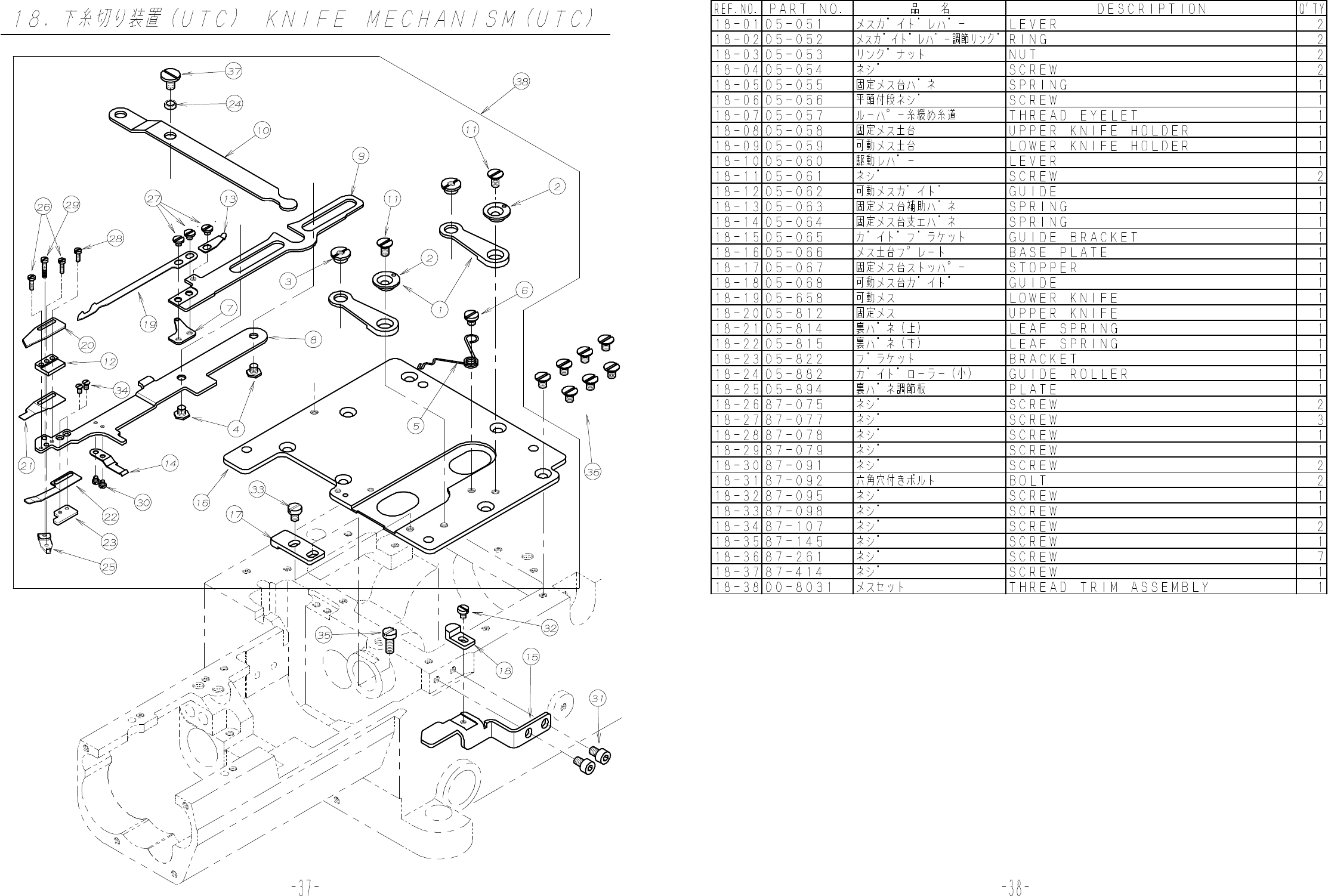

- 18.KNIFE MECHANISM(UTC)

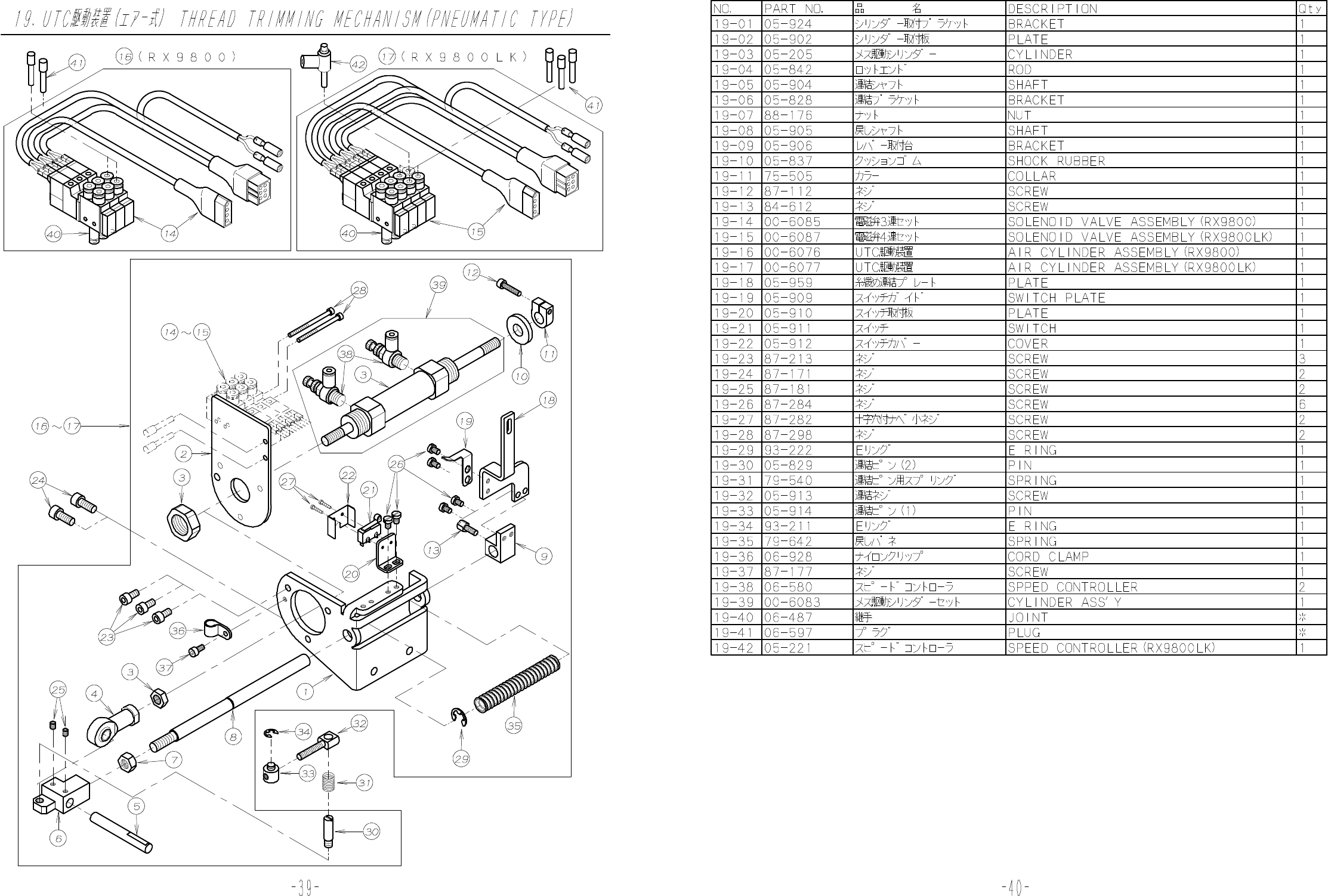

- 19.THREAD TRIMMING MECHANISM (PNELMATIC TYPE)

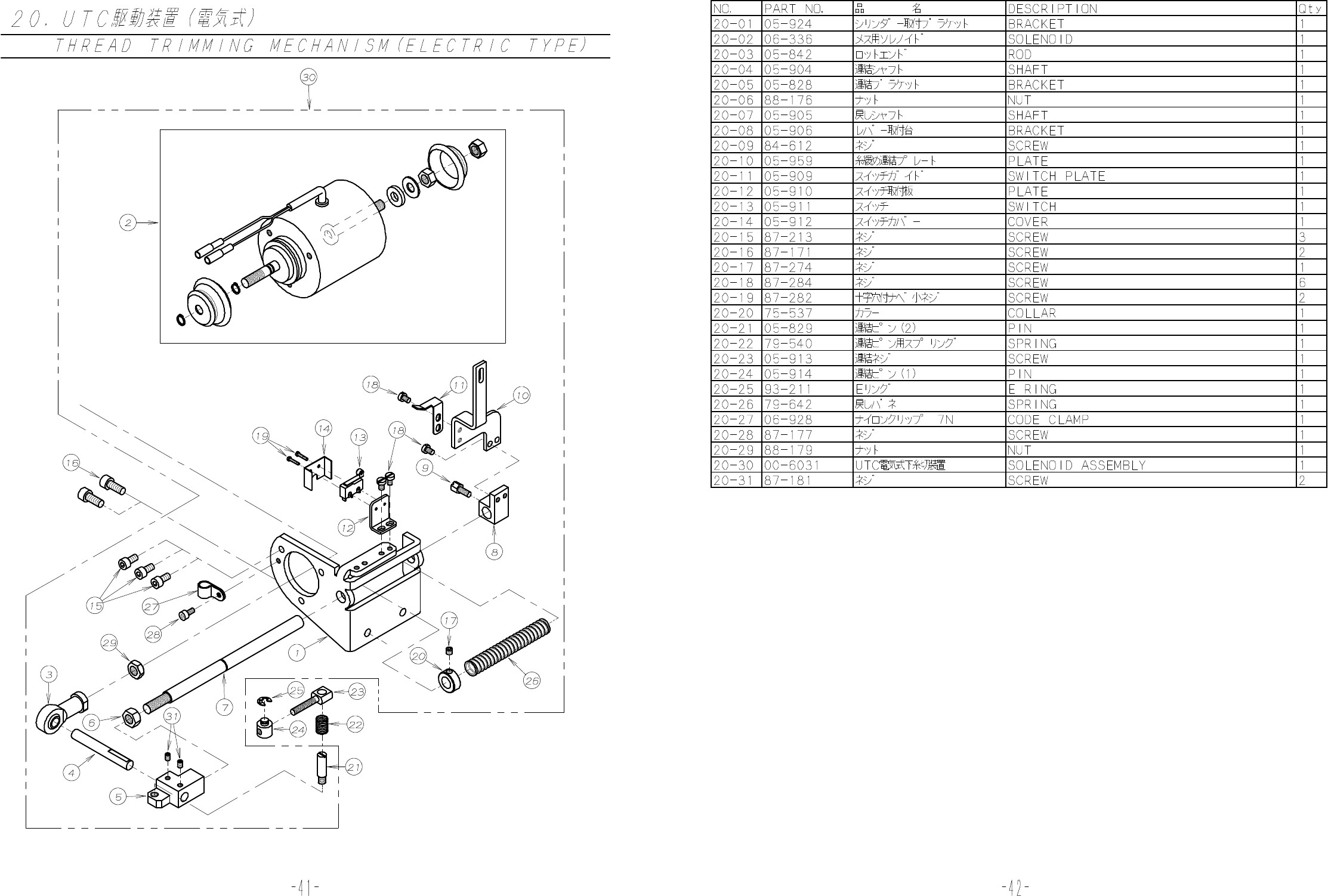

- 20.THREAD TRIMMING MECHANISM(ELECTRIC TYPE)

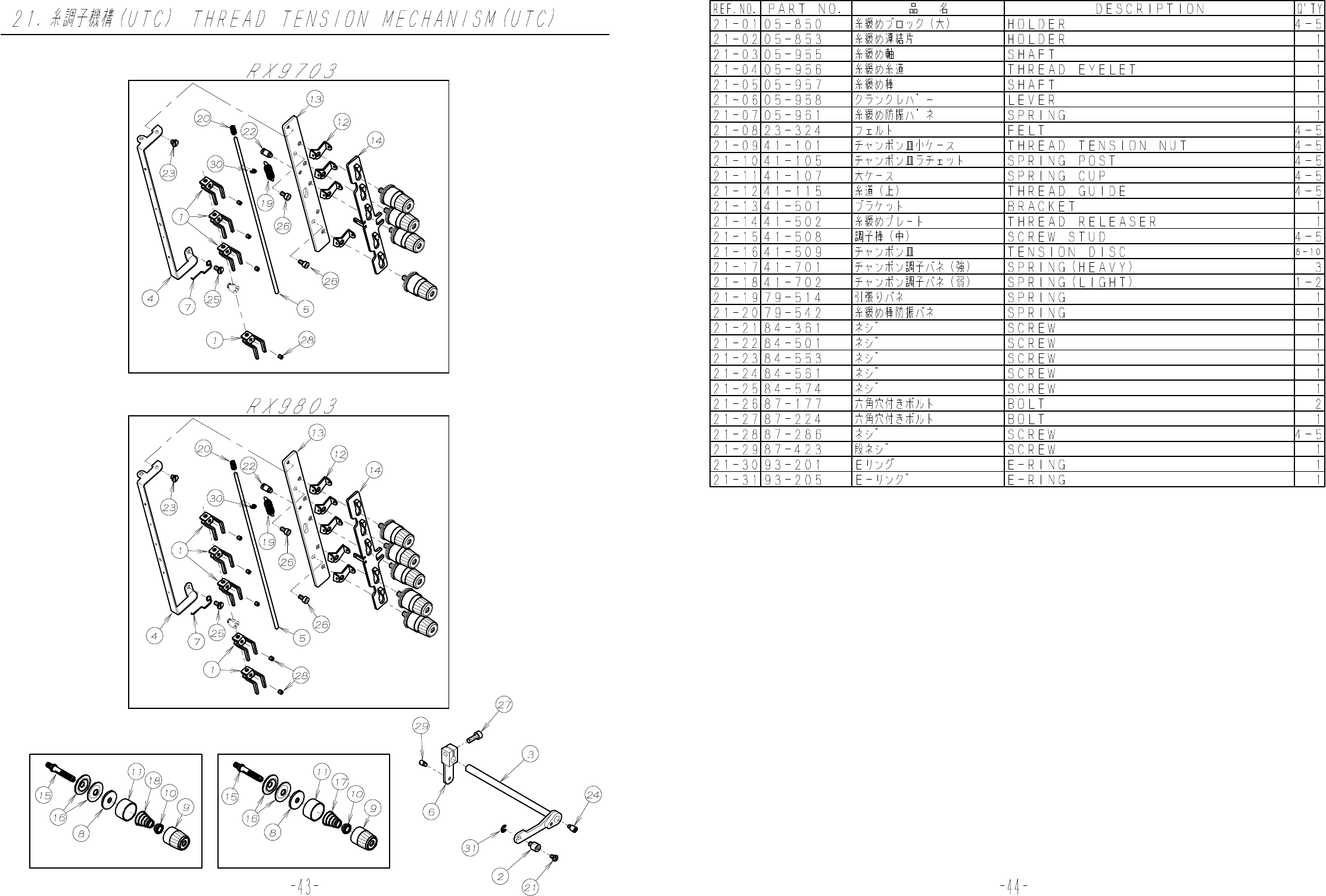

- 21.THREAD TENSION MECHANISM(UTC)

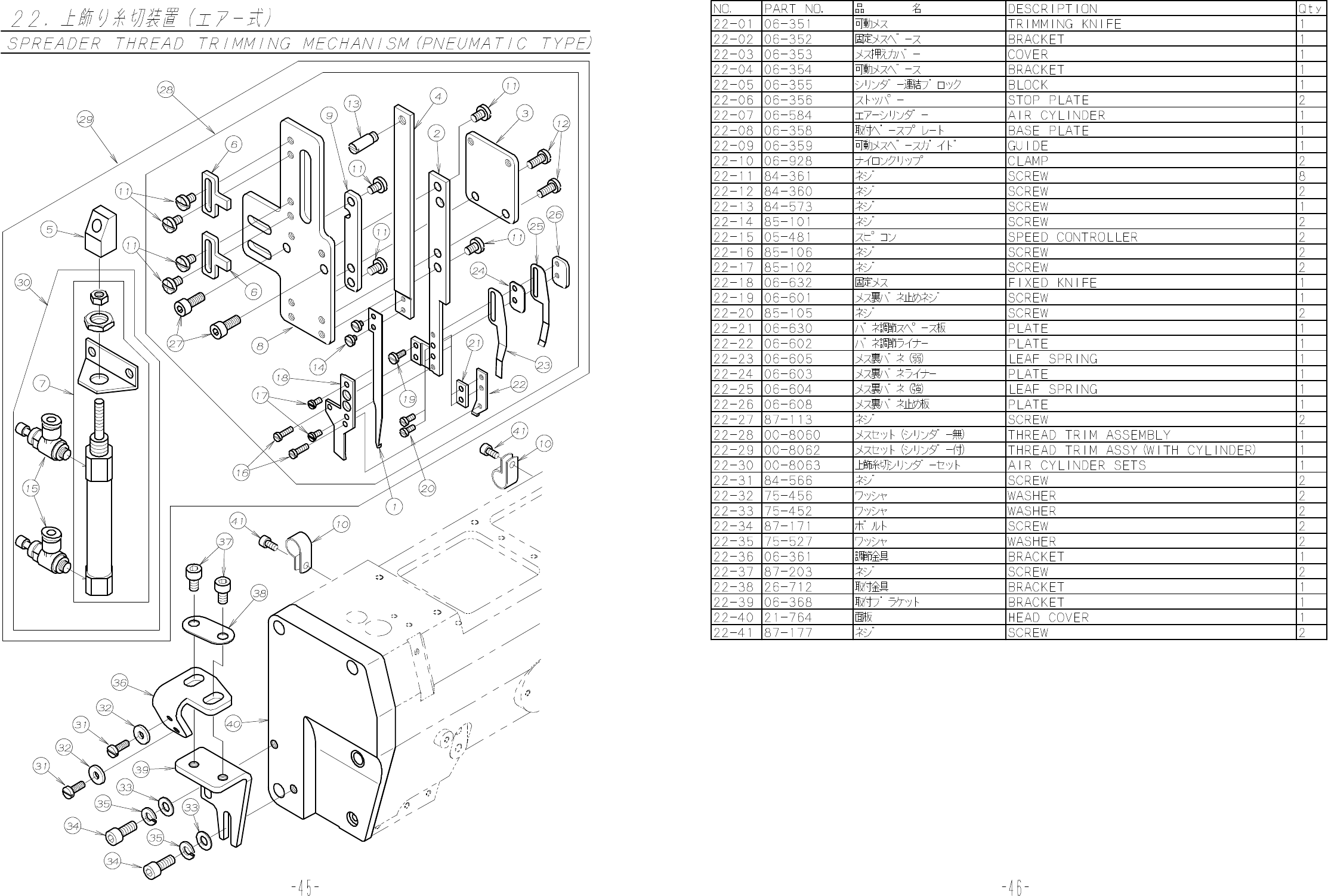

- 22.SPREADER THREAD TRIMMING MECHANISM(PNEUMATIC TYPE)

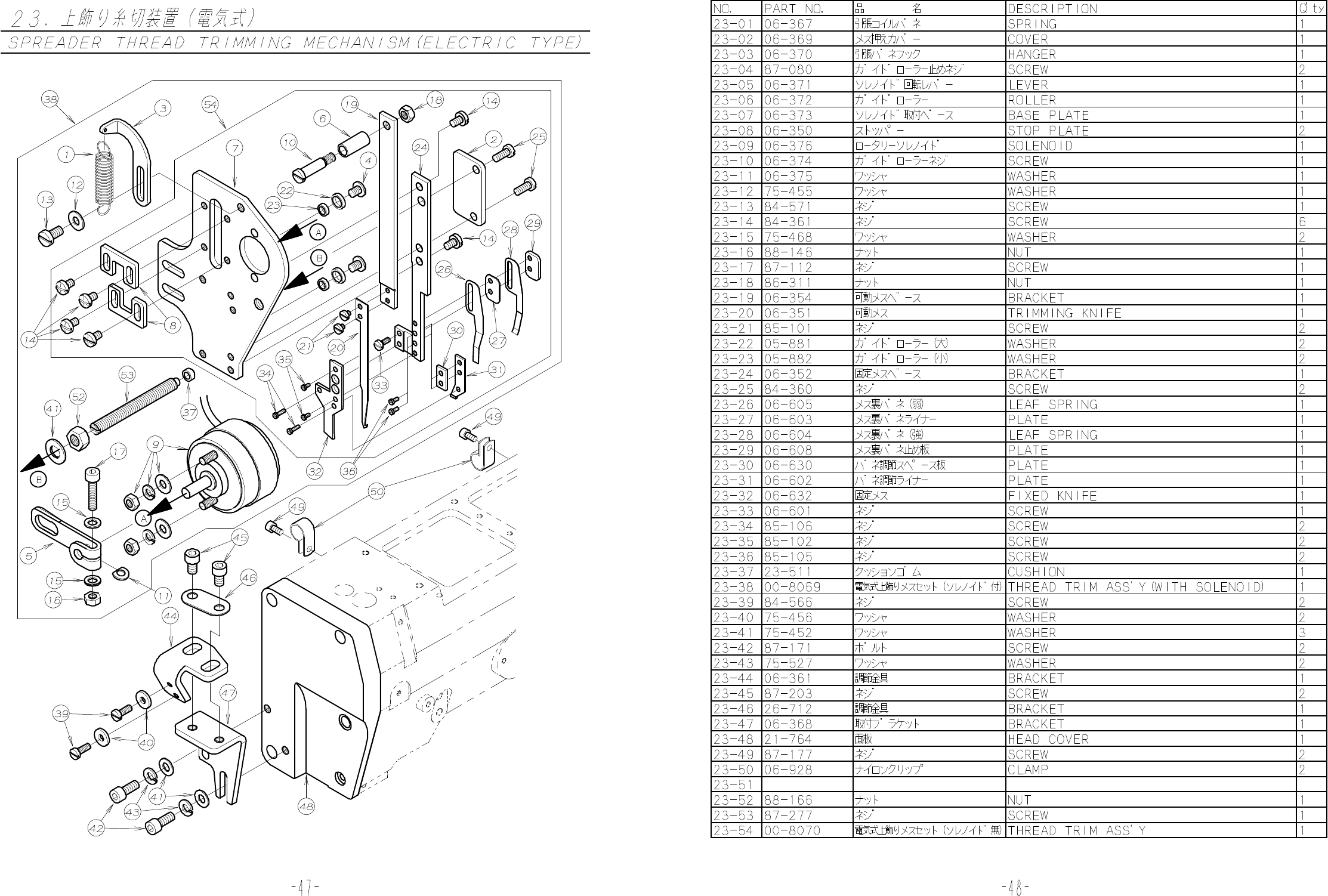

- 23.SPREADER THREAD TRIMMING MECHANISM(ELECTRIC TYPE)

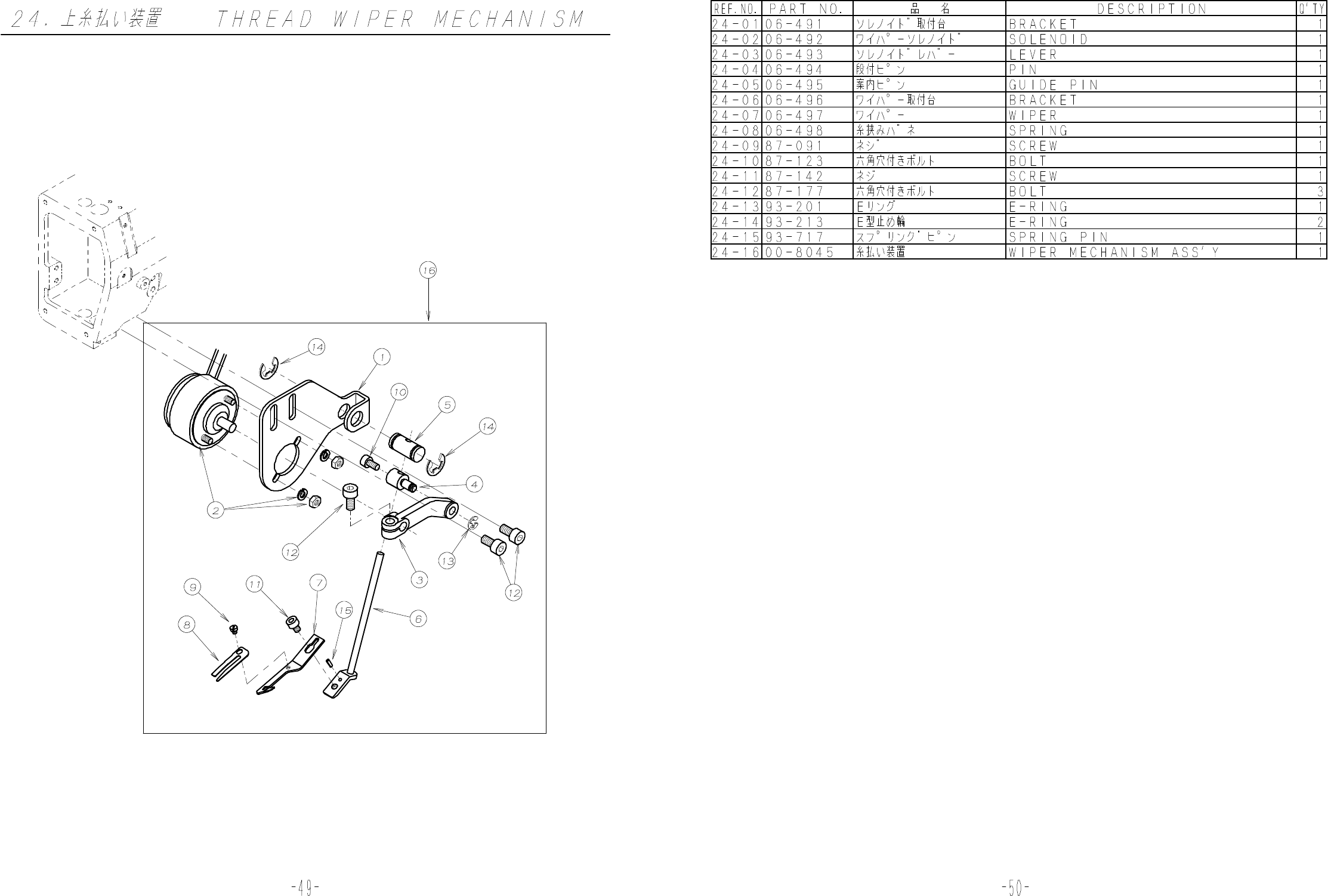

- 24.THREAD WIPER MECHANISM

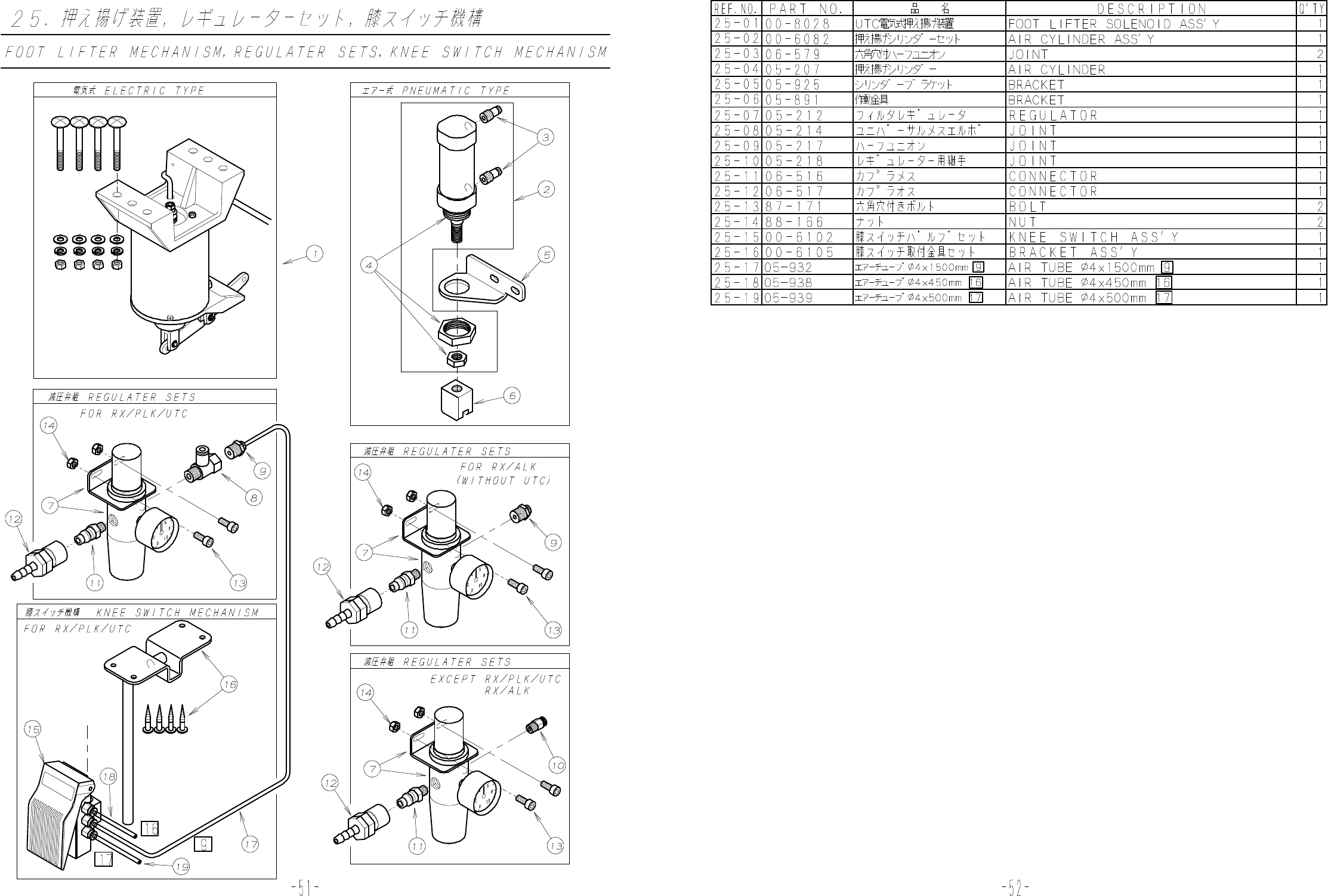

- 25.FOOT LIFTER MECHANISM REGULATER SETS, KNEE SWITCH MECHANISM

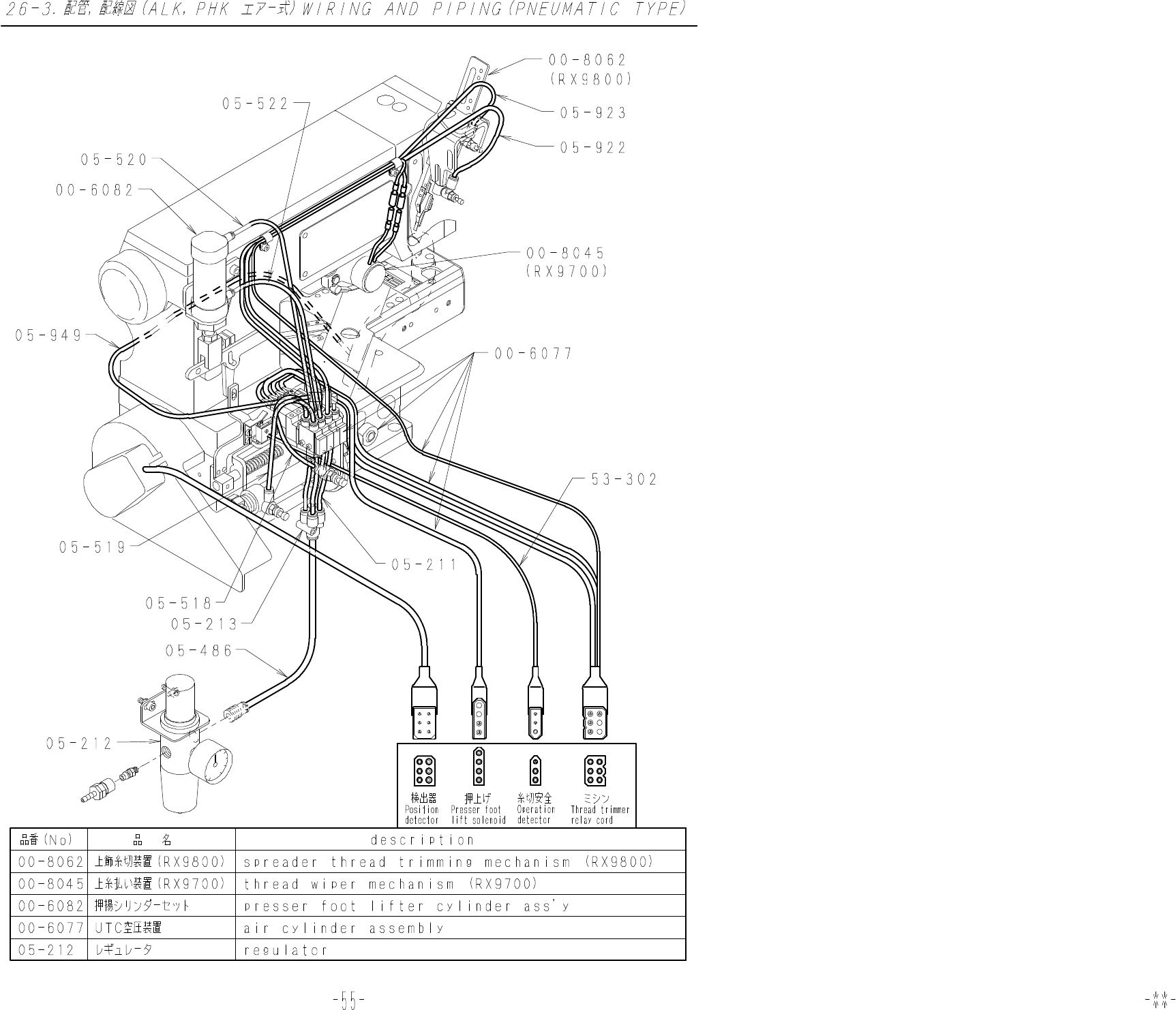

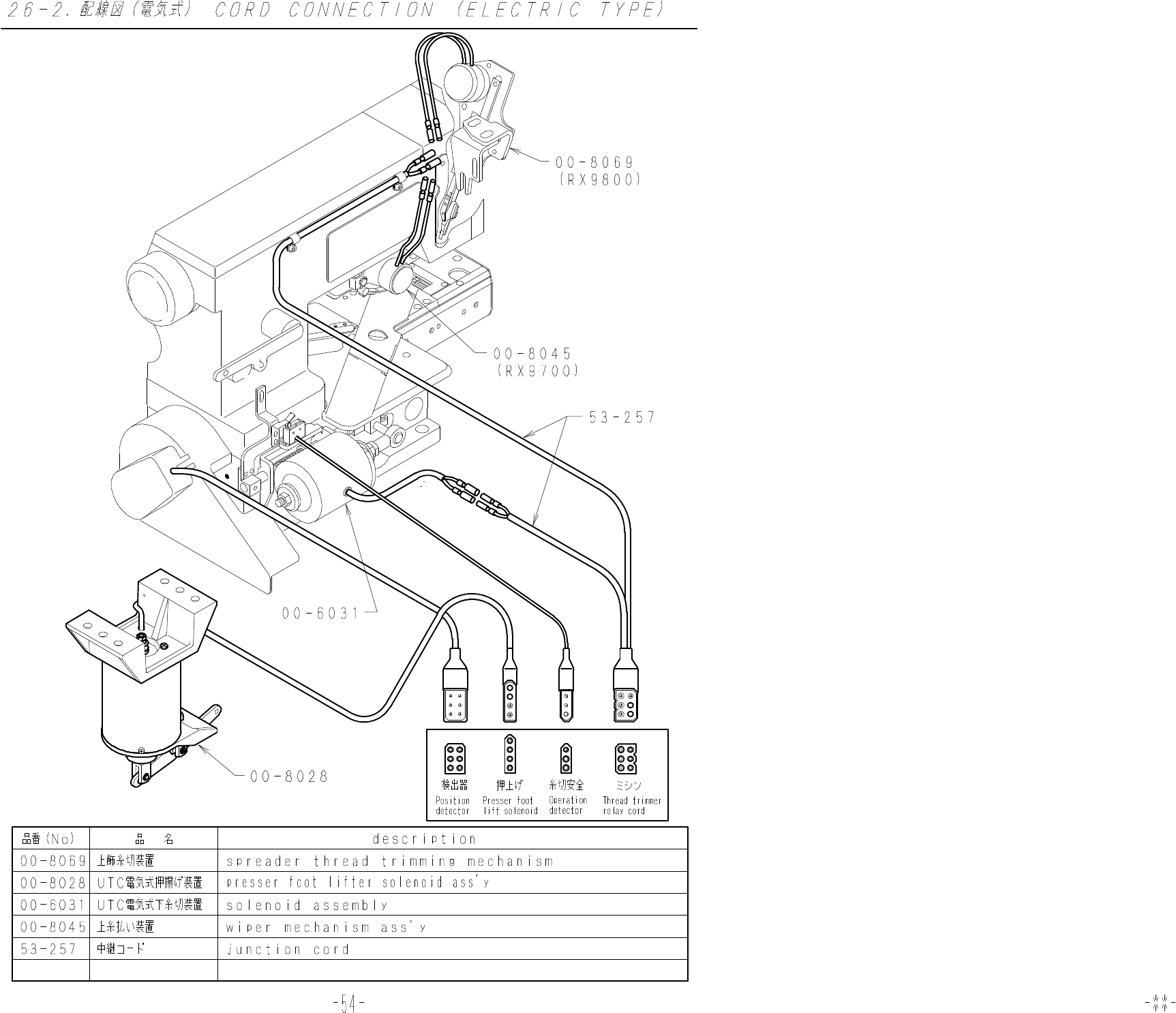

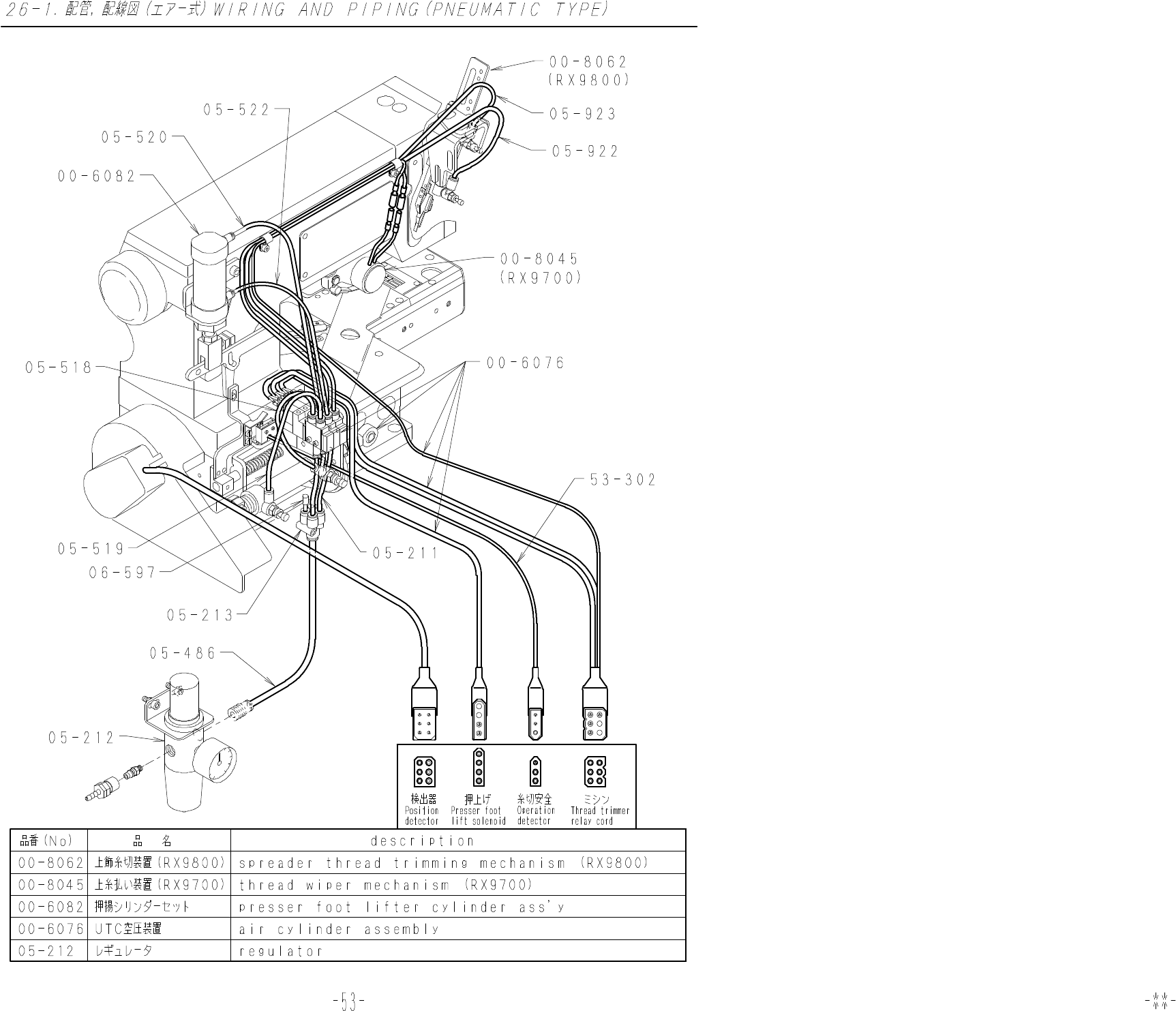

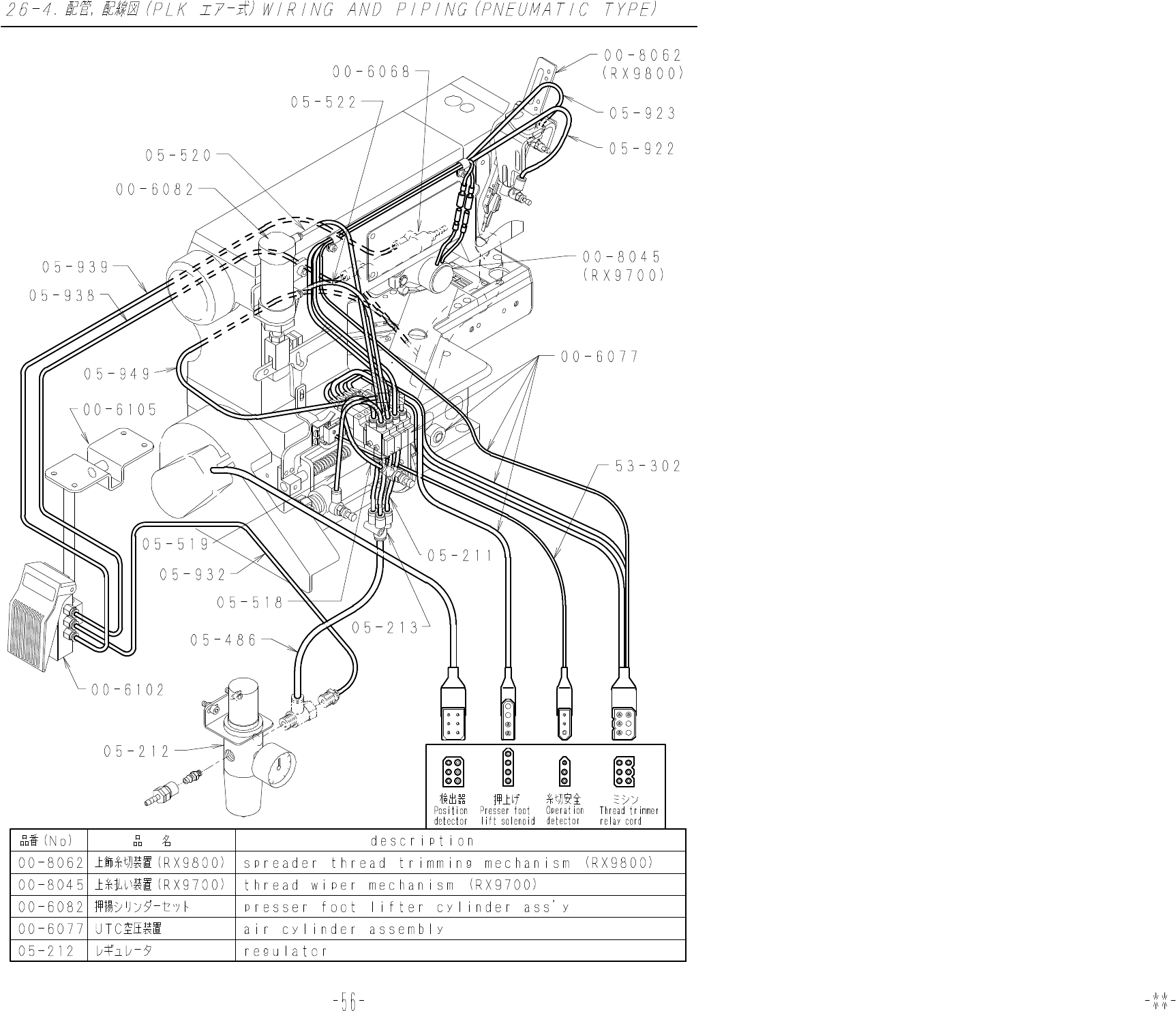

- 26.WIRING AND PIPING

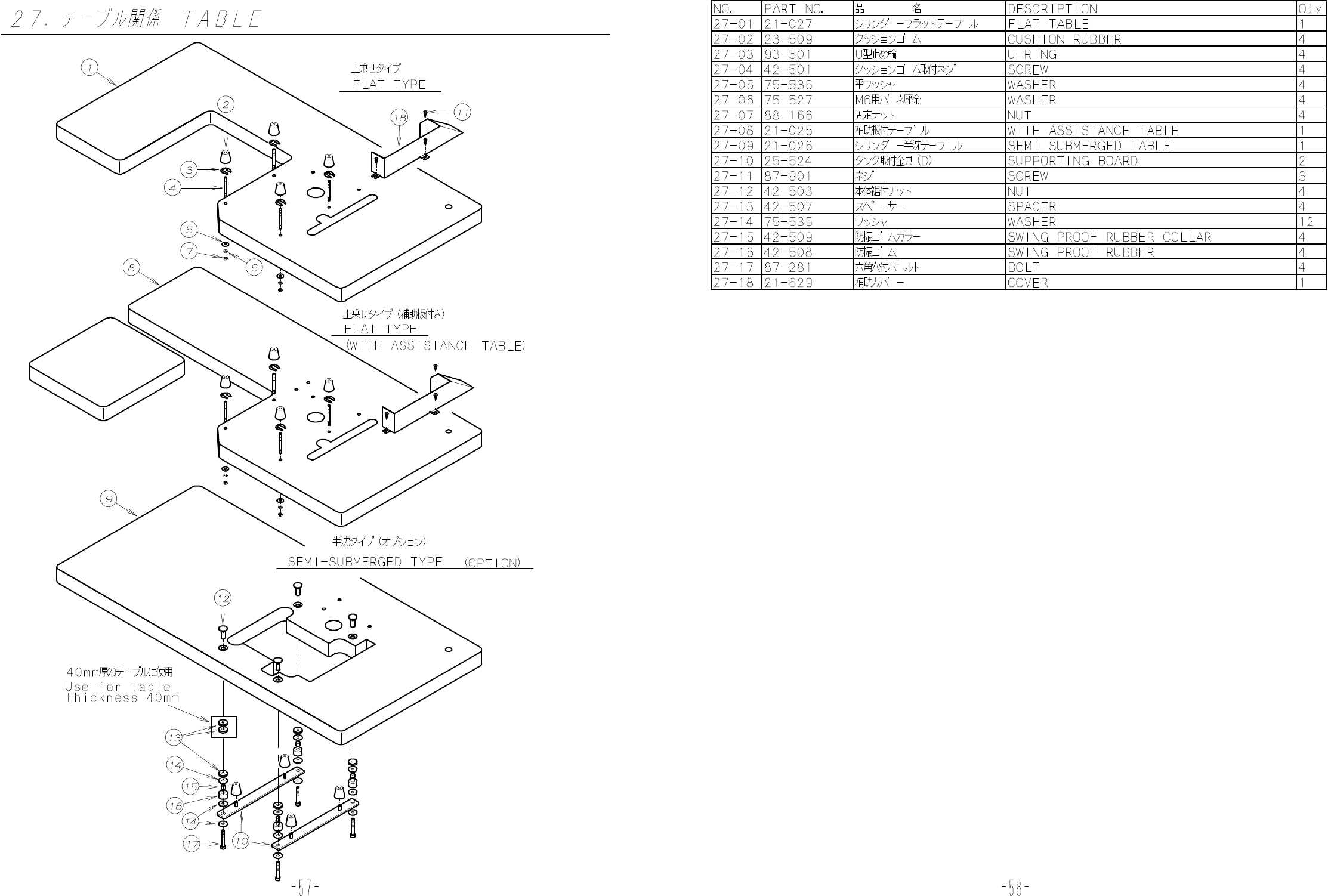

- 27.TABLE

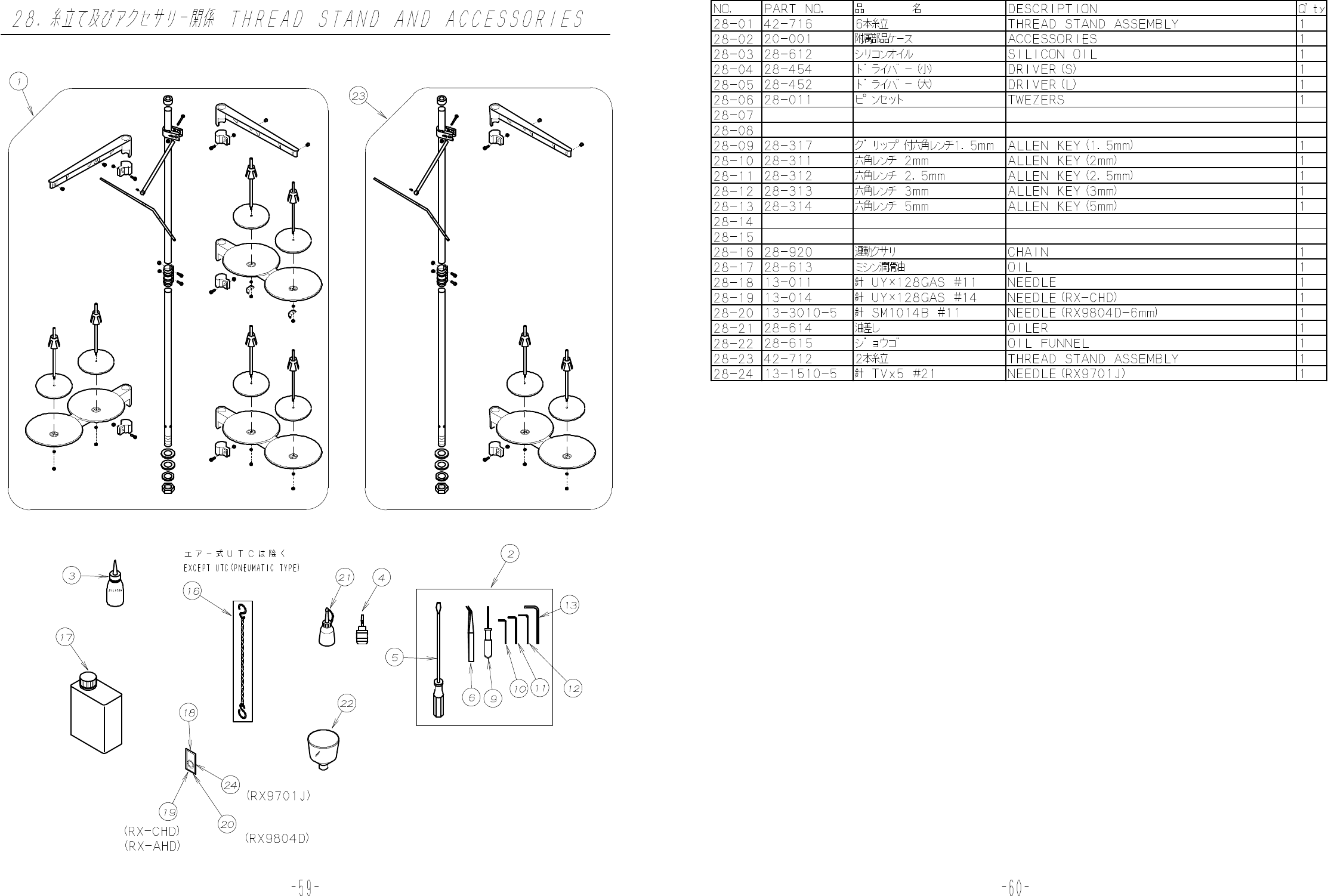

- 28.THREAD STAND AND ACCESSORIES

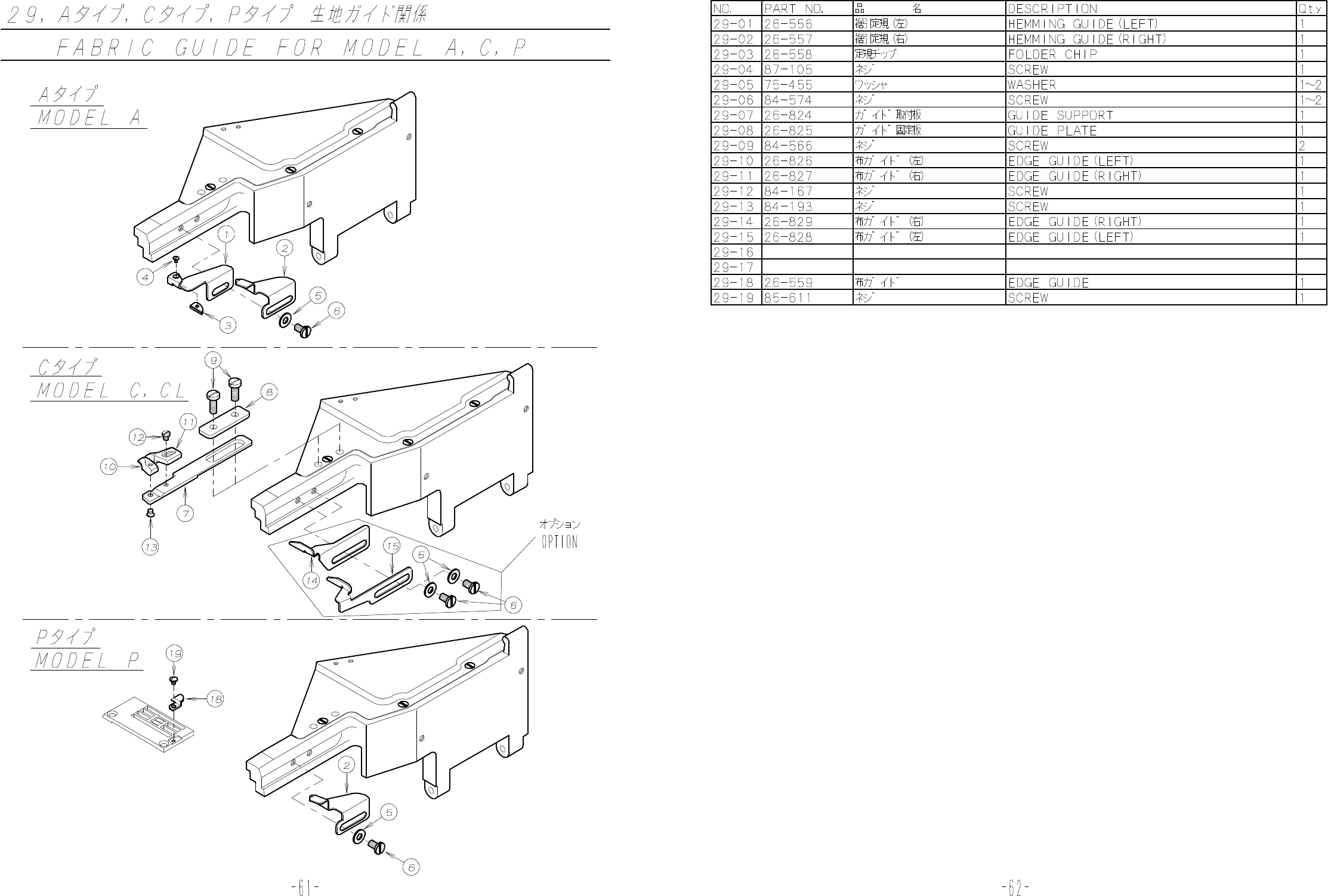

- 29.FABRIC GUIDE FOR MODEL A,C,P

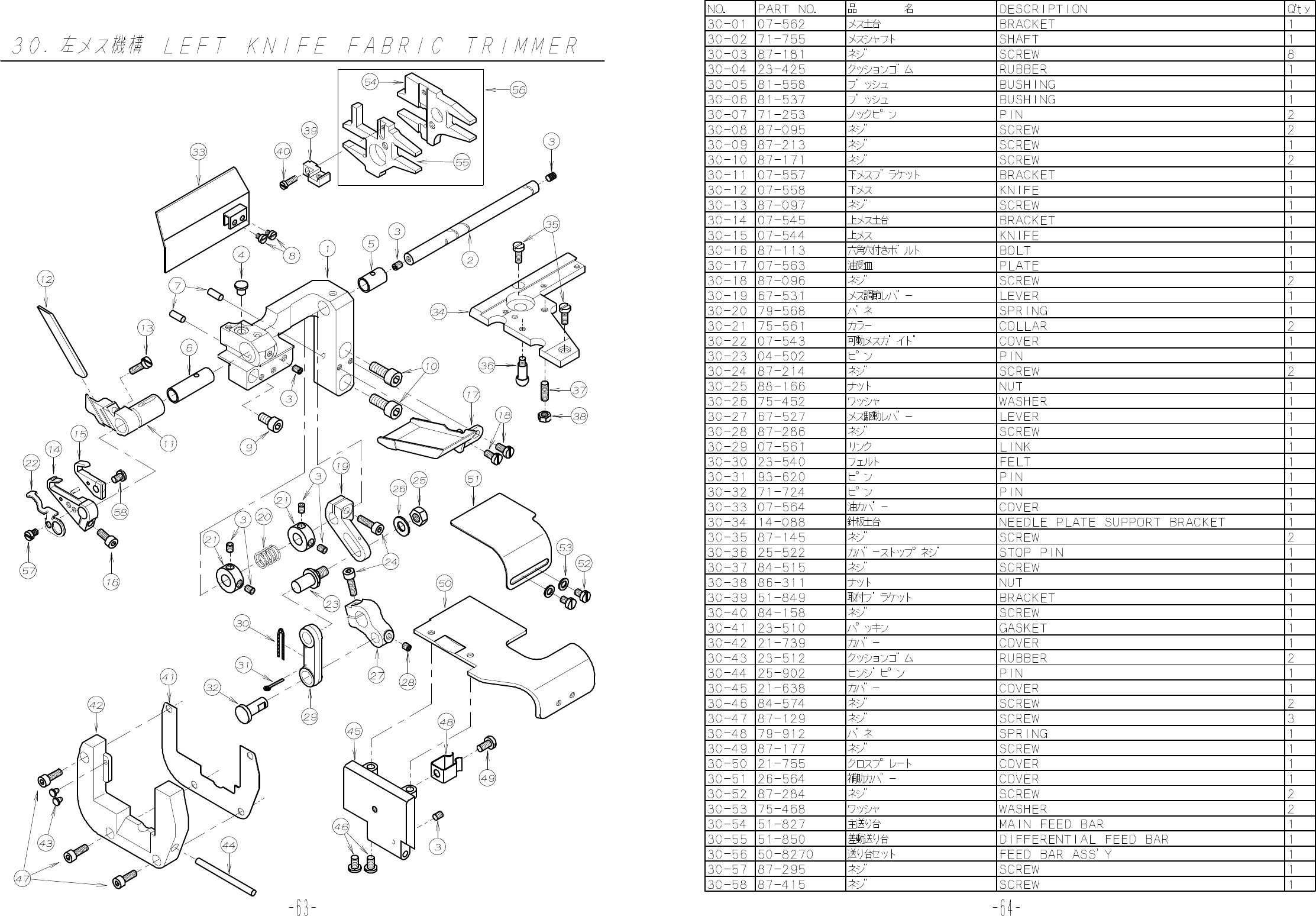

- 30.LEFT KNIFE FABRIC TRIMMER

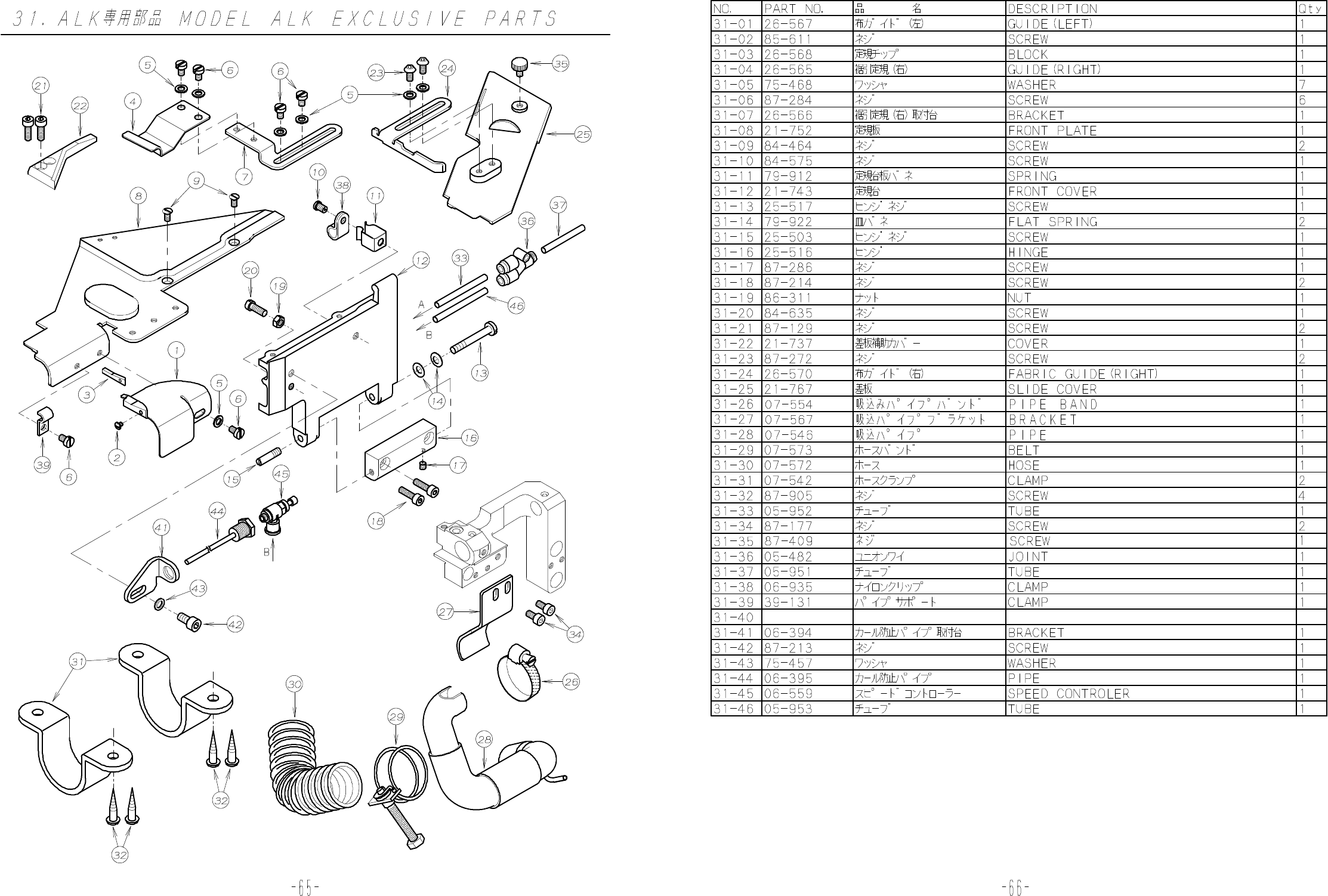

- 31.MODEL ALK EXCLUSIVE PARTS

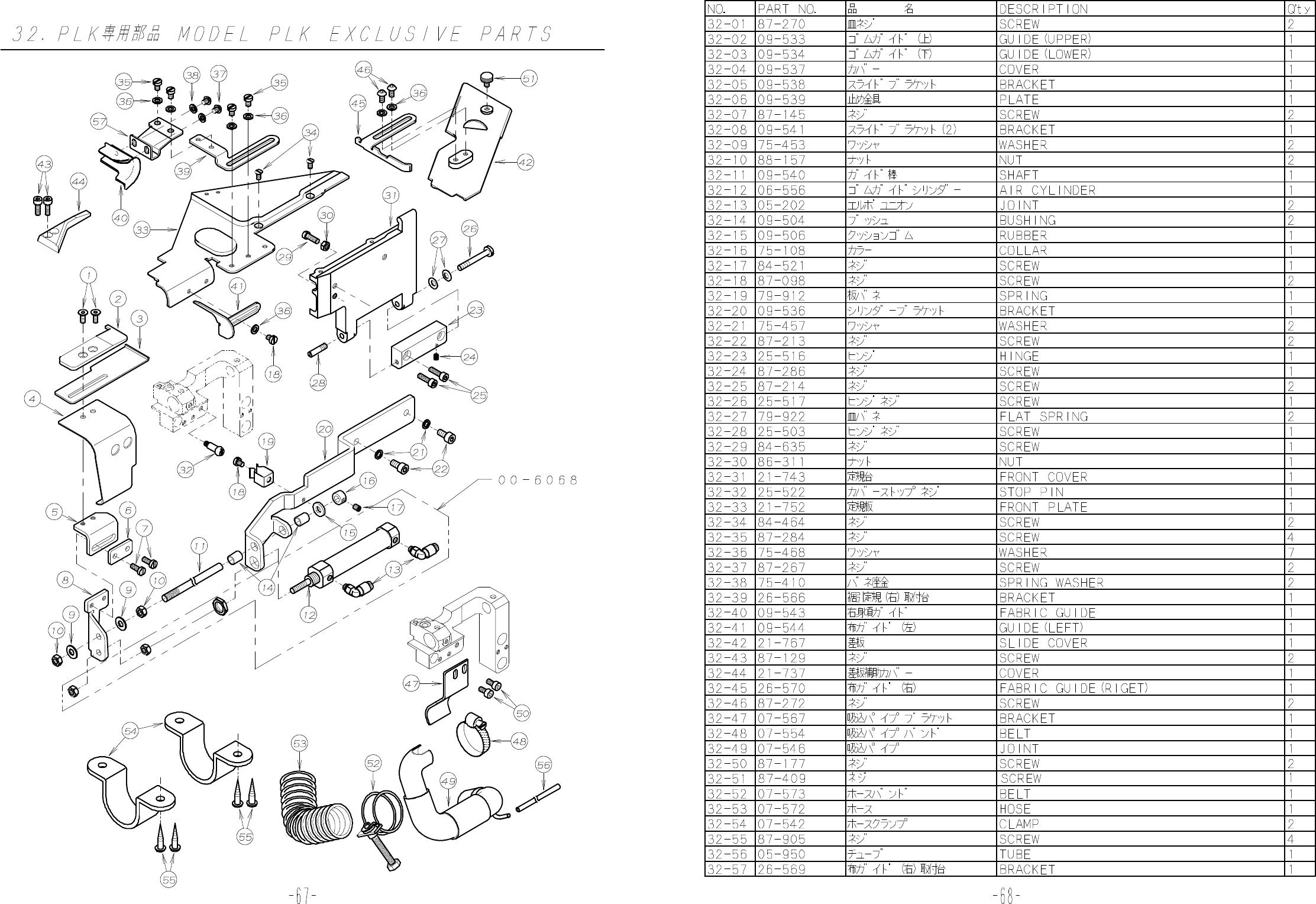

- 32.MODEL PLK EXCLUSIVE PARTS

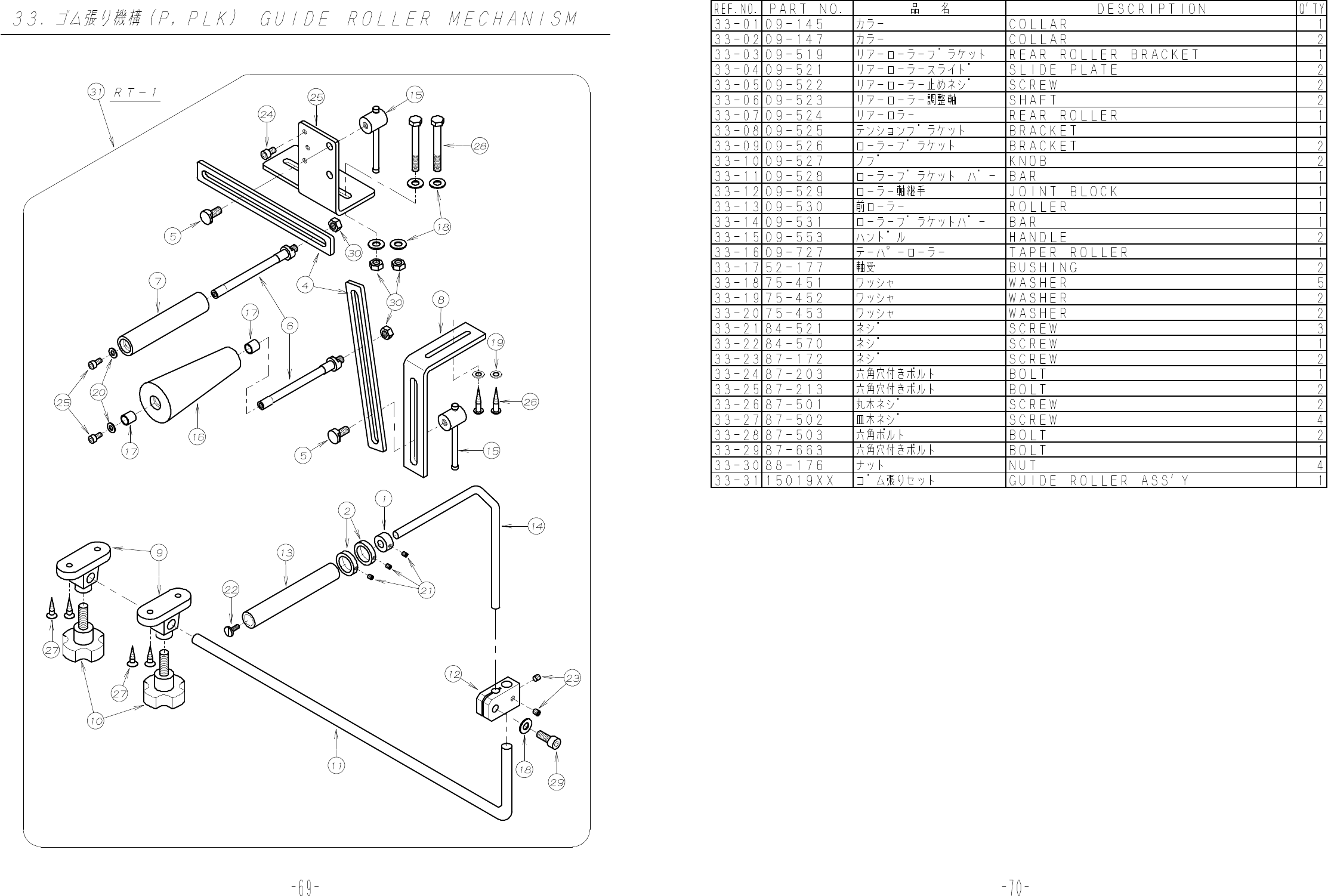

- 33.GUIDE ROLLER FOR MODEL P, PLK, PHK

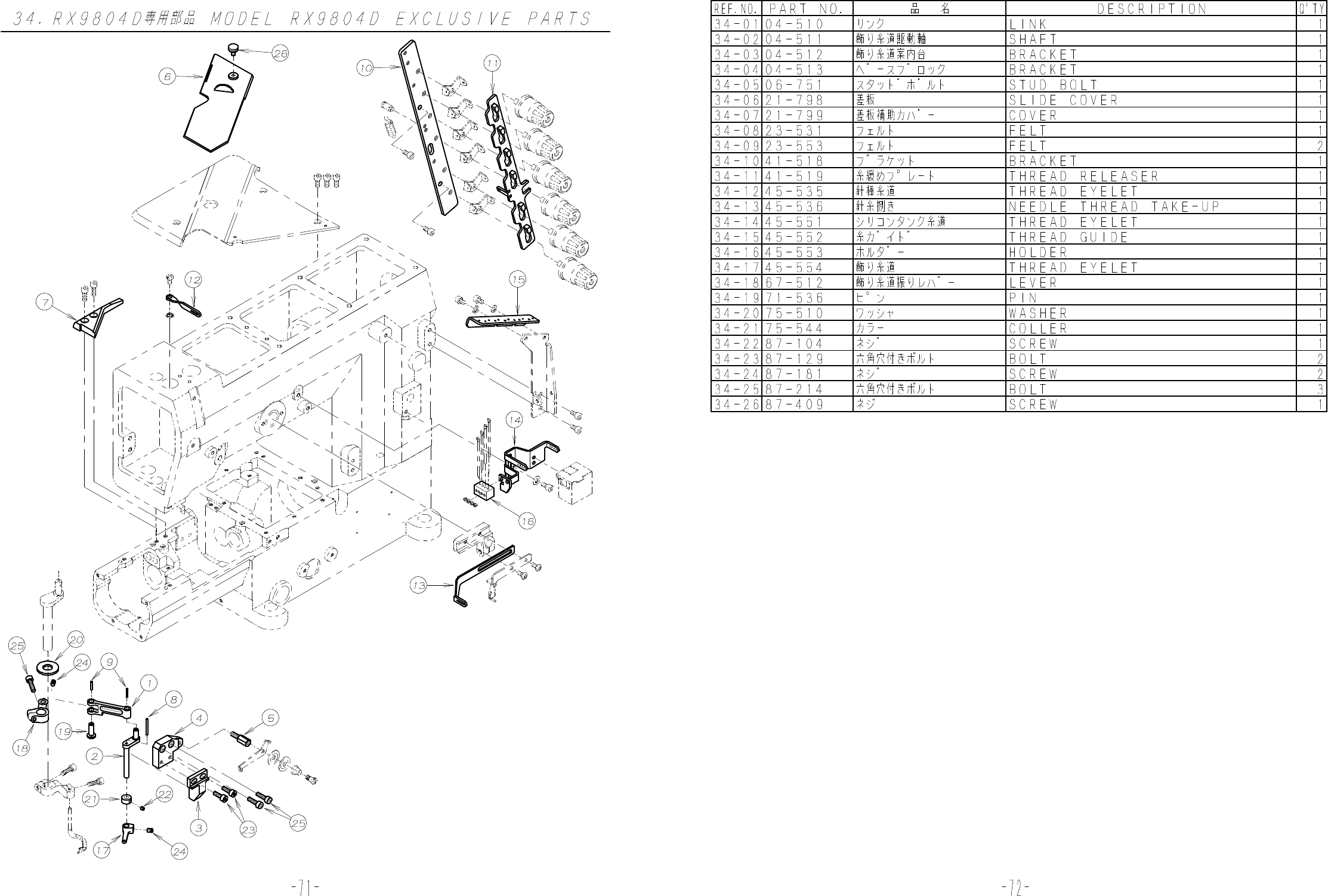

- 34.MODEL RX9804D EXCLUSIVE PARTS

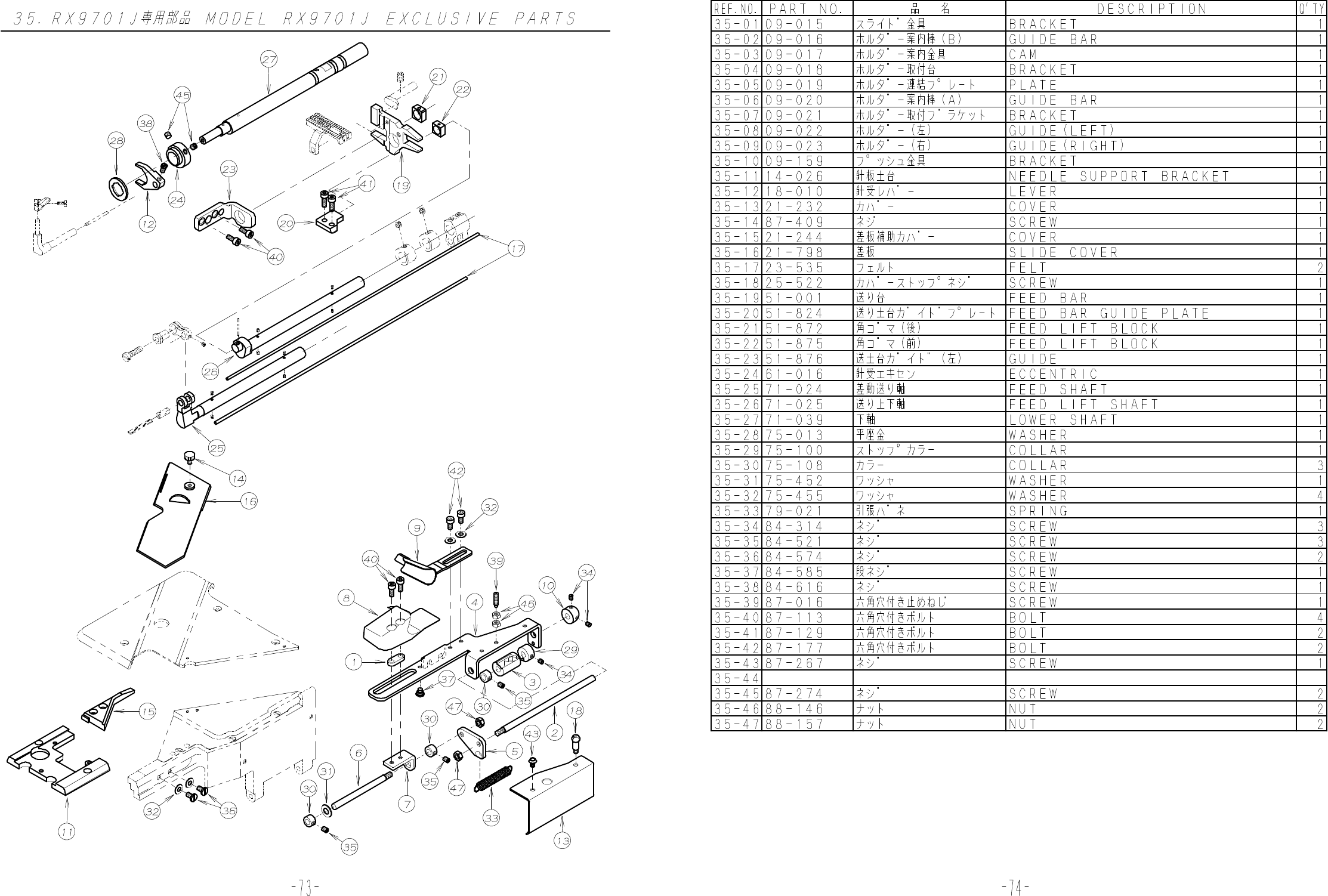

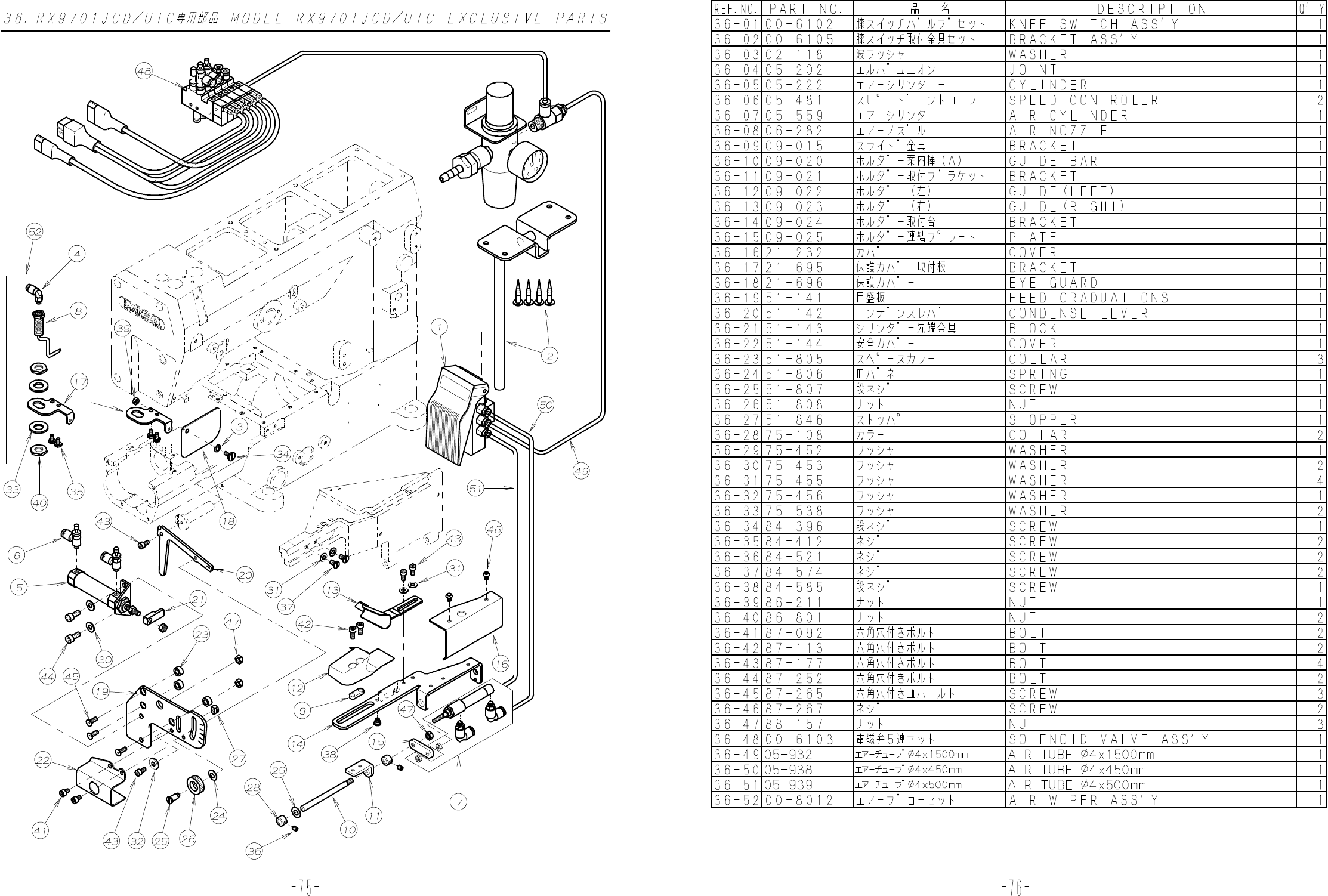

- 35.MODEL RX9701J EXCLUSIVE PARTS
- 36.MODEL RX9701J EXCLUSIVE PARTS

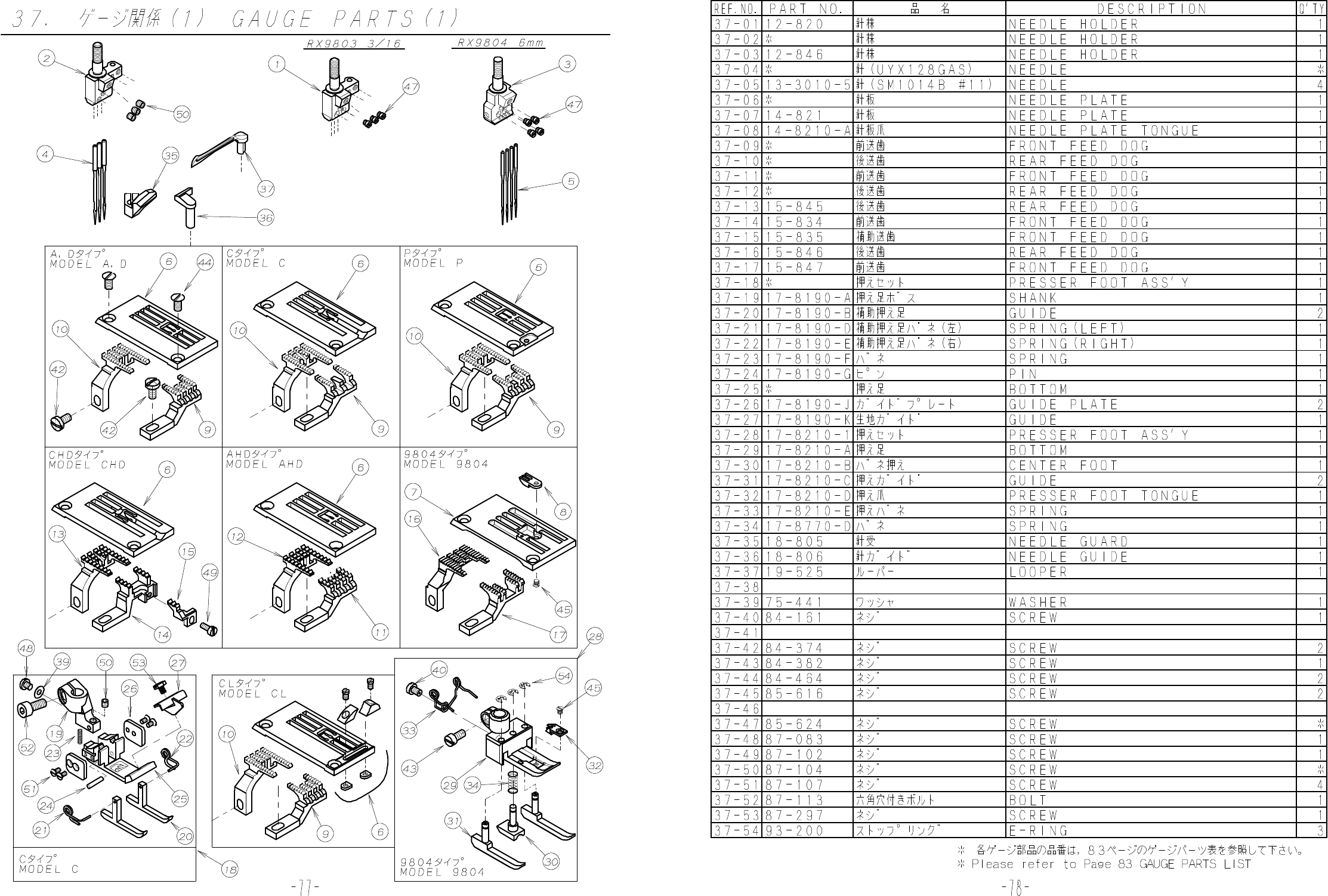

- 37.GAUGE PARTS(1)

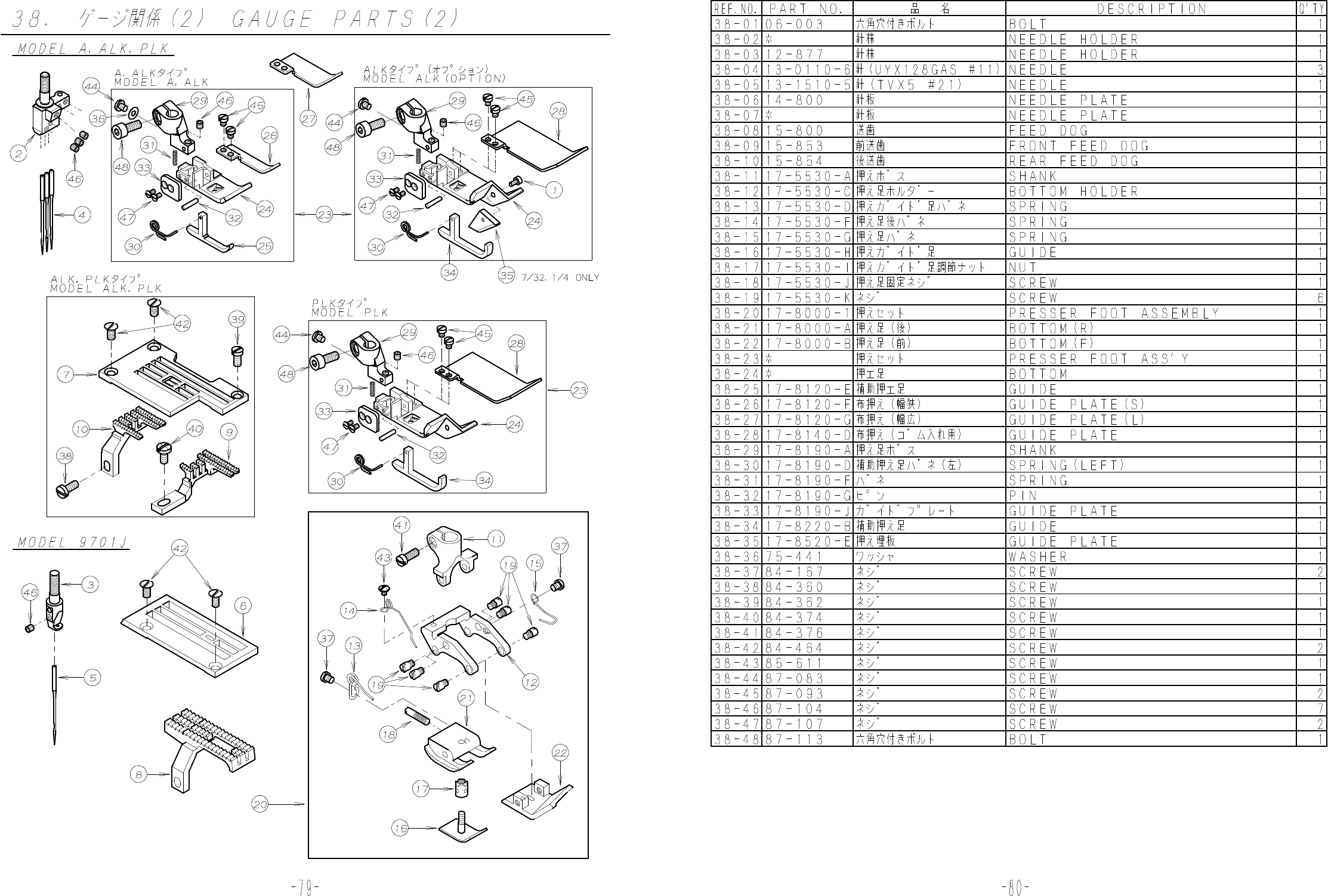

- 38.GAUGE PARTS(2)

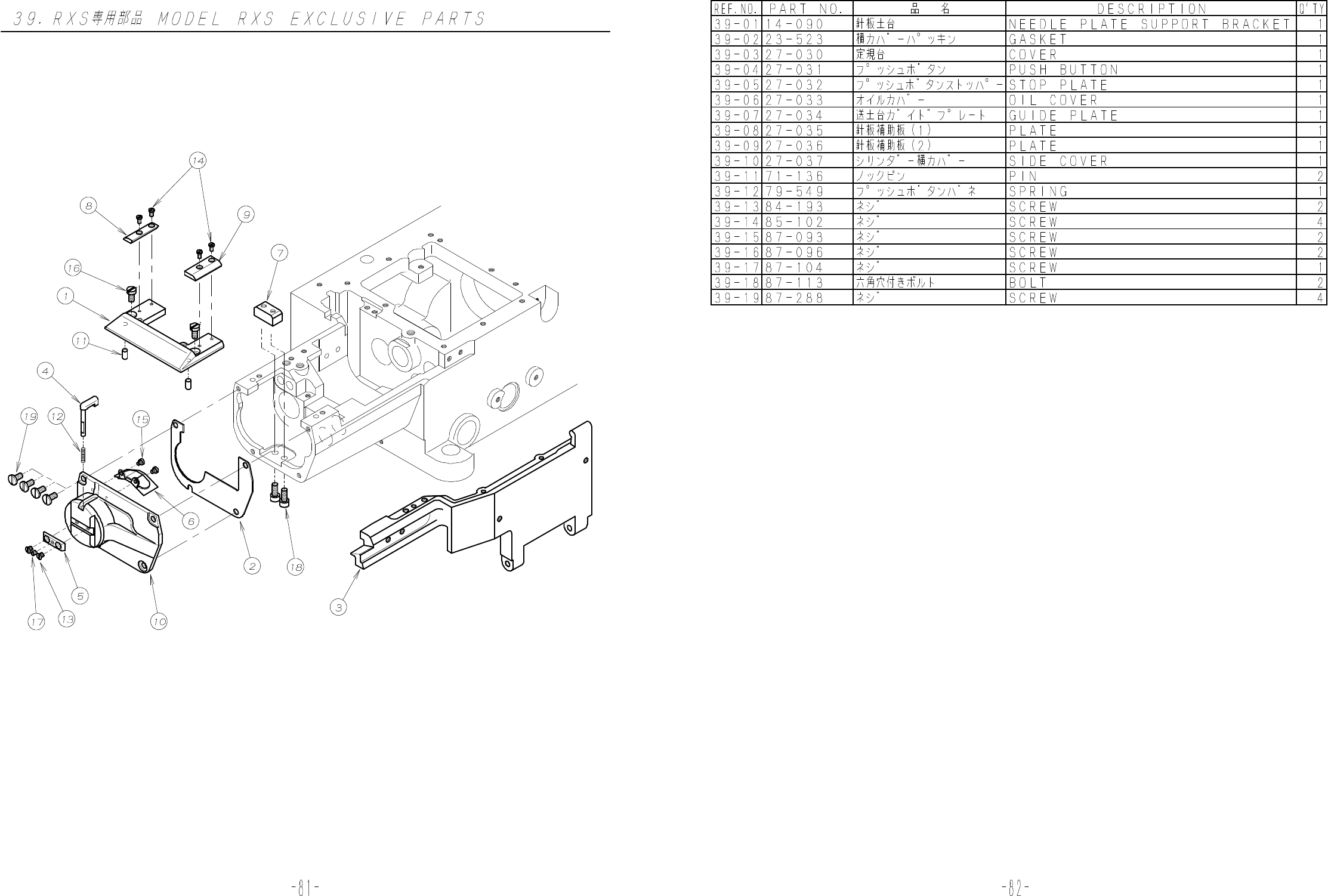

- 39.MODEL RXS EXCLUSIVE PARTS

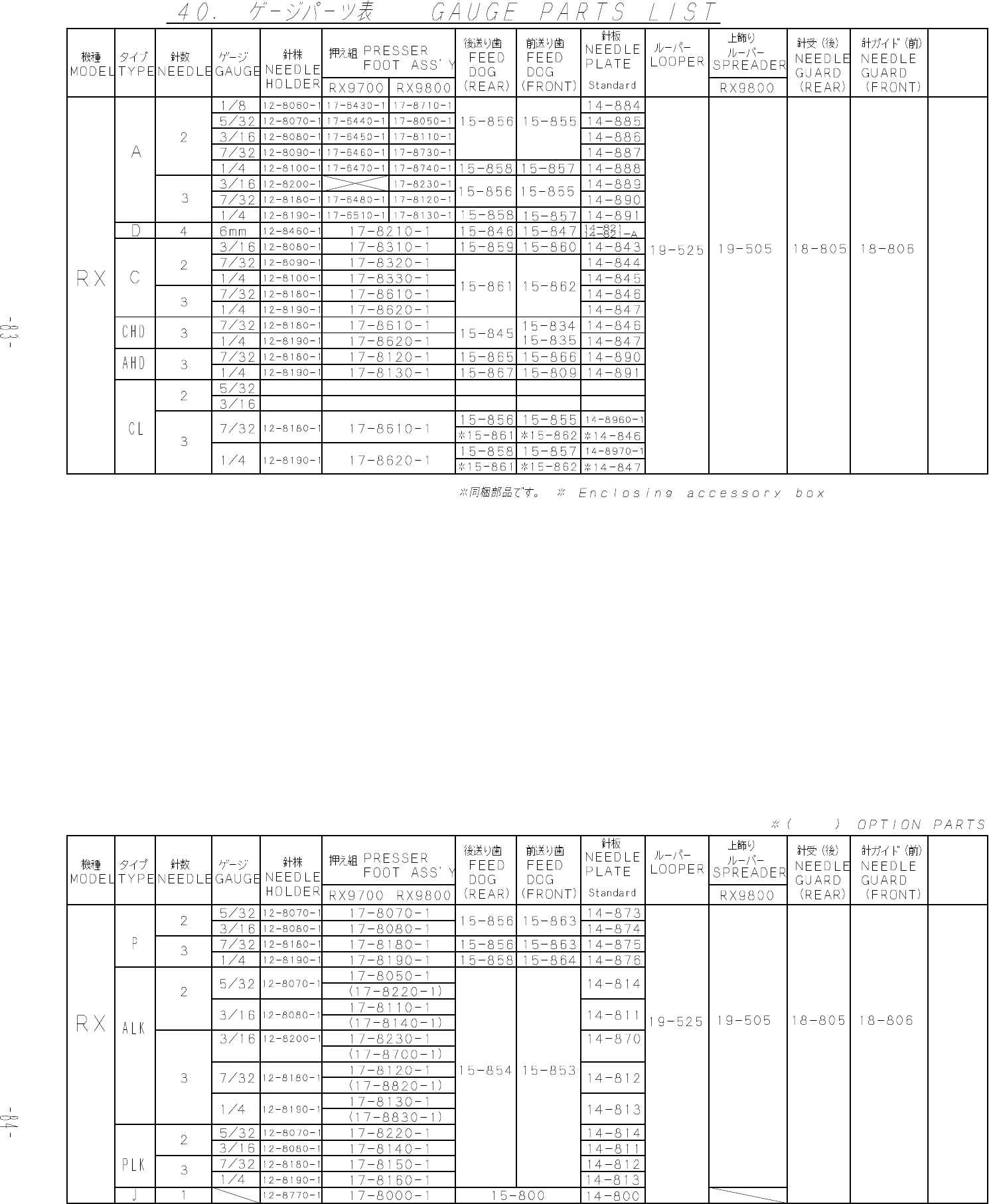

- 40.GAUGE PARTS LIST
PARTS
PARTSPARTS
PARTS
LIST
LISTLIST
LIST
Industrial
IndustrialIndustrial
Industrial
Sewing
SewingSewing
Sewing
Machines
MachinesMachines
Machines
1991 年 6月 初 版 発行
2002 年 5月 第9版 発行
First published : June 1991
Ninth edition : May 2002
No. 020043
RX9700A,C,P/UTC
RX9800A,C,P/UTC
RX9800ALK/UTC
RX9800PLK/UTC
RX9800A-HD/UTC
RX9800C-HD/UTC
RX9804D
RX9701J,JCD/UTC
RXS9800A,C/UTC
RX9800CL/UTC
