Smart Devices

Stitch skipping is detected during sewing. This helps lighten the operator's

inspection work load and also prevents defective products from being shipped.

In the case where a skipped stitch is detected, the buzzer sounds, the red lamp

lights up and the sewing machine stops. With this function, the operator is allowed

to concentrate on sewing work without worryring about skipped stitching.

Skip Stitch Detector

The buzzer sounds and the green lamp lights up when the amount of thread

remaining on the bobbin reaches a predetermined length. It is also possible to stop

the sewing machine at this point. With this function, the operator is allowed to

concentrate on sewing work without caring about the amount of thread remaining

on the bobbin.

Bobbin Thread Remaining Detector

Thread tension can be

numerically controlled.

Since the thread tension

cannot be changed without

a control box, a change in

thread tension by the

operator for personal

preference is prevented.

Digital Tension

◉Skip Stitch Detector

◉Bobbin Thread Remaining Detector

◉Cover Sensor Unit

◉Digital Tension

LU-2810-7/CP-180/with smart devices

PLC-2760-7/CP-180/with smart devices

Bobbin Thread

Remaining

Detector

Skip Stitch

Detector

Since the needle thread tension is changed

with the stepping motor, consistent thread

tension control is achieved. (In addition,a

thread tension which matches a sewing

process can be easily reproduced by the

control box to the sewing machine.)

Digital Tension

Sixteen different thread tension values can

be set for a single sewing machine unit.

In addition, one control box is able to

manage thread tensions for 250 sewing

machine units at the maximum.

Control Box

Skip Stitch Detector / Bobbin Thread Remaining Detector /

Digital Tension / Cover Sensor Unit

Smart Devices

（LU-2800 Series、

PLC-2700 Series）

1.Please select if you want to use skip stitch detector and the bobbin thread remaining detector at the same time.

40175951

40153263

40153924

40153920

40173138

40165317

40177729

40162091

40162092

40154826

40153314

40175756

40175757

PLC-2710-7

PLC-2760-7

40155443

（6mm）

40155445

（8mm）

40155447

（10mm）

40153488

（12mm）

_

•PLC-2700-7 Series

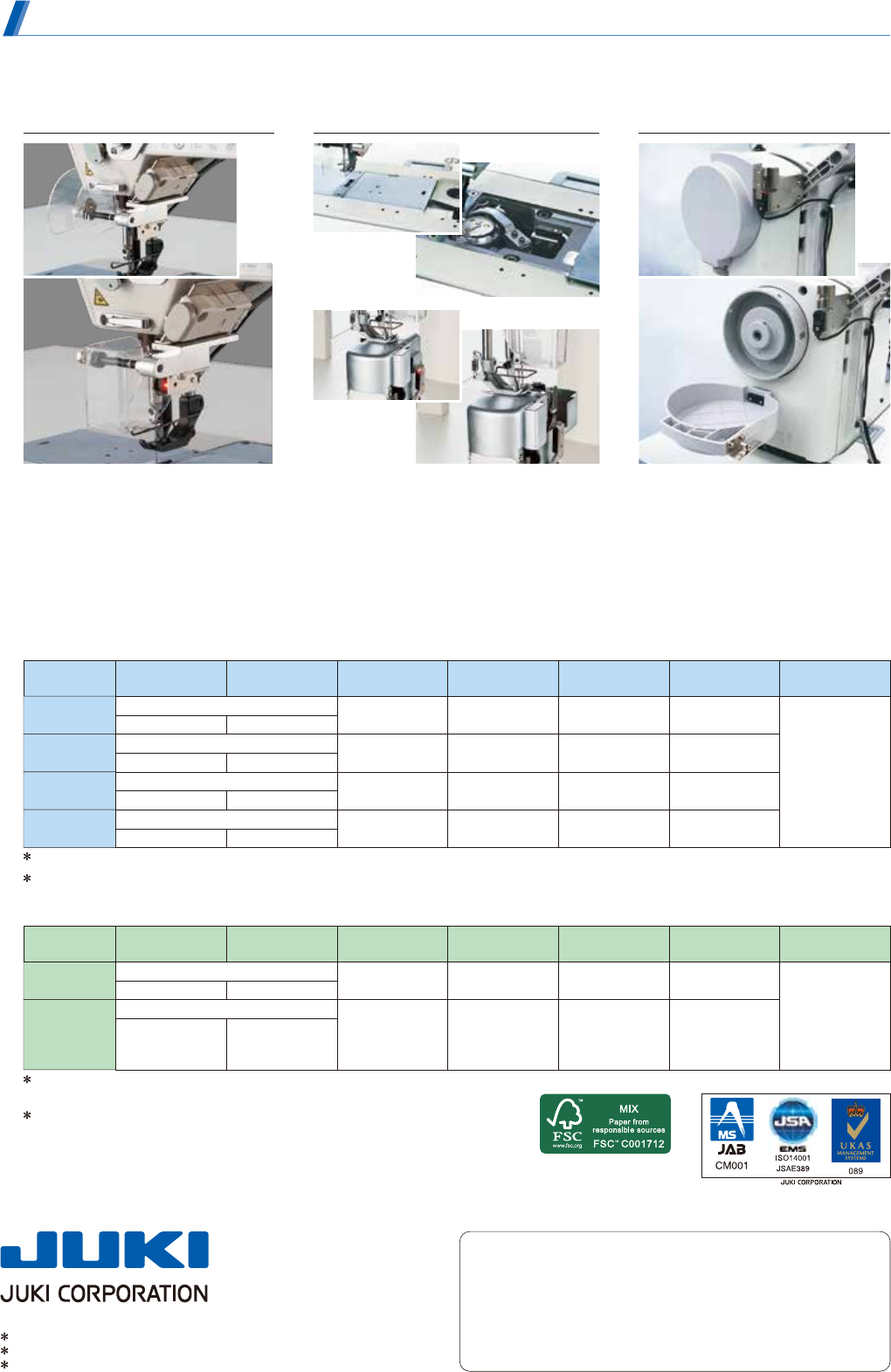

The cover sensor unit detecting ①,② and ③ (shown below) are closed tightly during sewing, thereby

preventing the sewing machine from starting up unexpectedly. (①,② and ③ can be used discretely.)

Cover Sensor Unit

40165240 40163836

•LU-2800-7 Series

40153263

40153924

40153263

40153263

40153920

40173138

40153920

40153920

Cover Sensor Cover Sensor

Unit *1

40152605

40175682

40171588

40171589

40171588

40171589

40162088

40162089

40162090

40163832

40163833

40163837

40175752

40175753

40175755

40175754

Model

LU-2810-7

LU-2860-7

LU-2828A-7

LU-2818AL-7

40171589

40177690

Cable *2

40175951

Skip Stitch

Detector

Bobbin Thread

Remaining Detector

Digital

Tension(DT) DT Control Box

Cover Sensor Feed Lever

Base Cover *1

Model Cable *2

Skip Stitch

Detector

Bobbin Thread

Remaining Detector

Digital

Tension(DT) DT Control Box

2.Please select in the case of two devices or more with skip stitch detector,

bobbin thread remaining detector and cover sensor unit.

1.If you want to order a cover sensor, please purchase two pieces of feed lever

base cover that corresponds to the width of the needle.

2.Please select in the case of two devices or more with skip stitch detector,

bobbin thread remaining detector and cover sensor unit.

SEWING MACHINERY BUSINESS UNIT

Specifications and appearance are subject to change without prior notice for improvement.

Read the instruction manual before putting the machine into service to ensure safety.

This catalogue prints with environment-friendly soyink on recycle paper.

Registered Organization :

The Scope of the Registration : The activities of research,

development, design, sales, distribution, and maintenance

services of industrial sewing machines, household sewing

machines and industrial robots, etc., including sales and

maintenance services of data entry systems.

Head Office

2-11-1, TSURUMAKI, TAMA-SHI,

TOKYO

206-8551, JAPAN

PHONE : (81) 42-357-2383

FAX : (81) 42-357-2274

http://www.juki.com

The eye guard prevents a broken

needle from flying off. If the eye

guard is open, the sewing machine

cannot be started. As a result, the

sewing machine will not start up

unexpectedly even if the operator

forgets to turn the power off.

The handwheel cover prevents the

sewing machine from starting up

unexpectedly while the operator is

turning the handwheel by hand.

In addition, the cover also prevents

the thread and material from being

entangled in the handwheel during

sewing.

The sewing machine will not start if the

throat plate is open.

This prevents the material from being

caught in the hook during sewing.

LU-2800 Series

PLC-2700 Series

Eye guard with

an open/close sensor

①

②Bed slide with

an open/close sensor ③Handwheel cover with

an open/close sensor

■Devices by model
