ACE ELECTRONICS BWA16AA003 Hi-Fi Bluetooth Stereo with CD Player & FM Radio User Manual BWA16AA003 UserGuide PROOF v1 4

ACE INTERNATIONAL ELECTRONICS LTD Hi-Fi Bluetooth Stereo with CD Player & FM Radio BWA16AA003 UserGuide PROOF v1 4

User Manual

PRODUCT GUIDE
Hi-Fi Bluetooth® Stereo
with CD Player and FM Radio
Model: BWA16AA003
CAUTION: To use product properly, please read the user guide completely before initial use.
INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE D’ ÉLECTROCUTION
NE PAS OUVRIR
DANGEROUS VOLTAGE: The lightning ash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
DANGER: This product utilizes a Class 1 laser to read Compact Discs. This laser Compact
Disc Player is equipped with safety switches to avoid exposure when the CD door is open
and the safety interlocks are defeated. Invisible laser radiation is present when the CD
Player’s lid is open and the system’s interlock has failed or been defeated. It is very
important that you avoid direct exposure to the laser beam at all times. Please do not
attempt to defeat or bypass the safety switches.
WARNINGS AND PRECAUTIONS
• CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein
specied may result in hazardous radiation exposure.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the users authority to operate the equipment.
WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the
surface. Use a protective barrier between the unit and surface to protect the surface.
WARNING: Use of this unit near uorescent lighting may cause interference regarding use of the remote.
If the unit is displaying erratic behavior move away from any uorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type.
WARNING: The remote control button cell battery contains mercury. Do not put in trash, instead recycle
or dispose of as hazardous waste.
WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or
disposed of in normal household waste. Contact your local government for disposal or recycling
practices in your area. They should never be incinerated since they might explode.
Do not expose the apparatus to dripping or splashing. Do not place objects lled with liquids (e.g., vases)
on top of the apparatus.
Adapter is used as disconnect device and it should remain readily operable during intended use. In order
to disconnect the apparatus from the mains completely, the adapter should be disconnected form the
mains socket outlet completely.
Battery shall not be exposed to excessive heat such as sunshine, re or the like.
Caution marking is located on the back of the apparatus.
NOTE: Do not unplug the speaker or subwoofer cable during playing or you may need to reset the unit.
If you need to unplug the speaker cable, please make sure the unit is in standby mode.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. When the provided plug does
not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Power Sources - This product should be connected to a power supply only of the type described in
these operating instructions, or as marked on the unit.
16. Water and Moisture - This product should be kept away from direct contact with liquids.
The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids,
such as vases, shall be placed on the apparatus.
17. CAUTION – Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type. Batteries (a battery pack or an installed battery) shall not be exposes to excessive
heat such as sunshine, re, etc.
18. Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device
shall remain readily operable.
19. Do not install this equipment in a conned or "boxed-in" space such as a bookcase or similar unit,
and maintain good ventilation conditions. The ventilation should not be impeded by covering the
ventilation openings with items such as newspaper, tablecloths, curtains, etc.
20. This apparatus is for professional use only.
21. When moving or not using the appliance, secure the power cord (e.g., wrap it with a cable tie).
Be careful not to damage the power cord. Before using it again, make sure the power cord has not
been damaged. If the power cord has been damaged at all, bring the unit and cord to a qualied
service technician for repair or replacement as specied by the manufacturer.
22. WARNING: Please refer to any important information (e.g., electrical, safety, etc.) printed on the
exterior bottom enclosure or rear panel before installing or operating the product.
FM RADIO OPERATION
Step 1 Press the POWER button to turn on the unit.
Step 2 Press the SOURCE button to set the unit to Radio mode as
indicated on the LCD display.
Step 3 Press the TUNE/SKIP buttons to adjust the radio frequency.
Saving Preset Stations
Step 1 Tune the radio to the station you want to save.
Step 2 Press the PROG/REP button on the remote control, then press the
PRESET button to select a preset number.
Step 3 Press the PROG/REP button again to save the current station
to the selected memory slot.
Step 4 Repeat steps 1, 2 and 3 to program additional stations.
Note: You can program up to 20 FM presets.
BLUETOOTH WIRELESS
You can stream audio to this product from up to 33' away using your iPod,
iPhone, iPad , Android or other Bluetooth enabled device.
Step 1 Turn on the unit by pressing the POWER button.
Step 2 Press the SOURCE button to set the unit to BT mode.
Step 3 On your Bluetooth enabled device, select “BWA16AA003” from
the available list and your Bluetooth audio device will connect to
the BWA16AA003.
Step 4 If you want to pair the BWA16AA003 with another Bluetooth
audio device, press and hold the PAIRING button to disconnect
the current paired Bluetooth audio device or make sure the
current device has been moved out of range.
Step 5 During playback, press the PLAY/PAUSE button to pause playback
and again to resume playback.
Note: If the last paired bluetooth audio device is powered on and
within available range with Bluetooth enabled, the device will
automatically reconnect to the BWA16AA003.
FOLD FOLD
FOLD FOLD
FOLD FOLD
FOLD
FRONT
FOLD
SPECIFICATIONS
GENERAL
AC Input........................................................................................................................................................ 120V/60Hz
Power SourceRemote Control) ..................................................................DC 3VCR2025Lithium Battery
Speaker (Tweeter) ........................................................................................................................................ 3ohm x 2
Speaker (Full Range) .................................................................................................................................... 3ohm x 2
Subwoofer........................................................................................................................................................ 3ohm x 1
Output Power (reference) ........................................................ 235W+235W (per channel at 3 ohm, 1kHz)
Output Power (Subwoofer)............................................................................................ 230W (at 3ohm, 100Hz)
Dimensions (Main Unit) ................................................ 7.9in x 12.9in x 12.7in (20cm x 32.7cm x 32.2cm)
Dimensions (Speaker).......................................................... 7.9in x 7.9in x 13in (20cm x20.2cm x33cm) x2
Dimensions (Subwoofer).................................................. 11in x 8.8in x 12.5in (28cm x 22.3cm x 31.8cm)
RADIO SECTION
Frequency Range ........................................................................................................................ FM: 87.5 - 108MHz
BLUETOOTH SECTION
Bluetooth specication ..............................................................................................................................v2.1+EDR
Supported Protocol.................................................................................................................................... A2DPV1.2
Range ................................................................................................................................33 feet (10m) line of sight
Specications are subject to change and improvement without notice.
Actual product may vary from the images found in this document.

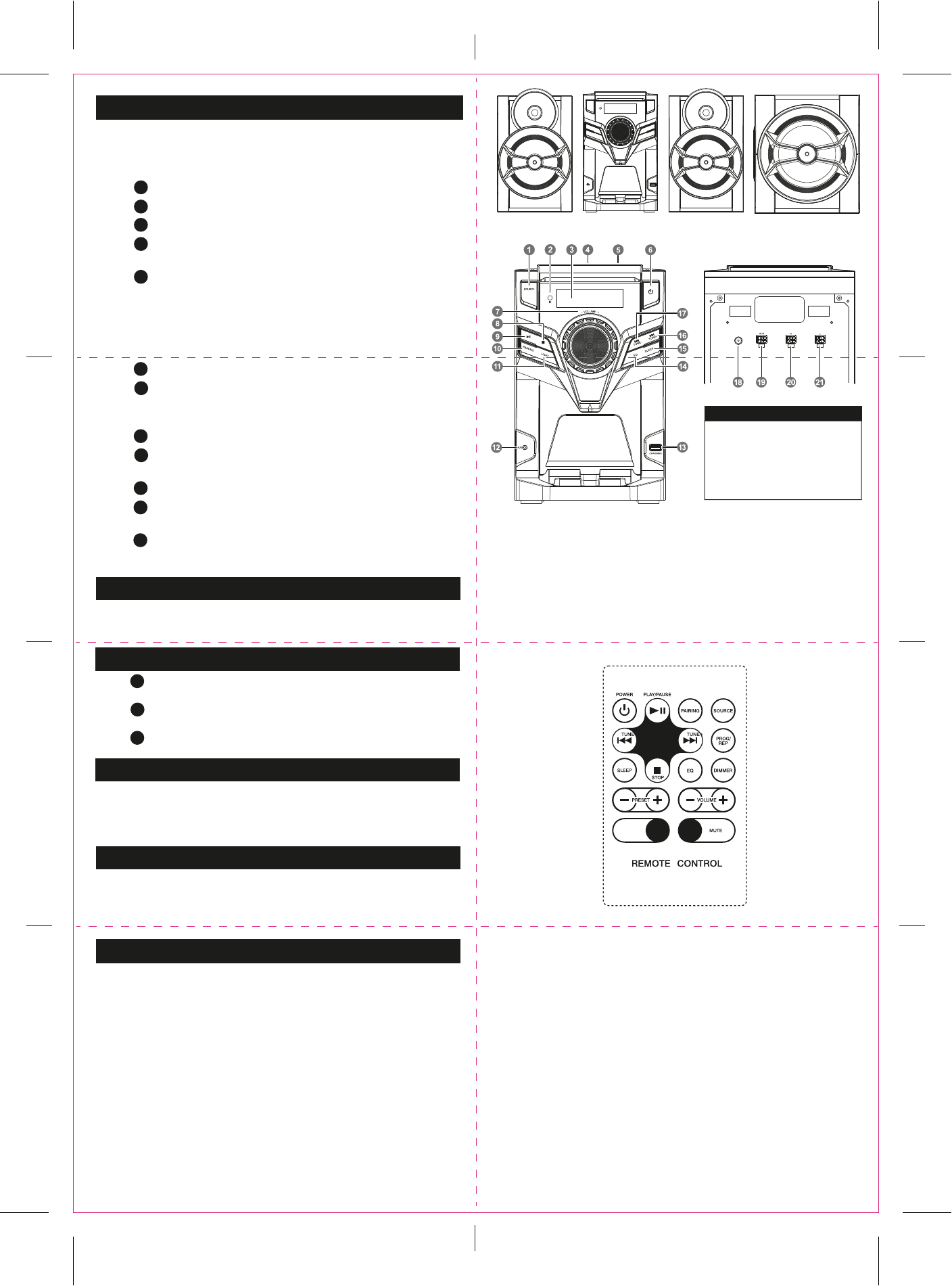

1. SOURCE Button
2. IR Sensor
3. LCD Display
4. CD Door
5. OPEN AREA
6. POWER Button
7. VOLUME + / –
STOP (CD mode) - Press to stop playback.
EQ - Press to switch between Classic, Rock,
Jazz or Pop equalizer settings.
DIMMER - Press to switch the light brightness
between high, mid and low.
PRESET+/– (CD mode) - Press to select saved
programmed tracks.
PRESET+/– (Radio mode) - Press to select
from preset radio stations.
VOLUME - Press to increase or decrease the
volume level.
DISCO LIGHT (Ambient Light) - Press to
change multi-color lighting eects and
speed variation.
MUTE - Press to silence volume.
POWER - Turn unit on/o.
PLAY/PAUSE (CD mode) - Press to play or
pause a loaded CD.
PAIRING (BT mode) - Press to disconnect the
current Bluetooth audio device.
SOURCE - Press to switch between CD, Tuner,
AUX-In and Bluetooth modes.
TUNE/SKIP (Radio mode) - Press to tune to
desired radio frequency.
TUNE/SKIP (CD mode) - Press to select tracks.
Press and hold to fast search.
PROG/REP (CD or Radio mode) - Press to
enter programming mode.
SLEEP - Press to set sleep timer.
8. STOP Button
9. PLAY/PAUSE Button
10. PAIRING button
11. LIGHT Button
12. LINE-IN Jack
13. USB CHARGING Port
14. EQ Button
15. SLEEP Button
16. TUNE + / SKIP + Button
17. TUNE – / SKIP – Button
18. FM Antenna
19. SUBWOOFER OUT
20. SPEAKER OUT (R)
21. SPEAKER OUT (L)
FUNCTIONS OF REMOTE CONTROL
RIGHT SPEAKER SUBWOOFERMAIN UNITLEFT SPEAKER
DISCO
LIGHT
MAIN UNIT (REAR)
AUX INPUT OPERATION
Step 1 Connect an audio device such as smartphones, tablets or MP3
player to the Line-In jack using a Line-In cable (not included).
Step 2 Press the SOURCE button to set the unit to AUX mode as indicated
on the LCD display.
Step 3 The audio device will play through the speakers.
DIMMER ADJUSTMENT
You can adjust the brightness of the LCD display from high, mid and low,
by pressing the DIMMER button to cycle through the presets. The default
setting is high. The unit will remember the last brightness setting when
powered on and return to it the next time the unit is powered on.
USB DEVICE CHARGING
Your unit includes a USB charging port (DC 5V, 2A) for charging most devices,
including iPhone, iPod, Android devices and other compatible USB devices.
AMBIENT LIGHTING EFFECTS
You can adjust the multi-color lighting eect of the speakers and subwoofer
by pressing the DISCO LIGHT button to cycle through the presets. The default
mode is o. The unit will remember the last multi-color lighting eect setting
when powered o and return to it the next time the unit is powered on.
IMPORTANT
Do not plug the speaker cables into
the subwoofer output jack. Do not
plug the subwoofer cable into either
of the speaker output jacks as this
will produce poor sound quality and
distortion during playback.
Programming a CD
Step 1 Follow the steps for “Playing a CD”, then press the STOP button.
Step 2 Press the PROG/REP button on the remote control, “PROGRAM” and
“P-01” will appear on the LCD display, indicating that the unit is in
program mode, and it is ready for the rst track to be selected.
Step 3 Press the TUNE/SKIP buttons to select the track as you desire.
Step 4 Press the PROG/REP button to select a track, “P-01” will change
to“P-02”.
Step 5 Repeat steps 3 and 4 until the desired CD tracks are programmed.
Step 6 Press the PLAY/PAUSE button to begin playback of the
programmed tracks.
Step 7 If you want to review the programmed tracks, press the PROG/REP
button repeatedly in stop mode.
CD OPERATION
Playing a CD
If this is your rst time playing a CD on this unit, remove the cardboard disc
from behind the CD DOOR before attempting to play an actual CD.
Step 1 Press the OPEN AREA to open the CD DOOR.
Step 2 Insert a CD into the unit.
Step 3 Press the POWER button to turn on the unit.
Step 4 Press the SOURCE button to select CD mode, the loaded CD will
begin to play automatically.
Step 5 Press the PROG/REP button on the remote control to select the
play mode as the following sequence:
Normal > Repeat 1 > Repeat all > Random > Normal
BACK
FOLD
FOLD
FOLD
FOLD
FOLD
FOLD
FOLD
FOLD

Navigation menu
