ACE ELECTRONICS G-40 G-TUBE User Manual G TUBE UG NATIVE 012615v1
ACE INTERNATIONAL ELECTRONICS LTD G-TUBE G TUBE UG NATIVE 012615v1
User Manual
Waterproof
Bluetooth
Wireless
G-??
All Weather
Rechargeable
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
UPDATE
ICONS??
PACKAGE CONTENTS:
• G-TUBE Wireless Travel Speaker
• USB Charging Cable
• User Guide
Welcome
Thanks for purchasing G-TUBE and joining G-Project. With just the
right combination of performance, durability, features, and style at
the right price, our goal is to provide rugged speakers and
accessories that fit your lifestyle. We hope you agree.
If you need a hand using your new G-TUBE, we’re here to help.
Email us at support@gprojectgear.com or give us a call
Monday - Friday at 1-855-896-1795 between 8AM - 5PM CST.
STOP BY AND SAY HELLO TO US:
A NEW SONG EVERYDAY:
facebook.com/gprojectgear
twitter.com/gprojectgear
instagram.com/gprojectgear
We’ve got a new song for you everyday and
a collection of playlists to get you going.
Have a listen at songs.gprojectgear.com
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
Blue LED
(Bluetooth) Red LED (Charging)
White LED
(Power)
Volume – Power On/Off
Bluetooth Pair
Volume +
Play/Pause
Skip forward/Skip back
USB Charging
Jack
Line-in Jack
Headphone
Jack

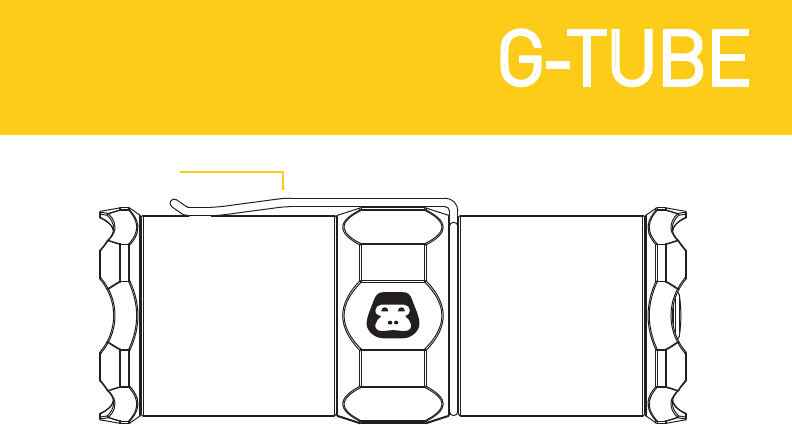

NOTE: Metal carry clip is used for easy carrying. You can clip G-TUBE onto
your shoulder strap and have your earbuds plugged right into it. You can use
G-TUBE as a "remote control" as well for volume and play control
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
Metal Clip
White LED
OFF
OFF
ON
ON
ON
ON
ON
OFF
Red LED
OFF
ON
OFF
ON
OFF
Flash once
every 3 secs
Flash once
every 2 secs
OFF
Battery Status
FULL
NOT FULL
FULL
NOT FULL
NOT FULL
LOW
VERY LOW
NO POWER
Power Status
OFF
OFF
ON
ON
ON
ON
ON
OFF
Speaker Status
––
Battery Charging
––
Battery Charging
Using Battery Power
Battery Low
Battery VERY Low
Will Not Power On
LED INDICATORS
Bluetooth LED: When G-TUBE is in paring mode, the Bluetooth LED
will flash blue. Once G-TUBE has paired successfully with a Bluetooth
compatible device, the Bluetooth LED will turn solid blue.
Power / Charging LED: The white and red LEDs indicate the following
statuses:
Bluetooth
LED
Normal
Flash 1st
Flash 3rd
Red
LED
Normal
Flash 3rd
Flash 1st
White
LED
Normal
Flash 2nd
Flash 2nd
Mode
Default
Mode Change
Back to
Default
Power
Status
ON
ON
ON
Speaker
Status
Headphone Out
Daisy Chain
Headphone Out
MODE CHANGE INDICATORS
For modes change，3 LEDs indicate the following status:
NOTE: While in modes change，LED flash only once in sequence.
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
GETTING CHARGED UP
G-TUBE includes a Micro USB power jack on the side (located under the
External Jack Cover). Below are two ways you can charge G-TUBE.
1 Connect G-TUBE to a USB powered port on your computer or laptop
(PC/MAC) using the supplied USB charging cable.
2 You can also charge G-TUBE by connecting G-TUBE to a USB power
adaptor (not included) via the supplied USB charging cable.
NOTES: When fully charged, the G-TUBE battery will provide playback time of
more than 6 hours, based on volume level and type of music.
Approximate time to fully recharge the G-TUBE battery is 3.5 hours.
GET IN CONTROL
POWER ON / OFF
Press the POWER button to turn G-TUBE on and again to turn G-TUBE off.
VOLUME CONTROLS
Increase or decrease the volume by using the + or – buttons. G-TUBE will
remember the volume setting when it is turned off.
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
CHANGING MODES
The default mode is" headphone out", to switch to "daisy chain" mode from
the default setting, press and hold + and – buttons and the 3 LEDs will
flash from the first one to the third one, indicate “headphone out” mode
has swiched to "daisy chain" mode.
To return to the default “headphone out” mode, press and hold + and –
buttons and the 3 LEDs will flash from the third one to the first one.
HEAPHONE MODE
Connect your earbuds or headphones to the Headphone jack on G-TUBE
and initiate playback for private listening.
DAISY CHAIN MODE
Connect another G-TUBE or additional external speaker with a 3.5mm
Line-in cable（sold separately）to the Headphone jack then change the
input source to Daisy Chain mode and initiate playback.
BLUETOOTH WIRELESS
You can stream audio to G-TUBE from up to 33’ away using your iPod,
iPhone, iPad, Android, laptop, or other A2DP Bluetooth enabled device.
1 With G-TUBE powered on, press the PAIR button to enter Bluetooth mode
and the Blue LED will begin to flash. If the last paired Bluetooth device is
powered on and within range with Bluetooth turned on, the device will
automatically reconnect G-TUBE.
If you want to connect a different Bluetooth device, press and hold the PAIR
button for about two seconds, the Blue LED will begin to flash indicating
G-TUBE is in pairing mode and searching for Bluetooth compatible devices.
2 Power on your Bluetooth compatible device, enable Bluetooth, then search
for Bluetooth devices. Select ”G-TUBE” from the available list.
3 The Blue LED on G-TUBE will change from flashing to solid, indicating that
your Bluetooth device is now connected to G-TUBE.
4 Press the PLAY/PAUSE button to begin streaming music. Press again to
pause. Double tapping will skip to next track and triple tapping will skip
back to the previous track.
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
MUSIC PLAYBACK
• Tap the PLAY button once while in Bluetooth mode to play or pause the
audio playback on your Bluetooth device.
• Tapping the PLAY button 2x repeatedly while in Bluetooth mode will skip
to the next track on your Bluetooth device.
• Tapping the PLAY button 3x repeatedly while in Bluetooth mode will skip
to the previous track on your Bluetooth device.
NOTES: For the best audio performance, turn the volume on your Bluetooth
device all the way up then adjust G-TUBE volume to a comfortable listen level.
Once your Bluetooth device has been paired with G-TUBE, it is simple to
reconnect them. Make sure G-TUBE is powered on and within range then
simply select ”G-TUBE” from the list on your Bluetooth device.
G-TUBE can only play audio from one source at a time. If G-TUBEP is connected
to a Line-in source, Bluetooth will not function. Simply unplug the 3.5mm
Line-in audio cable or press the PAIR button to switch to Bluetooth (if
necessary, select ”G-TUBE” on your Bluetooth device).
To reset the Bluetooth on G-TUBE, press and hold the PAIR button, this will
disconnect the currently paired Bluetooth device and clear the memory list.
G-TUBE will automatically turn off if not paired with a device after 15 minutes.
LINE-IN
Connect a 3.5mm Line-in cable（sold separately）from the Line-in jack on
G-TUBE to your audio device and initiate playback.
NOTES: For the best audio performance and minimal distortion, avoid turning
the volume on your external audio source all the way up.
If a Line-In cable is connected, G-TUBE will default to Line-in mode.
If the PAIR button is pressed while the 3.5mm Line-in cable is still connected to
the Line-in jack, G-TUBE will switch to Bluetooth pairing mode.
To return to Line-in mode, simply reconnect a cable to the Line-in jack.
If no Line-in cable is connected to the Line-in jack, G-TUBE will default to
Bluetooth mode and begin searching for a Bluetooth pairing device.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
NOTE: Any unapproved changes or modifications will void the warranty.
IMPORTANT SAFETY NOTIFICATIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to alert the user to the presence
of uninsulated dangerous voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Compliance information: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
a. Only use attachments / accessories specified by the manufacturer.
b. Please note the information printed underneath the unit.
c. Keep open flames, such as lighted candles, away from this unit.
d. Unplug this unit during lightning storms or when unused for long periods of time.
e. Use only the same or equivalent type batteries as there is a danger of explosion if the
incorrect batteries are used or they are installed incorrectly.
f. Do not expose the battery to flames or dispose of it in a fire.
g. Dispose of batteries properly according to environmental regulations.
SAFETY PRECAUTIONS
WIRELESS TRAVEL SPEAKER
G-TUBEG-TUBE
G-Project is a registered trademark of Goodhatch, LLC
G-DROP is distributed by Life Lab International LTD.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Life Lab International LTD. is under license.
Other trademarks and trade names are those of their respective owners.
