ACOUSTMAX BL-1300BT Wireless Microphone User Manual 10 24
ACOUSTMAX INTERNATIONAL CO., LTD Wireless Microphone 10 24
User Manual

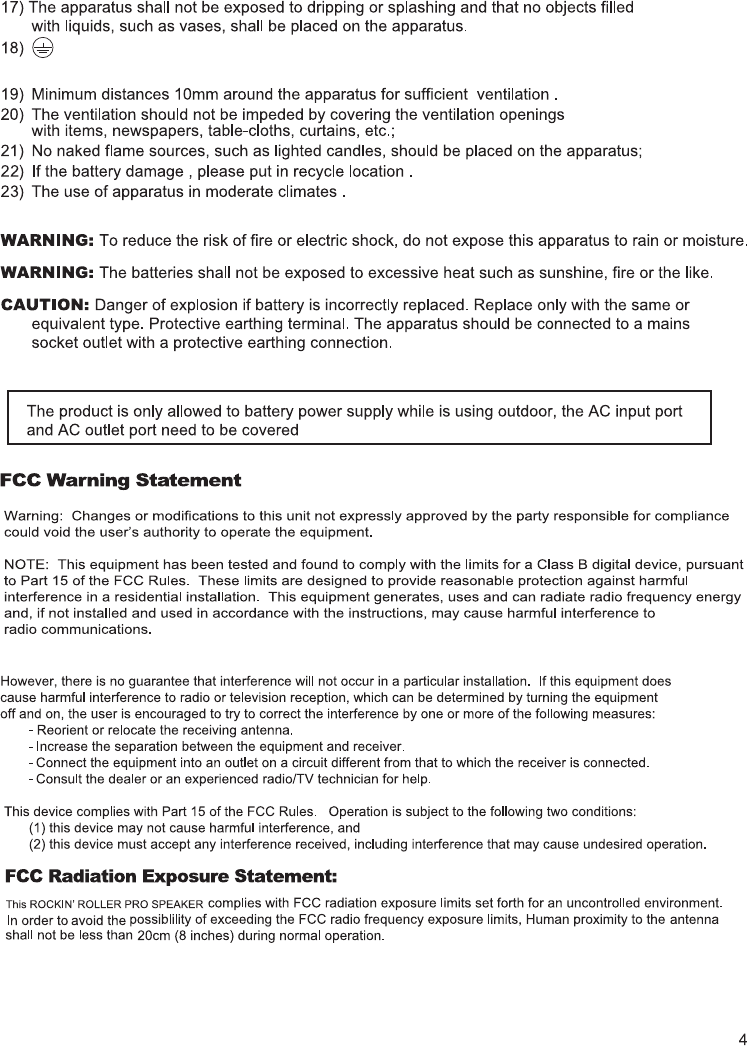

Protective earthing terminal. The apparatus should be connected to a mains socket outlet
with a protective earthing connection.
The transmitter part (Handheld)
ķ
ĸ
ཝ
ཞཟ
192.60MHz
FC C ID:2AAINBL-1300BT
23.5mm
13.5mm 1. Pick up cover.
2. The light of transmitter power.
3. The power switch of transmitter.
4. The battery room of transmitter.
5. Frequency sticker.
6. Lid

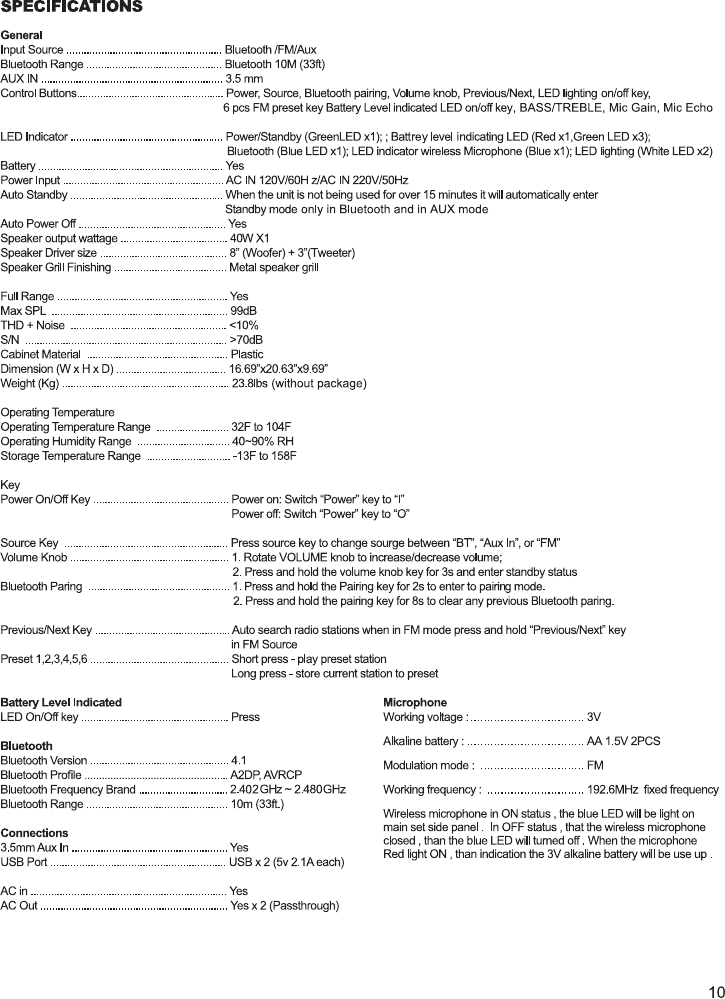

OPERATIONS
:
1 working voltage: 3V (1.5V AA*2)
2 modulation: FM
3 operating frequency: 192.6MHz( fixed frequency)
4 In the ON state, the transmitter is turned on,in the OFF state, the wireless transmitter is turned off,
5 When the transmitter shows red light, it means the 3V battery runs out quickly.
6
FCC ID:2AAINBL-1200BT
MODEL: Rockin’
Roller PRO (RRPRO)
ROCKIN’
ROLLER PRO SPEAKER
FCC ID:2AAINBL-1200BT
MODEL: Rockin’
Roller PRO (RRPRO)
ROCKIN’
ROLLER PRO SPEAKER
FCC ID:2AAINBL-1200BT
MODEL: Rockin’
Roller PRO (RRPRO)
ROCKIN’
ROLLER PRO SPEAKER

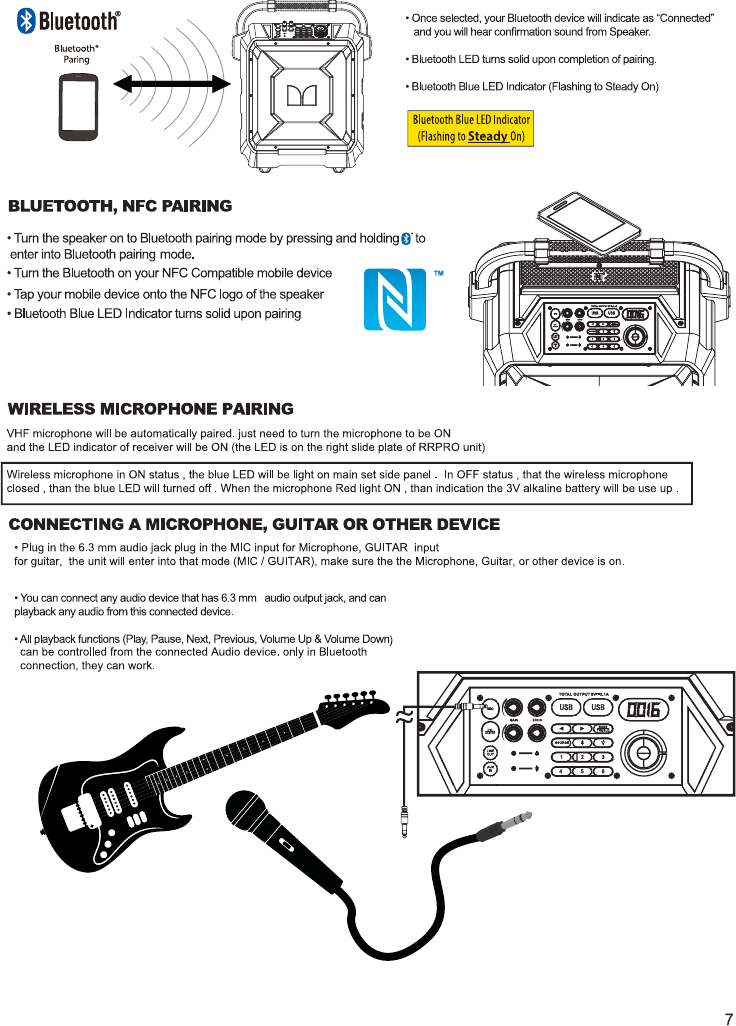

Wireless microphone in ON mode the blue LED will
be light , in OFF mode the blue LED will be turn off .
Rating Current:7A
840W(COMBINED)
Rating Current:7A
840W(COMBINED)
Rating Current:7A
840W(COMBINED)
