ACOUSTMAX MNSOLBLK Monster Solara User Manual
ACOUSTMAX INTERNATIONAL CO., LTD Monster Solara
User Manual
SOLARA
INDOOR/OUTDOOR WIRELESS
SOLAR POWERED SPEAKER
USER MANUAL
VER. PRELIM
MODEL: MNSOL-BLK

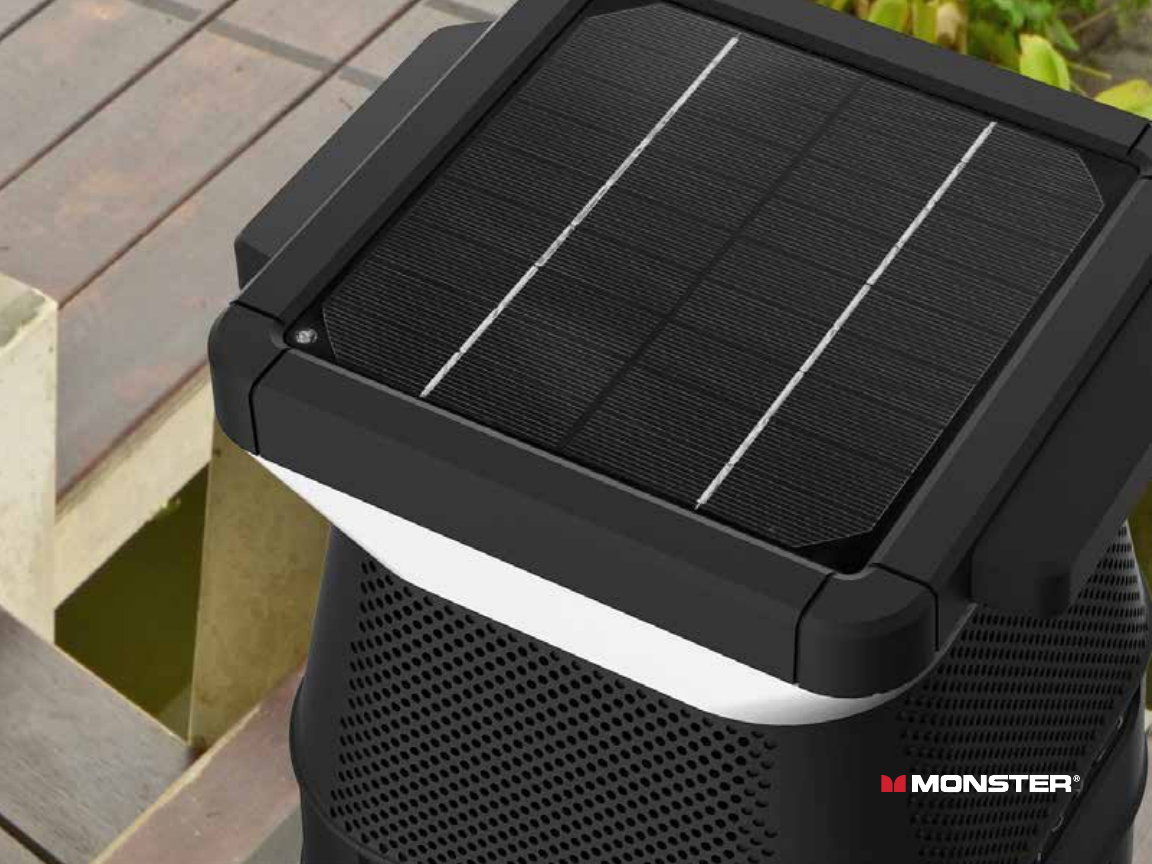

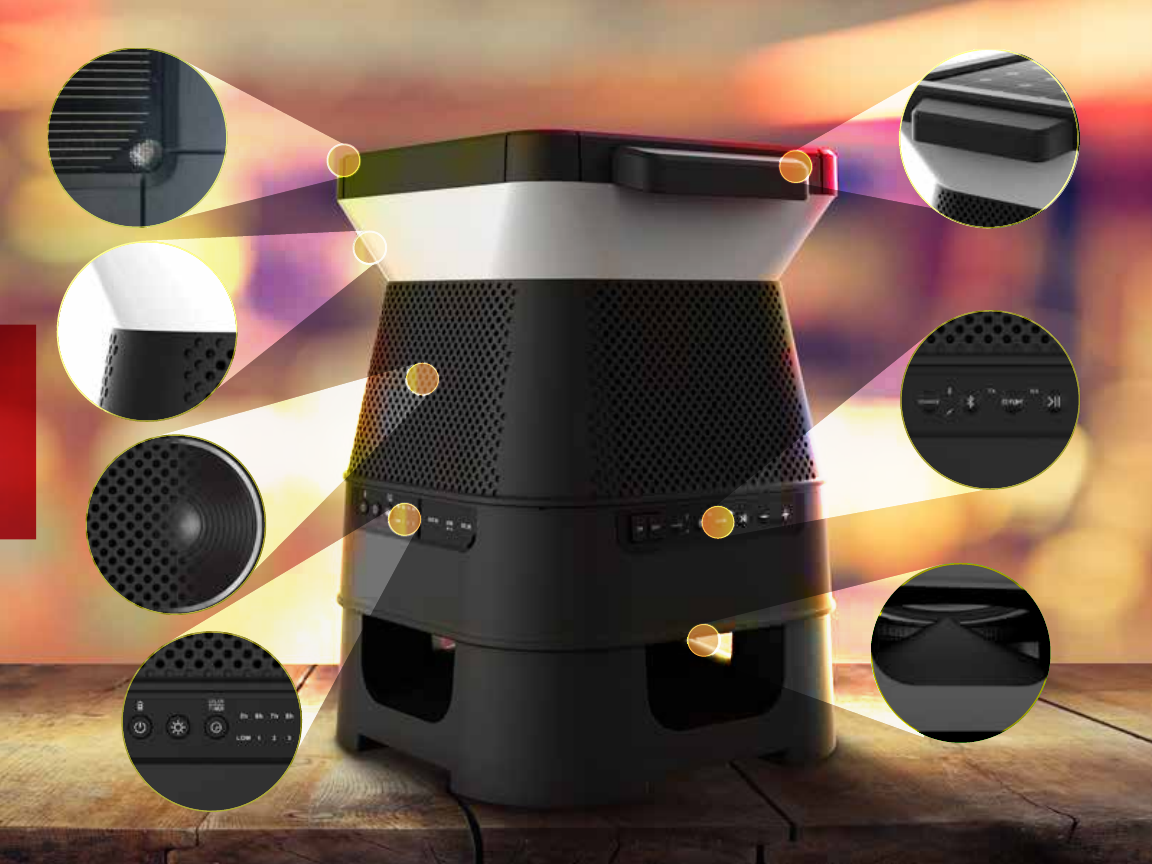

SOLARA HIGHLIGHTS
SOLAR PANEL
& SENSOR
360˚
LIGHT
360˚
SOUND
TIMER
& INPUTS
CARRY
HANDLE
SUB-WOOFER
CONNECT 8
SPEAKERS
2
TABLE OF CONTENTS
FOR QUESTIONS OR TECHNICAL SUPPORT PLEASE CALL: 1-800-976-0677
Please do not return this product to the store.
Package Contents 4
Controls & Connections 5
LED Indicators 6
Getting Started - Charging The Speaker 7
Bluetooth Connection 9
EZ-PLAY Wireless Connection 10
3.5 mm Aux Input 14
Specifications 15
Important Safety Instructions 17
Help & Troubleshooting 19
FCC Warning Statement 20
Limited Warranty 22
3

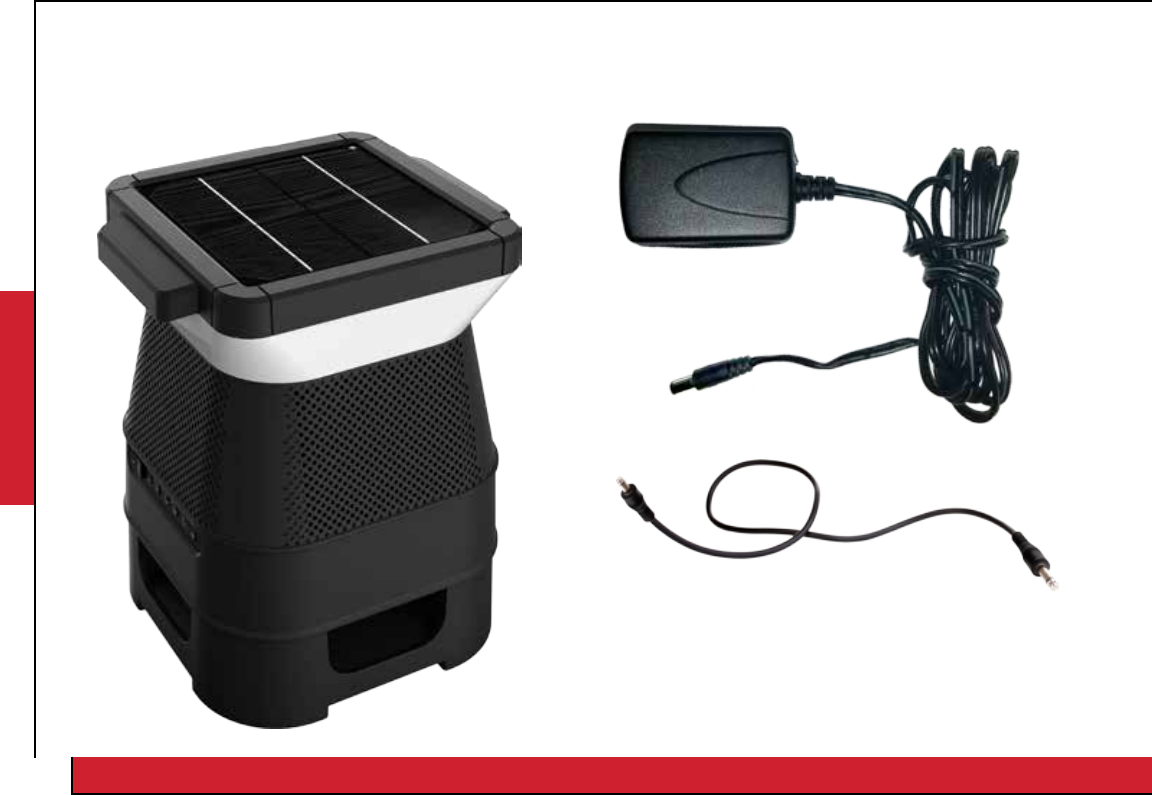

PACKAGE CONTENTS
1. MONSTER SOLARA: Wireless Solar Speaker 2. Power Adapter (5V/3A DC Adapter)
3. Aux Cable
4. User Manual (incl. Limited Warranty Statement)
5. Quick Start Guide
(Not To Scale)
(Not To Scale)
If any items are missing, contact our customer service team at 1.800.976.0677.
4
CONTROLS & CONNECTIONS
Standby/Wake
& Battery Level
LED Color
& LED Timer
Brightness
Level
Light Timer
& Battery Level
AUX
Input
USB Charging
Port
DC Power
Input
Power
ON/OFF
Bluetooth Pairing
(When in Bluetooth mode)
Source
Selection
Source
Selection
EZ-Play
Pairing
Volume
DOWN/UP
5

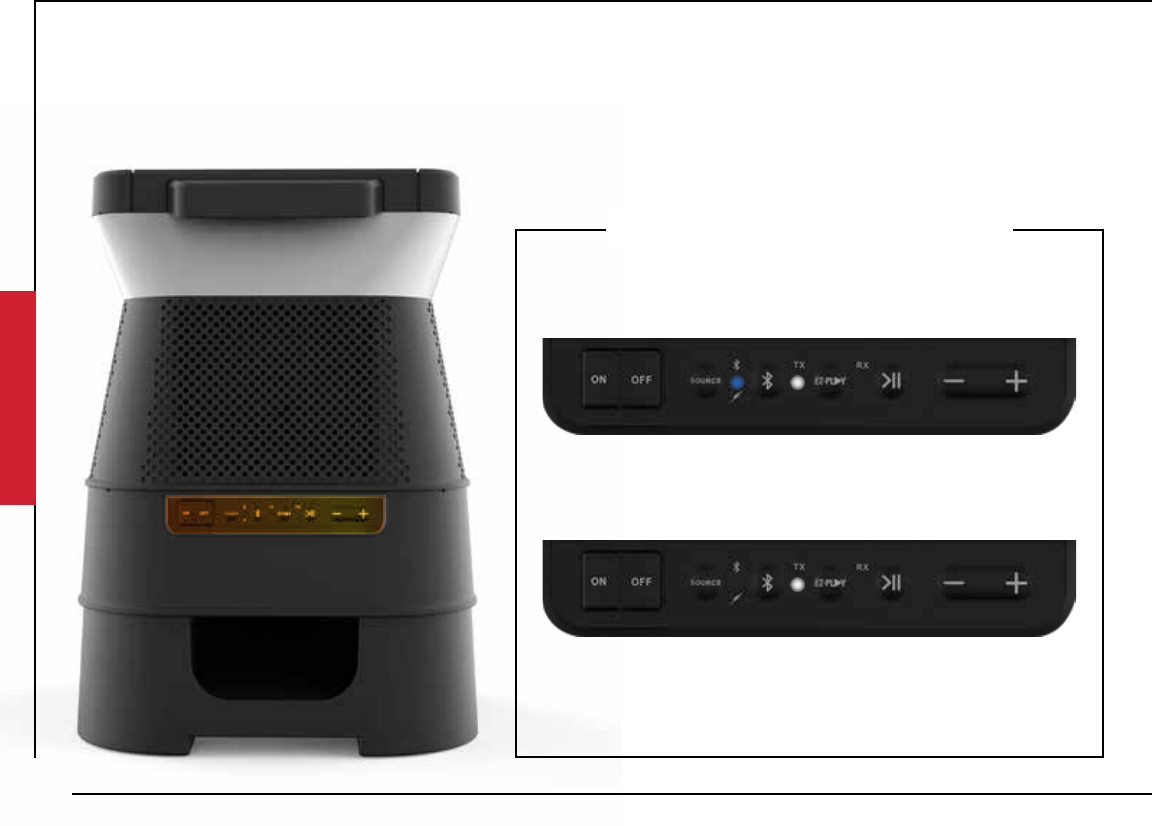

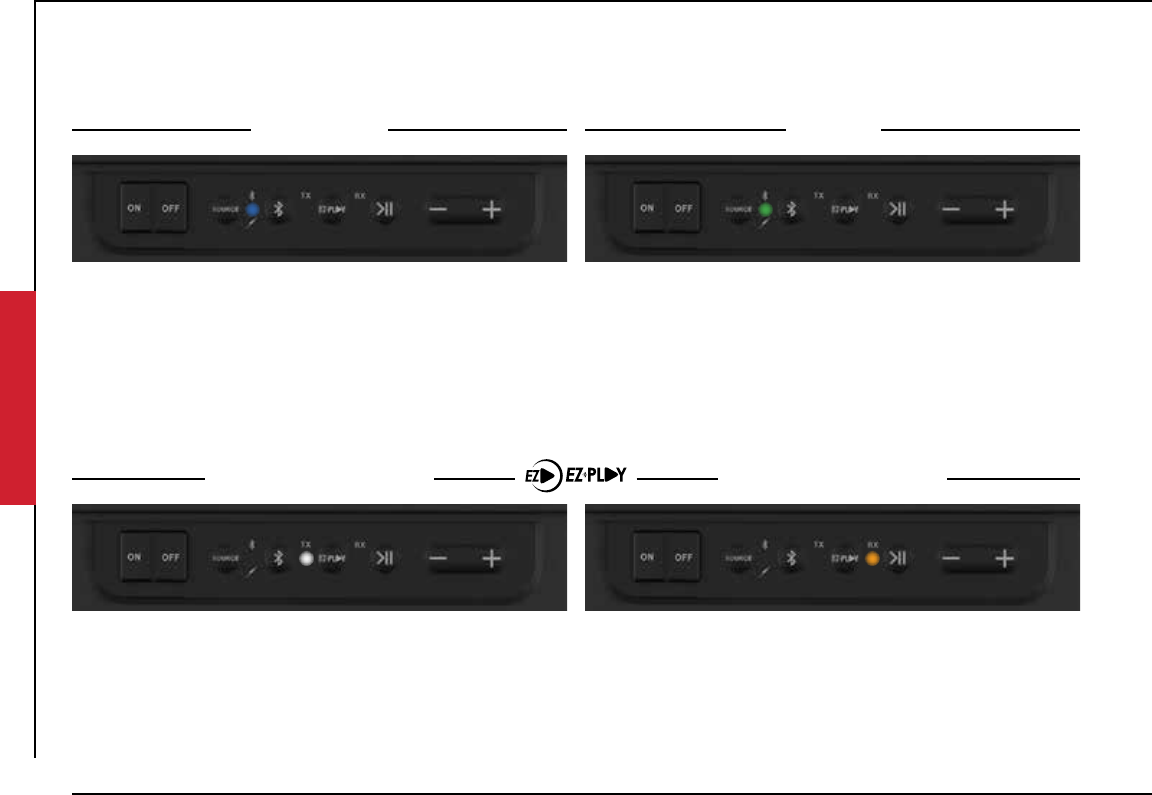

LED INDICATORS
TX Mode (Transmit) RX Mode (Receive)
Slow Blink
Transmit Mode
Searching
Solid
Transmit Mode
Connected
Slow Blink
Receive Mode
Searching
Solid
Receive Mode
Connected
Bluetooth AUX
Slow Blink
Bluetooth On
Standby
Fast Blink
Bluetooth
Pairing mode
Solid
AUX Connected
Solid
Bluetooth
Connected
6

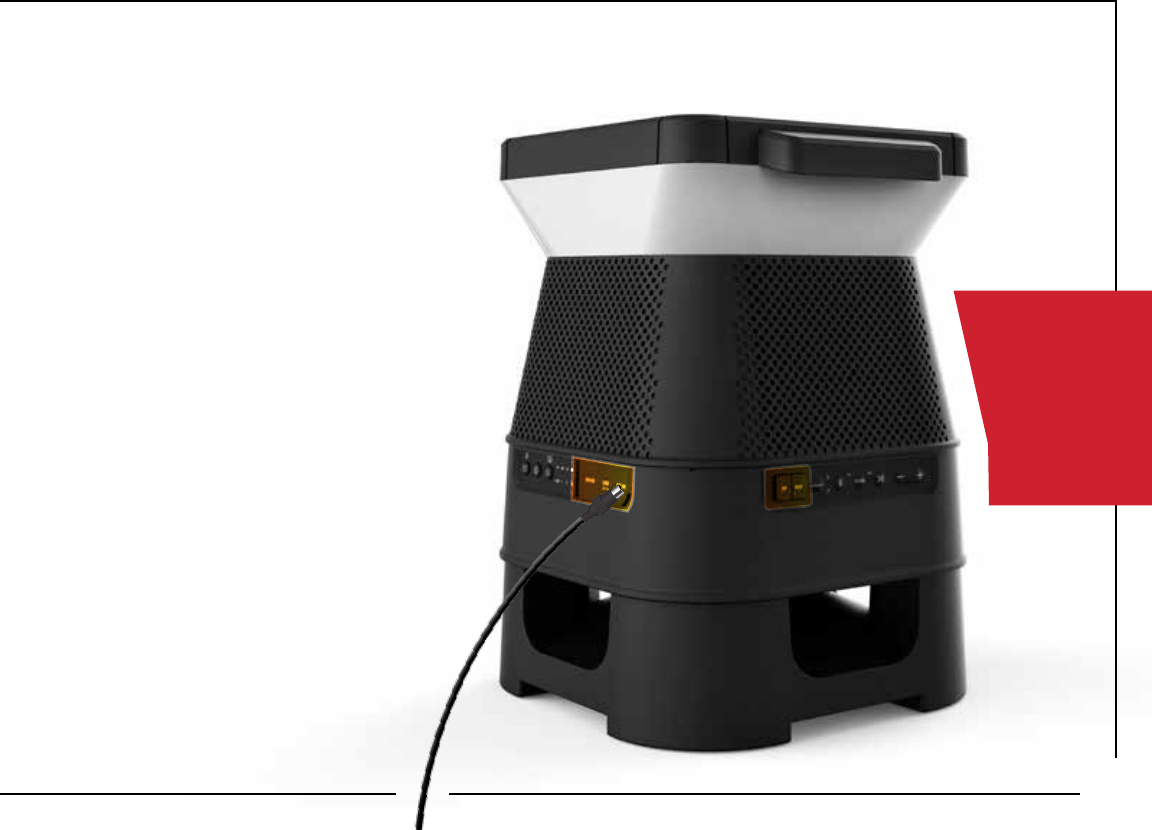

GETTING STARTED - CHARGING THE SPEAKER
1. Connect the power cable to the
Solara speaker.
2. Plug the power cable into a
wall outlet.
3. Flip the Power switch to ON
4. Solara will enter Bluetooth Pairing
mode automatically. Pair with your
Bluetooth device.
5. If AUX Input cable is plugged in,
the speaker will automatically
enter AUX mode.
When
unplugged,
the speaker
will enter
standby
mode after5
minutes of
inactivity.
(Not To Scale)
BEFORE FIRST USE:
Charge the unit for 6 hours.
Connect speaker to DC outlet via DC
power input to charge the battery.
When fully charged
RED LED will stay solid.
When low on battery
RED LED will flash rapidly.
7
8

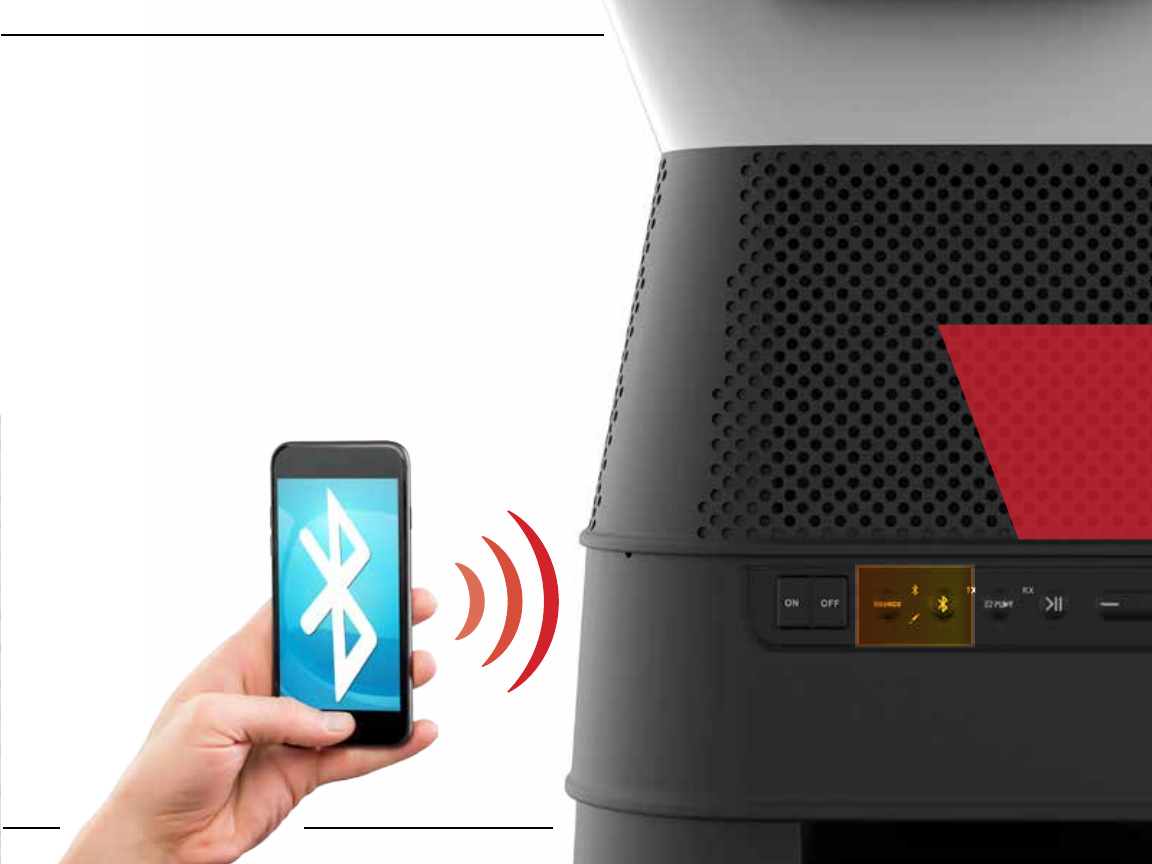

1. Set the speaker source to Bluetooth (unpaired).
2. Make sure the Bluetooth function is enabled on
your device.
3. Place the Bluetooth device and speaker within pairing
distance (~3 feet).
4. Press and hold the Bluetooth button for 3 seconds
to enter pairing mode (BLUE LED will flash).
5. Search for Bluetooth connections on your device.
Select “Monster Solara.”
6. The speaker will confirm connection with an
audible message (BLUE LED will turn solid).
BLUETOOTH CONNECTION
(Not To Scale)
SOLARA
must be in
Bluetooth
Pairing Mode
(Fast Blink
Blue LED)
to connect
to device.
9
EZ-PLAY WIRELESS CONNECTION (ADDITIONAL SPEAKERS SOLD SEPARATELY)
The EZ-Play feature allows you to connect up to 8 compatible speakers and broadcast your favorite
music through all speakers simultaneously – without using a single wire! Speakers can sync and play up
to 100 feet apart from each other, and continue to function eectively through walls.
1. Make sure the speaker is powered on.
The Bluetooth BLUE LED and EZ-Play
TRANSMIT (TX) WHITE LED will flash slowly.
2. Press and hold the EZ-PLAY button for 3 seconds
to put the speaker into Transmit Pairing Mode. The
TRANSMIT (TX) WHITE LED will flash rapidly.
3. The TX speaker will automatically connect with RX
speakers that are in Receive Pairing Mode and
within pairing range (<10 ft).
SET TX SPEAKER (Transmit)
10
1. Make sure the speaker is powered on.
The Bluetooth BLUE LED and EZ-Play TRANSMIT (TX) WHITE LED will flash slowly.
4. The RX speaker will automatically connect with a TX speaker that is in Transmit Pairing Mode
and within pairing range (<10 ft). RECEIVE (RX)AMBER LED will flash rapidly.
5. Repeat steps to add up to 7 RX speakers. Play audio through up to 8 speakers at once
SET RX SPEAKER (RECEIVING)
2. Press the EZ-PLAY button to change the speaker mode from Transmit to Receive. The RECEIVE
(RX) AMBER LED will flash slowly.
3. Press and hold the EZ-PLAY button for 3 seconds to put the speaker into Receive Pairing Mode.
The RECEIVE (RX)AMBER LED will flash rapidly.
11
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer
eget nibh in ex interdum mollis sit amet a ipsum. Quisque dapibus
sollicitudin pulvinar. Phasellus sed venenatis nibh, at congue magna.
Pellentesque auctor libero in libero pellentesque, eu sodales nibh
viverra. Sed nisi turpis, pretium ut urna a, vestibulum blandit est.
Curabitur ultrices pharetra scelerisque. Maecenas quis nulla auctor
ligula viverra vulputate. Donec eu massa bibendum, elementum
ipsum in, consectetur lectus. Phasellus fringilla orci id ante faucibus
rutrum. Curabitur et purus nec mauris sodales semper.
Nam at nisi felis. Proin sapien magna, lobortis nec sem vulputate,
ultricies luctus magna. Cras nec leo vestibulum, vulputate ex ut,
porta neque. Nulla ante libero, condimentum ac velit sed, dignissim
convallis nulla. Phasellus luctus vehicula lacus.
THE
HARNESS
SUN
12
13

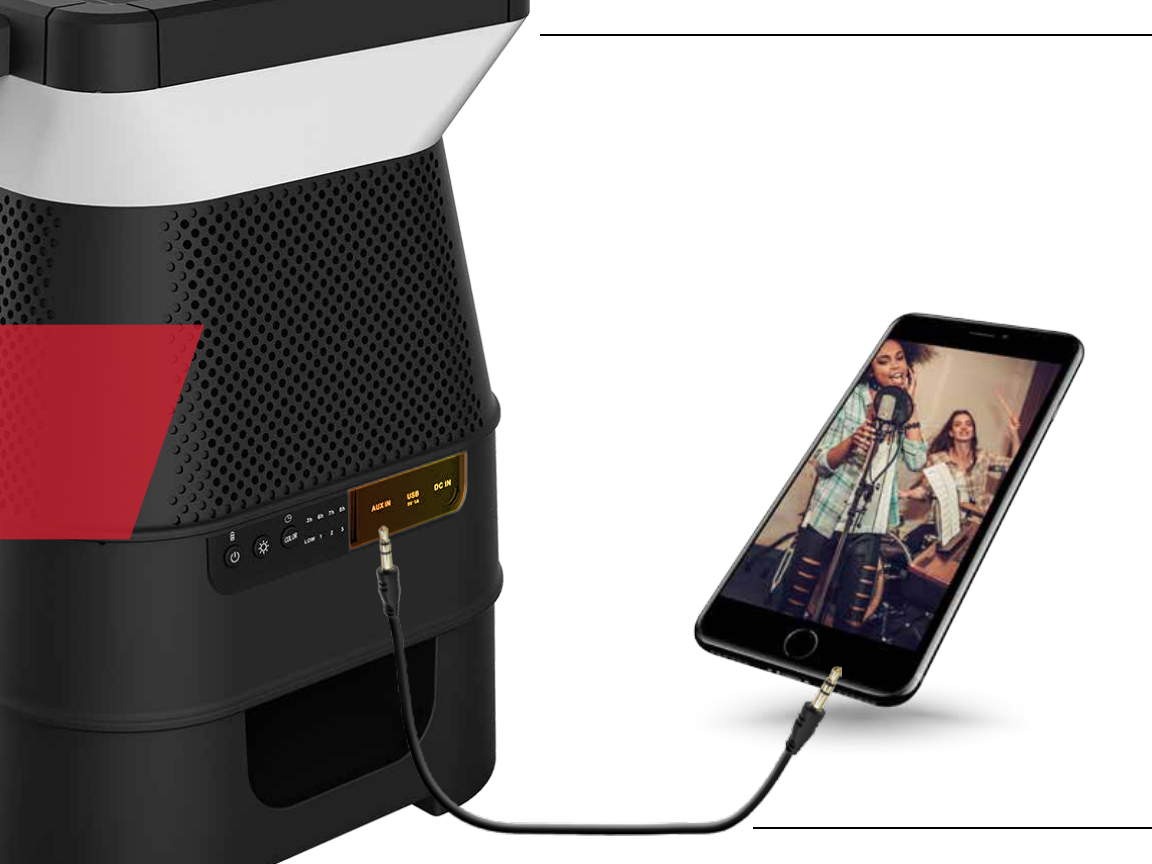

3.5MM AUX INPUT
1. Plug a 1/2” (3.5mm) cable into the AUX port. The
speaker will automatically turn o
2. Bluetooth function and switch to AUX.
3. Connect any audio device to the AUX cable to play
audio through the speaker
4. Control volume on the speaker or use the connected
device’s playback functions.
SOLARA must
be in AUX
Pairing Mode
(Amber LED)
to connect
to music
Device.
14
SPECIFICATIONS
General
Buttons Wake Up | HN/SA | Battery/Timer | Source | Play/Pause/Bluetooth | Share |
Pair(WPS/SAC) | Volume Up | Volume Down | Power
LED Indicators Share (TX) (White) | Pair (RX) (Orange) | AUX (Green) | Bluetooth (Blue) |
Battery/Timer (Red x1, Green x3)
18650 2200mA 3.7V (x3)
5V/3A DC In
Turns off after 30 minutes of inactivity
3.5” Full Range (x4) | 6.5” Passive Radiator (x1)
??
Plastic
8.8” x 12.0” x 8.8”t
Battery
Power Input
Power Saving
Driver Layout
THD + Noise
Cabinet Material
Dimensions (W x H x D)
Weight 9 lbs (4.1kg)
Operating Temperature
Operating Temperature Range 32F° - 104F°
Operating Humidity Range 40~90% RH
Storage Temperature Range -13F° to 158F°
15
Key
Wake Up In Transmit Mode (TX), press and hold to power speaker ON/OFF.
In Receive Mode (RX), press and hold to power all speakers ON/OFF.
HN/SA 40~90% RH
Battery/Timer Press to activate current battery level LED (100%, 75%, 50%, 25%, 0%).
Press and hold to adjust timer (6 hours, 7 hours, 8 hours).
Source ??
Play/Pause/Bluetooth Press to PLAY/PAUSE audio.
Press and hold to enter Bluetooth pairing mode.
Share ??
Pair (WPS/SAC) ??
Volume Up Press (and hold) to increase volume.
Volume Down Press (and hold) to decrease volume.
Power Switch Switch to power ON/OFF.
16
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions and save them for personal reference in the future.
2. Follow all directions for operating the product.
3. Heed all warnings on the product and in the operation instructions.
4. Clean with a dry cloth only. Always unplug the product from any power source before cleaning.
5. Do not use third-party attachments or non-recommended accessories with this product.
6. Do not place product on an unstable surface, such as a cart, stand, tripod, table, etc.
Unstable surfaces may cause the product to fall and cause serious injury to people
and serious damage to the product. Follow all manufacturer instructions for mounting
and accessories.
7. Do not block or cover ventilation slots. Openings in the product cabin ensure reliable
operation and prevent overheating. Avoid placing on beds, sofas, and rugs, or mounting
on racks or bookcases, unless proper ventilation is provided.
8. Do not use plug incorrectly. The product may come with a polarized, alternating-current line plug
(one blade is wider/larger than the other). This is a safety feature: the plug will only go into outlet
receptacles one way. Do not force the plug. If the plug does not fit, contact your electrician to re
place the outlet.
9. Prevent power cord hazards. Route cords to avoid walking on them or pinching them, especially at
plug ends and connection points to the product & power outlets.
17
10. Unplug power cord when not in use. The product should not be plugged into a power source when
not in use for long periods of time.
11. Do not use this product near bodies of water. The product is not waterproof and cannot be fully sub
merged in water. Power cords and electric currents should never be exposed to water.
12. Do not set up near heat sources. Avoid radiators, stoves, heat registers, amplifiers, and other devices
that produce heat. Avoid long exposure to sunlight and high temperatures.
13. Refer all service to qualified personnel. If the product becomes damaged during use or encounters a
malfunction, contact qualified service personnel. Do not attempt to service yourself.
14. To use wirelessly, disconnect AC plug completely. The plug must be completed disconnected from
the power outlet.
IMPORTANT SAFETY INSTRUCTIONS
18
HELP & TROUBLESHOOTING
You can also contact our support team at:
Phone: Telephone: 1-800-976-0677
Hours of Operation:
Monday - Friday: 7:00 am - 5:00 pm (PST)
Saturday - Sunday: CLOSED
No power / Wvill not turn on Press battery button to view battery level, if to low please charge by plugging
directly into wall outlet.
No sound playing
1. Increase the volume on source device, press Volume Up (+). Ensure
device is not muted.
2. Increase the volume on speaker, press Volume Up (+).
3. Ensure speaker is properly paired with the source device.
4. Press Play/Pause button on speaker.
5. If source device is outside Bluetooth range move speaker closer.
Smartphone / Tablet remote
app isn’t working Ensure source device is properly paired with speaker.
LED button is pulsing red ??
19
FCC WARNING STATEMENT
20
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Prevent fire and shock hazards. Do not use extension
cords or outlets that expose plug blades. Do not
expose cables and plugs to rain or moisture.
Do not attempt to perform any servicing that is not included in the operating instructions. Do not
attempt to replace the battery, as incorrect installation can cause fire or explosion. For service,
contact qualified service personnel.
Do not remove cover or back of product. There are no user-serviceable parts inside. Attempting to
modify controls or performance beyond manufacturer specifications may result in hazardous
exposure to radiation.
A lightning flash and arrowhead within an equilateral triangle denotes the
presence of insulated “dangerous voltage” within the product’s enclosure. The
voltage may be of sucient magnitude to constitute a risk of electric shock to
persons who come into contact with it.
An exclamation point within an equilateral triangle denotes
the presence of important operation & maintenance/
service instructions.
WARNING
21
LIMITED WARRANTY
Model: MNSOL-BLK
This Monster-branded product, marketed as new, in the original carton to the original purchaser (“Product”), is warranted by Russell
Distribution Company, LLC against manufacturing defects in materials and workmanship for a limited warranty period of Ninety (90)
Days for Labor and One (1) year for Parts. This Limited Warranty is conditioned upon proper use of Product by you, the Purchaser.
This Limited Warranty does not apply to store display products and product sold as a ‘marked down” special, in as is condition,
‘close outs”, “liquidation and clearance sales”, “open box”, products missing accessories, or no fault found.
Proof of purchase in the form of a Bill of Sale, Receipt or Receipted Invoice is evidence the Product is within the limited warranty
period. The Bill of Sale, Receipt or Receipted Invoice must be presented as a pre-condition to obtaining the limited warranty service.
This limited warranty begins on the original date of purchase and is valid only on Products purchased through authorized dealers
and used In the United States, and Puerto Rico, by the original Purchaser. To receive waranty service, the Purchaser must first contact
us for problem determination and service procedures. The original dated bill of sale, receipt or receipted invoice must be presented
upon request as proof of purchase.
We will repair your product or if repairs cannot be made, we will replace it at no charge with the same or similar product. If the
Product is defective as specified in this limited warranty during the limited warranty period, we may use new or remanufactured
parts to repair the Product. All replaced parts and products become our property and must be returned to us. Replacement parts
and products assume the remaining original limited warranty, or ninety (90) days, whichever is longer.
Product freight must be prepaid by you, the original Purchaser and shipped in either its original packaging or packaging aording an
equal degree of protection. We will not be responsible for or obligated to replace damaged Products.
If the Product is received damaged, it is your responsibility as the consumer to file a claim against the carrier. We will only store the
damaged Product for 30 days and reserve the right, in our sole discretion, to dispose of the damaged Product or ship it back to you
at your expense after 30 days.
22
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement noncommercial use of this Product, and shall not apply to the following, including,
but not limited to: Damage which occurs in shipment; delivery and installation; applications and uses for which this Product was
not intended; altered Product or serial numbers; cosmetic damage or exterior finish: accidents, abuse, neglect, fire, water, lightning
or other acts of nature; use of products, equipment, systems,utilities, services, hardware, supplies, accessories, applications,
installations, repairs, external wiring or connectors not supplied or authorized by us or the manufacturer, which damage this Product
result in service problems: incorrect electrical line voltage, fluctuations and surges: customer adjustments and failure to follow
operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction
book; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems;
burned-in images. Uninterrupted or error-free operation of the Product is not warranted.
THERE ARE NO EXPRESS OR IMPLIED WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FORA PARTICULAR PURPOSE, SHALL APPLYAFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO
OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON US. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS YOUR
EXCLUSIVE REMEDY ASTHE CONSUMER. WE SHALL NOT BE LIABLE FOR ANY INCIDENTAL, OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT; EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ANY IMPLIED WARRANTY OF MERCHANTIBILITY OR FITNESS FORA PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED
FOR THE DURATION OF THIS LIMITED WARRANTY THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, sothe above limitations or exclusions may not apply to you. This limited warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state. Any provision contained herein which is found contrary to
state or local laws shall be deemed null and void and the remaining provisions shall continue in full force and eect.
To obtain warranty service:
Telephone: 1-800-976-0677
23

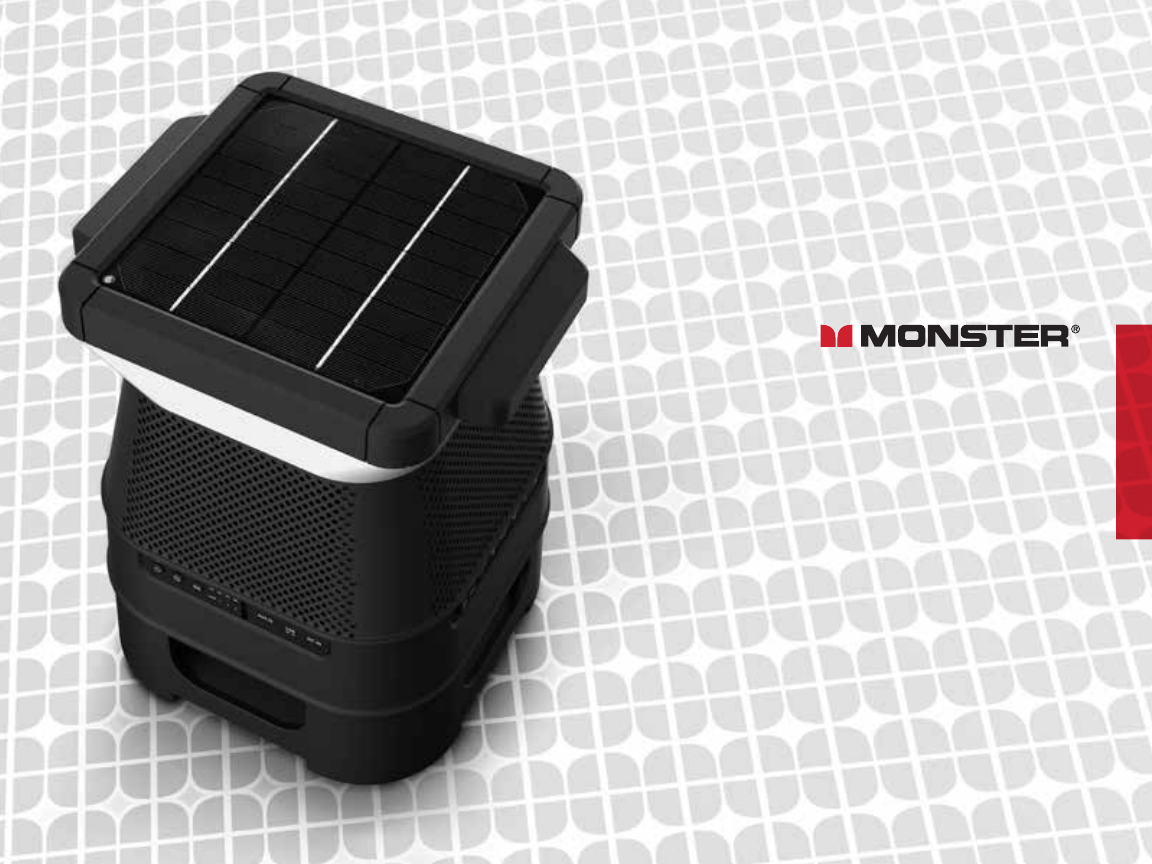

SOLARA
INDOOR/OUTDOOR WIRELESS
SOLAR POWERED SPEAKER
MUSIC WITHOUT LIMITS
24
