TerraFix™ 406 GPS I PLB
Product No. 2798.2
PLB-201
TerraFix™ 406 GPS I/O PLB
Product No. 2798.4
PLB-200
Personal Locator Beacon
FCC Type
A
pproval
is currently pending
ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, Fl 33312
+1(954) 981-3333 • Fax +1 (954) 983-5087
www.acrplb.com
Email: Info@acrelectronics.com
A
Chelton Grou
p
company
-DRAFT-
Only
![](/img.php?id=456572&img=bg2.png)
Y1-03-0174 Rev. A Draft
1
* * * WARNING * * *
THIS TRANSMITTER IS AUTHORIZED FOR USE ONLY DURING SITUATIONS OF
GRAVE AND IMMINENT DANGER
* * * DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY * * *
Forward
Congratulations and thank you for purchasing the ACR TerraFix™ 406 GPS Personal Locator Beacon.
The combination of superior design, high quality raw materials and quality controlled manufacturing
produce a product that will perform for years to come. The Test Facility at ACR can reproduce some of the
harshest environmental conditions known to man. This assures that the life saving devices can stand up to
the rigors found in any environment on earth. With proper care and maintenance, your PLB will be in service
for years to come.
ACR is proud to be certified to the ISO 9001:2000, the International Standard for Quality.
This manual provides operation and maintenance instructions for the TerraFix™ 406 GPS PLB, hereinafter
referred to as the Beacon. This manual also describes the characteristics and details of the Beacon System.
Table of Contents
1.0 Registration............................................................................................................2-3
2.0 Operation...............................................................................................................3-5
3.0 False Alarms..........................................................................................................5
4.0 Care and Maintenance................................................................................ ..........5-6
5.0 The Search and Rescue System.............................................................................6-7
6.0 Authorizations, specifications and warranty..........................................................7-8
7.0 GPS FAQ.............................................................................................................. 8-10
8.0 Warranty................................................................................................................10
Figure 1 Key Pad ...........................................................................................................................................4
Figure 2 Antenna Position .............................................................................................................................6
Figure 3 Holster Cover ..................................................................................................................................6
Figure 4 Activation........................................................................................................................................6
Figure 5 Satellite Orbit ..................................................................................................................................9
Figure 6 GEOSAR.........................................................................................................................................10
![](/img.php?id=456572&img=bg3.png)
Y1-03-0174 Rev. A Draft
2
SECTION 1 - REGISTRATION OF 406 MHz BEACONS
1.1 Registration Importance
It is mandatory that the owner of this 406 MHz Beacon registers it with the National Authorities*.
All 406 MHz Beacons transmit a Unique Identifier Number (UIN) when activated. This UIN is
programmed in the Beacon based on the country in which the Beacon was purchased. Registration
provides the Search and Rescue forces with emergency contact information, and will speed the
launch of a rescue operation. The National Authorities use the information to verify if an actual
emergency exists. Valuable Search and Rescue resources are wasted every year responding to false
alarms. For Beacons that are not registered, SAR forces will not know who you are, or who to contact
regarding additional information of your current situation. This will delay the launch of a rescue
operation.
*A National Authority is the governmental body that is responsible for PLB Registration Database
administration for the country for which the PLB is programmed.
1.2 Where to register
The owner of a 406 MHz Beacon (PLB) should register it with the National Authority of which the
Beacon was programmed, (typically the country where purchased), regardless of where you use your
beacon. Each Beacon is programmed with a UIN for the country where the unit is shipped, and will
only be accepted for registration in that country. To verify the country, for which a Beacon is
programmed, see the label with the UIN on the side of the unit. Units that do not have a country
specified on the UIN label are programmed for the United States.
1.3 Registration in the United States
It is the Owner’s responsibility and required by law to Register 406 MHz Beacons that are
programmed for and purchased in the United States. The National Authority that accepts registrations
in the United States is the National Oceanic and Atmospheric Administration (NOAA). The owner
should complete the enclosed registration form (Do not confuse this with the ACR Electronics
Warranty Card) and mail it with the pre-addressed; postage paid envelope to:
SARSAT Beacon Registration,
E/SP3, RM 3320, FB-4
NOAA/NESDIS
5200 Auth Rd.
Suitland, MD 20746-4304
Beacon registration is also available online at: www.beaconregistration.noaa.gov
![](/img.php?id=456572&img=bg4.png)
Y1-03-0174 Rev. A Draft
3
The information provided on the Registration Form is used only for rescue purposes. The
Registration Form should be filled out and mailed immediately. Registration can be expedited by
faxing the registration form or by completing the form online in the event the Beacon is to be placed
in immediate service.
Registration forms will be entered in the 406 MHz Beacon Registration Database within 48 hours of
receipt. A confirmation letter, a copy of the actual registration and a proof-of-registration decal will
be mailed to you within two weeks. When you receive these documents, please check the information
carefully and affix the decal to your beacon in the area marked “Beacon Decal here”. If you do not
receive confirmation, contact NOAA for additional information at: +1-888-212-7283.
1.3.1 Registration in Canada
The national authority in Canada is the NSS (National Search & Rescue Secretariat). Canadian
residents can register online at http:beacons.nss.gc.ca. For more information please contact the NSS
at (613) 966-1504 or (800) 727-9414.
National Search and Rescue Secretariat
400-275 Slater Street
Ottawa, Ontario K1A 0K2
1.4 Registration Outside of the United States
In countries other than the United States, 406 MHz Beacons are registered with that country’s
National Authority at the time of Purchase. The Sales agent should assist in filling out the forms and
sending to that country’s National Authority. To verify that the unit is properly programmed for that
country, view the UIN label on the side of the unit. In the event that the Beacon is not programmed
for the country in which it has been purchased, the sales agent, (if properly equipped) can reprogram
the unit for that country.
1.5 Change of ownership or contact information
It is the owner’s responsibility to advise the National Authority of any change in the information on
the registration form. If the current owner of the Beacon is transferring the Beacon to a new owner,
the current owner is required to inform the National Authority by Letter, Fax or telephone, of the
name and address of the new owner. The new owner of the Beacon is required to provide the
National Authority with all of the information requested on the Registration form. This obligation
transfers to all subsequent owners. Registration forms are available from NOAA, call +1(888) 212-
7283 or visit our website at www.acrelectronics.com.
SECTION 2 - OPERATION
2.1 General
The TerraFix™ 406 GPS PLB models are designed to be manually deployed and activated. It is
only to be activated when all other means of self-rescue have been exhausted. Activation of the
![](/img.php?id=456572&img=bg5.png)
Y1-03-0174 Rev. A Draft
4
beacon tells Search and Rescue who you are, where you are, and that you are facing a life threatening
situation.
2.2 Self Test
PLEASE READ ALL INSTRUCTIONS BEFORE PERFORMING ANY OF THE TESTS.
BE PREPARED TO RECORD DATA FROM THE TEST
Self test is initiated by holding the self test button (see figure 1) for more than half a second and less
than five seconds. Your beacon will sound an initial beep and green LED (Light Emitting Diode)
flash to signify the test has begun. A green LED will flash a second time to indicate that the self test
was successful.
Self tested components: Data Integrity and Memory; Check 406 MHz Synthesizer;
RF Power/Battery; Check GPS header
If your beacon flashes two LED’s, the test has been successful. If you encounter only the initial
green LED flash alone, your beacon has failed the self test, please contact ACR Electronics or an
authorized Battery Replacement Center for servicing of your beacon.
2.2.1 Battery Witness Seal Life
ACR strongly recommend performing the self test on the TerraFix™ 406 GPS on a monthly basis.
If your beacon flashes an initial Red LED at the beginning of the Self Test, this indicates that your
electronic witness has been broken and you have used more than 1 hour of your battery life. While
the PLB will still operate normally in an emergency, ACR strongly recommends you have your
battery replaced and the electronic witness reset to ensure that you will have 24 hours of battery
power should you ever need to activate your unit.
NOTE: The homing beacon at 121.5 MHz is inhibited during self test.

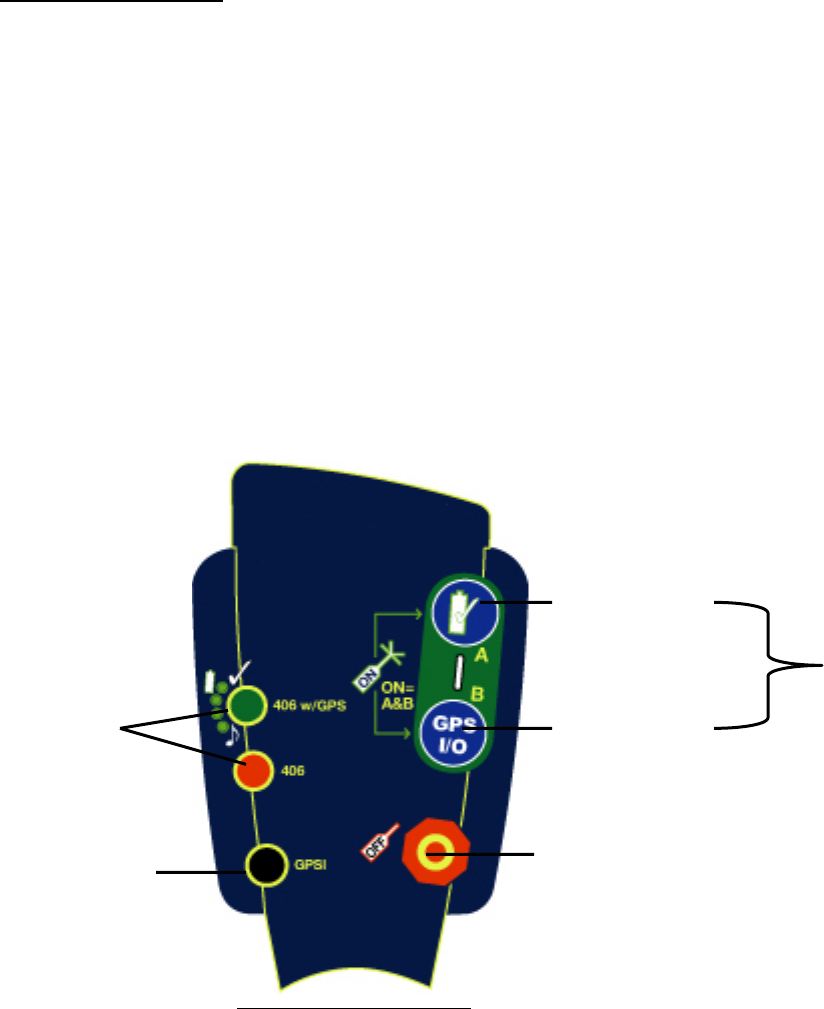

Fi
g
ure 1. Ke
y
p
ad Functions
Self Test Button
GPS Test Button
- GPS I (P/N 2798.2)
- GPS I/O (P/N 2798.4)
Off Button
Green & Red LED
GPS Interface
Press together for
more than ½ of a
second to activate
the beacon in an
emergency
ON
![](/img.php?id=456572&img=bg6.png)
Y1-03-0174 Rev. A Draft
5
2.3 GPS Testing
2.3.1 GPS O (Onboard) Test (P/N 2798.4 only)
Warning: To conserve battery power the following test should not be performed more than
once during the five-year life of the battery pack!
The TerraFix™ 406 GPS is fitted with an internal Global Positioning System (GPS) receiver that
will determine the navigational coordinates, latitude and longitude of its position on the globe. To
test the internal GPS you must be outdoors and have a clear view of the sky. The beacon must
remain under observation to witness the results of the test. When the GPS I/O button is pressed
for greater than 5 seconds the buzzer will beep and the red LED will light simultaneously. After
approximately 5 seconds, the green LED appears indicating that the GPS has been turned ON and a
live test of the internal GPS has begun. The GPS will remain ON until good navigation data has been
obtained or until 10 minutes has elapsed. If good navigation data has been obtained, the GPS will be
turned OFF and the green LED will light for at least 3 seconds. This navigation data is not saved for
use when the beacon is turned ON. The green LED is proof that the GPS is functioning properly and
that the beacon is in a location or environment where it can receive the necessary signals from
satellites. If the GPS does not acquire good navigation data, the GPS will turn OFF after 10 minutes
and there will be no successful green LED indication. This test should not be performed more than
once during the five-year life of the battery pack to prevent excessive current drain.
.
2.3.2 Preload external GPS I (Interface)
The TerraFix™ 406 GPS PLB (P/N 2798.2 and 2798.4) can interface with a handheld GPS receiver
to provide your LAT/LON to SAR forces and narrow your search area to 110 yards (100 meters).
The beacon can accept NMEA 0183 version 1.5 and above GPS Data (format GPGGA sentence)
through its infra-red interface. The beacon can be forced to update its GPS data by pressing the GPS
I or GPS I/O button for 1/2 second and not longer than 5 seconds. The TerraFix PLB will hold the
last GPS coordinates in memory for 4 hours before returning to the default. Upon activation, your
GPS data will be transmitted to the GEOSAR satellite on the very first burst. TerraFix 406 PLB will
interface with most GPS receivers, if you are not sure if your receiver is NMEA 0183 compliant
please check the interface settings listed in your GPS manual or you may check our website at
www.acrelectronics.com for a list of GPS receivers that will interface with your PLB.
Maximum 500 preloads during the life of the battery.
2.4 TerraFix™ 406 GPS PLB Emergency Activation
2.4.1 Activation
To activate your PLB in an emergency situation, unfasten the antenna from the holster and move it
into a vertical position (See figure 1). Next lift the holster cover revealing the PLB keypad. Depress
the “self-test and GPS I or GPS I/O buttons simultaneously for more than 1/2 second and less than 5
seconds. Your PLB is now activated. While transmitting your emergency signal, the red LED will
flash once every 2 seconds allowing you to see that your beacon is activated. If GPS data is present
![](/img.php?id=456572&img=bg7.png)
Y1-03-0174 Rev. A Draft
6
in the beacon via the GPS I or GPS O the red LED will turn off and the green LED will take over
flashing once every 2 seconds.
The TerraFix™ 406 GPS (model 2798.4 only) is equipped with an internal GPS engine. If no
external GPS interface receiver is found, upon activation, the TerraFix™ 406 onboard GPS engine
will search to find you’re LAT/LON and incorporate it into your 406 MHz signal. In the case when
external and internal GPS are present, the internal GPS data will have priority at activation.
When the TerraFix™ 406 GPS is turned ON, the GPS engine is also immediately turned ON and
will immediately begin acquiring data. Initially the red LED flashes once every 2 seconds to indicate
the TerraFix™ 406 GPS is turned ON and operating. As soon as the GPS receiver acquires good
internal navigational data the red LED stops blinking and the green LED flashes once every 2
seconds. Once good navigational data has been obtained, the GPS receiver waits for 20 minutes
before looking for new navigational data again. If for any reason a time period of 4 hours passes
without the GPS receiver being able to update the last good set of navigational data, the message
transmitted by the TerraFix™ 406 GPS will revert to default data. At this point the green LED will
stop blinking and the red LED will flash once every 2 seconds. If at any time after this, good
navigational data is obtained, this data will be transmitted, the red LED will stop blinking and the
green LED will begin flashing again.
Figure 2 Antenna Position
Unlock and
position
upright
X
Y
Z
Figure 3 Key pad cover
Open the key pad cover for access to
Test or activate the beacon
Figure 4 Activation
Press both test buttons simultaneously for
more than ½ second and no longer than 5
seconds
Y1-03-0174 Rev. A Draft
7
2.4.2 Deactivation
To deactivate your PLB depress the “OFF” button for 1 second
SECTION 3 - REPORTING FALSE ALARMS
3.1 Should there be an inadvertent activation or false alarm, it must be reported to the nearest search and
rescue authorities. The information that should be reported includes the PLB Unique Identifier
Number (UIN), Date, Time, duration and cause of activation, as well as location of beacon at the time
of activation.
3.2 To report false alarms in the United States contact any of the following:
Atlantic Ocean / Gulf of Mexico
USCG Atlantic Area Command Center
Tel: (757) 398-6390
Pacific Ocean Area \ USCG Atlantic Area Command Center
Tel: (510) 437-3700
USCG HQ Command Center (From any location)
Tel: (800) 323-7233
USAF Langley, Virginia (From any location)
Tel: (XXX) XXX-XXXX
NOAA
Tel: (XXX) XXX-XXXX
SECTION 4 - CARE AND MAINTENANCE
4.1.1 Carefully inspect the PLB case for any visible cracks. Cracks may admit moisture, which could
cause a malfunction. Any cracking observed should be immediately referred to ACR for evaluation,
(1-800-432-0227)
4.1.2 Batteries may only be replaced at an authorized battery replacement center for the warranty to remain
in effect.
4.1.3 The batteries (P/N 1099) must be replaced by the date indicated on the beacon. At each inspection,
check the time remaining until replacement is required. Batteries should be replaced if the beacon
has been activated for any use other than the self test.
4.1.4 Avoid cleaning your PLB with household cleaners and hydrocarbon materials such as gasoline,
benzene, bleach, sanitizers, soaps, etc., simply wipe your PLB down with a damp cloth until clean.
Y1-03-0174 Rev. A Draft
8
NOTE: There are no user serviceable items inside the PLB. DO NOT OPEN THE PLB UNLESS TO
DISABLE IN CASE OF FAULTY ACTIVATION if the OFF button does not stop the transmission.
Power is provided by self contained long life batteries with a five-year recommended replacement
cycle. See Factory Authorized Service Center for replacement.
Battery replacement includes servicing the PLB by replacing all o-rings, testing the water seal and the
electronic diagnostic properties.
Always refer all long life battery replacement and other PLB service to a factory authorized service
center.
For the nearest location of an authorized ACR service center, call 1-800-432-0227 (toll free) or visit
our website at www.acrelectronics.com
4.2 The TerraFix™ 406 GPS contains 2 lithium battery packs that are non-hazardous. They also meet
the UN Classification of Lithium Batteries for Shipment as “Non – Dangerous Goods”.
SECTION 5 - THE SEARCH AND RESCUE SYSTEM
5.1 General Overview
The TerraFix™ 406 GPS Beacon provides distress alerting via radio transmission on 406 MHz to
satellites of the COSPAS-SARSAT network and to the GEOSAR network that includes GPS latitude
and longitude coordinates when GPS data is present.
The message transmitted by the TerraFix™ 406 GPS is unique for each PLB, which provides
identification of the transmitter through computer access of registration files maintained by the
National Oceanic and Atmospheric Administration or other national authority. Remember, if your
PLB is not registered, SAR Authorities do not know who you are, or how to contact anyone who
might know anything about your situation (Refer to section1).
Once the TerraFix™ 406 GPS signal (406 MHz) is relayed through the COSPAS-SARSAT and/or
GEOSAR network alert, Search and Rescue (SAR) forces determine who is closest, then track the
signal using the 121.5 MHz homing frequency which assistant intermediate and short-range location.
5.2 Satellite Detection
5.2.1 The TerraFix™ 406 GPS transmits an encoded phase modulated radio signal to the satellite portion
of the COSPAS-SARSAT System. The system was developed and implemented by the COSPAS-
SARSAT Partners (Russian Federation, Canada, France and the United States).
![](/img.php?id=456572&img=bga.png)
Y1-03-0174 Rev. A Draft
9
5.2.2 COSPAS-SARSAT is an international system that uses Russian Federation and United States low
altitude, near-polar orbiting satellites (LEOSAR) that assist in detecting and locating activated
121.5/243 MHz PLBs and 406 MHz Satellite PLBs.
5.2.3 COSPAS and SARSAT satellites receive distress signals from satellite PLBs transmitting on the
frequency of 406 MHz. The COSPAS-SARSAT 406 MHz satellite PLB signal consists of a
transmission of non-modulated carrier followed by a digital message format that provides
identification data. The 406 MHz system uses spacecraft-borne equipment to measure and store the
Doppler-shifted frequency along with the satellite PLB digital data message and time of
measurement. This information is transmitted in real time to an earth station called the Local User
Terminal (LUT), which may be within the view of the satellite, as well as being stored for later
transmission to other LUTs.
5.2.4 The LUT processes the Doppler-shifted signal from the LEOSAR and determines the location of the
satellite PLB; then the LUT relays the position of the distress to a Mission Control Center (MCC)
where the distress alert and location information is immediately forwarded to an appropriate Rescue
Coordination Center (RCC). The RCC dispatches Search and Rescue (SAR) forces.
5.2.5 The COSPAS-SARSAT System includes 36 LEOSAR LUT stations, 6 GEOSAR LUT stations and
19 Mission Control Centers that provide real-time as well as global-mode coverage for the Northern
Hemisphere, while the Southern Hemisphere is presently served primarily by the global mode.
Additional LUTs and MCCs are planned for installation in the near future both in the northern and
southern hemispheres.
The addition of the GEOSAR Satellite system greatly improves the reaction time for a SAR event.
This satellite system has no Doppler capabilities at 406 but will relay the distress alert to any of the
LUT stations. When there is GPS data included in the distress message, SAR authorities instantly
know your location to within 110 yards. This speeds up the reaction time by not having to wait for
one of the LEOSAR satellite to pass overhead.
5.2.6 Because most of the search and rescue forces presently are not equipped to home in on the 406 MHz
Satellite PLB signal, homing must be accomplished at 121.5 MHz.
SATELLITE COVERAGE
Figure 5
![](/img.php?id=456572&img=bgb.png)
Y1-03-0174 Rev. A Draft
10
SECTION 6 - AUTHORIZATIONS
6.1 The TerraFix™ 406 GPS PLB meets the requirements of Federal Communications Commission
(FCC) Part 95 Subpart K
5.2 Characteristics
The TerraFix™ 406 GPS PLB is a buoyant, battery operated Personal Locator Beacon. The beacon
case, with its external antenna, is waterproof. The semiconductor circuits are mounted within the
case assembly which also contains the battery power supply. A keypad with “self test,” “GPS I or
I/O and “Off” buttons are installed on the case, along with an internal beeper and two LEDs. The
TerraFix™ 406 GPS models accept external GPS data via an I/R interface cable that is included
with your PLB. The TerraFix™ 406 GPS I/O (P/N 2798.4) also contains an internal GPS engine
that will acquire your LAT/LON if an external GPS receiver is not present.
Technical Data - TerraFix™ 406
6.3.1 TECHNICAL DATA
The TerraFix™ 406 GPS PLB is available in two combinations. The following product codes define
the options available to meet specific operational requirements:
6.3.2 Applicable Documents
NSS PLB01-01 Standard for 406 MHz Satellite PLB’s, Canada
COSPAS-SARSAT Document C/S T.001 & T.007 (spec for 406 MHz distress beacons)
RSS 187 Radio Standards Specification for Emergency Position Indicating Radio Beacons,
Emergency Locator Transmitter, and Personal Locator Beacon
FCC Part 95, Subpart K
6.3.3 Specifications
406 MHz Transmitter

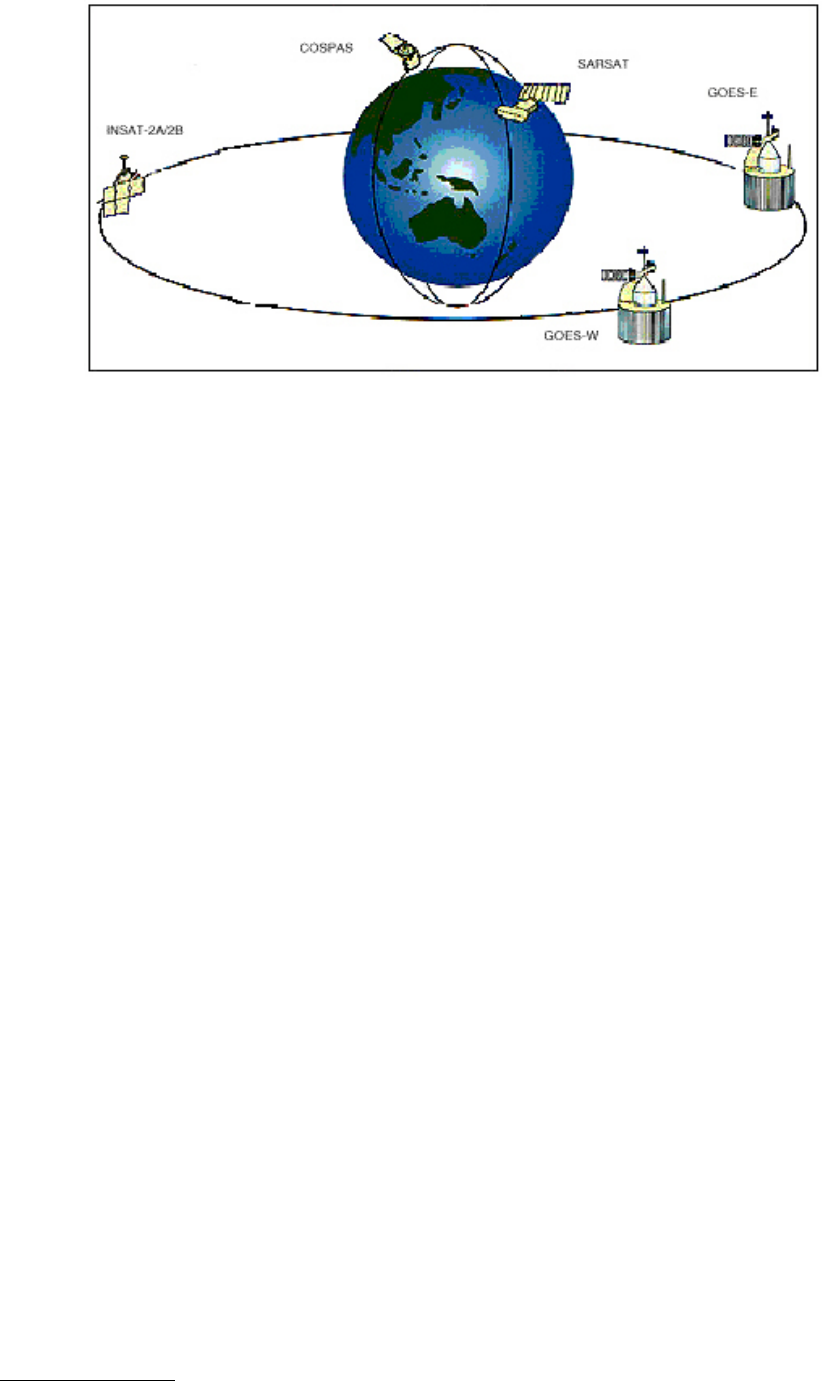

GEOSAR SATELLITE ORBIT
Figure 6
![](/img.php?id=456572&img=bgc.png)
Y1-03-0174 Rev. A Draft
11
Frequency 406.028 MHz
Frequency Stability ±2 parts per billion/100ms
Output Power 5 watts
Digital Message
Format
Long message / serialized
Message protocol Standard Location (2798.2 – 2798.4)
Duration 520 ms
Rate 400 bps
Encoding Biphase L
Modulation ±1.1 radians peak
PLB’s leave ACR with Serialized code but can be reprogrammed at a service center to other coded formats including nationality
of registration.
121.5 MHz Transmitter
Frequency 121.5 MHz
Frequency Tolerance ±50 ppm
Output Power 25 mW PEP
Morse Code “P” ID every 50 seconds (approximately)
Modulation
Type AM (3K20A3N)
Sweep Range 400 to 1200 Hz
Sweep Rate 3 Hz
Duty Cycle 37.5%
Morse P AM (2K00A2A)
Antenna
Frequency 406 & 121.500 MHz
Polarization Vertical
VSWR Less than 1.5/1
General/Environmental
Battery Life
Operating Class I 24 hours minimum @ -40°C
Operating Class II 24 hours minimum @ -20°C
Replacement Interval 5 years or after use in an emergency
Batteries meet the UN Classification for Non-dangerous goods
Size
PLB less Antenna 1.74 x 5.71 x 3.03 in (4.4 x 14.5 x 7.7 cm)
Material High impact and UV resistant plastic
Color ACRtreuse
Weight (less holster) 12 oz (338 grams)
Waterproof 36 feet (11 meters)
Temperature Range
Operating Class I -40°C to +55°C (-40°F to +131°F)
Class II -20°C to +55°C (-4°F to +131°F)
Storage Class I -50°C to +70°C (-58°F to +158°F)
Class II -40°C to +70°C (-40°F to +158°F)
![](/img.php?id=456572&img=bgd.png)
Y1-03-0174 Rev. A Draft
12
SECTION 7 - GPSI/O Frequently Asked Question
Q. How do I download position data from my GPS to my beacon?
A. You must have a NMEA 0183 version 1.5 or higher output ready GPS unit and a GPS interface cable.
The NMEA 0183 optical interface connector supplied with your TerraFix must be connected to the
GPS interface cable using a universal serial adapter. Turn on your GPS unit and allow it to acquire
the necessary satellites. Make sure the output is set to NMEA 0183 with the GGA sentence
configured if necessary. Connect the NMEA 0183 interface cable to the GPS unit and the TerraFix.
The TerraFix will initiate a data preload when the GPS I/O button is pressed for more than ½ second
and less than 5 seconds.
Q. How long does it take to down load position coordinates from my GPS to my beacon?
A. Upon connection with a properly operating and fully acquired GPS unit, the ACR beacon usually
take less than four minutes to synchronize and download coordinates. Subsequent position updates
will take from a few seconds to no more than 20 seconds to complete.
Q. How does the GPS data get from my GPS to the beacon?
A. The GPS unit transmits data as electrical energy through the GPS interface cable to the ACR optical
interfacing connector. The ACR optical interfacing connector has an infrared LED and sensor located
in it. The electrical energy supplied by the GPS unit is converted to infrared light in the ACR optical
interfacing plug. Data from the GPS unit is transmitted via infrared light to the beacon through the
translucent beacon top cap or lens when the ACR optical interface plug is properly engaged. The
beacon has an infrared detector that decodes the light pulses. ACR uses an optical interface design to
eliminate the potential for leaks and corrosion common to mechanically interfacing devices. An external
LED flashes to confirm that GPS data is being sent from the handheld GPS.
Q. Does my beacon need any special set up to accept GPS data?
A. No. If it is hooked to a valid data source, that has been properly set up to deliver NMEA format with the
GPGGA sentence, it will automatically attempt to download the data and form an emergency message
that includes the position data when the preload function is initiated.
Q. Does my GPS unit have to be set up in a special way to transmit position coordinates via the
NMEA 0183 interface?
A. For the GPS to transmit data, go to GPS setup and make sure the NMEA 0183 output is turned on and
the GGA NMEA sentence is selected or turned on. Consult your GPS user’s manual for information on
configuring the NMEA output.
Q. What is the maximum length my GPS cable can be?
A. ACR Electronics recommends a maximum length of 400 feet using 24 AWG wire. Contact your GPS
owner’s manual for more detailed information.
Y1-03-0174 Rev. A Draft
13
Q. What happens if I plug the GPS into the beacon first and press the GPS I or I/O button without
waiting for the GPS to acquire satellites?
A. The beacon will function normally, but will not store GPS coordinates. As soon as the GPS has acquired
satellites the data will be transferred to the beacon.
Q. How long does the beacon hold data in memory?
A. 4 hours. If new GPS data has not been downloaded, the TerraFix will return to default mode
Q. How much power is needed to run the IR LED on the GPS cable?
The minimum power needed is 3.3VDC and 2mA
7.0 Limited Warranty
7.1 This product is warranted against factory defect in material and workmanship for a period of five
years from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc.
will repair or, at its option, replace at no cost to you for labor, materials or return transportation,
provided you obtain a Return Authorization from ACR Electronics, Inc., 5757 Ravenswood Road, Ft.
Lauderdale, Fl. 33312-6645. To obtain a Return Authorization, call our Customer Service
Department at (800) 432-0227. This warranty does not apply if the product has been damaged by
accident or misuse, or as a result of service or modification performed by an unauthorized factory.
Except as otherwise expressly stated in the previous paragraph, the COMPANY MAKES NO
REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER
WITH RESPECT TO THIS PRODUCT. The Company shall not be liable for, consequential or
special damages.
In order to place the warranty in effect, the accompanying registration card must be returned to ACR
Electronics, Inc. within ten days of purchase.
