ACS Alcohol Countermeasure Systems 79006702 Transmitter User Manual

ACS Alcohol Countermeasure Systems Corp. Transmitter

user manual

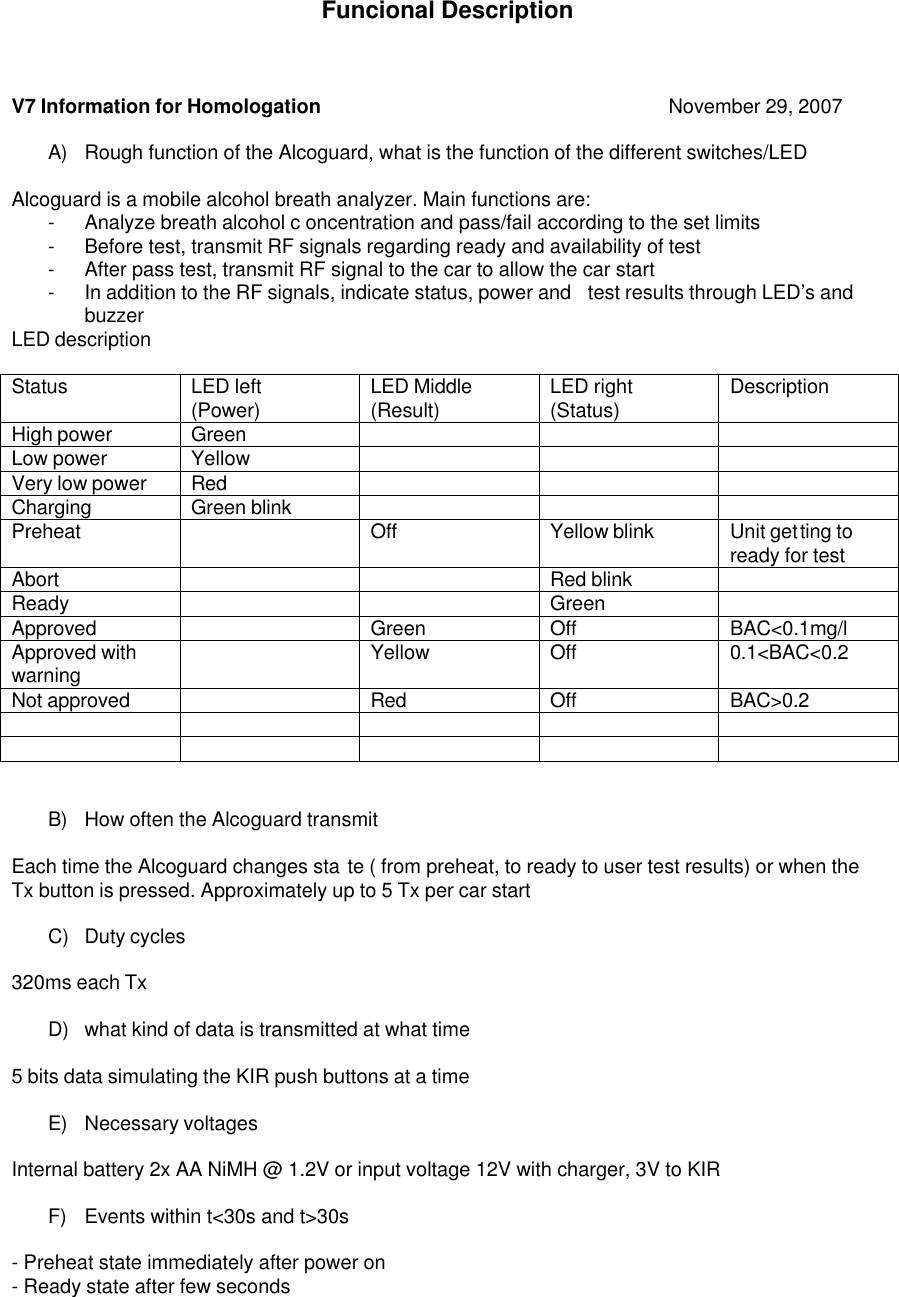

Funcional Description V7 Information for Homologation November 29, 2007 A) Rough function of the Alcoguard, what is the function of the different switches/LED Alcoguard is a mobile alcohol breath analyzer. Main functions are: - Analyze breath alcohol c oncentration and pass/fail according to the set limits - Before test, transmit RF signals regarding ready and availability of test - After pass test, transmit RF signal to the car to allow the car start - In addition to the RF signals, indicate status, power and test results through LED’s and buzzer LED description Status LED left (Power) LED Middle (Result) LED right (Status) Description High power Green Low power Yellow Very low power Red Charging Green blink Preheat Off Yellow blink Unit getting to ready for test Abort Red blink Ready Green Approved Green Off BAC<0.1mg/l Approved with warning Yellow Off 0.1<BAC<0.2 Not approved Red Off BAC>0.2 B) How often the Alcoguard transmit Each time the Alcoguard changes sta te ( from preheat, to ready to user test results) or when the Tx button is pressed. Approximately up to 5 Tx per car start C) Duty cycles 320ms each Tx D) what kind of data is transmitted at what time 5 bits data simulating the KIR push buttons at a time E) Necessary voltages Internal battery 2x AA NiMH @ 1.2V or input voltage 12V with charger, 3V to KIR F) Events within t<30s and t>30s - Preheat state immediately after power on - Ready state after few seconds

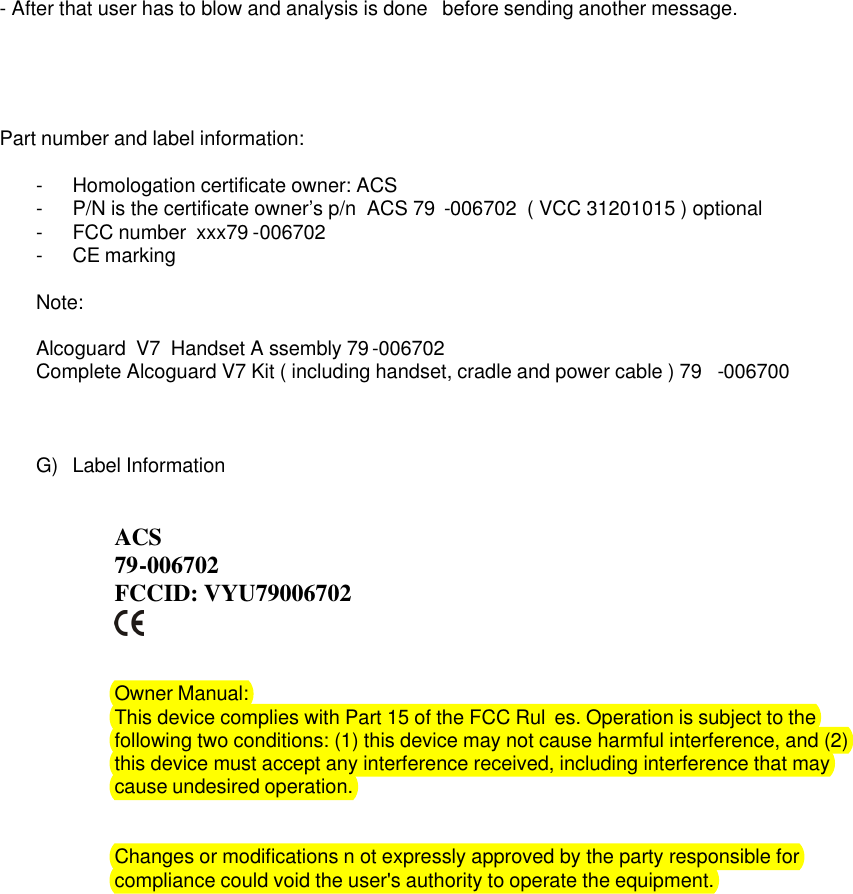

- After that user has to blow and analysis is done before sending another message. Part number and label information: - Homologation certificate owner: ACS - P/N is the certificate owner’s p/n ACS 79 -006702 ( VCC 31201015 ) optional - FCC number xxx79 -006702 - CE marking Note: Alcoguard V7 Handset A ssembly 79 -006702 Complete Alcoguard V7 Kit ( including handset, cradle and power cable ) 79 -006700 G) Label Information ACS 79-006702 FCCID: VYU79006702 Owner Manual: This device complies with Part 15 of the FCC Rul es. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications n ot expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
