ACS 915FBTX-05 4 channel transmitter 915MHz User Manual Technische Dokumentation

ABITRON Control Systems GmbH 4 channel transmitter 915MHz Technische Dokumentation

UserManual.pdf

© by ABITRON Control Systems GmbH
Technical
Documentation
Board / RF Transmitter
FBTX-05-V1 xxxMHz
For FBTX-05 (1xCS)
KH62400020.A / KH6696xxx1
Version
Date
Name
Comment
1.00
14.04.2015
ORD
Initial release documentation
1.00
06.05.2015
ORD
4.3 added
1.00
08.05.2015
ORD
4.2 corrected
ABITRON Control Systems GmbH
Wiesnerstraße 20
A-4950 Altheim
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 1 of 6
01 Description
The FBTX-05 Module is a four-channel Transmitter RF-Part, wich function is to transmit the
feedback-data to the respective RF-Part.
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 2 of 6

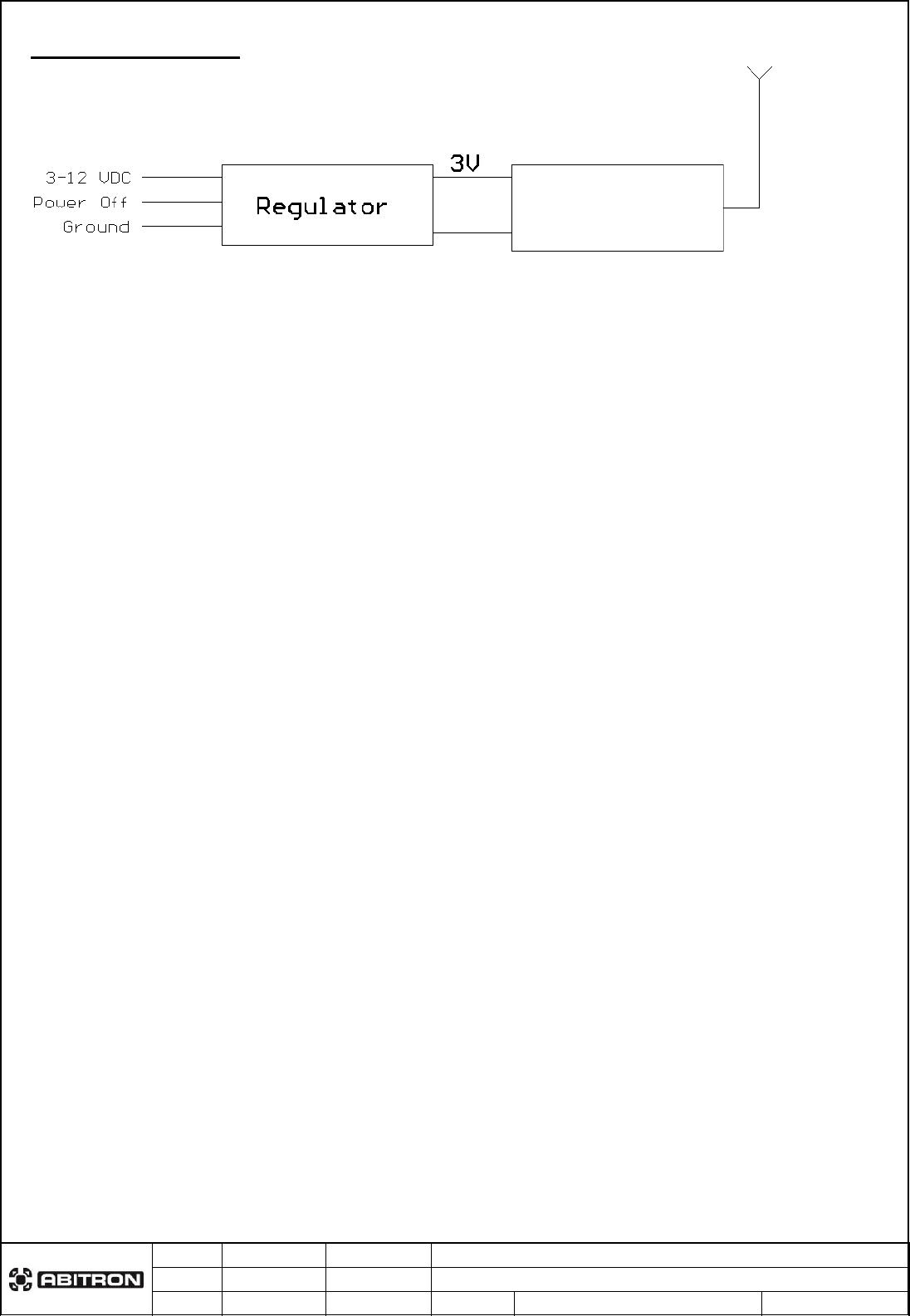

02 Block Diagram
CDP-TX05
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 3 of 6
03 Technical Data
Temperature range:
-20o C to 65o C
Supply Voltage:
3,4-12 VDC (recommended 3.4-5VDC)
Current drain:
<20 mA
Transmit Power:
869MHz: 5mW
915MHz: 1mW
Size:
44.50x36.00mm
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 4 of 6

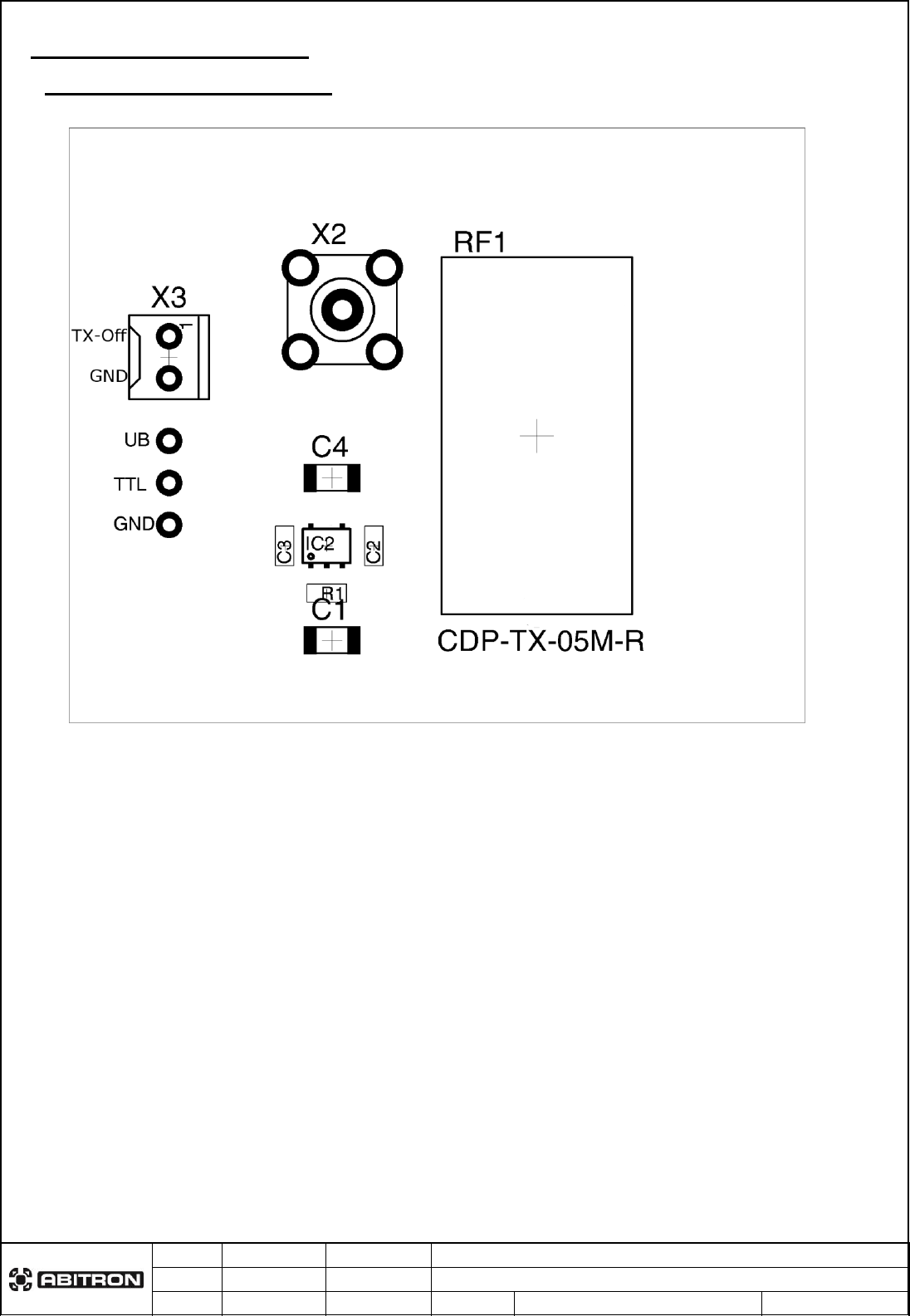

04 Connection Diagram
04.1 Standard Connection
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 5 of 6
04.2 Jumper Settings
04.2.1 FBTX 869MHz
JP2
JP1
Frequency
open
open
869.7500
open
closed
868.3000
closed
open
869.8000
closed
closed
869.9250
Standard Setting
Approval-Numbers
04.2.2 FBTX 915MHz
JP2
JP1
Frequency
open
open
915.5000
open
closed
915.7000
closed
open
915.7500
closed
closed
915.8250
Standard Setting
Approval-Numbers
USA
FCC-ID:
2AC8P-915FBTX-05
Canada
IC-ID:
12310A-915FBTX-05
created:
Board / RF Transmitter FBTX-05-V1 xxxMHz
Name:
ORD
For FBTX-05-V1 (1xCS)
Date:
14.04.2015
Item.-No
KH62400020.A / KH6696xxx1
page 6 of 6
04.3 Installation/Application Note
04.3.1 FCC/IC Notice (FBRX 915MHz)
If the used RF-Module has a FCC/IC approval number, the number must be visible outside on
the housing.
NOTICE:
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
NOTICE:
Changes or modifications made to this equipment not expressly approved by (manufacturer
name) may void the FCC authorization to operate this equipment.
