GEMINI LOCK MODIFICATION LISTING (INDICATES LOCK SETS THAT ARE UL LISTED)
ACSI 1-800-753-5558
Operator Specifications
Electrical
8500 Series
24 volt @ 0.6 amp
Monitoring Contact Rating
30 VDC (only) @ 0.5 amp
Note: If you do not find the lock of your choice listed, please consult with our factory engineering staff.
We may request that you send a sample for further evaluation.
Arrow Corbin Russwin Schlage
AM17 2055 L9050
BM17 L9070
L9080*
*L9080 must be supplied with extra spring cage to compensate for lever sag of outside trim.
GEMINI COMPARISON CHART
ACSI - Gemini Corbin Russwin SDC Hitower
Fail Safe
8500-M1-PL ML20950, ML20906 7550, 7540
8500-M2-PL ML20960, ML20907 7530
8500-M1 or M2-PL*7510, 7520
Fail Secure
8500-M1-PUL ML20970, ML20908 7570
8500-M2-PUL ML20980, ML20909 7560
ACSI Description SDC
CLS, OLS Monitoring 9A, 69A
QC Quick-Connect Cable SC-10
302-03-02 Mortar Guard for 2” Face Frame 7500-EB-S
*Please consult the factory for proper part number.
L O C K I N T O T H E A C S I A D VA N TA G E
LO CK INT O T HE ACS I A DVANTAG E
S E R I E S 8 5 0 0 G E M I N I®L O C K I N G S Y S T E M S
2720 Clark Avenue • St. Louis, Missouri 63103 • 1-800-753-5558 • 314-652-5588 • FAX: 314-652-2090 • WWW.ACSI-INC.COM
The patented ACSI Gemini Locking System
provides safety and security for stairtower doors or
controlled areas where both locking and latching
are required. The Gemini System allows remote
electric locking or unlocking while conforming to
life-safety codes. The System consists of two
components: a Gemini modified Mortise Lockset
and a frame mounted Gemini Operator.
SERIES 8500 GEMINI®LOCKING SY S T E M
ACSI 1-800-753-5558
HOW TO ORDER
Features
•UL Listed Gemini Mortise Lock - no special
door prep
•UL Listed Gemini Operator located in the frame
•Ability to work with a wide range of mortise lock
manufacturers:
-Arrow
-Corbin Russwin
-Schlage
•Fail Safe (Power Lock)
-Outside trim is locked when power is applied
and unlocked when power is removed (store-
room function when energized). Lockset will
unlock in event of power failure (passage
function).
•Fail Secure (Power Unlock)
-Outside trim is unlocked when power is
applied and locked when power is removed.
Lockset will lock in event of power failure.
•24VDC, 24VAC
•Mechanical Key Override
-When key cylinders are provided in the locks,
the latchbolt may be momentarily retracted with
key even though electrically locked.
-Note: Locks that are electrically unlocked may
not be locked via the key cylinder.
•Interface with life-safety systems
•Easy installation: Gemini operator fits easily into
2” face frames. Only one wiring termination.
•Optional quick connect cable
•Continuous duty solenoids
•Heavy duty stainless steel housing
•Security Monitoring available
•Interface with Life-Safety Systems
SERIES
1300
DOOR
CONTROL
115V, INPUT
FIELD SPLICE
NO SPECIAL
DOOR PREPS.
66% FEWER
FIELD
CONNECTIONS
MORTISE LOCK
WITH GEMINI
MODIFICATION
STANDARD
HINGES
NO ELECTRIC
HINGE REQUIRED
NO SPECIAL
PREPARATION
SERIES
1440
POWER
SUPPLY
GEMINI
OPERATOR
WIRES IN CONDUIT
(IF FRAMES ARE FILLED)
302-03-02
MORTAR GUARD
RECOMMENDED

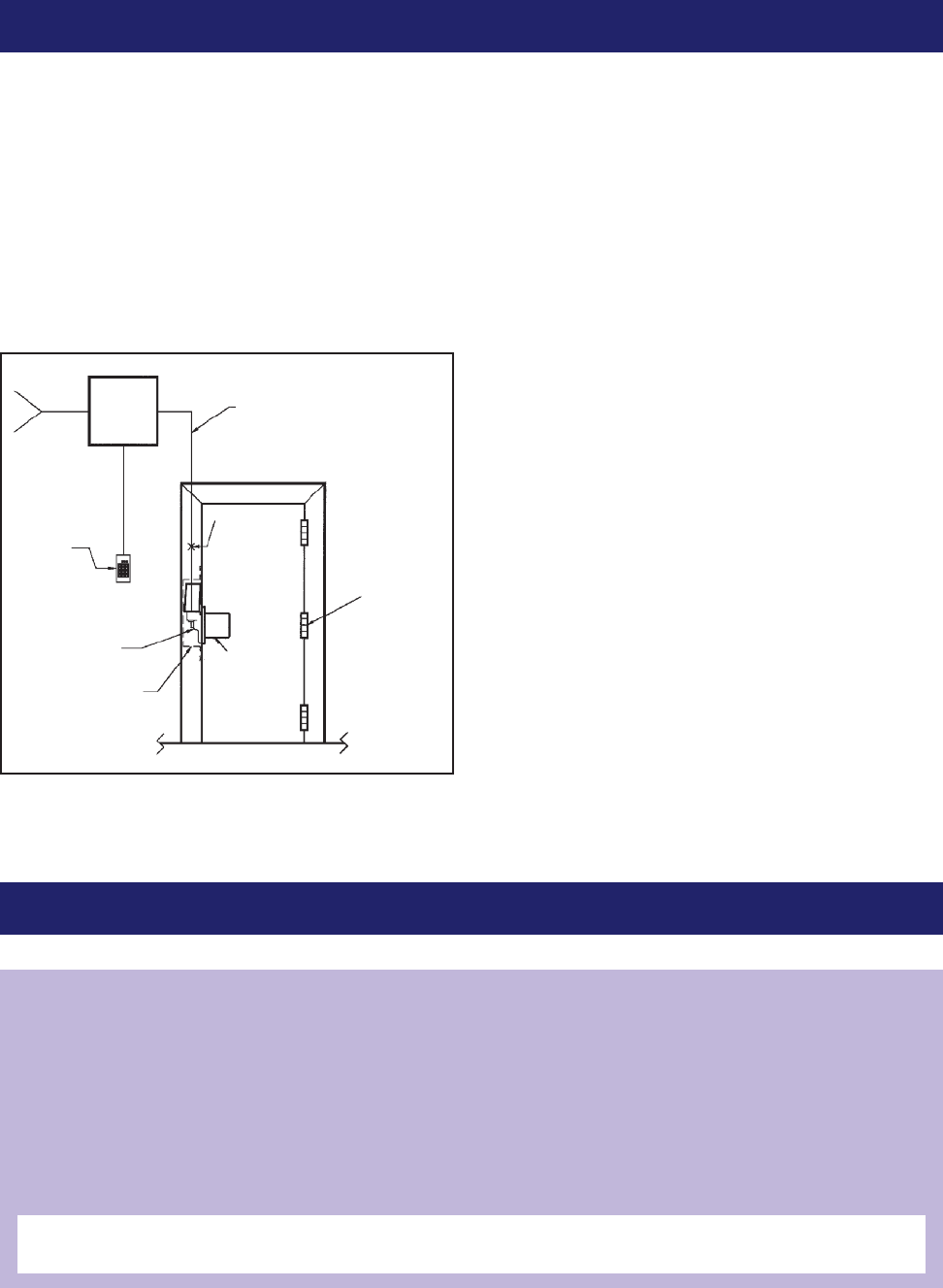

Series 8500 Typical Installation
12 3 4 5 6 789
Model Lock Control Voltage Quick Security Finish Handing Lock
Type Mode Connect Monitoring Mfg.
Cable Part No.
8500 M1 PL 24VDC QC CLS 26D LH L9070
8500F M2 PUL 24VAC/DC OLS RH
E LHR
115VAC RHR
Example:
8500 M1 PL 24VDC QC CLS 26D LH L9070
7. Finish
Specify US standard architectural hardware finish
as required.
4. Voltage or Air Powered Operator
The Gemini can be supplied with a broad range of
electric or air requirements.
Model
24VDC
24VAC/DC
115VAC
Note: 115VAC not available in PUL
3. Control Mode
Model Description
PL Power Lock (Fail Safe)
PUL Power Unlock (Fail Secure)
6. Security Monitoring
Model Description
CLS Closed Loop Secure - Monitor
• When lock is secure (latch in
strike-operator in locked position),
monitor loop is a closed circuit.
The circuit opens if security is
breached.
OLS Open Loop Secure - Monitor
• When lock is secure (latch in
strike-operator in locked position),
monitor loop is an open circuit.
The circuit closes if security is
breached.
Note: Leave this space blank if not required.
5. Quick Connect Cable
Model Description
QC An optional quick connect cable 10’ in
length with stripped wires at one end
for splicing into an electrical box or
power supply and with a connector
on one end for quick connect to the
Gemini operator is automatically
supplied with a matching connector.
Note: Leave this space blank if not required.
ACSI 1-800-753-5558
HOW TO ORDER (cont.)
2. Lock Type
Model Description
M1 Mortise lock with one side (lever or
knob) locked
M2 Mortise lock with both sides (lever or
knob) locked
EMortise exit with outside locked only
1. Gemini Operator
Model Description
8500 The standard Gemini operator is
designed for 2” frame face
applications and fits a standard ANSI
4-7/8” frame prep.
8500F Also designed for 2” frame face
applications, this operator is supplied
with an oversized strikeplate for easy
installation in retrofit applications.
8. Handing
Model Description
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse
9. Lock Manufacturers Part Number
Distributors supply ACSI with mortise or mortise
exit lock bodies for Gemini modification. Please
supply the lock manufacturer’s part number.
Example: L9070, 2055, BM17
Note: Refer to the Gemini Series 8500 price list for
a complete listing of locksets that can accept the
Gemini modification.
Model Description
302-03-02 Gemini Mortar Guard, 15”
ACCESSORIE S
