ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-27
© 2003, ADC Telecommunications, Inc.
are followed by the action or information required. A text string response is received from the
specified system or systems to confirm the requested action or to report the requested
information. Examples of several typical NOC-NEM interface commands and the responses
received are shown in Figure 2-18. The NOC/NEM interface requires only a VT100 terminal/
emulator or a PC-type computer that is loaded with a communication software such as
Procomm Plus. While primarily intended for use at the NOC, the NOC/NEM interface
commands may also be input from the EMS computer.

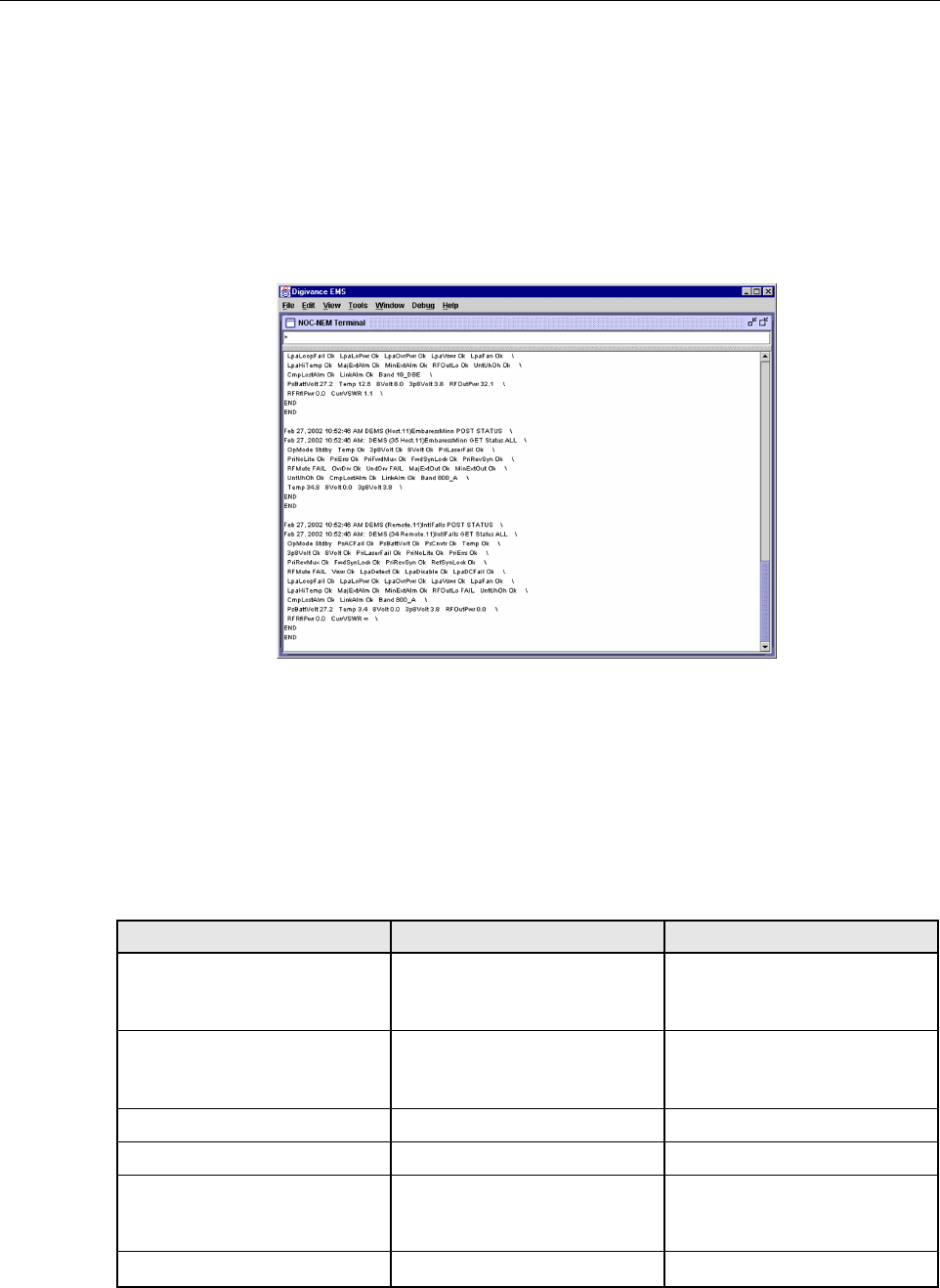

Figure 2-18. NOC/NEM Interface Typical Commands
11 SPECIFICATIONS
Refer to Table 2-6 for the Digivance SMR 20 Watt System nominal specifications. All
specifications apply after a five minute warm-up period.
Table 2-6. SMR 20 Watt System Nominal Specifications
PARAMETER SPECIFICATION REMARKS
Optical - Host and Remote Unit
Fiber type 9/125, single-mode
Number of fibers required
Direct
With WDM
2
1The wavelength division multi-
plexer (WDM) is an accessory.
Forward path wavelength 1550 nm
Reverse path wavelength 1310 nm
Optical transmit power output
Host Unit
Remote Unit 0 dBm
–3 dBm
Optical budget 17 dB For optical BER of 10–6
FCC ID: F8I-DLCSMR2A User Manual - Part 3
ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-28
© 2003, ADC Telecommunications, Inc.
Optical receive input –7 dBm maximum
Optical connectors Industry standard SC Host, remote, and WDM
Optical - Host and Remote WDM
Passband 1310 nm ± 20 nm
1550 nm ± 20 nm
Forward path insertion loss
Host WDM
Remote WDM
0.7 dB
0.3 dB Does not include connector loss
Reverse path insertion loss
Host WDM
Remote WDM 0.3 dB
0.7 dB Does not include connector loss
Isolation > 30 dB minimum
Return loss (Reflectance) < –50 dB All input ports
RF Forward Path - SMR 800 MHz
System bandwidth 15 MHz
Frequency range 851 to 866 MHz SMR band
Gain of forward path
(Host input to Remote antenna
port)
80.5 dB at band center, room
temperature, and 0 dB attenua-
tion setting
Includes power amplifier.
Gain flatness ± 1.5 dB across freq. range
1 dB variation across any 1.25
MHz channel
Gain variation ± 3 dB over temperature and
unit-to-unit
Propagation delay 6 µs maximum Excludes fiber delay
Configurable propagation delay
Range
Step size Up to 63 µs
1 µs
Plus standard propagation delay
Spurious
In-band self generated
Dynamic range –13 dBm at remote output
–65 dBc
Transmit peak-to-average 10 dB
Intermodulation products –65 dBc
Nominal composite RF input
signal level –40 dBm at 0 dB attenuation
–20 dBm at max. attenuation An input signal level of –40 dBm
provides maximum output power
Configurable input level
Range
Step size 20 dB
1 ± 0.5 dB ±10% of step value
Composite RF output power 40.5 dBm (11 Watts) at remote
antenna port with –40 dBm input 20 Watts at power amplifier out-
put
Table 2-6. SMR 20 Watt System Nominal Specifications, continued
PARAMETER SPECIFICATION REMARKS
ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-29
© 2003, ADC Telecommunications, Inc.
Configurable RF output
Range
Step size 20 dB at remote unit
1 ±0.5 dB ±10% of step value
Transmit path insertion loss 2.5 dB
RF Reverse Path - SMR 800 MHz
System bandwidth 15 MHz
Frequency range 806–821 MHz SMR band
Propagation delay 6 µs maximum Excludes fiber delay
Configurable propagation delay
Range
Step size Up to 63 µs
1 µs
Plus standard propagation delay
Gain 30 dB ± 2 dB at band center
Gain flatness ± 1.5 dB across frequency range
1 dB variation across any 1.25
MHz channel
Gain variation ± 3 dB over temperature and unit
to unit
Out-of-band rejection –40 dB bandwidth < 30 MHz
Spurious –110 dBm referred to input
Intermodulation –62 dBc
System noise figure 8 dB
Configurable RF output
Range
Step size 20 dB
1 ± 0.5 dB ± 10% of step value
Blocking dynamic range 70 dB
Level limiting ALC threshold –40 dBm dB ± 3 dB
Level limiting ALC range 30 dB
Physical/Environmental/
Electrical - Host Unit
Dimensions (H×W×D) 3.5 × 17.2 × 15.3 inches
(89 × 437 × 389 mm) Dimension for width does not
include the mounting brackets
which can be installed for either
19- or 23-inch racks.
Mounting 19- or 23-inch rack EIA or WECO
Weight 18 lbs. (8.2 kg)
Weather resistance Indoor installation only
Operating temperature 0º to 50º C (32º to 122º F)
Storage temperature –40º to 70º C (–40º to 158ºF)
Humidity 10% to 90% No condensation
Table 2-6. SMR 20 Watt System Nominal Specifications, continued
PARAMETER SPECIFICATION REMARKS
ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-30
© 2003, ADC Telecommunications, Inc.
External alarm connector Screw-type terminals NO and NC relay contacts
DC power connector Screw-type terminal strip
RF coaxial cable connectors N-type (female)
Service connector DB-9 (female) RS-232 DTE interface
CAN connectors RJ-45 jack
Power input ± 24 or ± 48 VDC ± 21 to ± 60 VDC
Power consumption 55 watts
Current rating 1 Amp at –48 VDC
Reliability at 25ºC MTBF 80,000 hours Excluding fans
Physical/Environmental/
Electrical - Remote Unit Outdoor
Cabinet
Cabinet dimensions (H×W×D) 25.6 × 10.13 × 20.75 inches
(674 × 257 × 527 mm)
Mounting Wall, pole, or pedestal Pedestal mounting requires ped-
estal mount kit. (accessory)
Weight 80 lbs (36.3 kg) Includes modules
Weather resistance NEMA-3R, removable dust filter
Operating temperature –30º to 50º C (–22º to 122º F)
Storage temperature –40º to 70º C (–40º to 158ºF)
Humidity 10% to 90% No condensation
External alarm connector Screw-type terminals External alarm inputs
AC power connection 3/4- or 1/2-inch conduit Per local code or practice.
Antenna cable connector N-type female
Fiber optic cable size 0.375 to 0.875 inch (10 to 22
mm) diameter cable 9/125, single-mode
Lightning protection 20 kA IEC 1000-4-5 8/20 µs
waveform
Service connector DB-9 female (on STM) RS-232 DTE interface
Power input 120 or 240 VAC, 50 or 60 Hz
Power consumption 360 Watts
Current rating 5 Amps maximum at 120 VAC
Reliability at 25ºC MTBF 50,000 hours Excluding fans and air filter
Table 2-6. SMR 20 Watt System Nominal Specifications, continued
PARAMETER SPECIFICATION REMARKS
ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-31
© 2003, ADC Telecommunications, Inc.
Physical/Environmental/
Electrical - Remote Unit Indoor
Mounting Shelf
Mounting Shelf dimensions
(H×W×D) 14.15 × 17.39 × 15.6 inches
(359 × 442 × 396 mm)
Mounting 19-inch equipment rack WECO or EIA
Weight 50 lbs. (22.7 kg) Includes modules
Operating temperature –30º to 50º C (–22º to 122º F)
Storage temperature –40º to 70º C (–40º to 158ºF)
Humidity 10% to 90% No condensation
External alarm connector Screw-type terminals (on STM) External alarm inputs
AC power connection AC power cord with standard 3-
prong 120 VAC plug.
Antenna cable connector N-type female (on STM)
Fiber optic cable connector SC-type (on STM)
Service connector DB-9 female (on STM) RS-232 DTE interface
Power input 120 or 240 VAC, 50 or 60 Hz Operation on 240 VAC requires
power cord with 240 VAC plug.
Power consumption 360 Watts
Current rating 3 Amps maximum at 120 VAC
Reliability at 25ºC MTBF 50,000 hours Excluding fans and air filters
Table 2-6. SMR 20 Watt System Nominal Specifications, continued
PARAMETER SPECIFICATION REMARKS
ADCP-75-159 • Issue 1 • August 2003 • Section 2: Description
Page 2-32
© 2003, ADC Telecommunications, Inc.
Blank
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-1
© 2003, ADC Telecommunications, Inc.
SECTION 3: HOST UNIT INSTALLATION
1 BEFORE STARTING INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
1.1 Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
1.2 Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
2 FIBER OPTIC CABLE ROUTING AND INSTALLATION GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

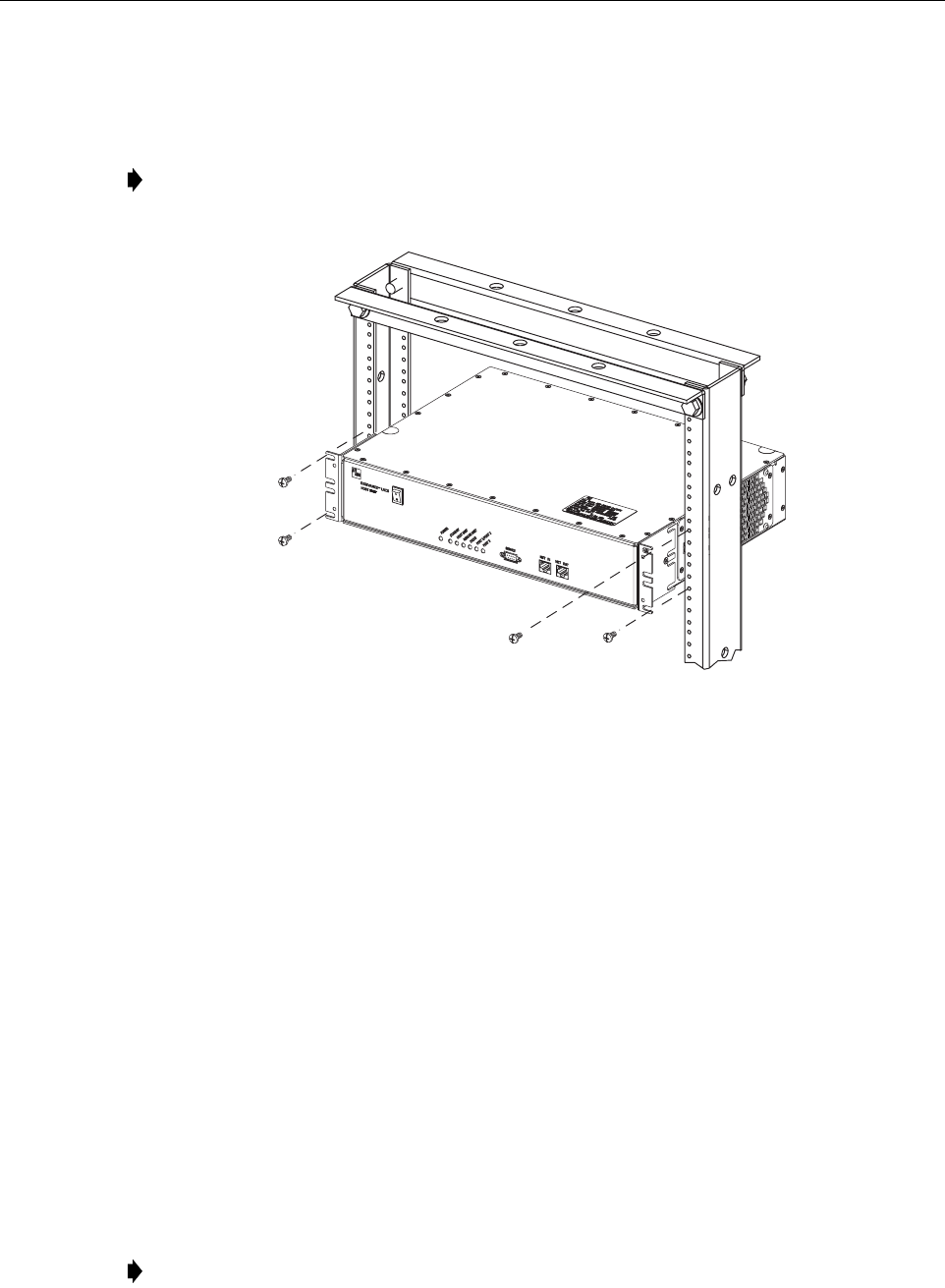

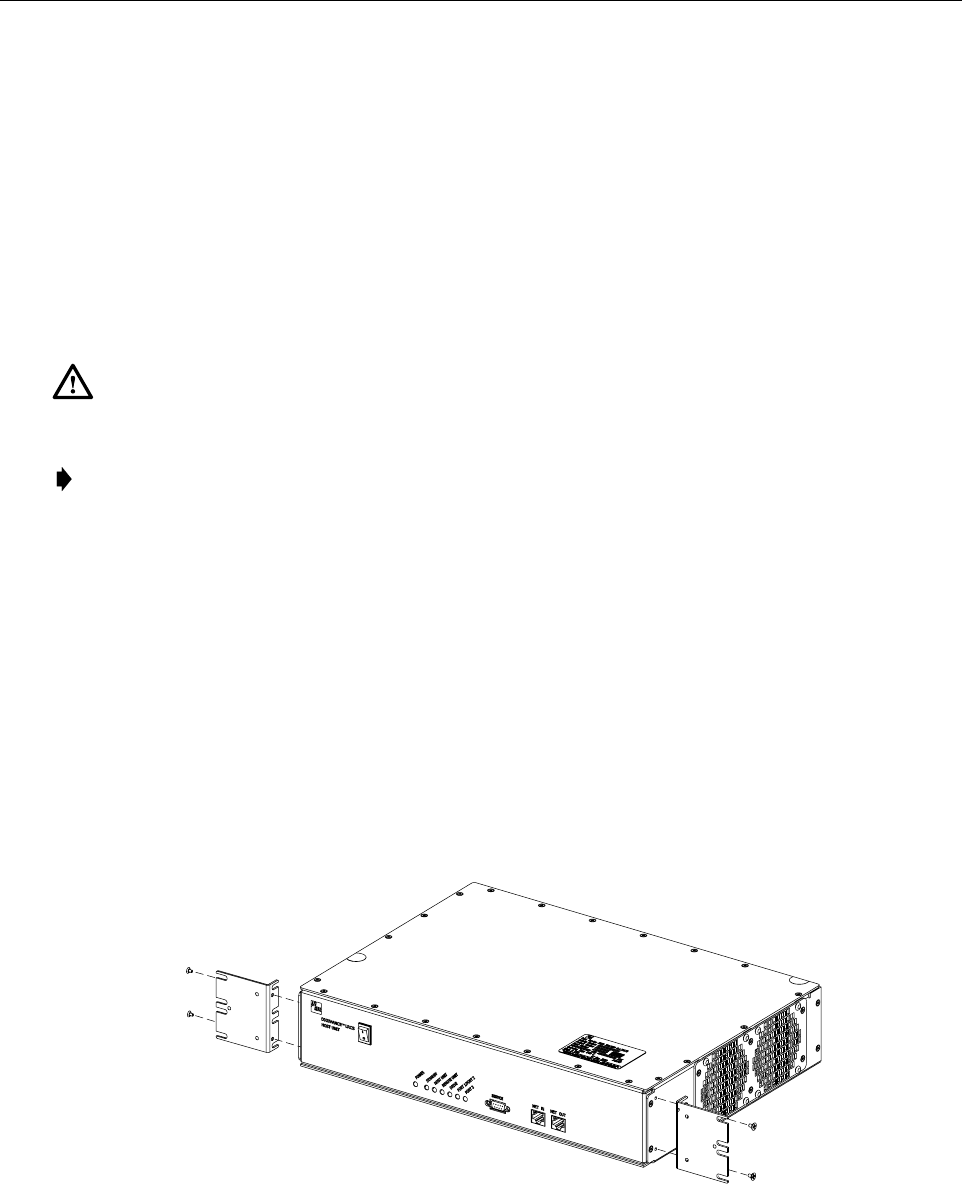

3 HU MOUNTING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
4 CHASSIS GROUND CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
5 COAXIAL CABLE CONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
6 WDM MOUNTING PROCEDURE (OPTIONAL ACCESSORY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
7 OPTICAL CONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
7.1 Optical Connections Without WDM or CWDM system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
7.2 Optical Connections With WDM System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

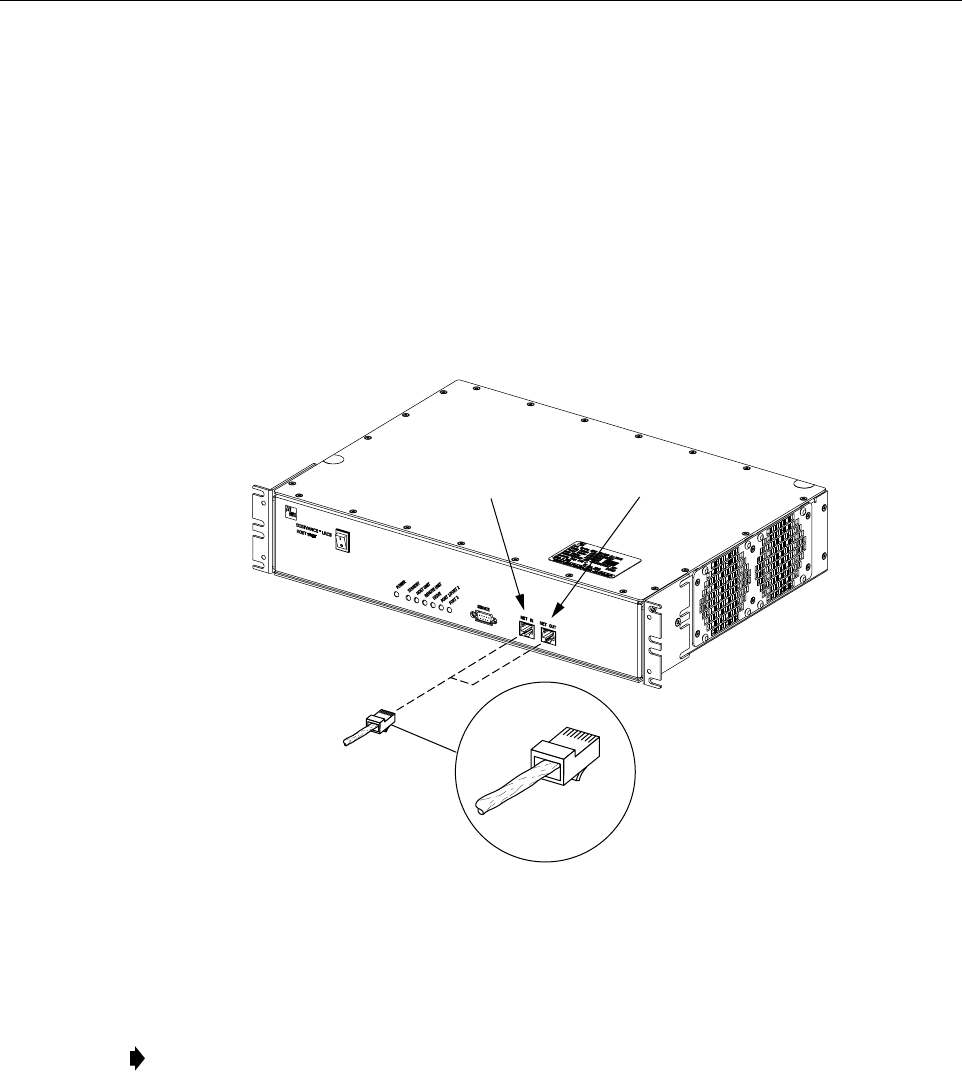

8 CONTROLLER AREA NETWORK CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
9 EMS COMPUTER CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
10 EXTERNAL ALARM SYSTEM CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
11 DC POWER CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
_________________________________________________________________________________________________________
1 BEFORE STARTING INSTALLATION
This section provides the installation procedures for the HU and the WDM host module
(accessory). Installation of the RU outdoor cabinet or RU indoor mounting shelf and the RU
electronic modules may proceed separately from installation of the HU. The mounting
procedures for the outdoor remote cabinet are provided in the 20 Watt Outdoor Remote Cabinet
Mounting Instructions (ADCP-75-147) which are shipped with the cabinet. The installation
procedures for the STM and LPA electronic modules are provided in the 20 Watt Indoor Remote
Unit Installation Instructions (ADCP-75-149) and the 20 Watt Outdoor Remote Unit Installation
Instructions (ADCP-75-148) which are shipped respectively with the outdoor cabinet and
indoor mounting shelf. When all units of the Digivance system have been installed, refer to
Section 4 of this manual for the system turn-up and test procedures.
Before beginning the installation, review the system design plan with the system engineer.
Make sure each equipment installation site is identified and located and all cable runs are
mapped out.
1.1 Tools and Materials
The following tools are required to complete the procedures in this section:
• Box cutter
• Pencil or scribe
• Medium size flat-bladed screwdriver
• Phillips screwdriver (#2)
Content Page
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-2
© 2003, ADC Telecommunications, Inc.
• TORX screwdriver (T20 bit)
• Pliers
• Wire cutters
• Wire stripper
• Tool kit for attaching N-type male connectors to coaxial cable
• Multimeter
• Optical power meter
The following materials are required to complete the procedures in this section:
• #18 AWG (1.0 mm) insulated stranded copper wire (for chassis grounding wire)
• #18 AWG (1.0 mm) red and black insulated copper wire (for DC power wires)
• Category 3 or 5 cable (for external alarm system wires)
• #6 ring terminal (1) for #18 wire (for chassis ground wire connection)
• #6 fork terminals (2) for #18 wire (for DC power wiring connection)
• Single-mode patch cord(s) with SC connectors (1 or 2 depending on the application)
• High performance, flexible, low-loss 50-ohm coaxial cable
• N-type male connectors
• Wire ties
1.2 Unpacking and Inspection
This section provides instructions for opening the shipping boxes, verifying that all parts have
been received, and verifying that no shipping damage has occurred. Use the following
procedure to unpack and inspect the HU and any accessories:
1. Open the shipping cartons and carefully unpack each component from the protective
packing material.
2. Check each component for broken or missing parts. If there are damages, contact ADC
(see section 6 at the end of this manual) for an RMA (Return Material Authorization) and
to reorder if replacement is required.
2 FIBER OPTIC CABLE ROUTING AND INSTALLATION GUIDELINES
The outside plant (OSP) fiber optic cables should be routed between the HU and RU and
terminated before the equipment is installed. A diagram of a typical fiber optic cable routing is
shown in Figure 3-1. At the HU, the OSP cable should be terminated at a fiber distribution panel
and spliced to pigtails. Patch cords may then be used to link the HU optical ports to the OSP
cable terminations. Whenever possible, a guideway such as the FiberGuide system should be
provided to protect the fiber optic patch cords from damage and to prevent excessive bending.
The procedures for connecting the OSP cable optical fibers to the HU is provided in Section 7.
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-3
© 2003, ADC Telecommunications, Inc.

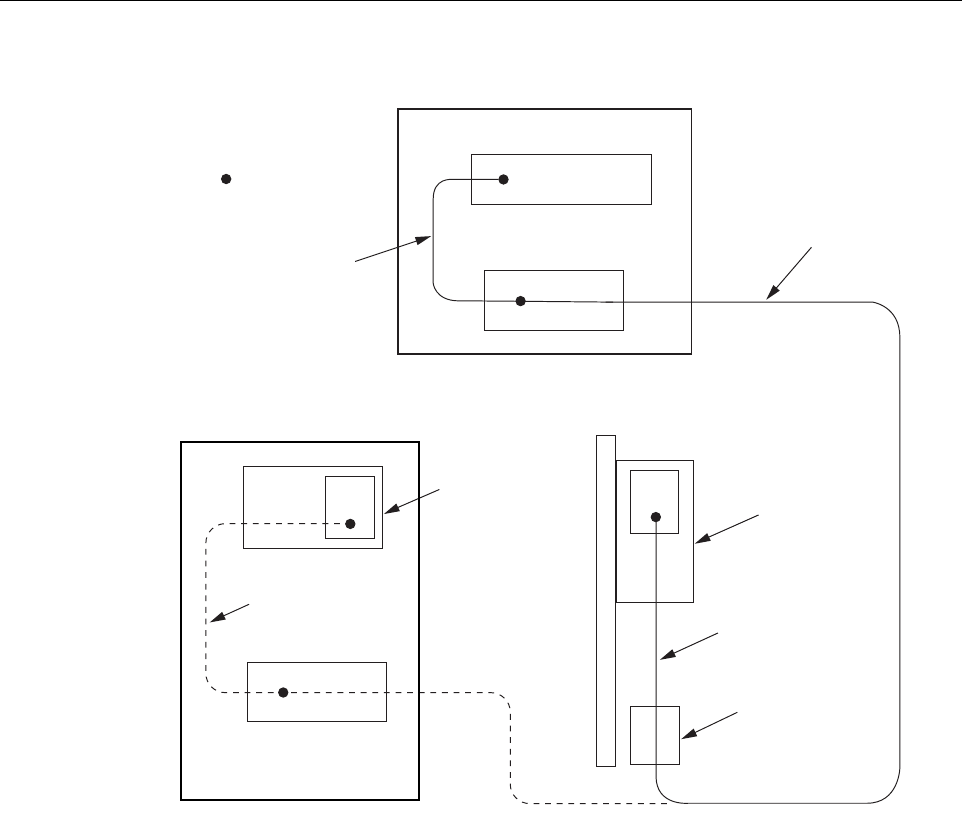

Figure 3-1. Typical Fiber Optic Cable Routing
When routed to the RU outdoor cabinet, the OSP fiber optic cable should be spliced to a
connectorized outdoor-rated cable (consisting of individual jacketed pigtails) which is then
routed into the outdoor cabinet. The individual pigtails can then be connected directly to the
STM optical ports. A connector is provided on the bottom of the RU outdoor cabinet to seal the
cable entry point and provide strain relief. The procedure for routing the fiber cable into an
outdoor cabinet and for connecting the pigtail leads to the STM is provided in the Digivance 20
Watt Outdoor Remote Unit Installation Instructions (ADCP-75-148).
When routed to RU indoor mounting shelf, the OSP cable should be terminated at a fiber
distribution panel and spliced to pigtails. Jumper patch cords may then be used to link the STM
optical ports to the OSP cable terminations. Whenever possible, a guideway such as the
FiberGuide system should be provided to protect the fiber optic patch cords from damage and to
prevent excessive bending. The procedure for connecting the OSP optical fibers to an STM
mounted in the indoor mounting shelf is provided in the Digivance 20 Watt System Indoor
Remote Unit Mounting Shelf Installation Instructions (ADCP-75-149).
HOST UNIT
FIBER DISTRIBUTION
PANEL
X
STM
OUTDOOR
REMOTE SITE
HOST SITE
PATCH
CORDS
PATCH
CORDS
SPLICE
SPLICE
ENCLOSURE
INDOOR/OUTDOOR
CABLE WITH
PIGTAIL LEADS
OUTSIDE PLANT
CABLE
OUTDOOR
CABINET
18626-A
INDOOR
REMOTE SITE
STM
X
INDOOR
MOUNTING
SHELF
FIBER DISTRIBUTION
PANEL
X
TERMINATION
X
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-4
© 2003, ADC Telecommunications, Inc.
3 HU MOUNTING PROCEDURE
The HU may be mounted in either a 19-inch or 23-inch EIA or WECO equipment rack. Both
US standard and metric machine screws are included for rack mounting the HU. When loading
the HU in a rack, make sure the mechanical loading of the rack is even to avoid a hazardous
condition such as a severely unbalanced rack. The rack should safety support the combined
weight of all the equipment it holds. In addition, maximum recommended ambient temperature
for the HU is 50º C (122º F). Allow sufficient air circulation or space between units when the
HU is installed in a multi-rack assembly because the operating ambient temperature of the rack
environment might be greater than room ambient.
Use the following procedure to install the HU in the equipment rack:
1. The HU is shipped with the mounting brackets installed for 19-inch rack installations. If
mounting the HU in a 19-inch rack, proceed to step 4. If mounting the HU in a 23-inch
rack, proceed to step 2.
2. Remove both mounting brackets from the HU (requires TORX screwdriver with T20 bit)
and save screws for reuse.
3. Reinstall both mounting brackets so the long side of the bracket is flush with the HU front
panel as shown in Figure 3-2. Use the screws removed in step 2 to re-attach the brackets to
the HU chassis.
Figure 3-2. Installing the Mounting Brackets for 23-Inch Rack Installations
Warning: Wet conditions increase the potential for receiving an electrical shock when
installing or using electrically powered equipment. To prevent electrical shock, never install or
use electrical equipment in a wet location or during a lightning storm.
Note: To insure that all optical connectors remain dust-free during installation, leave all dust
caps and dust protectors in place until directed to remove them for connection.
17864-A
FOR INSTALLATION IN 23-INCH
RACKS, REMOVE AND REINSTALL
MOUNTING BRACKETS AS SHOWN
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-5
© 2003, ADC Telecommunications, Inc.
4. Position the HU in the designated mounting space in the rack (per system design plan) and
then secure the mounting brackets to the rack using the four machine screws provided (use
#12-24 or M6 x 10 screws, whichever is appropriate) as shown in Figure 3-3.
Figure 3-3. HU Rack Mount Installation
4 CHASSIS GROUND CONNECTION
A stud is provided on the rear side of the chassis for connecting a grounding wire to the chassis.
Use the following procedure to connect the grounding wire to the chassis and to route the
grounding wire to an approved earth ground source.
1. Obtain a length of #18 AWG (1.00 mm) insulated stranded copper wire for use as a
chassis grounding wire.
2. Terminate one end of the wire with a ring terminal.
3. Locate the chassis ground stud at the rear of the HU as shown in Figure 3-4.
4. Attach the ring end of the wire to the chassis ground stud (see Figure 3-4).
5. Route the free end of the chassis grounding wire to an approved (per local code or
practice) earth ground source.
6. Cut the chassis grounding wire to length and connect it to the approved ground source as
required by local code or practice.
Note: Provide a minimum of 3 inches (76 mm) of clearance space on both the left and
right sides of the HU for air intake and exhaust.
Note: Be sure to maintain reliable grounding. Pay particular attention to ground source
connections.
17865-A
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-6
© 2003, ADC Telecommunications, Inc.

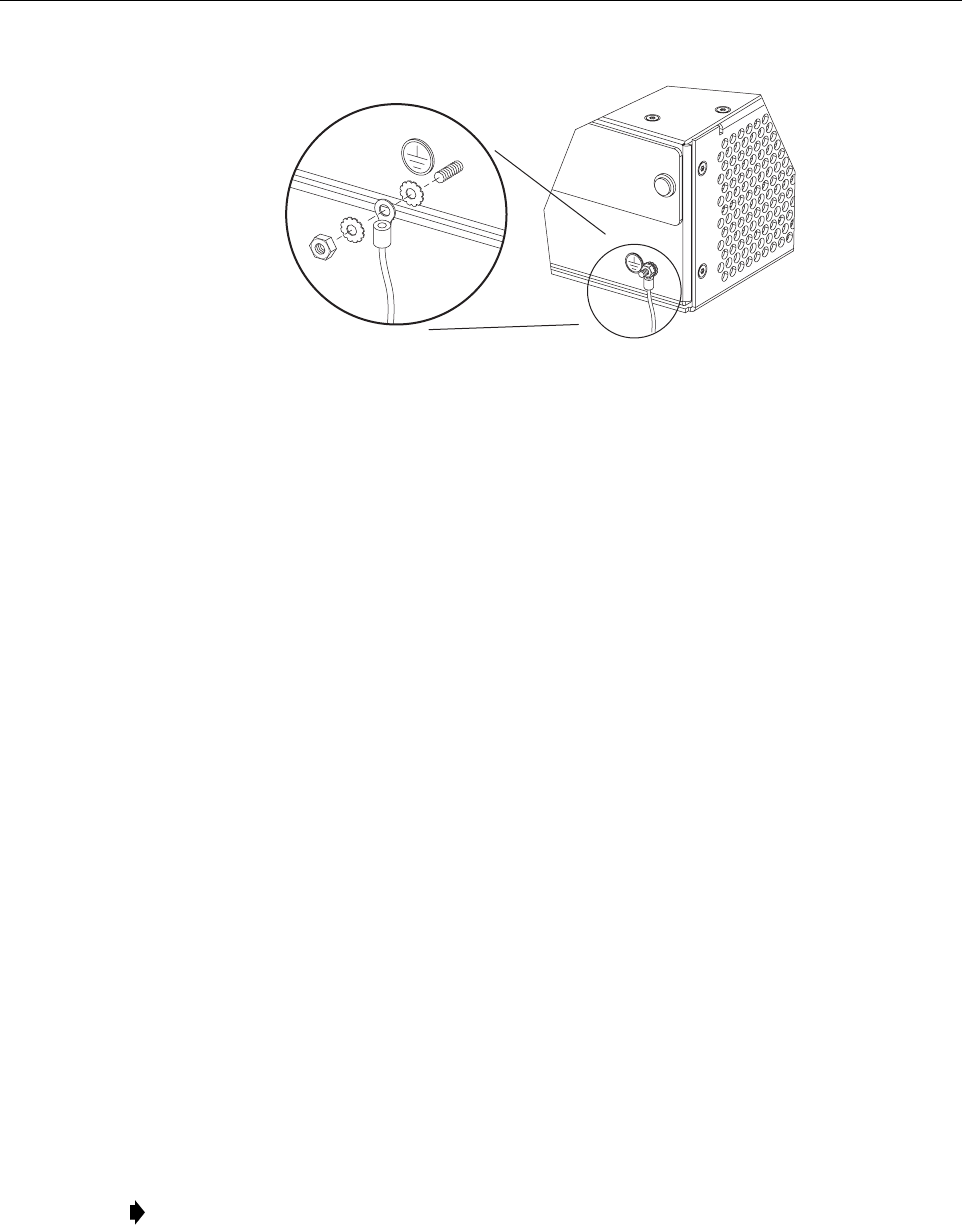

Figure 3-4. Chassis Ground Stud
5 COAXIAL CABLE CONNECTIONS
The RF interface between the HU and the EBTS is supported through two N-type female
connectors mounted on the HU rear panel. One connector provides the coaxial cable connection
for the forward path (downlink) signal and the other connector provides the coaxial cable
connection for the reverse path (uplink) signal.
In most installations, it is usually necessary to insert some attenuation in the forward path link
between the HU and the EBTS. A signal level that is greater than –20 dBm will overdrive and
possibly damage the HU receiver. Refer to Section 4, Subsection 2.3, before completing the
forward path connection at the EBTS. If the Primary Interface Panel and Expansion Panel are
required, refer to the Digivance Long Range Coverage Solution SMR Interface Panels User
Manual (ADCP-75-143) for the installation procedures. The HU should be mounted as close as
possible to the EBTS to minimize cable losses. Use the following procedure to route and
connect the forward and reverse path coaxial cables to the HU:
1. Obtain the required lengths of high performance, flexible, low loss 50-ohm coaxial
communications cable (RG-400 or equivalent) for all coaxial connections.
2. Route the forward and reverse path coaxial cables between the HU and the EBTS interface
(per system design plan) and cut to the required length. Allow sufficient slack for dressing
and organizing cables at the HU and for installing an external attenuator in the forward
path link.
3. Terminate each cable with an N-type male connector following the connector supplier’s
recommendations.
4. Connect the forward path cable to the FORWARD RF IN connector on the HU front
panel as shown in Figure 3-5.
5. Connect the reverse path cable to the REVERSE RF OUT connector on the HU front
panel (see Figure 3-5).
Note: Do not connect the forward path cable at the EBTS until the composite forward path
RF signal level is measured and the amount of attenuation required is determined.
17866-A
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-7
© 2003, ADC Telecommunications, Inc.

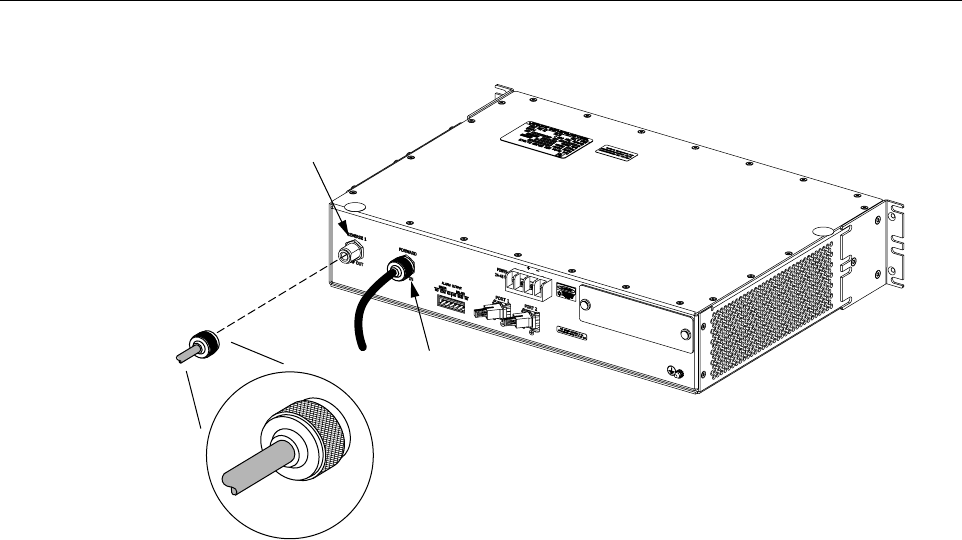

Figure 3-5. Forward and Reverse Path Coaxial Cable Connections
6. Dress and secure cables at the HU.
7. Complete all remaining coaxial connections as specified in the system design plan.
6 WDM MOUNTING PROCEDURE (OPTIONAL ACCESSORY)
A bi-directional wavelength division multiplexer (WDM) module is available as an accessory
item for the Digivance system. If the application does not require the use of a WDM system,
skip this section and proceed to Section 7.
The WDM mounts in a slot that is provided at the rear side of the HU. Use the following
procedure to install the WDM:
1. Remove the cover plate from the WDM mounting slot located on the rear side of the HU
as shown in Figure 3-6.
2. Slide the WDM into the mounting slot.
3. Push inward on the two Push/Pull fasteners to secure the WDM to the HU.
4. Carefully coil up the two WDM pigtails to protect them from damage prior to connection
to the HU optical ports.
18826-A
TYPE-N MALE
CONNECTOR
REVERSE
RF OUT CONNECTOR
(REVERSE PATH)
FORWARD RF IN
CONNECTOR
(FORWARD PATH)
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-8
© 2003, ADC Telecommunications, Inc.
Figure 3-6. WDM Installation
7 OPTICAL CONNECTIONS
The optical interface between the HU and the RU is supported by two optical ports. Each optical
port consists of an SC optical adapter which is mounted on the HU rear panel. Port 1 provides
the optical fiber connection for the forward path (downlink) signal. Port 2 provides the optical
fiber connection for the reverse path (uplink) signal.
The optical connections are dependent on whether or not a WDM host module (accessory) or
CWDM host module (accessory) is installed. If the installation does not include either a WDM or
CWDM module, proceed to Section 7.1 for the optical connections procedure. If the installation
includes a WDM module, proceed to Section 7.2 for the optical connections procedure. If the
installation includes a CWDM module, refer to the Digivance System Coarse Wavelength
Division Multiplexer User Manual (ADCP-75-142) for the optical connection procedure.
7.1 Optical Connections Without WDM or CWDM system
Use the following procedure to connect the optical fibers when a WDM or CWDM host module is
not installed with the HU:
1. Obtain two patch cords that are of sufficient length to reach from the HU to the fiber
distribution panel.
Danger: This equipment uses a Class 1 Laser according to FDA/CDRH rules. Laser radiation
can seriously damage the retina of the eye. Do not look into the ends of any optical fiber. Do not
look directly into the optical transmitter of any unit or exposure to laser radiation may result.
An optical power meter should be used to verify active fibers. A protective cap or hood MUST
be immediately placed over any radiating transmitter or optical fiber connector to avoid the
potential of dangerous amounts of radiation exposure. This practice also prevents dirt particles
from entering the connector.
18827-A
REMOVE COVER PLATE
FOR WDM MODULE
INSTALLATION
WDM MODULE
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-9
© 2003, ADC Telecommunications, Inc.
2. Designate one of the patch cords as the forward path link and the other as the reverse
path link and attach an identification label or tag next to each connector.
3. Remove the dust caps from the HU optical ports and from the patch cord connectors that
will be connected to the HU.
4. Clean each patch cord connector (follow patch cord supplier’s recommendations).
5. Insert the connector into the appropriate optical port as shown in Figure 3-7.

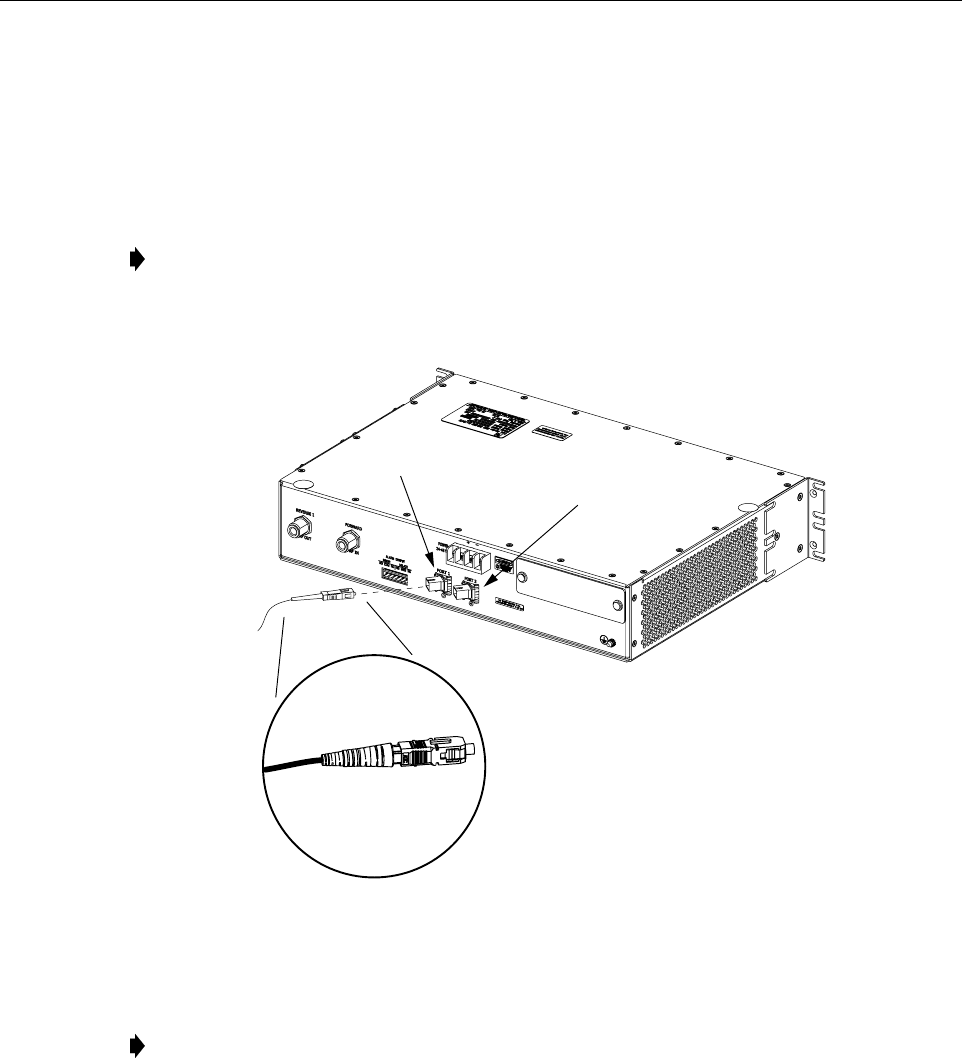

Figure 3-7. Fiber Optic Cable Connections To Host Unit
6. Route the patch cords from the HU to the fiber distribution panel.
7. At the fiber distribution panel, identify the OSP optical fiber terminations that correspond
to the forward and reverse path.
8. Remove the dust caps from the from the patch cord connectors.
9. Clean each patch cord connector (follow patch cord supplier’s recommendations) and then
mate the connector with the appropriate OSP optical fiber termination.
10. Store any excess patch cord slack at the fiber distribution panel.
Note: To protect the optical receivers, insert a 10 dB attenuator in each optical path. After
the optical power has been measured, the attenuator may be resized or removed.
Note: The HU optical adapters are angled to the left. Therefore, patch cords should always
be routed to the HU from the left side of the rack. Routing patch cords to the HU from the
right side of the rack may exceed the bend radius limitations for the optical fiber.
18828-A
SC OPTICAL
CONNECTOR
PORT 1
FORWARD PATH
PORT 2
REVERSE PATH
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-10
© 2003, ADC Telecommunications, Inc.
7.2 Optical Connections With WDM System
Use the following procedure to connect the optical fibers when a WDM module is installed with
the HU:
1. Obtain a patch cord that is of sufficient length to reach from the WDM host module to the
fiber distribution panel.
2. Remove the dust cap from the optical port on the WDM module and from the patch cord
connector that will be connected to the WDM module.
3. Clean the patch cord connector (follow connector supplier’s recommendations).
4. Insert the connector into the WDM module’s optical port (port 1).
5. Route the patch cord from the WDM to the fiber distribution panel.
6. Identify the OSP cable optical fiber termination that corresponds to the RU.
7. Remove the dust cap from the OSP cable optical adapter and from the patch cord
connector.
8. Clean the patch cord connector (follow connector supplier’s recommendations) and then
mate the connector with the appropriate OSP cable adapter.
9. Store any excess patch cord slack at the fiber distribution panel.
10. Remove the dust caps from the PORT 1 and PORT 2 optical ports on the HU and from the
WDM pigtails that will be connected to the HU.
11. Clean each pigtail connector (follow connector supplier’s recommendations) and then
insert the connector into the appropriate optical port on the HU as shown in Figure 3-8.

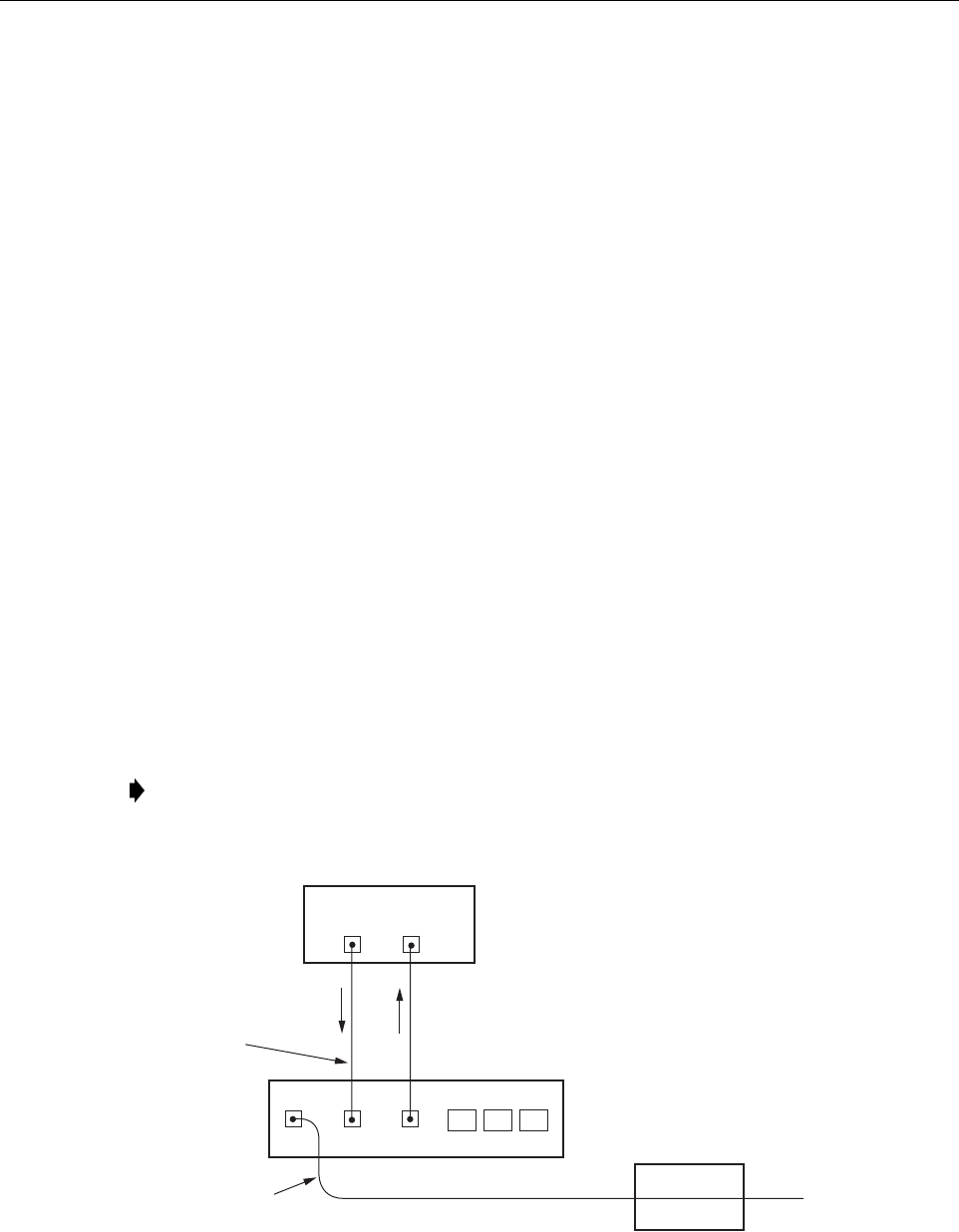

Figure 3-8. Fiber Optic Connections To WDM Module
Note: To protect the optical receiver(s), insert a 10 dB attenuator in the optical path. After
the optical power has been measured, the attenuator may be resized or removed.
HOST UNIT
18829-A
WAVELENGTH
DIVISION
MULTIPLEXER FIBER DISTRIBUTION
PANEL
OSP CABLE
OPTICAL FIBERS
BI-DIRECTIONAL
FIBER LINK WITH
REMOTE UNIT
X
REVERSE
PATH
FORWARD
PATH
123
WDM
PIGTAILS
PORT
1
PORT
2
ADCP-75-159 • Issue 1 • August 2003 • Section 3: Host Unit Installation
Page 3-11
© 2003, ADC Telecommunications, Inc.
8 CONTROLLER AREA NETWORK CONNECTIONS
Controller Area Network (CAN) interface connections between multiple HU’s are supported by
a pair of RJ-45 jacks. One of the jacks is designated as the NET IN port and the other jack is
designated as the NET OUT port. The CAN interface allows up to 24 HU’s to be connected
together (in daisy-chain fashion) and controlled through a single Digivance EMS computer. A
one meter long cable is available (accessory) for CAN connections. Use the following
procedure to connect CAN interface cables between multiple HU’s:
1. Connect one end of the CAN interface cable (accessory) to either the NET IN or NET
OUT port on HU #1 as shown in Figure 3-9.
Figure 3-9. Controller Area Network Connections
2. Route the CAN interface cable to HU #2 and connect the cable’s free end to the port that is
the logical opposite of the CAN interface connection at HU #1.
3. If a third HU will be connected to the network, connect a second CAN interface cable to
the remaining network port on HU #2.
4. Route the second CAN interface cable to HU #3 and connect the cable’s free end to the
port that is the logical opposite of the CAN interface connection at HU #2.
5. Repeat steps 3 and 4 for each additional HU that is added to the network up to a total of 24
HU’s. A diagram of typical CAN interface connections is shown in Figure 3-10.
Note: Always connect OUT to IN and IN to OUT. If connected to the NET OUT port at
HU #1, connect to the NET IN port at HU #2. If connected to the NET IN port at HU #1,
connect to the NET OUT port at HU #2.
17869-B
RJ-45 CONNECTOR
DETAIL
NET IN NET OUT

Navigation menu
