PREFACE

This manual provides installation instructions for InterReach Spectrum® Remote

Access Units (RAUs). Table 1 lists the RAUs that are supported in this document.

Table 1. Supported Spectrum Remote Access Units

Catalog Number Description

SPT-M1-8519-1 SPECTRUM, 850-1900 MAIN RAU

SPT-M1-AWS19-11 SPECTRUM, 2100AWS Path 1-1900 Path 1 MAIN RAU

SPT-S1-2121-1-MIMO SPECTRUM, 2100AWS MIMO SECONDARY RAU

SPT-S1-7070-1-MIMO SPECTRUM, 700 MIMO SECONDARY RAU, UpperC-LowerABC

SPT-S1-8019-22 SPECTRUM, 800 Path 2-1900 Path 2 SECONDARY RAU

SPT-S1-8090-1 SPECTRUM, 800-900 SMR SECONDARY RAU

SPT-S1-80AWS-1 SPECTRUM, 800-2100AWS Path 1 SECONDARY RAU

SPT-S1-8519-22 SPECTRUM, 850 Path 2-1900 Path 2 SECONDARY RAU

SPT-S1-AWS19-12 SPECTRUM, 2100AWS Path 1-1900 Path 2 SECONDARY RAU

SPT-S2-70AWS-1-SISO SPECTRUM, 700 SISO-2100AWS Path 1 SEC RAU, UpperC-LowerABC

SPT-S2-70AWS-22-SISO SPECTRUM, 700 Path 2 SISO-2100AWS Path 2 SEC RAU, UpperC-LowerABC

Revision History

Issue Document Date Technical Updates

1September 2010 Original

2December 2011 Added “Supported Spectrum Remote Access Units” on page 2, “RAU N Connectors” on page 9, and

“Nominal Passband Gains” on page 16. Updated “Appendix D: Contacting TE Connectivity” on

page 24.

3May 2012 Updated “Composite Power Out of RAU” on page 18.

InterReach Spectrum User Documentation

The InterReach Spectrum user documentation is intended for system

administrators, engineers and installers responsible for planning, administering,

configuring, and maintaining ADC InterReach Spectrum systems. Table 2 lists the

manuals that correspond to this InterReach Spectrum release.

Table 2. InterReach Spectrum User Documentation

Title ADCP Number

InterReach Spectrum Quick Start Guide ADCP-77-165

InterReach Spectrum Host Unit Installation Guide ADCP-77-166

InterReach Spectrum Expansion Module Group Installation Guide ADCP-77-167

InterReach Spectrum Remote Access Unit Installation Guide ADCP-77-168

InterReach Spectrum Element Management System 7.2 User Manual ADCP-77-189

Preface

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 3

Two types of messages, identified below, appear in the InterReach Spectrum user

documentation:

CAUTION! Caution text indicates operations or steps that could cause personal injury, induce a safety

problem in a managed device, destroy or corrupt information, or interrupt or stop services.

NOTE: Note text contains information about special circumstances.

Standards Certification

FCC: This equipment complies with the applicable sections of Title 47 CFR, Part 22

(800 MHz Cellular), Part 24 (1900 MHz - PCS), Part 90 (800/900 - SMR), and Part

27 (700 MHz, 2100 MHz - AWS).

IC: This equipment complies with the applicable sections of RSS-131 (800/900 –

SMR), RSS-132 (800 - Cellular), and RSS-133 (1900 – PCS). The term “IC:” before

the radio certification number only signifies that Industry Canada Technical

Specifications were met.

The Manufacturer's rated output power of this equipment is for single carrier

operation. For situations when multiple carrier signals are present, the rating

would have to be reduced by 3.5 dB, especially where the output signal is

re-radiated and can cause interference to adjacent band users. This power

reduction is to be by means of input power or gain reduction and not by an

attenuator at the output of the device.

NOTE: The U.S. Federal Communications Commission (FCC) has developed guidelines for evaluation of

human exposure to RF emissions. The guidelines incorporate limits for Maximum Permissible

Exposure (MPE) for power density of transmitter operating at frequencies between 300 kHz and 100

GHz. Limits have been set for portable, mobile, and fixed equipment. ADC products fall in the

category of fixed equipment; products intended to be permanently secured and exposures are

evaluated for distances greater than 20cm (7-7/8”). Portable devices fall into exposures of less

than 20cm, where SAR evaluations are used.

Antenna gain is restricted to 1.5 W ERP (2.49 W EIRP) in order to satisfy RF exposure

compliance requirements. If higher than 1.5 W ERP, routine MPE evaluation is needed.

The antennas should be installed to provide at least 20cm from all persons to satisfy MPE

requirements of FCC Part 2, 2.1091.

UL/CUL: This will be installed in a restricted access location. This equipment

complies, per UL and CUL 50, Standard for Enclosures for Electrical Equipment.

UL/CUL: This equipment complies with UL and CUL 60950-1 Standard for Safety

for Information Technology Equipment, including Electrical Business Equipment.

UL/CUL: All InterReach Spectrum RAUs are Plenum rated and suitable for use in

environmental air space in accordance with Section 300-22(C) of the National

FlexWave Prism OADM Splice Box Installation Guide ADCP-77-151

Table 2. InterReach Spectrum User Documentation

Title ADCP Number

Preface

Page 4 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian

Electrical Code, Part 1, CSA C22.1.

UL: This equipment is UL Plenum rated under UL 2043.

CAUTION! Modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Product Overview

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 5

PRODUCT OVERVIEW

InterReach Spectrum supports up to eight frequency bands in a single system.

Each antenna location supports those bands in modular, group pairings. Each

location includes a Main Remote Access Unit (MRAU), which can power up to three

additional Secondary Remote Access Units (SRAUs). An MRAU supports two

frequency bands, and each SRAU can support up to two frequency bands, for a

total of up to eight frequency bands. MRAUs and SRAUs are grouped logically,

based on common service provider groupings and include, as an example:

•850/1900

•700/700 MIMO

•800/900 SMR

•1900/AWS.

To add more frequency bands, you connect an SRAU to the existing MRAU.

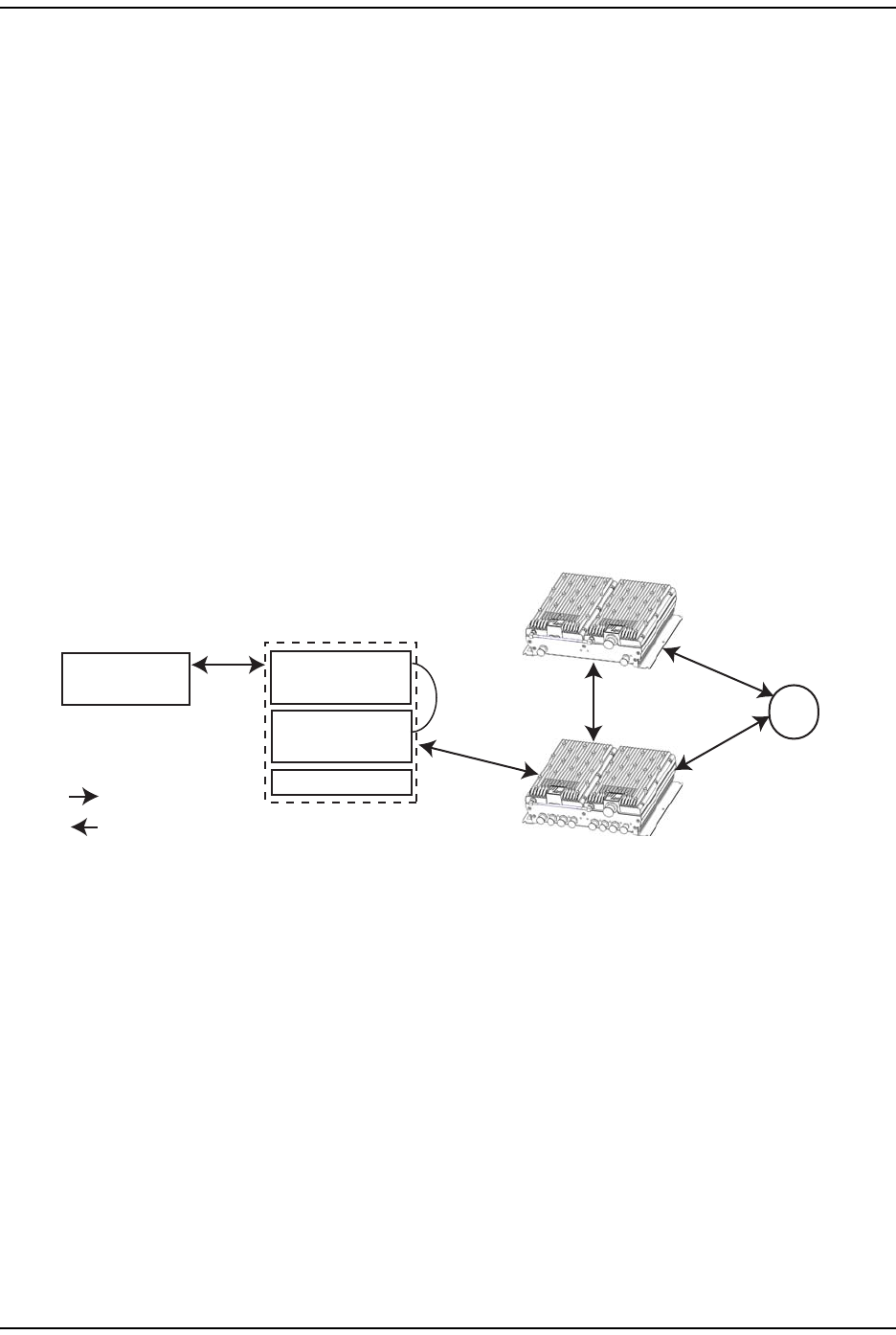

Figure 1 illustrates how RF and IF signals are sent between Spectrum units and

modules.

Omni Antenna

Host

Power Supply

IF Expansion Unit

DART Remote Unit

Expansion Module Group

Secondary Remote Access Unit

Main Remote Access Unit

Reverse (REV)

Forward (FWD)

Key to Signal Path

Figure 1. REV and FWD Signals for the RAU

NOTE: This book refers to the Omni Antenna (4214-M727), which is the antenna that ADC recommends.

Other antennas may be used. For further information on the Omni Antenna, see “Appendix C: Omni

Antenna” on page 23.

Product Overview

Page 6 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Main Remote Access Units

The Main Remote Access Unit (MRAU) receives FWD IF signals from an IF

Expansion Unit (IFEU), which is part of the Spectrum Expansion Module Group,

using 75 CATV cable. The MRAU converts the IF signals to RF and sends them to

a passive RF antenna using 50 coaxial cable. The MRAU also receives

configuration information and power from and sends its status information to the

IFEU.

The MRAU receives REV RF signals from a passive RF antenna using 50 coaxial

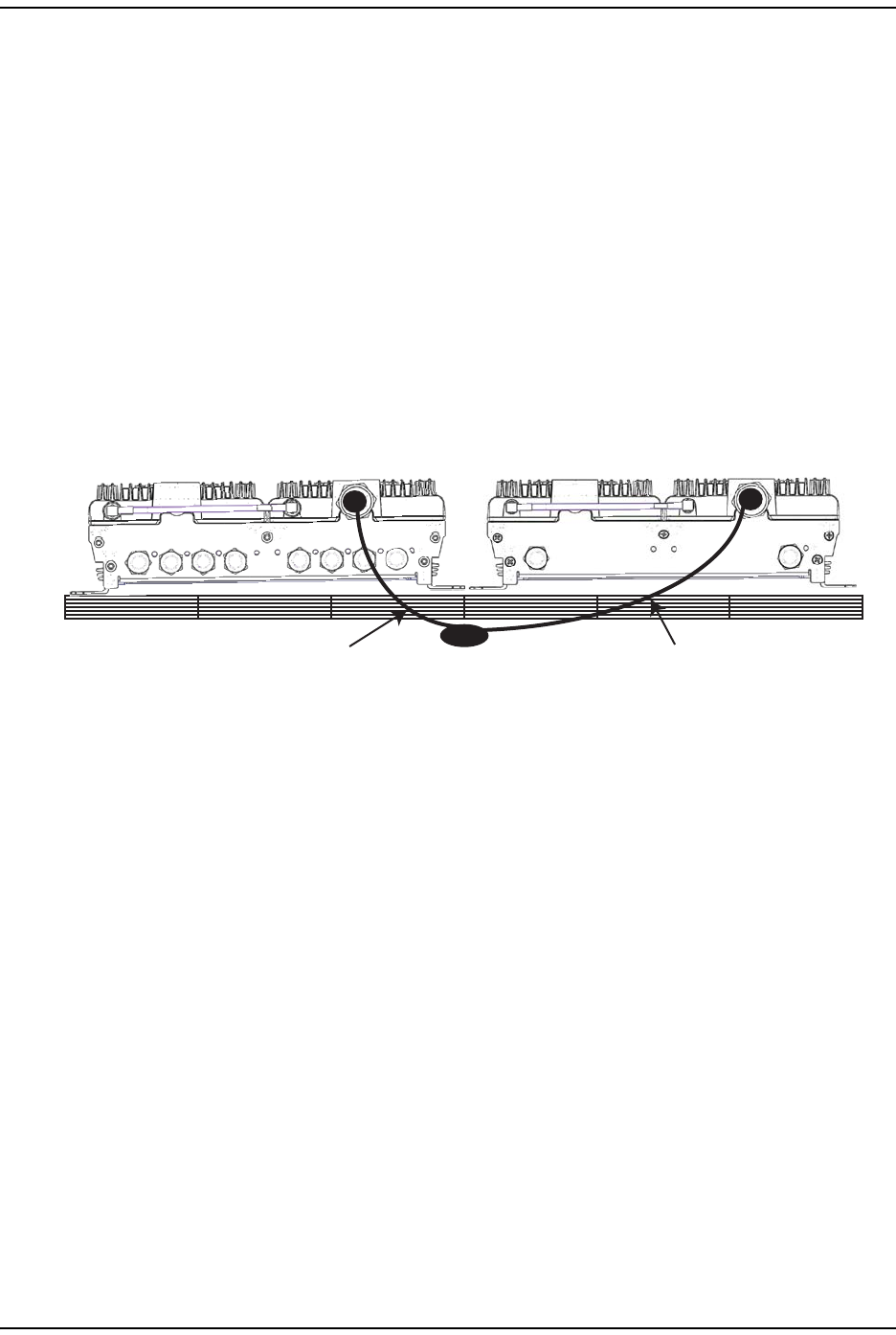

cable. It converts the signals to IF and sends them to the IFEU using 75 CATV

cable.

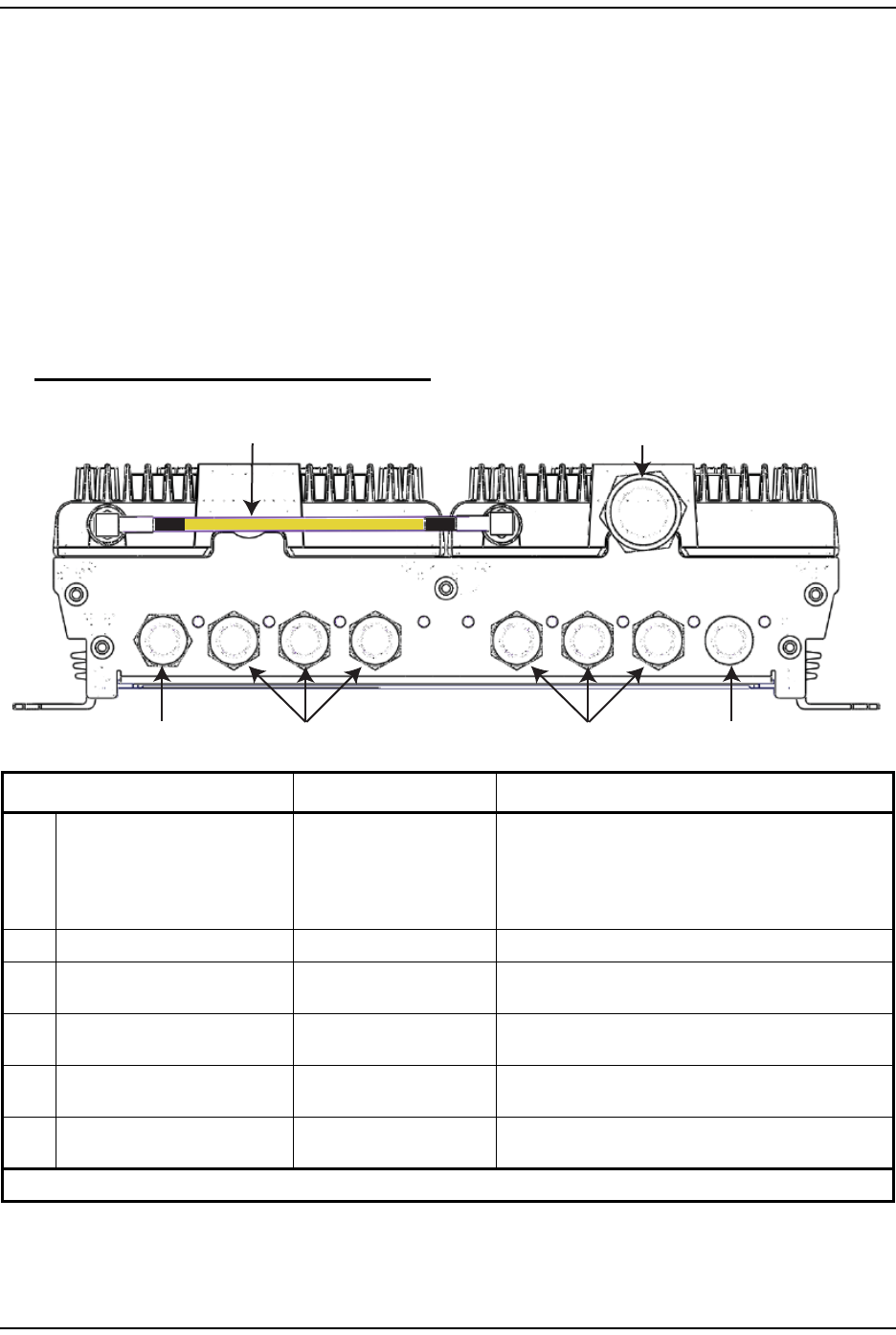

MRAU Ports, Cable, and Connectors

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

1 2

36 54

Ref # Component Device Function

1RF SubMiniature version A

(SMA) cable (1)

50 RF SMA-to-SMA cable Connects two RF bands together when there is only one

N-type connector on the RAU.

For cases when there is an N-type connector for each RF

band (700MIMO or PCS/AWS), there will not be an SMA

cable.

2Antenna port(s) 50 N-type connector Connects to an antenna. See Table 3 on page 9.

3FWD IF IN connector F connector port Connects to the IFEU FWD Module IF OUT connector via

CATV cable.

4FWD SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY FWD connector via

CATV cable.

5REV SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY REV connector via

CATV cable.

8REV IF OUT connector F connector port Connects to the IFEU REV Module IF IN connector via

CATV cable.

(1) The AWS/PCS MRAUs does NOT have an RF SMA cable, and has two Antenna ports.

Product Overview

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 7

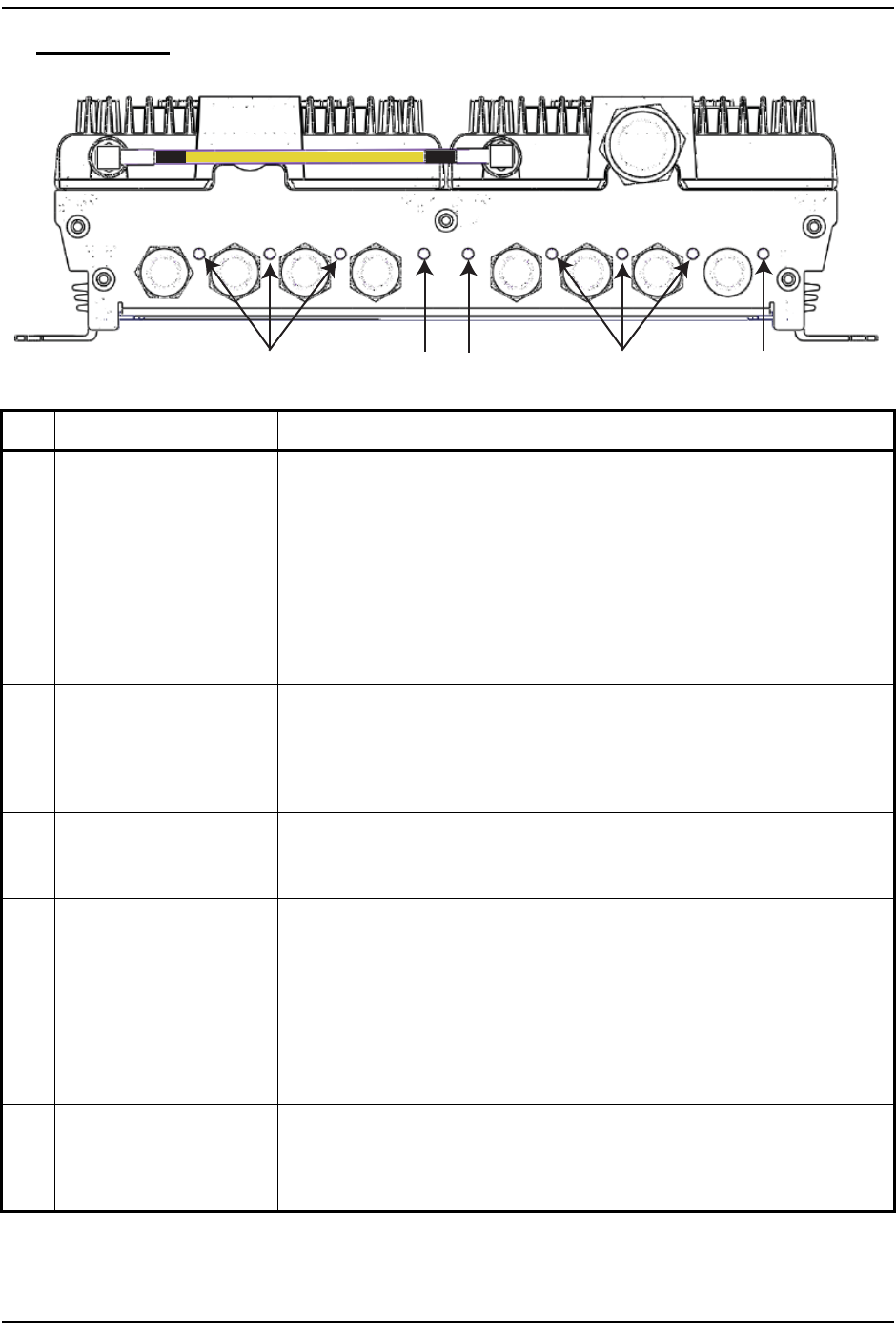

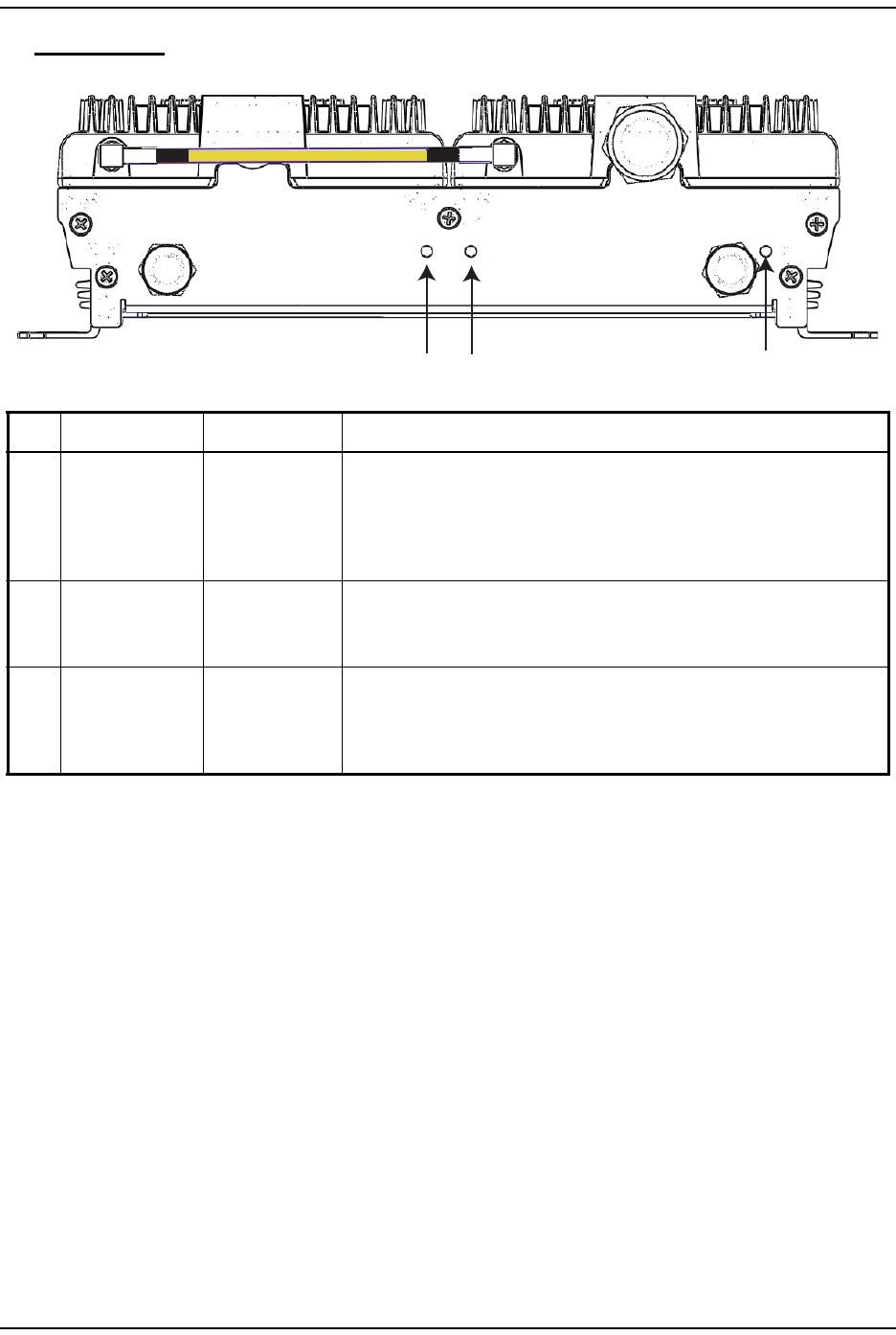

MRAU LEDs

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

41 5

2 3

Ref # LED LED Color Description

1FWD SECONDARY PORT 

(1 - 3)

2LINK

3STATUS

4REV SECONDARY PORT

(1 - 3)

5FWD IF IN

• Green • Downstream unit correctly connected; unit has no alarms or a

Minor alarm is active.

• Blinking Green • SRAU or band is set out-of-service.

• Yellow • FWD cable connected to SRAU, no REV cable connected.

• Blinking Yellow • FWD and REV cables are not connected to the same port number

(incorrectly paired).

• Red • Major alarm in downstream unit, fault lockout, or SRAU

disconnected.

• Off • No SRAU previously connected.

•Green •MRAU receiving communications from the IFEU.

• Red • MRAU has not received communications from the IFEU for more

than 90 seconds.

• Off • During initial power up, MRAU is powering up and waiting for IFEU

communications.

• Green • Unit has no alarms or a Minor alarm is active.

• Blinking Green • Unit or band is set out-of-service.

• Red • Major alarm detected.

• Green • Downstream unit correctly connected, unit has no alarms or minor

alarm

• Blinking Green • SRAU or band is set out-of-service.

• Blinking Yellow • FWD and REV cables are not connected to the same port number

(incorrectly paired).

• Red • Major alarm in downstream unit, fault lockout, or SRAU

disconnected.

• Off • No SRAU previously connected.

• Green • MRAU is powered on correctly.

•Y

ellow or

Blinking Yellow

• There is an IFEU FWD connection, but there is no IFEU REV

connection or the IFEU REV connection is paired incorrectly.

• Off • Cable is not connected to the IFEU FWD port.

Product Overview

Page 8 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Secondary Remote Access Units

A Secondary Remote Access Unit (SRAU) receives FWD IF signals from the MRAU,

using 75 CATV cable. The SRAU converts the IF signals to RF and sends them to

a passive RF antenna using 50 coaxial cable. The SRAU, through the MRAU, also

receives configuration information and power from and sends its status

information to the IFEU.

The SRAU receives REV RF signals from a passive RF antenna using 50 coaxial

cable. It converts the signals to IF and sends them to the MRAU using 75 CATV

cable.

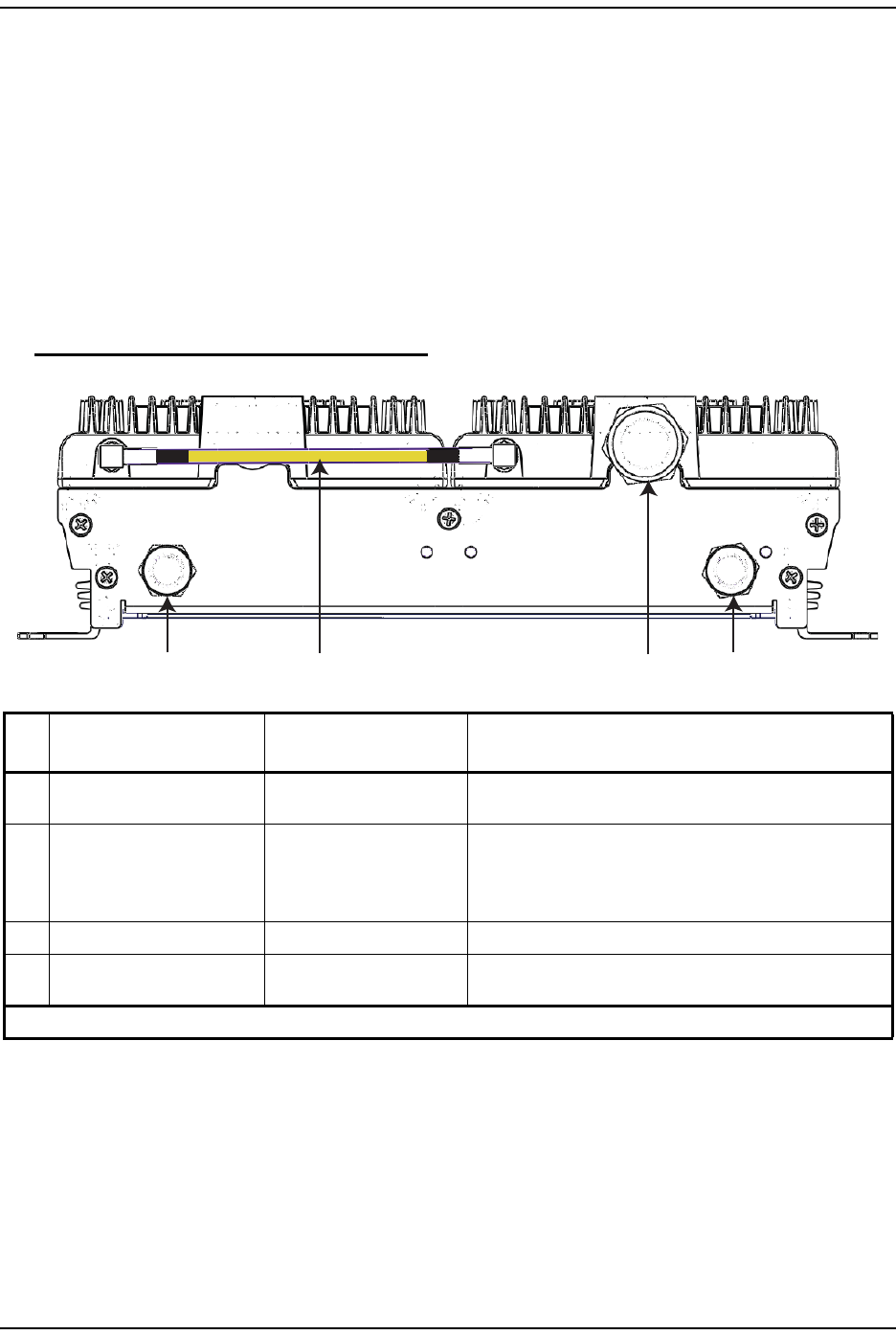

SRAU Ports, Cable, and Connectors

1 4

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

Ref

Component Device Function

1SECONDARY REV connector F connector port Connects to one of the MRAU REV SECONDARY ports (1 - 3)

via CATV cable.

2RF SMA cable (1)

50 RF SMA-to-SMA cable

Connects two RF bands together when there is only one

N-type connector on the RAU.

For cases when there is an N-type connector for each RF band

(700MIMO or PCS/AWS), there will not be an SMA cable.

3Antenna port(s) 50 N-type connector Connects to an antenna. See Table 3 on page 9.

4SECONDARY FWD connector F connector port Connects to one of the MRAU FWD SECONDARY ports (1 - 3)

via CATV cable.

(1) The 700 MIMO SRAUs does NOT have an RF SMA cable, and has two Antenna ports.

Product Overview

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 9

SRAU LEDs

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

21 3

Ref # LED LED Color Description

1 LINK

2STATUS

3SECONDARY FWD

•Green •SRAU receiving communications from the IFEU.

• Red • SRAU has not received communications from the IFEU for more than 90

seconds.

• Off • During initial power up, SRAU is powering up and waiting for IFEU

communications.

• Green • Unit has no alarms or a Minor alarm is active.

•Blinking Green • Unit or band is set out-of-service.

• Red • Major alarm detected.

• Green • SRAU is powered on correctly.

•Y

ellow or

Blinking Yellow

• There is an MRAU FWD connection, but there is no MRAU REV connection

or the MRAU REV connection is paired incorrectly.

• Off • Cable is not connected to the MRAU FWD port.

Product Overview

Page 10 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

RAU N Connectors

Each RAU also has one or two 50- N-type connectors that connect to a passive

antenna. Table 3 lists the number of N-type connectors available on each RAU

model.

Table 3. Number of N Connectors on RAUs

Catalog Number Description Number of RF

N Connectors*

SPT-M1-8519-1 SPECTRUM, 850-1900 MAIN RAU 1

SPT-M1-AWS19-11 SPECTRUM, 2100AWS Path 1-1900 Path 1 MAIN RAU 2

SPT-S1-2121-1-MIMO SPECTRUM, 2100AWS MIMO SECONDARY RAU 2

SPT-S1-7070-1-MIMO SPECTRUM, 700 MIMO SECONDARY RAU, UpperC-LowerABC 2

SPT-S1-8019-22 SPECTRUM, 800 Path 2-1900 Path 2 SECONDARY RAU 1

SPT-S1-8090-1 SPECTRUM, 800-900 SMR SECONDARY RAU 1

SPT-S1-80AWS-1 SPECTRUM, 800-2100AWS Path 1 SECONDARY RAU 1

SPT-S1-8519-22 SPECTRUM, 850 Path 2-1900 Path 2 SECONDARY RAU 1

SPT-S1-AWS19-12 SPECTRUM, 2100AWS Path 1-1900 Path 2 SECONDARY RAU 2

SPT-S2-70AWS-1-SISO SPECTRUM, 700 SISO-2100AWS Path 1 SEC RAU, UpperC-LowerABC 1

SPT-S2-70AWS-22-SISO SPECTRUM, 700 Path 2 SISO-2100AWS Path 2 SEC RAU, UpperC-LowerABC 1

* There are two bands per RAU, which results in two N connectors. When there is one N connector, the two bands are

combined internally and both bands use the single N connector.

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 11

INSTALL THE RAUS AND ANTENNAS

Follow the steps in the order provided to install the RAUs and antennas.

Mount the RAUs and Antennas

General Safety Precautions

CAUTION! Wet conditions increase the potential for receiving an electrical shock when installing or using

electrically powered equipment. To prevent electrical shock, never install or use electrical

equipment in a wet location or during a lightning storm.

CAUTION! This system is a RF Transmitter and continuously emits RF energy. Maintain a minimum 8-inch

(20 cm) clearance from the antenna while the system is operating. Whenever possible, shut down

the RAN before servicing the antenna.

NOTE: RAUs are suitable for use in environmental air space in accordance with Section 300-22(c) of the

National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Canadian Electrical

Code, Part 1, CSA C22.1.

CAUTION! Install RAUs in indoor locations only. Do not connect an antenna installed in an outdoor location

to a RAU, unless it is in an approved AOC weatherproof NEMA4 housing.

CAUTION! Attach all RAUs securely to a stationary object (that is, a wall, pole, or ceiling brackets). To mount

a RAU securely to a wall, ceiling bracket, or pole, use #6 diameter fasteners in the four slotted

mounting holes.

CAUTION! Do the following to maintain proper ventilation:

• Keep at least 76 mm (3-inch) clearance around the RAU.

• Do not stack RAUs on top of each other.

• Always mount the RAU with the solid face (containing the mounting holes) against the

mounting surface.

NOTE: You can place the RAU, without its fastening hardware, on a flat surface, such as a shelf, desk,

cabinet, or any other horizontal surface that allows stable placement, with the mounting base

facing down to the mounting surface.

CAUTION! If installing the RAU on a flat surface, the surface must be able to hold a minimum 7-pound load

securely.

Install the RAUs and Antennas

Page 12 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Do the following, in the order presented, to mount the RAUs and antennas:

1Mount all MRAU and SRAUs in the locations marked on the floor plans.

2Install the passive antennas according to the manufacturer’s installation

instructions.

NOTE: It is common practice to install passive antennas below the ceiling. If you install a passive antenna

above the ceiling, when estimating the antenna coverage area, account for additional loss due to

the ceiling material.

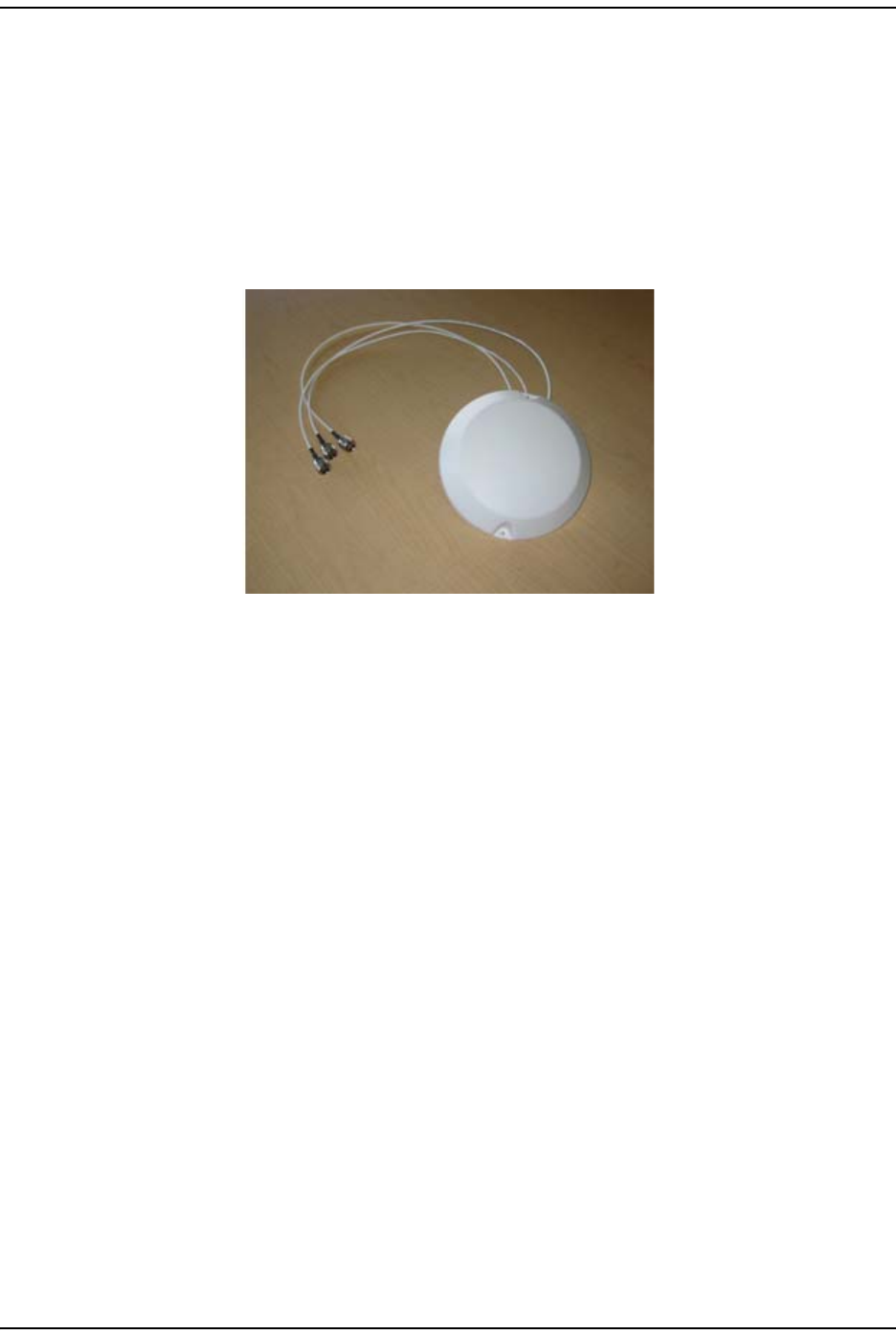

3Connect a passive multi-band antenna to the N connector on each RAU using

coaxial cable with the least amount of loss possible. (See “Appendix C: Omni

Antenna” on page 23 for information on the Omni Antenna ports.)

Omni Antenna

False Ceiling

SRAU N1

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

MRAU N1

Coaxial cable

CAUTION! Firmly hand-tighten the N connector. DO NOT over-tighten the connector.

Connect the IFEU to the MRAU

NOTE: The IFEU should be powered up before starting this procedure; see the InterReach Spectrum

Expansion Module Group Installation Guide (ADCP-77-167).

4Follow these rules for the CATV cables when connecting the IFEU to the MRAU:

•The FWD and REV cables should be close to the same length.

•The FWD and REV cables should be the same cable type (both RG6 or both

RG11).

•A pair of CATV cables connects each MRAU to the IFEU. The IFEU REV

Module IF IN port and the IFEU FWD Module IF OUT port must match. For

example, if IFEU REV Module IF IN Port 3 is used, use IFEU FWD Module IF

OUT Port 3.

•Refer to “Appendix B: 75-Ohm CATV Cable” on page 18 for information on

maximum RG-6 or RG-11 CATV cable lengths.

5Test the cable termination for each CATV cable before installing it.

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 13

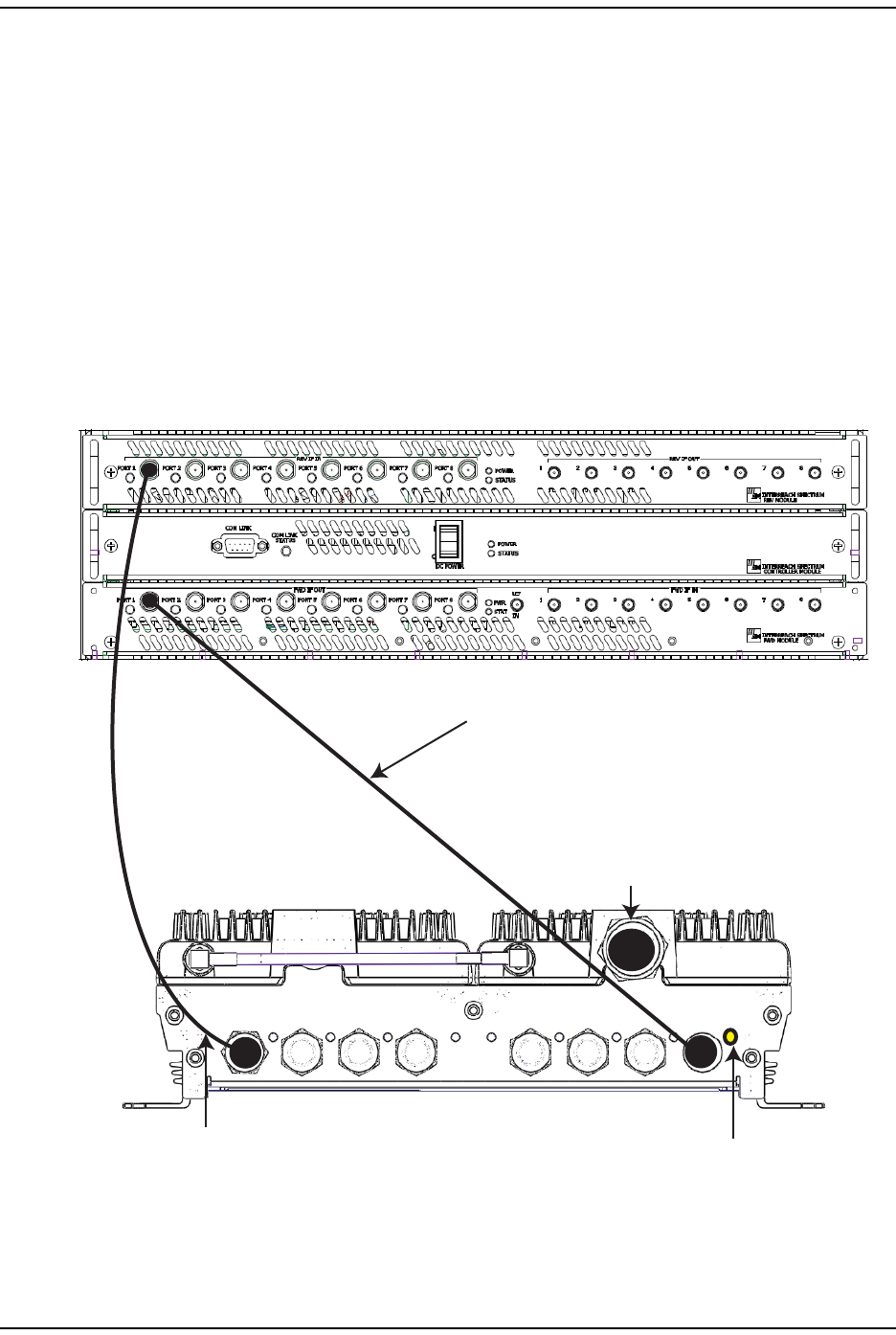

6Connect F connector CATV cables on the IFEU and MRAU, in the order given

below.

If the LEDs do not perform as described in this procedure, refer to “MRAU LEDs”

on page 6.

aConnect a CATV cable from one of the IFEU FWD Module IF OUT connectors

(1 - 8) to the MRAU FWD IF IN connector.

bConfirm that the MRAU FWD IF IN LED is yellow, which indicates a correct

physical connection.

cConnect a CATV cable from the IFEU REV Module IF IN connector (1 - 8) to

the MRAU REV IF OUT connector, making sure that you pair the port used

to the same port number selected in Step 6a.

If the connection is correct, the MRAU powers up and the MRAU FWD IF IN

LED turns green.

IFEU

Step 6a

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

To an antenna

MRAU

Step 6b

Step 6c

Install the RAUs and Antennas

Page 14 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

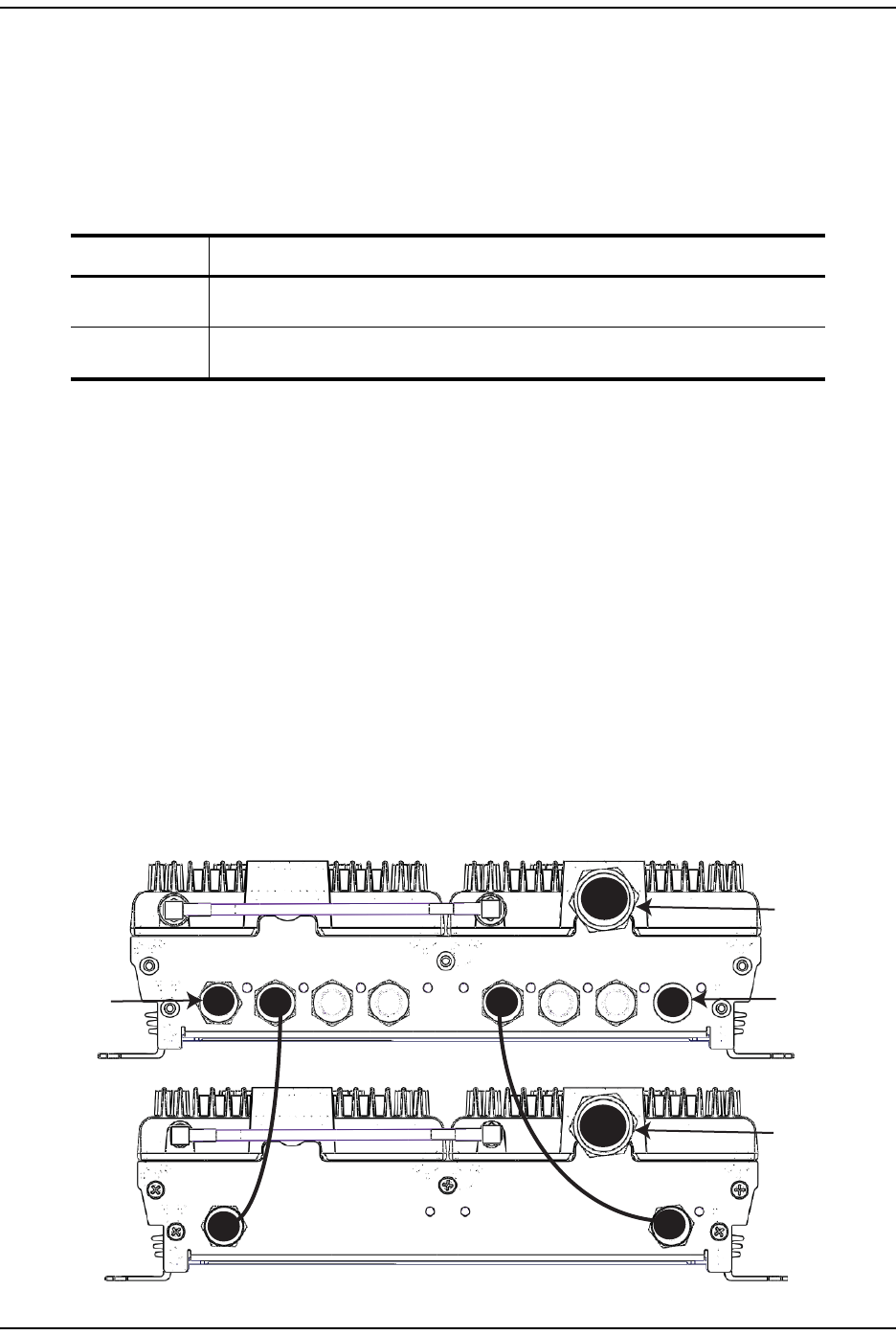

Connect the MRAU to SRAUs

CAUTION! To prevent interference, do not install an 850/1900 MRAU antenna near an 800/900 SRAU. The 850

MHz band must be 20 feet away from the 800/1900 SRAU’s passive antenna.

7Use one of the following 6’ and 20’ CATV RG6 jumpers, available for purchase

from ADC, to connect an MRAU to SRAUs.

ADC Part Number Description Note

300469-0 6’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two

cables required per SRAU.

300469-1 20’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two

cables required per SRAU.

8Test the cable termination for each CATV cable before installing it.

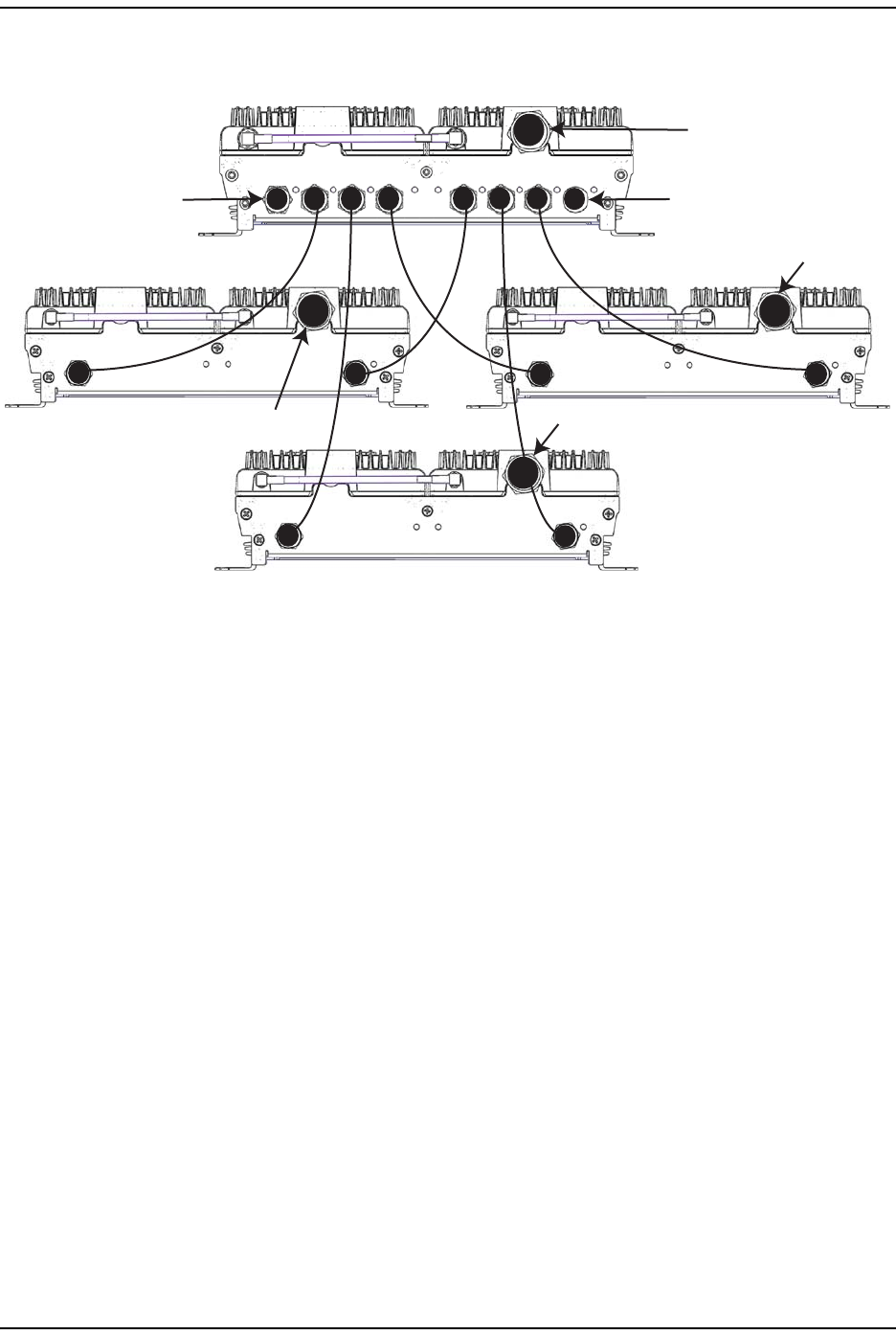

9Connect F connector CATV cables from the MRAU to an SRAU, in the order

given below. If the LEDs do not perform as described in this procedure, refer

to “SRAU LEDs” on page 8.

aConnect a CATV cable from an MRAU FWD SECONDARY PORT (1, 2, or 3) F

connector to the SRAU SECONDARY FWD F connector.

bConfirm that the SRAU SECONDARY FWD LED is yellow, which indicates a

correct physical connection.

cConnect a CATV cable from an MRAU REV SECONDARY PORT (1, 2, or 3) F

connector to the SRAU SECONDARY REV F connector, matching the same

port number selected in Step 9a. That is, if in Step 9a you connected an F

connector to the MRAU FWD SECONDARY PORT 1, the paired CATV cable

must connect to the MRAU REV SECONDARY PORT 1.

If the connection is correct, the SRAU powers up and the SRAU SECONDARY

FWD LED turns green.

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

To an IFEU REV

Module IF IN

connector (1 - 8)

To an IFEU FWD

Module IF OUT

connector (1 - 8)

MRAU

SRAU To an antenna

To an antenna

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 15

10 Repeat Step 9 to install up to two more SRAUs, as per system design.

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

MRAU

SRAU1

SRAU2

SRAU3

To an IFEU FWD Module

IF OUT connector (1 - 8)

To an IFEU REV Module

IF IN connector (1 - 8)

To an antenna

Configure the MRAUs and SRAUs

Refer to the ADC InterReach Spectrum™ Element Management System 7.0 User

Manual (ADCP-77-163) for information on how to configure the MRAUs and

SRAUs.

Appendix A: Specifications

Page 16 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

APPENDIX A: SPECIFICATIONS

Remote Access Unit Specifications

Operating Temp -25°C to +50°C

Storage Temperature -40°C to +70°C

Humidity 10% to 90% non-condensing

Dimensions 11.50" x 9.00" x 3.50"

Weight 7.49 Pounds

Power Source +54Vdc (from IFEU)

Spectrum System Specifications

RF Specification

Supported Frequency Blocks 2 per Remote Antenna Unit; 1-8 per Host Unit

Bandwidth 1.5 to 75 MHz non-contiguous

Frequency Band Supported 850 Cellular; 800 iDEN; 900 iDEN; 1900 PCS;

2100 AWS; 700 Upper C Lower ABC

Propagation Delay

System Delay <12 microseconds

Delay Management Digital (Manual or Automatic)

Noise Figure

Noise Figure For 1 Host, 1 DRU, 8 RAUs: < 17 dB

For 1 Host, 4 DRUs, 32 RAUs: < 23 dB

Input IP3 >-10 dBm

Optical Specifications

Optical Budget 10 dB (Standard); 26 dB (Optional)

Digital Transport Rate 3.072 Gbps

RF Frequency

TX RX

850 Cell

Bandwidth 869-894 824-849

Gain (dB) 40 30

800 SMR

Bandwidth 851-869 806-824

Gain (dB) 40 30

900 SMR

Bandwidth 935-940 896-901

Gain (dB) 40 30

1900 PCS

Bandwidth 1930-1995 1850-1915

Gain (dB) 40 30

2100 AWS

Bandwidth 2110-2155 1710-1755

Gain (dB) 40 30

700 Upper C

Bandwidth 746-756 776-786

Gain (dB) 40 30

700 Lower ABC

Bandwidth 728-746 698-716

Gain (dB) 40 30

Appendix A: Specifications

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 17

Nominal Passband Gains

Output Power

Output P1dB Power per Band 26 dBm 850MHz Cell

26 dBm 1900MHz PCS

26 dBm 700MHz Upper C Lower ABC

26 dBm 2100MHz AWS

26 dBm 800 iDEN

26 dBm 900 iDEN

Appendix A: Specifications

Page 18 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Composite Power Out of RAU

RF Frequency Number of RF Carriers

TX RX 1 2 4 8 16

850 Cell 869-894 824-849 26.0 20.0 14.0 9.0 5.5 GSM

23.0 17.5 12.0 8.0 5.0 EDGE

18.0 15.0 12.0 9.0 6.0 CDMA

18.0 15.0 12.0 9.0 WCDMA

18.0 15.0 12.0 9.0 LTE

800 SMR 851-869 806-824 17.5 14.0 10.0 6.5 iDEN

26.0 19.5 13.5 8.5 APCO 25 C4FM

18.0 15.0 12.0 9.0 6.0 CDMA

18.0 15.0 12.0 9.0 LTE

900 SMR 935-940 896-901 17.5 14.0 10.0 6.5 iDEN

26.0 19.5 13.5 8.5 APCO 25 C4FM

18.0 15.0 12.0 9.0 6.0 CDMA

18.0 15.0 12.0 9.0 LTE

1900 PCS 1930-1995 1850-1915 26.0 20.0 14.0 9.0 5.5 GSM

23.0 17.5 12.0 8.0 5.0 EDGE

18.0 15.0 12.0 9.0 6.0 CDMA

18.0 15.0 12.0 9.0 WCDMA

18.0 15.0 12.0 9.0 LTE

2100 AWS 2110-2155 1710-1755 18.0 15.0 12.0 9.0 WCDMA

18.0 15.0 12.0 9.0 LTE

700 Upper C 746-756 776-786 18.0 15.0 12.0 9.0 LTE

700 Lower ABC 728-746 698-716 18.0 15.0 12.0 9.0 LTE

NOTE: Industry Canada - 24.83 dBm rated output power for 2100MHz AWS

NOTE: Industry Canada - 46.8MHz Declared Bandwidth Gain for 2100MHz AWS

Appendix B: 75-Ohm CATV Cable

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 19

APPENDIX B: 75-OHM CATV CABLE

The 75-Ohm CATV Cable:

•connects the IFEU to MRAU(s) and the MRAU(s) to the SRAU(s)

•transmits (FWD) multiband and receives (REV) IF signals

•delivers DC electrical power to the RAUs. The Spectrum IFEU DC voltage output

is +54Vdc nominal. If the IFEU reaches its current limit, a current-limiting

circuit protects it.

•carries configuration and status information

•uses 75 type-F connectors with captive center pins.

CATV Cable Requirements

Belden CATV cable or equivalent is required (see Figure 2).

•For the RG-6 cable, use a Belden 1695A Coax.

•For the RG-11 cable, use a Belden 7732A Coax.

RG-11

Belden 1695A Coax

RG-6

Belden 7732A Coax

NOTE: ADC requires solid copper center conductor CATV cable for proper DC voltage to the RAU and

maximum distances.

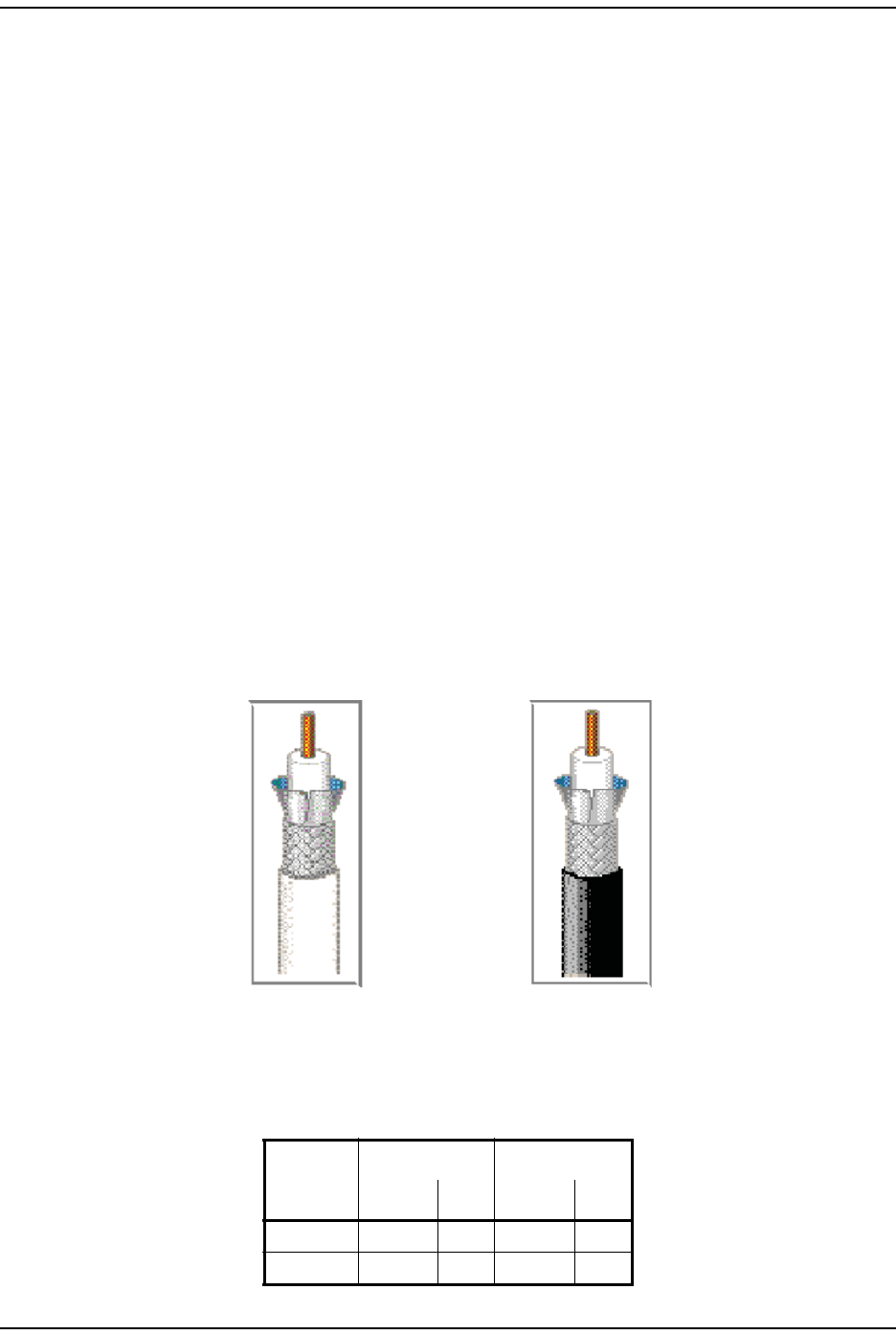

Figure 2. Belden 1695A and 7732A Coax Cables

•Use RG-6 or RG-11 CATV cable between the IFEU and MRAU, the typical

lengths of which are listed below.

Cable Type

Minimum Length Maximum Length

Meters Feet Meters Feet

RG-6 0 0 140 459

RG-11 0 0 200 656

Appendix B: 75-Ohm CATV Cable

Page 20 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

•Use only RG-6 CATV cable between the MRAU and SRAU, the lengths of which

are listed below.

RG-6 Cable Meters Feet

Typical 26.56

800/900 iDEN to 850 CELL 619.68

800 AWS to 850 CELL 619.68

Belden 1695A Coax Specifications

Description

RG-6/U type, 18 AWG solid 0.040-inch bare copper conductor, plenum, foam FEP

insulation, Duofoil® + tinned copper braid shield (95% coverage), Flamarrest®

jacket.

Overall Physical Characteristics

Conductor One Coax

18 AWG

Solid stranding

Bare Copper (BC) conductor material

0.040-inch diameter

Insulation Teflon®

Foam Fluorinated Ethylene Propylene (FFEP)

0.170-inch diameter

Outer Shield Layer 1 Duofoil®

Tape

Aluminum Foil-Polyester Tape-Aluminum Foil

100% coverage

Outer Shield Layer 2 Braid

Tinned Copper (TC)

95% coverage

Outer Jacket Flamarrest®

Low Smoke Polyvinyl Chloride (LS PVC)

Overall Cabling 0.234-inch overall nominal diameter

Appendix B: 75-Ohm CATV Cable

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 21

Overall Nominal Electrical Characteristics

Characteristic Impedance 75.000

Inductance 0.103 H/ft.

Capacitance Conductor to Shield 16.100 (pF/ft.)

Velocity of Propagation 82 (%)

Delay 1.240 (ns/ft.)

Conductor DC Resistance 6.400 @ 20°C (/1000 ft.)

Outer Shield DC Resistance 2.800 @ 20°C (/1000 ft.)

Attenuation

Freq. (MHz) Attenuation (dB/100 ft.)

1.000 0.240

3.580 0.450

5.000 0.550

7.000 0.650

10.000 0.750

67.500 1.740

71.500 1.780

88.500 1.940

100.000 2.100

135.000 2.400

143.000 2.500

180.000 2.800

270.000 3.400

360.000 4.000

540.000 5.200

720.000 6.100

750.000 6.200

1000.000 7.300

1500.000 9.200

2000.000 10.900

2250.000 11.600

3000.000 13.700

Appendix B: 75-Ohm CATV Cable

Page 22 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

Belden 7732A Coax Specifications

Description

RG-11/U type, 14 AWG solid 0.064-inch bare copper conductor, plenum, foam FEP

insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer

jacket.

Overall Physical Characteristics

Conductor One Coax

18 AWG

Solid stranding

Bare Copper (BC) conductor material

0.064-inch diameter

Insulation Teflon®

Foam Fluorinated Ethylene Propylene (FFEP)

0.274-inch diameter

Outer Shield Layer 1 Duofoil®

Tape

Aluminum Foil-Polyester Tape-Aluminum Foil

100% coverage

Outer Shield Layer 2 Braid

Tinned Copper (TC)

95% coverage

Outer Jacket Fluorocopolymer (PVDF)

Overall Cabling 0.348-inch overall nominal diameter

Overall Nominal Electrical Characteristics

Characteristic Impedance 75.000

Inductance 0.091 H/ft.

Capacitance Conductor to Shield 16.300 (pF/ft.)

Velocity of Propagation 83 (%)

Delay 1.220 (ns/ft.)

Conductor DC Resistance 2.500 @ 20°C (/1000 ft.)

Outer Shield DC Resistance 1.600 @ 20°C (/1000 ft.)

Appendix B: 75-Ohm CATV Cable

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 23

Attenuation

Freq. (MHz) Attenuation (dB/100 ft.)

1.000 0.150

3.580 0.260

5.000 0.300

7.000 0.340

10.000 0.400

67.500 1.200

71.500 1.240

88.500 1.400

100.000 1.500

135.000 1.780

143.000 1.840

180.000 2.090

270.000 2.600

360.000 3.100

540.000 3.890

720.000 4.570

750.000 4.680

1000.000 5.500

1500.000 6.910

2000.000 8.130

2250.000 9.200

3000.000 10.200

Appendix C: Omni Antenna

Page 24 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

APPENDIX C: OMNI ANTENNA

The Omni Antenna (4214-M727), shown in Figure 3, is a round radome with the

following specifications:

•8.5-inch diameter

•1.65-inch height

•72-inch pigtails that are plenum-rated cables with N (male) connectors

Figure 3. Omni Antenna

NOTE: Two antennas per RAU is required for MIMO performance.

The Omni Antenna supports the following:

•Port 1

– 698-806 MHz (700 Upper C Lower ABC)

– 1710-2170 MHz (AWS)

•Port 2

– 806-941 MHz (Cellular/SMR)

– 1850-1990 MHz (PCS)

•Port 3

– 2500-2700 MHz (WiMAX)

Appendix D: Contacting TE Connectivity

InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3 Page 25

APPENDIX D: CONTACTING TE CONNECTIVITY

PHONE

U.S.A. or CANADA

Sales: 1-800-366-3891

Extension 73000

Technical Assistance: 1-800-530-9960

Connectivity Extension: 73475

Wireless Extension: 73476

EUROPE

Sales Administration: +32-2-712-65 00

Technical Assistance: +32-2-712-65 42

EUROPEAN TOLL FREE NUMBERS

Germany: 0180 2232923

UK: 0800 960236

Spain: 900 983291

France: 0800 914032

Italy: 0800 782374

ASIA/PACIFIC

Sales Administration: +65-6294-9948

Technical Assistance: +65-6393-0739

ELSEWHERE

Sales Administration: +1-952-917-3000

Technical Assistance: +1-952-917-3475

ONLINE ACCESS

Connectivity Products

United States: Connectivity.Tac@te.com

Europe: Euro.Tac@te.com

Asia/Pacific: AsiaPacific.Tac@te.com

All Wireless Products

WirelessSupport@te.com

Customer Portal

http://www.adc.com/Americas/en_US/1268116693520

Online Customer Support Request

https://nssales.adc.com/ftr/ftrhome1.asp

NOTE: ADC is now TE Connectivity.

Appendix D: Contacting TE Connectivity

Page 26 InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3

ADC Telecommunications S2793-112 InterReach Spectrum Remote Access Unit User Manual Installation Manual

ADC Telecommunications Inc. InterReach Spectrum Remote Access Unit Installation Manual

Installation Manual

Navigation menu

Namespaces

Views

Navigation
