InterReach Spectrum™

Main and Secondary Remote Access Unit

Installation Guide

D-620731-0-20 Rev A

Main Remote Access Unit

Secondary Remote Access Unit

ADCP-77-168  Issue 2  07/2011

ADC Telecommunications, Inc.

P.O. Box 1101, Minneapolis, Minnesota 55440-1101

In U.S.A. and Canada: 1-800-366-3891

Outside U.S.A. and Canada: (952) 938-8080

Fax: (952) 917-1717

Information contained in this document is company private to ADC Telecommunications, Inc. and

shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written

consent of ADC.

Trademark Information

ADC is a registered trademark and InterReach Spectrum is a trademark of ADC

Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and

you agree that no such right, license, or interest shall be asserted by you with respect to such

trademark.

Other product names mentioned in this practice are for identification purposes only and may be

trademarks or registered trademarks of their respective companies.

Disclaimer of Liability

Contents herein are current as of the date of publication. ADC reserves the right to change the

contents without prior notice. Should the content of printed user documentation shipped with

product differ from documentation provided on a product CD (inclusive of the associated Help

modules), the printed user documentation supersedes the documentation on the product CD. In no

event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits,

and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other

similar damages. This disclaimer of liability applies to all products, publications and services during

and after the warranty period.

Specific Disclaimer for High-Risk Activities

This Product is not specifically designed, manufactured, tested or intended for use in high-risk

activities including, without restricting the generality of the foregoing, on-line control of aircraft, air

traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or

maintenance of any nuclear facility. ADC (including its affiliates) and its suppliers specifically

disclaim any express or implied warranty of fitness for such purposes or any other purposes.

InterReach Spectrum Remote Access Unit Installation Guide Page 1

TABLE OF CONTENTS

Preface.................................................................................................................... 1

InterReach Spectrum User Documentation .............................................................. 2

Document Cautions and Notes............................................................................... 2

General Safety Precautions ...................................................................................2

Standards Certification .........................................................................................3

Product Overview ..................................................................................................... 4

Main Remote Access Units..................................................................................... 5

MRAU Ports, Cable, and Connectors................................................................... 5

MRAU LEDs.................................................................................................... 6

Secondary Remote Access Units.............................................................................7

SRAU Ports, Cable, and Connectors................................................................... 7

SRAU LEDs ....................................................................................................8

Install the RAUs and Antennas.................................................................................... 8

Mount the RAUs and Antennas............................................................................... 8

Connect the IFEU to the MRAU ............................................................................ 10

Connect the MRAU to SRAUs ............................................................................... 12

Configure the MRAUs and SRAUs ......................................................................... 13

Appendix A: Specifications....................................................................................... 14

Spectrum System Specifications .......................................................................... 14

Remote Access Unit Specifications........................................................................ 15

Composite Power Out of RAU............................................................................... 15

Appendix B: 75-Ohm CATV Cable.............................................................................. 16

CATV Cable Requirements................................................................................... 16

Belden 1695A Coax Specifications........................................................................ 17

Description .................................................................................................. 17

Overall Physical Characteristics....................................................................... 17

Overall Nominal Electrical Characteristics ......................................................... 18

Belden 7732A Coax Specifications........................................................................ 19

Description .................................................................................................. 19

Overall Physical Characteristics....................................................................... 19

Overall Nominal Electrical Characteristics ......................................................... 19

Appendix C: Omni Antenna ...................................................................................... 21

Appendix D: Contacting ADC/TE Connectivity ............................................................. 22

PREFACE

This manual provides installation instructions for ADC® InterReach Spectrum™

Remote Access Units.

Preface

Page 2 InterReach Spectrum Remote Access Unit Installation Guide

InterReach Spectrum User Documentation

The InterReach Spectrum user documentation is intended for system

administrators, engineers and installers responsible for planning, administering,

configuring, and maintaining ADC InterReach Spectrum systems. Table 1 lists the

manuals that correspond to this InterReach Spectrum release.

Document Cautions and Notes

Two types of messages, identified below, appear in the text:

CAUTION! Caution text indicates operations or steps that could cause personal injury, induce a

safety problem in a managed device, destroy or corrupt information, or interrupt or stop

services.

NOTE: Note text contains information about special circumstances.

General Safety Precautions

CAUTION! Wet conditions increase the potential for receiving an electrical shock when installing or

using electrically powered equipment. To prevent electrical shock, never install or use

electrical equipment in a wet location or during a lightning storm.

CAUTION! This equipment uses a Class 1 Laser according to FDA/CDRH rules. Laser radiation can

seriously damage the retina of the eye. Do not look into the ends of any optical fiber. Do

not look directly into the optical transceiver of any digital unit or exposure to laser

radiation may result. Use an optical power meter to verify active fibers. Immediately

place a protective cap or hood over any radiating transceiver or optical fiber connector to

avoid the potential of dangerous amounts of radiation exposure. This practice also

prevents dirt particles from entering the adapter or connector.

CAUTION! This system is a RF Transmitter and continuously emits RF energy. Maintain a minimum

clearance of three feet (91.4 cm) from the antenna while the system is operating.

Wherever possible, shut down the RAN before servicing the antenna.

Table 1. InterReach Spectrum User Documentation

Title ADCP Number

InterReach Spectrum Quick Start Guide ADCP-77-165

InterReach Spectrum Host Unit Installation Guide ADCP-77-166

InterReach Spectrum Expansion Module Group Installation Guide ADCP-77-167

InterReach Spectrum Remote Access Unit Installation Guide ADCP-77-168

InterReach Spectrum™ Element Management System 7.2 User Manual ADCP-77-189

FlexWave Prism OADM Splice Box Installation Guide ADCP-77-151

Preface

InterReach Spectrum Remote Access Unit Installation Guide Page 3

Standards Certification

FCC: This equipment complies with the applicable sections of Title 47 CFR, Part 22

(800 MHz Cellular), Part 24 (1900 MHz - PCS), Part 90 (800/900 - SMR), and Part

27 (700 MHz, 2100 MHz - AWS).

IC: This equipment complies with the applicable sections of RSS-131 (800/900 –

SMR), RSS-132 (800 - Cellular), and RSS-133 (1900 – PCS). The term “IC:” before

the radio certification number only signifies that Industry Canada Technical

Specifications were met.

The Manufacturer's rated output power of this equipment is for single carrier

operation. For situations when multiple carrier signals are present, the rating

would have to be reduced by 3.5 dB, especially where the output signal is

re-radiated and can cause interference to adjacent band users. This power

reduction is to be by means of input power or gain reduction and not by an

attenuator at the output of the device.

NOTE: The U.S. Federal Communications Commission (FCC) has developed guidelines for

evaluation of human exposure to RF emissions. The guidelines incorporate limits for

Maximum Permissible Exposure (MPE) for power density of transmitter operating at

frequencies between 300 kHz and 100 GHz. Limits have been set for portable, mobile, and

fixed equipment. ADC products fall in the category of fixed equipment; products intended

to be permanently secured and exposures are evaluated for distances greater than 20cm

(7-7/8”). Portable devices fall into exposures of less than 20cm, where SAR evaluations

are used.

Antenna gain is restricted to 1.5 W ERP (2.49 W EIRP) in order to satisfy RF exposure

compliance requirements. If higher than 1.5 W ERP, routine MPE evaluation is needed.

The antennas should be installed to provide at least 20cm from all persons to satisfy MPE

requirements of FCC Part 2, 2.1091.

UL/CUL: This will be installed in a restricted access location. This equipment

complies, per UL and CUL 50, Standard for Enclosures for Electrical Equipment.

UL/CUL: This equipment complies with UL and CUL 60950-1 Standard for Safety

for Information Technology Equipment, including Electrical Business Equipment.

UL: This equipment is UL Plenum rated under UL 2043.

CAUTION! Modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

Product Overview

Page 4 InterReach Spectrum Remote Access Unit Installation Guide

PRODUCT OVERVIEW

InterReach Spectrum supports up to eight frequency bands in a single system.

Each antenna location supports those bands in modular, group pairings. Each

location includes a Main Remote Access Unit (MRAU), which can power up to three

additional Secondary Remote Access Units (SRAUs). An MRAU supports two

frequency bands, and each SRAU can support up to two frequency bands, for a

total of up to eight frequency bands. MRAUs and SRAUs are grouped logically,

based on common service provider groupings and include, as an example:

•850/1900

•700/700 MIMO

•800/900 SMR

•1900/AWS.

To add more frequency bands, you connect an SRAU to the existing MRAU.

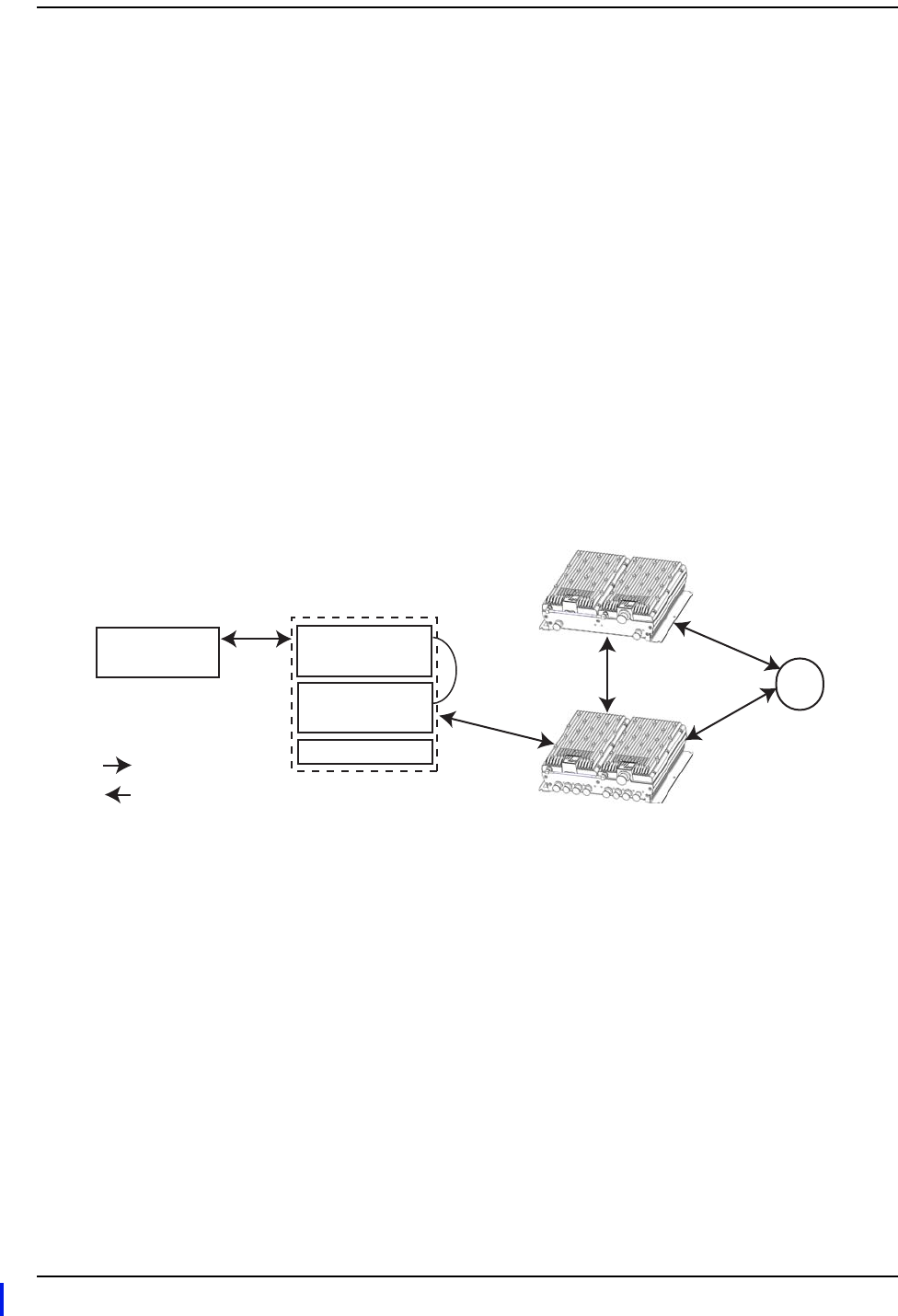

Figure 1 illustrates how RF and IF signals are sent between Spectrum units and

modules.

Figure 1. REV and FWD Signals for the RAU

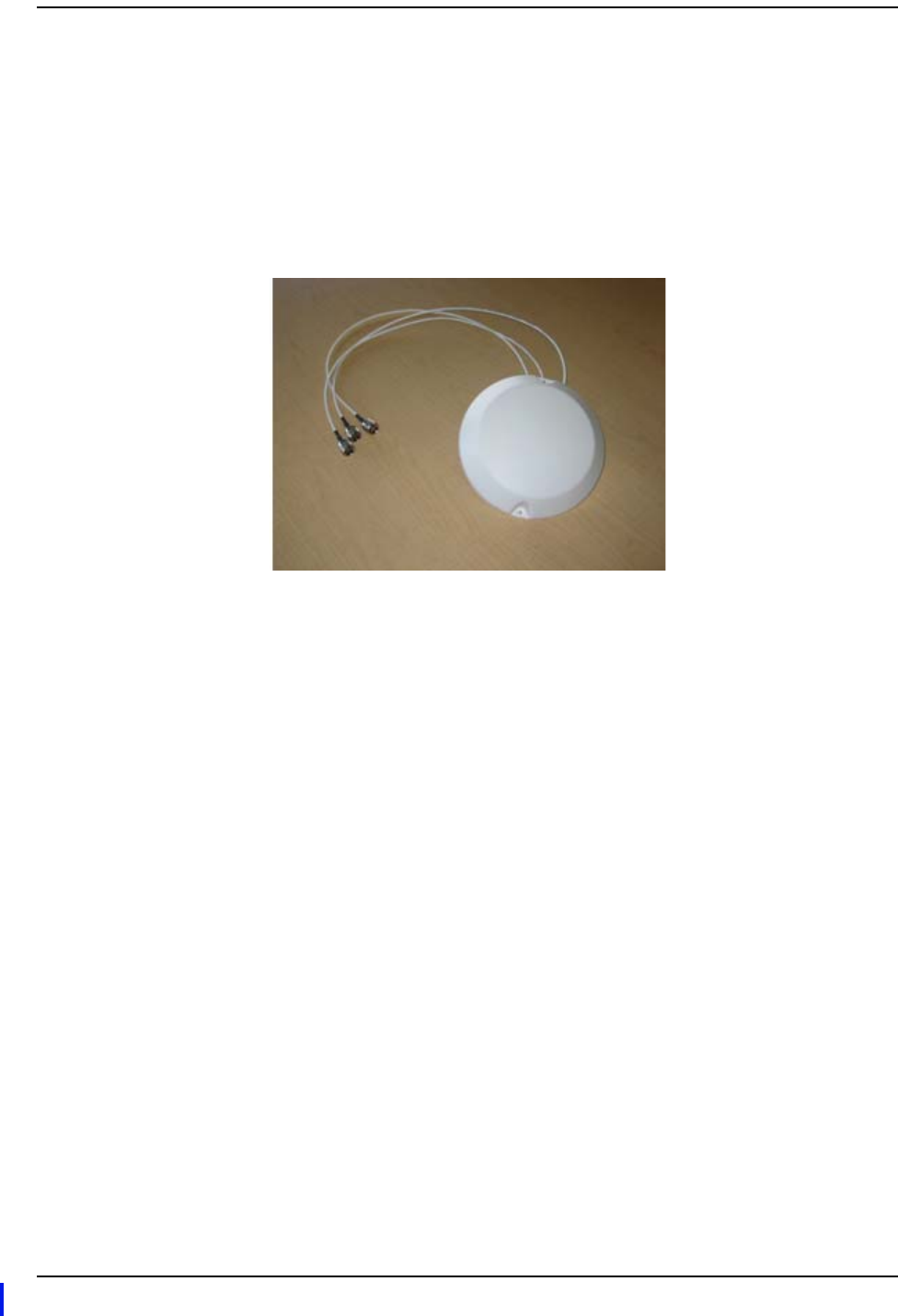

NOTE: This book refers to the Omni Antenna (4214-M727), which is the antenna that ADC

recommends. Other antennas may be used. For further information on the Omni Antenna,

see “Appendix C: Omni Antenna” on page 21.

Omni Antenna

Host

Power Supply

IF Expansion Unit

DART Remote Unit

Expansion Module Group

Secondary Remote Access Unit

Main Remote Access Unit

Reverse (REV)

Forward (FWD)

Key to Signal Path

Product Overview

InterReach Spectrum Remote Access Unit Installation Guide Page 5

Main Remote Access Units

The Main Remote Access Unit (MRAU) receives FWD IF signals from an IF

Expansion Unit (IFEU), which is part of the Spectrum Expansion Module Group,

using 75 CATV cable. The MRAU converts the IF signals to RF and sends them to

a passive RF antenna using 50 coaxial cable. The MRAU also receives

configuration information and power from and sends its status information to the

IFEU.

The MRAU receives REV RF signals from a passive RF antenna using 50 coaxial

cable. It converts the signals to IF and sends them to the IFEU using 75 CATV

cable.

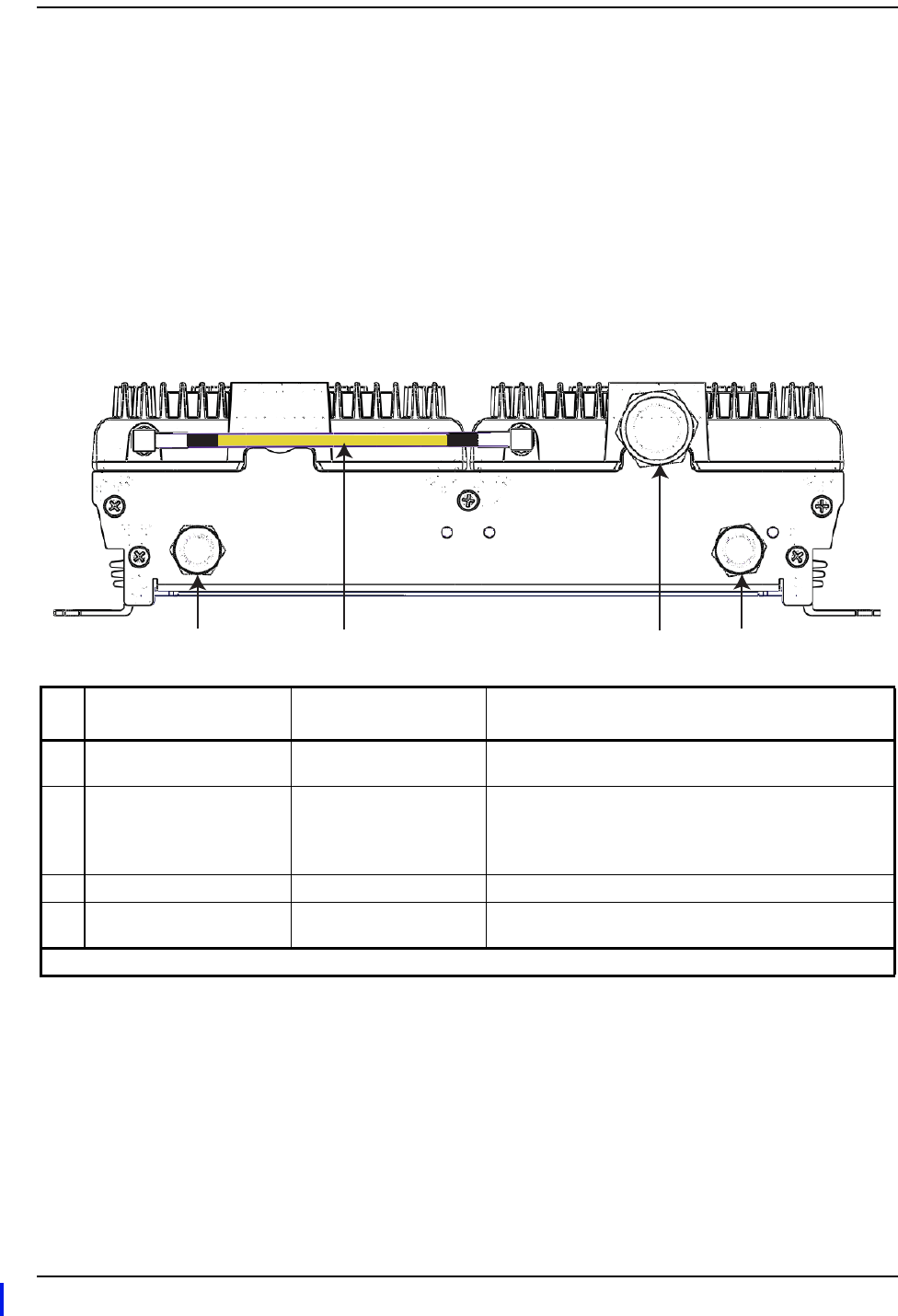

MRAU Ports, Cable, and Connectors

Ref # Component Device Function

1RF SubMiniature version A

(SMA) cable (1) 50 RF SMA-to-SMA cable

Connects two RF bands together when there is only one

N-type connector on the RAU.

For cases when there is an N-type connector for each RF

band (700MIMO or PCS/AWS), there will not be an SMA

cable.

2Antenna port 50 N-type connector Connects to an antenna.

3FWD IF IN connector F connector port Connects to the IFEU FWD Module IF OUT connector via

CATV cable.

4FWD SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY FWD connector via

CATV cable.

5REV SECONDARY PORTS (1 - 3) F connector ports Connect to a SRAU SECONDARY REV connector via

CATV cable.

8REV IF OUT connector F connector port Connects to the IFEU REV Module IF IN connector via

CATV cable.

(1) The AWS/PCS MRAUs does NOT have an RF SMA cable, and has two Antenna ports.

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

1 2

36 54

Product Overview

Page 6 InterReach Spectrum Remote Access Unit Installation Guide

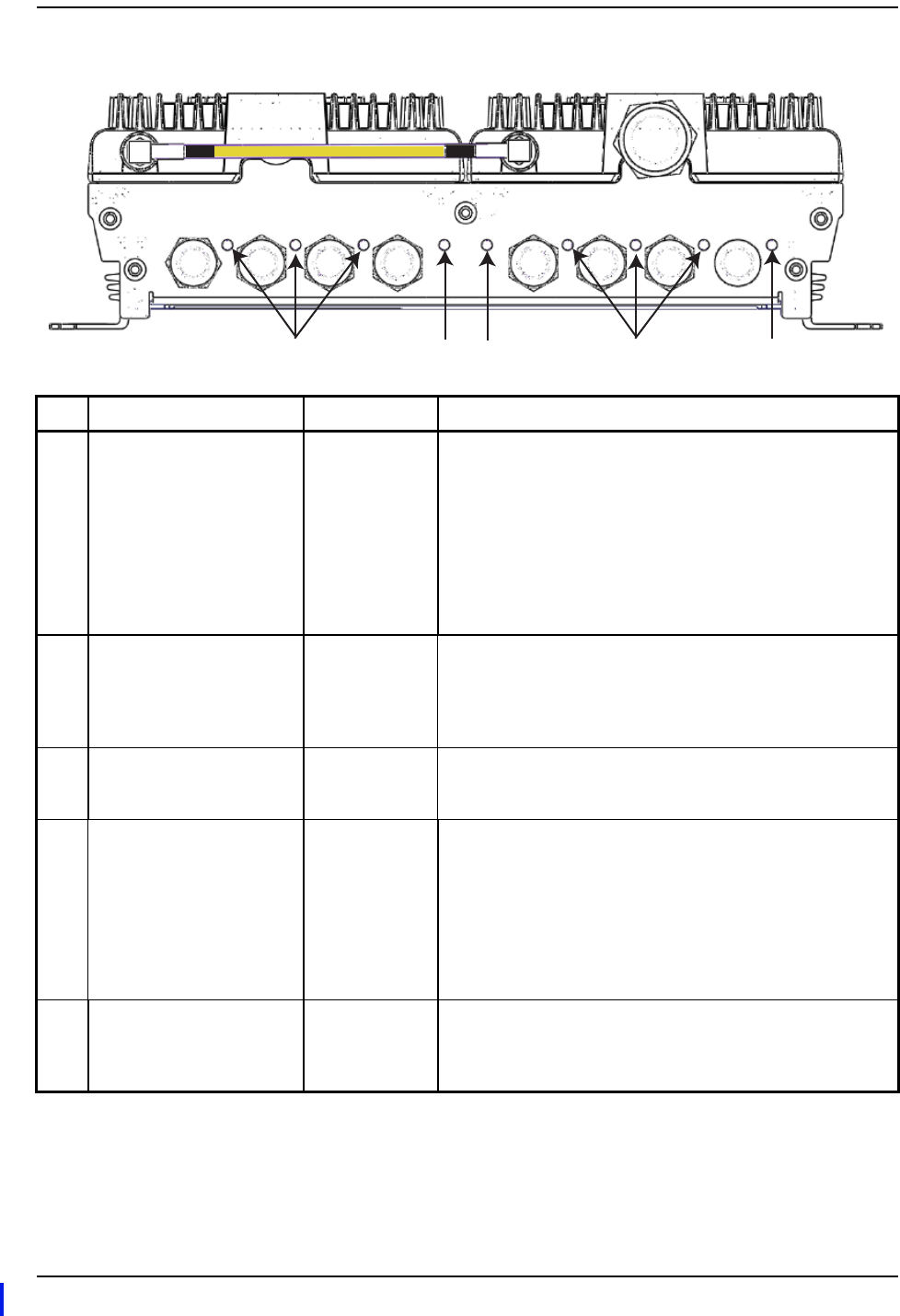

MRAU LEDs

Ref # LED LED Color Description

1FWD SECONDARY PORT 

(1 - 3)

• Green • Downstream unit correctly connected; unit has no alarms or a

Minor alarm is active.

• Blinking Green • SRAU or band is set out-of-service.

• Yellow • FWD cable connected to SRAU, no REV cable connected.

• Blinking Yellow • FWD and REV cables are not connected to the same port number

(incorrectly paired).

• Red • Major alarm in downstream unit, fault lockout, or SRAU

disconnected.

• Off • No SRAU previously connected.

2LINK

• Green • MRAU receiving communications from the IFEU.

• Red • MRAU has not received communications from the IFEU for more

than 90 seconds.

• Off • During initial power up, MRAU is powering up and waiting for IFEU

communications.

3STATUS

• Green • Unit has no alarms or a Minor alarm is active.

• Blinking Green • Unit or band is set out-of-service.

• Red • Major alarm detected.

4REV SECONDARY PORT

(1 - 3)

• Green • Downstream unit correctly connected, unit has no alarms or minor

alarm

• Blinking Green • SRAU or band is set out-of-service.

• Blinking Yellow • FWD and REV cables are not connected to the same port number

(incorrectly paired).

• Red • Major alarm in downstream unit, fault lockout, or SRAU

disconnected.

• Off • No SRAU previously connected.

5FWD IF IN

• Green • MRAU is powered on correctly.

•Yellow or

Blinking Yellow

• There is an IFEU FWD connection, but there is no IFEU REV

connection or the IFEU REV connection is paired incorrectly.

• Off • Cable is not connected to the IFEU FWD port.

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

41 5

2 3

Product Overview

InterReach Spectrum Remote Access Unit Installation Guide Page 7

Secondary Remote Access Units

A Secondary Remote Access Unit (SRAU) receives FWD IF signals from the MRAU,

using 75 CATV cable. The SRAU converts the IF signals to RF and sends them to

a passive RF antenna using 50 coaxial cable. The SRAU, through the MRAU, also

receives configuration information and power from and sends its status

information to the IFEU.

The SRAU receives REV RF signals from a passive RF antenna using 50 coaxial

cable. It converts the signals to IF and sends them to the MRAU using 75 CATV

cable.

SRAU Ports, Cable, and Connectors

Ref

Component Device Function

1SECONDARY REV connector F connector port Connects to one of the MRAU REV SECONDARY ports (1 - 3)

via CATV cable.

2RF SMA cable (1) 50 RF SMA-to-SMA cable

Connects two RF bands together when there is only one

N-type connector on the RAU.

For cases when there is an N-type connector for each RF band

(700MIMO or PCS/AWS), there will not be an SMA cable.

3Antenna port 50 N-type connector Connects to an antenna.

4SECONDARY FWD connector F connector port Connects to one of the MRAU FWD SECONDARY ports (1 - 3)

via CATV cable.

(1) The 700 MIMO SRAUs does NOT have an RF SMA cable, and has two Antenna ports.

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

Install the RAUs and Antennas

Page 8 InterReach Spectrum Remote Access Unit Installation Guide

SRAU LEDs

INSTALL THE RAUS AND ANTENNAS

Follow the steps in the order provided to install the RAUs and antennas.

Mount the RAUs and Antennas

CAUTION! Install RAUs in indoor locations only. Do not connect an antenna installed in an outdoor

location to a RAU, unless it is in an approved AOC weatherproof NEMA4 housing.

CAUTION! Attach all RAUs securely to a stationary object (that is, a wall, pole, or ceiling brackets).

To mount a RAU securely to a wall, ceiling bracket, or pole, use #6 diameter fasteners in

the four slotted mounting holes.

CAUTION! Do the following to maintain proper ventilation:

• Keep at least 76 mm (3-inch) clearance around the RAU.

• Do not stack RAUs on top of each other.

• Always mount the RAU with the solid face (containing the mounting holes) against the

mounting surface.

Ref # LED LED Color Description

1LINK

•Green •SRAU receiving communications from the IFEU.

• Red • SRAU has not received communications from the IFEU for more than 90

seconds.

• Off • During initial power up, SRAU is powering up and waiting for IFEU

communications.

2STATUS

• Green • Unit has no alarms or a Minor alarm is active.

• Blinking Green • Unit or band is set out-of-service.

• Red • Major alarm detected.

3SECONDARY FWD

• Green • MRAU is powered on correctly.

•Yellow or

Blinking Yellow

• There is an MRAU FWD connection, but there is no MRAU REV connection

or the MRAU REV connection is paired incorrectly.

• Off • Cable is not connected to the MRAU FWD port.

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

21 3

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide Page 9

NOTE: RAUs are suitable for use in environmental air space in accordance with Section

300-22(c) of the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of

the Canadian Electrical Code, Part 1, CSA C22.1.

NOTE: You can place the RAU, without its fastening hardware, on a flat surface, such as a shelf,

desk, cabinet, or any other horizontal surface that allows stable placement, with the

mounting base facing down to the mounting surface.

CAUTION! If installing the RAU on a flat surface, the surface must be able to hold a minimum

7-pound load securely.

1Mount all MRAU and SRAUs in the locations marked on the floor plans.

2Install the passive antennas according to the manufacturer’s installation

instructions.

NOTE: It is common practice to install passive antennas below the ceiling. If you install a

passive antenna above the ceiling, when estimating the antenna coverage area, account

for additional loss due to the ceiling material.

3Connect a passive multi-band antenna to the N connector on each RAU using

coaxial cable with the least amount of loss possible. (See “Appendix C: Omni

Antenna” on page 21 for information on the Omni Antenna ports.)

CAUTION! Firmly hand-tighten the N connector. DO NOT over-tighten the connector.

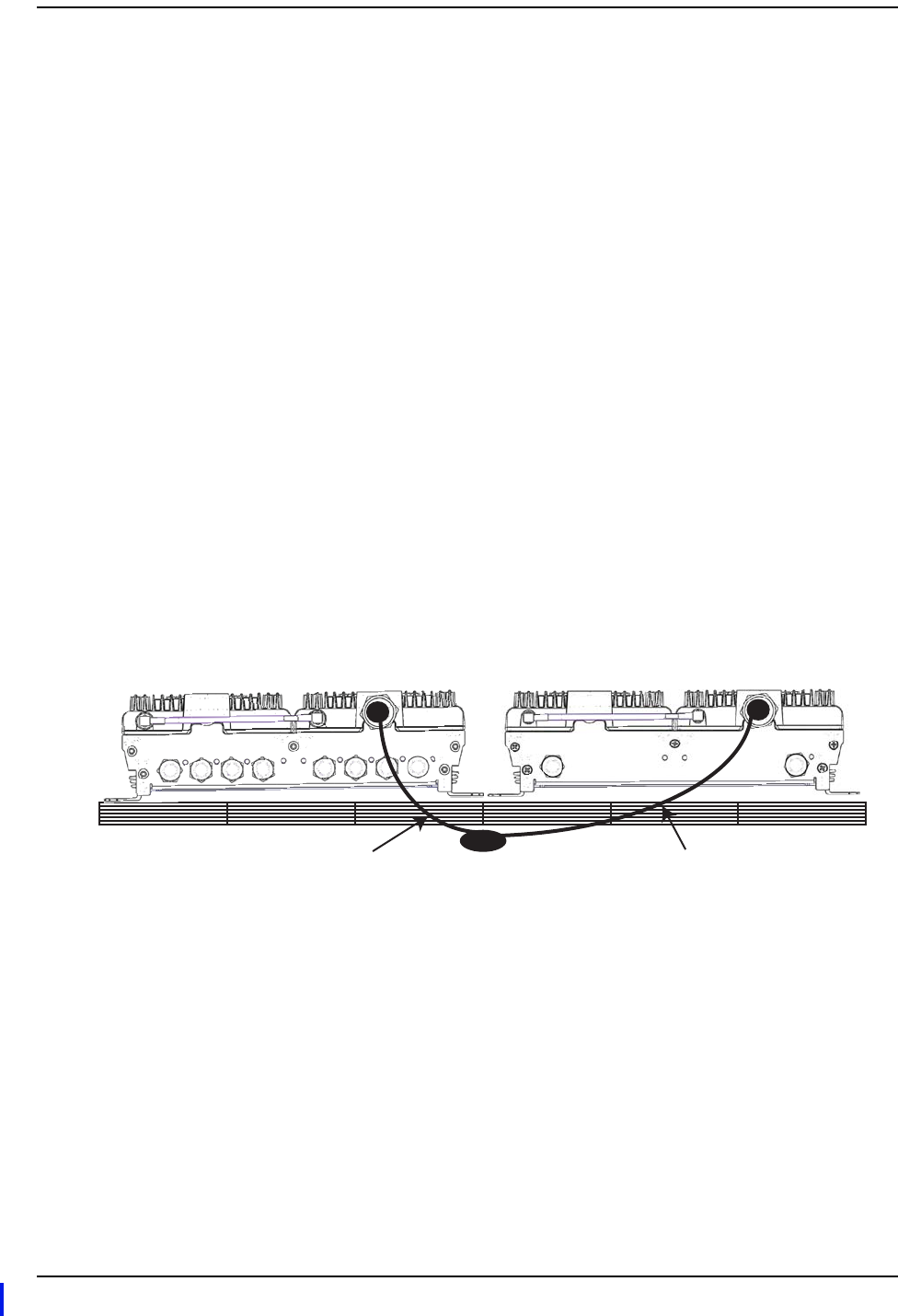

Omni Antenna

False Ceiling

SRAU N1

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

MRAU N1

Coaxial cable

Install the RAUs and Antennas

Page 10 InterReach Spectrum Remote Access Unit Installation Guide

Connect the IFEU to the MRAU

NOTE: The IFEU should be powered up before starting this procedure; see the InterReach

Spectrum Expansion Module Group Installation Guide (ADCP-77-167).

4Follow these rules for the CATV cables when connecting the IFEU to the MRAU:

•The FWD and REV cables should be close to the same length.

•The FWD and REV cables should be the same cable type (both RG6 or both

RG11).

•A pair of CATV cables connects each MRAU to the IFEU. The IFEU REV

Module IF IN port and the IFEU FWD Module IF OUT port must match. For

example, if IFEU REV Module IF IN Port 3 is used, use IFEU FWD Module IF

OUT Port 3.

•Refer to “Appendix B: 75-Ohm CATV Cable” on page 16 for information on

maximum RG-6 or RG-11 CATV cable lengths.

5Test the cable termination for each CATV cable before installing it.

6Connect F connector CATV cables on the IFEU and MRAU, in the order given

below.

If the LEDs do not perform as described in this procedure, refer to “MRAU LEDs”

on page 6.

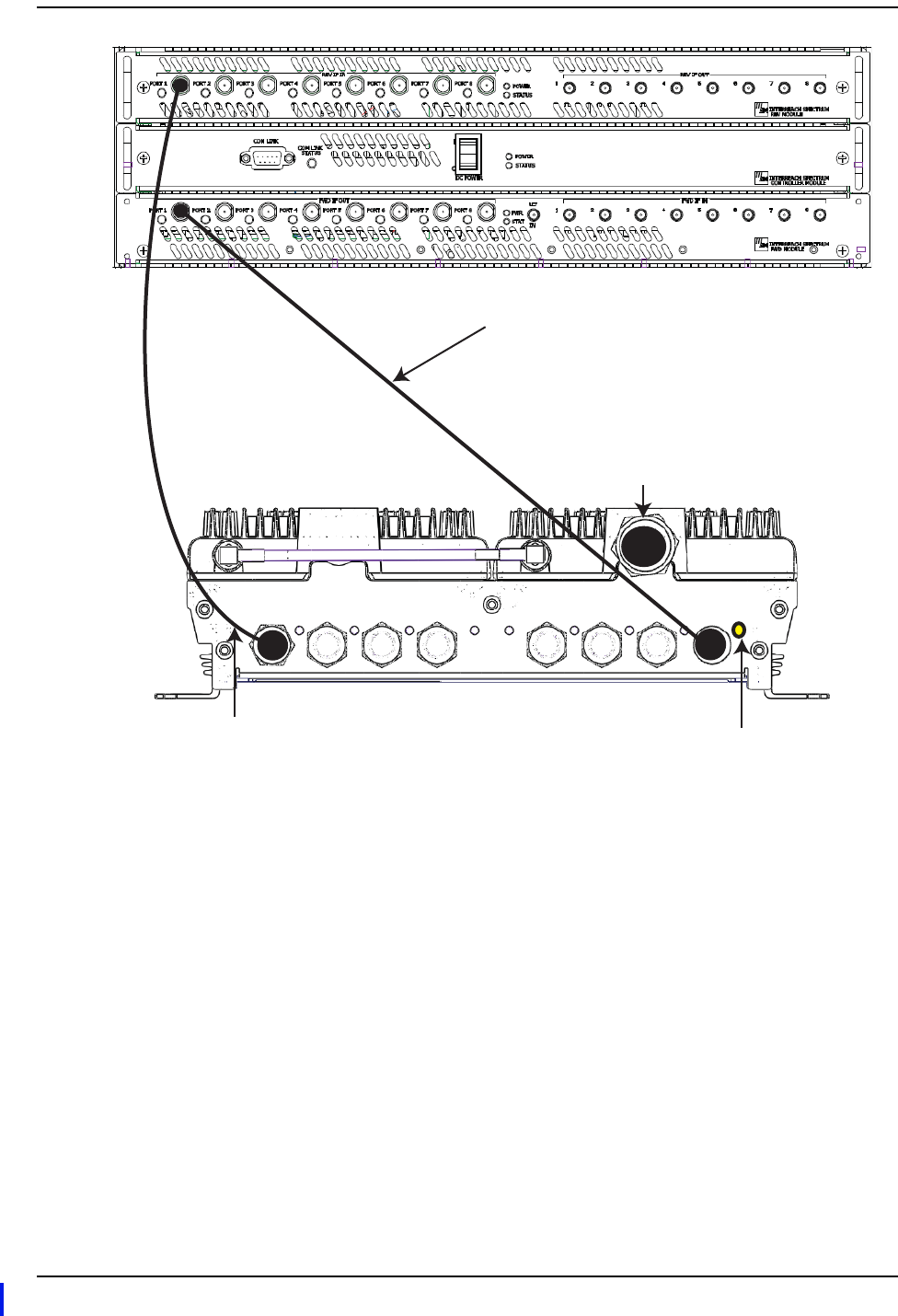

aConnect a CATV cable from one of the IFEU FWD Module IF OUT connectors

(1 - 8) to the MRAU FWD IF IN connector.

bConfirm that the MRAU FWD IF IN LED is yellow, which indicates a correct

physical connection.

cConnect a CATV cable from the IFEU REV Module IF IN connector (1 - 8) to

the MRAU REV IF OUT connector, making sure that you pair the port used

to the same port number selected in Step 6a.

If the connection is correct, the MRAU powers up and the MRAU FWD IF IN

LED turns green.

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide Page 11

IFEU

Step 6a

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

To an antenna

MRAU

Step 6b

Step 6c

Install the RAUs and Antennas

Page 12 InterReach Spectrum Remote Access Unit Installation Guide

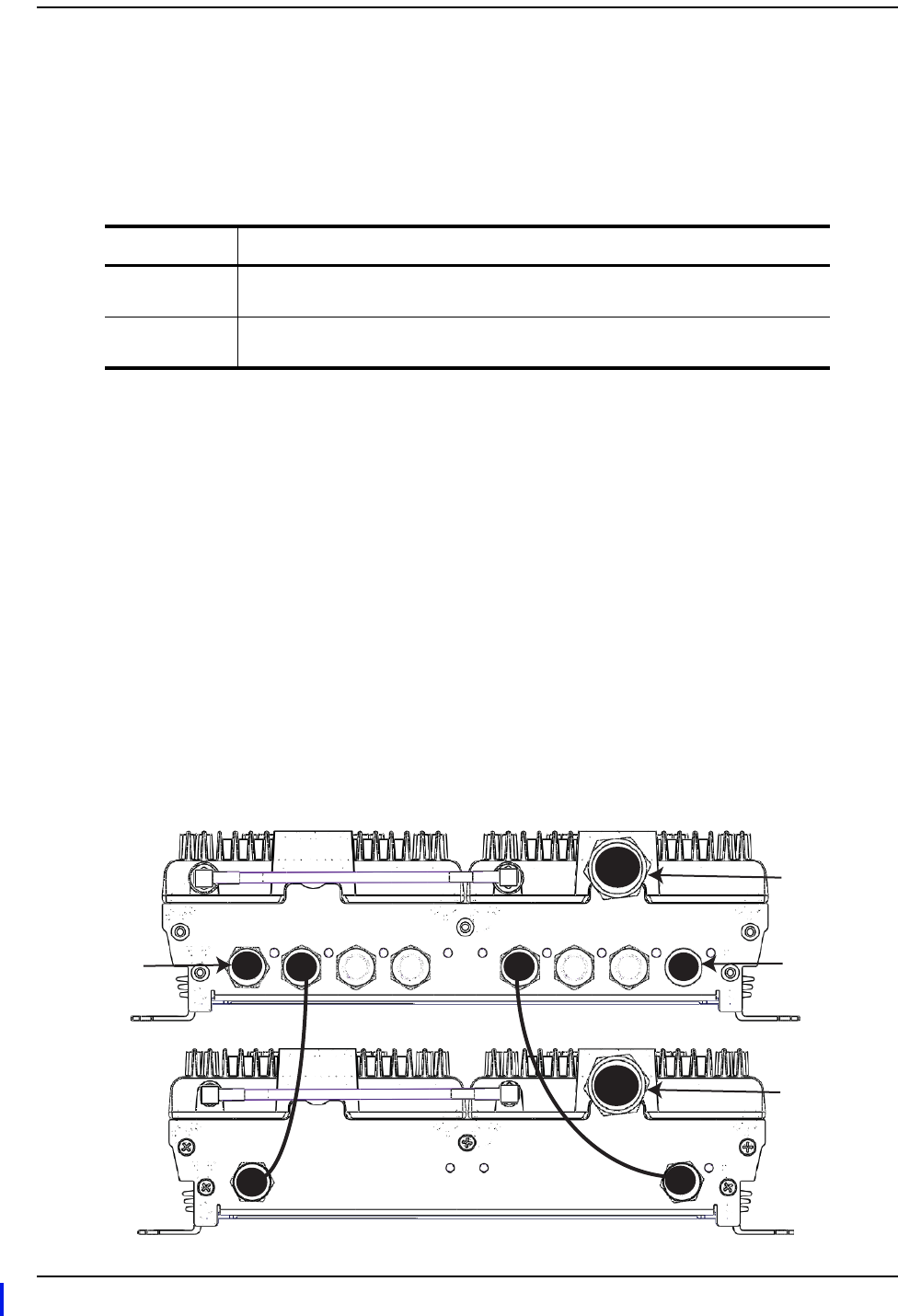

Connect the MRAU to SRAUs

CAUTION! To prevent interference, do not install an 850/1900 MRAU antenna near an 800/900 SRAU.

The 850 MHz band must be 20 feet away from the 800/1900 SRAU’s passive antenna.

7Use one of the following 6’ and 20’ CATV RG6 jumpers, available for purchase

from ADC, to connect an MRAU to SRAUs.

8Test the cable termination for each CATV cable before installing it.

9Connect F connector CATV cables from the MRAU to an SRAU, in the order

given below. If the LEDs do not perform as described in this procedure, refer

to “SRAU LEDs” on page 8.

aConnect a CATV cable from an MRAU FWD SECONDARY PORT (1, 2, or 3) F

connector to the SRAU SECONDARY FWD F connector.

bConfirm that the SRAU SECONDARY FWD LED is yellow, which indicates a

correct physical connection.

cConnect a CATV cable from an MRAU REV SECONDARY PORT (1, 2, or 3) F

connector to the SRAU SECONDARY REV F connector, matching the same

port number selected in Step 9a. That is, if in Step 9a you connected an F

connector to the MRAU FWD SECONDARY PORT 1, the paired CATV cable

must connect to the MRAU REV SECONDARY PORT 1.

If the connection is correct, the SRAU powers up and the SRAU SECONDARY

FWD LED turns green.

ADC Part Number Description Note

300469-0 6’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two

cables required per SRAU.

300469-1 20’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two

cables required per SRAU.

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

To an IFEU REV

Module IF IN

connector (1 - 8)

To an IFEU FWD

Module IF OUT

connector (1 - 8)

MRAU

SRAU To an antenna

To an antenna

Install the RAUs and Antennas

InterReach Spectrum Remote Access Unit Installation Guide Page 13

10 Repeat Step 9 to install up to two more SRAUs, as per system design.

Configure the MRAUs and SRAUs

Refer to the ADC InterReach Spectrum™ Element Management System 7.0 User

Manual (ADCP-77-163) for information on how to configure the MRAUs and

SRAUs.

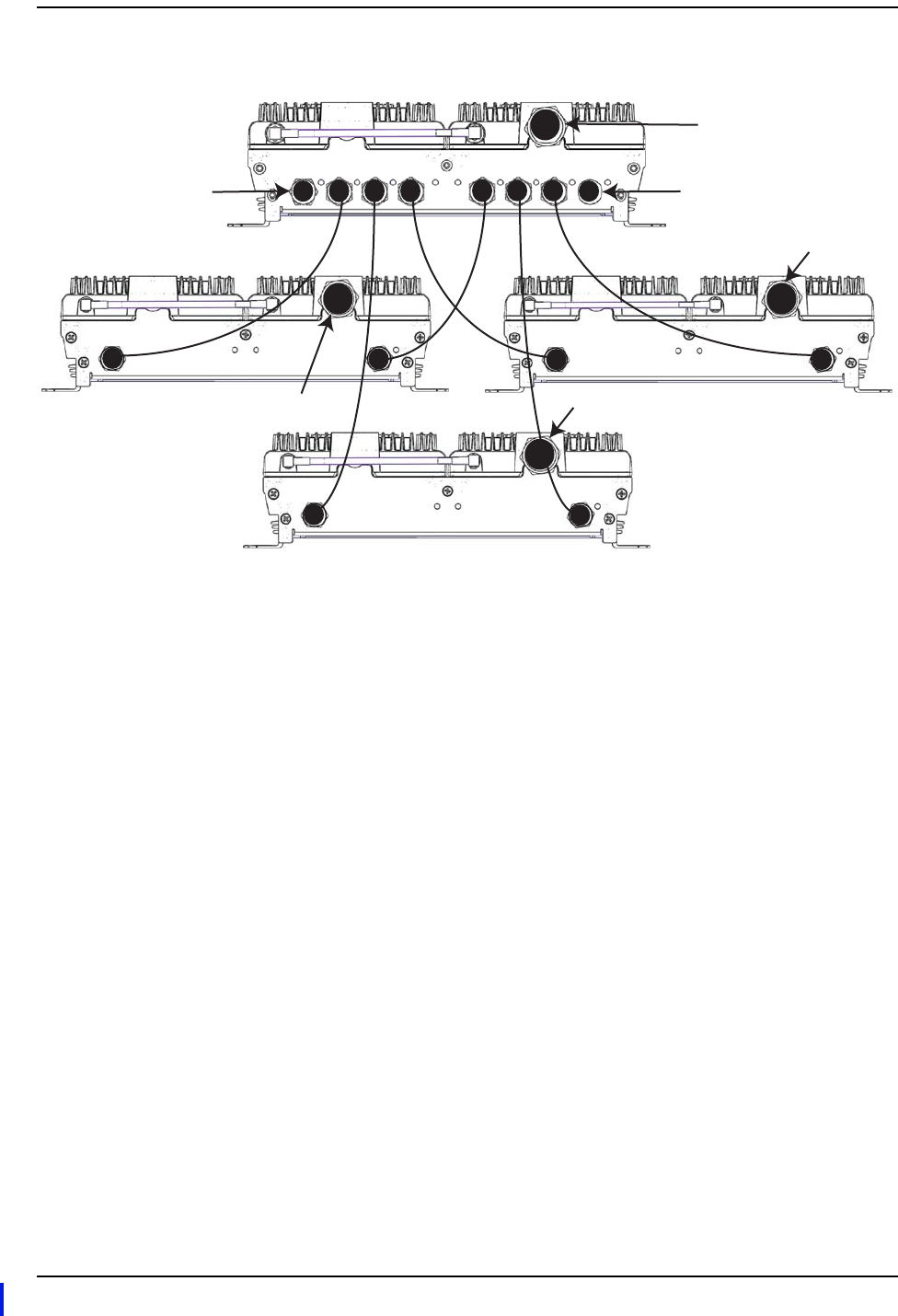

REV IF OUT REV SECONDARY PORTS

1 2 3

FWD SECONDARY PORTS

1 2 3

FWD IF IN

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

LINK STATUS

SECONDARY

REV

SECONDARY

FWD

MRAU

SRAU1

SRAU2

SRAU3

To an IFEU FWD Module

IF OUT connector (1 - 8)

To an IFEU REV Module

IF IN connector (1 - 8)

To an antenna

Appendix A: Specifications

Page 14 InterReach Spectrum Remote Access Unit Installation Guide

APPENDIX A: SPECIFICATIONS

Spectrum System Specifications

RF Specification

Supported Frequency Blocks 2 per Remote Antenna Unit; 1-8 per Host Unit

Bandwidth 1.5 to 75 MHz non-contiguous

Frequency Band Supported 850 Cellular; 800 iDEN; 900 iDEN; 1900 PCS;

2100 AWS; 700 Upper C Lower ABC

Propagation Delay

System Delay <12 microseconds

Delay Management Digital (Manual or Automatic)

Noise Figure

Noise Figure For 1 Host, 1 DRU, 8 RAUs: < 17 dB

For 1 Host, 4 DRUs, 32 RAUs: < 23 dB

Input IP3 >-10 dBm

Optical Specifications

Optical Budget 10 dB (Standard); 26 dB (Optional)

Digital Transport Rate 3.072 Gbps

Nominal Passband Gain

Output Power

Output P1dB Power per Band 26 dBm 850MHz Cell

26 dBm 1900MHz PCS

26 dBm 700MHz Upper C Lower ABC

26 dBm 2100MHz AWS

Average gain with 

190m of CATV 

at 25° C (77° F) (dB)

700 - 900 MHz

Typical 1900 - 2100 MHz

Typical

TX RX TX RX

40 30 40 30

Appendix A: Specifications

InterReach Spectrum Remote Access Unit Installation Guide Page 15

Remote Access Unit Specifications

Operating Temp -25°C to +50°C

Storage Temperature -40°C to +70°C

Humidity 10% to 90% non-condensing

Dimensions 11.50" x 9.00" x 3.50"

Weight 7.49 Pounds

Power Source 54VDC (from IFEU)

Composite Power Out of RAU

RF Frequency Number of RF Carriers

TX RX 1 2 4 8 16

850 Cell 869-894 824-849

26 23 20 18 17.5 GSM

23 20.5 18 17 17 EDGE

16 16 16 16 CDMA

15 14 12.5 WCDMA

800 SMR 851-869 806-824 17.5 17 16 15.5 iDEN

26 22.5 19.5 17.5 APCO 25 C4FM

900 SMR 935-940 896-901 17.5 17 16 15.5 iDEN

26 22.5 19.5 17.5 APCO 25 C4FM

1900 PCS 1930-1995 1850-1915

26 23 20 18 17.5 GSM

23 20.5 18 17 17 EDGE

16 16 16 16 CDMA

15 14 12.5 WCDMA

2100 AWS 2110-2155 1710-1755 15 14 12.5 WCDMA

700 Upper C 746-756 776-786 15 14 12.5 LTE

700 Lower ABC 728-746 698-716 15 14 12.5 LTE

Appendix B: 75-Ohm CATV Cable

Page 16 InterReach Spectrum Remote Access Unit Installation Guide

APPENDIX B: 75-OHM CATV CABLE

The 75-Ohm CATV Cable:

•connects the IFEU to MRAU(s) and the MRAU(s) to the SRAU(s)

•transmits (FWD) multiband and receives (REV) IF signals

•delivers DC electrical power to the RAUs. The Spectrum IFEU DC voltage output

is 54VDC nominal. If the IFEU reaches its current limit, a current-limiting circuit

protects it.

•carries configuration and status information

•uses 75 type-F connectors with captive centerpins.

CATV Cable Requirements

Belden CATV cable or equivalent is required (see Figure 2).

•For the RG-6 cable, use a Belden 1695A Coax.

•For the RG-11 cable, use a Belden 7732A Coax.

NOTE: ADC requires solid copper center conductor CATV cable for proper DC voltage to the RAU

and maximum distances.

Figure 2. Belden 1695A and 7732A Coax Cables

RG-11

Belden 1695A Coax

RG-6

Belden 7732A Coax

Appendix B: 75-Ohm CATV Cable

InterReach Spectrum Remote Access Unit Installation Guide Page 17

•Use RG-6 or RG-11 CATV cable between the IFEU and MRAU, the typical

lengths of which are listed below.

•Use only RG-6 CATV cable between the MRAU and SRAU, the lengths of which

are listed below.

Belden 1695A Coax Specifications

Description

RG-6/U type, 18 AWG solid 0.040-inch bare copper conductor, plenum, foam FEP

insulation, Duofoil® + tinned copper braid shield (95% coverage), Flamarrest®

jacket.

Overall Physical Characteristics

Conductor One Coax

18 AWG

Solid stranding

Bare Copper (BC) conductor material

0.040-inch diameter

Insulation Teflon®

Foam Fluorinated Ethylene Propylene (FFEP)

0.170-inch diameter

Outer Shield Layer 1 Duofoil®

Tape

Aluminum Foil-Polyester Tape-Aluminum Foil

100% coverage

Outer Shield Layer 2 Braid

Tinned Copper (TC)

95% coverage

Outer Jacket Flamarrest®

Low Smoke Polyvinyl Chloride (LS PVC)

Overall Cabling 0.234-inch overall nominal diameter

Cable Type

Minimum Length Maximum Length

Meters Feet Meters Feet

RG-6 0 0 140 459

RG-11 0 0 200 656

RG-6 Cable Meters Feet

Typical 26.56

800/900 iDEN to 850 CELL 619.68

800 AWS to 850 CELL 619.68

Appendix B: 75-Ohm CATV Cable

Page 18 InterReach Spectrum Remote Access Unit Installation Guide

Overall Nominal Electrical Characteristics

Characteristic Impedance 75.000

Inductance 0.103 H/ft.

Capacitance Conductor to Shield 16.100 (pF/ft.)

Velocity of Propagation 82 (%)

Delay 1.240 (ns/ft.)

Conductor DC Resistance 6.400 @ 20°C (/1000 ft.)

Outer Shield DC Resistance 2.800 @ 20°C (/1000 ft.)

Attenuation

Freq. (MHz) Attenuation (dB/100 ft.)

1.000 0.240

3.580 0.450

5.000 0.550

7.000 0.650

10.000 0.750

67.500 1.740

71.500 1.780

88.500 1.940

100.000 2.100

135.000 2.400

143.000 2.500

180.000 2.800

270.000 3.400

360.000 4.000

540.000 5.200

720.000 6.100

750.000 6.200

1000.000 7.300

1500.000 9.200

2000.000 10.900

2250.000 11.600

3000.000 13.700

Appendix B: 75-Ohm CATV Cable

InterReach Spectrum Remote Access Unit Installation Guide Page 19

Belden 7732A Coax Specifications

Description

RG-11/U type, 14 AWG solid 0.064-inch bare copper conductor, plenum, foam FEP

insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer

jacket.

Overall Physical Characteristics

Conductor One Coax

18 AWG

Solid stranding

Bare Copper (BC) conductor material

0.064-inch diameter

Insulation Teflon®

Foam Fluorinated Ethylene Propylene (FFEP)

0.274-inch diameter

Outer Shield Layer 1 Duofoil®

Tape

Aluminum Foil-Polyester Tape-Aluminum Foil

100% coverage

Outer Shield Layer 2 Braid

Tinned Copper (TC)

95% coverage

Outer Jacket Fluorocopolymer (PVDF)

Overall Cabling 0.348-inch overall nominal diameter

Overall Nominal Electrical Characteristics

Characteristic Impedance 75.000

Inductance 0.091 H/ft.

Capacitance Conductor to Shield 16.300 (pF/ft.)

Velocity of Propagation 83 (%)

Delay 1.220 (ns/ft.)

Conductor DC Resistance 2.500 @ 20°C (/1000 ft.)

Outer Shield DC Resistance 1.600 @ 20°C (/1000 ft.)

Appendix B: 75-Ohm CATV Cable

Page 20 InterReach Spectrum Remote Access Unit Installation Guide

Attenuation

Freq. (MHz) Attenuation (dB/100 ft.)

1.000 0.150

3.580 0.260

5.000 0.300

7.000 0.340

10.000 0.400

67.500 1.200

71.500 1.240

88.500 1.400

100.000 1.500

135.000 1.780

143.000 1.840

180.000 2.090

270.000 2.600

360.000 3.100

540.000 3.890

720.000 4.570

750.000 4.680

1000.000 5.500

1500.000 6.910

2000.000 8.130

2250.000 9.200

3000.000 10.200

Appendix C: Omni Antenna

InterReach Spectrum Remote Access Unit Installation Guide Page 21

APPENDIX C: OMNI ANTENNA

The Omni Antenna (4214-M727), shown in Figure 3, is a round radome with the

following specifications:

•8.5-inch diameter

•1.65-inch height

•72-inch pigtails that are plenum-rated cables with N (male) connectors

Figure 3. Omni Antenna

NOTE: Two antennas per RAU is required for MIMO performance.

The Omni Antenna supports the following:

•Port 1

– 698-806 MHz (700 Upper C Lower ABC)

– 1710-2170 MHz (AWS)

•Port 2

– 806-941 MHz (Cellular/SMR)

– 1850-1990 MHz (PCS)

•Port 3

– 2500-2700 MHz (WiMAX)

Appendix D: Contacting ADC/TE Connectivity

Page 22 InterReach Spectrum Remote Access Unit Installation Guide

APPENDIX D: CONTACTING ADC/TE CONNECTIVITY

NOTE: ADC is now TE Connectivity.

PHONE

U.S.A. or CANADA

Sales: 1-800-366-3891

Extension 73000

Technical Assistance: 1-800-530-9960

Connectivity Extension: 73475

Wireless Extension: 73476

EUROPE

Sales Administration: +32-2-712-65 00

Technical Assistance: +32-2-712-65 42

EUROPEAN TOLL FREE NUMBERS

Germany: 0180 2232923

UK: 0800 960236

Spain: 900 983291

France: 0800 914032

Italy: 0800 782374

ASIA/PACIFIC

Sales Administration: +65-6294-9948

Technical Assistance: +65-6393-0739

ELSEWHERE

Sales Administration: +1-952-917-3000

Technical Assistance: +1-952-917-3475

ONLINE ACCESS

Connectivity Products

United States: Connectivity.Tac@te.com

Europe: Euro.Tac@te.com

Asia/Pacific: AsiaPacific.Tac@te.com

All Wireless Products

WirelessSupport@te.com

Customer Portal

http://www.adc.com/Americas/en_US/1268116693520

Online Customer Support Request

https://nssales.adc.com/ftr/ftrhome1.asp

Website: www.adc.com

ADC Telecommunications S2990-011 Spectrum CELL Path1/PCS Path 1 RFIC MRAU User Manual 77168p1

ADC Telecommunications Inc. Spectrum CELL Path1/PCS Path 1 RFIC MRAU 77168p1

User Manual

Navigation menu

Namespaces

Views

Navigation
