User Manual
QUICK START GUIDE
iSavi-E
Version 1.0
Regulatory Information
Quick Reference
Getting Started
LED Visual Pointing Mode
Audio Assisted Pointing Mode
Accessing Data
Powering Down and Detaching the Battery
03
04
05
08
10
11
12
While the information in this Quick Start Guide has been prepared in good faith, no representation or warranty, express or implied, is made or given as to the adequacy, accuracy,
reliability or completeness of such information. Addvalue Innovation Pte Ltd nor their respective officers, employees or agents shall have any responsibility or liability to any
person resulting from the use of the information in this Quick Start Guide. Copyright © 2016 Addvalue Innovation Pte Ltd. All rights reserved. Addvalue, the Addvalue Enabled
logo, Wideye, the Wideye logo, iSavi and iSavi logo are either trademarks or registered trademarks of Addvalue Technologies Ltd and/or its affiliates in Singapore and/or other
countries. Inmarsat and the Inmarsat logo are trademarks of The International Mobile Satellite Organisation and are licensed exclusively to Inmarsat. IsatHub and the IsatHub
logo are trademarks of Inmarsat. Inmarsat, the Inmarsat logo, IsatHub and the IsatHub logo are used by Addvalue Innovation Pte Ltd under licence from Inmarsat.
Votre récepteur/terminal “iSavi”™ peut générer une grande
quantité de chaleur selon les activités du système, telles que la
transmission continue pour une longue période, et la surface
inférieure sera chaud.
Veuillez noter qu’on peut diminuer le risque d’une blessure causée
par la chaleur en vous conformant aux directives suivantes:
1. Manipuler avec précaution lorsqu'on touche la surface inférieure
du récepteur/terminal, en particulier au moment de l’utilisation
ou juste après avoir éteint le récepteur/terminal.
2. Attendre jusqu'à le récepteur/terminal se soit refroidi après
l’avoir éteint, avant l'entreposage dans un espace non ventilé.
3. Ne laissez pas les enfants sans surveillance à portée du
récepteur/terminal.
Caution
Hot surface
Your iSavi™ terminal can generate a significant amount of heat
depending on the system activities such as continuous transmission
over a period of time and the underside surface will be hot.
Note: Reduce the risk of heat related injury by adhering to the
following:
1. Handle with caution when touching the underside surface of the
terminal, especially when in use or just after powering down.
2. Wait for the terminal to cool after powering down before stowing
the device in an unventilated manner.
3. Do not leave children unattended within reach of the terminal.
Caution
Hot surface
Part number:74B00139001
Page
29
REGULATORY INFORMATION
Federal Communication Commission Notice
FCC Identifier: QO4-SMTISAVIEWE
USE CONDITIONS:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE: EXPOSURE TO RADIO FREQUENCY RADIATION
This Device complies with FCC radiation exposure limits set forth for an uncontrolled environment. The Antenna used for this transmitter must be installed to provide a
separation distance of at least 100cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC CAUTION:
Any Changes or modifications nt expressly approved by the manufacturer could void the user’s authority, which is granted by FCC, to operate this Satellite terminal
iSavi-E, SH-100E.
EC Declaration of Conformity:
Addvalue Innovation Pte Ltd., 8, Tai Seng Link, Level 5 (Wing 2), Singapore 534158.
declares under our sole responsibility that the Product, brand name as Wideye and model: iSavi-E, SH-100E Satellite terminal to which this declaration relates, is in
conformity with the following standards and/or other normative documents:
ETSI EN 301 489-1, -19, -20, ETSI EN 301 681, EN 62311, ITU-R M.1480
IEC 60950-1 AND EN 60950-1
We hereby declare that all essential radio test suite have been carried out and that the above named product is in conformity to all the essential requirements of Directive
1999/5/EC. The Conformity Assessment procedure referred to Article 10 and detailed in Annex [III] or [IV] of Directive 1999/5/EC has been followed with involvement of the
following notified body(ies):
TIMCO ENGINEERING, INC., P.O BOX 370,NEW BERRY, FLORIDA 32669.
Identification mark: 1177 (Notified Body number)
The technical documentation relevant to the above equipment are held at:
· Addvalue Innovation Pte Ltd., 8, Tai Seng Link, Level 5 (Wing 2), Singapore 534158.
Signed by
Mr. Tan Khai Pang (Chief Technology Officer on February 26, 2016) and
Mr. Prabakar Kuttaniseeri (Manager-Quality System & Compliance Management, on February 26, 2016)
3
WELCOME
Congratulations on purchasing the Addvalue Wideye™ iSavi-E satellite terminal.

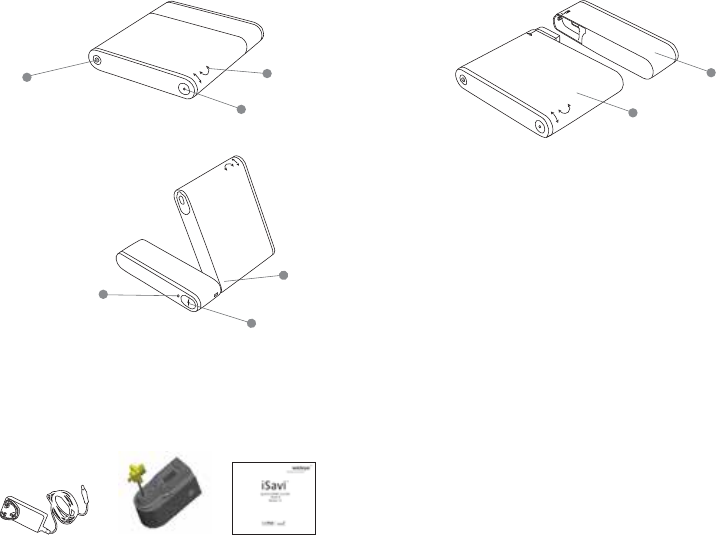

QUICK REFERENCE
Power Button Exit Pointing
Mode Button
Antenna
Pointing LEDs
DC Power Input
Connector Cover
Battery Power
Indicator Button
Elevation Angle
Indicator
Transceiver
Battery Pack
Other contents in the box
Charger
& US Plug Ethernet
Adapter Quick Start
Guide
4

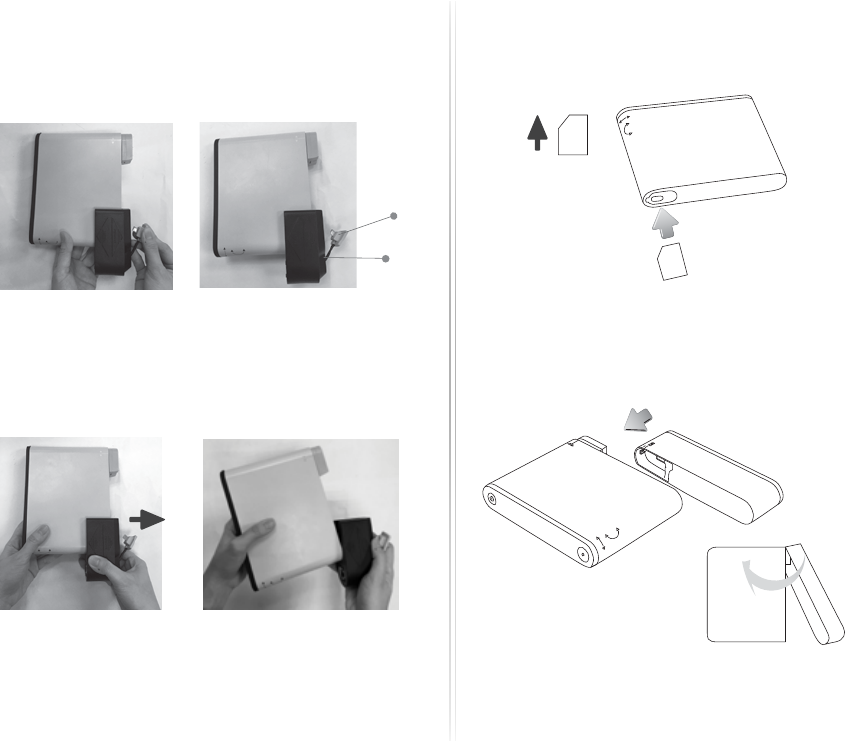

GETTING STARTED
STEP 2
Remove the Ethernet adapter by pulling
straight in the direction below.
5
STEP 3
Insert the Micro-SIM card with its gold-contacts
facing down.
STEP 1
Pull the handle of the micro-USB connector as
shown to unplug the connector cable.
Connector
Cable Note:
Ensure your iSavi™ is off before removing or installing the
SIM card.
Note:
Removing the ethernet adapter without unplugging the connector cable might
damage the terminal. Attach the battery gently
in the direction as shown
until a click is heard.
STEP 4
Attach the battery
Handle
67

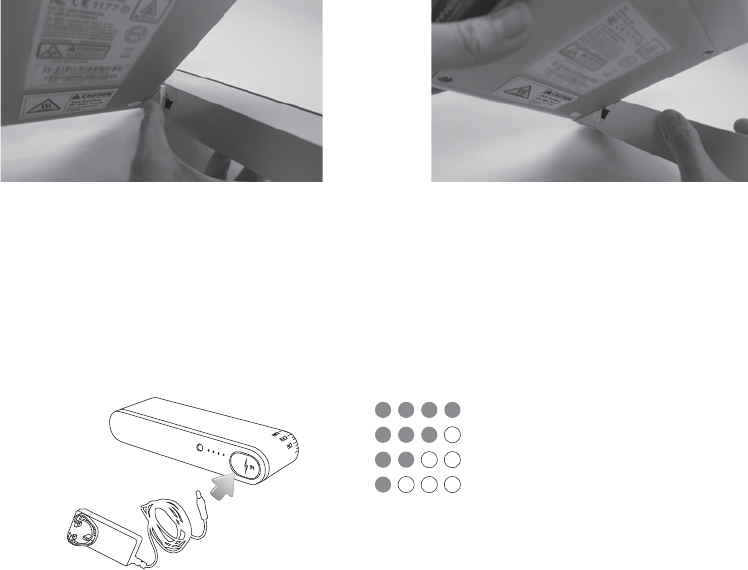

STEP 5
Use a finger to press the latch and ensure that the transceiver is properly attached to the terminal.
STEP 6
Insert the charger lead and then plug the adapter into a suitable power source. Your iSavi™ should be
charged for 8 hours before first use.
Charging will cease automatically once the battery is fully charged.
You can check the battery level by pressing the ‘Battery Power Indicator Button’.
6
76% - 100% Capacity
51% - 75% Capacity
26% - 50% Capacity
1% - 25% Capacity
EN

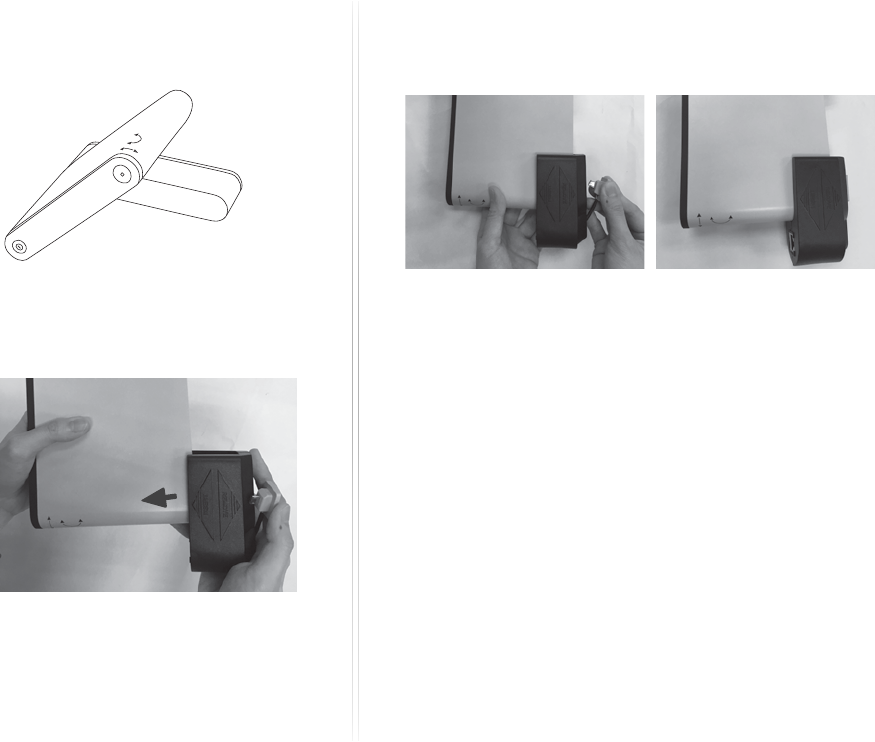

STEP 7
Tilt the terminal to 45 degrees. STEP 9
Plug in the micro-USB connector.
STEP 10
Place your iSavi™ outside in a position with an unob-
structed view of the sky.
Press and hold the power button for 5 seconds to switch
on your iSavi™. Leave it for at least 1 minute.
Your iSavi™ must acquire a Global Positioning System
(GPS) fix before you can connect to the network
for the first time.
STEP 8
Attach the Ethernet adapter.
EN
7

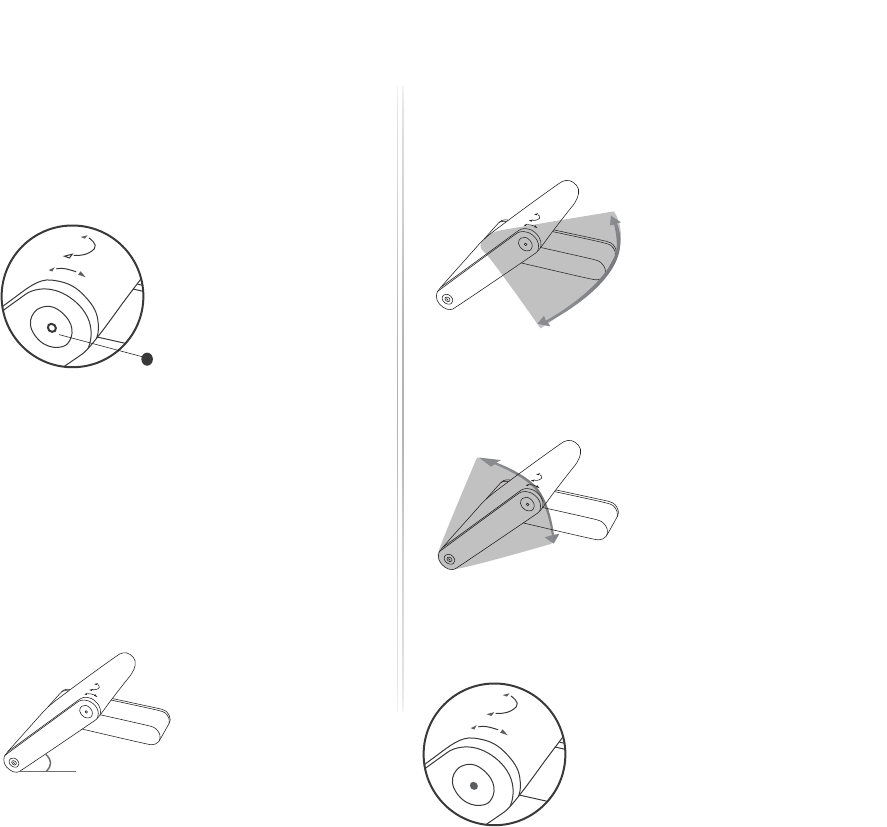

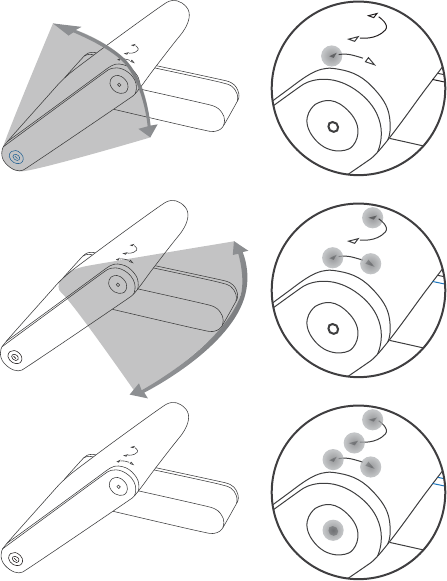

POINT THE TERMINAL AND CONNECT TO NETWORK
Method 1: LED Visual Pointing Mode
STEP 1
Make sure you place your iSavi™ in the open air, with an unobstructed view of the sky. Your iSavi™ needs
to be pointed towards the satellite in the correct direction to ensure connection to the satellite network.
STEP 2
Tilt your iSavi™ up or down in the direction of the
flashing green light until both ‘up’ and ‘down’ LEDs
are solid green.
STEP 3
Turn your iSavi™ left or right in the direction of the
flashing green light until both ‘left’ and ‘right’ LEDs
are solid green.
STEP 4
When all four tilt & turn LEDs are solid green, press
the flashing ‘Exit Pointing Mode’ Button. Your iSavi™
will now connect to the network.
8
Note:
In some cases , you might encounter magnetic interference. Please refer to the next page for more information.
9
POINT THE TERMINAL AND CONNECT TO NETWORK
LED Visual Pointing Mode
Magnetic Interference
Occasionally, if your iSaviTM is in close proximity to ferrous objects, the
sensors will have difficulty determining its correct orientation.

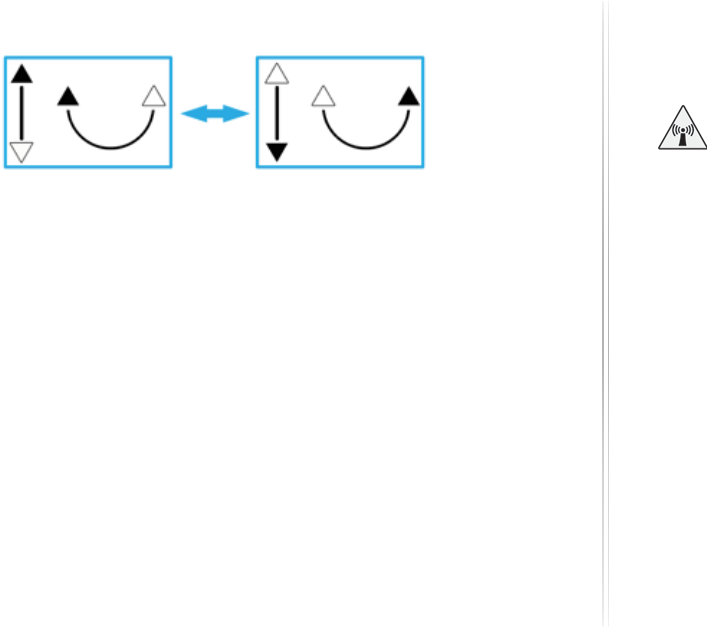

When this happens, the LEDs will flash in the following sequence :
The following steps should resolve the issue.
Step 1:
Move your iSaviTM to a new location. Ensure your terminal is situated away
from other electronic devices, metal objects and appliances that
generate RF noise.
Step 2:
Press the ‘Exit Pointing Mode’ Button once to exit from this state and
repeat the steps of the LED Visual Pointing Mode procedure. The above
LEDs status will appear again if the new location is still having magnetic
interference. Repeat step 2 until the LEDs status indicates the LED Visual
Pointing Mode.
If this does not solve the problem, please try Method 2: Audio Assisted
Pointing Mode on next page.
During operation, the iSavi
radiates radio frequency
energy within the safe MPE
(Maximum Permissible
Exposure) level.
However, it is highly
recommended that for
safety reasons, avoid
standing closer than 1 metre
in front of your iSavi™.
If the LEDs display any other
pattern of illumination
refer to the LED Status
Quick Reference Guide for
more information.
Note:
Magnetic interference does not affect the basic operation of your iSaviTM.
POINT THE TERMINAL AND CONNECT TO NETWORK
Method 2: Audio Assisted Pointing Mode
STEP 1
To switch into audio assisted pointing mode,
press and hold the ‘Exit Pointing Mode Button’
for 5 seconds when your iSavi™ is in LED visual
pointing mode .
Exit Pointing
Mode Button
All 4 LEDs will be flashing green when the audio
assisted pointing mode is activated.
The beeping sound indicates the signal strength.
The frequency of the beeping will become higher
when the signal is stronger.
STEP 2
Tilt the terminal up to 45 degrees from the
horizontal.
STEP 3
Turn the terminal slowly in clockwise or
counterclockwise until the beeping frequency
is maximized.
45°
STEP 4
Tilt the terminal up or down slowly until the
beeping frequency is maximized.
Fine tune the position until no further increase of
the beeping frequency is heard.
‘Exit Pointing Mode Button’ will turn to flashing
green when the signal strength is satisfactory for
network registration.
STEP 5
Press the ‘Exit Pointing Mode
Button’ to exit antenna pointing
mode and start network
registration.
10
ACCESSING DATA

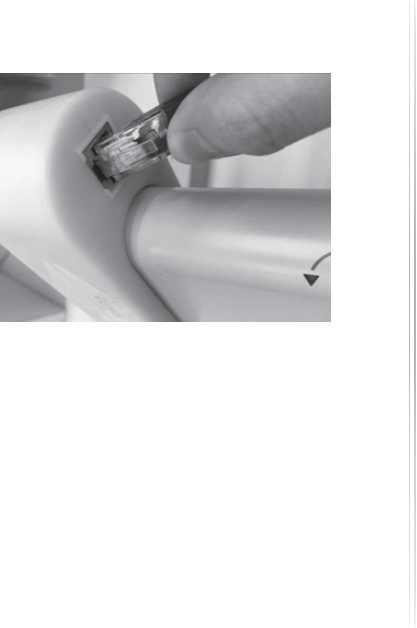

STEP 1
Insert the Ethernet cable to the Ethernet
adapter as shown below.
EN
11
STEP 2
Insert the other end of the Ethernet cable to your
computer’s ethernet port
A message confirming connection is displayed on
your computer (Operating system dependent).
STEP 3
Access the web console by opening any web
browser and type http://iSavi or http://192.168.1.35
into the address bar.
The default credentials are:
USERNAME: admin
PASSWORD: 1234
STEP 4
Once your iSavi™ is connected to the network,
it will automatically activate the data session.
To stop access to data, press ‘Deactivate data
connection’.
STEP 3
Press and hold the power button for 5 seconds to
switch off your iSavi™.

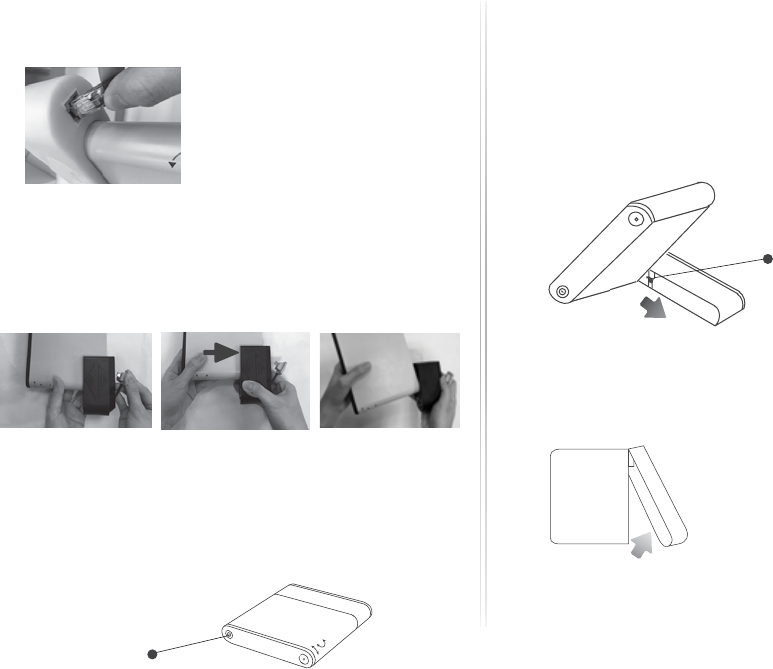

POWERING DOWN AND DETACHING THE BATTERY
STEP 4
The powering down process takes about 20
seconds.
Wait until all the LEDs are off.
Note:
Ensure your iSaviTM is off before removing the
battery pack.
The battery pack can be charged seperately
without being attached to your iSaviTM.
Power Button
STEP 5
Pull down the battery latch in the direction as
shown.
Battery latch
STEP 6
Remove the battery pack gently.
12
STEP 1
Remove the Ethernet cable from the ethernet
adapter.
STEP 2
Unplug the connector cable by using the handle.
Remove the Ethernet adapter by pulling straight in
the direction as shown.
