ADDVALUE INNOVATION WESBR5K Class 2 BGAN Satellite Terminal User Manual

Version

:

1.0 (draft)

Date

:

11 Sep 2017

SABRE™ RANGER 5000

SABRE™ RANGER 5000 User Guide

Contents

Copyright ............................................................................................................................................................ 3

Warranty ............................................................................................................................................................. 3

Trademarks ........................................................................................................................................................ 3

Regulatory Information ....................................................................................................................................... 3

1. Introduction ..................................................................................................................................................... 6

2. Quick Reference ............................................................................................................................................. 7

3. Install the Sim Card ........................................................................................................................................ 8

4. Connect the Cables and Wires ..................................................................................................................... 10

5. Optional Accessories .................................................................................................................................... 18

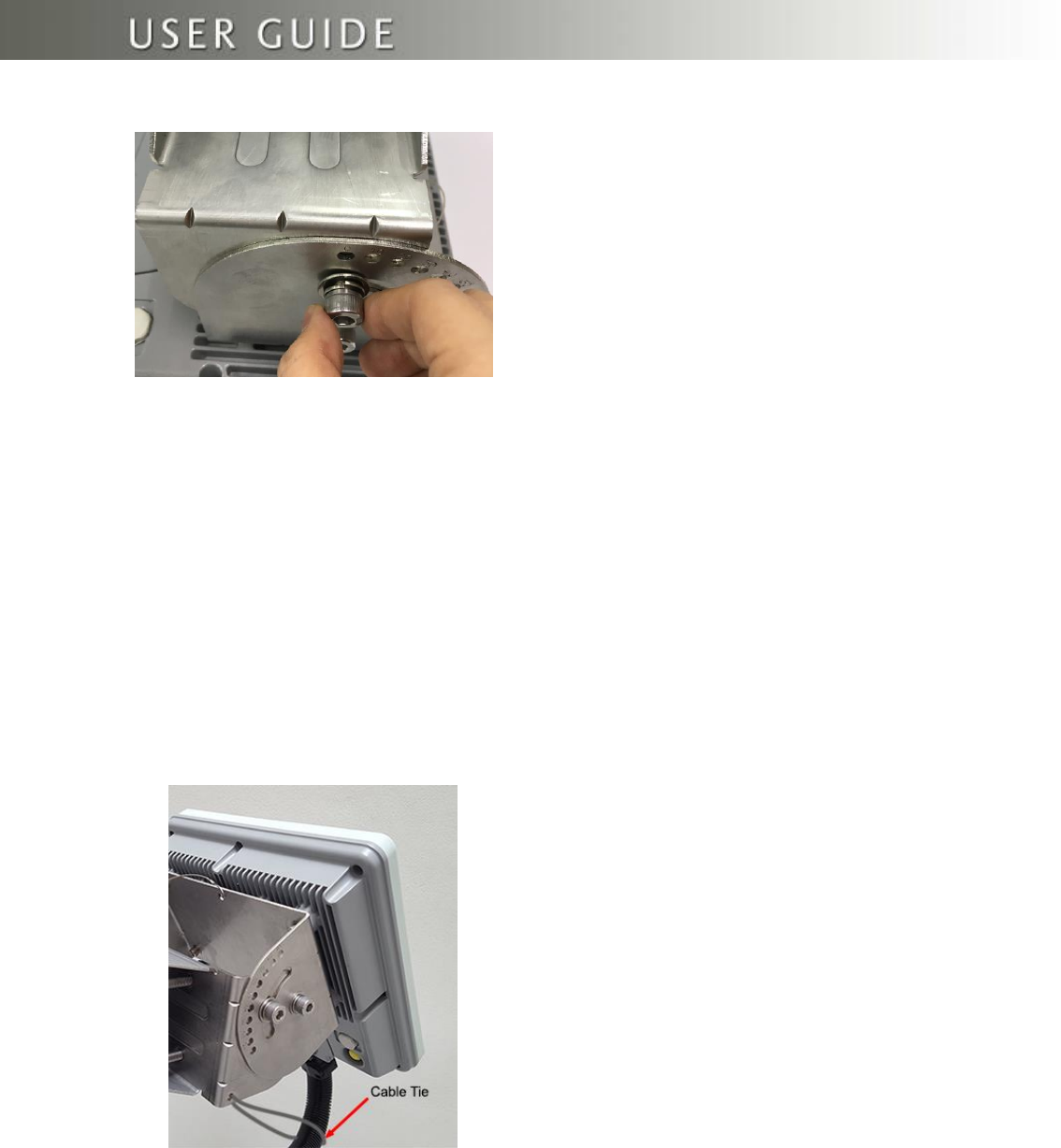

6. Fix Optional Mounting Bracket to Sabre™ Ranger 5000 ............................................................................. 19

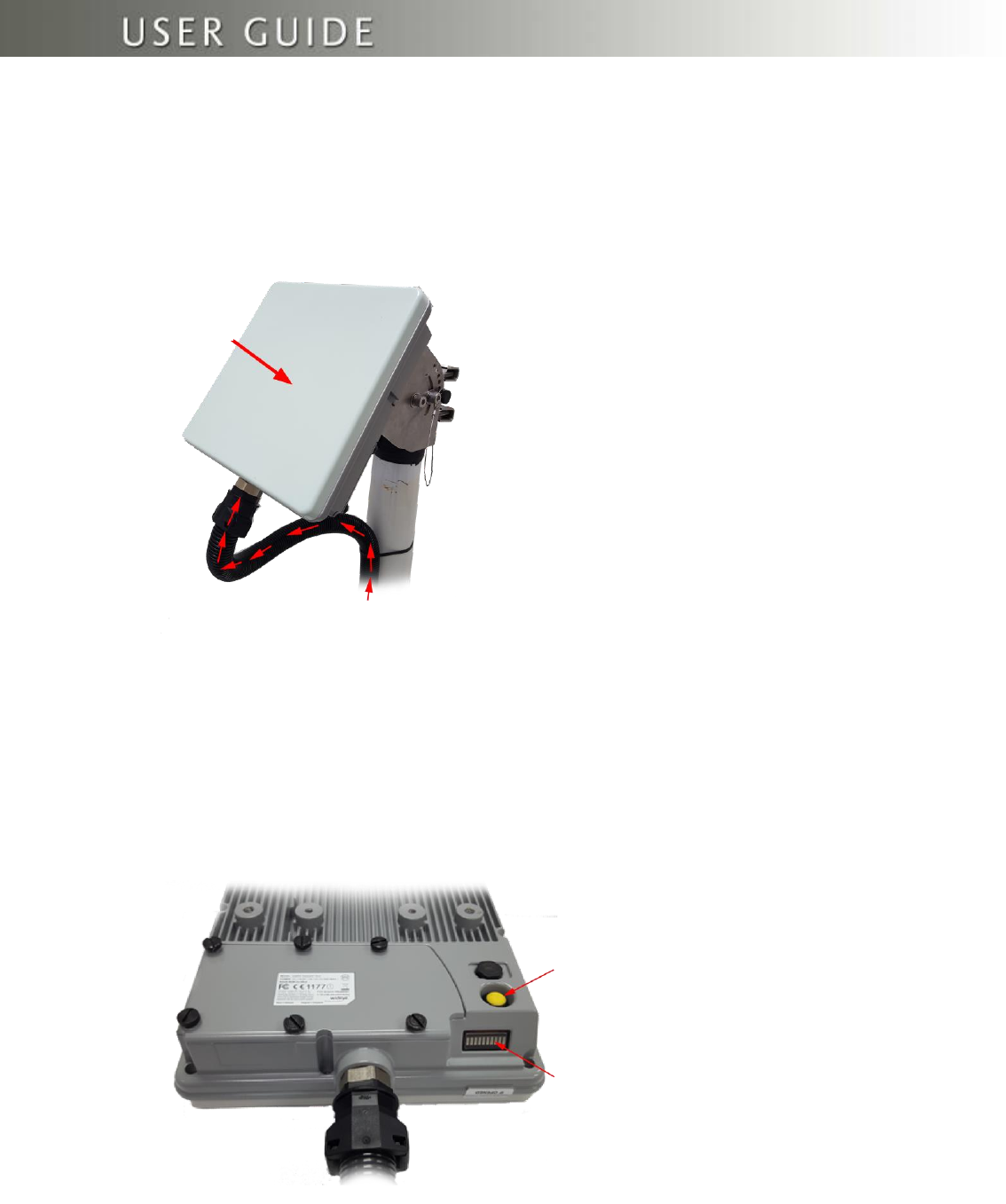

7. Mount the Terminal on a Pole ...................................................................................................................... 20

8. Terminal Grounding ...................................................................................................................................... 22

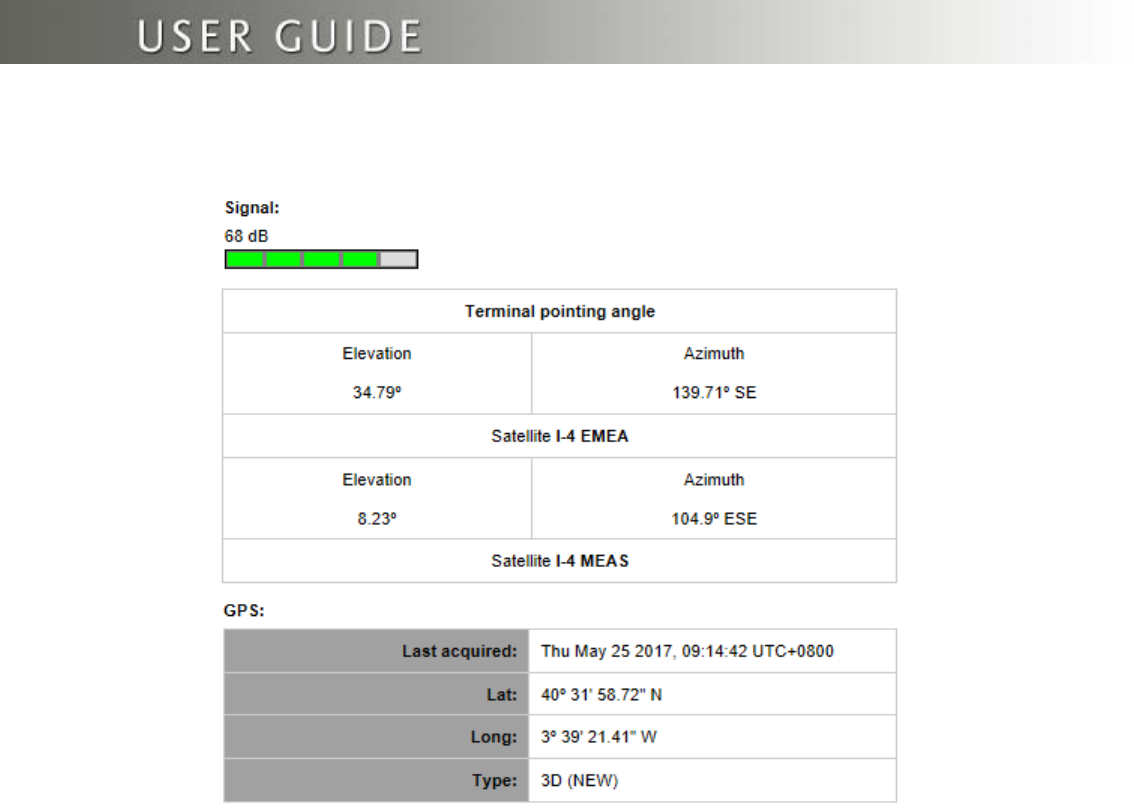

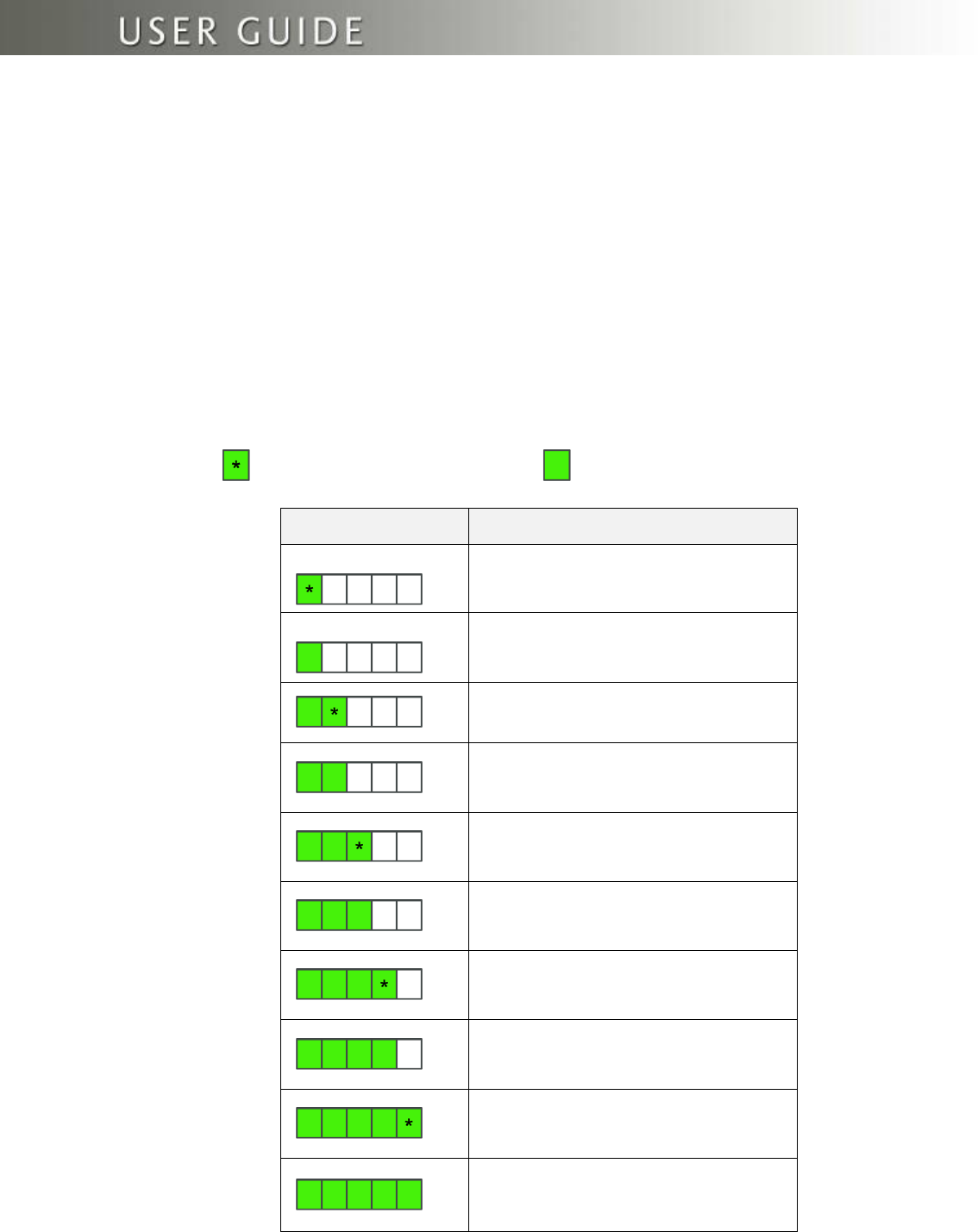

9. Point the Antenna ......................................................................................................................................... 23

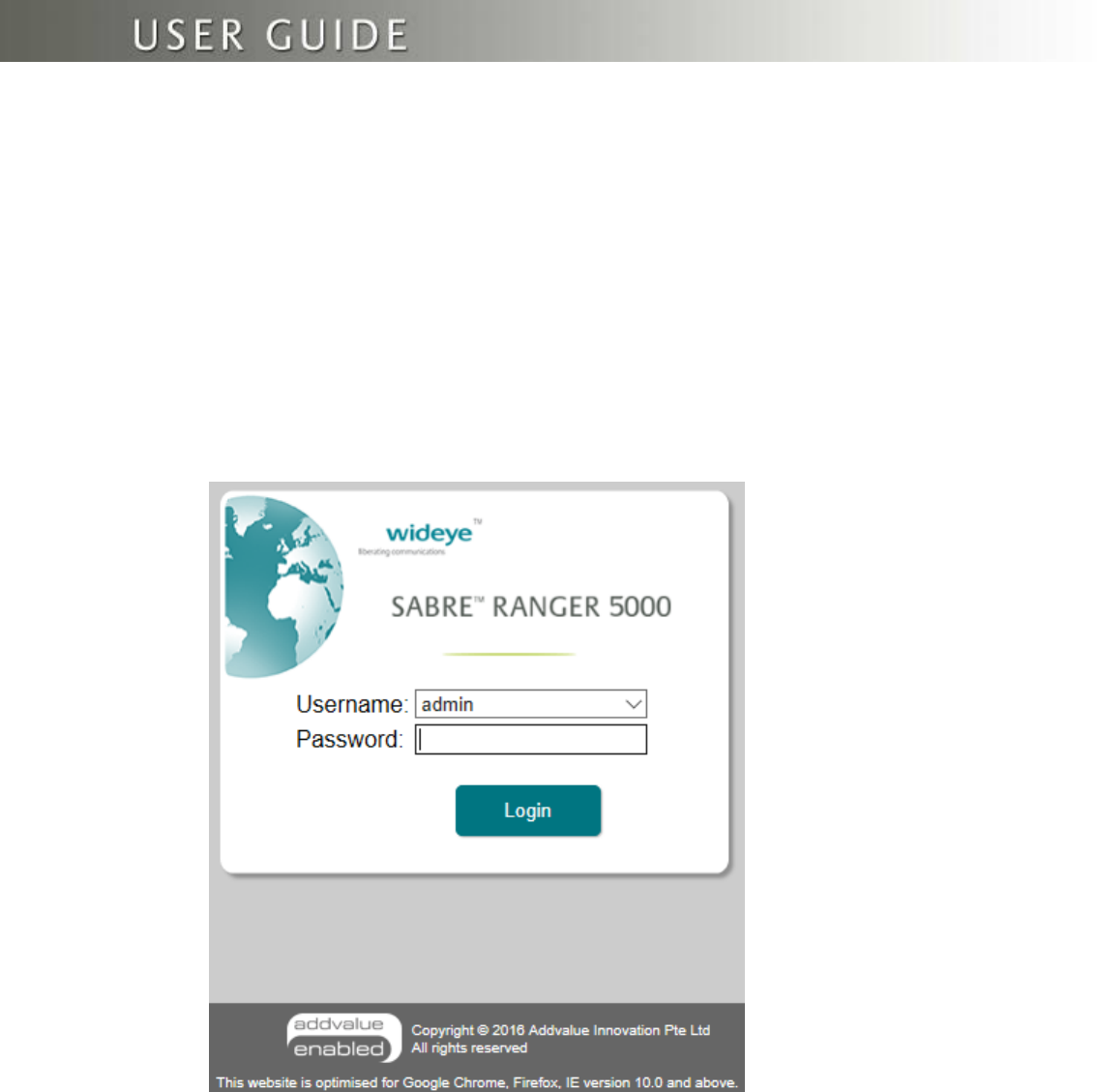

10. Navigate to the Web Console ..................................................................................................................... 25

11. Web Console .............................................................................................................................................. 29

11.1 Data .......................................................................................................................................................... 31

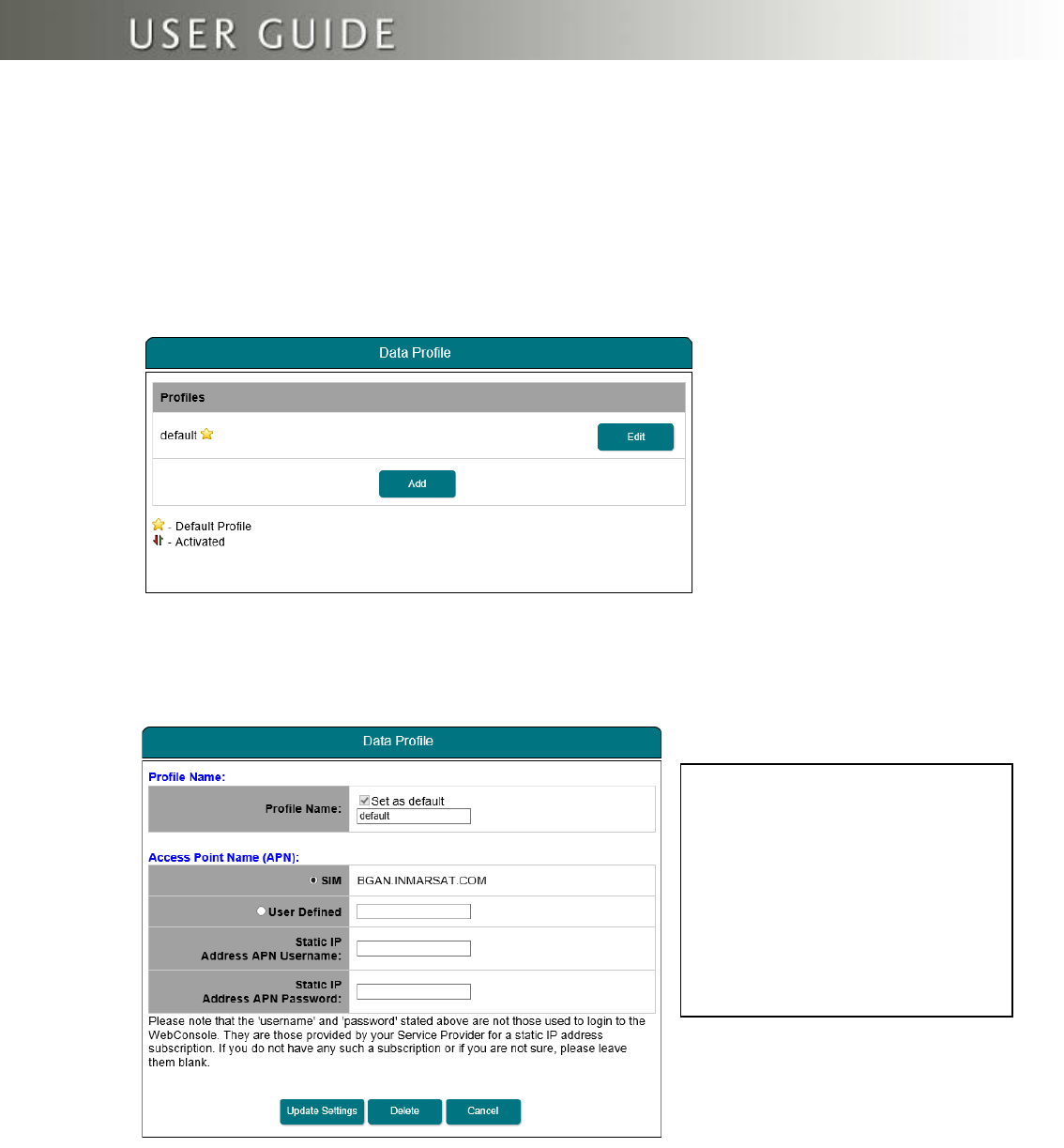

11.1.1 Data Profile ............................................................................................................................................ 31

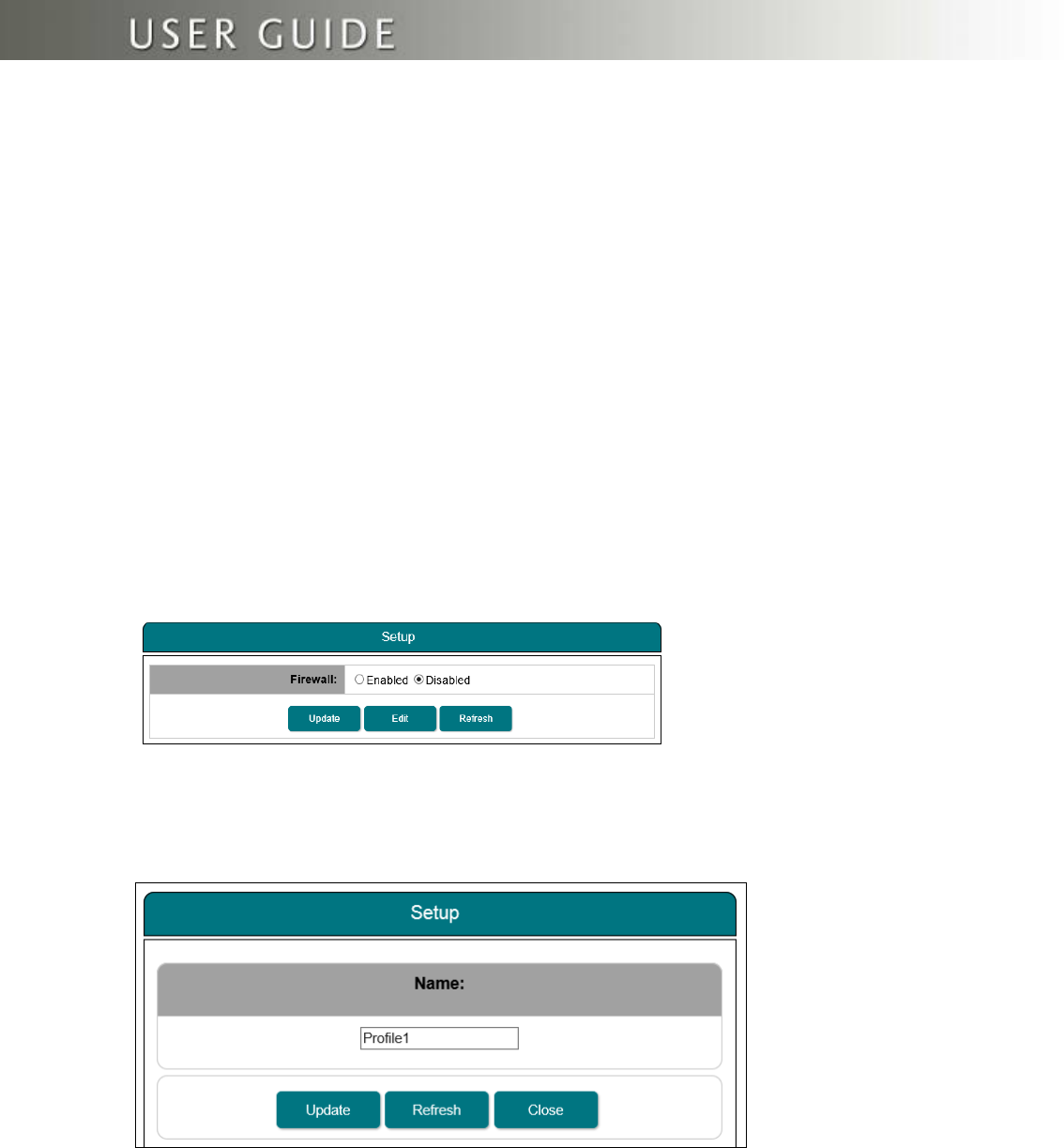

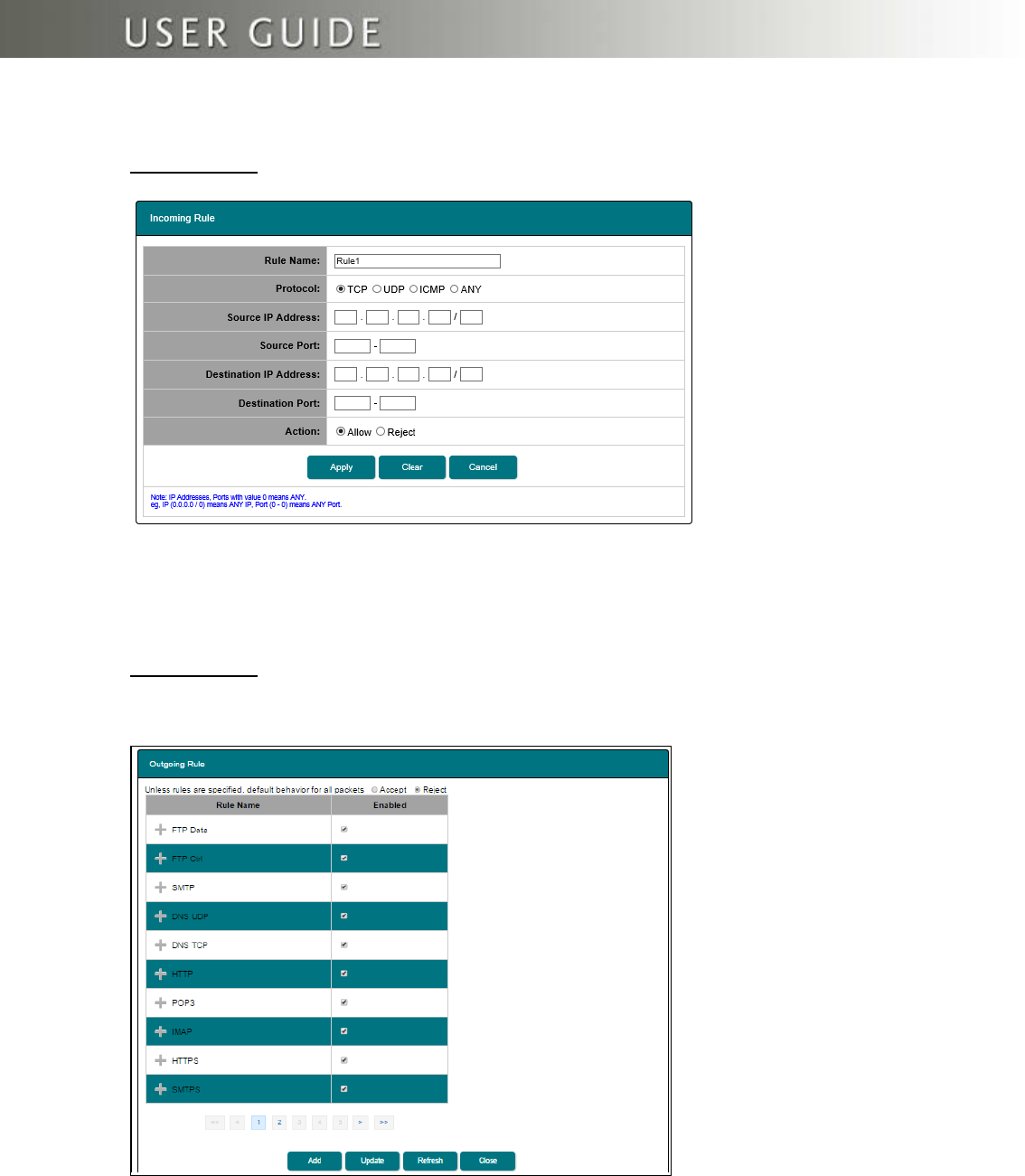

11.1.2 Firewall .................................................................................................................................................. 32

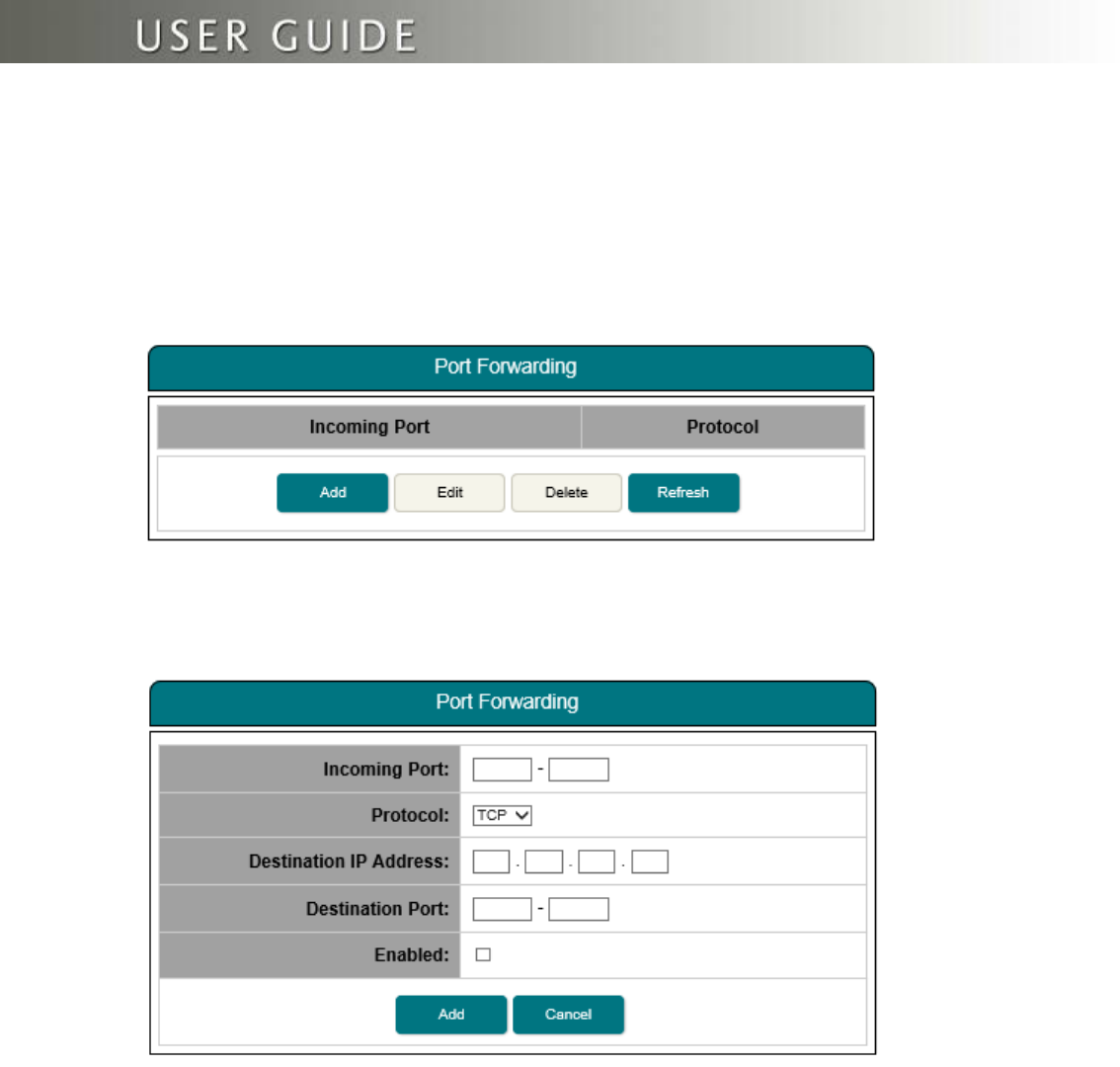

11.1.3 Port Forwarding ..................................................................................................................................... 35

11.1.4 Data Settings ......................................................................................................................................... 36

11.2 SMS .......................................................................................................................................................... 37

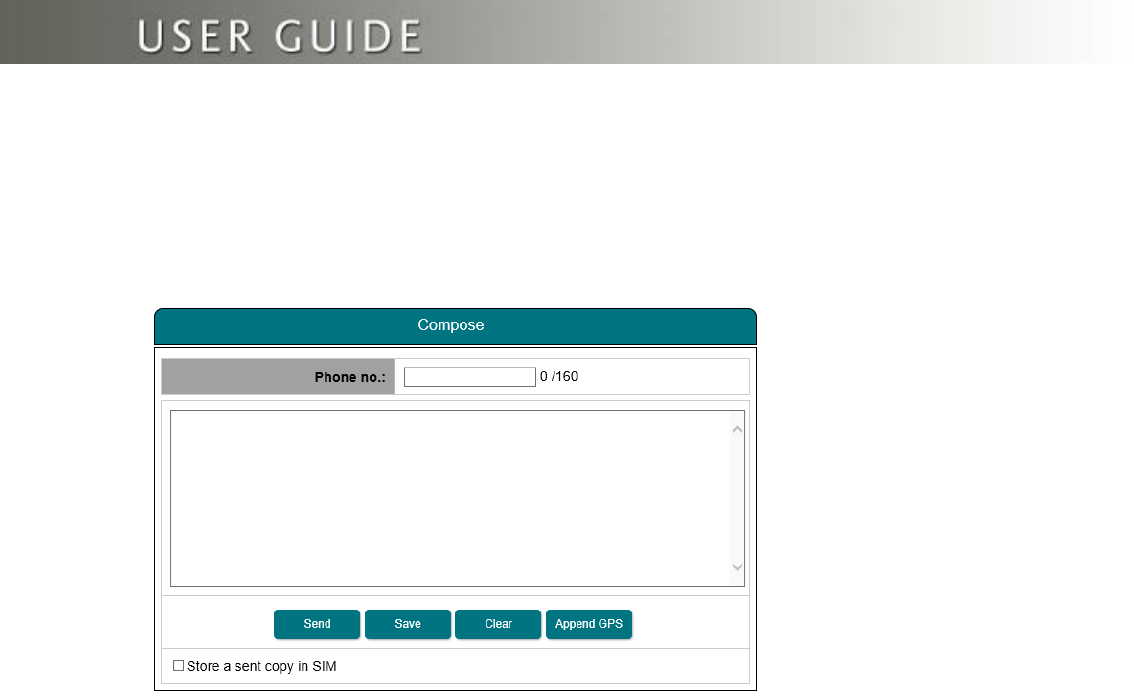

11.2.1 Compose ............................................................................................................................................... 37

11.2.2 Inbox ...................................................................................................................................................... 38

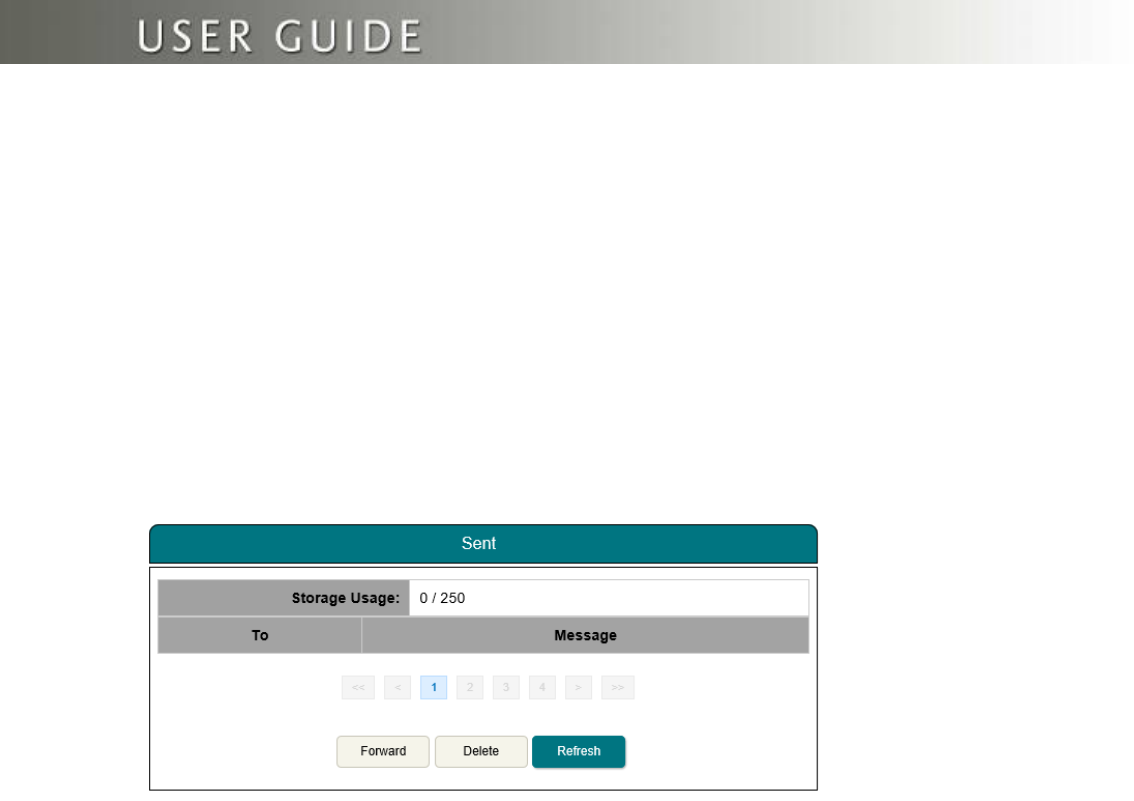

11.2.3 Sent ....................................................................................................................................................... 39

11.2.4 Draft ....................................................................................................................................................... 39

11.3 Settings ..................................................................................................................................................... 40

11.3.1 Accounts ................................................................................................................................................ 40

11.3.2 Ethernet ................................................................................................................................................. 41

11.3.3 Security .................................................................................................................................................. 42

11.3.4 Terminal Settings ................................................................................................................................... 43

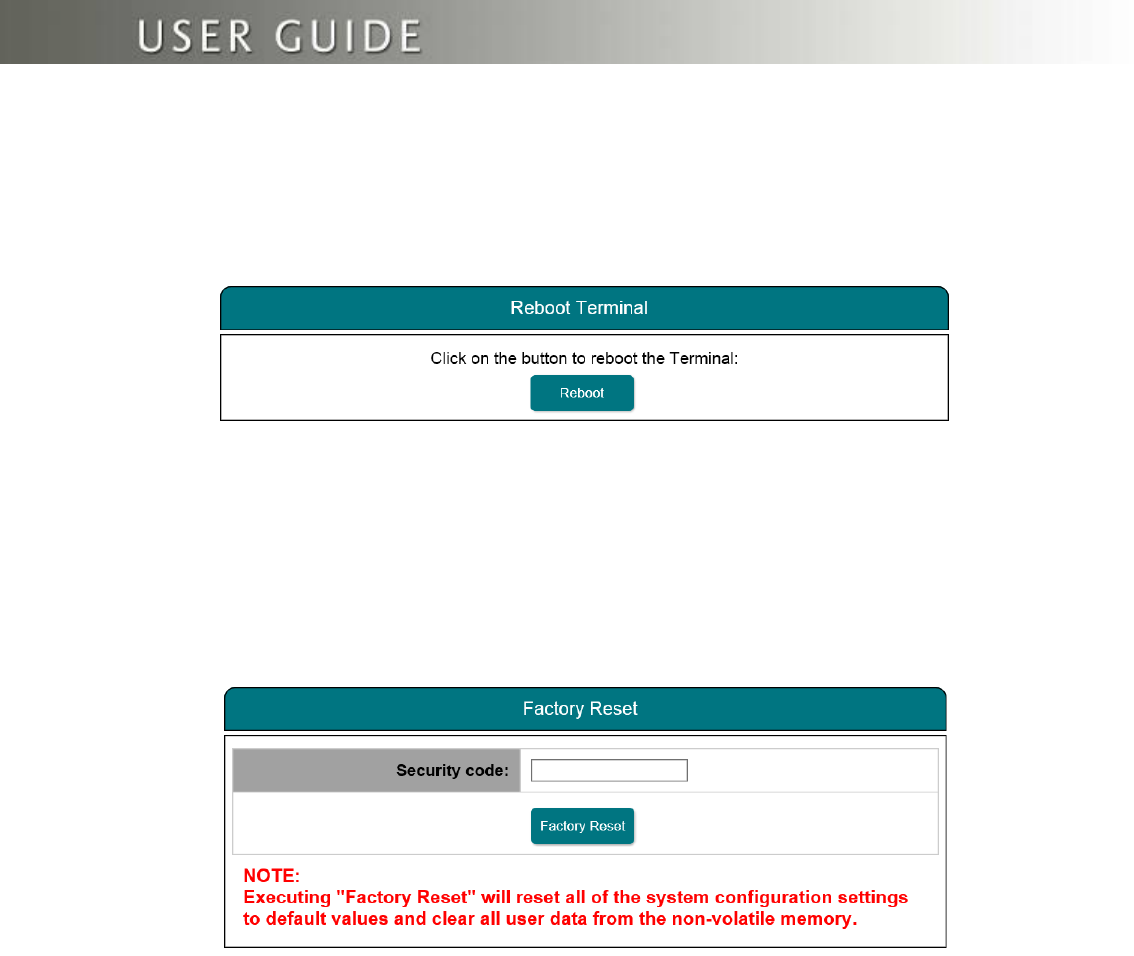

11.3.4.1 Reboot Terminal ................................................................................................................................. 43

11.3.4.2 Factory Reset ..................................................................................................................................... 43

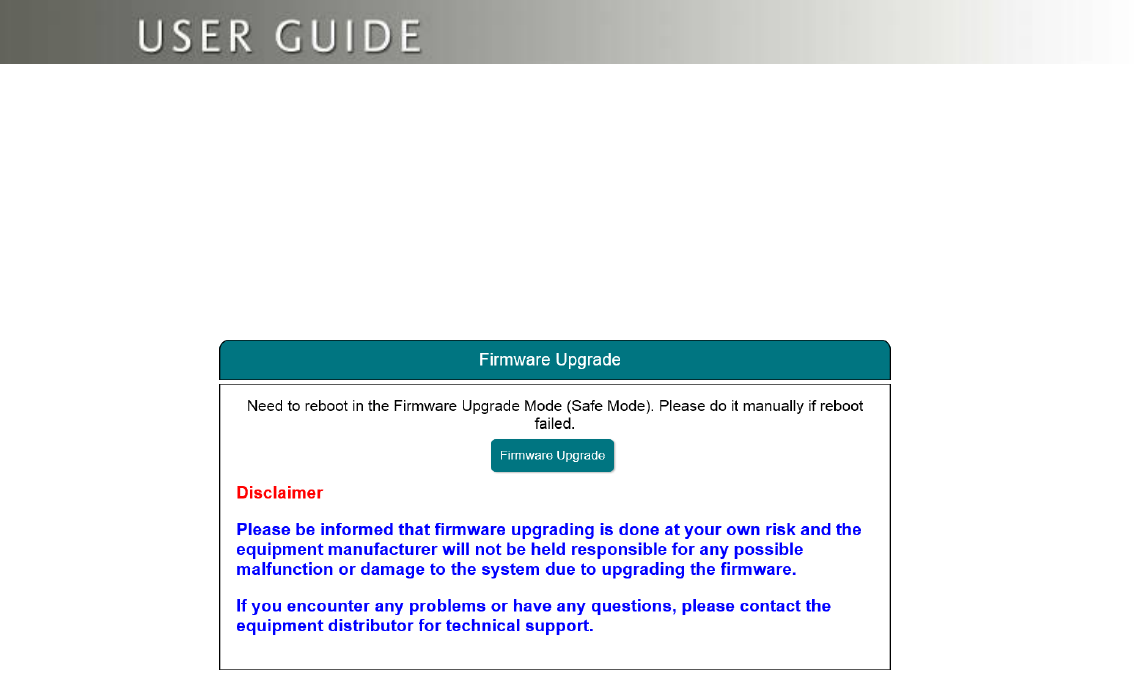

11.3.4.3 Firmware Upgrade .............................................................................................................................. 44

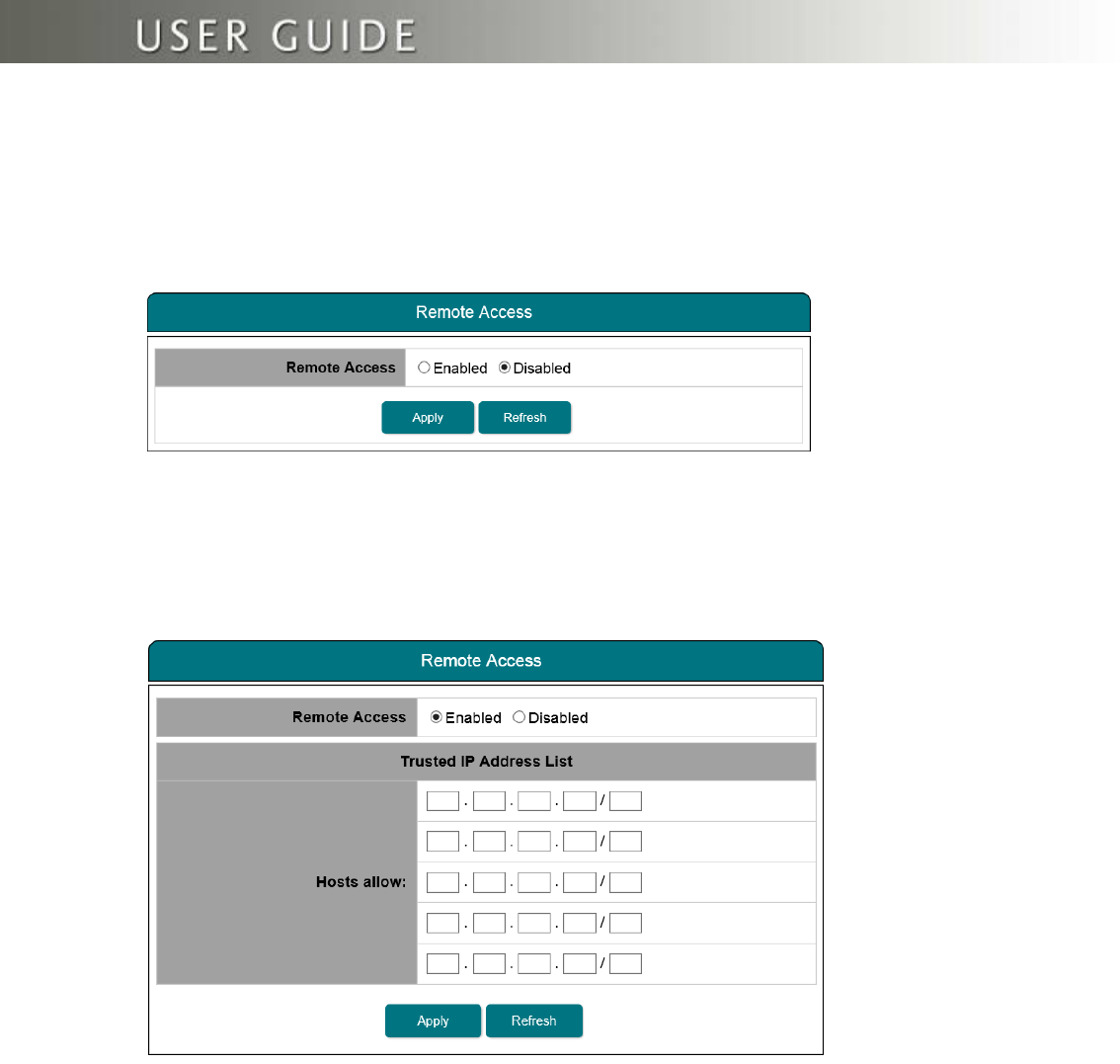

11.3.4.4 Remote Access .................................................................................................................................. 45

11.3.4.4 Power Saving ..................................................................................................................................... 46

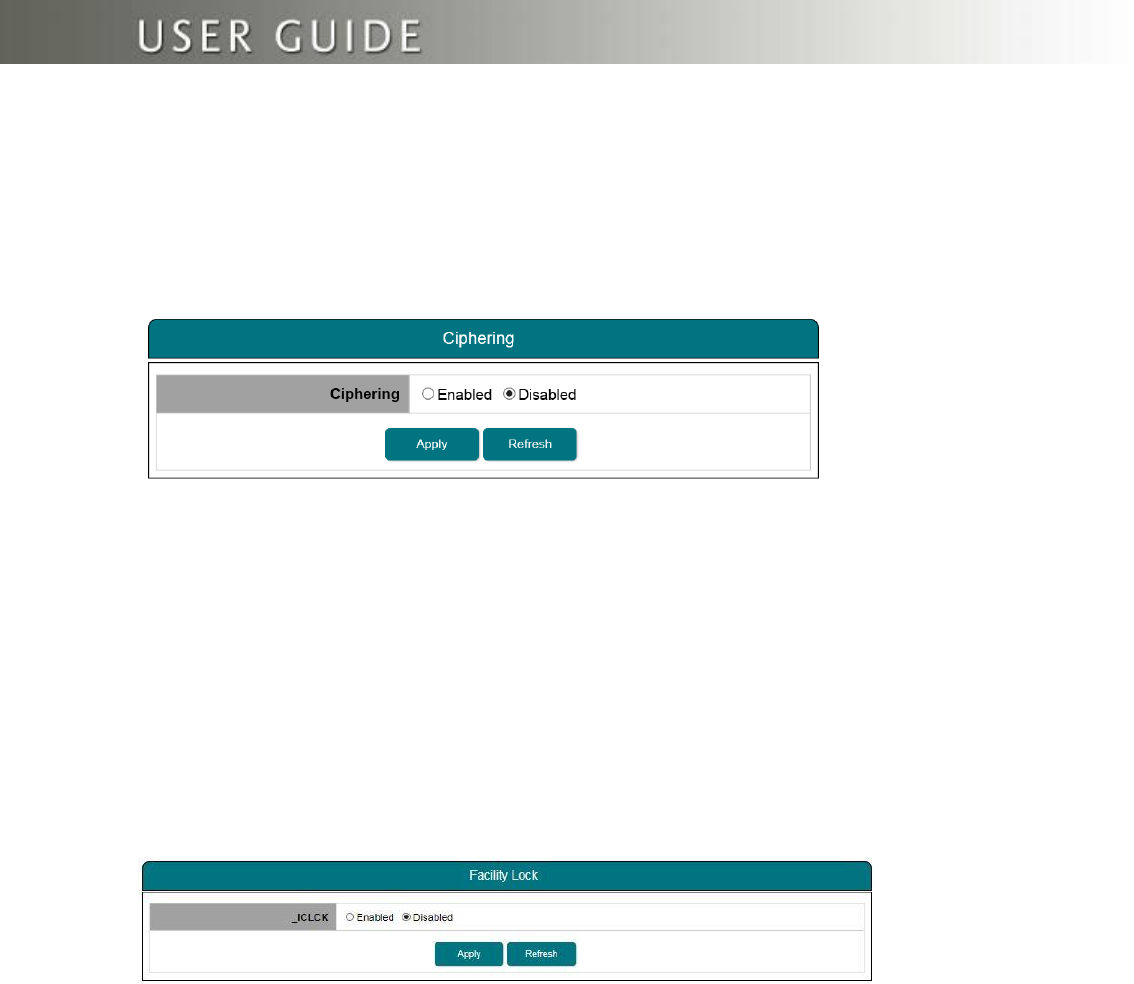

11.3.4.5 Ciphering ............................................................................................................................................ 47

11.3.4.6 Facility Lock ........................................................................................................................................ 47

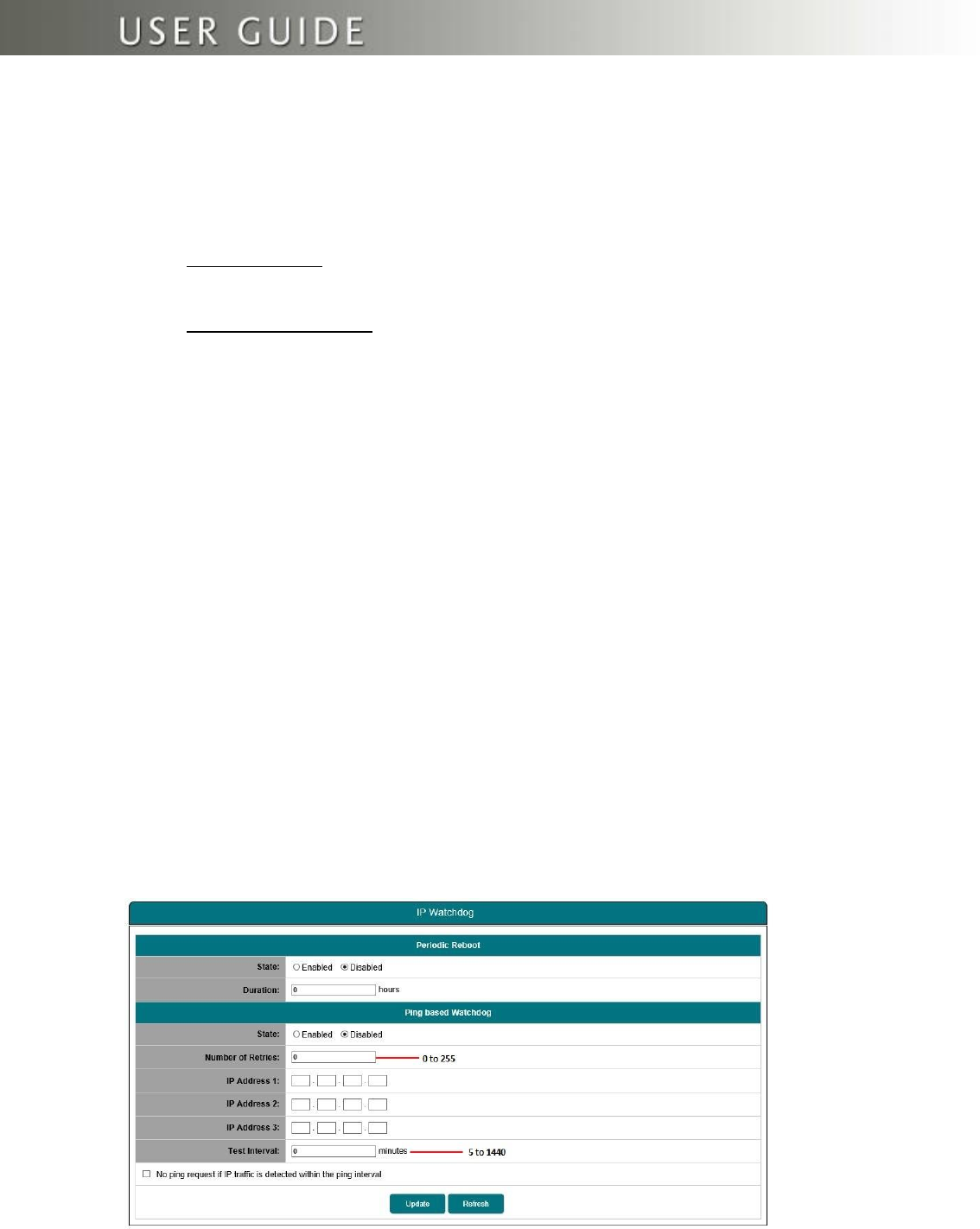

11.3.4.7 IP Watchdog ....................................................................................................................................... 48

11.3.4.8 I/O Configurations............................................................................................................................... 49

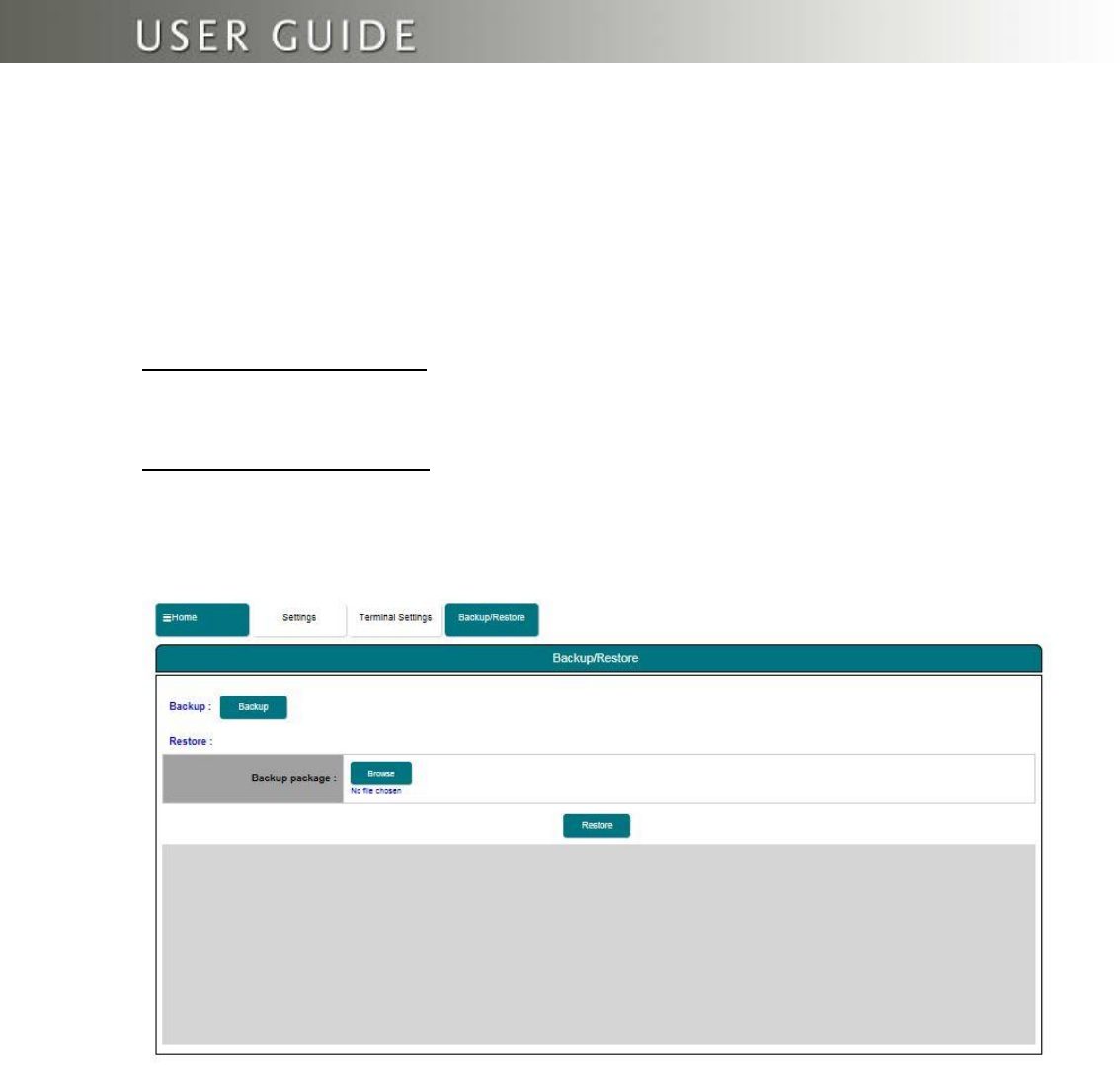

11.3.4.9 Backup/Restore .................................................................................................................................. 53

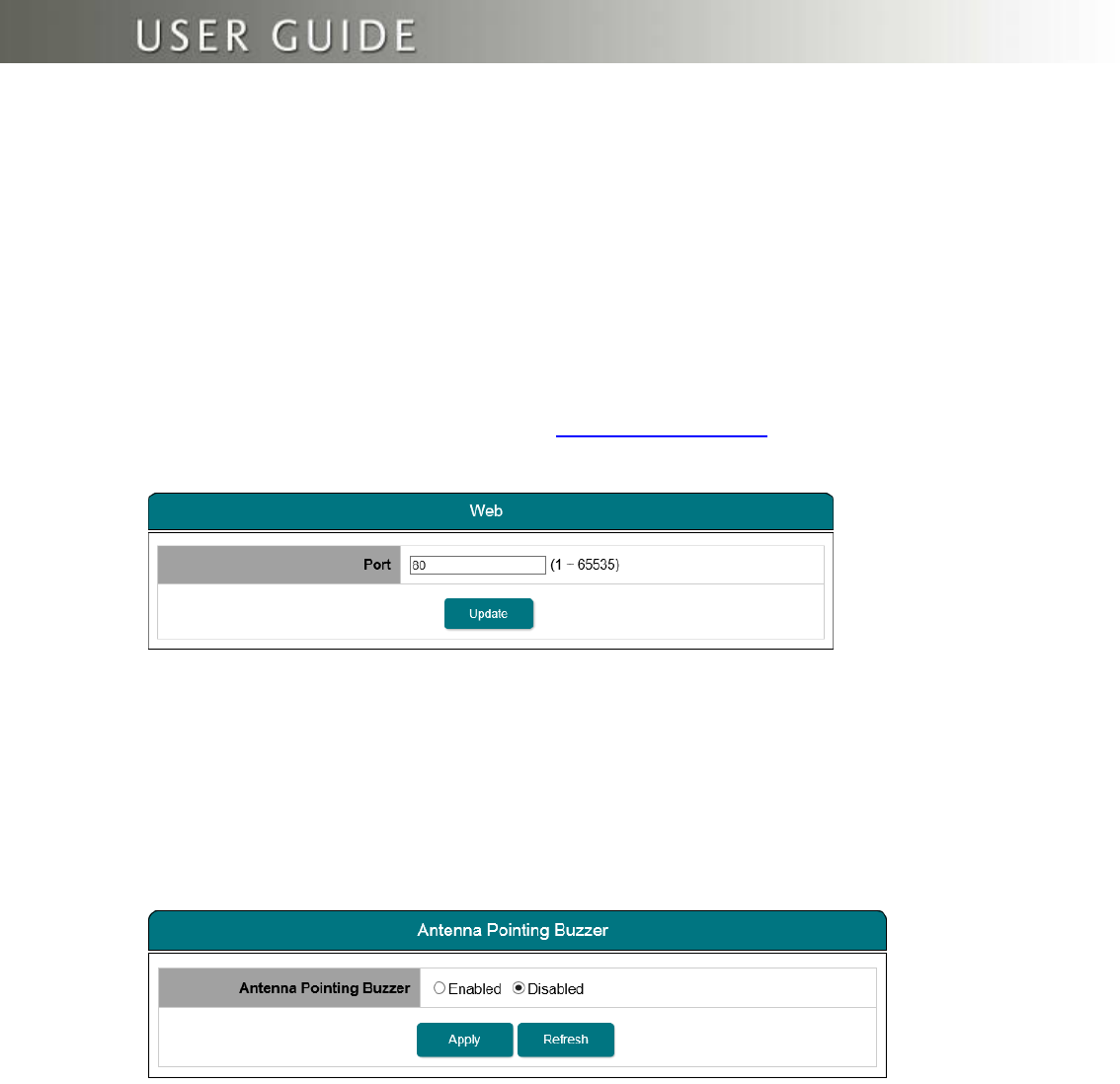

11.3.4.10 Web .................................................................................................................................................. 54

11.3.4.11 Antenna Pointing Buzzer .................................................................................................................. 54

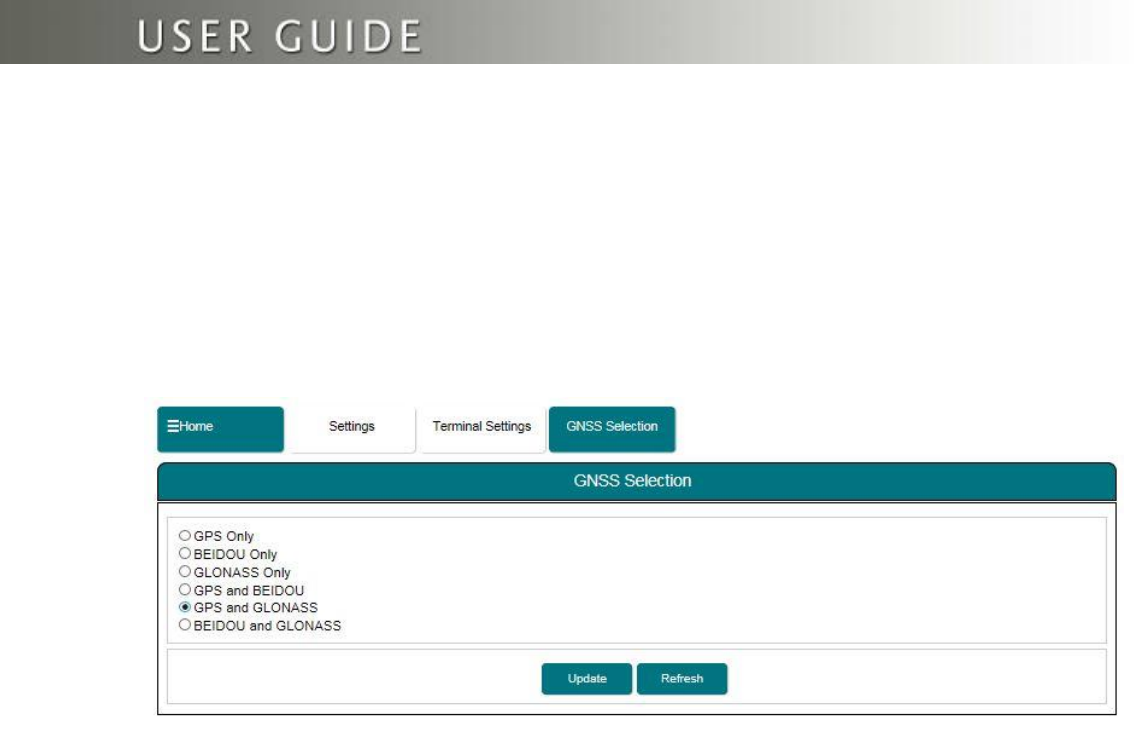

11.3.4.12 GNSS Selection................................................................................................................................ 55

11.3.5 Terminal Info .......................................................................................................................................... 56

11.3.6 SMS Configurations............................................................................................................................... 57

11.3.7 Language ............................................................................................................................................... 57

11.3.8 Support .................................................................................................................................................. 57

11.3.9 About ..................................................................................................................................................... 57

12. Web Console in Safe Mode ........................................................................................................................ 58

13. Appendix A: Terminal Block Pin Assignment ............................................................................................ 60

14. Appendix B: Conduit & Accessories .......................................................................................................... 62

15. Appendix C: Technical Summary .............................................................................................................. 63

16. Appendix D: Backup Configuration Reference Table ................................................................................. 65

SABRE™ RANGER 5000 User Guide

Copyright

No part of this publication may be reproduced in any form or by any means without the written

permission of Addvalue Innovation Pte Ltd., 8 Tai Seng Link, Level 5 (Wing 2) Singapore 534158.

Warranty

Addvalue Innovation Pte Ltd has made every effort to ensure the correctness and completeness of

the material in this document. Addvalue Innovation Pte Ltd shall not be liable for errors contained

herein. The information in this document is subject to change without notice. Addvalue Innovation

Pte Ltd makes no warranty of any kind with regard to this material, including, but not limited to, the

implied warranties of merchantability and fitness for a particular purpose.

Trademarks

All trademarks, marks, names, or product names referenced in this publication are the property of

their respective owners. Addvalue Innovation Pte Ltd neither endorses nor otherwise sponsors any

such products or services referred to herein. SABRE™ RANGER 5000 is a trademark of Addvalue

Innovation Pte Ltd.

Microsoft, Windows, Windows NT, Windows 2000, Windows XP, and Windows 7 are registered

trademarks of Microsoft Corporation in the U.S.A. and/or other countries.

INMARSAT is a trademark of the International Mobile Satellite Organization. The Inmarsat LOGO

and the trademark BGAN are trademarks of Inmarsat (IP) Company Limited. All trademarks are

licensed to Inmarsat Limited.

All other company and product names may be the registered trademarks or trademarks of their

respective owners.

Regulatory Information

FEDERAL COMMUNICATION COMMISSION NOTICE

FCC Identifier: XXX-XXXXXXXX

USE CONDITIONS:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

SABRE™ RANGER 5000 User Guide

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT NOTE: EXPOSURE TO RADIO FREQUENCY RADIATION

This Device complies with FCC & IC radiation exposure limits set forth for an uncontrolled

environment. The Antenna used for this transmitter must be installed to provide a separation

distance of at least 100cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.

FCC CAUTION:

Any Changes or modifications not expressly approved by the manufacturer could void the user’s

authority, which is granted by FCC to operate this satellite terminal, SABRE™ RANGER 5000.

INDUSTRY CANADA STATEMENT

ICC Identifier: XXXXX-XXXXXXXX

This device complies with Radio standard specification RSS -170 of Industry Canada Rules.

The operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

IMPORTANT NOTE: RADIATION EXPOSURE STATEMENT

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This antenna used for this transmitter must be installed to provide a separation distance of at least

100cm from all persons and must not be co-located or operating in conjunction with any other

antenna or transmitter.

SABRE™ RANGER 5000 User Guide

CE RED DECLARATION OF CONFORMITY

The CE RED Declaration of Conformity for the Sabre™ Ranger 5000 terminal will be added

on this page after completing the upgrade process of the CE RED tests.

Mobile Earth Stations (MES) 1668 – 1670 MHz is under restricted usage under ECC Decision

ECC/DEC/ (04)09 for EU Countries. User/Operator shall check with local Radio Spectrum

regulator for necessary operating license and restriction usage and protection of Local Radio

service.

AT

BE

BG

CZ

DK

EE

FR

DE

IS

IE

IT

EL

ES

CY

LV

LI

LT

LU

HU

MT

NL

NO

PL

PT

RO

SI

SK

TR

FI

SE

CH

UK

HR

SABRE™ RANGER 5000 User Guide

Introduction

The SABRE™ RANGER 5000 is a broadband global area network (BGAN) Class 2

machine-to-machine (M2M) satellite terminal. It has a ruggedised mechanical enclosure

designed to be “touch once and left” in all types of weather conditions.

The terminal operates on either the Inmarsat standard BGAN or the M2M service. It

offers global coverage and is fit for SCADA applications to gather real-time data from

remote unmanned locations. The firmware is specially designed to provide reliable and

stable BGAN connectivity continuously for long period of time without user intervention.

It is fully compatible with the Remote Terminal Manager (RTM) or Inmarsat M2M platform,

which allows the user to graphically view the location of the terminal and monitor the

terminal status.

The terminal can also be configured remotely using SMS commands. The PDP context of

the SABRE™ RANGER 5000 can be activated or deactivated via SMS. The rebooting

process can also be initiated via SMS. In addition, the terminal logs can be retrieved

remotely for debugging purpose.

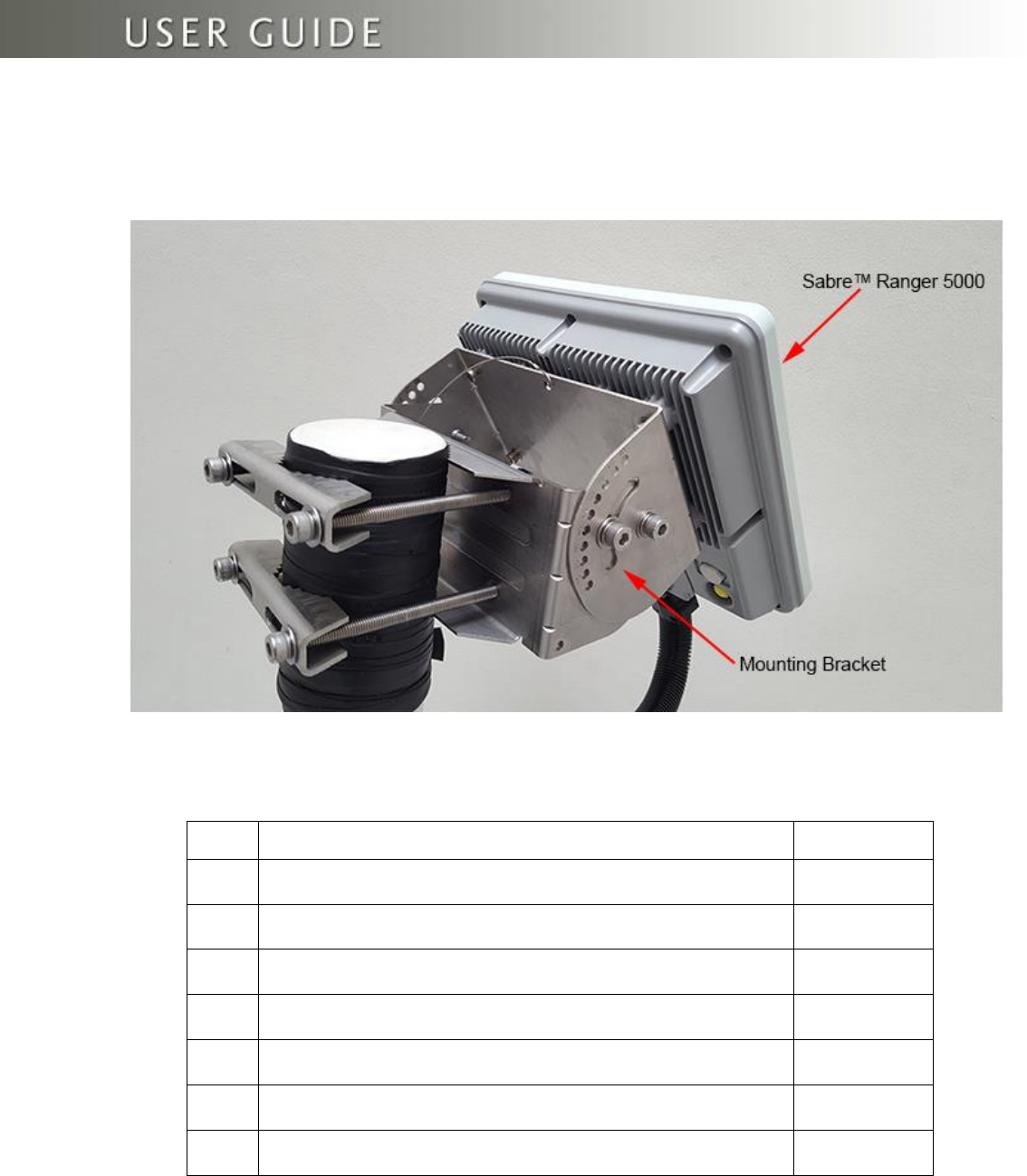

You can use either the rugged mounting bracket (optional accessory) of the Sabre™

Ranger 5000 (See figure 1 below.) or a VESA MIS-D bracket to mount the SABRE™

RANGER 5000 terminal.

Figure 1

SABRE™ RANGER 5000 User Guide

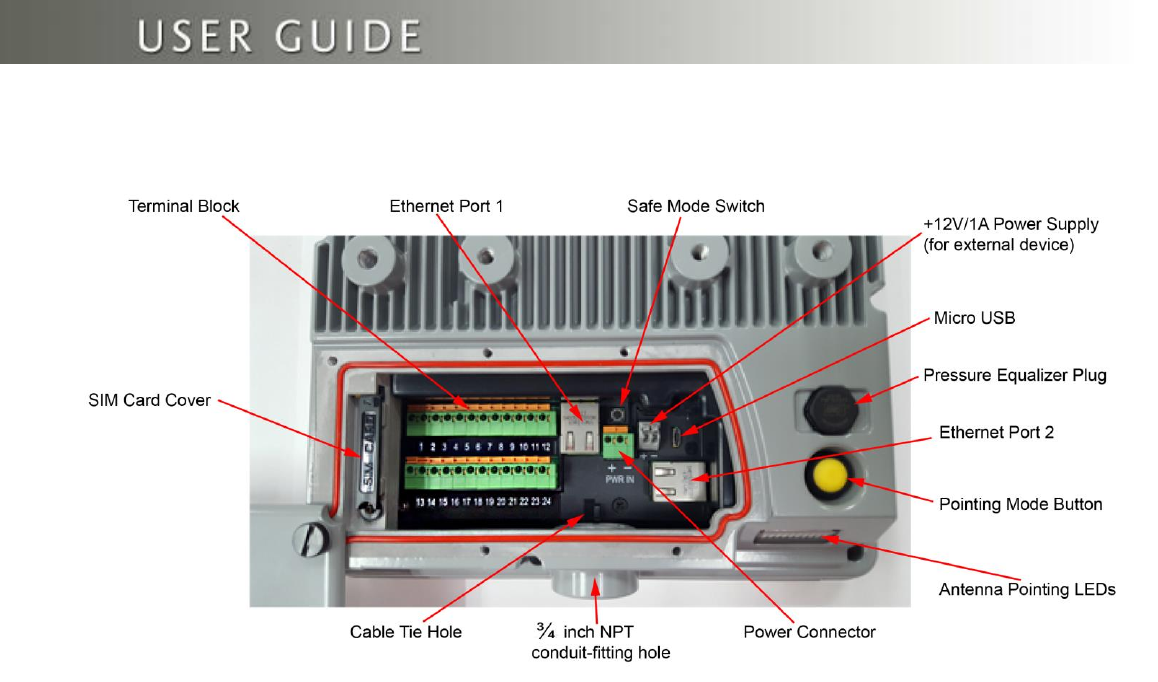

2. Quick Reference

Figure 2

The SABRE™ RANGER 5000 has a NPT ¾ inch hole for installing a conduit-fitting or a

cable gland on the bottom part of the casing to route all the wires.

SABRE™ RANGER 5000 User Guide

3. Install the Sim Card

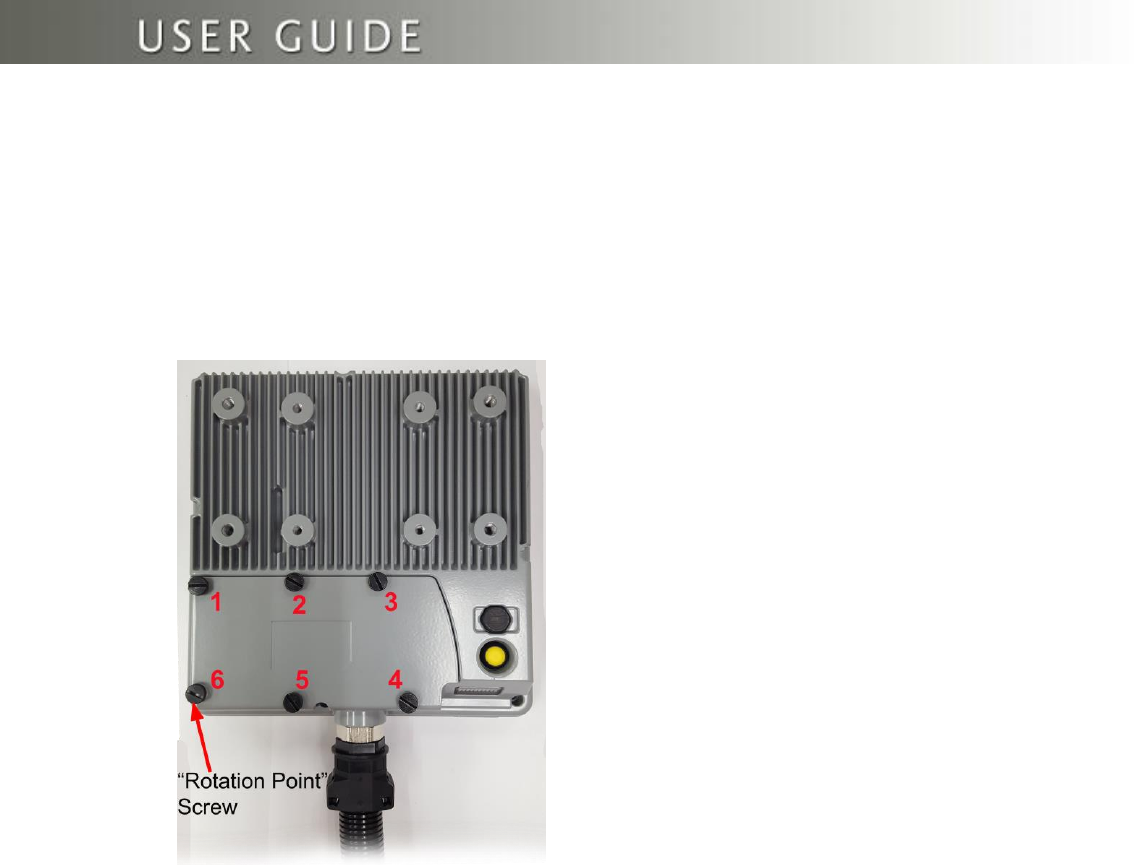

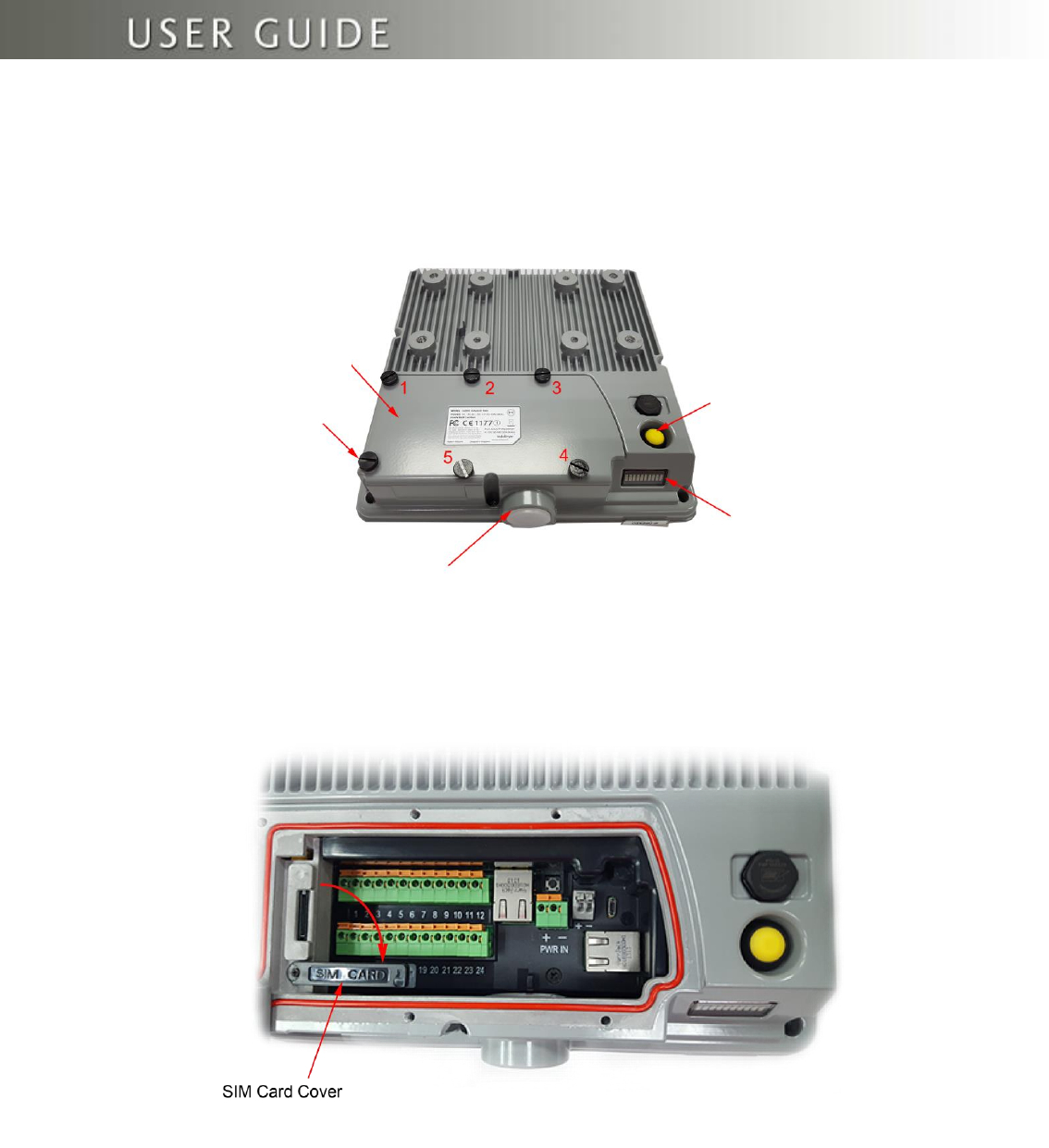

1. Release the five black screws from the protective cover and loosen the “Rotation

Point” screw. See figure 3.

Figure 3

2. Rotate the protective cover in a clockwise direction.

3. Open the SIM card cover and rotate in a clockwise direction. See figure 4.

Figure 4

Protective Cover

“Rotation-Point” Screw

Pointing Mode Button

Antenna Pointing LEDs

Conduit-Fitting Hole

SABRE™ RANGER 5000 User Guide

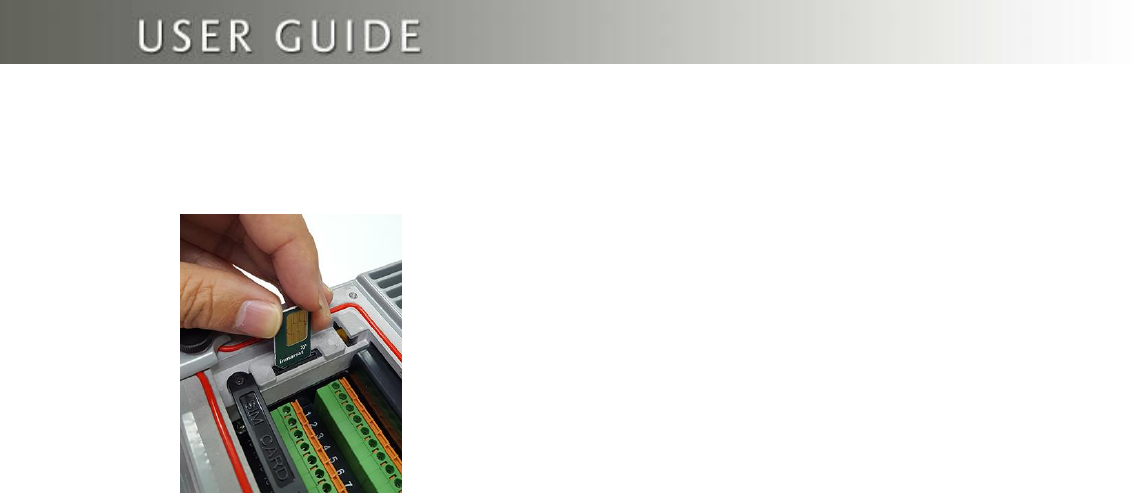

4. Slot the SIM card into the SIM card holder in the orientation as shown on figure 5.

Figure 5

5. Insert the SIM card until it ‘clicks’ into place.

6. Rotate and move the SIM card cover back in place.

SABRE™ RANGER 5000 User Guide

4. Connect the Cables and Wires

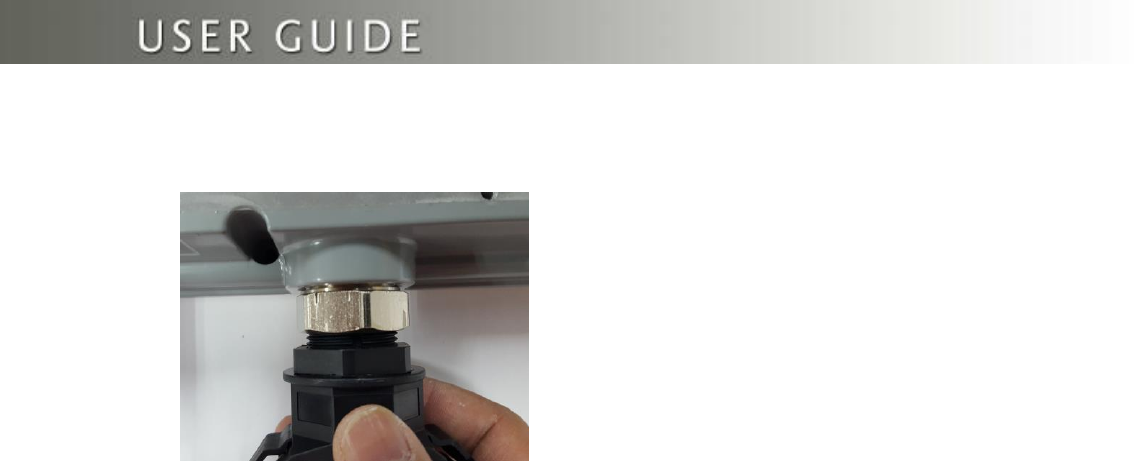

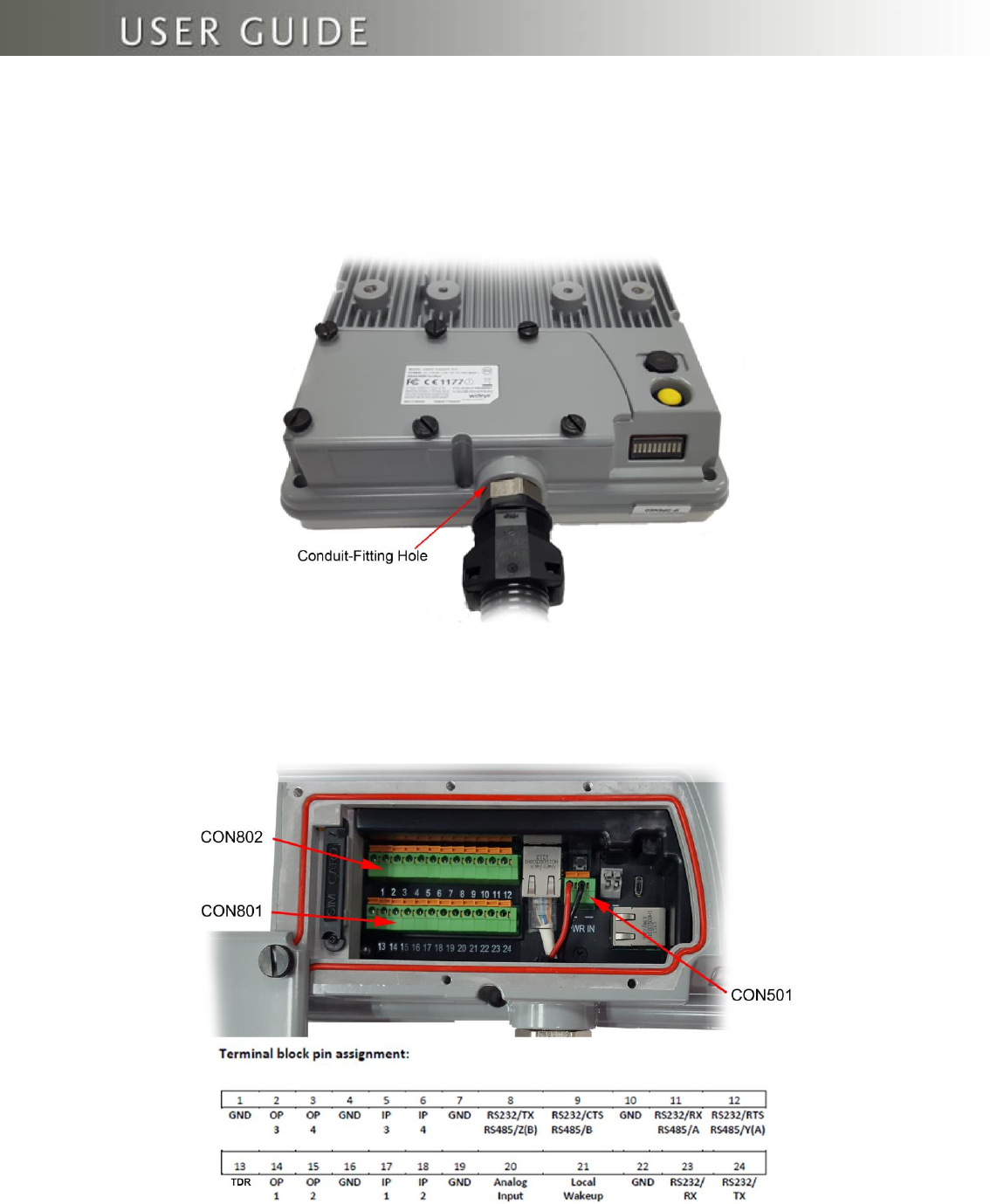

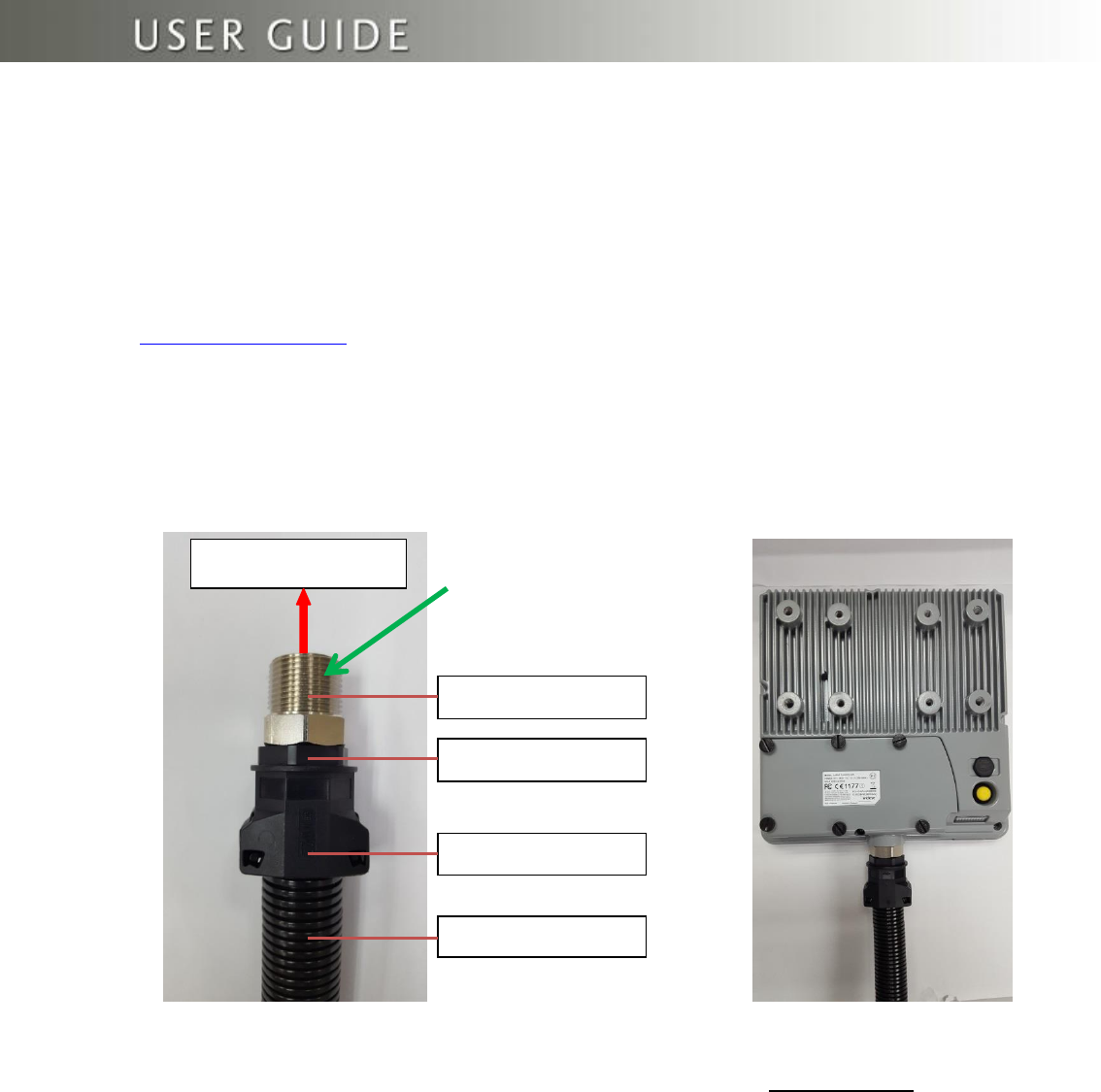

The SABRE™ RANGER 5000 has a NPT ¾ inch hole for installing a conduit-fitting or

a cable gland at the bottom part of the casing to connect all the wires. See appendix

B for information about the conduit and its accessories.

Figure 6

Figure 7

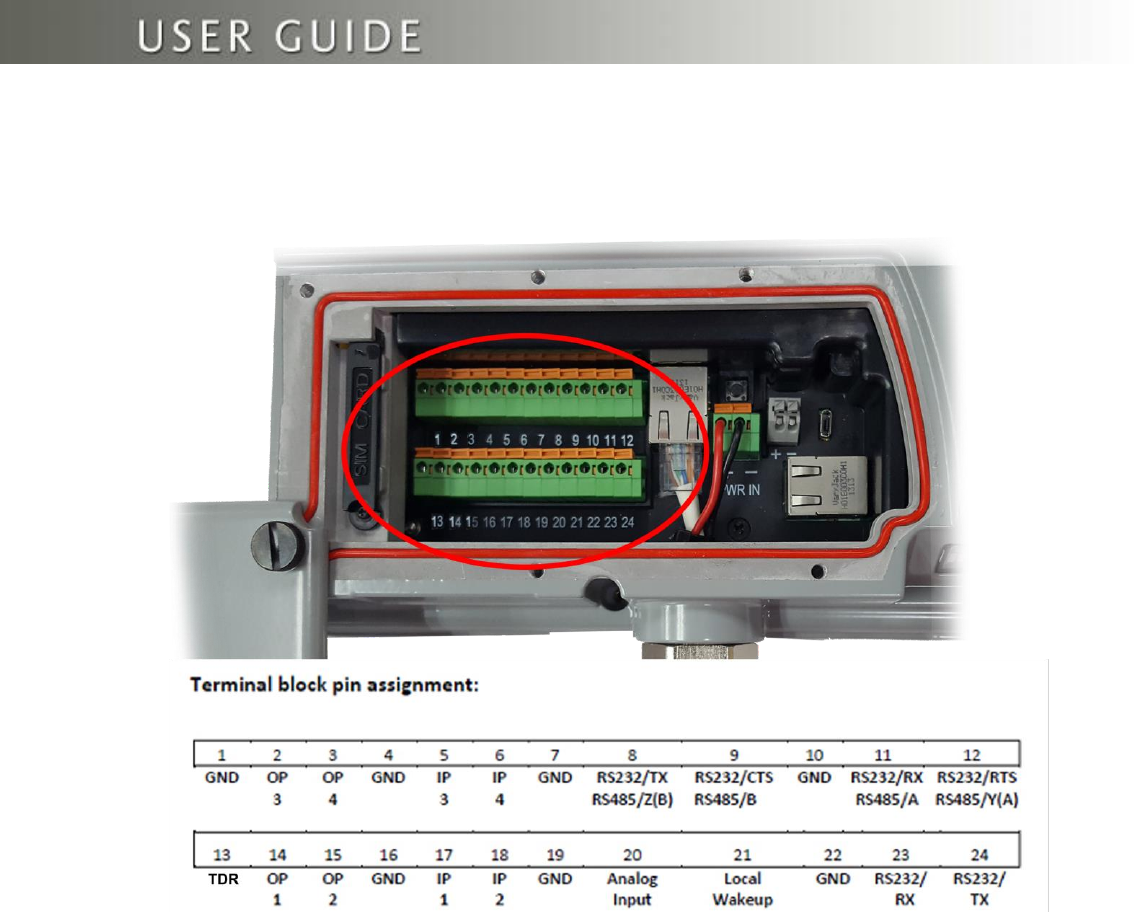

CON801 and CON802 Terminal Block Assignment

SABRE™ RANGER 5000 User Guide

Ethernet Connection

 Use a CAT5e cable with the RJ45 plug for the Ethernet cable. Thread the Ethernet

cable through the conduit-fitting/Cable gland hole carefully.

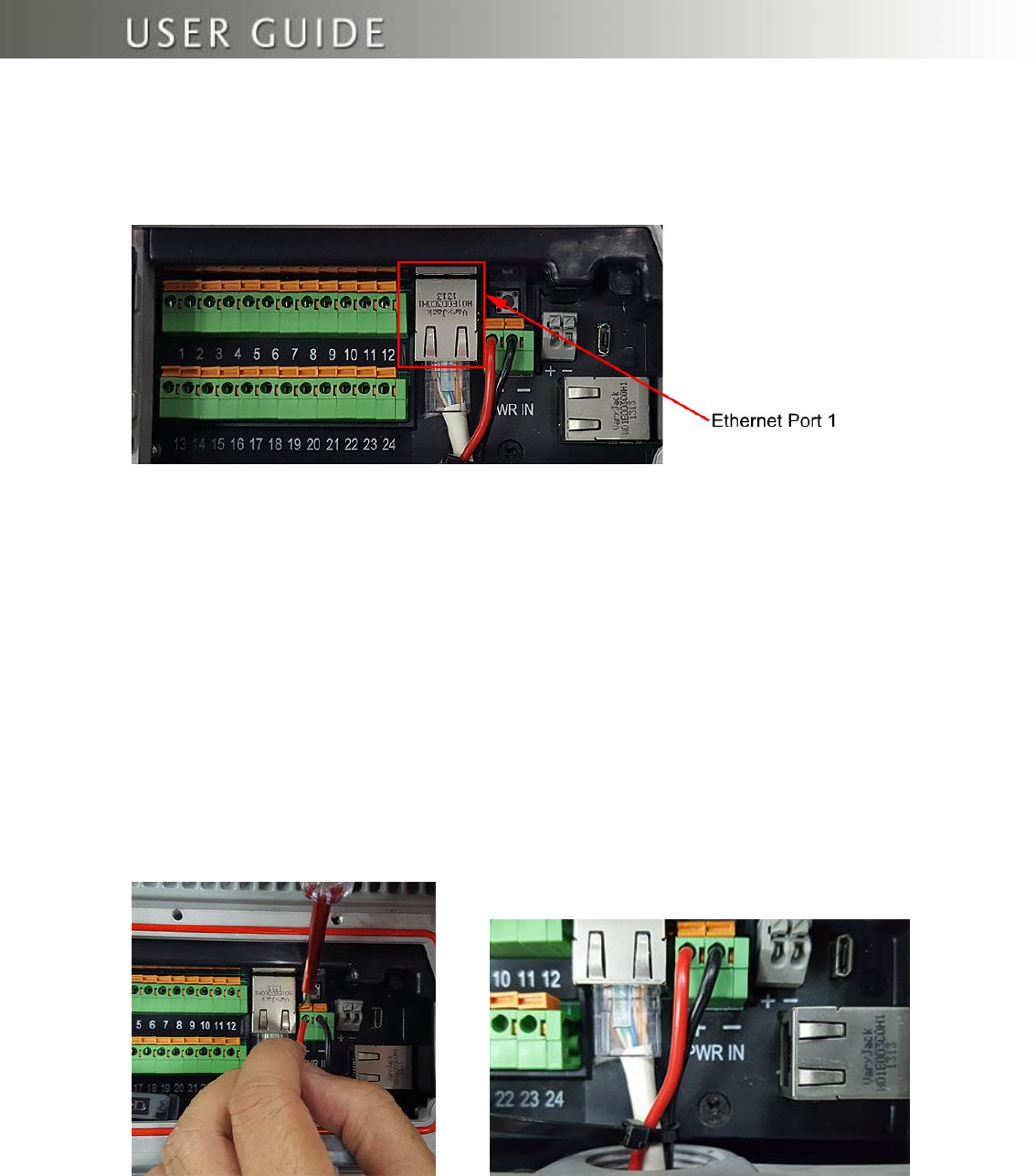

 Insert the RJ45 Plug into the Ethernet Port 1 (as indicated below in red rectangle).

Figure 8

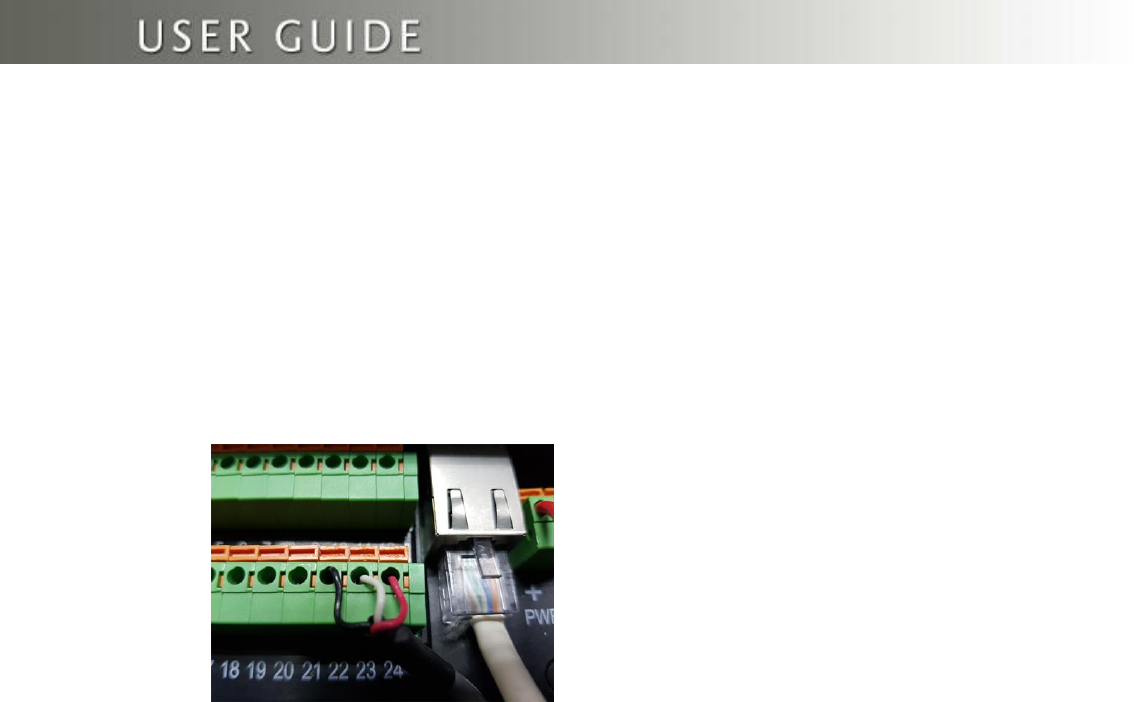

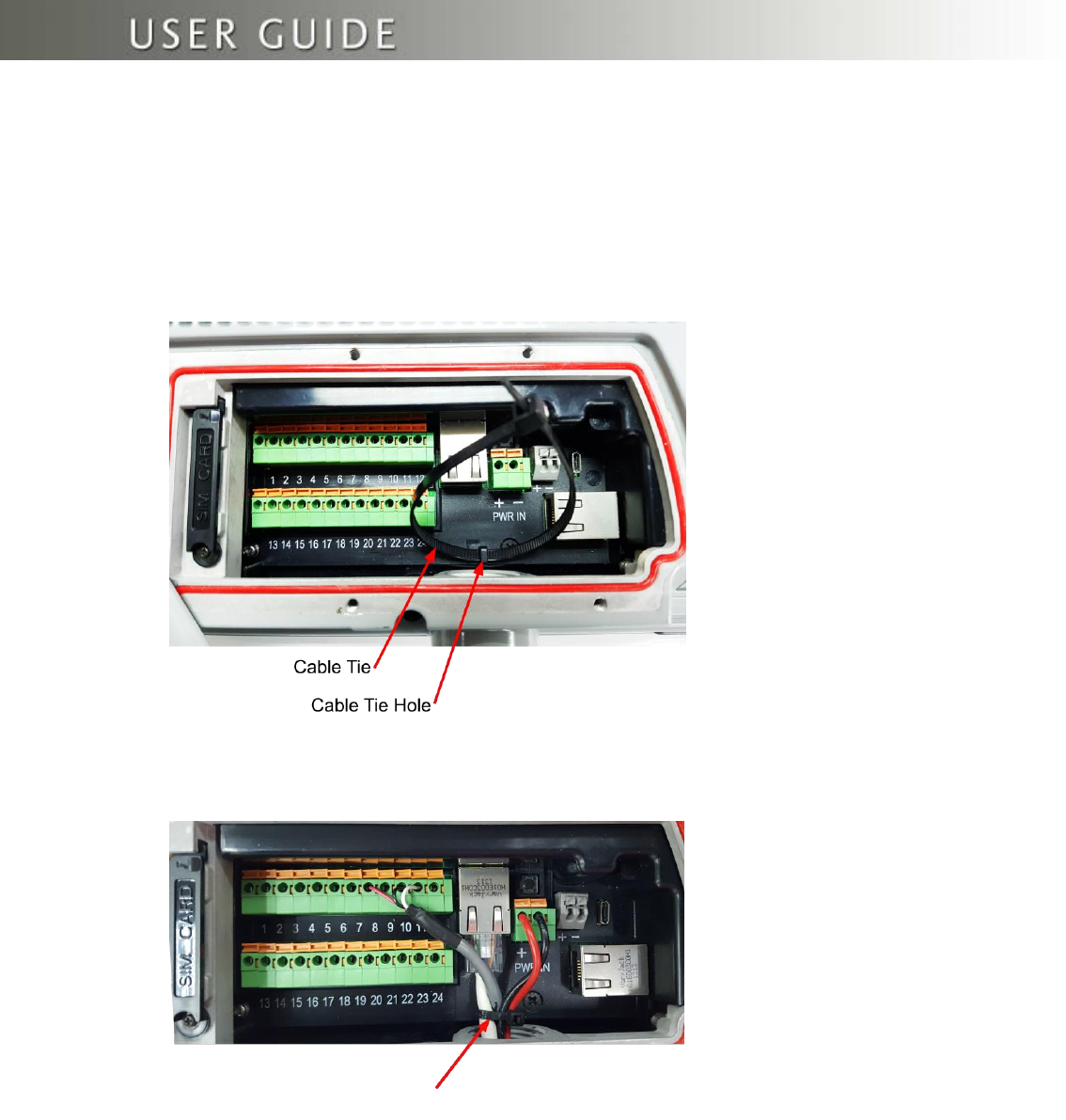

Power Supply input

 Connect a 12VDC nominal power supply to the Power connector, CON501. This

Power supply input supports a range of voltages from 10.8 to 32Volts. The terminal

requires 20W when transmitting and 6W when receiving.

 Use two AWG16 wires for power connection if the cable length is not more than 10m.

Otherwise, use AWG14 wires for a cable that can be lengthened up to 100m.

 Insert the red wire into the terminal block with (+) marking, the black wire into the

terminal block with (-) marking. Press and hold the orange tab on the terminal block

while inserting the wire into the hole.

NOTE: The sample wires below are used for reference. You may use different colour wires that

met the electrical specifications.

Figure 9

SABRE™ RANGER 5000 User Guide

RS232 port – debug port

This port is intended for capturing the debug log. The cable length is limited to 10 metres.

Use Belden cable no. 9533 or equivalent.

 Connect the wires as shown below.

NOTE: The sample wires below are used for reference. You may use different colour wires that

met the electrical specifications.

Black wire  terminal block 22 (GND)

Red wire  terminal block 24 (RS232-TX)

White wire  terminal block 23 (RS232-RX).

Figure 10

RS232/RS485 – user port

This is a user configurable port. The user can configure this port to be any of the

following:

 RS232

 RS485 – full duplex

 RS485 – half duplex

RS232

Use Belden cable no. 9533 or equivalent for 3-wire RS232 (RX, TX, GND) or Belden

cable no. 9535 or equivalent for 5-wire RS232 (RX, TX, RTS, CTS, GND). Cable length is

limited to 10 metres.

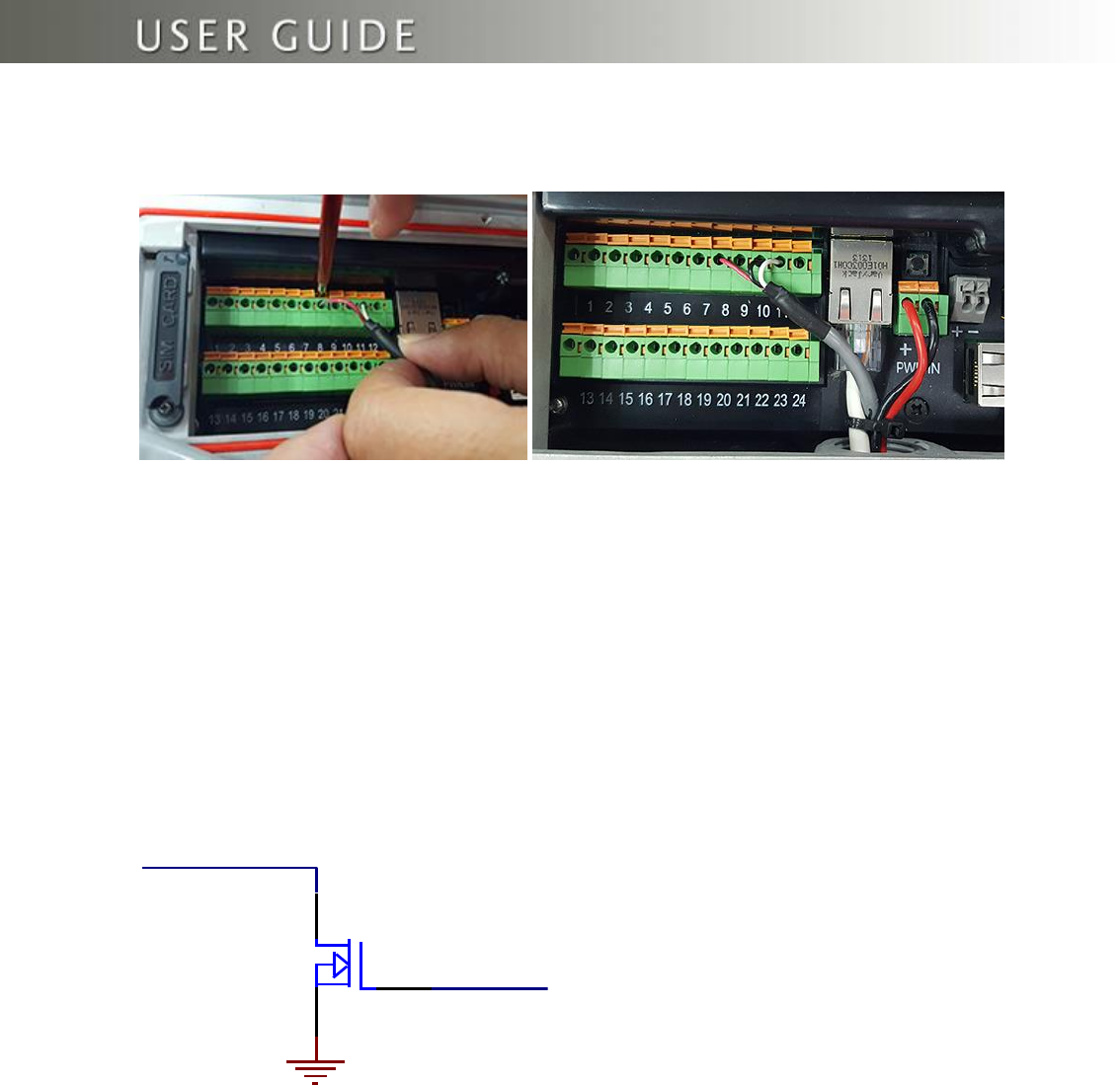

 Connect the wires as shown below.

NOTE: The sample wires below are used for reference. You may use different colour wires that

met the electrical specifications.

Black wire  terminal block 10 (GND)

Red wire  terminal block 8 (RS232-TX)

White wire  terminal block 11 (RS232-RX)

NOTE: If you use the Belden cable no. 9535 for 5-wire RS232 (RX, TX, RTS, CTS, GND), refer

to figure 7 for the wire connections to the terminal block.

SABRE™ RANGER 5000 User Guide

Figure 11

Digital Input and Output; Terminal Data Ready (TDR)

Output; Local Wake up Input

Use Belden cable no. 9535 or similar non-paired shielded cable for these connections.

The number of wires in the cable can vary depending on the user requirements.

Digital output

There are 4 digital outputs configured as Low side drivers. These outputs are connected

to pin 14(OP1) and pin 15(OP2) of CON801 and pin 2(OP3) and pin 3(OP4) of CON802.

A low side driver will pull the signal to ground when active. An output can sink up to

400mA of current.

Lo w Side Driver

Figure 12

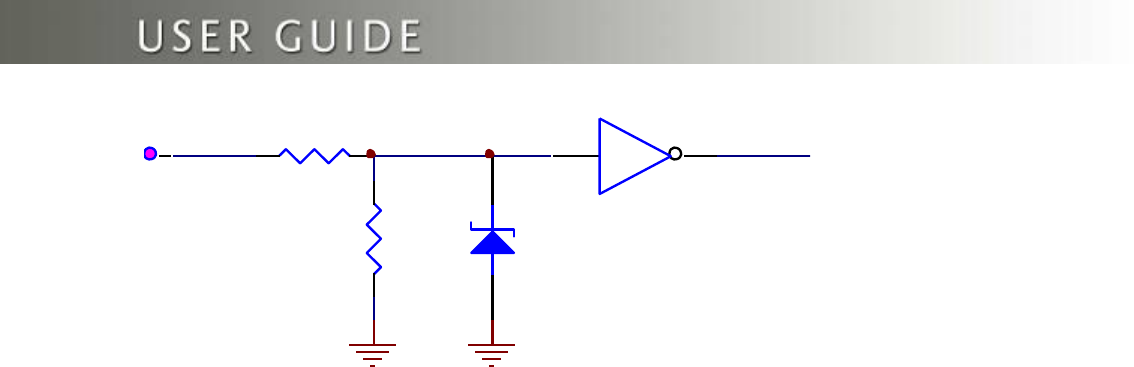

Digital input

There are 4 digital inputs. They are connected to pin 17 (IP1) and pin 18(IP2) of CON801

and pin 5(IP3) and pin 6(IP4) of CON802. These inputs accept a signal of 0V to +32VDC.

These inputs have a weak pull-down of approximately 300K ohms. A pull-up to +5VDC

may be used to drive these inputs. The input buffer inverts the input logic level. The

minimum input voltage to be declared is higher than, 2.6V. The maximum input voltage to

be declared is lower than, 1.0V. The digital input ground is connected to pin 4 (GND), pin

7(GND) or pin 16(GND).

Low Side Driver

SABRE™ RANGER 5000 User Guide

300K

20K

Input

Figure 13

Local Wake up input

This is a digital input. The local wakeup input is connected to pin 21 (Wake-up) of

CON801. The signal ground is connected to pin 22 (GND) of CON801. The electrical

specifications of this input are the same as the specifications of the Digital input.

Terminal Data Ready (TDR) output

This is a digital output. The TDR output is connected to pin 13 (TDR) of CON801. The

signal ground is connected to pin 1 (GND) of CON802. The electrical specifications of

this port are the same as the specifications of the Digital output.

Analogue voltage input

Use Belden cable no. 9841 or equivalent. The analogue input is connected to pin 20

(Analog-input) of CON801. This input will accept a signal of 0V to 32VDC. The analogue

signal ground is connected to pin 19 (GND) of CON801.

SABRE™ RANGER 5000 User Guide

Secure the cables and wires with a cable tie

1. Gather all the connected cables and wires.

2. Loop the cable tie into the cable tie hole in the terminal before fastening to secure the

wires in place so that they will not slip off its connectors.

See figure 14 – * wires are not displayed to show the cable tie hole.

Figure 14

3. Secure the wires together with a cable tie.

Figure 15

Cable Tie

SABRE™ RANGER 5000 User Guide

4. Secure the conduit tightly to the adaptor to prevent water from getting into the conduit

and the terminal.

Figure 16

SABRE™ RANGER 5000 User Guide

Secure the protective cover

1. Rotate the protective cover anti-clockwise to the closed position.

2. Tighten the six black screws including the “rotation point” screw with a flat blade screw driver.

NOTE: For ingress protection, it is important to ensure the screws are tightened to a torque

value of 0.57 Nm (5.0 in-lbs), approximately 2 ½ to 3 turns for each screw.

Figure 17

SABRE™ RANGER 5000 User Guide

5. Optional Accessories

Mounting Bracket

Figure 18

Parts List

ITEM

DESCRIPTION

QTY

01

Socket Head Cap Screws, M8 x 120mm, Full thread

4

02

Flat Washers, M8

12

03

Saddle Clamps

2

04

Bracket Wall (185 x 90 x 100)mm

1

05

Split Washers, M8

4

06

Socket Head Cap Screws, M8 x 14mm

8

07

Bracket Body (189 x 110 x 90)mm

1

SABRE™ RANGER 5000 User Guide

6. Fix Optional Mounting Bracket to Sabre™ Ranger 5000

Figure 19

1. See figure 19 above. Place Sabre™ Ranger 5000 terminal with its front face on a flat surface.

2. Attach the bracket body on the rear of Sabre™ Ranger 5000 terminal.

NOTE: There are five holes at the base of the bracket body. The wire loop-hole as shown on

the enlarged view should be placed along the upper edge of the terminal. See figure 19 and its

enlarged view.

3. Align the four holes, and fasten to Sabre™ Ranger 5000 terminal using the washers (4x)

and the socket head cap screws (M8 x 14mm - 4x) with a hex L-key.

4. Align the bracket wall to the bracket body . See figure 19. Notice the upper holes on the

bracket wall align to the slots on the bracket wall and the lower holes align to the holes below

the slots of the bracket body.

5. Use the washers (4x) , the split washers (4x) and the socket head screws (M8 x 14mm -

4x) to assemble to .

NOTE: Do not fully tighten the screws to assemble to with a hex L-key, fasten the screws

finger tight only as you need to adjust its actual position according to the satellite location later.

SABRE™ RANGER 5000 User Guide

Figure 20

7. Mount the Terminal on a Pole

Before mounting the terminal, ensure that the azimuth is correct by using a compass.

For example: North has an azimuth of 0°, East 90°, South 180° and West 270°.

1. Locate a vertical pole or column to mount the SABRE™ RANGER 5000 terminal.

NOTE: The mounting bracket is designed to be mounted on a 1 to 3 inch diameter pole.

2. Mount the pre-assembled terminal to the pole.

TIP: If you have a long conduit of 10 metres or more, use the additional hole on the mounting

bracket with a cable tie to hold the conduit before mounting the terminal to a pole.

See figure 21 below.

Figure 21

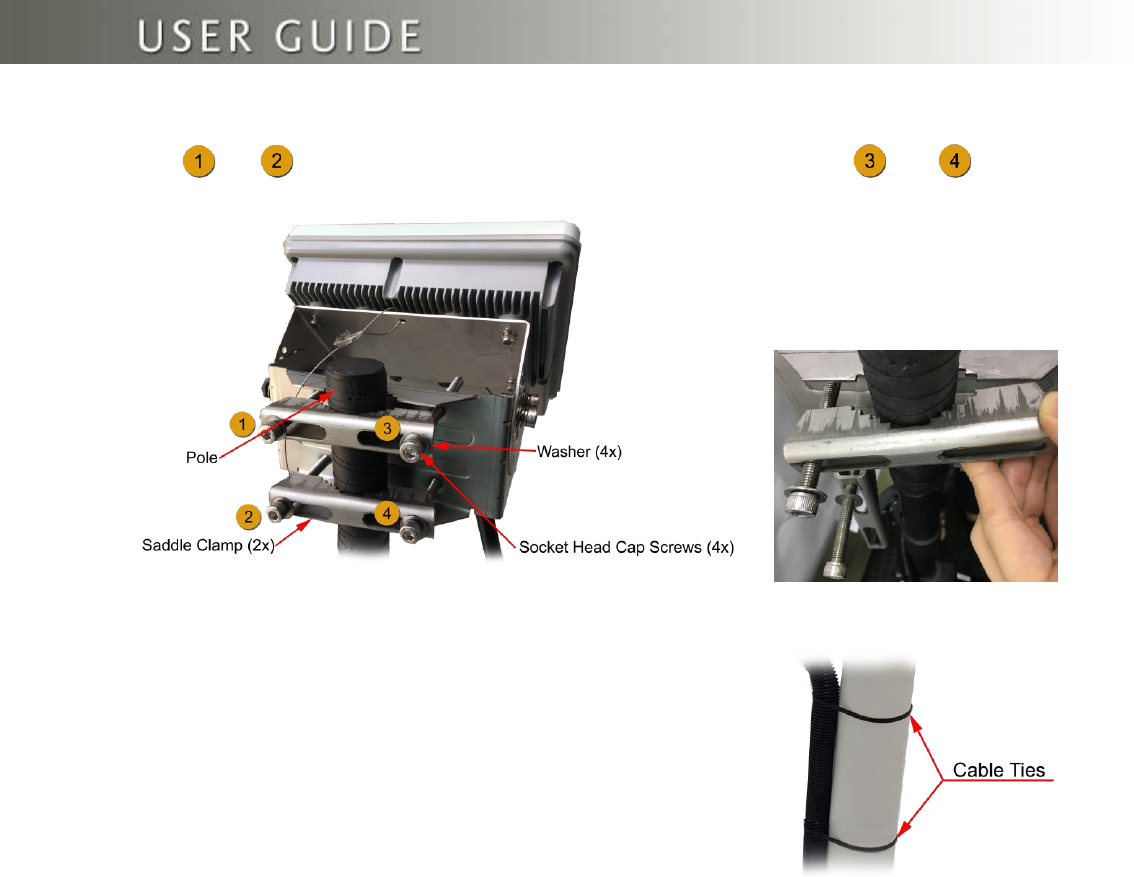

3. Use the supplied washers, socket head cap screws (M8 x 120mm), and the saddle clamps to

mount the pre-assembled terminal on the pole.

SABRE™ RANGER 5000 User Guide

4. Secure the saddle clamps on the pole by first turning in the screws and washers at the position

and , and then turn in the screws and washers at the position and for easy

installation. See figure 22.

Figure 22

5. Tighten the screws to secure the SABRE™ RANGER 5000 terminal to the pole.

6. Secure the conduit to the pole by using several cable ties.

Figure 23

SABRE™ RANGER 5000 User Guide

8. Terminal Grounding

Protective Earth Grounding

The chassis of the SABRE™ RANGER 5000 terminal must be firmly connected to the

earth ground by using a short and low impedance wire.

Figure 24

1. Unscrew one of the four mounting screws at the back of the terminal.

2. Insert the earth grounding wire lug in between the mounting bracket and the washer,

and then tighten the screw.

NOTE: Please seek professional local advice for earth grounding.

SABRE™ RANGER 5000 User Guide

9. Point the Antenna

Figure 25

1. Place the terminal outdoor with no obstruction from trees, buildings, hills or any external

objects and power up the terminal.

2. Check the elevation and azimuth on the terminal firmware. The terminal firmware displays the

pre-calculated elevation and azimuth once the GPS location is acquired.

NOTE: The information can be found in the Web console on the Home page. Refer to the

section on Navigate to the Web Console for more details. Azimuth and Elevation are angles

used to define the apparent position of an object in the sky, relative to a specific observation

point. In this case, we are the observers on earth.

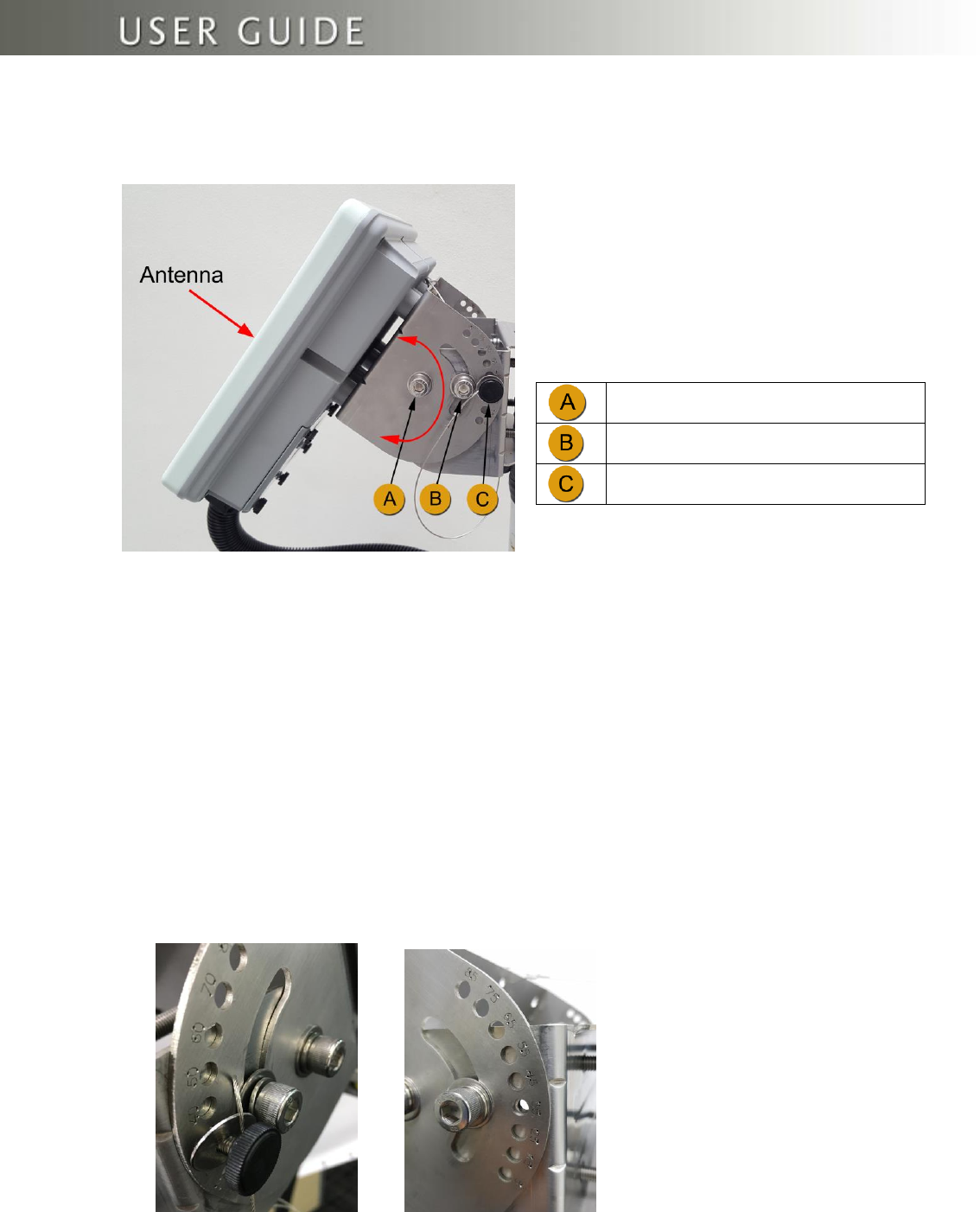

3. Adjust the required elevation angle by tilting the bracket body attached to the terminal along

the slot. Notice that you can adjust the angle of elevation in steps of 5°. The angle markings at

both sides of the bracket body have an offset of 5°. See figure 26 below. The terminal is at a

vertical position at the angle of 0° and at a horizontal position at the angle of 90°.

Figure 26

Centre of rotation point (fixed)

Variable point along the slot

Lock position with a bolt – M5

SABRE™ RANGER 5000 User Guide

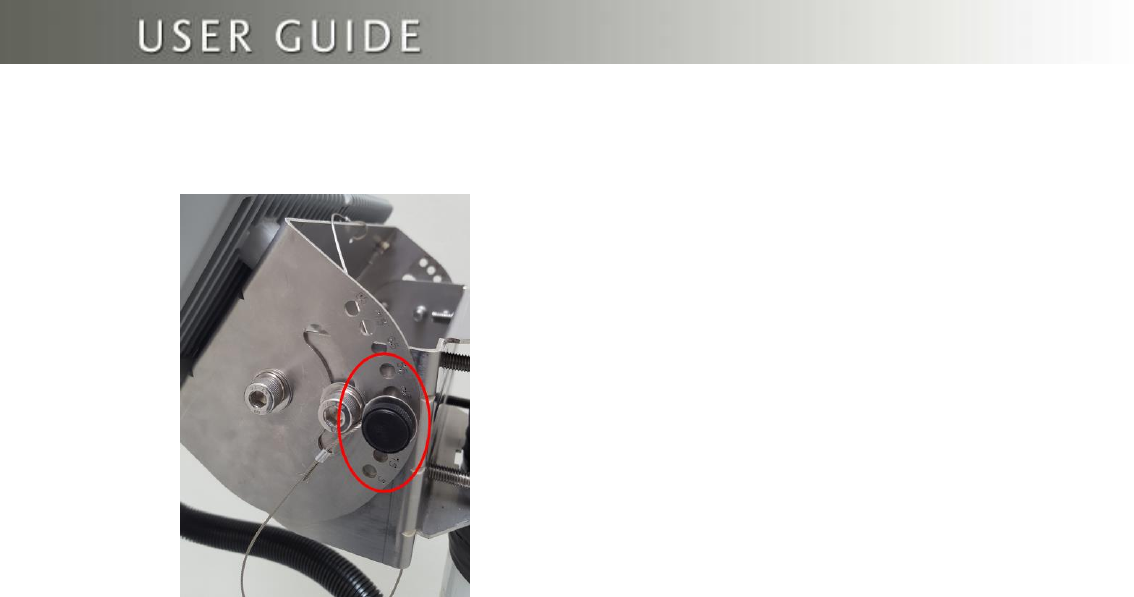

4. Insert the M5 bolt to lock the required position and tighten it to secure the angle of elevation.

See figure 27.

Figure 27

SABRE™ RANGER 5000 User Guide

10. Navigate to the Web Console

1. The SABRE™ RANGER 5000 terminal should be installed at an outdoor location with

the correct Azimuth. The terminal needs to be pointed towards the satellite to ensure

its connection to the satellite network. Turn ON the power supply to the terminal and

connect the Ethernet cable to your laptop/PC.

Figure 28

2. When the terminal is powered up, all the Antenna Pointing LEDs will flash briefly and

goes off. This indicates the terminal is ON.

3. After a short while, the terminal will go into Auto network registration mode. This is

indicated by synchronous flashing of all the LEDs. Press and hold Pointing Mode

button for more than 3 seconds to disable the Auto network registration mode and go

to the manual network registration mode.

Figure 29

Power Supply, Ethernet Cable

Pointing Mode Button

Antenna Pointing LEDs

Antenna

SABRE™ RANGER 5000 User Guide

Manual Network Registration

1. The Antenna Pointing LEDs indicate the received Global Beam signal strength. Slowly adjust

the Elevation of the terminal until the maximum number of LEDs illuminate. See the table

below for the number of LEDs lighting up vs the Global beam signal strength.

2. Another way to do the antenna pointing is to use the audio assisted pointing mode. In this

mode, a buzzer will emit an audio tone with its pitch changing according to the strength of the

global beam signal. The buzzer is disabled by default. To enable the buzzer, navigate to

Settings > Terminal Settings > Antenna Pointing buzzer. Click Apply for the new setting to

take effect.

3. After the antenna is correctly pointed to the satellite, press the Pointing Mode button once to

exit the pointing mode and start the network registration process.

NOTE: indicates flashing green LED and indicates steady green LED.

LEDs Signal

Global Beam Signal Strength (dB)

0 – 40

41 – 47

48

49

50

51

52

53

54

55 and above

SABRE™ RANGER 5000 User Guide

NOTE:

When the Antenna is pointing away from the satellite, the received signal strength is weaker. This

is indicated by, lighting up a fewer number of LEDs and a low pitch audio tone. When the Antenna

moves towards the satellite, the signal strength will gradually increase. This is indicated by lighting

up more LEDs and gradually increasing pitch of the audio tone.

4. You may also verify the signal strength through the Web Console.

i) Open any web browser and type http://RANGER5000 or http://192.168.1.35 on

the address bar.

ii) The default credentials are:

Username: admin

Password: 1234

Figure 30

NOTE:

Web Console will remind the user to change the password for the first time login for

security purposes. A minimum of 6 characters are required for the new password.

SABRE™ RANGER 5000 User Guide

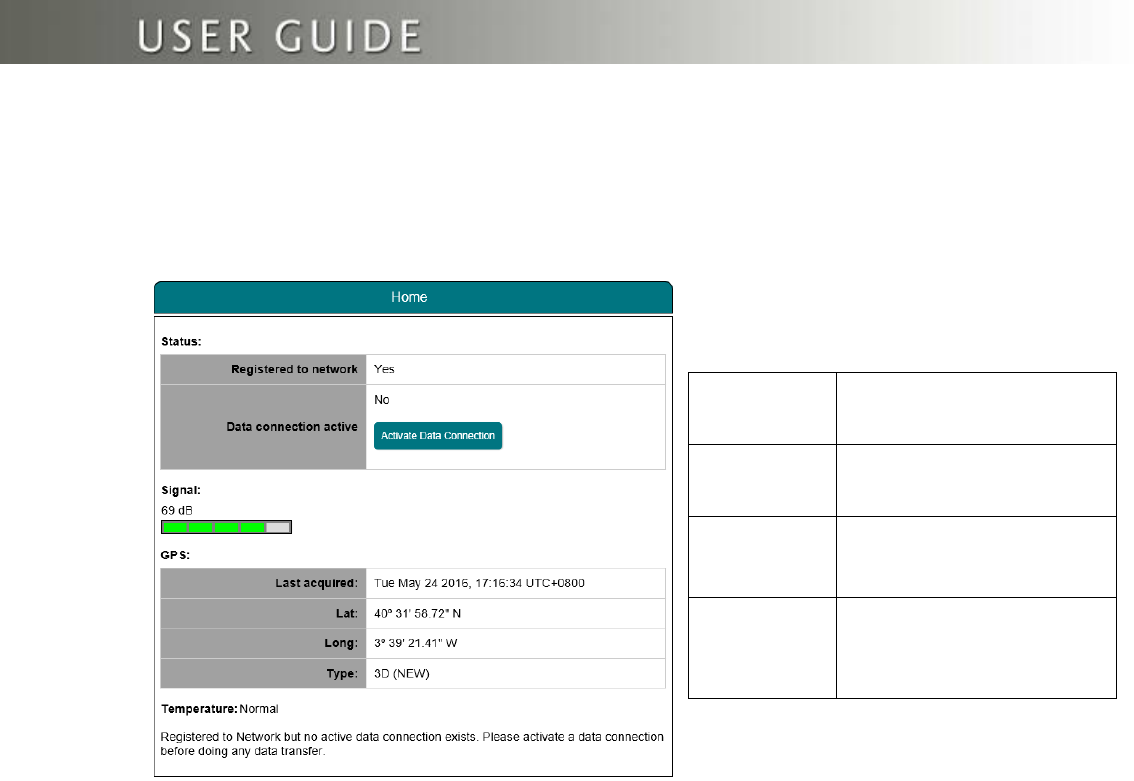

iii) You can see the following details:

Figure 31

1. After the terminal is properly pointed, press and hold the Pointing Mode Button once

to trigger the network registration.

2. The Antenna Pointing LEDs flash in sequence during the network registration.

NOTE:

The SABRE™ RANGER 5000 terminal activates a data connection automatically by default.

Auto Network Registration

When the terminal is powered up while it is already pointed to the satellite, it will register to the

network automatically.

The LEDs will flash from right to left. When the network registration is successfully completed, all

the LEDs will flash twice and turn off.

SABRE™ RANGER 5000 User Guide

11. Web Console

After login to the Web Console, navigate to Home > Menu to view the menu page.

MENU OVERVIEW

Data

SMS

Settings

Logout

Data Profile

- Primary Profiles

- Secondary Profiles

Firewall

-Setup

-HTTP Filters

Port Forwarding

Data Settings

Compose

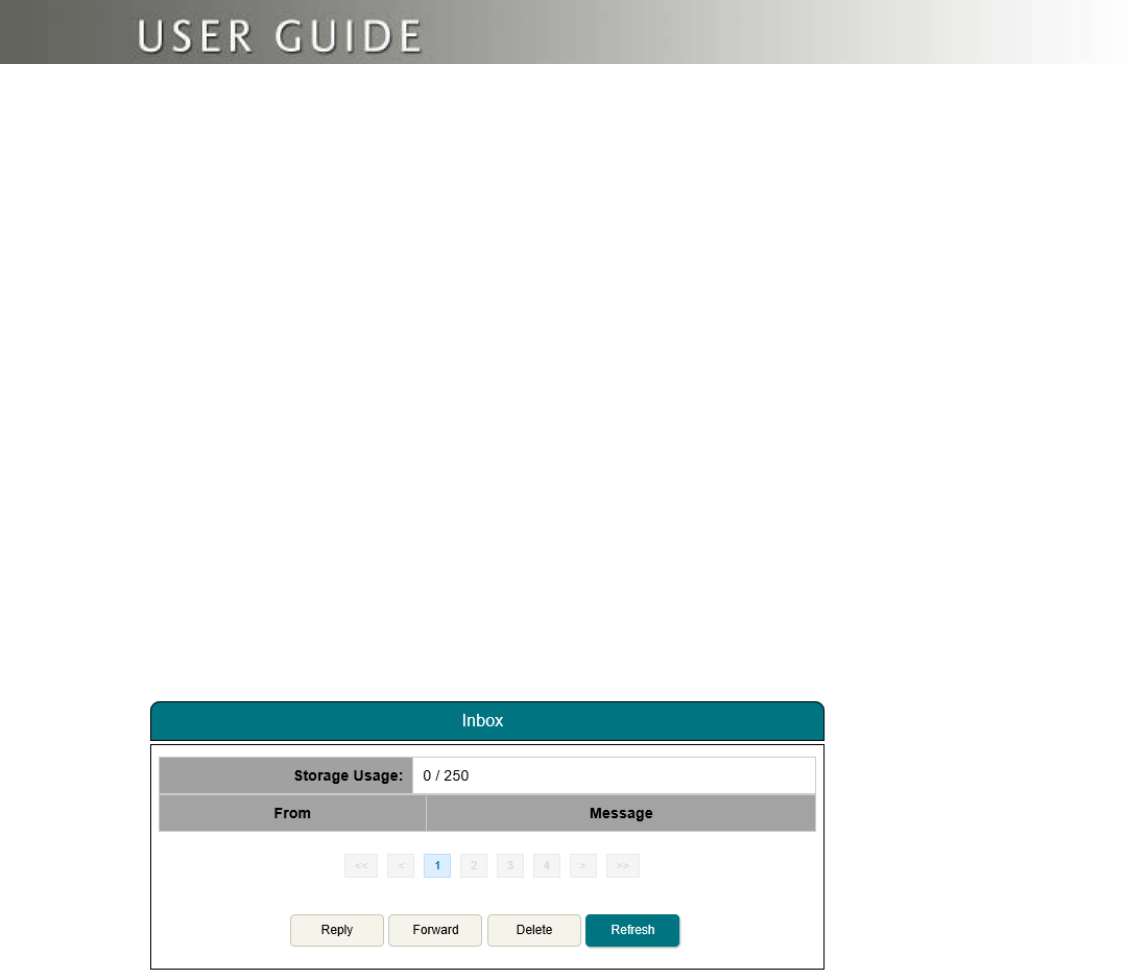

Inbox

Sent

Draft

Accounts

Ethernet

-Ethernet

- Ethernet Settings

- DHCP

- MAC Filtering

Security

- Terminal PIN

- SIM PIN

Terminal Settings

- Reboot Terminal

- Factory Reset

- Firmware Upgrade

- Remote Access

- Power Saving

- Ciphering

- Facility Lock

- IP Watchdog

- I/O Configurations

- Backup/Restore

- Web

- Antenna Pointing Buzzer

- GNSS Selection

Terminal Info

- Information

- Logs

- Data Log

SMS Configurations

- Information

- Remote Control

Language

Support

About

SABRE™ RANGER 5000 User Guide

STATUS OF TERMINAL

The Home page provides the status information of the terminal, pointing information and allows a

data connection to be established.

Navigate to Home page for the terminal status.

Figure 32

Click “Activate Data Connection” or “Deactivate Data Connection” in order to activate or

deactivate data connection.

NOTE:

Signal strength must be 42dB or above for the terminal to successfully connect or register to the network.

Signal strength can be improved by pointing more accurately.

If the signal strength level indicated in the web console is low under a registered condition, you can slowly adjust the

terminal’s elevation, azimuth angles and monitor the signal strength displayed in web console.

Status

Indicates registration and

data connection status.

Signal

Indicates terminal

received signal strength.

GPS

Indicates GPS

information.

Temperature

Indicates current

operating temperature

status.

SABRE™ RANGER 5000 User Guide

11.1 Data

11.1.1 Data Profile

Navigate to Menu > Data > Data Profile in order to modify the connection type.

The connection profile defines the connection type.

You can select from a list of profiles to be the default primary profile and connection type.

Figure 33

Click “Edit” to modify the data profile.

You can create your customized primary profile.

Figure 34

NOTE:

Please note that the ‘Static IP Address APN

Username’ and ‘Static IP Address APN

password’ stated are not for Web Console

login purposes.

These are provided by your Service Provider

if your network required a static IP address

subscription.

Leave it blank if you do not have such

subscription

SABRE™ RANGER 5000 User Guide

Profile Name

Change the profile name as desired.

Access Point Name (APN)

By default, the APN from your SIM card is selected.

Follow these steps to change the Access Point Name (APN):

i. Select User Defined.

ii. Enter the new APN in the field space provided (e.g. STRATOS.BGAN.INMARSAT.COM).

iii. Enter the username and password (these details should be supplied by your service

provider) if required.

Static IP Address APN

By default, a Dynamic IP Address is selected.

To use a Static IP Address:

i. Select Static IP Address and enter the APN address and password in the space provided.

11.1.2 Firewall

The firewall function is disabled by default. Navigate to the firewall setup page to enable it.

Navigate to Menu > Data > Firewall > Setup to change the Firewall protection profile setup.

Figure 35

Follow these steps to change the firewall setup.

i. Click Edit to modify the predefined profile settings.

You can edit the profile name and predefined rules to allow or reject incoming packets.

Figure 36

SABRE™ RANGER 5000 User Guide

Navigate to Menu > Data > Firewall > Setup > Edit

Incoming Rule

i. Under Incoming Rule tab, click Add to add new rules.

Figure 37

ii. Enter your desired rule name and fill in the necessary information.

iii. Select Action: Reject to reject the incoming packet.

iv. Click Apply to the save the new incoming rules.

Outgoing Rule

i. Under Outgoing Rule tab, click the ‘+’ symbol besides the rule name to edit the existing rules.

or click Add to add new rules.

Figure 38

SABRE™ RANGER 5000 User Guide

ii. Similar to incoming rule, you can create your desired rule name and fill in the necessary

information.

iii. Click Apply to the save the new outgoing rules.

HOSTNAME FILTERING

To stop the users from accessing certain websites through the internet, you can configure the

filtering settings in your SABRE™ RANGER 5000 terminal.

Navigate to Menu > Data > Firewall > HTTP Filters to enable the filtering based on the hostname

or the keywords.

Follow these steps to apply hostname filtering:

i. Select Enabled.

Figure 39

ii. Click Update to modify the settings.

iii. Under Hostname/Keywords tab, click Add to add new keywords (e.g. Facebook).

Figure 40

iv. You can modify existing keywords by selecting the Text from the list.

v. Click Edit to modify or Delete to delete the selected keywords.

NOTE:

Hostname filters will only take effect when HTTP/HTTPS rules are enabled under Data> Firewall> Setup.

Re-activate your data connection for the new settings to take effect.

SABRE™ RANGER 5000 User Guide

11.1.3 Port Forwarding

Port forwarding is a feature for a router (multi-user) mode. This feature configures SABRE™

RANGER 5000 to direct the incoming traffic on certain TCP/UDP port to a specific port on a local

computer or server through IP address.

Navigate to Menu > Data > Port Forwarding to configure new port forwarding rule.

Figure 41

Follow these steps to add a new forwarding rule:

i. Click Add.

Figure 42

ii. Enter the Incoming Port number range in the provided space.

If only one number, repeat the number in both space, example: 80-80.

ii. Select the Protocol type: TCP (for HTTP) or UDP.

iv. Enter the Destination IP address of your server or the receiving devices in the provided space.

v. Enter the Destination Port number in the provided space.

Example: TCP port 80 for web server.

vi. Click Add to save the settings.

NOTE: Re-activate your data connection for the new settings to take effect.

SABRE™ RANGER 5000 User Guide

11.1.4 Data Settings

Auto PDP Context Activation is a feature to establish the PDP connection upon power up.

It also helps to re-establish the PDP connection due to network deregistration or any reason other

than user intervention.

Navigate to Menu > Data > Data Settings to configure the data settings to Always On.

To enable Auto PDP Context Activation

i. Click Always On (Auto PDP Context Activation).

ii. Click Update for the new configuration to take effect.

Figure 43

SABRE™ RANGER 5000 User Guide

11.2 SMS

11.2.1 Compose

Navigate to Menu >SMS > Compose to enter compose page.

Figure 44

i. Enter the recipient’s phone number in the Phone no. box.

Type the message in the text editor box.

ii. Click Send to send the SMS.

iii. To save an unsent SMS, click Save and the unsent SMS will be saved in Drafts.

iv. Check the box ☑ if you wish to store a sent SMS on to the SIM card.

v. Click Append GPS to include your GPS location in the SMS.

SABRE™ RANGER 5000 User Guide

11.2.2 Inbox

Navigate to SMS > Inbox to view Received SMSs.

Reply to an SMS from Inbox:

i. Select the SMS you plan to reply to by selecting the particular SMSs.

ii. Click Reply.

iii. The inbox console will switch over to Compose mode. Enter your reply in the text box.

iv. Click Send to send the SMS.

Forward an SMS from the Inbox:

i. Select the SMS you plan to forward and click Forward.

ii. The inbox console will switch over to Compose mode. Enter your reply in text box.

iii. Click Send to send the SMS.

Delete an SMS from the Inbox:

i. Select the SMS you plan to delete and click Delete.

ii. A single SMS or multiple SMSs can be deleted based on the selection.

iii. Click OK to confirm the deletion, or Cancel to abort.

To Refresh the Inbox list:

i. Click Refresh and the list will be refreshed.

Figure 45

SABRE™ RANGER 5000 User Guide

11.2.3 Sent

Navigate to SMS > Sent to view Sent SMS.

Forward a sent SMS:

i. Select the SMS you plan to forward and click Forward.

ii. The Sent console will switch over to the Compose mode.

iii. Enter the recipient’s number in the Phone No. field.

iv. Click Send.

v. The SMS will be sent to the recipient.

Delete a sent SMS:

i. Select the SMS you plan to delete.

ii. Click Delete.

iii. Click OK to confirm the deletion, or Cancel to abort.

Figure 46

11.2.4 Draft

Stored SMSs are saved inside the draft folder.

Navigate to SMS > Draft to view Draft SMSs.

Send a draft SMS:

i. Select the draft SMS you plan to send and click Send.

ii. The SMS will be sent to the recipient.

Forward a draft SMS to other recipient:

i. Select the draft SMS you plan to send and click Send.

ii. Click Forward.

iii. The draft console will switch over to the Compose console.

iv. Enter the recipient’s number in the Phone No. field.

v. Click Send.

vi. The SMS will be sent to the recipient.

Delete a draft:

i. Select the draft SMS you plan to send.

ii. Click Delete.

iii. Click OK to confirm the deletion, or Cancel to abort.

Refresh the draft list:

i. Click Refresh and the list will be refreshed.

SABRE™ RANGER 5000 User Guide

11.3 Settings

11.3.1 Accounts

Navigate to Menu > Settings > Accounts to create or edit an account for Web Console access.

By default, the password for admin is 1234.

You are recommended to change the admin password for security reasons.

Only one User and one Admin account are allowed.

Add a user account:

i. Click Add.

Figure 47

ii. Enter New Password and Re-type Password.

Figure 48

iii. Click Add.

SABRE™ RANGER 5000 User Guide

11.3.2 Ethernet

Navigate to Menu > Settings > Ethernet > MAC Filtering to set the allowed MAC address and

the access rights.

The MAC address is a number that uniquely identifies any device connected to a network.

The MAC address of your device will be shown on the page.

MAC Filtering Reject List:

i. Select Enabled to enable this feature.

ii. Select Reject List to block the devices to access the terminal.

iii. Enter the MAC address into the provided space and click Add to update the list.

iv. Click Update to make the new settings take effect.

Figure 49

MAC Filtering Allowed List:

i. Select Enabled to enable this feature.

ii. Select Allowed List to allow the devices to access the terminal.

iii. Enter the MAC address into the provided space and click Add to update the list.

iv. Click Update to make the new settings take effect.

Figure 50

SABRE™ RANGER 5000 User Guide

11.3.3 Security

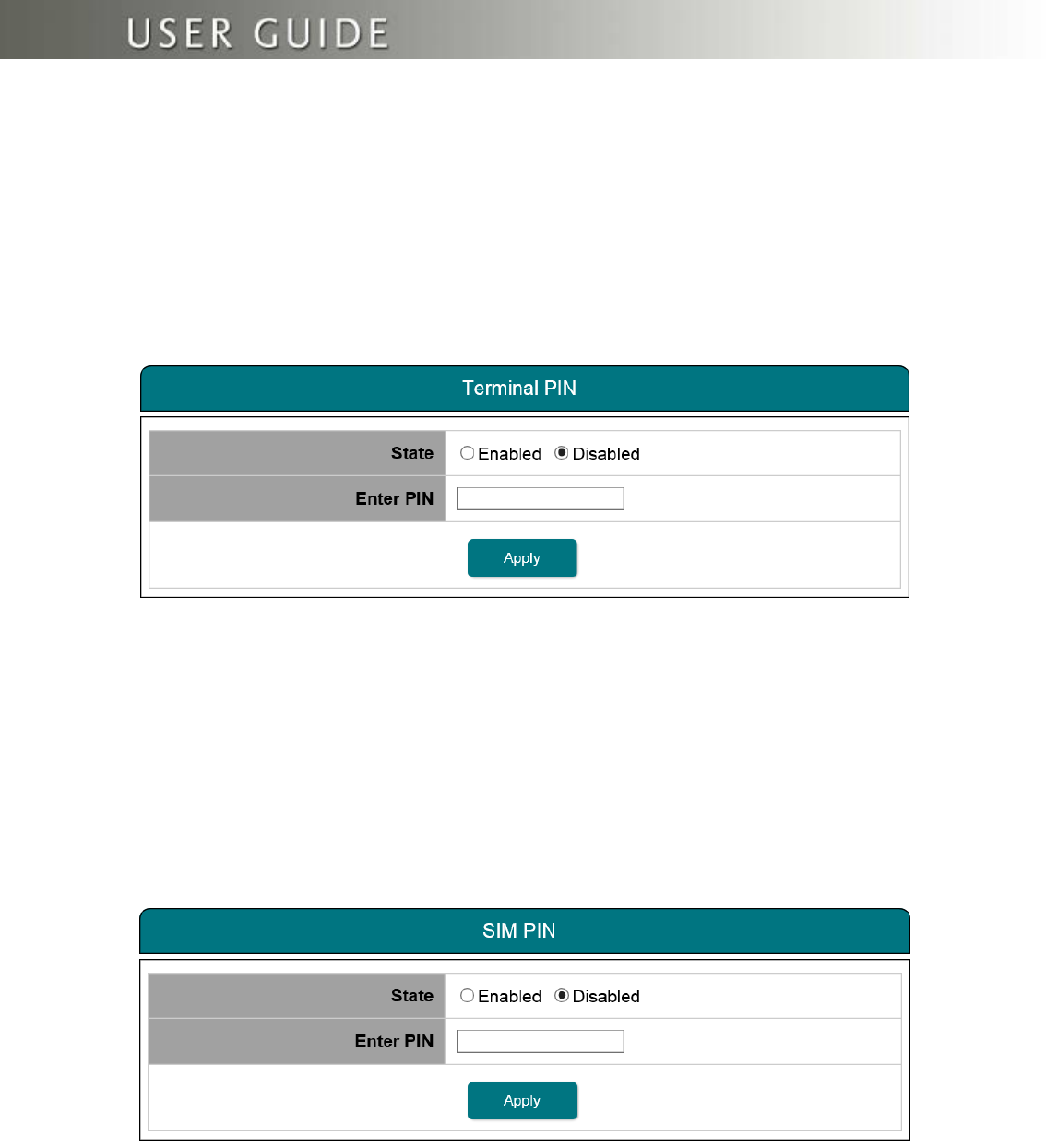

TERMINAL PIN

Once the Terminal PIN is activated, the terminal will prompt for the password every time when you

reboot it.

Navigate to Menu > Settings > Security> Terminal PIN to enable Terminal PIN.

i. Select Enabled to enable Terminal PIN.

ii. Select Disabled if you do not need to enable Terminal to SIM.

iii. Enter the PIN number in the space provided and click Update PIN.

Figure 51

NOTE: The same password is used for the Factory Reset PIN

SIM PIN

If the security feature is enabled, a prompt requests you to enter the SIM PIN each time you power

up your SABRE™ RANGER 5000 terminal.

This helps prevent unauthorised use of your SIM. Disable this feature to skip the PIN entry process.

Navigate to Menu > Settings > Security > SIM PIN to enable the SIM PIN.

i. Select Enabled to set the SIM PIN.

ii. Select Disabled if you do not need to set the SIM PIN.

iii. Enter the PIN number in the space provided and click Apply.

Figure 52

NOTE:

The SIM PIN depends on the SIM card. Consult your service provider if necessary.

SABRE™ RANGER 5000 User Guide

11.3.4 Terminal Settings

11.3.4.1 Reboot Terminal

Navigate to Menu > Settings > Terminal Settings> Reboot Terminal to reboot the terminal.

Figure 53

11.3.4.2 Factory Reset

Navigate to Menu > Settings > Terminal Settings > Factory Reset to factory reset the terminal.

Enter security code for factory reset (Default: 0000).

NOTE:

By default, the security code is 0000. Once you change the Terminal PIN, the Factory Reset password is changed to

match the Terminal PIN.

Figure 54

SABRE™ RANGER 5000 User Guide

11.3.4.3 Firmware Upgrade

Firmware upgrade allows you to update the terminal with the latest operating software.

The terminal has to be in Safe Mode for firmware upgrading.

Navigate to Menu > Settings > Terminal Settings> Firmware Upgrade to perform a firmware

upgrade.

Your terminal will reboot in Safe Mode once you click the Firmware Upgrade button.

Figure 55

SABRE™ RANGER 5000 User Guide

11.3.4.4 Remote Access

User can control the SABRE™ RANGER 5000 through Web Console remote access.

Navigate to Menu > Settings > Terminal Settings> Remote Access to enable the Web Console

remote access.

Figure 56

i. Select Enabled to enable the remote access feature.

ii. Select Disabled if you do not need the feature.

iii. Click Apply for the new configuration to take effect.

iv. Enter the allowed Global IP address of the devices.

Figure 57

SABRE™ RANGER 5000 User Guide

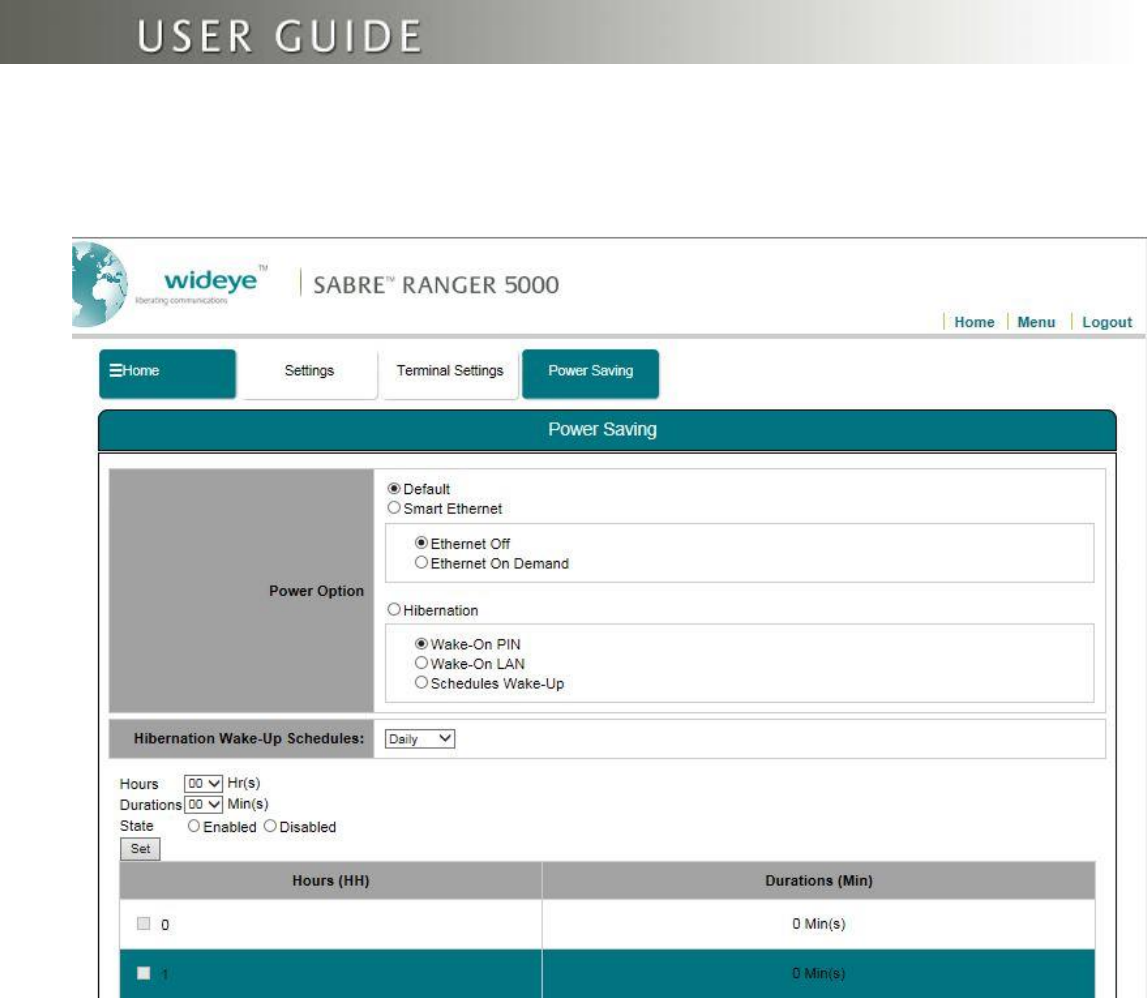

11.3.4.4 Power Saving

Figure 58

SABRE™ RANGER 5000 User Guide

11.3.4.5 Ciphering

Any data transmitted through the terminal will be encrypted under ciphering mode. User can

enable this feature for added security.

Navigate to Menu > Settings > Terminal Settings> Ciphering to enable the Ciphering feature.

Figure 59

i. Select Enabled to enable the ciphering feature.

ii. Select Disabled if you do not need the feature.

iii. Click Apply for the new configuration to take effect.

11.3.4.6 Facility Lock

Navigate to Menu > Settings > Terminal Settings> Facility Lock to enable the Facility Lock

feature.

By default Faclity lock is disabled

Figure 60

i. Select Enabled to enable the facility lock feature.

ii. Select Disabled if you do not need the feature.

iii. Click Apply for the new configuration to take effect upon the next reboot.

SABRE™ RANGER 5000 User Guide

11.3.4.7 IP Watchdog

IP Watchdog is a fail-safe feature that enables the SABRE™ RANGER 5000 to keep the IP

connection alive. This can prevent the loss of IP connection due to unexpected causes and help

the terminal to acquire the IP connection again.

There are two types of watchdog mechanism:

1. Periodic Reboot

The reboot is based on the pre-configured time period regardless of the connection status.

2. Ping based Watchdog

After all the pre-configured IP addresses failed to ping, the terminal will perform system reboot

automatically. The Ping based Watchdog can only be activated when it is set in Multi-user router

mode with active PDP context. User can define 3 sets of IP addresses. Based on the time intervals

and numbers of tries, the terminal can verify whether the connection is still available. As long as

the terminal is able to ping any of the IP addresses, the watchdog will not trigger a system

reboot.

NOTE: In Single-user Router mode, the terminal will automatically disable Ping based Watchdog feature.

Navigate to Menu > Settings > Terminal Settings> IP Watchdog to enable the IP Watchdog

feature.

Periodic Reboot

i. Select Enabled to enable the Periodic Reboot feature.

ii. Select Disabled if you do not need the feature.

iii. Enter the duration for the terminal to trigger a periodic reboot.

iv. Click Apply for the new configuration to take effect

Ping based Watchdog

i. Select Enabled to enable the Ping based Reboot.

ii. Select Disabled if you do not need the feature.

iii. Enter the IP addresses with the number of retries (from 0 to 255).

iv. Enter the test intervals (from 5 to 1440) minutes

v. Click Update for the new configuration to take effect

vi. Tick “No ping request if IP traffic is detected within the ping interval” to save the data usage.

Figure 61

SABRE™ RANGER 5000 User Guide

11.3.4.8 I/O Configurations

The SABRE™ RANGER 5000 terminal incorporates an embedded serial device server (Serial to

IP). With the Serial to IP capability, the data collected from the RS232 serial device can be

retrieved locally through the local LAN or remotely through the Internet.

A serial device server can transfer the data between a computer serial (COM) port and an Ethernet

LAN port.

It is recommended for connecting your RS232 serial device to an IP-based Ethernet LAN. The

serial device server can support up to 4 simultaneous connections, which allows multiple clients to

collect data from the same serial device concurrently.

Navigate to Menu > Settings > Terminal Settings> I/O Configurations to enable the serial

device server.

Device Serial Server

i. Select Enabled to enable the server.

ii. Select Disabled to disable the server.

TCP/IP Settings

1. Time Configuration

TCP alive check time is the inactivity timeout (min) used to disconnect an idle TCP connection.

By default, it is configured as 10 minutes.

0 minute : TCP connection will not be disconnected due to an idle TCP connection.

1 to 99 minutes: Based on the TCP alive check time, the terminal will deactivate the TCP

connection if no TCP activity within the configured period. After the

connection is closed, the terminal will be standby for another host’s TCP

connection.

TCP keep alive time is the time to keep the connection active in between the terminal and the

remote PC. By default, it is configured as 0 minute.

If the user sets the keep alive time as 1 minute, the terminal will send an empty packet every 1

minute to ensure that the connection of the remote PC is still active.

Inactivity time is the reference idle time for a TCP connection to deactivate due to an idle serial

data connection. By default, it is set as 0 minute.

0 minute : TCP connection will not be impacted by an idle serial data connection.

1 to 99 minutes: Based on the inactivity time, the terminal will deactivate the TCP connection

if no serial data activity within the configured period. After the connection is

closed, the terminal will be standby for another host’s TCP connection.

SABRE™ RANGER 5000 User Guide

Figure 62

1. Max connection is used when the user needs to receive data from different hosts

simultaneously.

By default the terminal only allows 1 connection at a time.

Max. connection 1: only one host to the specific serial port.

Max. connection 2 to 4: Terminal allows 2 to 4 TCP connections to open the serial

port simultaneously.

i. Select Enabled to enable the Periodic Reboot.

ii. Select Disabled if you do not need the feature.

iii. Enter the IP addresses with the number of retries.

iv. Enter the test intervals.

v. Click Apply for the new configuration to take effect.

Figure 63

1

Timeout to disconnect an idle TCP connection.

Keep the TCP connection active through sending empty packets.

Reference time to deactivate due to an idle serial connection.

Number of hosts allowed for serial port connection.

2

3

SABRE™ RANGER 5000 User Guide

2. Command Port is used when the users need to retrieve data from the serial cable.

It can be done through locally or remotely.

i. Select Enabled for Command Port and Command Port Authentication to enable

this feature.

ii. By default, the password for command port is 1234. Users are recommended to

change the password for security purpose.

Command TCP port:

Control port for data transmission (example: 9000).

Standby for the host to prevent any conflict with other applications.

Data TCP port:

Acts as the TCP port that the data actually transmits through this port.

After establishing the connection, data can be transmitted in both directions, from PC to

port 9001 and from port 9001 to PC.

User can define up to 4 GPIO input and output ports.

GPIO input can be a switch or sensor which can provide information to the terminal.

GPIO output can be a LED which can display the output.

ADC is used for voltage measurement.

ADC 1 - Internal supply voltage of the terminal.

ADC 2 - External supply voltage to the terminal.

Can be used to monitor the input voltage of a solar panel or an external battery.

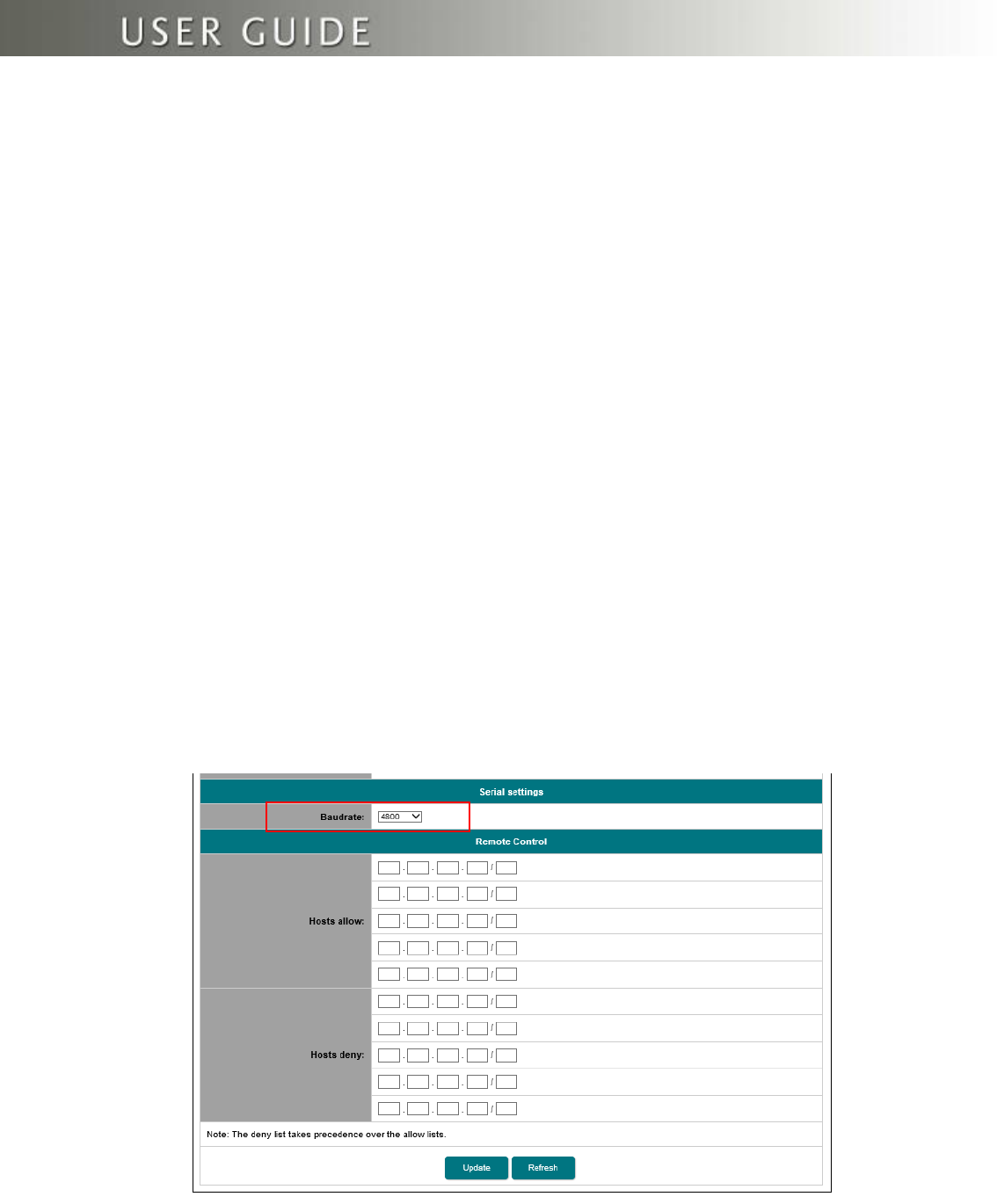

3. Serial Port Settings

From the drop down menu, select the respective baud rates (from 4800 to 115200).

Figure 64

4

SABRE™ RANGER 5000 User Guide

4. Remote Control of Serial Port Interface

For remote access, users need to know the Global IP address of the terminal.

This information can be retrieved through Data Logs.

By default, the terminal accepts all the IP addresses.

Host Allow

IP address range (IP/CIDR) of the computer allowed for remote access.

Host Deny

IP address range (IP/CIDR) of the computer rejected for remote access.

SABRE™ RANGER 5000 User Guide

11.3.4.9 Backup/Restore

Configuration settings can be saved and kept as a reference for the future.

To understand which configurations are included in the backup list, refer to Appendix D:

Backup Configuration Reference Table.

Navigate to Menu > Settings > Terminal Settings> Backup/Restore to save or restore the

configuration settings.

Backup configuration settings

i. Click Backup.

ii. The settings will be saved as a document.

Restore configuration settings

i. Browse the file location of previous backup file.

ii. Click Restore.

iii. Navigate to Menu > Settings > Terminal Settings> Reboot Terminal and click “Reboot

terminal” to reboot the terminal for the new settings to take effect.

Figure 65

SABRE™ RANGER 5000 User Guide

11.3.4.10 Web

For security purpose, user can change the port of the Web Console.

Navigate to Menu > Settings > Terminal Settings> Web to change the internet browsing port.

By default, the port is 80.

i. Enter the new port number. It can be any number from 1 to 65535.

ii. Click Update for the setting to take effect.

iii. Navigate to Menu > Settings > Terminal Settings> Reboot Terminal and click “Reboot

terminal” to reboot the terminal for the new settings to take effect.

NOTE: After set the port number (e.g. 20), http://192.168.1.35:20 is the address to login the Web

Console.

Figure 66

11.3.4.11 Antenna Pointing Buzzer

Navigate to Menu > Settings > Terminal Settings> Antenna Pointing Buzzer to enable Audio

Assisted Pointing Mode. By default, the antenna pointing buzzer is disabled.

i. Select Enabled to enable the antenna pointing buzzer.

ii. Click Update for the setting to take effect.

Figure 67

SABRE™ RANGER 5000 User Guide

11.3.4.12 GNSS Selection

Navigate to Menu > Settings > Terminal Settings> GNSS Selection

i. Select your GNSS option.

ii. Click Update for the setting and reboot to take effect.

Factory default: GPS and GLONASS

Figure 68

SABRE™ RANGER 5000 User Guide

11.3.5 Terminal Info

Navigate to Menu > Settings > Terminal Info > Information in order to check for the detail of the

terminal. You may need to supply this information when contacting your service provider.

Logs

Navigate to Menu > Settings > Terminal Info > Logs to view the Event Log or Error Log of the

terminal. Click Export all Logs in order to export the logs.

Data Log

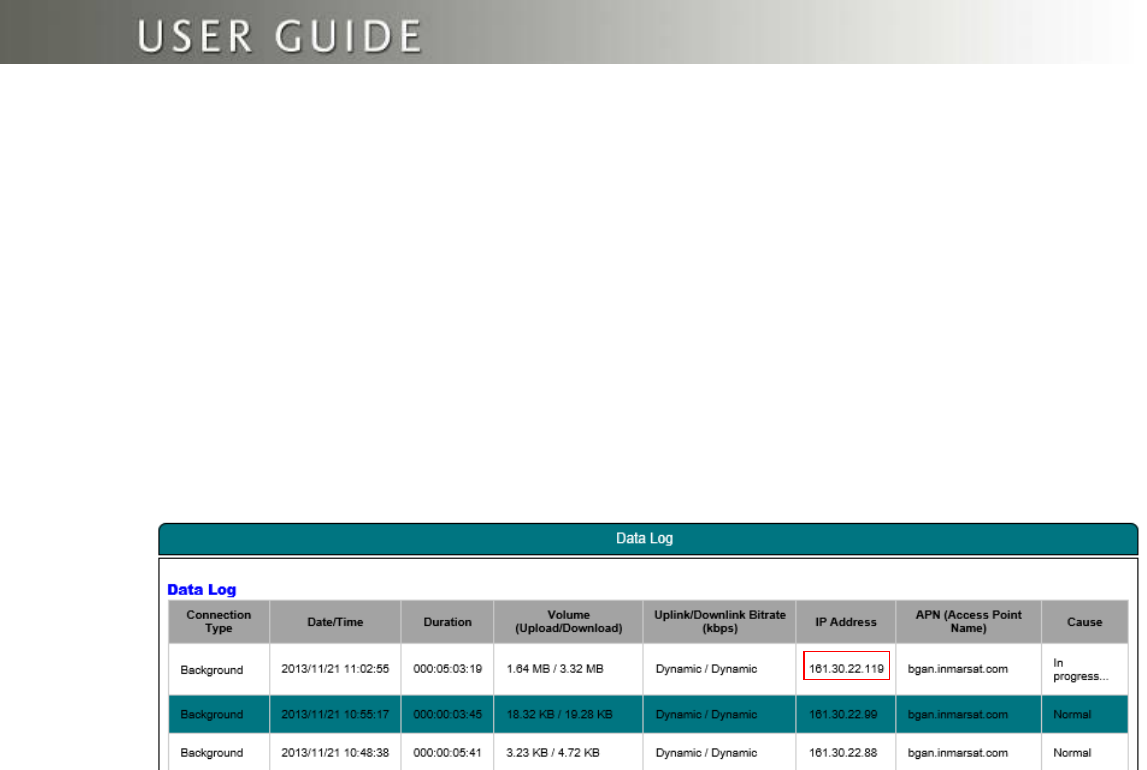

Navigate to Menu > Settings > Terminal Info > Data Log to view the data usage of the terminal.

Click Export all Logs in order to export the logs.

From data log, user can check for the public IP address of the terminal.

Example: 161.30.22.119 for the current activated data session (status: in progress).

Figure 69

SABRE™ RANGER 5000 User Guide

11.3.6 SMS Configurations

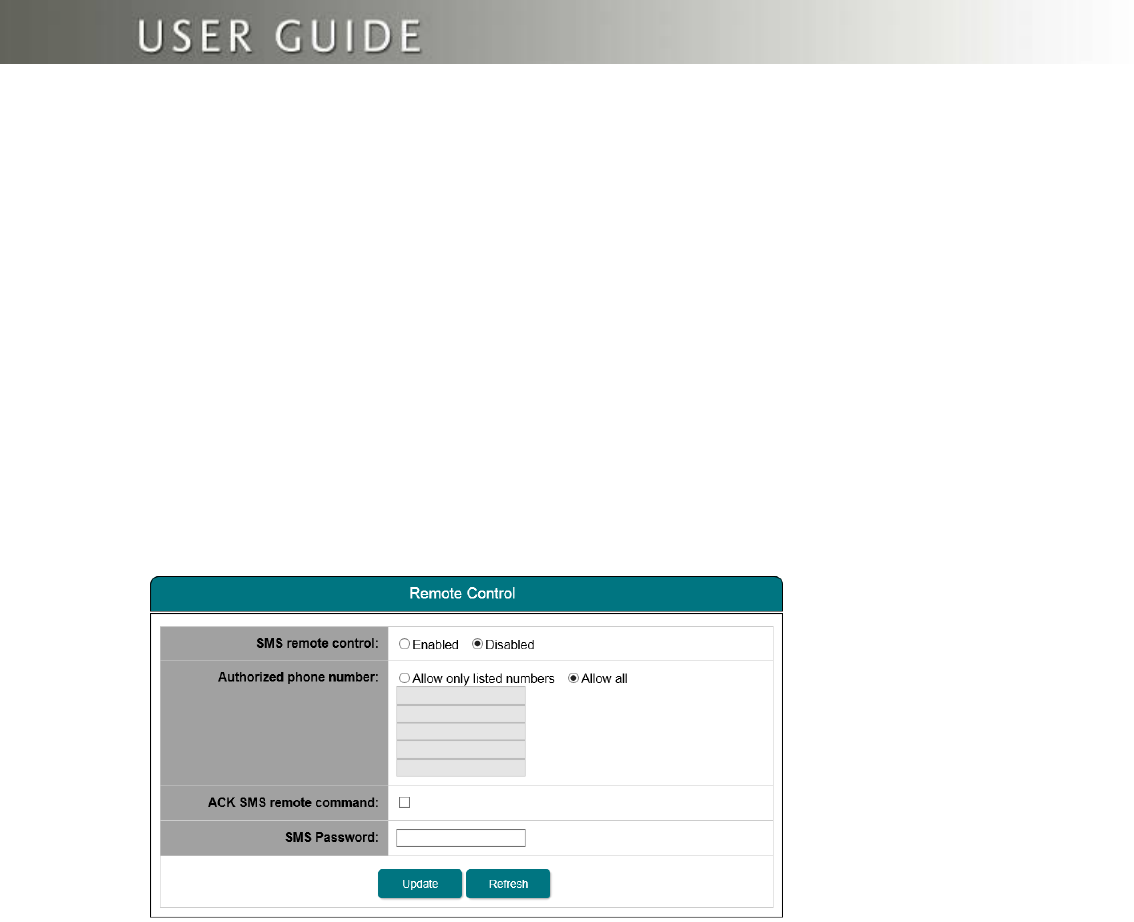

Navigate to Menu > Settings > SMS Configurations > Remote Control to configure the SMS

remote control features.

By default, it allows all phone number to remotely control your terminal.

i. Select Enabled to enable the SMS remote control feature.

ii. Select Allow only listed numbers to allow only specific numbers.

You can configure up to 5 phone numbers.

iii. Tick the ACK SMS remote command to receive an acknowledgement SMS from the terminal.

This may incur airtime charges depending on the service provider.

iv. Enter the SMS password for the remote control.

v. Click update for the feature to take effect.

NOTE: Refer to Sabre RANGER 5000 SMS Remote Control Feature User Guide for the SMS

command.

Figure 70

11.3.7 Language

Navigate to Menu > Settings > Terminal Info > Language to select the desired language.

The default language is English.

English and Chinese Simplified are available for your selection.

11.3.8 Support

Navigate to Menu > Settings > Terminal Info > Support to get the contact information of your

service provider’s support team.

11.3.9 About

Navigate to Menu > Settings > Terminal Info > About to get the contact information of the

manufacturer.

SABRE™ RANGER 5000 User Guide

12. Web Console in Safe Mode

Safe Mode is a simple version of the normal Web Console with some basic settings.

If you could not access the Web Console in normal way, you can try to access the Web Console in

the Safe Mode.

ENABLING SAFE MODE

There are two methods for enabling the Safe Mode.

Method 1: Enter Safe Mode through Web Console (Normal Mode)

i. With the terminal powered on, connect personal computer to the SABRE™ RANGER 5000 via

Ethernet cable.

ii. Login to Web Console by typing http://RANGER5000 or http://192.168.1.35 into the address

bar of any web browser.

iii. Navigate to Menu > Settings > Terminal Settings> Firmware Upgrade to perform a firmware

upgrade. Your terminal will reboot in Safe Mode once you click the Firmware Upgrade button.

iv. If Safe Mode is enabled successfully, the Antenna Pointing LEDs are solid green.

v. Login to the Web Console in safe mode by typing http://RANGER5000 or http://192.168.1.35

into the address bar of the web browser again.

Method 2: Enter Safe Mode through physical buttons.

i. With the terminal off, press and hold ‘Safe Mode Switch’.

Figure 71

ii. In parallel, power up the terminal.

iii. Release ‘Safe Mode Button’ after 5 seconds.

iv. If Safe Mode is enabled successfully, the Antenna Pointing LEDs are solid green.

v. Login to the Web Console in safe mode by typing http://RANGER5000 or http://192.168.1.35

into the address bar of any web browser.

NOTE:

The username and password of the Web Console are the same for Normal Mode and Safe Mode.

Safe Mode Switch

SABRE™ RANGER 5000 User Guide

MENU OVERVIEW

SETTINGS

- Reboot

- Factory Reset

- Terminal Info

- Logs

- Event

- Error

REBOOT

Navigate Menu > Settings > Reboot to reboot and switch the terminal to Normal Mode.

FACTORY RESET

Navigate to Menu > Settings > Factory Reset to factory reset the terminal.

Enter security code for factory reset (Default: 0000).

NOTE:

By default, the security code is 0000. Once you change the Terminal PIN, the Factory Reset password is

changed to match the Terminal PIN.

TERMINAL INFO

Navigate to Menu > Settings > Terminal Info to check for the detail of the terminal.

You may need to supply this information when contacting your service provider.

LOGS

Navigate to Menu > Settings > Log to view the Event Log or Error Log of the terminal.

Click Export all Logs in order to export the logs.

SABRE™ RANGER 5000 User Guide

13. Appendix A: Terminal Block Pin Assignment

Figure 72

SABRE™ RANGER 5000 User Guide

Terminal block pin assignment Table:

Pin #

Name

Description

Remark

1

GND

GROUND

2

OP 3

DIGITAL OUTPUT 3

Max +40V

3

OP 4

DIGITAL OUTPUT 4

Max +40V

4

GND

GROUND

5

IP 3

DIGITAL INPUT 3

Max +32V

6

IP 4

DIGITAL INPUT 4

Max +32V

7

GND

GROUND

8

RS232/TX

RS485/Z(B)

Software Configurable RS232/RS485

Factory default to: RS232

9

RS232/CTS

RS485/B

Software Configurable RS232/RS485

Factory default to: RS232

10

GND

GROUND

11

RS232/RX

RS485/A

Software Configurable RS232/RS485

Factory default to: RS232

12

RS232/RTS

RS485/Y(A)

Software Configurable RS232/RS485

Factory default to: RS232

13

TDR

TERMINAL DATA

READY

Open Drain Output Pin Max +40V

14

OP

1

DIGITAL OUTPUT 1

Max +40V

15

OP

2

DIGITAL OUTPUT 2

Max +40V

16

GND

GROUND

17

IP 1

DIGITAL INPUT 1

Max +32V

18

IP 2

DIGITAL INPUT 2

Max +32V

19

GND

GROUND

20

Analog

Input

Max +32V

21

Local

Wakeup

Max +32V

22

GND

23

RS232/RX

Debug Log Output only

24

RS232/TX

Debug Log Output only

SABRE™ RANGER 5000 User Guide

14. Appendix B: Conduit & Accessories

You may use the conduits and accessories listed below in your installation. These are provided for

your reference only. Depending on your installation requirements, some or all of these parts may

not be suitable for your application.

www.Schlemmer.com

1) 1200232 NW23 Black PA6 corrugated pipe ID23.2 X OD28.9 mm

2) 3805013 M25 male straight connector, black PA6 c/w gasket IP65

3) 7211977 Black PA6 M25 locknut

4) 6402212 Nickel Plated Brass Adaptor male NPT ¾” female M25

Figure 73 Assembly View

To Sabre™ Ranger 5000

NPT ¾” Conduit hole

Part No: 3805013

Part No: 7211977

Part No: 3805013

Part No: 1200232

NOTE: It is recommended

to wrap it by using a pipe

thread seal tape when

assembling to Sabre™

Ranger 5000.

SABRE™ RANGER 5000 User Guide

15. Appendix C: Technical Summary

Frequency Band

Receive: 1518MHz - 1559MHz

Transmit: 1626.5MHz - 1660.5MHz and 1668 – 1675MHz

Antenna

Type: Built-in patch antenna

GNSS Air Interface

Integrated GPS receiver and antenna

Support: GPS / Beidou / Glonass

Bearer Data Rate

M2M SIM

Standard IP: Up to 448/464kbps (send /receive)

BGAN SIM

Standard IP: up to 448/464kbps (send /receive)

Symmetric Streaming IP: Up to 32, 64,128kbps

Services

Standard IP, Streaming IP (BGAN SIM Only), SMS

Interfaces

2 x RJ45 Ethernet Ports (RJ45)

2 x 12 PIN Terminal Block

1 x RS232 / RS485 with Modbus

1 x RS232 (debug)

4 x GPIO – Output

4 x GPIO – Input

1 x Analog Input Port

1 x Local wakeup - Input

1 x Power Supply Input (2 wires) Terminal Block

1 x DC Output (2 wires) Terminal Block

1 x Antenna Pointing Switch

5 x Antenna Pointing LED

1 x Antenna Pointing Buzzer

1 x Safe mode button

1 x SIM card holder

1 x Micro USB (Reserved)

Firmware Upgrades

Over-the-air or via Ethernet Port

SABRE™ RANGER 5000 User Guide

Supports 3GPP AT Commands

OS Agnostic (supports access via Web-MMI)

Environmental

Operating Temp: -40ºC to +75ºC

Operating Humidity: 95% (Condensing at 40ºC)

Storage Temp: -40ºC to +80ºC

Storage Humidity: 5% to 95% (RH)

Water & Dust: IP66 compliant

Electrical

DC input range: +10.8V to +32V

Power (max): 30W (excluding*)

*DC output: +12V Max 1A

Power Consumption

Receive: <6 W

Transmit: 20 W (typical)

Standby mode: <1 W

Low power standby Mode: < 50mW

Weight

~2.5Kg

Dimensions

241(L) x 239(W) x 71(H) mm

Wind loading

Up to 125 mph (200kph) with mounting bracket is supplied by Addvalue Innovation Pte Ltd.

Regulatory Approvals

CE

FCC

IC (Industry Canada)

UL Safety Mark

NEMA Type 4X

RoHS

IP66

Class 1 Div. 2 Certified

Inmarsat Type Approval

SABRE™ RANGER 5000 User Guide

16. Appendix D: Backup Configuration Reference Table

Data

Data Profile

-Firewall

-Setup

-HTTP Filters

Port Forwarding

Data Settings

SETTINGS

Accounts

-Ethernet

- MAC Filtering

-Terminal Settings

- Remote Access

- IP Watchdog

- Serial Device (not included yet)

- SMS

- Remote Control

Language

Whilst the above information has been prepared by Addvalue Innovation Pte Ltd (“Addvalue”) in good faith, and all reasonable efforts have

been made to ensure its accuracy, Addvalue makes no warranty or representation as to the accuracy, completeness or fitness for purpose or

use of the information. Addvalue shall not be liable for any loss or damage of any kind, including indirect or consequential loss, arising from

use of the information and all warranties and conditions, whether express or implied by statute, common law or otherwise, are hereby

excluded to the extent permitted by law of Singapore. Addvalue, the Addvalue Enabled logo, Wideye, and the Wideye logo are either

trademarks or registered trademarks of Addvalue Technologies Ltd and/or its affiliates in Singapore and/or other countries.

ADDVALUE INNOVATION WESBR5K Class 2 BGAN Satellite Terminal User Manual

ADDVALUE INNOVATION PTE LTD Class 2 BGAN Satellite Terminal

User Manual

Navigation menu

Namespaces

Views

Navigation
