ADLINK TECHNOLOGY COM-PT System on Module User Manual COM PT InstallationGuide
ADLINK TECHNOLOGY INC. System on Module COM PT InstallationGuide
User Manual
COM-PT
Installation Guide
ADLINK TECHNOLOGY INC.
1
1. Hardware Installation

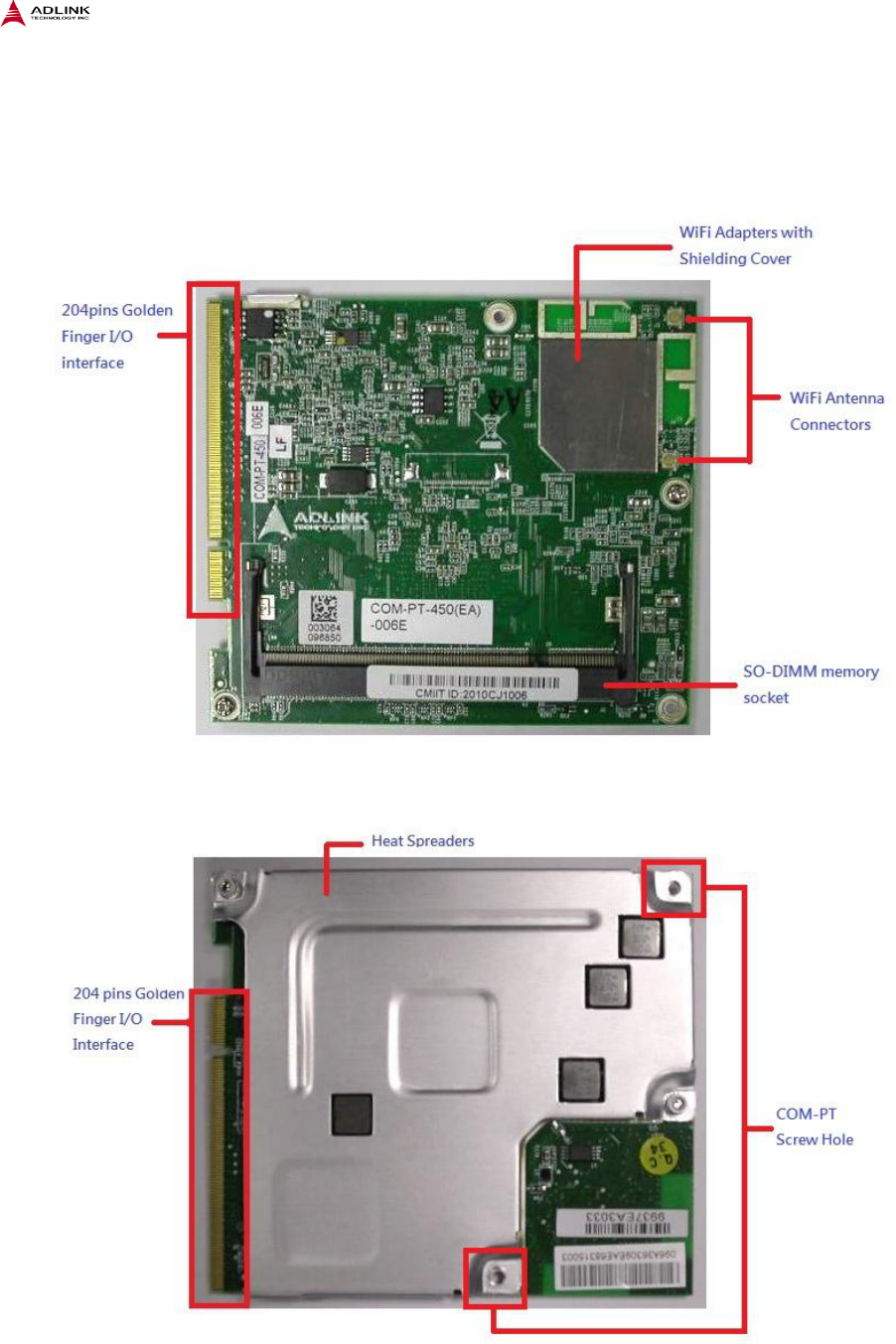

1.1 COM-PT Interface and Placement
Figure 1-1 COM-PT Front View
Figure 1-2 COM-PT Rear View
2
1.2 COM-PT Installation
The COM-PT is a SOM (System on Module), which can be combined design
with any industrial or consumer products as well as general purpose system
or devices goods.
The carrier board for COM-PT is depends on the customer application
requirement. The standard interface between COM-PT and customer’s
carrier board are using FOXCONN AS0B946-S50U-7H connector for I/O
communication and functionality implements.
Below are the roughly procedures for COM-PT install into the customer’s
carrier board.
Step1
Using 25 degrees angle to insert
DDR2 SO-DIMM memory into the
SO-DIMM socket.
Step2
Pressed DDR2 memory until it
completed locked into the
SO-DIMM socket.
3
Step3
Using 25 degrees angle to insert
COM-PT into FOXCONN
AS0B946-S50U-7H connector.
Step4
Fasten the screw in position
Step5
Fasten the screw in position
4
Step 6
COM-PT hardware installation
completed
2. Software Installation
The COM-PT is using Intel wireless WiFi adaptors technology. Therefore
COM-PT will require same driver and wireless WiFi connection utility as
Intel® WiFi Link 1000. For COM-PT detail driver installation and the utility
operation, please refer ‘Intel(R) PROSet/Wireless WiFi Connection
Utility User's Guide’.
5
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
