ADLINK TECHNOLOGY IMX-2000 Rugged Handheld Device User Manual IMX 2000 Revised 0412
ADLINK TECHNOLOGY INC. Rugged Handheld Device IMX 2000 Revised 0412
IMX-2000 User manual Revised 0412
IMX-2000
Rugged Handheld Device
User’s Manual
Manual Revision: 0.11
Revision Date: October 23, 2012
Part No.: 50-1Z131-1000
IMX-2000 User's Manual
2
Revision History
Version Date Description
0.10 2012/10/23
Preliminary release
0.11 2012/12/19
Add FCC statement
0.12 2013/4/10 Modify FCC RF Radiation Exposure Statement
Copyright 2012 ADLINK Technology, Inc.
All Rights Reserved
The information in this document is subject to change without prior notice in order to
improve reliability, design, and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
Trademarks
Product names mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective companies.
IMX-2000 User's Manual
3
Product Notes
For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and
NOTES marked in this manual and on the associated equipment before handling/operating
the equipment. To avoid damaging the product due to improper operation, please read the
manual thoroughly before use.
IMX-2000 working temperature:
Operating temperature range is -10°C to 50°C .
Storage temperature range is -20°C to 60°C.
Discharge temperature range is 0°C to 40°C.
The use of any batteries or accessories not originally sold or
manufactured by ADLINK may cause damage to the product.
The charging cradle only supports charging of two batteries
simultaneously. Attempting to charge three or more batteries at the same
time may damage the cradle or result in other safety risks.
Only connect one device to the DC adapter when charging the batteries
as this may damage the cradle or result in other safety risks.
Do not power on the IMX-2000 if it is forbidden to use wireless equipment
or if using such equipment will cause noise, interference or other dangers.
Wireless devices may suffer decreased performance due to
electromagnetic interference.
Power off the IMX-2000 when refueling. Do not use the IMX-2000 in gas
stations or when near flammables.
Power off the IMX-2000 in or nearby areas where blasting occurs and
abide by related safety rules. Do not use the IMX-2000 in places with
blasting operation.
Only authorized maintenance staff can repair the IMX-2000.
Before trying to connect the IMX-2000 to other devices, read the user
manual for proper instructions. Do not connect the IMX-2000 to any
incompatible products.
Do not stare into the scanner beam to avoid injury to your eyes.
IMX-2000 User's Manual
4
Important Safety Instructions
Read and follow all instructions marked on the product and in the documentation before
you operate your system. Retain all safety and operating instructions for future use.
Please read these safety instructions carefully.
Please keep this User‘s Manual for later reference.
The equipment can be operated at an ambient temperature of 50ºC for discharge;
40ºC for charge.
The equipment should be operated only from the type of power source indicated on
the rating label. Make sure the voltage of the power source when connect the
equipment to the power outlet.
If the equipment is not use for long time, disconnect the equipment from mains to
avoid being damaged by transient overvoltage.
All cautions and warnings on the equipment should be noted.
Please keep this equipment from humidity.
Do not use this equipment near water or a heat source.
Never pour any liquid into opening; this could cause fire or electrical shock.
Openings in the case are provided for ventilation. Do not block or cover these
openings. Make sure you provide adequate space around the system for ventilation
when you set up your work area. Never insert objects of any kind into the ventilation
openings.
To avoid electrical shock, always unplug all power cables and modem cables from the
wall outlets before removing covers.
If one of the following situations arises, get the equipment checked by a service
personnel:
A. Liquid has penetrated into the equipment.
B. The equipment has been exposed to moisture.
C. The equipment has not work well or you can not get it work according to user‘s
manual.
D. The equipment has dropped and damaged.
E. If the equipment has obvious sign of breakage.
Never open the equipment. For safety reason, the equipment should only be opened
by qualified service personnel.
“CAUTION – Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions”
IMX-2000 User's Manual
5
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter has been demonstrated co-location compliance requirements with
FCC ID: X4D-IMX-2000.This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device was tested for typical hand held operations with
the device near human body for 1 cm to the front side of the Rugged Handheld Device.
To maintain compliance with FCC RF exposure compliance requirements, avoid direct
contact to the transmitting antenna during transmitting.
IMX-2000 User's Manual
6
Table of Contents
REVISION HISTORY....................................................................................................................................................... 2
PRODUCT NOTES........................................................................................................................................................... 3
IMPORTANT SAFETY INSTRUCTIONS....................................................................................................................... 4
FCC STATEMENT............................................................................................................................................................ 5
TABLE OF CONTENTS................................................................................................................................................... 6
1 OVERVIEW ............................................................................................................................................................. 8
1.1 IMX-2000 LAYOUT............................................................................................................................................ 8
1.2 PACKAGE CONTENTS .......................................................................................................................................... 9
2 QUICK START ...................................................................................................................................................... 10
2.1 INSTALLING A SIM CARD ................................................................................................................................. 10
2.2 INSTALLING A MICRO SD CARD ........................................................................................................................ 10
2.3 INSTALLING A BATTERY .....................................................................................................................................11

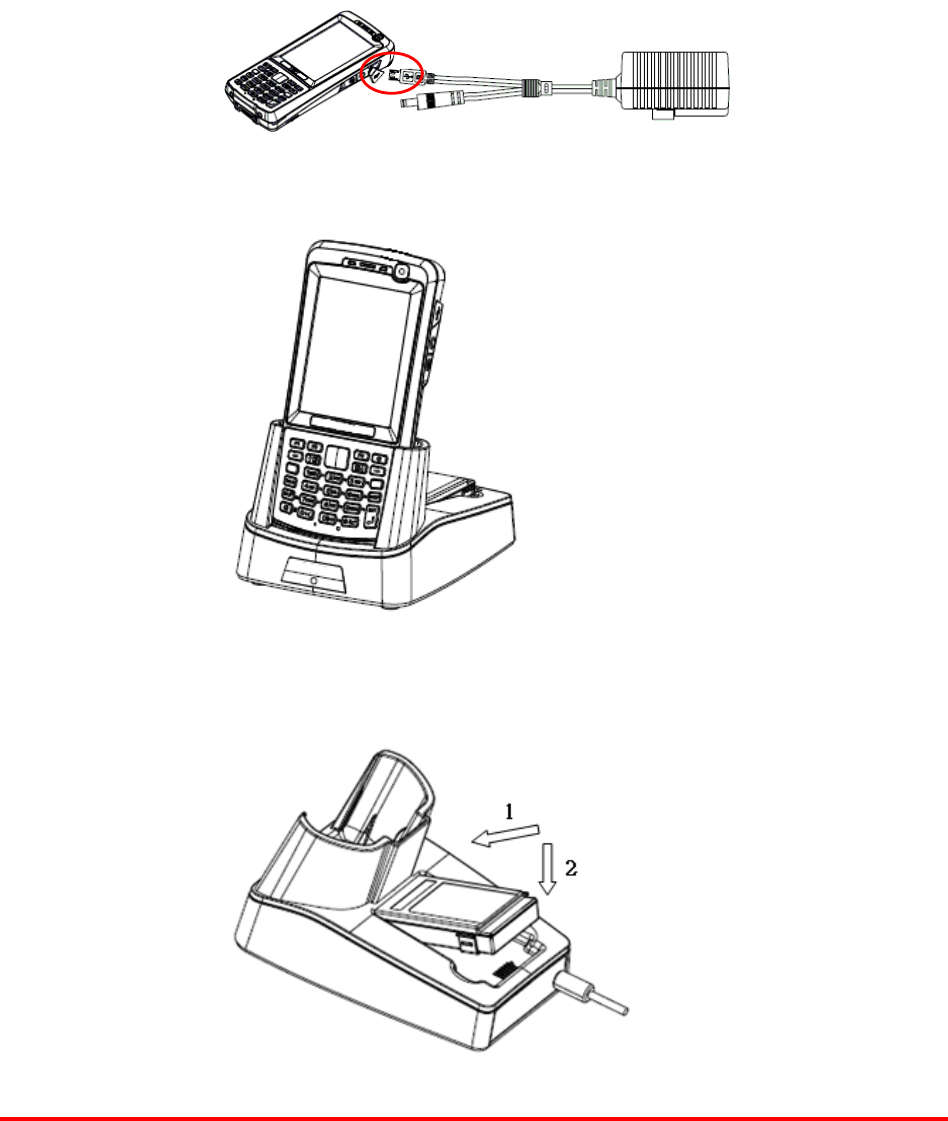

2.4 CHARGING THE BATTERY ................................................................................................................................. 12
2.5 INDICATOR LEDS............................................................................................................................................. 14

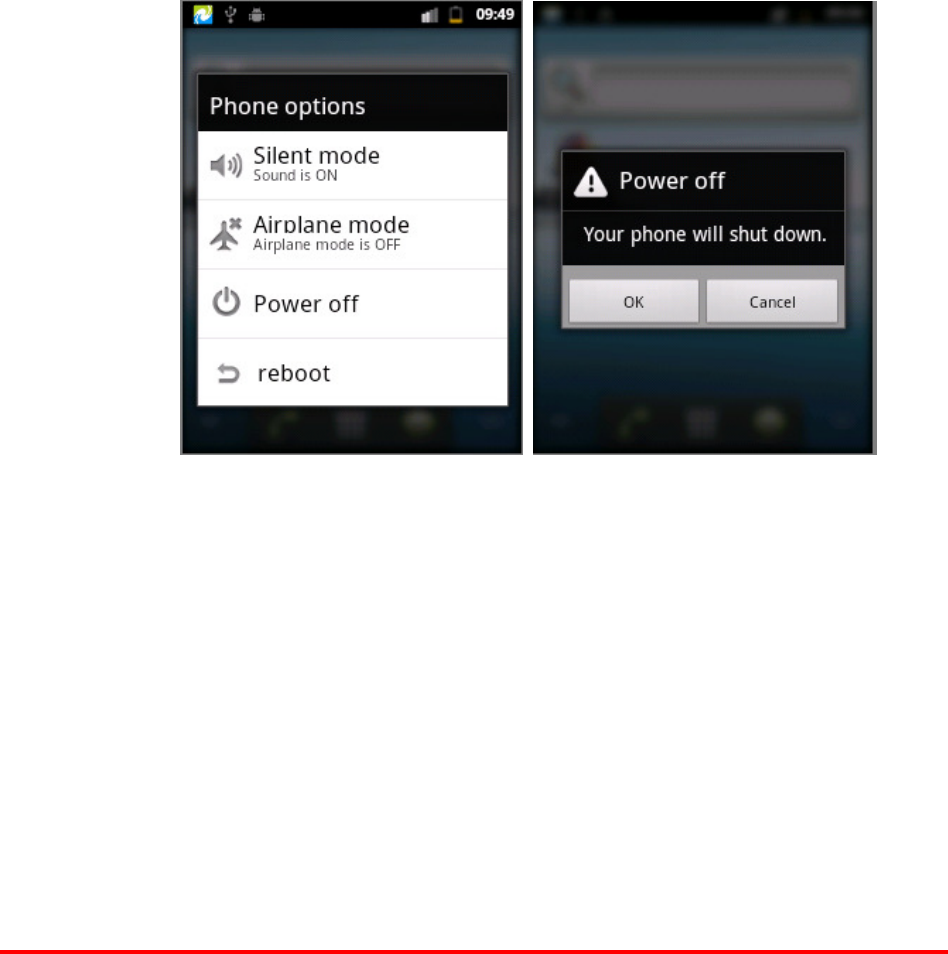

2.6 POWER ON/OFF ............................................................................................................................................... 15
2.7 KEYPAD........................................................................................................................................................... 16
3 USING THE IMX-2000.......................................................................................................................................... 18
3.1 HOME SCREEN ................................................................................................................................................. 18
3.2 ACCESSING MICRO SD DATA VIA A PC............................................................................................................... 20
3.3 PLACING AND RECEIVING A CALL ..................................................................................................................... 21
3.4 WEB BROWSER ................................................................................................................................................ 22
3.5 EMAIL ACCOUNT.............................................................................................................................................. 23
3.6 FILE EXPLORER................................................................................................................................................ 24
3.7 CONNECTING TO BLUETOOTH DEVICES ............................................................................................................. 25
3.8 CONNECTING TO WI-FI NETWORKS................................................................................................................... 27
3.9 USING GPS...................................................................................................................................................... 28
3.10 PHOTOS AND VIDEO ......................................................................................................................................... 30
3.11 SOUND RECORDER ........................................................................................................................................... 32
4 SETTINGS ............................................................................................................................................................. 33
4.1 ABOUT THE IMX-2000..................................................................................................................................... 33
4.2 DATE & TIME ................................................................................................................................................... 34
4.3 LANGUAGE & KEYPAD SETTINGS ..................................................................................................................... 35
IMX-2000 User's Manual
7
4.4 TOUCH SCREEN CALIBRATION .......................................................................................................................... 36
4.5 MOBILE NETWORKS ......................................................................................................................................... 37
4.6 SOUND SETTINGS ............................................................................................................................................. 40
4.7 DISPLAY SETTINGS ........................................................................................................................................... 42
4.8 STORAGE SETTINGS ......................................................................................................................................... 43

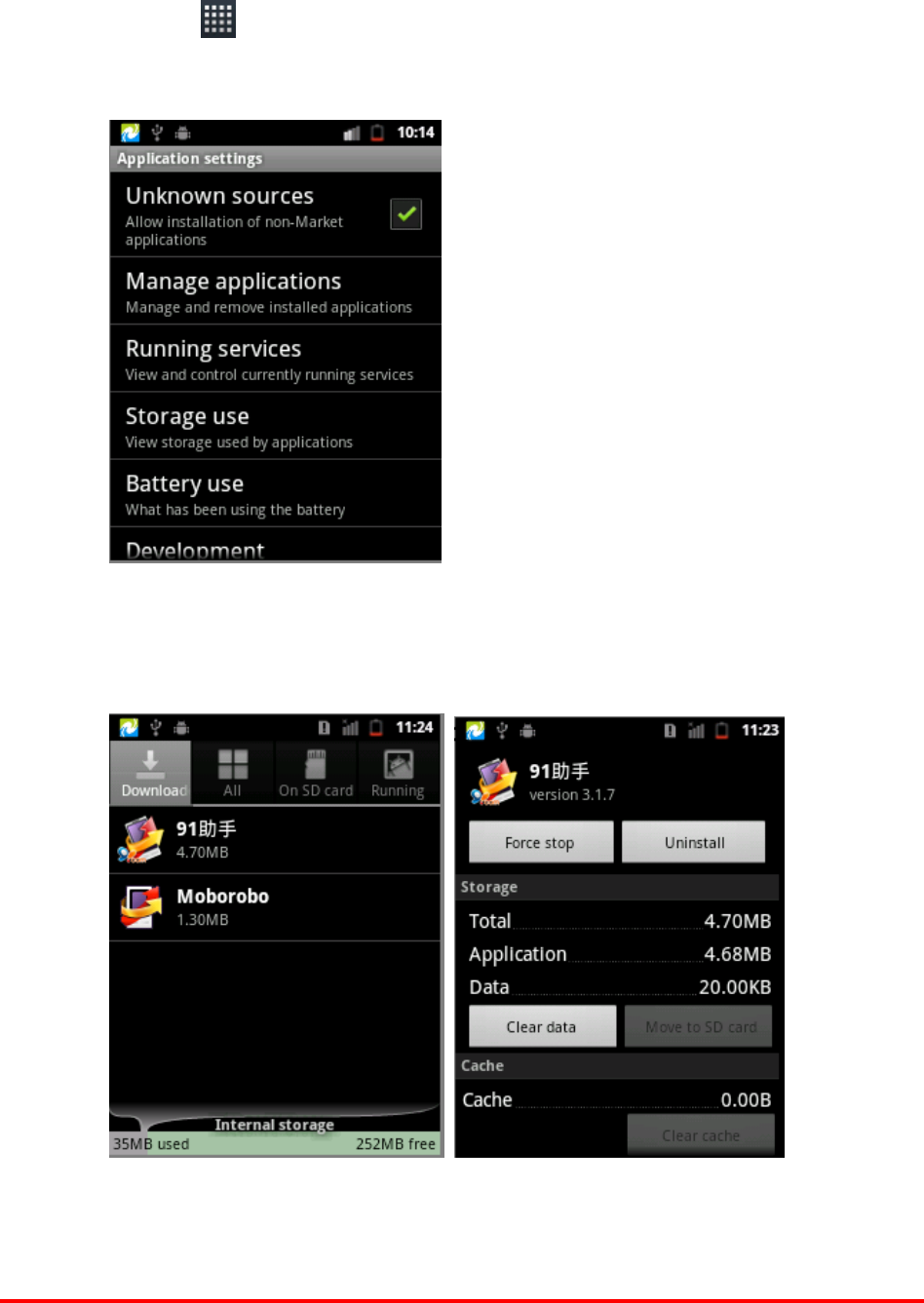

4.9 APPLICATION SETTINGS.................................................................................................................................... 44
4.10 FACTORY DATA RESET ...................................................................................................................................... 46
TECHNICAL SUPPORT ................................................................................................................................................ 47
IMX-2000 User's Manual
8
1 Overview
1.1 IMX-2000 Layout
No. Description No.
Description
1 Power button 12 USB port
2 Power LED 13 Programmable Function key
3 Communication LED 14 Programmable Function key
4 LCD 15 Battery cover lock
5 Keypad 16 Stylus
6 Front microphone 17 Camera & Flash
7 Charging pad 18 Changeable back cover
8 Scan window 19 Back microphone
9 Earphone jack 20 Speaker
10 Volume up 21 Battery cover
11 Volume down
IMX-2000 User's Manual
9
1.2 Package Contents
The IMX-2000 is packaged with the components listed below. If any of the items in the
contents list are missing or damaged, retain the shipping carton and packing material
and contact the dealer for inspection. Please obtain authorization before returning any
product to ADLINK.
IMX-2000 Handheld Computer
Battery (3900 mAh)
AC Adapter and plug
Hand strap
USB cable
Quick guide
IMX-2000 User's Manual
10
2 Quick Start
2.1 Installing a SIM Card
1. Open the battery cover by releasing the two locks and lifting the cover
2. Open the waterproof cover to expose the SIM card slots.
3. Only SIM1 is operational. SIM2 is reserved.
Insert the SIM card in the correct direction.
Lock the SIM card cover after inserting the SIM card.
You will not be able to connect to your carrier using the SIM2 slot on standard
models.
2.2 Installing a Micro SD Card
1. The Micro SD card slot is under the SIM2 card slot.
2. Lift the SIM2 slot to expose the Micro SD card slot.
3. After inserting the Micro SD card, lock the SIM2 card slot in place.
IMX-2000 User's Manual
11

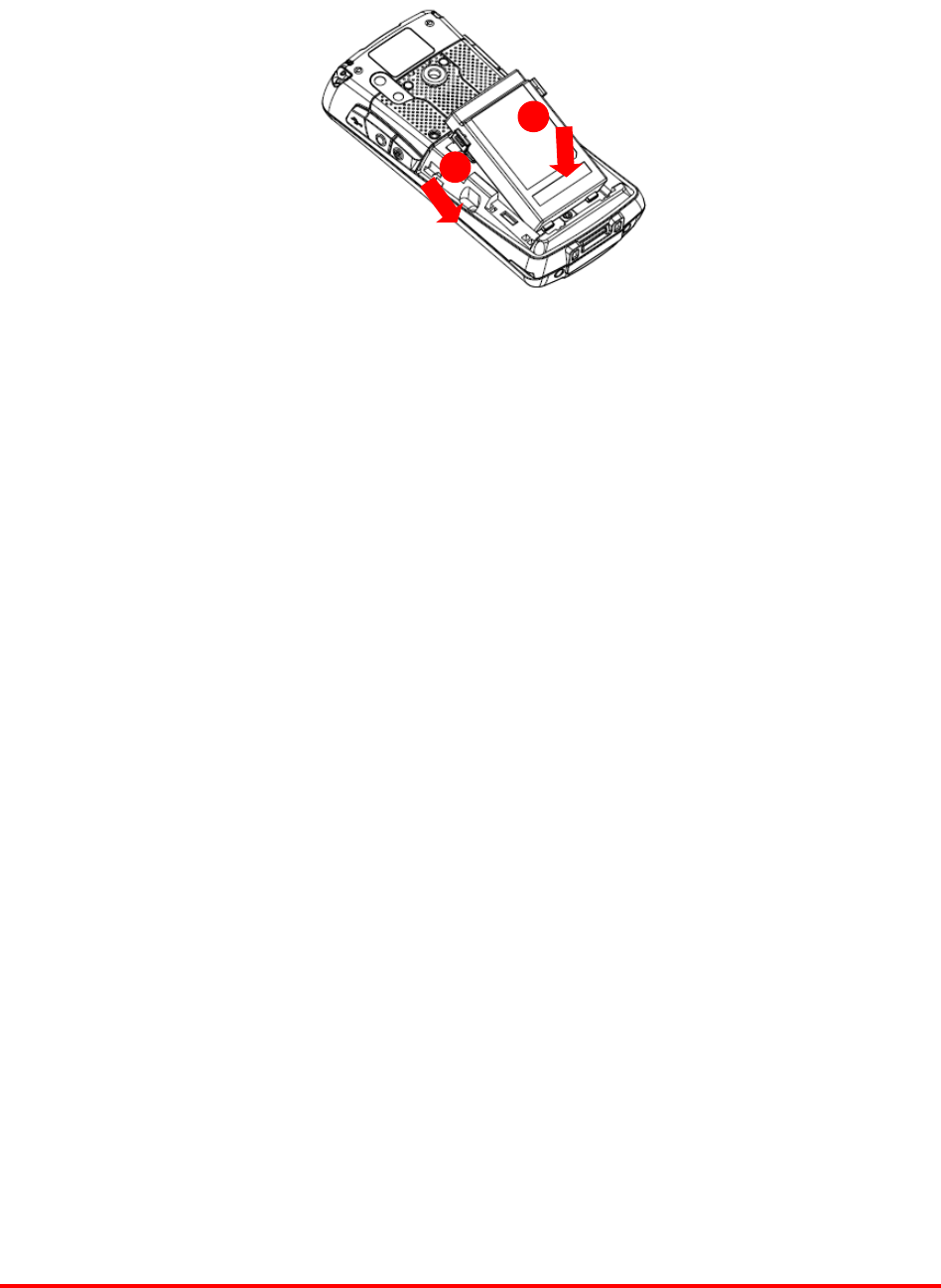

2.3 Installing a Battery
1. Insert the bottom of the battery into the IMX-2000.
2. Press the battery down to lock it in place.
1
2
IMX-2000 User's Manual
12
2.4 Charging the Battery
There are three methods to charge the battery.
1. USB Charge: Connect the USB connector from the DC adapter to the
USB socket of the IMX-2000 as shown. Insert the correct plug for your
region into the DC adapter and plug it into the wall socket to begin
charging.
2. Charging Cradle: Connect the DC adapter to the charging cradle to
charge the IMX-2000 and secondary battery simultaneously.
3. Secondary Battery Charging: The LED on the charging cradle will
change from red to green when charging is complete.
IMX-2000 User's Manual
13
The IMX-2000 cannot be charged while using the USB connection.
IMX-2000 User's Manual
14
2.5 Indicator LEDs
The Power LED and Communication LED are located at the top of the
IMX-2000.
No. Name Description
1 Power LED
Red: Charging
Green: Charging completed
2 Communication LED Blue: Bluetooth enabled
IMX-2000 User's Manual
15
2.6 Power On/Off
Powering On
1. Install and charge a battery.
2. Press and hold the Power button for around 3 seconds until the
IMX-2000 begins vibrating and is powered on.
Powering Off
1. Press and hold the Power button for around 3 seconds.
2. In Phone options, touch Power off. to shut down the IMX-2000
3. Touch Power off OK to confirm shut down.
4. The IMX-2000 is powered off when the screen turns off.
IMX-2000 User's Manual
16
2.7 Keypad
Keypad Definitions
Color Codes:
There are three key colors on the keypad that are active depending on
the color keys pressed.
Color Mode Description
White 1st layer The Numeric keys and other white keys are active
Orange English/
Sign Input
Press once: Upper-case alphabetic
Press twice: Lower-case alphabetic
Press three times: Cancel Orange function
Green Function
key
Press to switch to Function keys
The Numeric keys now act as Function keys. For
example, press 1 to use F1
IMX-2000 User's Manual
17
Special Keys:
Key Name Description
Home & Direction
key
White: Press this key to go back to the Android home
screen.
Orange: Direction key - Left
Menu & Direction
key
White: Press this key to open a menu with items that
affect the current screen or application
Orange: Direction key - Up
Back & Direction
key
White: Press this key to go back to the previous screen
you were working in.
Orange: Direction key – Down
Search &
Direction key
White: Press this key to open Google search for
searching your phone, web and the applications.
Orange: Direction key - Right
Answer Answer an incoming call
Decline Decline an incoming call
Programmable
key & PG up
White: P1 for shortcut key 1, programmable key.
Orange: Page up
Programmable
key & PG down
White: P2 for shortcut key 2, programmable key
Orange: Page Down.
Back Space White: Back Space key.
Scan or Confirm
1. When the barcode reader is enabled, press to
start barcode scanning.
2. In an application interface, press to confirm
the option.
IMX-2000 User's Manual
18
3 Using the IMX-2000
3.1 Home Screen
Icon Name Description
Status bar Displays the time, battery charge level, signal
strength and other notification icons.
Search Touch to open Google search for
searching your contacts, webs, and
applications.
Android
Helper Touch the message to see more details.
Phone Touch the Phone icon to make a call.
Launcher Touch the Launcher icon to open the Launcher
and view all your applications.
Browser Touch the Browser icon to open a webpage.
Status bar
Android helper
Phone
Launcher
Browser
Search
IMX-2000 User's Manual
19
Notification Icons
Icon Name Description
Time Time
2G network signal 2G network signal strength
3G network signal 3G network signal strength
USB connection Indicates if the IMX-2000 is
connected via USB
USB debugging USB debugging connected
Uploading data Uploading data
Wi-Fi signal Wi-Fi network
Bluetooth status Bluetooth is on
IMX-2000 User's Manual
20
3.2 Accessing micro SD Data via a PC
Connecting the IMX-2000 to a PC via USB
1. The USB connection icon displayed on the Status bar means the
IMX-2000 has been connected via USB to a PC.
2. Swipe down from the status bar and touch “USB connected”.
3. Touch “Turn on USB storage” to access the micro SD card.
When you turn on USB storage, you cannot use applications that rely on
them, such as Camera and Music.
Touch Turn off USB Storage to leave USB Storage mode.
IMX-2000 User's Manual
21
3.3 Placing and Receiving a Call
1. Touch the phone icon on the Home screen.
2. Enter the phone number and touch the phone icon to dial the number
you entered.
Call a Contact: Open your Contacts and touch the contact to call.
While receiving calls, the IMX-2000 will display the caller’s name, phone
number, picture, and ringtone (or vibration) you set.
IMX-2000 User's Manual
22
3.4 Web Browser
Opening a webpage
1. Touch the Browser icon on the Home screen.
2. Touch the URL box.
3. Enter the URL of a webpage. Touch .
Quick search
You can use Google search on the homepage to start Quick search.
1. Touch Google Search.
2. Enter the text you want to search for in the Google Search box.
3. Touch Search .
Touch Menu to see more functions.
You can connect to networks via Wi-Fi or 3G. The priority of Wi-Fi is
higher than 3G when both Wi-Fi and 3G are connected.
IMX-2000 User's Manual
23
3.5 Email Account
Setting up an Email account
Touch ＞ Email on the Home screen.
Touch to open the onscreen keyboard, and enter the information accordingly.
IMX-2000 User's Manual
24
3.6 File Explorer
1. Touch ＞ File Explorer on the Home screen.
2. Touch
Icon Description
Displays current directory. Touch to go up one
level.
Directory: directory name
File: file name and file size
IMX-2000 User's Manual
25
3.7 Connecting to Bluetooth Devices
Turning Bluetooth on
1. Touch on the Home screen, then ＞ Settings ＞ Wireless &
networks.
2. Check Bluetooth to turn it on.
The Bluetooth notification icon visible in in the status bar indicates that
Bluetooth is on.
3. Touch Settings＞ Wireless & networks＞ Bluetooth settings＞ Scan
for devices to search for Bluetooth devices.
4. Enter a pass code to pair the IMX-2000 with the Bluetooth device.
IMX-2000 User's Manual
26
Turning Bluetooth off
1. Touch on the Home screen, then ＞ Settings ＞ Wireless &
networks.
2. Uncheck Bluetooth to turn it off.
If the pairing is successful, the notification icon will display on the
status bar. You can start exchanging data with the Bluetooth device.
Touch Menu to see more functions.
While Bluetooth is on, the IMX-2000 will search and display available
devices and the notification will display on the status bar.
IMX-2000 User's Manual
27
3.8 Connecting to Wi-Fi Networks
Turning Wi-Fi on
1. Touch on the Home screen ＞ Settings ＞ Wireless & networks
2. Check Wi-Fi to turn it on.
3. The IMX-2000 scans for available Wi-Fi networks and displays their names.
Secure networks are indicated with a lock icon.
4. Touch a Wi-Fi network to connect to it. You will be prompted to enter a
password or other credentials if the network is secured.
Turning Wi-Fi off
1. Touch on the Home screen, then ＞ Settings ＞ Wireless &
networks.
2. Uncheck Wi-Fi to turn it off.
If the connection is successful, the notification icon will display on
status bar with the number of bars indicating the signal strength.
If the network is Open, the IMX-2000 will connect to the network
automatically. If the network is Secure, You will be prompted to enter a
password or other credentials.
The priority of Wi-Fi is higher than 3G in network connections.
IMX-2000 User's Manual
28
3.9 Using GPS
Turning GPS on
1. Touch on the Home screen, then ＞Settings> Location &
security.
2. Check Use GPS Satellites.
3. Return to the Home screen, touch , and enable the Map application
to determine your location.
IMX-2000 User's Manual
29
Using Assisted GPS (A-GPS)
Determining your location via Wi-Fi
1. Touch on the Home screen, then
＞Settings> Location & security.
2. Check Use wireless networks.
3. On the Home screen, touch to
enable the Map application to
determine your location.
Please confirm Wi-Fi is on and that you are
connected to a network before using Wi-Fi
for AGPS.
Determining your location via 3G
1. Touch on the Home screen, then
＞Settings> Location & security.
2. Check Use wireless networks.
3. On the Home screen, touch to
enable the Map application to
determine your location.
Please confirmed Settings>Mobile
networks> Data enabled has been
checked before using Mobile networks for
AGPS.
It may take several minutes for GPS to determine your location for the
first time. GPS will be more time efficient after satellite locations have
been saved.
IMX-2000 User's Manual
30
3.10 Photos and Video
Taking a picture
1. Touch on the Home screen, then
＞ Camera
2. Drag the control to the Photo position
3. Frame your subject on screen
4. Touch the onscreen Shutter
icon or key to take a picture.
Shooting a video
1. Touch on the Home screen, then
＞ Camera
2. Drag the control to the Video position
3. Frame your subject on screen
4. Touch the onscreen Start Video
icon or key to shoot a video.
5. Touch the Stop Video icon to
stop shooting.
IMX-2000 User's Manual
31
Insert a Micro SD card before using the camera. All shots you take will be
saved on the Micro SD card.
Remove the protective film on lens before using the camera.
Icon Photo mode settings Video mode settings
Picture size Sets the size (in pixels) of the
pictures you take.
Sets the video quality and video
duration
Color effect Sets a special effect for your
pictures. Sets a special effect for your videos
Flash mode Flash On/Off Flash On/Off
1x Zoom Sets zoom from 1x to 2x N/A
Brightness Sets brightness, saturation and
contrast
Video Encoder, Audio Encoder and
Camera Settings
IMX-2000 User's Manual
32
3.11 Sound Recorder
1. Touch on the Home screen, then ＞ Sound Recorder
2. Touch to start sound recording.
3. Touch to stop sound recording.
4. Touch Use this recording to save the recorded message
on the Micro SD card or touch Discard to delete the
message.
Touch to play the message.
The microphone is on the back side of IMX-2000.
IMX-2000 User's Manual
33
4 Settings
4.1 About the IMX-2000
Touch on the Home screen, then ＞ Settings> About phone to view
information about your IMX-2000.
1. Status
2. Battery use
3. Legal Information
4. Model number
5. Version information
IMX-2000 User's Manual
34
4.2 Date & Time
Touch on the Home screen, then ＞ Settings> Date & time settings
Automatic (update date, time zone and
time automatically)
1. Check Automatic
2. Uses the date & time provided by
network connection when device is
on Wi-Fi or 3G.
Manual (update date, time zone and
time manually)
1. Uncheck Automatic
2. Set date, time zone and time
manually.
IMX-2000 User's Manual
35
4.3 Language & Keypad Settings
Touch on the Home screen > Settings > Language & keyboard to set
language and keyboard settings.
Language settings
Touch Select Language to change the language setting.
Keyboard settings
Touch the keyboard settings for your specific language to adjust advanced
settings.
IMX-2000 User's Manual
36
4.4 Touch Screen Calibration
1. Touch on the Home screen, then ＞ Settings> Touch screen
calibration
2. Calibrate the screen according to the instructions displayed.
Please use this function when necessary to improve touch screen
accuracy.
IMX-2000 User's Manual
37
4.5 Mobile Networks
Touch on the Home screen, then ＞ Settings>Mobile networks
Mobile data service
1. Check Data enabled to enable data transmission over a mobile network.
Check this option to enable data access. The 3G notification icon will
display on the Status bar.
※ You may need to set the Access Point Name (APN) for your carrier
manually (see GSM/UMTS options below).
IMX-2000 User's Manual
38
2. Check Data roaming to enable data roaming.
The IMX-2000 can transmit data on mobile networks of other carriers when
you are unable to access your own carrier.
GSM/UMTS options
1. Access Point Names (APN)
Open the APNs screen to set the mobile access point (WAP, NET, etc), or
press Menu to add a new APN.
IMX-2000 User's Manual
39
2. Networks
Choose your preferred network mode.
3. Network operators
You can manually or automatically search for mobile networks that are
compatible with your IMX-2000.
IMX-2000 User's Manual
40
4.6 Sound Settings
Touch on the Home screen > Settings > Sound
1. Silent mode: Check to turn off all sounds except the audio from media and
any alarms you have set. (You must silence media and alarms in the individual
applications).
2. Vibrate: Touch to open a dialog that allows you to set the IMX-2000 to vibrate
when you receive a phone call or notification.
Always
Never
Only in Silent mode
Only when not in Silent mode
3. Volume: Touch to open a dialog to set the volume of ringtones when you
receive a phone call or notification (see below).
4. Phone ringtone: Touch to open a dialog to select the ringtone when you
receive a phone call.
5. Notification ringtone: Touch to open a dialog to select the ringtone when you
receive a notification.
6. Audible touch tones: Check to enable sounds when using dial pad.
7. Audible selections: Check to enable sounds when making screen selections.
8. Screen lock sounds: Check to enable sounds when locking and unlocking
the screen.
9. Haptic feedback: Check to enable vibrate when pressing soft keys and on
certain UI interactions.
IMX-2000 User's Manual
41
Two ways to adjust the volume
1. Press the "up/down" keys on the left side of the IMX-2000.
2. Touch the on the Home screen > Settings > Sound > Volume.
IMX-2000 User's Manual
42
4.7 Display Settings
Touch on the Home screen, then ＞Settings > Display
1. Brightness: Touch to open a dialog to adjust brightness of the screen
2. Animation: Touch to open a dialog to enable/disable animated transitions for
some effects (such as opening menus).
No animations
Some animations
All animations
3. Screen timeout: Adjust the delay before the screen automatically turns off.
1 minute
2 minutes
10 minutes
30 minutes
The IMX-2000 goes into standby mode after screen timeout in order to
save battery power.
IMX-2000 User's Manual
43
4.8 Storage Settings
Touch on the Home screen, then ＞Settings＞Storage
1. Displays the total space and available space on the Micro SD card.
2. Un-mount SD card: If you unmount the Micro SD card, some applications you
are using will stop and may be available until you remount the SD card.
3. Erase SD card: Erases all data on the Micro SD card and prepares it for use
with your IMX-2000.
4. System upgrade: Installs system software upgrade. Please contact your
supplier.
All data on the Micro SD card will be permanently erased if you select
Erase SD card.
Please contact your supplier for assistance updating system software via
SD card.
IMX-2000 User's Manual
44
4.9 Application Settings
Touch on the Home screen, then ＞ Settings＞Applications
Unknown sources
Check to allow installation of
non-Market applications.
Manage applications: Displays a list of all applications and other software installed on
your IMX-2000 and the amount of storage and cache used.
You can choose Force stop or Uninstall for installed applications.
IMX-2000 User's Manual
45
Development
1. USB debugging: USB Debug mode
when USB is connected.
2. Stay awake: Screen will never sleep
while charging
3. Allow mock locations
4. USB mode switch: Sets USB to Normal
or Modem mode
IMX-2000 User's Manual
46
4.10 Factory Data Reset
Touch on the Home screen, then ＞Settings＞Privacy＞Factory data
reset
Touch Reset phone to erase all data from your IMX-2000’s internal storage.
Be aware that this action will erase all data from your IMX-2000’s storage.
IMX-2000 User's Manual
47
Technical Support
Contact us should you require any service or assistance.
ADLINK Technology, Inc.
Address: 9F, No.166 Jian Yi Road, Zhonghe District
New Taipei City 235, Taiwan
166 9
Tel: +886-2-8226-5877
Fax: +886-2-8226-5717
Email: service@adlinktech.com
Ampro ADLINK Technology, Inc.
Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA
Tel: +1-408-360-0200
Toll Free: +1-800-966-5200 (USA only)
Fax: +1-408-360-0222
Email: info@adlinktech.com
ADLINK Technology (China) Co., Ltd.
Address: 上海市浦 新 江高科技 芳春路 300 (201203)
300 Fang Chun Rd., Zhangjiang Hi-Tech Park,
Pudong New Area, Shanghai, 201203 China
Tel: +86-21-5132-8988
Fax: +86-21-5132-3588
Email: market@adlinktech.com
ADLINK Technology Beijing
Address: 北京市海淀 上地 路 1 盈 力大 E座801 室(100085)
Rm. 801, Power Creative E, No. 1, B/D
Shang Di East Rd., Beijing, 100085 China
Tel: +86-10-5885-8666
Fax: +86-10-5885-8625
Email: market@adlinktech.com
ADLINK Technology Shenzhen
Address: 深圳市南山 科技 南 高新南七道 字技
A1 2C (518057)
2F, C Block, Bldg. A1, Cyber-Tech Zone, Gao Xin Ave. Sec. 7,
High-Tech Industrial Park S., Shenzhen, 518054 China
Tel: +86-755-2643-4858
Fax: +86-755-2664-6353
Email: market@adlinktech.com
LiPPERT ADLINK Technology GmbH
Address: Hans-Thoma-Strasse 11, D-68163, Mannheim, Germany
Tel: +49-621-43214-0
Fax: +49-621 43214-30
Email: emea@adlinktech.com
IMX-2000 User's Manual
48
ADLINK Technology, Inc. (French Liaison Office)
Address: 15 rue Emile Baudot, 91300 Massy CEDEX, France
Tel: +33 (0) 1 60 12 35 66
Fax: +33 (0) 1 60 12 35 66
Email: france@adlinktech.com
ADLINK Technology Japan Corporation
Address: 〒101-0045 東京 都千代田 神田鍛冶町 3-7-4
神田 374 4F
KANDA374 Bldg. 4F, 3-7-4 Kanda Kajicho,
Chiyoda-ku, Tokyo 101-0045, Japan
Tel: +81-3-4455-3722
Fax: +81-3-5209-6013
Email: japan@adlinktech.com
ADLINK Technology, Inc. (Korean Liaison Office)
Address: 서울시 서초구 서초동 1675-12 모인터빌딩 8층
8F Mointer B/D,1675-12, Seocho-Dong, Seocho-Gu,
Seoul 137-070, Korea
Tel: +82-2-2057-0565
Fax: +82-2-2057-0563
Email: korea@adlinktech.com
ADLINK Technology Singapore Pte. Ltd.
Address: 84 Genting Lane #07-02A, Cityneon Design Centre,
Singapore 349584
Tel: +65-6844-2261
Fax: +65-6844-2263
Email: singapore@adlinktech.com
ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office)
Address: 1st Floor, #50-56 (Between 16th/17th Cross) Margosa Plaza,
Margosa Main Road, Malleswaram, Bangalore-560055, India
Tel: +91-80-65605817, +91-80-42246107
Fax: +91-80- 23464606
Email: india@adlinktech.com
ADLINK Technology, Inc. (Israeli Liaison Office)
Address: 6 Hasadna St., Kfar Saba 44424, Israel
Tel: +972-9-7446541
Fax: +972-9-7446542
Email: israel@adlinktech.com
