Manual

TRACER 4305

System Manual

12804305L1A TRACER 4305 System (Plan A)

12804305L1B TRACER 4305 System (Plan B)

612804305L1A-1A

May 2002

Trademarks

Any brand names and product names included in this manual are trademarks, registered trademarks, or

trade names of their respective holders.

To the Holder of the Manual

The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change

the contents without prior notice.

In no event will ADTRAN be liable for any special, incidental, or consequential damages or for

commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.

901 Explorer Boulevard

P.O. Box 140000

Huntsville, AL 35814-4000

Phone: (256) 963-8000

Printed in U.S.A.

About this Manual

This manual provides a complete description of the TRACER 4305 system and system software.

The purpose of this manual is to provide the technician, system administrator, and manager with

general and specific information related to the planning, installation, operation, and maintenance of the

TRACER 4305. This manual is arranged so that needed information can be quickly and easily found. The

following is an overview of the contents.

Section 1 System Description

Provides managers with an overview of the TRACER 4305 system.

Section 3 Microwave Path Engineering Basics

Explains the basics of analyzing a wireless microwave link, or path. The significant

parameters are defined, and several recommendations are offered.

Section 3 Engineering Guidelines

Provides information to assist network designers with incorporating the

TRACER 4305 system into their networks.

Section 4 Network Turnup Procedure

Provides step-by-step instructions on how to install the TRACER 4305 unit, determine the

parameters for the system, install the network and option modules, and power up the

system.

Section 5 User Interface Guide

Explains the terminal interface and provides a description for each of the menus available

for the TRACER 4305 system.

Section 6 Troubleshooting Guide

Provides helpful information for troubleshooting common configuration problems for the

TRACER 4305 system.

Revision History

This is the 1st issue of this manual.

Safety Instructions

When using your telephone equipment, please follow these basic safety precautions to reduce the risk of

fire, electrical shock, or personal injury:

1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a

wet basement, or near a swimming pool.

2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote

risk of shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of

batteries in a fire. They may explode. Check with local codes for special disposal instructions.

Save These Important Safety Instructions

Notes provide additional useful information.

Cautions signify information that could prevent service interruption.

Warnings provide information that could prevent damage to the equipment or

endangerment to human life.

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Shielded cables must be used with this unit to ensure compliance with Class A FCC limits.

Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Warranty and Customer Service

ADTRAN will repair and return this product within five years from the date of shipment if it does not meet

its published specifications or fails while in service. For detailed warranty, repair, and return information

refer to the ADTRAN Equipment Warranty and Repair and Return Policy Procedure.

Return Material Authorization (RMA) is required prior to returning equipment to ADTRAN.

For service, RMA requests, or further information, contact one of the numbers listed at the end of this

section.

LIMITED PRODUCT WARRANTY

ADTRAN warrants that for five years from the date of shipment to Customer, all products manufactured

by ADTRAN will be free from defects in materials and workmanship. ADTRAN also warrants that

products will conform to the applicable specifications and drawings for such products, as contained in the

Product Manual or in ADTRAN's internal specifications and drawings for such products (which may or

may not be reflected in the Product Manual). This warranty only applies if Customer gives ADTRAN

written notice of defects during the warranty period. Upon such notice, ADTRAN will, at its option, either

repair or replace the defective item. If ADTRAN is unable, in a reasonable time, to repair or replace any

equipment to a condition as warranted, Customer is entitled to a full refund of the purchase price upon

return of the equipment to ADTRAN. This warranty applies only to the original purchaser and is not

transferable without ADTRAN's express written permission. This warranty becomes null and void if

Customer modifies or alters the equipment in any way, other than as specifically authorized by ADTRAN.

EXCEPT FOR THE LIMITED WARRANTY DESCRIBED ABOVE, THE FOREGOING

CONSTITUTES THE SOLE AND EXCLUSIVE REMEDY OF THE CUSTOMER AND THE

EXCLUSIVE LIABILITY OF ADTRAN AND IS IN LIEU OF ANY AND ALL OTHER WARRANTIES

(EXPRESSED OR IMPLIED). ADTRAN SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES,

INCLUDING (WITHOUT LIMITATION), ALL WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION

OF IMPLIED WARRANTIES, SO THIS EXCLUSION MAY NOT APPLY TO CUSTOMER.

In no event will ADTRAN or its suppliers be liable to the Customer for any incidental, special, punitive,

exemplary or consequential damages experienced by either the Customer or a third party (including, but

not limited to, loss of data or information, loss of profits, or loss of use). ADTRAN is not liable for

damages for any cause whatsoever (whether based in contract, tort, or otherwise) in excess of the amount

paid for the item. Some states do not allow the limitation or exclusion of liability for incidental or

consequential damages, so the above limitation or exclusion may not apply to the Customer.

Customer Service, Product Support Information, and Training

ADTRAN will repair and return this product if within five years from the date of shipment the product

does not meet its published specification or the product fails while in service.

A return material authorization (RMA) is required prior to returning equipment to ADTRAN. For service,

RMA requests, training, or more information, use the contact information given below.

Repair and Return

If you determine that a repair is needed, please contact our Customer and Product Service (CAPS)

department to have an RMA number issued. CAPS should also be contacted to obtain information

regarding equipment currently in house or possible fees associated with repair.

Identify the RMA number clearly on the package (below address), and return to the following address:

Pre-Sales Inquiries and Applications Support

Your reseller should serve as the first point of contact for support. If additional pre-sales support is needed,

the ADTRAN Support web site provides a variety of support services such as a searchable knowledge

base, latest product documentation, application briefs, case studies, and a link to submit a question to an

Applications Engineer. All of this, and more, is available at:

When needed, further pre-sales assistance is available by calling our Applications Engineering

Department.

CAPS Department (256) 963-8722

ADTRAN Customer and Product Service

901 Explorer Blvd. (East Tower)

Huntsville, Alabama 35806

RMA # _____________

http://support.adtran.com

Applications Engineering (800) 615-1176

Post-Sale Support

Your reseller should serve as the first point of contact for support. If additional support is needed, the

ADTRAN Support web site provides a variety of support services such as a searchable knowledge base,

updated firmware releases, latest product documentation, service request ticket generation and

trouble-shooting tools. All of this, and more, is available at:

When needed, further post-sales assistance is available by calling our Technical Support Center. Please

have your unit serial number available when you call.

Installation and Maintenance Support

The ADTRAN Custom Extended Services (ACES) program offers multiple types and levels of installation

and maintenance services which allow you to choose the kind of assistance you need. This support is

available at:

For questions, call the ACES Help Desk.

Training

The Enterprise Network (EN) Technical Training Department offers training on our most popular products.

These courses include overviews on product features and functions while covering applications of

ADTRAN's product lines. ADTRAN provides a variety of training options, including customized training

and courses taught at our facilities or at your site. For more information about training, please contact your

Territory Manager or the Enterprise Training Coordinator.

http://support.adtran.com

Technical Support (888) 4ADTRAN

http://www.adtran.com/aces

ACES Help Desk (888) 874-ACES (2237)

Training Phone (800) 615-1176, ext. 7500

Training Fax (256) 963-6700

Training Email training@adtran.com

Radio Frequency Interface Statement

This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to

Part 15, Subpart C of the FCC Rules. This equipment generates, uses, and can radiate radio frequency

energy. If not installed and used in accordance with the instructions, it may cause interference to radio

communications.

The limits are designed to provide reasonable protection against such interference in a residential situation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause interference to radio or television reception, which can be determined by turning the equipment

on and off, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna of the affected radio or television.

• Increase the separation between the equipment and the affected receiver.

• Connect the equipment and the affected receiver to power outlets on separate circuits.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by ADTRAN could void the user’s

authority to operate the equipment.

FCC Output Power Restrictions

The FCC does not require licensing to implement this device. However, the FCC has established

restrictions regarding maximum Effective Isotropic Radiating Power (EIRP) and the adjustments required

when employing directional gain antennas. (Refer to “Setting the Transmitter Power” in Section 2 of this

manual). These restrictions are detailed in FCC Part 15.407(a)(3). It is the responsibility of the individuals

designing and implementing the radio system to assure compliance with these and any other pertinent FCC

Rules and Regulations. This device must be professionally installed.

Exposure to Radio Frequency Fields

The TRACER 4305 is designed to operate at 5.725 to 5.825 GHz with 100 mW maximum transmit power.

This level of RF energy is below the Maximum Permissible Exposure (MPE) levels specified in FCC OET

65:97-01. The installation of high gain antenna equipment in the system configuration may create the

opportunity for exposure to levels higher than recommended for the general population at a distance less

than 15 feet (4.6 meter) from the center of the antenna. The following precautions must be taken during

installation of this equipment:

• The installed antenna must not be located in a manner that allows exposure of the general population to

the direct beam path of the antenna at a distance less than 15 feet (4.6 meters). Installation on towers,

masts, or rooftops not accessible to the general population is recommended; or

• Mount the antenna in a manner that prevents any personnel from entering the area within 15 feet (4.6

meter) from the front of the antenna.

• It is recommended that the installer place radio frequency hazard warnings signs on the barrier that

prevents access to the antenna.

• Prior to installing the antenna to the TRACER 4305 output, make sure the power is adjusted to the

settings specified in section 2 of this manual.

• During antenna installation, be sure that power to the TRACER equipment is turned off in order to

prevent any energy presence on the coaxial connector.

• During installation and alignment of the antenna, do not stand in front of the antenna assembly.

• During installation and alignment of the antenna, do not handle or touch the front of the antenna.

These simple precautions must be taken to prevent general population and installation personnel from

exposure to RF energy in excess of specified MPE levels.

SYSTEM DESCRIPTION

This section of ADTRAN’s TRACER 4305 System manual is designed for use by network engineers,

planners, and designers for overview information about the TRACER 4305.

It contains general information and describes physical and operational concepts, network relationships,

provisioning, testing, alarm status, and system monitoring. This section should be used in conjunction with

Section 2, Engineering Guidelines, of the system manual.

CONTENTS

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Configuration and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Operational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Section 1, System Description TRACER 4305 System Manual

1. SYSTEM OVERVIEW

The ADTRAN TRACER® 4305 wireless data system provides transparent extension of DS3 circuits over

wireless links for up to 10 miles (line-of-sight path required). As authorized under Part 15.407 of the FCC

Rules, the TRACER 4305 operates license-free in the 5.8 GHz unlicensed National Information Infrastruc-

ture (U-NII) band, requiring no FCC licensing of end users.

For configuration and testing, the TRACER 4305 provides the capability to control the remote TRACER

4305 through a separate maintenance channel. The TRACER 4305 has several built-in test capabilities

including remote loopback. Complete configuration and performance data is available through menus

accessed using a standard RS-232 terminal interface.

2. FEATURES AND BENEFITS

The following is a brief list of TRACER 4305 features and benefits:

Configuration and Management

• Easy to use VT100 control port (RS-232 interface) for configuration and monitoring

• Remote configuration

Operational

• Transparent DS3 transmission over digital microwave link

• No license required per FCC Rules Part 15.407

• Frequency: 5.725 to 5.825 GHz

• Point-to-point, up to 15 miles

• 1-U high unit for easy rack-mounting

MICROWAVE PATH ENGINEERING BASICS

CONTENTS

Line-of-site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Decibels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Receiver Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Path Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Antenna Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Antenna Beam Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Fresnel Zones, Earth Curvature, & Antenna Heights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Receiver Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Fade Margin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Path Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ADTRAN Link Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

FIGURES

Figure 1. Example Microwave Path with Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 2. Typical Antenna Beam Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

TABLES

Table 1. Path Loss for Given Path Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 2. Minimum Antenna Height for Given Path Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 3. Typical Coaxial Loss for Common Cable Types, per Foot . . . . . . . . . . . . . . . . . . . . . . . 19

Section 2, Microwave Path Engineering Basics TRACER 4305 System Manual

1. LINE-OF-SITE

The TRACER 4305 system is designed for operation in the 5725 MHz to 5825 MHz unlicensed National

Information Infrastructure (U-NII) frequency band. Radio wave propagation in this band exhibits

microwave characteristics, which are ideally suited for point-to-point, line-of-sight communications.

Line-of-sight essentially requires that the transmitting antenna and receiving antenna are able to “see” each

other, and that the straight-line path between the two antennas is free of any obstructions, such as

buildings, trees, mountains, and, in longer paths, even the curvature of the earth.

2. DECIBELS

The received signal power equation is often expressed in a decibel (dB) format, which turns the power

multiplication and division operations into addition and subtraction operations. In general, any quantity

can be expressed in decibels. If the quantity (x) is a power level, the decibel equivalent is defined as

If the quantity x is referenced to a milliwatt (mW), then the decibel-milliwatt (dBm) is used instead of a

generic decibel.

3. RECEIVER POWER

The radio frequency (RF) signal power that is available at the input to the receiving TRACER 4305 system

is the next parameter of interest in analyzing a wireless path. Per FCC 15.407 rules, the TRACER 4305 is

permitted a maximum output power level of 100 mW, which is equivalent to 20 dBm. This output signal

will be attenuated and distorted by various factors, all of which will degrade the original signal and affect

the signal strength and quality as sensed by the receiving unit. A simplified power budget analysis is

beneficial to perform after verifying a suitable line-of-sight path to determine if the microwave path is

suitable, even for ideal, non-distorted signals.

The equation relating received signal power to the other microwave parameters is

Point-to-Point Wireless communication from a single site to another

individual site. Contrast with point-to-multipoint

Line-of-Sight An unobstructed, direct path exists between the

transmitting and the receiving antennas.

xdB 10 log10 x()⋅=(dB)

xdBm 10 log10 x

1mW

-------------





⋅=(dBm)

PTGTGRλ2

4π()

2d2L

---------------------------=(watts, W)

TRACER 4305 System Manual Section 2, Microwave Path Engineering Basics

where the variables in the equation are defined as

PRreceived power (Watts)

PTtransmitted power (100 mW (max) for TRACER 4305 - adjustable)

GTtransmit antenna gain

GRreceive antenna gain

λcarrier wavelength (c / ƒ) (meters)

dpath distance (meters)

Lother losses (RF coaxial cable, etc.)

The transmitted power is limited for the 5.8 GHz U-NII band to a maximum of 30 dBm. The actual

transmit and receive antenna gain values are strictly dependent upon the physical characteristics of the

antennas installed for each link. Typical gains are between 20 and 30 dB. For example, a 4 foot diameter,

flat panel C-band antenna from a popular antenna manufacturer advertises a gain of 23.5 dB. The carrier

wavelength is the physical wavelength of the main RF carrier being used for communication, and is

usually approximated at the center frequency of the band, which is 5787.5 MHz. This gives a wavelength

of 5.18 cm.

The path distance is simply the physical distance between the transmit and receive antennas. For the

TRACER 4305 these distances can range up to 15 miles. The final parameter L incorporates all other

signal power losses in the microwave link, most of which are caused by antenna feed.

4. OUTPUT POWER

Transmitted power limitations for the 5.8 GHz U-NII band is governed by the Effective Isotropic Radiated

Power (EIRP) of the system. Per FCC 15.407 rules, the TRACER 4305 is permitted a maximum EIRP of

53 dBm. EIRP can be calculated using the following equation

where PT is the transmitted power (in dBm), GT is the transmit antenna gain (in dB), and LF is the feedline

loss (in dB).

For example, a TRACER 4305 system transmitting at 20 dBm will result in the following restrictions on

antenna gain:

Since antenna gain is directly affected by antenna size, an EIRP restriction of 53 dBm will limit antenna

selection. However, per FCC rules EIRP is calculated for the total system (transmitter, feedline, and

antenna), and additional antenna gain may be used to compensate for feedline loss. In some cases, adding

additional length to your feedline cable will permit you to select a larger antenna. Refer to Table 3 on page

19 for a listing of coaxial loss for common cable types (per foot).

EIRP PTGTLF

–+= (dB)

53dBm 20dBm GTLF

–+≤(dB)

GTLF

–33dBi≤(dB)

Section 2, Microwave Path Engineering Basics TRACER 4305 System Manual

5. PATH LOSS

The expression

where

fcarrier frequency (Hz)

λcarrier wavelength (c / f) (meters)

dpath distance (meters)

cspeed of light, free-space (meters)

is called the path loss, and increases rapidly as either path length increases or carrier wavelength decreases

(which happens as the carrier frequency increases). So, longer microwave paths will naturally experience

more path loss than shorter paths. Likewise, higher frequency microwave communication will experience

more path loss than lower frequency microwave communication.

Table 1 tabulates path loss values for various path lengths for the TRACER 4305 system. Values not listed

in the table can be interpolated from those listed.

When using decibel notation, the received power equation becomes

Where, in the second equation the path loss has been lumped into a single quantity, LP, as discussed

previously. When using decibel notation, it is necessary that all quantities are individually converted to

Table 1. Path Loss for Given Path Lengths

Path Length

(miles) Path Loss

(dB)

1112

2118

3121

4124

5126

10 132

15 135

LP4πd

----------





24πdf

------------





== (watts, W)

PRPTGTGRL–20 · log10

–++ 4πdf

------------





=(dB)

PRPTGTGRL–LP

–++=(dB)

TRACER 4305 System Manual Section 2, Microwave Path Engineering Basics

decibels prior to performing addition and subtraction.

When d is expressed in miles and f in GHz, the path loss expression in decibels becomes

Figure 1 illustrates a wireless link containing all of the parameters previously discussed.

Figure 1. Example Microwave Path with Parameters

6. ANTENNA ALIGNMENT

With line-of-sight microwave communications, optimum system performance requires that the

transmitting and receiving antennas are properly aligned. This will ensure maximum received signal power

at each receiver. Antenna alignment must be achieved in both azimuth (along a horizontal plane) and

elevation (along a vertical plane). A received signal strength indicator (RSSI) is used to aid the equipment

installer in determining when alignment is maximized, by simply ensuring maximum RSSI. The RSSI

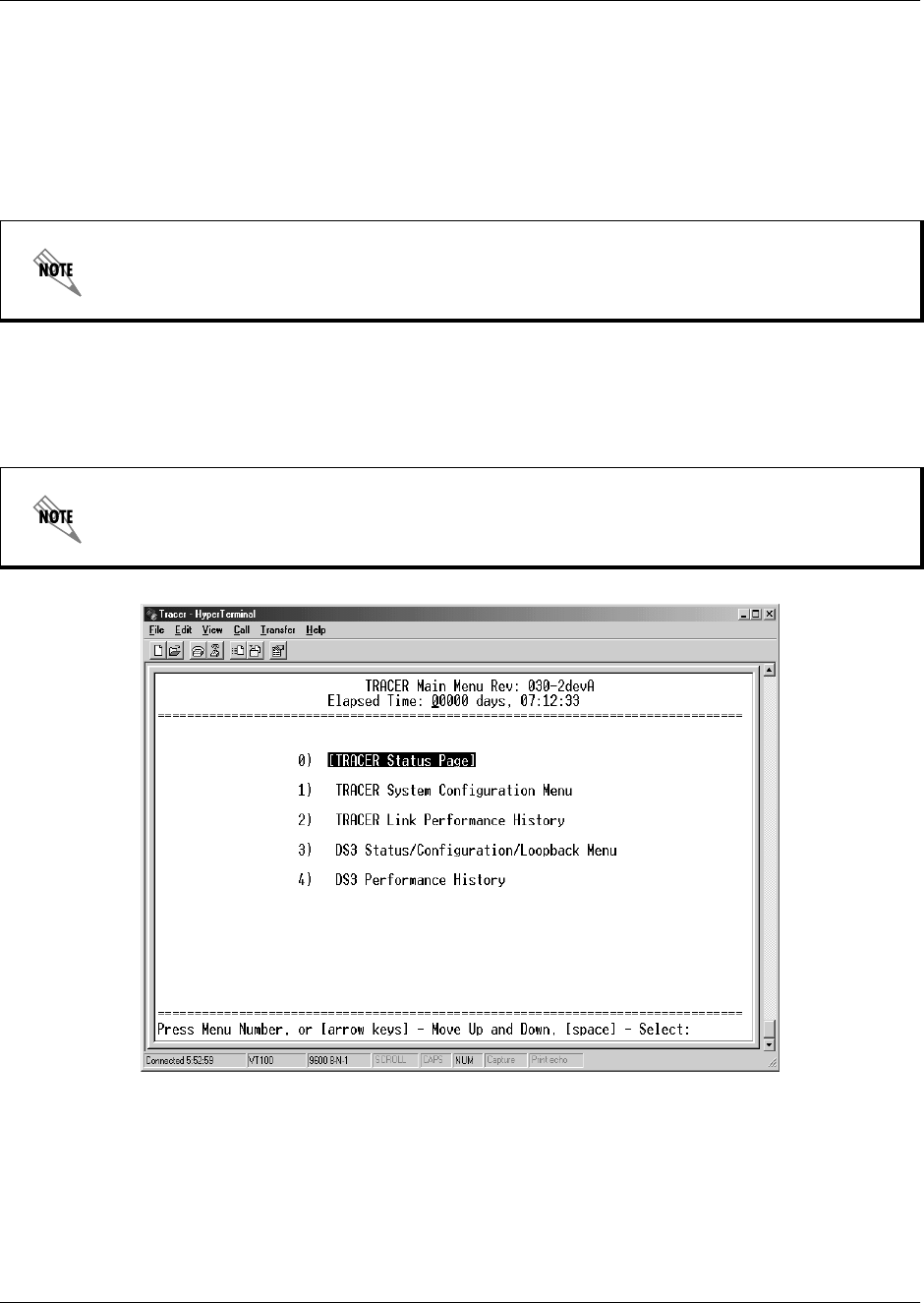

indicator for the TRACER 4305 system is provided through the VT100 terminal menus accessed through

the RS-232 interface, and is presented as a series of bars indicating signal strength. More bars means more

RSSI, which ensures more received signal strength and better link performance.

If the remote system has acquired a useful signal from the remote system, then the remote TRACER 4305

RSSI can also be viewed from the local TRACER 4305 VT100 terminal menu interface.

Antenna Beam Patterns

Directly related to the subject of antenna alignment is the topic of antenna beam patterns. Antennas being

used with the TRACER 4305 system will have a particular beam shape determined in part by the physical

construction and geometry of the antenna. The antenna beam patterns are characterized by a dominant

main lobe, which is the preferred lobe to use for point-to-point communications, and several side lobes, as

shown in Figure 2 on page 18. The antenna alignment step to setting up a microwave link is in fact steering

the main lobes of both antennas until the main lobe of one transmitter is centered on the receiving element

of the receiving antenna.

LP96.6 20 log10 d() 20·log+10 f()⋅+= (dB)

GTGR

d, LP

TPR

Section 2, Microwave Path Engineering Basics TRACER 4305 System Manual

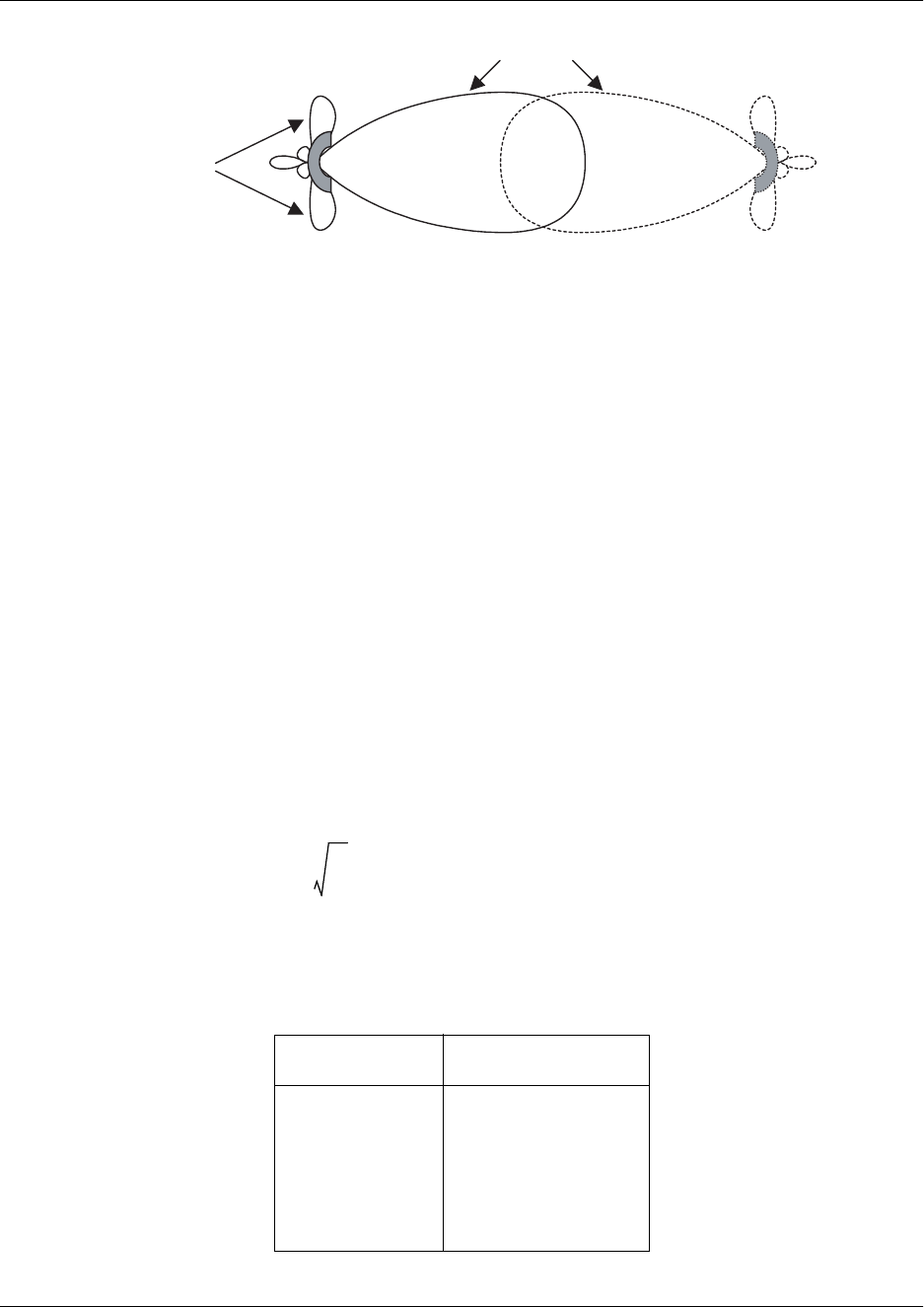

Figure 2. Typical Antenna Beam Pattern

Antennas are also designed to radiate RF energy efficiently for a specific range of frequencies. Please

consult the data sheet for your particular antenna make and model to ensure that it is specified to operate in

the 5725 MHz to 5825 MHz frequency band.

Fresnel Zones, Earth Curvature, & Antenna Heights

The Fresnel zones correspond to regions in the microwave path where reflections of the intended signal

occur and combine in both constructive and destructive manners with the main signal, thereby either

enhancing or reducing the net power at the receiver.

In general, the odd numbered Fresnel zones (1, 3, 5, ...) add constructively at the receiver, while the even

numbered Fresnel zones (2, 4, 6, ...) add destructively at the receiver.

The first Fresnel zone corresponds to the main lobe, and must be at least 60% free of physical obstructions for

the path calculations to be valid. Since the main lobe contains the vast majority of the microwave energy, this

zone is typically used to determine proper antenna heights when placing antennas on towers or buildings.

The curvature of the Earth becomes a legitimate obstruction for path lengths of 7 miles or greater, and must

also be accounted for when determining minimum antenna heights.

The aggregate expression for minimum antenna height that incorporates both the 60% first Fresnel zone

and the Earth curvature is given by

where f is in GHz and d is in miles.

Table 2 tabulates minimum antenna heights for given path lengths.

Table 2. Minimum Antenna Height for Given Path Length s

Path Length

(miles) Min. Antenna Height

(ft)

222

432

641

850

10 60

14 81

main lobe

side lobes

h72.1 d

----- 0.125d2

+= (feet)

TRACER 4305 System Manual Section 2, Microwave Path Engineering Basics

7. COAXIAL CABLE

Coaxial cable will be required to attach the TRACER 4305 to the antenna. The length of the cable will vary

from a few feet to several feet, depending upon your application and the proximity of the TRACER 4305

to the antenna.

Various grades of coaxial cable will work sufficiently well for connecting the TRACER 4305 unit to the

antenna. A low-loss coaxial cable is suggested to minimize cable losses. One end of the cable will require

an N-type male connector (plug) to mate with the TRACER 4305 unit. The other end of the coax will

require a connector compatible with the antenna chosen for the installation, which is usually also an N-type

male connector (plug). Additionally, it is recommended that both connectors on the coaxial cable be

weatherproofed from the elements to prevent corrosion and electrical shorting.

Table 3 gives typical loss figures for some of the more common coaxial cable types, per foot

In certain areas where lightning strikes are frequent, a lightning arrestor can be installed directly on the

antenna. This will help protect the RF electronics in the downstream path from damaging voltages and

currents, including the TRACER 4305 unit.

8. RECEIVER SENSITIVITY

Receiver sensitivity is a value expressed in decibels referenced to one milliwatt (dBm) that corresponds to

the minimum amount of signal power needed at the receiver to achieve a given bit error rate (BER).

Receiver sensitivity is usually a negative number of decibels, and as such smaller receiver sensitivity is

better for a given BER. Several factors affect receiver sensitivity, including the data bandwidth of the

wireless link, and the amount of additional signal degradation introduced in the receiver electronics. The

receiver sensitivity of the TRACER 4305 is -78 dBm at 10-6 BER.

9. FADE MARGIN

Fade margin is a value indicating the amount of extra signal power available to the receiver to operate at a

maximum bit error rate (BER). Higher levels of fade margin are better, and will protect the viability of the

microwave link against signal fading. Fade margin is simply the difference between the available signal

power at the receiver and the receiver sensitivity, discussed previously:

Table 3. Typical Coaxial Loss for Common Cable Types, per Foot

Cable Type Cable Loss (dB/ft)

RG-213, RG-214, RG-393 0.2

RG-142 0.3

RG-58, RG-223 0.4

RG-174, RG-316 0.7

RPsens

–PRGTGRL–LP

–Psens

–++== (dB)

Section 2, Microwave Path Engineering Basics TRACER 4305 System Manual

10. PATH AVAILABILITY

The path availability of a wireless link is a metric that expresses the fractional amount of time a link is

available over some fixed amount of time, and depends on several factors. Path availability is expressed as

where the parameters are

aterrain factor

bclimate factor

fcarrier frequency (GHz)

dpath length (miles)

Ffade margin (dB)

The terrain factor is a quantity that compensates the link availability for different types of terrain.

Generally speaking, the more smooth an area's terrain is, the less availability a wireless link running over

that terrain will have, primarily due to multipath reflections. In contrast, secondary microwave signals will

be randomly dispersed over rough terrain, and will not interfere with the main signal lobe as badly as in the

smooth terrain case. The terrain factor values normally used are listed below:

The climate factor is a quantity that compensates the link availability for different types of climates

(weather). In general, microwave links operating in areas with high humidity will have less availability

than those in arid areas, primarily because water is a dispersive mechanism to microwave energy, and

causes the main signal lobe to refract and disperse away from the receiver location. The climate factor

values normally used are listed below.

Terrain Terrain Factor Description

Smooth 4 water, flat desert

Average 1 moderate roughness

Mountainous 1/4 very rough, mountainous

Climate Climate Factor Description

Very Dry 1/8 desert regions

Temperate 1/4 mainland, interior region

Humid 1/2 humid and coastal regions

A1 2.5 10 6–

×()abfd310 F10⁄–

()–[]100%×=(dB)

TRACER 4305 System Manual Section 2, Microwave Path Engineering Basics

11. ADTRAN LINK ANALYZER

A very useful program is available on the Internet that can be used as a simple power budget calculator to

determine if a link is suitable for use with the TRACER 4305 system. The program is a JAVA applet that

runs in an Internet browser window, and can be accessed at http://www.adtranwireless.com by clicking

on the Link Analyzer icon.

To accurately model system parameters with regard to the TRACER 4305 system, the following Link

Analyzer options should be set as follows:

5.8 GHz Band (select this button)

RF Mounting Options Rack Mounted (both ends)

RF to Antenna Cable Type ¼ in (15.5 dB/100 ft)

RF to Antenna Cable Length (change to actual length, e.g. 10 ft)

Refer to the Link Analyzer help file for more information on how to use the program.

More comprehensive microwave path analysis software packages exist, and can be used to gain a very

detailed feasibility study for physical locations.

Section 2, Microwave Path Engineering Basics TRACER 4305 System Manual

ENGINEERING GUIDELINES

CONTENTS

Equipment Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Reviewing the Front Panel Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

RSSI Monitoring Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TX PWR Monitoring Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Reviewing the TRACER 4305 Rear Panel Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Antenna Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

DC Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Alarm Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

DS3 (In and Out) Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

RS-232 Connection (Terminal Use) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

RS-232 Connection (Modem Use) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

At-A-Glance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

FIGURES

Figure 1. TRACER 4305 Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 2. TRACER 4305 Rear Panel Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

TABLES

Table 1. TRACER 4305 Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 2. TRACER 4305 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Table 3. DC Power Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 4. Alarm Contact Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 5. RS-232 Connection Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 6. TRACER 4305 (DCE) to Terminal (DTE) Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 7. TRACER 4305 (DCE) to Personal Computer (DB-9) . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 8. TRACER 4305 (DCE) to Modem (DCE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Section 3, Engineering Guidelines TRACER 4305 System Manual

1. EQUIPMENT DIMENSIONS

The TRACER 4305 unit is 19” W, 10.5” D, and 1.75” H, weighs 7 lbs, and can be used in rack-mount

configurations.

2. POWER REQUIREMENTS

The TRACER 4305 system has a maximum power consumption of 25W and a maximum current draw of

1.2A (at 21 VDC).

3. REVIEWING THE FRONT PANEL DESIGN

The front panel contains a single control switch for activating a DS3 line loopback, RSSI and TX PWR

monitoring interfaces, a GND interface for connecting the TRACER 4305 system to an external grounding

source, and status LEDs to provide visual information about the TRACER 4305 system. Figure 1 identifies

the DS3 loopback switch, the various bantam interfaces, and the LEDs.

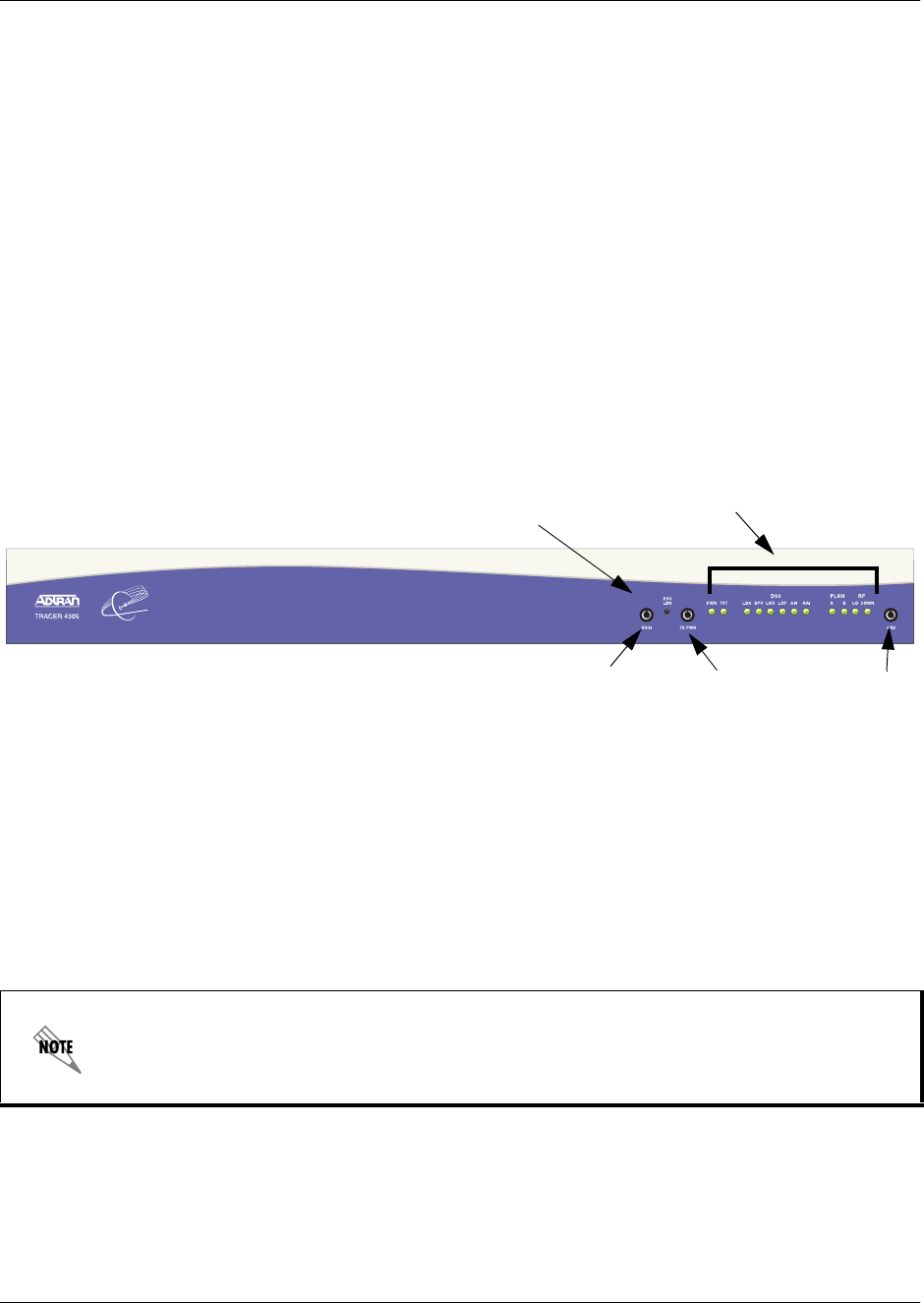

Figure 1. TRACER 4305 Front Panel Layout

RSSI Monitoring Interface

The RSSI voltage is a function of the signal strength at the receiver and is used to measure the received

signal strength. RSSI varies approximately from 0 to greater than 4 Volts (V), with 0V corresponding to a

weaker received signal and 4V or better corresponding to a stronger received signal.

The voltage level present at the RSSI test point represents only a relative signal level of

receive strength from the far end. No direct correlation can be made between RSSI voltage

levels and actual receive levels in dBm. This test point is provided to assess relative signal

level for alignment of antennas.

Status LEDs

TX PWR

RSSI

DS3 Loopback

Switch

GND

TRACER 4305 System Manual Section 3, Engineering Guidelines

TX PWR Monitoring Interface

The TX PWR voltage is a function of the selected transmit power level. This voltage ranges approximately

from 0 to 5V, with 0V corresponding to 0 dBm (1 milliwatt) and 5V corresponding to +20 dBm (100

milliwatts).

Front Panel LEDs

With the TRACER 4305 powered-on, the front panel LEDs provide visual information about the status of

the TRACER 4305 system. Table 1 provides a brief description of the front panel features, and Table 2

(continued on page 27) provides detailed information about the LEDs.

Table 1. TRACER 4305 Front Panel Description

Feature Description

DS3 Loopback Switch Allows quick activation/deactivation of DS3 line loopbacks

RSSI Interface DC voltage indicating strength of the received signal at the antenna

TX PWR Interface DC voltage indicating strength of transmitted signal

GND Interface Connect to an external earth ground source

Status LEDs Provides status information about the system

Table 2. TRACER 4305 LEDs

For these LEDs... This color light... Indicates that...

PWR Green (solid) the TRACER 4305 is connected to a power source.

Off the TRACER 4305 is not currently powered up.

PLAN A Green (solid) the TRACER 4305 is transmitting on Frequency Plan A.

Off the TRACER 4305 is not transmitting on Frequency

Plan A.

PLAN B Green (solid) the TRACER 4305 is transmitting on Frequency Plan B.

Off the TRACER 4305 is not transmitting on Frequency

Plan B.

RF DOWN Red (solid) there is a communication problem between the local and

remote TRACER 4305 systems.

RF LOW Red (solid) the RSSI level is below suggested minimum threshold.

TST Amber (solid) unit is performing power-on self-test.

RAI Red (solid) the TRACER 4305 received a remote alarm in the DS3 EOC

channel (bits X1 and X2 are both set to zero).

Section 3, Engineering Guidelines TRACER 4305 System Manual

4. REVIEWING THE TRACER 4305 REAR PANEL DESIGN

The TRACER 4305 rear panel contains the following interfaces:

•ALARM interface (terminal block) for connecting to an external alarm monitoring system

•DC POWER (terminal block) for connecting to a proper 21-63 VDC power source

•DS3 IN and OUT (BNC interfaces) for connecting to a DS3 device

• Antenna (N-Type connector) for the antenna feedline cable

• Ground lug for connecting to earth ground

•RS232 (DB-25 female) for connecting to a VT100 terminal or PC with terminal emulation software

Figure 2 on page 27 identifies the various features of the TRACER 4305 rear panel. A detailed discussion

of all interfaces (including pinouts, where applicable) follows the figure.

AIS Red (solid) the TRACER 4305 received a remote alarm from a connected

DS3 device (properly aligned and framed alternating one-zero

pattern).

LOF Red (solid) the TRACER 4305 DS3 framer has lost alignment (due to

receiving too many F or M bits in error).

LOS Red (solid) the TRACER 4305 does not detect a DS3 from the connected

DS3 device signal (indicated by receiving 192 consecutive

zeros).

BPV Red (solid) the TRACER 4305 detects Bipolar Violations on the received

signal from the connected DS3 device (receiving two

consecutive “one” bits with the same polarity).

LBK Amber (solid) the TRACER 4305 is currently in DS3 line loopback.

Amber (flashing) the TRACER 4305 is currently in DS3 link loopback.

Table 2. TRACER 4305 LEDs (Continued)

For these LEDs... This color light... Indicates that...

TRACER 4305 System Manual Section 3, Engineering Guidelines

Figure 2. TRACER 4305 Rear Panel Layout

Antenna Interface

The ANTENNA interface (N-Type connector) connects to the antenna (customer supplied) using standard

antenna feedline cable. When determining the cable specifications for your application, refer to Section 3,

Microwave Path Engineering Basics (Coaxial Cable on page 19) for a discussion on cable length and loss

factors.

Fuse

The fuse holder, accessible from the rear panel of the TRACER 4305, accepts a generic 1 Amp, 2-inch

slow-blo fuse.

DC Power Connection

The TRACER 4305 can operate from a supply between 21 and 63 VDC, with either polarity referenced to

ground, and consumes less than 25 Watts (W). Power supplies should be able to provide up to 30 W at

the selected voltage. Current required (in amps) is determined by dividing the power consumed (in watts)

by the applied voltage (in volts). For example, at 48 V, TRACER 4305 would draw approximately 0.52 A

(25 W/48 V).

Connector type Terminal Block

Table 3. DC Power Connector Pinout

PIN NAME DESCRIPTION

1 + POSITIVE LEAD (referenced to ground)

2 - NEGATIVE LEAD (referenced to ground)

Antenna

DC Power

Connection Interface

DS3 Out

(Transmit)

DS3 In

(Receive)

RS232 Interface

(VT100 Terminal)

Ground

Lug

Fuse

Alarm

Contacts

Section 3, Engineering Guidelines TRACER 4305 System Manual

Alarm Contacts

Normally open (NO) and normally closed (NC) alarm contacts are provided on the rear panel of the

TRACER 4305 system. In normal operation, the NC contact is electrically connected to the common

contact (COM) and the NO contact is isolated. During an alarm condition, the NC contact becomes

isolated and the NO is electrically connected to COM. This allows alarm conditions to be reported to

external alarm monitoring systems.

DS3 (In and Out) Connection

The physical DS3 interface is provided by a pair of 75 Ω BNC connectors for transmit and receive.

RS-232 Connection (Terminal Use)

The RS-232 connector provides a female DB-25 terminal connection (wired as a DCE interface), which is

used for terminal access to the TRACER 4305 system. The RS-232 port provides the following functions:

• Accepts EIA-232 input from a PC or terminal for controlling the TRACER 4305 system

• Operates at 9600 bps

Table 5 on page 29 shows the pinout. Wiring diagrams for connecting to the RS-232 connector (for various

applications) are provided following the pinout.

Connector type Terminal Block

Table 4. Alarm Contact Connector Pinout

PIN NAME DESCRIPTION

1 COM COMMON CONTACT

2 NO NORMALLY-OPEN CONTACT

3 NC NORMALLY-CLOSED CONTACT

The shielding on both BNC connectors are grounded per ANSI T1.404.

TRACER 4305 System Manual Section 3, Engineering Guidelines

Connector type (USOC) DB-25

Table 5. RS-232 Connection Pinout

PIN NAME DESCRIPTION

1, 7 GND GROUND

2 TX TRANSMIT

3 RX RECEIVE

4 RTS REQUEST TO SEND

5 CTS CLEAR TO SEND

6 DSR DATA SET READY (MODEM CONTROL ONLY)

8 CD CARRIER DETECT

9-19 — UNUSED

20 DTR DATA TERMINAL READY (MODEM CONTROL ONLY)

21 — UNUSED

22 RI RING INDICATOR

23-25 — UNUSED

Table 6. TRACER 4305 (DCE) to Terminal (DTE) Diagram

PIN NAME PIN NAME

2TX 2 TX

3RX 3 RX

4 RTS 4 RTS

5 CTS 5 CTS

6 DSR 6 DSR

7 GND 7 GND

Table 7. TRACER 4305 (DCE) to Personal Computer (DB-9)

PIN NAME PIN NAME

2TX 3 RX

3RX 2 TX

4 RTS 7 RTS

5 CTS 8 CTS

6 DSR 6 DSR

7 GND 5 GND

Section 3, Engineering Guidelines TRACER 4305 System Manual

RS-232 Connection (Modem Use)

Modem controls, discussed in Section 5, User Interface Guide, of this manual, will enable or disable

modem control through the RS-232 interface. When this option is enabled from a standard terminal

connection, all RS-232 communications will cease until a modem is attached with a null modem adapter

between the TRACER 4305 and the data modem. The data modem should be configured for AUTO

ANSWER and 9600 bps. When the user connects via modem to the TRACER 4305 unit, communications

via the RS-232 port will resume. If a user accidentally enables modem control from a terminal and disrupts

the RS-232 communication, pressing <Ctrl + Z> three times will temporarily disable the modem control

option (until the system is reset) and access the system configuration to disable modem control.

The TRACER 4305 must be interfaced to a modem via an RS-232 null modem adapter or cable. The null

modem will convert Clear To Send (CTS) and Data Set Ready (DSR) into Ready To Send (RTS) and Data

Terminal Ready (DTR), respectively. These signals will indicate (to most modems) that a valid DTE

terminal device is present. The null modem interface must route Carrier Detect (CD) on pin 8 directly from

the modem, and the modem must source CD only when actually connected to a carrier when using the

RS-232 interface for modem control.

When MODEM CONNECTION is selected in the menu system, the TRACER 4305 will de-assert DTR and

DSR for a time greater than 20 ms. The null modem will consequently drop DTR and RTS at the modem

interface, signaling the modem to hang up the line. If password functionality is enabled in the TRACER

4305, selecting MODEM CONNECTION will rest the TRACER 4305 to the password entry screen.

Table 8 contains the wiring diagram needed for connecting the TRACER 4305 RS-232 interface to a

modem using the null modem adapter.

Hangup-on-DTR-drop may need to be explicitly enabled on some modems.

Table 8. TRACER 4305 (DCE) to Modem (DCE)

PIN NAME PIN NAME

2TX 3 RX

3RX 2 TX

4 RTS 5 CTS

5 CTS 4 RTS

6DSR 20 DTR

7 GND 7 GND

8CD 8 CD

TRACER 4305 System Manual Section 3, Engineering Guidelines

5. AT-A-GLANCE SPECIFICATIONS

The following is a list of specifications for the TRACER 4305 system.

Hardware Description Specification

Transmitter

Output Power +20 dBm, max

Frequency Range 5725 to 5825 MHz

Receiver

Receive Level, Range -30 to -78 dBm

Receive Level, Maximum -30 dBm

Receive Level, Nominal -55 dBm

Frequency Plan

Plan A Tx 5.750 GHz, Rx 5.800 GHz

Plan B Tx 5.800 GHz, Rx 5.750 GHz

DS3 Interface

Capacity 44.736 Mbps

Connection dual 75 Ω BNC connectors (Tx and Rx)

Line Code B3ZS

Framing M13, C-Bit Parity

Alarms AIS, Red, Yellow, BPVs

Loopbacks Local and remote (line and link)

User Interface

Diagnostics DS3 Line and Link Loopbacks

Test Points RSSI, Tx PWR

VT100 Terminal Interface

Data Rate 9600 bps

Data Bits 8

Parity None

Stop Bits 1

Terminal Emulation VT100

Section 3, Engineering Guidelines TRACER 4305 System Manual

Mechanical and Environmental

Operating Temperature -25ºC to 65ºC

Size 19” W x 10.5” D x 1.75” H

Humidity 95%, Non-condensing

Weight 7 lbs

Power

Input Voltage 21 to 63 VDC, either polarity

referenced to ground

Power Consumption < 25 Watts

Connector 2 pin terminal block (DC)

Fuse 1 amp, 250 Volt slow-blo fuse (2-inch)

Hardware Description Specification

NETWORK TURNUP PROCEDURE

CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Unpack and Inspect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents of ADTRAN Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Customer Provides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Supplying Power to the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting the DS3 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

FIGURES

Figure 1. Bandwidth Division. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Section 4, Network Turnup Procedure TRACER 4305 System Manual

1. INTRODUCTION

This section discusses the installation process of the TRACER 4305 system.

2. TOOLS REQUIRED

The tools required for the installation of the TRACER 4305 are:

• VT100 terminal or PC with terminal emulation software

• RS-232 (DB-25 male for TRACER 4305 end) cable for connecting to terminal

3. UNPACK AND INSPECT THE SYSTEM

Each TRACER 4305 is shipped in its own cardboard shipping carton. Open each carton carefully and

avoid deep penetration into the carton with sharp objects.

After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in

transit, immediately file a claim with the carrier, then contact ADTRAN Customer Service (see Warranty

and Customer Service information in the front of this manual).

Contents of ADTRAN Shipment

Your ADTRAN shipment includes the following items:

• TRACER 4305 unit

• TRACER 4305 Documentation CD

Customer Provides

The following items are necessary for the installation of the TRACER 4305 system and are not provided

by ADTRAN:

• 21 to 63 VDC power source (or AC adapter available from ADTRAN P/N 1280650L1), either polarity

referenced to ground

• Antenna and mounting hardware

• Antenna feedline cable

• DS3 cables (BNC for TRACER 4305 end) for connecting to DS3 equipment

Changes or modifications not expressly approved by ADTRAN could void the user’s

authority to operate the equipment.

To prevent electrical shock, do not install equipment in a wet location or during a lightning

storm.

TRACER 4305 System Manual Section 4, Network Turnup Procedure

4. CHANNEL SELECTION

The FCC has allocated 100 MHz of spectrum in the band in which the TRACER 4305 operates. Figure 1

illustrates the bandwidth division.

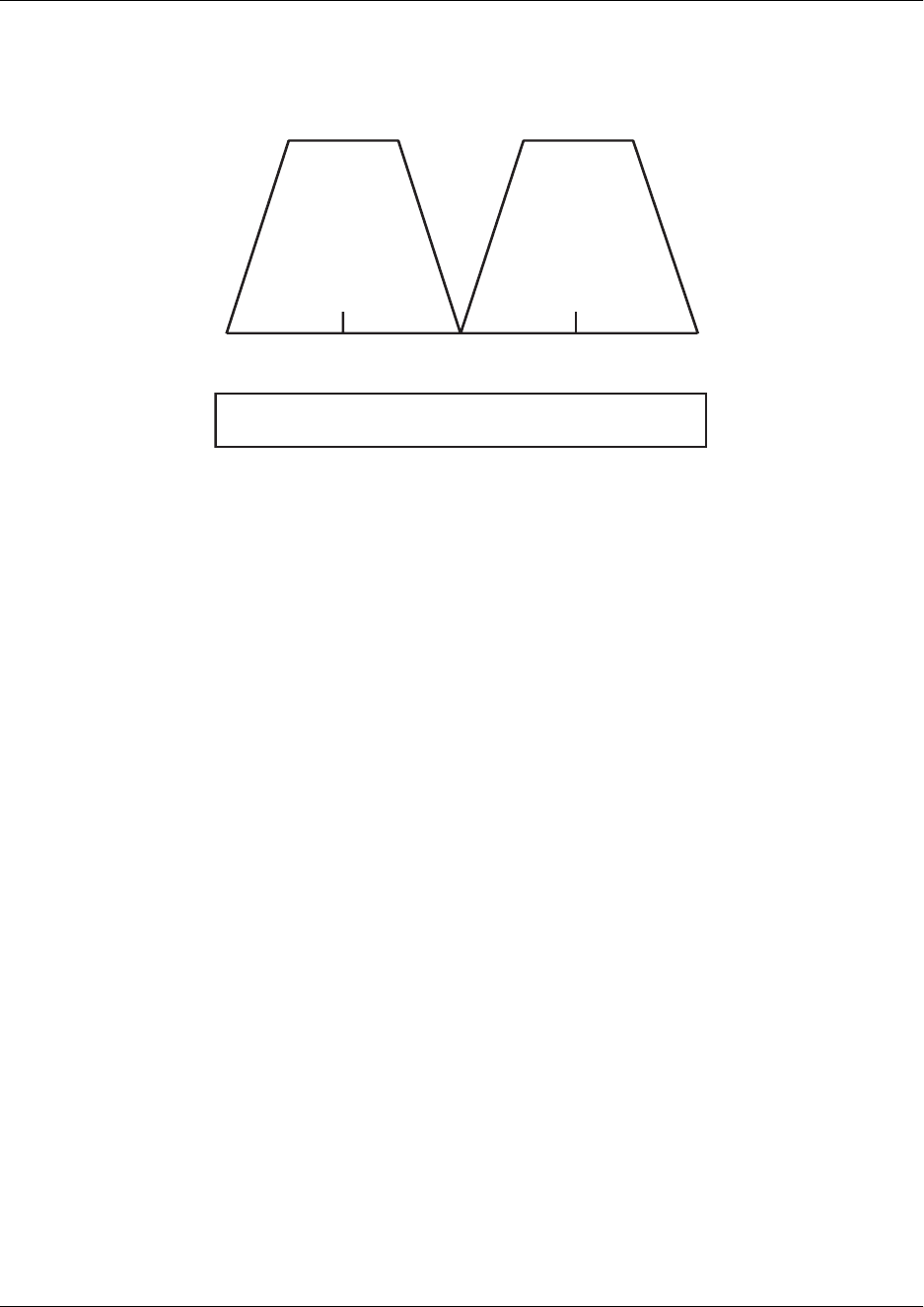

Figure 1. Bandwidth Division

To designate the utilization of the U-NII bandwidth, there are two different channel plans, labeled A and B.

The letter of each channel plan setting is preset by the factory and refers to the physical configuration of

the diplexer filter inside the environmental housing. The transmitter at one end of the link will transmit in

the lower portion of the spectrum and receive in the upper portion. Consequently, the receiver at the other

end should receive in the lower portion and transmit in the upper portion. There is one rule for successful

TRACER 4305 configuration.

1. The letter of the channel plan must be different on both ends. Shipment of a link will consist of one

Plan A and Plan B unit.

5. GROUNDING INSTRUCTIONS

The following provides grounding instruction information from the Underwriters’ Laboratory UL 60950

Standard for Safety of Information Technology Equipment Including Electrical Business Equipment, of

December, 2000.

An equipment grounding conductor that is not smaller in size than the ungrounded branch-circuit supply

conductors is to be installed as part of the circuit that supplies the product or system. Bare, covered, or

insulated grounding conductors are acceptable. Individually covered or insulated equipment grounding

conductors shall have a continuous outer finish that is either green, or green with one or more yellow

stripes. The equipment grounding conductor is to be connected to ground at the service equipment.

The attachment-plug receptacles in the vicinity of the product or system are all to be of a grounding type,

and the equipment grounding conductors serving these receptacles are to be connected to earth ground at

the service equipment.

A supplementary equipment grounding conductor shall be installed between the product or system and

5750 MHz

5800 MHz

Channel Plan describes which lobe is transmitted upon.

Example: A will transmit at A lobe and receive at B.

Section 4, Network Turnup Procedure TRACER 4305 System Manual

ground that is in addition to the equipment grounding conductor in the power supply cord.

The supplementary equipment grounding conductor shall not be smaller in size than the ungrounded

branch-circuit supply conductors. The supplementary equipment grounding conductor shall be connected

to the product at the terminal provided, and shall be connected to ground in a manner that will retain the

ground connection when the product is unplugged from the receptacle. The connection to ground of the

supplementary equipment grounding conductor shall be in compliance with the rules for terminating

bonding jumpers at Part K or Article 250 of the National Electrical Code, ANSI/NFPA 70. Termination of

the supplementary equipment grounding conductor is permitted to be made to building steel, to a metal

electrical raceway system, or to any grounded item that is permanently and reliably connected to the

electrical service equipment ground.

The supplemental grounding conductor shall be connected to the equipment using a number 8 ring terminal

and should be fastened to the grounding lug provided on the rear panel of the equipment. The ring terminal

should be installed using the appropriate crimping tool (AMP P/N 59250 T-EAD Crimping Tool or

equivalent.)

6. SUPPLYING POWER TO THE UNIT

The TRACER 4305 can operate from a supply between 21 and 63 VDC, with either polarity referenced to

ground. Power supplies should be able to provide up to 30 watts at the selected voltage. A dual pin

terminal plug accepts power at the rear panel of the unit, providing a PWR pin and a GND point. Adapters

for this plug are available for the ADTRAN +48V power supply (P/N 1175043L2).

7. MOUNTING OPTIONS

Install the TRACER 4305 in a location that requires minimal antenna feedline length (the loss in this cable

directly affects overall system performance). The TRACER 4305 is designed to be mounted in a rack. If

multiple units are installed in one location, no space is needed between units, but certain regulations may

require at least 0.75” of space above and below each unit.

8. CONNECTING THE DS3 INTERFACE

The physical DS3 interface is provided using a pair of 75 Ω BNC connectors for transmit and receive.

Using standard coaxial cable, connect the DS3 OUT interface of the TRACER 4305 to the receive data

interface of the DS3 equipment. Connect the DS3 IN interface of the TRACER 4305 to the transmit data

interface of the DS3 equipment.

The supplemental equipment grounding terminal is located on the rear panel of the

TRACER 4305.

USER INTERFACE GUIDE

CONTENTS

Navigating the Terminal Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Terminal Menu Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Navigating using the Keyboard Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Terminal Menu and System Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Password Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Menu Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

>TRACER System Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

>Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

>TRACER System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

>TRACER Link Performance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

>DS3 Status/Configuration/Loopback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

>DS3 Performance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

FIGURES

Figure 1. Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

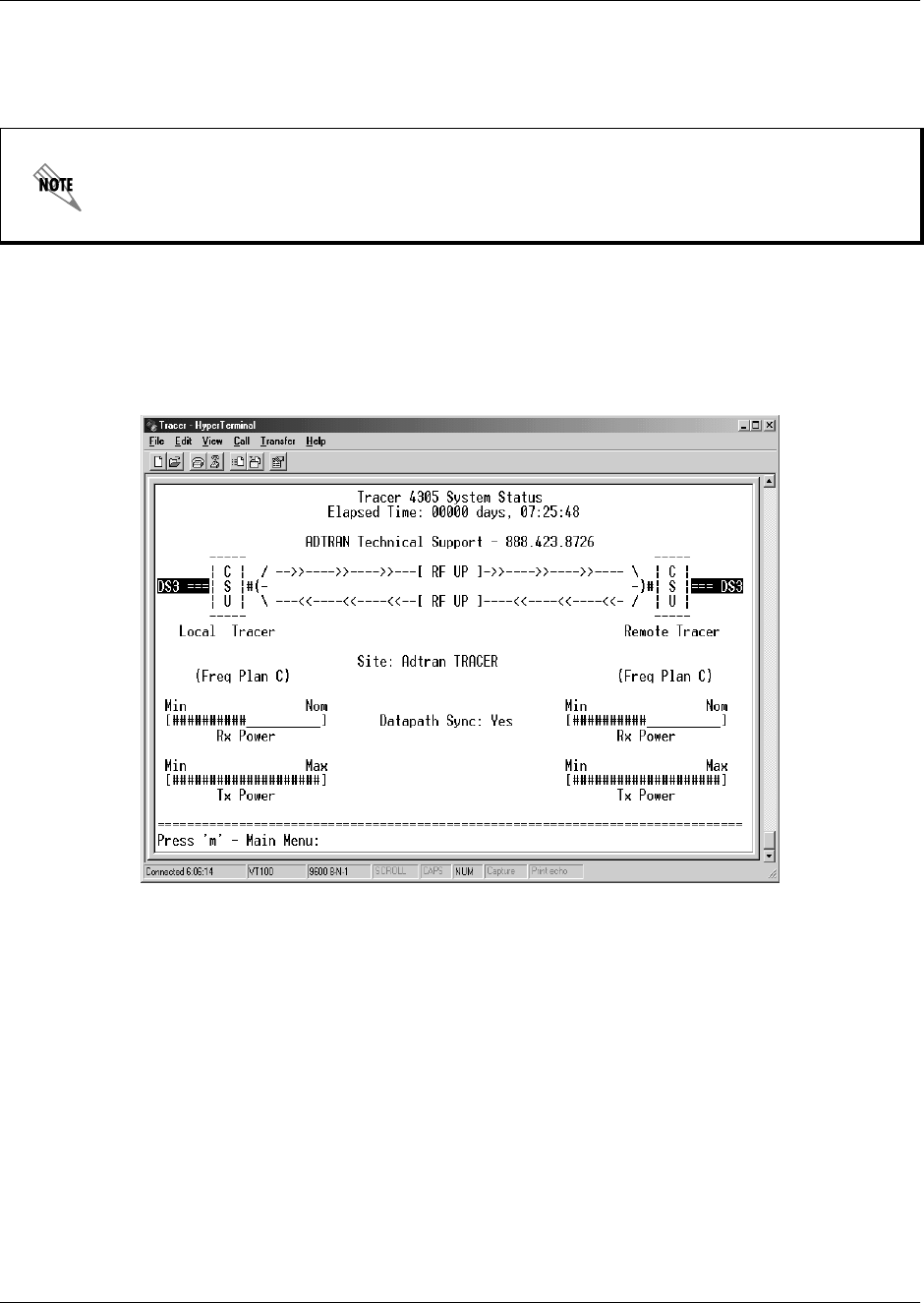

Figure 2. TRACER System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

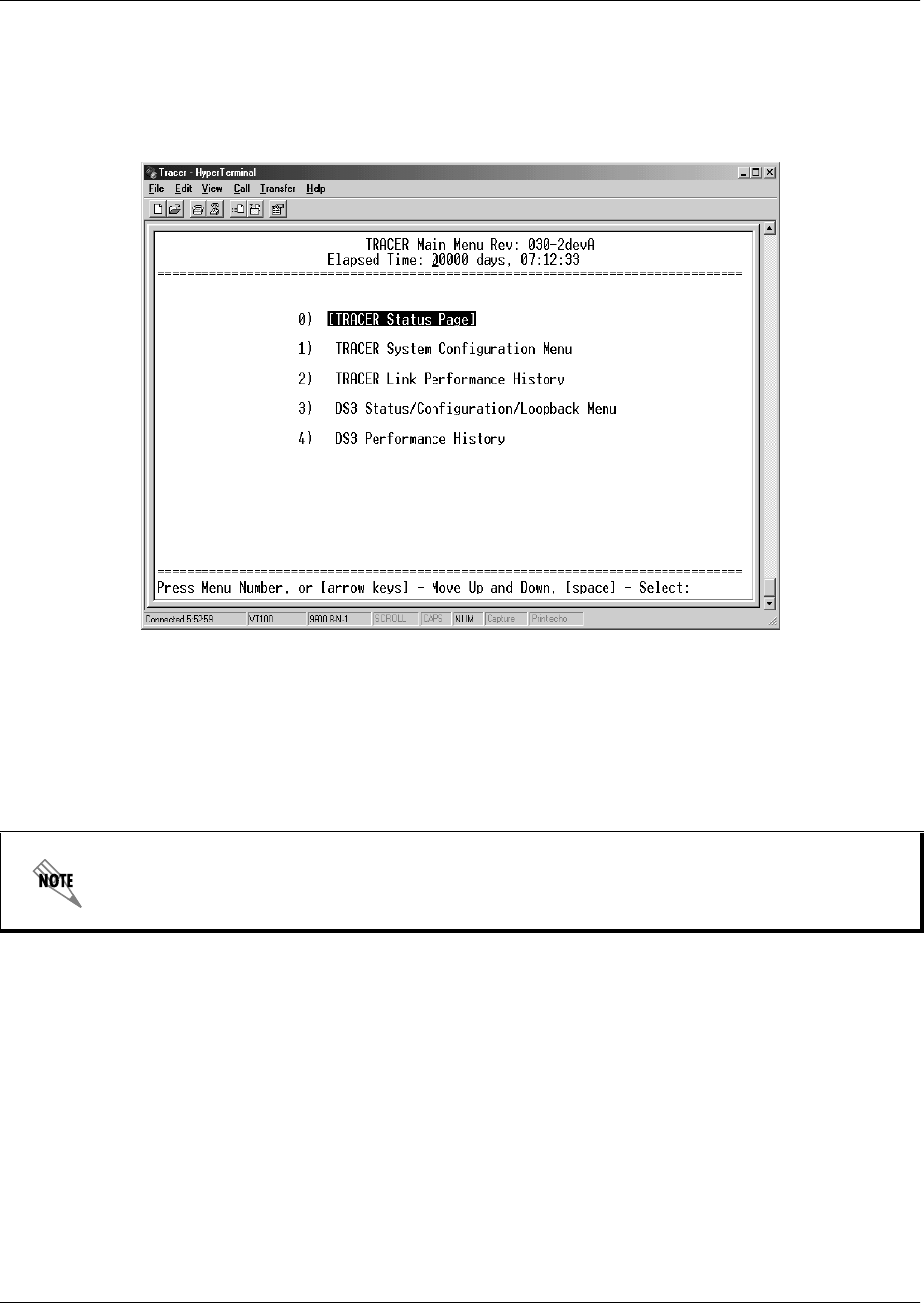

Figure 3. Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

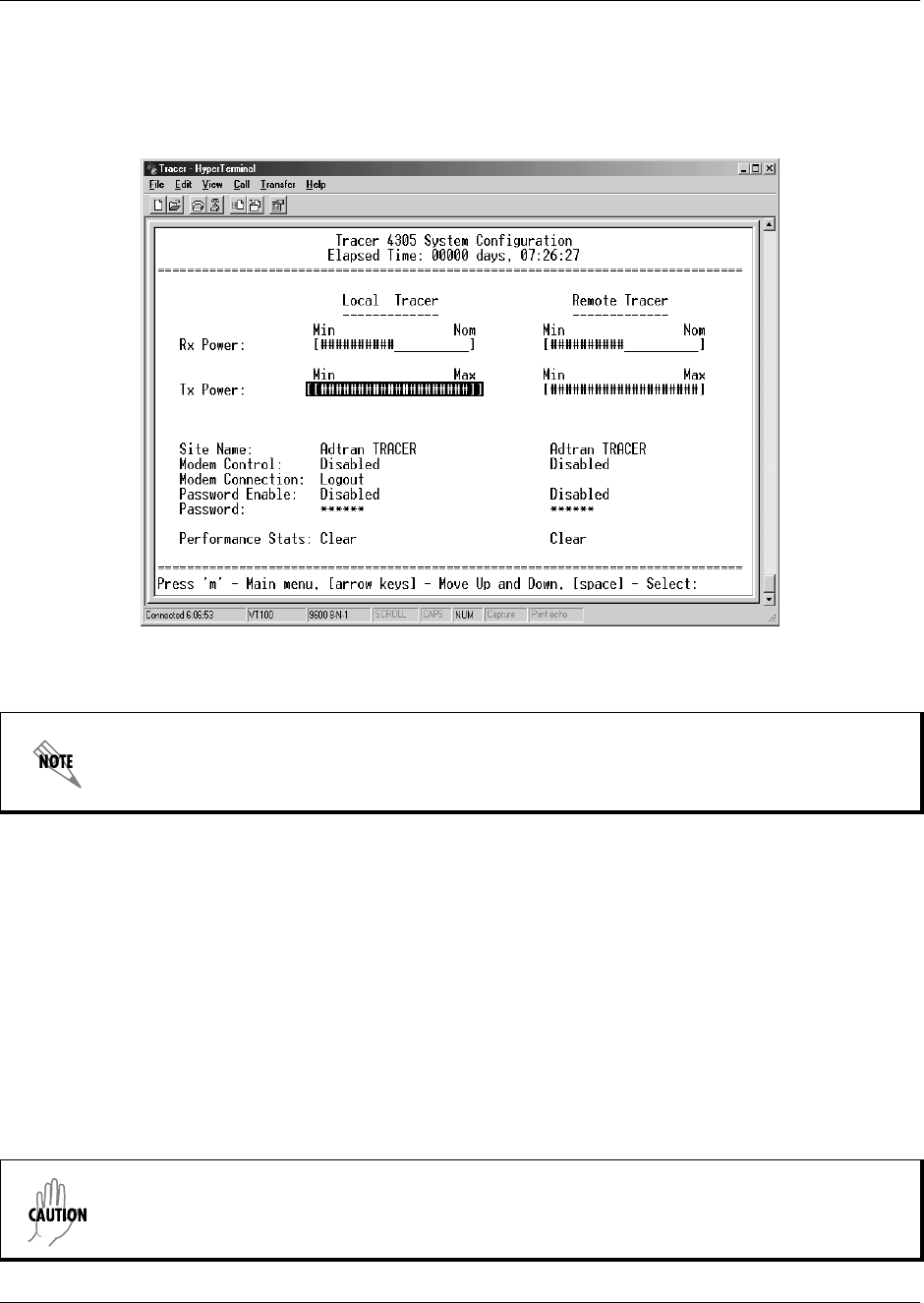

Figure 4. TRACER System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

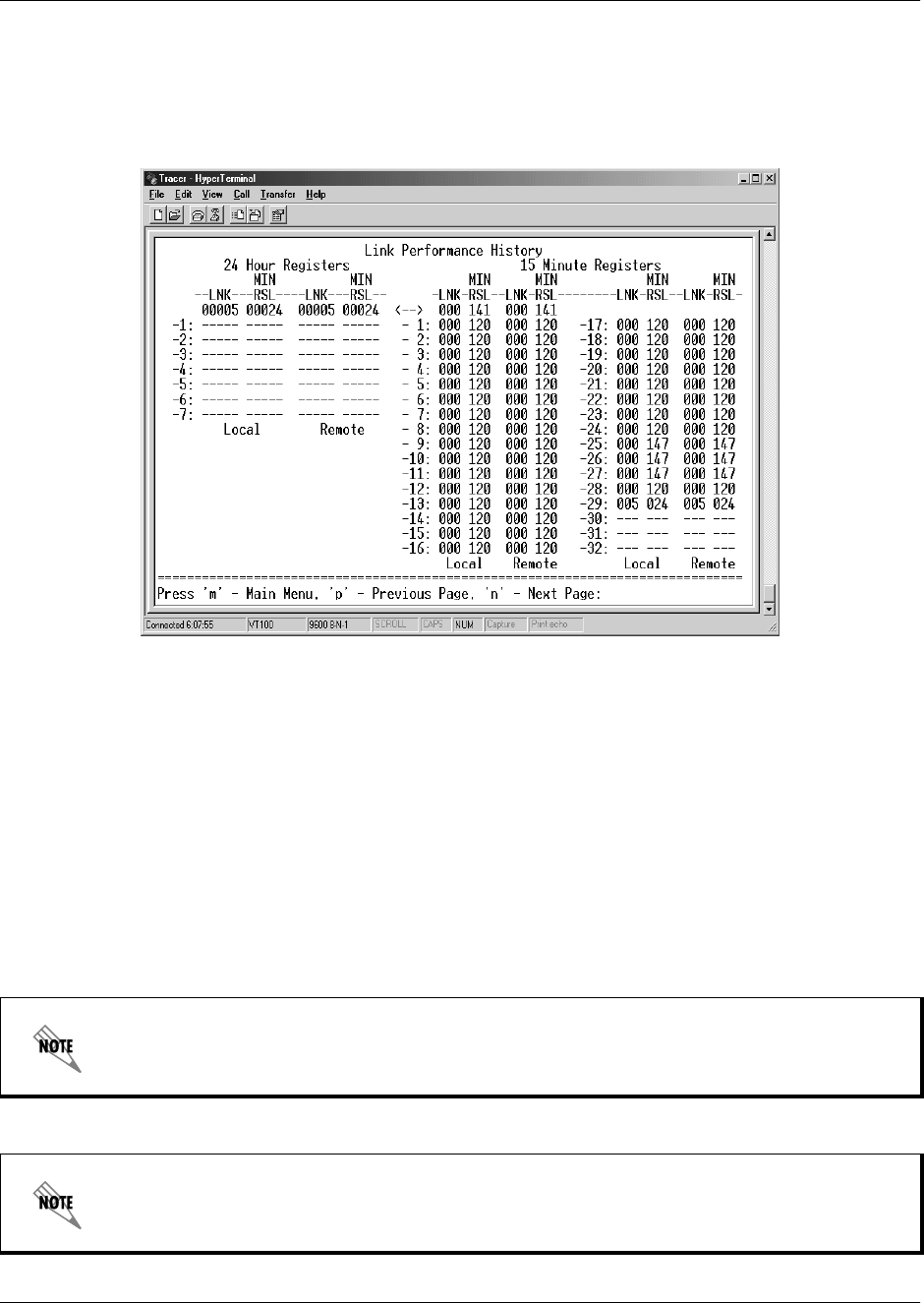

Figure 5. TRACER Link Performance History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

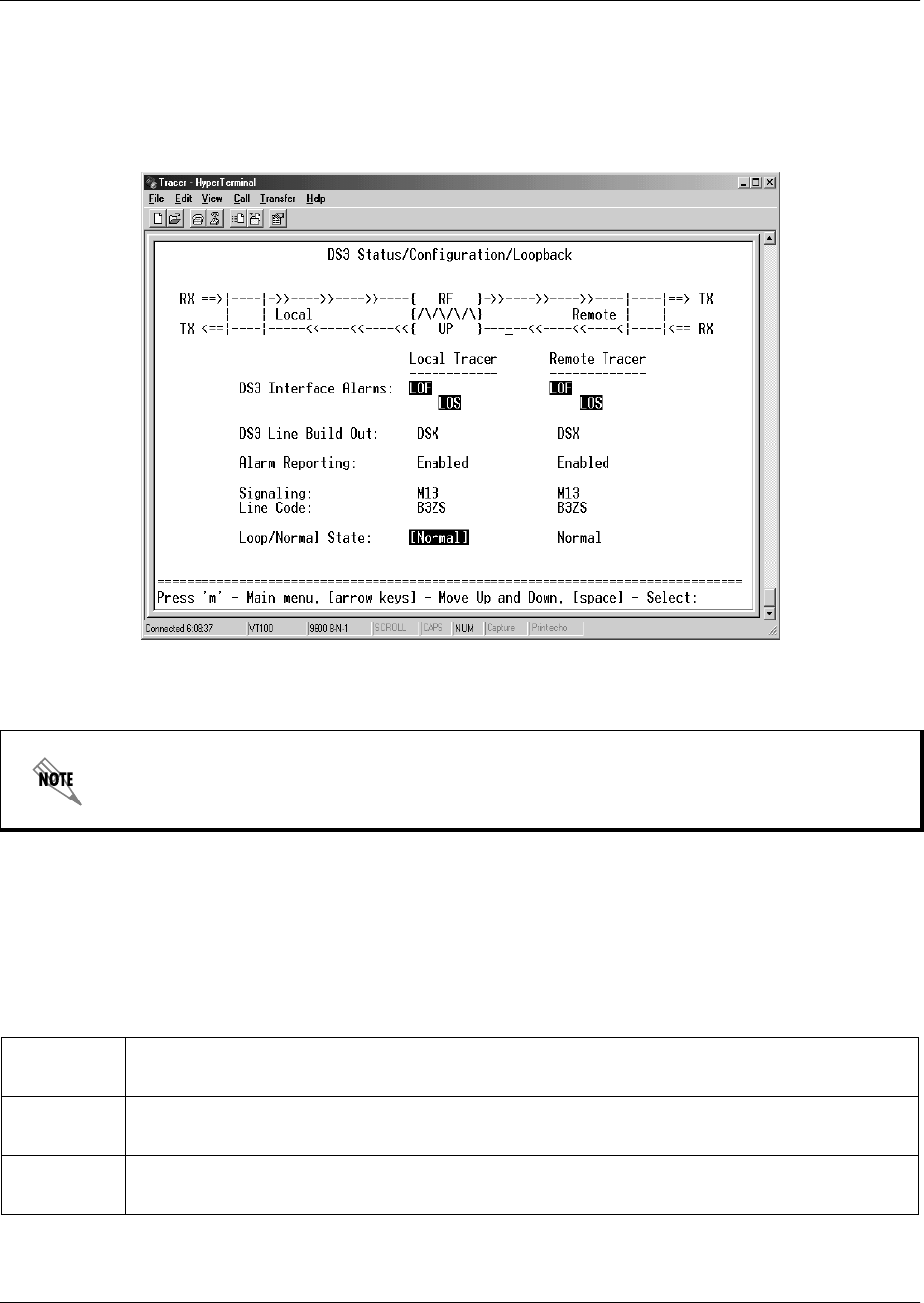

Figure 6. DS3 Status/Configuration/Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 7. DS3 Link Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 8. DS3 Line Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 9. DS3 Link Performance History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

TABLES

Table 1. DS3 Interface Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Section 5, User Interface Guide TRACER 4305 System Manual

1. NAVIGATING THE TERMINAL MENU

The TRACER 4305 menu system can be accessed with a VT100 compatible terminal set to 9600 bits per

second, 8 data bits, 1 stop bit, and no parity, connected to the RS-232 port located on the back of the unit.

Flow control on the serial interface should be configured to None for proper operation. Once a terminal is

connected, pressing <Ctrl + L> will refresh the current screen. If password access has been enabled, the

ENTER PASSWORD message will be displayed at the bottom of the TRACER 4305 system status menu.

Terminal Menu Window

The TRACER 4305 uses five menu pages and a single main menu page to access its many features. The

main menu page (see Figure 1) provides a link to all available configuration/status pages.

Figure 1. Main Menu Screen

All TRACER 4305 systems are shipped factory default with password protection disabled.

After connecting a VT100 terminal to the TRACER 4305, press <Ctrl + L> to redraw the

current screen. VT100 access will not be possible until this step is performed.

TRACER 4305 System Manual Section 5, User Interface Guide

Navigating using the Keyboard Keys

You can use various keystrokes to move through the terminal menu, to manage a terminal menu session,

and to configure the system.

Moving through the Menus

Session Management Keystrokes

2. TERMINAL MENU AND SYSTEM CONTROL

Password Protection

The TRACER 4305 provides optional password protection of the terminal interface. If enabled, a password

prompt is presented at power-up, reboot, modem logout, or after ten minutes of inactivity on the terminal.

Password protection is enabled and a password is defined via the system configuration menu.

If the password is forgotten, physical access to the TRACER 4305 unit is required to access the terminal

interface. The password may be bypassed by pressing the DS3 LBK button while the system is rebooted.

This disabled the password and will initialize the TRACER 4305 system status menu to allow the

password to be changed (via the configuration screen).

To do this.. Press this key...

Move up to select items Up Arrow

Move down to select items Down Arrow

Edit a selected menu item Enter

Scroll through configuration parameters for a menu item Spacebar

Up/Down Arrows

P or N (Prev/Next)

Cancel an edit Escape

Return to Main Menu page M

To do this.. Press this key...

Log into a session Spacebar

Refresh the screen

To save time, only the portion of the screen that has changed is refreshed. This

option should only be necessary if the display picks up incorrect characters

All TRACER 4305 systems are shipped factory default with password protection disabled.

Rebooting the unit to bypass password protection and redefine the installed password is

service affecting.

Section 5, User Interface Guide TRACER 4305 System Manual

3. MENU DESCRIPTIONS

The remainder of this section describes the TRACER 4305 menus and submenus.

>TRACER SYSTEM STATUS

Figure 2 shows the TRACER System Status menu page. Status of major system components for both sides

of the TRACER link are displayed, but no configuration can be performed from this view.

Figure 2. TRACER System Status

The top of the TRACER System Status menu page displays the elapsed time the TRACER 4305 system

has been operational since the last power reset. Located directly beneath the ADTRAN Technical Support

phone number is a graphical indicator of the status of the TRACER 4305 DS3 and RF links (as reported by

both the local and remote units). The DS3 labels will be reverse highlighted if any error conditions exist on

that DS3 interface.

The status of the received radio link is indicated as RF UP or RF DOWN for each direction. The left portion

of the menu page reports the status of the local TRACER 4305 (the system where the active terminal is

attached). The right portion of the screen reports the status of the remote system. During RF DOWN

conditions, remote status cannot be obtained and the message RF CONNECTION DOWN will be displayed

The menu structure of the TRACER 4305 system is depicted below as follows:

> MENU PAGE

> MENU PAGE > MENU SELECTION

> MENU PAGE > MENU SELECTION > SUB-MENU

TRACER 4305 System Manual Section 5, User Interface Guide

below the DATAPATH SYNC display.

>TRACER SYSTEM STATUS > FREQUENCY PLAN

Displays the frequency plan (A or B) for the TRACER 4305 unit. For an operational TRACER 4305

system, the local and remote units should display opposite frequency plans.

>TRACER SYSTEM STATUS > SITE

Displays the site name configured from the TRACER System Configuration page.

>TRACER SYSTEM STATUS > RX POWER

Displays the approximate receiver levels (for both the local and remote units) using a series of symbols (#).

The more symbols (#) displayed, the stronger the signal. If the link is down and remote end data is

unavailable, DATA NOT AVAILABLE is displayed in place of the symbols (#).

>TRACER SYSTEM STATUS > TX POWER

Displays the approximate transmitter levels (for both the local and remote units) using a series of symbols

(#). The more symbols (#) displayed, the stronger the signal. If the link is down and remote end data is

unavailable, DATA NOT AVAILABLE is displayed in place of the symbols (#).

>TRACER SYSTEM STATUS > DATAPATH SYNC

Displays the condition of the received digital data stream. If YES is displayed, the TRACER 4305 has

received an acceptable data stream from the remote system. If NO is displayed, the TRACER 4305 receiver

has lost synchronization.

Press <0> from any menu in the TRACER 4305 VT100 menu structure to access the

TRACER System Status page.

Section 5, User Interface Guide TRACER 4305 System Manual

>MAIN MENU

The TRACER 4305 Main Menu page provides access to all other configuration/status pages. Figure 3

shows the TRACER Main Menu page.

Figure 3. Main Menu

Use the up and down arrow keys to scroll through the available pages, or enter the number of the selected

page (to highlight the menu page) and press <Enter>.

Press <M> from any menu in the TRACER 4305 VT100 menu structure to access the

TRACER Main Menu page.

TRACER 4305 System Manual Section 5, User Interface Guide

>TRACER SYSTEM CONFIGURATION

Figure 4 shows the TRACER System Configuration menu page. System configuration parameters for both

the local and remote TRACER 4305 units are available through this menu page.

Figure 4. TRACER System Configuration

>TRACER SYSTEM CONFIGURATION > RX POWER

Displays the approximate receiver levels (for both the local and remote units) using a series of symbols (#).

The more symbols (#) displayed, the stronger the signal. If the link is down and remote end data is

unavailable, DATA NOT AVAILABLE is displayed in place of the symbols (#). This parameter is display only.

>TRACER SYSTEM CONFIGURATION > TX POWER

Allows the transmitter levels (for both the local and remote units) to be adjusted. The current transmitter

level is displayed using a series of symbols (#). The more symbols (#) displayed, the stronger the signal. If

the link is down and remote end data is unavailable, DATA NOT AVAILABLE is displayed in place of the

symbols (#).

Press <1> from any menu in the TRACER 4305 VT100 menu structure to access the

TRACER System Configuration menu page.

Reducing the transmitter power of the remote TRACER 4305 could negatively impact the

TRACER RF link.

Section 5, User Interface Guide TRACER 4305 System Manual

>TRACER SYSTEM CONFIGURATION > SITE NAME

Enter up to 32 alphanumeric characters to be displayed for identification of the TRACER 4305 system.

>TRACER SYSTEM CONFIGURATION > MODEM CONTROL

Configures the modem control leads on the RS-232 port (terminal interface located on the rear panel of the

unit). Set MODEM CONTROL to ENABLED when connecting the unit to a modem (using a null modem

adapter). Setting MODEM CONTROL to DISABLED de-asserts Data Set Ready (DSR) and deactivates the

modem interface. MODEM CONTROL must be set to DISABLED when the VT100 terminal is in use. The

TRACER 4305 comes factory programmed with MODEM CONTROL set to DISABLED.

>TRACER SYSTEM CONFIGURATION > MODEM CONNECTION (LOGOUT)

Activator to cause the TRACER 4305 to de-assert Clear To Send (CTS) and DSR for a time greater than 20

milliseconds. This signals the modem to disconnect the analog connection. Hangup-On-DTR-Drop may

need to be explicitly enabled on some modems. If PASSWORD PROTECTION is ENABLED, this menu also

causes the unit to close the current session and return to the TRACER System Status menu page and wait

for password input.

>TRACER SYSTEM CONFIGURATION > PASSWORD ENABLE

Configures password protection for the VT100 terminal interface. Password protection for the TRACER

4305 requires password input from the TRACER System Status menu page when connecting to the unit.

When configured for Password protection, the TRACER 4305 closes any terminal session that remains

inactive for more than 10 minutes. The TRACER 4305 comes factory programmed with PASSWORD

ENABLE set to DISABLED.

>TRACER SYSTEM CONFIGURATION > PASSWORD

Sets the password for password protection of the TRACER 4305 VT100 terminal interface. Enter up to 8

alphanumeric characters. The system password is case sensitive.

>TRACER SYSTEM CONFIGURATION > PERFORMANCE STATS (CLEAR)

Activator to reset all system error counters for the TRACER 4305.

Press <Ctrl+Z> three times from the terminal interface to temporarily disable

MODEM

CONTROL

when the modem control leads are active.

The default password for the TRACER 4305 is tracer.

TRACER 4305 System Manual Section 5, User Interface Guide

>TRACER LINK PERFORMANCE HISTORY

Figure 5 shows the TRACER Link Performance History menu page. The TRACER Link Performance

History menu page displays detailed error statistics for the RF link (from both the local and remote

TRACER 4305 units) in 15-minute increments.

Figure 5. TRACER Link Performance History

RF performance data is presented as link (LNK) errors which represent errored seconds received on the

wireless link. This is generally an indication of path or interference problems.

The mimimum received signal level (MIN RSL) is represented as a numerical value from 0 to 255 with 0

corresponding to no receive power and 255 corresponding to an extremely hot signal. The minimum

received signal level is directly related to RSSI.

The error count for the most recent 24 hours are recorded and displayed on the right side of the page. The

left side of the page displays the 24 hour totals for the most recent 7 days.

Press <N> to view the next 8 hours worth of 15-minute totals and <P> to view the

previous 8 hours.

Press <2> from any menu in the TRACER 4305 VT100 menu structure to access the

TRACER Link Performance History menu page.

Section 5, User Interface Guide TRACER 4305 System Manual

>DS3 STATUS/CONFIGURATION/LOOPBACK

Figure 6 shows the DS3 Status/Configuration/Loopback menu page. Real-time graphical representation for

the DS3 link (using data from both the local and remote TRACER 4305 units) is displayed on this page.

DS3 operational configuration parameters and testing functions are configured from this menu.

Figure 6. DS3 Status/Configuration/Loopback

>DS3 STATUS/CONFIGURATION/LOOPBACK > DS3 INTERFACE ALARMS

Displays any active alarms on the DS3 link (reported from both the local and remote TRACER 4305

units). These alarms include Red, Blue, Yellow, AIS, and bipolar violations (BPV). See Section 6,

Troubleshooting Guide, for more information on these alarms.

Press <3> from any menu in the TRACER 4305 VT100 menu structure to access the

DS3 Status/Configuration/Loopback menu page.

Table 1. DS3 Interface Alarms

BPV Activates when the incoming DS3 stream presents bipolar violations (BPVs). BPVs are

received when two consecutive “one” bits are the same polarity.

AIS Activates when an incoming remote alarm is received from a connected DS3 device. An

AIS signal is a properly aligned and framed alternating one-zero pattern.

RMT Activates when an incoming remote alarm is received (from the DS3 equipment) in the

DS3 EOC channel (bits X1 and X2 are both set to zero).

TRACER 4305 System Manual Section 5, User Interface Guide

>DS3 STATUS/CONFIGURATION/LOOPBACK > DS3 LINE BUILD OUT

Configures the DS3 for the appropriate line buildout, based on the distance to the DS3 equipment. Use

DSX for 0-255 feet and HIGH for distances greater than 255 feet.

>DS3 STATUS/CONFIGURATION/LOOPBACK > ALARM REPORTING

Determines whether the TRACER 4305 unit will report active alarms. If DISABLED, no alarms will be

displayed on this menu page. The ALARM REPORTING parameter is independently configured for the local

and remote TRACER 4305 units.

>DS3 STATUS/CONFIGURATION/LOOPBACK > SIGNALING

Configures the framing format for the DS3 link for both the local and remote TRACER 4305 units. The

TRACER 4305 transparently transports DS3 data across the link (as long as the DS3 signal is properly

timed). Configure the framing format (using the SIGNALING menu) to enable the TRACER 4305 to monitor

incoming framing error events and indicate problems with the attached metallic service. The TRACER

4305 supports both M13 and C-BIT parity modes.

>DS3 STATUS/CONFIGURATION/LOOPBACK > LINE CODE

Sets the line coding for the DS3 link. The TRACER 4305 supports only B3ZS line coding.

>DS3 STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE

Controls the loop status of the DS3 link. Activates/deactivates loopback conditions for testing purposes.

>DS3 STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > NORMAL

The DS3 link is in normal data transport mode - there are no active loopbacks.

>DS3 STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINK

Activates a loopback at the TRACER 4305 DS3 framer towards the wireless link (see Figure 7). Use the

LINK loopback to test data path integrity from one unit across the wireless link.

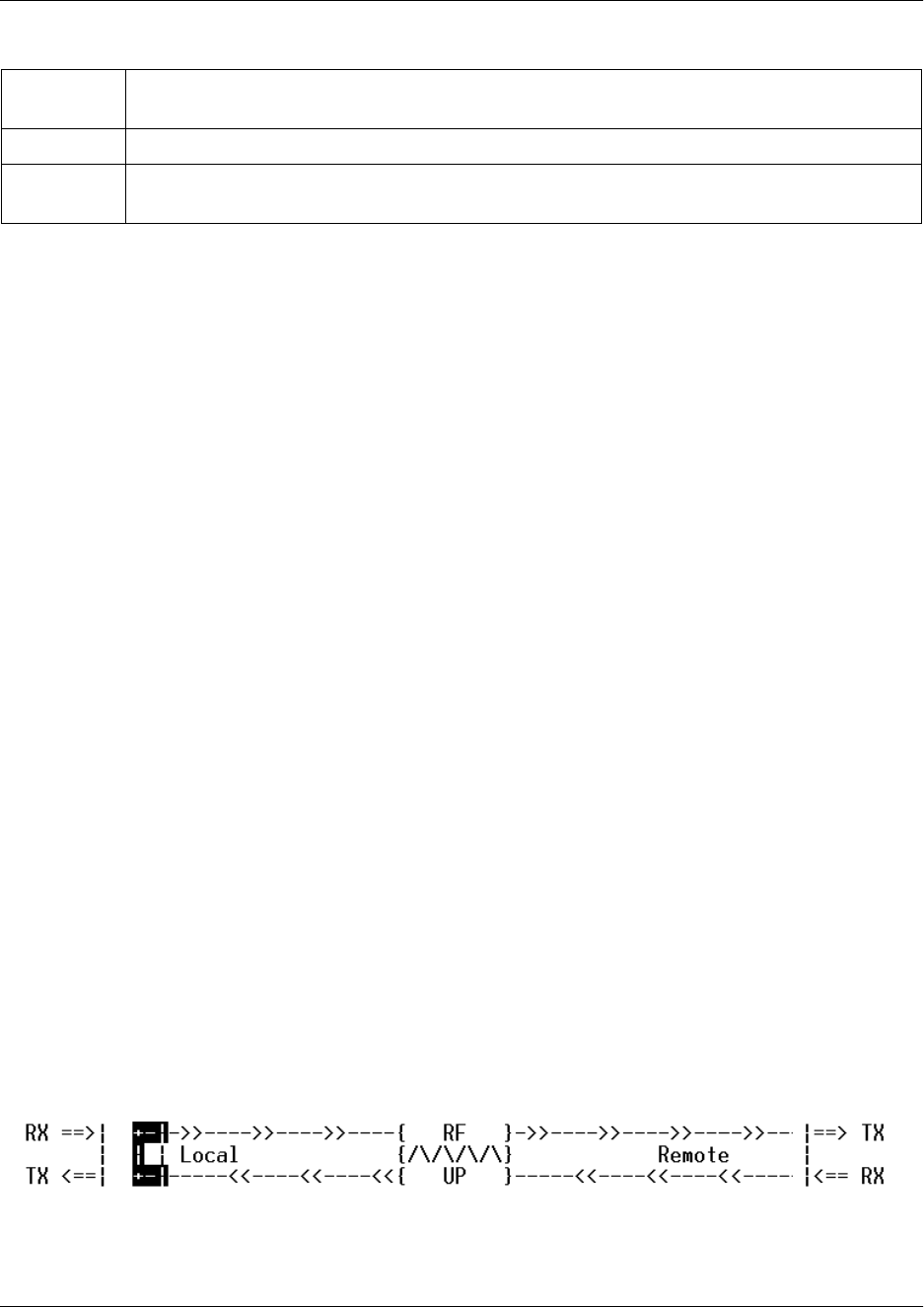

Figure 7. DS3 Link Loopback

LOS Activates when no DS3 signal is present from the connected DS3 equipment. LOS is

activated after receiving 192 consecutive zeros.

LOF Activates when the DS3 framer loses alignment due to too many F bits or M bits in error.

IDLE Connected DS3 equipment is indicating that the line is not in use by transmitting a

properly aligned and frame 1100... pattern.

Table 1. DS3 Interface Alarms (Continued)

Section 5, User Interface Guide TRACER 4305 System Manual

>DS3 STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINE

Activates a loopback at the TRACER 4305 DS3 framer towards the locally connected DS3 equipment (see

Figure 8). Use the LINE loopback to test data path integrity from the TRACER 4305 unit to the DS3

equipment.

Figure 8. DS3 Line Loopback

>DS3 STATUS/CONFIGURATION/LOOPBACK > LINE CODE

Sets the line coding for the DS3 link. The TRACER 4305 supports only B3ZS line coding.

>DS3 PERFORMANCE HISTORY

Figure 5 shows the DS3 Performance History menu page. The DS3 Performance History menu page

displays detailed error statistics for the DS3 link (from both the local and remote TRACER 4305 units) in

15-minute increments.

Figure 9. DS3 Link Performance History

DS3 performance data is presented as Errored Seconds (ES) and Severely Errored Seconds (SES) on the

DS3 link.

TRACER 4305 System Manual Section 5, User Interface Guide

The error count for the most recent 24 hours are recorded and displayed on the right side of the page. The

left side of the page displays the 24 hour totals for the most recent 7 days.

Press <N> to view the next 8 hours worth of 15-minute totals and <P> to view the

previous 8 hours.

Press <4> from any menu in the TRACER 4305 VT100 menu structure to access the

DS3 Link Performance History menu page.

Section 5, User Interface Guide TRACER 4305 System Manual

TROUBLESHOOTING GUIDE

CONTENTS

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

PWR LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

TST LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

RF DOWN LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

RF LOW LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

LOS LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

AIS LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

BPV LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

RF Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Step-by-Step Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installing/Troubleshooting the TRACER Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installing/Configuring DS3 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Section 4, Troubleshooting Guide TRACER 4305 System Manual

1. OVERVIEW

This troubleshooting guide provides recommended actions for various conditions of the TRACER 4305

system. The status LEDs (located on the front panel of the unit) provide information to help determine the

necessary troubleshooting action. Recommended actions for resolving possible status LED indicators are

contained in this guide.

2. LED INDICATORS

PWR LED

If the PWR LED is not ON and solid green, it is an indicator that the TRACER 4305 is not receiving

adequate DC power.

Recommended Actions:

1. Verify that the power source is delivering between 21 and 63 VDC.

2. Check the polarity of the power connection (referenced to ground) of both the TRACER 4305 unit and

the power source.

3. Check the internal fuse. The fuse is accessed from the rear panel of the unit. If this fuse is open,

replace with a 1Amp, 250 Volt (2-inch) slow-blo fuse.

TST LED

The TST will remain ON (solid Amber) during power-up to indicate a self-test is in progress. If the TST

LED is blinking or remains ON after 10 seconds, this indicates that the TRACER 4305 unit has failed

self-test. This is an internal failure, and ADTRAN technical support should be contacted.

RF DOWN LED

If the RF DOWN LED is ON (solid Red), it is an indicator that there is a problem with the RF link to the

TRACER 4305.

Recommended Actions:

1. Check the RF coaxial cable connection.

2. Measure the RSSI voltage. If the signal is acceptable (> 2.0 VDC at RSSI test point), go to Step 6.

3. Verify that one end of the link is configured as Plan A and the other end is Plan B.

4. Verify that the antenna polarization is the same at both ends of the RF signal transmit and receive

path.

5. Verify the RF signal path is clear.

6. Check for possible interference at both ends of the link. If necessary, change polarization and/or PN

code at both ends.

TRACER 4305 System Manual Section 4, Troubleshooting Guide

RF LOW LED

If the RF LOW LED is ON (solid Red), it is an indicator that the received signal is within 10 dB

(approximately) of the minimum operable signal. This condition is typically indicative of a path problem.

Recommended Actions:

1. Verify the far-end transmitter power setting is the value that the link planning budget allows.

2. Check all coaxial cable connectors for solid connections. Check for water and corrosion around any of

the connectors.

3. Verify the RF signal path by verifying the antenna alignment.

4. Check the integrity of the cable plant.

5. Check the integrity of lightning arrestors.

LOS LED

If the LOS LED is ON (solid Red), it is an indicator that the TRACER 4305 is unable to detect a viable DS3

received signal from the connected DS3 equipment. This error may be due to a degraded signal or no

signal, or is may be caused by improper framing.

Recommended Actions:

1. Verify that the DS3 Coaxial cable is connected to the DS3 interface on the TRACER 4305.

2. Verify that the DS3 Out interface on the TRACER 4305 is connected to the transmit interface of the

DS3 equipment.

3. Verify that the DS3 In interface on the TRACER 4305 is connected to the receive interface of the DS3

equipment.

4. Verify the connections at the opposite end of the DS3 cable.

5. Verify that the framing mode (C-Bit or M13 parity) is the same for both the TRACER 4305 and the DS3

equipment.

AIS LED

A Yellow Alarm, when indicated at the TRACER 4305 by a solid Red AIS LED, is generated by the

attached equipment. When the attached equipment’s DS3 interface is in Red Alarm, a Yellow Alarm will

be generated at the TRACER 4305 unit.

Recommended Actions:

1. Follow the troubleshooting steps for Red Alarm, but do so at the attached equipment.

A Blue Alarm, when indicated at the TRACER 4305 by a blinking Red AIS LED, is generated by the

attached equipment. The root cause must be determined at the attached equipment. A typical cause of a

blue alarm is a lack of input to a CSU.

Recommended Actions:

1. Verify the input to any attached data equipment.

Section 4, Troubleshooting Guide TRACER 4305 System Manual

BPV LED

If the BPV LED is ON (solid Red at time of incident), a Bipolar Violation (BPV) has occurred. BPVs

indicate an improper configuration or faulty wiring.

Recommended Actions:

1. Verify the TRACER 4305 unit and the attached equipment are configured for the same line coding

(B3ZS).

2. Verify that the Line Buildout (LBO) of the attached equipment is correct.

3. Verify the cable connections for the DS3 interface are solid.

3. RF ERRORS

RF errors can range anywhere from a non-viable microwave path to loose RF connectors.

Non-viable path conditions could be caused by physical obstructions such as buildings, moutainous terrain,

trees, etc., as well as other physical limitations such as excessive path distances and in-band RF

interference. These types of errors are remedied by performing a detailed line-of-sight microwave path

study to determine whether or not a microwave link is feasible for the terrain and environment under

consideration.

If after performing a microwave path study the system is still not operational, ensure that the antennas are

properly aligned. Note that alignment must be achieved in both elevation and azimuth for optimal link

performance. The TRACER 4305 can be used to aid in antenna alignment by looking at the RSSI

submenu. Optimal antenna alignment will correspond to the maximum number of RSSI bars on the

TRACER 4305 terminal display.

4. STEP-BY-STEP TROUBLESHOOTING

The logical troubleshooting flow presented in this section can be used to set up your TRACER 4305

system, and also to diagnose a previously installed system. Please contact Adtran Technical support at any

stage during installation and/or troubleshooting if you require assistance.

5. INSTALLING/TROUBLESHOOTING THE TRACER HARDWARE

1. Perform a detailed path profile for each TRACER 4305 microwave link. A thorough path study

can be used to estimate signal power budgets, fade margins at each receiver, identity potential

line-of-site obstacles, properly size antenna dishes, and determine minimum antenna dish heights

above the earth.

2. Setup all of the TRACER hardware on a work bench. It is also recommended that the actual cables

to be used in the permanent installation be used in the work bench setup. A rigorous work bench

"simulation" of the link will help you alleviate and avoid time-consuming errors.

3. Examine the PLAN A and PLAN Blights on the front panel of each unit. These LEDs indicate the

frequency plan for each TRACER 4305 unit. The frequency plan (PLAN A, PLAN B) LED should

be the opposite on both TRACER 4305 units.

TRACER 4305 System Manual Section 4, Troubleshooting Guide

4. Attach the RF coaxial cables to be used in the permanent installation to the N-type connectors on

the base of the TRACER 4305 unit. Attach the other end of the coaxial cable(s) to an RF power

meter or spectrum analyzer if either is available. The power measured by the meter/analyzer will

be the RF power available at the input of the antenna. The TRACER 4305 unit is programmed at

the factory to output approximately 100 mW (20 dBm) of 5.8 GHz RF power. The actual power

level measured by the meter/analyzer will be less than 100 mW due to RF losses through the

coaxial cable, and is a function of cable type and length of cable being used. In any event, the

power level at the output of the coaxial cable should be a significant fraction of 100 mW. A power

meter/analyzer reading that is not on the order of at least tens-of-milliwatts could be an indication

of any combination of either unsuitable RF, faulty, or unreasonably long coaxial cable.

5. Resolve all RF coaxial cabling errors before proceeding.

6. Attach the RF coaxial cables to a 5.8 GHz attenuator, if possible. If you do not have an attenuator,

attach the coaxial cables to the antennas to be used in the permanent installation. If the installation

antennas are not available, small, inexpensive dipole or patch antennas can be used for verification

purposes. If an adjustable attenuator is being used, dial in the amount of attenuation that

corresponds to the path loss value expected for the microwave link in which the TRACER

hardware will be installed. The path loss value can be calculated from a knowledge of the path

length, or provided by a path study. Remember to subtract both antenna gain values from the

attenuator level if these values have not already be accounted for.

7. After setting up the RF pieces, examine the RF DOWN LED on the front panel of each TRACER

4305 unit. If the RF DOWN LED is illuminated (red), the corresponding TRACER 4305 is not

receiving a suitable RF signal from the other TRACER 4305 unit. In this case, the receiving

TRACER 4305 is either receiving a very weak signal, or no signal at all. If the RF DOWN LED is

not illuminated, then the TRACER 4305 units are receiving a suitable RF signal. Suitable RF

power levels for low error rate communication will range from -30 dBm to -78 dBm measured at

the N-type connector input on the TRACER 4305 unit.

8. Resolve any signal level issues before proceeding.

9. Examine the RF LOW LED on the front panel of each TRACER 4305. If this LED is illuminated,

then the TRACER 4305 is receiving a relatively weak signal, however if the RF DOWN LED is

not illuminated, the received signal is being suitably processed by the TRACER system. If you are

receiving a weak signal (RF LOW is ON), please verify that the weak signal is not being caused by

a faulty cable, an insufficiently tightened cable, or some other installation-related problem. Also,

make sure an unreasonably large attenuation value has not been selected if you are using an

attenuator on a work bench setup.

Use the tables in Section 3, Microwave Path Engineering Basics, of this manual to select the

proper free-space attenuation value (in dB) based on the estimated length of the microwave path.

Remember to subtract out both antenna gains (local and remote) from the attenuator setting.

10. Command a link loopback in one TRACER 4305 unit and run pattern from the connected DS3

equipment. This will verify data path between the DS3 equipment and the TRACER 4305 unit.

External pattern generators are required to test data path integrity. A DS3 BERT tester is

suggested.

Section 4, Troubleshooting Guide TRACER 4305 System Manual

Installing/Configuring DS3 Hardware

1. If possible, attach any or all of the intended DS3 hardware to the TRACER 4305 units using the

same work bench setup. This step offers the perfect opportunity to configure your DS3 hardware

for proper functioning with the TRACER hardware.

2. Resolve any remaining DS3 equipment-to-TRACER 4305 configuration issues before field

installation, if possible. This will significantly reduce the probability of unsuccessful field

installation.

ADTRAN TRC4305 Point to Point Unlicensed UNII Microwave System User Manual 612804305L1A 1A

Adtran Point to Point Unlicensed UNII Microwave System 612804305L1A 1A

Manual

Navigation menu

Namespaces

Views

Navigation
