ADTRAN TRC6420 Tracer 6420 User Manual 612806420L1 1A

Adtran Tracer 6420 612806420L1 1A

UserManual.wiki >

ADTRAN >

TRC6420 User Manual HTML Version

Users Manual Revised

612806420L1-1A

January 2005

TRACER 6420

System Manual

12806420L1A TRACER 6420 5.8 GHz System (Plan A)

12806420L1B TRACER 6420 5.8 GHz System (Plan B)

Trademarks TRACER 6420 System Manual

Trademarks

Any brand names and product names included in this manual are trademarks, registered trademarks, or

trade names of their respective holders.

To the Holder of the Manual

The contents of this manual are current as of the date of publication. ADTRAN reserves the right to change

the contents without prior notice.

In no event will ADTRAN be liable for any special, incidental, or consequential damages or for

commercial losses even if ADTRAN has been advised thereof as a result of issue of this publication.

About this Manual

This manual provides a complete description of the TRACER 6420 system and system software.

The purpose of this manual is to provide the technician, system administrator, and manager with

general and specific information related to the planning, installation, operation, and maintenance of the

TRACER 6420. This manual is arranged so that needed information can be quickly and easily found.

901 Explorer Boulevard

P.O. Box 140000

Huntsville, AL 35814-4000

Phone: (256) 963-8000

Printed in U.S.A.

TRACER 6420 System Manual Revision History

Revision History

Document

Revision

Date Description of Changes

ADecember 2004 Initial release of manual to include the TRACER 6420 (5.8 GHz

integrated system) and the Quad T1 and Ethernet Switch modules.

Notes provide additional useful information.

Cautions signify information that could prevent service interruption.

Warnings provide information that could prevent damage to the equipment or

endangerment to human life.

Safety Instructions TRACER 6420 System Manual

Safety Instructions

When using your telephone equipment, please follow these basic safety precautions to reduce the risk of

fire, electrical shock, or personal injury:

1. Do not use this product near water, such as a bathtub, wash bowl, kitchen sink, laundry tub, in a

wet basement, or near a swimming pool.

2. Avoid using a telephone (other than a cordless-type) during an electrical storm. There is a remote

risk of shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord, power supply, and/or batteries indicated in the manual. Do not dispose of

batteries in a fire. They may explode. Check with local codes for special disposal instructions.

Save These Important Safety Instructions

TRACER 6420 System Manual FCC-Required Information

FCC-Required Information

Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio frequencies. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Radio Frequency Interface Statement

This equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to

Part 15, Subpart C of the FCC Rules. This equipment generates, uses, and can radiate radio frequency

energy. If not installed and used in accordance with the instructions, it may cause interference to radio

communications.

The limits are designed to provide reasonable protection against such interference in a residential situation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause interference to radio or television reception, which can be determined by turning the equipment

on and off, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna of the affected radio or television.

• Increase the separation between the equipment and the affected receiver.

• Connect the equipment and the affected receiver to power outlets on separate circuits.

• Consult the dealer or an experienced radio/TV technician for help.

Shielded cables must be used with this unit to ensure compliance with Class A FCC limits.

Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Changes or modifications not expressly approved by ADTRAN could void the user’s

authority to operate the equipment.

FCC-Required Information TRACER 6420 System Manual

FCC Output Power Restrictions

The FCC does not require licensing to implement this device. License-free operation in the industrial,

scientific, and medical band is documented in FCC Rules Part 15.247. It is the responsibility of the

individuals designing and implementing the radio system to ensure compliance with any pertinent FCC

Rules and Regulations. This device must be professionally installed.

Exposure to Radio Frequency Fields

The TRACER 6420 is designed to operate at 5.8 GHz with 100 mW maximum transmit power.

This level of RF energy is below the Maximum Permissible Exposure (MPE) levels specified in FCC OET

65:97-01. The installation of high gain antenna equipment in the system configuration may create the

opportunity for exposure to levels higher than recommended for the general population at a distance less

than 15 feet (4.6 meters) from the center of the antenna. The following precautions must be taken

during installation of this equipment:

• The installed antenna must not be located in a manner that allows exposure of the general population to

the direct beam path of the antenna at a distance less than 15 feet (4.6 meters). Installation on towers,

masts, or rooftops not accessible to the general population is recommended; or

• Mount the antenna in a manner that prevents any personnel from entering the area within 15 feet (4.6

meters) from the front of the antenna.

• It is recommended that the installer place radio frequency hazard warnings signs on the barrier that

prevents access to the antenna.

• Prior to installing the antenna to the TRACER output, make sure the power is adjusted to the settings

specified in section 2 of this manual.

• During antenna installation, be sure that power to the TRACER equipment is turned off in order to

prevent any energy presence on the coaxial connector.

• During installation and alignment of the antenna, do not stand in front of the antenna assembly.

• During installation and alignment of the antenna, do not handle or touch the front of the antenna.

These simple precautions must be taken to prevent general population and installation personnel from

exposure to RF energy in excess of specified MPE levels.

Verify the antenna installation meets all regulations specified in the National Electric

Code (NEC) Article 810.

TRACER 6420 System Manual Warranty and Customer Service

Warranty and Customer Service

ADTRAN will repair and return this product within the warranty period if it does not meet its published

specifications or fails while in service. Warranty information can be found at www.adtran.com/warranty.

Customer Service, Product Support Information, and Training

ADTRAN will repair and return this product within the warranty period if it does not meet its published

specifications or fails while in service. Warranty information can be found at www.adtran.com/warranty.

A return material authorization (RMA) is required prior to returning equipment to ADTRAN. For service,

RMA requests, training, or more information, use the contact information given below.

Repair and Return

If you determine that a repair is needed, please contact our Customer and Product Service (CaPS)

department to have an RMA number issued. CaPS should also be contacted to obtain information

regarding equipment currently in house or possible fees associated with repair.

Identify the RMA number clearly on the package (below address), and return to the following address:

Pre-Sales Inquiries and Applications Support

Your reseller should serve as the first point of contact for support. If additional pre-sales support is needed,

the ADTRAN Support web site provides a variety of support services such as a searchable knowledge

base, latest product documentation, application briefs, case studies, and a link to submit a question to an

Applications Engineer. All of this, and more, is available at:

When needed, further pre-sales assistance is available by calling our Applications Engineering

Department.

CaPS Department (256) 963-8722

ADTRAN Customer and Product Service

901 Explorer Blvd. (East Tower)

Huntsville, Alabama 35806

RMA # _____________

http://support.adtran.com

Applications Engineering (800) 615-1176

Customer Service, Product Support Information, and Training TRACER 6420 System Manual

Post-Sale Support

Your reseller should serve as the first point of contact for support. If additional support is needed, the

ADTRAN Support web site provides a variety of support services such as a searchable knowledge base,

updated firmware releases, latest product documentation, service request ticket generation and

trouble-shooting tools. All of this, and more, is available at:

When needed, further post-sales assistance is available by calling our Technical Support Center. Please

have your unit serial number available when you call.

Maintenance Support

The ADTRAN Custom Extended Services (ACES) program offers multiple types and levels of

maintenance services which allow you to choose the kind of assistance you need. This support is available

at:

For questions, call the ACES Help Desk.

Training

The Enterprise Network (EN) Technical Training Department offers training on our most popular products.

These courses include overviews on product features and functions while covering applications of

ADTRAN's product lines. ADTRAN provides a variety of training options, including customized training

and courses taught at our facilities or at your site. For more information about training, please contact your

Territory Manager or the Enterprise Training Coordinator.

http://support.adtran.com

Technical Support (888) 4ADTRAN

http://www.adtran.com/aces

ACES Help Desk (888) 874-ACES (2237)

Training Phone (800) 615-1176, ext. 7500

Training Fax (256) 963-6700

Training Email training@adtran.com

Table of Contents

Section 1 System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

This section of ADTRAN’s TRACER 6420 System Manual is designed for use by network

engineers, planners, and designers for overview information about the TRACER 6420 systems.

Section 2 Microwave Path Engineering Basics . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Explains the basics of analyzing a wireless microwave link or path. Defines significant param-

eters and makes several installation recommendations.

Section 3 Engineering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Provides information to assist network designers with incorporating the TRACER 6420 system

into their networks.

Section 4 Network Turnup Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Provides shipment contents list, grounding instructions, mounting options, and specifics of

supplying power to the unit.

Section 5 User Interface Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Provides detailed descriptions of all menu options and configuration parameters available for

the TRACER 6420.

Section 6 Detail Level Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

DLP-1 Connecting a VT100 Terminal or PC to the CRAFT Port . . . . . . . . . . . . . . . . . . . . . . 73

DLP-2 Logging in to the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

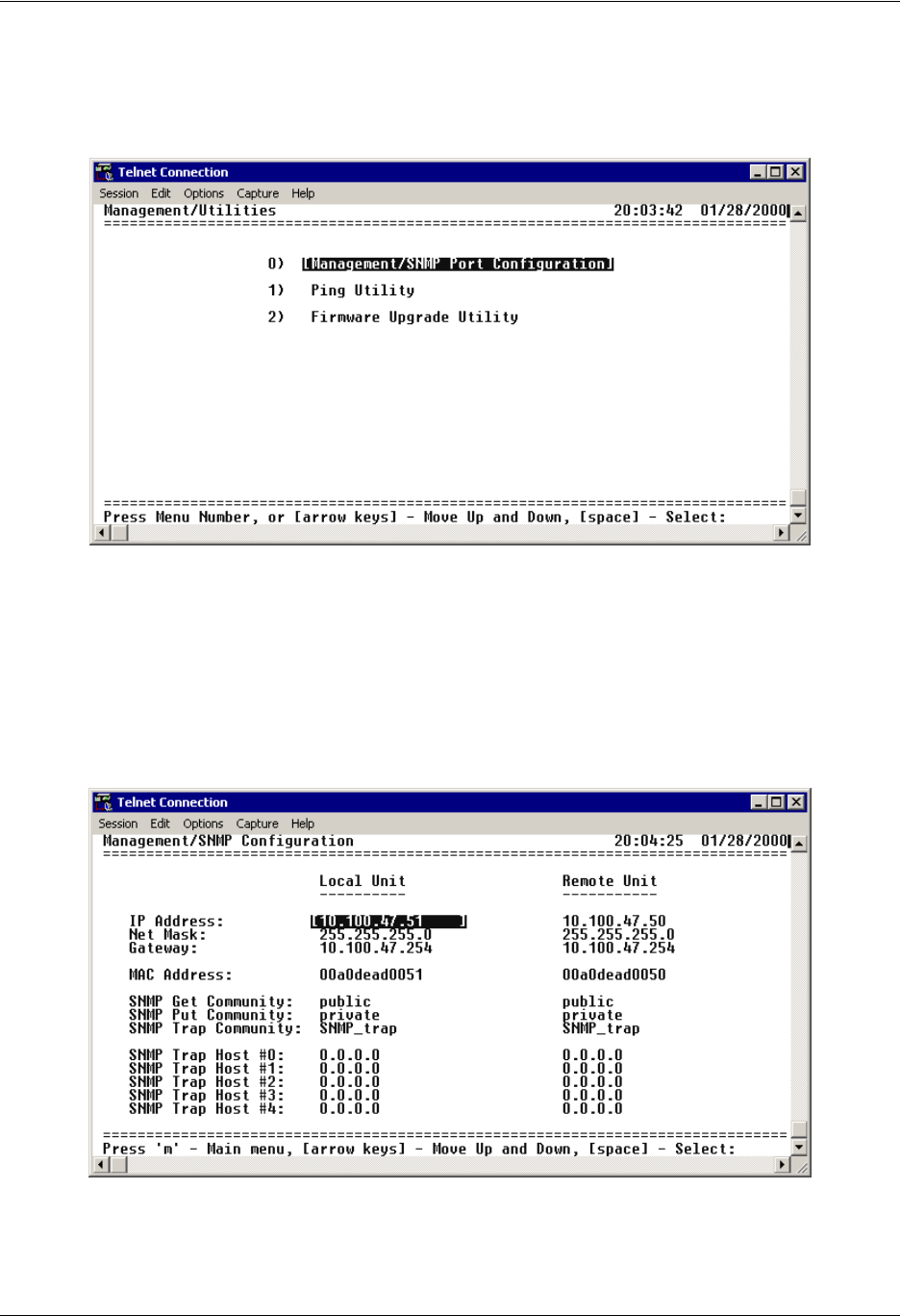

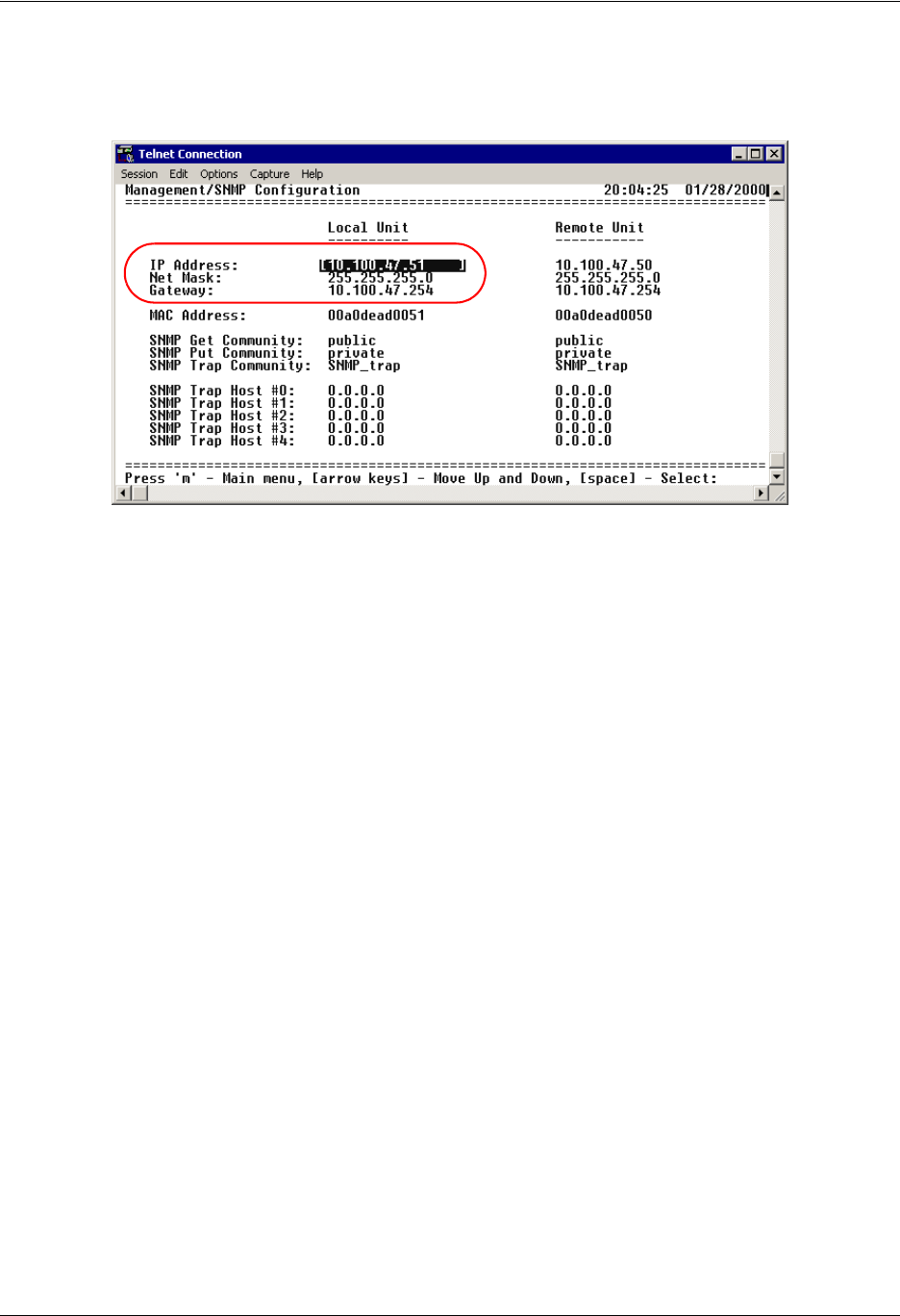

DLP-3 Setting IP Parameters for the TRACER 6420. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

DLP-4 Verifying Communications Over an IP LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

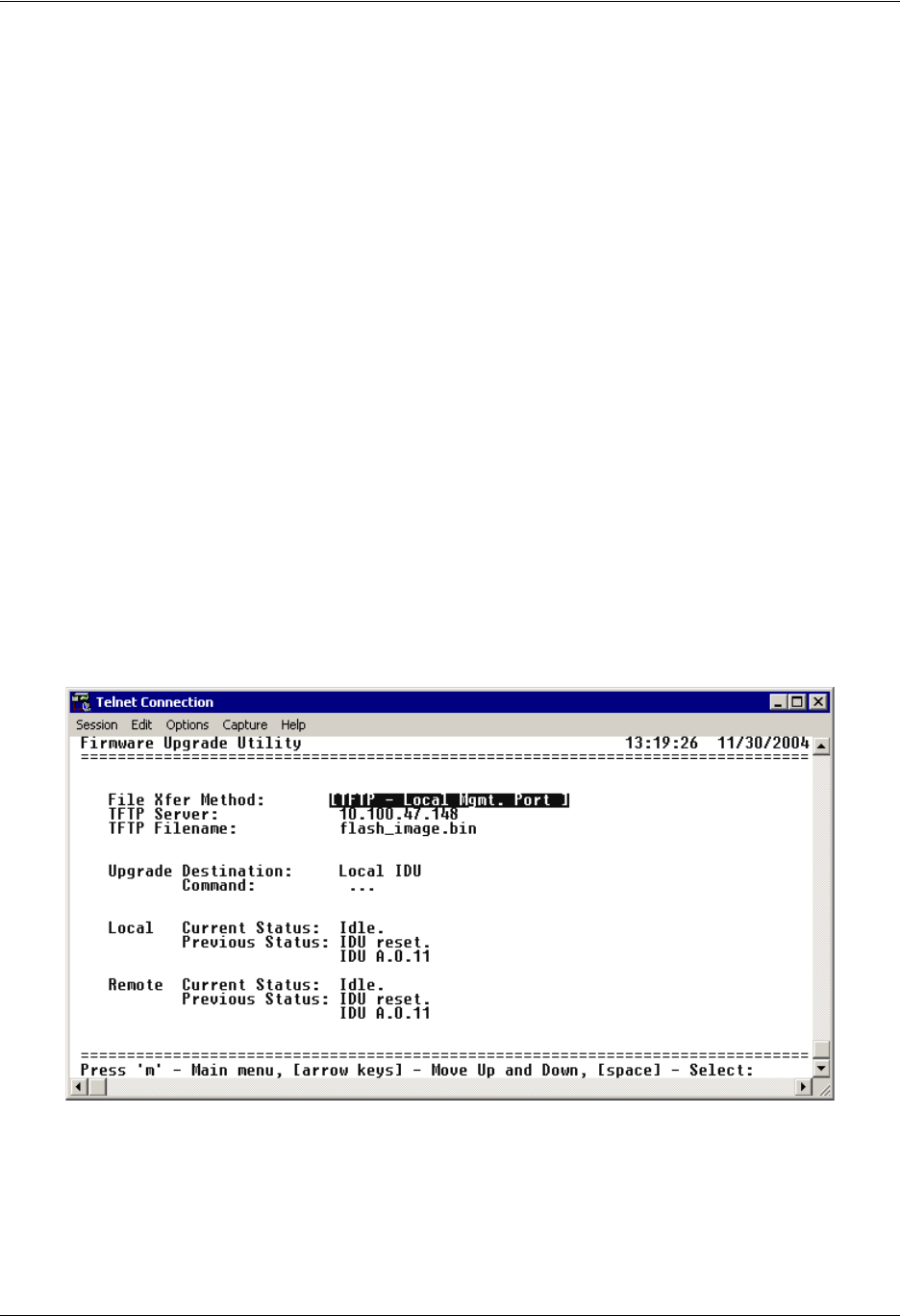

DLP-5 Updating the Firmware Using TFTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

DLP-6 Updating the Firmware Using XMODEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Section 7 MIBs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Provides a listing of SNMP Management Information Bases (MIBs) supported by the|

TRACER 6420. Traps supported for each MIB are also listed.

Section 8 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Provides helpful information for troubleshooting common configuration problems for the

TRACER 6420.

Table of Contents TRACER 6420 System Manual

SYSTEM DESCRIPTION

This section of ADTRAN’s TRACER 6420 System Manual is designed for use by network engineers,

planners, and designers for overview information about the TRACER 6420 systems.

It contains general information and describes physical and operational concepts, network relationships,

provisioning, testing, alarm status, and system monitoring. This section should be used in conjunction with

Section 3, Engineering Guidelines, of this manual.

CONTENTS

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Configuration and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Operational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Available Interface Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Section 1 System Description TRACER 6420 System Manual

1. SYSTEM OVERVIEW

The TRACER 6420 provides license-free scalable connectivity for service providers and corporate

networks. These radios feature two modular network interface ports that can accommodate various

combinations of T1 and Ethernet option cards up to 8xT1 (16.384 Mbps). This flexibility provides

customized TDM and packet solutions for voice and data applications in a single platform. The

TRACER 6420 radios provide carrier class point-to-point connectivity up to thirty miles in the 5.8 GHz

license-free Industrial, Science, and Medical (ISM) band.

Complete network management is supported via SNMP, Telnet access, and a VT100 craft port. SNMP

traps are implemented for all RF link and T1/Ethernet alarm conditions, enabling remote installations to

report outages without requiring a truck roll to diagnose problems. Version 2 standard MIBs are supported

for all interface cards, while an enterprise-specific MIB is provided for radio functionality. Triple-DES

security provides additional protection from unauthorized access without requiring any additional external

security appliances. Encryption can also be disabled altogether. Future upgrades and enhancements can be

added through FLASH firmware downloads via TFTP (on the Ethernet interface) or XMODEM on the

craft port.

Receive sensitivity is optimized through the use of extensive forward error correction and

high-performance receiver design techniques. Dynamic receive sensitivity allows the user to increase

receiver performance by decreasing the delivered bandwidth. This feature maximizes link performance by

customizing the delivered bandwidth to the specific needs of the installation. Three software selectable

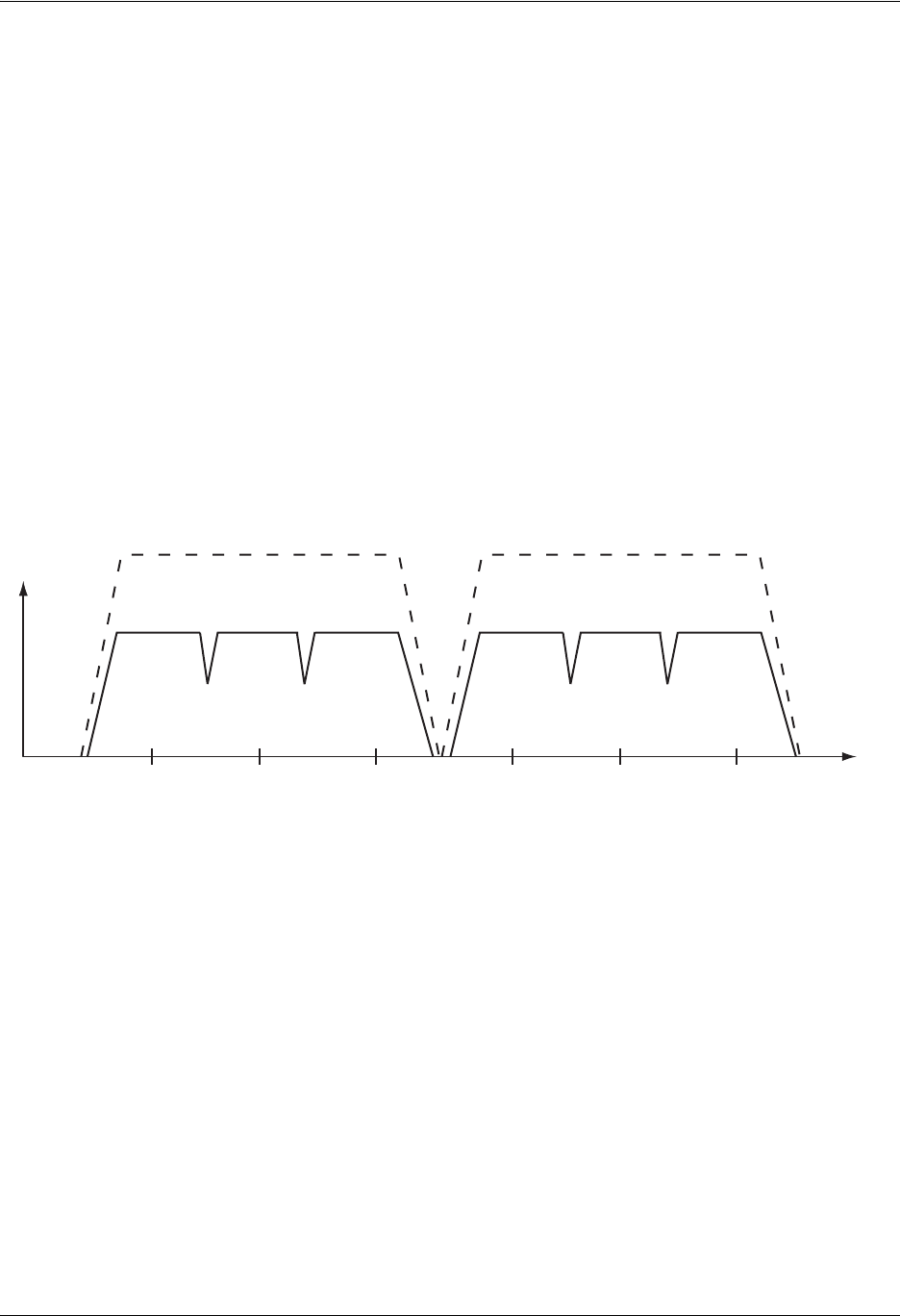

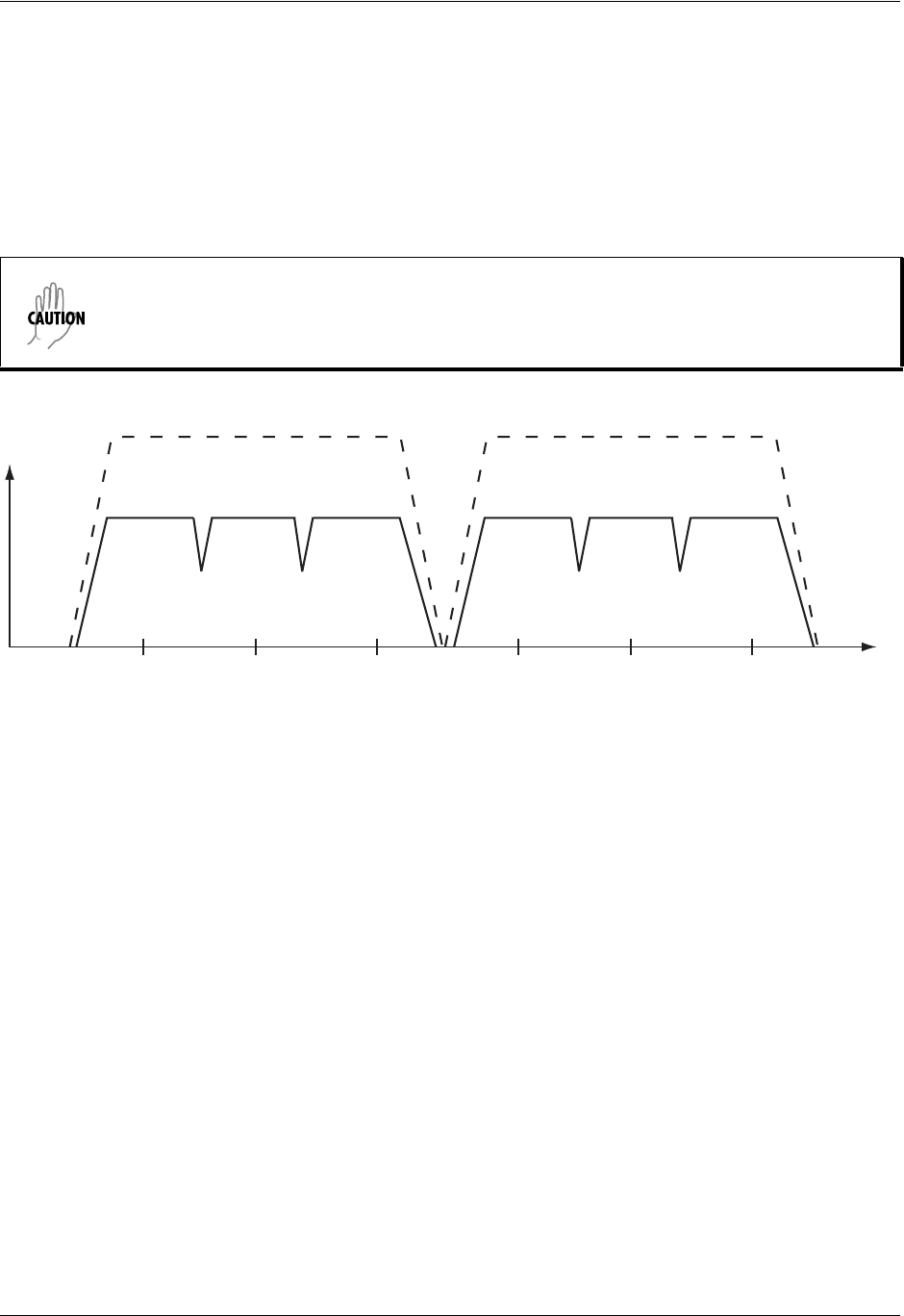

channel plans are supported to simplify frequency coordination at co-located sites. Channel plans are

easily changed via any of the software management interfaces without the added expense of hardware

upgrades or spare filter assemblies.

TRACER wireless solutions maximize equipment density through the combination of compact size (only

1U rack space required), low power consumption, and high thermal transfer. TRACER systems can be

deployed at twice the density of other available wireless products.

2. FEATURES AND BENEFITS

The following is a brief list of the TRACER 6420 features and benefits:

Configuration and Management

• Easy to use VT100 control port (RS-232 interface) for configuration and monitoring

• Remote configuration of both ends of the wireless link, from each end of the link

Operational

• No license required per FCC Rules Part 15.247

• Frequency: 5.725 to 5.850 GHz

• Point-to-point, up to 30 miles

• 1-U high unit for easy rack-mounting

Available Interface Modules

• Quad T1 Module (P/N 1280040L1)

• Quad Ethernet Switch Module (P/N 1280050L1)

MICROWAVE PATH ENGINEERING BASICS

Explains the basics of analyzing a wireless microwave link or path. Defines significant parameters and

makes several installation recommendations.

CONTENTS

Line-of-Sight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Decibels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Calculating the Fade Margin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Receiver Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Antenna Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Transmitted Power (PT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Carrier Wavelength (l) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Path Distance (d) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System Losses (L) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Path Loss (LP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Receiver Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Antenna Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Antenna Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

TRACER RSSI Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

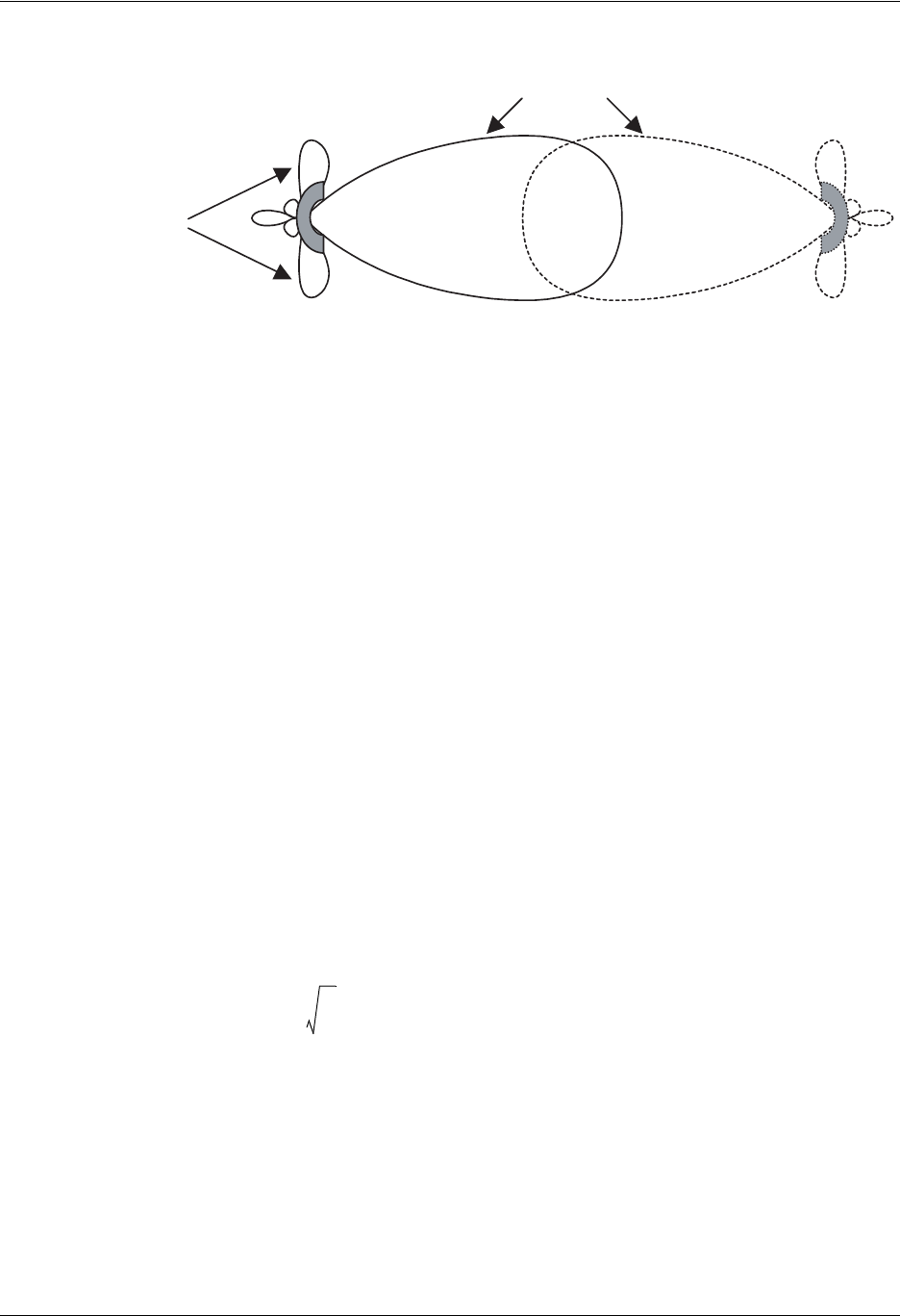

Antenna Beam Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fresnel Zones, Earth Curvature, and Antenna Heights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Other Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Path Availability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

FIGURES

Figure 1. Example Microwave Path with Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 2. Typical Antenna Beam Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

TABLES

Table 1. Antenna Gain for Given Dish Diameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 2. Typical Coaxial Loss for Common Cable Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 3. Path Loss for Given Path Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 4. Receiver Sensitivity for the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 5. Minimum Antenna Height for Given Path Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

1. LINE-OF-SIGHT

The TRACER 6420 system is designed for operation in the license-free 5.725 GHz to 5.850 GHz

industrial, scientific, and medical (ISM) band. Radio wave propagation in this band exhibits microwave

characteristics which are ideally suited for point-to-point, line-of-sight communications. Line-of-sight

requires that the transmitting antenna and receiving antenna are able to “see” each other, and that the

straight-line path between the two antennas is free of obstructions such as buildings, trees, mountains, and

in longer paths, even the curvature of the earth. For maximum signal strength, the area around the visual

line-of-sight where microwave signals reflect (Fresnel zone) must also be free of obstructions. Fresnel

zones are discussed in more detail on page 21.

Terminology

2. DECIBELS

Understanding the decibel (dB) format is key when discussing microwave path engineering because the

received signal power is often expressed in decibel format. In general, any quantity can be expressed in

decibels. If the quantity x is a power level (in Watts), the decibel equivalent is defined as

If the quantity x is referenced to a milliwatt (mW), then the decibel-milliwatt (dBm) is used instead of a

generic decibel.

Using the decibel format simplifies power calculations by reducing multiplication and division operations

into addition and subtraction operations.

3. CALCULATING THE FADE MARGIN

The fade margin (F ) is a value in decibels (dB) that represents the amount of signal reduction that can be

tolerated before the link exceeds the specified bit error rate (BER). Fade margin is simply the difference

between the available signal power at the receiver (PR ) and the receiver sensitivity (Psens ).

Point-to-Point Wireless communication from a single site to another individual

site. Contrast with point-to-multipoint.

Line-of-Sight An unobstructed, direct path exists between the transmitting and

the receiving antennas.

It is imperative to determine whether the proposed microwave path is suitable (at a

minimum) for ideal, nondistorted signals before attempting installation.

xdB 10 log10 x()

⋅

=(dB)

xdBm 10 log10

1mW

-------------

⎝⎠

⎛⎞

⋅

=(dBm)

RPsens

–=(dB)

= PT + GT + GR - L - LP - Psens

TRACER 6420 System Manual Section 2 Microwave Path Engineering Basics

where the variables in the equations are defined as

PRreceived power (dBm)

PTtransmitted power (adjustable up to 20 dBm maximum)

GTtransmit antenna gain (decibels referenced to an isotropic source – dBi)

GRreceive antenna gain (dBi)

Lother losses (RF coaxial cable, etc. – dB)

LPpath loss (dB)

Higher levels of fade margin indicate stronger protection against signal fading and a more reliable link. For

most applications, 20 to 30 dB of fade margin should ensure a reliable link.

The following sections further discuss the necessary power calculations and their components.

4. RECEIVER POWER

The viability of a particular microwave path is determined by the power of the transmitted microwave

signal, the transmit and receive antenna gain, distance, and accumulated system losses (such as RF coaxial

cable losses and path loss).

The equation relating received signal power to the other microwave parameters is

or (in decibel notation)

where the variables in the equations are defined as

PRreceived power (dBm)

PTtransmitted power (adjustable up to 20 dBm maximum)

GTtransmit antenna gain (decibels referenced to an isotropic source – dBi)

GRreceive antenna gain (dBi)

λcarrier wavelength (meters)

dpath distance (meters)

Lother losses (RF coaxial cable, etc. – dB)

LPpath loss (dB)

When using decibel notation, all quantities must be individually converted to decibels

prior to performing addition and subtraction.

PTGTGR

()

2d2L

------------------------------=(Watts, W)

(decibels referenced to a milliwatt, dBm)

PR = PT + GT + GR - L - LP

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

Figure 1 illustrates a wireless link configuration containing all the parameters necessary for the power

budget analysis.

Figure 1. Example Microwave Path with Parameters

The following sections further discuss the power budget analysis and its components.

Antenna Gain

Actual transmit and receive antenna gain values depend strictly upon the physical characteristics of the

antennas installed for each link. In other words, the size of the dish determines the antenna gain. Using a

parabolic dish antenna results in the best performance. Antenna gains are specified in terms of decibels of

gain referenced to an isotropic source (dBi). An isotropic source is a hypothetical antenna having equal

radiation in all directions. Typical antenna gains are listed in Table 1; however, dish manufacturers can

provide gains for specific types of antennas.

Transmitted Power (PT)

The FCC specifies the maximum transmitter power used for antennae of a given gain. FCC Rules (Part 15,

Subpart 247) allow for a maximum transmit power of 1 Watt (30 dBm). Since the TRACER 6420

maximum transmit power is 100 milliwatts, there is no reduction in transmitter output power required.

Table 1. Antenna Gain for Given Dish Diameters

Dish Diameter

(in feet)

Gain at 5.8 GHz

(in dBi)

228.5

434.2

637.5

840.7

10 42.5

12 44.2

d, L

TRACER 6420 System Manual Section 2 Microwave Path Engineering Basics

Carrier Wavelength (λ)

The carrier wavelength is the physical wavelength of the main RF carrier being used for communication,

and is usually approximated at the center frequency of the band (which is 5787.5 MHz for the

TRACER 6420). The carrier wavelength calculations follow:

λ = c / f (meters)

where

c = speed of light (in meters)

f = frequency (in Hz)

resulting in the following carrier wavelength:

λ = 3.00 x 108 / 5787.5 x 10 5

= 0.0518 m or 5.18 cm

Path Distance (d)

The path distance is simply the physical distance between the transmit and receive antennas. For the

TRACER 6420, these distances can range up to 30 miles.

System Losses (L)

System losses are defined by RF coaxial cable loss, connector losses, and losses added from any additional

lightning protection devices for the power budget analysis. Coaxial cable is required to attach the

TRACER 6420 to the antenna. The length of the cable varies from a few feet to hundreds of feet,

depending upon your application and the proximity of the TRACER 6420 to the antenna. Various grades

of coaxial cable will work sufficiently well for connecting the TRACER 6420 unit to the antenna. A

low-loss coaxial cable will minimize cable losses.

One end of the coaxial cable requires an N-type male connector (plug) to mate with the TRACER 6420

unit. The other end of the coaxial cable requires a connector compatible with the antenna chosen for the

installation (usually an N-type male connector). Additionally, ADTRAN recommends that the outdoor

connector on the coaxial cable be weatherproofed to prevent corrosion and electrical shorting.

In areas where lightning strikes are frequent, a lightning arrestor should be installed

directly on the antenna coaxial cable. Installing lightning arrestors helps protect the

RF electronics (including the TRACER 6420 unit) in the downstream path from

damaging voltages and currents.

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

Table 2 gives typical loss figures for some of the more common coaxial cable types (per 100 feet).

Path Loss (LP)

Path loss is the estimated attenuation between the transmit and receive antennas caused by signal

separation and scattering. The path loss is considered basic transmission loss over the microwave link. The

following expression calculates path loss:

where

fcarrier frequency (Hz)

λcarrier wavelength (c / f) (meters)

dpath distance (meters)

cspeed of light, free-space (meters)

where d is expressed in miles and f in GHz

Path loss, as shown here, increases rapidly as either the path length increases or the carrier wavelength

decreases (which happens as the carrier frequency increases). Therefore, longer microwave paths naturally

experience more path loss than shorter paths. Likewise, higher frequency microwave communication

experiences more path loss than lower frequency microwave communication.

Table 2. Typical Coaxial Loss for Common Cable Types

Cable Type 5.8 GHz Loss/100 ft (in dB)

RG58 N/A

RG8 (air) N/A

RG8 (foam) N/A

1/4” Coax 11.36

3/8” Coax 9.65

1/2” Coax 6.49

5/8” Coax 4.90

7/8” Coax N/A

1 1/4” Coax N/A

1 5/8” Coax N/A

5.8 GHz Elliptical Waveguide 1.23

----------

⎝⎠

⎛⎞

------------

⎝⎠

⎛⎞

== (dB)

LP96.6 20 log10 d() 20·log+

10 f()

⋅

+= (dB)

TRACER 6420 System Manual Section 2 Microwave Path Engineering Basics

Table 3 lists path loss values for various path lengths for the TRACER 6420 5.8 GHz system. Values not

listed in the table can be interpolated from those listed.

5. RECEIVER SENSITIVITY

Receiver sensitivity is a value expressed in decibels referenced to one milliwatt (dBm) that corresponds to

the minimum amount of signal power needed at the receiver to achieve a given bit error rate (BER).

Receiver sensitivity is usually a negative number of decibels, and smaller receiver sensitivity (higher

quantity negative number) is better for a given BER. Several factors affect receiver sensitivity, including

the data bandwidth of the wireless link and the amount of additional signal degradation introduced in the

receiver electronics.

Receiver sensitivity of the TRACER 6420 is dynamic as a function of the desired bandwidth; receiver

sensitivity improves as delivered bandwidth decreases. TRACER bandwidth is provided in the form of 8

channels available for mapping to the support modules. For T1 Modules, each channel mapped represents

a single T1 interface. For Quad Ethernet Switch Modules, each channel mapped represents 2 Mb of switch

data delivered to the module. In situations where 8-channel connectivity is not required, the delivered

bandwidth can be decreased to 4 or 2 channels, and the receiver sensitivity will be improved as follows:

Table 3. Path Loss for Given Path Lengths

Path Length

(miles)

Path Loss

(dB)

1112

2118

3121

4124

5126

10 132

15 135

20 138

25 140

30 141

35 143

Table 4. Receiver Sensitivity for the TRACER 6420

Delivered

Bandwidth

Receiver

Sensitivity

8 Channels -87 dBm

4 Channels -90 dBm

2 Channels -93 dBm

Should an interferer be present nearby, three software selectable band plans are provided

for frequency agility. Changing the TRACER 6420 band plan does not require additional

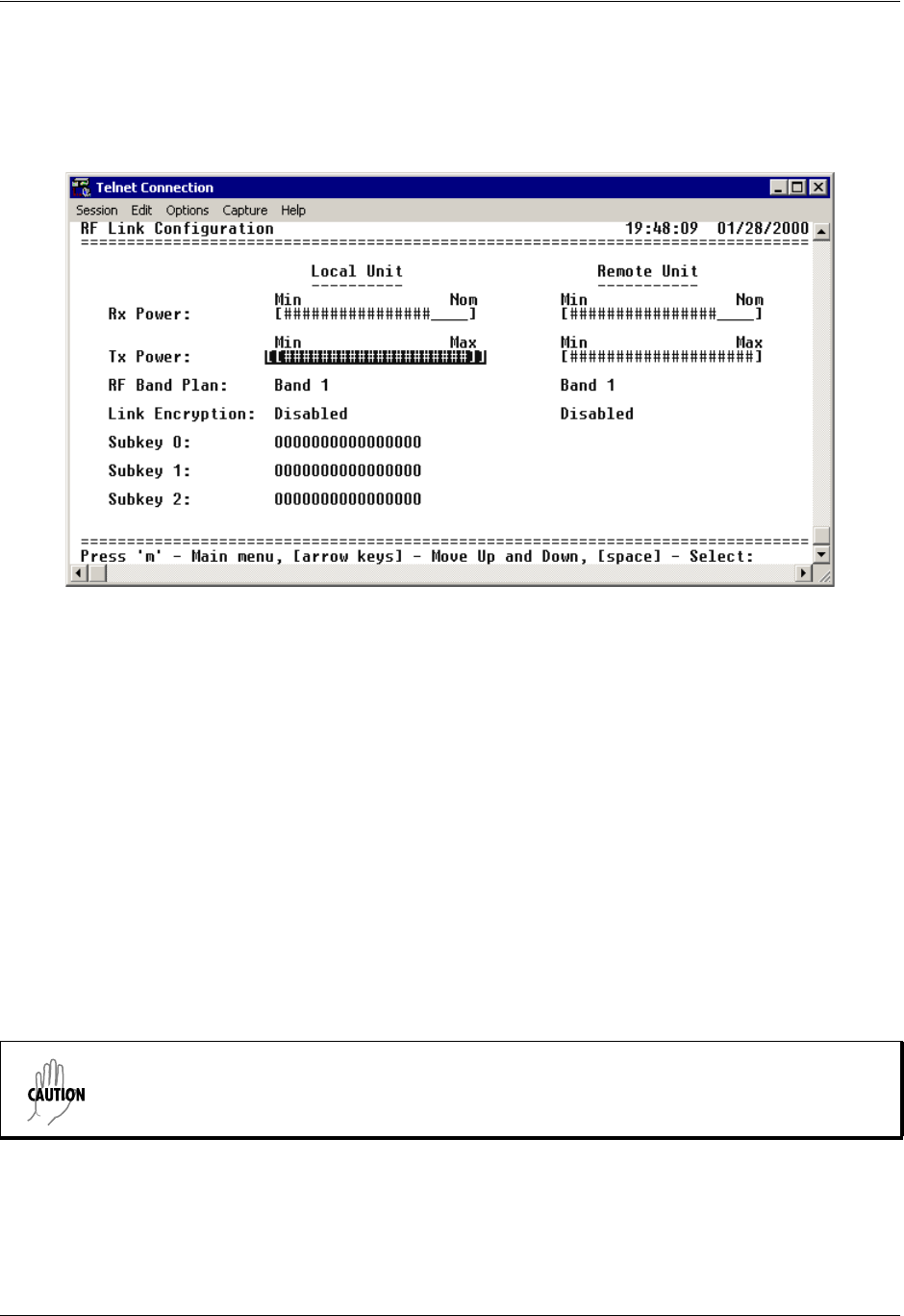

components, or opening of the radio. See > RF Link Configuration > RF Band Plan on

page 53 for additional details.

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

6. ANTENNA INFORMATION

The overall wireless system is directly affected by the antenna selection and installation, discussed in the

following sections.

Antenna Alignment

With line-of-sight microwave communications, optimum system performance requires that the

transmitting and receiving antennas are properly aligned. This ensures maximum received signal power at

each receiver. Antenna alignment must be achieved in both azimuth (along a horizontal plane) and

elevation (along a vertical plane). By ensuring maximum received signal strength, a received signal

strength indicator (RSSI) helps the equipment installer to determine when alignment is maximized.

TRACER RSSI Test Points

RSSI for the TRACER 6420 system is provided through the VT100 terminal menus accessed through the

RS-232 interface, and it is presented as a series of bars indicating signal strength. More bars means more

RSSI, which ensures greater received signal strength and better link performance.

If both the local and remote end of the system are operational, the remote TRACER 6420 receive power

can be viewed from the local TRACER 6420 VT100 terminal menu interface.

An RSSI test point, located on the front panel, provides a DC voltage level (relative to the GND test point)

that corresponds to the amount of signal being received from the far end's transmitter. The voltage at this

test point can vary from approximately 0 to 5 VDC. An RSSI calibration sheet is shipped with the system

to provide the installer a cross-reference between actual received signal level (in dBm) and RSSI voltage.

This sheet is useful for verifying link budget calculations and ensuring proper equipment installation.

Antenna Beam Patterns

Directly related to the subject of antenna alignment is the topic of antenna beam patterns. Antennas used

with the TRACER 6420 system have a particular beam shape, determined in part by the physical

construction and geometry of the antenna. The antenna beam patterns are characterized by a dominant

main lobe, which is the preferred lobe to use for point-to-point communications, and several side lobes, as

shown in Figure 2. When setting up a microwave link, antenna alignment is nothing more than steering the

main lobes of both antennas until the main lobe of one transmitter is centered on the receiving element of

the receiving antenna.

Verify the antenna installation meets all regulations specified in the National Electric

Code (NEC) Article 810.

TRACER 6420 System Manual Section 2 Microwave Path Engineering Basics

Figure 2. Typical Antenna Beam Pattern

Antennas are also designed to radiate RF energy efficiently for a specific range of frequencies. Please

consult the data sheet for your particular antenna make and model to ensure that it is specified to operate in

the 5725 MHz to 5850 MHz frequency band for the TRACER 6420 system.

Fresnel Zones, Earth Curvature, and Antenna Heights

Fresnel zones correspond to regions in the microwave path where reflections of the intended signal occur

and combine in both constructive and destructive manners with the main signal, thereby either enhancing

or reducing the net power at the receiver.

In general, the odd numbered Fresnel zones (1, 3, 5, ...) add constructively at the receiver, while the even

numbered Fresnel zones (2, 4, 6, ...) add destructively at the receiver.

The first Fresnel zone corresponds to the main lobe, 60% of which must be free of physical obstructions

for the path calculations to be valid. Since the main lobe contains the vast majority of the microwave

energy, this zone is typically used to determine proper antenna heights when placing antennas on towers or

buildings.

The curvature of the Earth becomes a legitimate obstruction for path lengths of 7 miles or greater, and must

also be accounted for when determining minimum antenna heights.

The aggregate expression for minimum antenna height that incorporates both the 60% first Fresnel zone

and the Earth’s curvature is given by

where f is in GHz and d is in miles.

main lobe

side lobes

h72.1

-----0.125d2

+= (feet)

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

Table 5 tabulates minimum antenna heights for given path lengths.

Table 5. Minimum Antenna Height for Given Path Lengths

Path Length

(miles)

Min. Antenna Height

(ft)

222

432

641

850

10 60

14 81

16 92

18 104

20 117

22 131

24 145

26 161

28 177

30 194

32 213

34 232

36 252

TRACER 6420 System Manual Section 2 Microwave Path Engineering Basics

7. OTHER CONSIDERATIONS

Path Availability

The path availability of a wireless link is a metric that expresses the fractional amount of time a link is

available over some fixed amount of time, and depends on several factors. Path availability is expressed as

where the parameters are

aterrain factor

bclimate factor

fcarrier frequency (GHz)

dpath length (miles)

Ffade margin (dB)

Terrain Factor (a)

The terrain factor is a quantity that compensates the link availability for different types of terrain.

Generally speaking, the smoother an area's terrain is, the less availability a wireless link running over that

terrain will have, primarily due to multipath reflections. In contrast, secondary microwave signals will be

randomly dispersed over rough terrain and will not interfere with the main signal lobe as badly as in the

smooth terrain case. The terrain factor values normally used are listed below:

Climate Factor (b)

The climate factor is a quantity that compensates the link availability for different types of climates

(weather). In general, microwave links operating in areas with high humidity will have less availability

than those in arid areas, primarily because water is a dispersive mechanism to microwave energy and

causes the main signal lobe to refract and disperse away from the receiver location. The climate factor

values normally used are listed below:

Terrain Terrain Factor Description

Smooth 4water, flat desert

Average 1moderate roughness

Mountainous 1/4 very rough, mountainous

Climate Climate Factor Description

Very Dry 1/8 desert regions

Temperate 1/4 mainland, interior region

Humid 1/2 humid and coastal regions

A12.510

6–

()abfd310 F10

⁄

–

()–[]100%

=(%)

Section 2 Microwave Path Engineering Basics TRACER 6420 System Manual

ENGINEERING GUIDELINES

Provides information to assist network designers with incorporating the TRACER 6420 system into their

networks.

CONTENTS

Equipment Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Reviewing the Front Panel Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

RSSI Monitoring Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

AUX RS232 Interface (RJ-45). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

CRAFT Port (DB-9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Reviewing the TRACER 6420 Rear Panel Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

MGMT 10/100BaseT/TX Connection (RJ-48C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DC Power Connection (Plug-In Terminal Block) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Alarm Contacts (Plug-In Terminal Block) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Antenna Interface (N-Type connector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Network Module Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4xT1 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Quad Ethernet Switch Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

At-A-Glance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

LIST OF FIGURES

Figure 1. TRACER 6420 Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 2. TRACER 6420 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

LIST OF TABLES

Table 1. TRACER 6420 Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 2. TRACER 6420 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Table 3. AUX RS232 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 4. CRAFT Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 5. Null-Modem Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 6. Rear Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 7. MGMT 10/100BaseT/TX Interface Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 8. DC Power Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 9. Alarm Contact Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 10. 4xT1 Module RJ-45 Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 11. Quad Ethernet Switch RJ-48C Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 12. At-A-Glance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Section 3 Engineering Guidelines TRACER 6420 System Manual

1. EQUIPMENT DIMENSIONS

The TRACER 6420 integrated radio is 17.2” W, 11.4” D, and 1.7” H, weighs 7 lbs, and can be used in

rackmount configurations.

2. POWER REQUIREMENTS

The TRACER 6420 radio has a maximum power consumption of 25 W and a maximum current draw of

1.2 A (at 21 VDC).

3. REVIEWING THE FRONT PANEL DESIGN

The front panel contains an RSSI monitoring interface, a GND interface for reference with RSSI, a TEST

interface for viewing the QPSK constellation, a DB-9 CRAFT port for management and configuration, an

AUX RS232 interface (RJ-45) that provides an end-to-end serial port interface (at 9600 bps), and status LEDs

to provide visual information about the TRACER 6420 system. Figure 1 identifies the various interfaces and

the LEDs, and Table 1 provides a brief description of each interface.

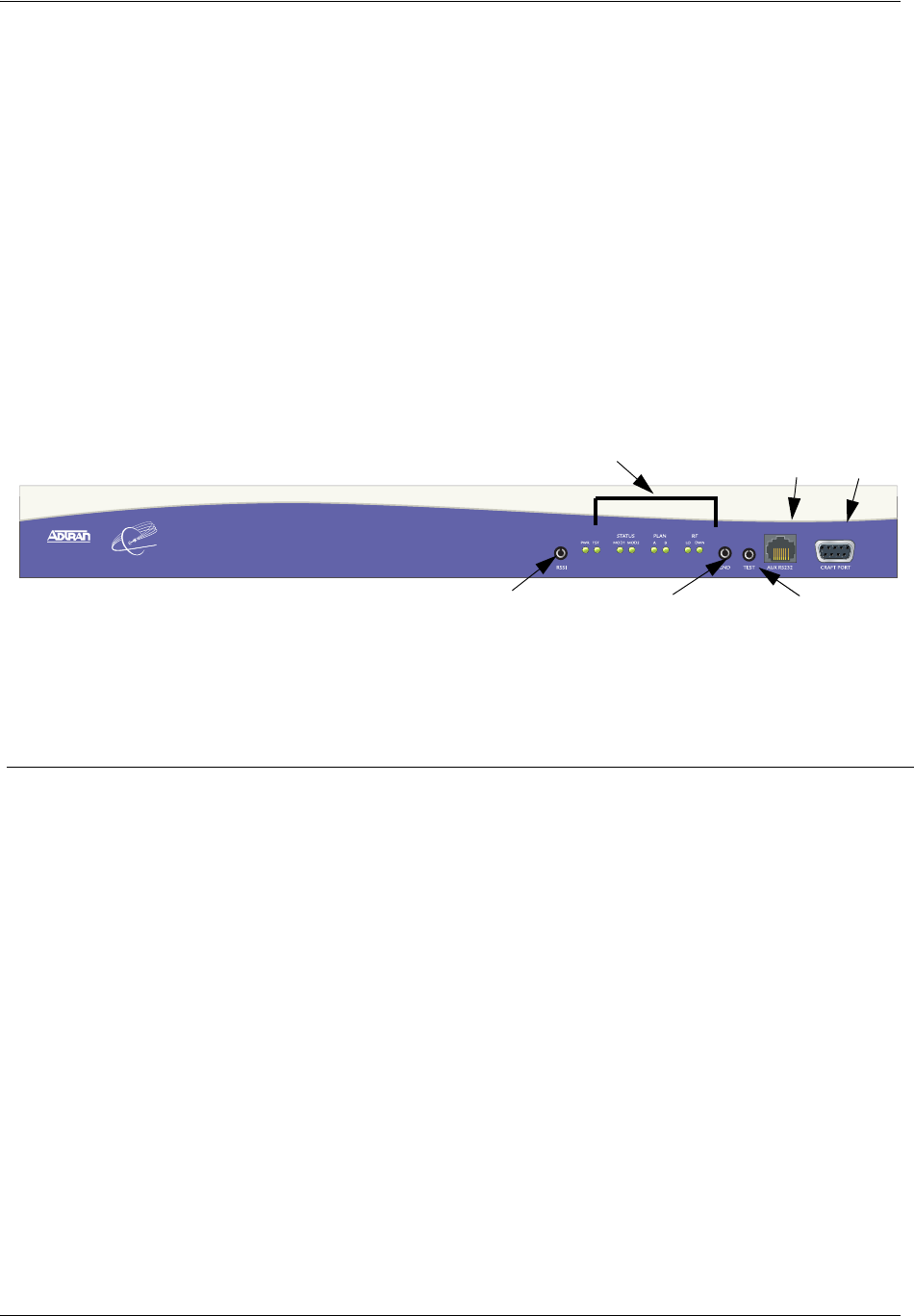

Figure 1. TRACER 6420 Front Panel Layout

RSSI Monitoring Interface

The RSSI voltage is a function of the signal strength at the receiver and is used to measure the received signal

strength. RSSI varies from approximately 0 to 5 VDC. An RSSI calibration sheet is shipped with the system

to provide the installer a cross-reference between actual received signal level (in dBm) and RSSI voltage.

This sheet is useful for verifying link budget calculations and ensuring proper equipment installation.

Table 1. TRACER 6420 Front Panel Description1

1 Detailed discussions (including pinouts) of front panel components (where applicable) follow the table.

Name Connector Description

ARSSI bantam DC voltage indicating strength of the received signal at

the antenna

BStatus LEDs N/A Visual status information about the system

CGND bantam Ground reference for the RSSI interface

DTEST 3 conductor stereo jack QPSK constellation (when connected to oscilloscope)

EAUX RS232 RJ-45 Serial interface for a 9600 bps connection between the

local and remote systems over the RF link

FCRAFT PORT DB-9 RS-232 interface for connection to a VT100 terminal or

PC with terminal emulation software

TRACER 6200

E F

TRACER 6420 System Manual Section 3 Engineering Guidelines

Front Panel LEDs

With the TRACER powered-on, the front panel LEDs provide visual information about the status of the

system. Table 2 provides detailed information about the LEDs.

AUX RS232 Interface (RJ-45)

The AUX RS232 interface provides a female RJ-45 terminal connection (wired as a DCE interface), which

is used for a 9600 bps point-to-point connection between the local and remote systems (over the RF link).

Table 3 shows the pinout.

Table 2. TRACER 6420 LEDs

For these LEDs... This color light... Indicates that...

PWR

Green (solid) the TRACER is connected to a power source.

Off the TRACER is not currently powered up.

TST Amber (flashes once)

power-up self-test is in progress. If the LED continuously flashes

or remains on (solid) after 10 seconds, the unit has failed

self-test.

STATUS

MOD1 and MOD2

Green the module is installed and functioning properly.

Red (solid) a port on the installed module is currently in alarm.

Off no module occupies the slot.

PLAN A

Green (solid) the TRACER is transmitting on Frequency Plan A.

Off the TRACER is not transmitting on Frequency Plan A.

PLAN B

Green (solid) the TRACER is transmitting on Frequency Plan B.

Off the TRACER is not transmitting on Frequency Plan B.

RF LO Red (solid) the RSSI level is below suggested minimum threshold

(approximately 10 dBm above the minimum receive sensitivity).

RF DWN Red (solid) there is a communication problem between the local and remote

TRACERs.

Table 3. AUX RS232 Pinout

Pin Name Source Description

1 GND Common Signal ground

2 RTS Attached Equipment Request to send (unused)

3 TXDATA Attached Equipment Transmit data (from attached equipment)

4 DSR TRACER Data set ready

5 RXDATA TRACER Received data (to attached equipment)

6 CTS TRACER Clear to send

7 DTR Attached Equipment Data terminal ready (unused)

8 CD TRACER Carrier detect

Section 3 Engineering Guidelines TRACER 6420 System Manual

CRAFT Port (DB-9)

The CRAFT connector provides a female DB-9 terminal connection (wired as a DCE interface), which is

used for terminal access to the TRACER system. Table 4 shows the pinout. A null modem cable is

necessary for connecting the CRAFT port to a modem for remote dial-up access. Table 5 shows the pinout

for a null modem cable.

4. REVIEWING THE TRACER 6420 REAR PANEL DESIGN

Figure 2 on page 29 identifies the features of the TRACER rear panel, and Table 6 on page 29 provides a

brief description of each interface.

Table 4. CRAFT Pinout

Pin Name Source Description

1CD TRACER Carrier detect

2RXDATA

TRACER Received data (to attached equipment)

3 TXDATA Attached Equipment Transmit data (from attached equipment)

4 DTR Attached Equipment Data terminal ready (unused)

5 GND Common Signal ground

6DSR TRACER Data set ready

7 RTS Attached Equipment Request to send (unused)

8CTS TRACER Clear to send

9RI TRACER Ring indicator (unused)

Table 5. Null-Modem Pinout

Modem

TRACER 6420

1 (CD) unconnected

2 (RXD) 3 (TXD)

3 (TXD) 2 (RXD)

4 (DTR) 6 (DSR)

5 (GND) 5 (GND)

6 (DSR) 4 (DTR)

7 (RTS) 8 (CTS)

8 (CTS) 7 (RTS)

9 (RI) unconnected

TRACER 6420 System Manual Section 3 Engineering Guidelines

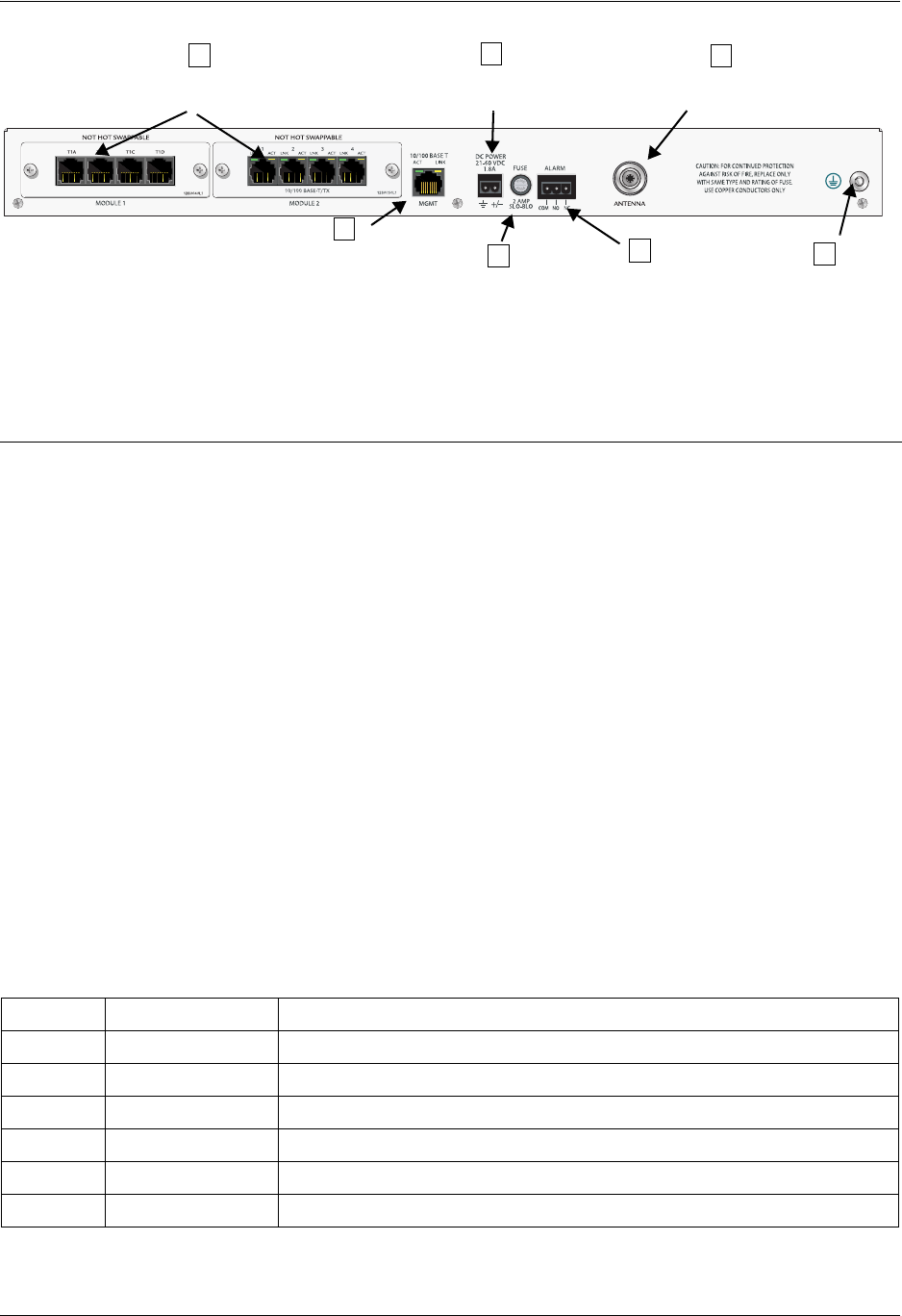

Figure 2. TRACER 6420 Rear Panel

MGMT 10/100BaseT/TX Connection (RJ-48C)

The physical Ethernet interface is provided by a single RJ-48C jack (labeled MGMT) that delivers

10/100BaseT/TX for LAN connectivity. The MGMT port is used for Telnet, SNMP, and TFTP access and

is not a router interface. The MGMT port has a green LINK LED to indicate a valid link and an amber ACT

LED that flashes with data activity on the interface. Table 7 shows the pinout.

Table 6. Rear Panel Description1

1 Detailed discussions (including pinouts) of rear panel components (where applicable) follow the table.

Name Connector Description

ANetwork Module

Slots

N/A Dual network module slots for system flexibility (shown

with a single 4xT1 Module and a Quad Ethernet Switch

Module installed)

BMGMT RJ-48C 10/100BaseT/TX Ethernet interface for Telnet access

CDC Power Terminal Block 21-60 VDC power source connection (either polarity

referenced to ground)

DFuse N/A 2A, 250 V, 2” slo-blo fuse

EAlarm Terminal block External alarm monitoring system connection

FAntenna N-Type (female) Antenna feedline cable connection

GGround Lug N/A Earth ground connection

Table 7. MGMT 10/100BaseT/TX Interface Pinout

Pin Name Description

1TX1 Transmit positive

2TX2 Transmit negative

3RX1 Receive positive

4,5 —Unused

6RX2 Receive negative

7, 8 —Unused

Antenna

DC Power

Connection Connector

Ground

Lug

Fuse Alarm

Contacts

Ethernet

Interface

Network

Module Slots

Section 3 Engineering Guidelines TRACER 6420 System Manual

DC Power Connection (Plug-In Terminal Block)

The TRACER 6420 can operate from a supply between 21 and 60 VDC, with either polarity referenced to

ground, and consumes less than 25 W. Power supplies should be able to provide up to 25 W at the selected

voltage. Current required (in Amps) is determined by dividing the power consumed (in Watts) by the

applied voltage (in Volts). For example, at 48 V, TRACER 6420 would draw approximately 0.52A

(25 W/48 V).

Fuse

The fuse holder, accessible from the rear panel of the TRACER 6420, accepts a generic 2 A, 250 V, 2-inch

slow-blo fuse.

Alarm Contacts (Plug-In Terminal Block)

An RF link down condition is indicated with both normally open (NO) and normally closed (NC) alarm

contacts on the rear panel of the TRACER 6420 system. In normal operation, the NC contact is electrically

connected to the common contact (COM) and the NO contact is isolated. When the RF link drops, the NC

contact becomes isolated and the NO is electrically connected to COM. This allows RF down conditions to

be reported to external alarm monitoring systems. Table 9 provides the Alarm Contact pinout.

Antenna Interface (N-Type connector)

The ANTENNA interface (N-Type connector) connects to the customer-supplied antenna using standard

antenna feedline cable. When determining the cable specifications for your application, refer to Section 2,

Microwave Path Engineering Basics (System Losses (L) on page 17) for a discussion on cable length and

loss factors.

Table 8. DC Power Connector Pinout

Pin Name Description

1+/– Voltage

2GND Ground

Table 9. Alarm Contact Connector Pinout

Pin Name Description

1 COM Common Contact

2 NO Normally-Open Contact

3 NC Normally-Closed Contact

TRACER 6420 System Manual Section 3 Engineering Guidelines

5. NETWORK MODULE INTERFACES

4xT1 Module

The 4xT1 Network Module has four T1 interfaces (through four RJ-45 ports) that provide the following

functions:

• ANSI T1.403 and AT&T® 54016 and 62411 compliant

• AMI or B8ZS coding

• Extended Super Frame (ESF) and Super Frame (SF) framing support

• Manual line build out

• Network performance monitoring and reporting

• Test loopbacks (both Line and Link)

Table 10 provides the RJ-45 interface pinout for the 4xT1 Network Module.

Quad Ethernet Switch Module

The Quad Ethernet Switch Module has four 10/100BaseTX interfaces (through four RJ-48C ports) that

provide the following functions:

• IEEE 802.3 and 802.3u compliant

• Auto MDI/MDIX crossover

• Backpressure flow control on all full-duplex interfaces

• Link and Activity LEDs for each port

Table 10 provides the RJ-48C interface pinout for the Quad Ethernet Switch Module.

Table 10. 4xT1 Module RJ-45 Connector Pinout

Pin Name Description

1 R Transmit data (ring) towards the network

2 T Transmit data (tip) towards the network

3, 6-8 UNUSED —

4 R1 Receive data (ring) toward the network

5 T1 Receive data (tip) from the network

Table 11. Quad Ethernet Switch RJ-48C Connector Pinout

Pin Name Source Description

1 RX1 Attached Equipment Receive Positive

2 RX2 Attached Equipment Receive Negative

3 TX1 Module Transmit Positive

4, 5 UNUSED N/A —

6 TX2 Module Transmit Negative

7, 8 UNUSED N/A —

Section 3 Engineering Guidelines TRACER 6420 System Manual

6. AT-A-GLANCE SPECIFICATIONS

Table 12 contains a list of specifications for the TRACER 6420 system.

Table 12. At-A-Glance Specifications

Hardware Description Specification

Transmitter

Output Power +20 dBm, max

Frequency Range 5725 to 5850 MHz

Receiver

Receive Level,

Minimum

-88 dBm @ 8xT1

-91 dBm @ 4xT1

-94 dBm @ 2xT1

Receive Level, Maximum -30 dBm

Receive Level, Nominal -55 dBm

Frequency Plan

Plan A

Channel

Plan

1 Tx 5.744 GHz, Rx 5.824 GHz

2 Tx 5.747 GHz, Rx 5.827 GHz

3 Tx 5.751 GHz, Rx 5.831 GHz

Plan B

Channel

Plan

1 Tx 5.824 GHz, Rx 5.744 GHz

2 Tx 5.827 GHz, Rx 5.747 GHz

3 Tx 5.831 GHz, Rx 5.751 GHz

Data Encryption

Encryption Type Symmetric Triple-DES (3DES)

User Interface

Panel Alarm LEDs

Diagnostics RF link diagnostics and error history, transmit and

receive packets history

Test Points RSSI, Ground (GND), and Test (QPSK Constellation)

Alarms Normally Open (NO) and Normally Closed (NC)

VT100 Terminal Menu Driven User Interface, Control of the Remote

End, Event History

Telnet Access Menu Driven User Interface, Control of the Remote

End, Event History

SNMP Standard MIB support (T1 and Ether-like MIBs);

Enterprise MIB support (ADTRAN TRACER)

TRACER 6420 System Manual Section 3 Engineering Guidelines

VT100 Terminal Interface

Data Rate 9600, 19200, 38400, 57600, 115200 bps

Data Bits 8

Parity None

Stop Bits 1

Terminal Emulation VT100

Mechanical and Environmental

Operating Temperature -25° C to 65° C

Size 1.7” H x 17.2” W x 11.4” D

Humidity 95%, Non-condensing

Weight 7 lbs

Power

Input Voltage 21 to 60 VDC, either polarity referenced to ground

Power Consumption < 25 W

Connector 2 pin terminal block (DC)

Fuse 2 A, 250 V slow-blo fuse (2-inch)

Network Modules

Quad T1 Module Connection four RJ-45 interfaces

Capacity 4xT1 (ANSI T1.403, AT&T® 54016 and 62411)

Line Code B8ZS (default), AMI

Alarms AIS, Red, Yellow, BPVs, LOS

Quad Ethernet

Switch Module

Connection four RJ-48C interfaces

Interface Type four 10BaseT/100BaseTX interfaces with auto

MDI/MIDX crossover

Flow Control Back-pressure flow control on half-duplex interfaces

Pause-frame flow control on full-duplex interfaces

Table 12. At-A-Glance Specifications (Continued)

Hardware Description Specification

Section 3 Engineering Guidelines TRACER 6420 System Manual

NETWORK TURNUP PROCEDURE

Provides shipment contents list, grounding instructions, mounting options, and specifics of supplying

power to the unit.

CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Unpack and Inspect the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Contents of Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Customer Provides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Supplying Power to the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Installing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Instructions for Installing Network Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting the Module Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4xT1 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Quad Ethernet Switch Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

FIGURES

Figure 1. 5.8 GHz Bandwidth Division. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 2. 19-inch Rackmount Illustration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Figure 3. 23-inch Rackmount Illustration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Figure 4. TRACER 6420 Network Module Slot Designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Section 4 Network Turnup Procedure TRACER 6420 System Manual

1. INTRODUCTION

This section discusses TRACER 6420 system installation.

2. TOOLS REQUIRED

The tools required for TRACER 6420 installation are:

• VT100 terminal or PC with terminal emulation software

• RS-232 (DB-9 male for TRACER 6420) cable for connecting to terminal

3. UNPACK AND INSPECT THE SYSTEM

Each TRACER 6420 is shipped in its own cardboard shipping carton. Open each carton carefully and

avoid deep penetration into the carton with sharp objects.

After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in

transit, immediately file a claim with the carrier; then contact ADTRAN Customer Service (see Customer

Service, Product Support Information, and Training information in the front of this manual).

Contents of Shipment

Your shipment of the base unit includes the following items:

• TRACER 6420 unit

• RJ-45 to DB-9 connector (ADTRAN P/N 3196ADPT001) for connection to the AUX RS232 port

• 6’ silver satin cable for

• Rackmount brackets

• Power and Alarm connectors

• TRACER 6420 Documentation CD

Your shipment of the Quad Ethernet Switch Module includes the following items:

• Quad Ethernet Switch Module

• Quad Ethernet Switch Module Quick Start Guide

Changes or modifications not expressly approved by ADTRAN could void the user’s

authority to operate the equipment.

To prevent electrical shock, do not install equipment in a wet location or during a lightning

storm.

This system MUST be installed by qualified service personnel in a Restricted Access

Location.

TRACER 6420 System Manual Section 4 Network Turnup Procedure

Your shipment of the 4xT1 Network Module includes the following items:

• 4xT1 Network Module

• 4xT1 Network Module Quick Start Guide

Customer Provides

The following items are necessary for the installation of the TRACER 6420 system and are not provided:

• 21 to 60 VDC power source either polarity referenced to ground

• DB-9 cable for VT100 access

• T1 cables for connecting external equipment to the T1 interfaces (4xT1 Module only)

• Ethernet cables for connected external equipment for the switch interfaces (Quad Ethernet Switch

Module only)

• Ethernet cable (for Telnet access)

4. CHANNEL SELECTION

The FCC has allocated 125 MHz of spectrum in the 5.8 GHz band where the TRACER 6420 operates.

Figure 1 illustrates the bandwidth division.

Figure 1. 5.8 GHz Bandwidth Division

To designate the utilization of the ISM bandwidth, there are two different channel plans, labeled A and B.

The letter of each channel plan setting is preset by the factory and refers to the physical configuration of

the diplexer filter inside the chassis. Each channel is then divided into three band plans (1, 2 or 3). The

band plans must be the same for the local and remote TRACER 6420. For example, the transmitter at one

end of the link will transmit in band plan 1 of channel A (the lower portion of the spectrum) and receive in

band plan 1 of channel B (the upper portion). Consequently, the receiver at the other end should receive in

band plan 1 of channel A (the lower portion) and transmit in band plan 1 of channel B (the upper portion).

The letter of the channel plan (A or B) must be different on both ends and the number of the band plan (1,

2, or 3) must be the same on both ends. The default band plan configuration for the TRACER 6420 is band

plan 1.

The channel plan (A or B) of the unit may be changed in the field, if necessary, by rewiring the internal

diplexer. Contact Technical Support for more information on this procedure.

Channel A

57445725 5787 58505747 5751MHz MHz

Band plan 3Band plan 2Band plan 1

Channel B

5824 5827 5831

Band plan 3Band plan 2Band plan 1

Section 4 Network Turnup Procedure TRACER 6420 System Manual

5. GROUNDING INSTRUCTIONS

The following paragraphs provide grounding instruction information from the Underwriters’ Laboratory

UL60950 Standard for Safety of Information Technology Equipment Including Electrical Business

Equipment, with revisions dated March 15, 2002.

An equipment grounding conductor that is not smaller in size than the ungrounded branch-circuit supply

conductors is to be installed as part of the circuit that supplies the product or system. Bare, covered, or

insulated grounding conductors are acceptable. Individually covered or insulated equipment grounding

conductors shall have a continuous outer finish that is either green, or green with one or more yellow

stripes. The equipment grounding conductor is to be connected to ground at the service equipment.

The attachment-plug receptacles in the vicinity of the product or system are all to be of a grounding type,

and the equipment grounding conductors serving these receptacles are to be connected to earth ground at

the service equipment.

A supplementary equipment grounding conductor shall be installed between the product or system and

ground that is in addition to the equipment grounding conductor in the power supply cord.

The supplementary equipment grounding conductor shall not be smaller in size than the ungrounded

branch-circuit supply conductors. The supplementary equipment grounding conductor shall be connected

to the product at the terminal provided, and shall be connected to ground in a manner that will retain the

ground connection when the product is unplugged from the receptacle. The connection to ground of the

supplementary equipment grounding conductor shall be in compliance with the rules for terminating

bonding jumpers at Part K or Article 250 of the National Electrical Code, ANSI/NFPA 70. Termination of

the supplementary equipment grounding conductor is permitted to be made to building steel, to a metal

electrical raceway system, or to any grounded item that is permanently and reliably connected to the

electrical service equipment ground.

The supplemental grounding conductor shall be connected to the equipment using a number 8 ring terminal

and should be fastened to the grounding lug provided on the rear panel of the equipment. The ring terminal

should be installed using the appropriate crimping tool (AMP P/N 59250 T-EAD Crimping Tool or

equivalent).

The supplemental equipment grounding terminal is located on the rear panel of the

TRACER 6420.

TRACER 6420 System Manual Section 4 Network Turnup Procedure

6. SUPPLYING POWER TO THE UNIT

The TRACER 6420 can operate from a supply between 21 and 60 VDC, with either polarity referenced to

ground. Power supplies should be able to provide up to 25 Watts at the selected voltage. A dual pin terminal

plug accepts power at the rear panel of the unit, providing a voltage (+/–) and ground (GND) reference point.

7. MOUNTING OPTIONS

Install the TRACER 6420 in a location that requires minimal antenna feedline length (the loss in this cable

directly affects overall system performance). The TRACER 6420 is designed to be mounted in a rack. If

multiple units are installed in one location, one half inch of spacing is recommended above and below the

unit.

The TRACER 6420 systems are 1U high, rack-mountable units which can be installed into 19- (see Figure 2)

or 23-inch (see Figure 3 on page 40) equipment racks using the supplied rackmount brackets (3265498@B).

Follow these steps to mount the TRACER 6420 into a rack:

• This unit shall be installed in accordance with Article 400 and 364.8 of the

NEC NFPA 70 when installed outside of a Restricted Access Location (i.e., central

office, behind a locked door, service personnel only area).

• Power to the TRACER 6420 DC system must be from a reliably grounded

21-60 VDC UL Listed or CSA Certified ITE Power Supply with outputs meeting LPS

requirements.

• A readily accessible disconnect device that is suitably approved and rated shall be

incorporated in the field wiring.

Instructions for Rackmounting the TRACER 6420

1 Position the TRACER 6420 in a stationary equipment rack. This unit takes up 1U of

space. To allow proper grounding, scrape the paint from the rack around the

mounting holes where the TRACER 6420 will be positioned.

2 Have someone else hold the unit in position as you install two mounting bolts

through the unit’s brackets and into the equipment rack using a #2 Phillips

screwdriver.

Be careful not to compromise the stability of the equipment mounting rack when installing

this product.

Section 4 Network Turnup Procedure TRACER 6420 System Manual

Figure 2. 19-inch Rackmount Illustration

Figure 3. 23-inch Rackmount Illustration

TRACER 6420

TRACER 6420 System Manual Section 4 Network Turnup Procedure

8. INSTALLING MODULES

Figure 4 shows the slot numbering designation as viewed from the rear of the TRACER 6420. The

functionally identical option slots only accept TRACER network modules.

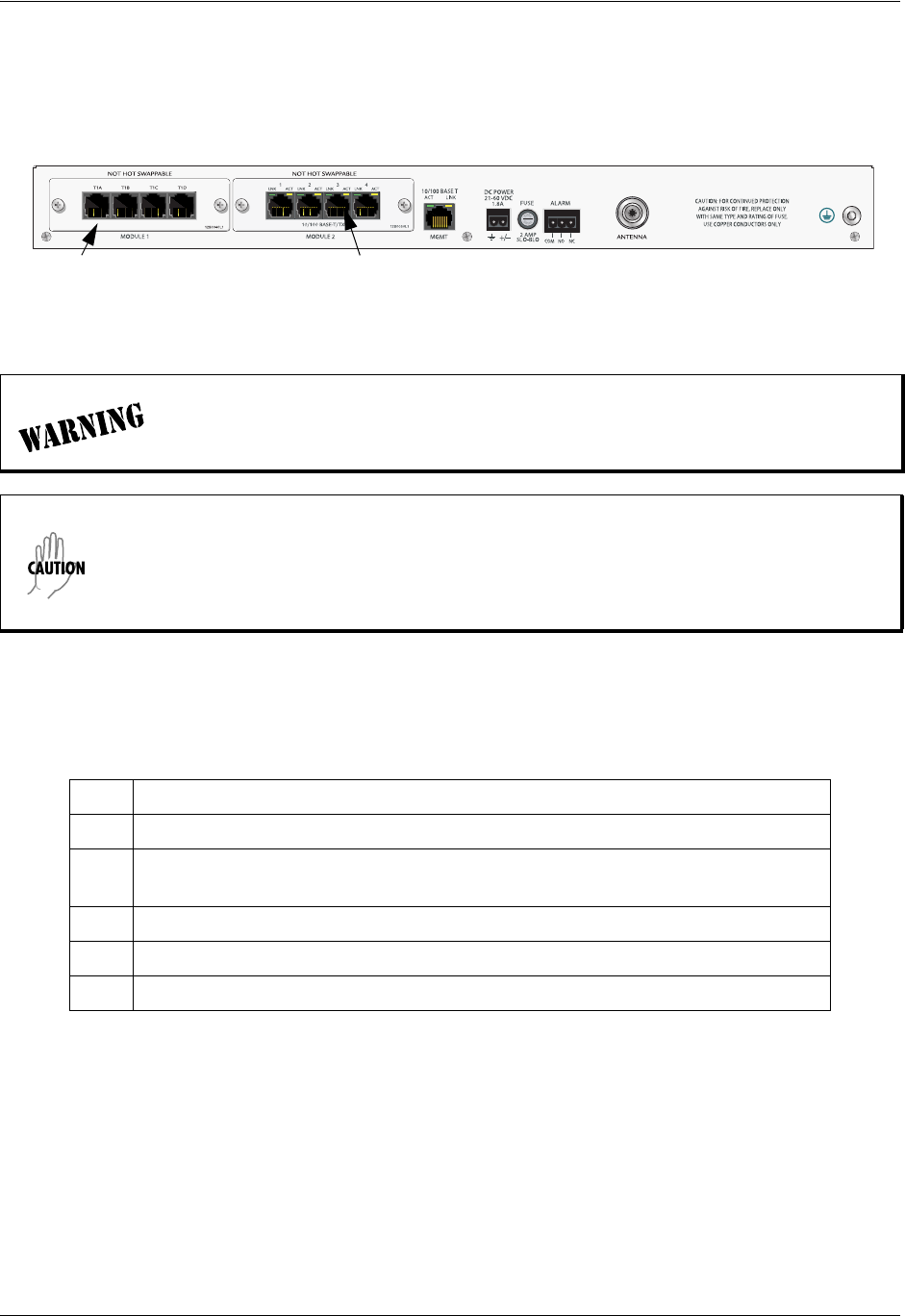

Figure 4. TRACER 6420 Network Module Slot Designation

Instructions for Installing Network Modules

Individual access modules insert in the back of the chassis. Two Phillips-head screws hold the modules in

place for added security. To install network modules, follow the steps outlined below.

Access modules are intended to be serviced by qualified service personnel only

Electronic modules can be damaged by static electrical discharge. Before handling

modules, put on an antistatic discharge wrist strap to prevent damage to electronic

components. Place modules in antistatic packing material when transporting or storing.

When working on modules, always place them on an approved antistatic mat that is

electrically grounded.

Step Action

1. Remove power from the unit.

2. Slide the network module into the network slot until the module is firmly seated

against the front of the chassis.

3. Secure the screws at both edges of the module.

4. Connect the cables to the associated device(s).

5. Restore power to the unit.

MODULE 1 MODULE 2

Section 4 Network Turnup Procedure TRACER 6420 System Manual

9. CONNECTING THE MODULE INTERFACES

4xT1 Module

The physical T1 interfaces are provided using four RJ-45 ports located on the module. Straight-through T1

interface cables can be used to interface to any standard T1 DTE device (not supplied).

Quad Ethernet Switch Module

The physical Ethernet interfaces are provided using four RJ-48C jacks. Ethernet cables are not supplied

with your shipment. Connect any standard Ethernet device to one of the switch ports located on the rear of

the unit.

T1 crossover cables are needed when connecting two TRACER 6420 T1 ports in

back-to-back operation.

USER INTERFACE GUIDE

Provides detailed descriptions of all menu options and configuration parameters available for the

TRACER 6420.

This section of the TRACER 6420 System Manual is designed for use by network administrators and

others who will configure and provision the system. It contains information about navigating the VT100

user interface, configuration information, and menu descriptions.

CONTENTS

Navigating the Terminal Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Terminal Menu Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Navigating using the Keyboard Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Menu and System Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Password Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Menu Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

> System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

> Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

> System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

> RF Link Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

> RF Link Performance History (Main Screen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

> RF Link Performance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

> RF Link Max/Min Received Power History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

> RF Link Min/Max Received Signal Quality History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

> Datapath Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

> Ethernet Switch Module Configuration/Status/History (Main Screen) . . . . . . . . . . . . . . . . . . . 58

> Ethernet Switch Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

> Ethernet Switch Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

> T1 Module Configuration/Status/History (Main Screen). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

> T1x Status/Configuration/Loopback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

> Management/Utilities (Main Screen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

> Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

> Firmware Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

FIGURES

Figure 1. Main Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 2. TRACER 6420 System Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 3. TRACER 6420 Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 4. TRACER 6420 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Figure 5. RF Link Configuration (With Optional Triple-DES Encryption). . . . . . . . . . . . . . . . . . . . 52

Figure 6. 5.8 GHz Bandwidth Division. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 7. RF Link Performance History (Main Screen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Figure 8. RF Link Performance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Figure 9. RF Link Max/Min Received Power History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 10. RF Link Min/Max Received Signal Quality History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Figure 11. Datapath Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 12. Ethernet Switch Module Configuration/Status/History (Main Screen) . . . . . . . . . . . . . . 58

Figure 13. Ethernet Switch Module Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Section 5 User Interface Guide TRACER 6420 System Manual

Figure 14. Ethernet Switch Module Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 15. T1 Module Configuration/Status/History (Main Screen). . . . . . . . . . . . . . . . . . . . . . . . . 60

Figure 16. T1x Status/Configuration/Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Figure 17. T1 Local Link Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Figure 18. T1 Remote Link Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 19. T1 Local Line Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 20. T1 Remote Line Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 21. T1x Link Performance History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Figure 22. Management/Utilities (Main Screen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Figure 23. Management/SNMP Port Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Figure 24. Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Figure 25. Firmware Upgrade Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

TRACER 6420 System Manual Section 5 User Interface Guide

1. NAVIGATING THE TERMINAL MENU

The TRACER 6420 menu system can be accessed with a VT100 compatible terminal that is connected to

the CRAFT PORT (located on the front of the unit) and set to 9600 bits per second (default), 8 data bits, 1

stop bit, and no parity. Flow control on the serial interface should be configured to NONE for proper

operation. Once a terminal is connected, press <Enter> to activate the login screen. The default password

for the TRACER 6420 is password.

Terminal Menu Window

The TRACER 6420 uses a series of menu pages and a single Main menu page to access its many features.

The Main menu page (see Figure 1) provides a link to all available configuration/status pages.

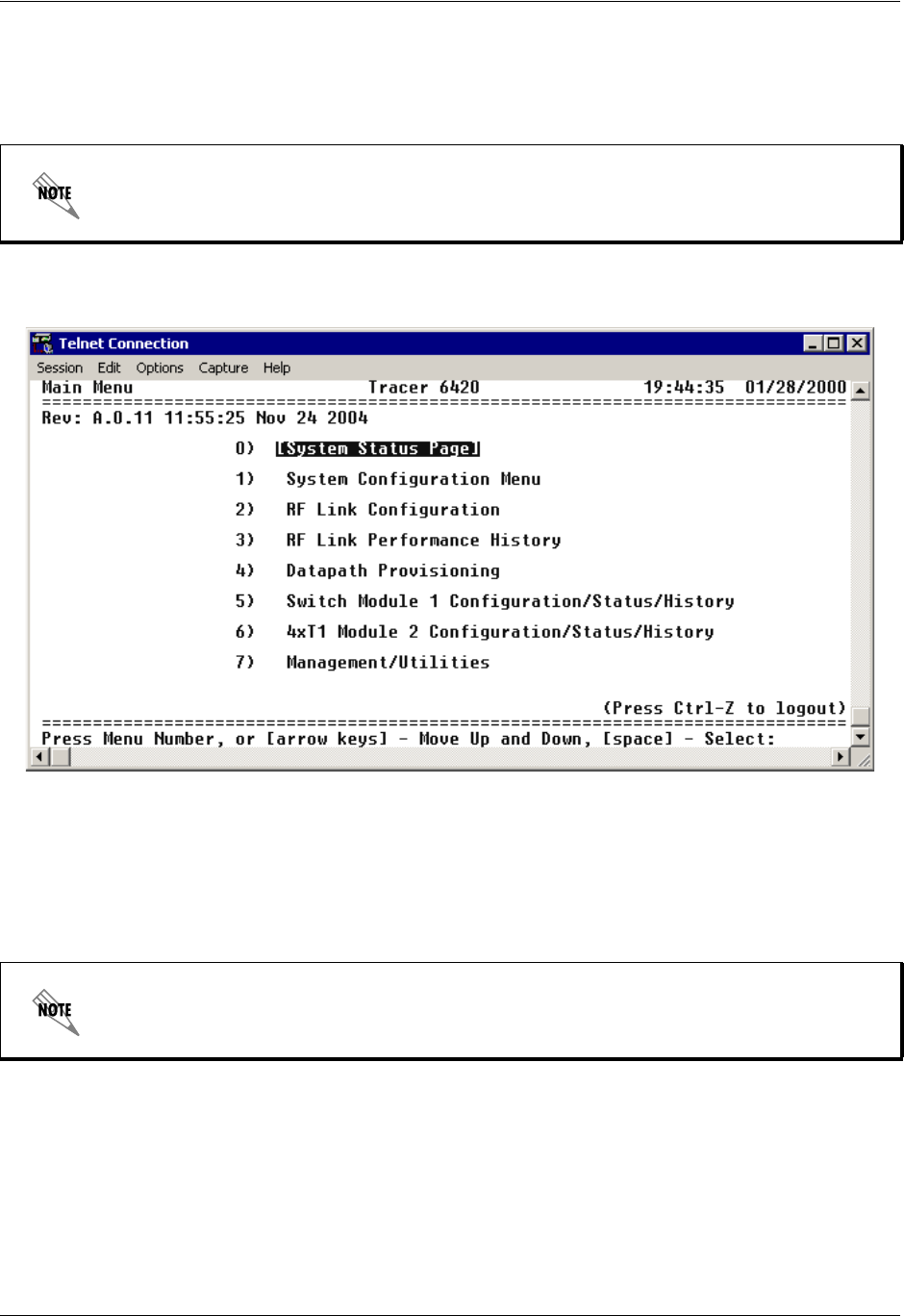

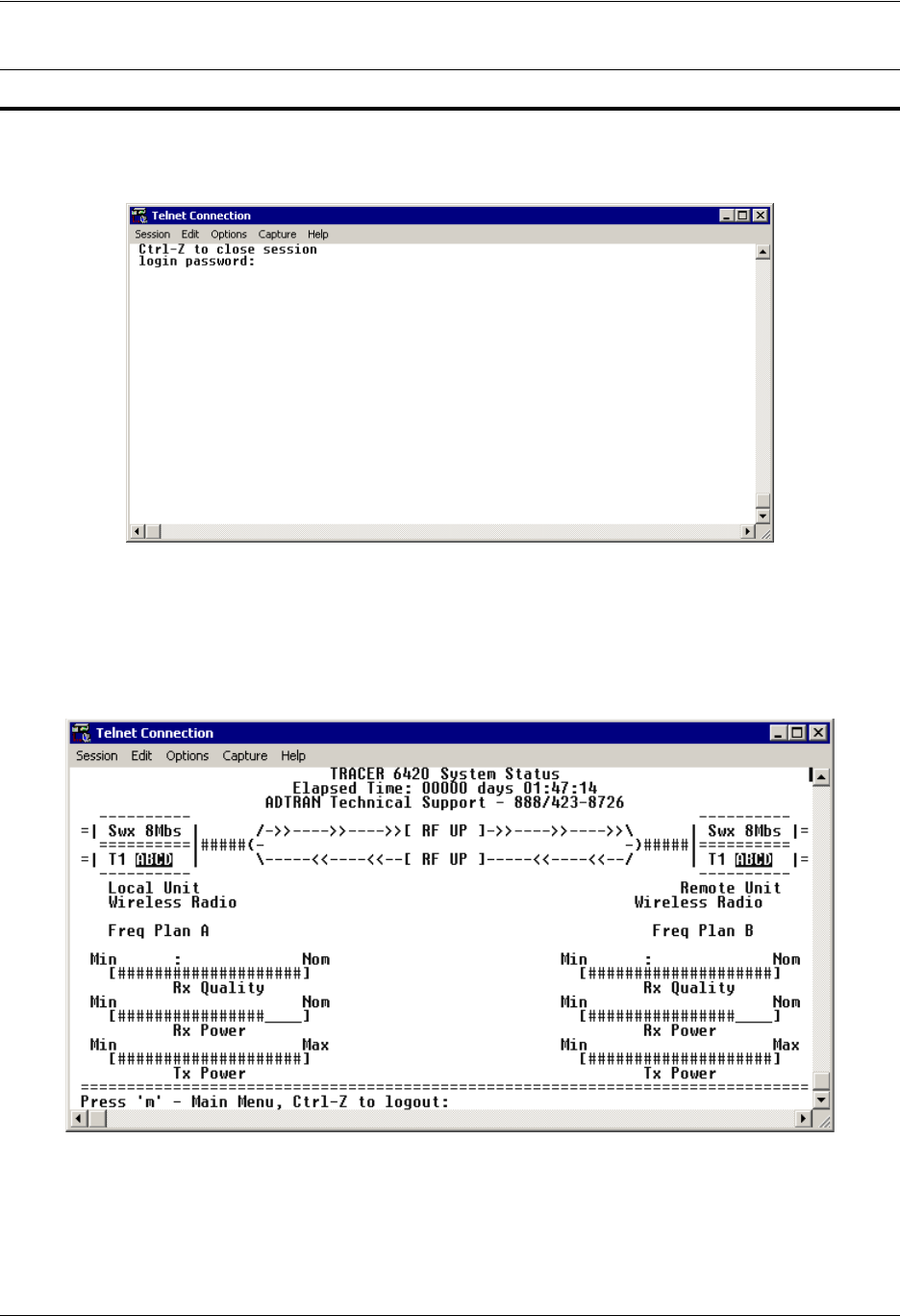

Figure 1. Main Menu Screen

All TRACER 6420 passwords are case-sensitive.

After connecting a VT100 terminal to the TRACER 6420, press <Ctrl + l> or <Ctrl + r> to

redraw the current screen.

Section 5 User Interface Guide TRACER 6420 System Manual

Navigating using the Keyboard Keys

You can use various keystrokes to move through the terminal menu, to manage a terminal menu session,

and to configure the system.

Moving Through the Menus

2. MENU AND SYSTEM CONTROL

Password Protection

The TRACER 6420 provides password protection of the menu interface (via Terminal or Telnet access).

To do this... Press this key...

Activate the Login screen (upon initial connection) Enter (twice)

Refresh the screen <Ctrl + L>

Exit the menu system and return to the login screen <Ctrl + Z>

Close the Telnet session (or toggle the modem signalling to hang up an

attached modem)

<Ctrl + Z> (twice)

Move up to select items Up Arrow

p (Previous)

Move down to select items Down Arrow

n (Next)

Edit a selected menu item Enter

Spacebar

Scroll through configuration parameters for a menu item Spacebar

Left/Right Arrows

p or n (Prev/Next)

Cancel an edit Escape

Return to Main menu page m

Back out to previous menu page b

Left Arrow

Go to System Status menu page s

All TRACER 6420 systems are shipped with a default password of password. (Passwords

are case-sensitive.)

TRACER 6420 System Manual Section 5 User Interface Guide

3. MENU DESCRIPTIONS

The remainder of this section describes the TRACER 6420 menus and submenus.

> SYSTEM STATUS

Figure 2 shows the TRACER 6420 System Status menu page. The status of major system components for

both sides of the RF link are displayed, but no configuration can be performed from this view.

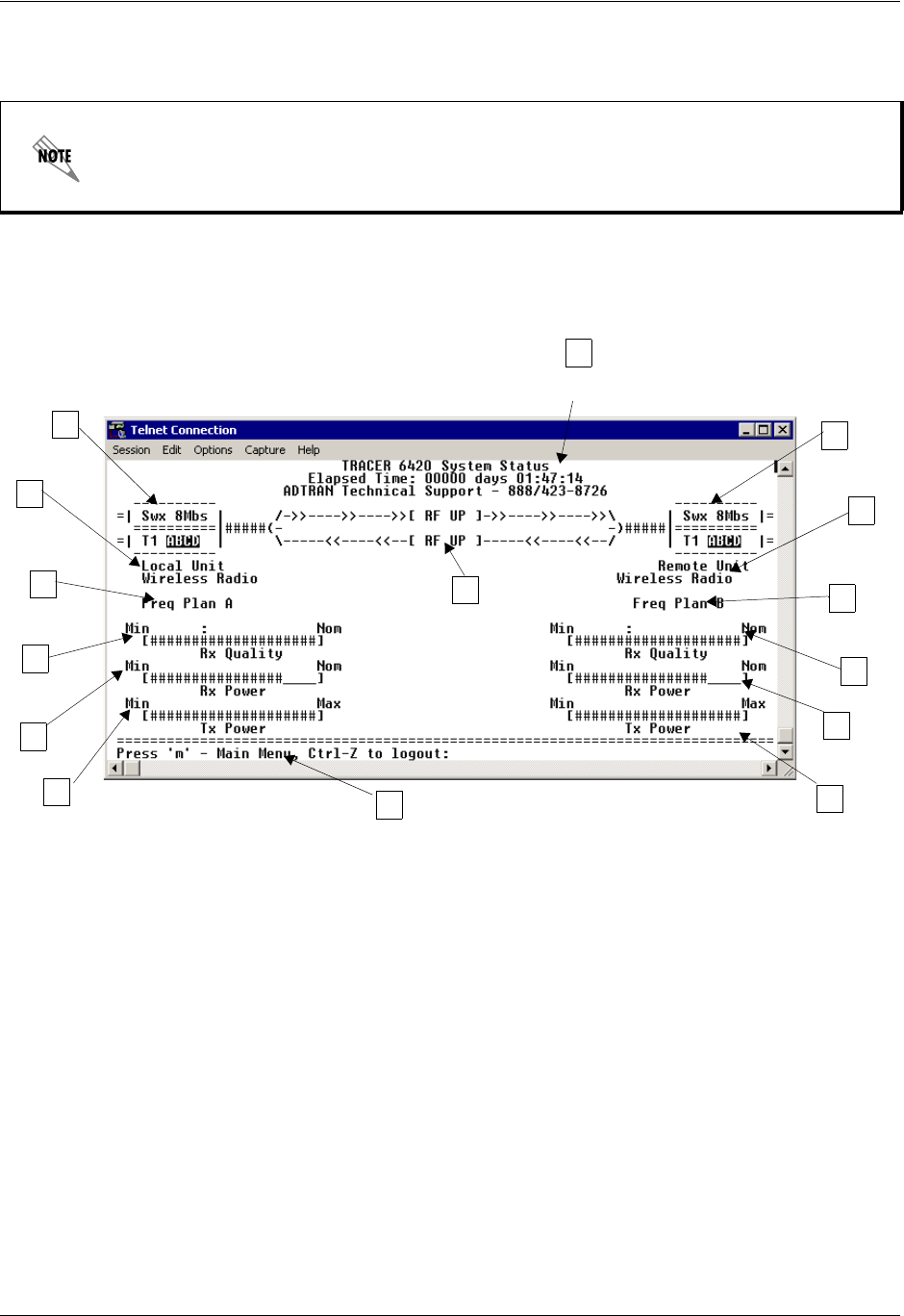

Figure 2. TRACER 6420 System Status

A. Elapsed Time

The top of the TRACER 6420 System Status menu page displays the elapsed time the TRACER 6420

system has been operational since the last power reset.

B. Module Status

A visual status of the current installed modules. The modules are listed in the order they are installed

(Slot 1 on top and Slot 2 on the bottom).

The menu structure of the TRACER 6420 system is depicted below as follows:

> MENU PAGE

> MENU PAGE > MENU SELECTION

> MENU PAGE > MENU SELECTION > SUB-MENU

4XT1 MODULE

A visual status of current errors/alarms on the T1 interfaces (for both the local and remote

systems) is provided on the TRACER 6420 System Status menu page. The four available T1

interfaces on the module (A through D) are only displayed if the interface is mapped in the

DATAPATH PROVISIONING; a – is displayed for inactive, unmapped interfaces. The interface

displayed in reverse highlight indicates an active error or alarm condition on the specified

interface (A through D). Individual T1 status pages (accessible from the main menu) provide

detailed T1 information.

Elapsed

Time

FCRF Status

Remote

Rx Power

Tx Power

Tx Power JNavigation Reminder

TRACER

Plan Frequency

Plan

Status

Module Status

Local

Frequency

Rx Power

Module Status

Status TRACER

Rx Quality

Section 5 User Interface Guide TRACER 6420 System Manual

C. RF Status

A graphical indicator of the RF links is located beneath the Elapsed Time display. The status of the

received radio link is indicated as RF UP or RF DOWN for each direction. This RF status display

corresponds to the RF DWN LED on the front of the unit.

D. Remote System Status

The right portion of the TRACER 6420 System Status menu page reports the status of the remote

TRACER 6420 (the system across the wireless link from the active terminal). If the RF link is down in

either direction, DATA NOT AVAILABLE is displayed in place of the remote system status information.

E. Local System Status

The left portion of the TRACER 6420 System Status menu page reports the status of the local

TRACER 6420 (the system where the active terminal is attached).

F. Frequency Plan

Displays the frequency plan (A or B) for the TRACER 6420 unit. For an operational TRACER 6420

system, you should have one A and one B frequency plan.

G. Rx Quality

Displays an indicator of receive signal quality that is not necessarily related to receive signal level (for

both the local and remote units) using a series of symbols (#). The more symbols displayed, the better

the signal quality. This indicator is related to signal-to-noise ratio and features a colon (:) marker to

indicate 10-6 bit error rate. This indicator is useful as a diagnostic tool to help identify interference, as

the system may have high receive signal level and poor signal quality in situations where interference

is an issue.

H. Rx Power

Displays the approximate receiver levels (for both the local and remote units) using a series of symbols

(#). The more symbols (#) displayed, the stronger the signal. If the link is down in either direction and

remote end data is unavailable, DATA NOT AVAILABLE is displayed in place of the symbols (#).

I. Tx Power

Displays the approximate transmitter levels (for both the local and remote units) using a series of

symbols (#). The more symbols (#) displayed, the stronger the signal. If the link is down in either

direction and remote end data is unavailable, DATA NOT AVAILABLE is displayed in place of the symbols

(#).

J. Navigation Reminders

Displays system navigation reminders. For more details on system navigation, refer to Navigating the

Terminal Menu on page 45.

QUAD ETHERNET SWITCH MODULE

A visual status of current errors/alarms on the Ethernet interfaces (for both the local and

remote systems) is provided on the TRACER 6420 System Status menu page. The

configured data rate (on the Datapath Provisioning page) is displayed. Individual status

notations for the available Ethernet interfaces are available through the Quad Ethernet

Switch Module Status page.

TRACER 6420 System Manual Section 5 User Interface Guide

> MAIN MENU

The TRACER 6420 Main menu page provides access to all other configuration/status pages.

Figure 3 shows the TRACER 6420 Main menu page.

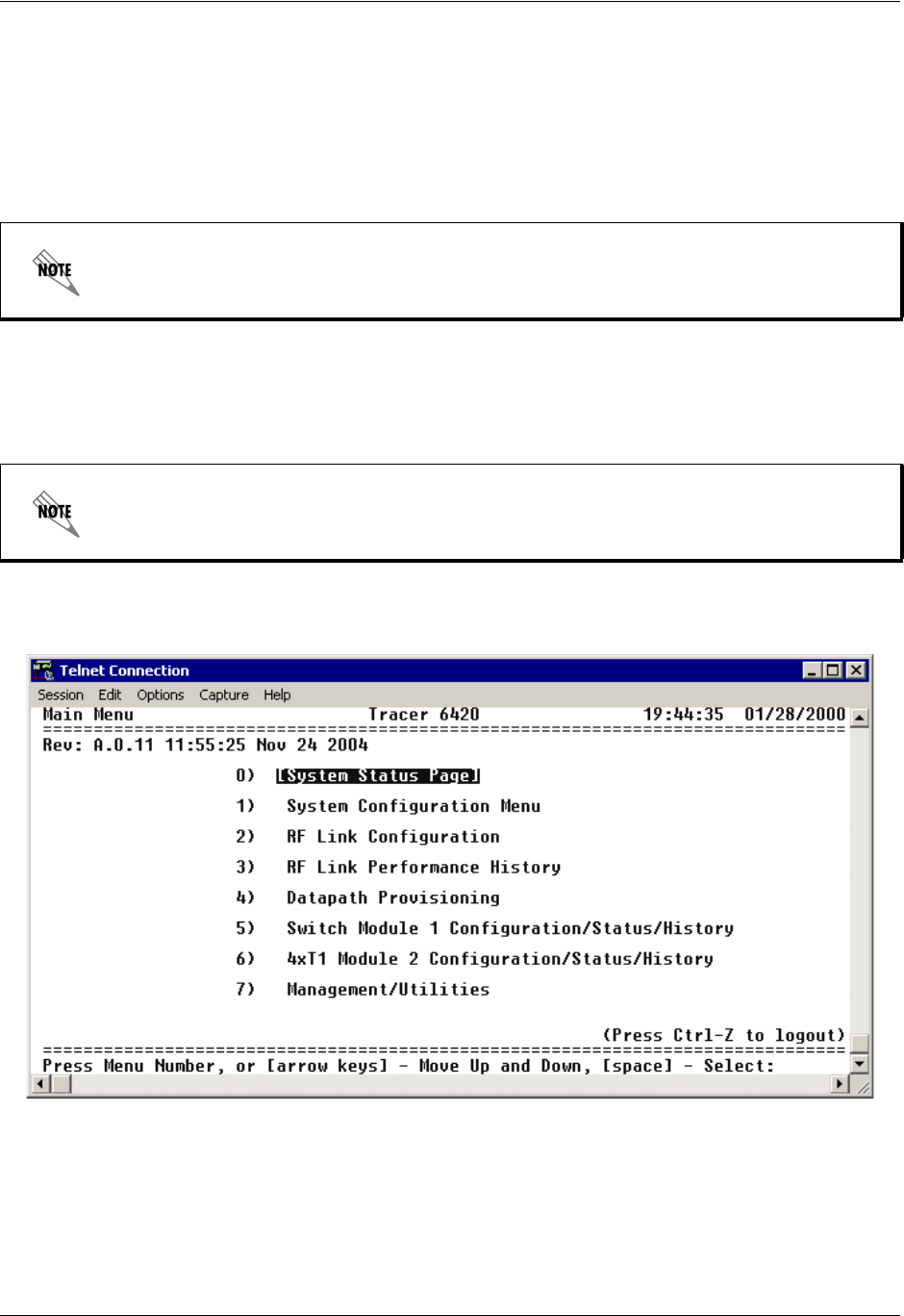

Figure 3. TRACER 6420 Main Menu

From the keyboard, use the up and down arrow keys to scroll through the available pages, or enter the

number or letter of the selected page (to highlight the menu page) and press <Enter>.

Installed Network Modules are displayed as menu options 5 (slot 1) and 6 (slot 2). Menu

options for empty slots are not displayed.

Press <m> from any menu in the TRACER 6420 menu structure to access the

TRACER 6420 Main menu page.

Section 5 User Interface Guide TRACER 6420 System Manual

> SYSTEM CONFIGURATION

Figure 4 shows the TRACER 6420 System Configuration menu page. System configuration parameters for

both the local and remote TRACER 6420 units are available through this menu page.

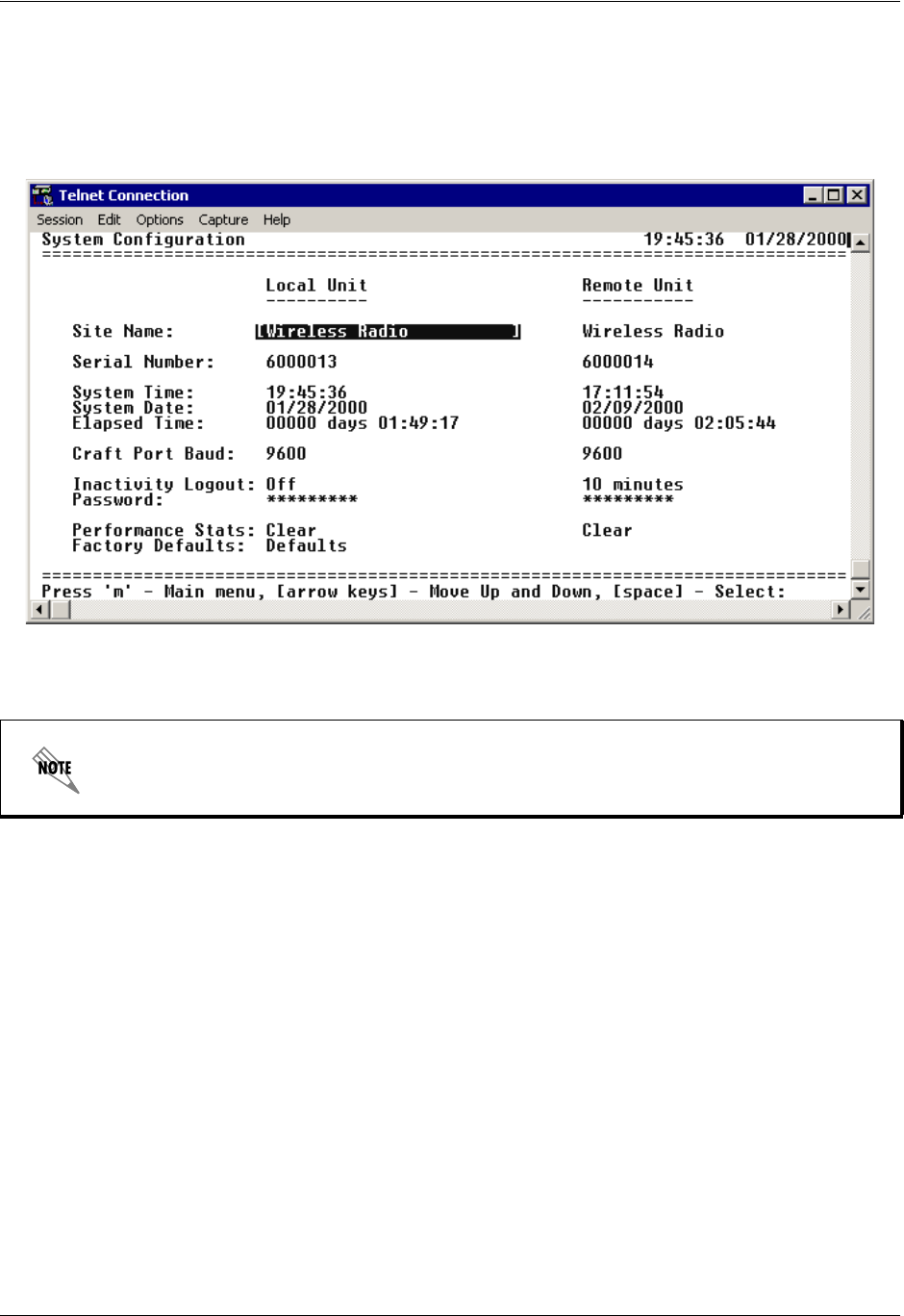

Figure 4. TRACER 6420 System Configuration

> SYSTEM CONFIGURATION > SITE NAME

Provides a user-defined alphanumeric description (up to 25 characters) for the TRACER 6420 system.

> SYSTEM CONFIGURATION > SERIAL NUMBER

Displays the serial number for the unit. The serial number of the TRACER 6420 will automatically display

in this field.

> SYSTEM CONFIGURATION > SYSTEM TIME

Displays the current time, including seconds. To edit this field, place the cursor on the field and press

<Enter>. Then, enter the time in a 24-hour format (such as 23:00:00 for 11:00 pm). Press <Enter> when

you are finished to accept the change.

Press <1> from any menu in the TRACER 6420 menu structure to access the System

Configuration menu page.

TRACER 6420 System Manual Section 5 User Interface Guide

> SYSTEM CONFIGURATION > SYSTEM DATE

Displays the current date. To edit this field, place the cursor on the field and press <Enter>. Then, enter the

date in mm-dd-yyyy format (for example, 10-30-1998). Press <Enter> when you are finished to accept the

change.

> SYSTEM CONFIGURATION > ELAPSED TIME

Displays the length of time the TRACER 6420 system has been running. Each time you reset the system, this

value resets to 0 days, 0 hours, 0 min, and 0 secs.

> SYSTEM CONFIGURATION > CRAFT PORT BAUD

Specifies the baud rate of the port. Select either 9600 (default), 19200, 38400, 57600, or 115200 bps. If you

are using the CRAFT port for modem access, ensure that the CRAFT port rate matches the modem baud rate.

> SYSTEM CONFIGURATION > INACTIVITY LOGOUT

This option defines the amount of time in minutes the user may stay connected without any activity on the

CRAFT port before the user is automatically logged out of the system. Select one of the following: 5 MIN,

10 MIN (default), 15 MIN, 30 MIN, 45 MIN, 60 MIN, or OFF.

> SYSTEM CONFIGURATION > PASSWORD

Sets the password for password protection of the TRACER 6420 terminal interface. Enter up to 8

alphanumeric characters. The system password is case sensitive.

> SYSTEM CONFIGURATION > PERFORMANCE STATS (CLEAR)

Resets all system error counters for the TRACER 6420.

> SYSTEM CONFIGURATION > FACTORY DEFAULT

Resets the system to the factory default settings. The configured IP ADDRESS, SUBNET MASK, and DEFAULT

GATEWAY are not defaulted during a factory default.

Changes to the INACTIVITY LOGOUT setting do not apply to the current session. All changes

take affect at the next login to the system menus.

The default password for the TRACER 6420 is password.

The TOTAL ACTIVE CHANNELS parameter (on the Datapath Provisioning page) is reset to

the factory default value (8). Performing a factory default on any system with less than 8

active channels will result in an RF link loss.

Section 5 User Interface Guide TRACER 6420 System Manual

> RF LINK CONFIGURATION

Figure 5 shows the TRACER 6420 RF Link Configuration screen, which contains the transmit and receive

power settings and band plan configuration for both the local and remote units.

Figure 5. RF Link Configuration

> RF LINK CONFIGURATION > RX POWER

Displays the approximate receiver levels (for both the local and remote units) using a series of symbols (#).

The more symbols (#) displayed, the stronger the signal. If the link is down in either direction and remote

end data is unavailable, DATA NOT AVAILABLE displays in place of the symbols (#). This parameter is

display only.

> RF LINK CONFIGURATION > TX POWER

Allows the transmitter levels (for both the local and remote units) to be adjusted. The current transmitter

level is displayed using a series of symbols (#). The more symbols (#) displayed, the stronger the signal. If

the link is down and remote end data is unavailable, DATA NOT AVAILABLE displays in place of the symbols

(#). Pressing (+) on this field sets the TX POWER to full strength; pressing (-) reduces the TX POWER to the

minimum.

Reducing the transmitter power of the remote TRACER 6420 could cause the RF link to

drop, requiring a technician to increase the transmit power by using the menu system at

the remote site.

TRACER 6420 System Manual Section 5 User Interface Guide

> RF LINK CONFIGURATION > RF BAND PLAN

Sets the band plan for the TRACER 6420. Each channel is divided into three band plans (1, 2, or 3). Both

local and remote TRACER 6420 must be configured with the same band plan (1, 2, or 3) but different

channel plans (Plan A or Plan B). For example, the transmitter at one end of the link will transmit in band

plan 1 of channel A (the lower portion of the spectrum) and receive in band plan 1 of channel B (the upper

portion). Consequently, the receiver at the other end should receive in band plan 1 of channel A (the lower

portion) and transmit in band plan 1 of channel B (the upper portion). (Refer to Figure 6 for the division.)

The TRACER 6420 comes factory programmed with RF band plan set to Band 1.

Figure 6. 5.8 GHz Bandwidth Division

> RF LINK CONFIGURATION > LINK ENCRYPTION

The TRACER 6420 provides Triple-DES (3DES) encryption of the data passed over the RF Link. When

LINK ENCRYPTION is set to ENABLED, the TRACER 6420 sequentially applies the three keys entered in the

SUBKEY 0, 1, and 2 fields to each 64-bit block of data transmitted over the RF link. The remote TRACER

6420 uses the same keys to decrypt each block. (The keys entered in the local and remote systems must be

identical.)

> RF LINK CONFIGURATION > SUBKEY (0-2)

The TRACER 6420 provides 3DES encryption of the data passed over the RF Link. When LINK

ENCRYPTION is set to ENABLED, the TRACER 6420 sequentially applies the three keys entered in the

SUBKEY 0, 1, and 2 fields to each 64-bit block of data transmitted over the RF link. The remote

TRACER 6420 uses the same keys to decrypt each block. (The keys entered in the local and remote

systems must be identical.) Valid entries are numbers 0 through 9 and letters a through f.

When changing RF band plans on installed links, change the remote end first. If the local

end is changed first, remote configuration capability is lost. In the event the local end is

changed first and the link is dropped, reset the local end to the previous setting to restore

the link.

Channel A

57445725 5787 58505747 5751MHz MHz

Band plan 3Band plan 2Band plan 1

Channel B

5824 5827 5831

Band plan 3Band plan 2Band plan 1

Section 5 User Interface Guide TRACER 6420 System Manual

> RF LINK PERFORMANCE HISTORY (MAIN SCREEN)

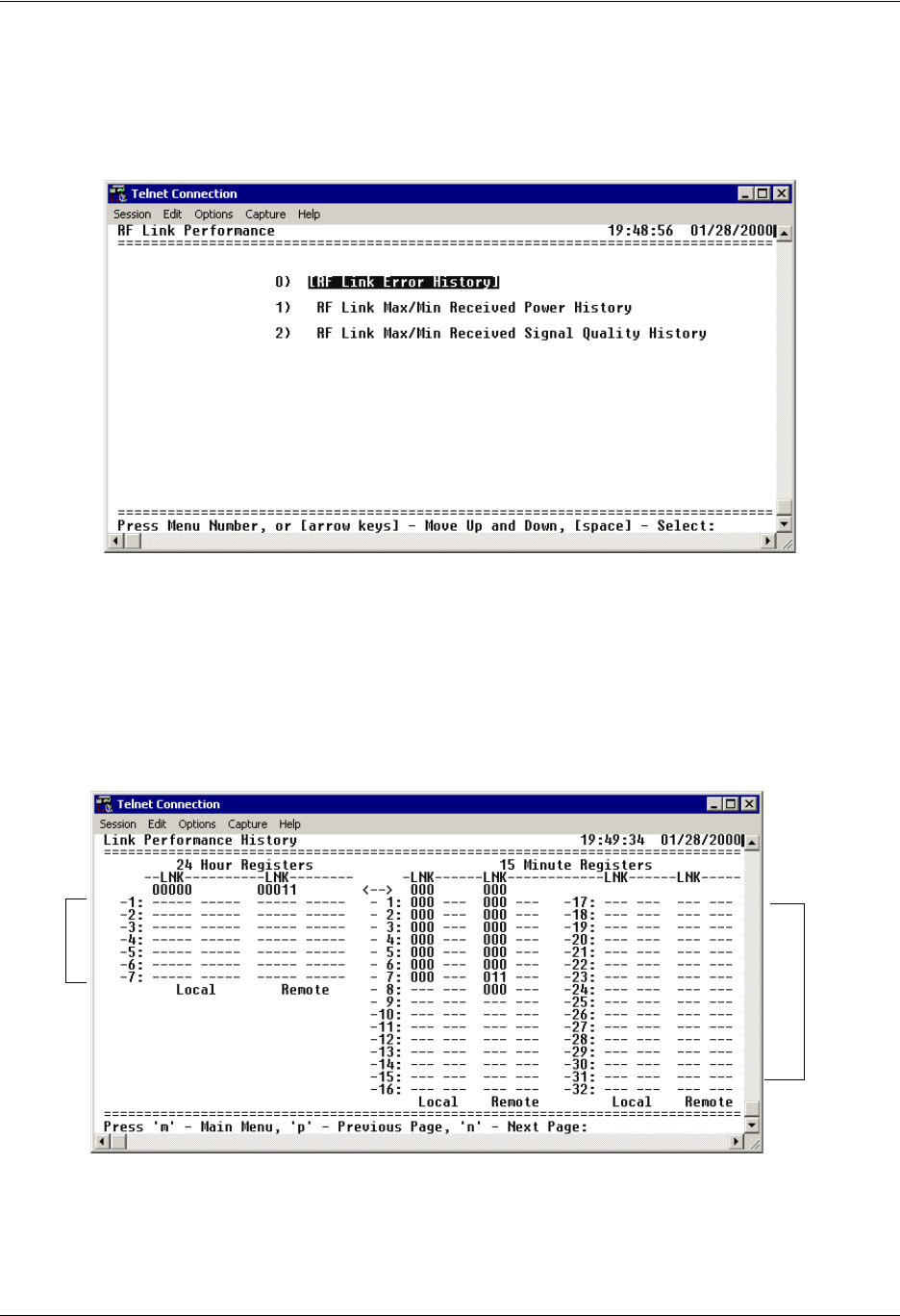

Figure 7 shows the TRACER 6420 RF Link Performance History main screen, which contains the transmit

and receive power settings and band plan configuration for both the local and remote units.

Figure 7. RF Link Performance History (Main Screen)

> RF LINK PERFORMANCE HISTORY

Figure 8 shows the TRACER 6420 main RF Link Performance History menu page, which displays

detailed error statistics for the RF link (from both the local and remote TRACER 6420 units) in 15-minute

and 24-hour increments.

Figure 8. RF Link Performance History

Link errors (LNK ERR) represent errored seconds across the wireless link, and are generally an indication

of path or interference problems.

Days 24

Hours

(8 Hrs

Displaye

at a Time

)

TRACER 6420 System Manual Section 5 User Interface Guide

The link error count and minimum received signal level for the most recent 24 hours are recorded in

15-minute increments and displayed on the right side of the page. The left side of the page displays the 24

hour totals for the most recent 7 days.

> RF LINK MAX/MIN RECEIVED POWER HISTORY

Figure 9 shows the TRACER 6420 RF Link Max/Min Received Power History page, which displays the

available received power statistics from the system. Minimum and maximum received signal levels for the

RF link (from both the local and remote TRACER 6420 units) in 15-minute and 24-hour increments are

found on this screen.

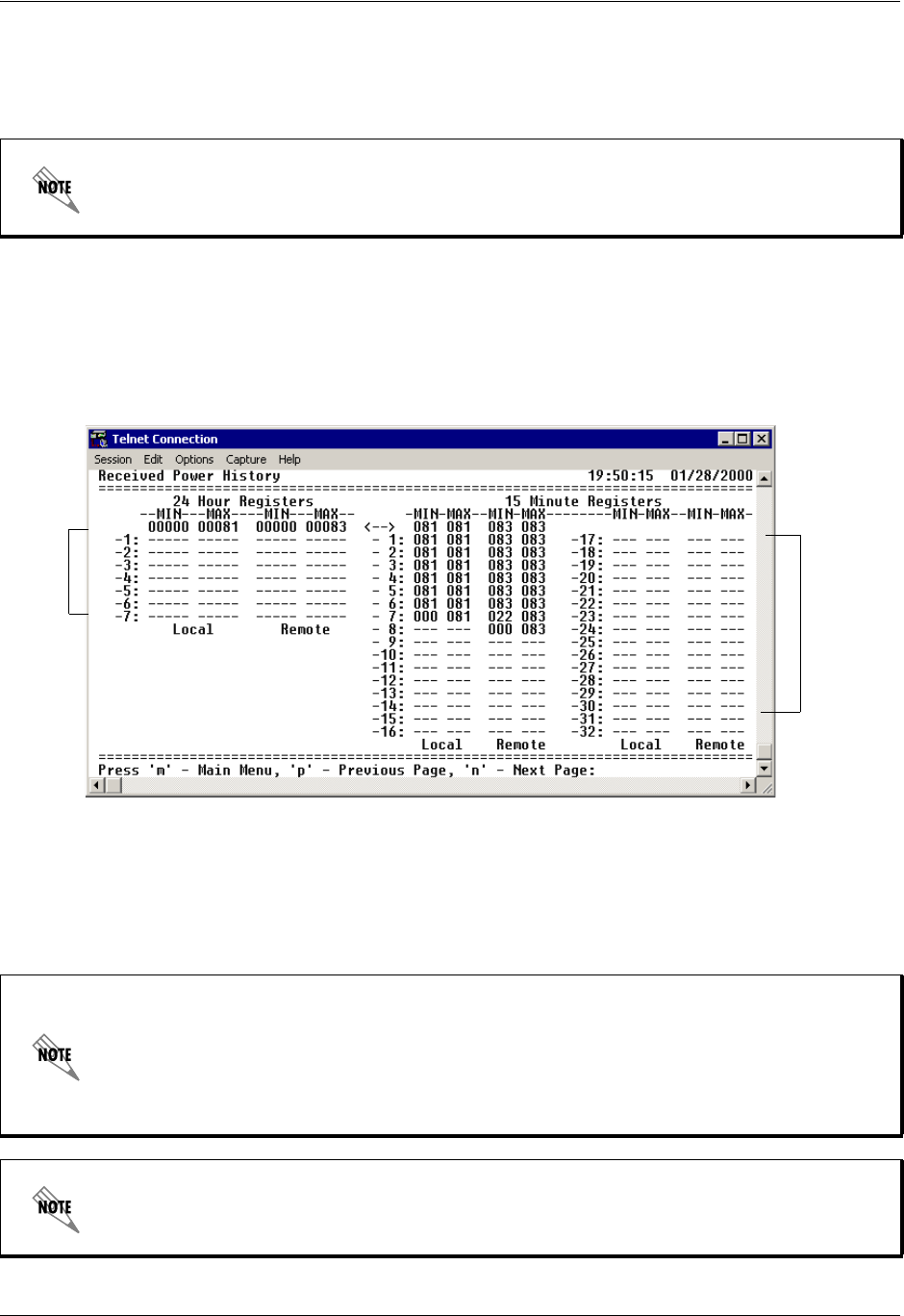

Figure 9. RF Link Max/Min Received Power History

The received power level (MIN and MAX) represents the minimum and maximum values of received signal

level in a 24-hour or 15-minute increment and is displayed as a numerical value from 0 to 100, with 0

corresponding to 0 V of RSSI and 100 corresponding to 5 V RSSI.

Press <n> to view the next 8 hours worth of 15-minute totals and <p> to view the previous

8 hours.

The minimum receive power level is recorded to aid in troubleshooting problem RF links.

Radio links with high MIN numbers and intermittent performance are probably

experiencing interference, while links with low MIN numbers have improperly engineered

paths or excess system losses. A system with MIN numbers varying widely could indicate

fading, reflections, or an intermittent installation problem such as loose connectors,

damaged coax or lightning arrestors, or water contaminated feedlines.

Press <n> to view the next 8 hours worth of 15-minute totals and <p> to view the previous

8 hours.

Days 24

Hours

(8 Hrs

Displayed

at a Time

)

Section 5 User Interface Guide TRACER 6420 System Manual

> RF LINK MIN/MAX RECEIVED SIGNAL QUALITY HISTORY

Figure 9 shows the TRACER 6420 RF Link Min/Max Received Signal Quality History menu page, which

displays the available received signal quality statistics from the system. Minimum and maximum received

signal quality levels for the RF link (from both the local and remote TRACER 6420 units) in 15-minute

and 24-hour increments are found on this screen.

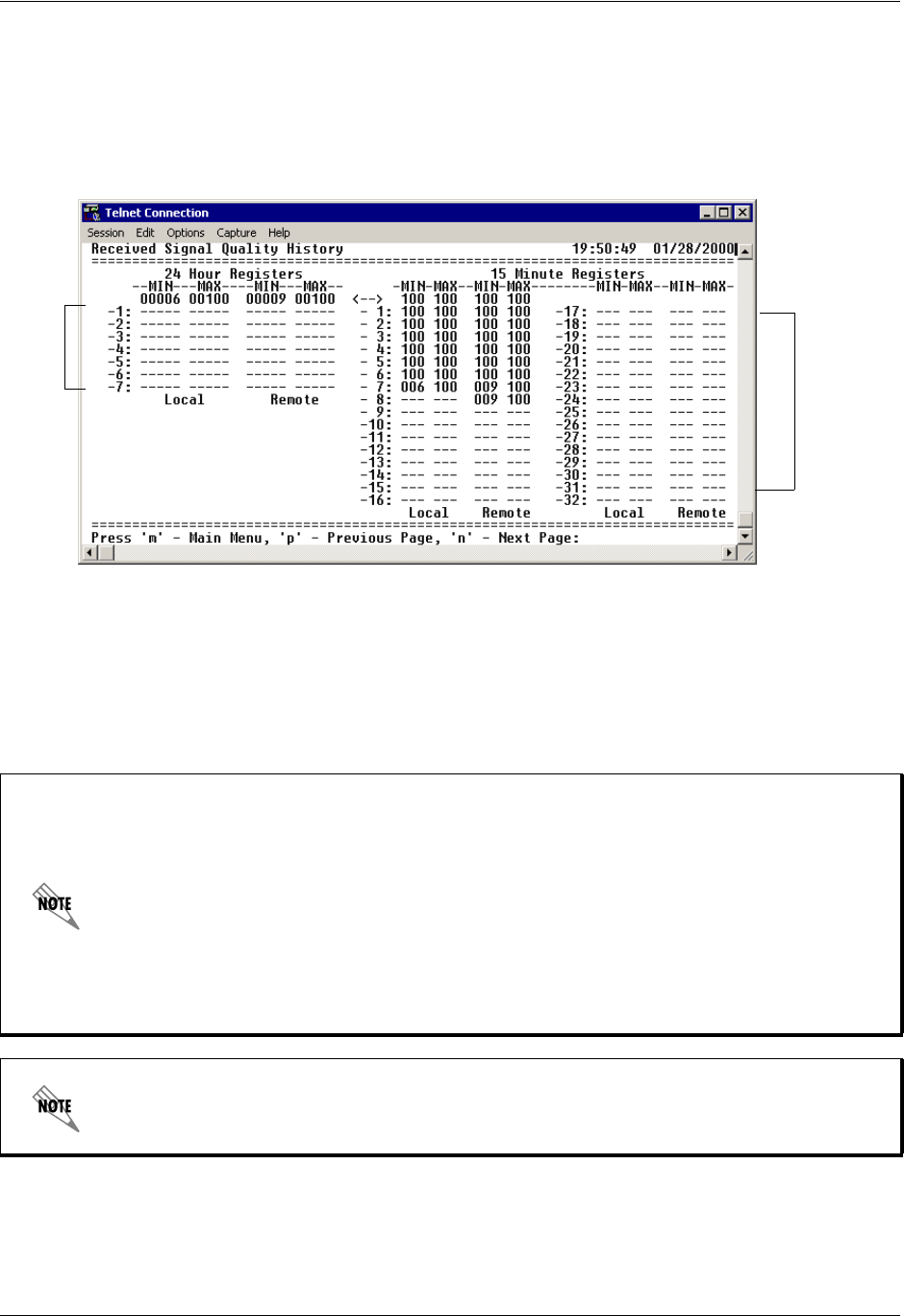

Figure 10. RF Link Min/Max Received Signal Quality History

The received power quality level (MIN and MAX) represents the minimum and maximum values of

received signal quality levels in a 24-hour or 15-minute increment and is displayed as a numerical value

from 0 to 100, with 0 corresponding to poor signal quality and 100 corresponding to exceptional signal

quality.

Radio links with consistently high MIN and MAX numbers should not experience

interference. Radio links with a large difference between MIN and MAX numbers could be

experiencing fading, reflections, or intermittent interference or installation problems such

as loose connectors, damaged coax cable, water contaminated feedlines, or damaged

lightning arrestors. Radio links with consistently low MIN and MAX numbers may be

experiencing interference, low receive levels, or installation problems. If this is the case,

examine the RF link MIN/MAX received power history. High received power numbers with

low received signal quality numbers indicate interference, while low received power

numbers with low received signal quality numbers indicate low receive levels or

installation problems.

Press <n> to view the next 8 hours worth of 15-minute totals and <p> to view the previous

8 hours.

Days 24

Hours

(8 Hrs

Displayed

at a Time)

TRACER 6420 System Manual Section 5 User Interface Guide

> DATAPATH PROVISIONING

Figure 11 shows the Datapath Provisioning menu page, which displays the active network interfaces for

the installed modules (from both the local and remote TRACER 6420 units).

Figure 11. Datapath Provisioning

> DATAPATH PROVISIONING > TOTAL ACTIVE CHANNELS

Defines the total number of channels active on the installed modules. Specify 2, 4, or 8 total active

channels. After defining the total number of active channels, specify the actual active channels using the

CHANNEL SELECTION menu.

> DATAPATH PROVISIONING > MODULE 1/MODULE 2 CHANNELS

(Read Only) Displays the total number of active channels on the installed module.

> DATAPATH PROVISIONING > CHANNEL SELECTION

Defines the active channels (A, B, C, D) on each installed T1 module or the bandwidth dedicated to the

Quad Ethernet Switch Module (in 2 Mbps steps). To activate a channel, press <Enter> and use the

spacebar or arrow keys to cycle through the available channel combinations until the desired combination

displays. Press <Enter> again to make the channel combination change. If the specified channel selection

is not valid, the TRACER 6420 automatically corrects the configuration and populates the field with a

valid selection.

The number of active channels and the channel configuration on both the local and remote

systems must match for the RF link to function properly. A discrepancy between the systems

can result in unpredictable operation.

The number of active channels and the channel configuration on both the local and remote

systems must match for the RF link to function properly. A discrepancy between the systems

can result in unpredictable operation.

Section 5 User Interface Guide TRACER 6420 System Manual

> ETHERNET SWITCH MODULE CONFIGURATION/STATUS/HISTORY (MAIN SCREEN)

Figure 12 shows the Ethernet Switch Module Configuration/Status/History main screen, which contains

access to the status, configuration, testing, and performance history parameters for the selected Ethernet

Switch module.

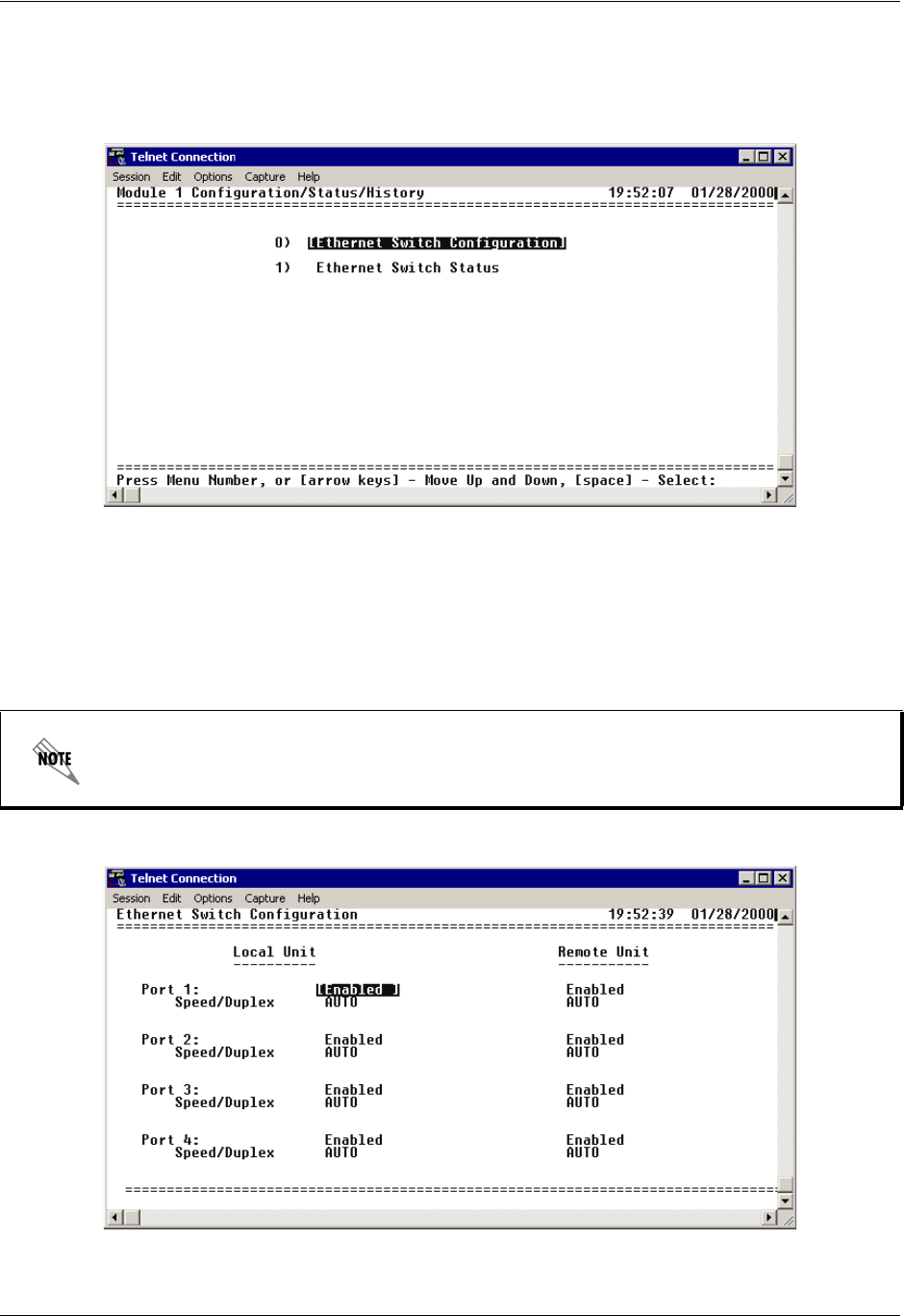

Figure 12. Ethernet Switch Module Configuration/Status/History (Main Screen)

> ETHERNET SWITCH CONFIGURATION

Figure 13 shows the Ethernet Switch Module Configuration screen, which contains access to the port

configuration options for the available Ethernet interfaces on the selected module.

Figure 13. Ethernet Switch Module Configuration

The following menus for the ETHERNET SWITCH CONFIGURATION apply to all four available

Ethernet interfaces (1 through 4).

TRACER 6420 System Manual Section 5 User Interface Guide

>ETHERNET SWITCH CONFIGURATION > PORT X

The Quad Ethernet Switch Module provides the capability to individually disable interfaces on the module.

Selecting DISABLE from the PORT X menu disables the port, stopping all data passing through the interface.

>ETHERNET SWITCH CONFIGURATION > SPEED/DUPLEX

Defines the speed and duplex for the selected Ethernet interface. Available options are: 100/FDX (100 Mbps

with full duplex operation), 100/HDX (100 Mbps with half duplex operation), 10/FDX (10 Mbps with full

duplex operation), and 10/HDX (10 Mbps with half duplex operation), and AUTO (automatically detects speed

and duplex of the connection). The speed and duplex settings of the TRACER Ethernet port and the attached

Ethernet equipment should be identical; if the TRACER is set to auto-negotiation the attached equipment

should also be set for auto-negotiation.When the SPEED/DUPLEX is manually set, 802.3u auto-negotiation is

disabled; the Ethernet equipment connected to the manual port must be manually set to the same speed/duplex

settings. When set to AUTO, the actual negotiated speed and duplex of the system can be displayed on the

Ethernet Switch Status page.

> ETHERNET SWITCH STATUS

Figure 14 shows the Ethernet Switch Module Status screen, which displays the current speed and duplex

operation for each switch interface (on both the local and remote systems) as well as transmit and receive data

statistics for the Ethernet interface (from both the local and remote TRACER 6420 systems) and RF link.

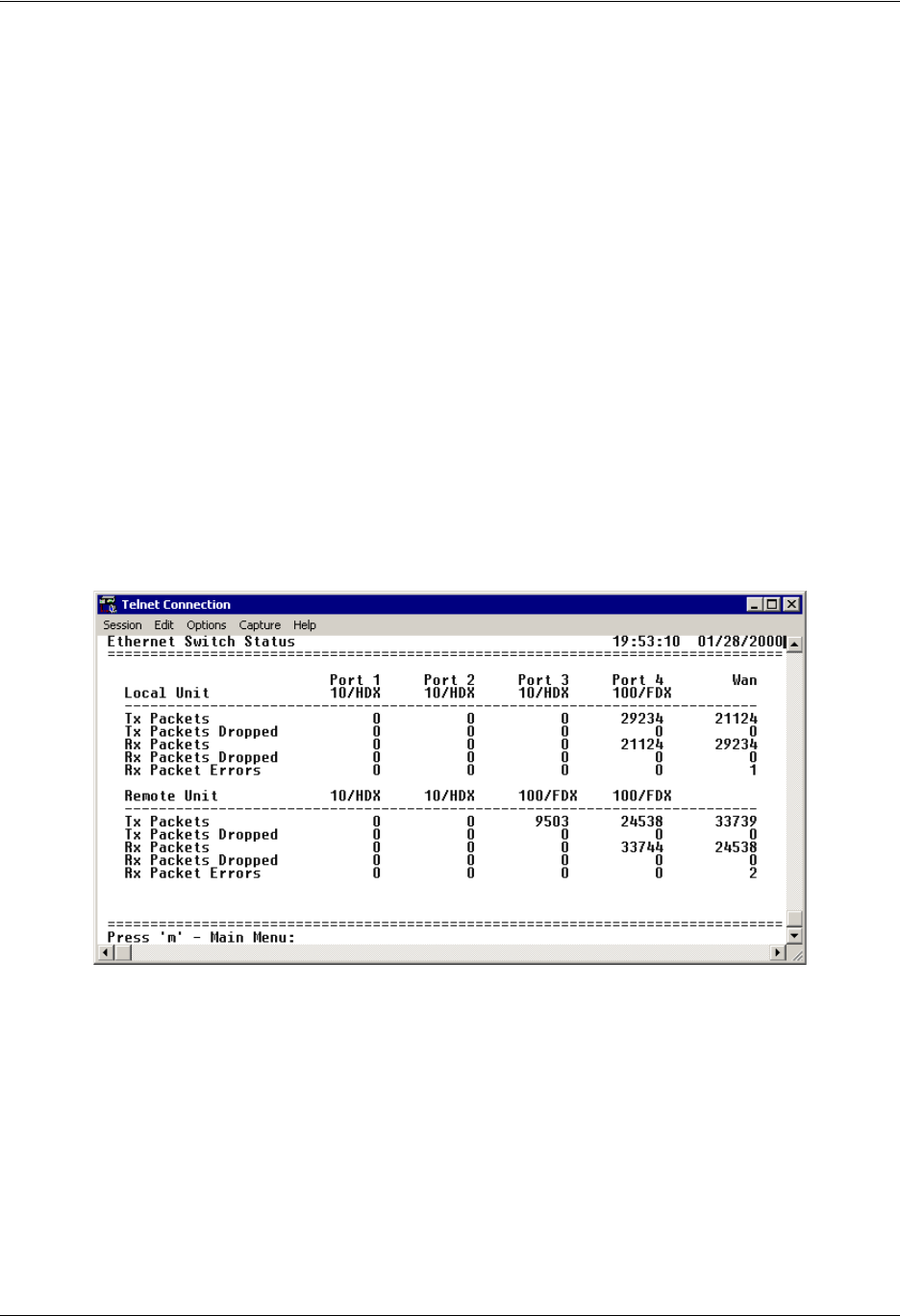

Figure 14. Ethernet Switch Module Status

>ETHERNET SWITCH STATUS > TX PACKETS

Displays a counter of all data packets transmitted out the local and remote TRACER Ethernet interfaces. Use

this data as an indicator for how many packets are being transmitted between the four Ethernet interfaces

versus over the wireless link (WAN stats). The WAN statistics (Ethernet packets transmitted over the RF link)

provide a quick way to determine Ethernet packet loss over the wireless link; the RX PACKETS on the local

system should match the TX PACKETS on the remote side (and vice versa).

Section 5 User Interface Guide TRACER 6420 System Manual

>ETHERNET SWITCH STATUS > TX PACKETS DROPPED

Displays a counter of all transmit data packets that were unable to be transmitted out the individual

Ethernet interfaces (for both the local and remote TRACER units). Use this data as an indicator of

congestion on the Ethernet network segments. Dropped packets on the WAN interface can indicate that the

provisioned bandwidth for the switch module is insufficient.

>ETHERNET SWITCH STATUS > RX PACKETS

Displays a counter of all data packets received on the local and remote TRACER Ethernet interfaces and

WAN (RF link). Use this data as an indicator for how many packets are being received on the four Ethernet

interfaces versus being received over the wireless link.

>ETHERNET SWITCH STATUS > RX PACKETS DROPPED

Displays a counter of all received data packets that were unable to be processed due to congestion inside

the TRACER 6420 switch (for both the local and remote TRACER 6420 units). Use this data as an

indicator of congestion inside the TRACER 6420 switch.

>ETHERNET SWITCH STATUS > RX PACKET ERRORS

Displays a counter of all received data packets that are greater than or equal to 64 bytes in length and have

either an FCS error or an alignment error (for both the local and remote TRACER units). RX PACKET

ERRORS on the WAN interface (RF link) could indicate link degradation (due to interference, fading, etc.).

> T1 MODULE CONFIGURATION/STATUS/HISTORY (MAIN SCREEN)

Figure 15 shows the TRACER 6420 4xT1 Module Configuration main screen, which contains access to

the status, configuration, testing, and performance history parameters for the selected T1 module.

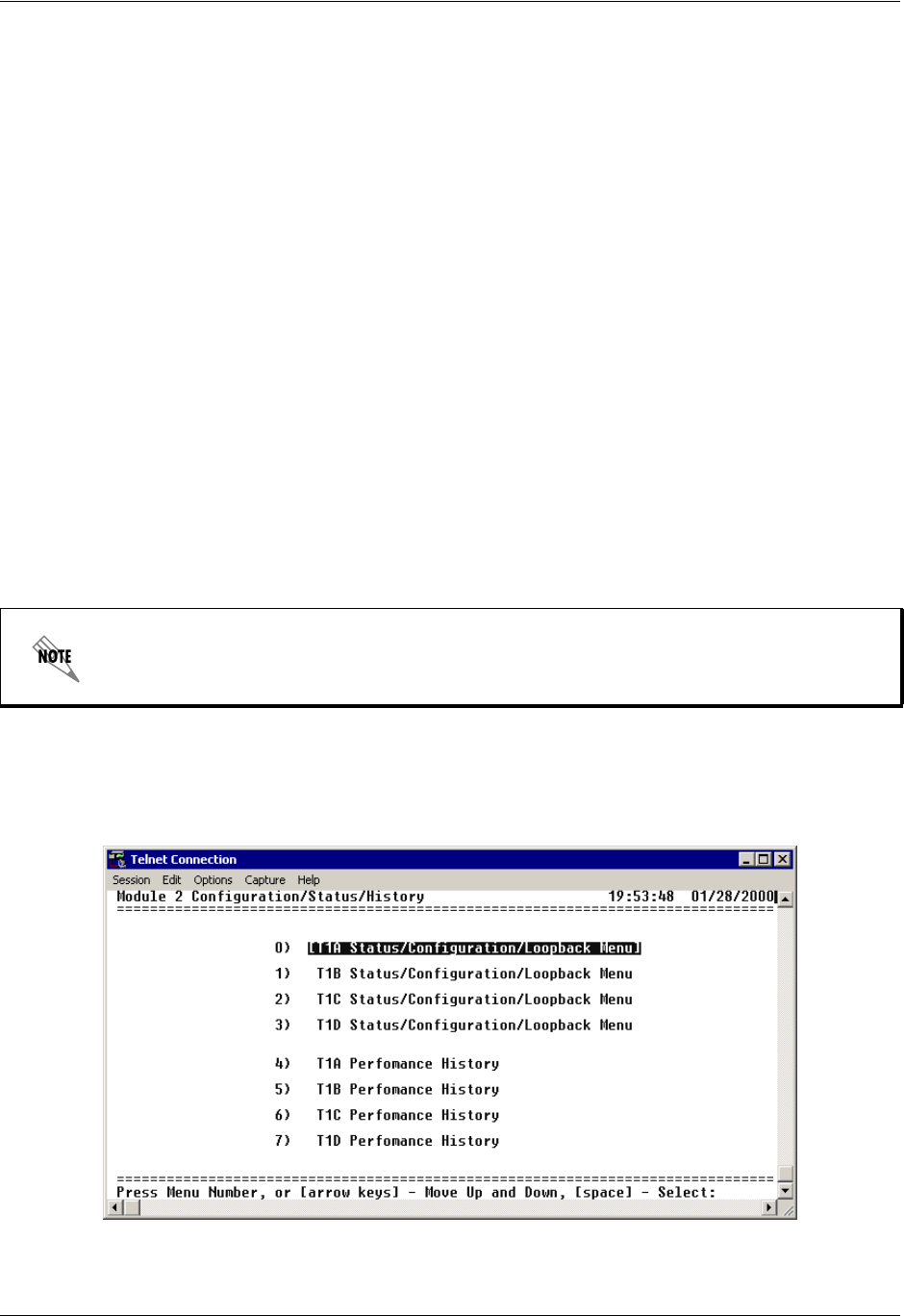

Figure 15. T1 Module Configuration/Status/History (Main Screen)

If the RF link goes down, some packet errors may display. Once the TRACER 6420 system

recognizes the link is down (an active RF Low alarm), packet errors will NOT increment.

TRACER 6420 System Manual Section 5 User Interface Guide

> T1X STATUS/CONFIGURATION/LOOPBACK

Figure 16 on page 61 shows the T1x Status/Configuration/Loopback menu page, which displays a

real-time graphical representation for the T1x link using data from both the local and remote

TRACER 6420 units. T1x operational configuration parameters and testing functions are configured from

this menu.

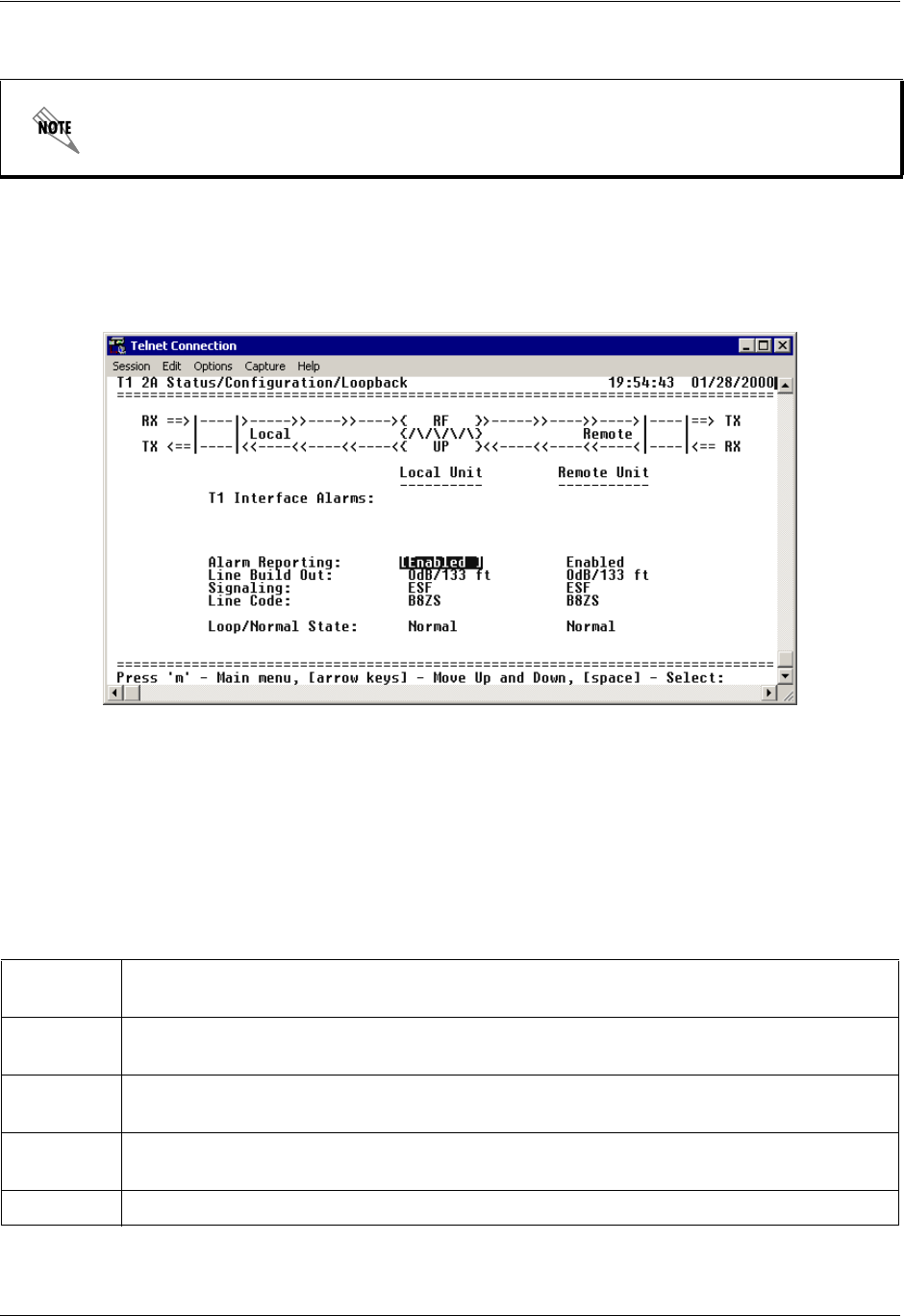

Figure 16. T1x Status/Configuration/Loopback

>T1X STATUS/CONFIGURATION/LOOPBACK > T1X INTERFACE ALARMS

Displays any active alarms on the T1 link (reported from both the local and remote TRACER 6420 units).

These alarms include Red, Blue/AIS, Yellow, LOS, and bipolar violations (BPV). Table 1 briefly

describes these alarms. See Section 8, Troubleshooting Guide, for more information on these alarms.

The following menus for the T1x Status/Configuration/Loopback apply to all four

available T1 interfaces (A through D).

Table 1. T1 Interface Alarms

RED Activates when no T1 signal is present from the connected T1 equipment. LOS is

activated after receiving 192 consecutive zeros.

BLUE/AIS Activates when an incoming remote alarm is received from a connected T1 device. An AIS

signal is an unframed All One signal that replaces the normal traffic signal.

YEL Activates when an incoming remote alarm is received from the T1 device indicating that a

failure has occurred in the received direction.

LOS Loss of sync occurs when the TRACER system cannot synchronize to the incoming T1

data stream.

BPV Activates when the incoming T1 stream presents BPVs.

Section 5 User Interface Guide TRACER 6420 System Manual

> T1X STATUS/CONFIGURATION/LOOPBACK > ALARM REPORTING

Determines whether the TRACER 6420 unit will report active alarms. If set to DISABLED, no alarms will be

displayed on this menu page. The ALARM REPORTING parameter is independently configured for the local

and remote TRACER 6420 units. When set to DISABLED, the TRACER 6420 does not report active alarms

via SNMP or the CRAFT port and the status LEDs are off. By default, alarm reporting is set to ENABLED.

>T1X STATUS/CONFIGURATION/LOOPBACK > T1X LINE BUILD OUT

Configures the T1 for the appropriate line buildout, based on the distance to the T1 equipment. By default,

the line buildout for the TRACER 6420 is 0 dB/133 FT.

> T1X STATUS/CONFIGURATION/LOOPBACK > SIGNALING

Configures the framing format for the T1 link for both the local and remote TRACER 6420 units. The

TRACER 6420 transports T1 data across the link (as long as the T1 signal is properly timed). Configure

the framing format (using the SIGNALING menu) to enable the TRACER 6420 to monitor incoming framing

error events and indicate problems with the attached metallic service. The TRACER 6420 supports both

extended superframe (ESF) and superframe (D4) framing formats. By default, the signaling method is set

to ESF.

> T1X STATUS/CONFIGURATION/LOOPBACK > LINE CODE

Sets the line coding for the T1 link. The TRACER 6420 supports bipolar eight-zero substitution (B8ZS)

and alternate mark inversion (AMI) line coding. By default, the line code is set to B8ZS.

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE

Controls the loop status of the T1 link. Activates/deactivates loopback conditions for testing purposes.

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > NORMAL

Defines the T1 link as normal data transport mode; there are no active loopbacks.

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINK [LOCAL]

Activates a loopback at the local TRACER 6420 T1 framer towards the remote end of the wireless link

(see Figure 17). Use the local LINK loopback to loop the data transmitted from the remote end of the link

back across the radio link to the remote end of the link. This loopback tests the integrity of the radio link

and all the associated digital and RF hardware.

Figure 17. T1 Local Link Loopback

TRACER 6420 System Manual Section 5 User Interface Guide

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINK [REMOTE]

Activates a loopback at the remote TRACER 6420 T1 framer towards the local end of the wireless link

(see Figure 18). Use the remote LINK loopback to loop the data transmitted from the local end of the link

across the radio link to the local end of the link. This loopback tests the integrity of the radio link and all

the associated digital and RF hardware.

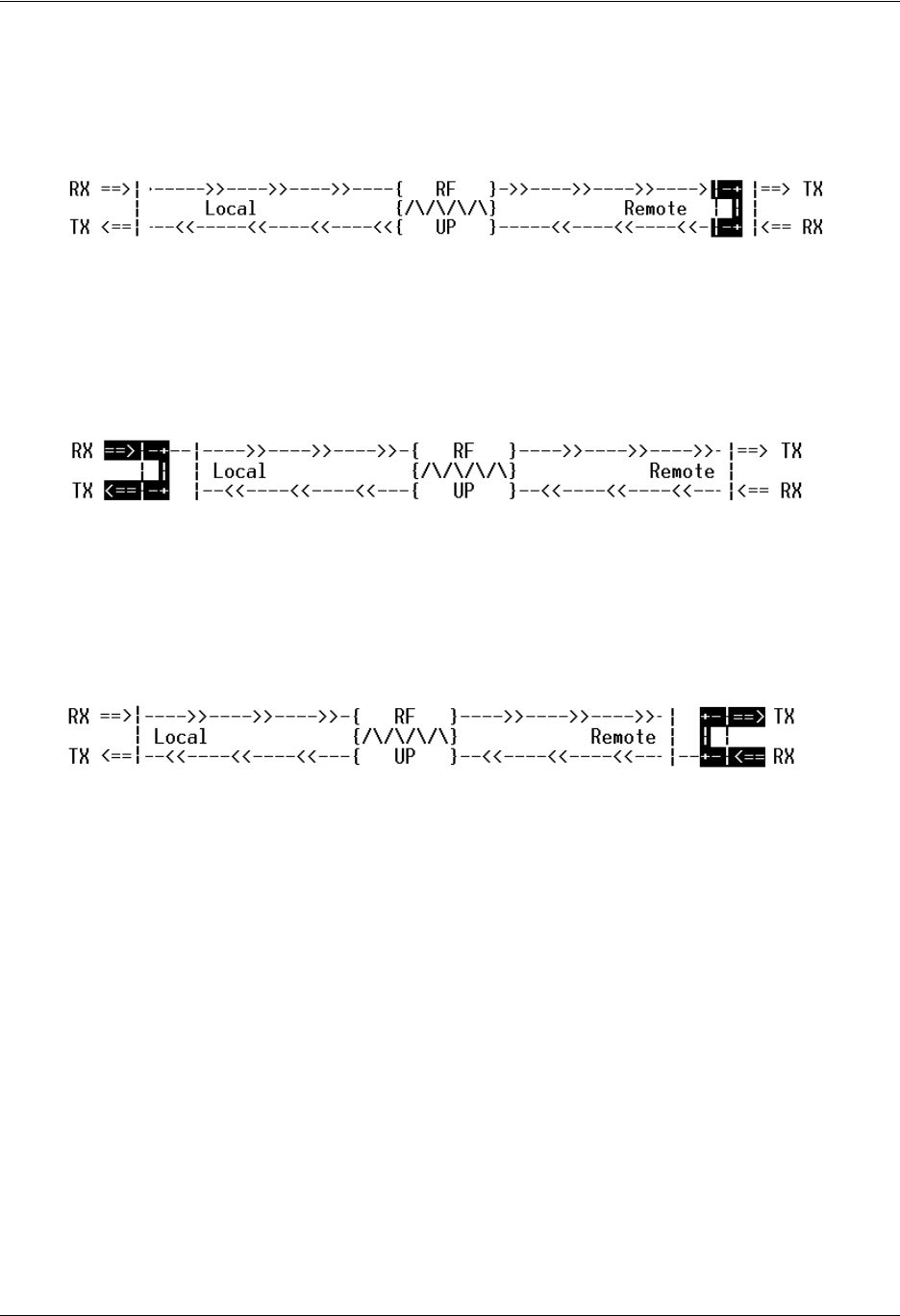

Figure 18. T1 Remote Link Loopback

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINE [LOCAL]

Activates a loopback at the local TRACER 6420 T1 framer towards the connected T1 equipment (see

Figure 19). Use the local LINE loopback to test data path integrity from the local TRACER 6420 unit to the

connected T1 equipment.

Figure 19. T1 Local Line Loopback

> T1X STATUS/CONFIGURATION/LOOPBACK > LOOP/NORMAL STATE > LINE [REMOTE]

Activates a loopback at the remote TRACER 6420 T1 framer towards the connected T1 equipment at the

remote end of the link (see Figure 20). Use the remote LINE loopback to test data path integrity from the

remote TRACER 6420 unit to the T1 equipment connected at the remote end of the link.

Figure 20. T1 Remote Line Loopback

Section 5 User Interface Guide TRACER 6420 System Manual

> T1X PERFORMANCE HISTORY

Figure 21 on page 64 shows the T1x Performance History menu page, which displays detailed error

statistics for the T1 link (from both the local and remote TRACER 6420 units) in 15-minute and 24-hour

increments.

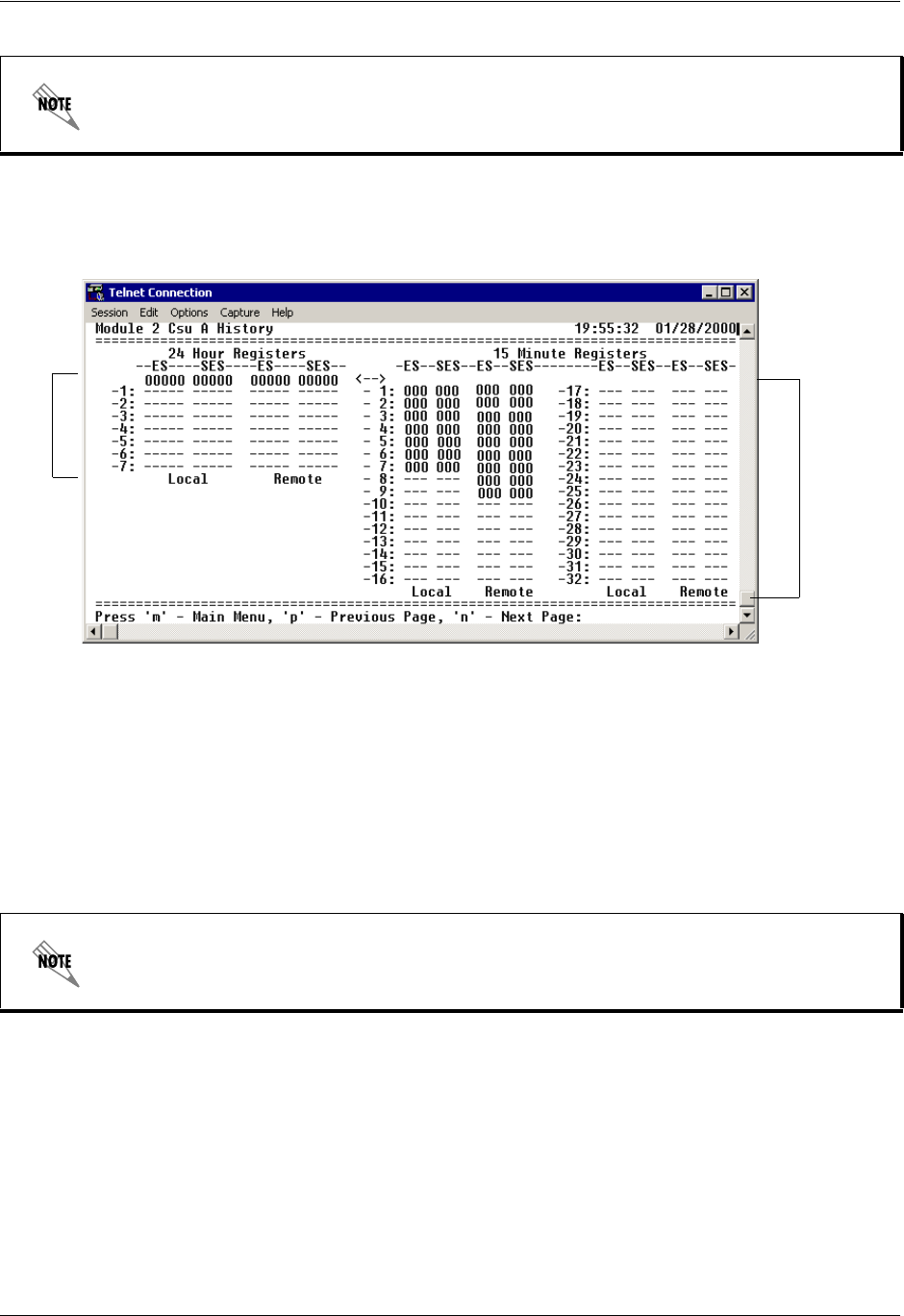

Figure 21. T1x Link Performance History

T1 performance data is presented as Errored Seconds (ES) and Severely Errored Seconds (SES) on the T1

interface. The following events qualify as an ES–AIS, LOS or LOF Alarm Second, a single BPV,

excessive zero event, or a single parity bit. An SES is caused by an AIS, LOS or LOF Alarm Second,

excessive BPVs, or framed parity bit errors causing a line bit error rate (BER) of 10-6.

The error counts for the most recent 24 hours are recorded in 15-minute increments and displayed on the

right side of the page. The left side of the page displays the 24-hour totals for the most recent 7 days.

The following menus for the T1x Performance History apply to all four available T1

interfaces (A through D).

Press <n> to view the next 8 hours worth of 15-minute totals and <p> to view the previous

8 hours.

Hours

Days

(8 Hrs

Displayed

at a Time)

TRACER 6420 System Manual Section 5 User Interface Guide

> MANAGEMENT/UTILITIES (MAIN SCREEN)

Figure 22 shows the TRACER 6420 Management/Utilities main screen, which contains access to the

SNMP configuration, firmware upgrade options, and a ping utility for Ethernet testing.

Figure 22. Management/Utilities (Main Screen)

> MANAGEMENT/SNMP PORT CONFIGURATION

Figure 23 shows the Management/SNMP Port Configuration menu page, which contains the configuration

parameters for the 10/100BaseT MGMT Ethernet interface and SNMP configuration parameters (from both

the local and remote TRACER 6420 units).

Figure 23. Management/SNMP Port Configuration

Section 5 User Interface Guide TRACER 6420 System Manual

> MANAGEMENT/SNMP PORT CONFIGURATION > IP ADDRESS

Lists the address assigned to the 10/100BaseT MGMT Ethernet port. This address is in dotted decimal

notation (four decimal numbers, each in the range of 0 to 255, separated by periods). This value is set to

192.168.0.1 by default. Obtain the correct IP address from your LAN administrator.

> MANAGEMENT/SNMP PORT CONFIGURATION > NET MASK

Defines which part of a destination IP address contains the network number. This address is in dotted

decimal notation (four decimal numbers, each in the range of 0 to 255, separated by periods). This value

is set to 255.255.255.0 by default. This part of the destination IP address is used along with the

TRACER 6420 IP address to determine which nodes must be reached through the default IP gateway.

> MANAGEMENT/SNMP PORT CONFIGURATION > DEFAULT GATEWAY

Defines or changes the default gateway. You will need a default gateway if the LAN contains multiple

segments. This address is in dotted decimal notation (four decimal numbers, each in the range of 0 to 255,

separated by periods). This value is set to 192.168.0.254 by default. Contact your LAN administrator for

the appropriate address.

> MANAGEMENT/SNMP PORT CONFIGURATION > MAC ADDRESS

(Read Only) Displays the system Ethernet Media Access Control (MAC) address.

> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP GET COMMUNITY

Defines the community name for Get access (to poll the TRACER 6420 for status information). This value

must match the Get name defined on the network management stations (NMS). Get access is read only

access. The default name is public.

> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP PUT COMMUNITY

Defines the community name for Set access (to change TRACER 6420 configuration parameters through

SNMP). This value must match the Get or Set name defined on the NMS. The default name is private.

> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP TRAP COMMUNITY

Defines the community name for trap destinations. This name must match the community name defined on

the NMS. The default name is SNMP_trap.

> MANAGEMENT/SNMP PORT CONFIGURATION > SNMP TRAP HOST #0 - #4

Identifies the IP address in dotted decimal notation of the NMS for the TRACER 6420 to send SNMP traps

to. Up to five trap destinations can be entered.

TRACER 6420 System Manual Section 5 User Interface Guide

> PING UTILITY

Figure 24 shows the Ping Utility menu page, which contains the parameters for performing a ping test out

of the 10/100BaseT MGMT Ethernet interface.

Figure 24. Ping Utility

> PING UTILITY > PING ADDRESS

Specifies the IP address to ping (in dotted decimal notation).

> PING UTILITY > NUMBER OF PACKETS

Specifies the number of ping packets to send to the IP address specified in the PING ADDRESS field. The

default value is 4, and the maximum value is 99.

> PING UTILITY > PACKET SIZE (BYTES)

Specifies the size (in bytes) of the data portion of the ping request. The default value is 64 bytes, and the

maximum size is 1024 bytes.

> PING UTILITY > TIMEOUT (MS)

Specifies the time (in milliseconds) to wait for a ping reply before timing out. The default timeout is

3 seconds (3000 milliseconds), and the maximum value is 10 seconds (10000 milliseconds).

> PING UTILITY > PING COMMAND

Use this field to manually start (START) or stop (ABORT) a ping request, reset the ping statistics (RESET

STATS), or return the ping configuration parameters to their default values (DEFAULT VALUES).

Section 5 User Interface Guide TRACER 6420 System Manual

> PING UTILITY > DELAY

(Read Only) Displays the round trip time (in milliseconds) of the ping request/reply of the current set of

pings and provides the following information:

>PING UTILITY > PACKETS

(Read Only) Displays the packet statistics for the ping request/reply of the current set of pings and provides

the following information:

> FIRMWARE UPGRADE UTILITY

Figure 25 shows the Firmware Upgrade Utility menu page, which contains the parameters for performing a

firmware upgrade for the local and remote systems.

Figure 25. Firmware Upgrade Utility

MINIMUM The minimum round trip time of the ping request/reply for the

current set of pings.

MAXIMUM The maximum round trip time of the ping request/reply for the

current set of pings.

AVERAGE The average round trip time of the ping request/reply for the

current set of pings.

TXThe number of ping requests transmitted.

RXThe number of ping replies received.

LOST The number of ping requests that did not receive replies.

TRACER 6420 System Manual Section 5 User Interface Guide

> FIRMWARE UPGRADE UTILITY > FILE XFER METHOD

Lists the available transfer methods for updating the TRACER 6420 system. The following selections are

available:

> FIRMWARE UPGRADE UTILITY > TFTP SERVER

(Available for TFTP transfers only.) Configures the IP address of the TFTP server on which the update file

resides. The TRACER 6420 uses this field to locate the network TFTP server and request the file transfer.

> FIRMWARE UPGRADE UTILITY > TFTP FILENAME

(Available for TFTP transfers only.) Specifies the name of the update file to retrieve from the TFTP server.

Enter the full filename for the file. Some TFTP servers require the full path name for any file not located in

the default directory. Refer to the TFTP software documentation for more details.

> FIRMWARE UPGRADE UTILITY > UPGRADE DESTINATION

Specify the unit to upgrade. The following options are available:

> FIRMWARE UPGRADE UTILITY > COMMAND

Use this command to start (START) or stop (ABORT) a firmware upgrade. For XMODEM updates, cancel

the process via the terminal emulation software (consult your documentation for the information on how to

do this). For TFTP updates, you can cancel the process by selecting ABORT from this field.

> FIRMWARE UPGRADE UTILITY > LOCAL CURRENT STATUS

(Available for TFTP updates only.) Indicates progress or problems encountered during the current upgrade

of the local unit. The field displays IDLE if no update is in progress or when the update is successfully

completed. At the end of a successful update, the contents of this field are copied into the Local Previous

Status. For a detailed listing of these messages, please refer to DLP-5, Updating the Firmware Using

TFTP.

TFTP LOCAL MGMT PORT Upgrade the firmware using a trivial file transfer protocol (TFTP)

server that is located on the same Ethernet network as the local

system. TFTP transfers files by specifying an appropriate server

address and filename.

TFTP REMOTE MGMT PORT Upgrade the firmware using a TFTP server that is located on the same

Ethernet network as the remote system. TFTP transfers files by

specifying an appropriate server address and filename.

XMODEM Upgrade the firmware using XMODEM software on a terminal or PC

that is connected to the CRAFT interface of the local system.

LOCAL IDU Upgrade the local system.

REMOTE IDU Upgrade the remote system. When upgrading the remote system, the

upgrade file is first loaded into the local system and then transferred

over the wireless link to the remote system. The actual upgrade

process is not started on the remote system until the entire upgrade

file has been received.

Section 5 User Interface Guide TRACER 6420 System Manual

> FIRMWARE UPGRADE UTILITY > LOCAL PREVIOUS STATUS

(Available for TFTP updates only.) Displays the status of the previous update of the local unit. Following a

successful update, this field reads UPGRADE FINISHED SUCCESSFULLY. If an update was unsuccessful, the

appropriate error message displays. Refer to DLP-5, Updating the Firmware Using TFTP, for more details

on available error messages.

> FIRMWARE UPGRADE UTILITY > REMOTE CURRENT STATUS

(Available for TFTP updates only.) Indicates progress or problems encountered during the current upgrade

of the remote unit. The field displays IDLE if no update is in progress or when the update is successfully

completed. At the end of a successful update, the contents of this field are copied into the Local Previous

Status. For a detailed listing of these messages, please refer to DLP-5, Updating the Firmware Using

TFTP.

> FIRMWARE UPGRADE UTILITY > REMOTE PREVIOUS STATUS

(Available for TFTP updates only.) Displays the status of the previous update of the remote unit. Following

a successful update, this field reads UPGRADE FINISHED SUCCESSFULLY. If an update was unsuccessful, the

appropriate error message displays. Refer to DLP-5, Updating the Firmware Using TFTP, for more details

on available error messages.

DETAIL LEVEL PROCEDURES

DLP-1 Connecting a VT100 Terminal or PC to the CRAFT Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

DLP-2 Logging in to the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

DLP-3 Setting IP Parameters for the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

DLP-4 Verifying Communications Over an IP LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

DLP-5 Updating the Firmware Using TFTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

DLP-6 Updating the Firmware Using XMODEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Section 6 Detail Level Procedures TRACER 6420 System Manual

DLP-1 Connecting a VT100 Terminal or PC to the CRAFT Port

Introduction

TRACER 6420 management and provisioning are facilitated by a series of intuitive menus that are

accessible on a computer screen. Connecting either a VT100 terminal or a PC with terminal emulation

software to the CRAFT interface (DB-9) on the front of the unit allows access to the menus and

management features of the TRACER 6420. This section specifies how to connect the VT100 terminal or

PC to the TRACER 6420.

Prerequisite Procedures

The TRACER 6420 must be powered up for terminal communication to function.

Tools and Materials Required

• A VT100 compatible terminal or PC with terminal emulation software

• An appropriate cable to connect the TRACER 6420 to a terminal

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

Section 6 DLP-1 TRACER 6420 System Manual

1. Connecting a VT100 terminal to the TRACER 6420:

2. Connecting a PC emulating a VT100 terminal to the TRACER 6420:

Most PCs or laptops can run communications software that emulates a VT100 terminal. Examples

include Windows programs such as Terminal® or Hyperterminal®. However, there are many other

adequate, commercially available software packages which will allow your PC or laptop to emulate a

VT100 terminal.

You are now ready to log in to the TRACER 6420, as described in DLP-2, Logging in to the TRACER 6420.

Perform one of the following steps:

• Set the parameters of the VT100 terminal or PC to:

– 9600 baud rate

– 8 data bits

– No parity

– 1 stop bit

– No flow control

• If the terminal has a parallel setting, disable this setting and use the serial port.

Using the CRAFT Port

• Plug the DB-9 male end of the data cable into the TRACER 6420 CRAFT port on the front

of the unit. Make the connection to the VT100 terminal as appropriate for your equipment.

• Set the parameters of the communications software to:

– 9600 baud rate

– 8 data bits

– No parity

– 1 stop bit

– No flow control

• Set the PC for direct connect on the appropriate com port (instead of dial up connection).

Using the CRAFT Port

• Plug the DB-9 male end of the data cable into the TRACER 6420 CRAFT port on the front

of the unit. Make connection to the PC or laptop as appropriate for your equipment.

DLP-2 Logging in to the TRACER 6420

Introduction

Once you are connected to the TRACER 6420, you must log in to the system to gain access to the

management and provisioning functions. This DLP assumes you are connected to the TRACER 6420 and

provides specific steps for logging into the system.

Prerequisite Procedures

Complete DLP-1, Connecting a VT100 Terminal or PC to the CRAFT Port.

see

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

After the IP parameters have been provisioned (see DLP-3, Setting IP Parameters for the

TRACER 6420), you can also log in via Telnet.

Section 6 DLP-2 TRACER 6420 System Manual

1. After connecting to the system, press any key to display the LOGIN screen shown here. The flashing

cursor at the LOGIN field indicates that a password must be entered.

2. Enter the password for the TRACER 6420 at the LOGIN field. The manufacturer’s default password for

the TRACER 6420 system is “password” in lowercase letters.

3. Upon entering the correct password, the TRACER 6420 SYSTEM STATUS page is displayed as shown

below.

4. You are now logged in to the TRACER 6420 menu system.

Perform the steps below in the order listed.

DLP-3 Setting IP Parameters for the TRACER 6420

Introduction

If the TRACER 6420 is connected to an IP network for Telnet, TFTP, or SNMP management, several IP

parameters must be set for the unit to communicate with the network. These parameters are described in

this DLP along with the procedures for setting them.

Prerequisite Procedures

This procedure assumes that the TRACER 6420 unit is connected to an IP network and is powered up.

Please see your Network Administrator for the proper assignment of the following

parameters: IP ADDRESS, SUBNET MASK, and DEFAULT GATEWAY.

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

Section 6 DLP-3 TRACER 6420 System Manual

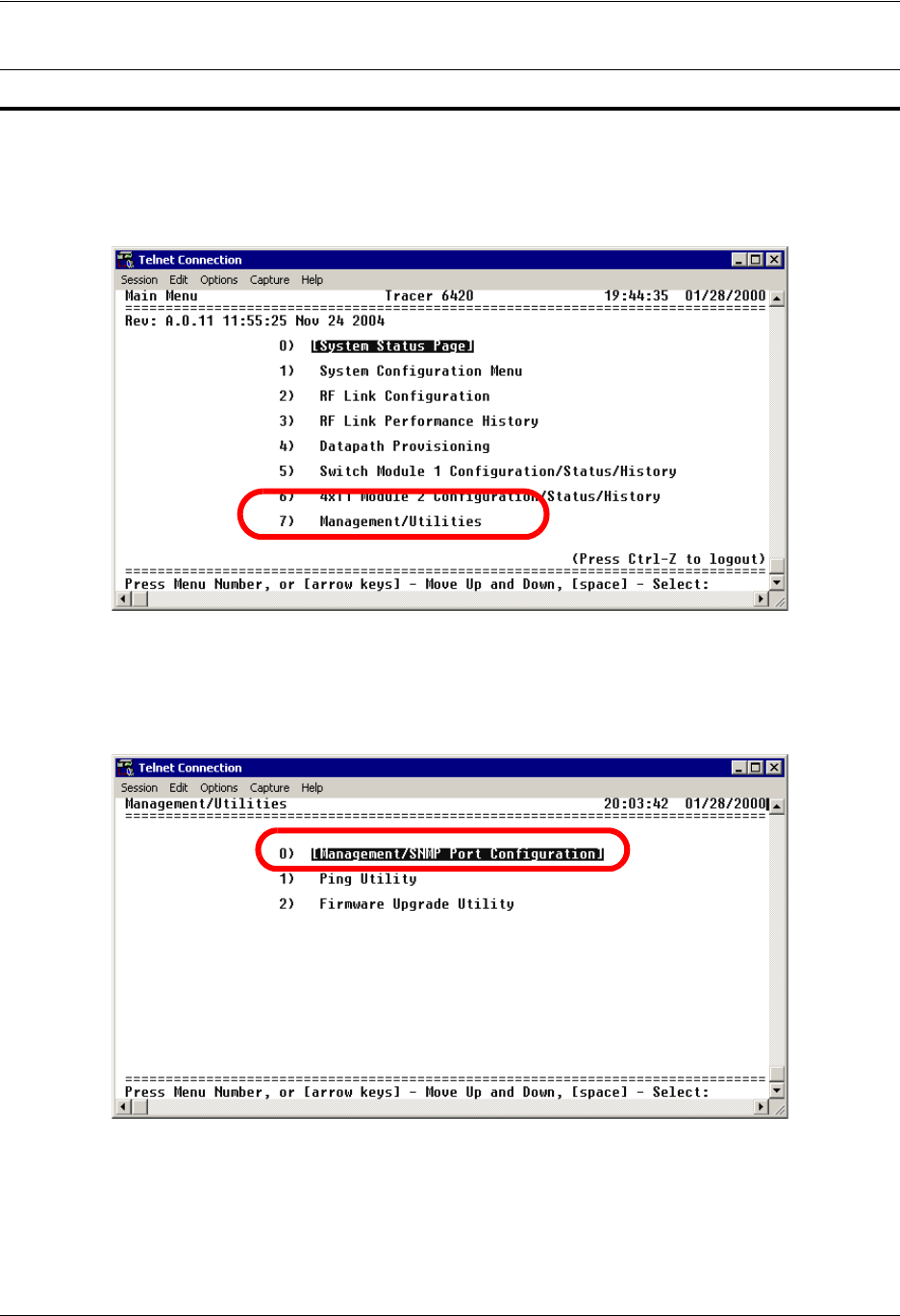

1. Log in to the system with maximum rights (details are in DLP-2).

2. Press M to activate the Main menu page. From the Main menu page, press 7 to select

MANAGEMENT/UTILITIES.

3. From the MANAGEMENT/UTILITIES page, select the MANAGEMENT/SNMP PORT CONFIGURATION option

and press <Enter>.

Perform the steps below in the order listed.

TRACER 6420 System Manual Section 6 DLP-3

4. From the Management/SNMP Configuration menu page, select the IP ADDRESS field and press

<Enter>. Type the IP address provided by your network manager and press <Enter> to accept the

change. Repeat the process for the SUBNET MASK and DEFAULT GATEWAY options.

The TRACER 6420 is now available for Telnet access. Complete the steps outlined in DLP-4, Verifying

Communications Over an IP LAN.

Section 6 DLP-3 TRACER 6420 System Manual

612806420L1-1A 81

DLP-4 Verifying Communications Over an IP LAN

Introduction

When the 10/100BaseT MGMT port is connected to a local area network (LAN), test steps must be

performed on the TRACER 6420 to ensure that the unit is communicating properly over the network. This

procedure outlines those steps.

Prerequisite Procedures

Before beginning this procedure, the unit should be physically connected to the LAN and the provisioning

tasks detailed in DLP-3, Setting IP Parameters for the TRACER 6420, should be complete.

Tools and Materials Required

• Access to a PC or other computer connected to the LAN

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

Section 6 DLP-4 TRACER 6420 System Manual

82 612806420L1-1A

1. Verify the TRACER 6420 IP address.

If you do not already have the IP Address for the TRACER 6420, obtain it from the network

administrator or manually check for the address on the MANAGEMENT/SNMP CONFIGURATION page.

(Access the MANAGEMENT/SNMP CONFIGURATION page by pressing 7 and then 1 from the Main menu

page.)

2. Ping the TRACER 6420 unit from a remote computer on the network.

Using a remote computer system connected to the LAN, perform an ICMP Ping on the IP Address of

the TRACER 6420. Verify that the unit responds properly. If the TRACER 6420 fails to respond, try

the following:

• Verify that the proper IP Address, Subnet Mask, and Default Gateway are provisioned in the unit

(see DLP-3, Setting IP Parameters for the TRACER 6420, for details).

• Verify that the TRACER 6420 is properly cabled into the LAN and that the Ethernet cable is

properly seated in the RJ-45 jack on the rear of the unit.

• If the TRACER 6420 is connected to a hub or other network device that provides a carrier sense

light for each port, verify that the carrier sense light for the port to which the TRACER 6420 is

connected is lit. If this light is not lit, check the cabling between the hub and the shelf. The

connection may also be verified using the activity LED located on the rear of the unit (part of the

10/100BaseT MGMT RJ-45 connector).

• Verify the IP Address, Subnet Mask, and Default Gateway on the remote computer system.

• If none of these steps are successful, contact the LAN Administrator for assistance.

Perform the following steps in the order listed.

Refer to the computer system’s documentation if you are unsure how to perform a Ping

command. Most computers running a networked version of Microsoft Windows™ or UNIX

allow a Ping to be performed by typing ping <IP Address> at a command line prompt.

Typically, the Ping program will respond by indicating that the remote IP Address has

responded in a certain amount of time or that no response was received.

Some versions of Ping will continue running until you explicitly tell them to stop. If the

program does not terminate on its own, type <CTRL+C> to stop the program.

TRACER 6420 System Manual Section 6 DLP-4

612806420L1-1A 83

3. Telnet to the TRACER 6420.

From the same computer used in the previous step, Telnet to the TRACER 6420 and verify that the

Telnet session is properly opened. Once the Telnet session is established, press <CTRL+Z> to logout

of the session and return to the Login screen. Pressing <CTRL + Z> again closes the Telnet session.

Refer to the documentation of the computer system if you are unsure how to initiate a

Telnet session. Most computers running a networked version of Microsoft Windows™ or

UNIX initiate a Telnet session by typing telnet <IP Address> at a command line prompt.

The Windows XP HyperTerminal program also provides a Telnet client. Telnet is a utility

common on many local area networks that allows remote access to another computer or

piece of equipment.

Section 6 DLP-4 TRACER 6420 System Manual

84 612806420L1-1A

DLP-5 Updating the Firmware Using TFTP

Introduction

The TRACER 6420 supports firmware updates using TFTP or XMODEM. Use the 10/100BaseT MGMT

Ethernet port and TFTP from a network server or XMODEM (if your Telnet client supports file transfers),

or use XMODEM and the CRAFT interface. This DLP provides the steps for a successful firmware

upgrade using the 10/100 BaseT MGMT Ethernet port and a TFTP server. (See DLP-6, Updating the

Firmware Using XMODEM, for instructions on using XMODEM.)

Tools and Materials Required

• A PC with Telnet client software

• A TFTP server accessible on the network

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm.

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

Section 6 DLP-5 TRACER 6420 System Manual

1. Connect to the TRACER 6420 using the 10/100BaseT MGMT interface.

If you are not already connected to the unit’s 10/100BaseT MGMT port using Telnet client software,

use the procedure in DLP-3, Setting IP Parameters for the TRACER 6420, to connect to the unit.

2. Press M to go to the Main menu page.

3. Select the MANAGEMENT/UTILITIES menu and press <Enter>.

4. Select the FIRMWARE UPGRADE UTILITY menu and press <Enter>.

5. Go to the FILE XFER METHOD menu and select TFTP. The TRACER 6420 can use a TFTP server

connected to the same Ethernet network as the local unit or a TFTP server connected to the same

Ethernet network as the remote unit. Make the appropriate selection for your setup (choices are

TFTP-LOCAL MGMT PORT or TFTP-REMOTE MGMT PORT).

6. Go to the TFTP SERVER field and enter the IP address of the network TFTP server.

7. Go to the TFTP FILENAME field and enter the filename of the firmware. TRACER 6420 firmware files

have a .bin extension. When specifying the filename, include the full path if the firmware file is not

located in the TFTP default location. For example, to use a firmware file in the c:\firmware folder on

your local machine, enter c:\firmware\myfirmware.bin into the TFTP FILENAME field.

8. Select the UPGRADE DESTINATION. Using TFTP provides the capability to upgrade both sections of the

local and remote units. Valid choices are LOCAL IDU and REMOTE IDU.

View CURRENT UPDATE STATUS to verify the progress of the current firmware update or to identify any

errors encountered during the download.

During the TFTP upload, the following status messages display in CURRENT UPDATE STATUS to

indicate the progress of the upload:

Perform the following steps in the order listed.

IDLE No active firmware upgrade.

IDU RESET Indicates the firmware file transfer to the IDU is complete and the

system is rebooting to load the new firmware.

UPGRADE ABORTED Indicates the firmware upgrade was manually aborted by selecting

ABORT from the COMMAND field.

CONTACTING TFTP SERVER Indicates communication with the TFTP network server is trying to be

established with the specified server address in the TFTP SERVER IP

ADDRESS field.

REQUESTING TFTP OF

FILENAME

Indicates the TRACER 6420 is requesting TFTP access to the given

update filename and path. Please verify appropriate user rights are

selected for the specified path.

TFTP TRANSFER IN

PROGRESS

Indicates communication with the TFTP network server has been

established and the update file is being transferred between the

TRACER 6420 and the TFTP network server.

UPGRADE IMAGE IS VALID Indicates that the system image was verified as a valid image for

the specified update. Before the firmware upgrade begins, the

TRACER 6420 verifies that the image is valid. If it is not valid for the

system, UPGRADE IMAGE IS INVALID displays.

TRACER 6420 System Manual Section 6 DLP-5

UPGRADE IMAGE IS INVALID Indicates that the system image was not verified as a valid image for

the specified update. Before the firmware upgrade begins, the

TRACER 6420 verifies that the image is valid. If it is not valid for the

system, UPGRADE IMAGE IS INVALID displays.

WAITING FOR SC TRANSFER

TO BEGIN

Indicates that the local system is waiting to transfer the firmware

upgrade information to the remote system over the service channel.

Service channel communications over the RF link allow a user

connected to a local system to upgrade the firmware of a remote

system. Before the remote system begins the firmware upgrade

process, a complete copy of the new firmware image must be received

and stored in the remote system. This is done automatically when the

remote system is chosen from the UPGRADE DESTINATION field.

RECEIVING SC TRANSFER Indicates that the system is receiving the firmware upgrade information

from the remote system over the service channel. Service channel

communications over the RF link allow a user connected to a local

system to upgrade the firmware of a remote system. Before the remote

system begins the firmware upgrade process, a complete copy of the

new firmware image must be received and stored in the remote system.

This is done automatically when the remote system is chosen from the

UPGRADE DESTINATION field.

READY TO BEGIN SENDING SC

TRANSFER

Indicates that the local system is ready to transfer the firmware upgrade

information to the remote system over the service channel. Service

channel communications over the RF link allow a user connected to a

local system to upgrade the firmware of a remote system. Before the

remote system begins the firmware upgrade process, a complete copy

of the new firmware image must be received and stored in the remote

system. This is done automatically when the remote system is chosen

from the UPGRADE DESTINATION field.

SENDING SC TRANSFER Indicates that the local system is sending the firmware upgrade

information to the remote system over the service channel. Service

channel communications over the RF link allow a user connected to a

local system to upgrade the firmware of a remote system. Before the

remote system begins the firmware upgrade process, a complete copy

of the new firmware image must be received and stored in the remote

system. This is done automatically when the remote system is chosen

from the UPGRADE DESTINATION field.

VERIFYING FLASH IMAGE Indicates that the system flash image is being verified as a valid image

for the specified update. Before the new firmware is loaded into the local

flash, the TRACER 6420 verifies that the flash image is valid for the new

firmware. If it is not valid for the system, the firmware upgrade fails.

ERASING FLASH Indicates that the system flash is being erased so the new firmware

image can be loaded into the local flash. Before the new firmware is

loaded into the local flash, the TRACER 6420 verifies that the flash

image is valid for the new firmware. If it is not valid for the system, the

firmware upgrade fails.

PROGRAMMING FLASH Indicates that the new firmware image is being loaded into the local

flash. Before the new firmware is loaded into the local flash, the

TRACER 6420 verifies that the flash image is valid for the new firmware.

If it is not valid for the system, the firmware upgrade fails.

Section 6 DLP-5 TRACER 6420 System Manual

9. When the update has successfully completed, IDLE displays in the CURRENT UPDATE STATUS field and

UPGRADE FINISHED SUCCESSFULLY displays in the PREVIOUS UPDATE STATUS field.

The TRACER 6420 will restart immediately and resume operation. During reset and initialization, the

RF link between the units will not be operational.

REQUIRED COMMUNICATIONS

LINK IS DOWN

Indicates that a remote system firmware upgrade cannot be completed

due to a problem with either the RF link or the service channel. Before a

firmware upgrade begins, the system verifies that communication

between all required parts is operational. If this check fails, the firmware

upgrade fails.

UPGRADE FAILED Indicates that the firmware upgrade was unsuccessful.

UPGRADE FINISHED

SUCCESSFULLY

Indicates that the firmware upgrade completed successfully and the new

firmware should be loaded and running.

DLP-6 Updating the Firmware Using XMODEM

Introduction

The TRACER 6420 supports firmware updates of the local and remote systems using TFTP or XMODEM.

Use the 10/100BaseT MGMT port and TFTP from a network server or XMODEM (if your Telnet client

supports file transfers), or use XMODEM and the CRAFT interface. This procedure outlines the steps for a

successful firmware upgrade using the CRAFT interface and XMODEM software. The same XMODEM

steps apply for file transfers through your Telnet client (refer to your Telnet client documentation for more

details on file transfer specifics). (See DLP-5, Updating the Firmware Using TFTP, for instructions on

using TFTP.)

Tools and Materials Required

• VT100 terminal or PC with VT100 terminal emulation software

• XMODEM software

To prevent electrical shock, do not install equipment in a wet location or during a

lightning storm

Electronic equipment can be damaged by static electrical discharge. Before handling it,

put on an antistatic discharge wrist strap to prevent damage to electronic components.

Place equipment in antistatic packing material when transporting or storing. When

working on equipment, always place it on an approved antistatic mat that is electrically

grounded.

Section 6 DLP-6 TRACER 6420 System Manual

1. Connect to the TRACER 6420 using the front panel DB-9 CRAFT interface.

If you are not already connected to the unit’s CRAFT interface (either with a VT100 compatible

terminal or with a PC running VT100 emulation software), follow the procedure in DLP-1, Connecting

a VT100 Terminal or PC to the CRAFT Port. Connecting to the CRAFT interface limits the upgrade

procedure to XMODEM only.

2. Log in to the unit (see DLP-2, Logging in to the TRACER 6420 for details).

3. Press M to go to the Main menu page.

4. Select the MANAGEMENT/UTILITIES menu and press <Enter>.

5. Select the FIRMWARE UPGRADE UTILITY menu and press <Enter>.

6. Go to the FILE XFER METHOD menu and select XMODEM.

7. Select the UPGRADE DESTINATION. (Valid selections for XMODEM are LOCAL IDU and LOCAL ODU).

8. View CURRENT UPDATE STATUS to verify the progress of the current firmware update or to identify any

errors encountered during the download.

9. Select START from the COMMAND menu to start the update.

When the TRACER 6420 is ready to receive the XMODEM upload, the menu screen will clear and

display XMODEM waiting for start....<Ctrl-X> twice to Cancel. If this does not appear, please

review the steps above for possible configuration errors.

10. From the terminal emulation software, begin the XMODEM upload by using the appropriate command

sequence. This may take several minutes.

If necessary, refer to the terminal emulation software documentation for help. Also, when specifying

the filename, ensure that the file transferred is the one provided by ADTRAN. Otherwise, the update

will not complete successfully.

Because XMODEM data is being transferred inband through the menu interface, the VT100 menus of

the TRACER 6420 will be inoperable from the CRAFT interface. You can cancel the update at any

time within the terminal emulation software. (Please consult the documentation provided by the

terminal emulation software to determine how to do this).

11. When the update has successfully completed, IDLE displays in the CURRENT UPDATE STATUS field and

UPGRADE FINISHED SUCCESSFULLY displays in the PREVIOUS UPDATE STATUS field.

The TRACER 6420 will restart immediately and resume operation. During reset and initialization, the

RF link between the units will not be operational.

Alternatively, if the unit is part of a management cluster connected to the local network, you may use a

PC connected to the network to Telnet into the unit. By using the 10/100BaseT MGMT port, the

TRACER 6420 may be quickly upgraded using TFTP, provided there is a TFTP server on the local

network. (See DLP-5, Updating the Firmware Using TFTP for more details.)

Perform the following steps in the order listed.

MIBS

Provides a listing of SNMP Management Information Bases (MIBs) supported by the TRACER 6420. Traps

supported for each MIB are also listed.

CONTENTS

MIBs Supported by the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

MIB Compilation Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Traps Supported by the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

MIB Variables Supported by the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

TABLES

Table 1. MIBs Supported by the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table 2. MIB Compilation Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table 3. Traps Supported by the TRACER 6420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Table 4. MIB Variables for ad.mi2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Table 5. MIB Variables for ads1.mib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Table 6. MIB Variables for TRACER.mib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Section 7 MIBs TRACER 6420 System Manual

1. MIBS SUPPORTED BY THE TRACER 6420

Table 1 lists the MIBs supported by the TRACER 6420.

2. MIB COMPILATION ORDER

MIBs are compiled in the order shown in Table 2.

Table 1. MIBs Supported by the TRACER 6420

rfc2495.mib Standard – DS1 and E1 Interface Types

rfc2863.mib IF MIB – updated MIB II

rfc3418.mib SNMPv2 MIB

rfc3595.mib PerfHist-TC-MIB needed for RFC 2495

rfc3635.mib EtherLike MIB

adtran.mib ADTRAN product MIB needed to locate the ADTRAN specific

MIBs on the MIB node tree

ianaif.mib IF MIB needed for RFC 2495

ads1.mib ADTRAN DS1 MIB

tracer.mib TRACER Modular MIB

SNMPv2-SMI, SNMPv2-TC, and SNMPv2-CONF are not compiled, but the paths to these

files are required by your MIB compiler during setup.

Table 2. MIB Compilation Order

rfc3418.mib

ianaif.mib

rfc2863.mib

rfc3593.mib

rfc3635.mib

rfc2495.mib

adtran.mib

ads1.mib

tracer.mib

TRACER 6420 System Manual Section 7 MIBs

3. TRAPS SUPPORTED BY THE TRACER 6420

The TRACER 6420 supports the traps described in Table 3.

Table 3. Traps Supported by the TRACER 6420

MIB Trap This trap indicates that....

TRACER.mib adTRACERColdStart the unit has powered up.

adTRACERYellow a change in the YELLOW alarm state has

occurred and the YELLOW alarm is now active.

adTRACERAIS a change in the Alarm Indication Signal (AIS)

has occurred and the AIS alarm is active.

adTRACERRedAlarm a change in the RED alarm state has occurred

and the RED alarm is now active.

adTRACERLOS a change in the Loss of Signal (LOS) state has

occurred and the LOS alarm is active.

adTRACERBPV a change in the BiPolar Violation (BPV) state

has occurred and the BPV alarm is active.

adTRACERRA a change in the Frame RA (Remote Alarm) state

has occurred and the RA alarm is active.

adTRACEROOF a change in the Out Of Frame (OOF) state has

occurred and the OOF alarm is active.

adTRACERCV a change in the Code Violation (CV) state has

occurred and the CV alarm is active.

adTRACERCRC a change in the Cyclic Redundancy Check (CRC)

state has occurred and the CRC alarm is

active.

adTRACERmfLOF a change in the Loss of Multiframe (LOMF)

state has occurred and the LOMF alarm is

active.

adTRACERmfLOS a change in the Multiframe Loss of Signal

(LOS) state has occurred and the Multiframe

LOS alarm is active.

adTRACERmfAIS a change in the Multiframe Alarm Indication

Signal (AIS) state has occurred and the

Multiframe AIS alarm is active.

adTRACERmfRA a change in the Multiframe Remote Alarm (RA)

has occurred and the Multiframe RA alarm is

active.

adTRACERlineLoopback a change in the line loopback state has

occurred and the line loopback is active.

adTRACERlinkLoopback a change in the link loopback state has

occurred and the link loopback is active.

adTRACERYellowOff a change in the YELLOW alarm state has

occurred and the YELLOW alarm is now inactive.

adTRACERAISoff a change in the Alarm Indication Signal (AIS)

has occurred and the AIS alarm is inactive.

adTRACERRedAlarmOff a change in the RED alarm state has occurred

and the RED alarm is now inactive.

adTRACERLOSoff a change in the Loss of Signal (LOS) state has

occurred and the LOS alarm is inactive.

Section 7 MIBs TRACER 6420 System Manual

TRACER.mib adTRACERBPVoff a change in the BiPolar Violation (BPV) state

has occurred and the BPV alarm is inactive.

adTRACERRAoff a change in the Frame RA (Remote Alarm) state

has occurred and the RA alarm is inactive.

adTRACEROOFoff a change in the Out Of Frame (OOF) state has

occurred and the OOF alarm is inactive.

adTRACERCVoff a change in the Code Violation (CV) state has

occurred and the CV alarm is inactive.

adTRACERCRCoff a change in the Cyclic Redundancy Check (CRC)

state has occurred and the CRC alarm is

inactive.

adTRACERmfLOFoff a change in the Loss of Multiframe (LOMF)

state has occurred and the LOMF alarm is

inactive.

adTRACERmfLOSoff a change in the Multiframe Loss of Signal

(LOS) state has occurred and the Multiframe

LOS alarm is inactive.

adTRACERmfAISoff a change in the Multiframe Alarm Indication

Signal (AIS) state has occurred and the

Multiframe AIS alarm is inactive.

adTRACERmfRAoff a change in the Multiframe Remote Alarm (RA)

has occurred and the Multiframe RA alarm is

inactive.

adTRACERlineLoopbackOff a change in the line loopback state has

occurred and the line loopback is inactive.

adTRACERlinkLoopbackOff a change in the link loopback state has

occurred and the link loopback is inactive.

adTRACERLinkDown the RF link is down.

adTRACERLinkUp the RF link is up.

adTRACERRFCLinkDown the RFC link is down between the Indoor Unit

(IDU) and Outdoor Unit (ODU).

adTRACERRFCLinkUp the RFC link is up between the IDU and ODU.

adTRACERRxLow the receive level is within 10 dB of

sensitivity and the RF Low alarm is active.

adTRACERRxLevel a change in receive level has occurred and the

receive level is within normal range.

adTRACERcurrThrsESon the threshold for current Errored Seconds (ES)

has been exceeded.

adTRACERcurrThrsESoff the threshold for current ES has not been

exceeded.

adTRACERcurrThrsSESon the threshold for current Severely Errored

Seconds (SES) has been exceeded.

adTRACERcurrThrsSESoff the threshold for current SES has not been

exceeded.

Table 3. Traps Supported by the TRACER 6420 (Continued)

MIB Trap This trap indicates that....

TRACER 6420 System Manual Section 7 MIBs

4. MIB VARIABLES SUPPORTED BY THE TRACER 6420

Table 4. MIB Variables for ad.mi2

adProducts

adProductInfo

adProdName DisplayString RO

adProdPartNumber DisplayString RO

adProdCLEIcode DisplayString RO

adProdSerialNumber DisplayString RO

adProdRevision DisplayString RO

adProdSwVersion DisplayString RO

adProdPhysAddress PhysAddress RO

adProdProductID

adProdTransType DisplayString RO

adMgmt

adAdmin

adPerform

adShared

adIdentity

adIdentityShared

adAgentCapModule

adAgentCapProduct

adAgentCapShared

adConformance

adCompliances

Section 7 MIBs TRACER 6420 System Manual

Table 5. MIB Variables for ads1.mib

adDS1AlarmTable

adDS1AlarmEntry

adDS1AlarmIndex Integer RO

adDS1AlarmEnable Integer RW

adDS1LineEvent Integer RO

adDS1LineArm Integer RW

adDS1AlertTable

adDS1AlertEntry

adDS1AlertIndex Integer RO

adDS1AlertEnable Integer RW

adDS1CurrentAlert Integer RO

adDS1TotalAlert Integer RO

adDS1FarCurrentAlert Integer RO

adDS1FarTotalAlert Integer RO

adDS1CurrentArm Integer RW

adDS1TotalArm Integer RW

adDS1FarCurrentArm Integer RW

adDS1FarTotalArm Integer RW

adDS1CurrentThreshold

adDS1CurrentThrsES Integer RW

adDS1CurrentThrsSES Integer RW

adDS1CurrentThrsSEFS Integer RW

adDS1CurrentThrsUAS Integer RW

adDS1CurrentThrsCSS Integer RW

adDS1CurrentThrsPCVsf Integer RW

adDS1CurrentThrsPCVesf Integer RW

adDS1CurrentThrsLES Integer RW

adDS1CurrentThrsLCV Integer RW

adDS1TotalThreshold

adDS1TotalThrsES Integer RW

adDS1TotalThrsSES Integer RW

adDS1TotalThrsSEFS Integer RW

adDS1TotalThrsUAS Integer RW

adDS1TotalThrsCSS Integer RW

adDS1TotalThrsPCVsf Integer RW

adDS1TotalThrsPCVesf Integer RW

adDS1TotalThrsLES Integer RW

adDS1TotalThrsLCV Integer RW

TRACER 6420 System Manual Section 7 MIBs

Table 6. MIB Variables for TRACER.mib

adTRACER6420mg

adTRACER6420status

adTRACERRFlinkState DisplayString RO

adTRACERRFClinkState DisplayString RO

adTRACERrfLow DisplayString RO

adTRACERRXquality DisplayString RO

adTRACERRXLevel DisplayString RO

adTRACERFrequencyPlan DisplayString RO

adTRACERLEDStatus DisplayString RO

adTRACERSlot1 DisplayString RO

adTRACERSlot2 DisplayString RO

adTRACER6420cfg

adTRACERBaudRate Integer RW

adTRACERBandPlan Integer RW

adTRACERactiveChannels Integer RW

adTRACERchannelSelect

adTRACERdsx1ChannelSelectTable

adTRACERdsx1ChannelSelectEntry

AdTRACERdsx1ChannelSelectEntry

adTRACERdsx1ChannelSelectIdx Integer RO

adTRACERdsx1ChannelSelection Integer RW

adTRACERswitchChannelSelectTable

adTRACERswitchChannelSelectEntry

AdTRACERswitchChannelSelectEntry

adTRACERswitchChannelSelectIdx Integer RO

adTRACERswitchChannelSelection Integer RW

adTRACERTxPower DisplayString RW

adTRACERalarmTable

AdTRACERAlarmEntry

adTRACERalarmEntry

adTRACERalarmNumber Integer RO

adTRACERAlarmReporting Integer RW

adTRACERClearHistory Integer RW

adTRACERrfTrapEnable Integer RW

adTRACERswitchModuleCfg

adTRACERswitchPortCfgTable

adTRACERswitchPortCfgEntry

AdTRACERswitchPortCfgEntry

adTRACERswitchPortIdx Integer RO

adTRACERswitchPortEnable Integer RO

adTRACERswitchPortSpeedDuplex Integer RW

Section 7 MIBs TRACER 6420 System Manual

adTRACERswitchModuleStatus

adTRACERswitchPortStatusTable

adTRACERswitchPortStatusEntry

AdTRACERswitchPortStatusEntry

adTRACERswitchPortStatusIdx Integer RO

adTRACERswitchPortTxPackets Integer RO

adTRACERswitchPortTxPacketsDrop Integer RO

adTRACERswitchPortRxPackets Integer RO

adTRACERswitchPortRxPacketsDrop Integer RO

adTRACERswitchPortRxPacketError Integer RO

adTRACERswitchWanStatusTable

adTRACERswitchWanStatusEntry

AdTRACERswitchWanStatusEntry

adTRACERswitchWanStatusIdx Integer RO

adTRACERswitchWanTxPackets Integer RO

adTRACERswitchWanTxPacketsDrop Integer RO

adTRACERswitchWanRxPackets Integer RO

adTRACERswitchWanRxPacketsDrop Integer RO

adTRACERswitchWanRxPacketError Integer RO

adTRACER6420ip

adTRACERIpAddress IpAddress RO

adTRACERSubnetMask IpAddress RO

adTRACERGatewayIp IpAddress RO

adTRACER6420trapIP

adTRACERTrapIpHost1 IpAddress RW

adTRACERTrapIpHost2 IpAddress RW

adTRACERTrapIpHost3 IpAddress RW

adTRACERTrapIpHost4 IpAddress RW

adTRACERTrapIpHost5 IpAddress RW

adTRACER6420current

adTRACERCurrentRFs Integer RO

adTRACERCurrent24hRFs Integer RO

adTRACERCurrentRFCs Integer RO

adTRACERCurrent24hRFCs Integer RO

adTRACERCurrentRxLs Integer RO

adTRACERCurrentMaxRxLs Integer RO

adTRACERCurrent24hMaxRxLs Integer RO

adTRACERCurrentMinRxLs Integer RO

adTRACERCurrent24hMinRxLs Integer RO

adTRACERCurrentRxQs Integer RO

adTRACERCurrentMaxRxQs Integer RO

Table 6. MIB Variables for TRACER.mib (Continued)

TRACER 6420 System Manual Section 7 MIBs

adTRACERCurrent24hMaxRxQs Integer RO

adTRACERCurrentMinRxQs Integer RO

adTRACERCurrent24hMinRxQs Integer RO

adTRACERIntervalTable

AdTRACERInteralEntry

adTRACERIntervalEntry

adTRACERIntervalNumber Integer RO

adTRACERIntevalRFs Integer RO

adTRACERIntervalRFCs Integer RO

adTRACERIntervalMaxRxLs Integer RO

adTRACERIntervalMinRxLs Integer RO

adTRACERIntervalMaxRxQs Integer RO

adTRACERIntervalMinRxQs Integer RO

adTRACERIntervalValidData TruthValue RO

adTRACERtotalTable

AdTRACERtotalEntry

adTRACERtotalEntry

adTRACERtotalNumber Integer RO

adTRACERtotalRFs Integer RO

adTRACERtotalRFCs Integer RO

adTRACERtotalMaxRxLs Integer RO

adTRACERtotalMinRxLs Integer RO

adTRACERtotalMaxRxQs Integer RO

adTRACERtotalMinRxQs Integer RO

adTRACERtotalValidData TruthValue RO

adTRACER6420remoteStatus

adTRACERremoteRFlinkState DisplayString RO

adTRACERremoteRFClinkState DisplayString RO

adTRACERremoteRFLow DisplayString RO

adTRACERremoteRXquality DisplayString RO

adTRACERremoteRXLevel DisplayString RO

adTRACERremoteFrequencyPlan DisplayString RO

adTRACERremoteLEDStatus DisplayString RO

adTRACERremoteSlot1 DisplayString RO

adTRACERremoteSlot2 DisplayString RO

adTRACER6420remoteCfg

adTRACERremoteBaudRate Integer RW

adTRACERremoteBandPlan Integer RW

adTRACERremoteActiveChannels Integer RW

adTRACERremoteChannelSelect

Table 6. MIB Variables for TRACER.mib (Continued)

Section 7 MIBs TRACER 6420 System Manual

adTRACERremoteDSX1ChannelSelectTable

AdTRACERremoteDSX1ChannelSelectEntry

adTRACERremoteDSX1ChannelSelectEntry

adTRACERremoteDSX1ChannelSelectIdx Integer RO

adTRACERremoteDSX1ChannelSelection Integer RW

adTRACERremoteSwitchChannelSelectTable

AdTRACERremoteSwitchChannelSelectEntry

adTRACERremoteSwitchChannelSelectEntry

adTRACERremoteSwitchChannelSelectIdx Integer RO

adTRACERremoteSwitchChannelSelection Integer RW

adTRACERremoteTxPower DisplayString RW

adTRACERremoteAlarmTable

AdTRACERremoteAlarmEntry

adTRACERremoteAlarmEntry

adTRACERremoteAlarmNumber Integer RO

adTRACERremoteAlarmReporting Integer RW

adTRACERremoteSetPassword DisplayString RO

adTRACERremoteClearHistory Integer RW

adTRACERremoterfTrapEnable Integer RW

adTRACERremoteswitchModuleCfg

adTRACERremoteswitchPortCfgTable

adTRACERremoteswitchPortCfgEntry

AdTRACERremoteswitchPortCfgEntry

adTRACERremoteswitchPortIdx Integer RO

adTRACERremoteswitchPortEnable Integer RO

adTRACERremoteswitchPortSpeedDuplex Integer RW

adTRACERremoteswitchModuleStatus

adTRACERremoteswitchPortStatusTable

adTRACERremoteswitchPortStatusEntry

AdTRACERremoteswitchPortStatusEntry

adTRACERremoteswitchPortStatusIdx Integer RO

adTRACERremoteswitchPortTxPackets Integer RO

adTRACERremoteswitchPortTxPacketsDrop Integer RO

adTRACERremoteswitchPortRxPackets Integer RO

adTRACERremoteswitchPortRxPacketsDrop Integer RO

adTRACERremoteswitchPortRxPacketError Integer RO

adTRACERremoteswitchWanStatusTable

adTRACERremoteswitchWanStatusEntry

AdTRACERremoteswitchWanStatusEntry

adTRACERremoteswitchWanStatusIdx Integer RO

adTRACERremoteswitchWanTxPackets Integer RO

Table 6. MIB Variables for TRACER.mib (Continued)

TRACER 6420 System Manual Section 7 MIBs

adTRACERremoteswitchWanTxPacketsDrop Integer RO

adTRACERremoteswitchWanRxPackets Integer RO

adTRACERremoteswitchWanRxPacketsDrop Integer RO

adTRACERremoteswitchWanRxPacketError Integer RO

adTRACER6420remoteTrapIP

adTRACERremoteTrapIpHost1 IpAddress RW

adTRACERremoteTrapIpHost2 IpAddress RW

adTRACERremoteTrapIpHost3 IpAddress RW

adTRACERremoteTrapIpHost4 IpAddress RW

adTRACERremoteTrapIpHost5 IpAddress RW

adTRACERremotecurrent

adTRACERremoteCurrentRFs Integer RO

adTRACERremoteCurrent24hRFs Integer RO

adTRACERremoteCurrentRFCs Integer RO

adTRACERremoteCurrent24hRFCs Integer RO

adTRACERremoteCurrentRxLs Integer RO

adTRACERremoteCurrentMaxRxLs Integer RO

adTRACERremoteCurrent24hMaxRxLs Integer RO

adTRACERremoteCurrentMinRxLs Integer RO

adTRACERremoteCurrent24hMinRxLs Integer RO

adTRACERremoteCurrentRxQs Integer RO

adTRACERremoteCurrentMaxRxQs Integer RO

adTRACERremoteCurrent24hMaxRxQs Integer RO

adTRACERremoteCurrentMinRxQs Integer RO

adTRACERremoteCurrent24hMinRxQs Integer RO

adTRACERremoteIntervalTable

AdTRACERremoteInteralEntry

adTRACERremoteIntervalEntry

adTRACERremoteIntervalNumber Integer RO

adTRACERremoteIntevalRFs Integer RO

adTRACERremoteIntervalRFCs Integer RO

adTRACERremoteIntervalMaxRxLs Integer RO

adTRACERremoteIntervalMinRxLs Integer RO

adTRACERremoteIntervalMaxRxQs Integer RO

adTRACERremoteIntervalMinRxQs Integer RO

adTRACERremoteIntervalValidData TruthValue RO

adTRACERremoteTotalTable

AdTRACERremoteTotalEntry

adTRACERremoteTotalEntry

adTRACERremoteTotalNumber Integer RO

Table 6. MIB Variables for TRACER.mib (Continued)

Section 7 MIBs TRACER 6420 System Manual

adTRACERremoteTotalRFs Integer RO

adTRACERremoteTotalRFCs Integer RO

adTRACERremoteTotalMaxRxLs Integer RO

adTRACERremoteTotalMinRxLs Integer RO

adTRACERremoteTotalMaxRxQs Integer RO

adTRACERremoteTotalMinRxQs Integer RO

adTRACERremoteTotalValidData TruthValue RO

Table 6. MIB Variables for TRACER.mib (Continued)

TROUBLESHOOTING GUIDE

Provides helpful information for troubleshooting common configuration problems for the TRACER 6420.

CONTENTS

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

PWR LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

TST LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

RF DWN LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

RF LOW LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

T1 Interface Alarm LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

LAN LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

RF Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Step-by-Step Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Installing/Troubleshooting the TRACER Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Installing/Configuring T1 Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Installing/Configuring Ethernet Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Section 8 Troubleshooting Guide TRACER 6420 System Manual

1. OVERVIEW

This troubleshooting guide provides recommended actions for various conditions of the TRACER 6420

system. The status LEDs (located on the front panel of the unit) provide information to help determine the

necessary troubleshooting action. This guide contains recommended actions for resolving possible

problems indicated by the status LEDs.

2. LED INDICATORS

PWR LED

If the PWR LED is not ON and solid green, the TRACER 6420 is not receiving adequate DC power.

Recommended Actions:

1. Verify that the power source is delivering between 21 and 60 VDC.

2. Check the polarity of the power connection (referenced to ground) of both the TRACER 6420 unit and

the power source.

3. Check the internal fuse. The fuse is accessed from the rear panel of the unit. If this fuse is open,

replace with a 2 A, 250 V (2-inch) slow-blo fuse.

TST LED

The TST LED will flash once (amber) during power-up to indicate a self-test is in progress. If the TST

LED is flashing or remains ON after 10 seconds, the TRACER 6420 unit has failed the self-test. This is an

internal failure, and technical support should be contacted.

RF DWN LED

If the RF DWN LED is ON (solid red), there is a problem with the RF receive path from the remote

TRACER 6420.

Recommended Actions:

1. Verify that one end of the link is configured as Plan A and the other end as Plan B.

2. Measure the RSSI voltage and consult the RSSI calibration sheet included with the unit. If the voltage

level corresponds to a received signal power level that agrees with the calculated receive signal level,

proceed with Step 7.

3. Check the RF coaxial cable connection.

4. Verify that the antenna polarization is the same at both ends of the RF signal transmit and receive

path.

5. Verify the RF signal path is clear.

6. Check the integrity of the lightning arrestors.

7. Check for possible interference at both ends of the link. If necessary, change polarization and/or band

plans at both ends.

TRACER 6420 System Manual Section 8 Troubleshooting Guide

RF LOW LED

If the RF LOW LED is ON (solid red), the received signal is approaching 0 V of RSSI. This condition is

typically indicative of a path or installation problem.

Recommended Actions:

1. Verify the far-end transmitter power setting is the value that the link planning budget allows.

2. Check all coaxial cable connectors for solid connections. Check for water and corrosion around any of

the connectors. If water is apparent in the coaxial connectors, replace the coaxial cable and the

connectors, making sure to properly weatherproof the replacements.

3. Verify the RF signal path by verifying the antenna alignment.

4. Check the integrity of lightning arrestors.

T1 Interface Alarm LEDs

If the ALARM LED is ON (solid red), it is an indication that the TRACER 6420 is detecting an active T1

alarm. To identify the T1 interface in alarm and the specific alarm present, display the T1(X) STATUS screens

and check the T1(X) INTERFACE ALARMS field.

Recommended Actions:

1. Display the T1(X) STATUS screen and check the T1(X) INTERFACE ALARM field to identify the active alarm.

2. Follow the steps below for the appropriate alarm.

LOS Alarm (Red Alarm)

LOS ALARM is an indication that the TRACER 6420 may be unable to detect a viable T1 received signal

from the connected T1 equipment. This error may be due to a degraded signal or no signal, or may be

caused by improper framing.

Recommended Actions:

1. Verify that the T1 cable is connected to the T1 interface on the TRACER 6420.

2. Verify the connections at the opposite end of the T1 cable.

3. Verify that the framing mode (D4 or ESF) is the same for both the TRACER 6420 and the T1

equipment.

Yellow Alarm

A Yellow Alarm is generated by the attached equipment. When the attached equipment’s T1 interface is

in Red Alarm, the TRACER 6420 generates a Yellow Alarm.

Recommended Actions:

1. Follow the troubleshooting steps for Red Alarm, but do so at the attached equipment.

Blue Alarm

A remote alarm (alarm indication signal or AIS) is generated by the attached equipment. The root cause

must be determined at the attached equipment. A typical cause of a blue alarm is a lack of input to a

CSU.

Recommended Actions:

1. Verify the input to any attached data equipment.

Section 8 Troubleshooting Guide TRACER 6420 System Manual

BPV

Bipolar violations (BPVs) indicate an improper configuration or faulty wiring.

Recommended Actions:

1. Verify the TRACER 6420 unit and the attached equipment are configured for the same line coding

(B8ZS or AMI).

2. Verify the cable connections for the T1 interface are solid.

LAN LEDs

If the LAN LED is OFF, the TRACER 6420 is not able to detect an active Ethernet link on the particular

10/100BaseT/TX interface.

Recommended Actions:

1. Check all Ethernet cable connections to verify they are properly plugged in (making sure the tab on the

connector snaps into place).

2. Connect the 10/100BaseT/TX interface to a “known good” Ethernet port to verify the TRACER port is

functioning properly.

3. Try another Ethernet cable.

3. RF ERRORS

RF errors can range from a nonviable microwave path to loose RF connectors.

Nonviable path conditions could be caused by physical obstructions such as buildings, mountainous

terrain, trees, etc., as well as other physical limitations such as excessive path distances and in-band RF

interference. These types of errors are remedied by performing a detailed line-of-site microwave path

study to determine whether a microwave link is feasible for the terrain and environment under

consideration.

If after performing a microwave path study the system is still not operational, ensure that the antennas are

properly aligned. Note that alignment must be achieved in both elevation and azimuth for optimal link

performance. The TRACER 6420 can be used to aid in antenna alignment by looking at the RX POWER

“fuel gauge” on the System Status or System Option menu pages or by measuring the DC voltage (relative

to ground) at the RSSI front panel test jack. Optimal antenna alignment is achieved by peaking the front

panel RSSI voltage or the RX POWER “fuel gauge” on the TRACER 6420 terminal display. Consult the

ADTRAN TRACER Data Sheet included with the unit to verify that the actual receive signal level agrees

with the calculated receive signal.

An RSSI test point, located on the front panel, provides a DC voltage level (relative to the GND test point)

that corresponds to the amount of signal being received from the far end's transmitter. The voltage at this

test point can vary from approximately 0 to 5 VDC. An RSSI calibration sheet is shipped with the system

to provide the installer a cross-reference between actual received signal level (in dBm) and RSSI voltage.

This sheet is useful for verifying link budget calculations and ensuring proper equipment installation.

4. STEP-BY-STEP TROUBLESHOOTING

The logical troubleshooting flow presented in this section can be used to set up your TRACER 6420

system, and also to diagnose a previously installed system. Please contact Technical Support at any stage

during installation and/or troubleshooting if you require assistance.

TRACER 6420 System Manual Section 8 Troubleshooting Guide

5. INSTALLING/TROUBLESHOOTING THE TRACER HARDWARE

1. Perform a detailed path profile and link budget for each TRACER 6420 microwave link. A thorough

path study can be used to estimate signal power budgets, estimate fade margins at each receiver,

identify potential line-of-site obstacles, properly size antenna dishes, and determine minimum

antenna dish heights above the earth.

2. Set up all of the TRACER 6420 hardware on a workbench. The actual cables used in the permanent

installation should be used in the workbench setup. A rigorous workbench “simulation” of the link

will help alleviate and avoid time-consuming errors.

3. Examine the PLAN A and PLAN B LEDs on the front panel of each unit. These LEDs indicate the

frequency plan for each TRACER 6420 unit. Each TRACER link must have a Plan A radio on one

side and a Plan B radio on the other.

4. Attach the RF coaxial cables to be used in the permanent installation to the N-type connectors on the

back of the TRACER 6420 unit. Attach the other end of the coaxial cable(s) to an RF power meter or

spectrum analyzer, if either is available. The power measured by the meter/analyzer will be the RF

power available at the input of the antenna. The TRACER 6420 unit is programmed at the factory to

output approximately 100 mW (20 dBm) of RF power. The actual power level measured by the

meter/analyzer will be less than 100 mW due to RF losses through the coaxial cable, and is a function

of the cable type and length being used. In any event, the power level at the output of the coaxial cable

should be a significant fraction of 100 mW. A power meter/analyzer reading that is not on the order of

at least tens-of-milliwatts could be an indication of unsuitable RF cable or faulty or unreasonably long

coaxial cable, or a combination of these factors.

5. Resolve all RF coaxial cabling errors before proceeding.

6. Attach the RF coaxial cables to a high-quality attenuator, if possible. If you do not have an attenuator,

attach the coaxial cables to the antennas to be used in the permanent installation. If the installation

antennas are not available, small, inexpensive dipole or patch antennas can be used for verification

purposes. If an adjustable attenuator is being used, dial in the amount of attenuation that corresponds

to the path loss value expected for the microwave link in which the TRACER hardware will be

installed. The path loss value can be calculated from a knowledge of the path length, or provided by a

path study. Remember to subtract both antenna gain values from the attenuator level if these values

have not already been accounted for.

7. After setting up the RF pieces, examine the RF DOWN LED on the front panel of each

TRACER 6420 unit. If the RF DOWN LED is illuminated (red), the corresponding TRACER 6420 is

not receiving a suitable RF signal from the other TRACER 6420 unit. In this case, the receiving

TRACER 6420 is either receiving a very weak signal or no signal at all. If the RF DOWN LED is not

illuminated, then the TRACER 6420 units are receiving a suitable RF signal. Suitable RF power

levels for low error rate communication will range from -30 dBm to -88 dBm measured at the N-type

connector input on the TRACER 6420 unit.

8. Resolve any signal level issues before proceeding.

9. Examine the RF LOW LED on the front panel of each TRACER 6420. If this LED is illuminated, then

the TRACER 6420 is receiving a relatively weak signal; however, if the RF DOWN LED is not

illuminated, then the received signal is being suitably processed by the TRACER 6420 system. If you

are receiving a weak signal (RF LOW is ON), please verify that the weak signal is not being caused by

a faulty cable, an insufficiently tightened cable, or some other installation-related problem. Also,

make sure an unreasonably large attenuation value has not been selected if you are using an attenuator

on a workbench setup.

Section 8 Troubleshooting Guide TRACER 6420 System Manual

Use the tables in Section 2, Microwave Path Engineering Basics, of this manual to select the

proper free-space attenuation value (in dB) based on the estimated length of the microwave path.

Remember to subtract both antenna gains (local and remote) from the attenuator setting.

10. Test the installed modules by performing the following:

11. Command a link loopback on the remote TRACER 6420 unit and run a test pattern from the

connected T1 equipment. This will verify the data path across the RF link.

Installing/Configuring T1 Hardware

1. If possible, attach any or all of the intended T1 hardware to the TRACER 6420 units using the

same workbench setup. This step offers the perfect opportunity to configure your T1 hardware for

proper functioning with the TRACER 6420 hardware.

2. To significantly reduce the probability of an unsuccessful field installation, resolve any remaining

T1 equipment-to-TRACER 6420 configuration issues before field installation. See T1 Interface

Alarm LEDs on page 105 for more information on resolving T1 interface alarm conditions.

Installing/Configuring Ethernet Hardware

1. If possible, attach any or all of the intended Ethernet hardware to the TRACER 6420 units using

the same workbench setup. This step offers the perfect opportunity to configure your Ethernet

hardware for proper functioning with the TRACER hardware.

2. To significantly reduce the probability of an unsuccessful field installation, resolve any remaining

Ethernet equipment-to-TRACER 6420 configuration issues before field installation.

4xT1 Module

Initiate a line loopback on the local TRACER 6420 unit and run a test pattern from the connected

T1 equipment. This will verify the connection between the T1 equipment and the local

TRACER 6420 unit.

Quad Ethernet Switch Module

Connect a computer (or Ethernet test equipment) to the TRACER 6420 Ethernet interfaces.

Perform a “ping” from one test station across the wireless link to another test station connected to

the remote TRACER 6420. This will verify the data path between the test equipment and the

TRACER 6420 unit.

External pattern generators are required to test data path integrity. An T1 BERT tester is

suggested.

ADTRAN TRC6420 Tracer 6420 User Manual 612806420L1 1A

Adtran Tracer 6420 612806420L1 1A

Users Manual Revised

Navigation menu

Namespaces

Views

Navigation
