System Description
FAMA
Airport Ground Support Fleet managers are increasingly
challenged to reduce costs, improve security, and safety.
This becomes more difficult as fleets increase in number
and locations.
ADVEEZ Fleet and Asset Management System (FAMA)
provides state-of-the-art hardware and software to monitor
fleet parameters in real time. Fleet managers now have a
tool to instantly understand all key metrics of their entire
fleet regardless of equipment location globally.
ADVEEZ FAMA effectively provides a dashboard for fleet
managers with current information on each asset and op-
erator so they can re-deploy resources instantly to support
fast-paced ground service situations. In addition, under-
utilized resources can be identified and optimized to directly
reduce costs.
ADVEEZ FAMA also removes the complexities of installa-
tion and use through a simple hardware design and user-
friendly software interface. Lower Total Cost of Ownership
and faster ROI can be realized with our SaaS (Software
as a Service) approach, fast installation, and performant
low-cost hardware.
BENEFITS
Optimize Fl e e t
manage CO s t s
in C r e a s e se C u r i t y
re d u C e aCC i d e n ts
imprOve ma i ntenanC e
FLEET andASSET MANAGEMENT forAIRPORTS
System Overview
www.adveez.com SYS-FAMA-V0

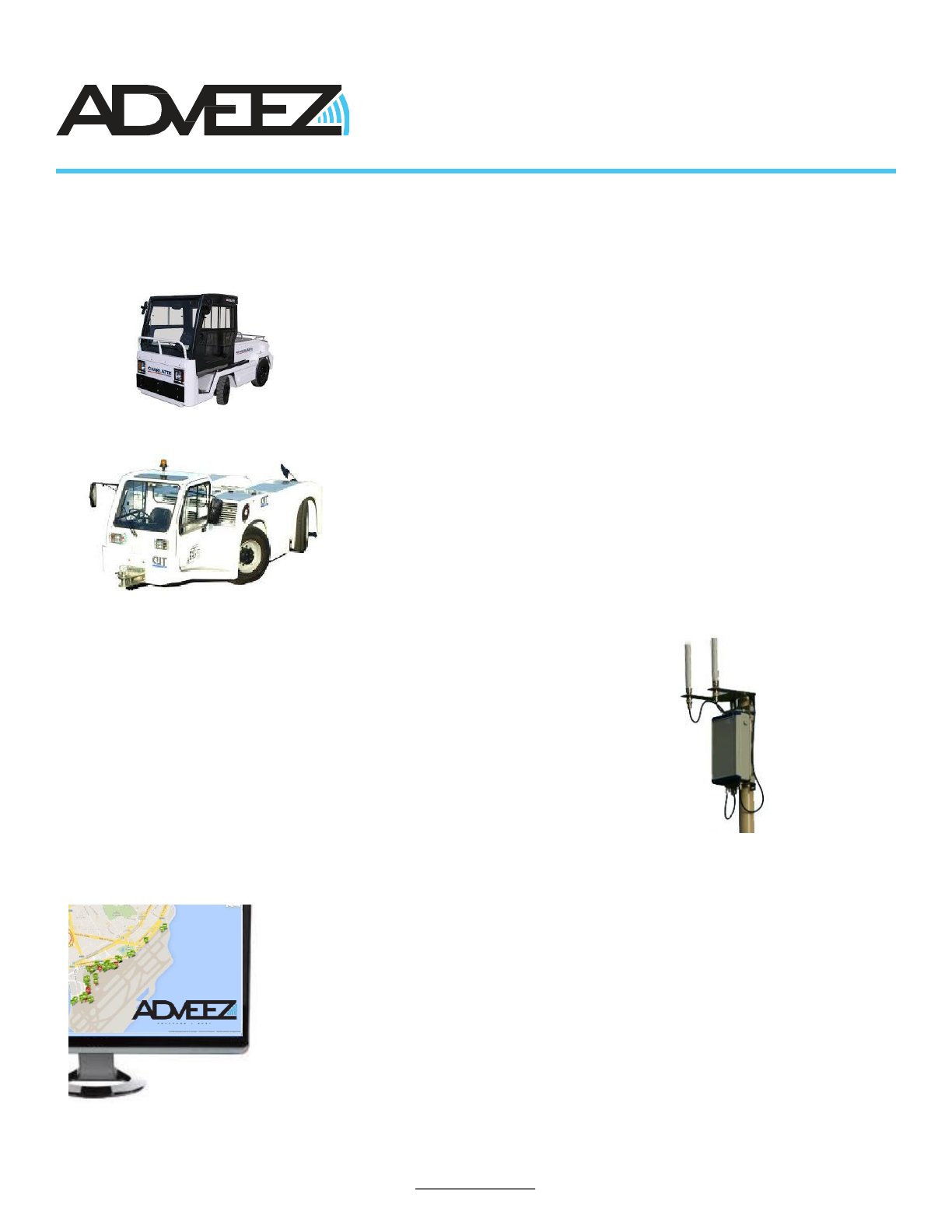

System Description
FAMA
SYSTEM DESCRIPTION

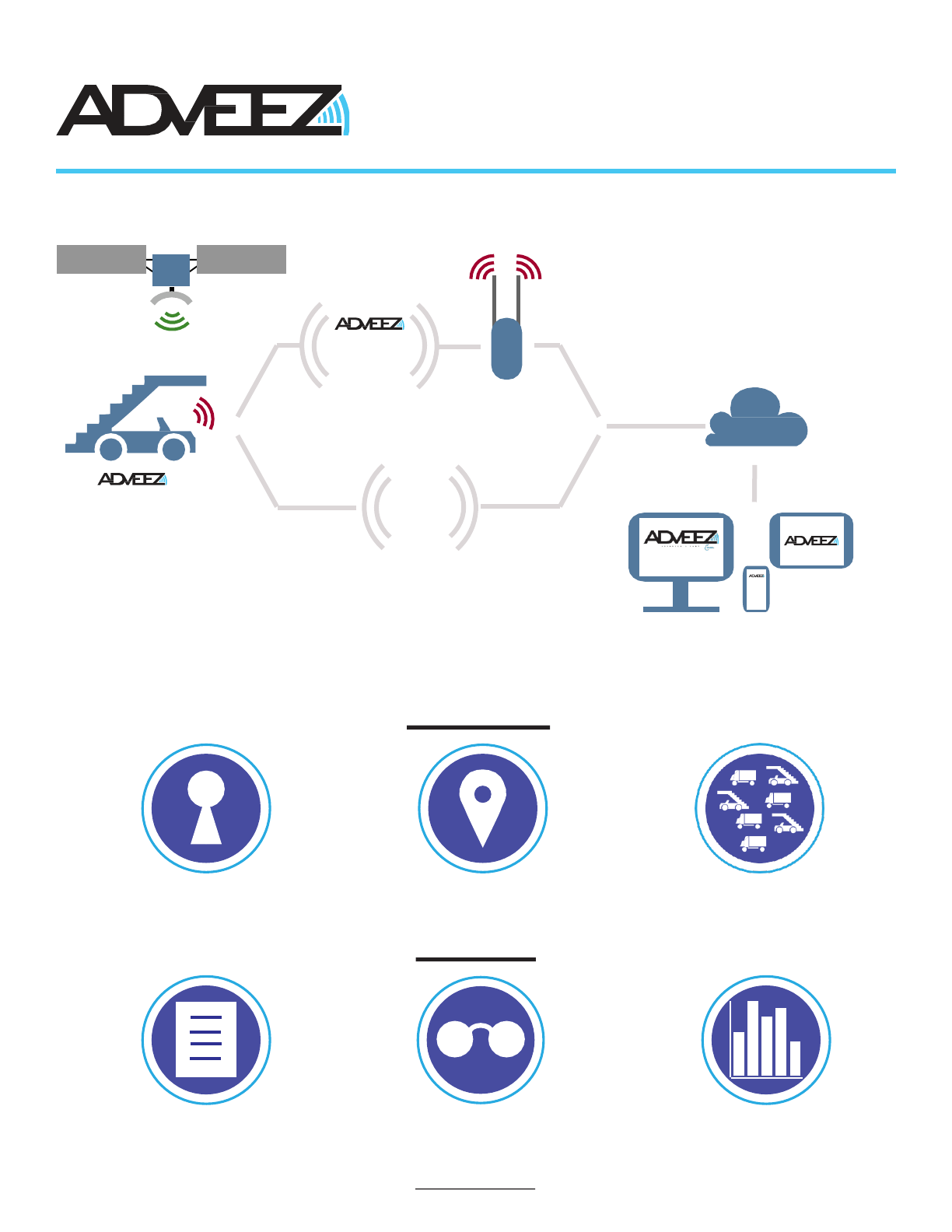

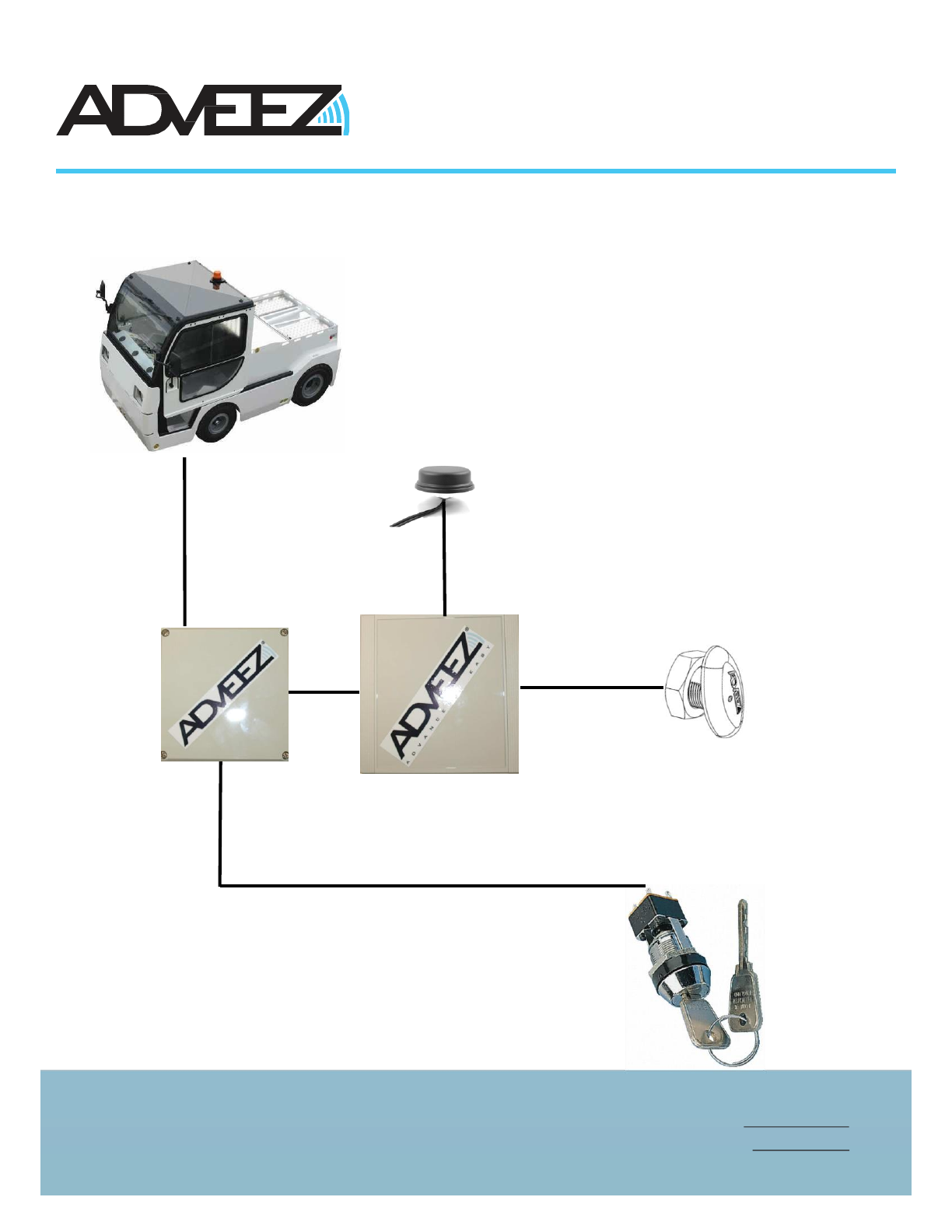

Asset Hardware
Each asset is equipped with hardware module that collects and reports
operational data:
•Access control: Only authorized personnel can operate assets.
ADVEEZ FAMA provides Hands-free tag or Prox ID identification via a
dash installed reader.
•Motion & Location monitoring by GPS
•Impact monitoring: Accelerometer sensors provides shockmonitoring.
•Engine hours monitoring: Pedal monitoring will provide precise
vehicle on/off information for usage and maintenance forecasting.
•Long range radio transmission: Data is transmitted using ADVEEZ
radio system (avoiding any GSM subscription fee).
Radio Gateway
Radio gateway is installed on building rooftops for best coverage
of the apron. The Gateway collects data from ground equipment
within 3000 meters range.
All collected data are then transferred to a cloud server through
an internet connection via GSM or Ethernet.
Fleet Management Software
ADVEEZ’s software provides an easy-to-use interface to view
and manage all assets and operators:
•Operator accessauthorization
•Location on map, usage,impact/shock
•Asset status & availability
•Maintenance forecasting
•Reports by activity and time frame
•Custom reports upon request
www.adveez.com SYS-FAMA-V0
FRANCE
12 rue Michel Labrousse
31100 Toulouse
France
Tel: +33581761684
USA
15815 S. 46th St, Suite 116
Phoenix, AZ85048
USA
Tel: +1 602-549-7898
www.adveez.com
System Description
FAMA
BENEFITS
ACCIDENT
REDUCE ACCIDENTS
Built-in shock detectionreports
time and location of excessive
shocks. Operators are now
accountable.
Up to 70% reduction in accidents.
MANAGE GSE USAGE
Locate, track, and analyze your
GSE fleet in real-time to instantly
re-deploy resources as needs
change.
CAPEX
CAPEX & BUDGET PLANNING
Complete and detailed statistics
to optimize fleet size.
Save up to 15% on CAPEX.
REDUCE MAINTENANCE
COSTS
Track maintenance intervention
automatically. Engine hours and
vehicle system alerts are all
reported in real-time.
BETTER SECURITY
Only authorized (trained)
personnel can operate
equipment.
Supervisors can change
authorizations at any time.
EASY INSTALLATION
Hardware and software instal-
lation is less than 2 hours per
vehicle.
SECURITY
www.adveez.com SYS-FAMA-V0
.
WARNING TO USERS IN THE UNITED STATES
Federal Communication Commission Interference
Statement 47 CFR Section 15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device (FCC ID: R8T-FAMAv3) complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
NOTE: The grantee is not responsible for any changes or modifications not expressly approved by the party
responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
NO UNAUTHORIZED MODIFICATIONS
47 CFR Section 15.21
CAUTION: This equipment may not be modified, altered, or changed in any way without signed written
permission from ADVEEZ. Unauthorized modification may void the equipment authorization from the FCC and
will void the ADVEEZ warranty.
This device complies with FCC RF radiation exposure limits set forth for general population (uncontrolled
exposure). This device must be installed to provide a separation distance of at least 20cm from all persons and
must not be collocated or operating in conjunction with any other antenna or transmitter.

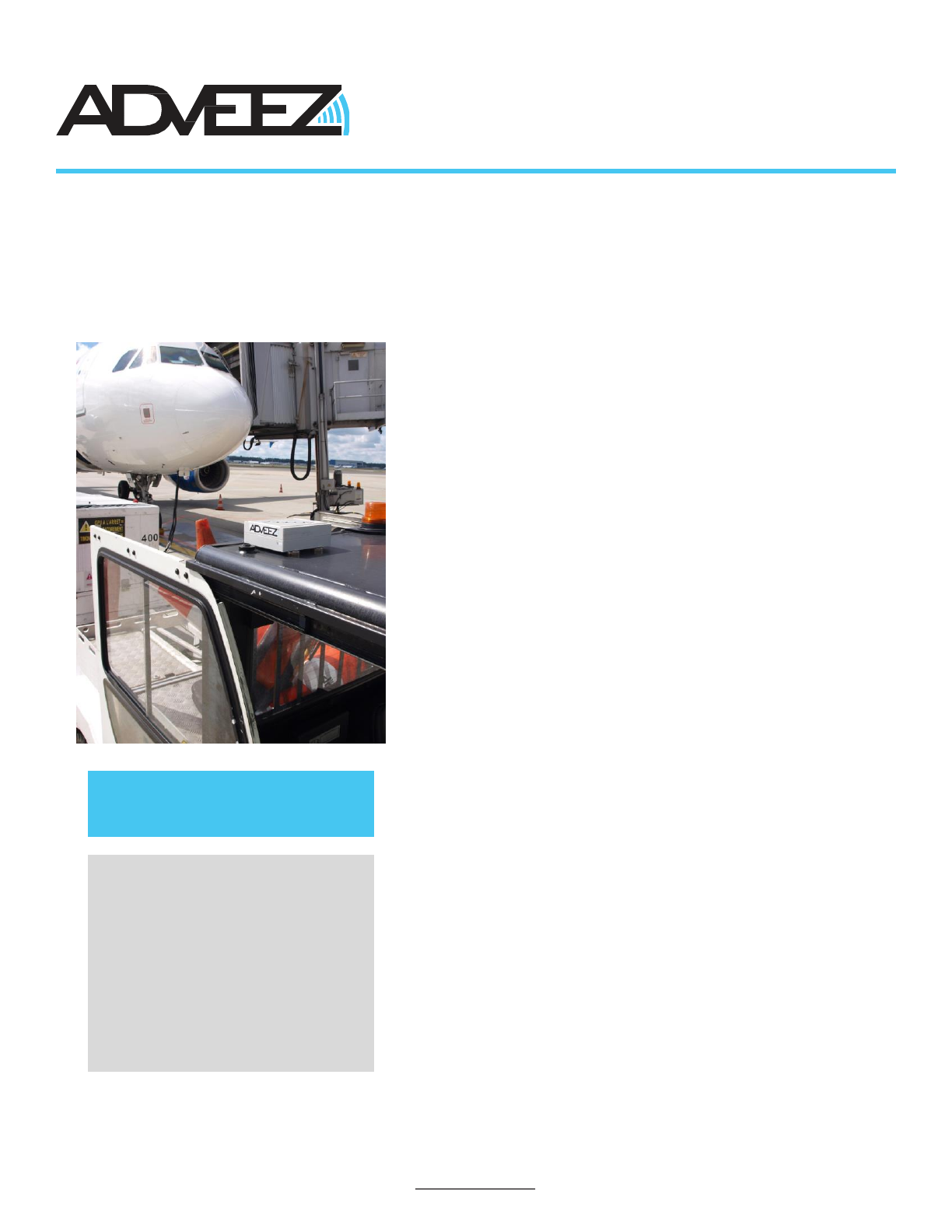

READER MOUNTING DIMENSIONS (mm)
Back cover details—M24 hole
Hand ‘s free reader
Proximity reader
Reader général
description
Pin out Wiring Function
Pin1 Green Green LED
Pin2 White Rx
Pin3 Grey Tx1
Pin4 Brown Gnd
Pin5 Yellow Tx2
Pin6 Pink Red LED
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
8
FAMA général
description
Pin out Wiring Function
Pin1 Red +12V/24V
Pin2 Black 0V
Pin3 Violet CAN H
Pin4 Blue CAN L
Pin5 Green Green LED
Pin6 White Rx
Pin7 Grey Tx1
Pin8 Brown Gnd
Pin9 Yellow Tx2
Pin10 Pink Red LED
FAMAMOUNTING DIMENSIONS (mm)
Back cover details—
GPS integrated
Shock détection
Communication bus
Long range radio transmission
GSM transmission
Easy-connect détection
Local accès memory
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
9

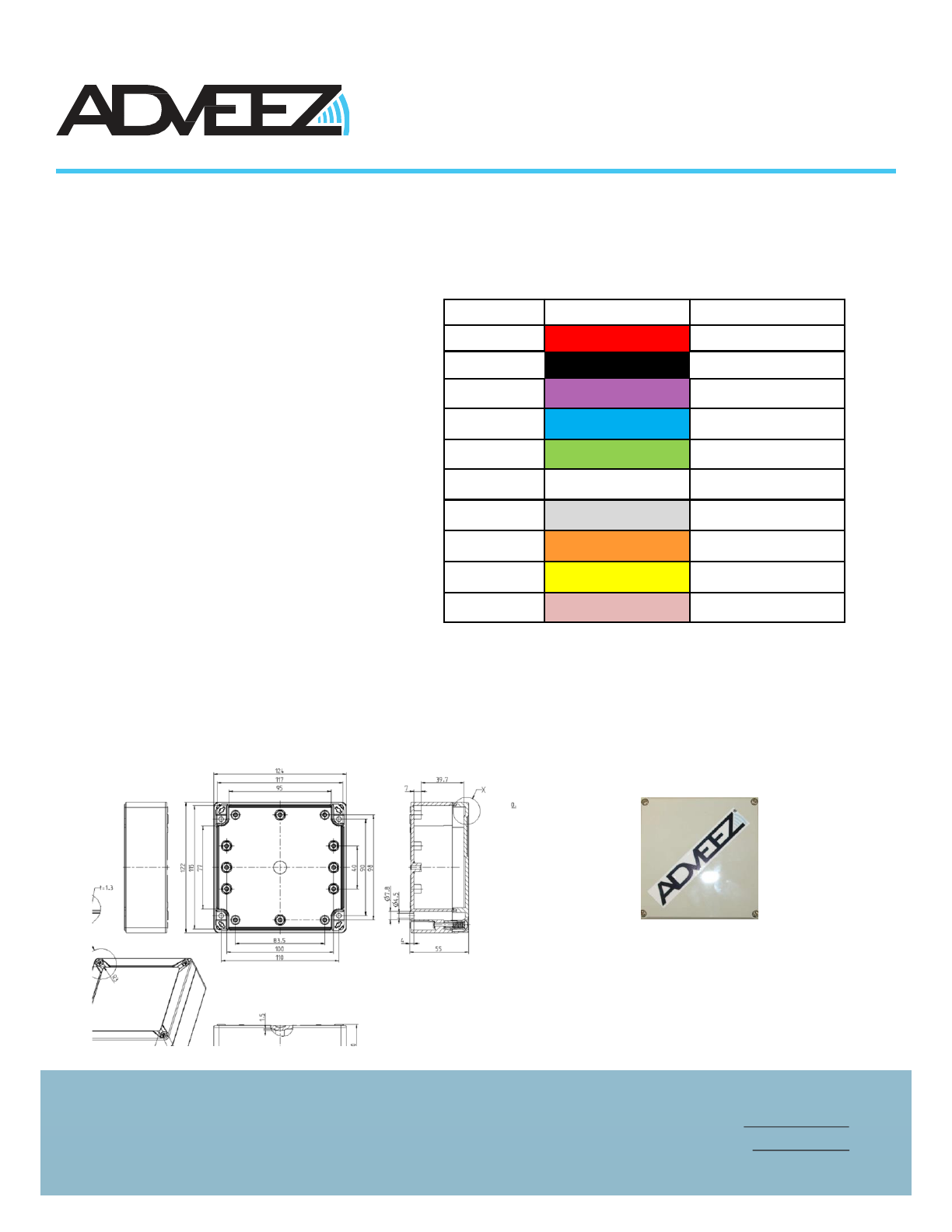

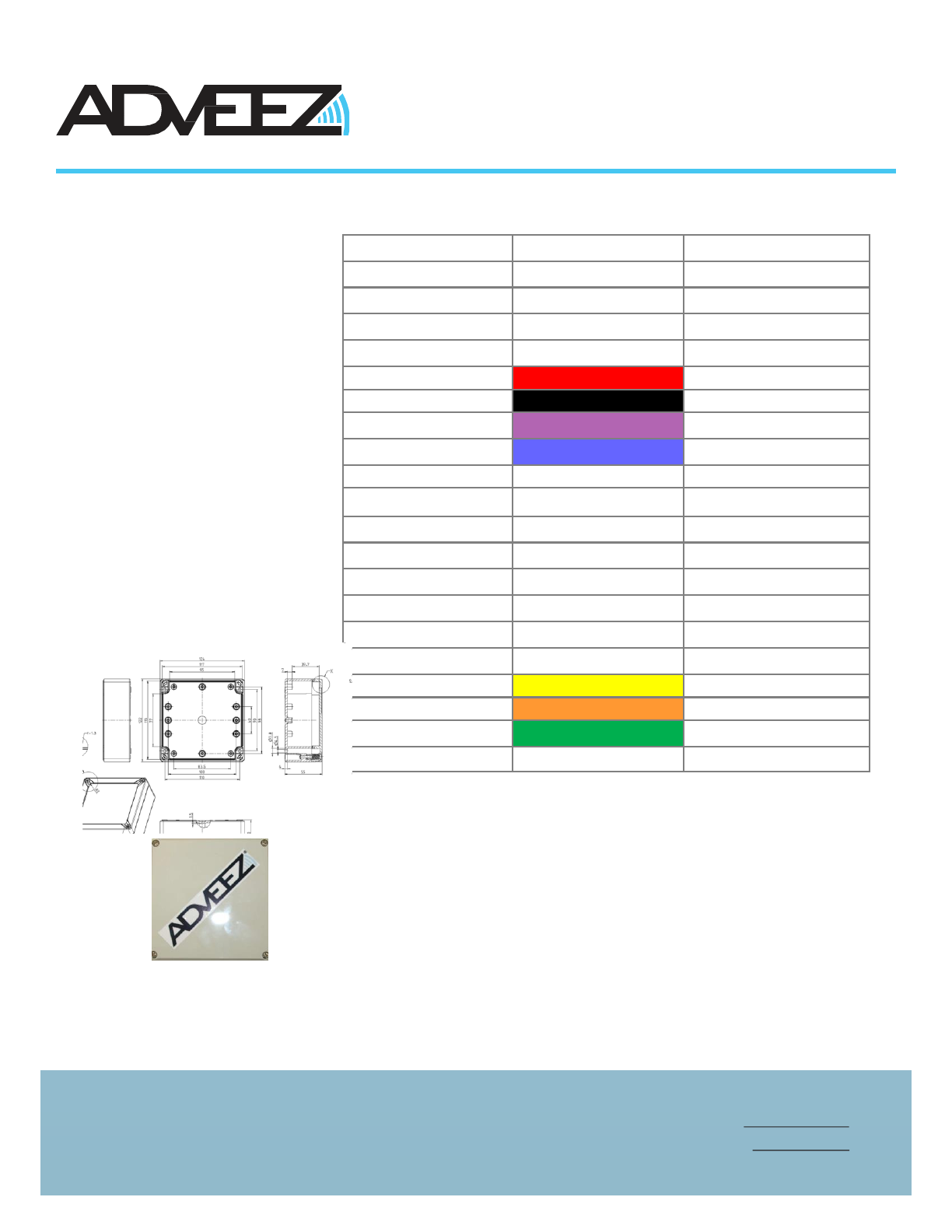

Pin out Wiring Function
+BAT Input Power supply
-BAT Input Power supply
CAN_H CAN H vehicle
CAN_L CAN L vehicle
12V Red Output FAMA power
GND Black Output FAMA power
CAN_H Violet CAN H fama box
CAN_L Blue CAN L fama box
TM2 Input Timeter 2
TM1 Input Timeter 1
T Relay NO
C Relay C
P1- Pedal 1 -
P1+ Pedal 1 + ( A†er start )
P2- Pedal 2 -
P2+ Pédal 2 +
SH-Yellow Key switch
SH+ Brown Key switch
TGreenKey switch
CWhite Key switch
FAMA MOUNTING
DIMENSIONS (mm)
Back cover details
Power supply général
description
Power supply conversion
Fuse protection
Communication bus
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
10
READER MOUNTING DIMENSIONS (mm)
Back cover details—M16 hole
GSM antenna
GPS antenna
Long range antenna
GSM / GPS / Radio
antenna

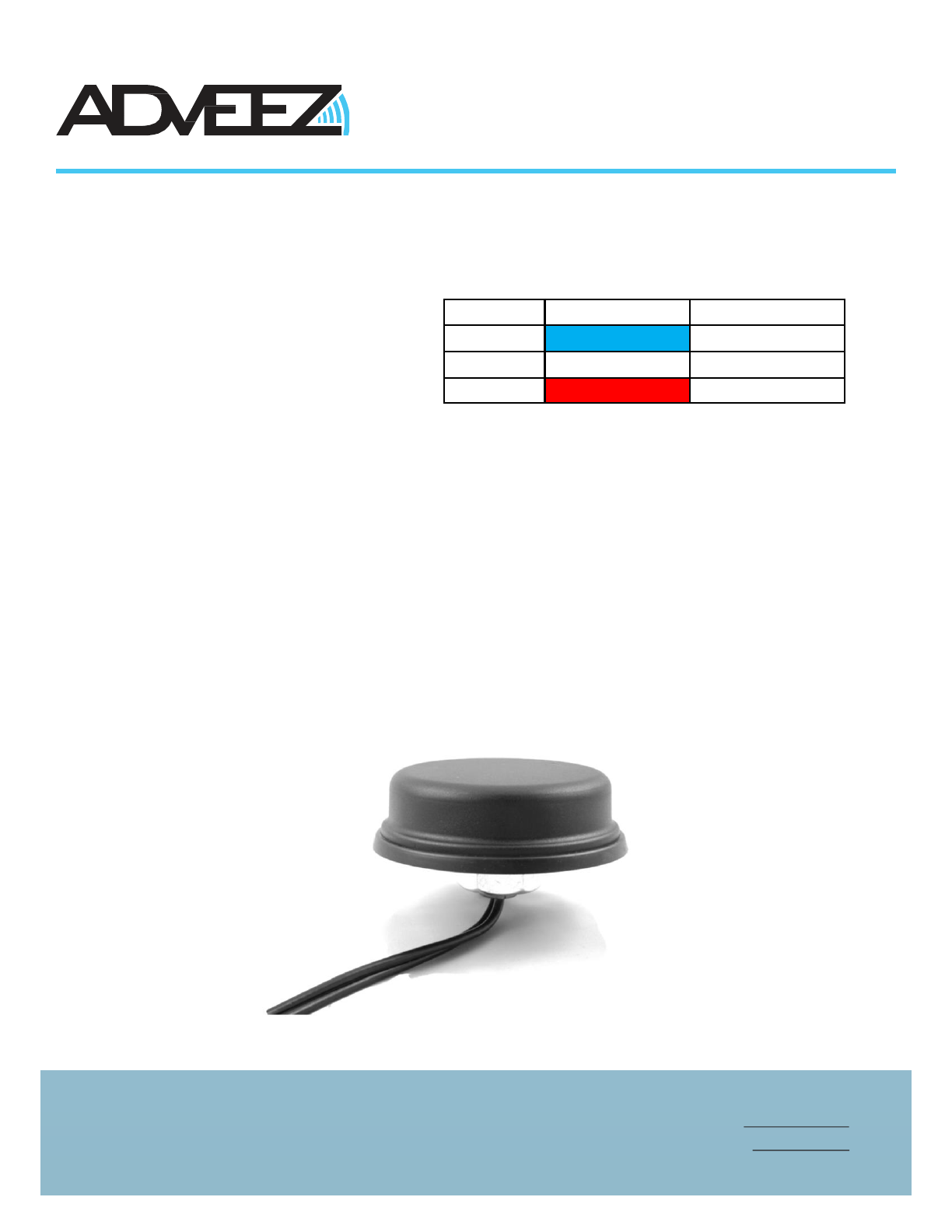

Pin out Wiring Function
SMA GSM Blue GSM
SMA GPS White GPS
SMA LR Red Radio
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
11

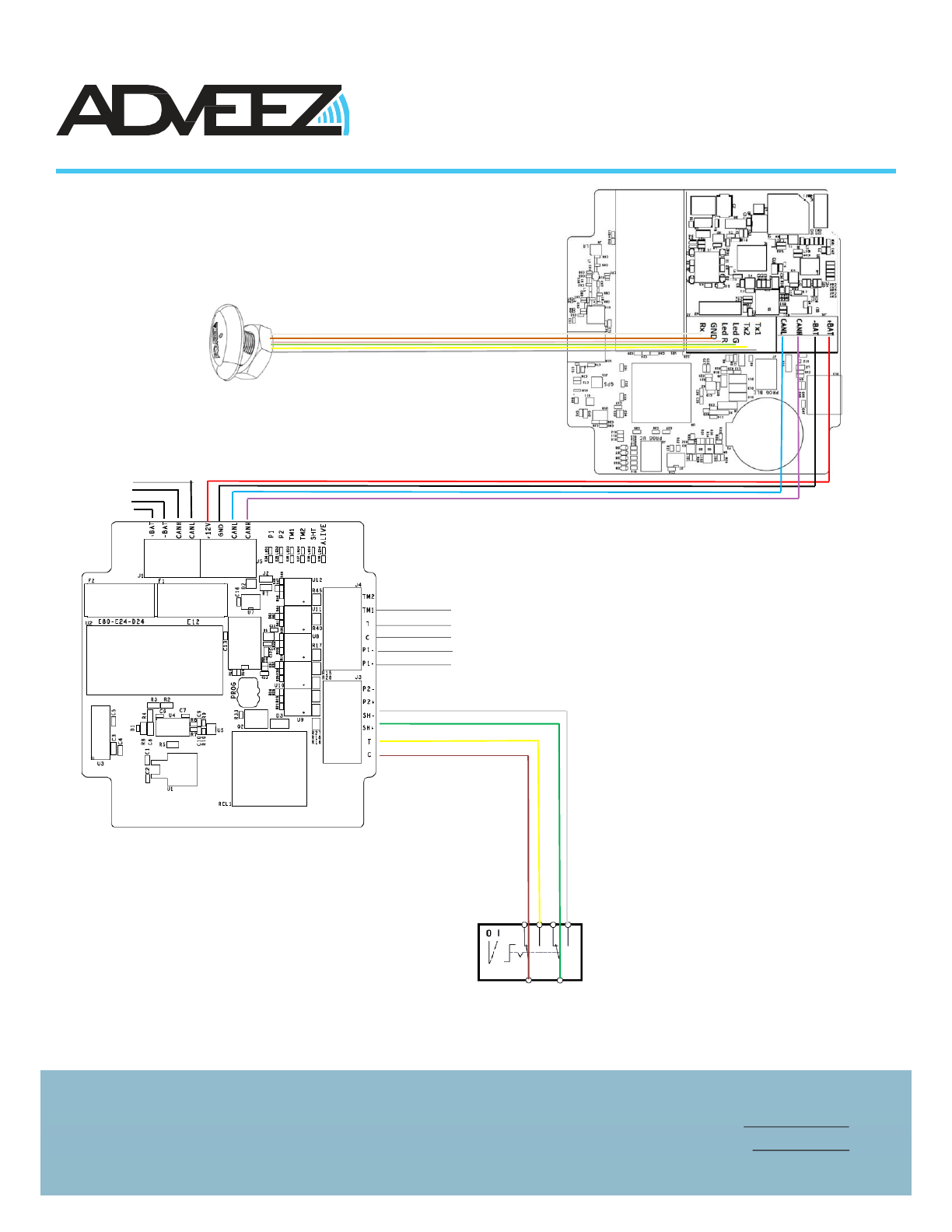

Diesel engine
wiring
Timeter
Immobilizer
Immobilizer
After start
CANGSE
CAN GSE
-BAT GSE
+BATGSE
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
12

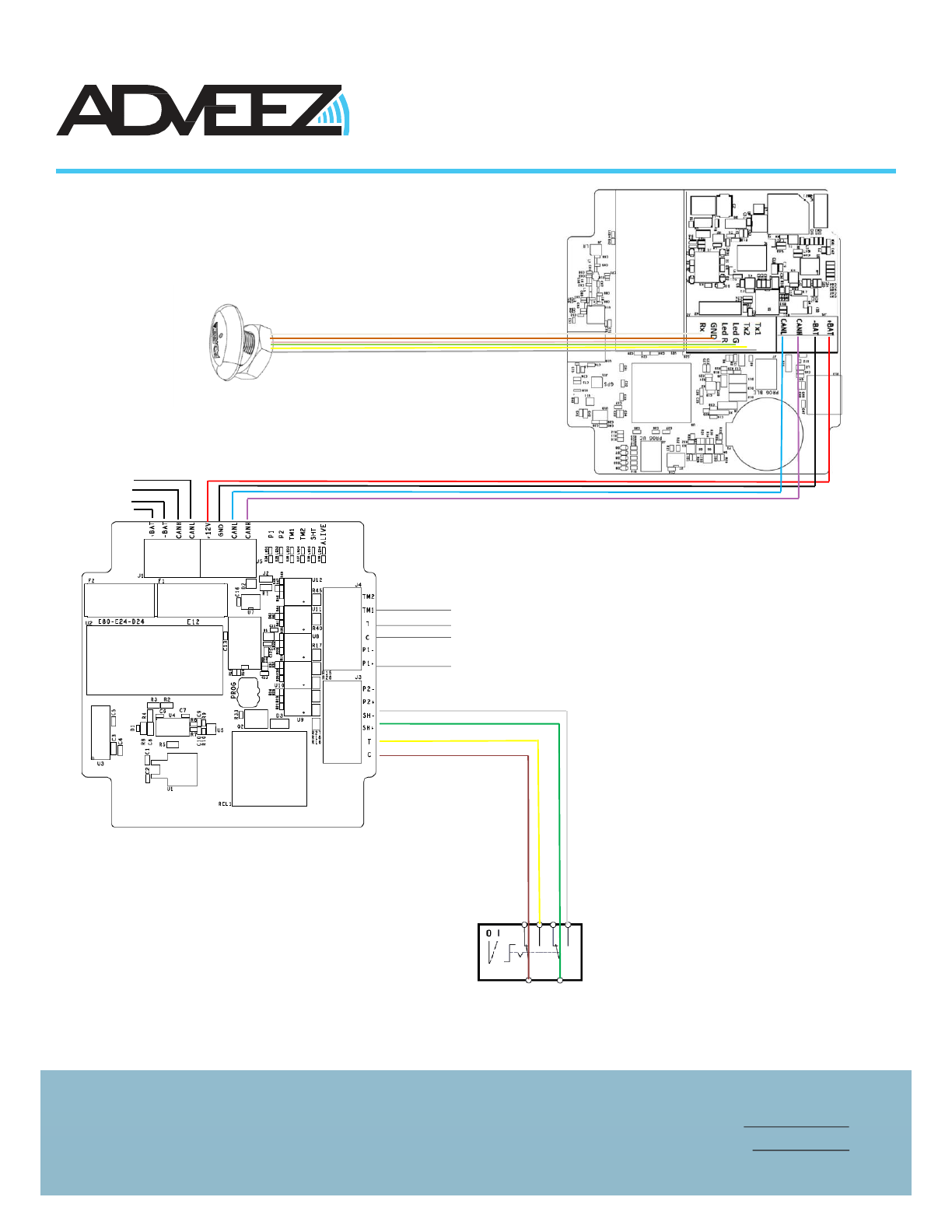

Electrical engine
wiring
Timeter
Immobilizer
Immobilizer
DeadmanPedal
Deadman Pedal
CAN GSE
CAN GSE
-BAT GSE
+BATGSE
Product Catalog2013
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163
31027 Toulouse Cedex 3 FRANCE
Tel FR: +33(0)582082193
Performance data subject to change without notice
email :contact@adveez.com
www.adveez.com
Tel USA: +1602-549-7898
13
