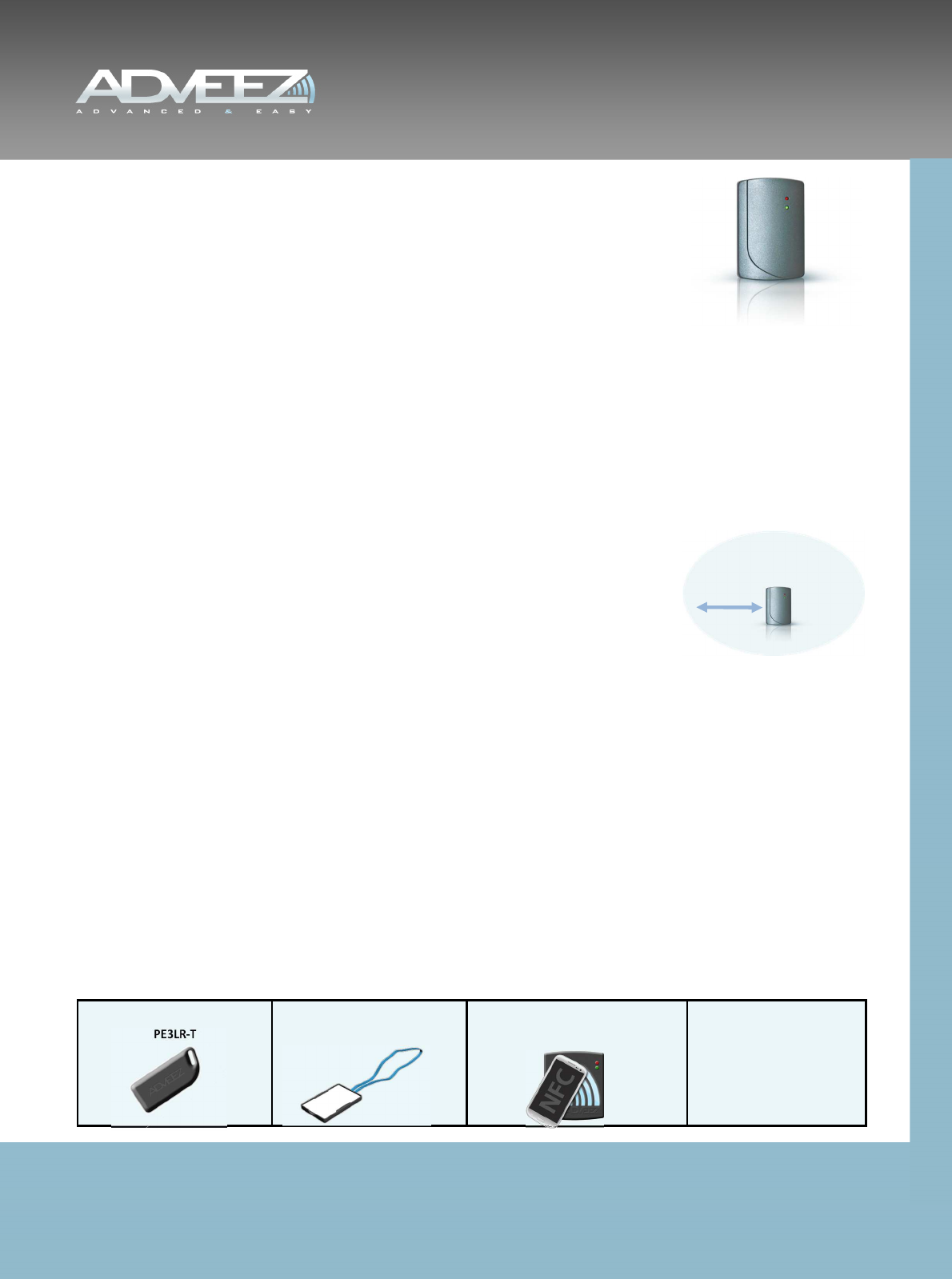

ADVEEZ’s PE3LR-S is a hands free access reader. Detecon range is fixed to 3 or 6 feet
ensuring full three-dimensional detecon. It offers a highly convenient & efficient access
control by using ADVEEZ’s PE3LR-T tag, which can be carried in a bag or in a pocket - it will
sll be clearly idenfied. PE3LR-S reader can replace any reader to bring hands free
detecon whenever needed without changing customer tags because PE3LR-S is compable
with EM cards, MIFARE and NFC.
PE3LR-S : Mul-technology Reader
• HANDS FREE
• Compable with EM cards - MIFARE - NFC
• WIEGAND, RS485 Output
Features
∗ Fully hands free reading of PE3LR-T tag
∗ Highly accurate reading distance. 2 opons 3 feet or 6 feet
∗ Compable with 125kHz EM passive cards (ISO 11784/11785)
∗ Compable with MIFARE A & B type
∗ Compable with NFC tags / Phone
∗ Interface with Controllers: RS485, WIEGAND
∗ Reading range is not reduced through concrete, wood, glass
∗ Highly secured communicaon through AES128 encrypon
∗ IP 67 for outdoor and indoor use
∗ 12/24V DC power supply
Hands free tag
PE3LR-T
Hands free tag & card holder
PE3LR-TX
MIFARE—NFC
PE3LR-S
Outputs
RS485
WIEGAND
2 m max
FUNCTIONAL DESCRITION
Product Catalog 2013 Performance data subject to change without noce
ADVEEZ, Bat MEAS - Impasse Jeanne Benozzi CS 83163 email :contact@adveez.com
31027 Toulouse Cedex 3 FRANCE 2 www.adveez.com
Tel FR: +33(0)582082193 Tel USA: +1 602-549-7898
READER MOUNTING DIMENSIONS (mm)
Back cover details - 4 screws not included in reader package

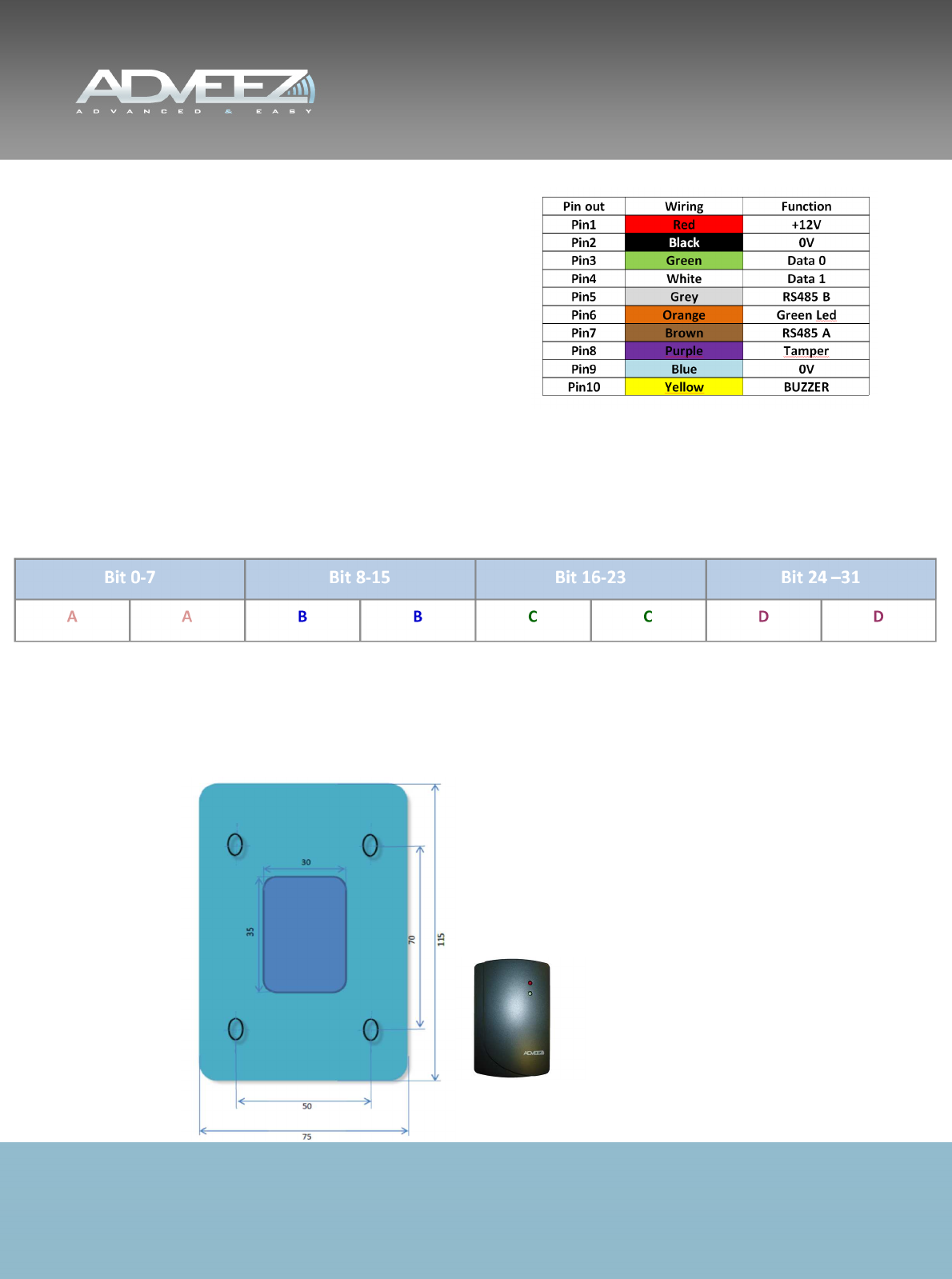

Reader Wiring instrucons - 2 opons
1. RS485 - ADVEEZ Proprietary encrypted protocole
2. Wiegand 32 bits (Default configuraon)
Wiegand Frame details
This device (FCC ID : R8T-PERL3-C) complies with part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation”
The users manual or instruction manual for an intentional radiator
shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment. In cases where the manu-
al is provided only in a form other than paper, such as on a comput-
er disk or over the Internet, the information required by this section
may be included in the manual in that alternative form, provided the
user can reasonably be expected to have the capability to access
information in that form.
Hand free tag UID : 0xAABBCCDD
Mifare or EM tag UID : 0xAABBCCDD
Bit 0-7 Bit 8-15 Bit 16-23
A A B B C C D D
Bit 24 –31
