ADview Technology IL-1513A 15" LCD Monitor User Manual IL 1513A Rad 5
ADview Technology Co., Ltd. 15" LCD Monitor IL 1513A Rad 5
Users Manual
Test Report No.: GETEC-E3-02-010
FCC Class B Certification
APPENDIX H
: USER’S MANUAL
EUT Type: 15” LCD Monitor
FCC ID : QAEIL-1513A
420-0881 REV. 00Ⓙ
Models
IL-1513A
TABLE OF CONTENTS
INTRODUCTION
FCC Compliance Statement i
Safety Instructions iii
General Information 1
Equipment Check list 2
Monitor Features 3
GETTING STARTED
Installation 4
Control Buttons 5

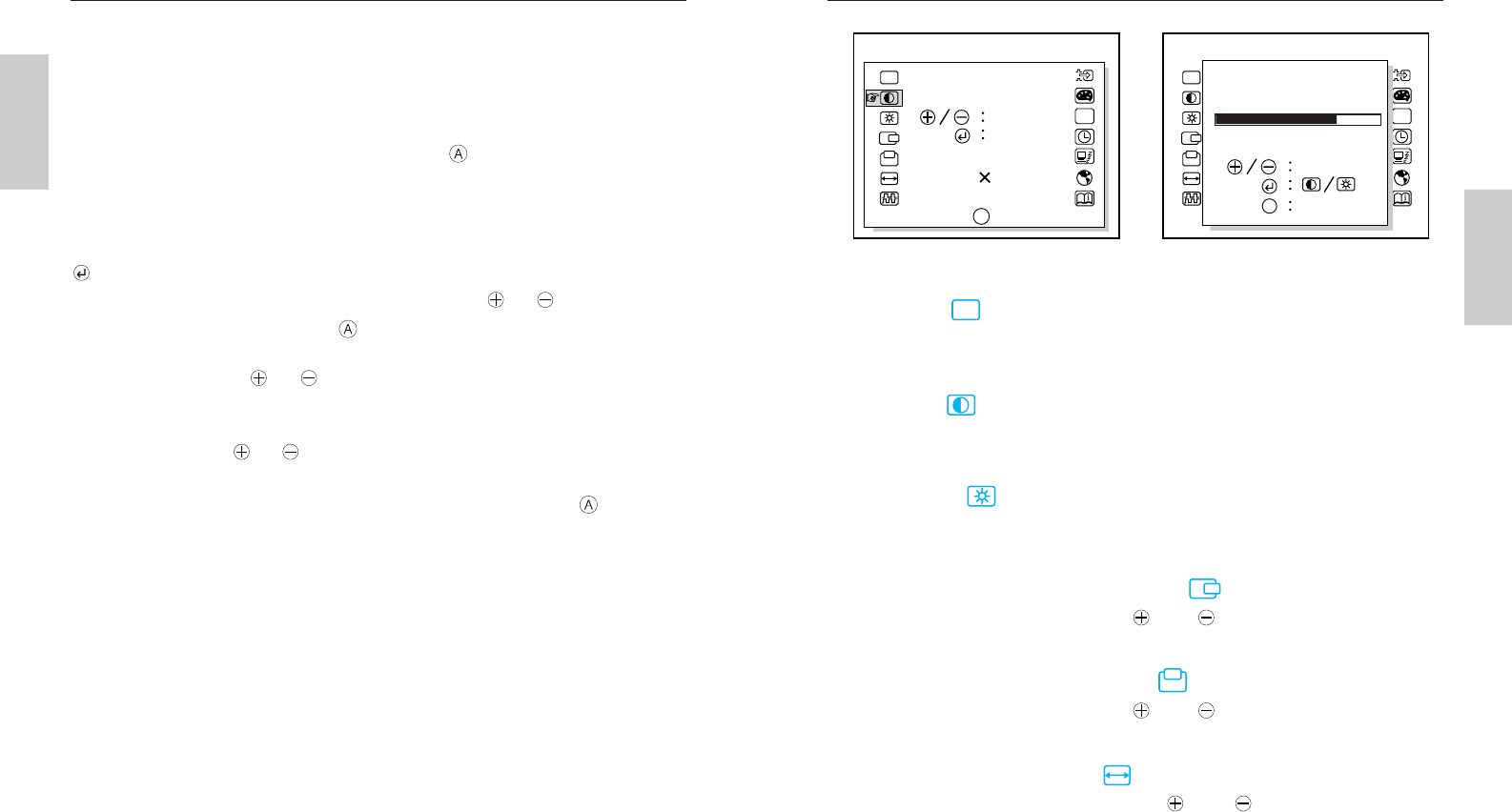

On-Screen Display 6
ON-SCREEN CONTROLS
Menu Descriptions 7
REFERENCE
Power Management 10
Timing Guide 11

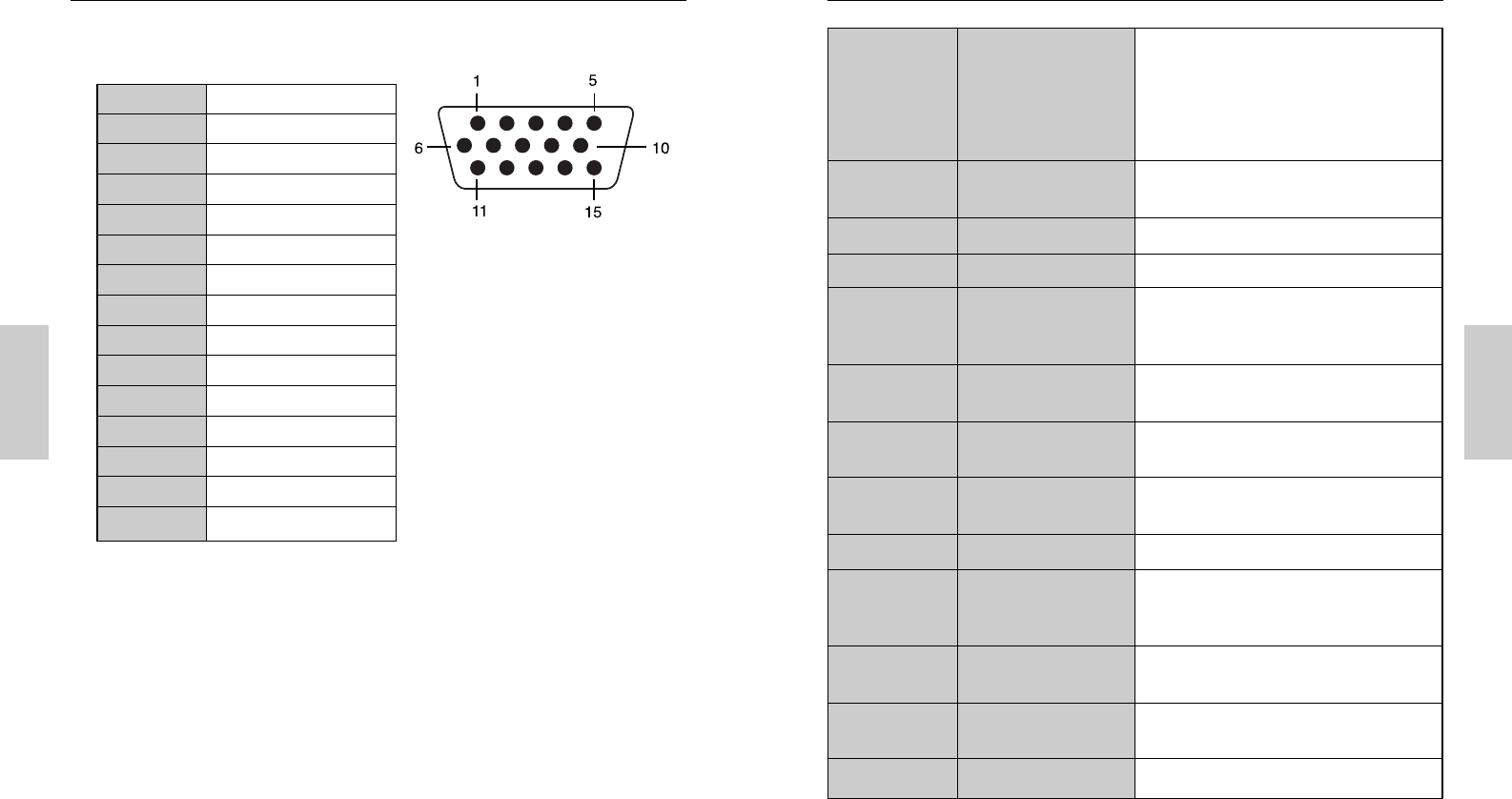

Pin Assignment 12
Specifications 13
Troubleshooting 14
KDS USA Standard New Product Warranty
KARES-KDS Advanced Replacement Express Service Program
HOW TO REACH RADIUS
If you have any questions or need assistance
regarding your monitor, you may contact KDS
directly using any of the following methods:
TECHNICAL SUPPORT
Toll Free 800-283-1311
WEBSITE
www.kdsusa.com
FCC COMPLIANCE STATEMENT
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
i
Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits
are designed to provide reasonable protection against radio frequency
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, it may cause interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause
interference to radio or television reception (this can be determined by
turning this equipment off and on), the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
CAUTION:
To comply within the limits for an FCC Class B computing device, always
use the shielded signal cord and shielded power cord supplied with this
unit.
CAUTION TO THE USER:
The Federal Communications Commission warns that changes or
modifications to the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
If necessary, the user should contact the dealer or an experienced
radio/television technician for additional suggestions. The user may find
the Federal Communications Commission booklet, How to Identify and
Resolve Radio-TV Interference Problems, helpful. This booklet is
available from the U.S. Government Printing Office, Washington, D.C.,
Stock No. 004-000-00345-4.
NOTICE OF COMPLIANCE WITH CANADIAN
INTERFERENCE-CAUSING EQUIPMENT
REGULATIONS
FCC COMPLIANCE STATEMENT
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
ii
DDC COMPLIANCE NOTICE:
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
SAFETY INSTRUCTIONS
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
iii
■Handling
Due to its fragile glass panel, this monitor must be handled with
caution and not be exposed to impact or shock.
Never touch the display area or rub it with a hard object or tool, as the
panel is easily scratched.
■Cleaning
The display area is sensitive to scratching. Do not use ketone-type
cleaners (i.e. acetone), ethyl alcohol, toluene, ethyl acid or methyl
chloride to clean the panel. Doing so may result in permanent
damage.
Water, IPA (Iso Prophyl Alcohol) and Hexane are safe cleaners.
Do not allow oil or water to penetrate the display, this will cause
staining and discoloration.
Avoid getting food particles and fingerprints on the display area at all
times.
■Storage
Store the monitor in a dark place away from sunlight and ultraviolet
(UV) radiation, this may cause air bubbles to develop within the
glass panel.
Do not store the display in temperatures higher than 400C/1040F or
humidity greater than 90%. Avoid condensation.
SAFETY INSTRUCTIONS
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
iv
■Caution
1. Do not open any covers on the monitor. No user serviceable
parts are inside.
2. In an emergency, disconnect the AC power plug.
3. To avoid electrical shock, disconnect the power cord from the
monitor before connecting the signal cable to the computer.
4. Keep away from liquids and flame. Do not immerse this monitor
in water or any other liquid. Do not use this device in excessively
hot conditions.
5. Handle the power cord with care. Do not bend the power cord
excessively or place heavy objects on it. Do not use a damaged
power cord, doing so can result in fire or electrical shock hazards.
When disconnecting the power cord, always grasp the plug, not
the cord.
6. The liquid crystals in the display panel contain several irritants. If
the panel is damaged or broken, do not allow the liquid to come
in contact with skin, eyes, or mouth. If you come in contact with
the liquid, flush the affected area with running water for at least
15 minutes, then consult a doctor.
7. Handle this monitor with care when moving it. When lifting the
monitor, support it with one hand holding the stand, and one
hand holding the LCD screen.
8. Always disconnect the power cord when moving this monitor.
9. Do not lay this monitor in a horizontal position when operating.
GENERAL INFORMATION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
1
Your new LCD monitor incorporates the latest state-of the art color Liquid
Crystal Display (LCD) technology providing a wider viewing angle with
higher contrast ratio.
Your new LCD monitor has many advantages : safe from electromagnetic
wave, lights, sharps and slims. This makes the monitor extremely
suitable in the environment of administration, transportation system
research, etc.
Your new LCD monitor is designed for Analog input only.
Your new LCD monitor does not emit any X-ray radiation and the magnetic
emission greatly reduces the eyestrain. Moreover, our On Screen
Controls on the side of the panel provide flexibility with simple controls.
You can use these controls to adjust the display as you desire.
Your new LCD monitor incorporates an active TFT module. It has a 1024
x 768 pixel resolution, high contrast, wide viewing angle and colors up to
16M.
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
3
* Supports Analog IBM compatible PC, Apple MacintoshTM (Adapter
optional)
* Supports DPMS for monitor power management
* Support DDC2B
* On Screen Control : Auto-Tune, Contrast, Brightness, H/V Position, H-
Size, Phase, Auto-Level, Color Control, OSD Position, OSD Time-out,
Power Save Delay, Language, Information.
* Built-in color active matrix TFT (Thin Film Transistor) Liquid Crystal
Display (LCD) that uses amorphous silicon TFTs as a switching device.
* Resolution : up to 1024 x 768
* Color : 16M Color support.
* Dot pitch : 0.297mm(H) x 0.297mm(W)
* Scanning frequency : 30kHz~60kHz(H), 55Hz ~ 75Hz(V).
* Universal power supply : AC 100 - 240V allowed.
* Power consumption Normal : 34 Watt Max.
Off : 3 Watt Max.
* Outside dimension : 358mm(W) x 360mm(H) x 186mm(D)
14"(W) x 14.2"(H) x 7.3"(D)
* Weight (net) : 4.0kg (8.8 lbs.)
EQUIPMENT CHECK LIST MONITOR FEATURES
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTION
INTRODUCTIONINTRODUCTION
2
Before operating your display, please check to make sure that all of the
items listed are present in your package:
1) Color TFT LCD Monitor (With 15-pin D-SUB cable)
2) Power Card
3) Manual
◆Power Requirements
The monitor is equipped with an auto-sensing power supply for voltage
ranging from 100-120VAC/200-240VAC, 50/60Hz.
Confirm the power rating of the AC Source before you plug the AC
cable to the wall outlet.

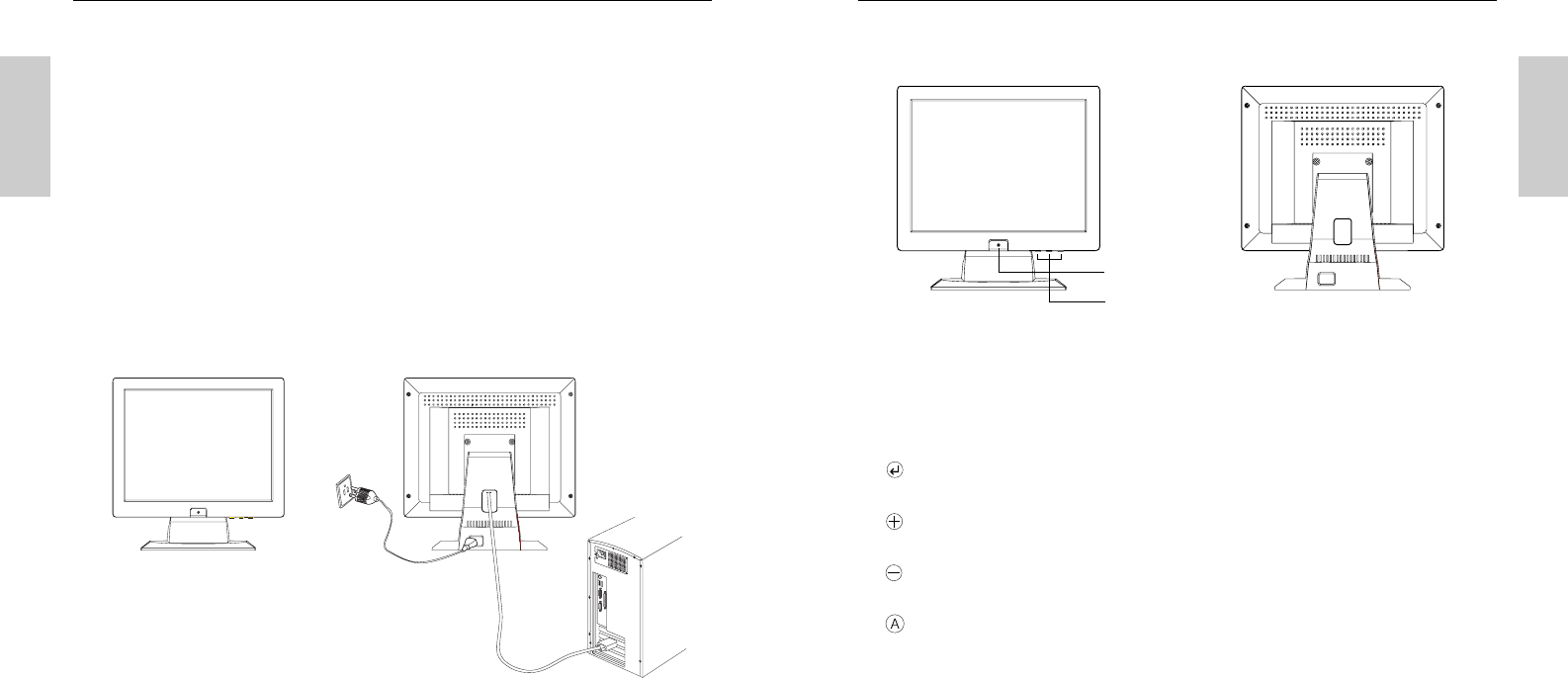

CONTROL BUTTONS
5
Button Description :
1. : Display On Screen Control menu.
Select Control menu.
2. : Move selected icon up to select one of the controls.
Increase the control value.
3. : Move selected icon down to select one of the controls.
Decrease the control value.
4. : Exits the On Screen Control.
Do Auto In Progress function. (Press and hold this button for two
seconds.)
AUTO
R
AUTO
R
AUTO
R
AUTO
R
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTEDGETTING STARTED
INSTALLATION
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTEDGETTING STARTED
4
◆Follow these steps to install the monitor
1. Before you connect the cables, make sure the monitor and system
unit power switches are OFF.
2. Plug one end of the 15-pin signal cable to the rear of your system.
The adapter may be required for certain Apple Macintosh
computers. Tighten the two screws on the cable connector.
3. Connect the power cord to the inlet socket which is located at the
rear of the display. Connect the plug into an AC wall outlet.
(fig. 1)
POWER SWITCH
OSD SWITCH
7
Main Menu
AUTO-TUNE
This control will automatically make adjustments to the horizontal and
vertical size, horizontal and vertical position and phase.
CONTRAST
This control allows you to make adjustments to the contrast of the display
screen.
BRIGHTNESS
Selecting this control allows you to make adjustments to the luminosity level
of the display screen.
H-POSITION(HORIZONTAL POSITION)
Select this control and then use the and buttons to center the image
horizontally on the screen.
V-POSITION(VERTICAL POSITION)
Select this control and then use the and buttons to center the image
vertically on the screen.
H-SIZE (HORIZONTAL SIZE)
Select this control and then use the and buttons to expand or
decrease the image width to horizontally fill the display screen.
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
OSD
SELECT
ENTER
1024 768
H
F
:48.4kHz V
F
:60Hz
AUTO
OSD
AUTO
ADJUST
RETURN
CONTRASTCONTRAST
Press To Exit
ON SCREEN CONTROLON SCREEN CONTROL
76%
A
A
ON-SCREEN DISPLAY MENU DESCRIPTIONS
6
This LCD monitor features an On-Screen Display (OSD) menu. These
icons are designed to make your monitor display settings easier to control.
When highlighted, the icons illustrate the control function to assist you in
identifying which control needs adjustment.
Before activating the OSD menu, the button can be used to
automatically adjust the display to the proper size and horizontal and
vertical position. (Press button for 2 seconds.)
The OSD menu activates automatically when you press the Enter button
on the rear of the monitor. The OSD remains centered on the screen
while you make your adjustments. Use either the or button to move
the highlight to your selection. submenu or control with a status bar
will appear. The status bar indicates the direction which adjustments are
being made. Use the or button to adjust the control.
The contrast and brightness menu can also be adjusted by simply
pressing either the or buttons.
When you have finished making adjustments, press the button to
save setting and exit back to main menu.
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTED
GETTING STARTEDGETTING STARTED
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLSON-SCREEN CONTROLS
9
POWER SAVE DELAY
This feature directs the monitor to stay in the “on” mode even after the
computer goes into “sleep” mode. The user is able to select time of 5
seconds, 1 minute, 60 minutes, or OFF for the display to appear on the
monitor screen.
LANGUAGE
Select this control and then use the and buttons to choose from
English(ENGLISH), German(DEUTSCH), Spanish(ESPA
Ñ
OL), Italian(ITALIANO),
French(FRANçAIS), Japanese.
INFORMATION
Select this control and it will allows you to confirm information of the display.
*Note:
You can get the best quality of the image under full-screen with your computer on.
The function of AUTO-TUNE may not work properly if background color is dark or if the
input image does not fill the screen. (ex: DOS text mode)
We strongly recommend that you just run the AUTO-LEVEL & AUTO-TUNE function to
get the best image quality when you unpack the monitor or when you install a different
VGA card or use a new PC.
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
8
PHASE
Select this control and then use the and buttons to adjust the screen
image until it looks focused, crisp and sharp.
AUTO-LEVEL
This control will automatically make adjustment to the input levels of video
signal.(ex. 0.714Vp-p, 1.0Vp-p)
COLOR CONTROL
Select this control, then use the and buttons to scroll to the desired
color temperature. Use the button to select the 9300K, 6500K, 5500K
or USER for custom setting.
R-GAIN(RED)
Select “USER” then use the button to scroll up and down the RGB
menu to R(Red). Use the and buttons to adjust the red level of
the display.
G-GAIN(GREEN)
Select “USER” then use the button to scroll up and down the RGB
menu to G(Green). Use the and buttons to adjust the red level of
the display.
B-GAIN(BLUE)
Select “USER” then use the button to scroll up and down the RGB
menu to B(Blue). Use the and buttons to adjust the red level of
the display.
OSD POSITION
Select this control and then use the button to select the direction to
move the OSD menu. Use the and buttons to move the OSD menu.
OSD TIME-OUT
Select this control and then use the button to select the duration time for the
OSD menu. Use the and buttons to select the time. (5, 15, 30, 60 SEC)
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
OSD
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
RB
AUTO
R
AUTO
R
AUTO
R
AUTO
RG
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
AUTO
R
TROUBLESHOOTING
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLSON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLS
ON-SCREEN CONTROLSON-SCREEN CONTROLS
TIMING GUIDE
11
The LCD is a multi-frequency display. It operates at horizontal
frequencies between 30KHz ~ 60KHz and vertical frequencies between
55Hz ~ 75Hz. Because of its microprocessor-based design, it offers auto-
synchronization and auto-sizing capabilities. This monitor offers 8 pre-
programmed settings that are listed in the timing table on page 11.
These preset modes cover most of the common video modes supported
by popular graphics adapters. However, each adapter's implementation
of these video modes may vary slightly. If you find it necessary to make
minor display adjustments (for example, horizontal and vertical position),
please refer to the On Screen Display section of this manual for
instructions.
If you would like to use one of the preset timing modes, please refer to
your video card manufacturer's installation guide for instructions on how
to make these changes. The video card controls the refresh rate. Most
video cards provide a software utility or hardware DIP switches that
allows you to change the frequency used for each resolution.
Timing Table
POWER MANAGEMENT
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
10
LED INDICATOR (POWER MANAGEMENT ACTIVE)
The power management feature is comprised of two stages : On or Out
Of Range (Green), Off (Green blinking).
In the off mode, all circuitry in the monitor is shut down, except for a low
power detection circuit. This circuit allows the monitor to wake up when
the mouse is moved or a key on the keyboard is pressed.
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
Preset
VGA M1 720 400 31.5kHz 70Hz 28.322 -/+
M2 640 480 31.5kHz 60Hz 25.175 -/-
M3 640 480 37.5kHz 75Hz 31.500 -/-
M4 800 600 37.9kHz 60Hz 40.000 +/+
VESA M5 800 600 46.9kHz 75Hz 49.500 +/+
M6 1024 768 48.4kHz 60Hz 65.000 -/-
M7 1024 768 60.0kHz 75Hz 78.750 +/+
MAC M8 832 624 49.7kHz 75Hz 57.284 -/-
Resolution Frequency Clock
[MHz] Polarity
(H/V)
Horizontal HorizontalVertical Vertical
Note;
* If you use a Macintosh™, you may need a Mac adapter.
Power Mode H-Sync V-Sync Video LED Color
Normal Pulse Pulse Active Green
Out Of Range Pulse Pulse Active Green
Off Pulse No Pulse Blanked Green blinked per 1 second
Off No pulse Pulse Blanked Green blinked per 1 second
Off No pulse No pulse Blanked Green blinked per 1 second
SPECIFICATIONS
13
PIN ASSIGNMENT
12
Note: When resolutions are shown that are lower than the pixel count of the LCD panel,
text may appear choppy or bold. This is normal for all current flat panel technologies
when displaying non-native resolutions on a full screen (below than 1024 x 768
resolution). In flat panel technologies, each dot on the screen is actually one pixel, so to
expand resolutions to full screen, an interpolation of the resolution must be down. When
the interpolated resolution is not an exact multiple of the native resolution, the
mathematical interpolation necessary may cause some lines to appear thicker than
others.
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
VGA Connector VGA CONNECTOR
Pin 1 Red
Pin 2 Green
Pin 3 Blue
Pin 4 No Connection
Pin 5 Ground
Pin 6 Red Ground
Pin 7 Green Ground
Pin 8 Blue Ground
Pin 9 No Connection
Pin 10 Ground
Pin 11 Ground
Pin 12 DDC SDA
Pin 13 Horizontal Sync.
Pin 14 Vertical Sync.
Pin 15 DDC SCL
LCD Type 15”diagonal viewable screen
TFT (Thin Film Transistor), Active
Matrix Panel, 0.297mm pixel pitch
Color Filter R,G,B vertical stripe
Colors 16M
Glass surface Anti-glare coating
Viewing Left / Right 70 / 70
Angles Up / Down 55 / 60
Contrast Ratio Typ. 300:1
Luminance of White
Typ. 250cd/m2
Compatibility PC IBM XT, AT, 386, 486, Pentium or
PS/2 and compatibles(from VGA up
to 1024 x 768 @ 75Hz NI.)
Refresh Rate Max. 1024 x 768 @ 75Hz NI
(60Hz for optimal display)
Connectors Input Signal 15-pin D-SUB
Power AC In let Socket
Power Input AC 100-240V 50-60Hz
Consumption 34 watts (Maximum)
Display Area Max. 304.1mm(H) x 228.1mm(V)
Operating Temperature 32˚F to 104˚F(0˚C to 40˚C)
Humidity 20% RH to 80%RH (no condensation)
Altitude To 10,000 feet
Storage Temperature -14˚F to 104˚F (-20˚C to 40˚C)
Conditions Humidity 5%RH to 90%RH (no condensation)
Dimension 358
mm(W)
x
360mm(H)
x
186mm(D)
14.1”(W)
x
14.2”(H)
x
7.3”(D)
Weight Net 4.0Kg (8.8lbs)
15
✓ Connect the LCD Monitor to another computer.
✓ Check the graphics card for proper sync scheme (or sync
polarities) to match the LCD Monitor’s specifications.
◆Double (split) screen image.
✓ Make sure your graphics card is set to Non-Interlaced mode.
◆Entire screen image rolls (scrolls) vertically.
✓ Make sure the input signals are within the LCD monitor’s specified
frequency range.
(Maximum: VESA, MAC 1024 x 768@75Hz)
✓ Connect the video cable securely.
✓ Try the this Monitor with another power source.
◆Control buttons do not work.
✓ Press only one button at a time.
14
◆No power.
✓Flip the power switch ON. The Power LED turns on.
✓ Make sure AC power cord is securely connected to a power outlet.
◆Power on but no screen image.
✓ Make sure the video cable attached with this monitor is tightly
secured to the video output port on the back of the computer.
✓ Adjust the brightness and contrast.
◆Image is unstable, unfocused.
✓ Use “AUTO-TUNE” to adjust automatically.
✓ If the image is still unstable after “AUTO-TUNE” processing,
please adjust “PHASE” manually to get image focused.
✓ Check whether the resolution or refresh rate in windows display
setting is beyond supported range(please refer to the
specification of supported mode).
◆Flickering.
✓ Not enough power is being supplied to the LCD Monitor.
Connect the LCD Monitor to a different outlet. If a surge
protector is being used, there may be too many devices plugged in.
✓ See Timing Guide in this manual with a list of refresh rates and
frequency settings showing the recommended setting for the LCD
Monitor.
◆Wrong or abnormal colors.
✓ If any colors (Red, Green, or Blue) are missing, check the video
cable to make sure it is securely connected. Loose pins in the
cable connector could cause a bad connection.
The LCD contains over 2,359,296 thin-film transistors (TFTs).
A small number of missing, discolored, or lighted dots on the screen is an
intrinsic characteristic of TFT LCD technology and is not an LCD defect.
If you display a fixed pattern for more than 10 hours, its image may remain on
the screen in overlap mode when you display something else.
ABOUT THE LCD
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCE
REFERENCEREFERENCE
TROUBLESHOOTING
MEMO MEMO
