AEC Lighting Solutions SPX601C LED Spot Light User Manual

AEC Lighting Solutions Co., Ltd. LED Spot Light Users Manual

Users Manual

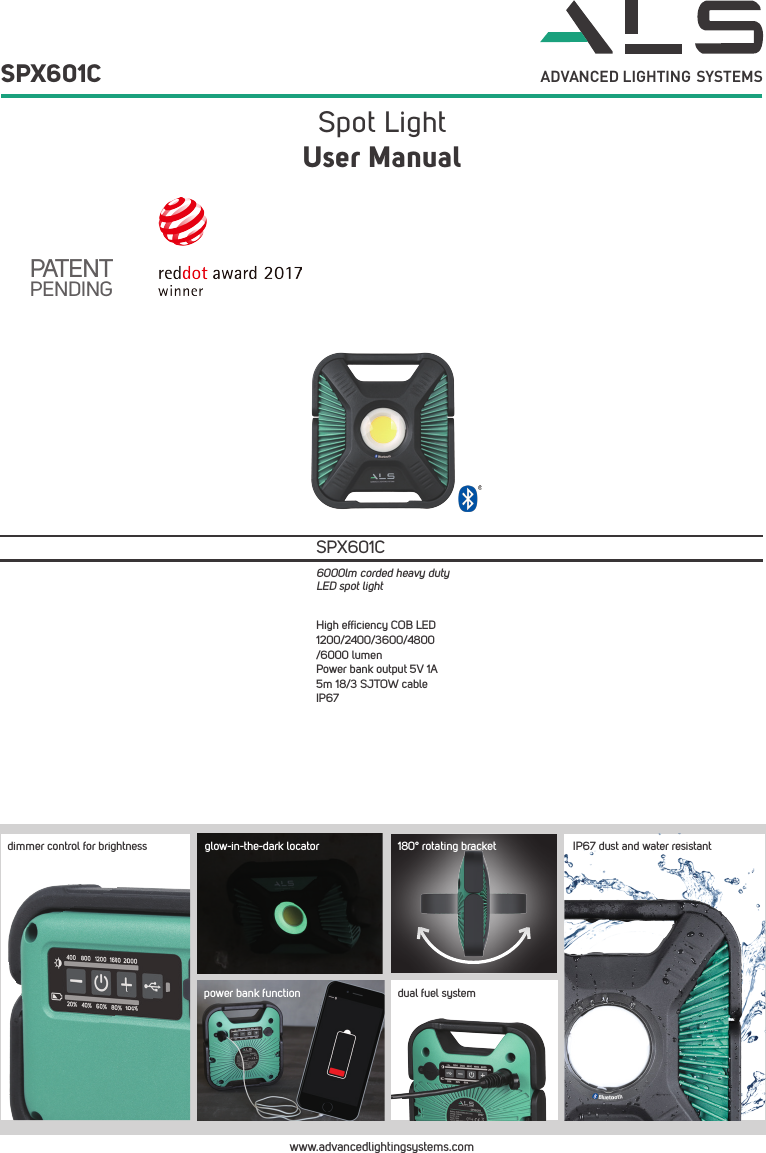

Spot LightSPX601CUser ManualADVANCED LIGHTING  SYSTEMSPATENTPENDINGwww.advancedlightingsystems.comHigh efficiency COB LED1200/2400/3600/4800/6000 lumenPower bank output 5V 1A5m 18/3 SJTOW cableIP67SPX601C6000lm corded heavy duty LED spot lightdimmer control for brightnesspower bank functionIP67 dust and water resistantglow-in-the-dark locator 180° rotating bracketdual fuel system

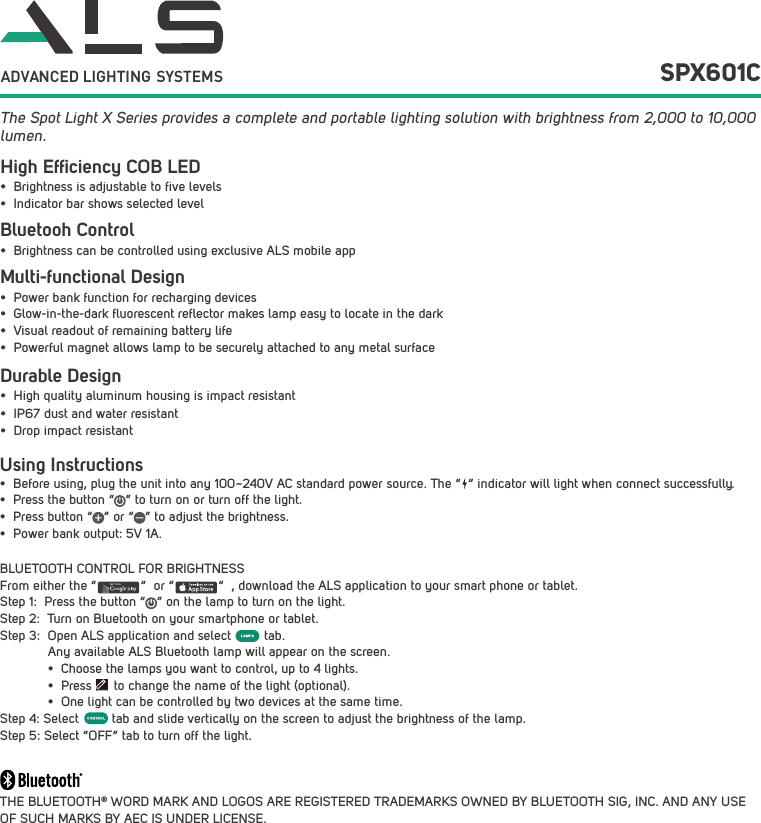

Using Instructions•  Before using, plug the unit into any 100~240V AC standard power source. The “  “ indicator will light when connect successfully.•  Press the button “   ” to turn on or turn off the light.•  Press button “   ” or “   ” to adjust the brightness.•  Power bank output: 5V 1A.BLUETOOTH CONTROL FOR BRIGHTNESSFrom either the “            “  or “            “  , download the ALS application to your smart phone or tablet.Step 1:  Press the button “   ” on the lamp to turn on the light.Step 2:  Turn on Bluetooth on your smartphone or tablet.Step 3:  Open ALS application and select         tab.              Any available ALS Bluetooth lamp will appear on the screen.             •  Choose the lamps you want to control, up to 4 lights.             •  Press      to change the name of the light (optional).             •  One light can be controlled by two devices at the same time.Step 4: Select         tab and slide vertically on the screen to adjust the brightness of the lamp. Step 5: Select “OFF” tab to turn off the light.THE BLUETOOTH® WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY AEC IS UNDER LICENSE. The Spot Light X Series provides a complete and portable lighting solution with brightness from 2,000 to 10,000 lumen.GET IT ON  SPX601CADVANCED LIGHTING  SYSTEMSHigh Efficiency COB LEDBluetooh Control Durable Design•  Brightness is adjustable to five levels•  Indicator bar shows selected level•  Brightness can be controlled using exclusive ALS mobile app•  High quality aluminum housing is impact resistant•  IP67 dust and water resistant•  Drop impact resistantMulti-functional Design•  Power bank function for recharging devices•  Glow-in-the-dark fluorescent reflector makes lamp easy to locate in the dark•  Visual readout of remaining battery life•  Powerful magnet allows lamp to be securely attached to any metal surface

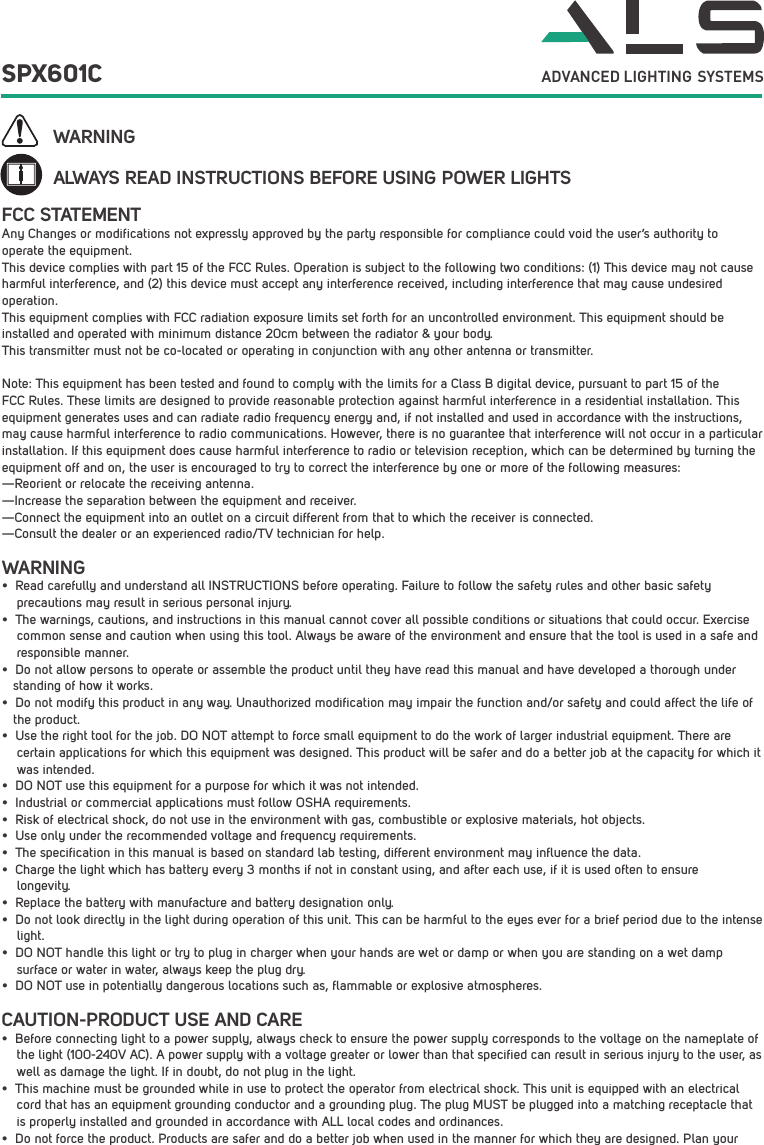

ALWAYS READ INSTRUCTIONS BEFORE USING POWER LIGHTSWARNINGWARNING•  Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety     precautions may result in serious personal injury.•  The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise     common sense and caution when using this tool. Always be aware of the environment and ensure that the tool is used in a safe and      responsible manner. •  Do not allow persons to operate or assemble the product until they have read this manual and have developed a thorough under   standing of how it works.•  Do not modify this product in any way. Unauthorized modification may impair the function and/or safety and could affect the life of    the product. •  Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger industrial equipment. There are     certain applications for which this equipment was designed. This product will be safer and do a better job at the capacity for which it     was intended. •  DO NOT use this equipment for a purpose for which it was not intended.•  Industrial or commercial applications must follow OSHA requirements.•  Risk of electrical shock, do not use in the environment with gas, combustible or explosive materials, hot objects. •  Use only under the recommended voltage and frequency requirements. •  The specification in this manual is based on standard lab testing, different environment may influence the data.•  Charge the light which has battery every 3 months if not in constant using, and after each use, if it is used often to ensure    longevity.•  Replace the battery with manufacture and battery designation only.•  Do not look directly in the light during operation of this unit. This can be harmful to the eyes ever for a brief period due to the intense                 light.•  DO NOT handle this light or try to plug in charger when your hands are wet or damp or when you are standing on a wet damp    surface or water in water, always keep the plug dry.•  DO NOT use in potentially dangerous locations such as, flammable or explosive atmospheres. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.  This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  —Reorient or relocate the receiving antenna.  —Increase the separation between the equipment and receiver.  —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  —Consult the dealer or an experienced radio/TV technician for help.  FCC STATEMENTCAUTION-PRODUCT USE AND CARE•  Before connecting light to a power supply, always check to ensure the power supply corresponds to the voltage on the nameplate of    the light (100-240V AC). A power supply with a voltage greater or lower than that specified can result in serious injury to the user, as    well as damage the light. If in doubt, do not plug in the light.•  This machine must be grounded while in use to protect the operator from electrical shock. This unit is equipped with an electrical     cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that     is properly installed and grounded in accordance with ALL local codes and ordinances.•  Do not force the product. Products are safer and do a better job when used in the manner for which they are designed. Plan your SPX601C ADVANCED LIGHTING  SYSTEMS

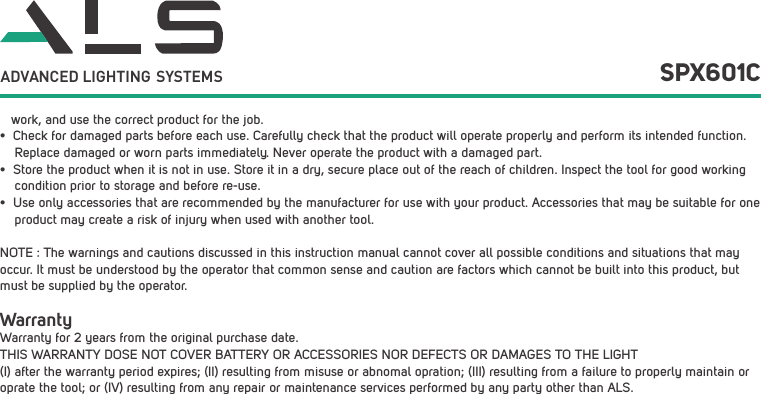

   work, and use the correct product for the job.•  Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function.     Replace damaged or worn parts immediately. Never operate the product with a damaged part.•  Store the product when it is not in use. Store it in a dry, secure place out of the reach of children. Inspect the tool for good working     condition prior to storage and before re-use. •  Use only accessories that are recommended by the manufacturer for use with your product. Accessories that may be suitable for one     product may create a risk of injury when used with another tool. NOTE : The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.WarrantyWarranty for 2 years from the original purchase date.THIS WARRANTY DOSE NOT COVER BATTERY OR ACCESSORIES NOR DEFECTS OR DAMAGES TO THE LIGHT (I) after the warranty period expires; (II) resulting from misuse or abnomal opration; (III) resulting from a failure to properly maintain or oprate the tool; or (IV) resulting from any repair or maintenance services performed by any party other than ALS.SPX601CADVANCED LIGHTING  SYSTEMS
