AEE Wireless Technology AT102 2.4 G Wireless Camera User Manual AT102 ZT 735Manual

Shenzhen AEE Wireless Technology Co., Ltd. 2.4 G Wireless Camera AT102 ZT 735Manual

User manual

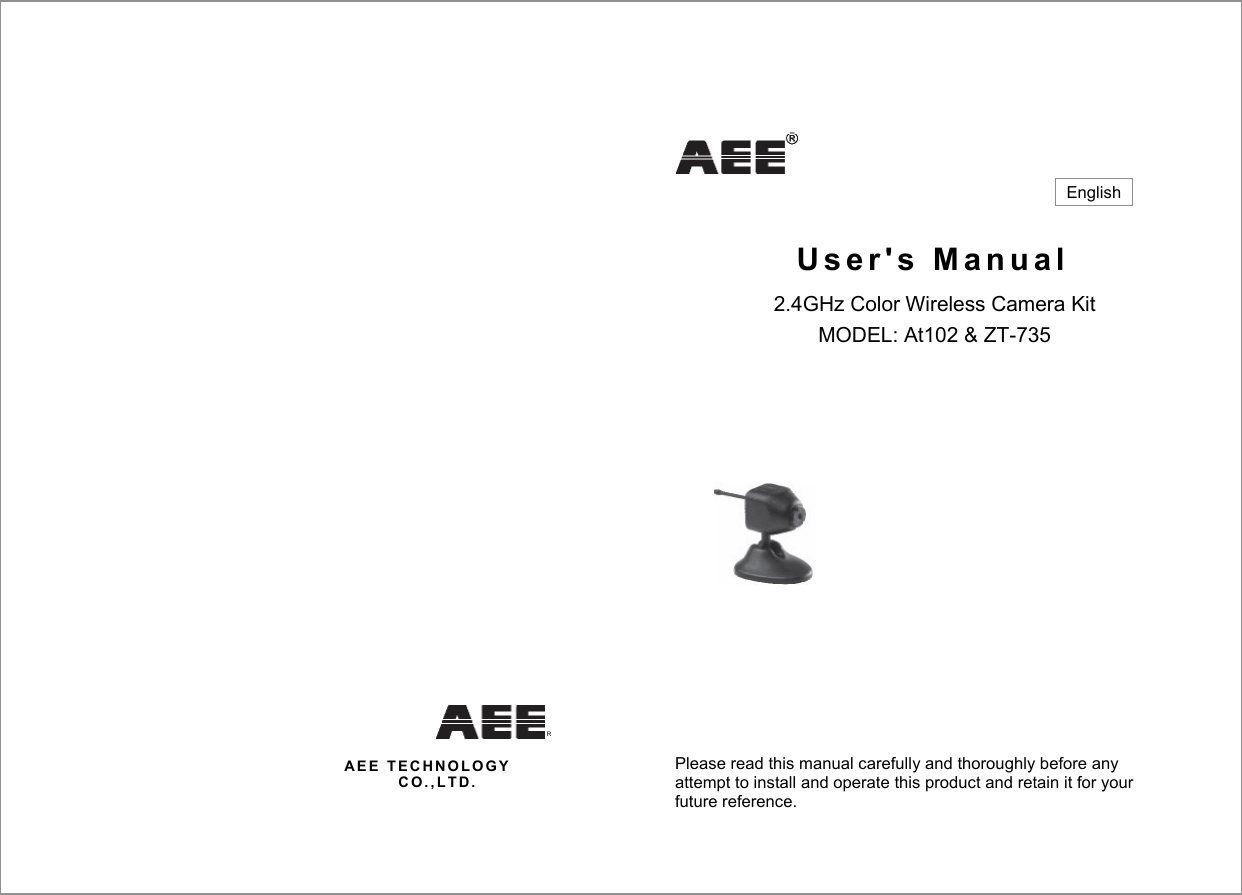

  U s e r ' s   M a n u a l  2.4GHz Color Wireless Camera Kit MODEL: At102 & ZT-735   A E E   T E C H N O L O G Y  C O . , L T D .  Please read this manual carefully and thoroughly before any attempt to install and operate this product and retain it for your future reference. English R

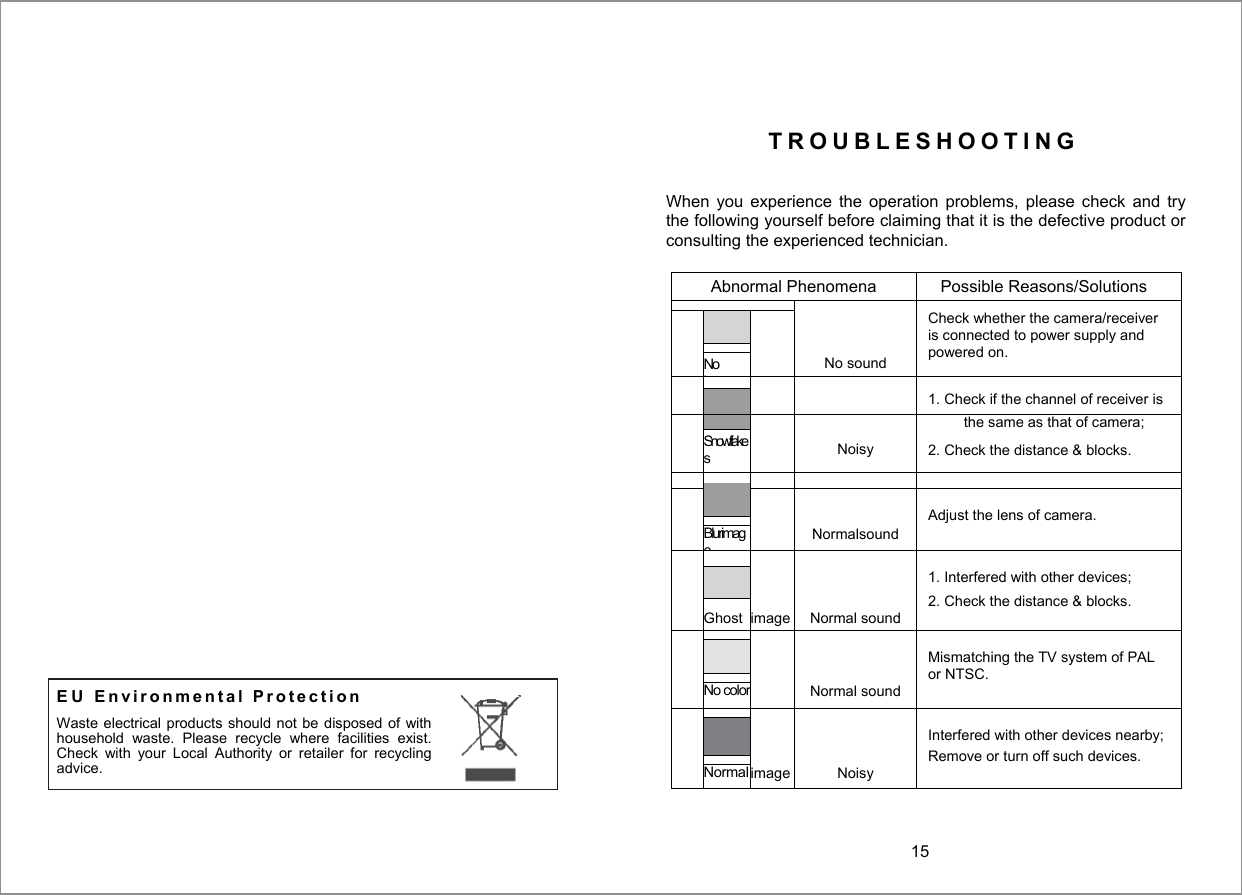

 T R O U B L E S H O O T I N G  When  you  experience  the  operation  problems,  please  check  and  try the following yourself before claiming that it is the defective product or consulting the experienced technician. Abnormal Phenomena  Possible Reasons/Solutions       No image  No sound Check whether the camera/receiver is connected to power supply and powered on.       1. Check if the channel of receiver is   Snowflakes on  Noisy the same as that of camera; 2. Check the distance & blocks.         Blurimage  Normalsound Adjust the lens of camera.    Ghost image Normal sound 1. Interfered with other devices; 2. Check the distance & blocks.     No color  Normal sound Mismatching the TV system of PAL or NTSC.     Normal image Noisy Interfered with other devices nearby; Remove or turn off such devices. 15  E U   E n v i r o n m e n t a l   P r o t e c t i o n  Waste electrical products should not be disposed of with household  waste.  Please  recycle  where  facilities  exist. Check  with  your  Local  Authority  or  retailer  for  recycling advice.
 S P E C I F I C A T I O N S  It em s  Va lu e Transmission Frequency  ISM 2,400MHz~ 2,483MHz Antenna Type  Omni Transmission Distance  100m (Without Block) Operating Temperature o o o o F F Storage Temperature o o o o -20C~+60C /-4~+140 Storage Humidity  ~85% RH   Imaging Sensor  1/3-inch CMOS  CMOS Total Pixels  628  582 (PAL)/ 510 492 (NTSC)  S/N Ratio  40dB (AGC OFF)  Horizontal Resolution  380 TV Lines  Minimum Illumination  5 Lux/F1.2  Transmission Power  10mW (CE)/2mW (FCC)  Power Supply  DC 7.5V 300mA   Consumption Current  80 mA (Max.)  Dimensions (WxDxH)  23mmx31mmx23mm (Main Body)   Weight  Approx.20g (Main Body)   Receiving Sensitivity  -85dBm   Power Supply  DC 8.0V 200mA   ConsumptionCurrent  150mA(Max.)  Video Output Level  1 Vp - p   Ω @75   Audio Output Level  1 Vp - p   Ω @10k   Dimensions (WxDxH)  100mmx70mmx18mm (Main Body)   Weight  Approx. 99g (Main Body) * Specifications are subject to minor change without prior notice. T A B L E   O F   C O N T E N T S  SP EC I FI C ATIO NS   14  TR OU BLE SHO OTING   15  14    1~4 1 1~2 3 3 4 4 IN TR ODU CTI ON   Notice Approval Information (FCC/CE )  Warranty Copyright   Restrictions  Maintenance 5~7 5 6 7PR ODU CT Package Contents   Feature  Locations Adapter & Battery Clip INST ALLATION & USAGE Installation   FixtheCamera   Locate the Receiver Camera Channel Setup Receiver Mode Setup 8~ 13 8~1011~12121213

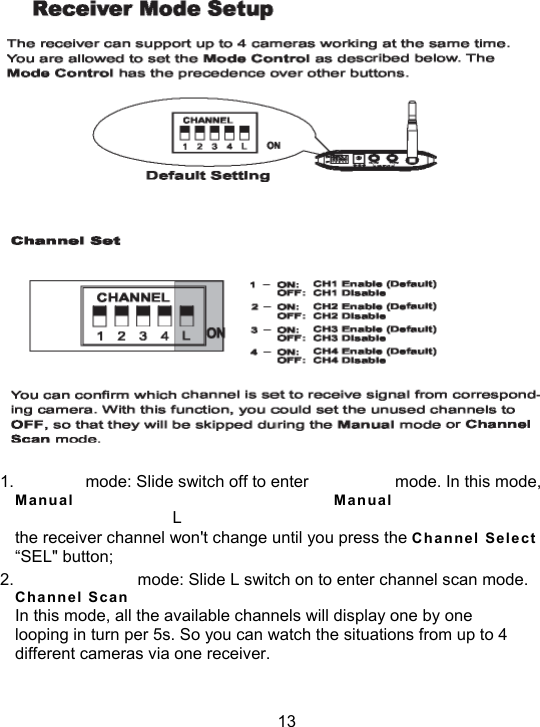

 1.   mode: Slide switch off to enter  mode. In this mode, Man u al  Man u al L the receiver channel won't change until you press the C h anne l  Sel e ct “SEL" button; 2.    mode: Slide L switch on to enter channel scan mode. Cha n nel  S can In this mode, all the available channels will display one by one looping in turn per 5s. So you can watch the situations from up to 4 different cameras via one receiver.  13

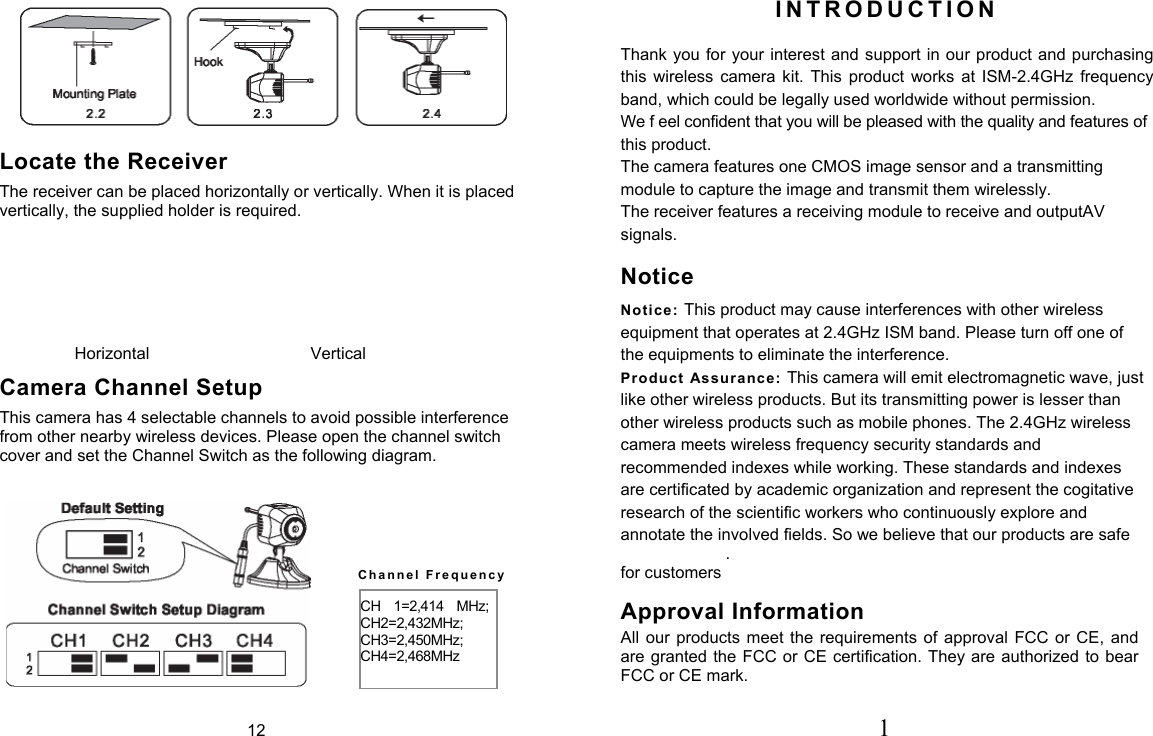

 Locate the Receiver The receiver can be placed horizontally or vertically. When it is placed vertically, the supplied holder is required. Horizontal  Vertical Camera Channel Setup This camera has 4 selectable channels to avoid possible interference from other nearby wireless devices. Please open the channel switch cover and set the Channel Switch as the following diagram. I N T R O D U C T I O N   Thank you for your interest and support in our product and purchasing this  wireless  camera  kit.  This  product  works  at  ISM-2.4GHz  frequency band, which could be legally used worldwide without permission. We f eel confident that you will be pleased with the quality and features of this product. The camera features one CMOS image sensor and a transmitting module to capture the image and transmit them wirelessly. The receiver features a receiving module to receive and outputAV signals.  Notice Notice: This product may cause interferences with other wireless equipment that operates at 2.4GHz ISM band. Please turn off one of the equipments to eliminate the interference. Product Assurance:  This camera will emit electromagnetic wave, just like other wireless products. But its transmitting power is lesser than other wireless products such as mobile phones. The 2.4GHz wireless camera meets wireless frequency security standards and recommended indexes while working. These standards and indexes are certificated by academic organization and represent the cogitative research of the scientific workers who continuously explore and annotate the involved fields. So we believe that our products are safe . for customers Approval Information All  our products  meet  the requirements  of  approval  FCC  or  CE,  and are granted the  FCC or CE certification. They are authorized to bear FCC or CE mark.  C h a n n e l   F r e q u e n c y CH  1=2,414  MHz; CH2=2,432MHz; CH3=2,450MHz; CH4=2,468MHz 12 1
 FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which and be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and the receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and   (2) this device must accept any interference received, including interference that may cause undesired operation Changes and modification not expressly approved by the manufacturer or registrant of this equipment can void your authority to pperate this equipment under Fedral Communications Commissions rules.F i x   t h e   C a m e r a  Please follow the steps below if you want to fix the camera to wall or ceiling. 1. Fix  to Wal l 1.1 Drill one hole on the mounting surface, insert the anchor into the hole, then align the mounting plate with the hole you just drilled and drive the screw through the plate into the anchor; 1.2 Hang the camera on the hooks of mounting plate; 1.3 Push downwards the camera firmly.  2. Fix  to Ceiling 2.1 Detach the universal bracket from the camera and then install it to the camera top for avoiding reverse picture; 2.2 Secure the mounting plate to ceiling with screw; 2.3 Hang the camera on the hooks of mounting plate; 2.4 Push the camera firmly as the shown direction. 2  11

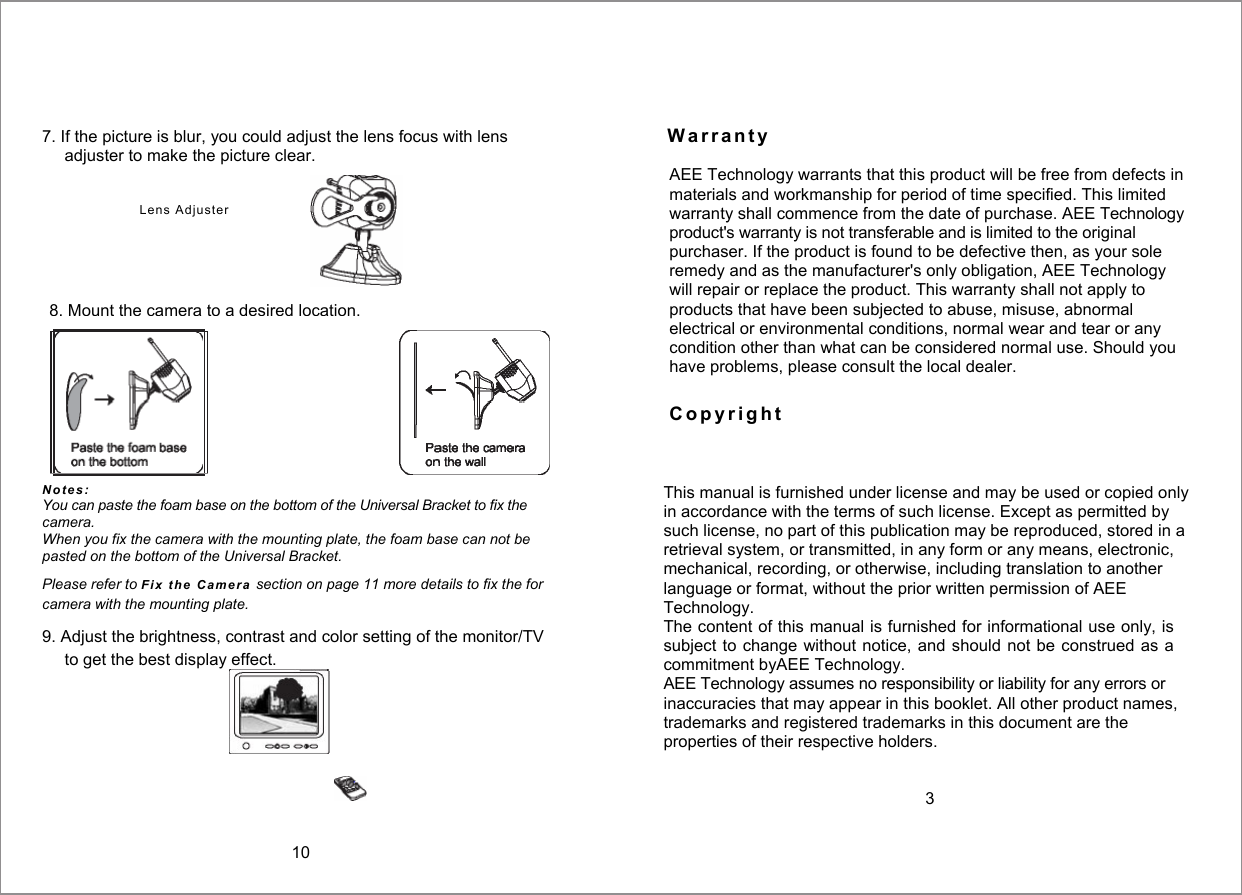

 7. If the picture is blur, you could adjust the lens focus with lens  W a r r a n t y  adjuster to make the picture clear. N o t e s :  You can paste the foam base on the bottom of the Universal Bracket to fix the camera. When you fix the camera with the mounting plate, the foam base can not be pasted on the bottom of the Universal Bracket. Please refer to Fi x   t h e   C ame r a  section on page 11 more details to fix the for camera with the mounting plate. 9. Adjust the brightness, contrast and color setting of the monitor/TV to get the best display effect.   This manual is furnished under license and may be used or copied only in accordance with the terms of such license. Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or any means, electronic, mechanical, recording, or otherwise, including translation to another language or format, without the prior written permission of AEE Technology. The content of this manual is furnished for informational use only, is subject to change without  notice,  and should not be construed  as a commitment byAEE Technology. AEE Technology assumes no responsibility or liability for any errors or inaccuracies that may appear in this booklet. All other product names, trademarks and registered trademarks in this document are the properties of their respective holders.   3  Lens  Adjuster  AEE Technology warrants that this product will be free from defects in materials and workmanship for period of time specified. This limited warranty shall commence from the date of purchase. AEE Technology product's warranty is not transferable and is limited to the original purchaser. If the product is found to be defective then, as your sole remedy and as the manufacturer's only obligation, AEE Technology will repair or replace the product. This warranty shall not apply to products that have been subjected to abuse, misuse, abnormal electrical or environmental conditions, normal wear and tear or any condition other than what can be considered normal use. Should you have problems, please consult the local dealer. C o p y r i g h t  8. Mount the camera to a desired location.  10
R e s t r i c t i o n s  1.  DO NOT use this product to violate one's privacy. Monitoring one's activities without consent is illegal and this product is not designed and manufactured for such purpose; 2.   DO NOT put this product near any medical equipment. Radio waves might potentially cause breakdown of electrical medical equipment. So this product should be placed at least 1 feet away from any heart pacemaker. Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance; 3.  DO NOT use this product for any illegal activities. AEE Technology shall not be responsible for any consequences of illegal acts committed by the user. M a i n t e n a n c e  1.  Ensure the sufficient ventilation space is available; 2.  Do not shake or strike the product; 3.  Keep it dry and dustless and avoid exposing it to direct sunlight; 4.  Do not place product near any magnetic objects; 5.  Avoid putting the product in places where the constantly changed temperature or humidity occurs; 6.  Keep product away from heat sources such as electric heater; 7.  Do not use the camera near aggressive chemicals; 8.  Do not use this camera near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool and the like; 9.  Do not use the camera in the places which are enclosed by metal. The surrounding metal like lifter, cabin, may shield the electromagnetic wave, and result in failure of signal reception; 10.  Please obey the local government's environment protection policy; 11.  Please turn off the power when left unused; 12.  Do not disassemble or repair the camera or receiver, doing so might cause damages to the product. 4 4. Connect the power jack of adapter (DC 8.0V 200mA) to receiver.  Note: Please refer to Receiver Mode Setup section on page 13 for more details. 5. Open the channel switch cover and set the camera to one desired channel.  Notes: Please refer to Camera Channel Setup section on page 13 for more details. Please recover the channel switch after finished setting. 6. Press the channel select  button on the receiver until the "S EL EC T"  channel indicator matches to the channel on the corresponding camera, and the monitor/TV will display pictures.  9

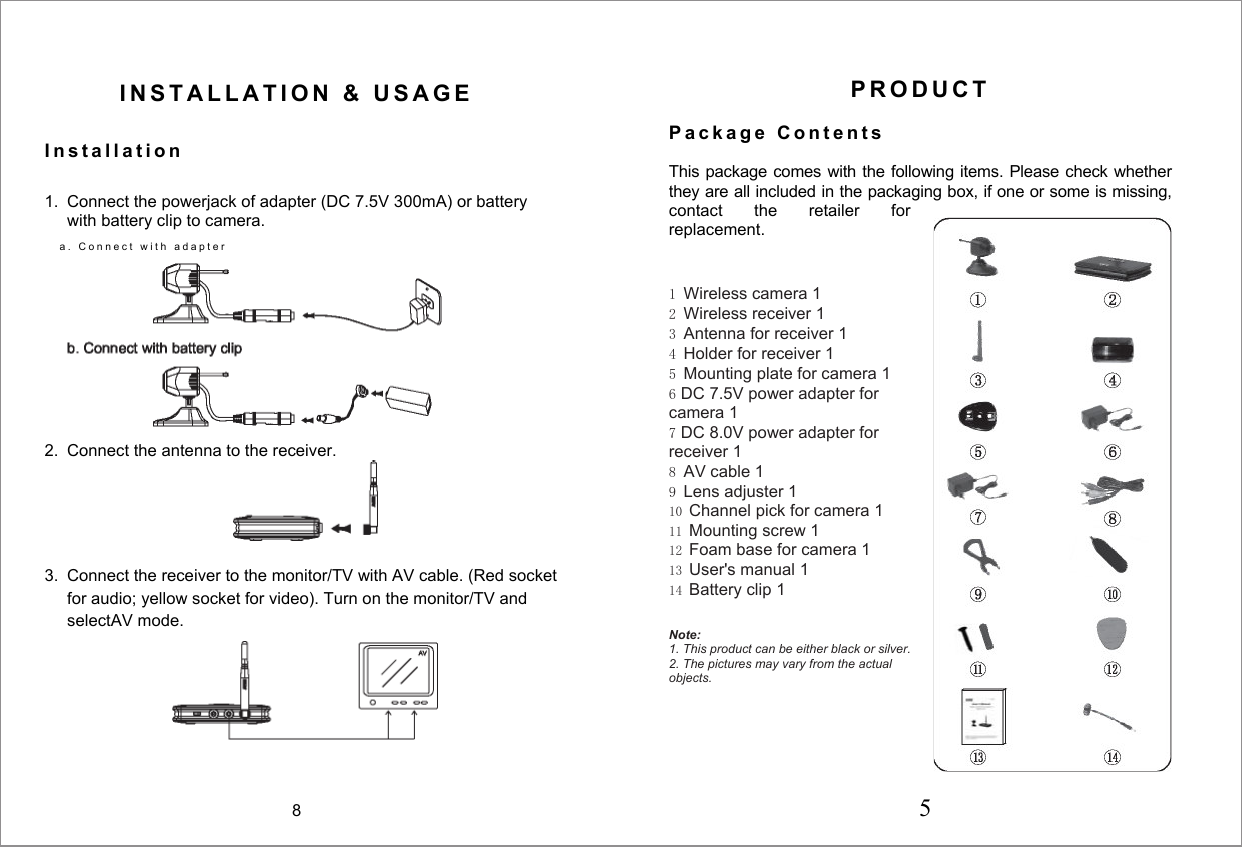

 I N S T A L L A T I O N   &   U S A G E  I n s t a l l a t i o n  1.  Connect the powerjack of adapter (DC 7.5V 300mA) or battery with battery clip to camera. a .   C o n n e c t   w i t h   a d a p t e r   2.  Connect the antenna to the receiver.  3.  Connect the receiver to the monitor/TV with AV cable. (Red socket for audio; yellow socket for video). Turn on the monitor/TV and selectAV mode.  P R O D U C T   P a c k a g e   C o n t e n t s   This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact  the  retailer  for replacement.    1 Wireless camera 1 2 Wireless receiver 1 3 Antenna for receiver 1 4 Holder for receiver 1 5 Mounting plate for camera 1 6 DC 7.5V power adapter for camera 1 7 DC 8.0V power adapter for receiver 1 8 AV cable 1 9 Lens adjuster 1 10 Channel pick for camera 1 11 Mounting screw 1 12 Foam base for camera 1 13 User's manual 1 14 Battery clip 1   Note: 1. This product can be either black or silver. 2. The pictures may vary from the actual objects.  8 5
Adapter  This product always conforms to the authenticated AC adapter. The adapter should be marked one of the following:    UL Mark American power supply authentication CE Mark European Union power supply authentication GS Mark German power supply authentication    SAA Mark Australia power supply authentication PSE Mark Japan power supply authentication CCC Mark China power supply authentication 2 .   R e c e i v e r         N o t e :  When using the power adapter, make sure the rating voltage on it is compatible with that of the device to avoid potential damages resulting from incorrect usage of power supply. Battery Clip With the supplied battery clip, the camera could be powered by battery of the same voltage for temporary use.  7 Feature Locations 1 .   C a m e r a   6
