AEE Wireless Technology AT132 2.4GHz WIRELESS CAMERA User Manual 132LC OM

Shenzhen AEE Wireless Technology Co., Ltd. 2.4GHz WIRELESS CAMERA 132LC OM

USERS MANUAL

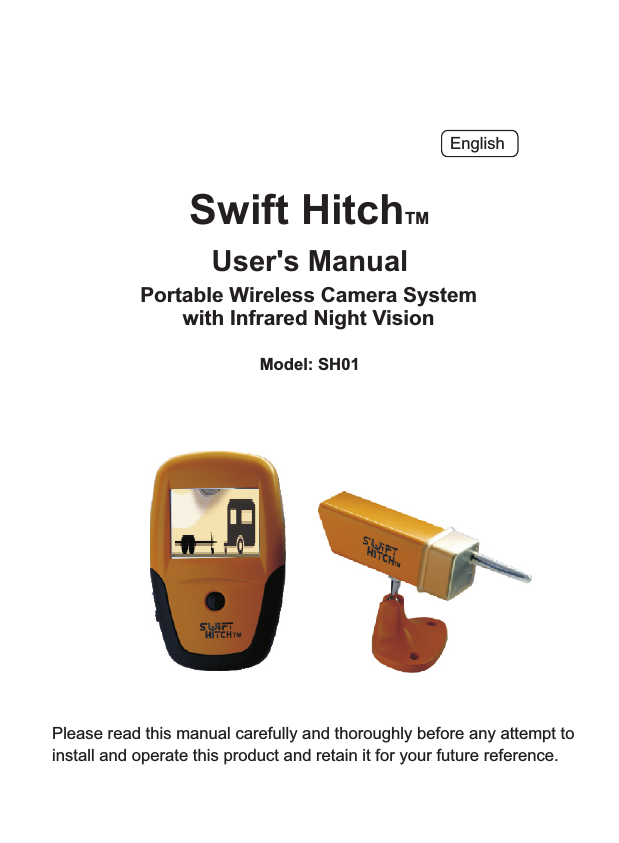

Please read this manual carefully and thoroughly before any attempt toinstall and operate this product and retain it for your future reference.User's ManualSwift HitchTMEnglishPortable Wireless Camera Systemwith Infrared Night VisionModel: SH01

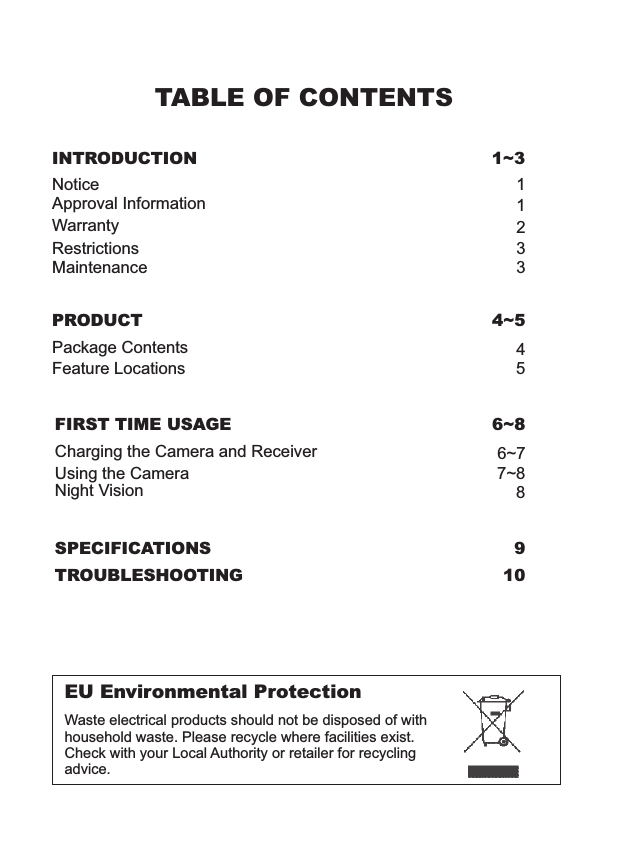

TABLE OF CONTENTSINTRODUCTION 1~3NoticeRestrictionsMaintenanceWarrantyApproval Information13321EU Environmental ProtectionWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.PRODUCT 4~5Package ContentsFeature Locations45SPECIFICATIONS 9TROUBLESHOOTING 10FIRST TIME USAGE 6~8Using the Camera 7~88Night Vision6~7Charging the Camera and Receiver

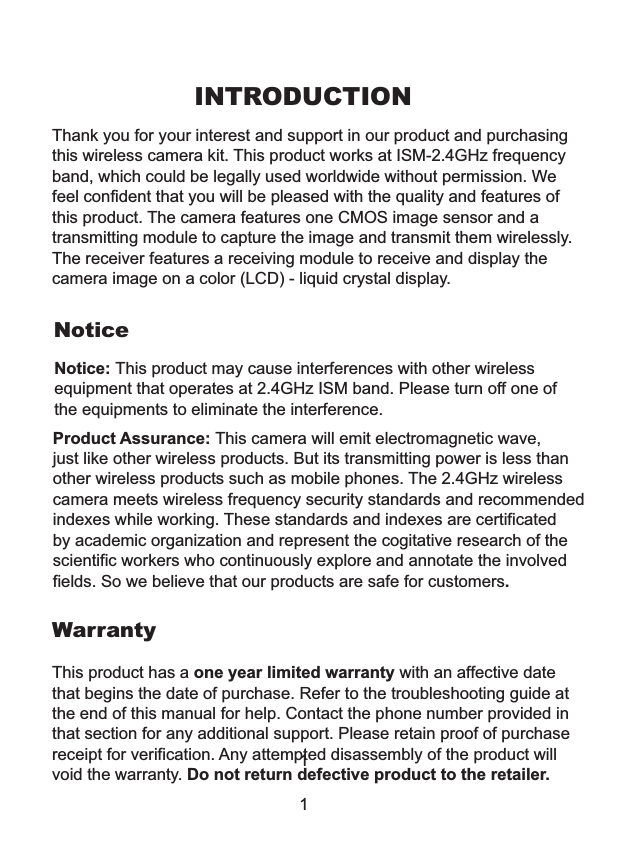

INTRODUCTIONThank you for your interest and support in our product and purchasing this wireless camera kit. This product eel confident that you will be pleased with the quality and features ofthis product. The camera features one CMOS image sensor and a transmitting module to capture the image and transmit them wirelessly. The receiver features a receiving module to receive and display the camera image on a color (LCD) - liquid crystal display.works at ISM-2.4GHz frequency band, which could be legally used worldwide without permission. WefThis product has a one year limited warranty with an affective date that begins the date of purchase. Refer to the troubleshooting guide at the end of this manual for help. Contact the phone number provided in that section for any additional support. Please retain proof of purchase receipt for verification. Any attempted disassembly of the product will void the warranty. Do not return defective product to the retailer.NoticeWarrantyNotice: This product may cause interferences with other wireless equipment that operates at 2.4GHz ISM band. Please turn off one ofthe equipments to eliminate the interference. Product Assurance: This camera will emit electromagnetic wave, just like other wireless products. But its transmitting power is less than other wireless products such as mobile phones. The 2.4GHz wireless camera meets wireless frequency security standards and recommendedindexes while working. These standards and indexes are certificated by academic organization and represent the cogitative research of the scientific workers who continuously explore and annotate the involved fields. So we believe that our products are safe for customers.11

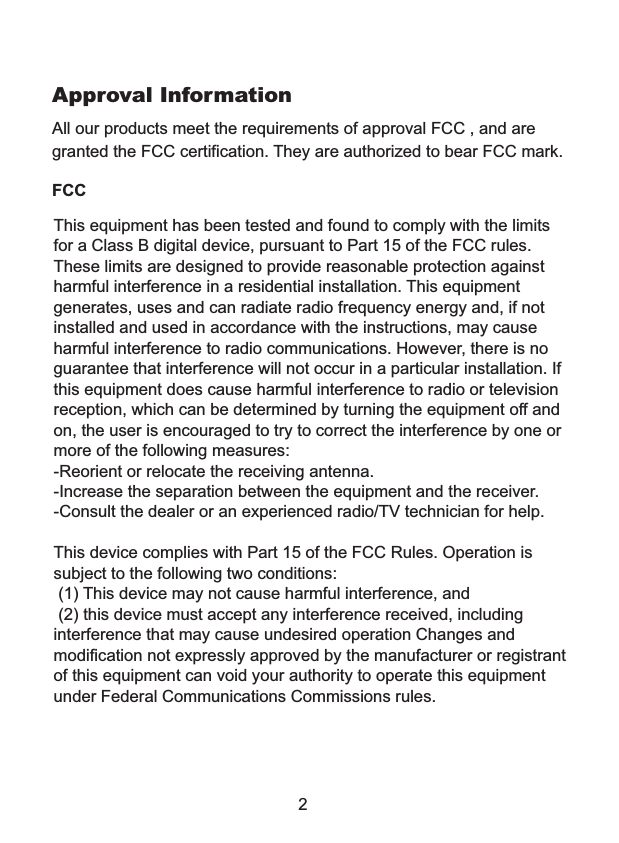

2This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and the receiver.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes and modification not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commissions rules.All our products meet the requirements of approval FCC , and are granted the FCC certification. They are authorized to bear FCC mark. Approval InformationFCC

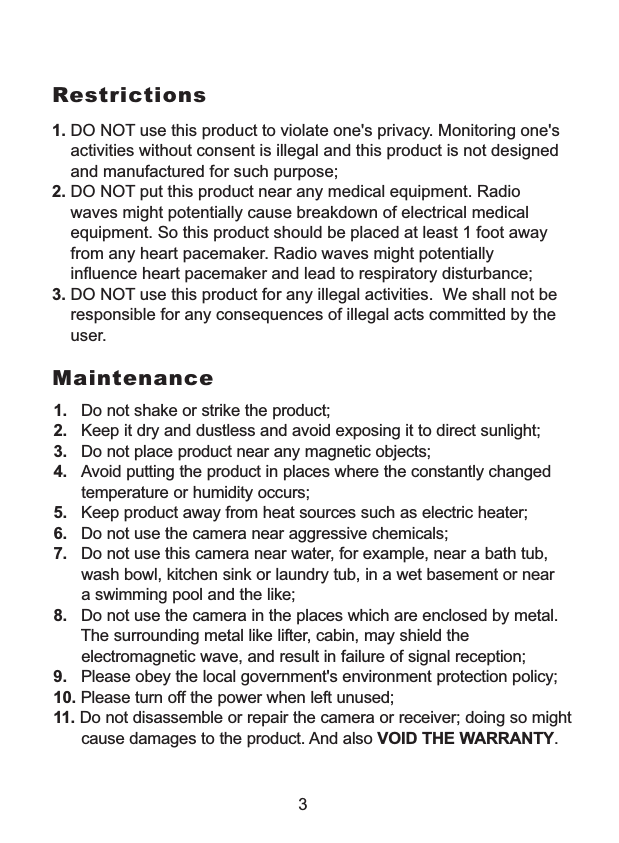

1. DO NOT use this product to violate one's privacy. Monitoring one's activities without consent is illegal and this product is not designed and manufactured for such purpose; 2. DO NOT put this product near any medical equipment. Radio waves might potentially cause breakdown of electrical medical equipment. So this product should be placed at least 1 foot away from any heart pacemaker. Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance;3. DO NOT use this product for any illegal activities. We shall not be responsible for any consequences of illegal acts committed by the user.Restrictions1. Do not shake or strike the product;2. Keep it dry and dustless and avoid exposing it to direct sunlight;3. Do not place product near any magnetic objects; 4. Avoid putting the product in places where the constantly changed temperature or humidity occurs;5. Keep product away from heat sources such as electric heater;6. Do not use the camera near aggressive chemicals;7. Do not use this camera near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool and the like;8. Do not use the camera in the places which are enclosed by metal. The surrounding metal like lifter, cabin, may shield the electromagnetic wave, and result in failure of signal reception;9. Please obey the local government's environment protection policy;10. Please turn off the power when left unused;11. Do not disassemble or repair the camera or receiver; doing so might cause damages to the product. And also VOID THE WARRANTY.Maintenance3

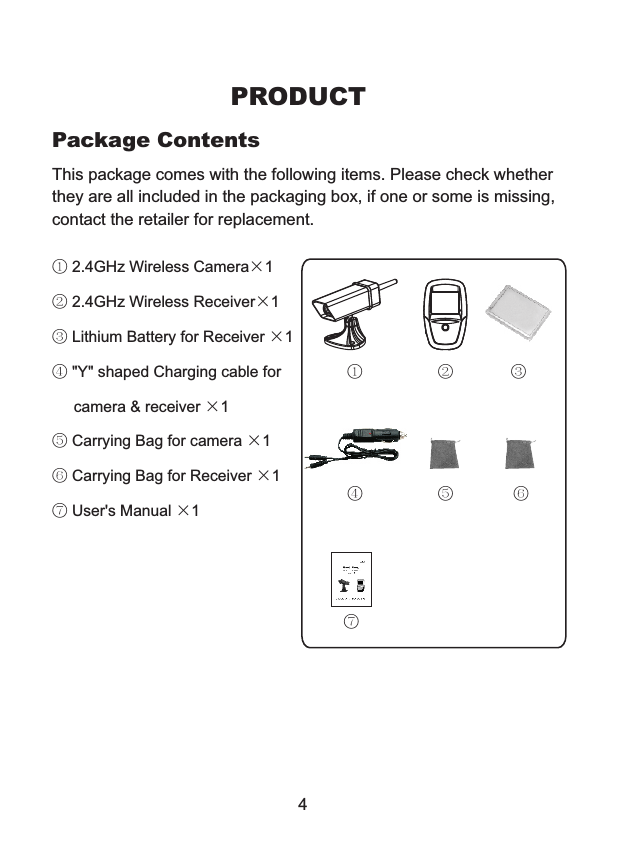

PRODUCTPackage ContentsThis package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement.4①④ ⑤ ⑥⑦② ③①②③④⑤⑥⑦'s Manual 2.4GHz Wireless Camera×1 2.4GHz Wireless Receiver×1 Lithium Battery for Receiver ×1 "Y" shaped Charging cable for camera & receiver ×1 Carrying Bag for camera ×1 Carrying Bag for Receiver ×1 User ×1

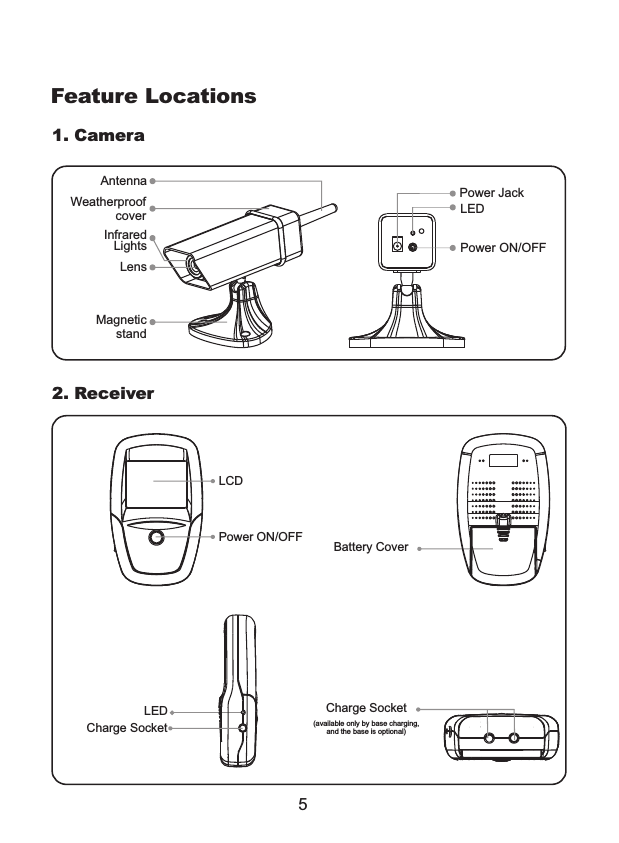

LensAntennaWeatherproof coverInfraredLightsMagnetic standPower JackLEDPower ON/OFFFeature Locations1. Camera2. Receiver5Power ON/OFFLEDLCD Battery CoverCharge SocketCharge Socket (available only by base charging, and the base is optional)

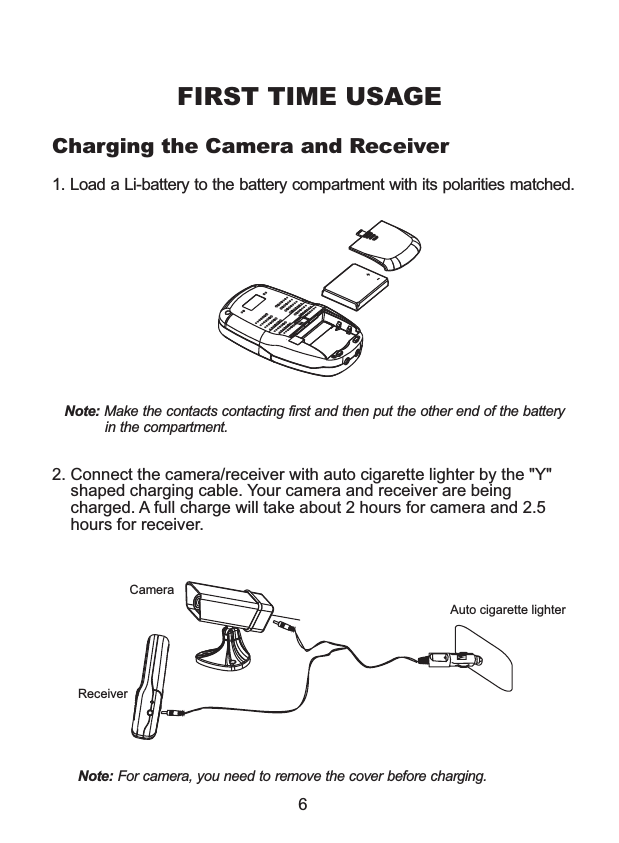

2. Connect the camera/receiver with auto cigarette lighter by the "Y" shaped charging cable. Your camera and receiver are being charged. A full charge will take about 2 hours for camera and 2.5 hours for receiver.FIRST TIME USAGE6Charging the Camera and ReceiverCameraReceiverAuto cigarette lighter1. Load a Li-battery to the battery compartment with its polarities matched. Note: Make the contacts contacting first and then put the other end of the battery in the compartment.Note: For camera, you need to remove the cover before charging.

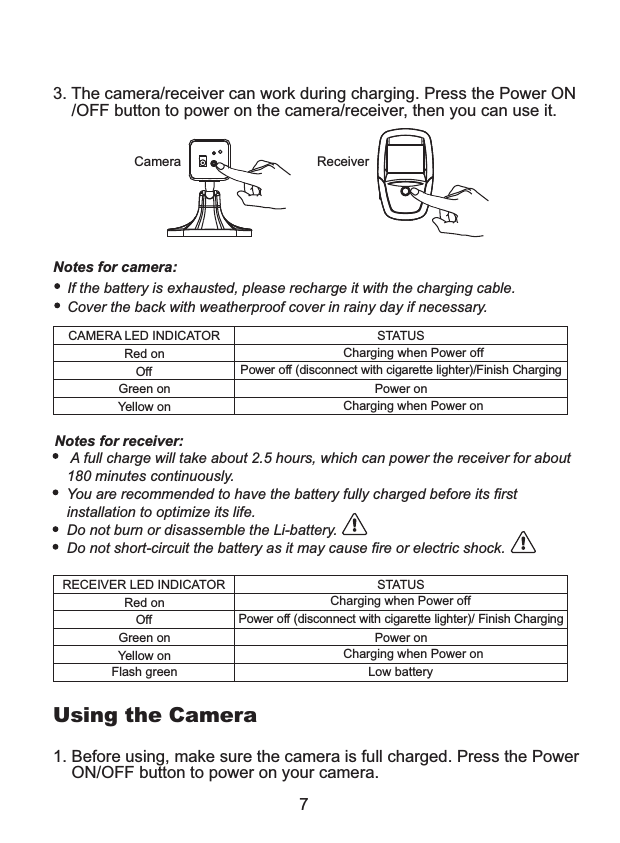

7Notes for receiver: A full charge will take about 2.5 hours, which can power the receiver for about 180 minutes continuously. You are recommended to have the battery fully charged before its first installation to optimize its life. Do not burn or disassemble the Li-battery. Do not short-circuit the battery as it may cause fire or electric shock. CAMERA LED INDICATORRed onOffGreen on Yellow onSTATUSCharging when Power offPower off (disconnect with cigarette lighter)/Finish ChargingPower onCharging when Power onRECEIVER LED INDICATORRed onOffGreen on Yellow on Flash greenSTATUSCharging when Power offPower off (disconnect with cigarette lighter)/ Finish ChargingPower onCharging when Power onLow battery If the battery is exhausted, please recharge it with the charging cable. Cover the back with weatherproof cover in rainy day if necessary. Notes for camera: Using the Camera1. Before using, make sure the camera is full charged. Press the Power ON/OFF button to power on your camera. 3. The camera/receiver can work during charging. Press the Power ON /OFF button to power on the camera/receiver, then you can use it.Camera Receiver

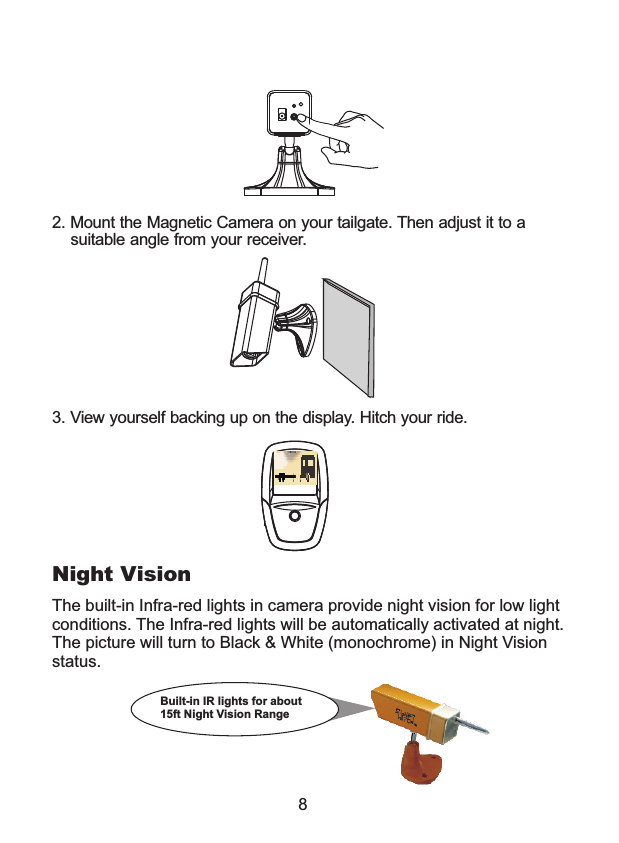

8Night VisionThe built-in Infra-red lights in camera provide night vision for low light conditions. The Infra-red lights will be automatically activated at night.The picture will turn to Black & White (monochrome) in Night Vision status. Built-in IR lights for about 15ft Night Vision Range 2. Mount the Magnetic Camera on your tailgate. Then adjust it to a suitable angle from your receiver. 3. View yourself backing up on the display. Hitch your ride.

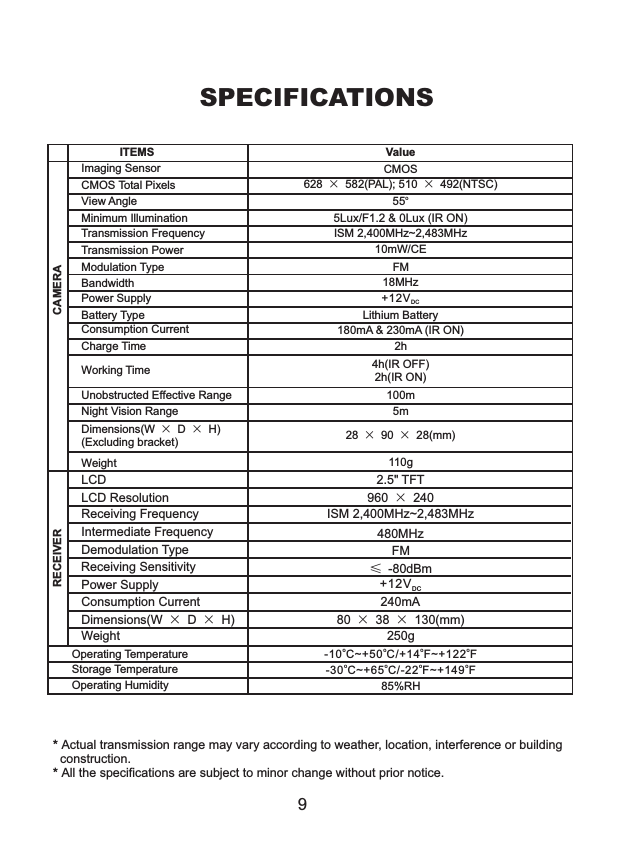

SPECIFICATIONS* Actual transmission range may vary according to weather, location, interference or building construction.* All the specifications are subject to minor change without prior notice.CAMERAImaging Sensor CMOSCMOS Total Pixels 628 ×582(PAL); 510 ×492(NTSC)View AngleMinimum Illumination 5Lux/F1.2 & 0Lux (IR ON)Transmission Frequency ISM 2,400MHz~2,483MHz10mW/CEModulation Type FMBandwidth 18MHzPower SupplyBattery Type Lithium BatteryConsumption Current 180mA & 230mA (IR ON)Charge Time 2hWorking TimeUnobstructed Effective Range 100mNight Vision RangeDimensions(W ×D×H)(Excluding bracket)Weight Operating Temperature Storage Temperature Operating Humidity 85%RHo o o o-30 C~+65 C/-22 F~+149 FRECEIVERo o o o-10 C~+50 C/+14 F~+122 F+12V DCo555m28 ×90 ×28(mm)ITEMS Value4h(IR OFF)2h(IR ON)110gTransmission Power9LCD 2.5" TFTLCD Resolution 960 ×240Receiving Frequency ISM 2,400MHz~2,483MHzIntermediate Frequency 480MHzDemodulation Type FMReceiving SensitivityPower SupplyConsumption Current 240mADimensions(W ×D×H) 80 ×38 ×130(mm)Weight 250g≤-80dBm+12V C D

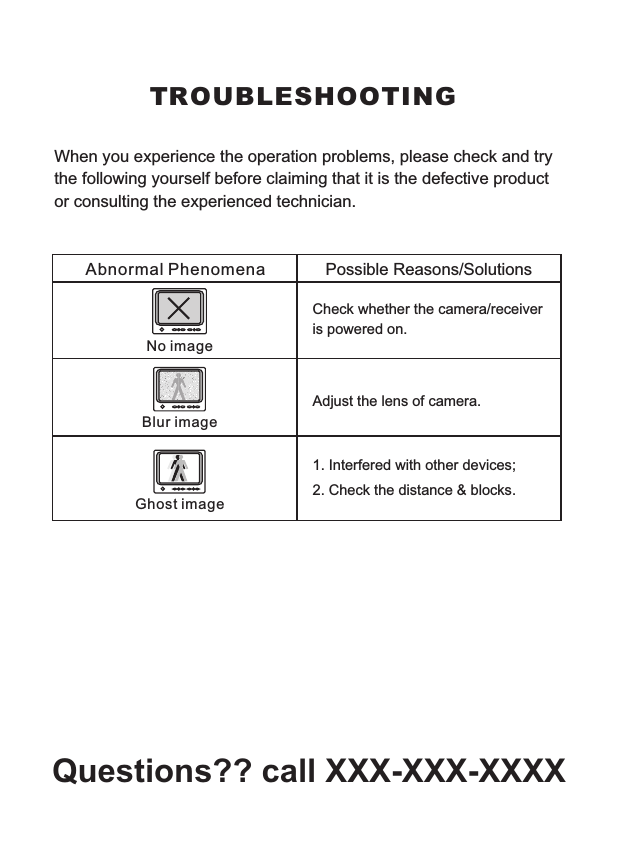

TROUBLESHOOTINGWhen you experience the operation problems, please check and try the following yourself before claiming that it is the defective product or consulting the experienced technician. Abnormal Phenomena Possible Reasons/SolutionsCheck whether the camera/receiveris powered on.1. Interfered with other devices;2. Check the distance & blocks.Adjust the lens of camera.No imageGhost imageBlur imageQuestions?? call XXX-XXX-XXXX
