AEE Wireless Technology CT002 2.4G Wireless camera User Manual 002CF
Shenzhen AEE Wireless Technology Co., Ltd. 2.4G Wireless camera 002CF
Users Manual
English
User's Manual
Wireless Back-up Kit Weather-proof
Model:002CF
Please read this manual thoroughly before any attempt to
install and operate this product and retain it for your future
reference.
TABLE OF CONTENTS
INTRODUCTION 1~3
Notice 1
Approval Information (FCC/CE) 2~3
PRODUCT 4~5
Features 4
Package Contents 4
Feature Locations 5
INSTALLATION & USAGE 6~11
Camera Installation 6~7
Find Reversing Power 8
Find Anode +12V 10
SPECIFICATIONS 12
TROUBLESHOOTING 13
EU Environmental Protection
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
INTRODUCTION
Thank you for purchasing our car back view monitor. This
product works at ISM-2.4GHz frequency band, which could be
legally used worldwide without permission. We f eel confident
that you will be pleased with the quality and features of this
product. The product is made of alloyed shell and special
weather-proof enclosure that protect it against power and
water sprays. It passed the IP65 testing. The product offers a
new solution and experience for drivers. Drivers can check the
back situations through the camera mounted on the rear car,
and does not need to look back and forth. This product is only
for accessorial reminding tool, thus we will not take any
responsibility for resulting accident. Please read the manual
thoroughly before using, and following the instruction
accordingly.
Notice
Notice: This product may cause interferences with other
wireless equipment that operates at 2.4GHz ISM band. Please
turn off one of the equipments to eliminate the interference.
Product Assurance: This camera will emit electromagnetic
wave, just like other wireless products, however, its
transmitting power is less than other wireless products such
as mobile phones. The 2.4GHz wireless camera meets wireless
frequency security standards and recommended indexes
while working. These standards and indexes are certificated
by academic organization and represent the cogitative
research of the scientific workers who continuously explore
and annotate the involved fields. So we believe that our
products are safe for customers.
Approval Information
All our products meet the requirements of approval FCC or
CE, and are granted the FCC or CE certification. They are
authorized to bear FCC or CE mark.
FCC
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
Features
» 380TV lines clear picture display » 95° view angle for wide
eyeshot» IP65 water resistance design for outdoor usage »
Automatically start up the rear view images while reversing »
2.4”LCD screen display for vivid and bright images» Easy
installation, suitable for cars and buses
Package Contents
This package comes with the following items. Please check
whether they are all included in the packaging box, if one or
some is missing, contact the retailer for replacement.

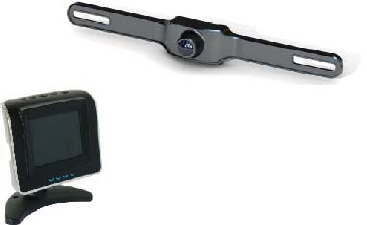

① Camera x1
② LCD Monitor x1
③ Detector x1
④ Power Cable for Camera x1
⑤ Power Cable for Receiver x1
⑥ Mounting Hardware x1
⑦ Double Face Tape x1
⑧ User’s Manual x1
Note:
The picture may vary from the actual object.

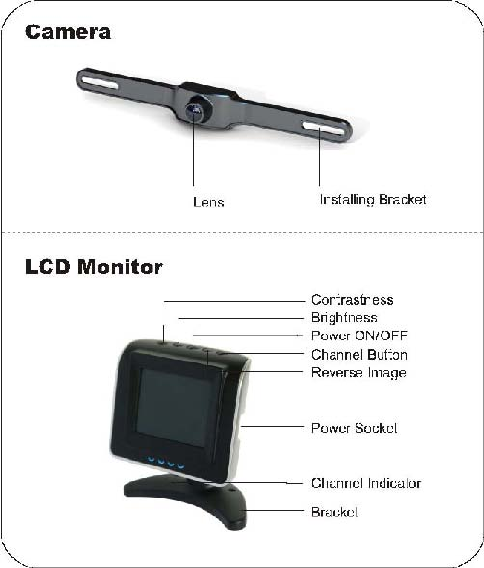

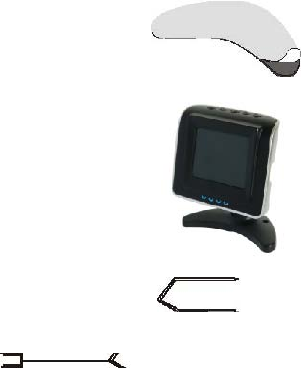

Feature Locations
INSTALLATION
We strongly recommend you ask qualified technician or
maintenance engineer to install this device. Improper
installation of this monitor may cause battery leakage or
short circuit. Please follow steps below to install the product.
LCD Monitor Installation
Camera Installation

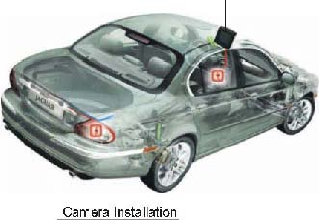

Camera Installation
1 Remove the screws from the license bracket,
locate the camera on the license bracket and screw them
tightly.
2 Put the power wires in order and put them
through the hole of the license bracket then place them on the
trunk for connection.

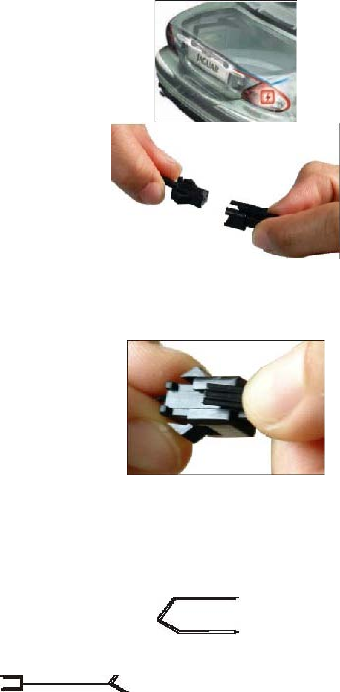

3 Connect the black pin of the camera to the black
pin of the power cable.
Note: Press the buckle on the black pin of the power cable to
unplug the black pins.
4. Use the detector to detect the wire near reversing lights on
the rear car body to find reversing power then
connect the wire correctly. (Refer to Find Reversing Power
section on Page8)
Red wire connects to reversing
power
Black wire grounded
Power Jack
Find Reversing Power
How to use the detector to find the power from the reverse
power?
1 Step on the reverse gear.
2 Clip the pincers to the metal of the car body.
3 Use the red pen to find the power by thrusting
into the tape. Make sure the penpoint touch the wire core.
4 If the LED light is on, find out the light wires.
5 Push the switch to the parking and use the red
pen to detect it, if the light turns off, then the wire is the
reverse power.
6 Connect the reverse power wire with the red
wire of the camera and tie them together with the electronic
tape.
LCD Installation
1 Before permanently mounting the monitor,
please clean the mounting place. And let it dry thoroughly.
Stick the monitor bracket bottom with double tape face
and press firmly to adhere tightly.
2 Press the monitor bracket firmly onto the area
you just cleaned. Adhesive reaches maximum strength in 24
hours. Moving the fastener from its original position will
weaken the adhesive and may damage the mounting surface.
3 Adjust the angle for perfect viewing effect.
4 Connect the power jack to the monitor and
connect the black pin of the power jack with the black pin of
the prolong cable. (Refer to Find Anode +12V section on
Page10)

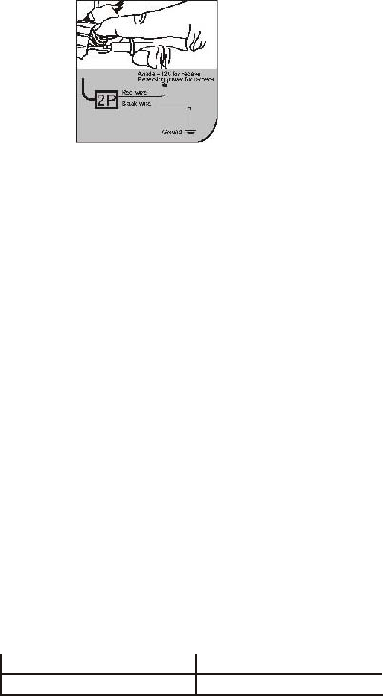

Red wire connects to Anode
+12V
Black wire grounded
Power Jack
Find Anode +12V
How to use the detector to find the power from the Anode
+12V?

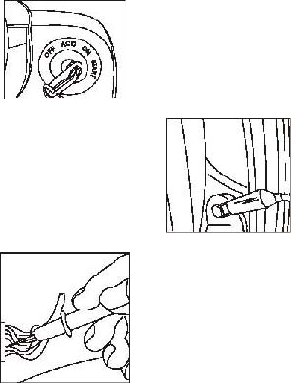

1 Tweak the key to the right side of the cigarette
lighter.
2 Clip the pincers to the metal of the car body.
3 Use the red pen to find the power by thrusting
into the thick tape. Make sure the penpoint touch the wire
core.
4 If the LED light is on, find out the light wires.
5 Tweak off the key, if the light turns off, then the
wire is the anode +12V.
6 Connect the anode +12V power wire with the red
wire of the receiver and tie them together with the electronic
tape
Find Ground Wire
Start the car and tweak the key reverse. Clip the pincers to
the reversing wire. Use the red pen to find the power by
thrusting into the tape (most of the ground wire are black
wires). If the light is on, the wire is ground wire. Then connect
the ground wire with the black wire of the camera and
receiver and tie them together with the electronic tape
The whole connection is finished! Then you can see the back
situationsvia the LCD monitor.While reversing, the LCD
monitor will display the back situations. However, it will
convert into standby mode in non-reversing status.
Maintenance
Do not shake or strike the product.
Do not disassemble or repair the camera; doing so
may cause damages to the product.
Do not use solvent such as gasoline, cleaner or
antistatic spray to clean the screen.
Turn off the camera/receiver if the system is not
in use.
The camera/receiver can only be completely
disconnected from the mains by unplugging the adapter.
Do not cut the DC power cable of the apparatus
to fit with another power source.
SPECIFICATIONS
Imaging Sensor CMOS
CMOS Total Pixels 510*492(NTSC) /
628*582(PAL)
n
smission Frequenc
y
ISM 2,400~2,483MHz
Transmission Distance Approximal 50m Without
Block
Operating Temperature -30~75℃/-22℉~+167℉
Storage Temperature -40~80℃/-40℉~+176℉
Operating HumidityCa ≦80%RH
Operating Conditionm Car, Bus and Truck
Signal Noise Radioera 40dB(AGC OFF)
Horizontal Resolution 380TV Lines
View Angle 95°
Minimum Illumination 1Lux/F2.0
Weatherproof Degree IP65
Power Supply DC 12V (Car Power
Supply)
Dimensions 260*32*34mm
Weight 100g
Display 2.4’’TFT
Receiving Sensitivity ≦-80dBm
LCD Resolution 480*240(DOT)
Signal Noise RadioDi 38dB
Operating Temperature
splay
0~50℃/32℉~+122℉
Storage Temperature -20~60℃/-4℉~+140℉
Power Supply DC12V(Car Power Suppl
y
)
Dimension 85*93*43mm
Weight 105g
* Specifications are subject to minor
change without prior notice.
TROUBLESHOOTING
When you experience the operation problems, please check
and try the following yourself before claiming that it is the
defective product or consulting the experienced technician.
Abnormal
Phenomena
Possible Reasons/Solutions
Check if the fuse is connected
well.
Monitor
does not
work
Check whether the camera/LCD
monitor connected to power
supply and powered on.
Check if the polarity of the
battery is fit properly.
Mismatching the TV system of
PAL or NTSC.
Interfered with other devices
nearby; Remove or turn off such
devices.
Check the
distance &
blocks.
The video is
unclear
The
temperature
in the car
may be too
cold or too
hot.
