AEE Wireless Technology LR255 Wireless Camera Receiver User Manual OM 601LD new
Shenzhen AEE Wireless Technology Co., Ltd. Wireless Camera Receiver OM 601LD new
Users Manual
English
User's Manual
2.4GHz Wireless
Remote Control Camera Kit
Model: 601LD
2.4GHz Wireless Camera BT601
2.4GHz Wireless Receiver LR255
Please read this manual carefully and thoroughly before any attempt to
install and operate this product and retain it for your future reference.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
EU Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.
TABLE OF CONTENTS
INTRODUCTION 1~3
Notice 1
Approval Information (FCC/CE) 1~2
Restrictions 3
Maintenance 3
PRODUCT 4~6
Package Contents 4
Feature Locations 5
Adapter 6
INSTALLATION & USAGE 7~10
Installation 7~8
Receiver Remote Control Function 9
Channel Looping Setup 10
SPECIFICATIONS 11
TROUBLESHOOTING 12
INTRODUCTION
Thank you for your interest and support in our product and purchasing
this wireless camera kit. This product works at ISM-2.4GHz frequency
band, which could be legally used worldwide without permission.
We f eel confident that you will be pleased with the quality and features
of this product.
The camera features one CMOS image sensor and a transmitting
module to capture the image and transmit them wirelessly.
The receiver features a receiving module to receive and output AV
signals.
Notice
Notice: This product may cause interferences with other wireless
equipment that operates at 2.4GHz ISM band. Please turn off one of
the equipments to eliminate the interference.
Product Assurance: This camera will emit electromagnetic wave,
just like other wireless products. But its transmitting power is less than
other wireless products such as mobile phones. The 2.4GHz wireless
camera meets wireless frequency security standards and recommended
indexes while working. These standards and indexes are certificated by
academic organization and represent the cogitative research of the
scientific workers who continuously explore and annotate the involved
fields. So we believe that our products are safe for customers.
Approval Information
All our products meet the requirements of approval FCC or CE, and
are granted the FCC or CE certification. They are authorized to bear
FCC or CE mark.
1
FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation Changes and
modification not expressly approved by the manufacturer or
registrant of this equipment can void your authority to operate this
equipment under Federal Communications Commissions rules.
CE
This product complies with standards including Low Voltage Device
Directive 73/23/EEC; EMC Directive 89/336/EEC and R&TTE
Directive 1999/5/EC. It passed the subject tests by the authority
concerned and is authorized to bear CE mark.
2
Restrictions
1. DO NOT use this product to violate one's privacy. Monitoring one's
activities without consent is illegal and this product is not designed
and manufactured for such purpose;
2. DO NOT put this product near any medical equipment. Radio
waves might potentially cause breakdown of electrical medical
equipment. So this product should be placed at least 1 feet away
from any heart pacemaker. Radio waves might potentially
influence heart pacemaker and lead to respiratory disturbance;
3. DO NOT use this product for any illegal activities. We shall not be
responsible for any consequences of illegal acts committed by the
user.
Maintenance
1. Ensure the sufficient ventilation space is available;
2. Do not shake or strike the product;
3. Keep it dry and dustless and avoid exposing it to direct sunlight;
4. Do not place product near any magnetic objects;
5. Avoid putting the product in places where the constantly changed
temperature or humidity occurs;
6. Keep product away from heat sources such as electric heater;
7. Do not use the camera near aggressive chemicals;
8. Do not use this camera near water, for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near
a swimming pool and the like;
9. Do not use the camera in the places which are enclosed by metal.
The surrounding metal like lifter, cabin, may shield the
electromagnetic wave, and result in failure of signal reception;
10. Please obey the local government's environment protection policy;
11. Please turn off the power when left unused;
12. Do not disassemble or repair the camera or receiver; doing so
might cause damages to the product.
3
PRODUCT
Package Contents
This package comes with the following items. Please check whether
they are all included in the packaging box, if one or some is missing,
contact the retailer for replacement.
① 2.4GHz wireless camera×1
② 2.4GHz wireless receiver×1
③Adapter for camera×1
④Adapter for receiver×1 ②
⑤AV cable×1
⑥ Earphone×1
×⑦User's manual 1 ⑤
① ③
④⑥
⑦
Note:
The picture may vary from the actual objects.
4

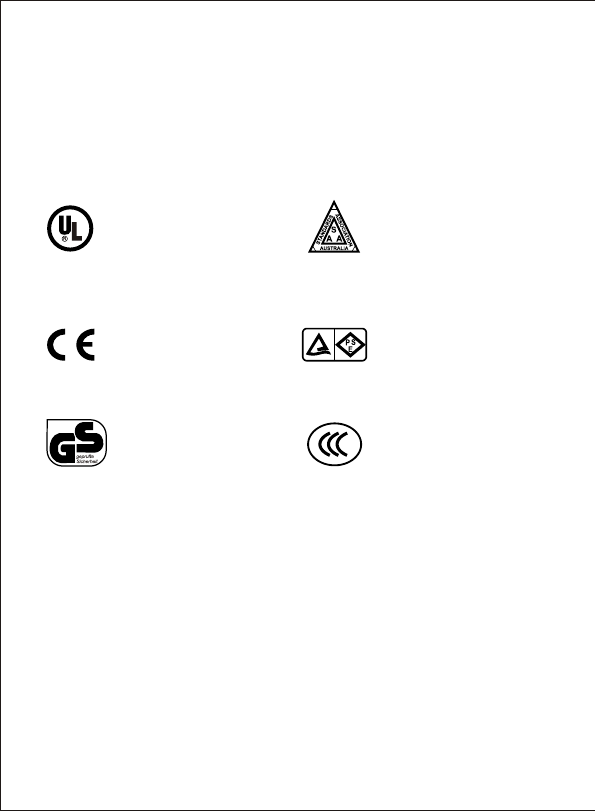

Adapter
This product always conforms to the authenticated AC adapter. The
adapter should be marked one of the following:
UL Mark SAA Mark
American power Australia power
supply authentication supply authentication
CE Mark PSE Mark
European Union power Japan power
supply authentication supply authentication
GS Mark CCC Mark
China power
supply authentication
German power
supply authentication
Note:
When using the power adapter, make sure the rating voltage on it is compatible
with that of the device to avoid potential damages resulting from incorrect usage
of power supply.
5
FEATURE
1. Camera
Base
Lens
Infrared Lights
Rotate Axis
(by Remote control)
Indicator
Channel Switch
Power Jack
Power Switch
Antenna
2. Receiver
Earphone Socket
Battery
Cover
Bracket
Antenna
Volume Control
Brightness Control
Power Switch
Channel
Indicator
LCD Screen
Camera Power Button
Camera Auto
Horizontal Rotation
Channel Button
Camera Manual
Horizontal Rotation
Camera Manual
Vertical Rotation
Power Jack
AV Output
6
INSTALLATION & USAGE

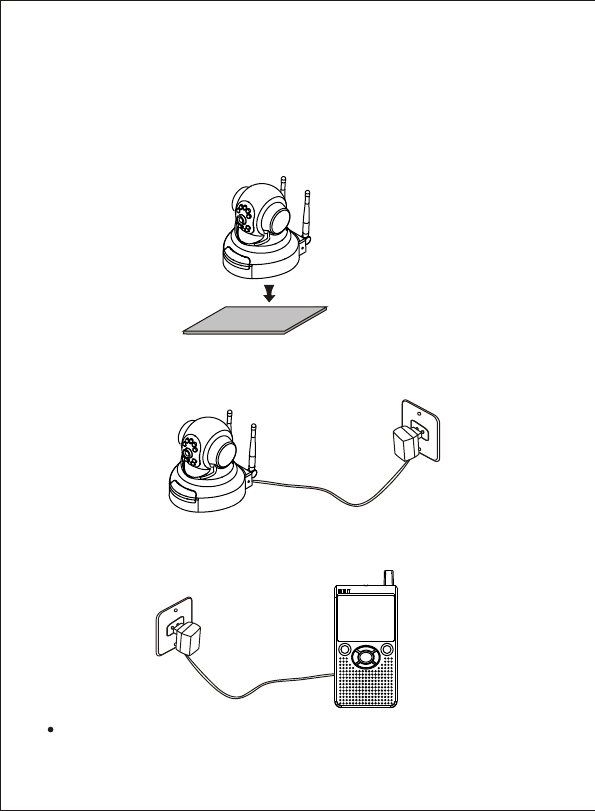

Installation
1. Locate the camera to a specific position.
2. Connect the camera to the adapter (DC 9V 1.5A) and then slide the
power switch to ON position. The power indicator lights up.
3. Connect the receiver to the adapter (DC 9V 1.5A) and slide the power
switch to ON position.
Notes:

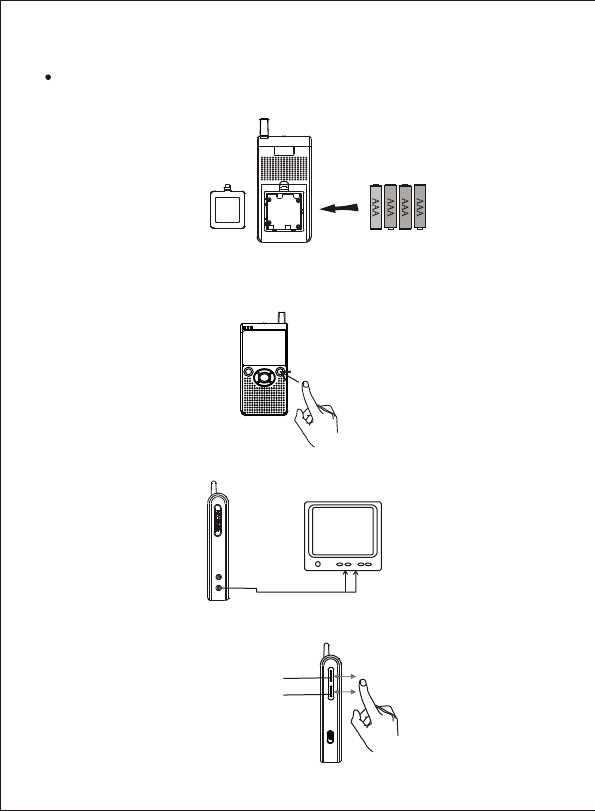

This receiver can also work on dry battery. Please load 4 AAA batteries to the
battery compartment with their polarities matched.
7
The AC adapter will work instead of batteries after it is plugged. If the receiver is
left unused for a long time, please unplug the adapter and remove the batteries.
4. Set the channel of receiver same as that of camera by pressing the
channel button continuously, and the pictures are displayed on the
LCD screen.
Note:
For more clear pictures, please connect the receiver to a monitor/TV with AV cable.
Monitor/TV
5. Adjust the brightness and volume of the receiver to a satisfied level.
Volume Control
Brightness Control
8

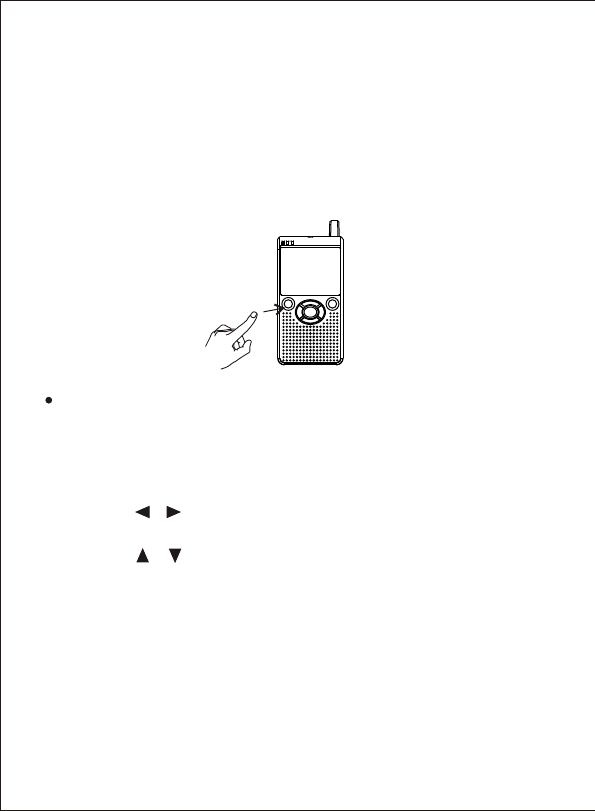

Receiver Remote Control Function
The receiver can remote control the power and direction of the camera.
The operation is as below.
Remotely control the camera's power
Press the CAM. ON/OFF button on the receiver to power on the camera;
press the button again to power off.
Note:
If the channel indicator CH1 on the receiver lights up, the camera at channel 1
can be remote controlled.
Remotely control the camera's direction
1. Press the AUTO button on the receiver to activate the camera's auto
horizontal rotation function. Press again to disable the function.
2. Press the / button on the receiver to rotate the camera at
horizontal direction manually. The max. angle is 180 degree.
3. Press the / button on the receiver to rotate the camera
at vertical direction manually. The max. angle is 60 degree.
9
Channel Looping Setup
The receiver supports up to 3 cameras working at the same time. You
could press and hold the CHANNEL button on the receiver for 2 seconds
to enable the automatic looping function. T he channels are shown on
the monitor/TV one by one every 5 seconds.
Press the CHANNEL button on the receiver again to exit the looping
function.

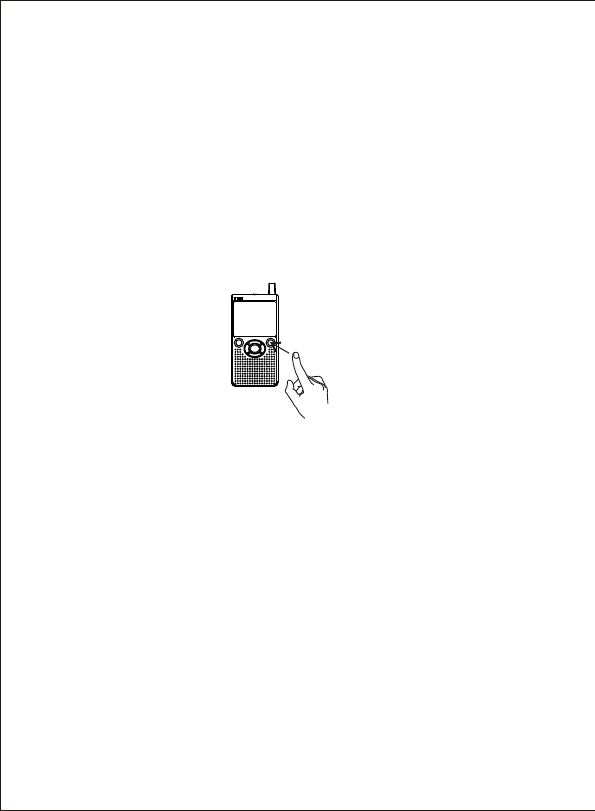

You can press the CHANNEL button to manually select the channel.
10
SPECIFICATIONS
CAMERA
Imaging Sensor CMOS
CMOS Total Pixels 628 ×582(PAL);510 ×492(NTSC)
View Angle 62o
Minimum Illumination 0Lux
Transmission Frequency ISM 2,400MHz~2,483MHz
Transmission Power 10mW/CE; 2mW/FCC
Modulation Type FM
Bandwidth 18MHz
Power Supply +9VDC
Consumption Current 600mA & 700mA(IR ON)
Horizontal Rotating Angle 180o
Vertical Rotating Angle 60o
Unobstructed Effective Range 100m
Night Vision Range 5m
Dimensions(W ×D ×H) 104 ×110 ×124(mm)
Weight 260g
RECEIVER
LCD 2.5" TFT
LCD Resolution 480 ×234
Receiving Frequency ISM 2,400MHz~2,483MHz
Intermediate Frequency 480MHz
Demodulation Type FM
Receiving Sensitivity ≤-85dBm
Power Supply +9VDC
Consumption Current 300mA
Dimensions(W ×D ×H) 68 ×149 ×26(mm) (Excluding Antenna)
Weight 170g
Operating Temperature o o o o
0 C~+50 C/+32 F~+122 F
Storage Temperature o o o o
-20 C~+80 C/-4 F~+176 F
Operating Humidity 85%RH
*Channel Frequency: CH1=2,414MHz; CH2=2,432MHz; CH3=2,468MHz.
*Actual transmission range may vary according to weather, location, interference and building
construction.
*All the specifications are subject to minor change without prior notice.
11

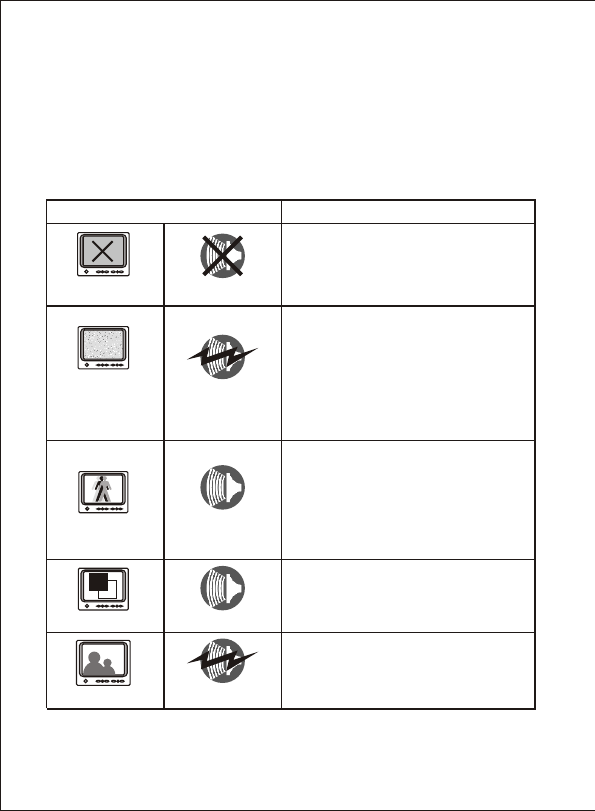

TROUBLESHOOTING
When you experience the operation problems, please check and try the
following yourself before claiming that it is the defective product or
consulting the experienced technician.
Trouble Possible Solution
No image No sound
1. Check the power supply.
2. Make sure that both the camera and
receiver are connected with power
adapter.
Snowflake
Image Noisy sound
1. Check the receiver channel setting
to make sure that the channel is set
to match the camera.
2. Make sure that the receiver is within
certain distance to the camera.
3. Move the receiver in another nearby
position for a better reception.
Shaded picture Normal sound
1. Make sure that the receiver is within
certain distance to the camera and
there is block between the receiver
and the camera
2. Move the receiver in another nearby
position for a better reception.
No color Normal sound
Mismatching system of TV (monitor)
and cameras.
Normal image Noisy sound
Interfered with other devices nearby;
Remove or turn off such devices.
12
